1. Programming the Real-world
Introduction to SPOT
Peng Deng
∑ SUMLab
CSSE University of Melbourne

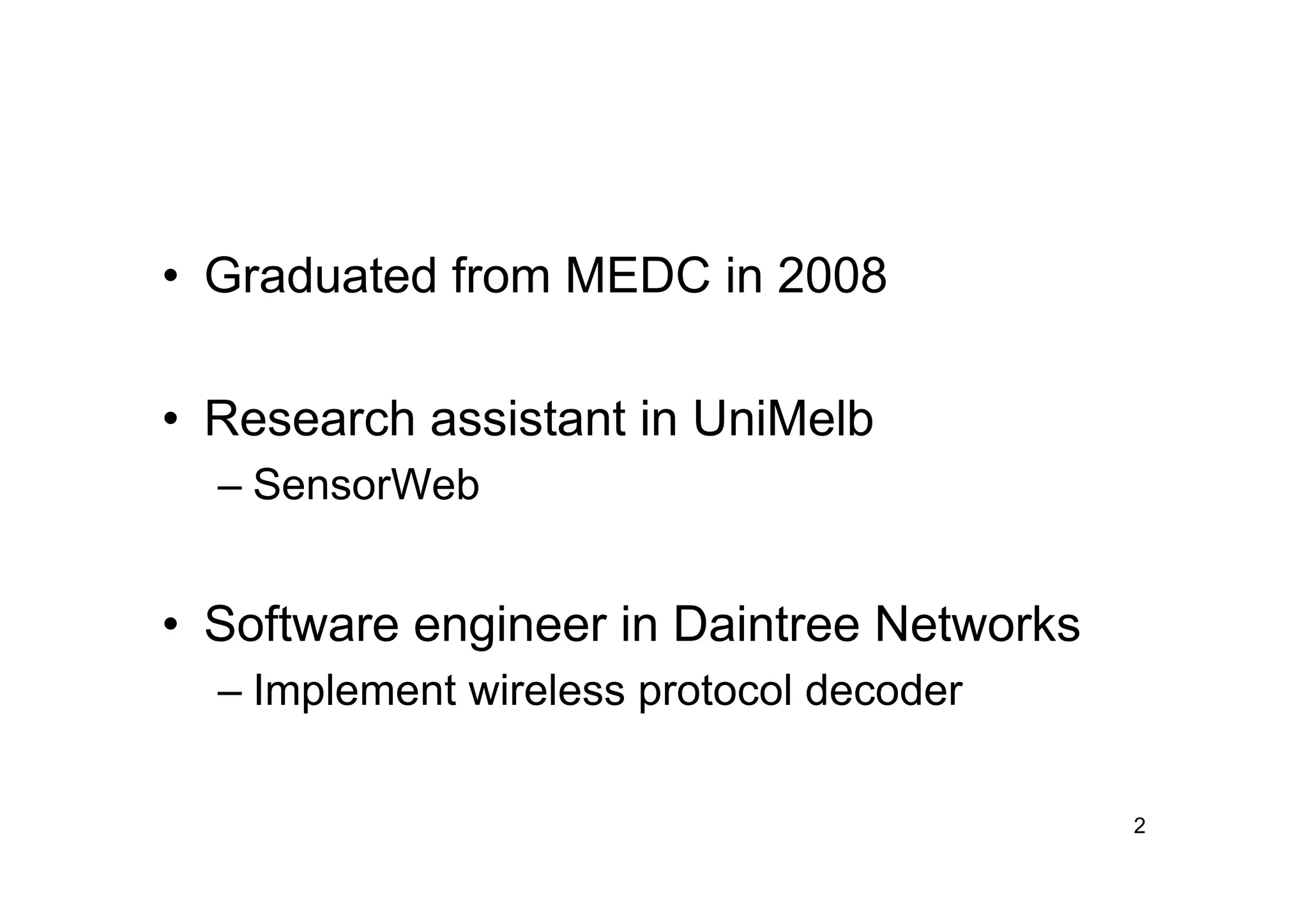

2. • Graduated from MEDC in 2008
• Research assistant in UniMelb
– SensorWeb
• Software engineer in Daintree Networks
– Implement wireless protocol decoder
2

3. Agenda
• Introduction
– Evolution of Computing
– WSN
• Sun SPOT
– What is SPOT
– Hardware and Software
• Tutorial
• Application Demos
• My Projects
3

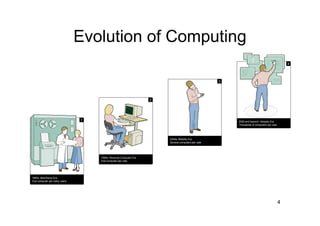

4. Evolution of Computing
4
2020 and beyond: Ubiquity Era
Thousands of computers per user.
4

5. Wireless Sensor Network
• Small-scale sensor nodes
• Wireless communication
• Large scale of deployment
• Unattended operation
• ……
• Environmental monitoring
• Security
• Defence
• Bioinformatics and health
• Transportation management
• Chemical detection and emergency response
5

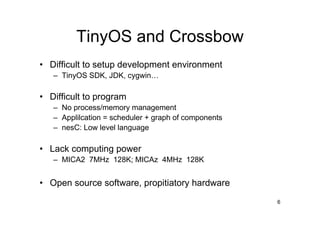

6. TinyOS and Crossbow
• Difficult to setup development environment
– TinyOS SDK, JDK, cygwin…
• Difficult to program
– No process/memory management
– Applilcation = scheduler + graph of components
– nesC: Low level language
• Lack computing power
– MICA2 7MHz 128K; MICAz 4MHz 128K
• Open source software, propitiatory hardware
6

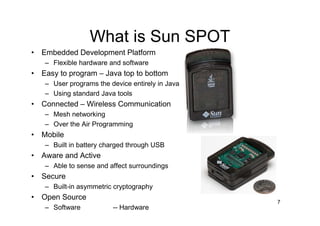

7. What is Sun SPOT
• Embedded Development Platform
– Flexible hardware and software
• Easy to program – Java top to bottom
– User programs the device entirely in Java
– Using standard Java tools
• Connected – Wireless Communication
– Mesh networking
– Over the Air Programming
• Mobile
– Built in battery charged through USB
• Aware and Active
– Able to sense and affect surroundings
• Secure
– Built-in asymmetric cryptography
• Open Source
7
– Software -- Hardware

8. Sun SPOT Hardware
2.4 GHz IEEE
802.15.4 Radio
Antenna
Module
CC2420
180 MHz 32 bit
512K RAM
ARM920T core 4M Flash
USB interface
with
Daughter board mini-B connector
connector
8
Power switch

9. Sun SPOT Hardware [cont.]

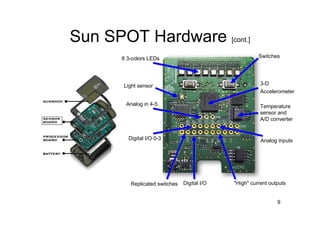

8 3-colors LEDs Switches
Light sensor 3-D
Accelerometer
Analog in 4-5 Temperature
sensor and
A/D converter
Digital I/O 0-3 Analog inputs
Replicated switches Digital I/O "High" current outputs
9

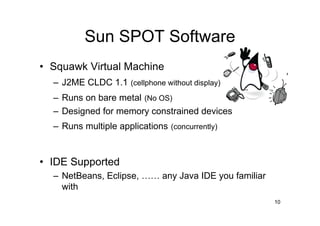

10. Sun SPOT Software
• Squawk Virtual Machine
– J2ME CLDC 1.1 (cellphone without display)
– Runs on bare metal (No OS)
– Designed for memory constrained devices
– Runs multiple applications (concurrently)
• IDE Supported
– NetBeans, Eclipse, …… any Java IDE you familiar
with
10

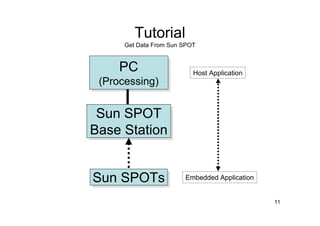

11. Tutorial
Get Data From Sun SPOT
PC
PC Host Application
(Processing)
(Processing)
Sun SPOT
Sun SPOT
Base Station
Base Station
Sun SPOTs
Sun SPOTs Embedded Application
11

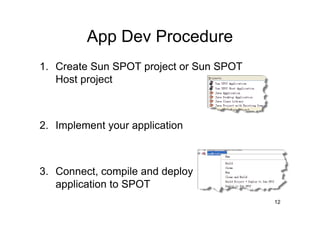

12. App Dev Procedure
1. Create Sun SPOT project or Sun SPOT
Host project
2. Implement your application
3. Connect, compile and deploy
application to SPOT
12

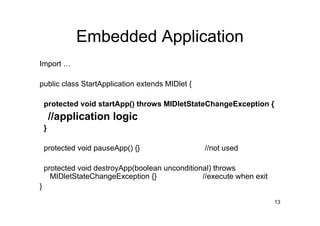

13. Embedded Application
Import …
public class StartApplication extends MIDlet {
protected void startApp() throws MIDletStateChangeException {
//application logic
}
protected void pauseApp() {} //not used
protected void destroyApp(boolean unconditional) throws
MIDletStateChangeException {} //execute when exit
}
13

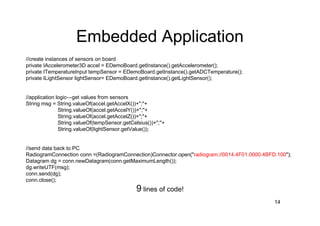

14. Embedded Application
//create instances of sensors on board
private IAccelerometer3D accel = EDemoBoard.getInstance().getAccelerometer();
private ITemperatureInput tempSensor = EDemoBoard.getInstance().getADCTemperature();
private ILightSensor lightSensor= EDemoBoard.getInstance().getLightSensor();
//application logic—get values from sensors
String msg = String.valueOf(accel.getAccelX())+";"+
String.valueOf(accel.getAccelY())+";"+
String.valueOf(accel.getAccelZ())+";"+
String.valueOf(tempSensor.getCelsius())+";"+
String.valueOf(lightSensor.getValue());
//send data back to PC
RadiogramConnection conn =(RadiogramConnection)Connector.open("radiogram://0014.4F01.0000.4BFD:100");
Datagram dg = conn.newDatagram(conn.getMaximumLength());
dg.writeUTF(msg);
conn.send(dg);
conn.close();
9 lines of code!
14

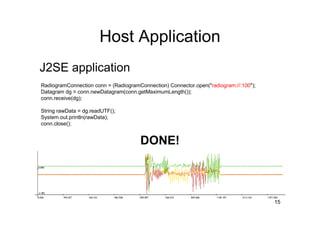

15. Host Application
J2SE application
RadiogramConnection conn = (RadiogramConnection) Connector.open("radiogram://:100");
Datagram dg = conn.newDatagram(conn.getMaximumLength());
conn.receive(dg);
String rawData = dg.readUTF();
System.out.println(rawData);
conn.close();
DONE!
15

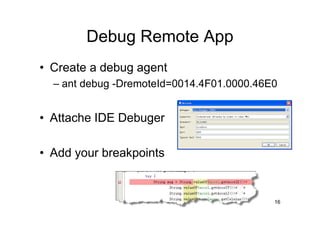

16. Debug Remote App
• Create a debug agent
– ant debug -DremoteId=0014.4F01.0000.46E0
• Attache IDE Debuger
• Add your breakpoints
16

17. Applications
17

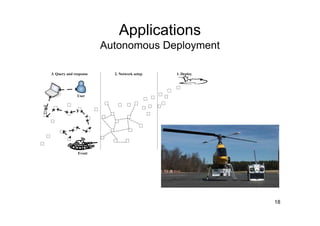

18. Applications
Autonomous Deployment
18

19. Applications

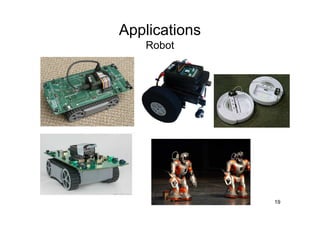

Robot
19

20. Applications

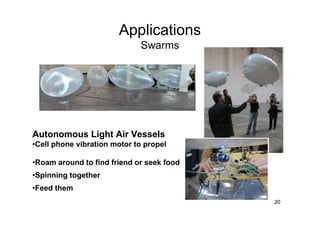

Swarms
Autonomous Light Air Vessels
•Cell phone vibration motor to propel
•Roam around to find friend or seek food
•Spinning together
•Feed them
20

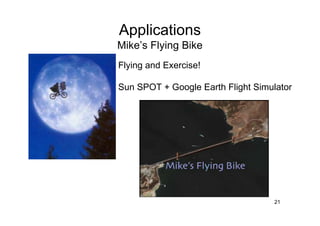

21. Applications
Mike’s Flying Bike
Flying and Exercise!
Sun SPOT + Google Earth Flight Simulator
21

22. Applications
SPOTkin
Sun SPOT + Pumpkin?
22

23. My Projects

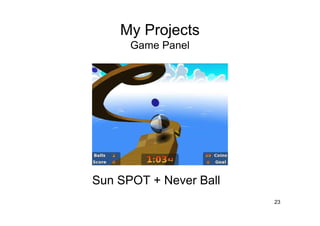

Game Panel
Sun SPOT + Never Ball
23

24. My Projects

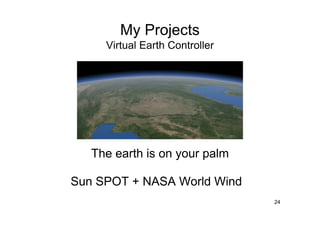

Virtual Earth Controller
The earth is on your palm
Sun SPOT + NASA World Wind
24

25. My Projects
Gesture Recognition
Facts:
1.Multi-attributes; 2. Data stream
Challenges:
1.Recognition; 2. Segmentation
Solutions:
1.Machine Learning; 2. Threshold+std dev
Accuracy: 17% ~ 97%
25

26. Q&A

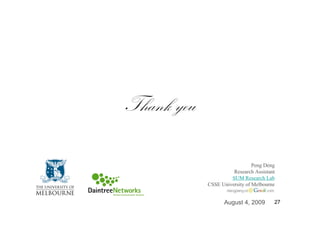

27. Thank you
Peng Deng
Research Assistant
SUM Research Lab
CSSE University of Melbourne
August 4, 2009 27
