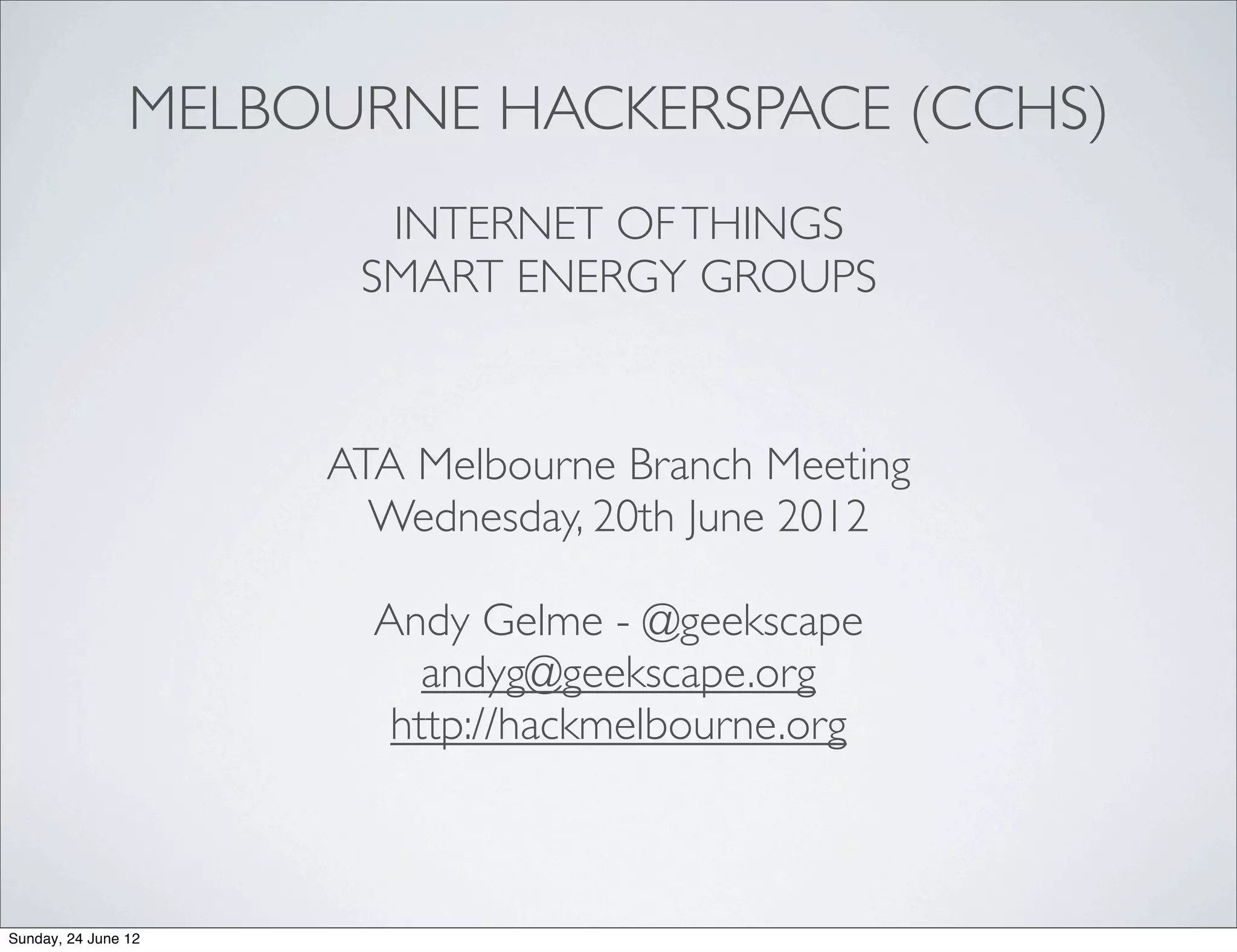

1. MELBOURNE HACKERSPACE (CCHS)
INTERNET OF THINGS
SMART ENERGY GROUPS
ATA Melbourne Branch Meeting
Wednesday, 20th June 2012
Andy Gelme - @geekscape
andyg@geekscape.org
http://hackmelbourne.org
Sunday, 24 June 12

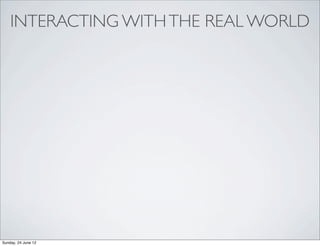

2. INTERACTING WITH THE REAL WORLD
Sunday, 24 June 12

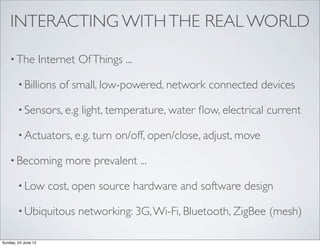

3. INTERACTING WITH THE REAL WORLD
• The Internet Of Things ...
• Billions of small, low-powered, network connected devices
• Sensors, e.g light, temperature, water flow, electrical current
• Actuators, e.g. turn on/off, open/close, adjust, move
• Becoming more prevalent ...
• Low cost, open source hardware and software design
• Ubiquitous networking: 3G, Wi-Fi, Bluetooth, ZigBee (mesh)
Sunday, 24 June 12

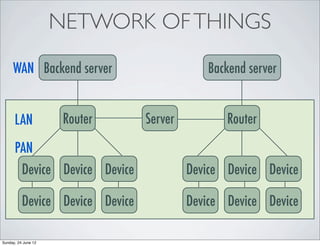

4. NETWORK OF THINGS
WAN Backend server Backend server
LAN Router Server Router
PAN
Device Device Device Device Device Device
Device Device Device Device Device Device
Sunday, 24 June 12

5. ARDUINO OVERVIEW
Sunday, 24 June 12

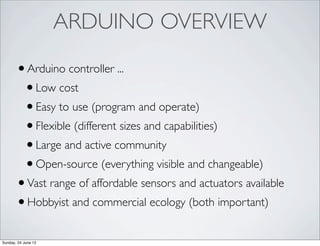

6. ARDUINO OVERVIEW
• Arduino controller ...
• Low cost
• Easy to use (program and operate)
• Flexible (different sizes and capabilities)
• Large and active community
• Open-source (everything visible and changeable)
• Vast range of affordable sensors and actuators available
• Hobbyist and commercial ecology (both important)
Sunday, 24 June 12

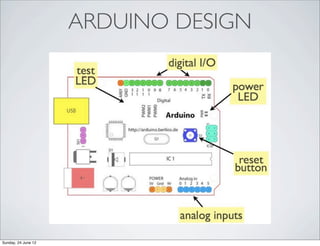

7. ARDUINO DESIGN
Sunday, 24 June 12

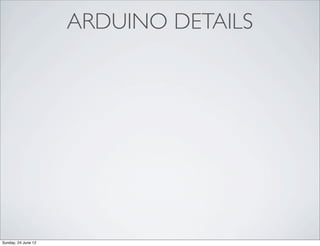

8. ARDUINO DETAILS
Sunday, 24 June 12

9. ARDUINO DETAILS
• What is an Arduino (some history)
• System on a chip ...
• Microprocessor and Memory (Flash, RAM, EEPROM)
• 13 Digital Input or Output pins
• 6 Analog Input pins
• Simulate Analog output using Pulse Width Modulation
• Standard board form factor (physical layout)
• Shields (daughter boards)
• Standard cross-platform programming environment
Sunday, 24 June 12

10. NETWORK OF THINGS
WAN Backend server Backend server
LAN Router Server Router
PAN
Device Device Device Device Device Device
Device Device Device Device Device Device
Sunday, 24 June 12

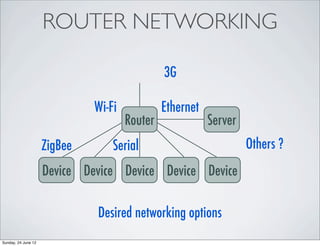

11. ROUTER NETWORKING
3G
Wi-Fi Ethernet
Router Server
ZigBee Serial Others ?
Device Device Device Device Device
Desired networking options
Sunday, 24 June 12

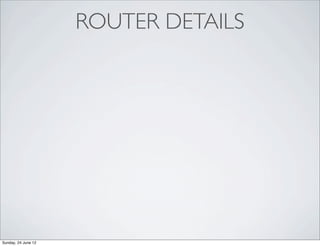

12. ROUTER DETAILS
Sunday, 24 June 12

13. ROUTER DETAILS

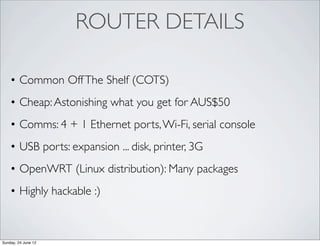

• Common Off The Shelf (COTS)
• Cheap: Astonishing what you get for AUS$50
• Comms: 4 + 1 Ethernet ports, Wi-Fi, serial console
• USB ports: expansion ... disk, printer, 3G
• OpenWRT (Linux distribution): Many packages
• Highly hackable :)
Sunday, 24 June 12

14. PROTOCOLS
Sunday, 24 June 12

15. PROTOCOLS
• Low-power devices and networks need small messages
• MQTT (Message Queue Telemetry Transport)
• Connect, Publish, Subscribe, Ping, Disconnect
• Topics
• Asynchronous messages
• Last will and testament (in case of failure)
• Aiko platform: Software for the Internet of Things (M2M)
Sunday, 24 June 12

16. NETWORK OF THINGS
WAN Backend server Backend server
LAN Router Server Router
PAN
Device Device Device Device Device Device
Device Device Device Device Device Device
Sunday, 24 June 12

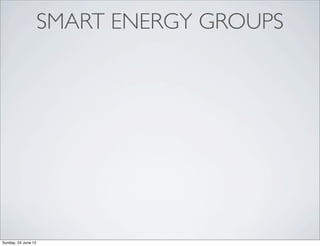

17. SMART ENERGY GROUPS
Sunday, 24 June 12

18. SMART ENERGY GROUPS

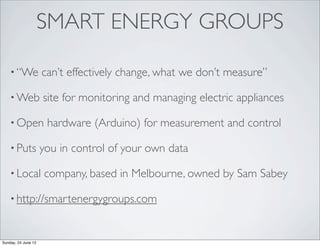

• “We can’t effectively change, what we don’t measure”
• Web site for monitoring and managing electric appliances
• Open hardware (Arduino) for measurement and control
• Puts you in control of your own data
• Local company, based in Melbourne, owned by Sam Sabey
• http://smartenergygroups.com
Sunday, 24 June 12

19. SMART
ENERGY
GROUPS
WEB BASED
USER INTERFACE
Sunday, 24 June 12

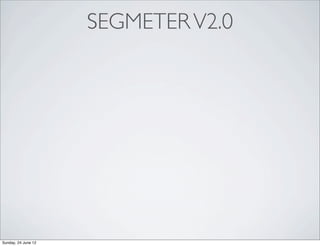

20. SEGMETER V2.0
Sunday, 24 June 12

21. SEGMETER V2.0
Sunday, 24 June 12

22. SEGMETER V2.0

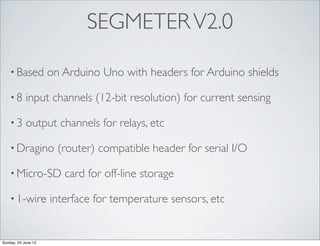

• Based on Arduino Uno with headers for Arduino shields
•8 input channels (12-bit resolution) for current sensing
•3 output channels for relays, etc
• Dragino (router) compatible header for serial I/O
• Micro-SD card for off-line storage
• 1-wire interface for temperature sensors, etc
Sunday, 24 June 12

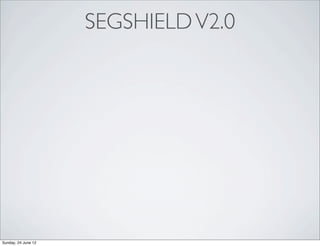

23. SEGSHIELD V2.0
Sunday, 24 June 12

24. SEGSHIELD V2.0
Sunday, 24 June 12

25. SEGSHIELD V2.0

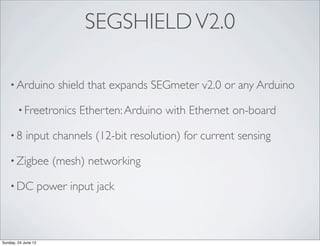

• Arduino shield that expands SEGmeter v2.0 or any Arduino
• Freetronics Etherten: Arduino with Ethernet on-board
•8 input channels (12-bit resolution) for current sensing
• Zigbee (mesh) networking
• DC power input jack
Sunday, 24 June 12

26. SEG PROTOTYPING V2.0
Sunday, 24 June 12

27. SEG PROTOTYPING V2.0
Sunday, 24 June 12

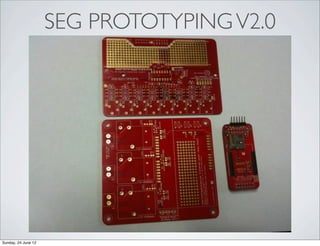

28. SEG PROTOTYPING V2.0

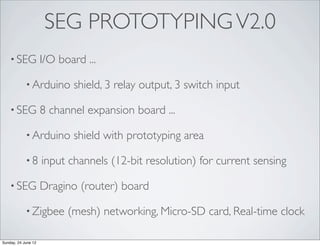

• SEG I/O board ...
• Arduino shield, 3 relay output, 3 switch input
• SEG 8 channel expansion board ...
• Arduino shield with prototyping area
•8 input channels (12-bit resolution) for current sensing
• SEG Dragino (router) board
• Zigbee (mesh) networking, Micro-SD card, Real-time clock
Sunday, 24 June 12

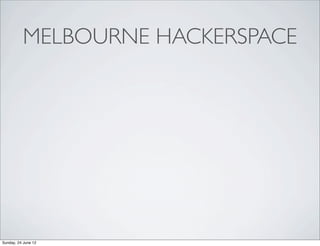

29. MELBOURNE HACKERSPACE
Sunday, 24 June 12

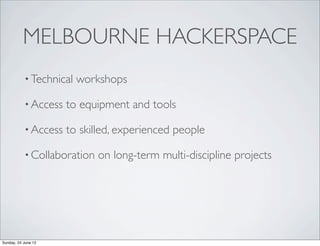

30. MELBOURNE HACKERSPACE
• Technical workshops
• Access to equipment and tools
• Access to skilled, experienced people
• Collaboration on long-term multi-discipline projects
Sunday, 24 June 12

31. AN INVITATION
Interested in building or installing your own Smart Meter ?
Gauging interest for running a workshop.
Come along and join us
andyg@geekscape.org
http://hackmelbourne.org
https://sites.google.com/site/aikoplatform
http://smartenergygroups.com
