1. Ten Productivity Tips For Altium
Designer That Seem To Be Hidden.
Carl Schattke, Sr. PCB Design Engineer, Tesla Motors, Inc.
Copyright 2011 All rights reserved

2. 10+ Altium Designer Productivity Tips
1. How to walk through the nets in a design to check it.
2. How to manage layer sets
3. Using net name prefixes on nets to set up classes quickly.
4. How to use schematic net names to ease class definition for rules setup.
5. How to get the total match net lengths on extended nets in a few seconds.
6. How to find that last small unconnected net on a big design.
7. How to place a drill drawing stack up table with all the parameters
8. Method for how to close out test point usage errors on a large design.
9. How to tag team placement with multiple users when your not all on SVN together.
10. How to use unions and rooms to ease placement
11. How to delete a one or more long traces quickly
12. How to move stuff from one layer to another
13. How to tile your schematics and board into two panes quickly
14. How to use the layer stack manager to show placement and test point keepouts
15. How to bring a spreadsheet into Altium.
16. How to change layer names to keep track of them better
17. Move selections by X,Y
18. Edit Move Polygons
19. Microsoft tip - Use Alt-Tab to switch between open windows.

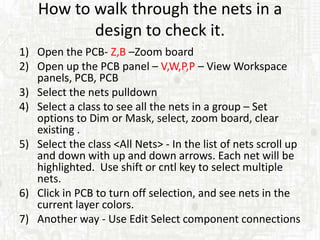

3. How to walk through the nets in a
design to check it.
1) Open the PCB- Z,B –Zoom board
2) Open up the PCB panel – V,W,P,P – View Workspace
panels, PCB, PCB
3) Select the nets pulldown
4) Select a class to see all the nets in a group – Set
options to Dim or Mask, select, zoom board, clear
existing .
5) Select the class <All Nets> - In the list of nets scroll up
and down with up and down arrows. Each net will be
highlighted. Use shift or cntl key to select multiple
nets.
6) Click in PCB to turn off selection, and see nets in the
current layer colors.
7) Another way - Use Edit Select component connections

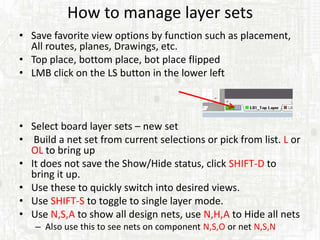

4. How to manage layer sets
• Save favorite view options by function such as placement,
All routes, planes, Drawings, etc.
• Top place, bottom place, bot place flipped
• LMB click on the LS button in the lower left
• Select board layer sets – new set
• Build a net set from current selections or pick from list. L or
OL to bring up
• It does not save the Show/Hide status, click SHIFT-D to
bring it up.
• Use these to quickly switch into desired views.
• Use SHIFT-S to toggle to single layer mode.
• Use N,S,A to show all design nets, use N,H,A to Hide all nets
– Also use this to see nets on component N,S,O or net N,S,N

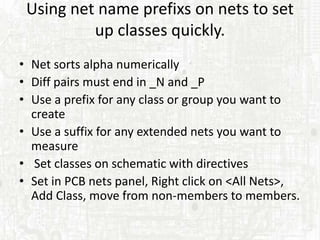

5. Using net name prefixs on nets to set
up classes quickly.
• Net sorts alpha numerically
• Diff pairs must end in _N and _P
• Use a prefix for any class or group you want to
create
• Use a suffix for any extended nets you want to
measure
• Set classes on schematic with directives
• Set in PCB nets panel, Right click on <All Nets>,
Add Class, move from non-members to members.

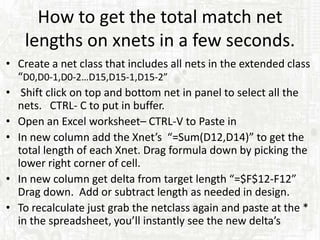

6. How to get the total match net
lengths on xnets in a few seconds.
• Create a net class that includes all nets in the extended class
“D0,D0-1,D0-2…D15,D15-1,D15-2”
• Shift click on top and bottom net in panel to select all the
nets. CTRL- C to put in buffer.
• Open an Excel worksheet– CTRL-V to Paste in
• In new column add the Xnet’s “=Sum(D12,D14)” to get the
total length of each Xnet. Drag formula down by picking the
lower right corner of cell.
• In new column get delta from target length “=$F$12-F12”
Drag down. Add or subtract length as needed in design.
• To recalculate just grab the netclass again and paste at the *
in the spreadsheet, you’ll instantly see the new delta’s

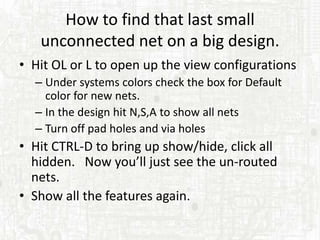

7. How to find that last small
unconnected net on a big design.
• Hit OL or L to open up the view configurations
– Under systems colors check the box for Default
color for new nets.
– In the design hit N,S,A to show all nets
– Turn off pad holes and via holes
• Hit CTRL-D to bring up show/hide, click all
hidden. Now you’ll just see the un-routed
nets.
• Show all the features again.

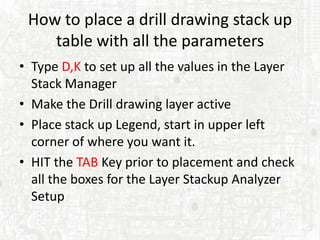

8. How to place a drill drawing stack up
table with all the parameters
• Type D,K to set up all the values in the Layer
Stack Manager
• Make the Drill drawing layer active
• Place stack up Legend, start in upper left
corner of where you want it.
• HIT the TAB Key prior to placement and check
all the boxes for the Layer Stackup Analyzer
Setup

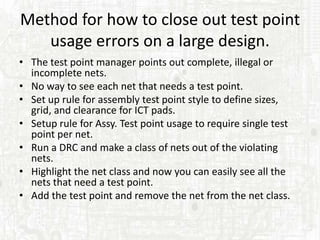

9. Method for how to close out test point
usage errors on a large design.
• The test point manager points out complete, illegal or
incomplete nets.
• No way to see each net that needs a test point.
• Set up rule for assembly test point style to define sizes,
grid, and clearance for ICT pads.
• Setup rule for Assy. Test point usage to require single test
point per net.
• Run a DRC and make a class of nets out of the violating
nets.
• Highlight the net class and now you can easily see all the
nets that need a test point.
• Add the test point and remove the net from the net class.

10. How to tag team placement with multiple users
when your not all on SVN together.
• First group parts in rooms and separate rooms around board
• Define work on one room at a time for each user so you can work in
parallel.
• Keep a master PCB and make a slave copy for others
• Import process load both master and slave PCB’s.
• Delete parts off of the master that are done on slave.
• Select all the work done on the slave. Use CTRL-C and pick the
origin or a mounting hole on grid
• Use E, A to edit, paste special. Click on keep net names and keep
classes. Insert with CTRL-V at the EXACT point you picked in the
slave.
• Do a Design update to check if you deleted all the parts on the
master and update classes in the PCB.
• Assign the next room for placement and send out a new slave PCB.
~The new PCB, Collaborate Compare and Merge, works if all are on
SVN together or if you just want to compare two PCB’s.

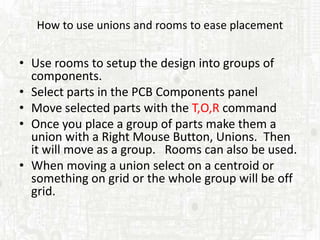

11. How to use unions and rooms to ease placement
• Use rooms to setup the design into groups of
components.
• Select parts in the PCB Components panel
• Move selected parts with the T,O,R command
• Once you place a group of parts make them a
union with a Right Mouse Button, Unions. Then
it will move as a group. Rooms can also be used.
• When moving a union select on a centroid or
something on grid or the whole group will be off
grid.

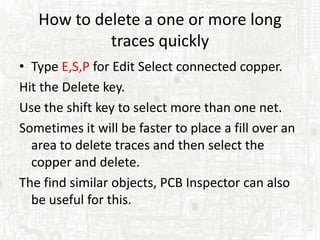

12. How to delete a one or more long
traces quickly
• Type E,S,P for Edit Select connected copper.
Hit the Delete key.
Use the shift key to select more than one net.
Sometimes it will be faster to place a fill over an
area to delete traces and then select the
copper and delete.
The find similar objects, PCB Inspector can also
be useful for this.

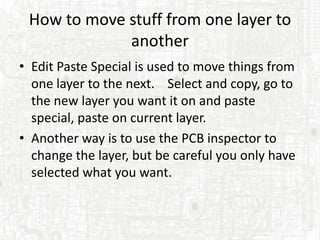

13. How to move stuff from one layer to
another
• Edit Paste Special is used to move things from
one layer to the next. Select and copy, go to
the new layer you want it on and paste
special, paste on current layer.
• Another way is to use the PCB inspector to
change the layer, but be careful you only have
selected what you want.

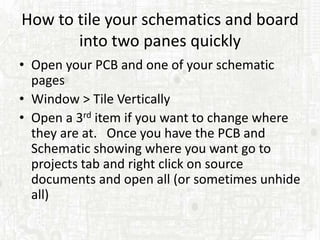

14. How to tile your schematics and board
into two panes quickly
• Open your PCB and one of your schematic
pages
• Window > Tile Vertically
• Open a 3rd item if you want to change where
they are at. Once you have the PCB and
Schematic showing where you want go to
projects tab and right click on source
documents and open all (or sometimes unhide
all)

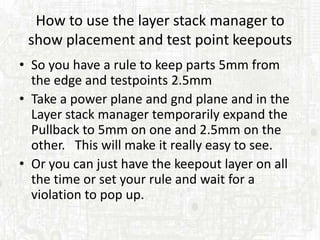

15. How to use the layer stack manager to
show placement and test point keepouts
• So you have a rule to keep parts 5mm from
the edge and testpoints 2.5mm
• Take a power plane and gnd plane and in the
Layer stack manager temporarily expand the
Pullback to 5mm on one and 2.5mm on the
other. This will make it really easy to see.
• Or you can just have the keepout layer on all
the time or set your rule and wait for a
violation to pop up.

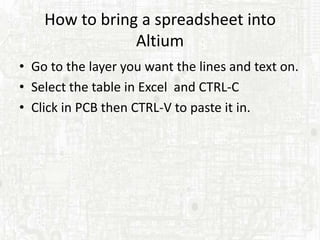

16. How to bring a spreadsheet into
Altium
• Go to the layer you want the lines and text on.
• Select the table in Excel and CTRL-C
• Click in PCB then CTRL-V to paste it in.

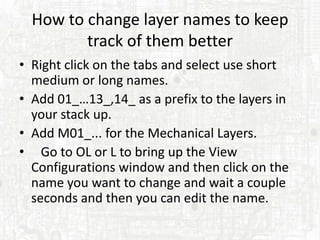

17. How to change layer names to keep
track of them better
• Right click on the tabs and select use short
medium or long names.
• Add 01_…13_,14_ as a prefix to the layers in
your stack up.
• Add M01_... for the Mechanical Layers.
• Go to OL or L to bring up the View
Configurations window and then click on the
name you want to change and wait a couple
seconds and then you can edit the name.

18. Move selections by X,Y
• Select the stuff you want and then Edit Select
move by XY Put in the exact distances you
want to move the selections.
• Remember you can toggle the X and Y and this
might save some typing. Also the positive and
negative can toggle.

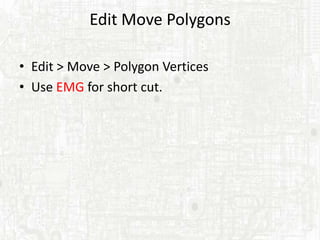

19. Edit Move Polygons
• Edit > Move > Polygon Vertices
• Use EMG for short cut.

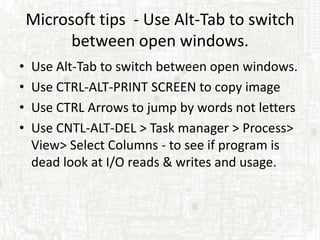

20. Microsoft tips - Use Alt-Tab to switch
between open windows.
• Use Alt-Tab to switch between open windows.
• Use CTRL-ALT-PRINT SCREEN to copy image
• Use CTRL Arrows to jump by words not letters
• Use CNTL-ALT-DEL > Task manager > Process>
View> Select Columns - to see if program is
dead look at I/O reads & writes and usage.

21. More Productivity tips!!!
• Altium Learning Guides: http://www.altium.com/community/learning-guides/en/learning-guides_home.cfm#
• Scripts in Altium Designer: http://www.altium.com/files/pdfs/Increaseyourproductivity.pdf
• 52 Time Saving Windows Tips: http://vitamincm.com/windows-shortcuts-tips/
• Johns Blog Altium Designer tips: http://www.johnstowers.co.nz/blog/index.php/reference/altium-designer-tips/
• Blackstick Altium Tips: http://www.blackstick.co.uk/blog/?tag=altium-tips
• Bluechip Highspeed Tips: http://fplreflib.findlay.co.uk/articles/37941/HiSpeedDesignTutorialforAltiumDesigner_long.pdf
• Altium Twitter: http://twitter.com/#!/altium
• Altium Live Videos: http://altiumvideos.live.altium.com/#Detail/1026
• Click on a button you never did before and see what it does!
Carl Schattke can be contacted at carl@schattke.org or at 888-204-3704
