The document provides technical specifications for various power factor correction equipment including capacitors, reactors, filters, and control relays. It summarizes key ratings and features of LT and HT capacitors, power factor control relays, capacitor switching contactors, detuned harmonic filters, automatic harmonic filter panels, HT capacitors and reactors, and OSFM active filters. The equipment is designed to improve power quality and power factor in industrial electrical systems.

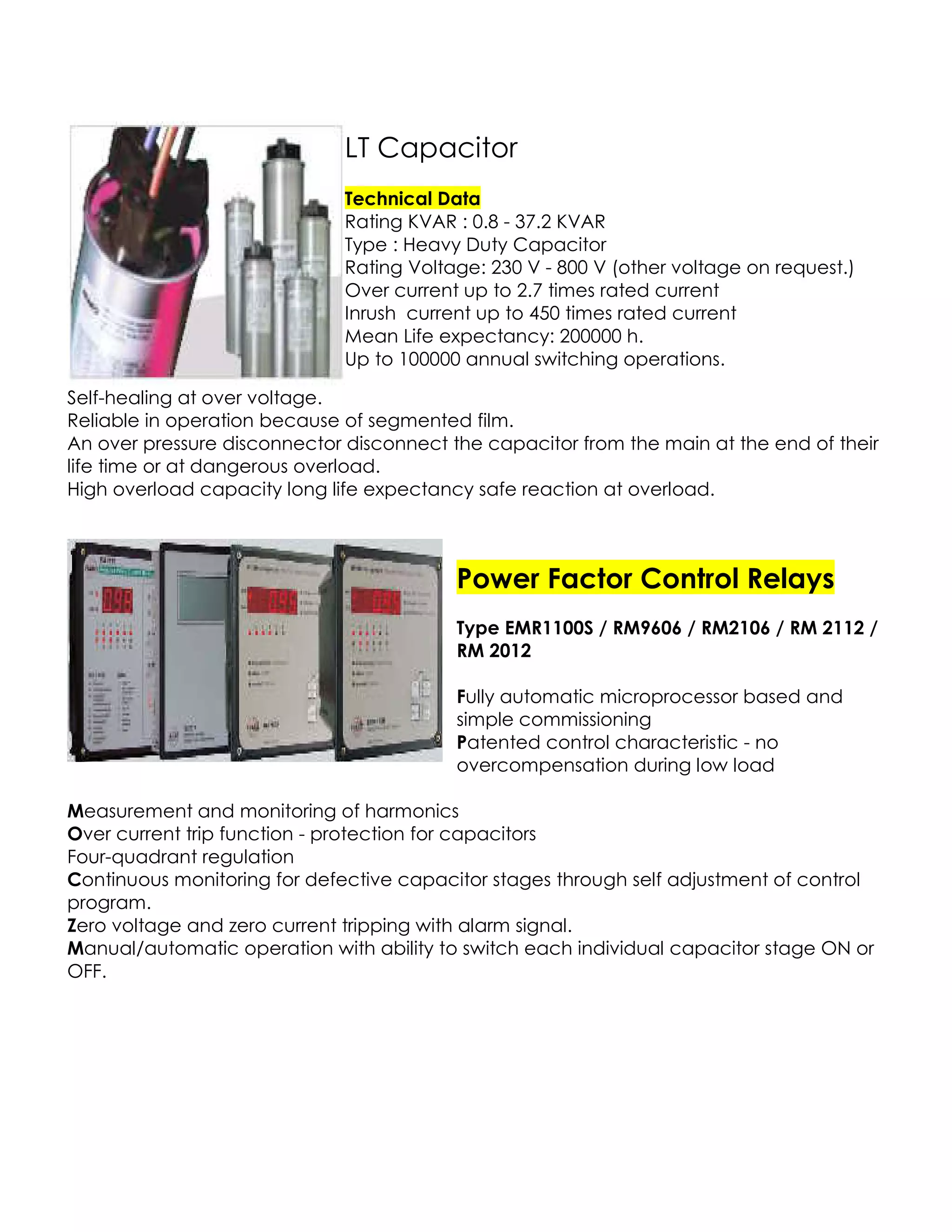

1. LT Capacitor
Technical Data
Rating KVAR : 0.8 - 37.2 KVAR
Type : Heavy Duty Capacitor
Rating Voltage: 230 V - 800 V (other voltage on request.)
Over current up to 2.7 times rated current
Inrush current up to 450 times rated current
Mean Life expectancy: 200000 h.
Up to 100000 annual switching operations.
Self-healing at over voltage.
Reliable in operation because of segmented film.
An over pressure disconnector disconnect the capacitor from the main at the end of their
life time or at dangerous overload.
High overload capacity long life expectancy safe reaction at overload.
Power Factor Control Relays
Type EMR1100S / RM9606 / RM2106 / RM 2112 /
RM 2012
Fully automatic microprocessor based and
simple commissioning
Patented control characteristic - no
overcompensation during low load
Measurement and monitoring of harmonics
Over current trip function - protection for capacitors
Four-quadrant regulation
Continuous monitoring for defective capacitor stages through self adjustment of control
program.
Zero voltage and zero current tripping with alarm signal.
Manual/automatic operation with ability to switch each individual capacitor stage ON or
OFF.

2. Capacitor Switching Contactors
Technical Data
System Voltage : 400........660 V
Rated KV AR : 10 to 200 KVAR
Patented design with significant damping on inrush –
current
Long-life contactors tested by FRAKO up to 100,000
switching operations Suitable for unchoked and
choked Power Factor Correction Systems Very high
operational reliability
Improved voltage quality through chatter -proofed
switching operations
High operational reliability of the power factor correction system.
The advantages include:
Significant damping of in-rush current
Improvement in voltage quality during the switching process
Extended life of capacitors
High operational reliability if power factor correction system
Extension of the maintenance periods of the power factor correction system
Suitable for choked and unchoked power factor correction systems due to leading
transition contacts opening during permanent operation
Features that matter:
Patented design with significant dampening of inrush current
Long-life contactors tested by FRAKO up to 100,000 switching operators
Suitable for choked and unchoked power factor correction systems
Very high operational reliability
Capacitor contactors for choked power factor correction system:
When choked power factor correction systems are switched, the peak-switching current is
essentially lower because of the high inductivity of the harmonic filter reactor as with
unchoked power factor correction systems.
By using special wear resistant contact material for these applications it is possible it is possible
to use capacitor contactors without series resistors.
The advantages include:
Safe switching (On & Off) of choked capacitor steps
Improved voltage quality through chatter proofed switching operations
Extended life of the contactor ( > 100,000 switching operations)
High operational reliability of the power factor correction system

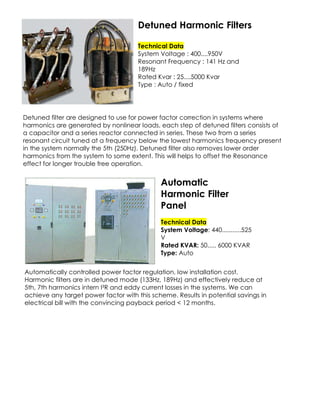

3. Detuned Harmonic Filters
Technical Data
System Voltage : 400....950V
Resonant Frequency : 141 Hz and
189Hz
Rated Kvar : 25....5000 Kvar
Type : Auto / fixed
Detuned filter are designed to use for power factor correction in systems where
harmonics are generated by nonlinear loads, each step of detuned filters consists of
a capacitor and a series reactor connected in series. These two from a series
resonant circuit tuned at a frequency below the lowest harmonics frequency present
in the system normally the 5th (250Hz). Detuned filter also removes lower order
harmonics from the system to some extent. This will helps to offset the Resonance
effect for longer trouble free operation.
Automatic
Harmonic Filter
Panel
Technical Data
System Voltage: 440...........525
V
Rated KVAR: 50..... 6000 KVAR
Type: Auto
Automatically controlled power factor regulation, low installation cost.
Harmonic filters are in detuned mode (133Hz, 189Hz) and effectively reduce at
5th, 7th harmonics intern I²R and eddy current losses in the systems. We can
achieve any target power factor with this scheme. Results in potential savings in
electrical bill with the convincing payback period < 12 months.

4. HT Capacitors
Technical Data
Rating KVAR: Single Unit of 50 KVAR ... 300
KVAR
Rating Voltage : 11 KV, 22 KV, 33KV
Type : Indoor / Outdoor
Manufactured in all Polypropylene, Dielectric (Film + Foil), Non PCB
Impregnated, Watt Loss - 0.10 Watt / KVAR (max.) Aluminum Foil, Internally fitted
resistor, Discharge time within 10 minutes. Max. permissible over current 130% of
the rated current, Rated Frequency 50 Hz, Single Phase Insulation Level 28 KV /
75 KV
The Capacitor comply with the requirements of IEC 60871-1, IEC 60871-2 &
IEC60871-4
HT Reactors
Technical Data
Type : Dry Type / Oil Natural Cooled
(ONAN)
Ref. Standard : IS 5553 - Part 3 - 1990,
Frequency 50 Hz, Insulation Class A,
Rated
continuous current 130% of the rated
current, P = 6%. Air Core Aluminum / Copper Wound. Epoxy
impregnated.
Short Time Current for 2 Sec. = 16.66 Times the rated current.
Application: Line End / Neutral end of capacitors. For harmonic suppression
and inrush current limiting. Fortuned application also.

5. HT Automatic
Harmonic Power
Factor Solution Panel
Technical Data
System Voltage: 3.3 KV.......6.6 KV, 11
KV
Filter tuned to: 5th, 7th, and 11th,
13th
Rated KVAR: 450..... 5000 KVAR
Type: Auto/fixed
We in collaboration with Claritas power are pioneer in proving complete
(tuned + detuned) HT AHPFC scheme with advance technology and
latest state of art in technical collaboration with FRAKO Germany. This
effectively reduces the losses at HT bus avoid over compensation,
improve system stability by injecting reactive power in line with Network
load requirement in auto mode with EMR 1100 S AHPFC relay
HT Capacitor Bank &
Associated Equipments
Technical Data
Systems Voltage : 3.3 KV....66KV, 3.3
KV....66KV
Rated KVAR : 50 KVAR....10 MVar
with series Reactor
High voltage power capacitor units include a wide range of one and
three-phase all film power and surge protection capacitors. Featuring
the most modern technology, they are produced to meet the
requirements of different climatic and operating conditions. They can be
open or enclosed, high or low power, fixed power, integrated or for use
with individual motors.

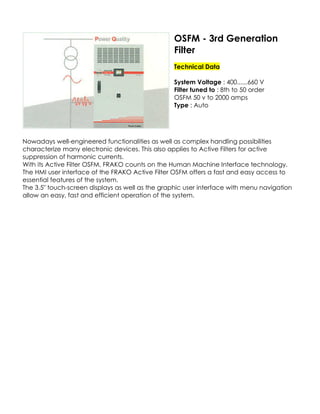

6. OSFM - 3rd Generation
Filter
Technical Data
System Voltage : 400......660 V
Filter tuned to : 8th to 50 order
OSFM 50 v to 2000 amps
Type : Auto
Nowadays well-engineered functionalities as well as complex handling possibilities
characterize many electronic devices. This also applies to Active Filters for active
suppression of harmonic currents.
With its Active Filter OSFM, FRAKO counts on the Human Machine Interface technology.
The HMI user interface of the FRAKO Active Filter OSFM offers a fast and easy access to
essential features of the system.
The 3.5" touch-screen displays as well as the graphic user interface with menu navigation
allow an easy, fast and efficient operation of the system.
