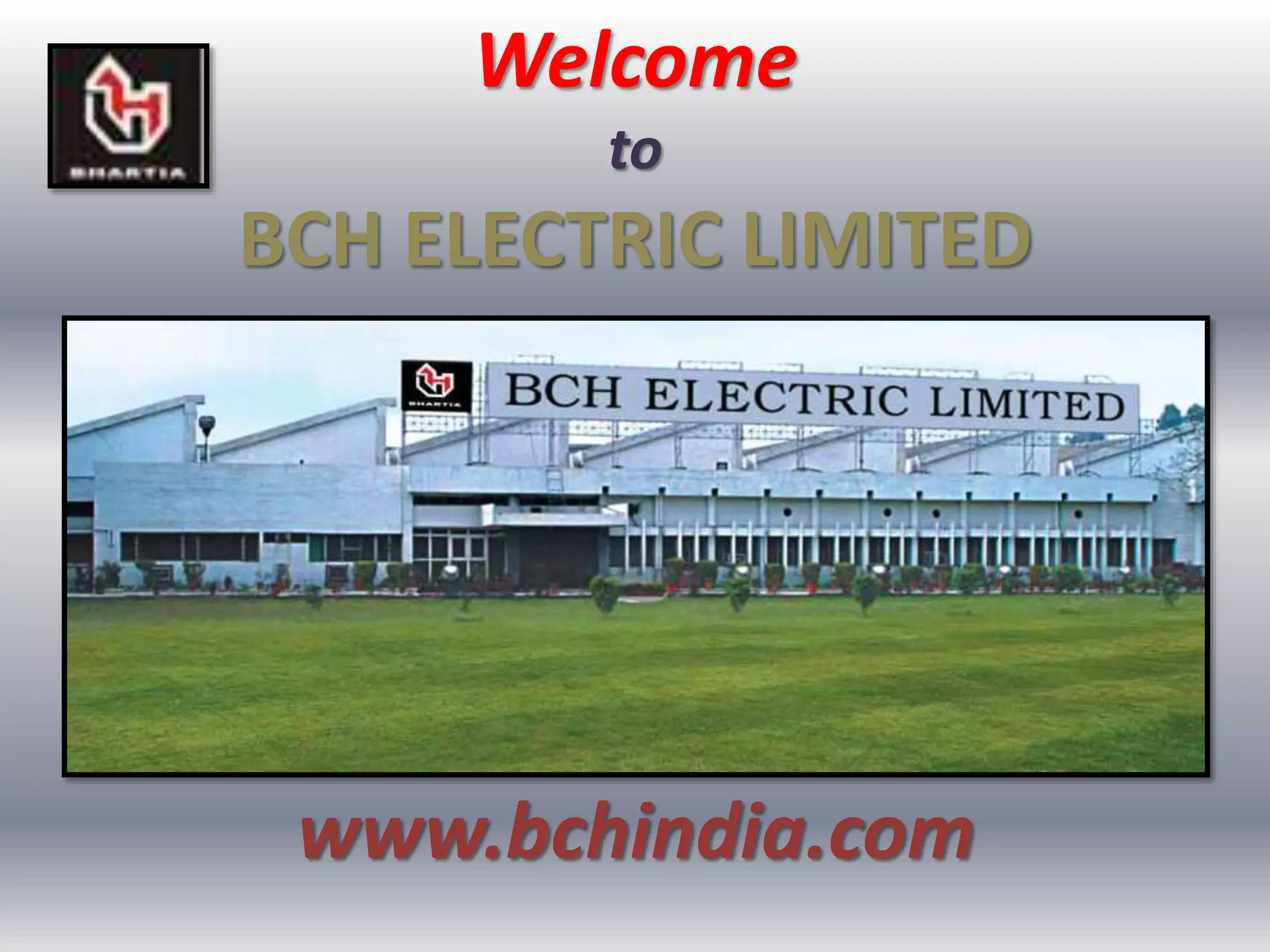

1. Welcome
to
BCH ELECTRIC LIMITED
www.bchindia.com

2. Industrial Products
MCCB (Terasaki)
(Moulded Case Circuit Breakers)
Clear trip Indication
Eco Plus MCCBs
* Ratings from 16A to 250A
* Rated at 50° C to suit Indian
conditions
* 3 Pole
* Fixed Thermal and Fixed
Magnetic
* CE Marked (EP-100 & EP-125
www.bchindia.com

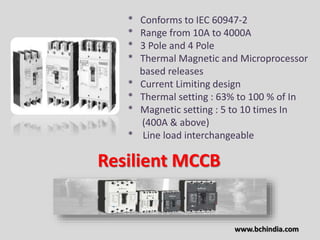

3. * Conforms to IEC 60947-2
* Range from 10A to 4000A
* 3 Pole and 4 Pole
* Thermal Magnetic and Microprocessor
based releases
* Current Limiting design
* Thermal setting : 63% to 100 % of In
* Magnetic setting : 5 to 10 times In
(400A & above)
* Line load interchangeable
Resilient MCCB
www.bchindia.com

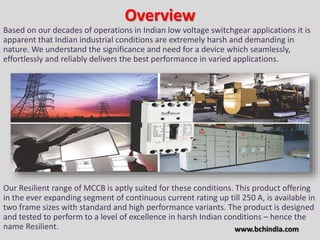

4. Overview
Based on our decades of operations in Indian low voltage switchgear applications it is
apparent that Indian industrial conditions are extremely harsh and demanding in
nature. We understand the significance and need for a device which seamlessly,
effortlessly and reliably delivers the best performance in varied applications.
Our Resilient range of MCCB is aptly suited for these conditions. This product offering
in the ever expanding segment of continuous current rating up till 250 A, is available in
two frame sizes with standard and high performance variants. The product is designed
and tested to perform to a level of excellence in harsh Indian conditions – hence the
name Resilient. www.bchindia.com

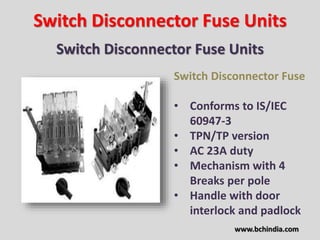

5. Switch Disconnector Fuse Units
Switch Disconnector Fuse Units
Switch Disconnector Fuse
• Conforms to IS/IEC
60947-3
• TPN/TP version
• AC 23A duty
• Mechanism with 4
Breaks per pole
• Handle with door
interlock and padlock
www.bchindia.com

6. Power Factor Controller
* LT Power Capacitors – Box Type
* LT Power Capacitors – Cylindrical Type
* Automatic Power Factor Controllers (APFC Relays)
* Intelligent Power Factor Controllers (IPFC Relays
* Network Analysers
* APFC Panels
Heavy Duty
* MA/C/CE/TER Series
Other Voltages (230 / 400 / 415 / 480 / 525 / 690 V) available on request
Product also available for other voltage request
Heavy Duty
* Re-inforced MA/C/CE/RTF Series
www.bchindia.com

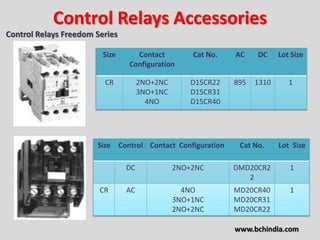

7. Control Relays Accessories
Control Relays Freedom Series
Size Contact
Configuration
Cat No. AC DC Lot Size
CR 2NO+2NC
3NO+1NC
4NO
D15CR22
D15CR31
D15CR40
895 1310 1
Size Control Contact Configuration Cat No. Lot Size
DC 2NO+2NC DMD20CR2
2
1
CR AC 4NO
3NO+1NC
2NO+2NC
MD20CR40
MD20CR31
MD20CR22
1
www.bchindia.com

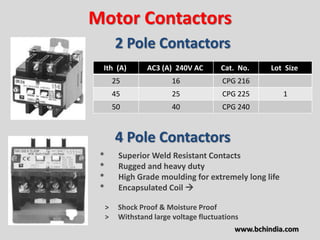

8. Motor Contactors
Ith (A) AC3 (A) 240V AC Cat. No. Lot Size
25 16 CPG 216
45 25 CPG 225 1
50 40 CPG 240
2 Pole Contactors
4 Pole Contactors
* Superior Weld Resistant Contacts
* Rugged and heavy duty
* High Grade moulding for extremely long life
* Encapsulated Coil 
> Shock Proof & Moisture Proof
> Withstand large voltage fluctuations
www.bchindia.com

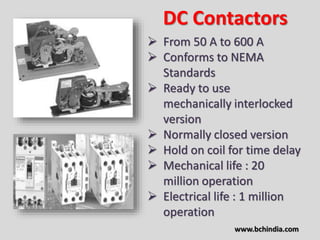

9. DC Contactors
 From 50 A to 600 A
 Conforms to NEMA
Standards
 Ready to use
mechanically interlocked
version
 Normally closed version
 Hold on coil for time delay
 Mechanical life : 20
million operation
 Electrical life : 1 million
operation
www.bchindia.com

10. DC Brakes
 Limit switch attachment
 Manual release
 Residual magnetism
adjustment
 Shunt and Series differently-sized versions 
 8 Inch to 30 Inch
 160 mm to 800 mm
 Conforms to NEMA and AISE standards
 Fail safe operation
 Unique design for maximum torque and minimum shoe wear
Brakes equivalent to Russian ‘TKπ ‘ design are also available
 Heavy duty encapsulated coil with class ‘F’ insulation
www.bchindia.com

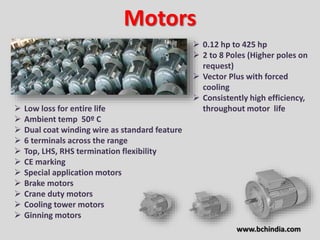

11. Motors
 0.12 hp to 425 hp
 2 to 8 Poles (Higher poles on
request)
 Vector Plus with forced
cooling
 Consistently high efficiency,
throughout motor life Low loss for entire life
 Ambient temp 50º C
 Dual coat winding wire as standard feature
 6 terminals across the range
 Top, LHS, RHS termination flexibility
 CE marking
 Special application motors
 Brake motors
 Crane duty motors
 Cooling tower motors
 Ginning motors
www.bchindia.com

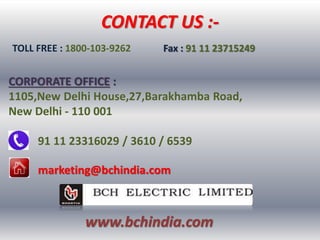

12. CONTACT US :-
TOLL FREE : 1800-103-9262 Fax : 91 11 23715249
CORPORATE OFFICE :
1105,New Delhi House,27,Barakhamba Road,
New Delhi - 110 001
91 11 23316029 / 3610 / 6539
