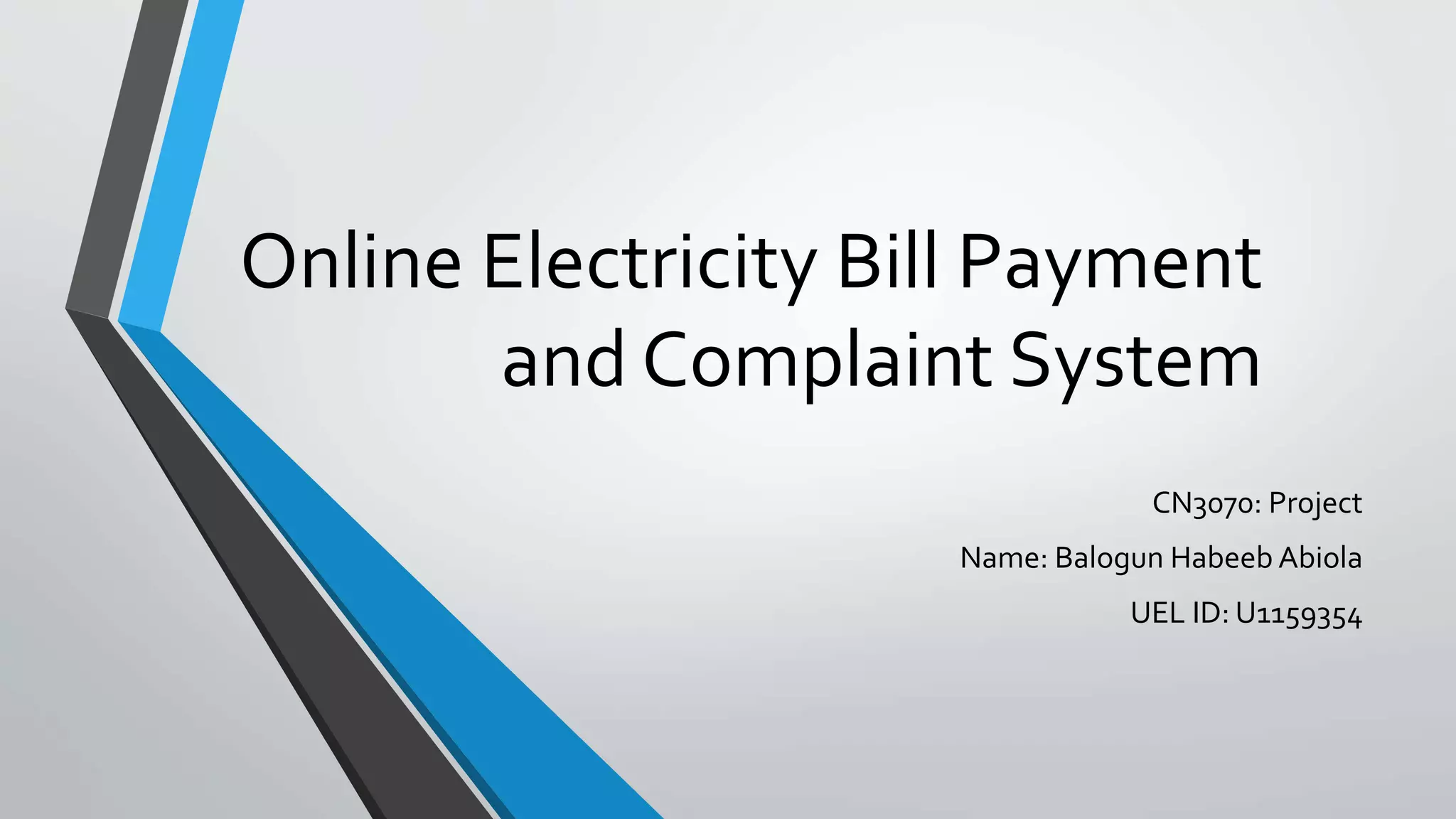

1. Online Electricity Bill Payment
and Complaint System
CN3070: Project
Name: Balogun Habeeb Abiola
UEL ID: U1159354

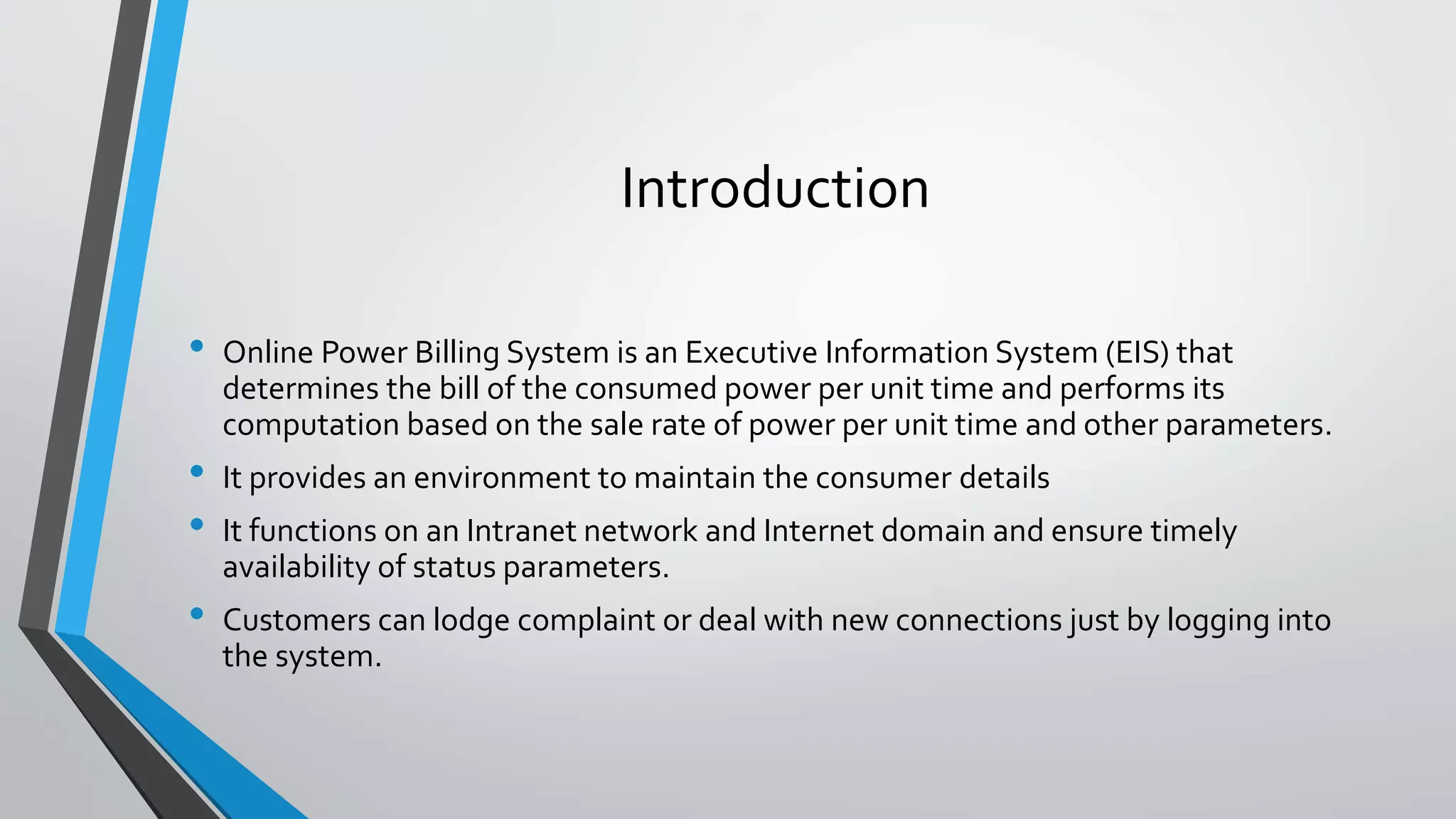

2. Introduction
• Online Power Billing System is an Executive Information System (EIS) that
determines the bill of the consumed power per unit time and performs its
computation based on the sale rate of power per unit time and other parameters.
• It provides an environment to maintain the consumer details
• It functions on an Intranet network and Internet domain and ensure timely
availability of status parameters.
• Customers can lodge complaint or deal with new connections just by logging into
the system.

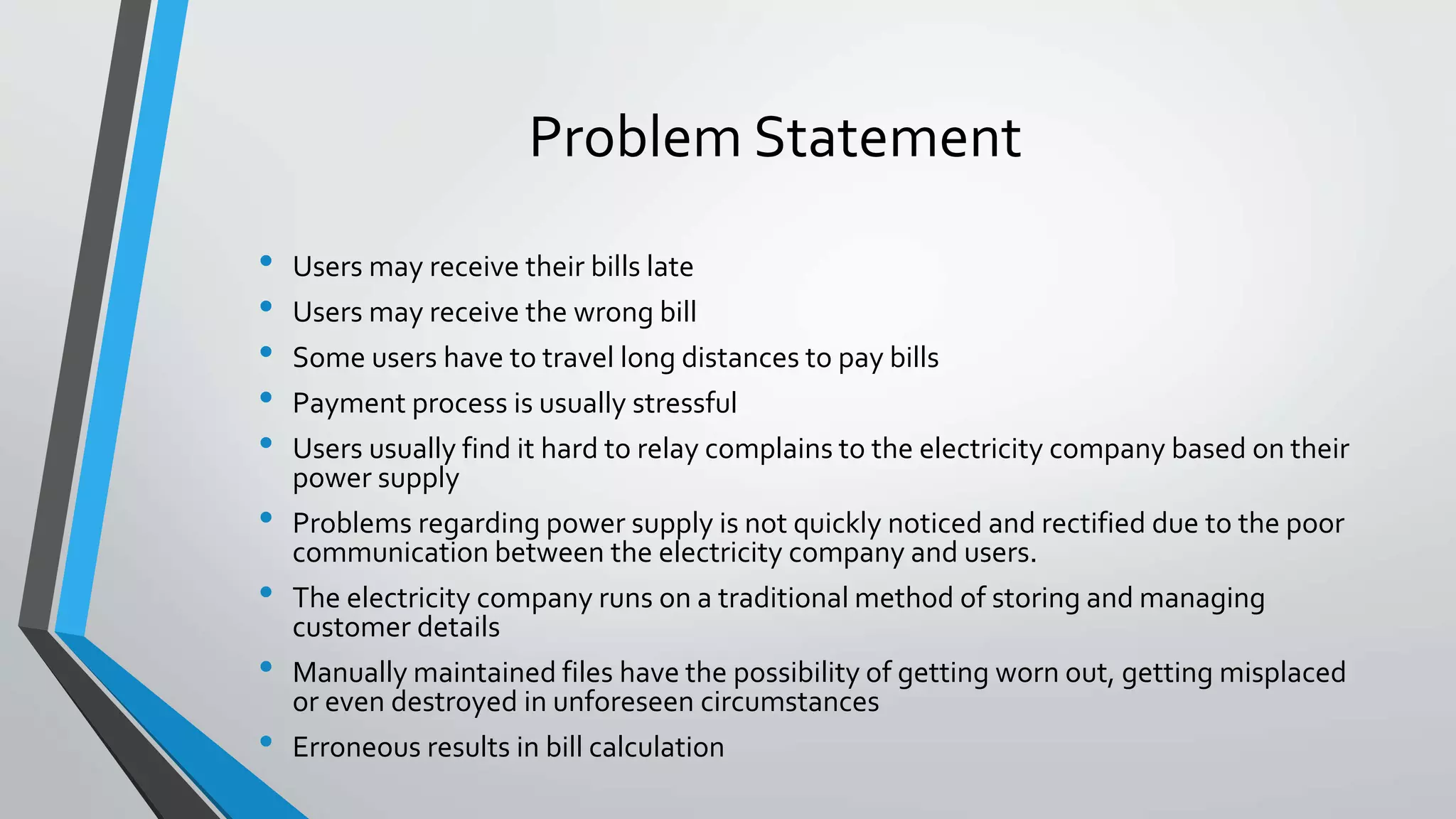

3. Problem Statement
• Users may receive their bills late
• Users may receive the wrong bill
• Some users have to travel long distances to pay bills
• Payment process is usually stressful
• Users usually find it hard to relay complains to the electricity company based on their
power supply
• Problems regarding power supply is not quickly noticed and rectified due to the poor
communication between the electricity company and users.
• The electricity company runs on a traditional method of storing and managing
customer details
• Manually maintained files have the possibility of getting worn out, getting misplaced
or even destroyed in unforeseen circumstances
• Erroneous results in bill calculation

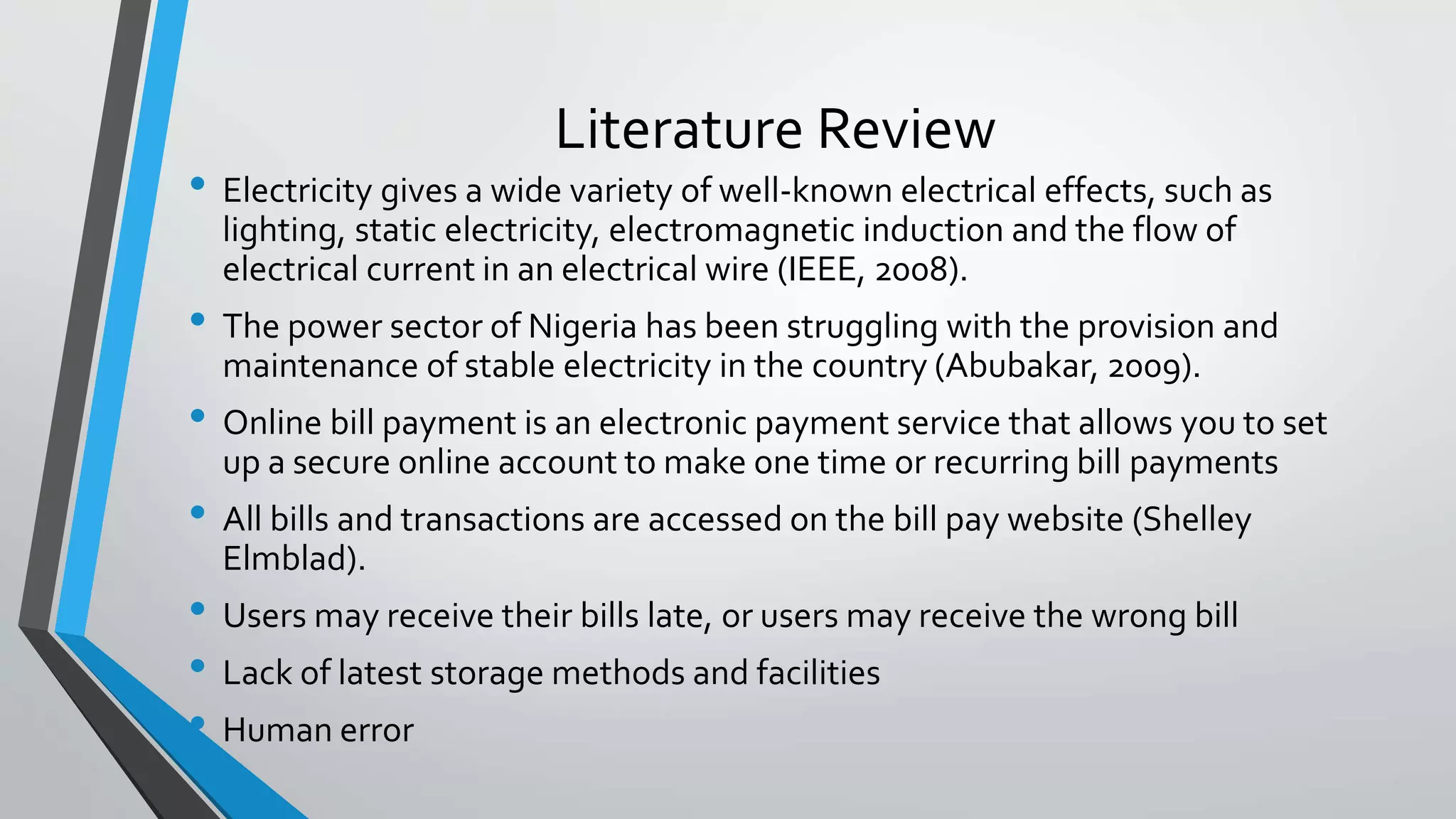

4. Literature Review
• Electricity gives a wide variety of well-known electrical effects, such as
lighting, static electricity, electromagnetic induction and the flow of
electrical current in an electrical wire (IEEE, 2008).
• The power sector of Nigeria has been struggling with the provision and
maintenance of stable electricity in the country (Abubakar, 2009).
• Online bill payment is an electronic payment service that allows you to set
up a secure online account to make one time or recurring bill payments
• All bills and transactions are accessed on the bill pay website (Shelley
Elmblad).
• Users may receive their bills late, or users may receive the wrong bill
• Lack of latest storage methods and facilities
• Human error

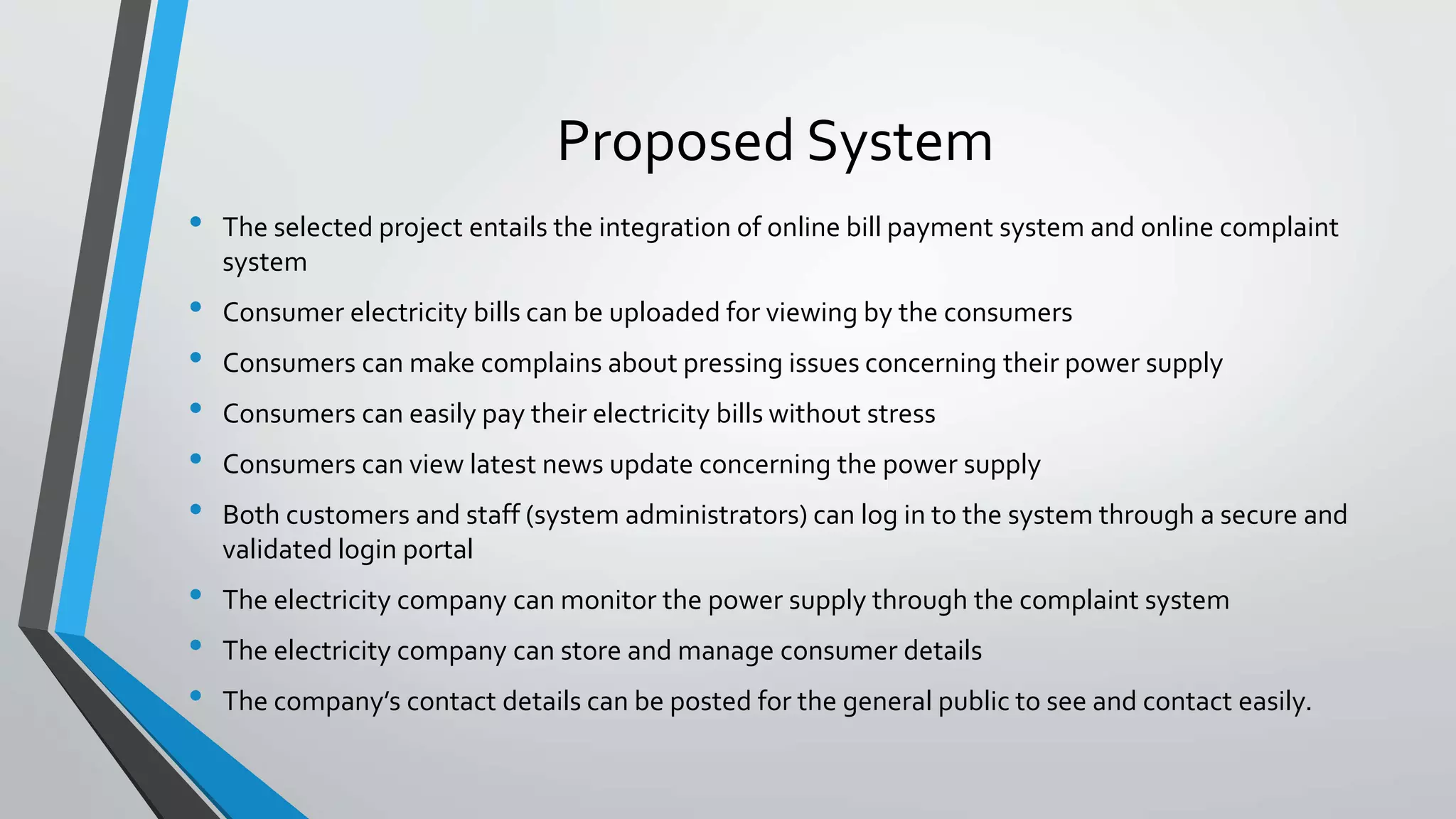

5. Proposed System
• The selected project entails the integration of online bill payment system and online complaint
system
• Consumer electricity bills can be uploaded for viewing by the consumers
• Consumers can make complains about pressing issues concerning their power supply
• Consumers can easily pay their electricity bills without stress
• Consumers can view latest news update concerning the power supply
• Both customers and staff (system administrators) can log in to the system through a secure and
validated login portal
• The electricity company can monitor the power supply through the complaint system
• The electricity company can store and manage consumer details
• The company’s contact details can be posted for the general public to see and contact easily.

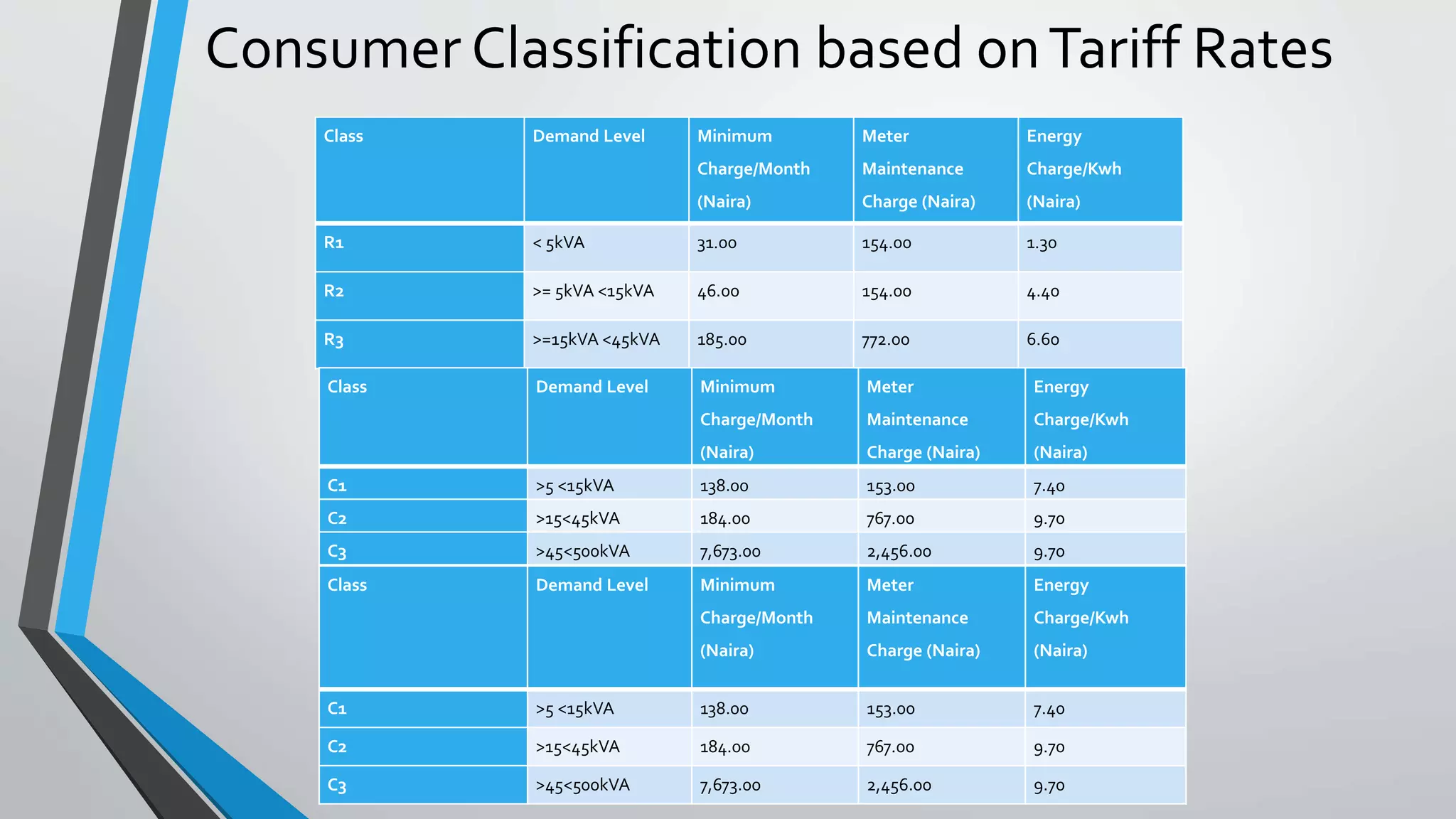

6. Consumer Classification based onTariff Rates
Class Demand Level Minimum
Charge/Month
(Naira)
Meter
Maintenance
Charge (Naira)
Energy
Charge/Kwh
(Naira)
R1 < 5kVA 31.00 154.00 1.30
R2 >= 5kVA <15kVA 46.00 154.00 4.40
R3 >=15kVA <45kVA 185.00 772.00 6.60
Class Demand Level Minimum
Charge/Month
(Naira)
Meter
Maintenance
Charge (Naira)
Energy
Charge/Kwh
(Naira)
C1 >5 <15kVA 138.00 153.00 7.40
C2 >15<45kVA 184.00 767.00 9.70
C3 >45<500kVA 7,673.00 2,456.00 9.70
Class Demand Level Minimum
Charge/Month
(Naira)
Meter
Maintenance
Charge (Naira)
Energy
Charge/Kwh
(Naira)
C1 >5 <15kVA 138.00 153.00 7.40
C2 >15<45kVA 184.00 767.00 9.70
C3 >45<500kVA 7,673.00 2,456.00 9.70

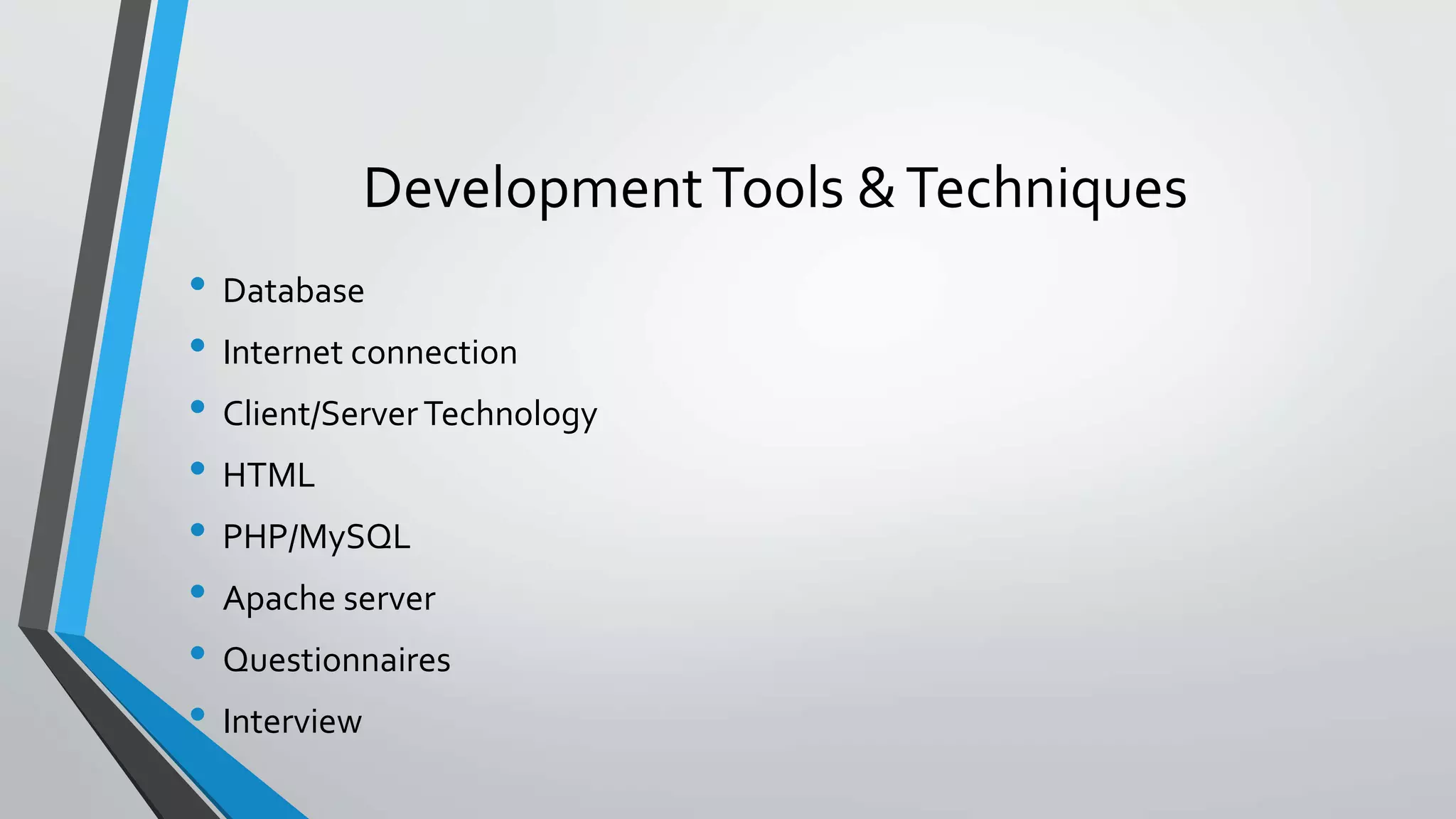

7. DevelopmentTools &Techniques
• Database
• Internet connection
• Client/ServerTechnology
• HTML
• PHP/MySQL
• Apache server
• Questionnaires
• Interview

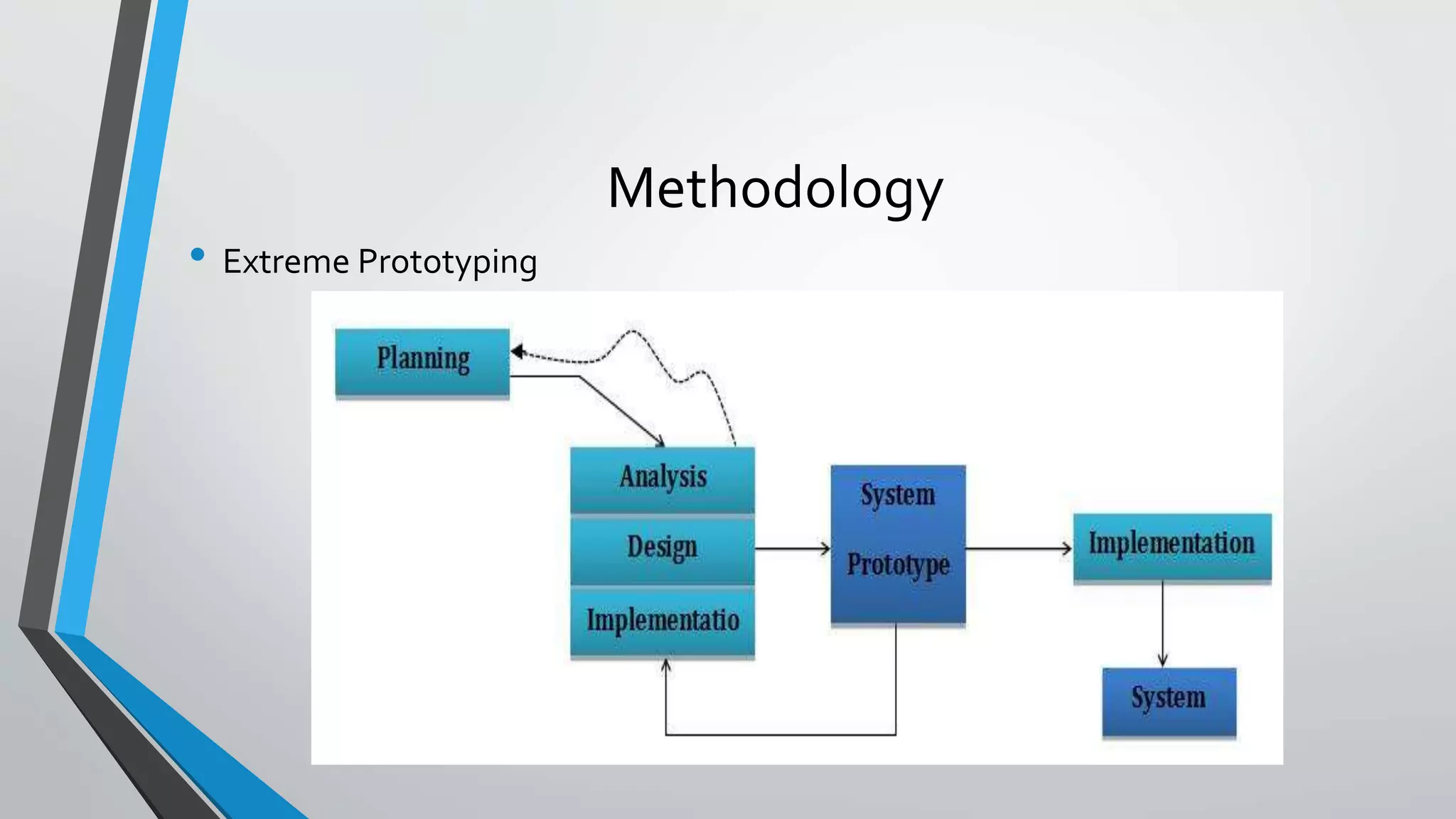

8. Methodology
• Extreme Prototyping

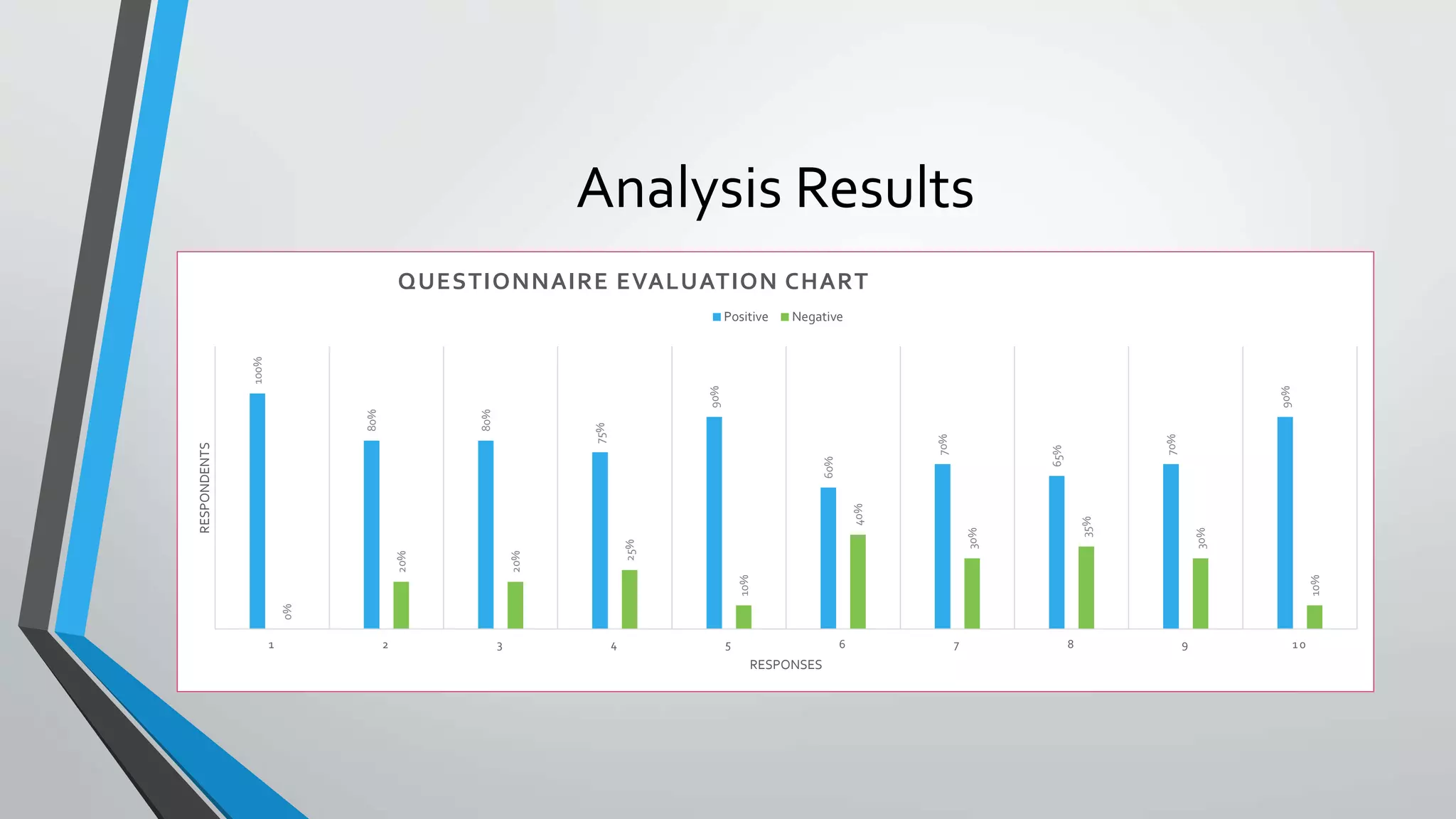

9. Analysis Results
100%
80%
80%
75%
90%
60%
70%
65%
70%
90%
0%
20%
20%
25%
10%
40%
30%
35%
30%
10%
1 2 3 4 5 6 7 8 9 10
RESPONDENTS
RESPONSES
QUESTIONNAIRE EVALUATION CHART
Positive Negative

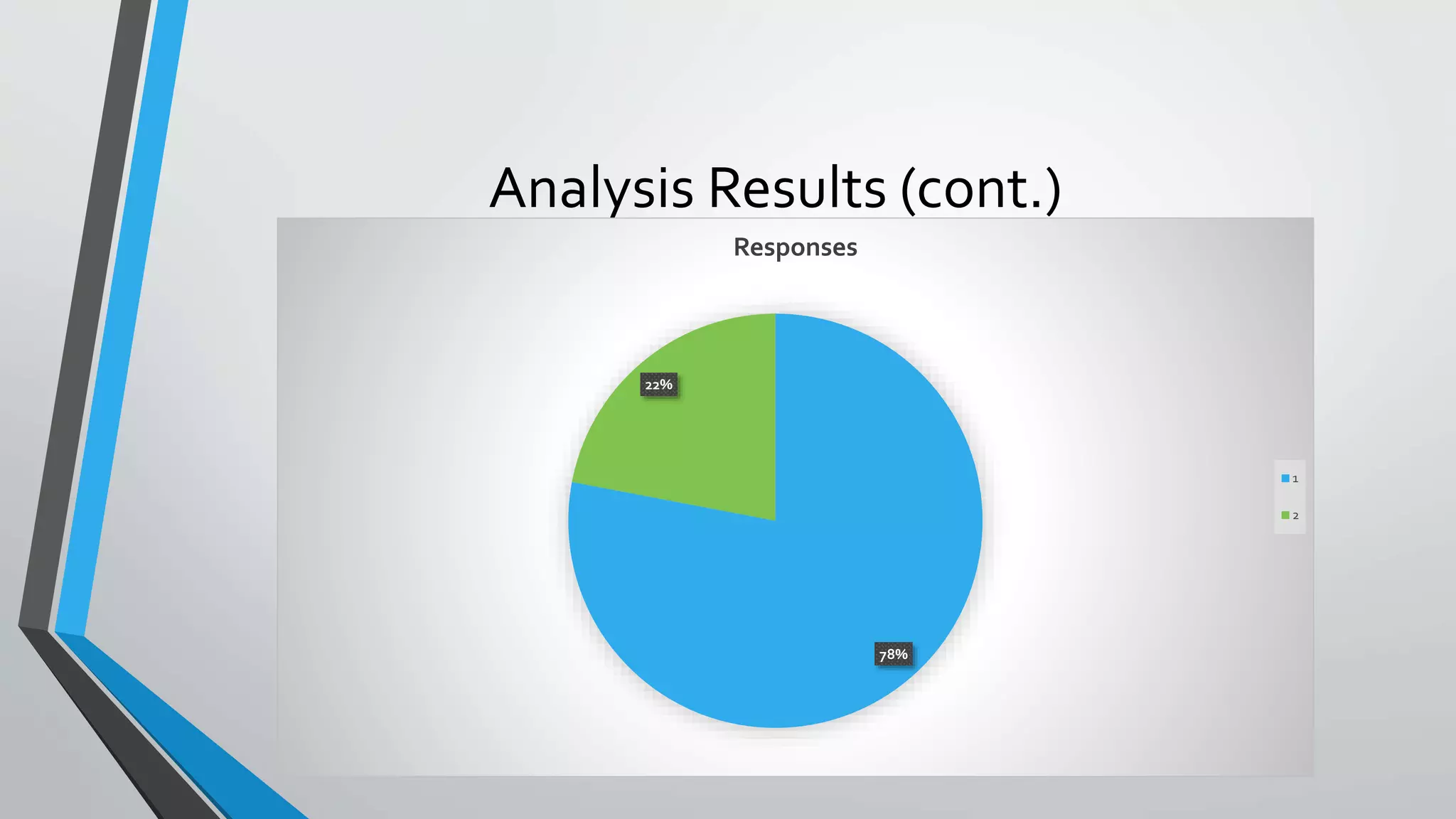

10. Analysis Results (cont.)
78%
22%
Responses
1
2

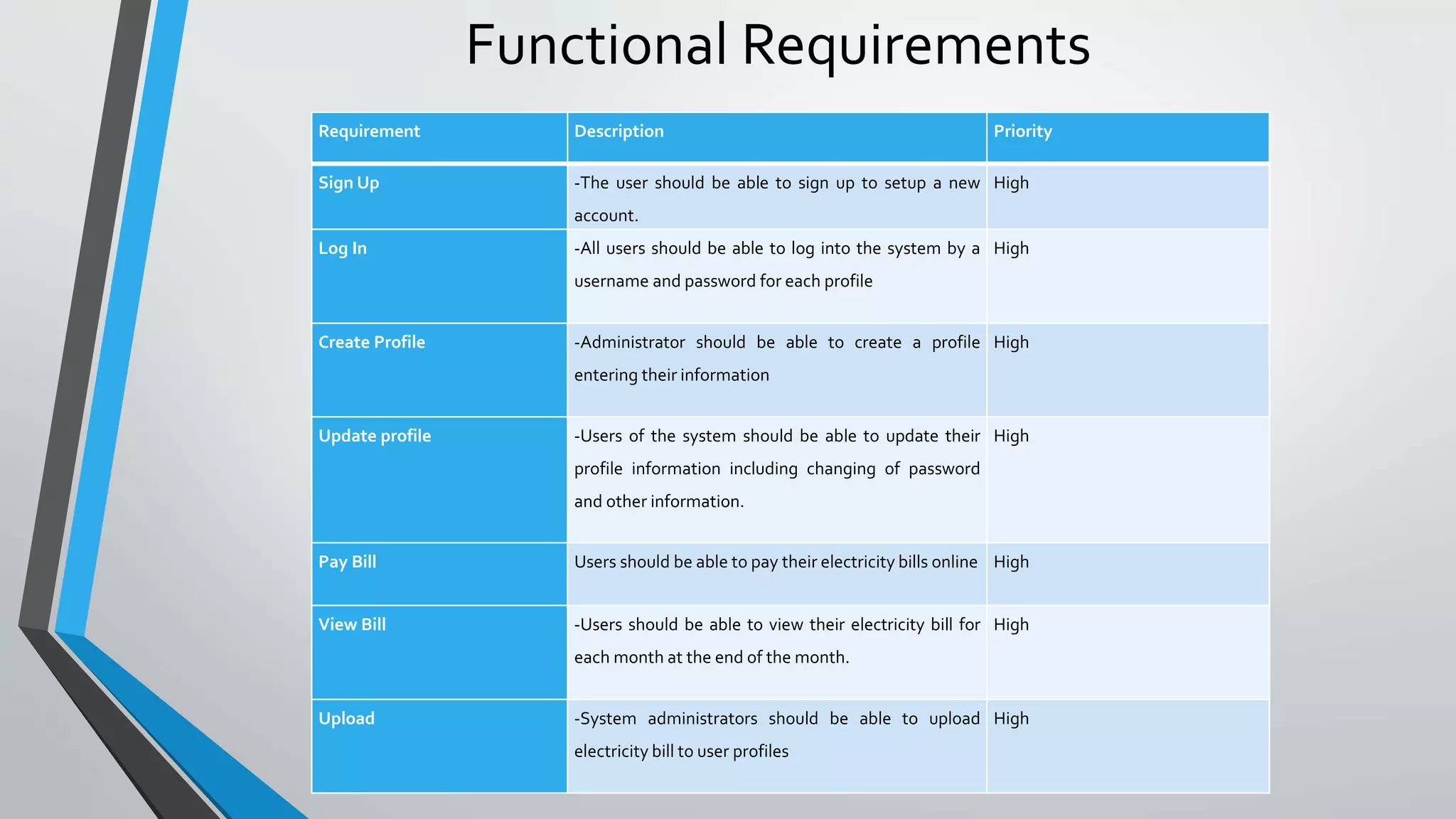

11. Functional Requirements
Requirement Description Priority
Sign Up -The user should be able to sign up to setup a new
account.
High
Log In -All users should be able to log into the system by a
username and password for each profile
High
Create Profile -Administrator should be able to create a profile
entering their information
High
Update profile -Users of the system should be able to update their
profile information including changing of password
and other information.
High
Pay Bill Users should be able to pay their electricity bills online High
View Bill -Users should be able to view their electricity bill for
each month at the end of the month.
High
Upload -System administrators should be able to upload
electricity bill to user profiles
High

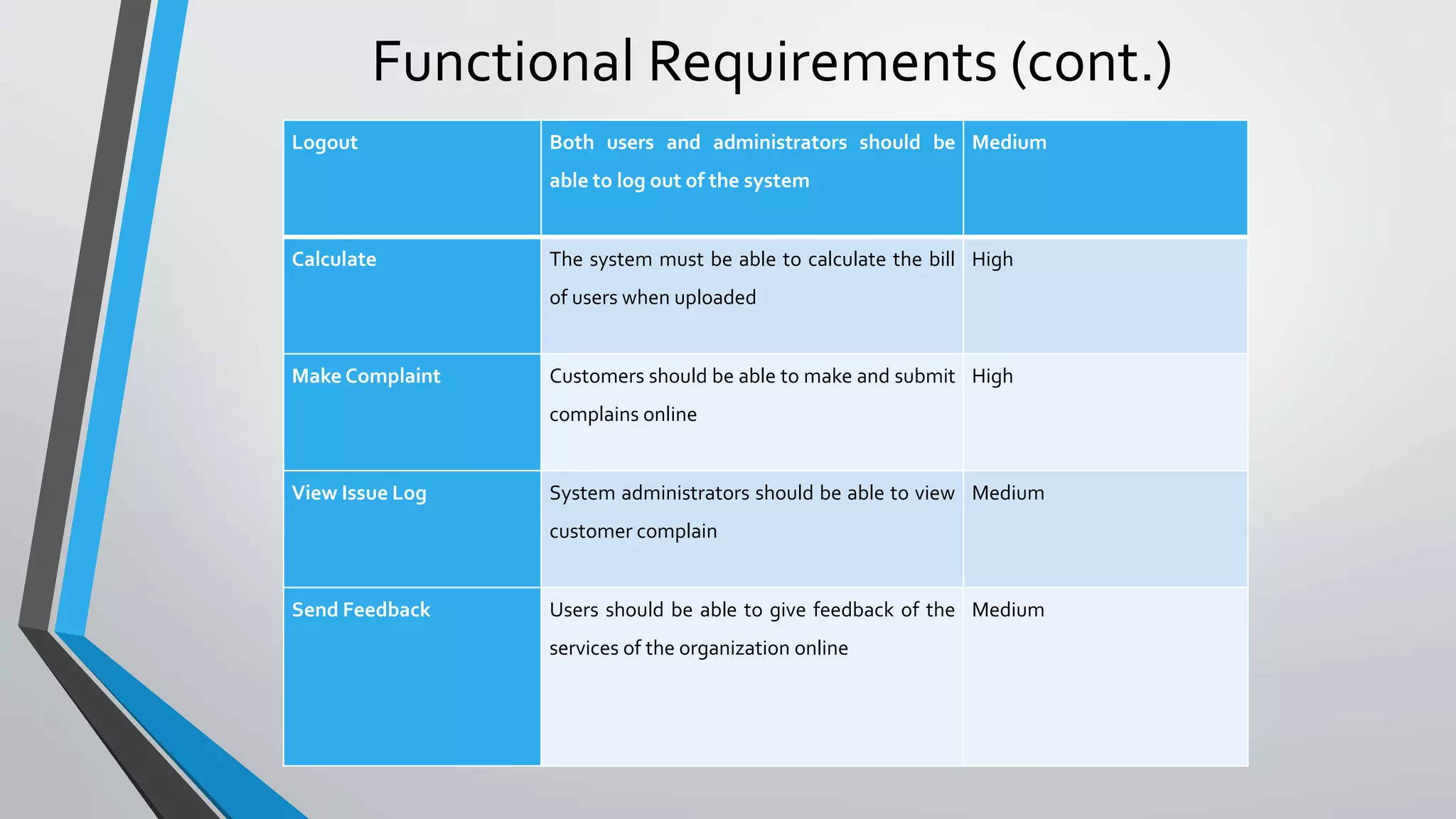

12. Functional Requirements (cont.)
Logout Both users and administrators should be
able to log out of the system
Medium
Calculate The system must be able to calculate the bill
of users when uploaded
High
Make Complaint Customers should be able to make and submit
complains online
High
View Issue Log System administrators should be able to view
customer complain
Medium
Send Feedback Users should be able to give feedback of the
services of the organization online
Medium

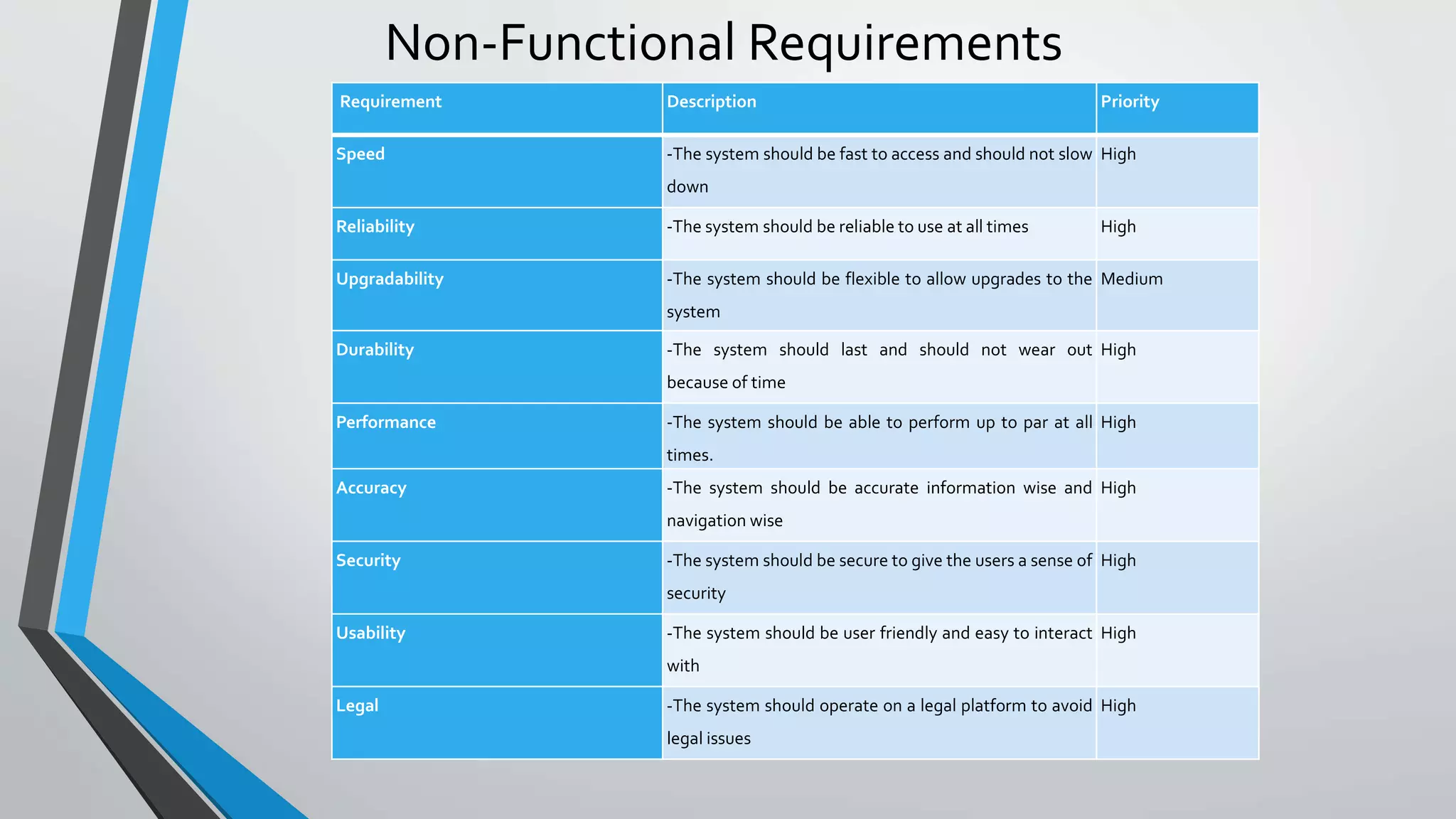

13. Non-Functional Requirements
Requirement Description Priority
Speed -The system should be fast to access and should not slow
down
High
Reliability -The system should be reliable to use at all times High
Upgradability -The system should be flexible to allow upgrades to the
system
Medium
Durability -The system should last and should not wear out
because of time
High
Performance -The system should be able to perform up to par at all
times.
High
Accuracy -The system should be accurate information wise and
navigation wise
High
Security -The system should be secure to give the users a sense of
security
High
Usability -The system should be user friendly and easy to interact
with
High
Legal -The system should operate on a legal platform to avoid
legal issues
High

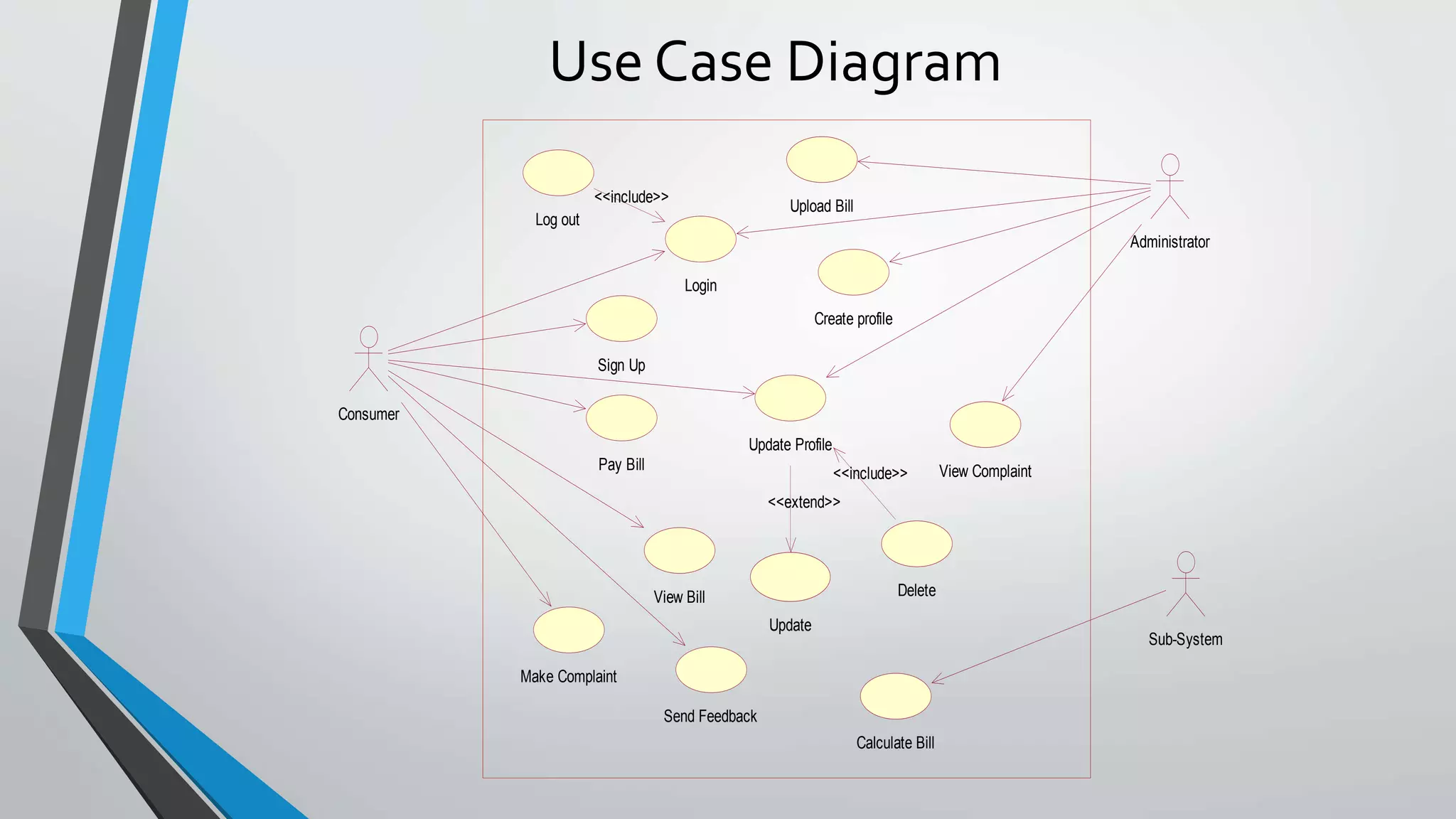

14. Use Case Diagram
Update
Delete
Calculate Bill
Sub-System
Log out
View Bill
Sign Up
Pay Bill
Send Feedback
Make Complaint
Upload Bill
Create profile
Login
View Complaint
Consumer
Update Profile
Administrator
<<include>>
<<include>>
<<extend>>

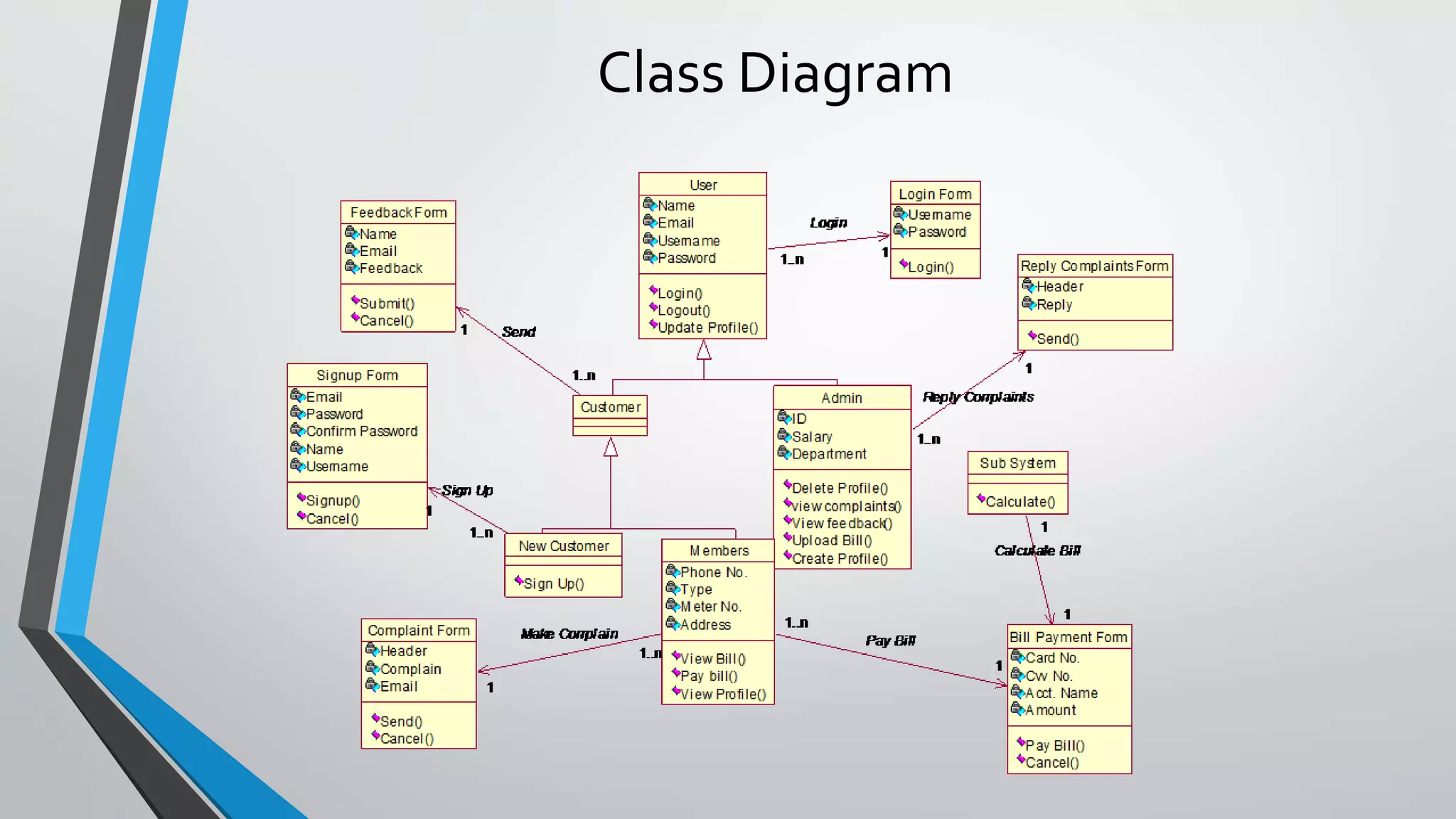

15. Class Diagram

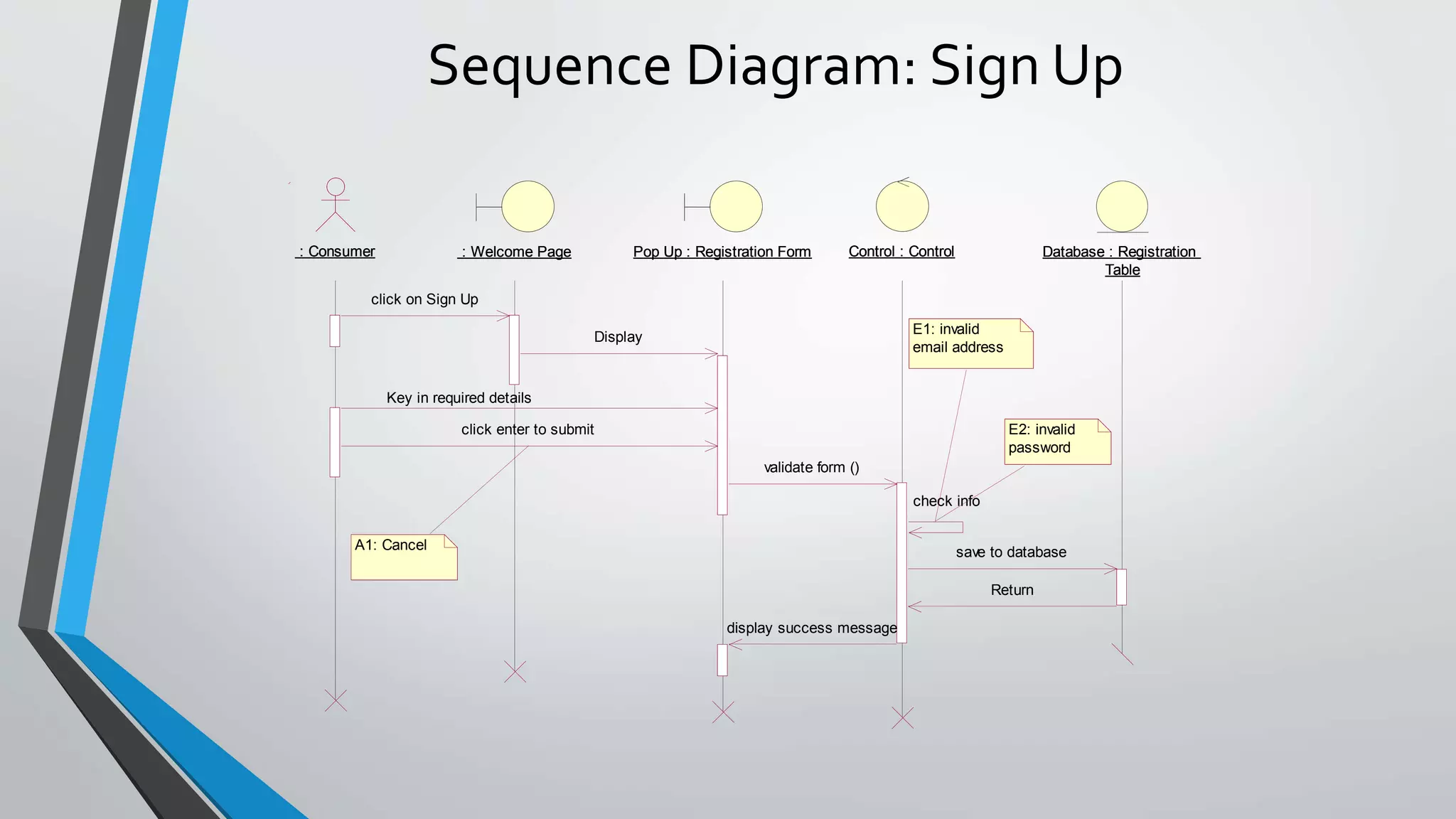

16. Sequence Diagram: Sign Up
: Consumer: Consumer : Welcome Page: Welcome Page Pop Up : Registration FormPop Up : Registration Form Control : ControlControl : Control Database : Registration
Table
Database : Registration
Table
click on Sign Up
Display
Key in required details
click enter to submit
validate form ()
check info
save to database
Return
display success message
E1: invalid
email address
E2: invalid
password
A1: Cancel

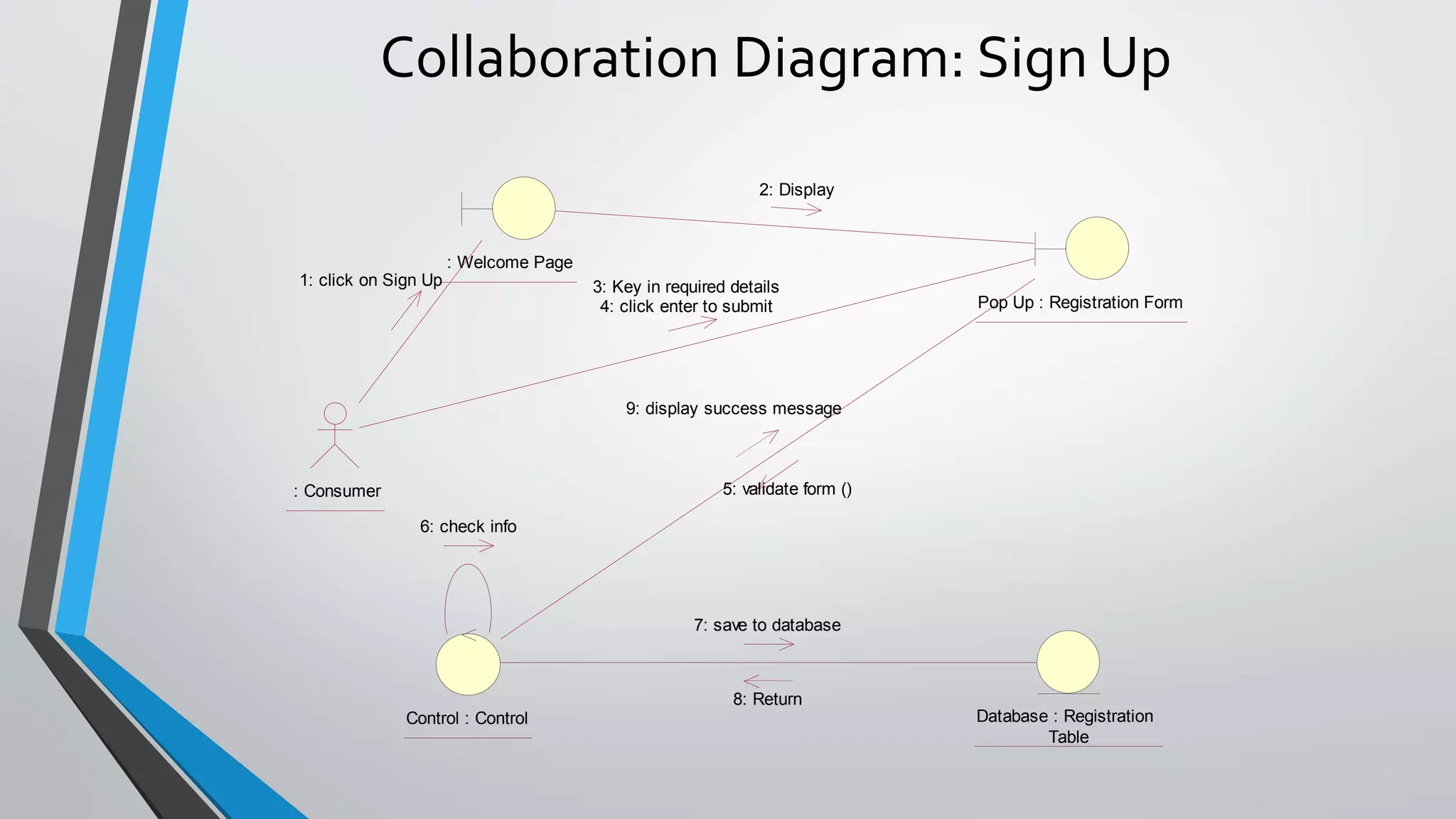

17. Collaboration Diagram: Sign Up
: Consumer
: Welcome Page
Pop Up : Registration Form
Control : Control Database : Registration
Table
6: check info
1: click on Sign Up 3: Key in required details
4: click enter to submit
2: Display
5: validate form ()
9: display success message
7: save to database
8: Return

18. Activity Diagram: Sign Up
Sign up
Details
Open Sugn Up
form
Fill Sign Up
Form
Display Error
message
Display Member
Homepage
Display Signup
Form
Check Validity
No
Yes
Save to Table
DatabaseSub-SystemWelcome Page

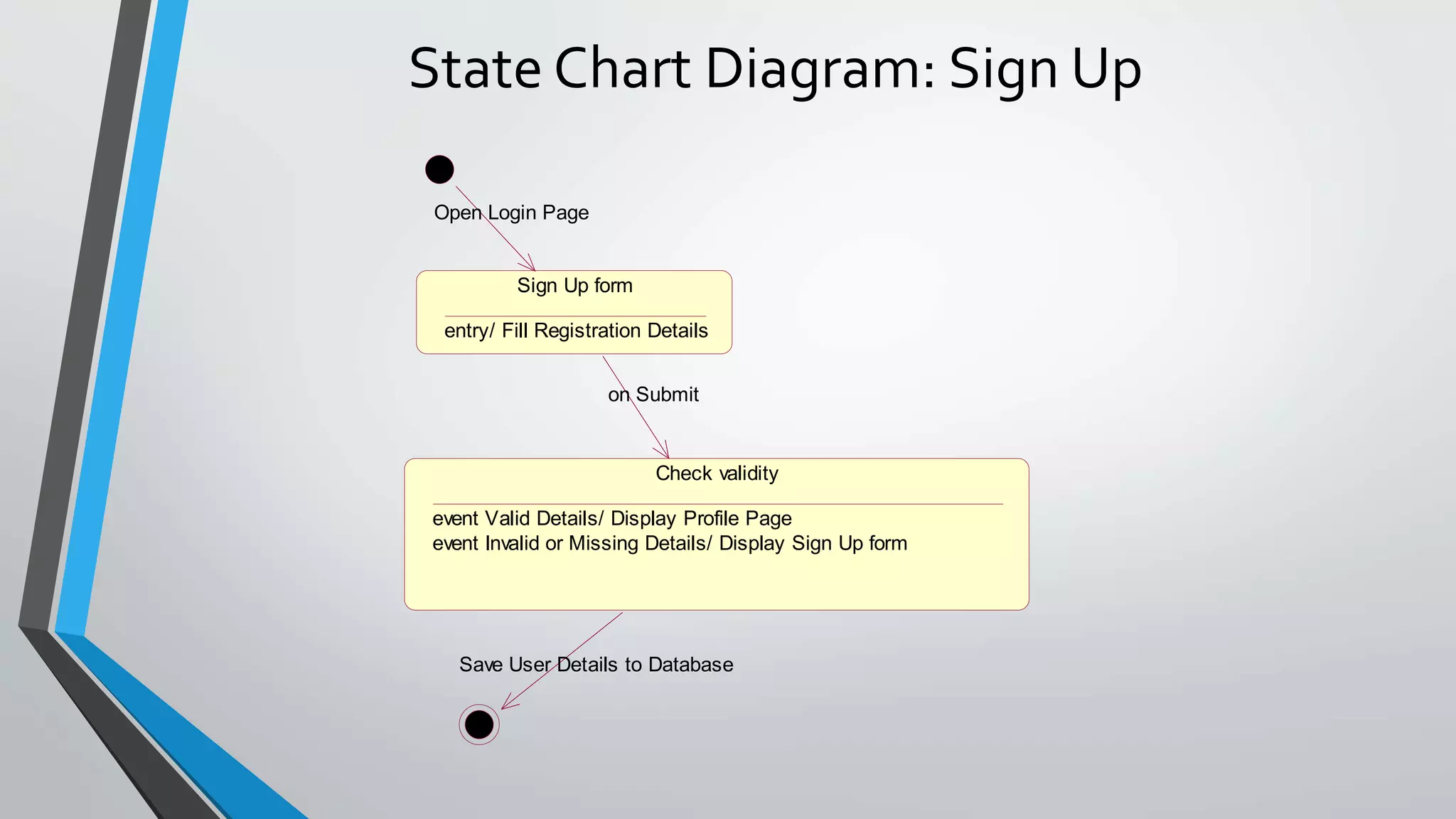

19. State Chart Diagram: Sign Up
Sign Up form
entry/ Fill Registration Details
Check validity
event Valid Details/ Display Profile Page
event Invalid or Missing Details/ Display Sign Up form
Open Login Page
on Submit
Save User Details to Database

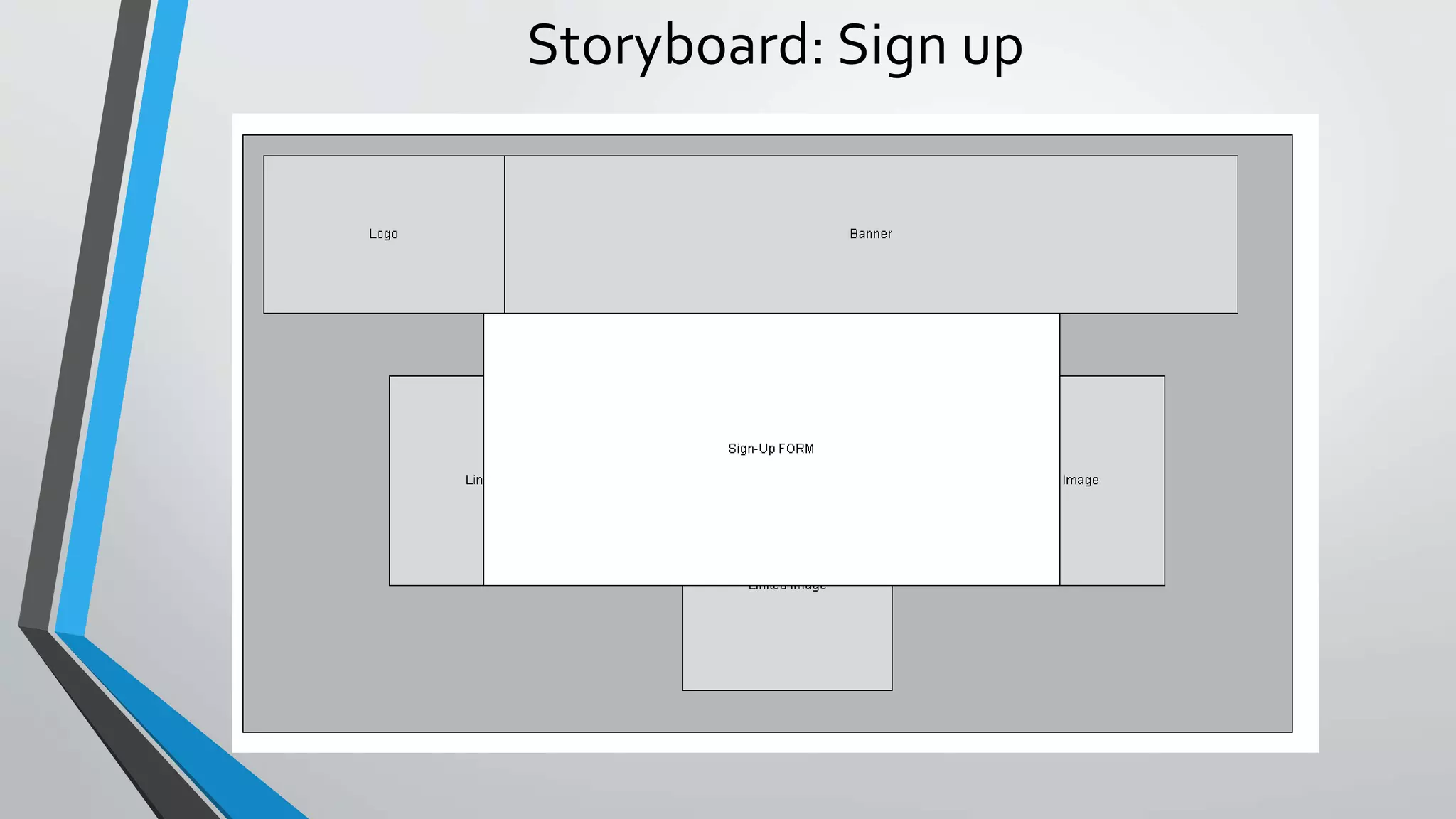

20. Storyboard: Sign up

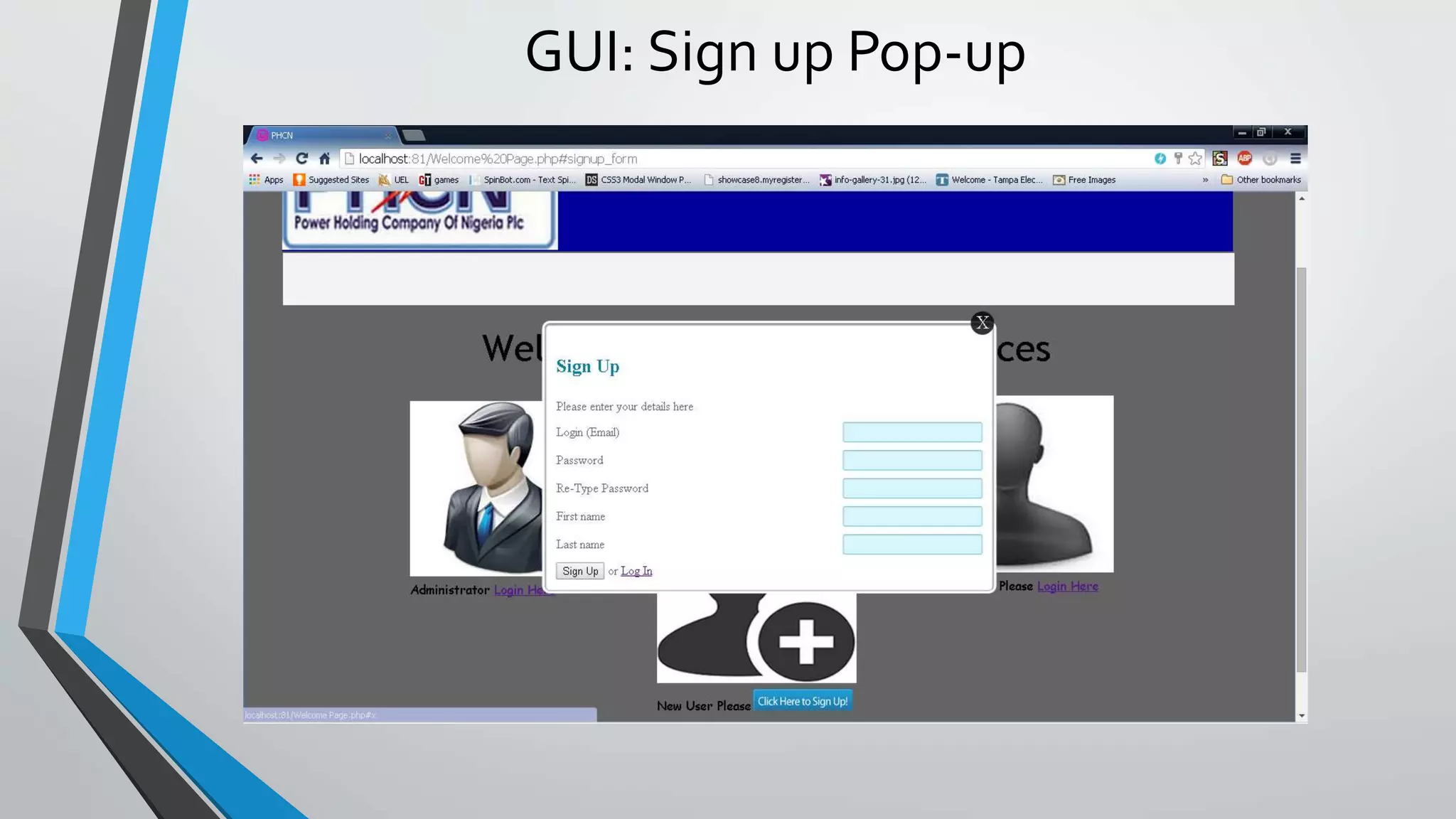

21. GUI: Sign up Pop-up

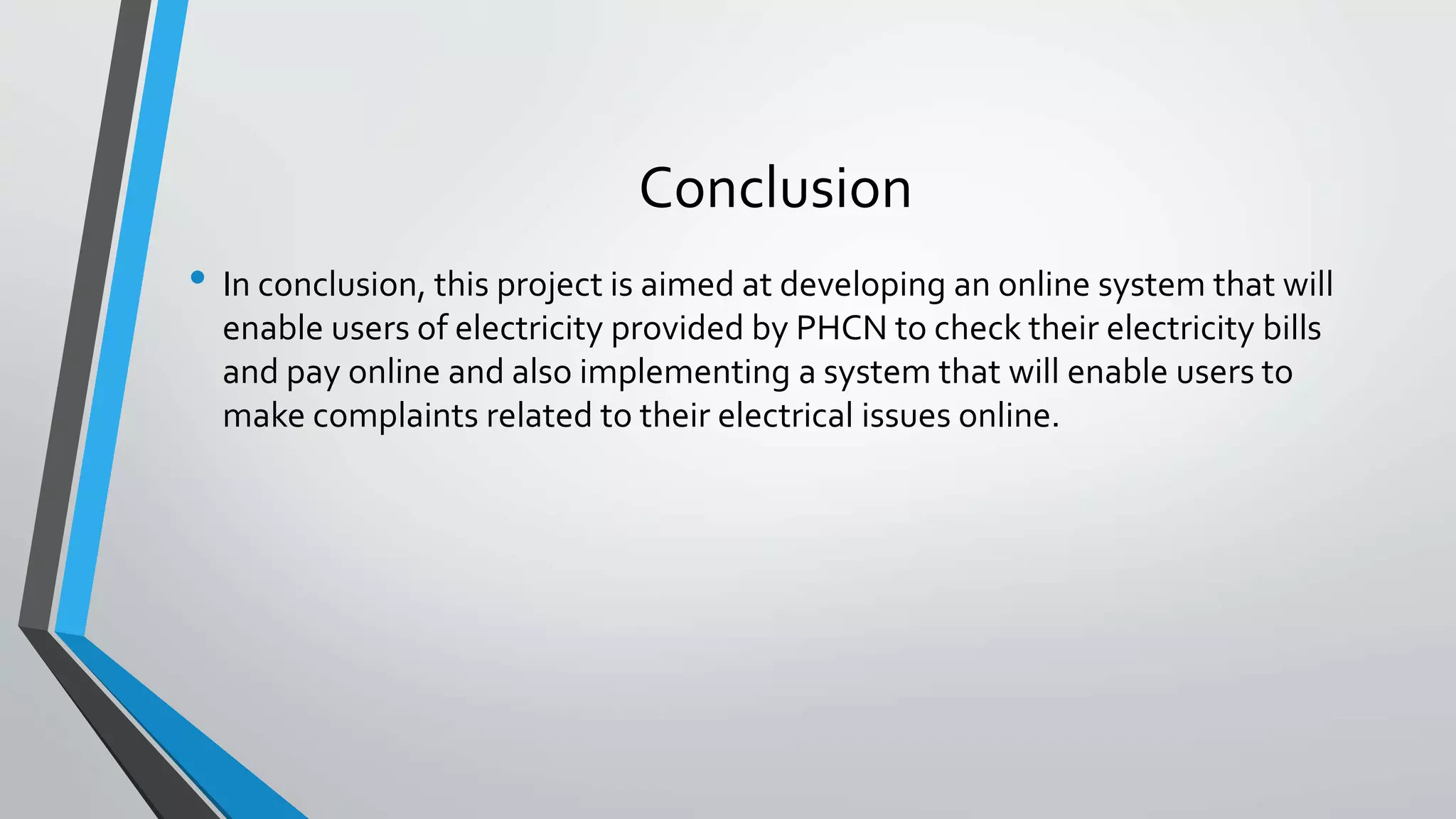

22. Conclusion
• In conclusion, this project is aimed at developing an online system that will
enable users of electricity provided by PHCN to check their electricity bills
and pay online and also implementing a system that will enable users to
make complaints related to their electrical issues online.
