1. Project Title: Online Quiz
Presented by: Kishan Kumar Maurya(MCA-III)
Under the Guidance of:
Dr.Mrs. Shraddha Dudhani

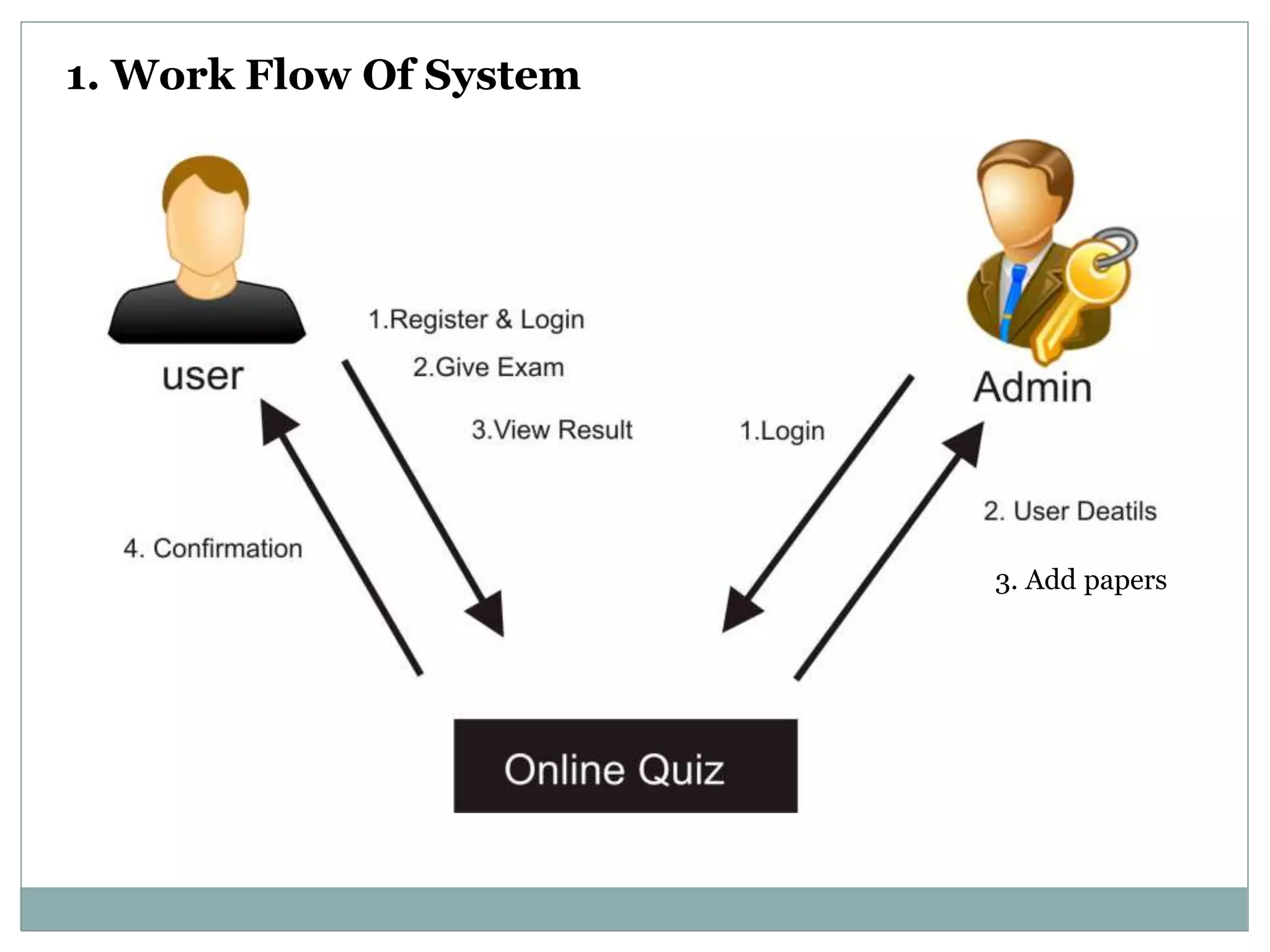

2. 1. Work Flow Of System
3. Add papers

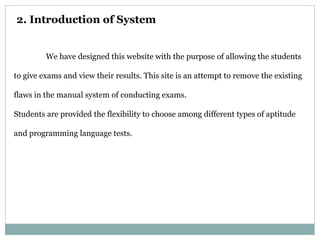

3. 2. Introduction of System
We have designed this website with the purpose of allowing the students
to give exams and view their results. This site is an attempt to remove the existing
flaws in the manual system of conducting exams.
Students are provided the flexibility to choose among different types of aptitude
and programming language tests.

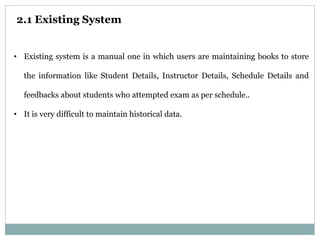

4. 2.1 Existing System
• Existing system is a manual one in which users are maintaining books to store
the information like Student Details, Instructor Details, Schedule Details and
feedbacks about students who attempted exam as per schedule..
• It is very difficult to maintain historical data.

5. 2.2 Drawback of Existing System
• you need to be computer literate (or able to use a computer well) in order
to create and take an assessment.
• There might be connection or internet problems, energy breaks and other
things like that..
• Open text questions are possible, but they don't auto-grade, so you have to check
them yourself.

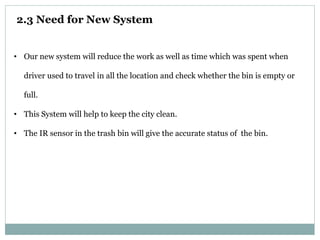

6. 2.3 Need for New System
• Our new system will reduce the work as well as time which was spent when
driver used to travel in all the location and check whether the bin is empty or
full.
• This System will help to keep the city clean.
• The IR sensor in the trash bin will give the accurate status of the bin.

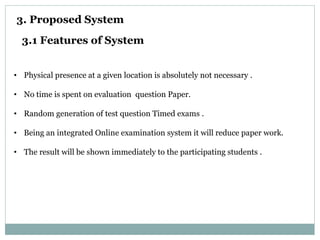

7. 3. Proposed System
3.1 Features of System
• Physical presence at a given location is absolutely not necessary .
• No time is spent on evaluation question Paper.
• Random generation of test question Timed exams .
• Being an integrated Online examination system it will reduce paper work.
• The result will be shown immediately to the participating students .

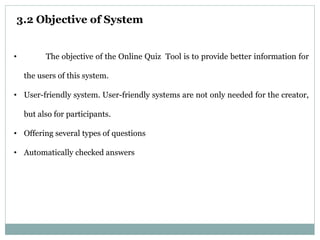

8. 3.2 Objective of System
• The objective of the Online Quiz Tool is to provide better information for
the users of this system.
• User-friendly system. User-friendly systems are not only needed for the creator,
but also for participants.
• Offering several types of questions
• Automatically checked answers

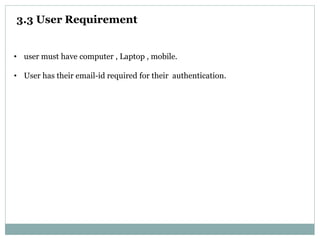

9. • user must have computer , Laptop , mobile.
• User has their email-id required for their authentication.
3.3 User Requirement

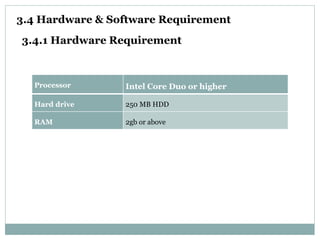

10. 3.4 Hardware & Software Requirement
Processor Intel Core Duo or higher
Hard drive 250 MB HDD
RAM 2gb or above
3.4.1 Hardware Requirement

11. 3.4.2 Software Requirement
Operating System Windows 7 and above
Application
IE 6 & above
Mozilla Firefox 6 & above
Google Chrome 6 & above
Database Server Apache (Xamp Server ,Mysql )

12. 4. Diagrams
4.1 Class Diagram

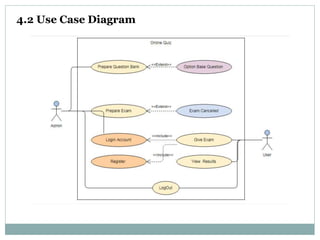

13. 4.2 Use Case Diagram

14. 4.3 Sequence Diagram

15. 4.4 Activity Diagram

16. 4.5 Module Hierarchy Diagram

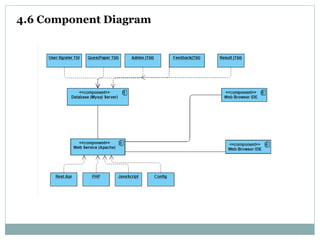

17. 4.6 Component Diagram

18. 4.7 Deployment Diagram

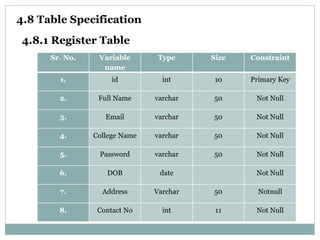

19. 4.8 Table Specification
Sr. No. Variable
name
Type Size Constraint
1. id int 10 Primary Key
2. Full Name varchar 50 Not Null
3. Email varchar 50 Not Null
4. College Name varchar 50 Not Null
5. Password varchar 50 Not Null
6. DOB date Not Null
7. Address Varchar 50 Notnull
8. Contact No int 11 Not Null
4.8.1 Register Table

20. 4.8.2 Quiz Table
Sr. No. Variable
name
Type Size Constraint
1. Q_id Int 10 Primary Key
2. Title Varchar 50 Not Null
3. True_ans int 50 Not Null
4. False_ans int 50 Not Null
5. Total int 50 Not Null
6. Date datetime Not Null
7. Ans_id int 50 Not Null

21. 4.8.3 Answer Table
Sr. No. Variable
name
Type Size Constraint
1. A_id int Primary Key
2. Answer varchar 50 Not null
3. Ans_id int 50 Foreign Key

22. 5. Testing Procedure
5.1 Introduction
The project need to be fully tested as it needs to be integrated to an
internal existing system. Also the data that it processes and its accuracy as equally
important. Since system works on the network it was thoroughly tested internally
and can only then he implemented inclemently to the other modules.

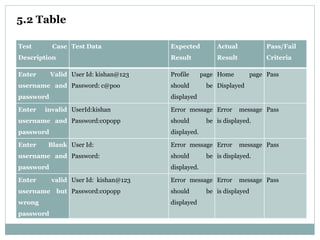

23. 5.2 Table
Test Case
Description
Test Data Expected
Result
Actual
Result
Pass/Fail
Criteria
Enter Valid
username and
password
User Id: kishan@123
Password: c@poo
Profile page
should be
displayed
Home page
Displayed
Pass
Enter invalid
username and
password
UserId:kishan
Password:c0popp
Error message
should be
displayed.
Error message
is displayed.
Pass
Enter Blank
username and
password
User Id:
Password:
Error message
should be
displayed.
Error message
is displayed.
Pass
Enter valid
username but
wrong
password
User Id: kishan@123
Password:c0popp
Error message
should be
displayed
Error message
is displayed
Pass

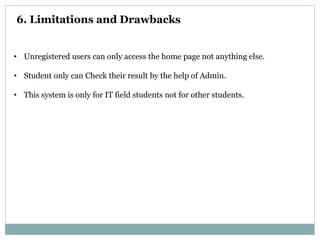

24. 6. Limitations and Drawbacks
• Unregistered users can only access the home page not anything else.
• Student only can Check their result by the help of Admin.
• This system is only for IT field students not for other students.

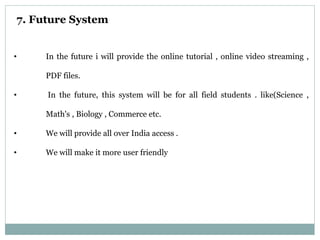

25. 7. Future System
• In the future i will provide the online tutorial , online video streaming ,
PDF files.
• In the future, this system will be for all field students . like(Science ,
Math's , Biology , Commerce etc.
• We will provide all over India access .
• We will make it more user friendly

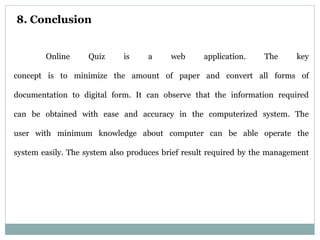

26. 8. Conclusion
Online Quiz is a web application. The key
concept is to minimize the amount of paper and convert all forms of
documentation to digital form. It can observe that the information required
can be obtained with ease and accuracy in the computerized system. The
user with minimum knowledge about computer can be able operate the
system easily. The system also produces brief result required by the management

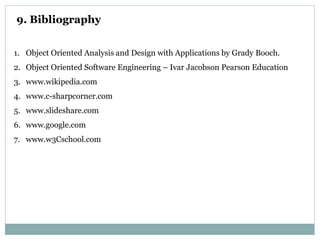

27. 9. Bibliography
1. Object Oriented Analysis and Design with Applications by Grady Booch.
2. Object Oriented Software Engineering – Ivar Jacobson Pearson Education
3. www.wikipedia.com
4. www.c-sharpcorner.com
5. www.slideshare.com
6. www.google.com
7. www.w3Cschool.com

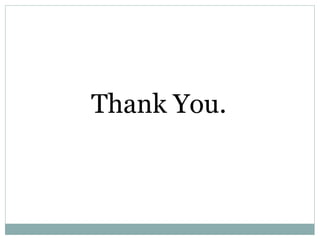

28. Thank You.
