Presentation on AP Project.ppt

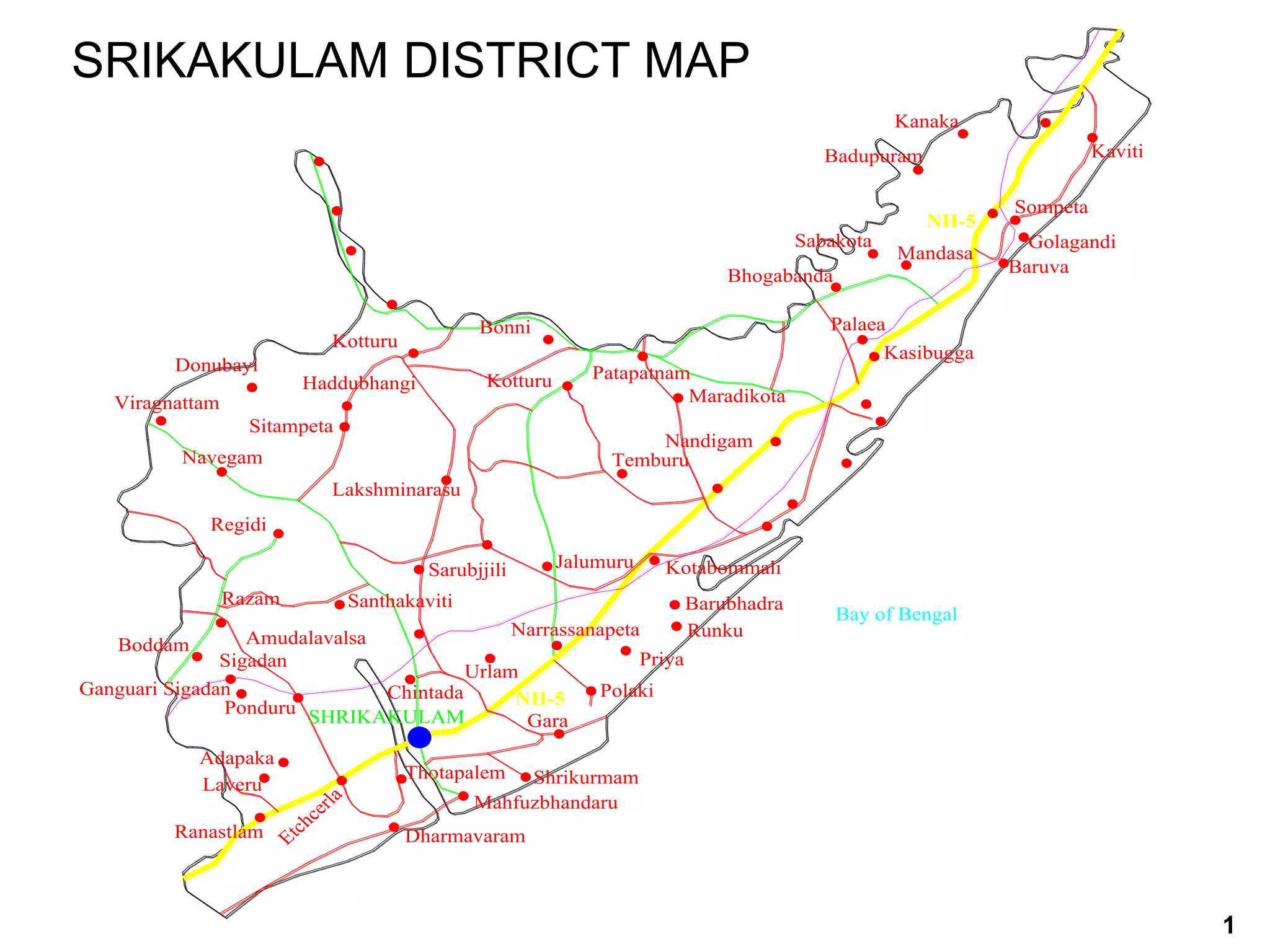

- 1. 1 Bay of Bengal Dharmavaram Mahfuzbhandaru Shrikurmam SHRIKAKULAM Polaki Priya Runku Barubhadra Urlam Chintada Ponduru Sigadan Ganguari Sigadan Boddam Amudalavalsa Razam Sarubjjili Jalumuru Sitampeta Haddubhangi Kotturu Kotturu Bonni Maradikota Patapatnam Nandigam Kasibugga Palaea Bhogabanda Mandasa Sabakota Badupuram Kanaka Kaviti Sompeta Golagandi Baruva Temburu Regidi Adapaka Laveru Etchcerla Ranastlam Kotabommali Santhakaviti Lakshminarasu Gara NH-5 Narrassanapeta NH-5 Thotapalem Navegam Viragnattam Donubayi SRIKAKULAM DISTRICT MAP

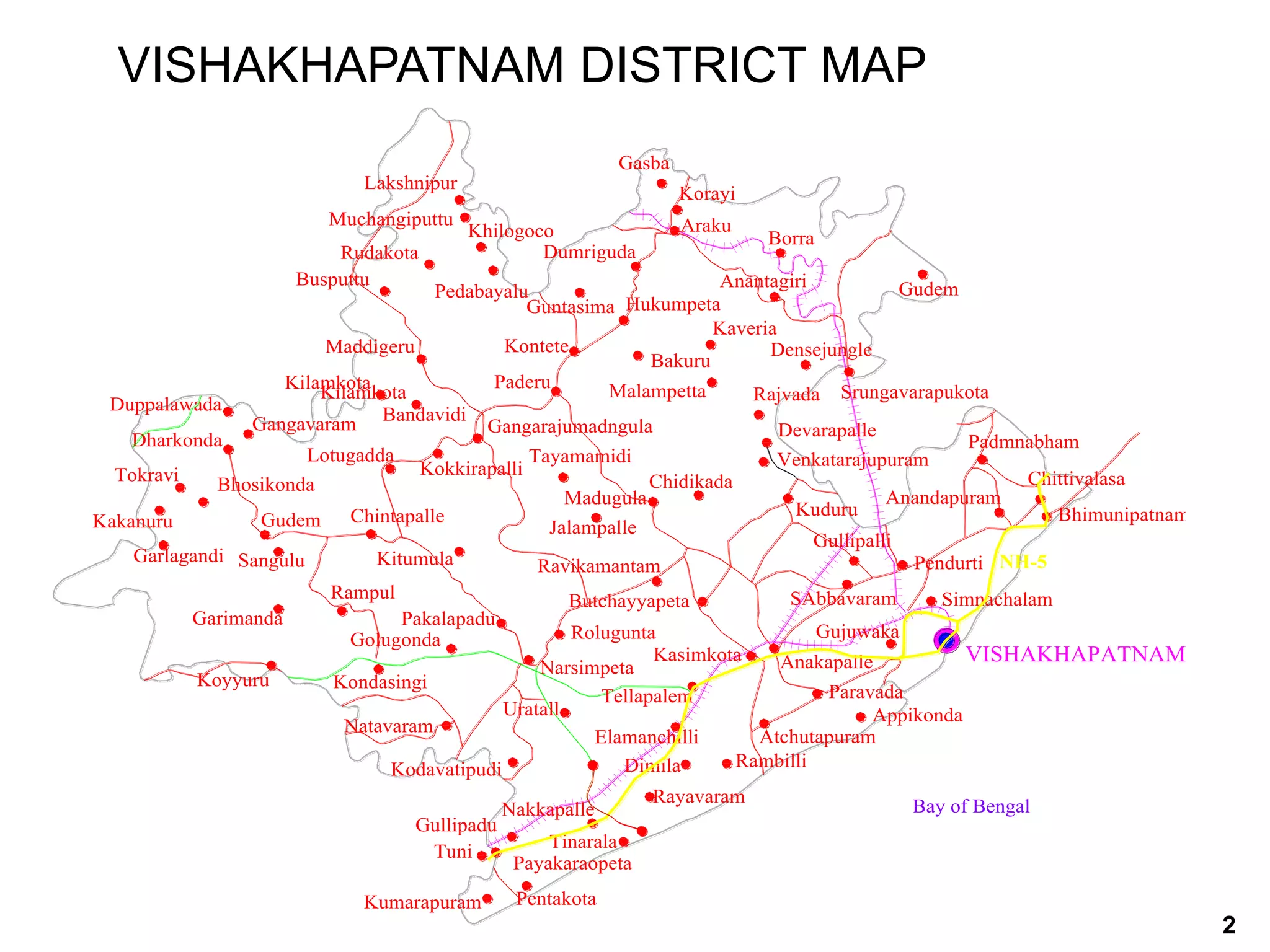

- 2. 2 VISHAKHAPATNAM DISTRICT MAP Muchangiputtu Khilogoco Rudakota Busputtu Pedabayalu Kontete Maddigeru Kilamkota Kilamkota Bandavidi Gangavaram Duppalawada Dharkonda Tokravi Kakanuru Bhosikonda Gudem Kokkirapalli Lotugadda Chintapalle Garlagandi Garimanda Sangulu Rampul Pakalapadu Kondasingi Golugonda Narsimpeta Rolugunta Tellapalem Kasimkota Paravada Bay of Bengal Appikonda Atchutapuram Rambilli Dimila Rayavaram Tinarala Pentakota Kumarapuram Anakapalle VISHAKHAPATNAM Gujuwaka SAbbavaram Simnachalam Butchayyapeta Kitumula Ravikamantam Jalampalle Madugula Chidikada Tayamamidi Gangarajumadngula Paderu Venkatarajupuram Pendurti Gullipalli Kuduru Bhimunipatnam Anandapuram Chittivalasa Padmnabham Devarapalle Rajvada Malampetta Bakuru Kaveria Densejungle Hukumpeta Guntasima Dumriguda Araku Korayi Borra Gasba Lakshnipur Anantagiri Srungavarapukota Elamanchilli Uratall Natavaram Kodavatipudi Gullipadu Tuni Payakaraopeta Nakkapalle Gudem Koyyuru NH-5
- 3. 3 VIZIANAGRAM DISTRICT MAP VIZIANAGARAM Elwinpeta Relia Tatisilia Bhodragin G.L Puram Gorada Biruooku Champi Barutangi Kurupam Merangi Duggi Parvatipuram Artam Naguru Turkanayuduvalsa Ravipallu Belagam Garugubilli Burja Sitanagram Bobbili Badangi Ajuru Pachipenta Modugu Satap Andra Mentada Devupalle Ommipalle Bondapalle Nellimarla Gurla Koduru Garividi Chipurupalle Jagannadhamju Chattram Nelivada Gantyada Bonangi Jami Bhimasing Vepada Anantapuram Musiram Devada Kothavalasa Kantakapalle Lokkavarapukota Amaram Mopada Garbham Dattirajeru Merkamuddidam Terlam Namalam Gangada Balgipeta Rajulagumada Chelliyalasa Chemudu Makkuva Makonaputti Munnakeri Kotiya Sariki Deleyavarasa Duggeru Srivada Sangamgavalasa Jiyyammavalsa Lakkadi Nilakanthapuram Lankajodi Komrada Kotipam Kokili Devukena Lenia Srungavarapukota Bhogapuram Konada Denkada Pushpatirega Meradam Ramabhadrapuram Salur Start Point End Point Bay of Bengal NH-5 NH-43
- 4. 4 KEY DELIVERABLES S.No. Deliverables Time schedule (Days) Scheduled Dt. of Submission 1 On Submission of QAP & Inception Report 7 14-Mar-19 2 On Submission of Detailed FSR including Project selection and prioritization Report 45/75/105 20-Jun-19 3 On Submission of the Draft Detailed Project Report 60/90/120 5-Jul-19 4 On submission of Social and Environmental Assessment Report After 15 days 20-Jun-19 5 On submission of Final DPR After 15 days 20-Jul-19 Likely Date of Signing Agreement 28-Feb-19 Length as per RFP(km): 558.878 Likely Commencement Date (16th Day of dt of Agmt.) 7-Mar-19
- 5. 5 Field Survey & Investigations Survey & Investigation T-1 (1-March-2019) To (10-March-2019) 1. Road Inventory 2. Structure Inventory 3. Pavement Condition Survey. 4. Collection of Existing Data 5. Soil Investigation Reconnaissance Survey 1. Meeting with client 2. Identifications of Road 3. Overview of Road 4. Traffic Survey Locations. T-2 (10-March-2019) To (20-March-2019) 1. Road Inventory 2. Structure Inventory 3. Pavement Condition Survey. 4. Collection of Existing Data 5. Soil Investigation Reconnaissance Survey 1. Meeting with client 2. Identifications of Road 3. Overview of Road 4. Traffic Survey Locations. T-3 (1-March-2019) To (10-March-2019) 1. Road Inventory 2. Structure Inventory 3. Pavement Condition Survey. 4. Collection of Existing Data 5. Soil Investigation Reconnaissance Survey 1. Meeting with client 2. Identifications of Road 3. Overview of Road 4. Traffic Survey Locations.
- 6. 6 Topographic Survey & Traffic Survey Details Traffic Survey and Investigation (15-March-2019 To 23-March-2019) 1. 7-Days – TVC 2. 1-Days(24- Hr) - OD. 3. 1-Days(24- Hr) - Axel Load 4. Turning Moment Count. After Location Finalized by client as proposed in Inception Report Topographic Survey (25-March-2019 To 30-April-2019) 1. Fixing of DGPS point @ 4 Km. 2. Fixing of TBM point @ 250 m. 3. Horizontal Survey by LIDAR, 4. Vertical Survey by Auto level. After Alignment Finalization by client as proposed in Inception Report.
- 7. 7 Social & Environment survey Details regarding Environmental Survey Planning Environment Survey 1. Inception Report 2. Presentation to client on proposed Work Plan 3. Presentation on Environmental Screening Findings 4. Presentation on the capacity Building Strategy for RBD 5. Draft Environmental Management Frame work Report 6. Presentation to the client : Environmental Management Frame work 7. Draft MOU’s between Client and Other relevant Participating Line Agencies 8. Draft Project Level EA & EMP Reports All First Year Sub-Projects (including at least 1 EA & EMP for “high impact Category” Sub-Project) 9. Presentation to the client: Details of the EMP’s Design Recommendations 10. Final Reports (refer items 5,7 and 8) 11. Draft Documents for Public Disclosure: Assistance to Client for Environment Clearance Application Forms, And any other outputs as required for satisfactory completion of this assignment Deliverables On approval of environment monitoring locations proposed in Inception Report
- 8. 8 Social & Environment survey Details regarding Social survey Planning Social Survey 1. Inception report with methodology, personnel, work plan, time 2. Schedule, modification to TOR along with presentation. 3. Social screening report 4. Social Assessment report 5. Census survey of Phase-I roads and draft R & R policy with entitlement matrix, draft Resettlement Action Plan (RAP) of first year activities and documentation of public 6. Consultation on the entitlement framework. 7. Detailed final RAP (for the first year activities) including the LA plan, action plans for cultural property and indigenous people where required 8. Detailed final RAP and IPDP for the remaining stretches of the roads included in the project. Deliverables On approval of Alignment as proposed in Inception Report.
