This presentation covers how EDI can be leveraged to help mature your Procure To Pay (PTP) process. In addition it also focuses on how it affects the perfect order and outlines vendor management implications.

1. A member of The Business Maturity Group
Moving toward the Perfect Order by automating your Procure To Pay Process
An in-depth look in to the PTP process as it relates to automation and EDI
November 6th, 2014
You Innovation and Support Company
For companies leveraging SAP solutions

2. a member of The Business Maturity Group

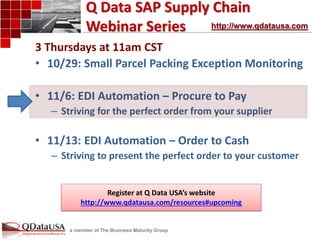

Q Data SAP Supply Chain Webinar Series
3 Thursdays at 11am CST
•10/29: Small Parcel Packing Exception Monitoring
•11/6: EDI Automation – Procure to Pay
–Striving for the perfect order from your supplier
•11/13: EDI Automation – Order to Cash
–Striving to present the perfect order to your customer
http://www.qdatausa.com
Register at Q Data USA’s website
http://www.qdatausa.com/resources#upcoming

3. a member of The Business Maturity Group

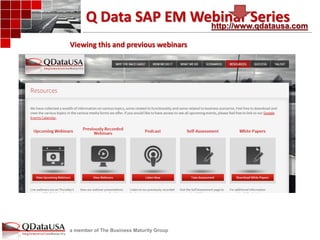

Q Data SAP EM Webinar Series
http://www.qdatausa.com
Viewing this and previous webinars

4. a member of The Business Maturity Group

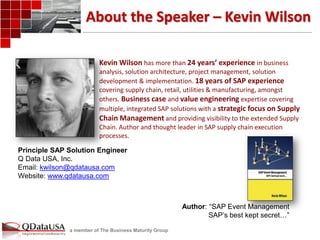

About the Speaker – Kevin Wilson
Kevin Wilson has more than 24 years’ experience in business analysis, solution architecture, project management, solution development & implementation. 18 years of SAP experience covering supply chain, retail, utilities & manufacturing, amongst others. Business case and value engineering expertise covering multiple, integrated SAP solutions with a strategic focus on Supply Chain Management and providing visibility to the extended Supply Chain. Author and thought leader in SAP supply chain execution processes.
Principle SAP Solution Engineer
Q Data USA, Inc.
Email: kwilson@qdatausa.com
Website: www.qdatausa.com
Author: “SAP Event Management
SAP’s best kept secret…”

5. a member of The Business Maturity Group
About the Company - Q Data USA
•Privately held company established in 1994
•SAP centric focus, Best Practice Philosophy
•Manufacturing, Distribution, Oil & Gas, Transportation, Pharma, High Tech
•Methodology to Achieve Business Maturity
We provide pre-go-live implementation and post go-live support services that give our clients the highest-level of Business Performance
As Trusted Advisors, we are continually bridging the gap between IT and the Supply Chain
By following our proven methodologies, we develop innovative solutions and concepts that ensure our clients a high degree of Implementation Maturity from their SAP (ERP) environment
You Innovation and Support Company
For companies leveraging SAP solutions

6. a member of The Business Maturity Group

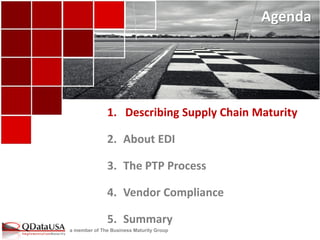

Agenda
1.Describing Supply Chain Maturity
2.About EDI
3.The PTP Process
4.Vendor Compliance
5.Summary

7. a member of The Business Maturity Group

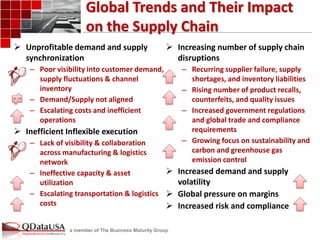

Global Trends and Their Impact on the Supply Chain
Unprofitable demand and supply synchronization
–Poor visibility into customer demand, supply fluctuations & channel inventory
–Demand/Supply not aligned
–Escalating costs and inefficient operations
Inefficient Inflexible execution
–Lack of visibility & collaboration across manufacturing & logistics network
–Ineffective capacity & asset utilization
–Escalating transportation & logistics costs
Increasing number of supply chain disruptions
–Recurring supplier failure, supply shortages, and inventory liabilities
–Rising number of product recalls, counterfeits, and quality issues
–Increased government regulations and global trade and compliance requirements
–Growing focus on sustainability and carbon and greenhouse gas emission control
Increased demand and supply volatility
Global pressure on margins
Increased risk and compliance

8. a member of The Business Maturity Group
Key Trends
•Deliver a Supply Chain Execution platform
–Single solution for all logistics needs
–Provide end-to-end visibility across the supply chain
•Enable Sustainable Supply Networks
–Ability to set, measure and monitor performance across the supply chain
–Provide end-to-end visibility across the extended supply network
–Green and sustainable practices
–Product traceability and recall management across the supply chain

9. a member of The Business Maturity Group

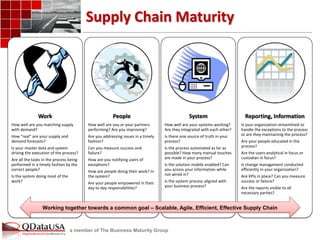

Supply Chain Maturity Work How well are you matching supply with demand? How “real” are your supply and demand forecasts? Is your master data and system driving the execution of the process? Are all the tasks in the process being performed in a timely fashion by the correct people? Is the system doing most of the work? People
How well are you or your partners performing? Are you improving?
Are you addressing issues in a timely fashion?
Can you measure success and failure?
How are you notifying users of exceptions?
How are people doing their work? In the system?
Are your people empowered in their day to day responsibilities? System How well are your systems working? Are they integrated with each other? Is there one source of truth in your process? Is the process automated as far as possible? How many manual touches are made in your process? Is the solution mobile enabled? Can you access your information while not wired in? Is the system process aligned with your business process? Reporting, Information Is your organization streamlined to handle the exceptions to the process or are they maintaining the process? Are your people educated in the process? Are the users analytical in focus or custodian in focus? Is change management conducted efficiently in your organization? Are KPIs in place? Can you measure success or failure? Are the reports visible to all necessary parties?
Working together towards a common goal – Scalable, Agile, Efficient, Effective Supply Chain

10. a member of The Business Maturity Group

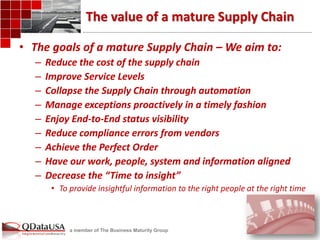

The value of a mature Supply Chain
•The goals of a mature Supply Chain – We aim to:
–Reduce the cost of the supply chain
–Improve Service Levels
–Collapse the Supply Chain through automation
–Manage exceptions proactively in a timely fashion
–Enjoy End-to-End status visibility
–Reduce compliance errors from vendors
–Achieve the Perfect Order
–Have our work, people, system and information aligned
–Decrease the “Time to insight”
•To provide insightful information to the right people at the right time

11. a member of The Business Maturity Group

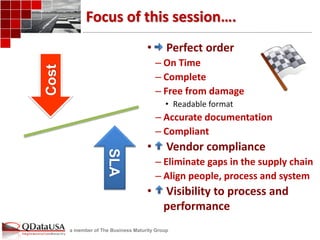

Focus of this session….
• Perfect order
–On Time
–Complete
–Free from damage
•Readable format
–Accurate documentation
–Compliant
• Vendor compliance
–Eliminate gaps in the supply chain
–Align people, process and system
• Visibility to process and performance
Cost SLA

12. a member of The Business Maturity Group

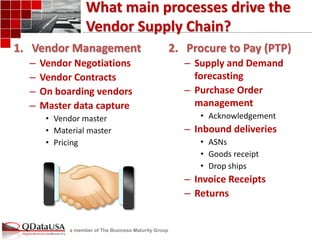

What main processes drive the Vendor Supply Chain?
1.Vendor Management
–Vendor Negotiations
–Vendor Contracts
–On boarding vendors
–Master data capture
•Vendor master
•Material master
•Pricing
2.Procure to Pay (PTP)
–Supply and Demand forecasting
–Purchase Order management
•Acknowledgement
–Inbound deliveries
•ASNs
•Goods receipt
•Drop ships
–Invoice Receipts
–Returns

13. a member of The Business Maturity Group

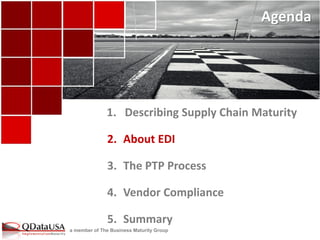

Agenda
1.Describing Supply Chain Maturity
2.About EDI
3.The PTP Process
4.Vendor Compliance
5.Summary

14. a member of The Business Maturity Group

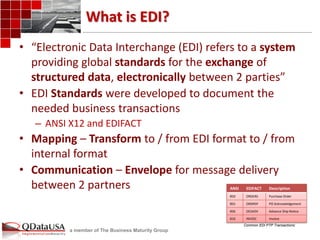

What is EDI?
•“Electronic Data Interchange (EDI) refers to a system providing global standards for the exchange of structured data, electronically between 2 parties”
•EDI Standards were developed to document the needed business transactions
–ANSI X12 and EDIFACT
•Mapping – Transform to / from EDI format to / from internal format
•Communication – Envelope for message delivery between 2 partners
ANSI
EDIFACT
Description
850
ORDERS
Purchase Order
855
ORDRSP
PO Acknowledgement
856
DESADV
Advance Ship Notice
810
INVOIC
Invoice
Common EDI PTP Transactions:

15. a member of The Business Maturity Group
Why EDI?
•Reduction in data capture errors
•Reduction in handling costs for paper documents
•Faster execution of the process
–Collapsing the supply Chain – Time between the end of one activity and the start of the next activity is reduced
–Reduction in Supply Chain Cycle Time
Common hurdles to overcome when implementing EDI
1. Change Management – “We do it this way”
2. Cost – Time and Money to enable the functionality
3. EDI Perception: EDI is technical!!!
You can only automate a GOOD MANUAL process
EDI is not the silver bullet to fix your issues in the process
0%
50%
100%
2008
2013
34%
62%
% EDI Adoption for
Purchase Order
$-
$20.00
$40.00
Paper
EDI
$37.45
$23.83
Cost of doing a PO via EDI vs. Paper

16. a member of The Business Maturity Group
Agenda
1.Describing Supply Chain Maturity
2.About EDI
3.The PTP Process
4.Vendor Compliance
5.Summary

17. a member of The Business Maturity Group

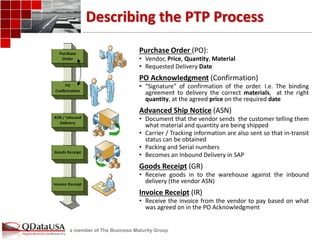

Describing the PTP Process
Purchase Order (PO):
•Vendor, Price, Quantity, Material
•Requested Delivery Date
PO Acknowledgment (Confirmation)
•“Signature” of confirmation of the order. I.e. The binding agreement to delivery the correct materials, at the right quantity, at the agreed price on the required date
Advanced Ship Notice (ASN)
•Document that the vendor sends the customer telling them what material and quantity are being shipped
•Carrier / Tracking information are also sent so that in-transit status can be obtained
•Packing and Serial numbers
•Becomes an Inbound Delivery in SAP
Goods Receipt (GR)
•Receive goods in to the warehouse against the inbound delivery (the vendor ASN)
Invoice Receipt (IR)
•Receive the invoice from the vendor to pay based on what was agreed on in the PO Acknowledgment

18. a member of The Business Maturity Group

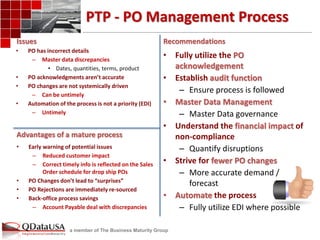

Issues
Recommendations
•PO has incorrect details
–Master data discrepancies
•Dates, quantities, terms, product
•PO acknowledgments aren’t accurate
•PO changes are not systemically driven
–Can be untimely
•Automation of the process is not a priority (EDI)
–Untimely
•Fully utilize the PO acknowledgement
•Establish audit function
–Ensure process is followed
•Master Data Management
–Master Data governance
•Understand the financial impact of non-compliance
–Quantify disruptions
•Strive for fewer PO changes
–More accurate demand / forecast
•Automate the process
–Fully utilize EDI where possible
•Early warning of potential issues
–Reduced customer impact
–Correct timely info is reflected on the Sales Order schedule for drop ship POs
•PO Changes don’t lead to “surprises”
•PO Rejections are immediately re-sourced
•Back-office process savings
–Account Payable deal with discrepancies
PTP - PO Management Process
Advantages of a mature process

19. a member of The Business Maturity Group

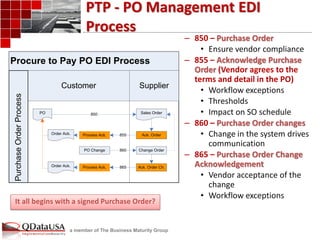

PTP - PO Management EDI
Process
Procure to Pay PO EDI Process
Customer Supplier
Purchase Order Process
850
855
860
865 Ack. Order Ch.
Sales Order
Process Ack.
Process Ack.
Change Order
PO
Order Ack.
Ack. Order
PO Change
Order Ack.
– 850 – Purchase Order
• Ensure vendor compliance
– 855 – Acknowledge Purchase
Order (Vendor agrees to the
terms and detail in the PO)
• Workflow exceptions
• Thresholds
• Impact on SO schedule
– 860 – Purchase Order changes
• Change in the system drives
communication
– 865 – Purchase Order Change
Acknowledgement
• Vendor acceptance of the
change
• Workflow exceptions
It all begins with a signed Purchase Order?

20. a member of The Business Maturity Group

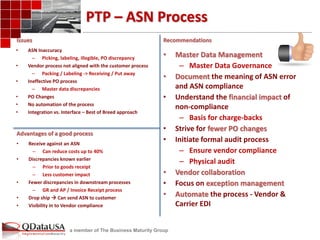

Issues
Recommendations
•ASN Inaccuracy
–Picking, labeling, illegible, PO discrepancy
•Vendor process not aligned with the customer process
–Packing / Labeling -> Receiving / Put away
•Ineffective PO process
–Master data discrepancies
•PO Changes
•No automation of the process
•Integration vs. Interface – Best of Breed approach
•Master Data Management
–Master Data Governance
•Document the meaning of ASN error and ASN compliance
•Understand the financial impact of non-compliance
–Basis for charge-backs
•Strive for fewer PO changes
•Initiate formal audit process
–Ensure vendor compliance
–Physical audit
•Vendor collaboration
•Focus on exception management
•Automate the process - Vendor & Carrier EDI
•Receive against an ASN
–Can reduce costs up to 40%
•Discrepancies known earlier
–Prior to goods receipt
–Less customer impact
•Fewer discrepancies in downstream processes
–GR and AP / Invoice Receipt process
•Drop ship  Can send ASN to customer
•Visibility in to Vendor compliance
PTP – ASN Process
Advantages of a good process
Why are we here?

21. a member of The Business Maturity Group

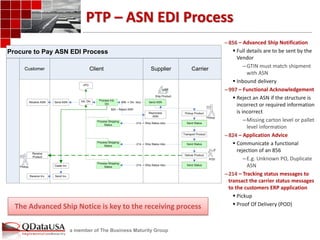

PTP – ASN EDI Process
Procure to Pay ASN EDI Process
Customer Client Supplier Carrier
856 -> Dlv. Idoc
214 -> Ship Status Idoc
214 -> Ship Status Idoc
214 -> Ship Status Idoc
824 – Reject ASN
Receive
Product
Process Shipping
Status
Send Status
Deliver Product
Process Shipping
Status
Ceate Inv.
Receive ASN Send ASN Send ASN
Process Inb.
Dlv
Pickup
Process Shipping
Status
Reprocess
ASN
Send Status
Send Status
Pickup
Receive Inv.
Inb. Dlv
Ship Product
Send Inv.
POD
Transport Product
vPO
Pickup Product
– 856 – Advanced Ship Notification
 Full details are to be sent by the
Vendor
–GTIN must match shipment
with ASN
 Inbound delivery
– 997 – Functional Acknowledgement
 Reject an ASN if the structure is
incorrect or required information
is incorrect
–Missing carton level or pallet
level information
– 824 – Application Advice
 Communicate a functional
rejection of an 856
– E.g. Unknown PO, Duplicate
ASN
– 214 – Tracking status messages to
transact the carrier status messages
to the customers ERP application
 Pickup
The Advanced Ship Notice is key to the receiving process  Proof Of Delivery (POD)

22. a member of The Business Maturity Group

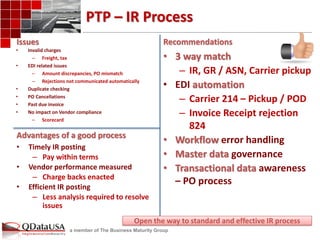

Issues
Recommendations
•Invalid charges
–Freight, tax
•EDI related issues
–Amount discrepancies, PO mismatch
–Rejections not communicated automatically
•Duplicate checking
•PO Cancellations
•Past due invoice
•No impact on Vendor compliance
–Scorecard
•3 way match
–IR, GR / ASN, Carrier pickup
•EDI automation
–Carrier 214 – Pickup / POD
–Invoice Receipt rejection 824
•Workflow error handling
•Master data governance
•Transactional data awareness – PO process
•Timely IR posting
–Pay within terms
•Vendor performance measured
–Charge backs enacted
•Efficient IR posting
–Less analysis required to resolve issues
PTP – IR Process
Advantages of a good process
Why are we here?
Open the way to standard and effective IR process

23. a member of The Business Maturity Group

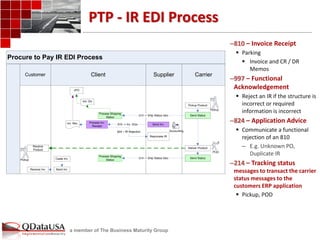

PTP - IR EDI Process
Procure to Pay IR EDI Process
Customer Client Supplier Carrier
214 -> Ship Status Idoc
214 -> Ship Status Idoc
Receive
Product
Process Shipping
Status
Deliver Product
Ceate Inv.
Pickup
Process Shipping
Status
Send Status
Send Status
Pickup
Receive Inv.
Inb. Dlv
Send Inv.
POD
vPO
Pickup Product
Send Inv.
Accounting
Inv. Rec. Process Inv.
Receipt
810 -> Inv. IDoc
824 – IR Rejection
Reprocess IR
–810 – Invoice Receipt
 Parking
 Invoice and CR / DR
Memos
–997 – Functional
Acknowledgement
 Reject an IR if the structure is
incorrect or required
information is incorrect
–824 – Application Advice
 Communicate a functional
rejection of an 810
– E.g. Unknown PO,
Duplicate IR
–214 – Tracking status
messages to transact the carrier
status messages to the
customers ERP application
 Pickup, POD

24. a member of The Business Maturity Group
PTP process – Points to note and KPIS
•PO Creation
–MRP – Based on Supply and Demand
–Master data driven
–Resources manage exceptions
•PO Confirmation – May change (24hrs)
–SKU, Qty, Date, Price
–Decide rules
•Backorders, …
–Workflow Exceptions
•(KPI: Confirmations without changes %, Ack’d within SLA %, Ack Errors %)
•Ship product -> send an ASN (EDI 856) 1-2 hrs
–Create inbound delivery
•Inbound delivery date = 855 PO response schedule (KPI: Fill Rate)
–Warehouse receives against the inbound delivery and not individually
•(KPI: Receiving Errors, Damage %, Wrong SKUs, OTIF, Receipts without ASNs)

25. a member of The Business Maturity Group

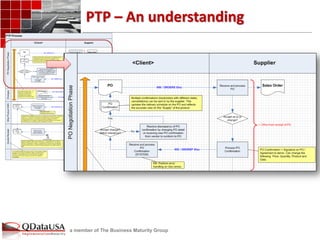

PTP – An understanding

26. a member of The Business Maturity Group

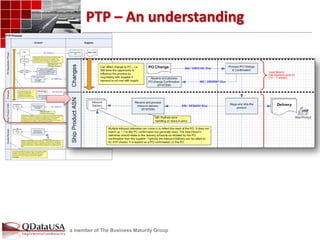

PTP – An understanding

27. a member of The Business Maturity Group

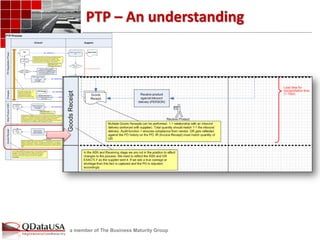

PTP – An understanding

28. a member of The Business Maturity Group

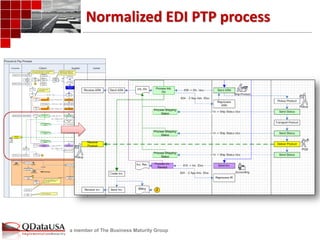

Normalized EDI PTP process

29. a member of The Business Maturity Group
Normalized EDI PTP process

30. a member of The Business Maturity Group
Agenda
1.Describing Supply Chain Maturity
2.About EDI
3.The PTP Process
4.Vendor Compliance
5.Summary

31. a member of The Business Maturity Group

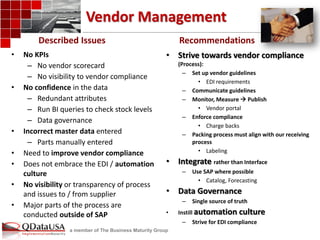

Vendor Management
•No KPIs
–No vendor scorecard
–No visibility to vendor compliance
•No confidence in the data
–Redundant attributes
–Run BI queries to check stock levels
–Data governance
•Incorrect master data entered
–Parts manually entered
•Need to improve vendor compliance
•Does not embrace the EDI / automation culture
•No visibility or transparency of process and issues to / from supplier
•Major parts of the process are conducted outside of SAP
•Strive towards vendor compliance (Process):
–Set up vendor guidelines
•EDI requirements
–Communicate guidelines
–Monitor, Measure  Publish
•Vendor portal
–Enforce compliance
•Charge backs
–Packing process must align with our receiving process
•Labeling
•Integrate rather than Interface
–Use SAP where possible
•Catalog, Forecasting
•Data Governance
–Single source of truth
•Instill automation culture
–Strive for EDI compliance
Described Issues
Recommendations

32. a member of The Business Maturity Group

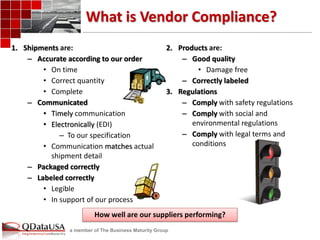

What is Vendor Compliance?
1. Shipments are:
– Accurate according to our order
• On time
• Correct quantity
• Complete
– Communicated
• Timely communication
• Electronically (EDI)
– To our specification
• Communication matches actual
shipment detail
– Packaged correctly
– Labeled correctly
• Legible
• In support of our process
2. Products are:
– Good quality
• Damage free
– Correctly labeled
3. Regulations
– Comply with safety regulations
– Comply with social and
environmental regulations
– Comply with legal terms and
conditions
How well are our suppliers performing?

33. a member of The Business Maturity Group

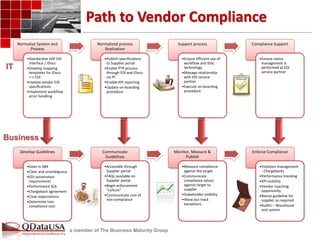

Path to Vendor Compliance
Develop Guidelines
•Goes in SBA
•Clear and unambiguous
•EDI automation
requirements
•Performance SLA
•Chargeback agreement
•Clear expectations
•Determine non-compliance
cost
Communicate
Guidelines
•Accessible through
Supplier portal
•FAQs available on
Supplier portal
•Begin enforcement
“culture”
•Communicate cost of
non-compliance
Monitor, Measure &
Publish
•Measure compliance
against the target
•Communicate
compliance values
against target to
supplier
•Stakeholder visibility
•Allow but track
exceptions
Enforce Compliance
•Violation management
- Chargebacks
•Performance trending
•KPI visibility
•Vendor coaching
opportunity
•Revise guideline for
supplier as required
•Audits – Warehouse
and system
Normalize System and
Process
•Standardize SAP EDI
interface / IDocs
•Develop mapping
templates for IDocs
<-> EDI
•Update vendor EDI
specifications
•Implement workflow
error handling
Normalized process
Realization
•Publish specifications
to Supplier portal
•Enable PTP process
through EDI and IDocs
via PI
•Enable KPI reporting
•Update on-boarding
procedure
Support process
•Ensure efficient use of
workflow and IDoc
technology
•Manage relationship
with EDI service
partner
•Execute on-boarding
procedure
Compliance Support
•Ensure status
management is
performed at EDI
service partner
IT
Business

34. a member of The Business Maturity Group
Agenda
1.Describing Supply Chain Maturity
2.About EDI
3.The PTP Process
4.Vendor Compliance
5.Summary

35. a member of The Business Maturity Group

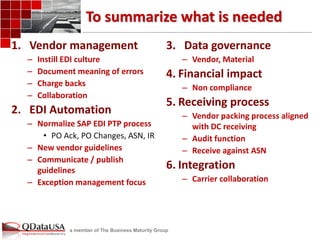

To summarize what is needed
1.Vendor management
–Instill EDI culture
–Document meaning of errors
–Charge backs
–Collaboration
2.EDI Automation
–Normalize SAP EDI PTP process
•PO Ack, PO Changes, ASN, IR
–New vendor guidelines
–Communicate / publish guidelines
–Exception management focus
3.Data governance
–Vendor, Material
4.Financial impact
–Non compliance
5.Receiving process
–Vendor packing process aligned with DC receiving
–Audit function
–Receive against ASN
6.Integration
–Carrier collaboration

36. a member of The Business Maturity Group

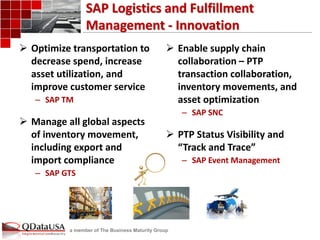

SAP Logistics and Fulfillment Management - Innovation
Optimize transportation to decrease spend, increase asset utilization, and improve customer service
–SAP TM
Manage all global aspects of inventory movement, including export and import compliance
–SAP GTS
Enable supply chain collaboration – PTP transaction collaboration, inventory movements, and asset optimization
–SAP SNC
PTP Status Visibility and “Track and Trace”
–SAP Event Management

37. a member of The Business Maturity Group

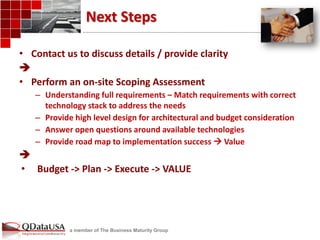

Next Steps
•Contact us to discuss details / provide clarity

•Perform an on-site Scoping Assessment
–Understanding full requirements – Match requirements with correct technology stack to address the needs
–Provide high level design for architectural and budget consideration
–Answer open questions around available technologies
–Provide road map to implementation success  Value

•Budget -> Plan -> Execute -> VALUE

38. a member of The Business Maturity Group
YOU SAP INNOVATION AND SUPPORT COMPANY
Kevin Wilson
kwilson@qdatausa.com
http://www.qdatausa.com
THANK YOU
