1. Event processing with Node.js and RabbitMQ
by Zlatko Duric

2. Disclaimer (AKA about me)
● Experience
– Node.js? Lots
– NoSQL? Lots.
– Messaging? Little
● Backend Developer at ThinxNet.com
(http://thinxnet.com/#jobs)

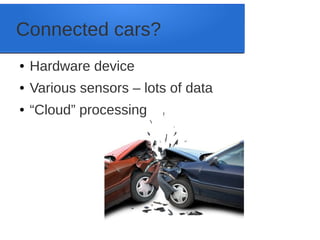

3. Connected cars?
● Hardware device
● Various sensors – lots of data
● “Cloud” processing

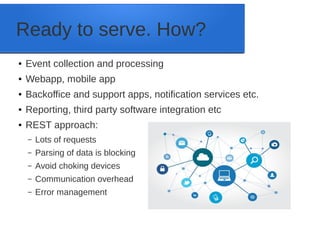

4. Ready to serve. How?
● Event collection and processing
● Webapp, mobile app
● Backoffice and support apps, notification services etc.
● Reporting, third party software integration etc
● REST approach:
– Lots of requests
– Parsing of data is blocking
– Avoid choking devices
– Communication overhead
– Error management

5. What service? Microservice!
● Redis PUBSUB
● ZeroMQ, MQTT, AMQP
● RabbitMQ, ActiveMQ

6. About RabbitMQ
● Messaging broker based on AMQP protocol
● Platform/language independent
● Extensible (Erlang)
● Persistent message queues
● Node.js drivers (node-amqp, rabbit.js...)

7. Hello world

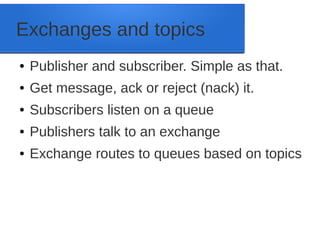

8. Exchanges and topics
● Publisher and subscriber. Simple as that.
● Get message, ack or reject (nack) it.
● Subscribers listen on a queue
● Publishers talk to an exchange
● Exchange routes to queues based on topics

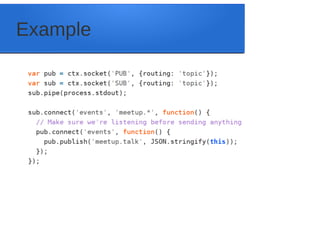

9. Example

10. Channels and connections
● 1 node process = 1 connection
● Many channels, share same connection

11. PUBSUB
● Simple PUBSUB, as used elsewhere
● All listeners get the same message
● Suboptimal

12. Example

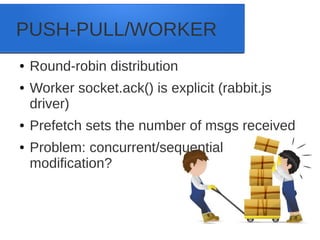

13. PUSH-PULL/WORKER
● Round-robin distribution
● Worker socket.ack() is explicit (rabbit.js
driver)
● Prefetch sets the number of msgs received
● Problem: concurrent/sequential
modification?

14. Example

15. Content-based routing
● Erlang extensions? Not standard.
● App-side:
– Keep internal mini-queue
– Do not ack a msg if it's not first on local
queue
– Hold internal messages based on
internal “topic”, ie “user.<ID>.save” -
hold msgs for that user
– Item.update() instead of item.save()
● Gets nasty fast, should minimize
these scenarios

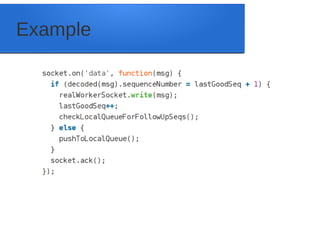

16. Example

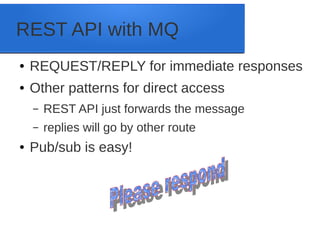

17. REST API with MQ
● REQUEST/REPLY for immediate responses
● Other patterns for direct access
– REST API just forwards the message
– replies will go by other route
● Pub/sub is easy!

18. Example

19. Error handling
● Uncaught exceptions are covered
● Retry logic is simplified – push incomplete
messages to a 'fixer' queue, requeue failed
jobs or when no resources
● Dedicated error handling

20. Example

21. Error handling
● Uncaught exceptions are covered
● Retry logic is simplified – push incomplete
messages to a 'fixer' queue, requeue failed
jobs or when no resources
● Dedicated error handling

22. Testing
● No good known mocks, please help
● RabbitMQ always on on Jenkins machine
● Test handlers directly

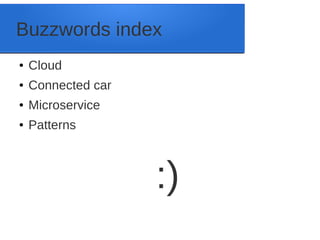

23. Buzzwords index
● Cloud
● Connected car
● Microservice
● Patterns
:)

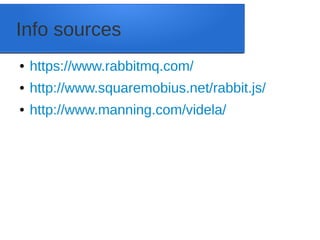

24. Info sources
● https://www.rabbitmq.com/
● http://www.squaremobius.net/rabbit.js/
● http://www.manning.com/videla/

25. Note to self
● Thank the audience for patience
● Invite audience for a discussion and questions
