Tools to create a secure build pipeline
- 1. Tools to create a secure build pipeline Bruno Bossola Kraków, 15-17 May 2019
- 2. @bbossola About me ● Developer 1988+ ● XP coach 2000+ ● Co-founder Jug Torino ● CTO at Meterian
- 3. @bbossola Agenda ● Why do we need a security pipeline? ● Security tools: SAST, DAST, IAST, RASP ● Q&A – slido.com – #geecon2019 – room 12
- 4. @bbossola Why should we build a secure pipeline?
- 5. @bbossola Fixing problems early ● a security problem is a bug ● the late we fix a bug, the more costly it is ● the cost of a bug found in production is 30 times more expensive! ● Recalling cars anyone? Minimizing Code Defects to Improve Software Quality and Lower Development Costs. IBM, 2008
- 6. @bbossola Isn't this just an insurance policy? ● Well, in a sense. What about... yup, sometimes is more expensive than 30 times!
- 7. @bbossola If cars were built like applications... “Cars would have no airbags, mirrors, seat belts, doors, roll-bars, side-impact bars, or locks, because no-one had asked for them. But they would all have at least six cup holders.” The OWASP foundation - “Integration into the SDLC”
- 8. @bbossola If cars were built like applications... “Many safety features originally included might be removed before the car was completed, because they might adversely impact performance.” The OWASP foundation - “Integration into the SDLC”

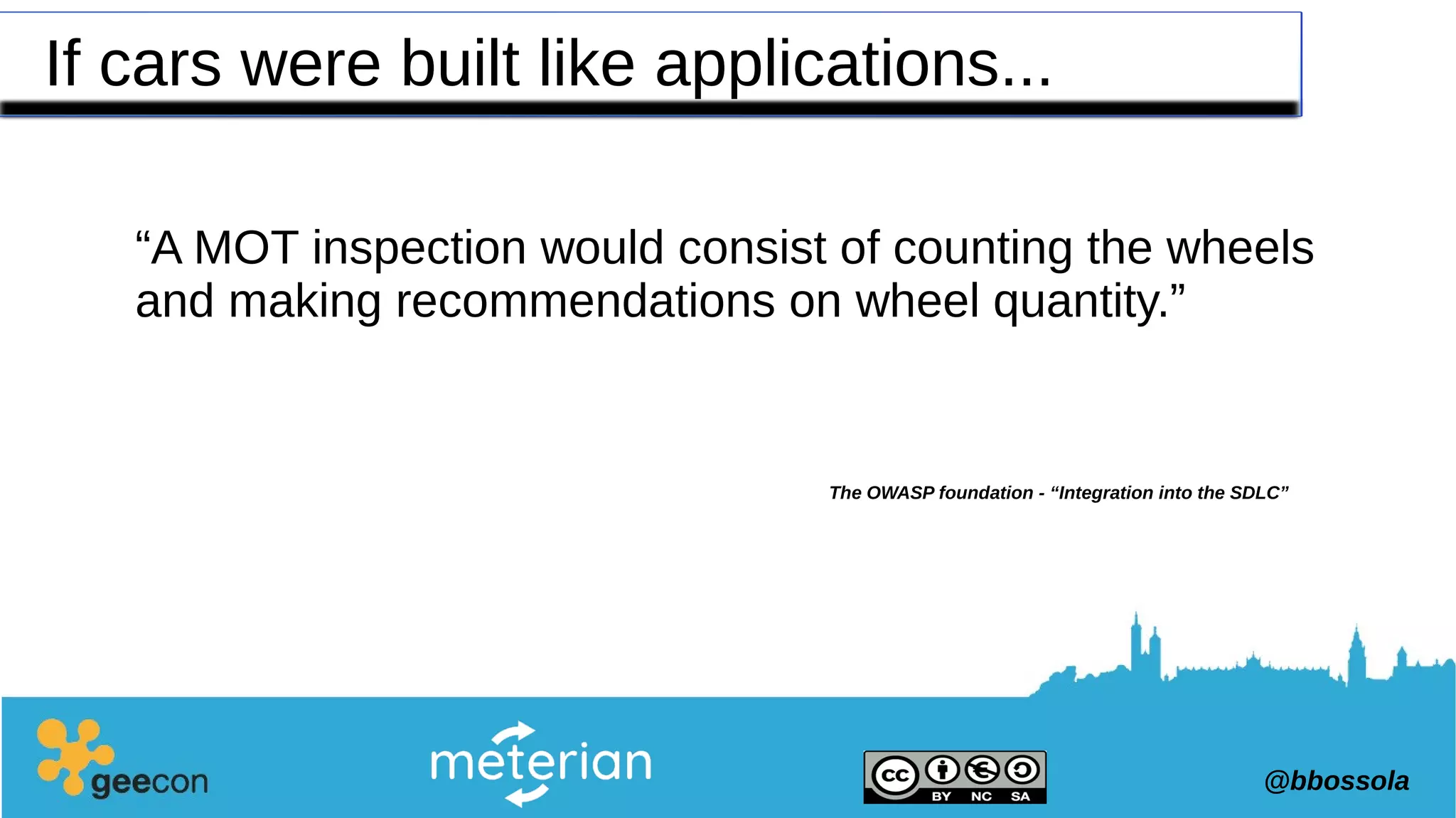

- 9. @bbossola If cars were built like applications... “A MOT inspection would consist of counting the wheels and making recommendations on wheel quantity.” The OWASP foundation - “Integration into the SDLC”

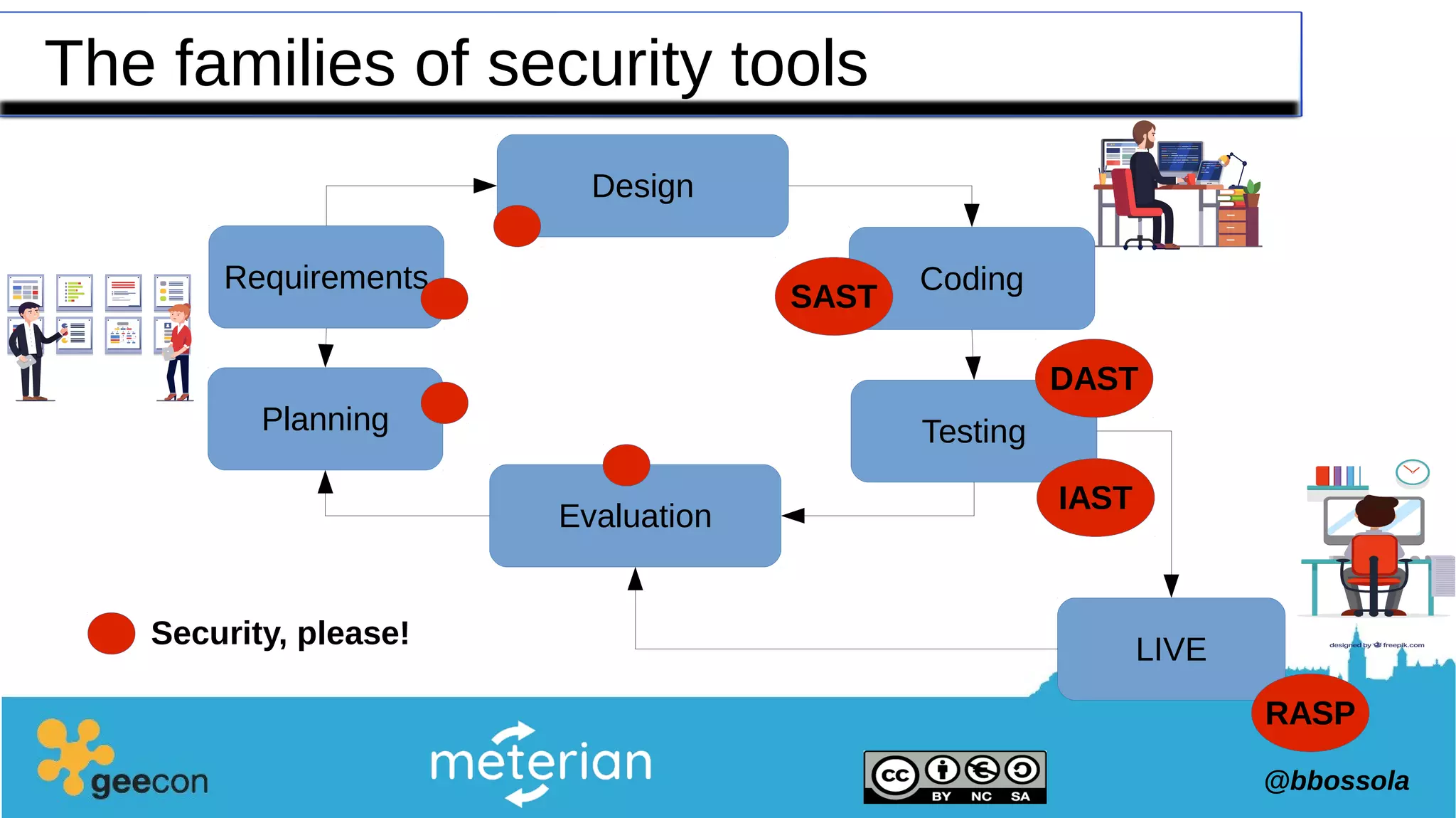

- 12. @bbossola The families of security tools Requirements Design Coding Testing Evaluation LIVE Planning SAST IAST DAST RASP Security, please!
- 13. @bbossola SAST tools ● Static Application Security Testing ● Tools that statically analyse the code to find security flaws ● Either source code or compiled code ● Three families: – Static Code Analysis – Software Component Analysis (or Static Dependency Analysis) – Sensitive Information Scanners

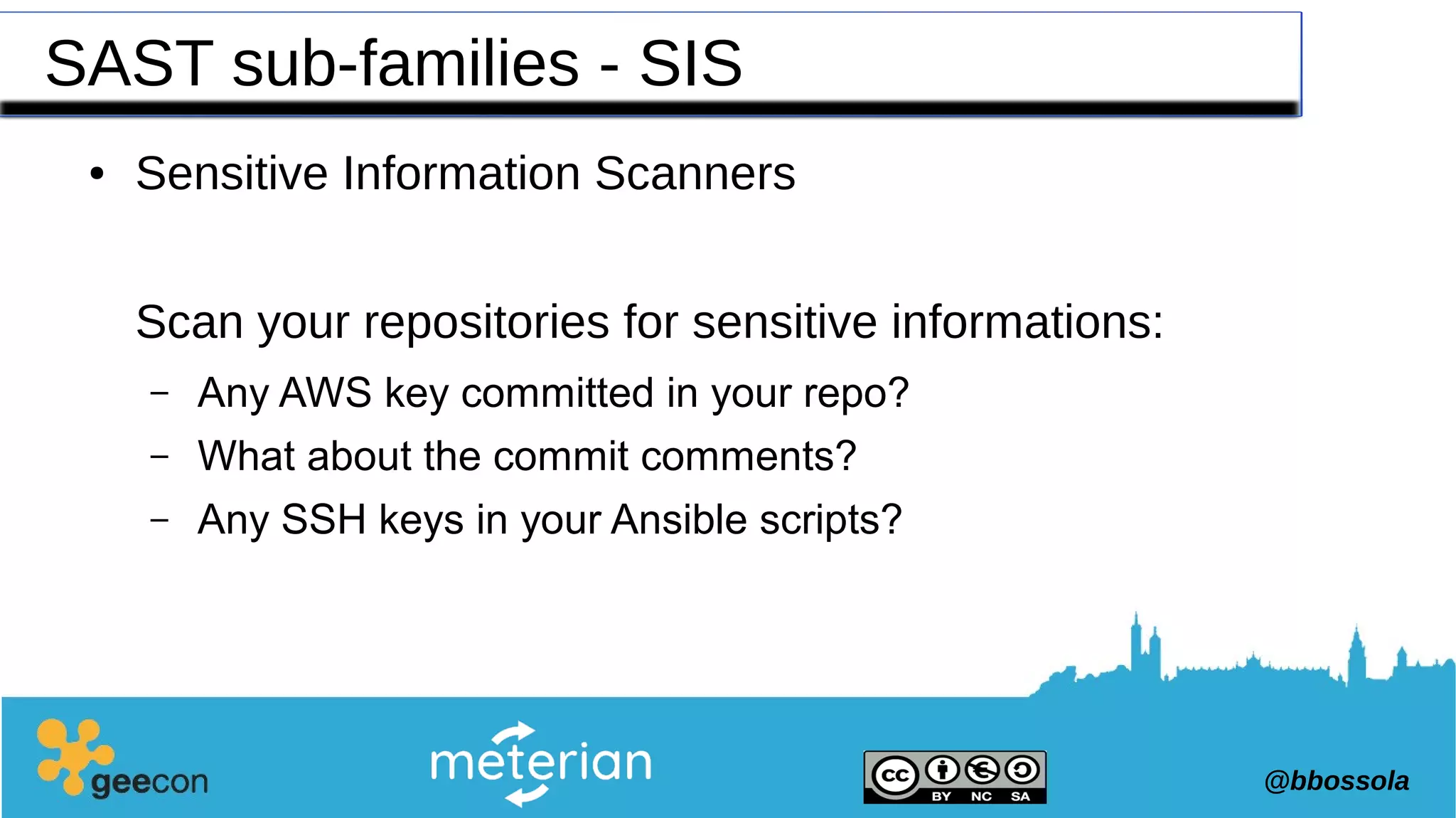

- 14. @bbossola SAST sub-families - SIS ● Sensitive Information Scanners Scan your repositories for sensitive informations: – Any AWS key committed in your repo? – What about the commit comments? – Any SSH keys in your Ansible scripts?
- 15. @bbossola A closer look: SIS tools ● Sensitive Information Scanners – gitleaks – trufflehog ● Mentioned: – git-secrets – gitrob

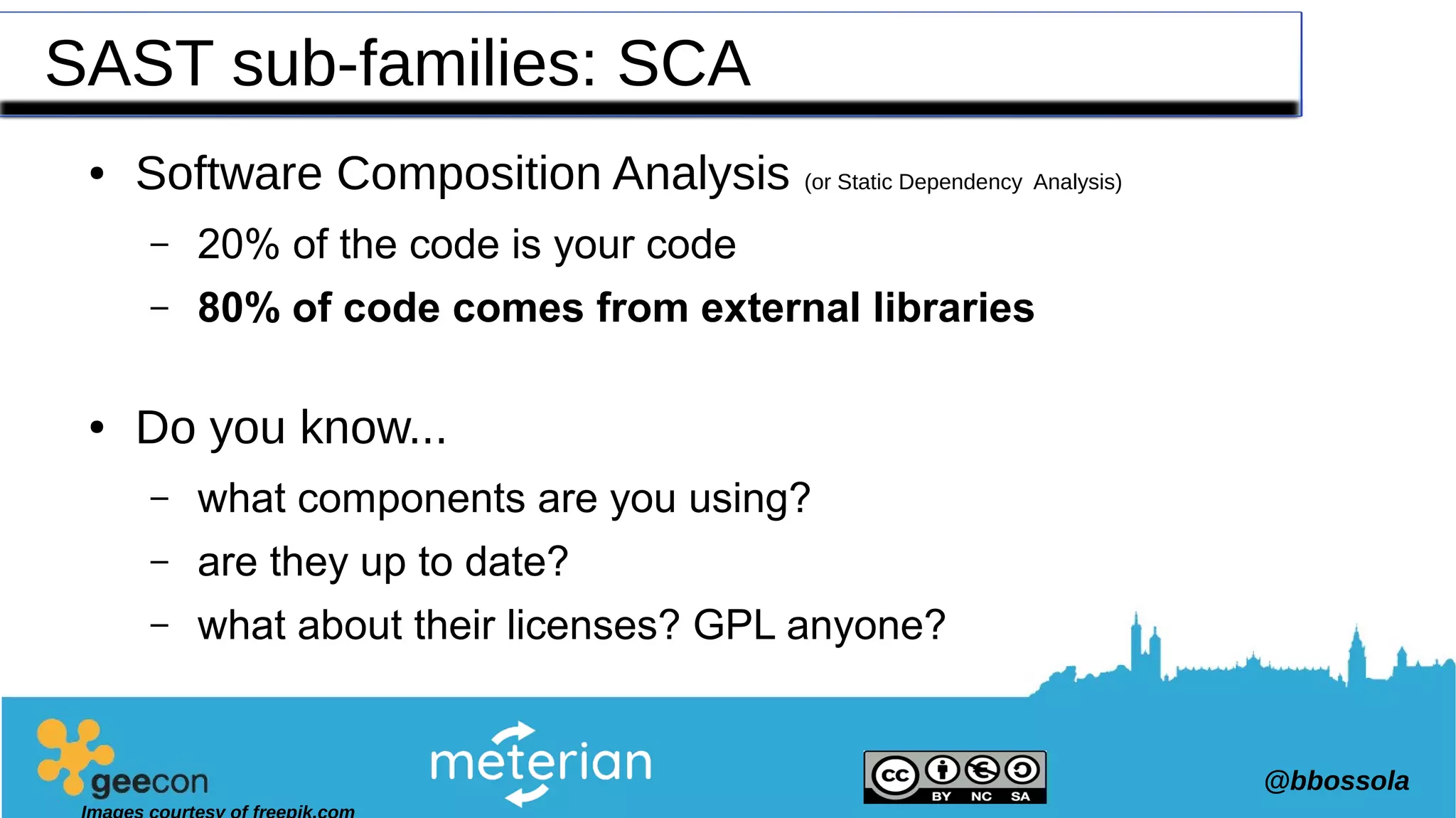

- 16. @bbossola SAST sub-families: SCA ● Software Composition Analysis (or Static Dependency Analysis) – 20% of the code is your code – 80% of code comes from external libraries ● Do you know... – what components are you using? – are they up to date? – what about their licenses? GPL anyone?

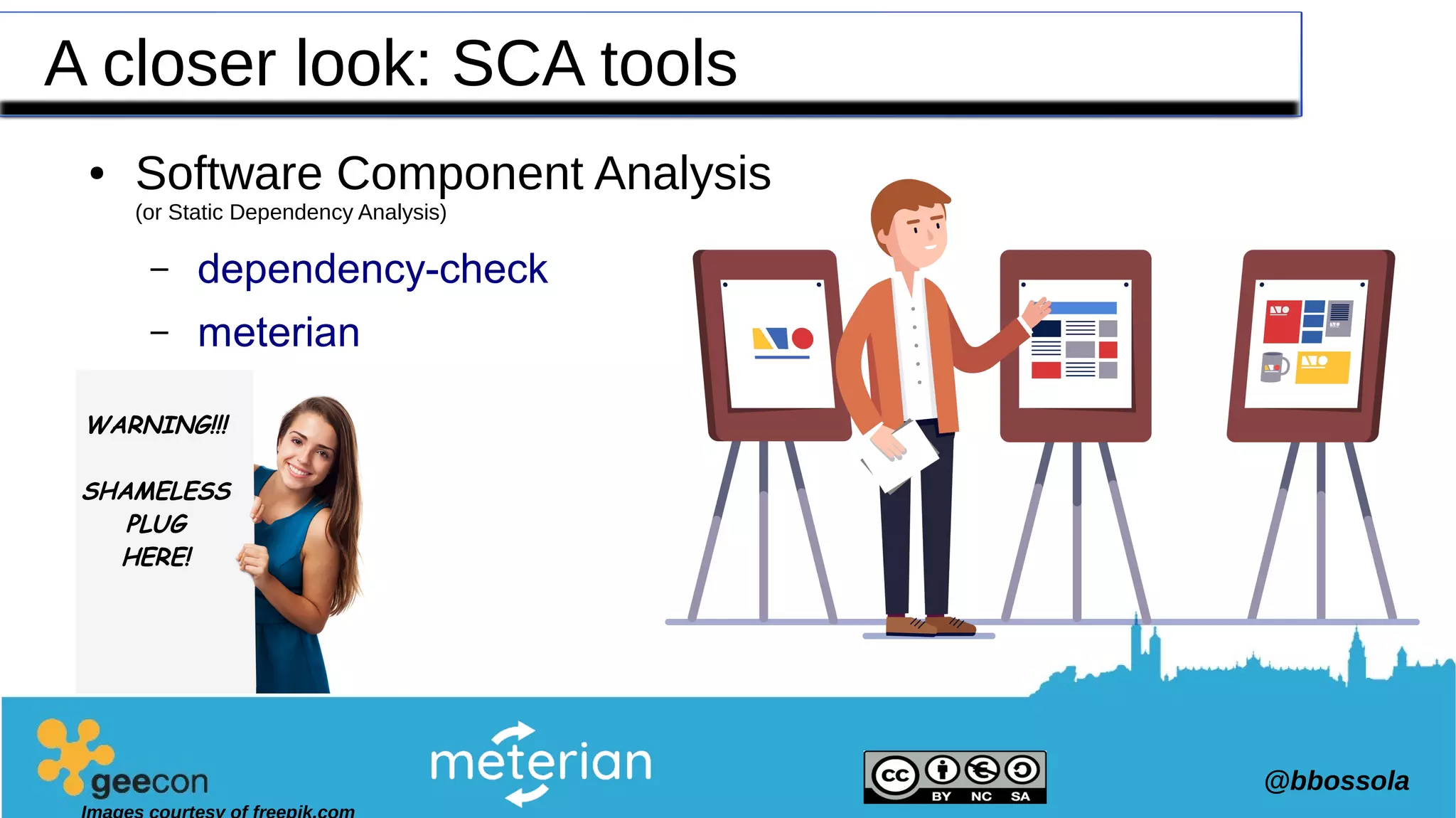

- 17. @bbossola A closer look: SCA tools ● Software Component Analysis (or Static Dependency Analysis) – dependency-check – meterian WARNING!!! SHAMELESS PLUG HERE!
- 18. @bbossola SAST sub-families: SCA (yes, again, same acronym!) ● Static Code Analysis – Analysis of the sources or the binaries – Look for patterns that can lead to exploits ● Downsides – they need a lot of configuration – they may produce a lot of false positives
- 19. @bbossola A closer look: SCA tools ● Static Code Analysis – PMD – Spotbugs – Errorprone
- 20. @bbossola DAST tools ● Dynamic Application Security Testing ● Testing an application in an operating state – uses fault injection techniques – automated black box testing ● Interacts with exposed interfaces – HTML – APIs – Other specific protocols BURP

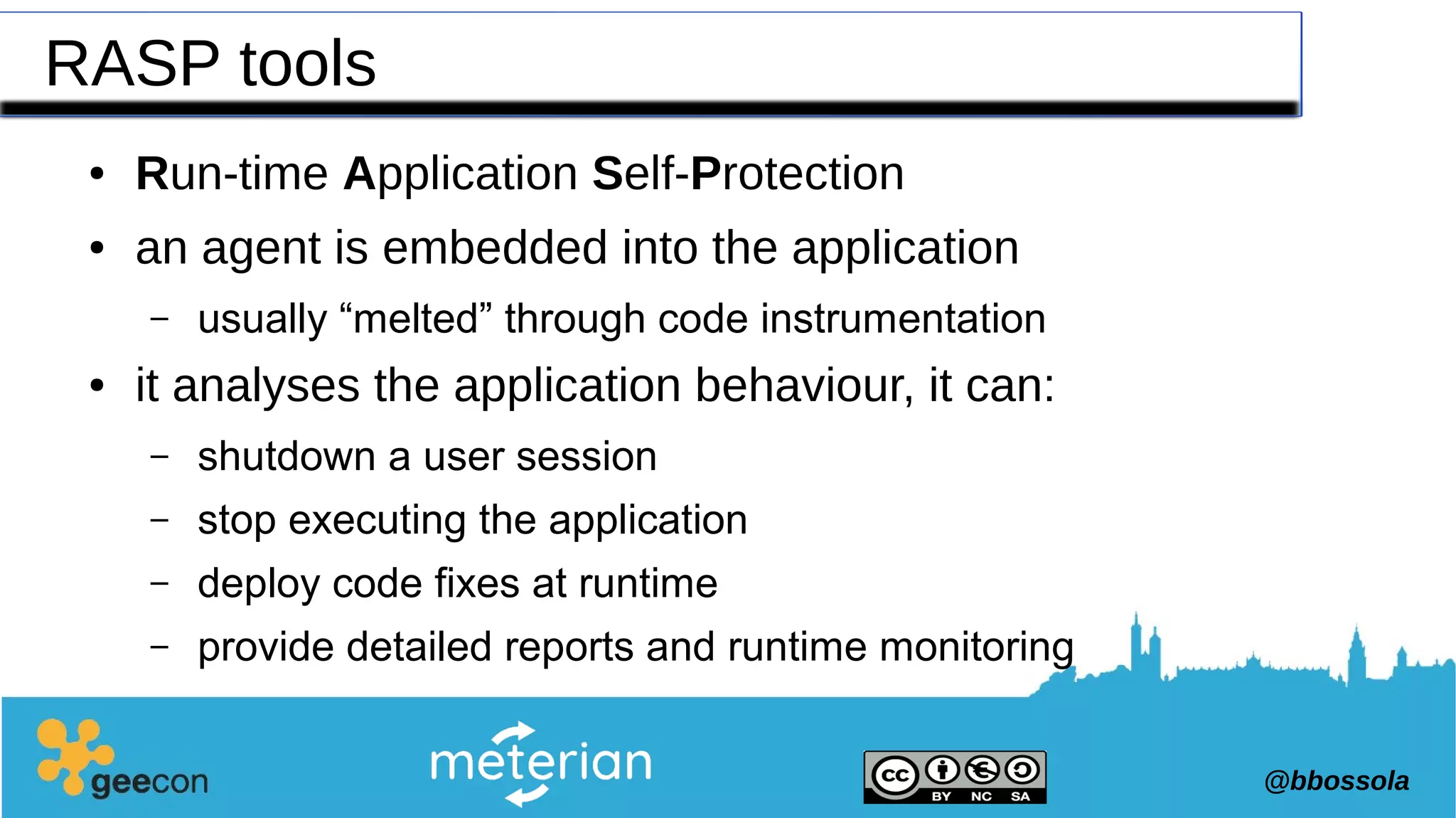

- 21. @bbossola RASP tools ● Run-time Application Self-Protection ● an agent is embedded into the application – usually “melted” through code instrumentation ● it analyses the application behaviour, it can: – shutdown a user session – stop executing the application – deploy code fixes at runtime – provide detailed reports and runtime monitoring

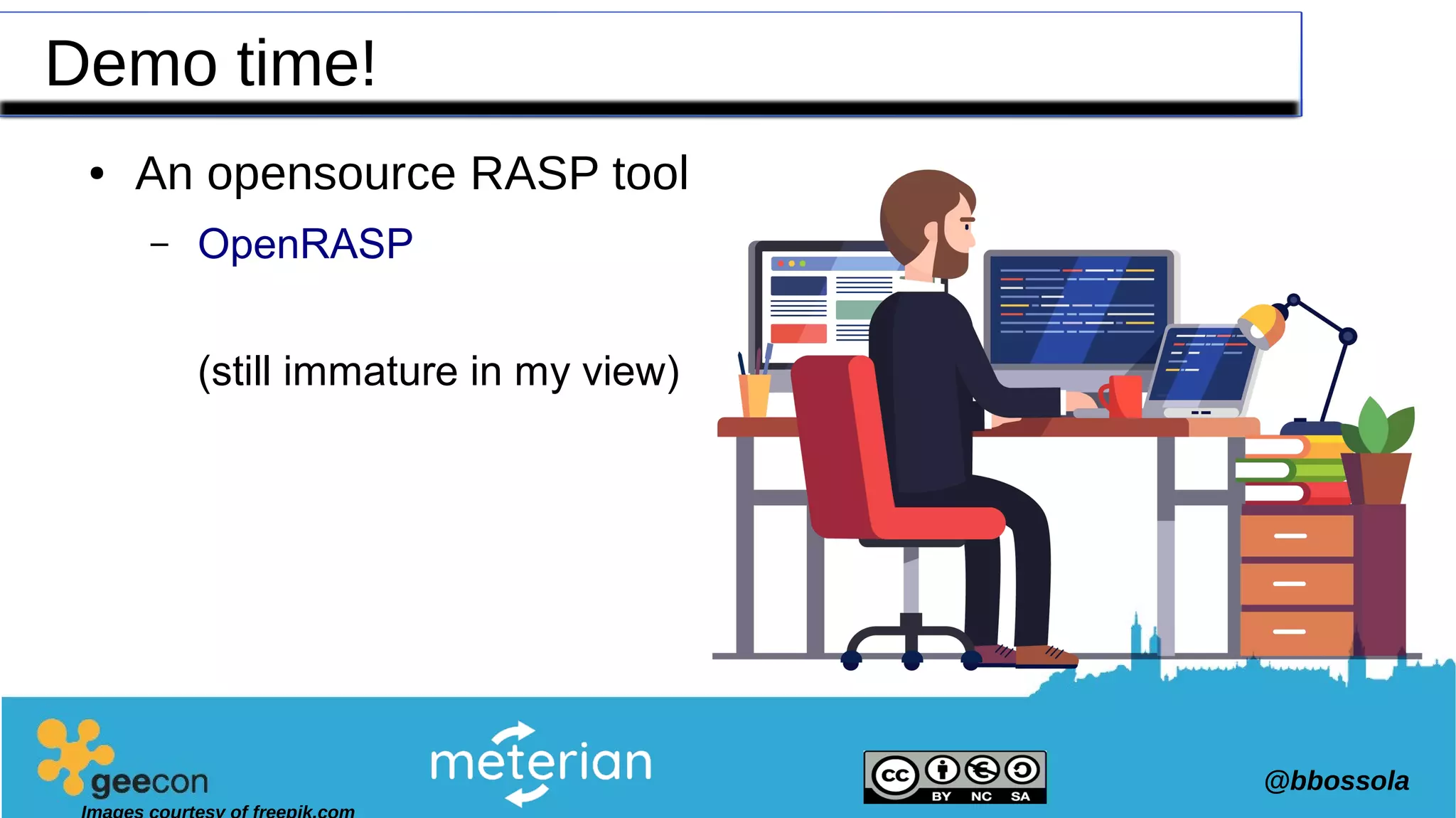

- 22. @bbossola Demo time! ● An opensource RASP tool – OpenRASP (still immature in my view)

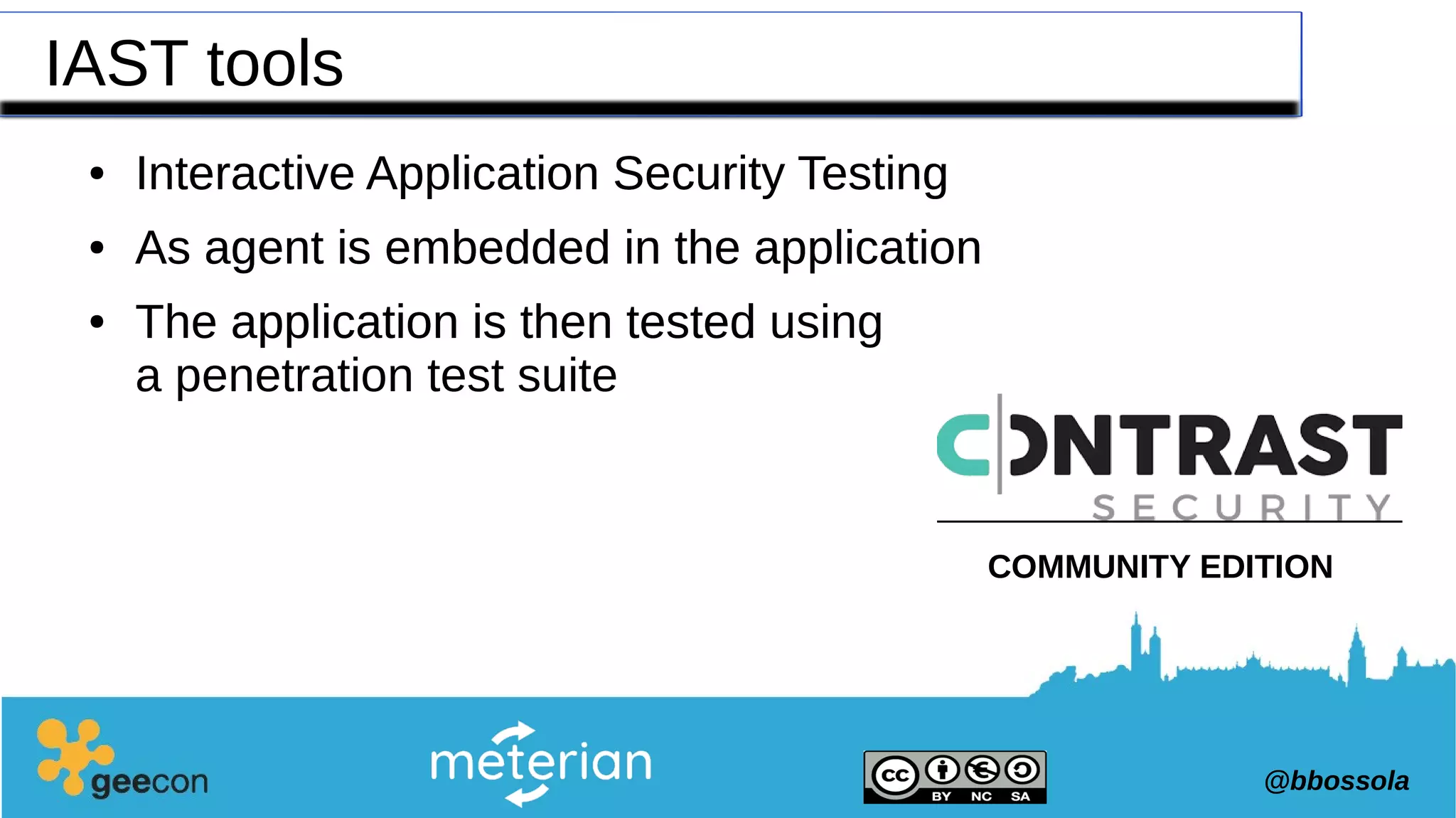

- 23. @bbossola IAST tools ● Interactive Application Security Testing ● As agent is embedded in the application ● The application is then tested COMMUNITY EDITION ● Interactive Application Security Testing ● As agent is embedded in the application ● The application is then tested using a penetration test suite
- 24. @bbossola Anything else? ● WAF – Web Application Firewalls – a perimeter control solution – basicallly a reverse proxy – applies a set of rules to an HTTP conversation – cover common attacks such as cross-site scripting (XSS) and SQL injection
- 26. @bbossola Q&A
Editor's Notes
- Introduce meterian clearly“we help companies to ship software without vulnerabilities” startup, I am a cofounder with Vivian (PM)
- Let's look at a simple SQL injection example. A naive application simply has no defense and gets exploited. An application that uses PreparedStatements is safe against injection, but has no idea whether it is being attacked or not. Let's see how this works with RASP. I'm describing Contrast's instrumentation approach here. First, the RASP is installed into the application. In this case, simply adding the RASP agent to the environment is enough. When the code loads, the RASP uses dynamic binary instrumentation to add new security sensors and analysis capability to the application. When the attack arrives at the application, RASP uses gathers data about the request, the user, the session, and any other contextual information. The attacker's request data is tracked through the application. If it looks like an attack, but never reaches a SQL query, it gets reported as a probe. This is a major difference from what a WAF can do, as WAFs are not able to see what happens inside the application and must overblock. If the attack actually reaches a SQL query and modifies the meaning of that query, only then does RASP block the attack. This is essentially enforcing the definition of SQL Injection, as only attacks that successfully modify the meaning of SQL queries are blocked. This is why RASP implementation can be deployed without much configuration or training
