1. Sonia Pini – Carlo Bonamico
Real World AngularJS recipes:
beyond TodoMVC
sonia.pini@nispro.it - NIS s.r.l.
carlo.bonamico@nispro.it - NIS s.r.l.
carlo.bonamico@gmail.com – Genova Java User Group
Twitter: @carlobonamico @nis_srl
ROME 27-28 march 2015

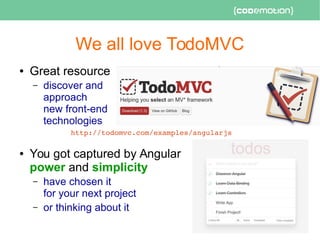

2. We all love TodoMVC
● Great resource
– discover and
approach
new front-end
technologies
http://todomvc.com/examples/angularjs
● You got captured by Angular
power and simplicity
– have chosen it
for your next project
– or thinking about it

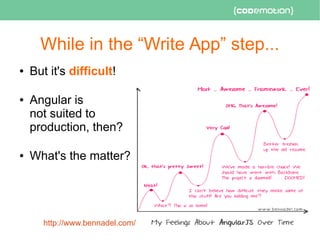

3. While in the “Write App” step...
● But it's difficult!
● Angular is
not suited to
production, then?
● What's the matter?
http://www.bennadel.com/

4. Data Binding is just the beginning
It doesn’t just magically
generate maintainable
and extensible apps
● How to design
and implement
a robust HTML5
SPA?
{{ iceberg.tip }}
Modules test
Routing
directives

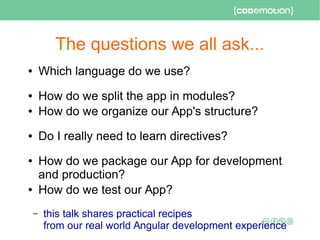

5. The questions we all ask...
● Which language do we use?
● How do we split the app in modules?
● How do we organize our App's structure?
● Do I really need to learn directives?
● How do we package our App for development
and production?
● How do we test our App?
– this talk shares practical recipes
from our real world Angular development experience

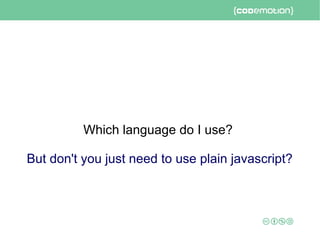

6. Which language do I use?
But don't you just need to use plain javascript?

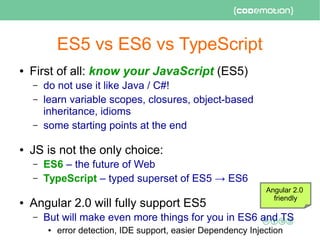

7. ES5 vs ES6 vs TypeScript
● First of all: know your JavaScript (ES5)
– do not use it like Java / C#!
– learn variable scopes, closures, object-based
inheritance, idioms
– some starting points at the end
● JS is not the only choice:
– ES6 – the future of Web
– TypeScript – typed superset of ES5 → ES6
● Angular 2.0 will fully support ES5
– But will make even more things for you in ES6 and TS
● error detection, IDE support, easier Dependency Injection
Angular 2.0
friendly

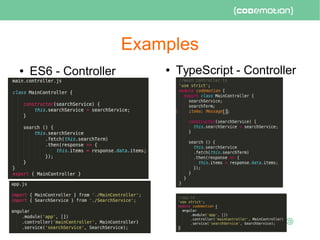

8. Examples
● ES6 - Controller ● TypeScript - Controller

9. How do we split the app in modules?

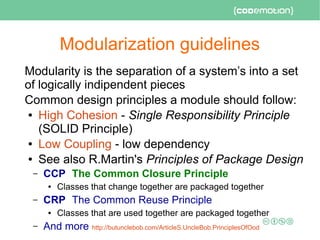

10. Modularization guidelines
Modularity is the separation of a system’s into a set
of logically indipendent pieces
Common design principles a module should follow:
● High Cohesion - Single Responsibility Principle
(SOLID Principle)
● Low Coupling - low dependency
● See also R.Martin's Principles of Package Design
– CCP The Common Closure Principle
● Classes that change together are packaged together
– CRP The Common Reuse Principle
● Classes that are used together are packaged together
– And more http://butunclebob.com/ArticleS.UncleBob.PrinciplesOfOod

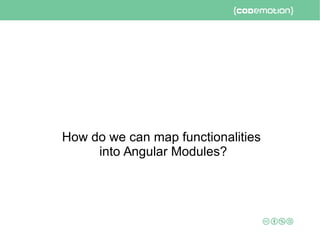

11. How do we can map functionalities
into Angular Modules?

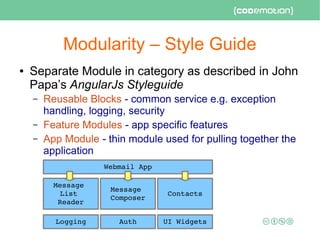

12. Modularity – Style Guide
● Separate Module in category as described in John
Papa’s AngularJs Styleguide
– Reusable Blocks - common service e.g. exception
handling, logging, security
– Feature Modules - app specific features
– App Module - thin module used for pulling together the
application
Webmail App
Logging Auth UI Widgets
Message
List
Reader
Message
Composer
Contacts

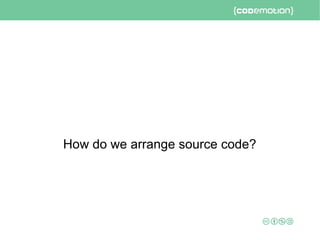

13. How do we arrange source code?

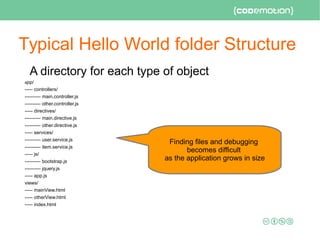

14. Typical Hello World folder Structure
A directory for each type of object
app/
----- controllers/
---------- main.controller.js
---------- other.controller.js
----- directives/
---------- main.directive.js
---------- other.directive.js
----- services/
---------- user.service.js
---------- item.service.js
----- js/
---------- bootstrap.js
---------- jquery.js
----- app.js
views/
----- mainView.html
----- otherView.html
----- index.html
Finding files and debugging
becomes difficult
as the application grows in size

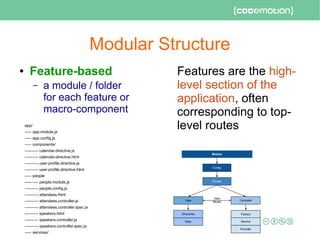

15. Modular Structure
● Feature-based
– a module / folder
for each feature or
macro-component
app/
----- app.module.js
----- app.config.js
----- components/
---------- calendar.directive.js
---------- calendar.directive.html
---------- user-profile.directive.js
---------- user-profile.directive.html
----- people
---------- people.module.js
---------- people.config.js
---------- attendees.html
---------- attendees.controller.js
---------- attendees.controller.spec.js
---------- speakers.html
---------- speakers.controller.js
---------- speakers.controller.spec.js
----- services/
Features are the high-
level section of the
application, often
corresponding to top-
level routes

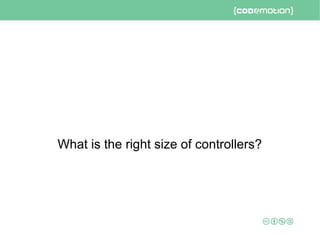

16. What is the right size of controllers?

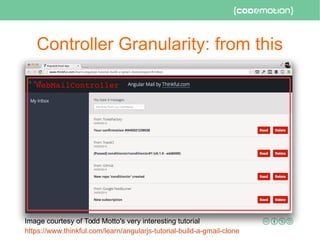

17. Controller Granularity: from this
Image courtesy of Todd Motto's very interesting tutorial
https://www.thinkful.com/learn/angularjs-tutorial-build-a-gmail-clone
WebMailController

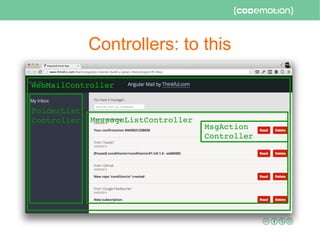

18. Controllers: to this
WebMailController
MessageListController
FolderList
Controller
MsgAction
Controller

19. Controller tips
● Controllers should be as small as possible
– used just to prepare the model and react to user inputs
– avoid DOM manipulation
● Prefer the new Controller As syntax
<div ng­controller=”MsgController as msgCtrl”>
{{msgCtrl.message.subject}}
function MsgController() //no $scope!
{
this.message = { subject : “Hello World” };
}
Easier to test, maintain,
Reduces code duplication (DRY)
Angular 2.0
friendly

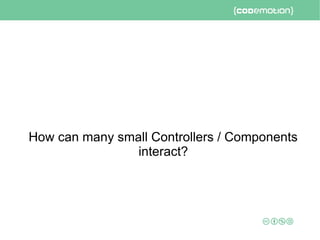

20. How can many small Controllers / Components
interact?

21. Collaborating Controllers
– Through the Scope hierarchy
● Child controller reads/write its parent scope (or vice-versa)
● ONLY suited for controllers of tightly coupled parts
● Avoid if possible
– Through a common Service
● Best used within a module
– MessageListController MessageListService→
– NavigationController MessageListService→
– Through events
● Best used across modules or independent functionalities
● e.g. from in Contact module choose one from list
$broadcast(“composeEmail”,
{action: “compose”, to: currentContact})
● Message Composer module listens and creates a new mail
– $on(“composeEmail”, function (event) {...})

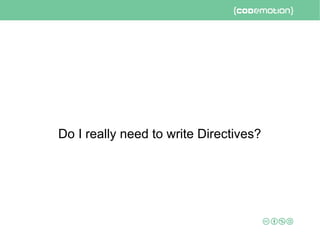

22. Do I really need to write Directives?

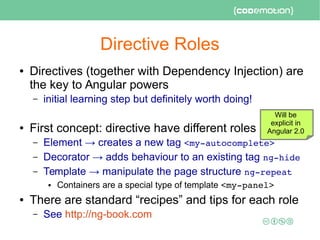

23. Directive Roles
● Directives (together with Dependency Injection) are
the key to Angular powers
– initial learning step but definitely worth doing!
● First concept: directive have different roles
– Element → creates a new tag <my­autocomplete>
– Decorator → adds behaviour to an existing tag ng­hide
– Template → manipulate the page structure ng­repeat
● Containers are a special type of template <my­panel>
● There are standard “recipes” and tips for each role
– See http://ng-book.com
Will be
explicit in
Angular 2.0

24. Directive tips
● Progressively implement a hierarchy of Directives
– Utility directives
– show­tooltip­on=”warning”
– Ui elements
<contact­autocomplete></contact­autocomplete>
– Reusable Components
● Tip – learn transclusion!
– <message­composer message=”newMessage”
on­send=”wmCtrl.sent()”>
<my­custom­message­action­bar></...>
– </message­composer>
– Macro-component (optional, but...)

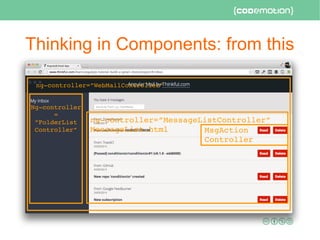

25. Thinking in Components: from this
ng­controller=”WebMailController”
ng­controller=”MessageListController”
MessageList.html
Ng­controller
=
”FolderList
Controller” MsgAction
Controller

26. Thinking in Components
– more references on how to do this at the end
<message­list><folder­list>
<message­actions>
<message­details>
<message­search­box>
Angular 2.0
Friendly !!

27. So we are done now :-)
let's just copy the folder in our production web
server...

28. Some things are missing!
● Security
● Logging
● Packaging and Optimizations
● Testing

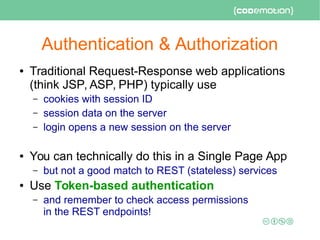

29. Authentication & Authorization
● Traditional Request-Response web applications
(think JSP, ASP, PHP) typically use
– cookies with session ID
– session data on the server
– login opens a new session on the server
● You can technically do this in a Single Page App
– but not a good match to REST (stateless) services
● Use Token-based authentication
– and remember to check access permissions
in the REST endpoints!

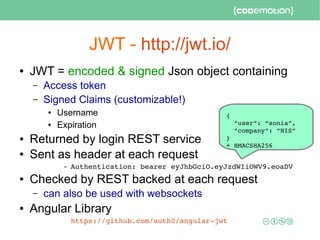

30. JWT - http://jwt.io/
● JWT = encoded & signed Json object containing
– Access token
– Signed Claims (customizable!)
● Username
● Expiration
● Returned by login REST service
● Sent as header at each request
– Authentication: bearer eyJhbGciO.eyJzdWIiOWV9.eoaDV
● Checked by REST backed at each request
– can also be used with websockets
● Angular Library
https://github.com/auth0/angular­jwt
{
“user”: “sonia”,
“company”: “NIS”
}
+ HMACSHA256

31. Logging
● If you move a significant part of your app to the
client side, you need to know what's happening
– are there errors?
● Our approach:
– intercept all exception on the client
● $exceptionHandler service
– represent exception as event JSON object
{ event: “exception”, date: …, message: , severity: }
– LogService which sends events to REST endpoint
● Can also be used to collect and send metrics to the
server

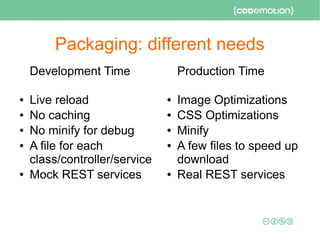

32. Packaging: different needs
Development Time
● Live reload
● No caching
● No minify for debug
● A file for each
class/controller/service
● Mock REST services
Production Time
● Image Optimizations
● CSS Optimizations
● Minify
● A few files to speed up
download
● Real REST services

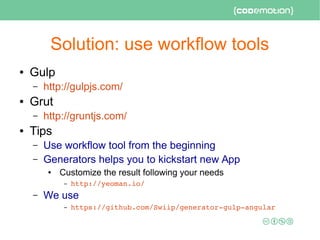

33. Solution: use workflow tools
● Gulp
– http://gulpjs.com/
● Grut
– http://gruntjs.com/
● Tips
– Use workflow tool from the beginning
– Generators helps you to kickstart new App
● Customize the result following your needs
– http://yeoman.io/
– We use
– https://github.com/Swiip/generator­gulp­angular

34. But do I need to test my app?
Testing is nice – BDD even more
in theory, but...
Testing web / Javascript applications is difficult...

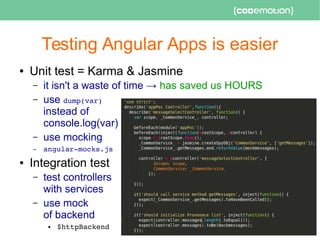

35. Testing Angular Apps is easier
● Unit test = Karma & Jasmine
– it isn't a waste of time → has saved us HOURS
– use dump(var)
instead of
console.log(var)
– use mocking
– angular­mocks.js
● Integration test
– test controllers
with services
– use mock
of backend
● $httpBackend

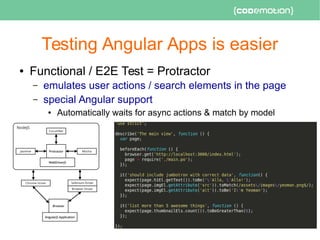

36. Testing Angular Apps is easier
● Functional / E2E Test = Protractor
– emulates user actions / search elements in the page
– special Angular support
● Automatically waits for async actions & match by model

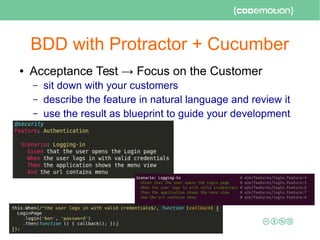

37. BDD with Protractor + Cucumber
● Acceptance Test → Focus on the Customer
– sit down with your customers
– describe the feature in natural language and review it
– use the result as blueprint to guide your development

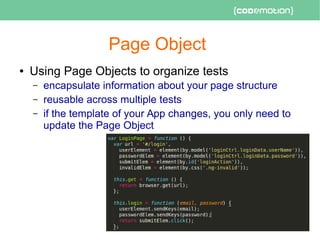

38. Page Object
● Using Page Objects to organize tests
– encapsulate information about your page structure
– reusable across multiple tests
– if the template of your App changes, you only need to
update the Page Object

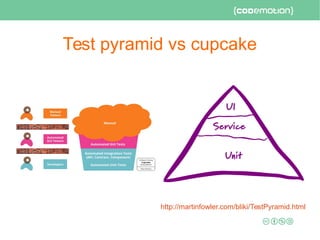

39. Test pyramid vs cupcake
http://martinfowler.com/bliki/TestPyramid.html

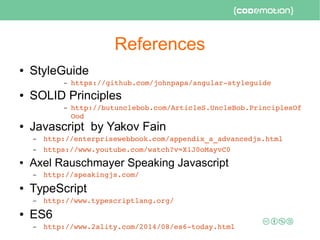

40. References
● StyleGuide
– https://github.com/johnpapa/angular­styleguide
● SOLID Principles
– http://butunclebob.com/ArticleS.UncleBob.PrinciplesOf
Ood
● Javascript by Yakov Fain
– http://enterprisewebbook.com/appendix_a_advancedjs.html
– https://www.youtube.com/watch?v=X1J0oMayvC0
● Axel Rauschmayer Speaking Javascript
– http://speakingjs.com/
● TypeScript
– http://www.typescriptlang.org/
● ES6
– http://www.2ality.com/2014/08/es6­today.html

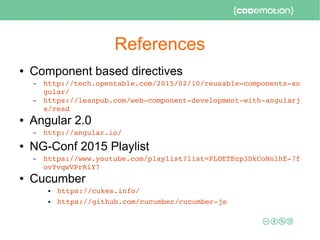

41. References
● Component based directives
– http://tech.opentable.com/2015/02/10/reusable­components­an
gular/
– https://leanpub.com/web­component­development­with­angularj
s/read
● Angular 2.0
– http://angular.io/
● NG-Conf 2015 Playlist
– https://www.youtube.com/playlist?list=PLOETEcp3DkCoNnlhE­7f
ovYvqwVPrRiY7
● Cucumber
● https://cukes.info/
● https://github.com/cucumber/cucumber­js

42. Thank you!
● Other presentations
– http://www.slideshare.net/carlo.bonamico/presentations
● Follow us on Twitter
– @carlobonamico @nis_srl
● updates on AngularJS!
● and some Docker, Ansible, Continuous Delivery
● Contact us
– carlo.bonamico@gmail.com / carlo.bonamico@nispro.it
– Sonia.pini@nispro.it
● Our company
– http://www.nispro.it
Leave your feedback on Joind.in!
https://joind.in/event/view/3347
