Deacon 3300 is an extruded gasket compound suitable for extreme temperatures between -425°F and 1200°F. It maintains flexibility to fill voids and irregularities in flanges better than die-cut gaskets. It is ideal for metal-to-metal applications involving steam, hot air, or chemicals. Deacon 8875-Thin and 7228 are paste sealants for threads and flanges that set pliably and resist chemicals and hydrocarbons. Deacon 770-L is a liquid sealant for applications from 200-950°F, sealing joints and dressing gaskets in steam, liquids, hydrocarbons and solvents.

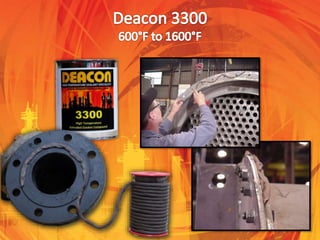

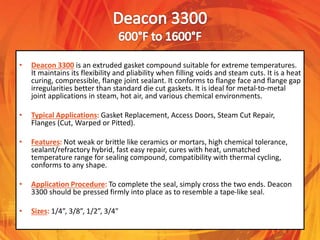

3. • Deacon 3300 is an extruded gasket compound suitable for extreme temperatures.
It maintains its flexibility and pliability when filling voids and steam cuts. It is a heat
curing, compressible, flange joint sealant. It conforms to flange face and flange gap
irregularities better than standard die cut gaskets. It is ideal for metal-to-metal
joint applications in steam, hot air, and various chemical environments.
• Typical Applications: Gasket Replacement, Access Doors, Steam Cut Repair,
Flanges (Cut, Warped or Pitted).
• Features: Not weak or brittle like ceramics or mortars, high chemical tolerance,
sealant/refractory hybrid, fast easy repair, cures with heat, unmatched
temperature range for sealing compound, compatibility with thermal cycling,
conforms to any shape.
• Application Procedure: To complete the seal, simply cross the two ends. Deacon
3300 should be pressed firmly into place as to resemble a tape-like seal.
• Sizes: 1/4”, 3/8”, 1/2”, 3/4"

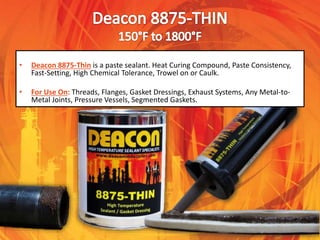

4. • Deacon 8875-Thin is a paste sealant. Heat Curing Compound, Paste Consistency,
Fast-Setting, High Chemical Tolerance, Trowel on or Caulk.
• For Use On: Threads, Flanges, Gasket Dressings, Exhaust Systems, Any Metal-to-
Metal Joints, Pressure Vessels, Segmented Gaskets.

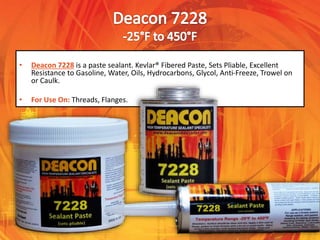

5. • Deacon 7228 is a paste sealant. Kevlar® Fibered Paste, Sets Pliable, Excellent
Resistance to Gasoline, Water, Oils, Hydrocarbons, Glycol, Anti-Freeze, Trowel on
or Caulk.
• For Use On: Threads, Flanges.

7. • Deacon 770-L is a thermal-reactive, sealing compound for threads, gasket dressings, and metal-to-
metal applications. Ideal for high-temperature (200ºF to 950ºF), high-pressure situations, including
steams, liquors, hydrocarbons, and solvents. In the presence of heat, Deacon 770-L forms a
mechanical-type seal. It will not interfere with future repairs of metal-to-metal joints.
• Typical Applications: Turbine Split Casing, Pump Casing, Boilers: Doors, Stacks, Flanges, Heat
Exchangers, Any Metal-to-Metal Joints, Leaking Gaskets, Threaded Fittings, Steam Traps, Sight
Glasses, Nuts & Bolts, Gasket Dressings, Pressure Vessels, Segmented Gaskets
• Features: Liquid Sealant. Heat Curing Compound, Honey Consistency, High Chemical Tolerance,
Brush on. Ease of application achieves seal before full cure, allows for fast and easy repairs, high-
pressure temperature and chemical tolerances (Solvents, Oils, Steam, Liquors, Hydrocarbons).
Creates a mechanical seal high wear resistance. Applications as a gasket dressing. Deacon 770
improves the sealing capability of standard die cut gaskets. Unaffected by thermal cycling. Seal
joints in multi-piece gaskets.
• Application Procedure: Deacon 770-L is brushed onto the sealing surface in a complete, uniform,
thin coating.
• Note: Deacon 770-L will flow filling small voids and surface irregularities creating a seal between
the gasket and the flange surface where most leak problems initiate.

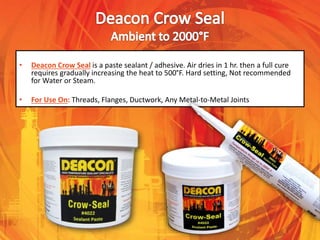

8. • Deacon Crow Seal is a paste sealant / adhesive. Air dries in 1 hr. then a full cure
requires gradually increasing the heat to 500°F. Hard setting, Not recommended
for Water or Steam.
• For Use On: Threads, Flanges, Ductwork, Any Metal-to-Metal Joints

9. • Deacon 5500 is a sealant / packing. PTFE Mixture with a Lubricant Carrier, Pliable,
Non-Hardening, Excellent Lubricity, Extreme Pressure Resistance, Compresses to
Form a Dense Semi-Solid.
• For Use On: Reciprocating Valves, Plug Valves, Injectable Seals.

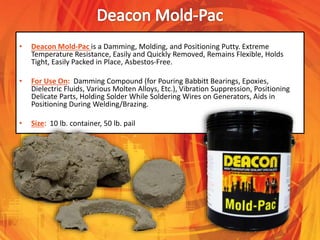

10. • Deacon Mold-Pac is a Damming, Molding, and Positioning Putty. Extreme
Temperature Resistance, Easily and Quickly Removed, Remains Flexible, Holds
Tight, Easily Packed in Place, Asbestos-Free.
• For Use On: Damming Compound (for Pouring Babbitt Bearings, Epoxies,
Dielectric Fluids, Various Molten Alloys, Etc.), Vibration Suppression, Positioning
Delicate Parts, Holding Solder While Soldering Wires on Generators, Aids in
Positioning During Welding/Brazing.
• Size: 10 lb. container, 50 lb. pail

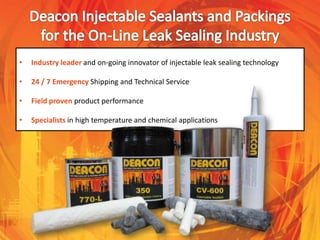

11. • Industry leader and on-going innovator of injectable leak sealing technology
• 24 / 7 Emergency Shipping and Technical Service
• Field proven product performance
• Specialists in high temperature and chemical applications

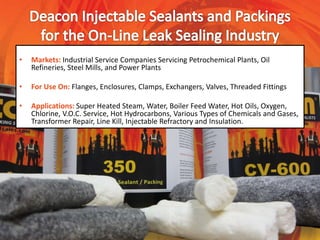

12. • Markets: Industrial Service Companies Servicing Petrochemical Plants, Oil
Refineries, Steel Mills, and Power Plants
• For Use On: Flanges, Enclosures, Clamps, Exchangers, Valves, Threaded Fittings
• Applications: Super Heated Steam, Water, Boiler Feed Water, Hot Oils, Oxygen,
Chlorine, V.O.C. Service, Hot Hydrocarbons, Various Types of Chemicals and Gases,
Transformer Repair, Line Kill, Injectable Refractory and Insulation.
