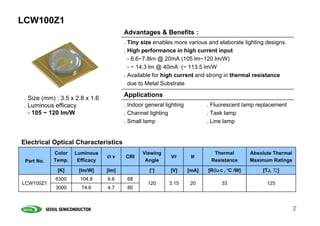

2. LCW100Z1
Advantages & Benefits :
. Tiny size enables more various and elaborate lighting designs.
. High performance in high current input
- 6.6~7.8lm @ 20mA (105 lm~120 lm/W)
- ~ 14.3 lm @ 40mA (~ 113.5 lm/W
. Available for high current and strong in thermal resistance
due to Metal Substrate
. Size (mm) : 3.5 x 2.8 x 1.6
Applications
. Luminous efficacy . Indoor general lighting . Fluorescent lamp replacement
- 105 ~ 120 lm/W . Channel lighting . Task lamp
. Small lamp . Line lamp
Electrical Optical Characteristics
Color Luminous Viewing Thermal Absolute Thermal
Øv CRI VF IF
Part No. Temp. Efficacy Angle Resistance Maximum Ratings
[K] [lm/W] [lm] [º] [V] [mA] [RθJ-C , ºC /W] [TJ, ℃]
6300 104.8 6.6 68
LCW100Z1 120 3.15 20 33 125
3000 74.6 4.7 80
2

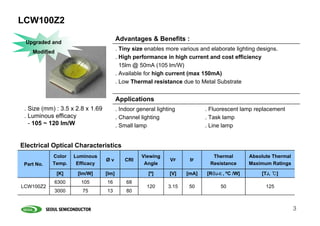

3. LCW100Z2
Upgraded and
Advantages & Benefits :
. Tiny size enables more various and elaborate lighting designs.
Modified
. High performance in high current and cost efficiency
15lm @ 50mA (105 lm/W)
. Available for high current (max 150mA)
. Low Thermal resistance due to Metal Substrate
Applications
. Size (mm) : 3.5 x 2.8 x 1.69 . Indoor general lighting . Fluorescent lamp replacement
. Luminous efficacy . Channel lighting . Task lamp
- 105 ~ 120 lm/W . Small lamp . Line lamp
Electrical Optical Characteristics
Color Luminous Viewing Thermal Absolute Thermal
Øv CRI VF IF
Part No. Temp. Efficacy Angle Resistance Maximum Ratings
[K] [lm/W] [lm] [º] [V] [mA] [RθJ-C , ºC /W] [TJ, ℃]
6300 105 16 68
LCW100Z2 120 3.15 50 50 125
3000 75 13 80
3

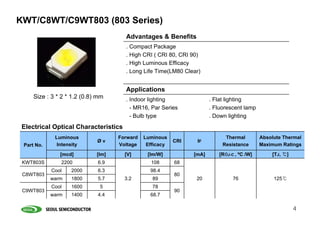

4. KWT/C8WT/C9WT803 (803 Series)
Advantages & Benefits
. Compact Package
. High CRI ( CRI 80, CRI 90)
. High Luminous Efficacy
. Long Life Time(LM80 Clear)
Applications
Size : 3 * 2 * 1.2 (0.8) mm . Indoor lighting . Flat lighting
- MR16, Par Series . Fluorescent lamp
- Bulb type . Down lighting
Electrical Optical Characteristics
Luminous Forward Luminous Thermal Absolute Thermal
Øv CRI IF
Part No. Intensity Voltage Efficacy Resistance Maximum Ratings
[mcd] [lm] [V] [lm/W] [mA] [RθJ-C , ºC /W] [TJ, ℃]
KWT803S 2200 6.9 108 68
Cool 2000 6.3 98.4
C8WT803 80
warm 1800 5.7 3.2 89 20 76 125℃
Cool 1600 5 78
C9WT803 90
warm 1400 4.4 68.7
4

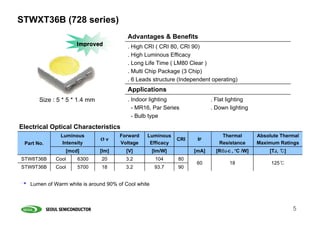

5. STWXT36B (728 series)
Advantages & Benefits
Improved . High CRI ( CRI 80, CRI 90)
. High Luminous Efficacy
. Long Life Time ( LM80 Clear )
. Multi Chip Package (3 Chip)
. 6 Leads structure (Independent operating)
Applications
Size : 5 * 5 * 1.4 mm . Indoor lighting . Flat lighting
- MR16, Par Series . Down lighting
- Bulb type
Electrical Optical Characteristics
Luminous Forward Luminous Thermal Absolute Thermal
Øv CRI IF
Part No. Intensity Voltage Efficacy Resistance Maximum Ratings
[mcd] [lm] [V] [lm/W] [mA] [RθJ-C , ºC /W] [TJ, ℃]
STW8T36B Cool 6300 20 3.2 104 80
60 18 125℃
STW9T36B Cool 5700 18 3.2 93.7 90
Lumen of Warm white is around 90% of Cool white
5

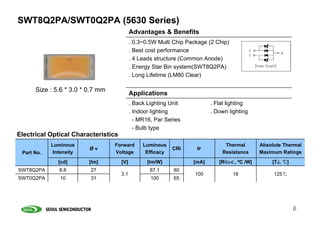

6. SWT8Q2PA/SWT0Q2PA (5630 Series)
Advantages & Benefits
. 0.3~0.5W Multi Chip Package (2 Chip)
. Best cost performance
. 4 Leads structure (Common Anode)
. Energy Star Bin system(SWT8Q2PA)
. Long Lifetime (LM80 Clear)
Size : 5.6 * 3.0 * 0.7 mm
Applications
. Back Lighting Unit . Flat lighting
. Indoor lighting . Down lighting
- MR16, Par Series
- Bulb type
Electrical Optical Characteristics
Luminous Forward Luminous Thermal Absolute Thermal
Øv CRI IF
Part No. Intensity Voltage Efficacy Resistance Maximum Ratings
[cd] [lm] [V] [lm/W] [mA] [RθJ-C , ºC /W] [TJ, ℃]
SWT8Q2PA 8.8 27 87.1 80
3.1 100 18 125℃
SWT0Q2PA 10 31 100 65
6

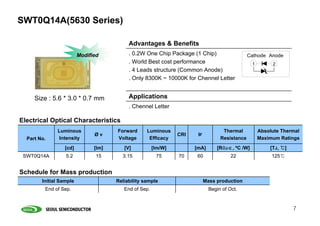

7. SWT0Q14A(5630 Series)
Advantages & Benefits
Modified . 0.2W One Chip Package (1 Chip) Cathode Anode
. World Best cost performance 1 2
. 4 Leads structure (Common Anode)
. Only 8300K ~ 10000K for Chennel Letter
Size : 5.6 * 3.0 * 0.7 mm Applications
. Chennel Letter
Electrical Optical Characteristics
Luminous Forward Luminous Thermal Absolute Thermal
Øv CRI IF
Part No. Intensity Voltage Efficacy Resistance Maximum Ratings
[cd] [lm] [V] [lm/W] [mA] [RθJ-C , ºC /W] [TJ, ℃]
SWT0Q14A 5.2 15 3.15 75 70 60 22 125℃
Schedule for Mass production
Initial Sample Reliability sample Mass production
End of Sep. End of Sep. Begin of Oct.
7

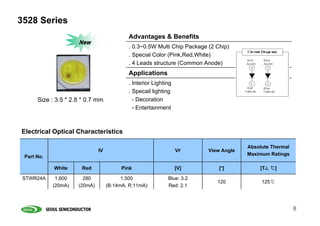

8. 3528 Series
Advantages & Benefits
New
. 0.3~0.5W Multi Chip Package (2 Chip)
. Special Color (Pink,Red,White)
. 4 Leads structure (Common Anode)
Applications
. Interior Lighting
. Specail lighting
Size : 3.5 * 2.8 * 0.7 mm - Decoration
- Entertainment
Electrical Optical Characteristics
Absolute Thermal
IV VF View Angle
Maximum Ratings
Part No.
White Red Pink [V] [º] [TJ, ℃]
STWR24A 1,600 280 1,500 Blue: 3.2
120 125℃
(20mA) (20mA) (B:14mA, R:11mA) Red: 2.1
8

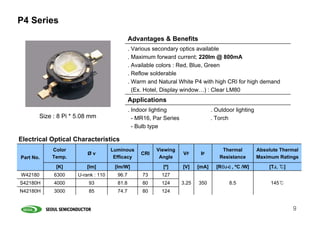

9. P4 Series
Advantages & Benefits
. Various secondary optics available
. Maximum forward current; 220lm @ 800mA
. Available colors : Red, Blue, Green
. Reflow solderable
. Warm and Natural White P4 with high CRI for high demand
(Ex. Hotel, Display window…) : Clear LM80
Applications
. Indoor lighting . Outdoor lighting
Size : 8 Pi * 5.08 mm - MR16, Par Series . Torch
- Bulb type
Electrical Optical Characteristics
Color Luminous Viewing Thermal Absolute Thermal
Øv CRI VF IF
Part No. Temp. Efficacy Angle Resistance Maximum Ratings
[K] [lm] [lm/W] [º] [V] [mA] [RθJ-C , ºC /W] [TJ, ℃]
W42180 6300 U-rank : 110 96.7 73 127
S42180H 4000 93 81.8 80 124 3.25 350 8.5 145℃
N42180H 3000 85 74.7 80 124
9

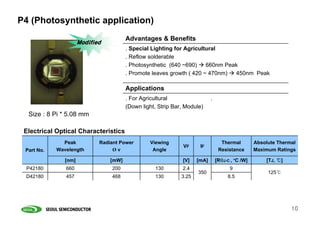

10. P4 (Photosynthetic application)
Advantages & Benefits
Modified
. Special Lighting for Agricultural
. Reflow solderable
. Photosynthetic (640 ~690) 660nm Peak
. Promote leaves growth ( 420 ~ 470nm) 450nm Peak
Applications
. For Agricultural .
(Down light, Strip Bar, Module)
Size : 8 Pi * 5.08 mm
Electrical Optical Characteristics
Peak Radiant Power Viewing Thermal Absolute Thermal
VF IF
Part No. Wavelength Øv Angle Resistance Maximum Ratings
[nm] [mW] [V] [mA] [RθJ-C , ºC /W] [TJ, ℃]
P42180 660 200 130 2.4 9
350 125℃
D42180 457 468 130 3.25 8.5
10

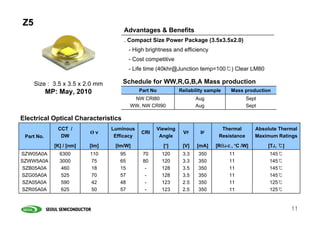

11. Z5
Advantages & Benefits
. Compact Size Power Package (3.5x3.5x2.0)
- High brightness and efficiency
- Cost competitive
- Life time (40khr@Junction temp=100℃) Clear LM80
Size : 3.5 x 3.5 x 2.0 mm Schedule for WW,R,G,B,A Mass production
MP: May, 2010 Part No Reliability sample Mass production
NW CRI80 Aug Sept
WW, NW CRI90 Aug Sept
Electrical Optical Characteristics
CCT / Luminous Viewing Thermal Absolute Thermal
Øv CRI VF IF
Part No. DW Efficacy Angle Resistance Maximum Ratings
[K] / [nm] [lm] [lm/W] [º] [V] [mA] [RθJ-C , ºC /W] [TJ, ℃]
SZW05A0A 6300 110 95 70 120 3.3 350 11 145℃
SZWW5A0A 3000 75 65 80 120 3.3 350 11 145℃
SZB05A0A 460 18 15 - 128 3.5 350 11 145℃
SZG05A0A 525 70 57 - 128 3.5 350 11 145℃
SZA05A0A 590 42 48 - 123 2.5 350 11 125℃
SZR05A0A 625 50 57 - 123 2.5 350 11 125℃
11

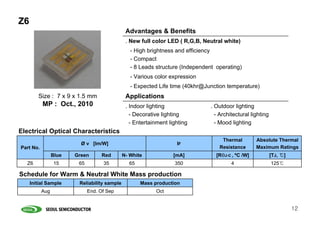

12. Z6
Advantages & Benefits
. New full color LED ( R,G,B, Neutral white)
- High brightness and efficiency
- Compact
- 8 Leads structure (Independent operating)
- Various color expression
- Expected Life time (40khr@Junction temperature)
Size : 7 x 9 x 1.5 mm Applications
MP : Oct., 2010 . Indoor lighting . Outdoor lighting
- Decorative lighting - Architectural lighting
- Entertainment lighting - Mood lighting
Electrical Optical Characteristics
Thermal Absolute Thermal
Ø v [lm/W] IF
Part No. Resistance Maximum Ratings
Blue Green Red N- White [mA] [RθJ-C , ºC /W] [TJ, ℃]
Z6 15 65 35 65 350 4 125℃
Schedule for Warm & Neutral White Mass production
Initial Sample Reliability sample Mass production
Aug End. Of Sep Oct
12

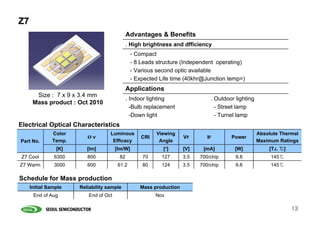

13. Z7
Advantages & Benefits
. High brightness and dfficiency
- Compact
- 8 Leads structure (Independent operating)
- Various second optic available
- Expected Life time (40khr@Junction temp=)
Applications
Size : 7 x 9 x 3.4 mm
. Indoor lighting . Outdoor lighting
Mass product : Oct 2010
-Bulb replacement - Street lamp
-Down light - Turnel lamp
Electrical Optical Characteristics
Color Luminous Viewing Absolute Thermal
Øv CRI VF IF Power
Part No. Temp. Efficacy Angle Maximum Ratings
[K] [lm] [lm/W] [º] [V] [mA] [W] [TJ, ℃]
Z7 Cool 6300 800 82 70 127 3.5 700/chip 9.8 145℃
Z7 Warm 3000 600 61.2 80 124 3.5 700/chip 9.8 145℃
Schedule for Mass production
Initial Sample Reliability sample Mass production
End of Aug End of Oct Nov
13

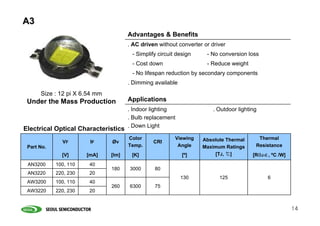

14. A3
Advantages & Benefits
. AC driven without converter or driver
- Simplify circuit design - No conversion loss
- Cost down - Reduce weight
- No lifespan reduction by secondary components
. Dimming available
Size : 12 pi X 6.54 mm
Under the Mass Production Applications
. Indoor lighting . Outdoor lighting
. Bulb replacement
. Down Light
Electrical Optical Characteristics
Color Viewing Absolute Thermal Thermal
VF IF Øv CRI
Part No. Temp. Angle Maximum Ratings Resistance
[V] [mA] [lm] [K] [º] [TJ, ℃] [RθJ-C , ºC /W]
AN3200 100, 110 40
180 3000 80
AN3220 220, 230 20
130 125 6
AW3200 100, 110 40
260 6300 75
AW3220 220, 230 20
14

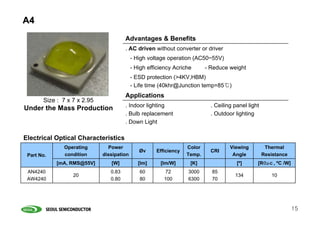

15. A4
Advantages & Benefits
. AC driven without converter or driver
- High voltage operation (AC50~55V)
- High efficiency Acriche - Reduce weight
- ESD protection (>4KV,HBM)
- Life time (40khr@Junction temp=85℃)
Applications
Size : 7 x 7 x 2.95
. Indoor lighting . Ceiling panel light
Under the Mass Production
. Bulb replacement . Outdoor lighting
. Down Light
Electrical Optical Characteristics
Operating Power Color Viewing Thermal
Øv Efficiency CRI
Part No. condition dissipation Temp. Angle Resistance
[mA, RMS@55V] [W] [lm] [lm/W] [K] [º] [RθJ-C , ºC /W]
AN4240 0.83 60 72 3000 85
20 134 10
AW4240 0.80 80 100 6300 70
15
16. A5

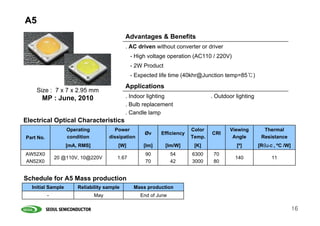

Advantages & Benefits
. AC driven without converter or driver
- High voltage operation (AC110 / 220V)
- 2W Product
- Expected life time (40khr@Junction temp=85℃)
Applications
Size : 7 x 7 x 2.95 mm
MP : June, 2010 . Indoor lighting . Outdoor lighting
. Bulb replacement
. Candle lamp
Electrical Optical Characteristics
Operating Power Color Viewing Thermal
Øv Efficiency CRI
Part No. condition dissipation Temp. Angle Resistance
[mA, RMS] [W] [lm] [lm/W] [K] [º] [RθJ-C , ºC /W]
AW52X0 90 54 6300 70
20 @110V, 10@220V 1.67 140 11
AN52X0 70 42 3000 80
Schedule for A5 Mass production
Initial Sample Reliability sample Mass production
- May End of June
16
17. A6
Advantages & Benefits
. AC driven without converter or driver
- High voltage operation (AC50~55V)
- Compact size - Reduce weight
- ESD protection (>4KV,HBM)
- Expected life time (40khr@Junction temp=85℃)
Applications
Size : 5 x 5 x 2.6 mm
. Indoor lighting . Ceiling panel light
MP : Oct., 2010
. Bulb replacement . Outdoor lighting
. MR16 . PAR . Down Light
Electrical Optical Characteristics
Operating Power Color Viewing Thermal
Øv Efficiency CRI
Part No. condition dissipation Temp. Angle Resistance
[mA, RMS@55V] [W] [lm] [lm/W] [K] [º] [RθJ-C , ºC /W]
83 100
A6 20 0.83 6300 70 120 12
55 66
Schedule for Improved A6 Mass production
Initial Sample Reliability sample Mass production
Aug Dec Dec
17

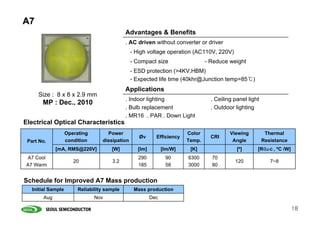

18. A7
Advantages & Benefits
. AC driven without converter or driver
- High voltage operation (AC110V, 220V)
- Compact size - Reduce weight
- ESD protection (>4KV,HBM)
- Expected life time (40khr@Junction temp=85℃)
Applications
Size : 8 x 8 x 2.9 mm
. Indoor lighting . Ceiling panel light
MP : Dec., 2010
. Bulb replacement . Outdoor lighting
. MR16 . PAR . Down Light
Electrical Optical Characteristics
Operating Power Color Viewing Thermal
Øv Efficiency CRI
Part No. condition dissipation Temp. Angle Resistance
[mA, RMS@220V] [W] [lm] [lm/W] [K] [º] [RθJ-C , ºC /W]
A7 Cool 290 90 6300 70
20 3.2 120 7~8
A7 Warm 185 58 3000 80
Schedule for Improved A7 Mass production
Initial Sample Reliability sample Mass production
Aug Nov Dec
18
19. A8 (Big A)
Advantages & Benefits
. AC driven without converter
. Reduce system cost
. Compact design
Applications
Size : 25 x 25 . Downlight . Industrial Lighting
MP : Dec., 2010 . Architectural Lighting . Replacement Lamps
. PAR, Bulb
Electrical Optical Characteristics
Operating Power Color Viewing Thermal
Øv Efficiency CRI
Part No. condition dissipation Temp. Angle Resistance
[mA, RMS@220V] [W] [lm] [lm/W] [K] [º] [RθJ-C , ºC /W]
700
A8(Big A) 60 12~15 60 3000 82 120 -
~ 1000
Schedule for Improved A7 Mass production
Initial Sample Reliability sample Mass production
Aug. Oct. Dec.,2010
19

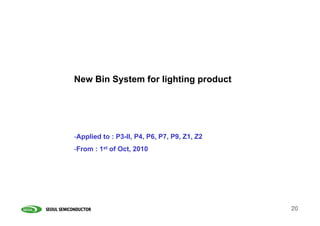

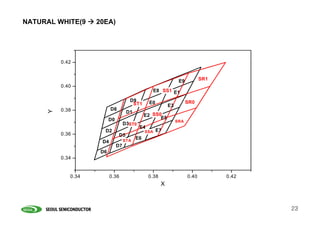

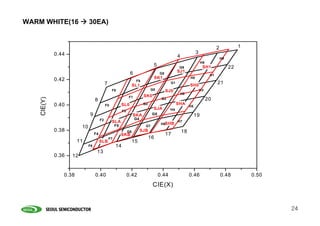

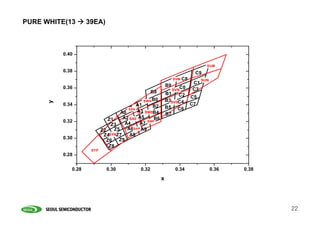

20. New Bin System for lighting product
-Applied to : P3-II, P4, P6, P7, P9, Z1, Z2
-From : 1st of Oct, 2010
20

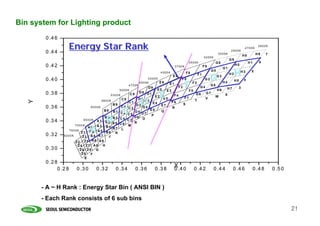

21. Bin system for Lighting product
0 .4 6
0 .4 4
Energy Star Rank 2900K
2700K
2600K
3000K
H8 H9 7
3200K
G9
3500K G8 H1 6
0 .4 2 3700K F9 H0
H
G1
G0 H3 5
G
4000K F8 F1 H2
E9 G3
0 .4 0 4200K F0 G2 4
F
H5
4500K E8 E1 F3 H4
4700K G5
D9 F2 G4 H7 3
E0
E
5000K E3 F5 H6
0 .3 8 D8 D1 G7
5300K C9 F4 G6 X
E2 W
D
C8 D0 D3 E5 F7 V
T
Y
5600K
C1 E4 F6
B9 D2 E7 S
C
0 .3 6 6000K C0 C3 D5
E6
R
B8 B1 Q
C2 C5 D4 D7
B
P
B0 B3 C4 C7 D6 O
0 .3 4 6500K A1
B2 B5
C6 M N
A
7000K
A0 A3 B4 B7
7600K L
Z1 A2 A5 B6 K
0 .3 2 8200K Z3 A4 A7 J
Z2 Z5 A6 A9
Z4 Z7 A8 H
0 .3 0 Z6 Z9 G
Z8 F
E
0 .2 8
0 .2 8 0 .3 0 0 .3 2 0 .3 4 0 .3 6 0 .3 8
X.4 0
0 0 .4 2 0 .4 4 0 .4 6 0 .4 8 0 .5 0
- A ~ H Rank : Energy Star Bin ( ANSI BIN )
- Each Rank consists of 6 sub bins
21
