This document provides specifications for the RM851 Series high abuse recessed fixture for grid ceilings. It can be used with compact fluorescent or induction lamps. The fixture has a heavy gauge steel or aluminum housing, specular aluminum reflector, and prismatic tempered glass lens. It is UL listed and suitable for damp locations. Induction lamp options provide reduced maintenance costs and lifetime of 40,000+ hours. Dimensions are 16" square with a 10" recess.

1. We reserve the right to revise the design or components of any product without notice.

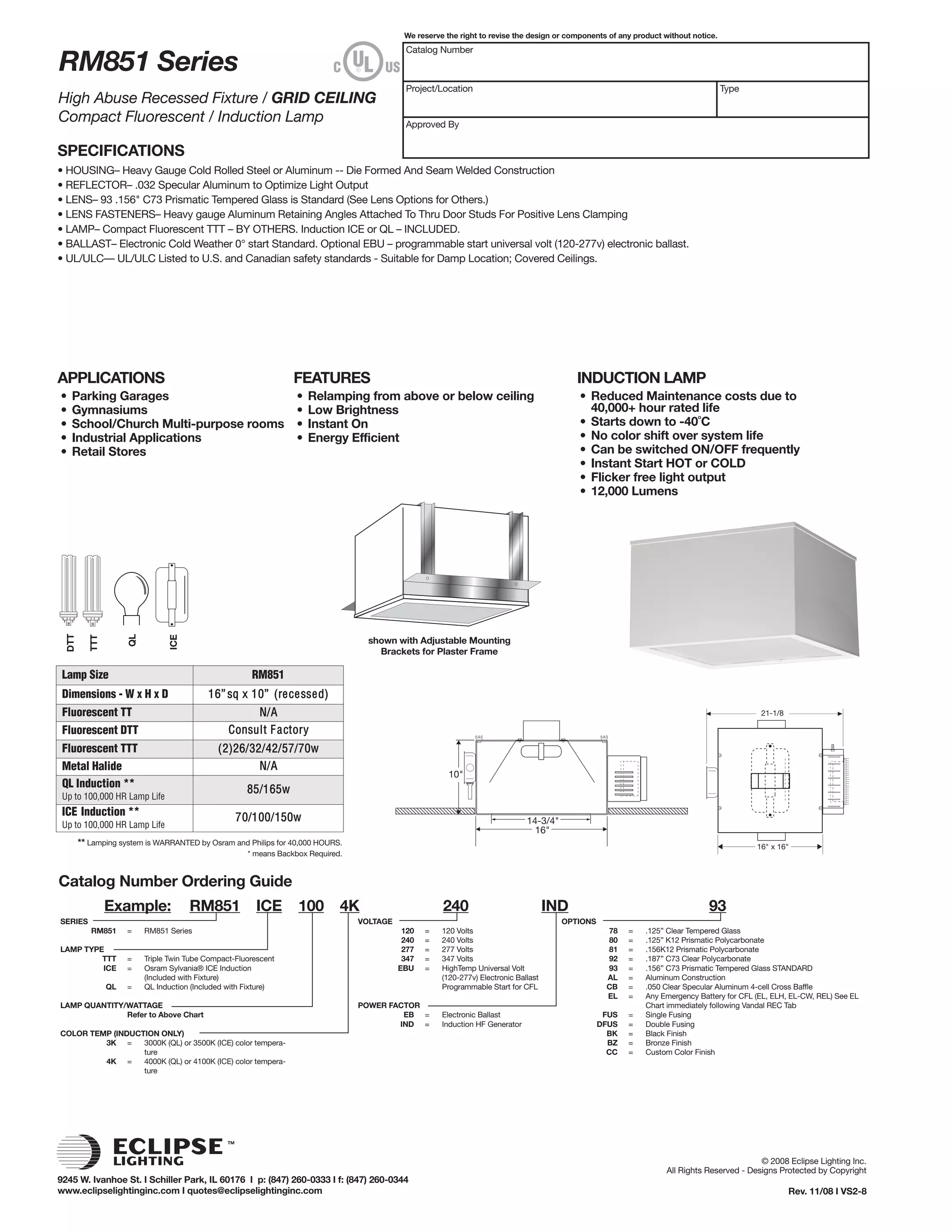

Catalog Number
RM851 Series
Project/Location Type
High Abuse Recessed Fixture / GRID CEILING
Compact Fluorescent / Induction Lamp Approved By
SPECIFICATIONS
• HOUSING– Heavy Gauge Cold Rolled Steel or Aluminum -- Die Formed And Seam Welded Construction
• REFLECTOR– .032 Specular Aluminum to Optimize Light Output
• LENS– 93 .156" C73 Prismatic Tempered Glass is Standard (See Lens Options for Others.)
• LENS FASTENERS– Heavy gauge Aluminum Retaining Angles Attached To Thru Door Studs For Positive Lens Clamping
• LAMP– Compact Fluorescent TTT – BY OTHERS. Induction ICE or QL – INCLUDED.
• BALLAST– Electronic Cold Weather 0° start Standard. Optional EBU – programmable start universal volt (120-277v) electronic ballast.
• UL/ULC— UL/ULC Listed to U.S. and Canadian safety standards - Suitable for Damp Location; Covered Ceilings.
APPLICATIONS FEATURES INDUCTION LAMP
• Parking Garages • Relamping from above or below ceiling • Reduced Maintenance costs due to
• Gymnasiums • Low Brightness 40,000+ hour rated life
• School/Church Multi-purpose rooms • Instant On • Starts down to -40˚C
• Industrial Applications • Energy Efficient • No color shift over system life
• Retail Stores • Can be switched ON/OFF frequently
• Instant Start HOT or COLD
• Flicker free light output
• 12,000 Lumens
DTT
QL
ICE
TTT
shown with Adjustable Mounting
Brackets for Plaster Frame
Lamp Size RM851
Dimensions - W x H x D 1 6 ” sq x 1 0 ” ( r e c e ss e d )
Fluorescent TT N/ A 21-1/8
Fluorescent DTT C o n su l t F a ct o r y
Fluorescent TTT ( 2)26/ 32/ 42/ 57/ 70w
Metal Halide N/ A
10"
QL Induction ** 8 5 /1 6 5 w
Up to 100,000 HR Lamp Life
ICE Induction ** 7 0 /1 0 0 / 1 5 0 w
Up to 100,000 HR Lamp Life 14-3/4"
16"
** Lamping system is WARRANTED by Osram and Philips for 40,000 HOURS. 16" x 16"
* means Backbox Required.
Catalog Number Ordering Guide
Example: RM851 ICE 100 4K 240 IND 93
SERIES VOLTAGE OPTIONS
RM851 = RM851 Series 120 = 120 Volts 78 = .125” Clear Tempered Glass
240 = 240 Volts 80 = .125” K12 Prismatic Polycarbonate
LAMP TYPE 277 = 277 Volts 81 = .156K12 Prismatic Polycarbonate
TTT = Triple Twin Tube Compact-Fluorescent 347 = 347 Volts 92 = .187” C73 Clear Polycarbonate
ICE = Osram Sylvania® ICE Induction EBU = HighTemp Universal Volt 93 = .156” C73 Prismatic Tempered Glass STANDARD
(Included with Fixture) (120-277v) Electronic Ballast AL = Aluminum Construction
QL = QL Induction (Included with Fixture) Programmable Start for CFL CB = .050 Clear Specular Aluminum 4-cell Cross Baffle
EL = Any Emergency Battery for CFL (EL, ELH, EL-CW, REL) See EL
LAMP QUANTITY/WATTAGE POWER FACTOR Chart immediately following Vandal REC Tab
Refer to Above Chart EB = Electronic Ballast FUS = Single Fusing
IND = Induction HF Generator DFUS = Double Fusing
COLOR TEMP (INDUCTION ONLY) BK = Black Finish
3K = 3000K (QL) or 3500K (ICE) color tempera- BZ = Bronze Finish
ture CC = Custom Color Finish
4K = 4000K (QL) or 4100K (ICE) color tempera-
ture
