The EarthLED DirectLED™ flood light is designed to replace conventional lighting with enhanced luminous uniformity, reliability, and energy efficiency. It features a modular design for easy installation, maintenance, and adaptability across various applications such as streets, parking lots, and warehouses. The flood light utilizes top-tier LED technology and offers multiple power supply options while ensuring waterproof functionality and compliance with safety certifications.

2. The EarthLED DirectLED™ Flood Light is
designed to replace traditional light sources in
various applications of light fittings. With
excellent photometric and thermal design, the
DirectLED™ Flood Light can achieve much
better luminous uniformity and reliability than
conventional MH or HPS fixtures.
Additionally, the DirectLED™ Flood Light
System helps to reduce power consumption
effectively, and it is easy for customers to re-
design, replace, and maintain their own
luminaries.

3. Feature Advantage
Easy Installation
Modular design
Easy Maintenance
Easy Expansion
Multi-Application
TYPE II / III / V optical design Street, parking lot, warehouse, gas station,
Building, Landscape, Signage etc.,
Tier 1 LEDs Used Best Reliability and Performance
(CREE, Nichia) No Patent Issues
Energy Saving
High Efficiency
Money Saving
CO2 reduction
Superior heat dissipation for long
Advanced Thermal design
life

4. Feature Advantage
IP65 / IP67 design Waterproof Module
Waterproof Connector System Included
Easy System Certification and
Meet CE / UL Pending
Approval
Easy to Adapt to Other LED Brands
LED 5050 package
and Colors
Many Power Supply Options
24VDC Input Voltage
Available for inputs 100-480VAC

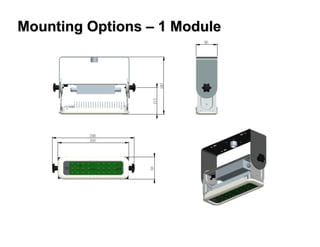

Flexible Mounting Design Adaptable to Virtually ny Fixture

5. TYPE II TYPE III TYPE V
(Short) (Medium) (Round)
Power consumption (W) 27.9
Cool
white
Luminous flux (lm) 2,032 1,998 2,067
Efficiency (W/lm) 72.9 71.7 74.2
Power consumption (W) 27.9
Warm
Luminous flux (lm) 1,700 1,671 1,729
white
Efficiency (W/lm) 61.0 60.0 62.0
1. Stable luminous flux is 25°C.
2. Luminous flux and power consumption allowance is ±10%.

6. TYPE II TYPE III TYPE V
(Short) (Medium) (Round)
Power consumption (W) 55.7
Cool
white
Luminous flux (lm) 4,064 3,996 4,133
Efficiency (W/lm) 72.9 71.7 74.2
Power consumption (W) 55.7
Warm
Luminous flux (lm) 3,400 3,342 3,458
white
Efficiency (W/lm) 61.0 60.0 62.0
1. Stable luminous flux is 25°C.
2. Luminous flux and power consumption allowance is ±10%.

7. TYPE II TYPE III TYPE V
(Short) (Medium) (Round)
Power consumption (W) 83.6
Cool
white
Luminous flux (lm) 6,097 5,993 6,200
Efficiency (W/lm) 72.9 71.7 74.2
Power consumption (W) 83.6
Warm
Luminous flux (lm) 5,100 5,014 5,187
white
Efficiency (W/lm) 61.0 60.0 62.0
1. Stable luminous flux is 25°C.
2. Luminous flux and power consumption allowance is ±10%.

12. Type V and Symmetric
distributions produce a
wide, symmetrical pattern
with excellent uniformity
for large, open areas.

13. Mounting Height: 3m

14. Type II distributions are well
suited for narrow areas,
running parallel to the
luminaire’s reference line,
such as roadways, paths and
driveways.

15. Mounting Height: 3m

16. Type III and Asymmetric
distributions are well
suited for site / area
perimeters, wide
roadways, and open
areas.

17. Mounting Height: 3m

18. Standard combination
Complex combination

21. Wall height : 5m
Wall width : 6m
One module x 2 pcs, TYPE II Lamp distance : 1m
0 degree 10 degree 20 degree
One module x 2 pcs, TYPE III
0 degree 10 degree 20 degree

22. One module x 4 pcs, TYPE II
Wall height : 3m
Floor width : 3m
Floor length : 18m
One module x 2 pcs, TYPE III
Wall height : 3m
Floor width : 8m
Floor length : 9m
0 degree 10 degree

23. Street Light Retrofit High-Bay Retrofit
Gas station Parking Lot

24. Signage
Landscaping
Roadway Structure Illumination

25. EarthLED
A Division of Advanced Lumonics, LLC
EarthLEDSales@EarthLED.com
www.EarthLED.com
1-877-855-1625
