“ Saving energy & the Environment ”




                        INTRODUCTION TO EVERWILD




Everwild Energy Solutions (EES)
Enhancing lives through integrated energy solutions
Jerry.Bridges@everwild-energy.com




                                                 EES
                                                   Facebook: /everwildenergy
                                                    Twitter: @everwildenergy
EES




                          Everwild’s mission and values
          MISSION

          VALUES
          -Excellence in customer service which means excellence in
          communication
          -Price reasonably
          -Find the right solution for the client’s challenges or
          opportunities
          -Establish and cultivate meaningful relationships
          -Aim at thought leadership




EVERWILD ENERGY SOLUTIONS | Alternative Energy Solutions              2
EES



      3

                    9090 package
                   Patented in 2009
                   High power package(driven at hundreds of mA)




                                    Coated with Silver




           Substrate Head
          (Pure Copper)


                            High brightness, High-intensity

                            Fully integrated Thermal management

                            Next Generation Thermal Design

                            Excellent Thermal Dissipation
EES



            4

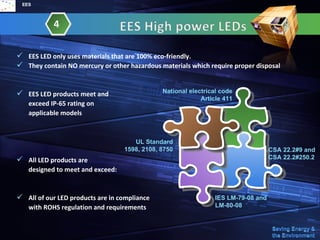

 EES LED only uses materials that are 100% eco-friendly.
 They contain NO mercury or other hazardous materials which require proper disposal


 EES LED products meet and                   National electrical code
                                                           Article 411
   exceed IP-65 rating on
   applicable models



                                     UL Standard
                                  1598, 2108, 8750                                 CSA 22.2#9 and
 All LED products are                                                             CSA 22.2#250.2
   designed to meet and exceed:


 All of our LED products are in compliance                     IES LM-79-08 and
   with ROHS regulation and requirements                        LM-80-08
EES



           5

 High power, high brightness and saves energy


                        Streetlights


                                                   Wall-Pack light
      Ceiling Light

                                                                 MR16




                      E-40 Light Bulb


                                                                     Downlight
                                        PAR Type
EES



      6


 Revolutionary thermal design

 Unique thermal management system for long life-time and reliability

 Significant reduction (almost half) in energy consumption
  compared to traditional lighting sources


                         Life-time : 100,000 hour

                            Unprecedented thermal design with heat sink

                               Highly resistant against severe weather conditions

                            Dimmable models available

                        Environmentally Friendly (No UV/ IR Radiation or Mercury
EES



       7




       MCS-30                   MCS-60                   MCS-120                     MCS-180
Model Name                  MCS-30          MCS-60               MCS-120                MCS-180
LED lamp power
                              30W             60W                  96W                   180W
consumption
Total Power consumption       33W             66W                    96W                  180W
LED Chip(Cree chip)          24pcs           48pcs                 120pcs                144pcs
Total LED Lumens            2280Lm          6,560Lm              11,340Lm               13680Lm
CRI (Cool White)                          RA 75(Cool white)/RA 85(Warm white)
LED Lumen                                               110Lm/Unit
IP Rating                                                  IP 65
Input Voltage                                         AC 110V/277V
Color Temp.                                            2700K-7000K
View Angle                                                  65°
                          Approx. 6.5Kg   Approx. 12 Kg
Net weight                                                  Approx. 12 Kg (27LBS) Approx. 17 Kg (38LBS)
                            (14LBS)         (27LBS)
Operating Temp.                                      (-)68°F ~ 120°F
EES



      8
            Illumination Chart
          ZMS-30                 ZMS-60




          ZMS-120                ZMS-180
EES



      9

                             Dimming Control

          Control Method: USITT DMX512-A

                   USITT : The United States Institute for Theatre Technology,
          Inc.

                    Communication links Types: 0-10 V, RS-485, ZigBee
          (Wireless)

          Control Features :
                     - Soft dimming Function (Patent pending)
                       (LED no appearance of Mach band that causes the visual
          fatigue)
                     - Non-linear dimming: take into account visual effect
          straining to eyes               (such as visual fatigue)
                     - Power fail recovery function (Full recovery): has a
          capability to                   restore everything back to the initial
          dimming state after the power               failure
EES



      10




           Wall pack                       Ceiling lights



           Life-time: 100,000 hours
           Next generation thermal design
           Highly resistant against severe weather conditions
           Vibration-resistant
           Many color options
           Glare-free
           Dimmable models available
           Environmentally-friendly (No UV or IR radiation)
EES



      11




           ZEMOS Wall-Pack   ZEMOS Ceiling
EES



      12

           Size flexible to meet specific customer demand
           Replaces Linear Fluorescent lights
           Linear Tubes 2’, 3’, 4’, 5’, 6’, 8’.
           4’ 15W 1800LM 80,000Hrs. Color Temp from 2800K – 7200K
           4’ 22W 2400LM 80,000Hrs. Color Temp from 2800K – 7200K
           4’ 24W 2700LM 80,000Hrs. Color Temp from 2800K – 7200K




                   Specs: -refer to the brochure-
“ Saving energy & the Environment ”




                Life-time: up to 100,000 hours
                Hold all certifications
                LM79, LM80, ETL, UL, DLC approved, ROHS
                Vibration-resistant
                Many color options
                Glare-free
                Dimmable models available
                Environmentally-friendly (No UV or IR radiation)
                Dark Skies Compliant




www.everwild-energy.com
                                             EES
