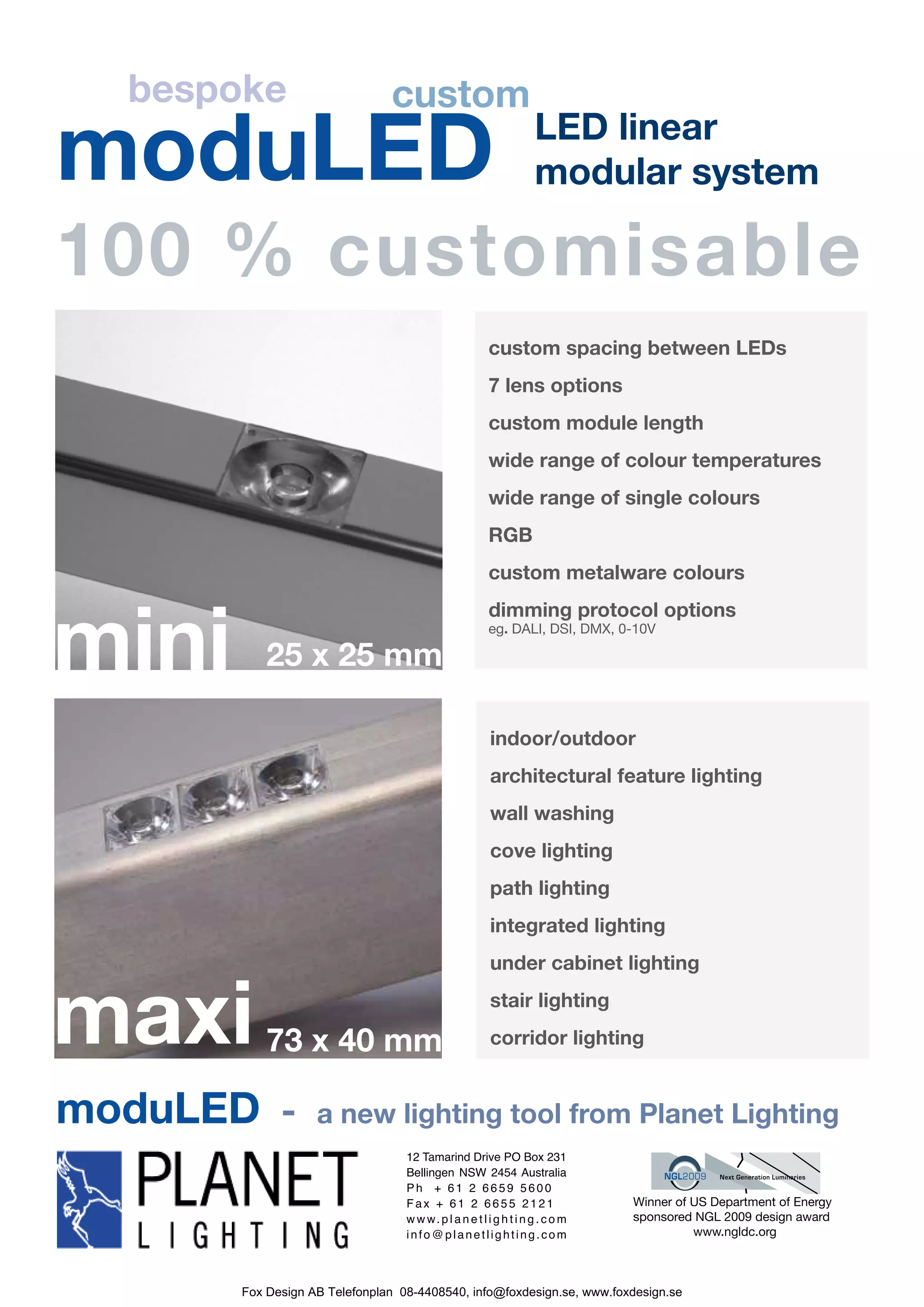

- 1. bespoke custom moduLED LED linear modular system 100 % customisable custom spacing between LEDs 7 lens options custom module length wide range of colour temperatures wide range of single colours RGB custom metalware colours mini dimming protocol options eg. DALI, DSI, DMX, 0-10V 25 x 25 mm indoor/outdoor architectural feature lighting wall washing cove lighting path lighting integrated lighting under cabinet lighting maxi 73 x 40 mm stair lighting corridor lighting moduLED - a new lighting tool from Planet Lighting 12 Tamarind Drive PO Box 231 Bellingen NSW 2454 Australia Ph + 61 2 6659 5600 Fax + 61 2 6655 2121 Winner of US Department of Energy w w w. p l a n e t l i g h t i n g . c o m sponsored NGL 2009 design award info@planetlighting.com www.ngldc.org Fox Design AB Telefonplan 08-4408540, info@foxdesign.se, www.foxdesign.se

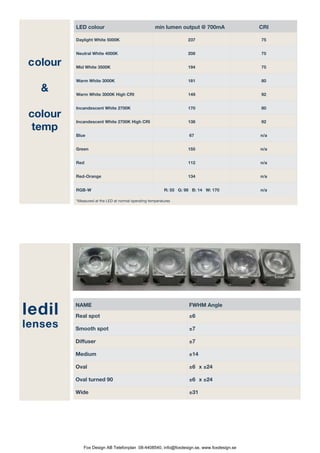

- 2. LED colour min lumen output @ 700mA CRI Daylight White 5000K 237 75 Neutral White 4000K 208 75 colour Mid White 3500K 194 75 Warm White 3000K 181 80 & Warm White 3000K High CRI 149 92 Incandescent White 2700K 170 80 colour Incandescent White 2700K High CRI 138 92 temp Blue 67 n/a Green 155 n/a Red 112 n/a Red-Orange 134 n/a RGB-W R: 55 G: 98 B: 14 W: 170 n/a *Measured at the LED at normal operating temperatures ledil NAME Real spot FWHM Angle ±6° lenses Smooth spot ±7° Diffuser ±7° Medium ±14° Oval ±6° x ±24° Oval turned 90ª ±6° x ±24° Wide ±31° Fox Design AB Telefonplan 08-4408540, info@foxdesign.se, www.foxdesign.se

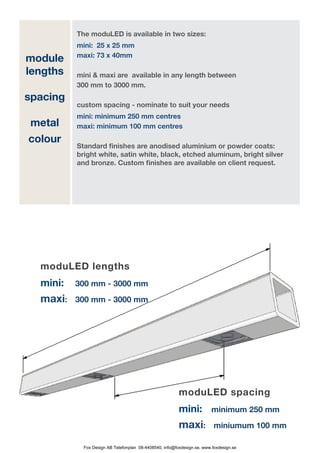

- 3. The moduLED isavailable in two sizes: mini: 25 x 25 mm maxi: 73 x 40mm module lengths mini & maxi are available in any length between 300 mm to 3000 mm. spacing custom spacing - nominate to suit your needs mini: minimum 250 mm centres metal maxi: minimum 100 mm centres colour Standard finishes are anodised aluminium or powder coats: bright white, satin white, black, etched aluminum, bright silver and bronze. Custom finishes are available on client request. moduLED lengths mini: 300 mm - 3000 mm maxi: 300 mm - 3000 mm moduLED spacing mini: minimum 250 mm maxi: miniumum 100 mm Fox Design AB Telefonplan 08-4408540, info@foxdesign.se, www.foxdesign.se

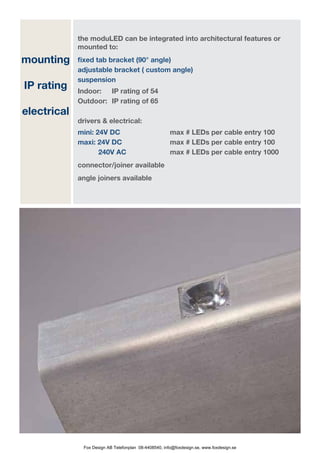

- 4. the moduLED canbe integrated into architectural features or mounted to: mounting fixed tab bracket (90° angle) adjustable bracket ( custom angle) suspension IP rating Indoor: IP rating of 54 Outdoor: IP rating of 65 electrical drivers & electrical: mini: 24V DC max # LEDs per cable entry 100 maxi: 24V DC max # LEDs per cable entry 100 240V AC max # LEDs per cable entry 1000 connector/joiner available angle joiners available Fox Design AB Telefonplan 08-4408540, info@foxdesign.se, www.foxdesign.se
- 5. DISTRIBUTORS AUSTRALIA VICTORIA SOUTH AUSTRALIA NORTHERN TERRITORY Louise Reynolds TMC Lighting Pty Ltd TMC Lighting Pty Ltd Planet Lighting 53 Chief Street 53 Chief Street Victorian State Manager Brompton SA 5007 Brompton SA 5007 louise@planetlighting.com tmclite@airnet.com.au tmclite@airnet.com.au Phone: 0422 017 060 Phone: + 61 8 8340 1100 Phone: + 61 8 8340 1100 Fax: 03 9481 8030 Fax: +61 8 8340 1111 Fax: +61 8 8340 1111 NEW SOUTH WALES ACT QUEENSLAND The Lighting Group Pty Ltd Lite-Tech Agencies The Lighting Group Pty Ltd 18A 380 Eastern Valley way 1 Lithgow Street Shop 2, 47 Castlemaine Street Chatswood NSW 2067 Fyshwick ACT 2609 Milton QLD 4064 sales@lightingroup.com sales@litetech.com.au sales@lightingroup.com Phone : +61 2 9882 6000 Phone: +61 2 6280 5516 Phone: +61 7 3876 4009 Fax: +61 2 9882 6444 Fax: +61 2 6280 8635 Fax: +61 7 3369 4007 WESTERN AUSTRALIA TASMANIA FAR NORTH QUEENSLAND Inlite Undersea Lighting North Queensland Lighting 344 Hay Street 54 Conningham Rd 69C Sheridan Street Subiaco WA 6008 Conningham TAS 7054 Cairns QLD 4870 wa@inlite.com.au De_T@bigpond.com nql@tpg.com.au Phone: +61 8 9381 8544 Phone: +61 3 6267 9530 Phone: +61 7 4031 4490 Fax: +61 8 9381 4209 Fax: +61 3 6267 9523 Fax: +61 7 4031 5933 INTERNATIONAL NEW ZEALAND HONG KONG SINGAPORE Concept Lighting Pty Ltd William Artists International Technolite 60 Apollo Drive 3/F ShingDao Industrial Building 25 Tagore Lane #03-10 Mairangi Bay 232 Aberdeen Main Rd Singapore Godown Auckland Aberdeen, Hong Kong Singapore 787602 info@conceptlighting.co.nz waal@williamartists.com enquiry@technolite.com.sg Phone: +64 9 917 9200 Phone: + 852 2870 2288 DID: +65-63099783 Fax: +64 9 917 9207 Fax: + 852 2552 2787 Fax: +65-64531908 EUROPE UK & IRELAND SWEDEN & NORDIC WILA Lichttechnik GmbH WILA Lighting Limited Fox Design Vödeweg 9-11 8-10 The Quadrangle Tellusgången 8 D-58638 Iserlohn Grove Technology Park SE-126 37 Hägersten wila@wila.com Downsview Road Stockholm Phone: + 49 - 23 71 823 0 Wantage OX12 9FA UK info@foxdesign.se Fax: + 49 - 23 71 823 222 wila@wila.co.uk Phone: +46 8 440 85 40 Phone: +44 1235 77 3500 Fax: +46 8 24 22 33 Fax: +44 1235 77 35 33 SERBIA UAE & THE MIDDLE EAST UNITED STATES Gulf Line International Gulf Line International Lummen-Lighting ByDesign PO Box 40855 PO Box 40855 5720A Labath Ave Dubai, UAE Dubai, UAE Rohnert Park, CA 94928 nfo@gulfline.ae nfo@gulfline.ae hg@lummenlighting.com Ph. +971 4 222 6 226 Ph. +971 4 222 6 226 Phone: +1 707 588 9014 Fax: +971 4 222 6 227 Fax: +971 4 222 6 227 Web: www.gulfline.ae Web: www.gulfline.ae 12 Tamarind Drive PO Box 231 Bellingen NSW 2454 Australia Ph + 61 2 6659 5600 Fax + 61 2 6655 2121 Winner of US Department of Energy w w w. p l a n e t l i g h t i n g . c o m sponsored NGL 2009 design award info@planetlighting.com www.ngldc.org Fox Design AB Telefonplan 08-4408540, info@foxdesign.se, www.foxdesign.se
