1. WEB SECURITY
(SECURE SOCKET LAYER)
MONODIP SINGHA ROY
M.TECH
Dr. B.C.ROY ENGINEERING COLLEGE
2

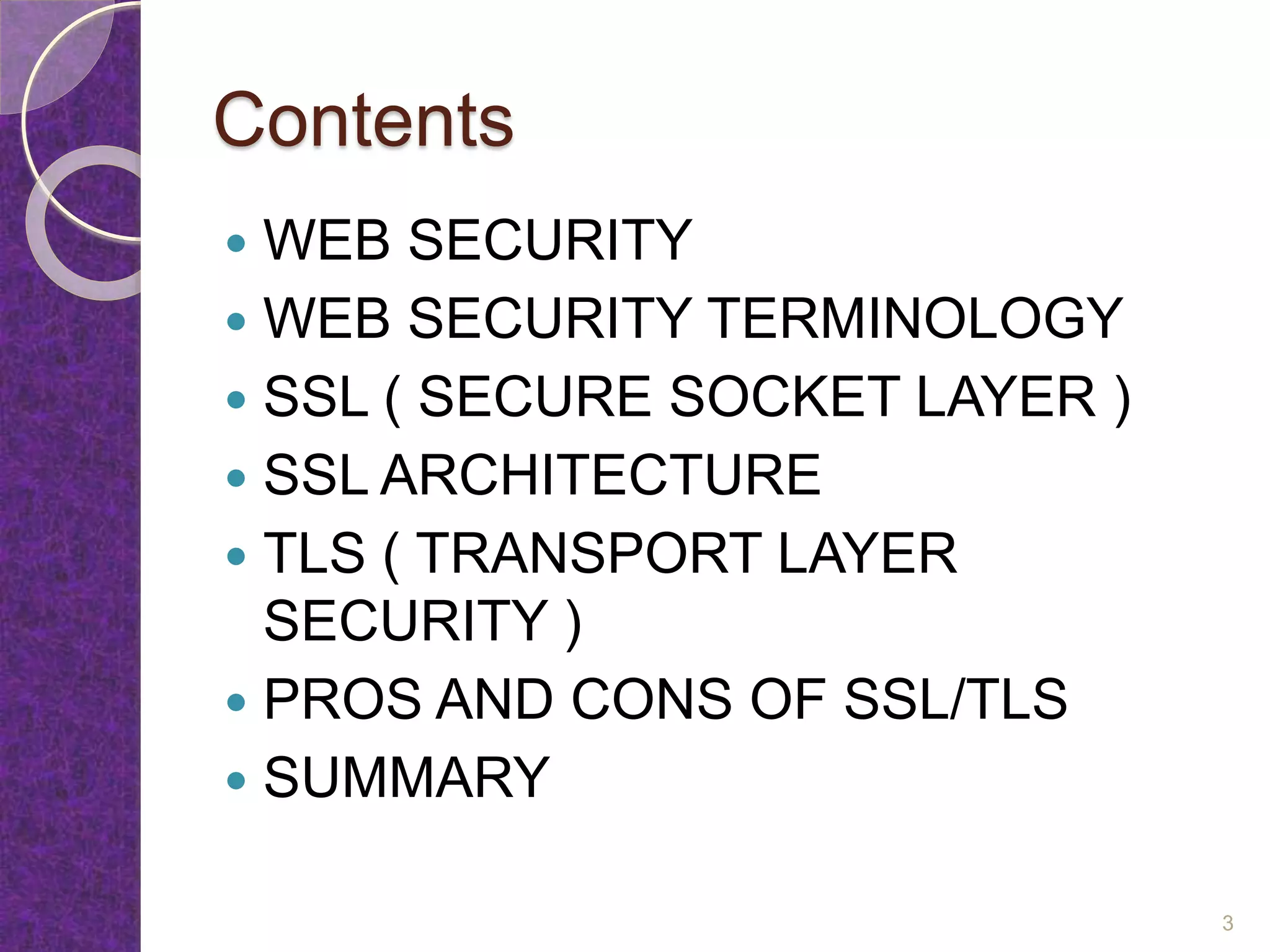

2. Contents
 WEB SECURITY
 WEB SECURITY TERMINOLOGY
 SSL ( SECURE SOCKET LAYER )
 SSL ARCHITECTURE
 TLS ( TRANSPORT LAYER
SECURITY )
 PROS AND CONS OF SSL/TLS
 SUMMARY
3

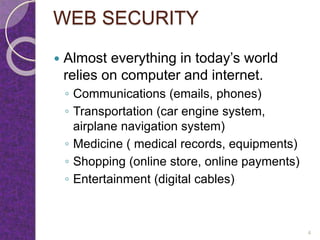

3. WEB SECURITY
 Almost everything in today’s world
relies on computer and internet.
◦ Communications (emails, phones)
◦ Transportation (car engine system,
airplane navigation system)
◦ Medicine ( medical records, equipments)
◦ Shopping (online store, online payments)
◦ Entertainment (digital cables)
4

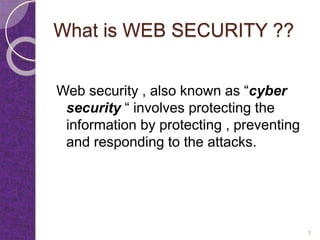

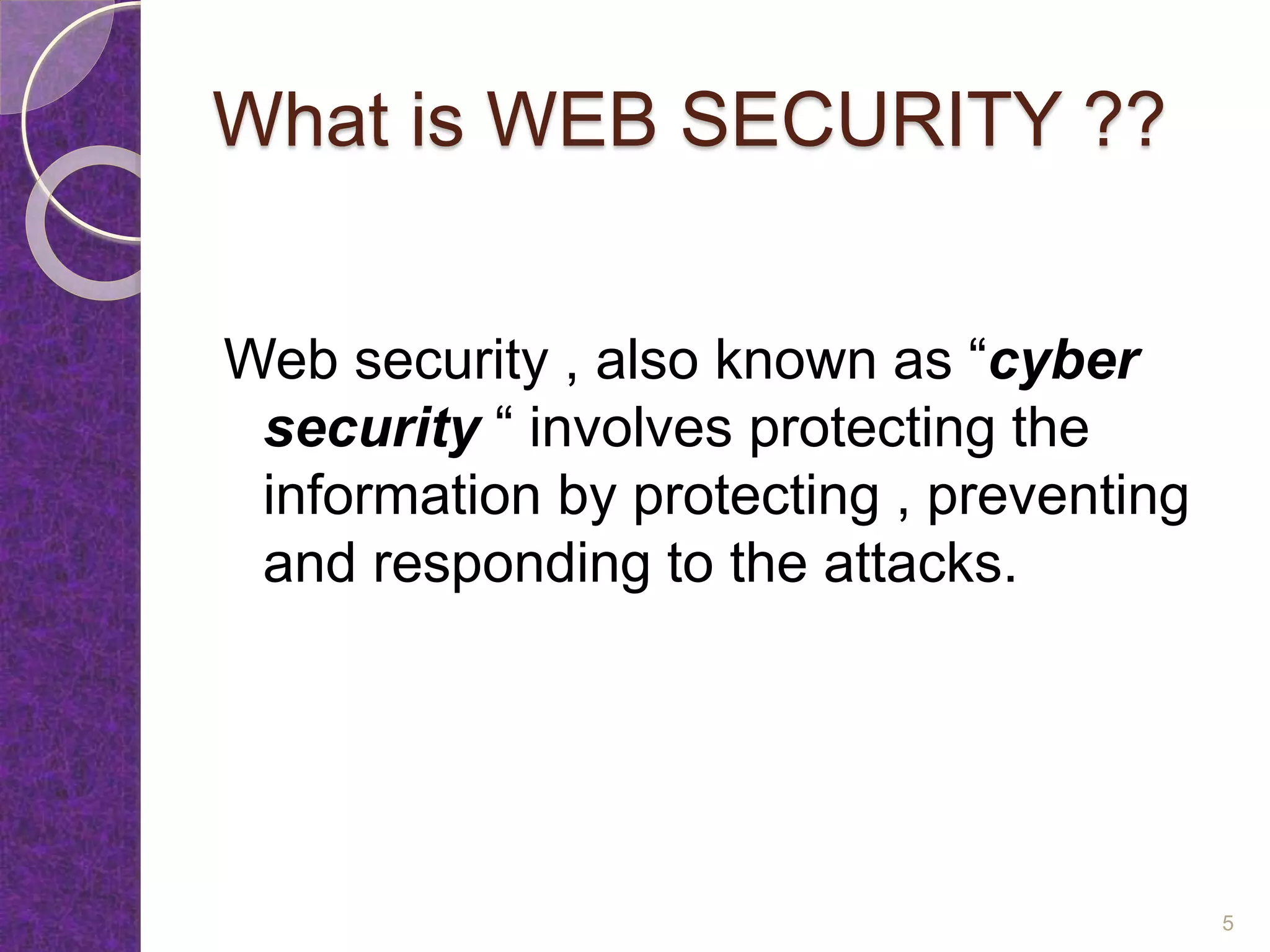

4. What is WEB SECURITY ??
Web security , also known as “cyber
security “ involves protecting the
information by protecting , preventing
and responding to the attacks.
5

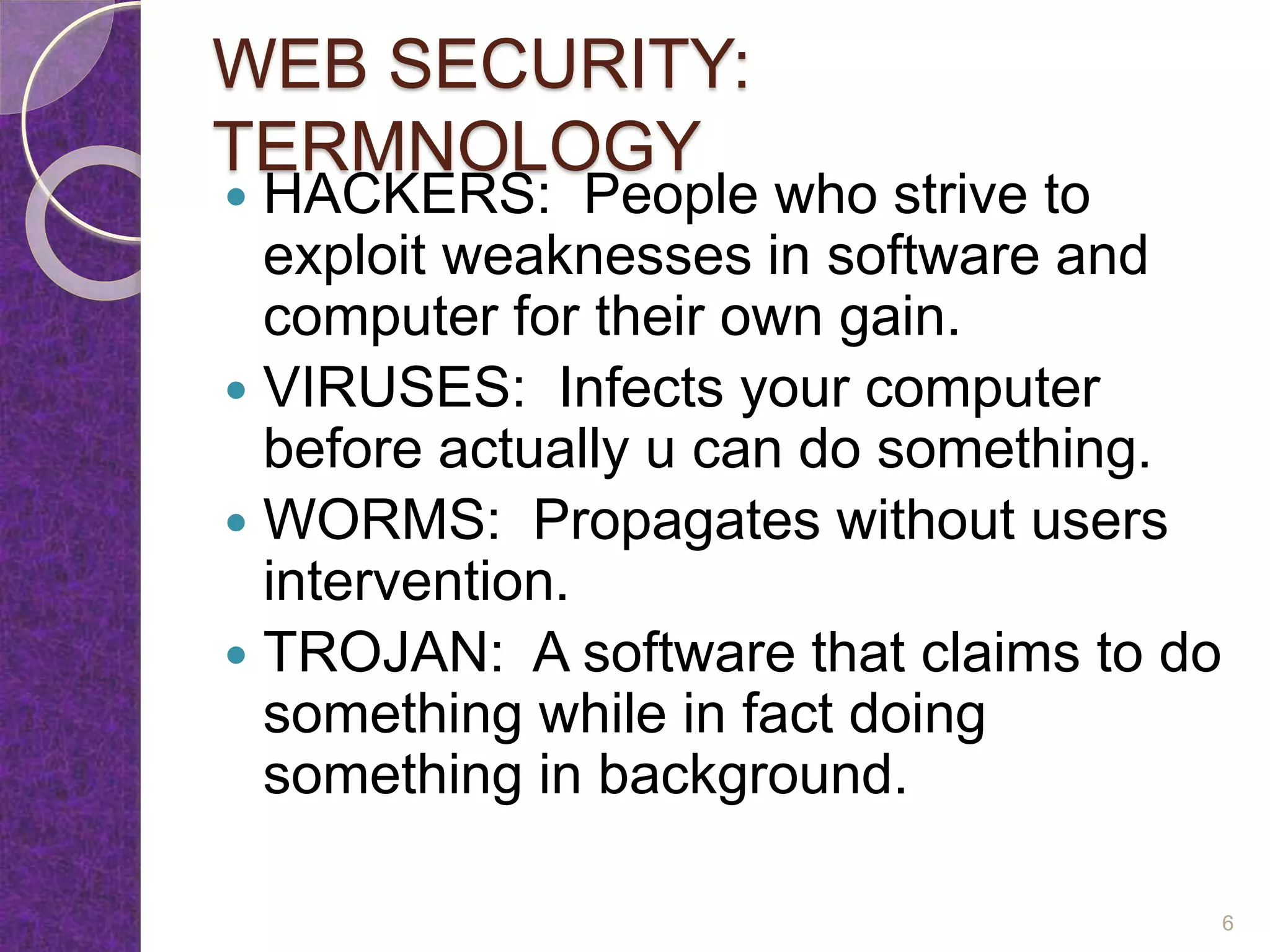

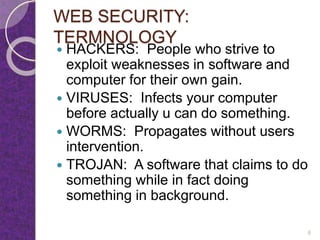

5. WEB SECURITY:
TERMNOLOGY
 HACKERS: People who strive to
exploit weaknesses in software and
computer for their own gain.
 VIRUSES: Infects your computer
before actually u can do something.
 WORMS: Propagates without users
intervention.
 TROJAN: A software that claims to do
something while in fact doing
something in background.
6

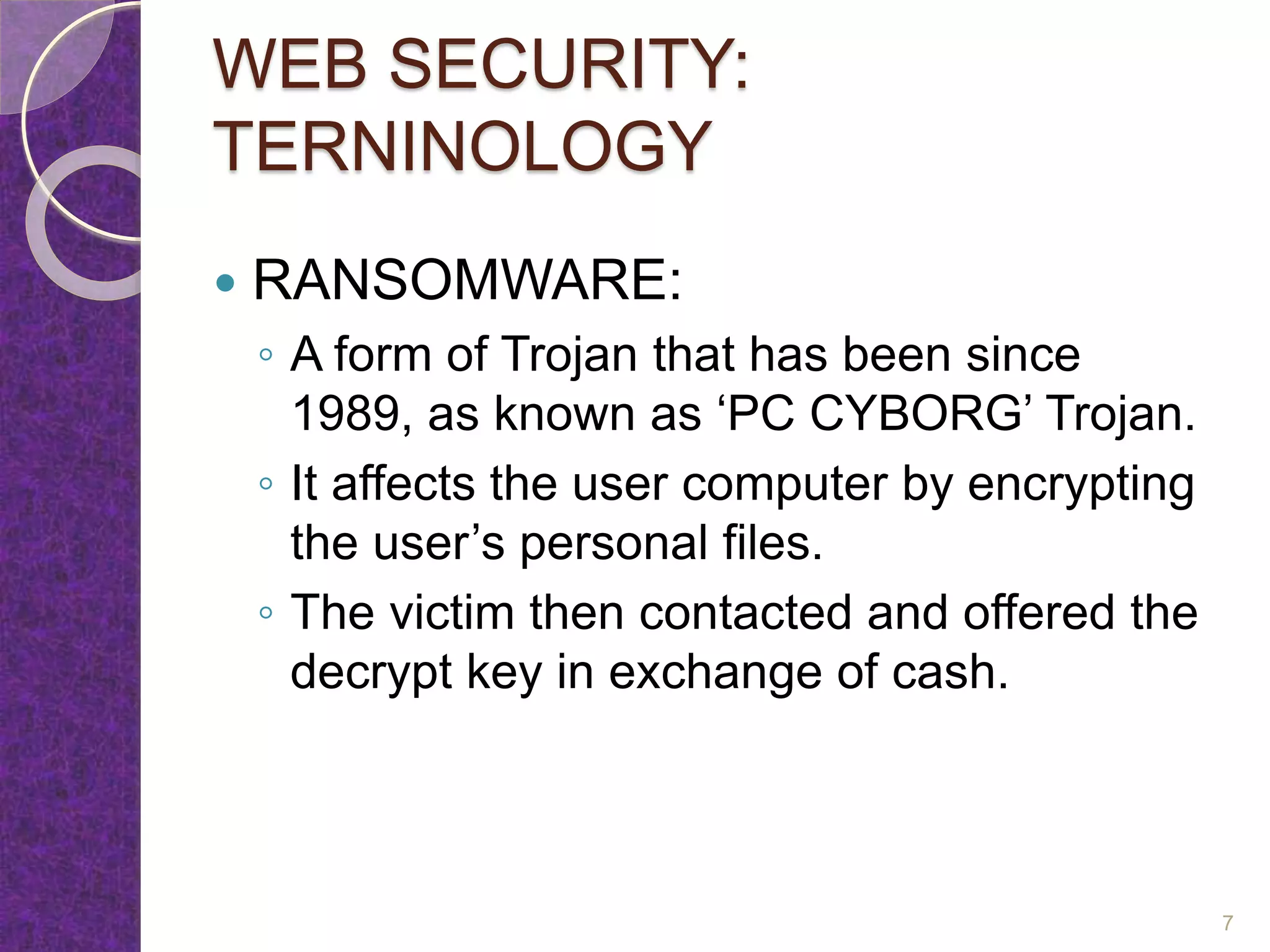

6. WEB SECURITY:
TERNINOLOGY
 RANSOMWARE:
◦ A form of Trojan that has been since
1989, as known as ‘PC CYBORG’ Trojan.
◦ It affects the user computer by encrypting
the user’s personal files.
◦ The victim then contacted and offered the
decrypt key in exchange of cash.
7

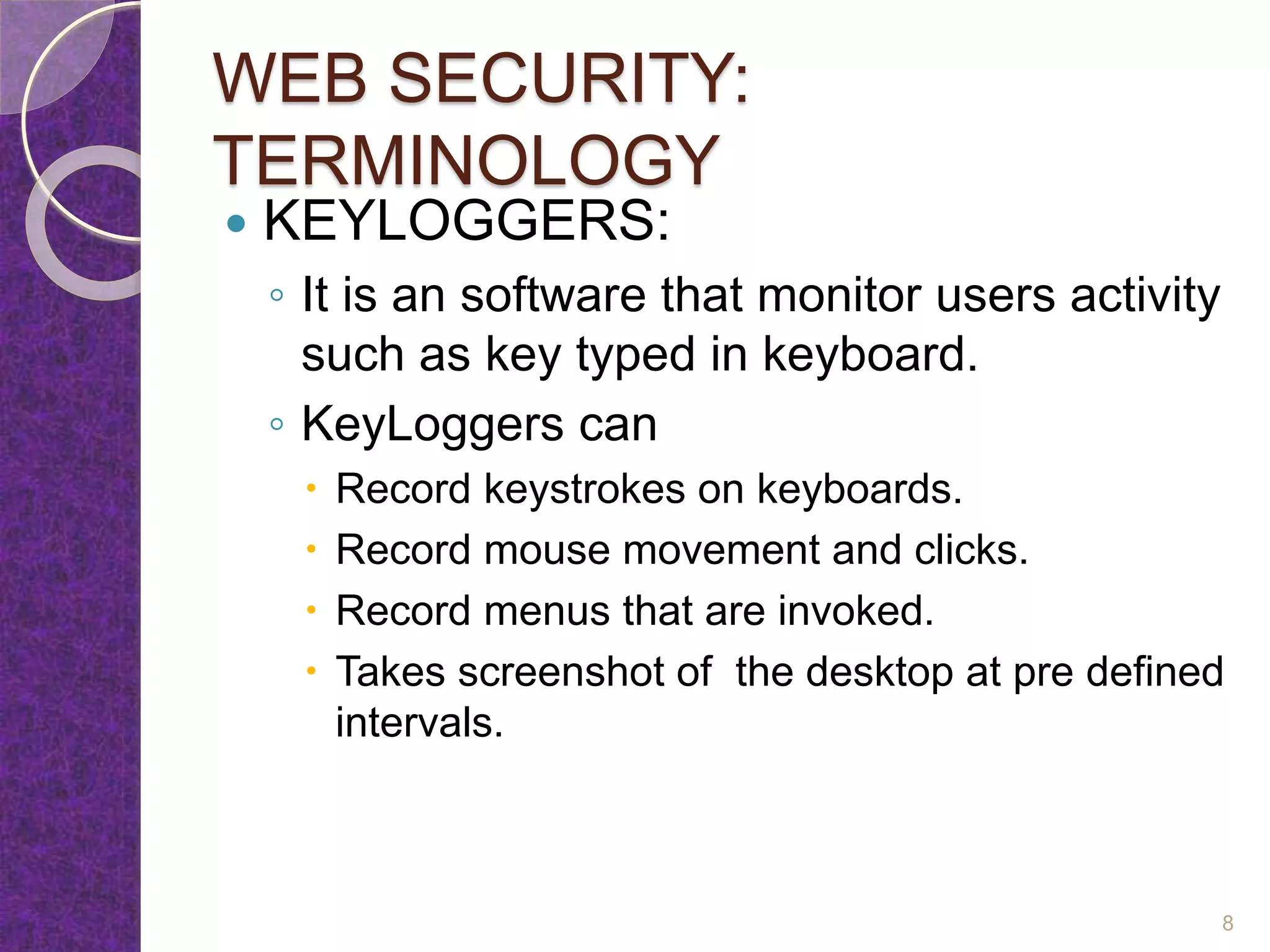

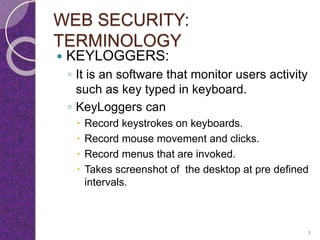

7. WEB SECURITY:
TERMINOLOGY
 KEYLOGGERS:
◦ It is an software that monitor users activity
such as key typed in keyboard.
◦ KeyLoggers can
 Record keystrokes on keyboards.
 Record mouse movement and clicks.
 Record menus that are invoked.
 Takes screenshot of the desktop at pre defined
intervals.
8

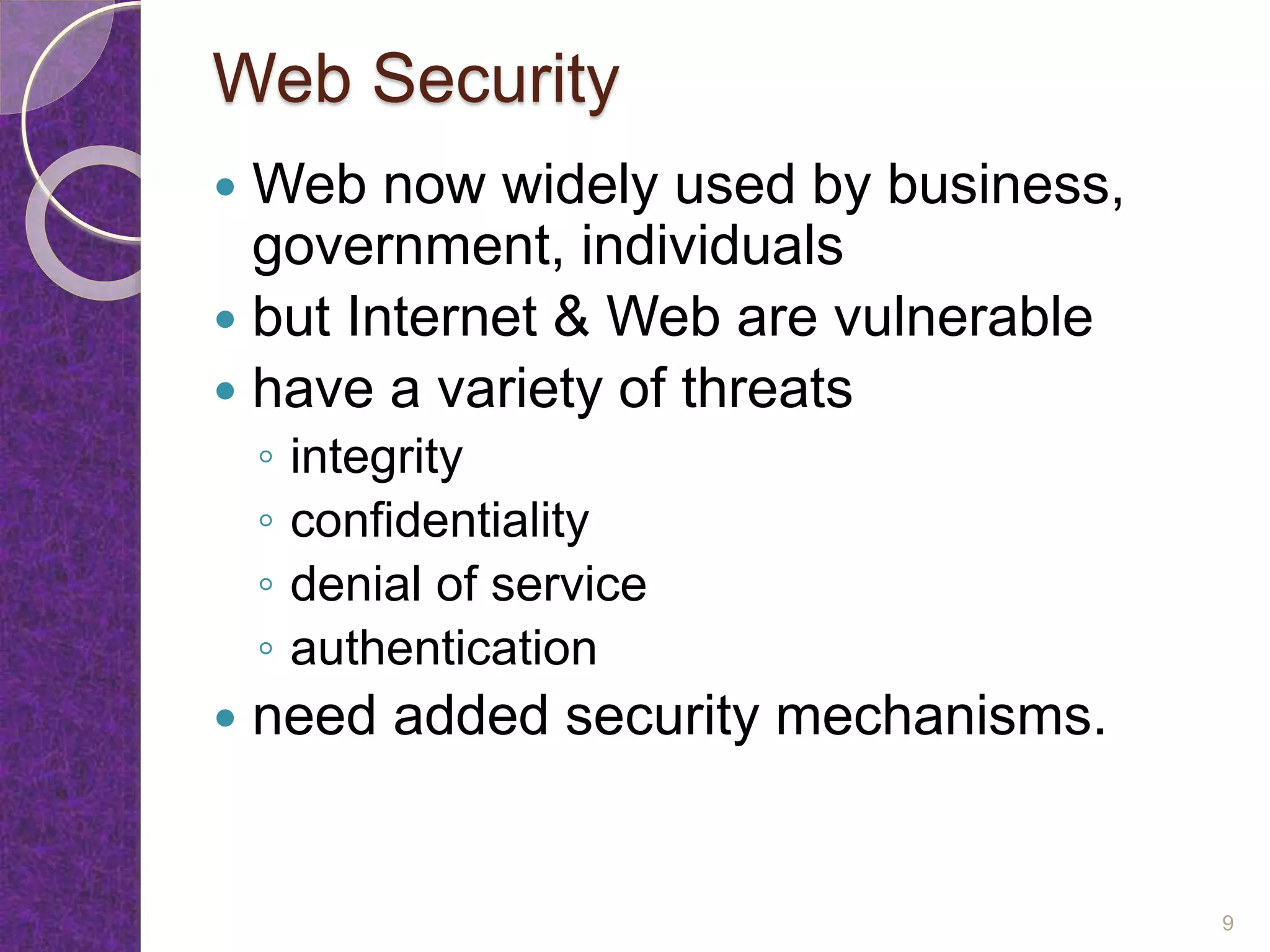

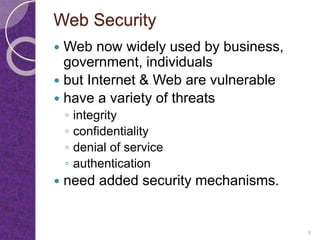

8. Web Security
 Web now widely used by business,
government, individuals
 but Internet & Web are vulnerable
 have a variety of threats
◦ integrity
◦ confidentiality
◦ denial of service
◦ authentication
 need added security mechanisms.
9

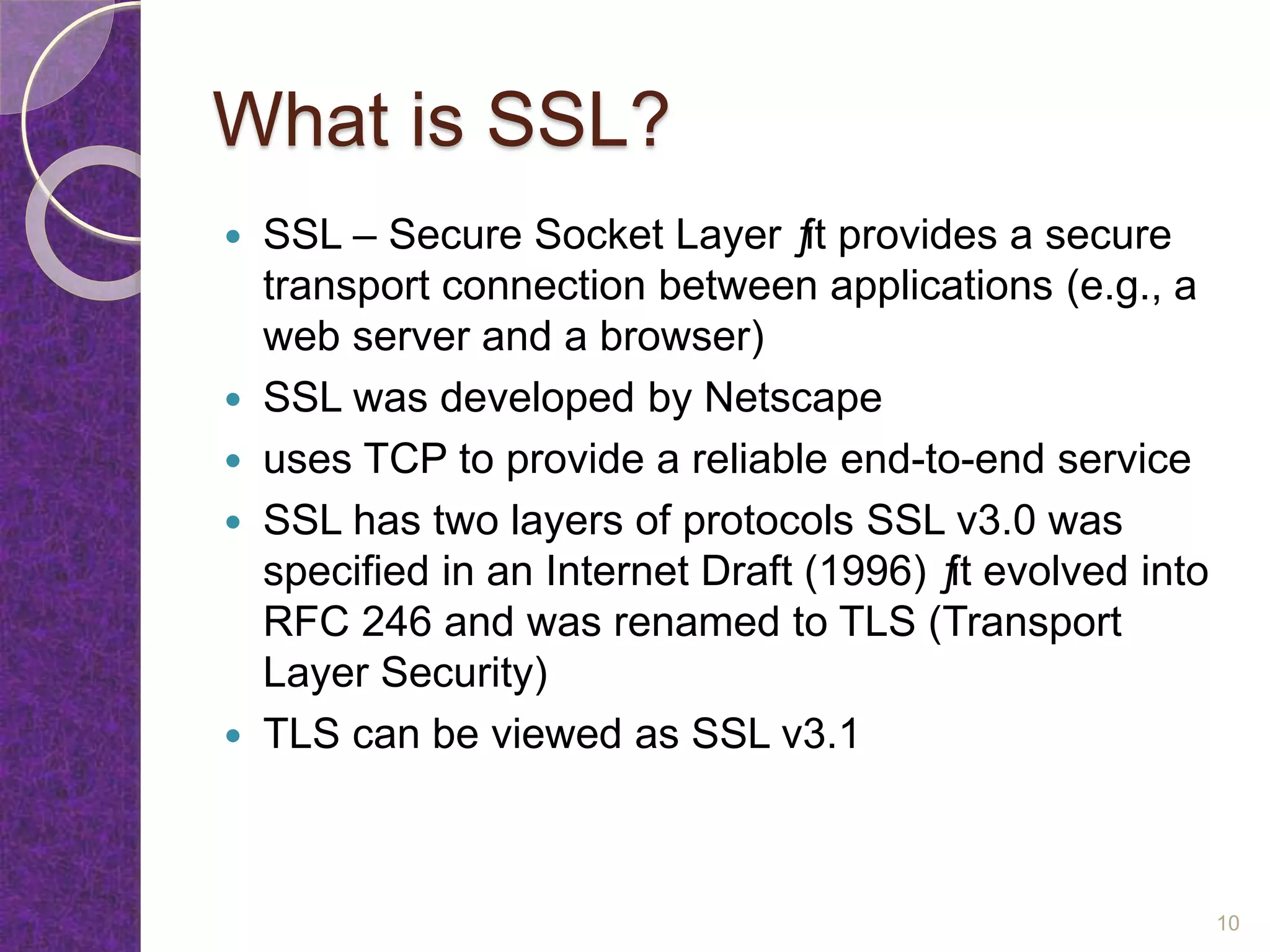

9. What is SSL?
 SSL – Secure Socket Layer ƒit provides a secure
transport connection between applications (e.g., a
web server and a browser)
 SSL was developed by Netscape
 uses TCP to provide a reliable end-to-end service
 SSL has two layers of protocols SSL v3.0 was
specified in an Internet Draft (1996) ƒit evolved into
RFC 246 and was renamed to TLS (Transport
Layer Security)
 TLS can be viewed as SSL v3.1
10

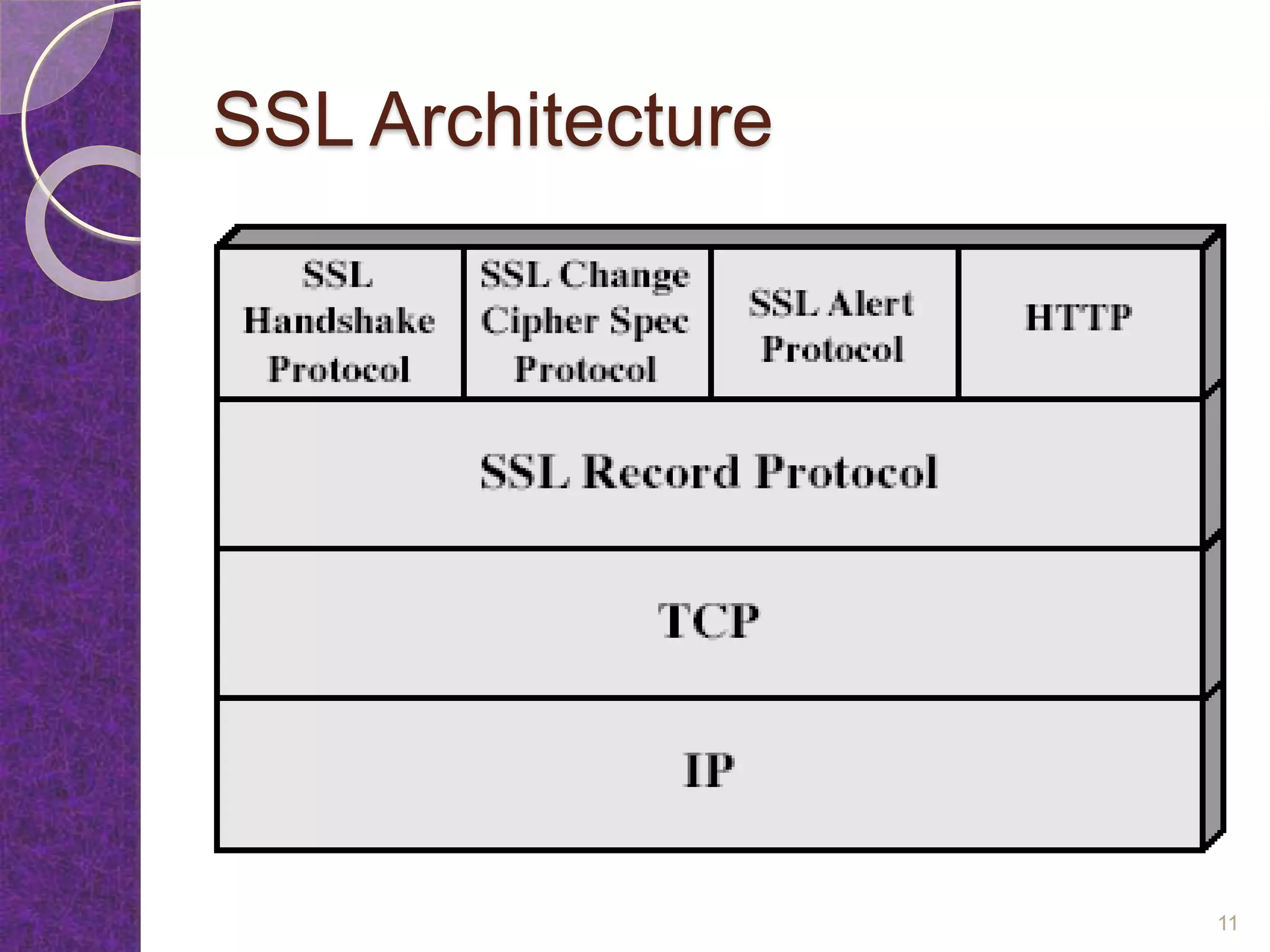

10. SSL Architecture
11

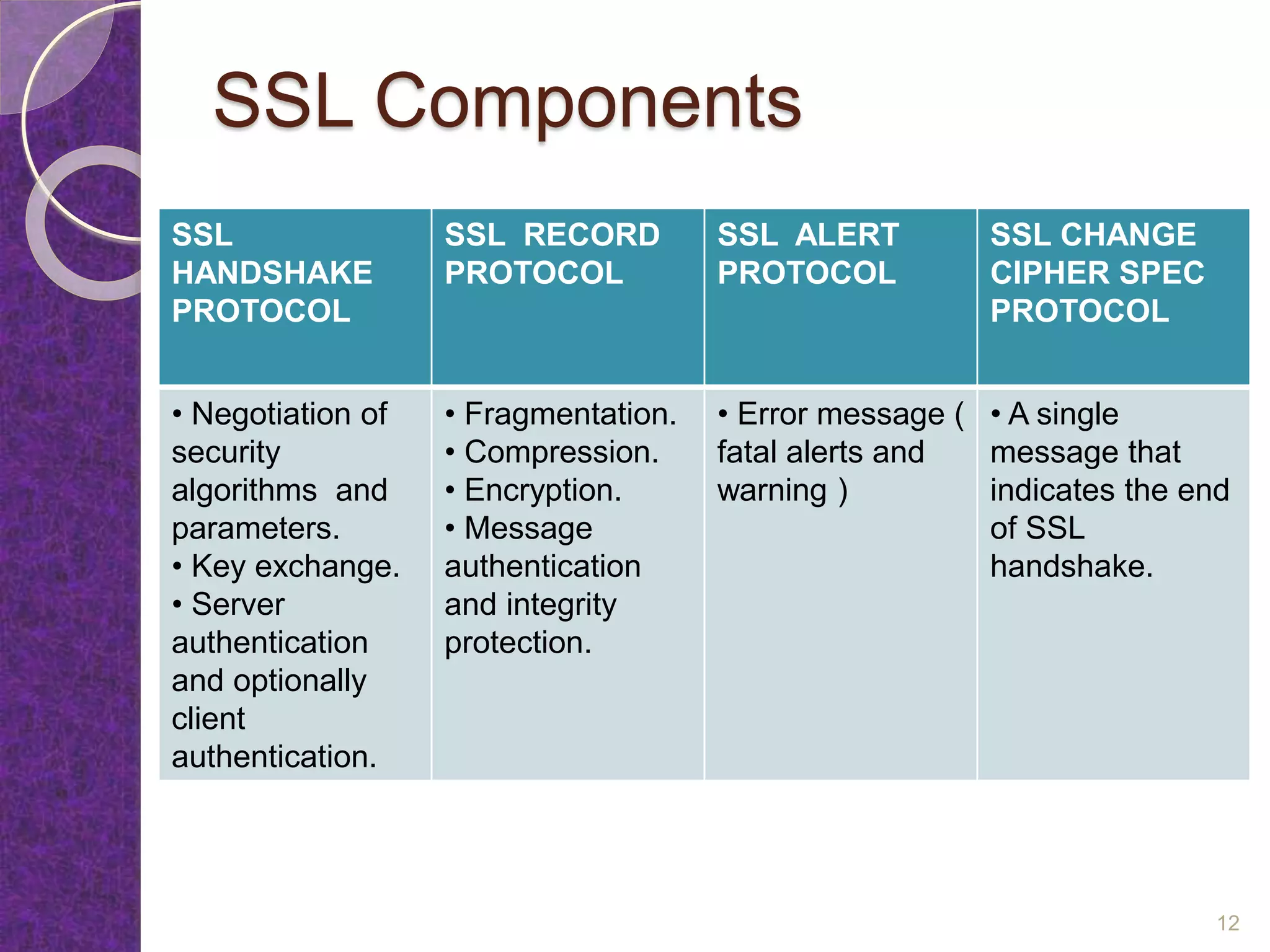

11. SSL Components
SSL
HANDSHAKE
PROTOCOL
SSL RECORD
PROTOCOL
SSL ALERT
PROTOCOL
SSL CHANGE
CIPHER SPEC
PROTOCOL
• Negotiation of
security
algorithms and
parameters.
• Key exchange.
• Server
authentication
and optionally
client
authentication.
• Fragmentation.
• Compression.
• Encryption.
• Message
authentication
and integrity
protection.
• Error message (
fatal alerts and
warning )
• A single
message that
indicates the end
of SSL
handshake.
12

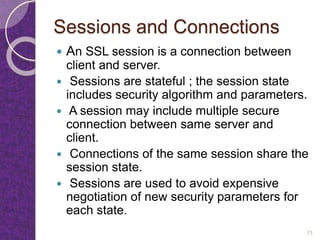

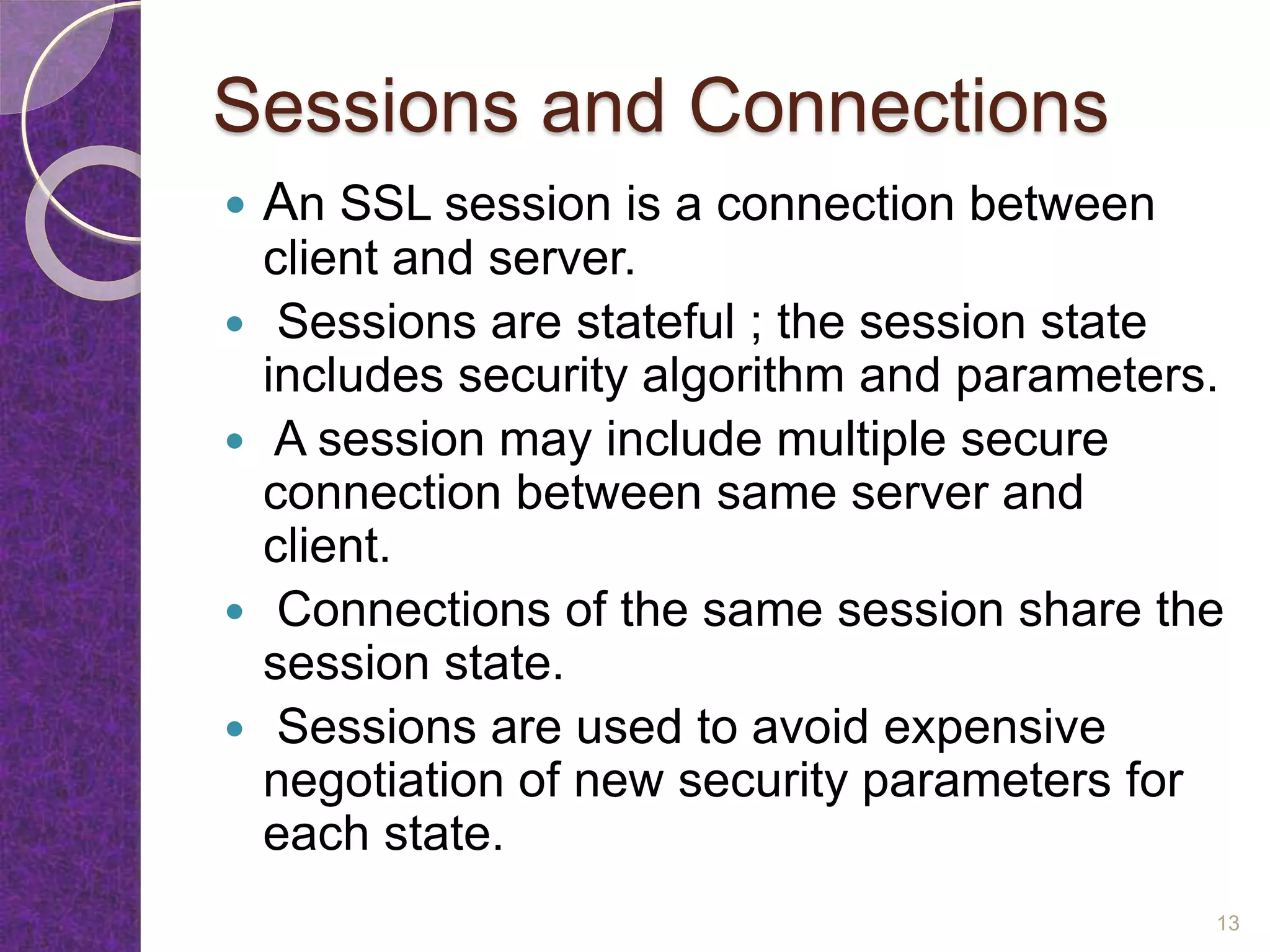

12. Sessions and Connections
 An SSL session is a connection between
client and server.
 Sessions are stateful ; the session state
includes security algorithm and parameters.
 A session may include multiple secure
connection between same server and
client.
 Connections of the same session share the
session state.
 Sessions are used to avoid expensive
negotiation of new security parameters for
each state.
13

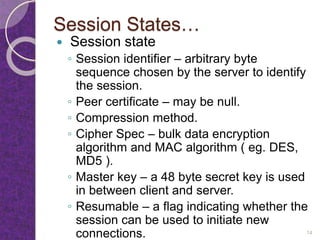

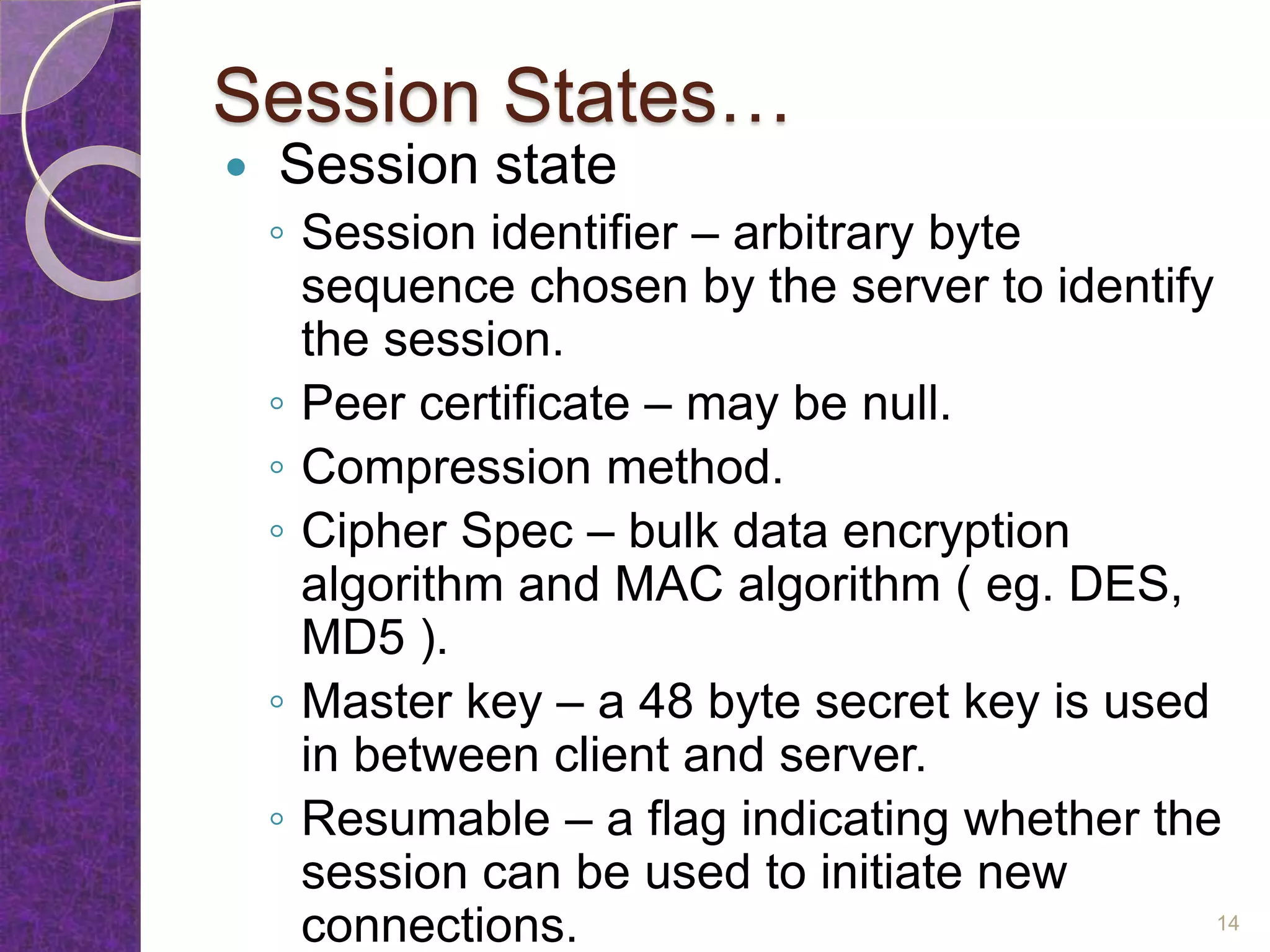

13. Session States…
 Session state
◦ Session identifier – arbitrary byte
sequence chosen by the server to identify
the session.
◦ Peer certificate – may be null.
◦ Compression method.
◦ Cipher Spec – bulk data encryption
algorithm and MAC algorithm ( eg. DES,
MD5 ).
◦ Master key – a 48 byte secret key is used
in between client and server.
◦ Resumable – a flag indicating whether the
session can be used to initiate new
connections. 14

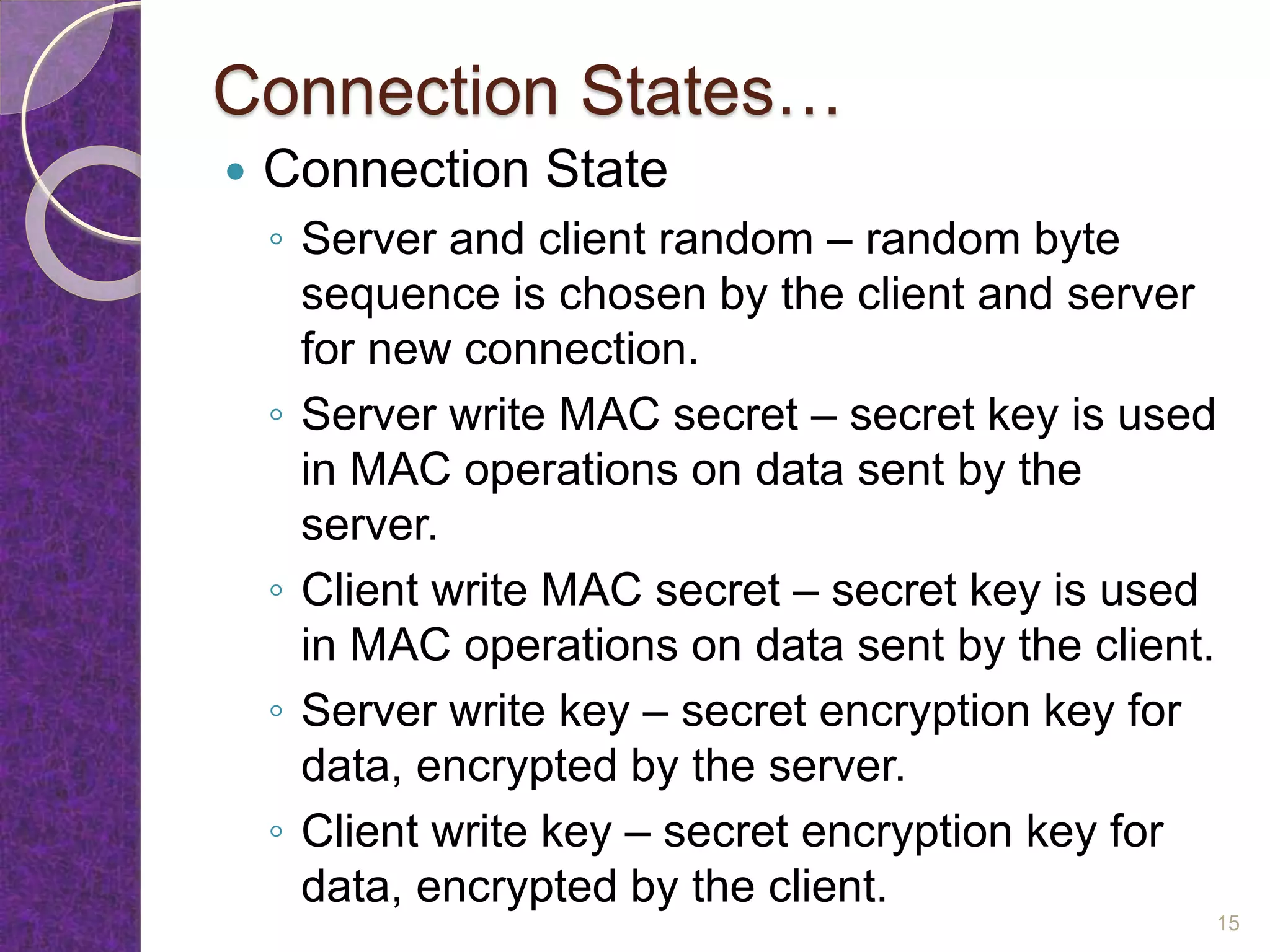

14. Connection States…
 Connection State
◦ Server and client random – random byte
sequence is chosen by the client and server
for new connection.
◦ Server write MAC secret – secret key is used
in MAC operations on data sent by the
server.
◦ Client write MAC secret – secret key is used
in MAC operations on data sent by the client.
◦ Server write key – secret encryption key for
data, encrypted by the server.
◦ Client write key – secret encryption key for
data, encrypted by the client.
15

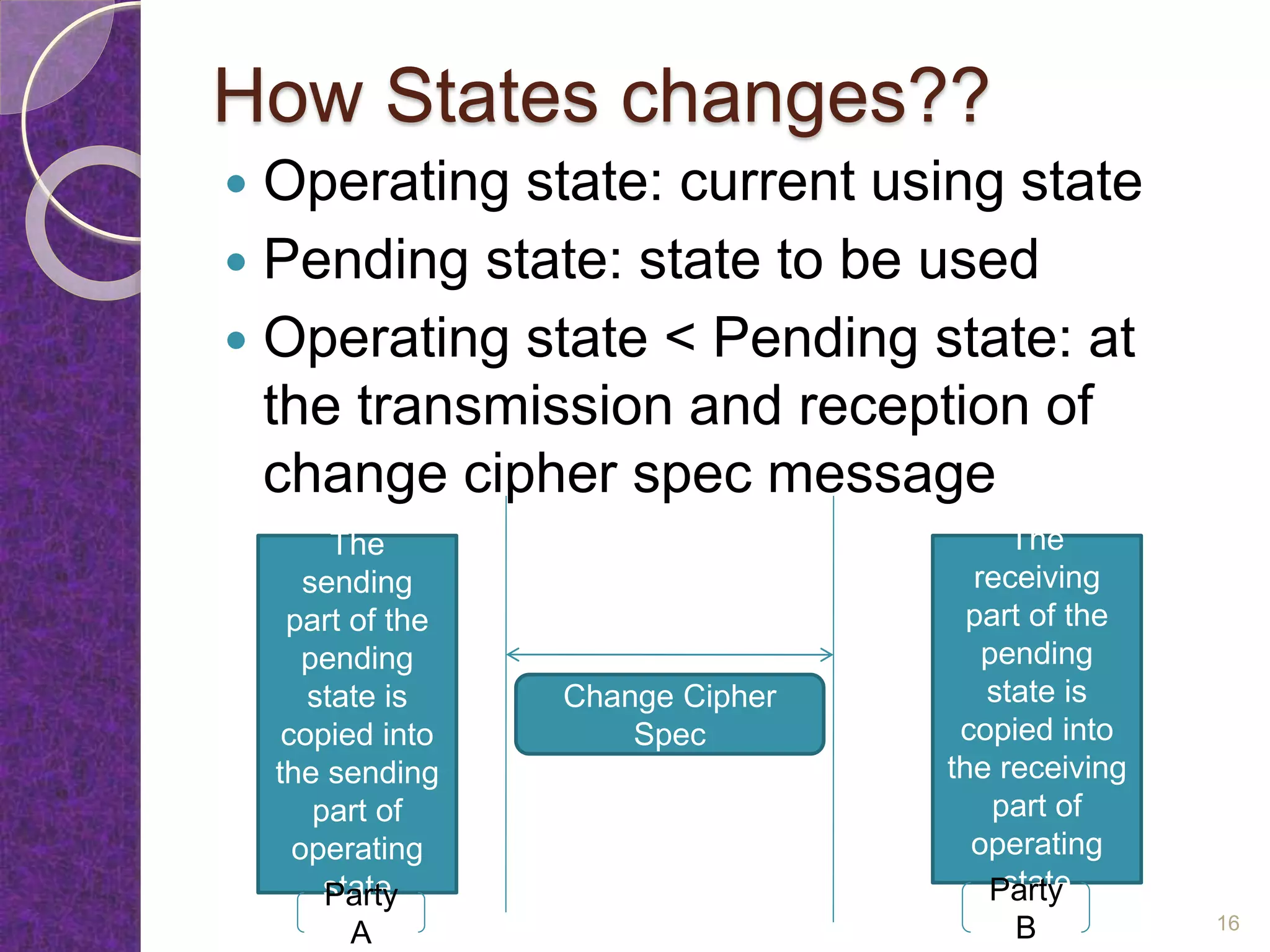

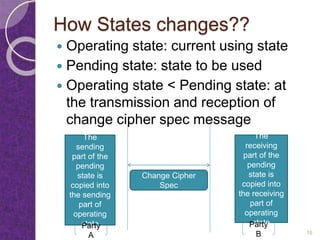

15. How States changes??
 Operating state: current using state
 Pending state: state to be used
 Operating state < Pending state: at
the transmission and reception of
change cipher spec message
The
sending
part of the
pending
state is
copied into
the sending
part of
operating
state
The
receiving
part of the
pending
state is
copied into
the receiving
part of
operating
stateParty
A
Party
B
Change Cipher
Spec
16

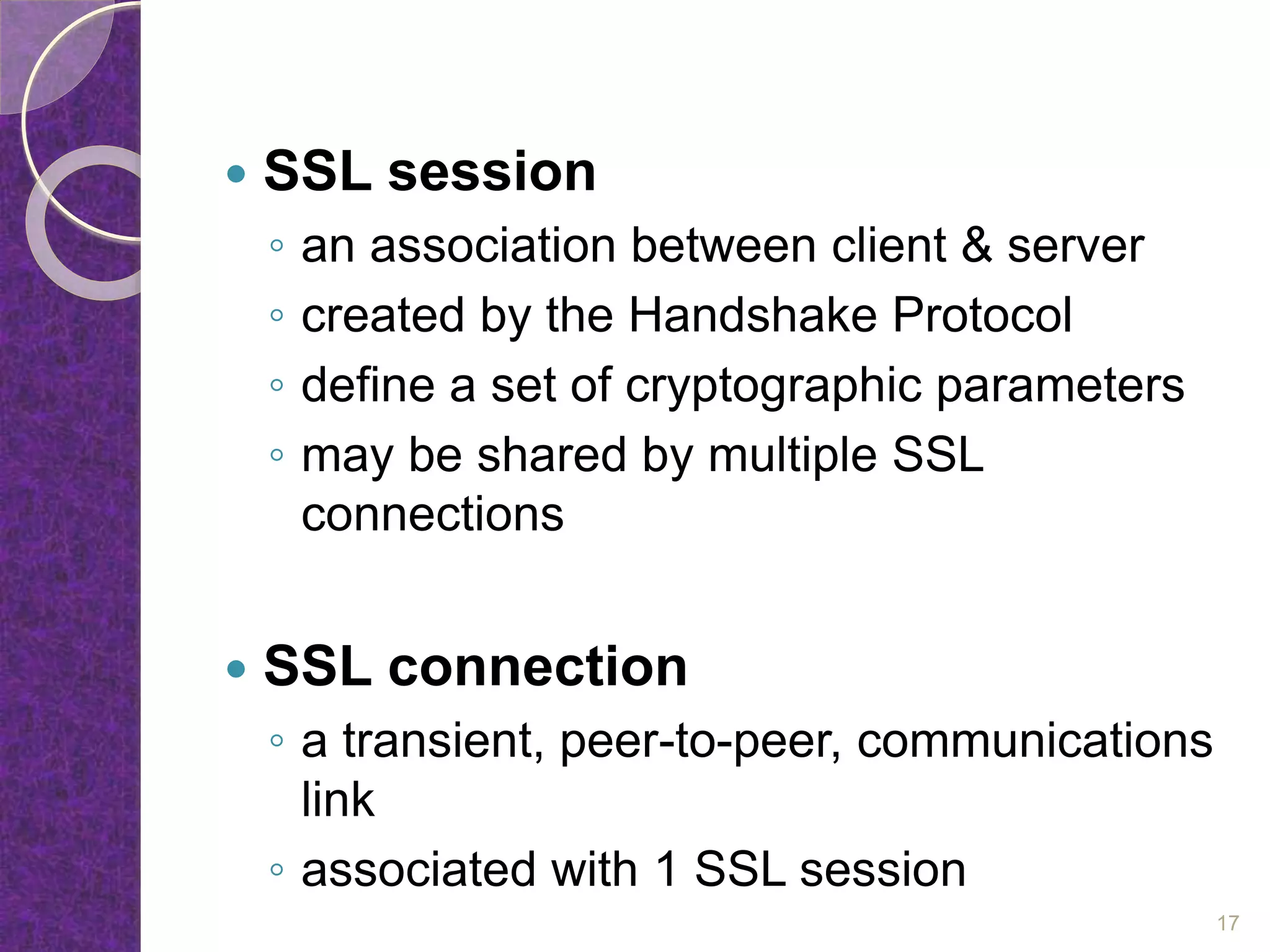

16.  SSL session
◦ an association between client & server
◦ created by the Handshake Protocol
◦ define a set of cryptographic parameters
◦ may be shared by multiple SSL
connections
 SSL connection
◦ a transient, peer-to-peer, communications
link
◦ associated with 1 SSL session
17

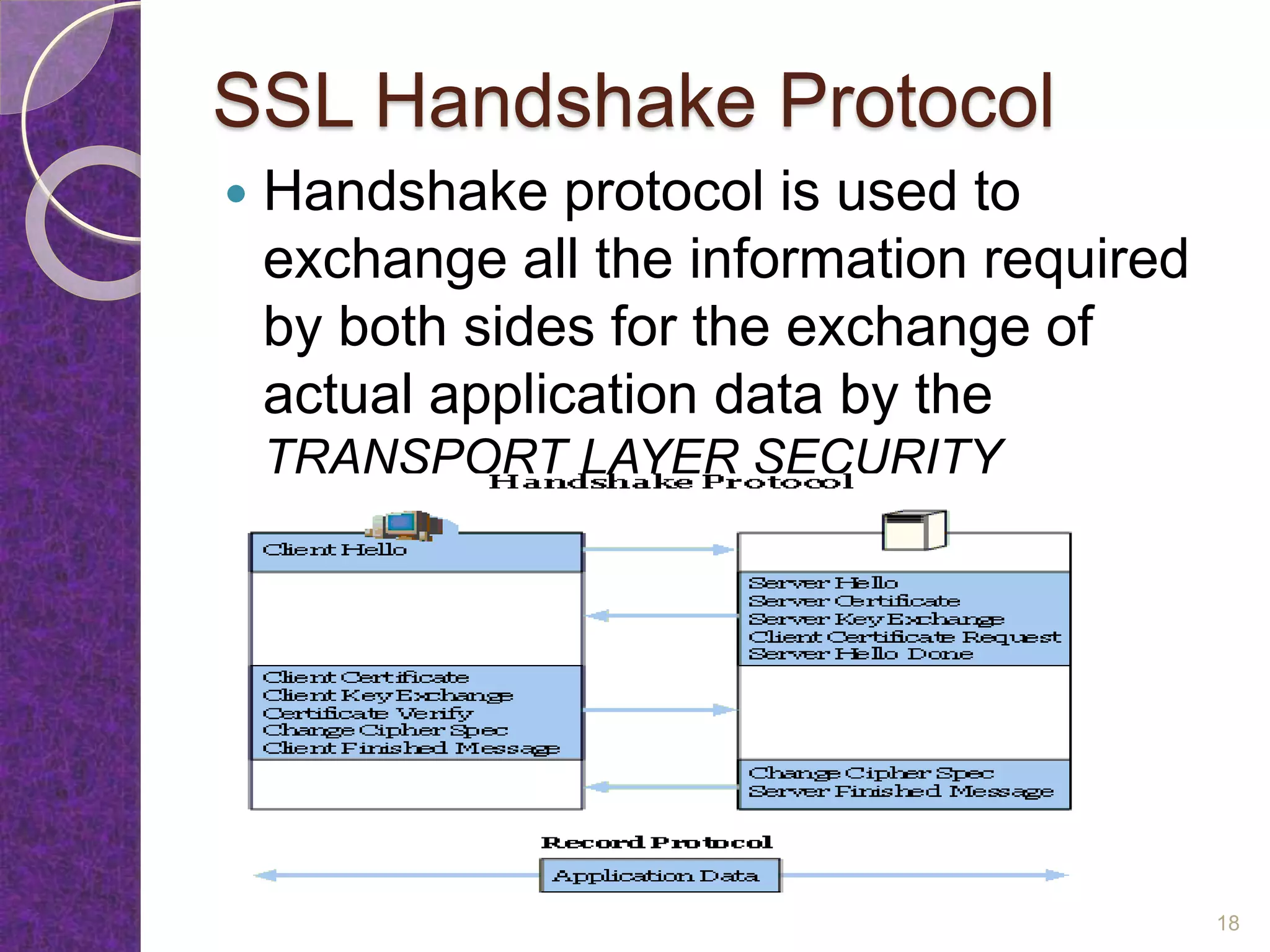

17. SSL Handshake Protocol
 Handshake protocol is used to
exchange all the information required
by both sides for the exchange of
actual application data by the
TRANSPORT LAYER SECURITY
18

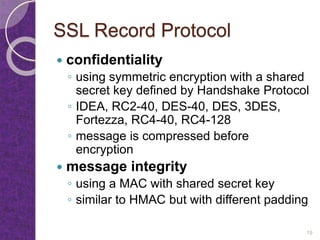

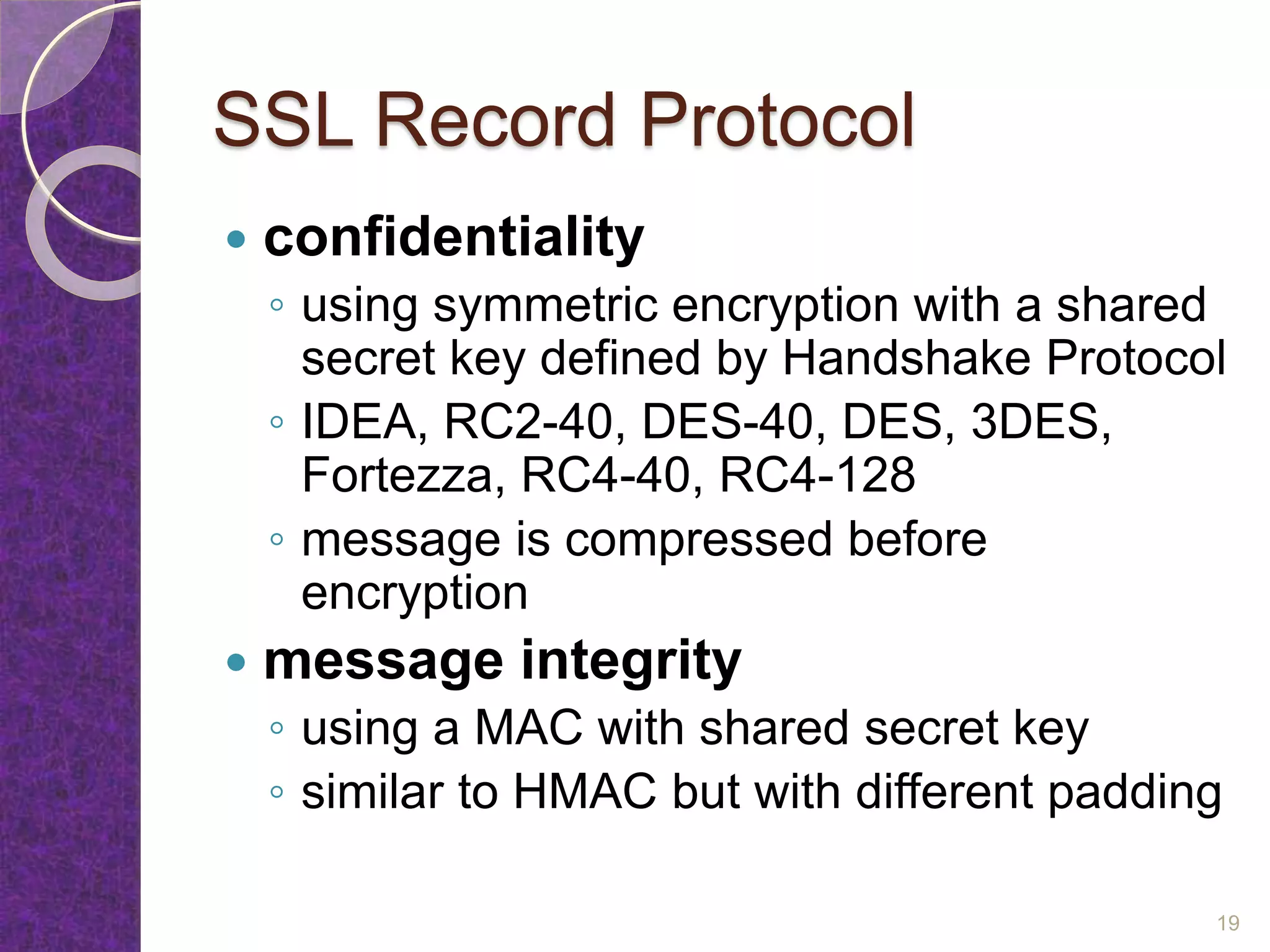

18. SSL Record Protocol
 confidentiality
◦ using symmetric encryption with a shared
secret key defined by Handshake Protocol
◦ IDEA, RC2-40, DES-40, DES, 3DES,
Fortezza, RC4-40, RC4-128
◦ message is compressed before
encryption
 message integrity
◦ using a MAC with shared secret key
◦ similar to HMAC but with different padding
19

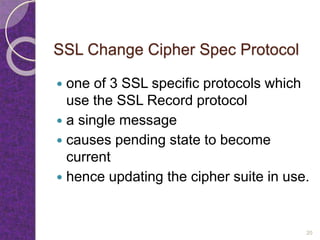

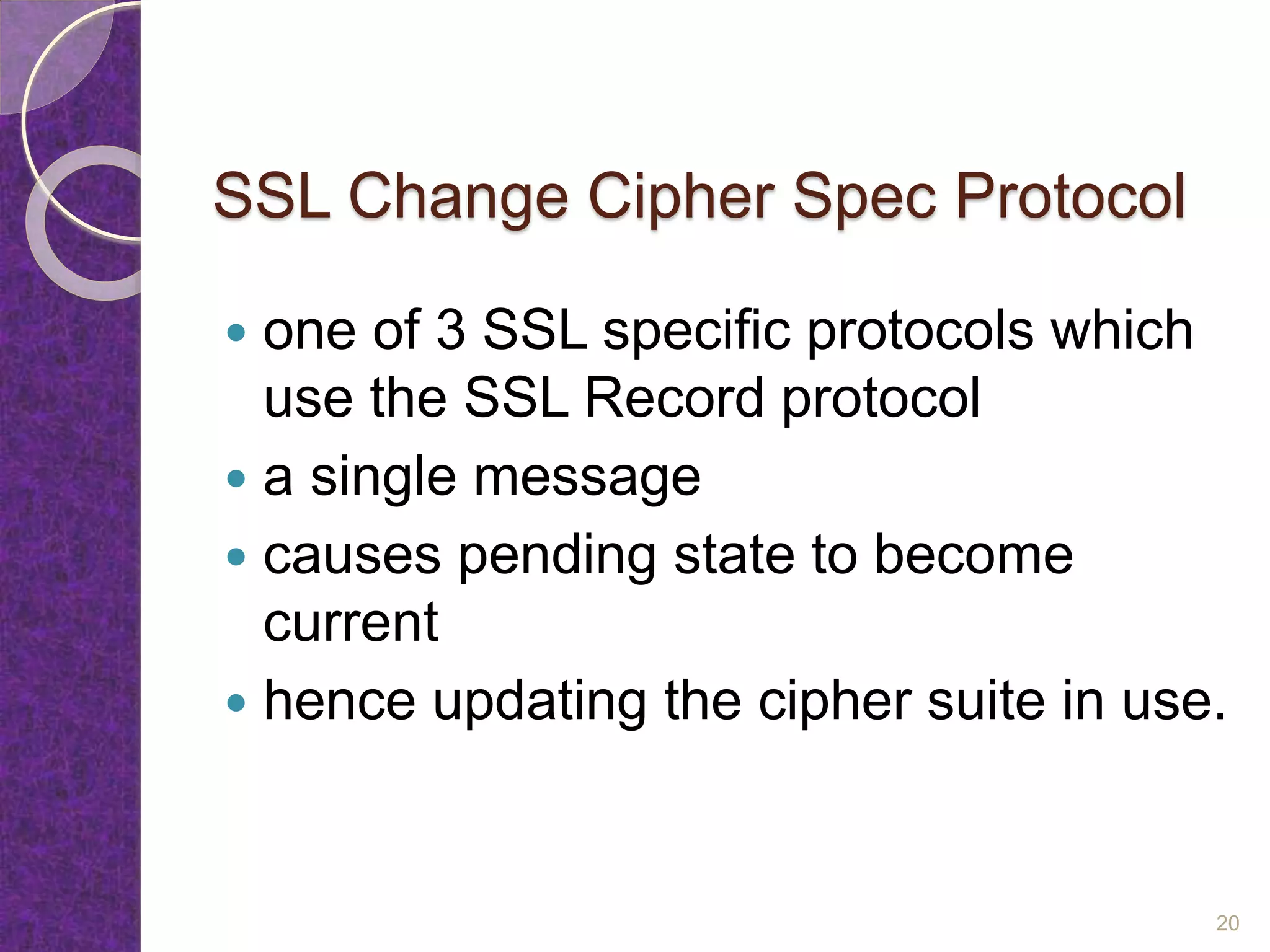

19. SSL Change Cipher Spec Protocol
 one of 3 SSL specific protocols which
use the SSL Record protocol
 a single message
 causes pending state to become
current
 hence updating the cipher suite in use.
20

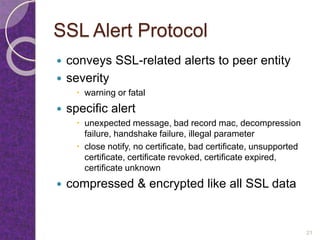

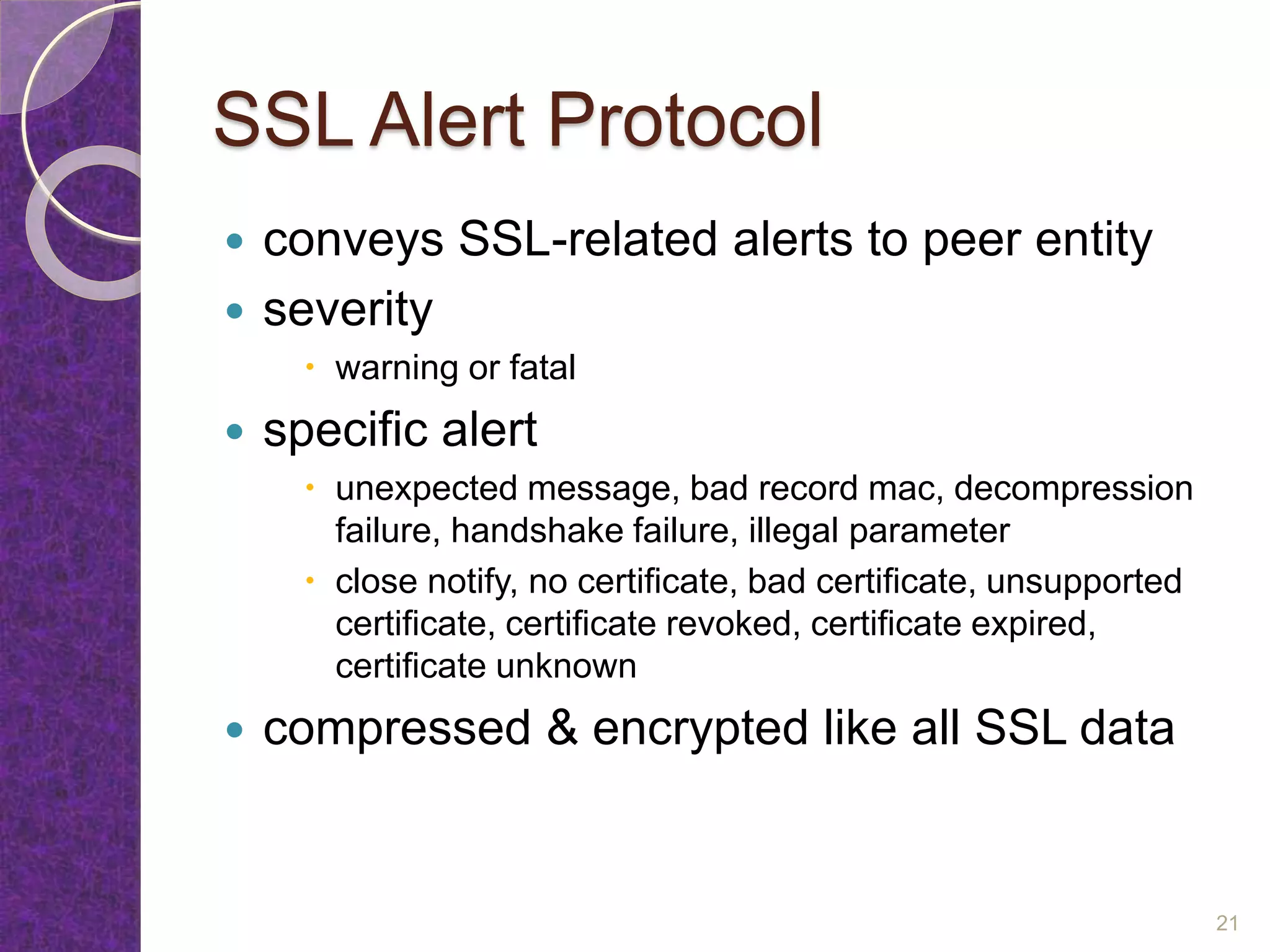

20. SSL Alert Protocol
 conveys SSL-related alerts to peer entity
 severity
 warning or fatal
 specific alert
 unexpected message, bad record mac, decompression
failure, handshake failure, illegal parameter
 close notify, no certificate, bad certificate, unsupported
certificate, certificate revoked, certificate expired,
certificate unknown
 compressed & encrypted like all SSL data
21

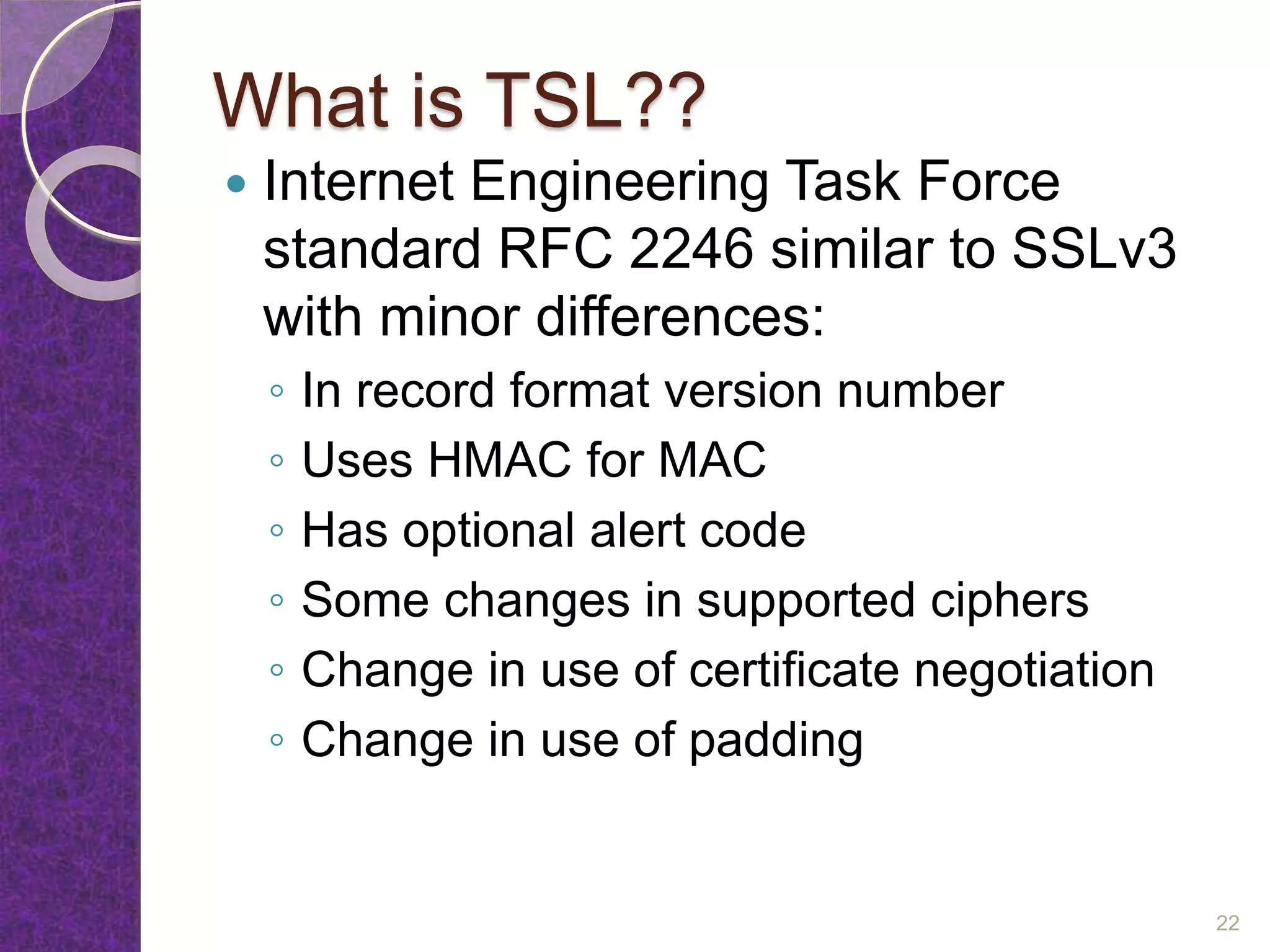

21. What is TSL??
 Internet Engineering Task Force
standard RFC 2246 similar to SSLv3
with minor differences:
◦ In record format version number
◦ Uses HMAC for MAC
◦ Has optional alert code
◦ Some changes in supported ciphers
◦ Change in use of certificate negotiation
◦ Change in use of padding
22

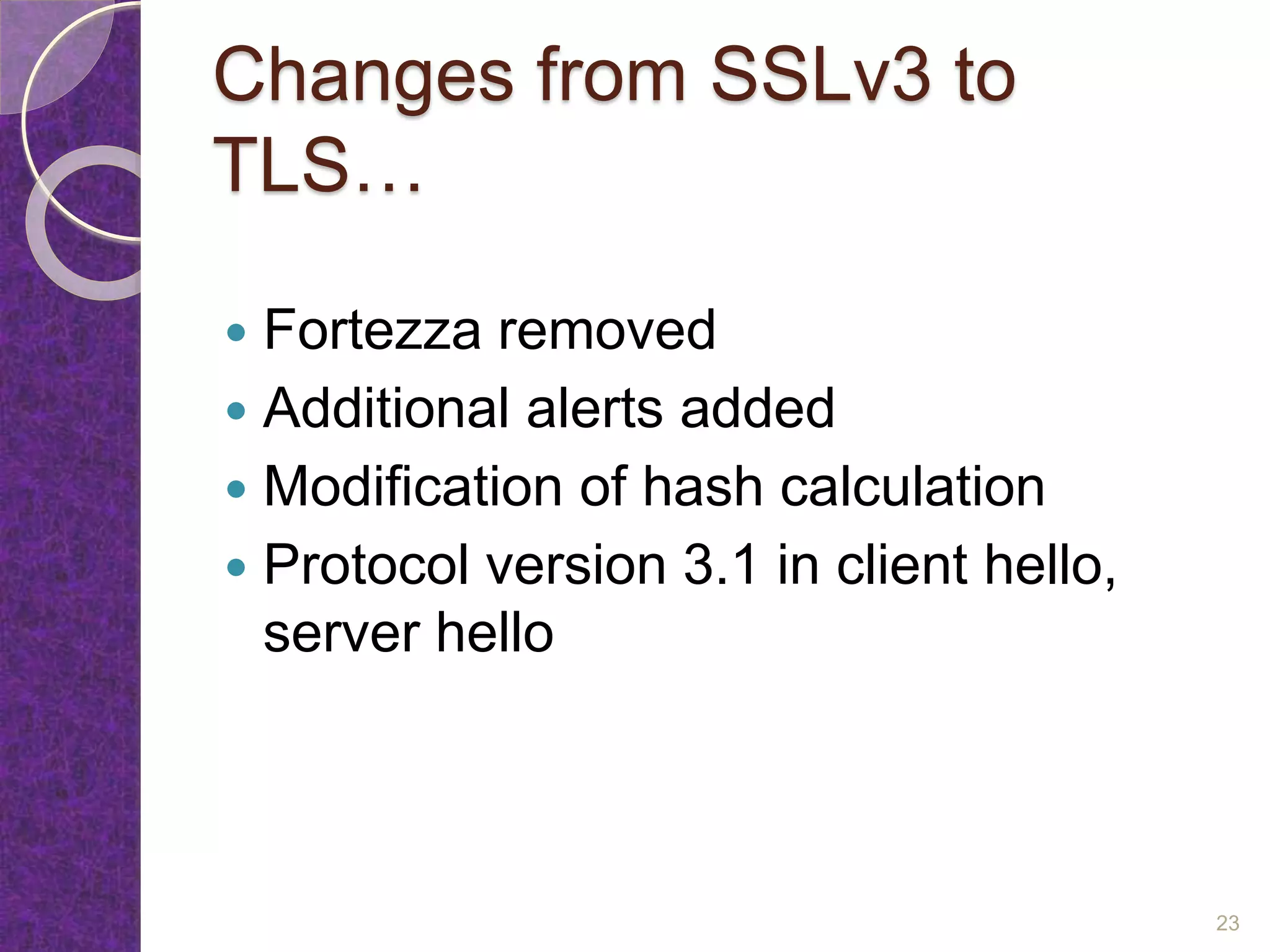

22. Changes from SSLv3 to
TLS…
 Fortezza removed
 Additional alerts added
 Modification of hash calculation
 Protocol version 3.1 in client hello,
server hello
23

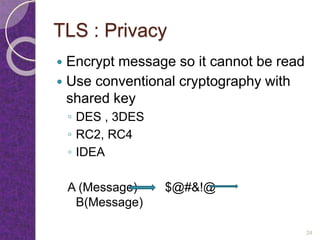

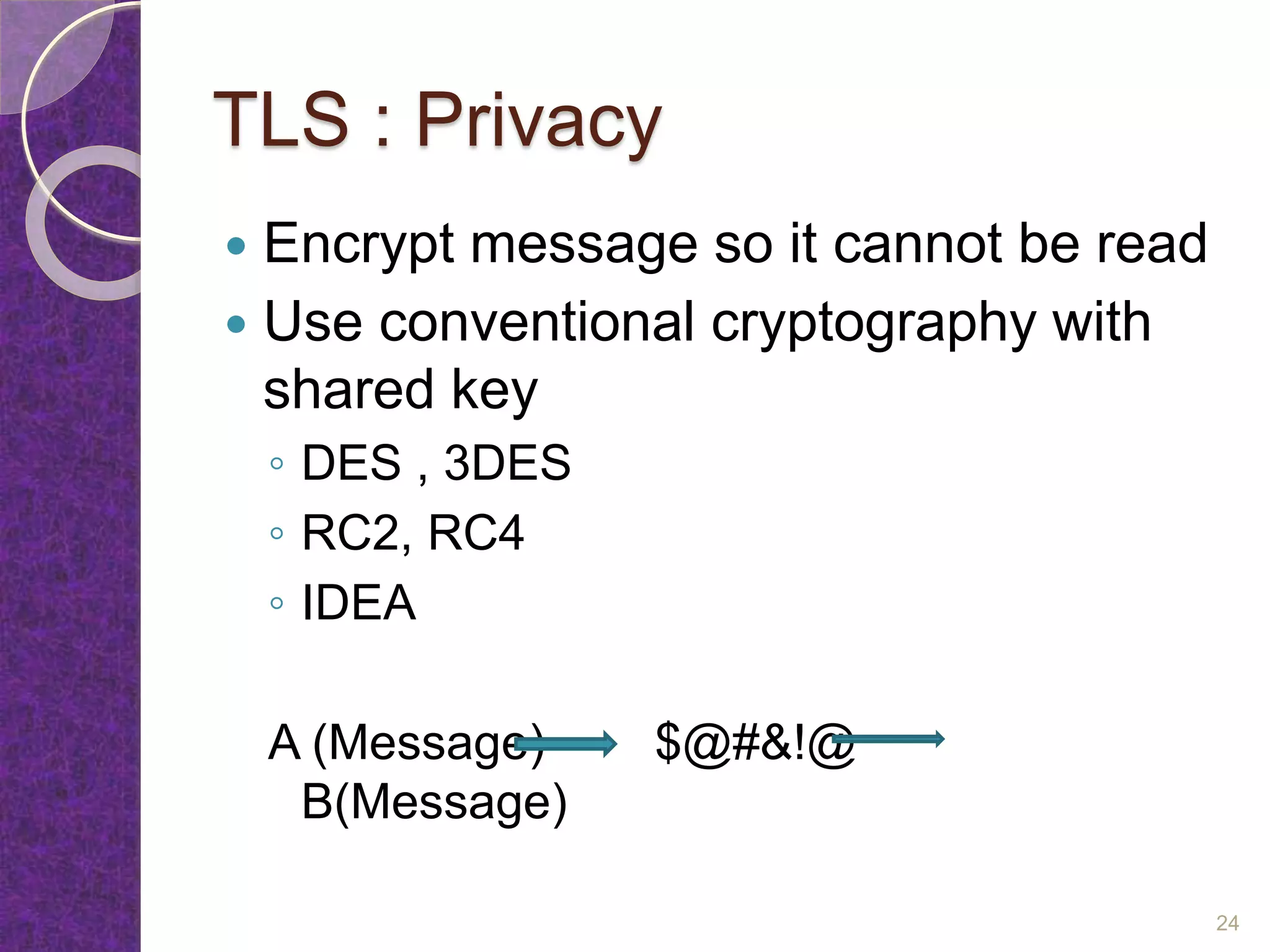

23. TLS : Privacy
 Encrypt message so it cannot be read
 Use conventional cryptography with
shared key
◦ DES , 3DES
◦ RC2, RC4
◦ IDEA
A (Message) $@#&!@
B(Message)
24

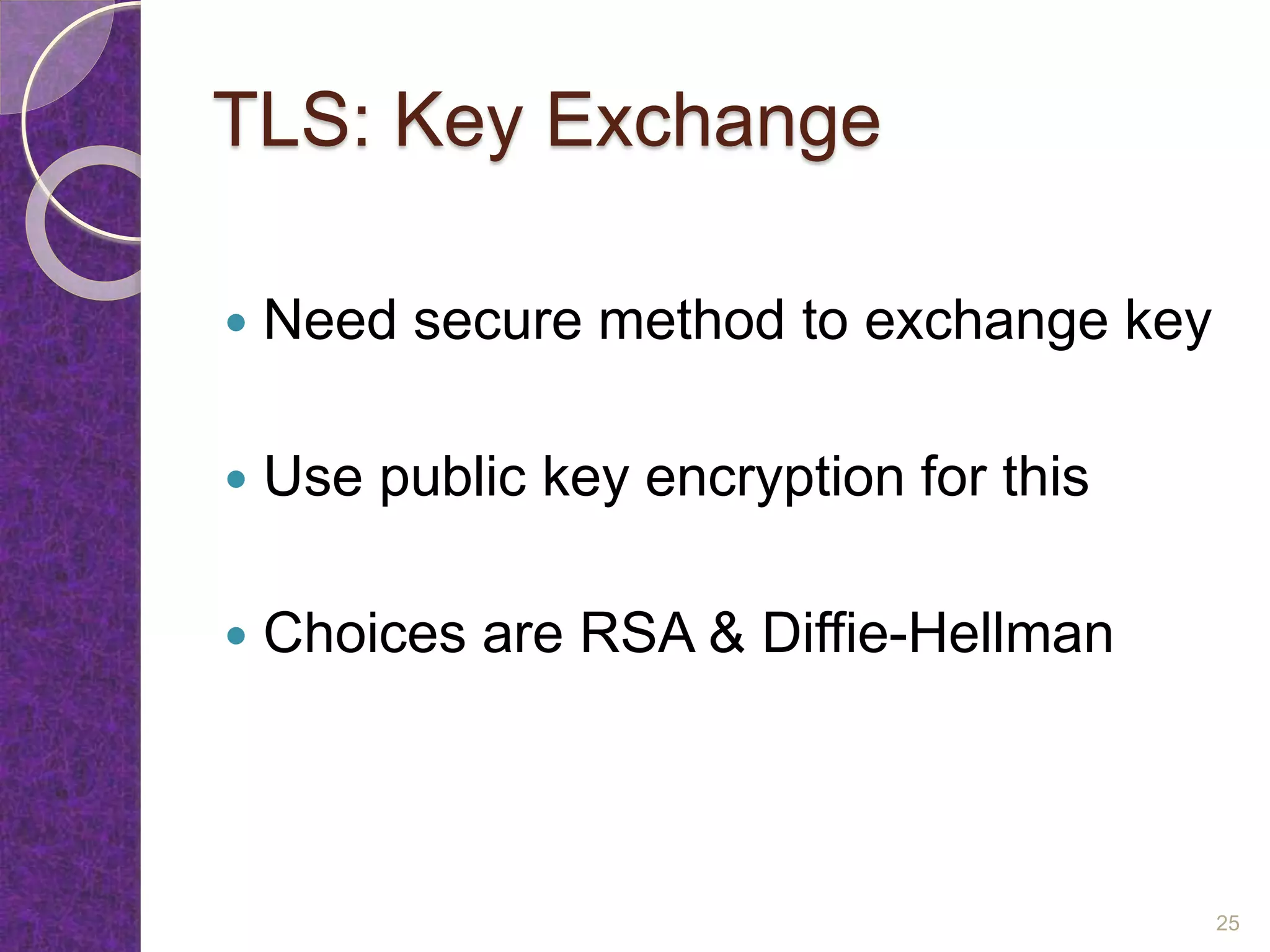

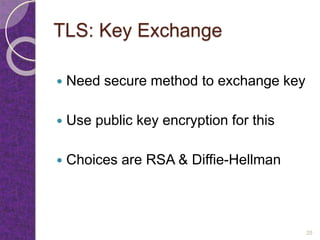

24. TLS: Key Exchange
 Need secure method to exchange key
 Use public key encryption for this
 Choices are RSA & Diffie-Hellman
25

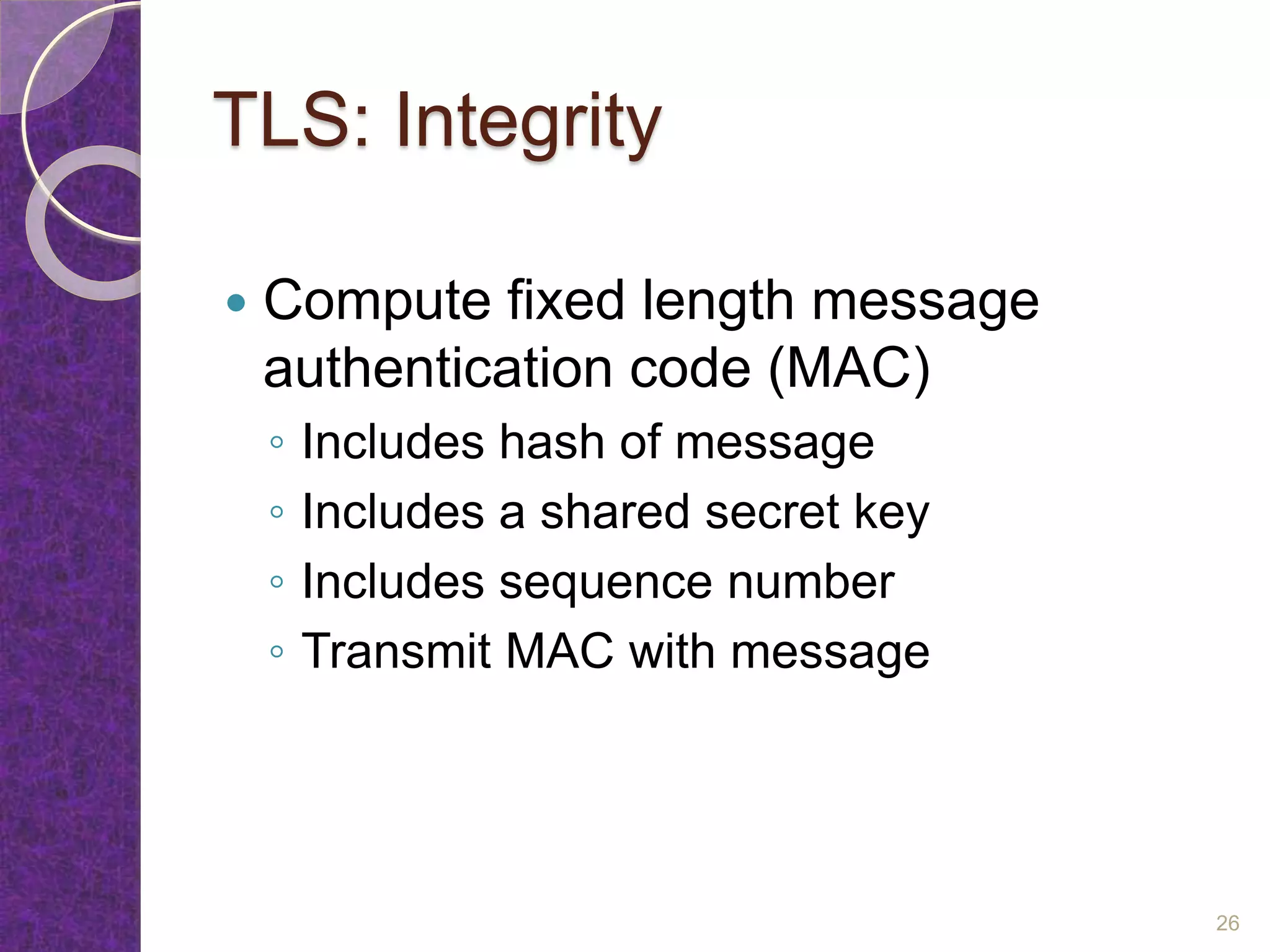

25. TLS: Integrity
 Compute fixed length message
authentication code (MAC)
◦ Includes hash of message
◦ Includes a shared secret key
◦ Includes sequence number
◦ Transmit MAC with message
26

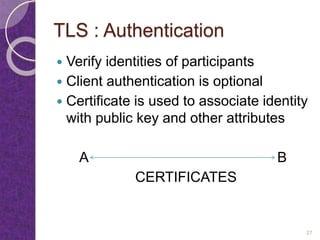

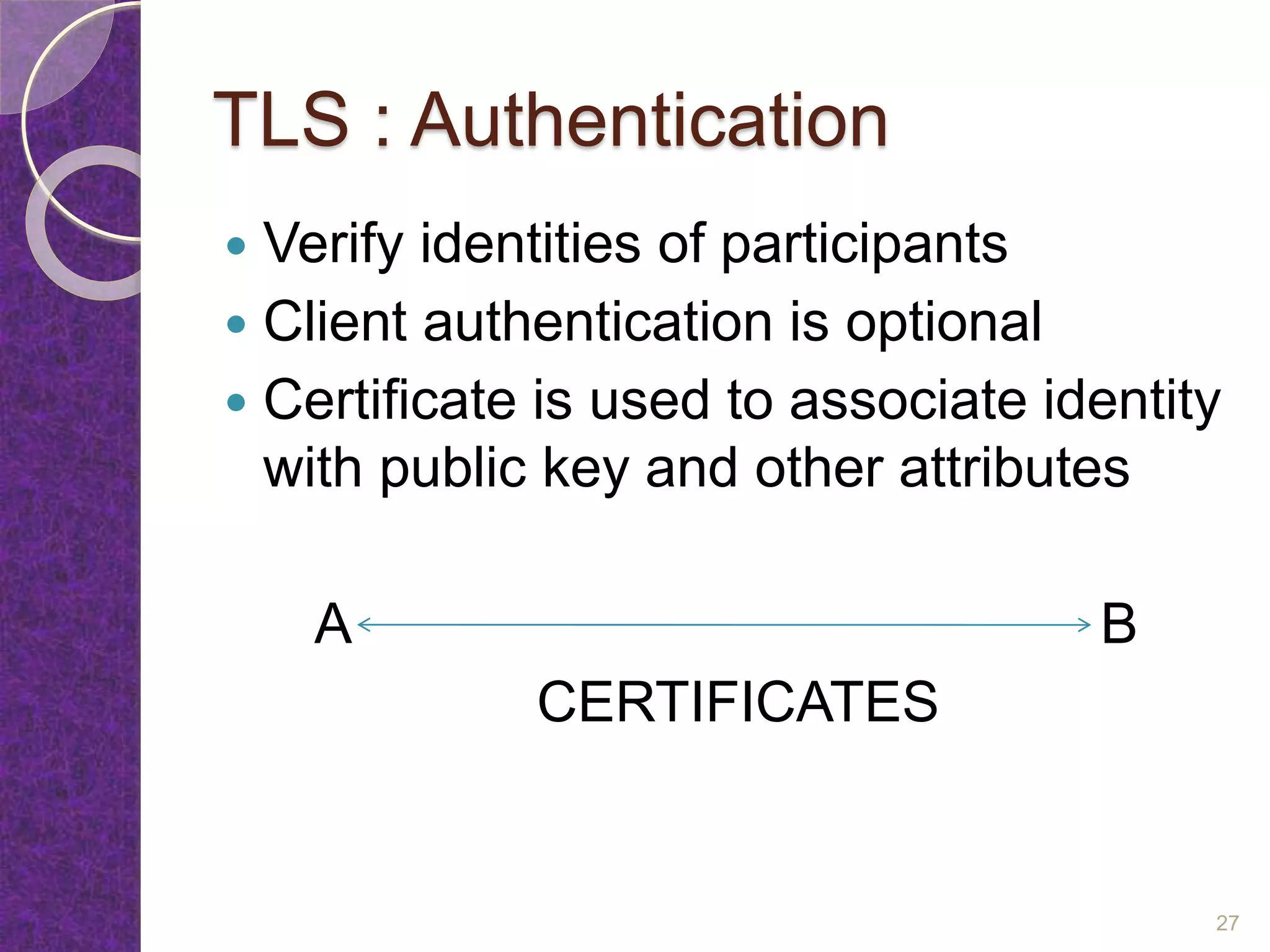

26. TLS : Authentication
 Verify identities of participants
 Client authentication is optional
 Certificate is used to associate identity
with public key and other attributes
A B
CERTIFICATES
27

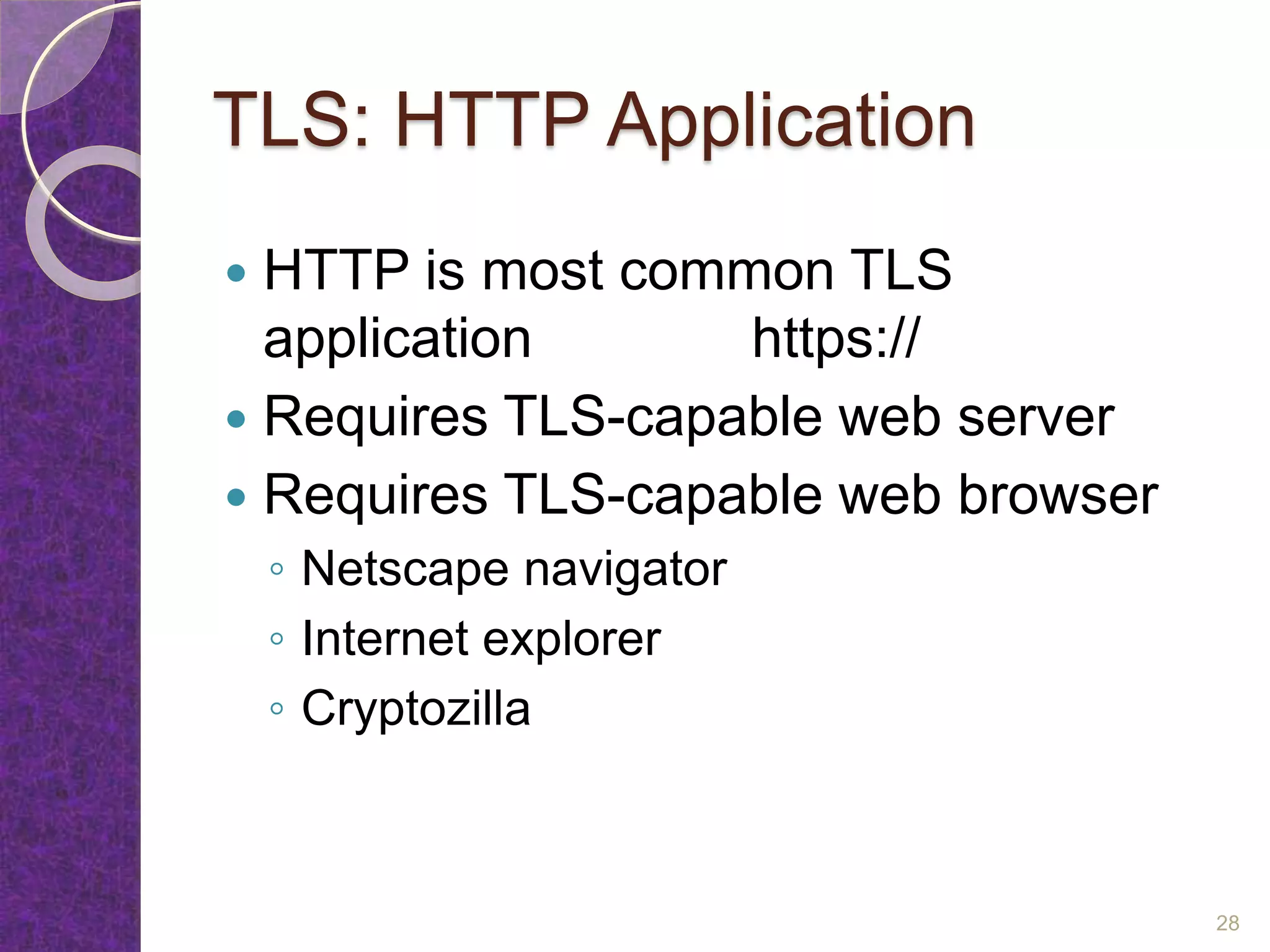

27. TLS: HTTP Application
 HTTP is most common TLS
application https://
 Requires TLS-capable web server
 Requires TLS-capable web browser
◦ Netscape navigator
◦ Internet explorer
◦ Cryptozilla
28

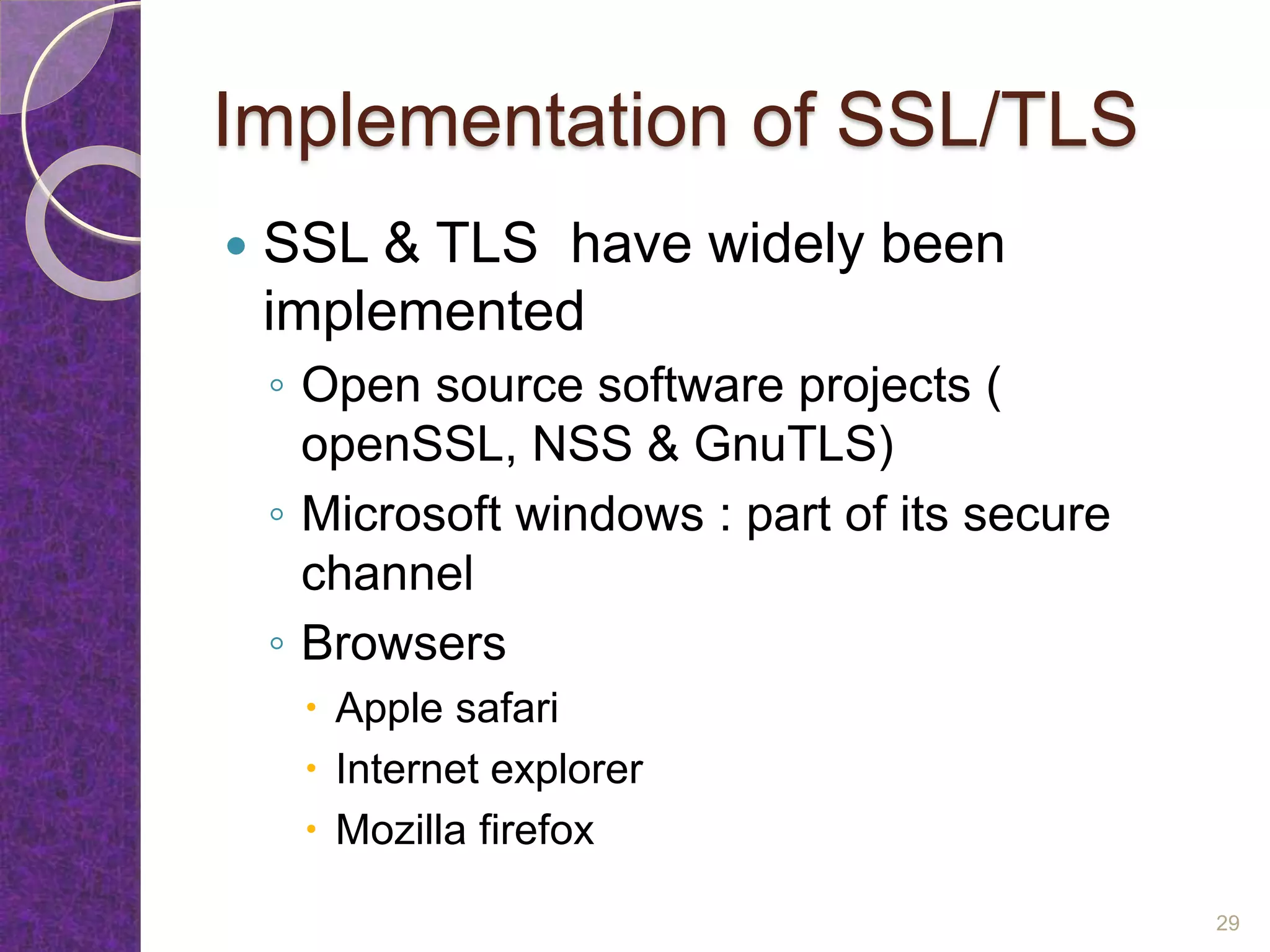

28. Implementation of SSL/TLS
 SSL & TLS have widely been
implemented
◦ Open source software projects (
openSSL, NSS & GnuTLS)
◦ Microsoft windows : part of its secure
channel
◦ Browsers
 Apple safari
 Internet explorer
 Mozilla firefox
29

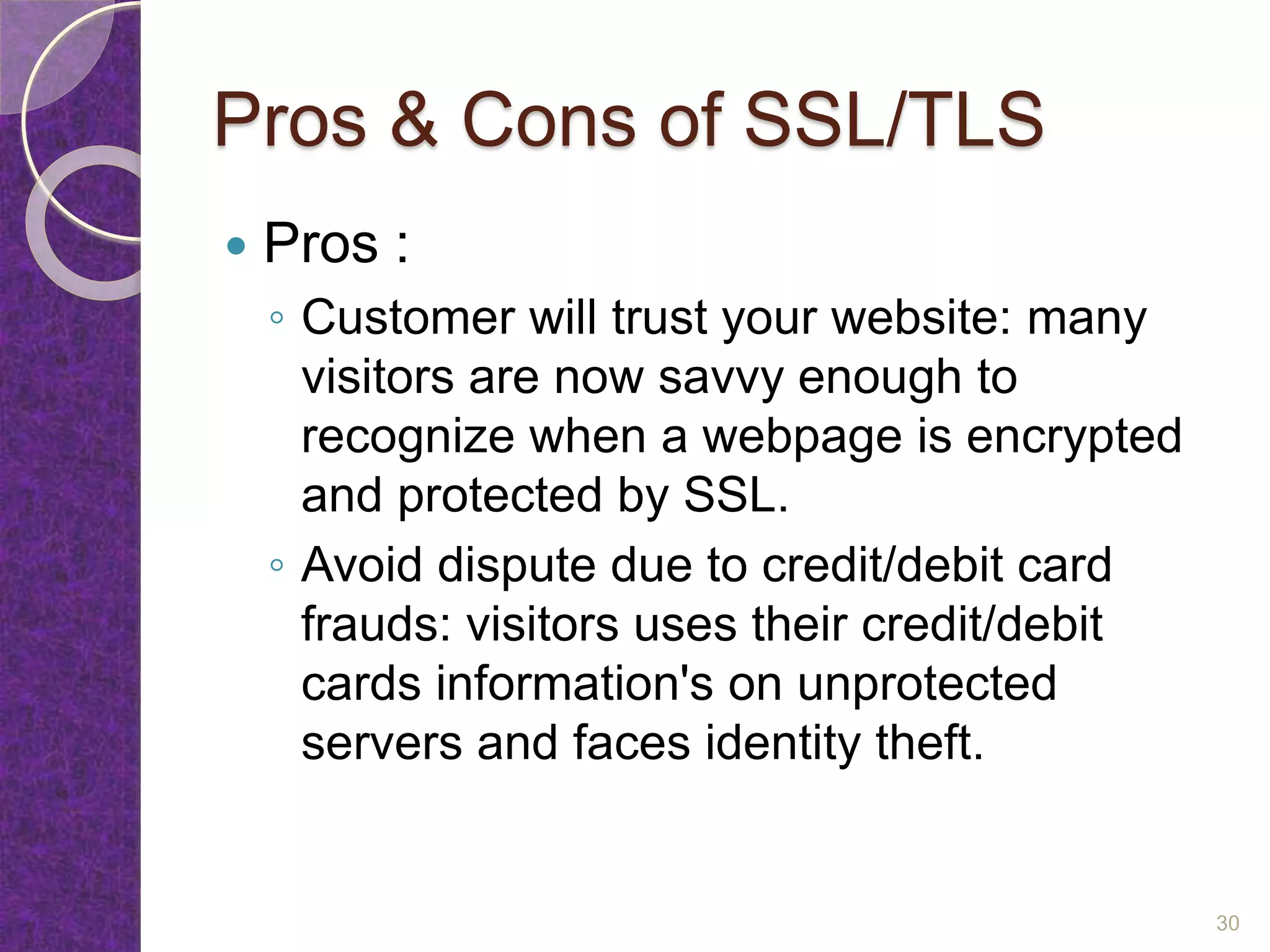

29. Pros & Cons of SSL/TLS
 Pros :
◦ Customer will trust your website: many
visitors are now savvy enough to
recognize when a webpage is encrypted
and protected by SSL.
◦ Avoid dispute due to credit/debit card
frauds: visitors uses their credit/debit
cards information's on unprotected
servers and faces identity theft.
30

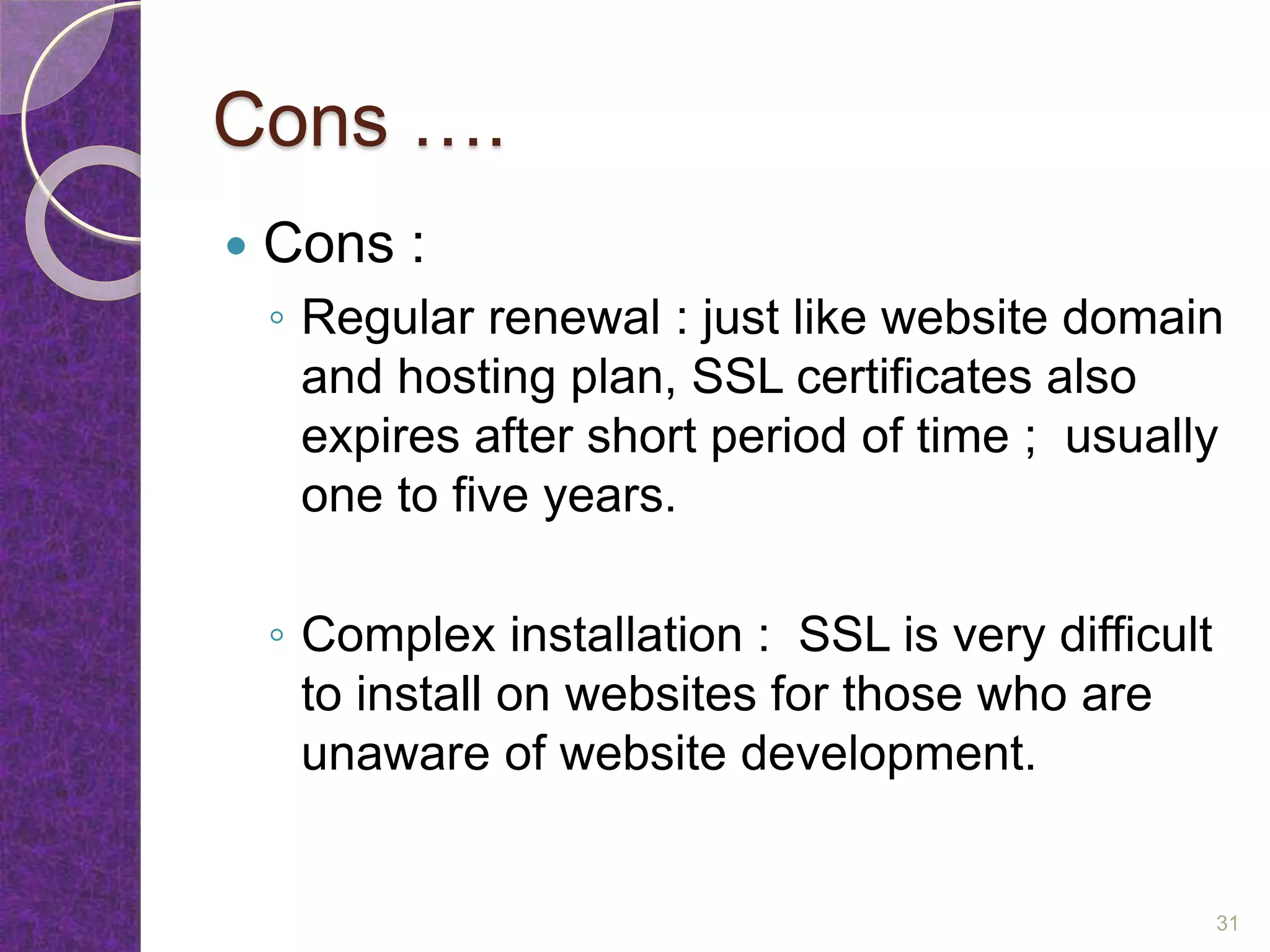

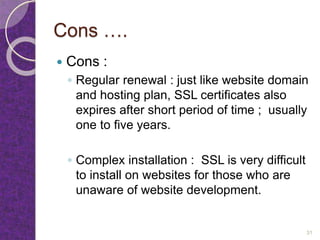

30. Cons ….
 Cons :
◦ Regular renewal : just like website domain
and hosting plan, SSL certificates also
expires after short period of time ; usually
one to five years.
◦ Complex installation : SSL is very difficult
to install on websites for those who are
unaware of website development.
31

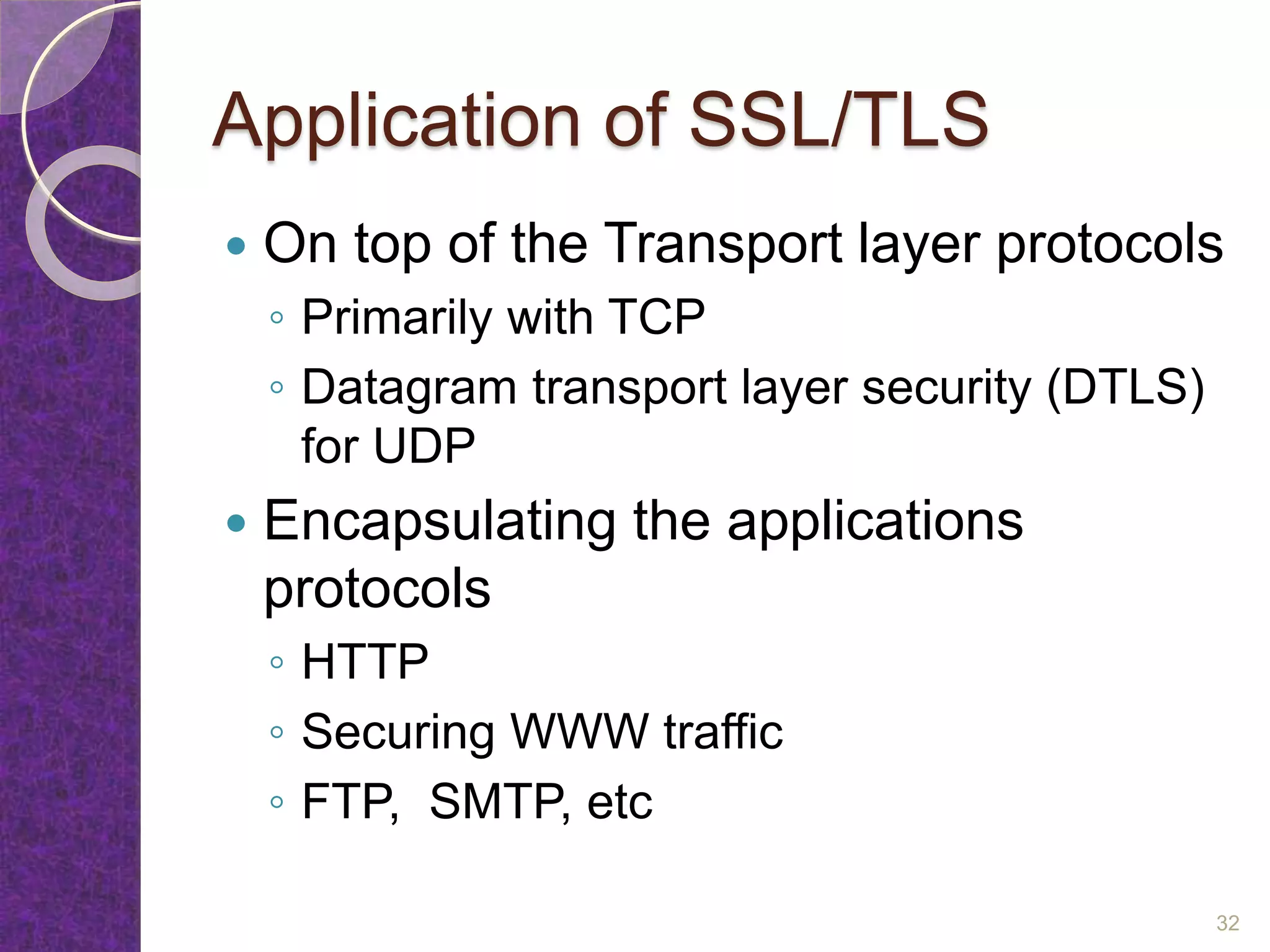

31. Application of SSL/TLS
 On top of the Transport layer protocols
◦ Primarily with TCP
◦ Datagram transport layer security (DTLS)
for UDP
 Encapsulating the applications
protocols
◦ HTTP
◦ Securing WWW traffic
◦ FTP, SMTP, etc
32

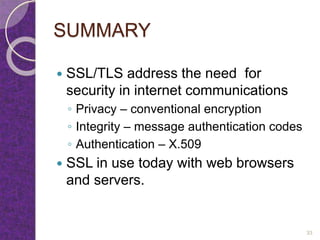

32. SUMMARY
 SSL/TLS address the need for
security in internet communications
◦ Privacy – conventional encryption
◦ Integrity – message authentication codes
◦ Authentication – X.509
 SSL in use today with web browsers
and servers.
33
