PostgreSQL is an open source relational database. Kafka is an open source log-based messaging system. Because both systems are powerful and flexible, they’re devouring whole categories of infrastructure. And they’re even better together. In this talk, you’ll learn about commit logs and how that fundamental data structure underlies both PostgreSQL and Kafka. We’ll use that basis to understand what Kafka is, what advantages it has over traditional messaging systems, and why it’s perfect for modeling database tables as streams. From there, we’ll introduce the concept of change data capture (CDC) and run a live demo of Bottled Water, an open source CDC pipeline, watching INSERT, UPDATE, and DELETE operations in PostgreSQL stream into Kafka. We’ll wrap up with a discussion of use cases for this pipeline: messaging between systems with transactional guarantees, transmitting database changes to a data warehouse, and stream processing.

1. PostgreSQL + Kafka
The Delight of Change Data Capture
Jeff Klukas - Data Engineer at Simple
1

2. 2
Overview
Commit logs: what are they?
Write-ahead logging (WAL)
Commit logs as a data store
Demo: change data capture
Use cases

3. 3
https://www.confluent.io/blog/hands-free-kafka-replication-a-lesson-in-operational-simplicity/

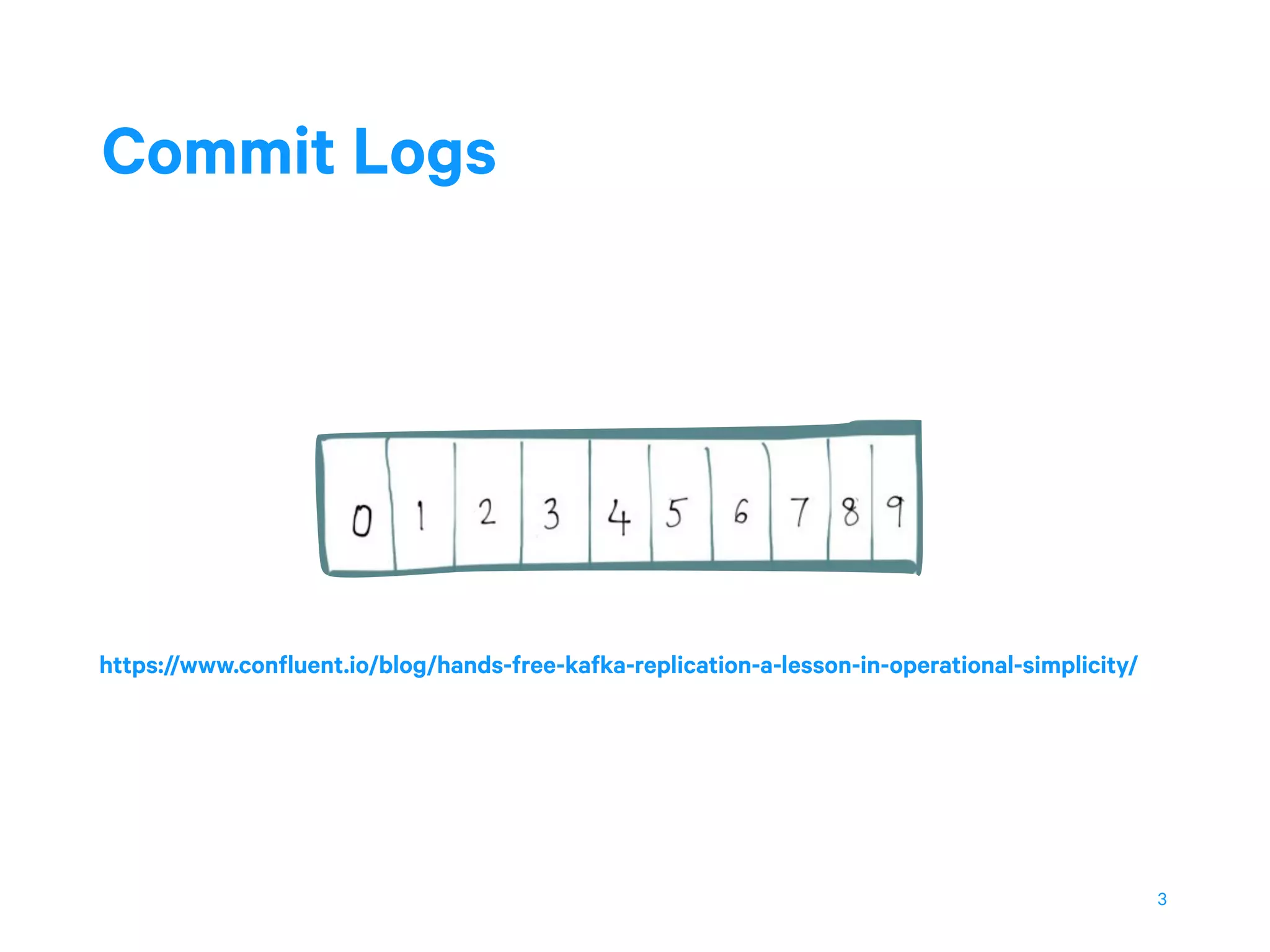

Commit Logs

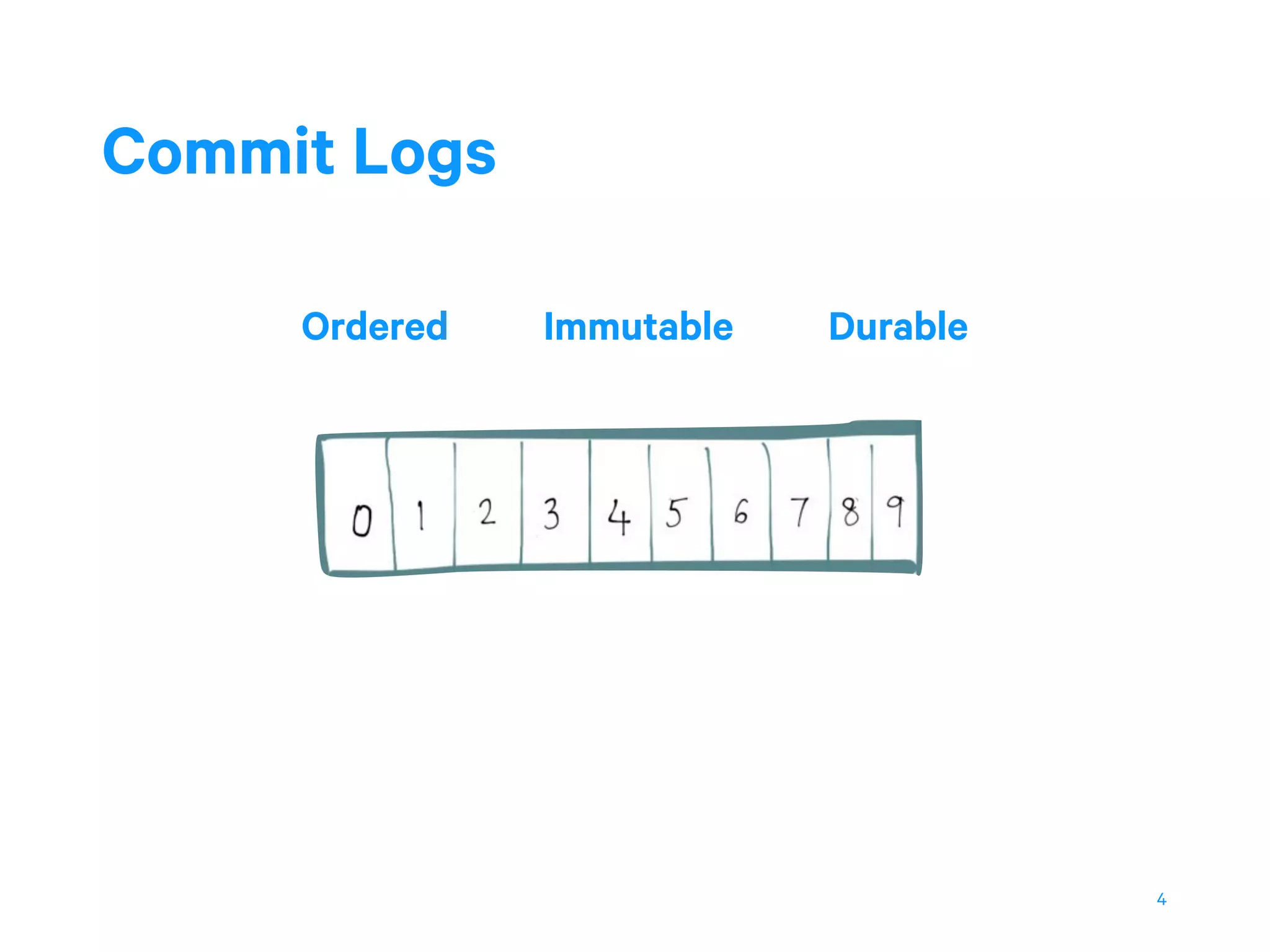

4. 4
Ordered Immutable Durable
Commit Logs

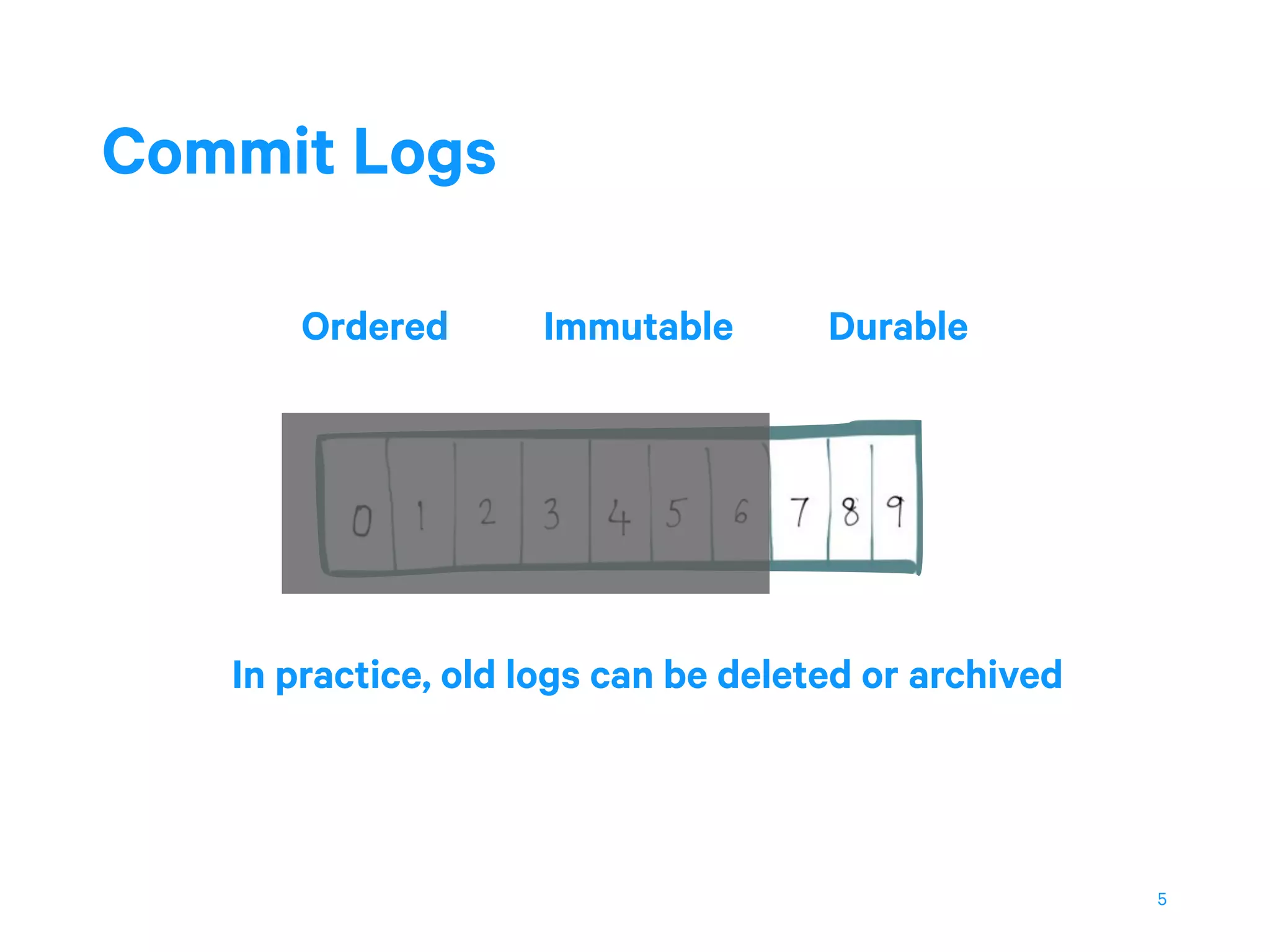

5. 5
Commit Logs
Ordered Immutable Durable
In practice, old logs can be deleted or archived

6. 6
Write-Ahead Logging (WAL)

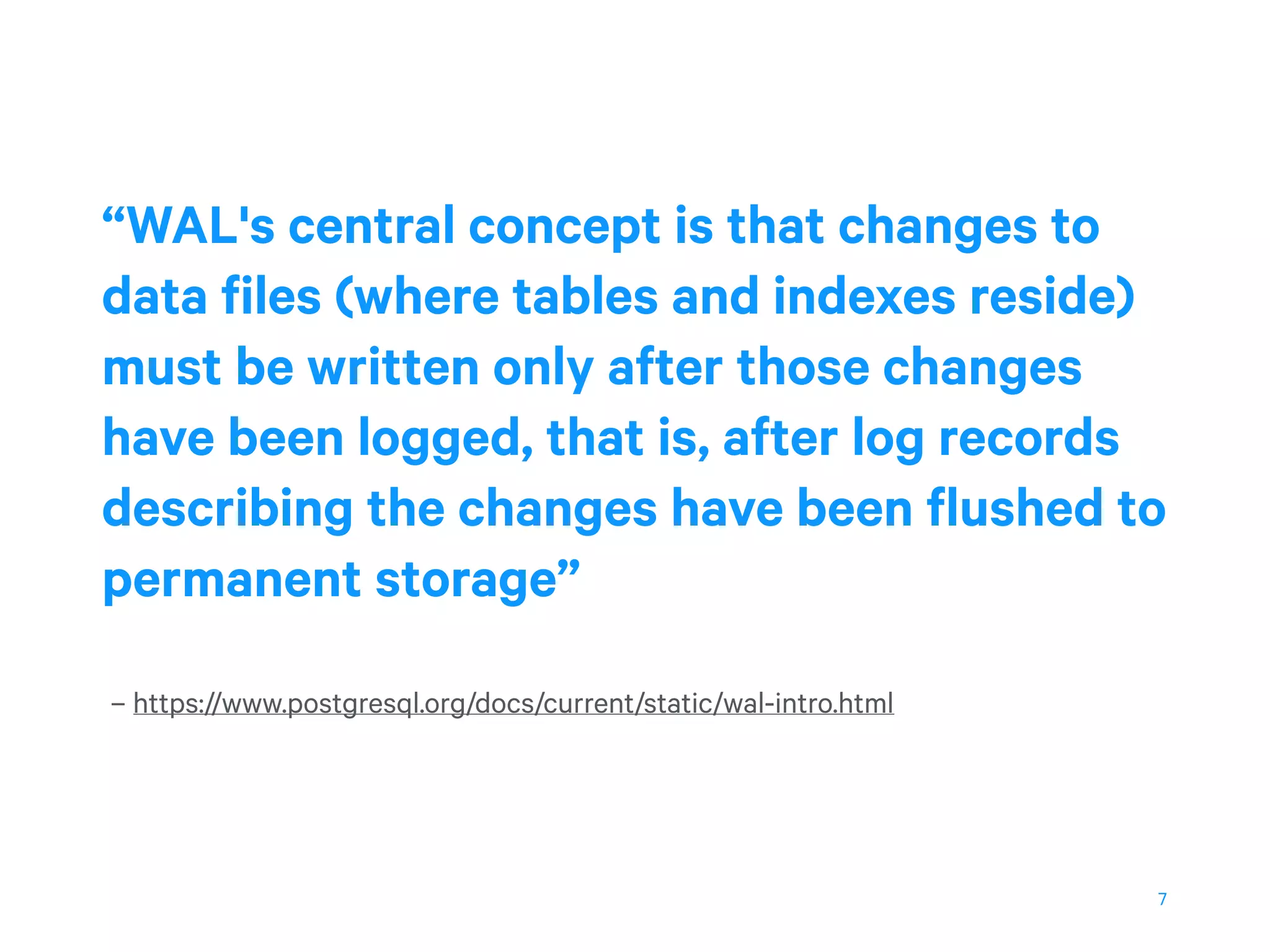

7. 7
– https://www.postgresql.org/docs/current/static/wal-intro.html
“WAL's central concept is that changes to
data files (where tables and indexes reside)
must be written only after those changes
have been logged, that is, after log records
describing the changes have been flushed to
permanent storage”

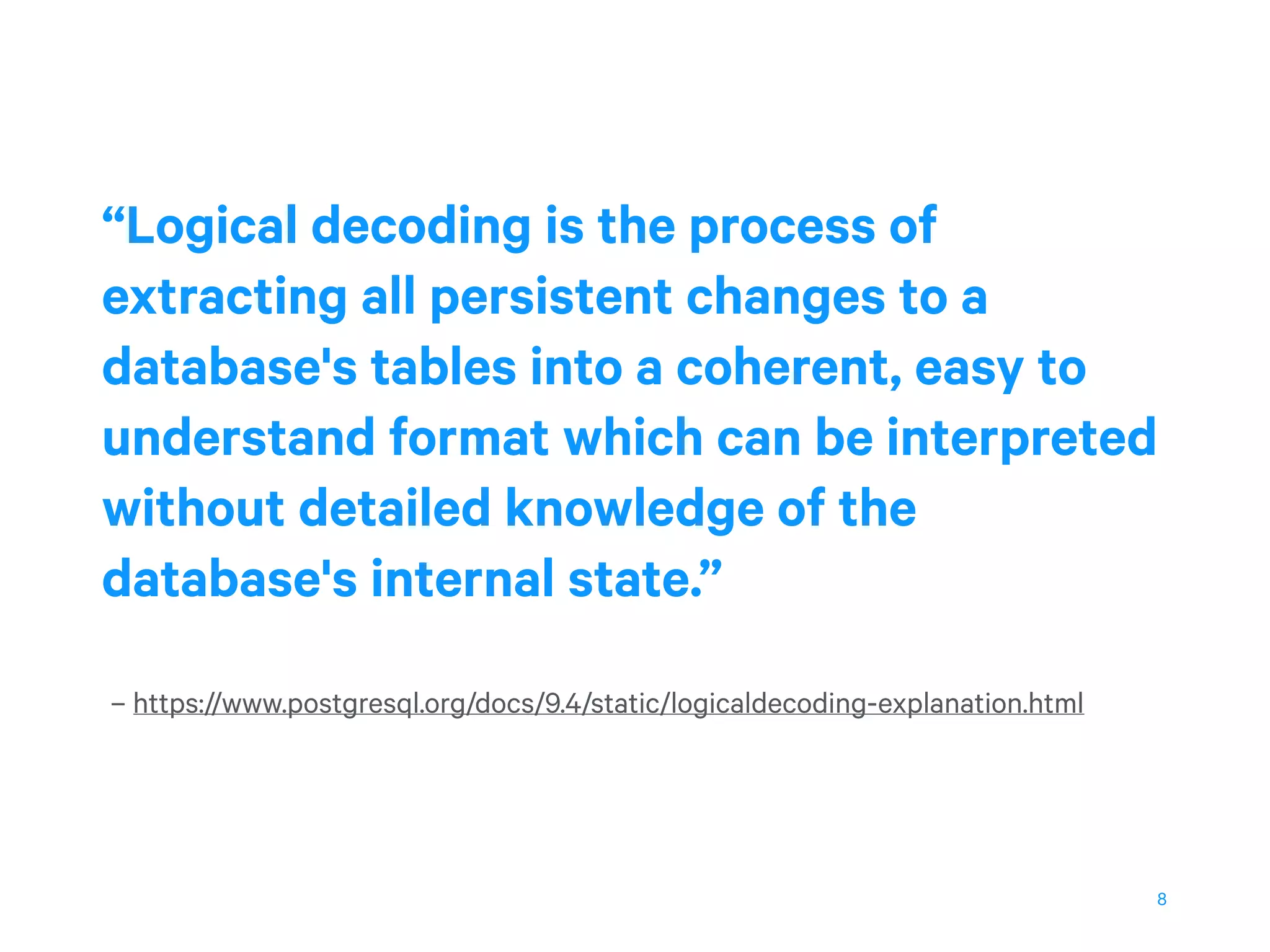

8. 8
– https://www.postgresql.org/docs/9.4/static/logicaldecoding-explanation.html
“Logical decoding is the process of
extracting all persistent changes to a
database's tables into a coherent, easy to
understand format which can be interpreted
without detailed knowledge of the
database's internal state.”

9. 9

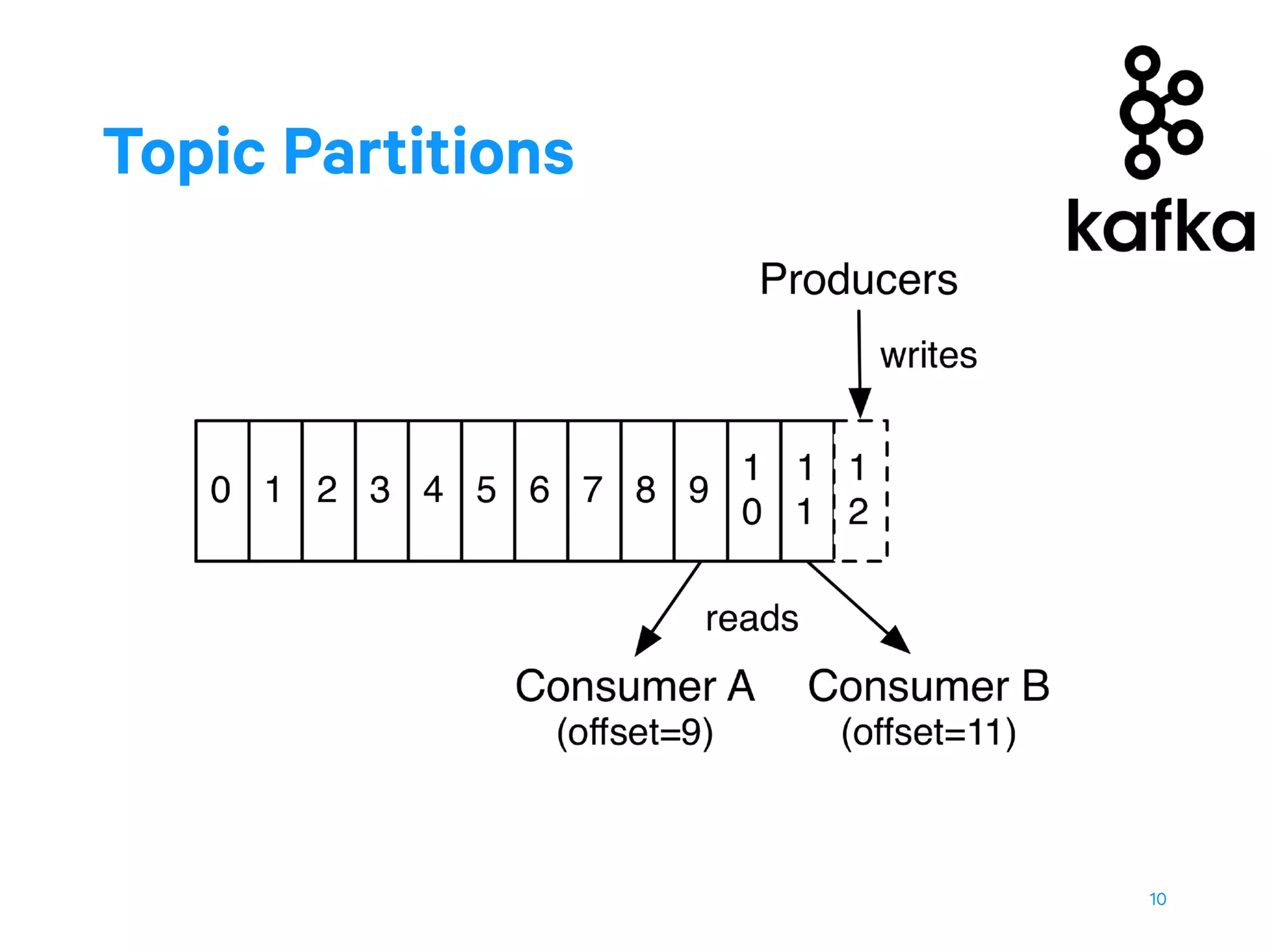

10. 10
Topic Partitions

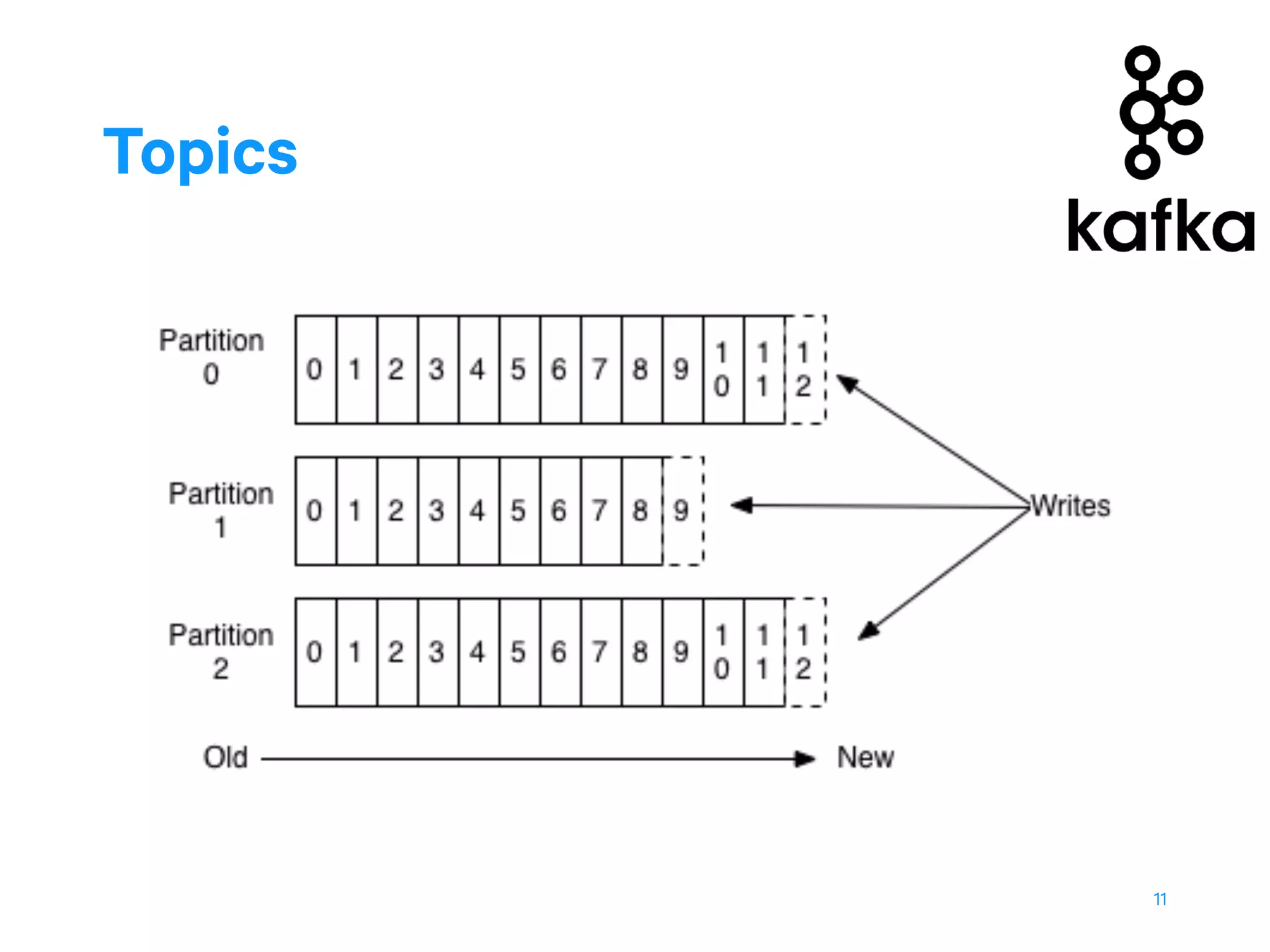

11. 11
Topics

12. 12

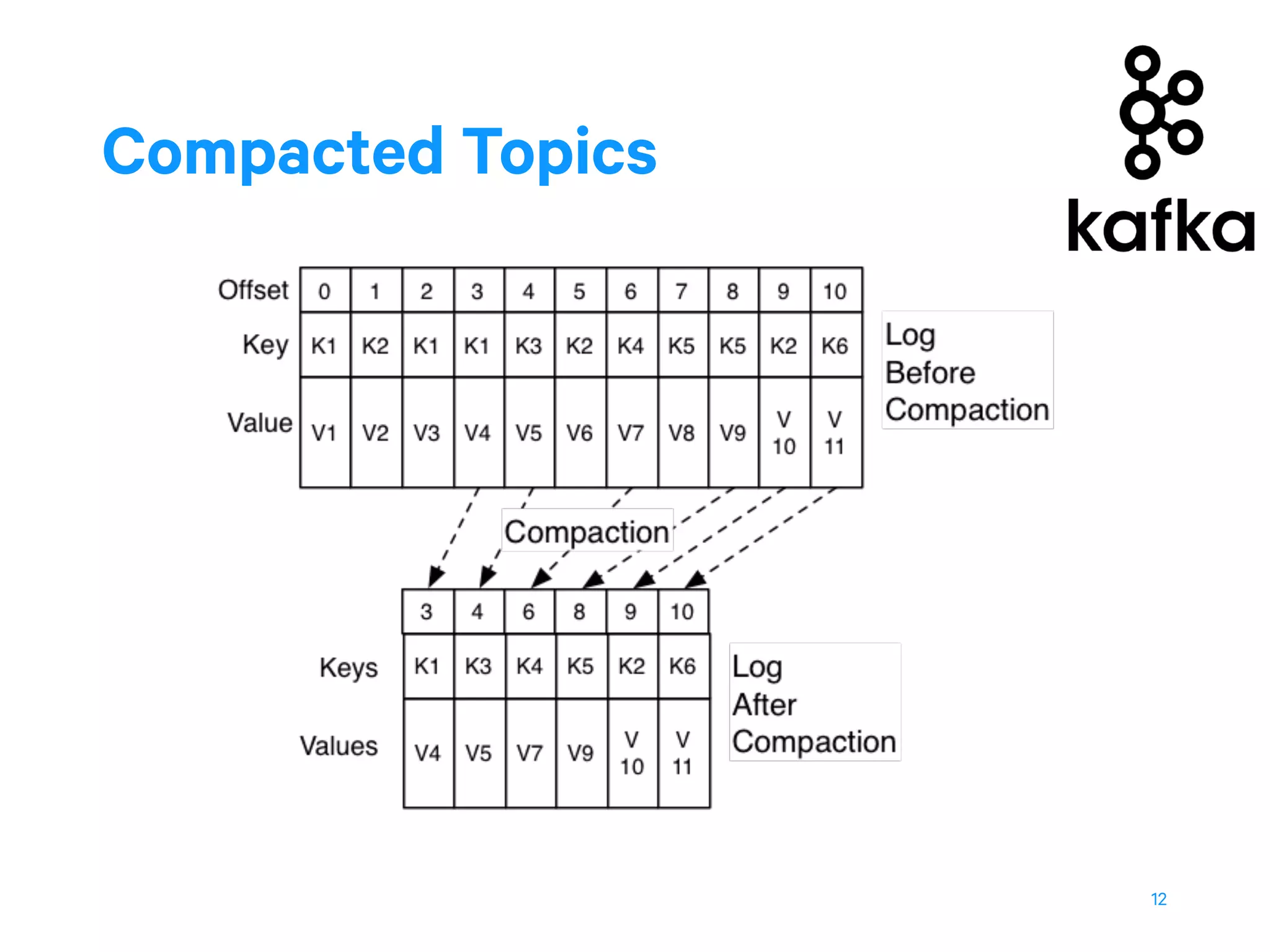

Compacted Topics

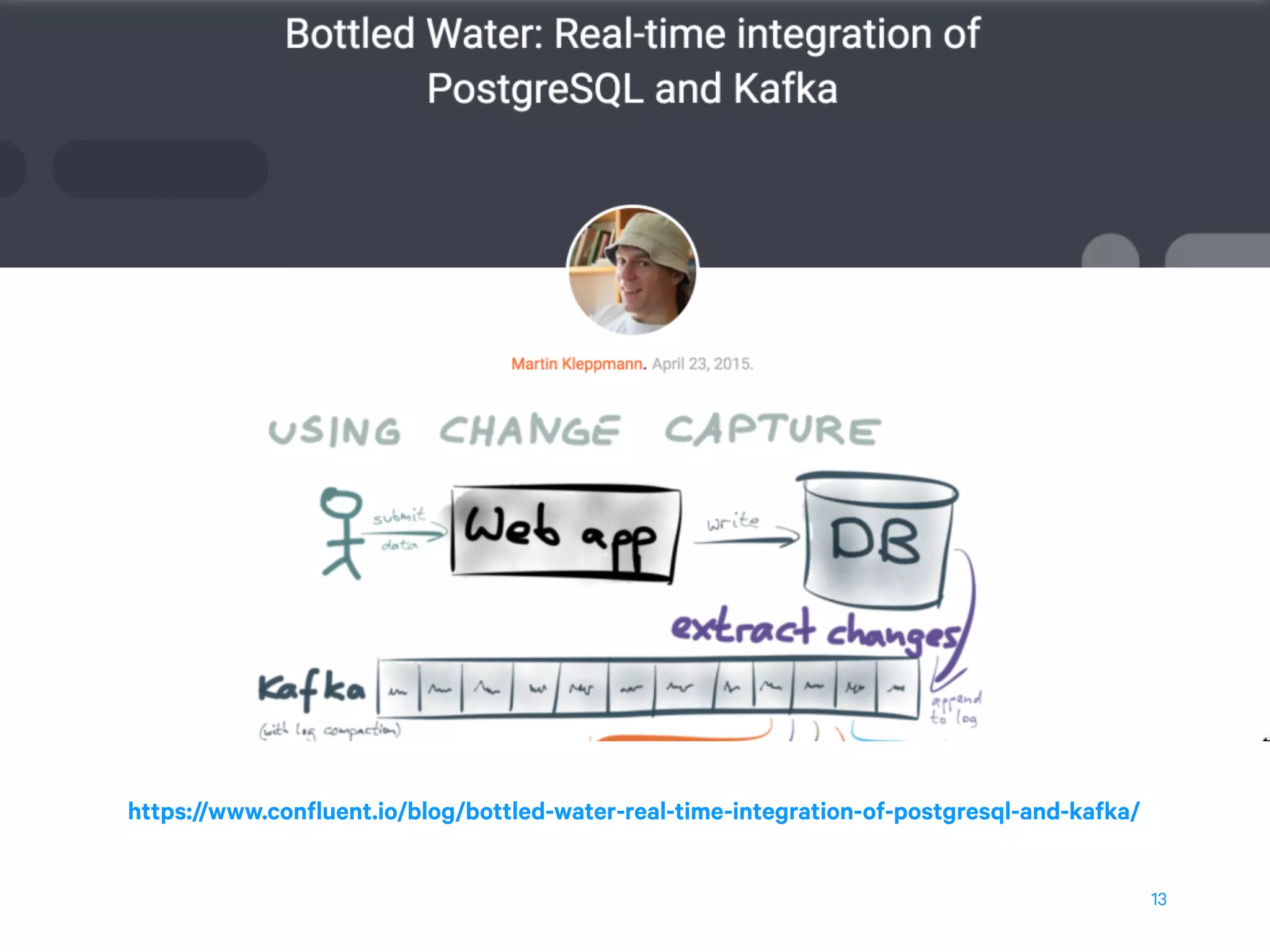

13. 13
https://www.confluent.io/blog/bottled-water-real-time-integration-of-postgresql-and-kafka/

14. 14

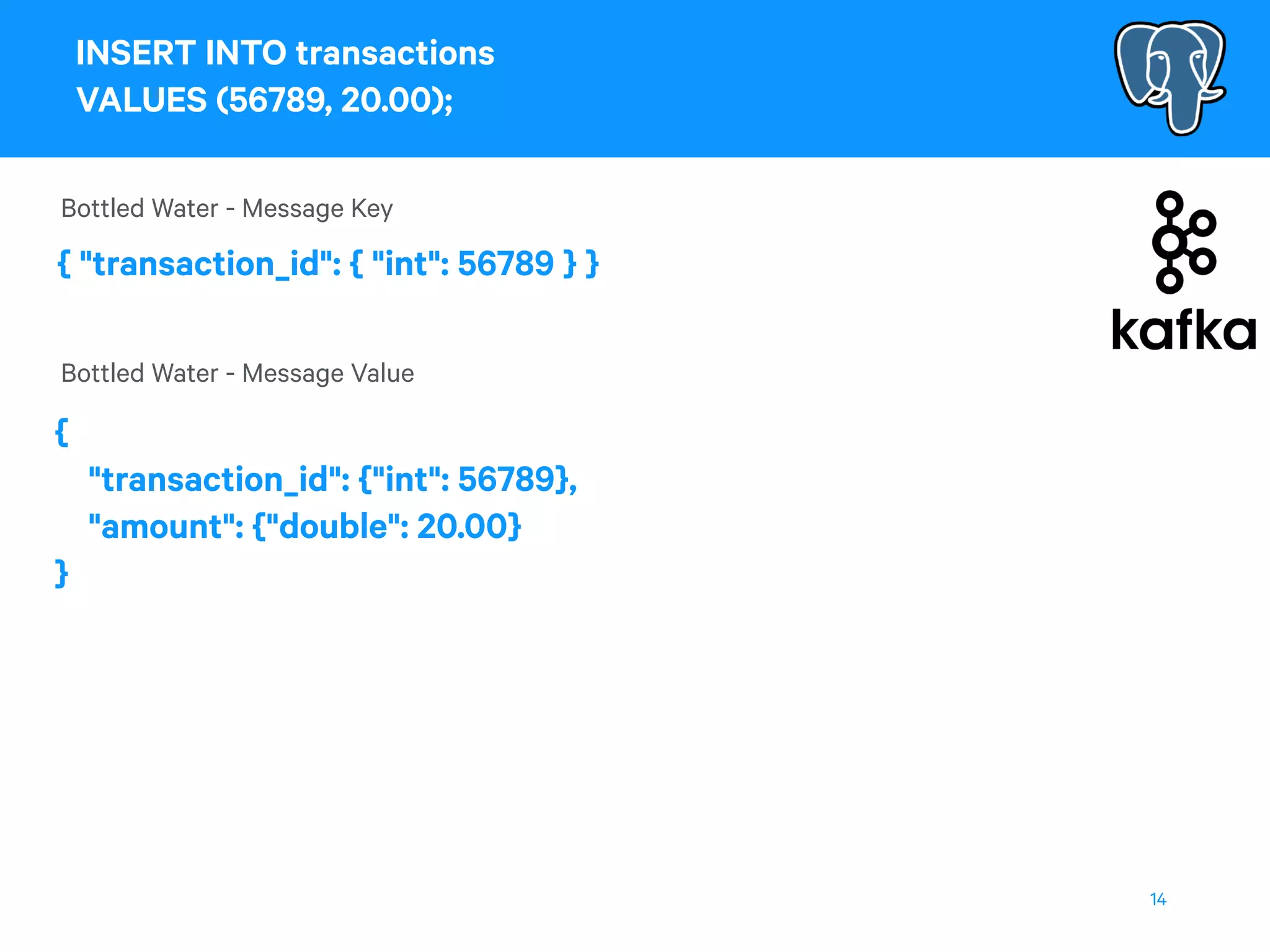

INSERT INTO transactions
VALUES (56789, 20.00);
{
"transaction_id": {"int": 56789},
"amount": {"double": 20.00}
}
Bottled Water - Message Key
{ "transaction_id": { "int": 56789 } }
Bottled Water - Message Value

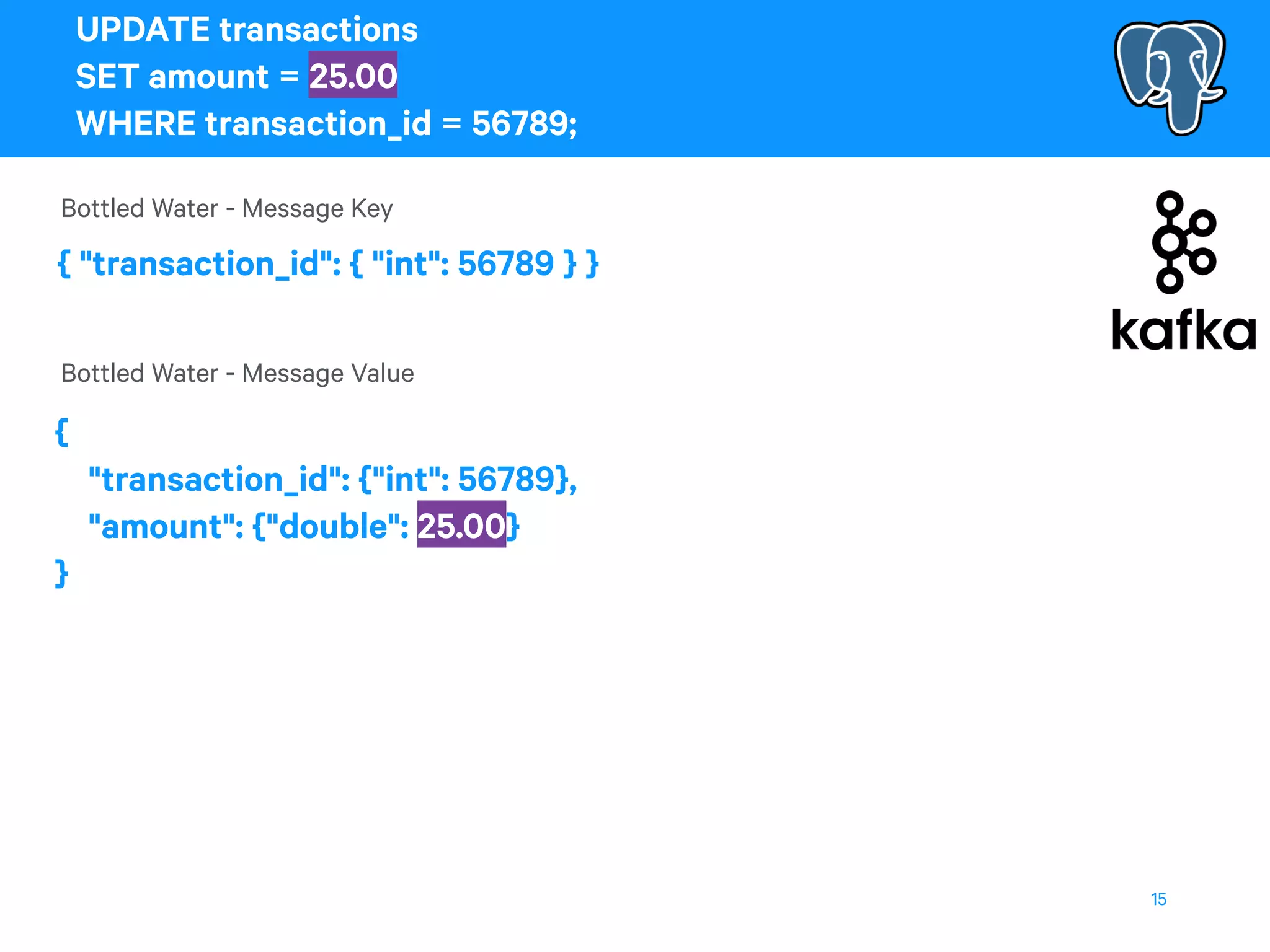

15. 15
UPDATE transactions
SET amount = 25.00
WHERE transaction_id = 56789;
{
"transaction_id": {"int": 56789},
"amount": {"double": 25.00}
}
Bottled Water - Message Key
{ "transaction_id": { "int": 56789 } }
Bottled Water - Message Value

16. 16

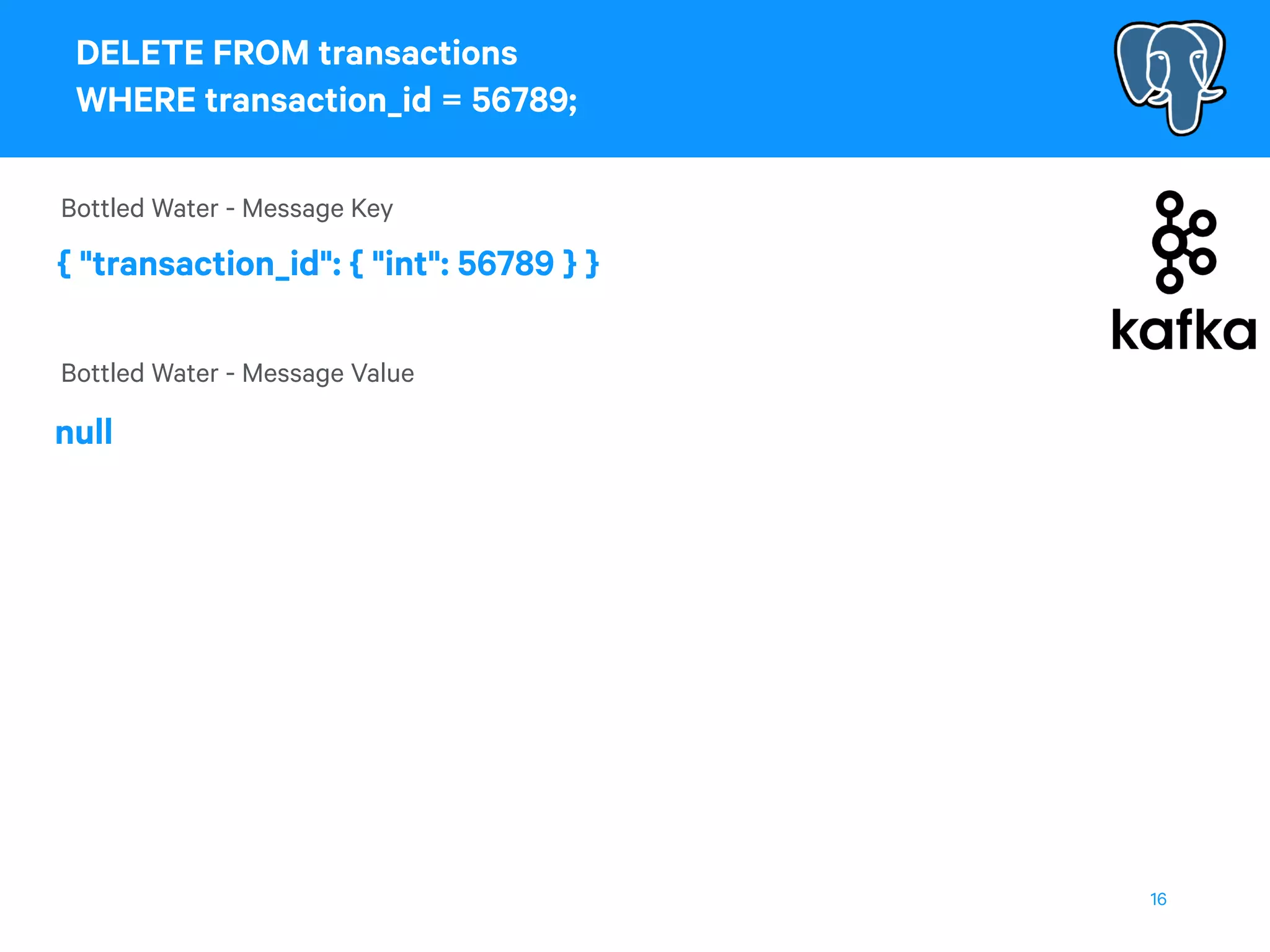

DELETE FROM transactions
WHERE transaction_id = 56789;
null
Bottled Water - Message Key
{ "transaction_id": { "int": 56789 } }
Bottled Water - Message Value

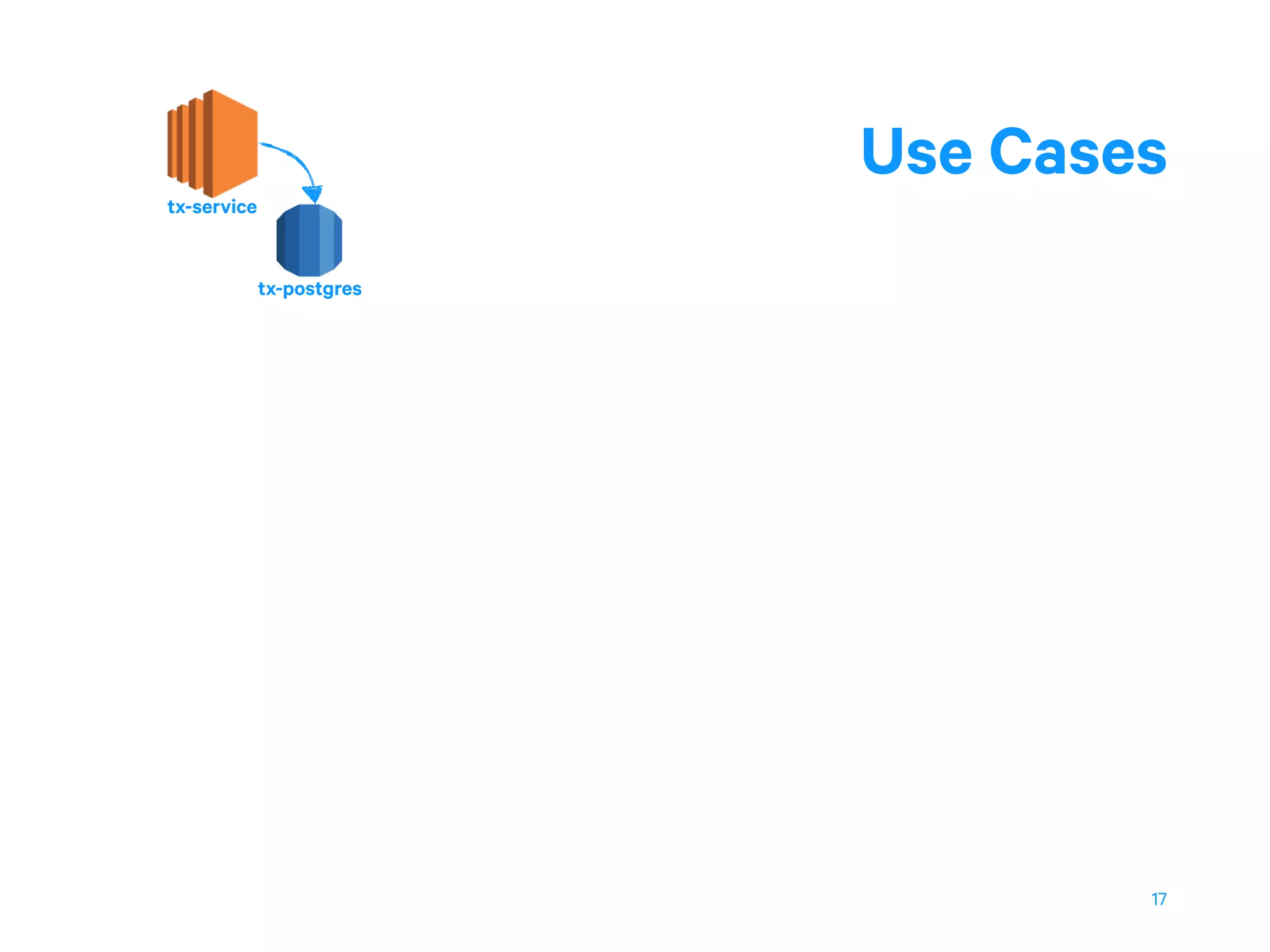

17. 17
tx-service
tx-postgres
Use Cases

18. 18

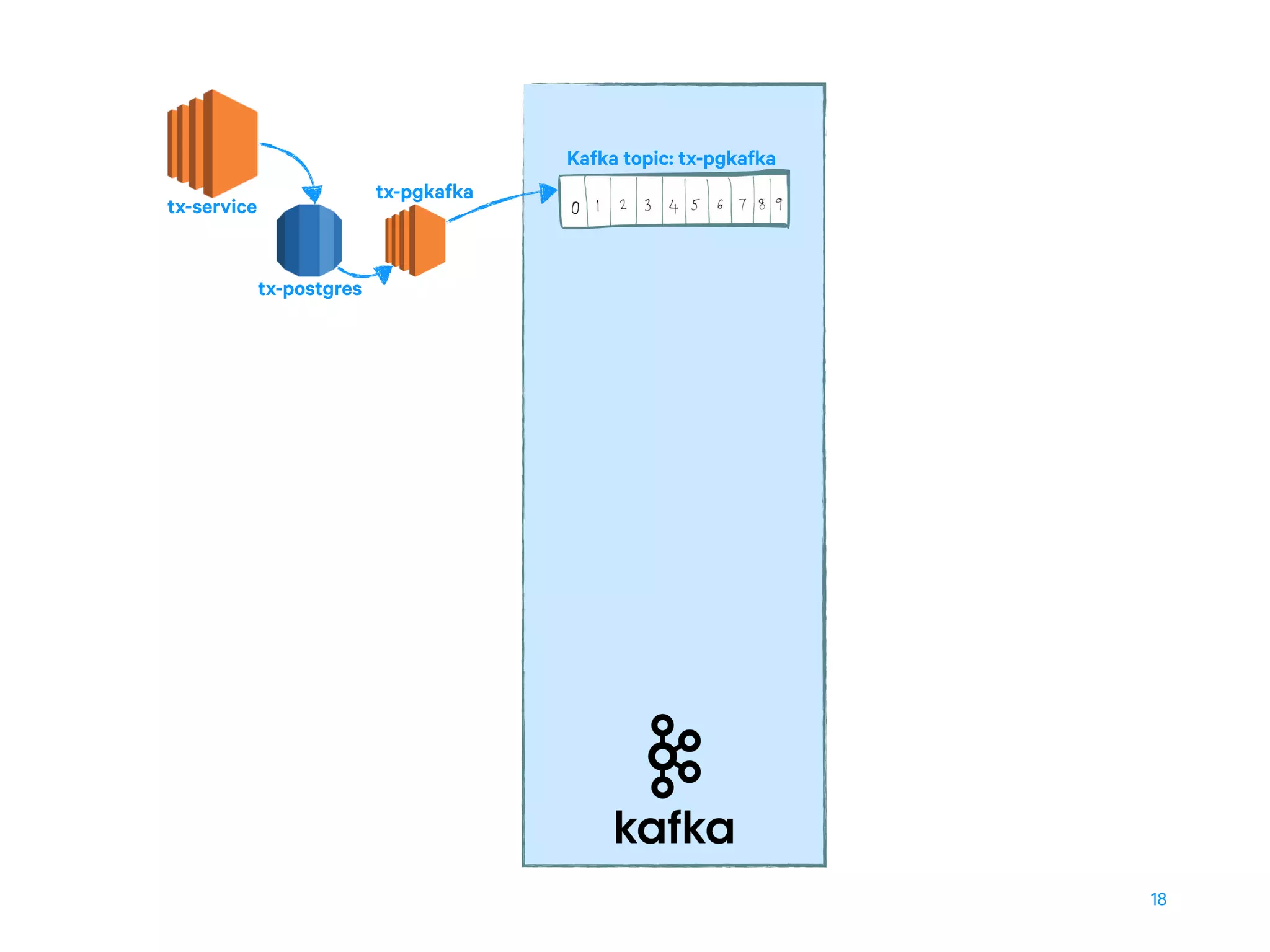

tx-service
tx-postgres
tx-pgkafka
Kafka topic: tx-pgkafka

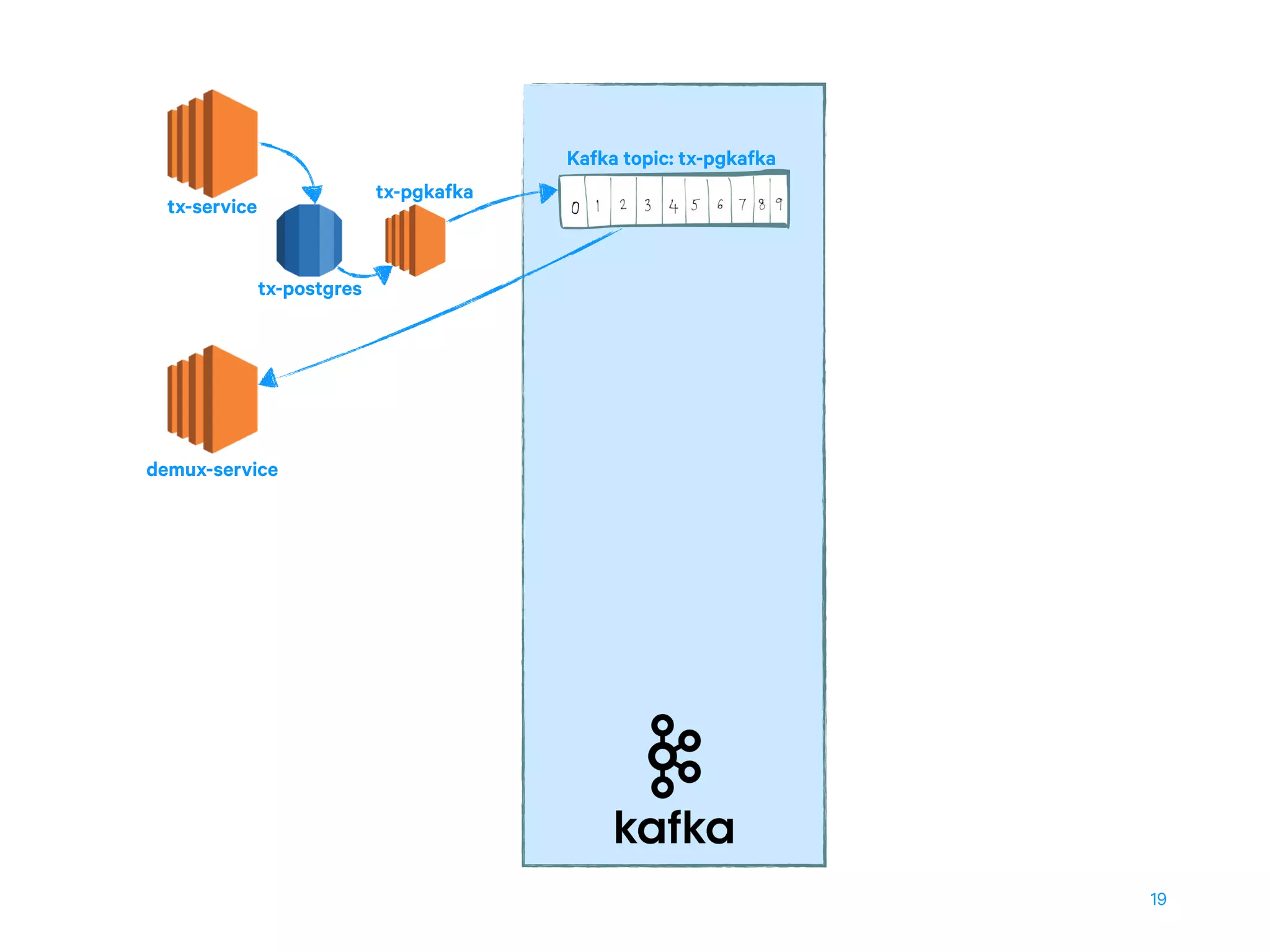

19. 19
tx-service
tx-postgres
tx-pgkafka
demux-service
Kafka topic: tx-pgkafka

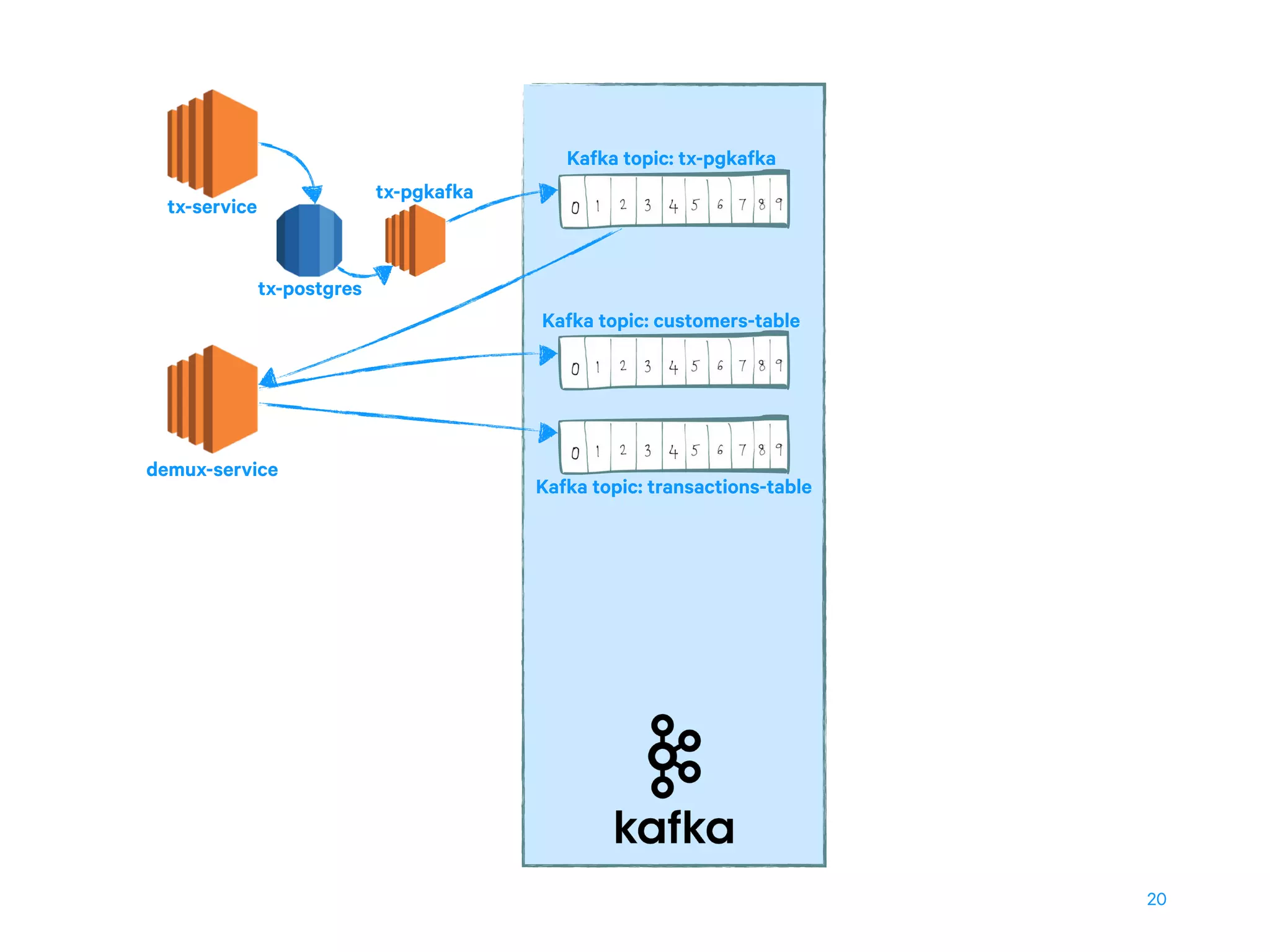

20. 20
tx-service
tx-postgres
tx-pgkafka
demux-service
Kafka topic: tx-pgkafka
Kafka topic: customers-table
Kafka topic: transactions-table

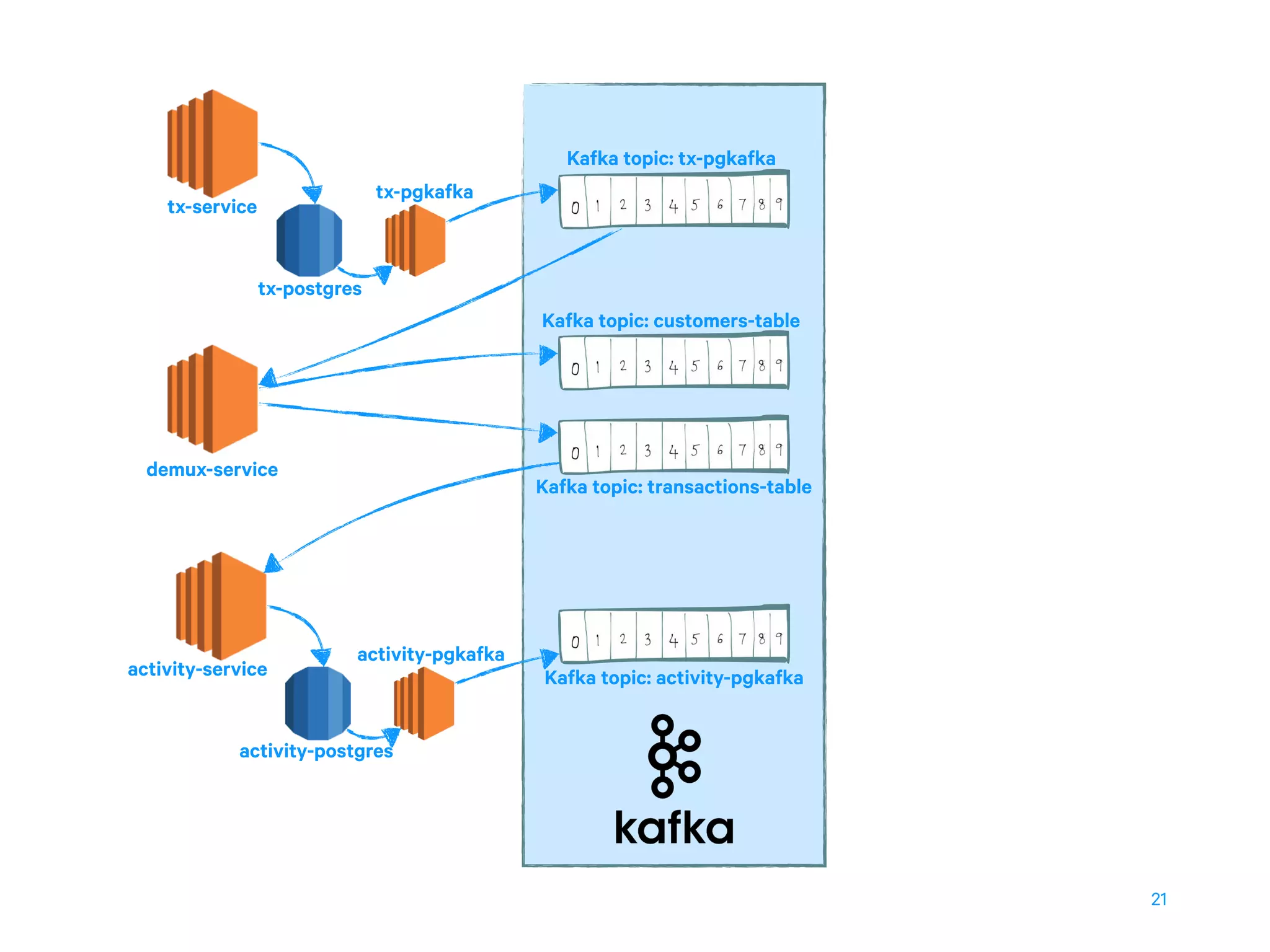

21. 21
tx-service
tx-postgres
tx-pgkafka
demux-service
activity-service
activity-postgres
activity-pgkafka
Kafka topic: tx-pgkafka
Kafka topic: customers-table
Kafka topic: transactions-table
Kafka topic: activity-pgkafka

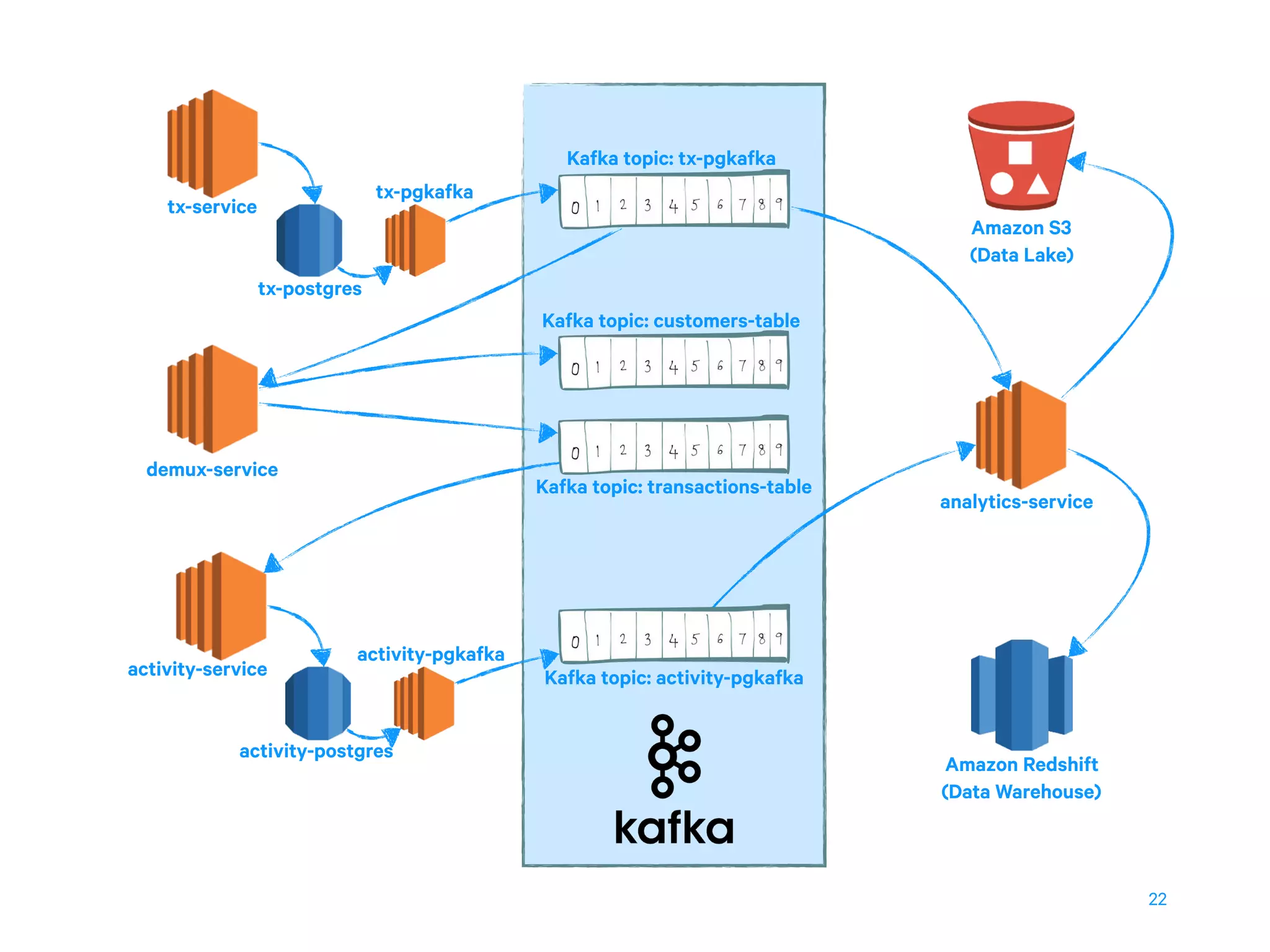

22. 22
tx-service
tx-postgres
tx-pgkafka
demux-service
activity-service
activity-postgres
activity-pgkafka
Amazon Redshift
(Data Warehouse)
Amazon S3
(Data Lake)
analytics-service
Kafka topic: tx-pgkafka
Kafka topic: customers-table
Kafka topic: transactions-table
Kafka topic: activity-pgkafka

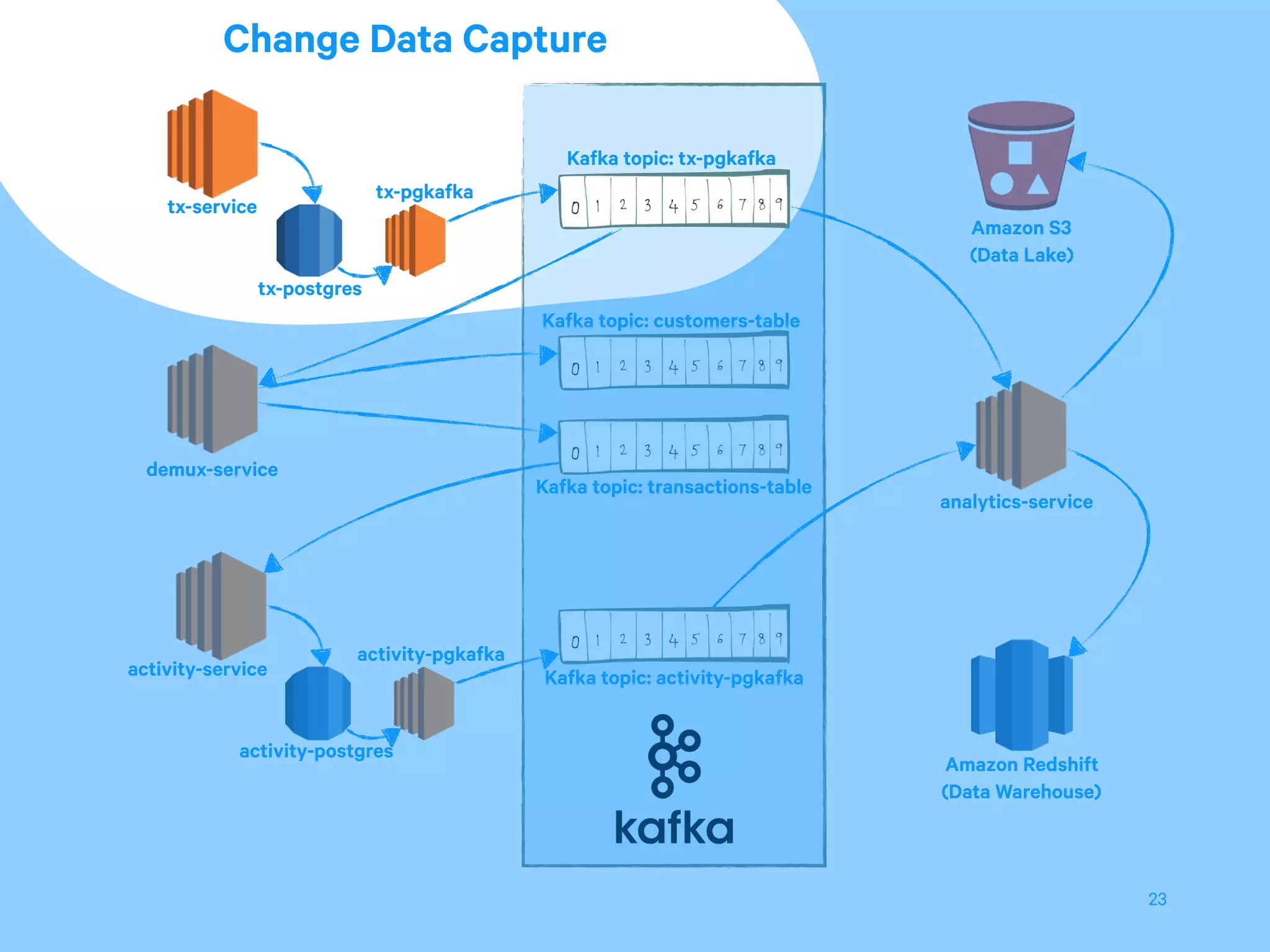

23. 23
tx-service
tx-postgres
tx-pgkafka
demux-service
activity-service
activity-postgres
activity-pgkafka
Amazon Redshift
(Data Warehouse)
Amazon S3
(Data Lake)
analytics-service
Kafka topic: tx-pgkafka
Kafka topic: customers-table
Kafka topic: transactions-table
Kafka topic: activity-pgkafka
Change Data Capture

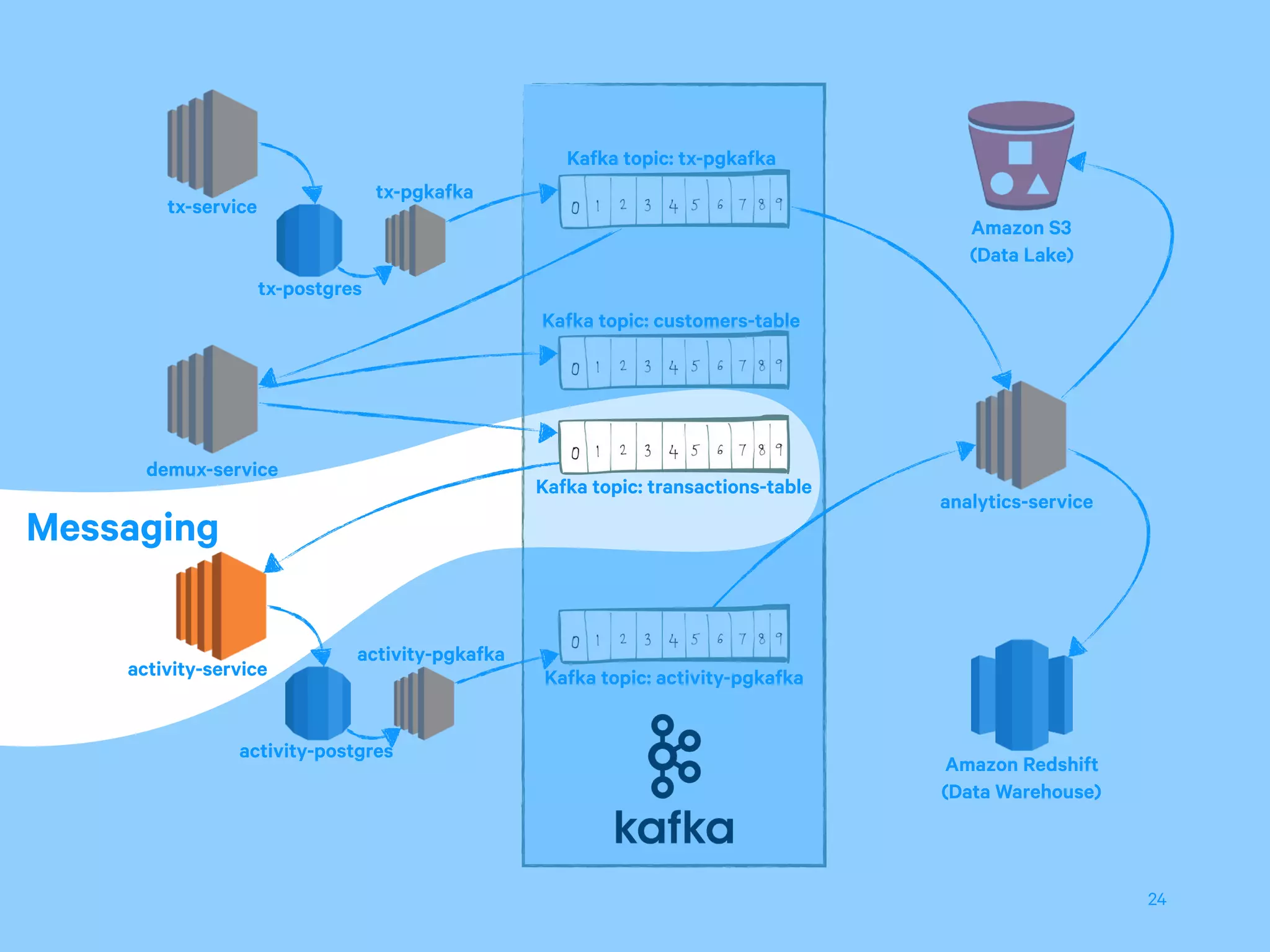

24. 24
tx-service
tx-postgres
tx-pgkafka
demux-service
activity-service
activity-postgres
activity-pgkafka
Amazon Redshift
(Data Warehouse)
Amazon S3
(Data Lake)
analytics-service
Kafka topic: tx-pgkafka
Kafka topic: customers-table
Kafka topic: transactions-table
Kafka topic: activity-pgkafka
Messaging

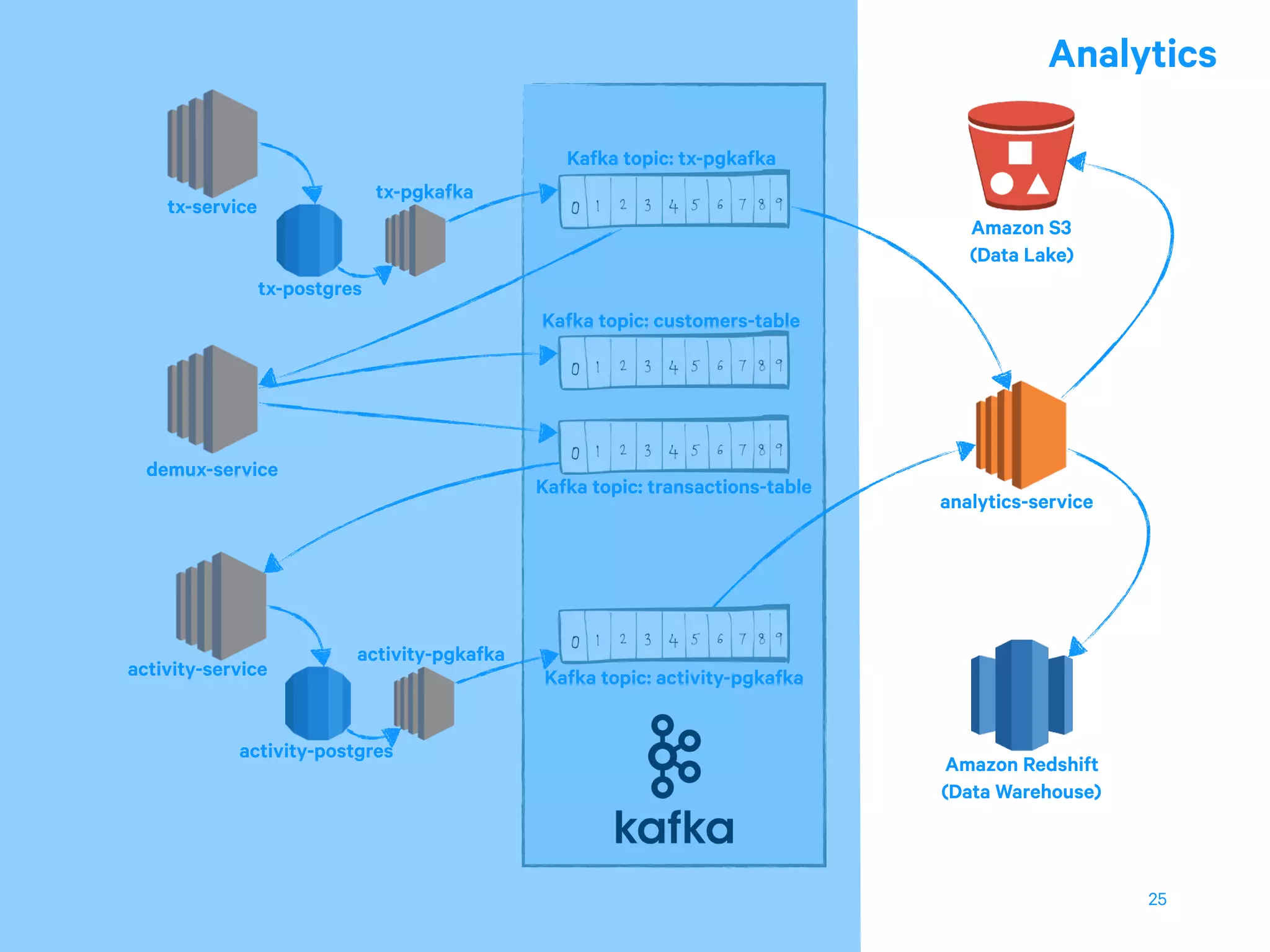

25. 25
tx-service
tx-postgres
tx-pgkafka
demux-service
activity-service
activity-postgres
activity-pgkafka
Amazon Redshift
(Data Warehouse)
Amazon S3
(Data Lake)
analytics-service
Kafka topic: tx-pgkafka
Kafka topic: customers-table
Kafka topic: transactions-table
Kafka topic: activity-pgkafka
Analytics

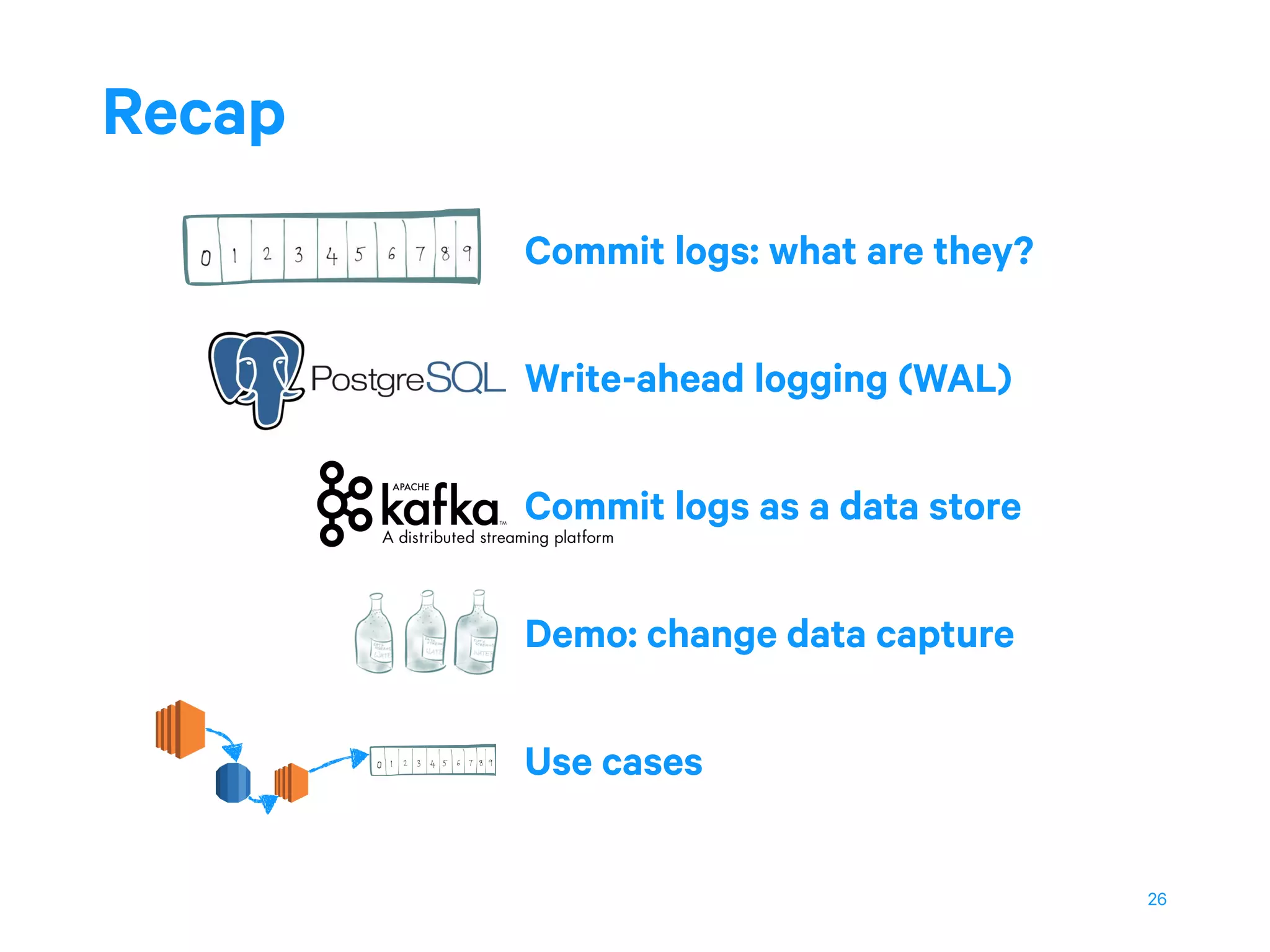

26. 26
Recap
Commit logs: what are they?
Write-ahead logging (WAL)
Commit logs as a data store
Demo: change data capture
Use cases

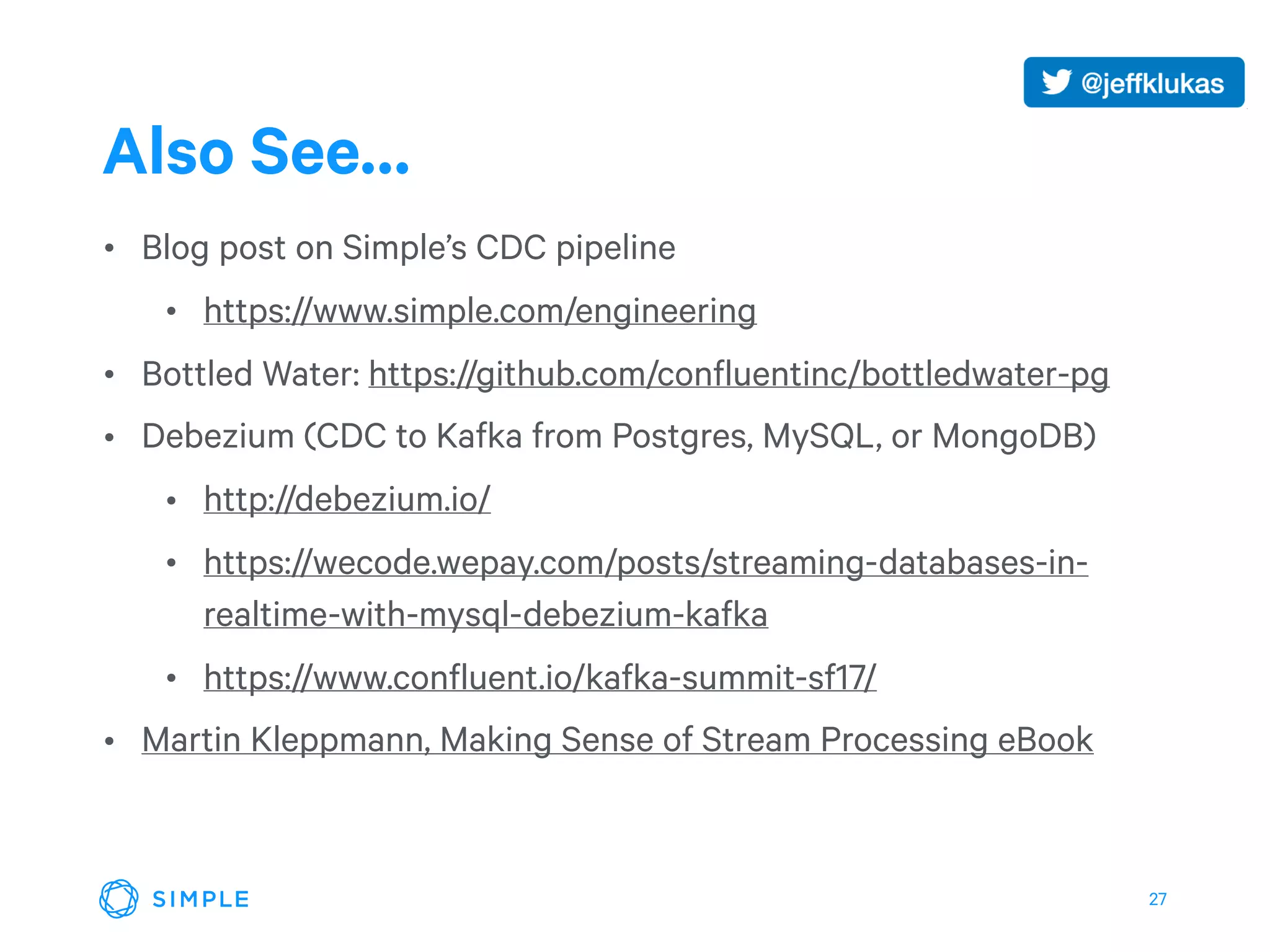

27. 27
• Blog post on Simple’s CDC pipeline
• https://www.simple.com/engineering
• Bottled Water: https://github.com/confluentinc/bottledwater-pg
• Debezium (CDC to Kafka from Postgres, MySQL, or MongoDB)
• http://debezium.io/
• https://wecode.wepay.com/posts/streaming-databases-in-
realtime-with-mysql-debezium-kafka
• https://www.confluent.io/kafka-summit-sf17/
• Martin Kleppmann, Making Sense of Stream Processing eBook
Also See…

28. Thank You
28

29. Extras
29

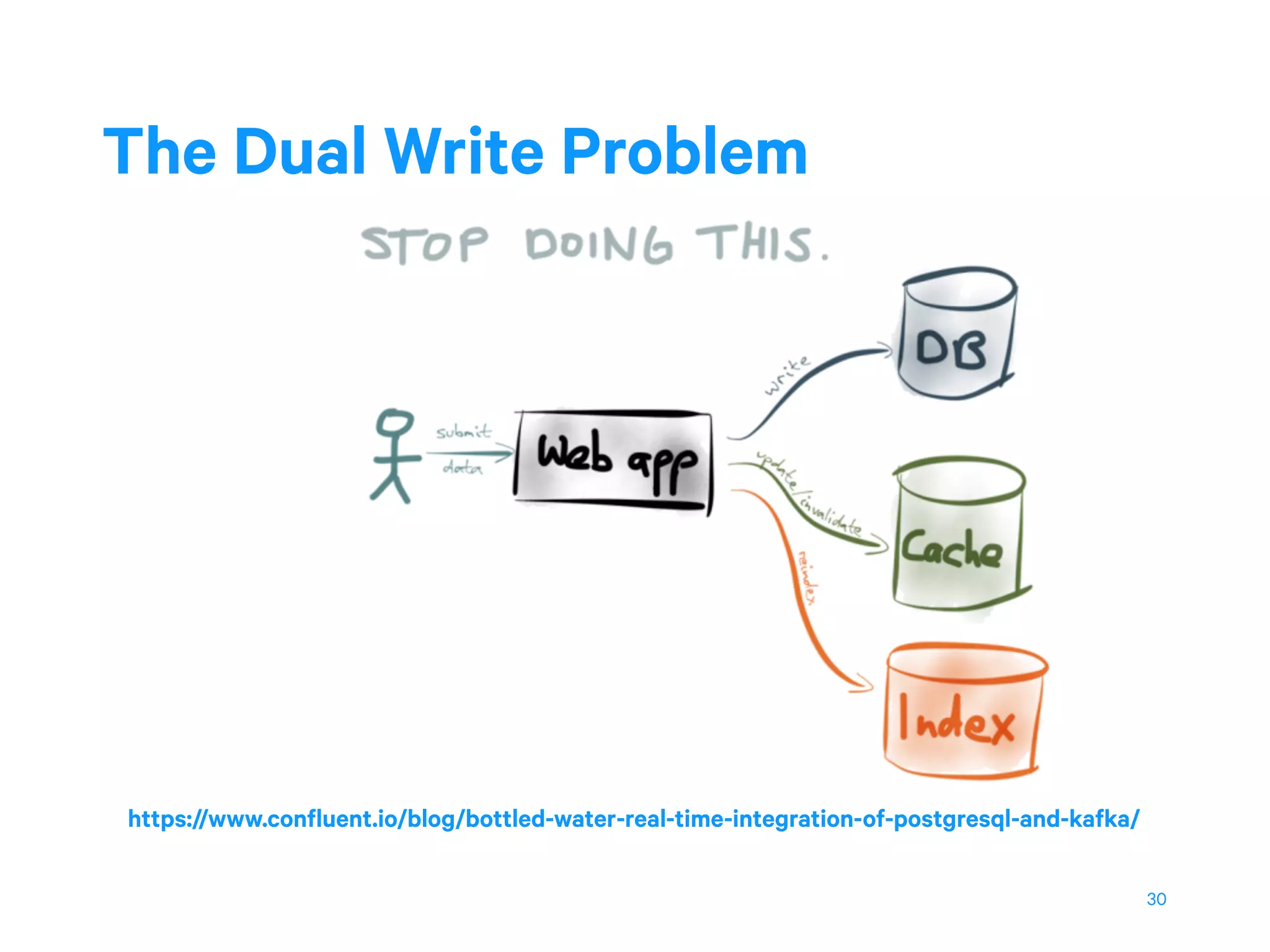

30. 30
The Dual Write Problem
https://www.confluent.io/blog/bottled-water-real-time-integration-of-postgresql-and-kafka/

31. 31

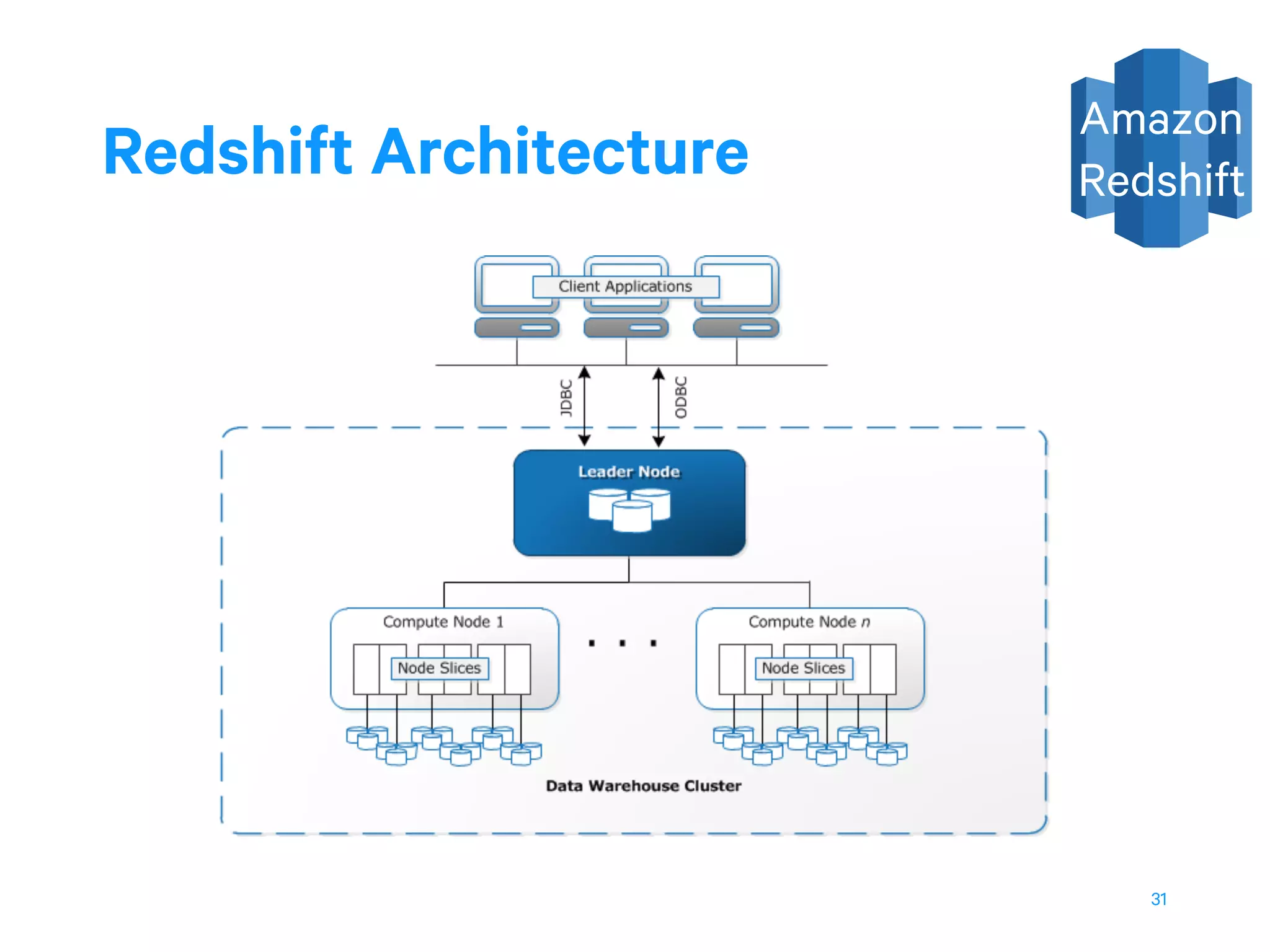

Redshift Architecture
Amazon
Redshift

32. Replicating to Redshift
32

33. 33
Table Schema
CREATE TABLE pgkafka_txservice_transactions (
pg_lsn NUMERIC(20,0) ENCODE raw,
pg_txn_id BIGINT ENCODE lzo,
pg_operation CHAR(6) ENCODE bytedict,
pg_txn_timestamp TIMESTAMP ENCODE lzo,
ingestion_timestamp TIMESTAMP ENCODE lzo,
transaction_id INT ENCODE lzo,
amount NUMERIC(18,2) ENCODE lzo
)
DISTKEY transaction_id
SORTKEY (transaction_id, pg_lsn, pg_operation);
Amazon
Redshift

34. 34

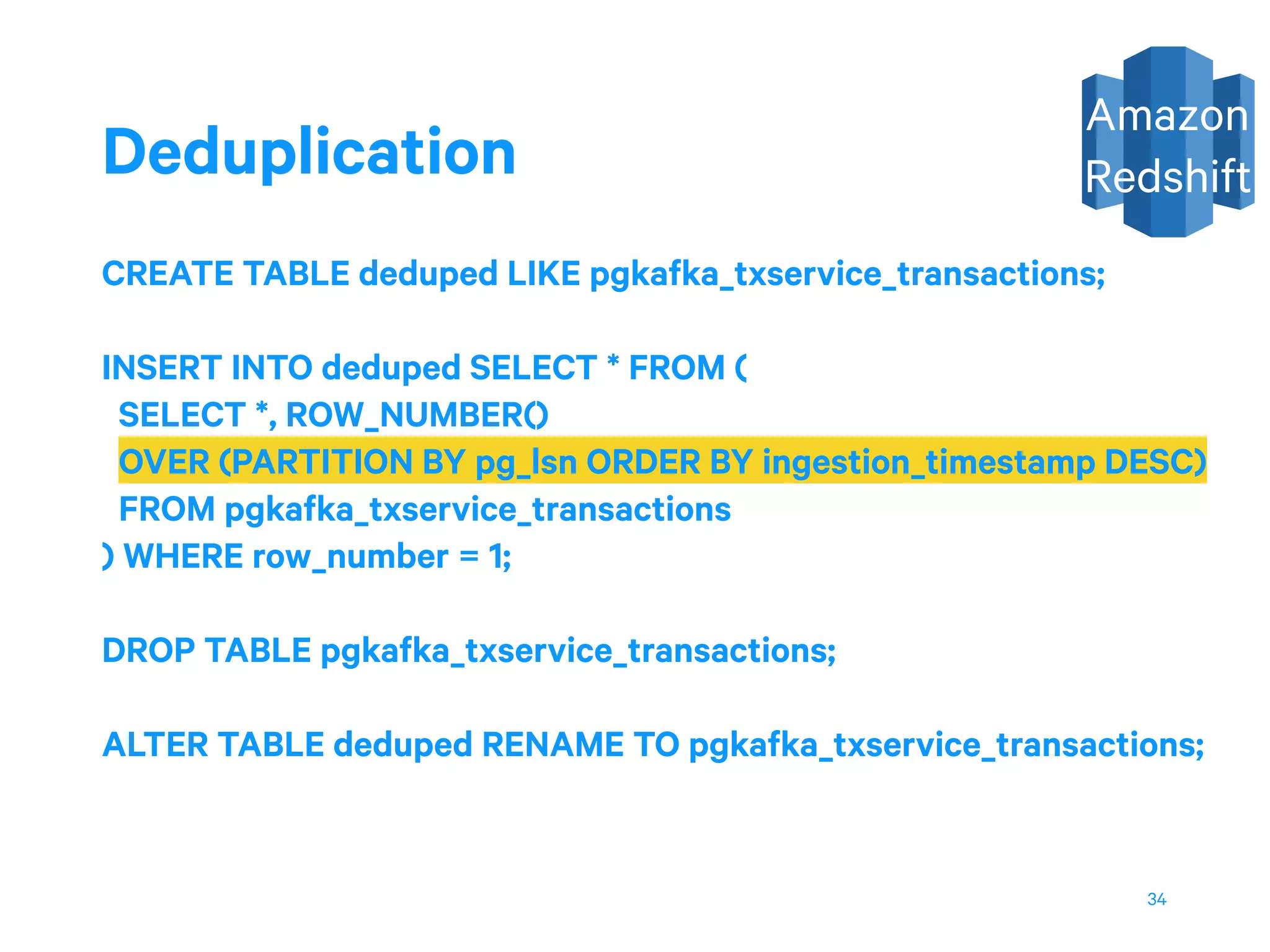

Deduplication
CREATE TABLE deduped LIKE pgkafka_txservice_transactions;
INSERT INTO deduped SELECT * FROM (
SELECT *, ROW_NUMBER()
OVER (PARTITION BY pg_lsn ORDER BY ingestion_timestamp DESC)
FROM pgkafka_txservice_transactions
) WHERE row_number = 1;
DROP TABLE pgkafka_txservice_transactions;
ALTER TABLE deduped RENAME TO pgkafka_txservice_transactions;
Amazon
Redshift

35. 35

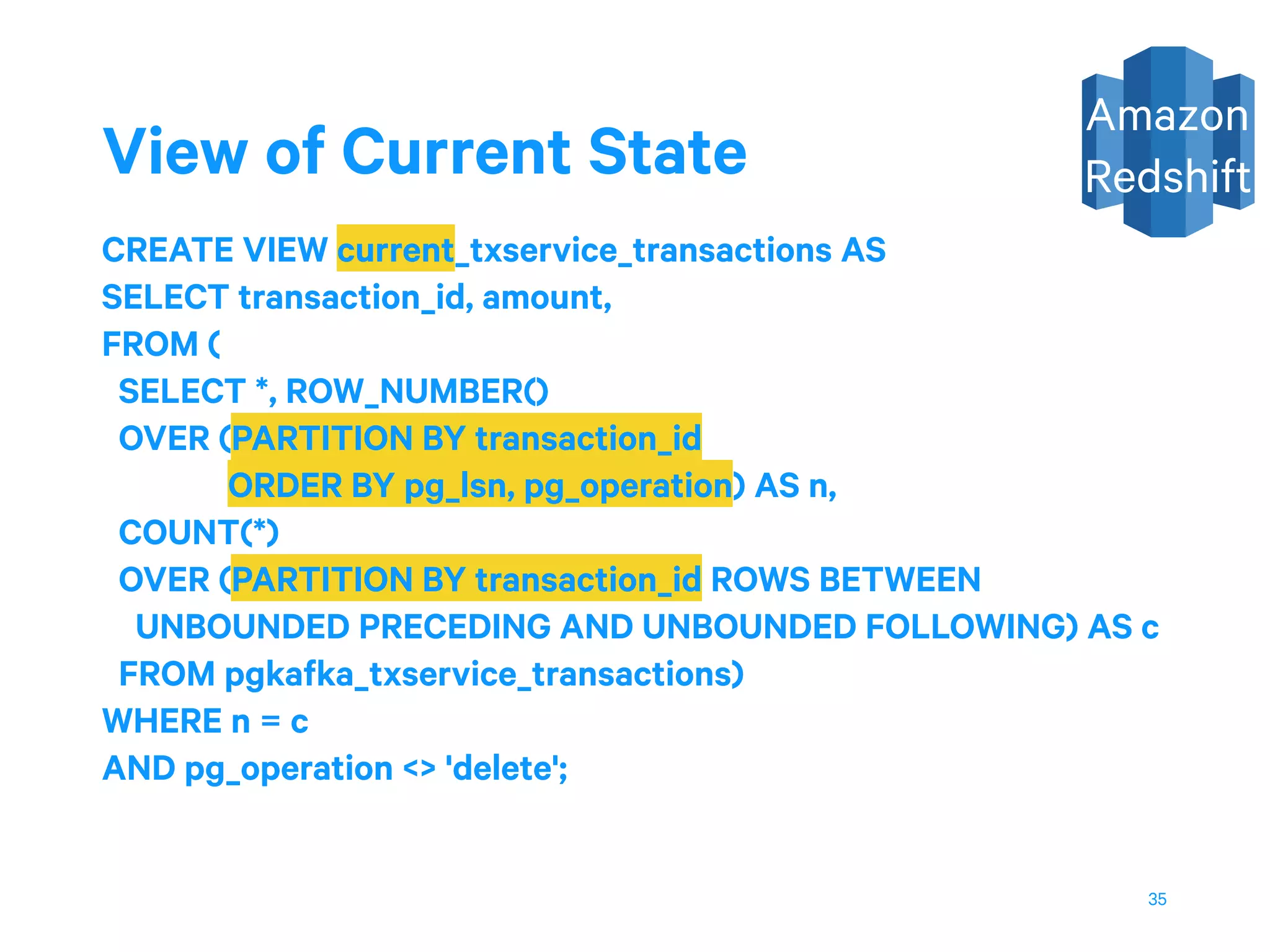

View of Current State
CREATE VIEW current_txservice_transactions AS
SELECT transaction_id, amount,
FROM (
SELECT *, ROW_NUMBER()
OVER (PARTITION BY transaction_id
ORDER BY pg_lsn, pg_operation) AS n,
COUNT(*)
OVER (PARTITION BY transaction_id ROWS BETWEEN
UNBOUNDED PRECEDING AND UNBOUNDED FOLLOWING) AS c
FROM pgkafka_txservice_transactions)
WHERE n = c
AND pg_operation <> 'delete';
Amazon
Redshift
