This document describes the evolution of RTB House's real-time data processing architecture over five iterations. The first iteration used mutable data structures and single-datacenter processing. The second introduced Apache Kafka and data flow processing. The third moved to immutable event streams. The fourth added a multi-datacenter architecture with merged event streams. The current fifth iteration uses custom Kafka workers for higher distribution and tighter offset control. The changes have improved stability, scalability, data quality, and multi-region support for RTB House's growing real-time bidding platform.

1. REAL-TIME DATA PROCESSING AT RTB HOUSEREAL-TIME DATA PROCESSING AT RTB HOUSE
BIG DATA TECHNOLOGY MOSCOW 2018
OCTOBER 10-11, 2018
BIG DATA TECHNOLOGY MOSCOW 2018
OCTOBER 10-11, 2018
ARCHITECTURE & LESSONS LEARNED
BARTOSZ ŁOŚ
REAL-TIME DATA PROCESSING AT RTB HOUSE

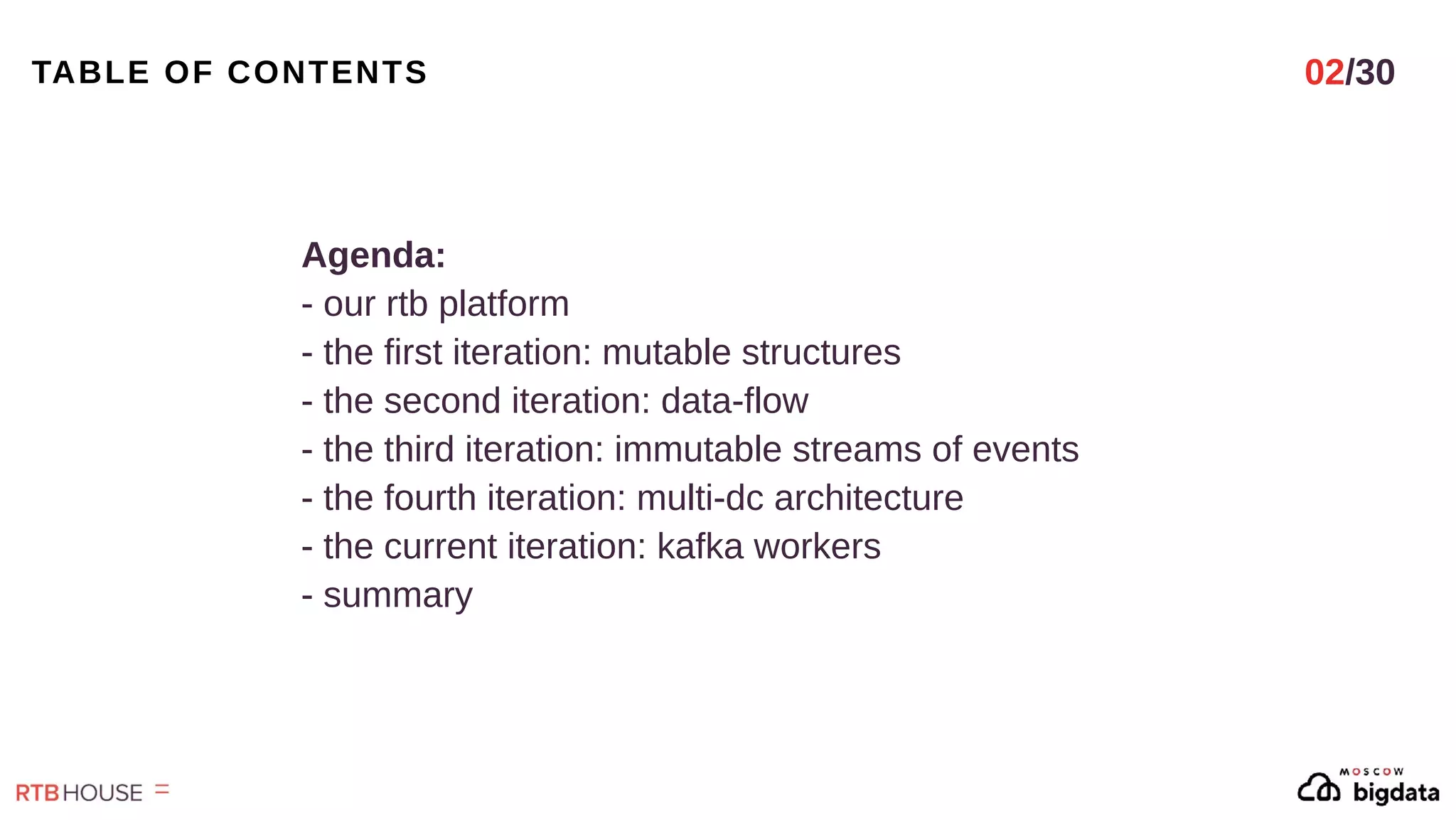

2. TABLE OF CONTENTS
Agenda:
- our rtb platform
- the first iteration: mutable structures
- the second iteration: data-flow
- the third iteration: immutable streams of events
- the fourth iteration: multi-dc architecture
- the current iteration: kafka workers
- summary
02/30

3. OUR RTB PLATFORM

4. OUR RTB PLATFORM: THE CONTEXT 04/30
Bid requests:
2M/s (peak)
~30 SSP networks
<50-100ms
User events:
1.5B tags/day
350M impressions/day
3.5M clicks/day
1.5M conversions/day
Other events:
bidlogs, accesslogs,
domain events etc.

5. OUR RTB PLATFORM: DATA PROCESSING NUMBERS
Kafka:
- up to 250K+ messages per second
- 50TB+ processed data every day
- 6 clusters in 4 datacenters
- 26 Kafka brokers
- 85 topics, 5000+ partitions
Docker (processing components only):
- 44 engines
- 1408 cpu cores, 5.5TB ram
- 800+ containers
05/30
HDFS:
- 2PB+ data, up to 10GB/s
BigQuery:
- 1PB+ data, up to 10GB/min
Elasticsearch:
- 40TB data, up to 50K events/s
Aerospike (processing only):
- 80TB data, up to 8K events/s

6. THE FIRST ITERATION

7. THE 1ST ITERATION: MUTABLE IMPRESSIONS 07/30

8. THE 1ST ITERATION: DRAWBACKS
Issues:
- long, overloading data migrations (30 days back)
- complex servlets' logic, inability to reprocess
- inflexible, various schemas
- single-DC
- inconsistencies
08/30

9. THE SECOND ITERATION:
DATA-FLOW

10. THE 2ND ITERATION: THE 1ST DATA-FLOW ARCHITECTURE 10/30

11. THE 2ND ITERATION: DISTRIBUTED LOG
Why Apache Kafka:
- distributed log
- topics partitioning
- partition replication
- log retention
- stateless
- efficient data consuming
11/30

12. THE 2ND ITERATION: BATCH LOADING
Why Apache Camus:
- "Kafka to HDFS" pipeline
- batch tool
- map-reduce jobs
- storing offsets in log files
- data partitioning
12/30

13. THE 2ND ITERATION: AVRO & SCHEMA VERSIONING
Why Apache Avro:
- compact, efficient format
- schema: JSON format, payload: binary format
- self-describing container files
- rich data structures
- schema changes support, reader & writer schemas
Our approach:
- Kafka's messages and HDFS files
- schema registry
- avro-fastserde
13/30
(github.com/RTBHOUSE/avro-fastserde)

14. THE 2ND ITERATION: ACCURATE STATISTICS
Why Apache Storm:
- real-time processing
- streams of tuples, topologies
- fault-tolerance
Why Trident:
- transactions, exactly-once processing
- microbatches (latency & throughput)
14/30

15. THE 2ND ITERATION: STATS-COUNTER TOPOLOGY 15/30

16. THE 2ND ITERATION: DRAWBACKS
Hybrid architecture:
- aggregates (real-time)
- raw events (2-hour batches)
- joined events (end-of-day batch jobs)
Other issues:
- Hive joins
- mutable events
- servlets' complex logic
16/30

17. THE THIRD ITERATION:
NEW APPROACH

18. THE 3RD ITERATION: NEW APPROACH
{ "IMPRESSION”:
"URL”,
"TIME”,
"CREATIVE”,
...
"CLICKS”,
"CONVERSIONS”
}
{ "CLICK”:
"TIME”,
"IMPRESSION_ID”,
...
"IMPRESSION”
}
{ "CONVERSION”:
"TIME”,
"CLICK_ID”,
...
"IMPRESSION”,
"CLICK”
}
New approach:
- real-time processing
- publishing light events
- immutable streams of events
18/30

19. THE 3RD ITERATION: HIGH-LEVEL ARCHITECTURE 19/30

20. THE 3RD ITERATION: DATA-FLOW TOPOLOGY 20/30

21. THE FOURTH ITERATION:
MULTI-DC

22. THE 4TH ITERATION: NEW REQUIREMENTS
Main changes:
- 5-6x larger scale:
> from 350K to 2M bid requests/s within 1.5 years
- full multi-dc architecture:
> merging streams of events
> synchronization of user profiles
- end-to-end exactly-once processing:
> at-least-once output semantics + deduplication
- a few better components:
> merger
> new stats-counter, new data-flow
> dispatcher & loader
> logstash
22/30

23. THE 4TH ITERATION: MULTI-DC ARCHITECTURE 23/30

24. THE 4TH ITERATION: NEW DATA-FLOW ON KAFKA STREAMS 24/30
(picture from kafka.apache.org)
Why Kafka Streams:
- fully embedded library with no stream
processing cluster
- no external dependencies
- Kafka's parallelism model and group
membership mechanism
- event-at-a-time processing
(not microbatch)
- exactly-once processing semantics
(but at-least-once was good enough)

25. THE 4TH ITERATION: MERGER ON KAFKA CONSUMER API 25/30

26. THE CURRENT ITERATION:
KAFKA WORKERS

27. THE 5TH ITERATION: KAFKA WORKERS
Main features:
- higher level of distribution
- possibility to pause and resume processing for given partition
- asynchronous processing
- tighter control of offsets commits
- backpressure
- at-least-once semantics
- processing timeouts
- handling failures
- multiple consumers (in progress)
- kafka-to-kafka, hdfs, bigquery, elasticsearch connectors (in progress)
27/30
(github.com/RTBHOUSE/kafka-workers)

28. THE 5TH ITERATION: KAFKA WORKERS ARCHITECTURE 28/30

29. SUMMARY
What we have achieved:
- platform monitoring
- much more stable platform
- higher quality of data processing
- HDFS & BigQuery & Elasticsearch streaming
- multi-DC architecture and data synchronization
- high scalability
- better data-flow monitoring, deployment & maintenance
29/30

30. REAL-TIME DATA PROCESSING AT RTB HOUSEREAL-TIME DATA PROCESSING AT RTB HOUSE
BIG DATA TECHNOLOGY MOSCOW 2018
OCTOBER 10-11, 2018
THANK YOU FOR YOUR
ATTENTION
