Pacorr Testing Instruments Pvt. Ltd. provides a variety of testing instruments for the packaging and plastic film industries, including peel bond testers, heat sealers, dart impact testers, and vacuum leak testers. These devices are designed to evaluate essential characteristics such as seal strength, tensile strength, scuff resistance, and leakage integrity with high precision and user-friendly interfaces. The instruments feature advanced technology and adhere to various industry standards, ensuring accurate and reliable testing results.

1. Pacorr Testing Instruments Pvt. Ltd
Polyfilms & Laminates Testing Instruments

2. PEEL BOND/ SEAL/ TENSILE STRENGTH TESTER- DIGITAL
Pacorr Seal Strength/ Peel adhesion/ Bond strength tester often play a major role in
determining the Seal/Peel adhesion strength of Plastic films, Laminates etc. It is, therefore,
of utmost importance to determine these characteristics accurately, conveniently, and
quickly.
This instrument provides a relatively inexpensive way for determining the Peel/Seal/tensile
strength and elongation of a variety of plastics/Poly films & Laminates. They are based on
constant rate of traverse principle, in which one end of the test specimen is held in a
stationery grip while the other end is moved at a known fixed speed with the help of a
motor, gearbox, and screw arrangement.
TECHNICAL DATA
• Model: PCTTM-1
• No. of screws: Single screw mechanism
driven through motor & gearbox
• Vertical Clearance: 400 mm
• Exterior Body Paint: Powder coated
• Display: Digital LCD Display
• Capacity Range: 20 Kgf/ 50 Kgf
• Load cell: ‘S Type’ load-cell of reputed make
• Least count for load: 2/5 Grams
• Results displayed on screen: Load &
Elongation values
• Least count for elongation: 0.1 mm
• Speed Range: 40mm/min - 400 mm/min
• Load units: Kg
• Speed control: Dedicated AC Drive
• Motor for speed variations: Reputed make induction motor with dedicated gear
box
• Test jaws: Vice Type (By Default) else Please specify your applications at the
time of order.
• Power Supply: 230 Volt, 50 Hz, Single Phase, AC Supply
Salient Features:
• Table Top model
• Aesthetic outer appearance
• Unique and compact design features
• Fitted with Microprocessor based PROGRAMMABLE Logical controller
• Computer interface through RS232 Communication. (Optional)
• Equipped with Lead screw for friction less traverse
• High accuracy in elongation (0.1mm)
• Reputed make Induction motor with Dedicated Gear Box and Drive for speed
variation and to maintain speed at high
• Easy to use display unit (controller part) and software
• In-built Over Load Safety
• In-built Over Travel Safety
• You can get graph for load v/s elongation (stress v/s strain) and also get a excel
sheet (Optional)

3. LABORATORY HEAT SEALER
Pacorr Laboratory Heat Sealer is mainly used in packaging industry and is used for
sealing of packaging materials like plastic bags, plastic films etc. The material is sealed
using the heat sealer and then the sealing is tested through different tests to ensure the
best sealing strength and integrity of the packaging materials.
TECHNICAL DATA
 Model: PCLHS-1
 Sealing Temperature Range: Ambient to 300˚C.
 Temperature Controller: PID
 Instrument Temperature range: 0 – 400˚C
 L.C. 0.1˚C and Accuracy of 0.2˚C.
 Dwell Time: 0.1 to 999.9 seconds.
 Pressure: 0.05 to 0.7 MPa. Operated by switch OR Footswitch.
 Seal surface: 150mm x 15mm &300 mm X 15 mm (Straight
Line)
 Air Input: 0.7 MPa
 Table top Model
 Power: 230 V AC, 50 Hz
Features:
 Seal Pattern: Straight line
 Microprocessor based display for accurate test results
 Highly accurate test results under pneumatic pressure control.
 Single Pushbutton operation after setting PID temperature and time
 Strong heating jaws for performing tests
 Bright LED display for temperature and timer
 PID temperature controller for highest level of controls and repeatability
 Digital Preset timer
 Guide rod mechanism for efficient control of sealing
 Standards: ASTM F 2029

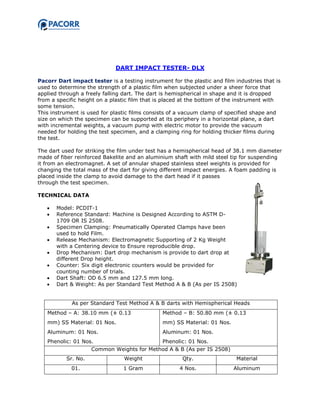

4. DART IMPACT TESTER- DLX
Pacorr Dart impact tester is a testing instrument for the plastic and film industries that is
used to determine the strength of a plastic film when subjected under a sheer force that
applied through a freely falling dart. The dart is hemispherical in shape and it is dropped
from a specific height on a plastic film that is placed at the bottom of the instrument with
some tension.
This instrument is used for plastic films consists of a vacuum clamp of specified shape and
size on which the specimen can be supported at its periphery in a horizontal plane, a dart
with incremental weights, a vacuum pump with electric motor to provide the vacuum
needed for holding the test specimen, and a clamping ring for holding thicker films during
the test.
The dart used for striking the film under test has a hemispherical head of 38.1 mm diameter
made of fiber reinforced Bakelite and an aluminium shaft with mild steel tip for suspending
it from an electromagnet. A set of annular shaped stainless steel weights is provided for
changing the total mass of the dart for giving different impact energies. A foam padding is
placed inside the clamp to avoid damage to the dart head if it passes
through the test specimen.
TECHNICAL DATA
 Model: PCDIT-1
 Reference Standard: Machine is Designed According to ASTM D-
1709 OR IS 2508.
 Specimen Clamping: Pneumatically Operated Clamps have been
used to hold Film.
 Release Mechanism: Electromagnetic Supporting of 2 Kg Weight
with a Centering device to Ensure reproducible drop.
 Drop Mechanism: Dart drop mechanism is provide to dart drop at
different Drop height.
 Counter: Six digit electronic counters would be provided for
counting number of trials.
 Dart Shaft: OD 6.5 mm and 127.5 mm long.
 Dart & Weight: As per Standard Test Method A & B (As per IS 2508)
As per Standard Test Method A & B darts with Hemispherical Heads
Method – A: 38.10 mm (± 0.13
mm) SS Material: 01 Nos.
Aluminum: 01 Nos.
Phenolic: 01 Nos.
Method – B: 50.80 mm (± 0.13
mm) SS Material: 01 Nos.
Aluminum: 01 Nos.
Phenolic: 01 Nos.
Common Weights for Method A & B (As per IS 2508)
Sr. No. Weight Qty. Material
01. 1 Gram 4 Nos. Aluminum

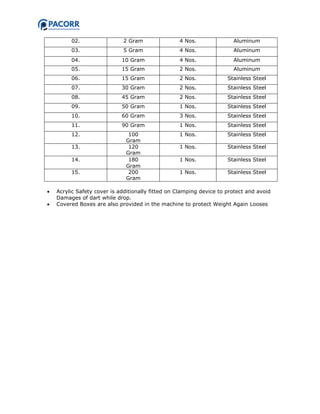

5. 02. 2 Gram 4 Nos. Aluminum
03. 5 Gram 4 Nos. Aluminum
04. 10 Gram 4 Nos. Aluminum
05. 15 Gram 2 Nos. Aluminum
06. 15 Gram 2 Nos. Stainless Steel
07. 30 Gram 2 Nos. Stainless Steel
08. 45 Gram 2 Nos. Stainless Steel
09. 50 Gram 1 Nos. Stainless Steel
10. 60 Gram 3 Nos. Stainless Steel
11. 90 Gram 1 Nos. Stainless Steel
12. 100
Gram
1 Nos. Stainless Steel
13. 120
Gram
1 Nos. Stainless Steel
14. 180
Gram
1 Nos. Stainless Steel
15. 200
Gram
1 Nos. Stainless Steel
 Acrylic Safety cover is additionally fitted on Clamping device to protect and avoid
Damages of dart while drop.
 Covered Boxes are also provided in the machine to protect Weight Again Looses

6. COEFFICIENT OF FRICTION TESTER- COMPUTERIZED
(STATIC & KINETIC)
The coefficient of friction is the ratio of the frictional force and normal pressure acting on
two surfaces in contact with each other. Thus coefficient of friction is an inverse measure of
the relative ease with which a material will slide over a similar or different material.
Pacorr Coefficient of Friction Tester for plastic films is designed to find static and
dynamic coefficients of friction between two flat surfaces of flexible plastic films. It consists
of a rigid and smooth horizontal glass platform and an arrangement to measure frictional
force between the test specimens mounted on it and a movable sled.
The horizontal platform is fixed on the base plate and the specimen is held over its surface
with the help of pressure sensitive adhesive tapes. The other portion of the specimen is held
on a metal sled having its bottom face lined with rubber foam.
The sled is kept over the specimen held on the platform and is made to move over the
platform at the specified speech with the help of a screw mechanism. It is also connected to
a load cell for measurement of frictional force acting on it. A digital display with peak force
indicating arrangement enables measurement of both the instantaneous force and
maximum force exerted during the slipping operation. Micro switches are provided to
automatically stop the motion at the extreme ends of the travel of the sled.
TECHNICAL DATA
 Load cell Capacity: 1 Kgf. (or as per requirement)
 Display: Microprocessor based Load controllers with
memory of Peak Load.
 Speed Indication: In LCD display
 Resolution: 1gm with accuracy of +/- 1 gm.
 Motor with fix speed as per standard.
 Computer Interface: Through RS 232 Versatile Window
based software for COF test.
 Calculation and results for Static and Dynamic COF.
Graphical results for COF
 S.S. moving platform with guider and scale.
 Size of Sled: 63.5 mm X 63.5 mm X 6 mm.
 Weight of Sled: 200 Gm.
 Self-calibration of load and travel to microcontroller.
 Sturdy structure with accuracy of 1 degree.
 Policed SS platform with glass plate with Sample holding clamps to perform test.
 Table Top Model
 Paint: Powder Coated
 Power: 220 V, 50 Hz.

7. SCUFF RESISTANCE TESTER- DIGITAL
Pacorr scuff resistance tester is the instrument that is used in industries that deal in
manufacturing of packaging materials, paints and coatings. The scuff resistance tester helps
in determining the amount of scuffing force that a material can bear without facing any
deterioration in the surface or its paint quality. The manufacturers of such materials need to
understand the importance of the scuff resistance hence need to test their products so that
they could rest assured that the customers are delivered with nothing but the best quality
products.
TECHNICAL DATA
 Model: PCSRT-1
 Specimen Size: 48mm & 120mm
 Weight on Sample: 1psi + 1psi separate weights provided
 Controls: Digital Preset Cycle counter.
 No. of Cycles: 0 – 9999.
 Counter 4- digit Digital Preset type
 Least Count of Counter: 1
 Rotational Speed 60 rpm
 Lower Motor capacity ¼ HP
 Display: Digital (LCD)
 Safety Lock: Yes (with upper clamp)
 Sample Preparation templates: 3
 Paint: Powder coated & Chrome finished
 Input Power: 220 Volts, 50Hz, single phase supply.
Features:
 Motorized Weight arrangement on plunger for noise free working
 Highly accurate test results under uniform load and specified diameter.
 Uniform load by weights on test sample for evenness in testing
 Provision of Set number of counts through Digital Preset Counter
 Firm hold of test specimen by circular clips/clamps
 Motorized Geared system for scuff movement
 Digital Pre-settable counters up to 9999 counts
 Highly accurate and precise results under uniform load and rubbing clamp movement
 Accurate rpm of rotating discs using synchronous motor
 User-friendly electronic controls and ergonomically designed feature
Application:
 To measure rub-proofs of printed paper, carton package & board.
 The resistance of inks on printed films and leather materials.
 Handling of glossy magazine and papers.

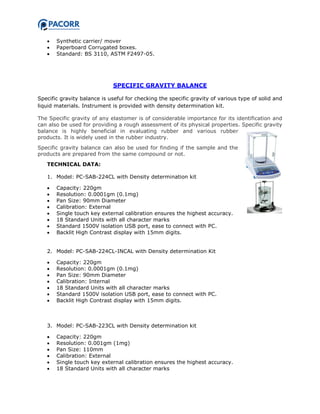

8.  Synthetic carrier/ mover
 Paperboard Corrugated boxes.
 Standard: BS 3110, ASTM F2497-05.
SPECIFIC GRAVITY BALANCE
Specific gravity balance is useful for checking the specific gravity of various type of solid and
liquid materials. Instrument is provided with density determination kit.
The Specific gravity of any elastomer is of considerable importance for its identification and
can also be used for providing a rough assessment of its physical properties. Specific gravity
balance is highly beneficial in evaluating rubber and various rubber
products. It is widely used in the rubber industry.
Specific gravity balance can also be used for finding if the sample and the
products are prepared from the same compound or not.
TECHNICAL DATA:
1. Model: PC-SAB-224CL with Density determination kit
 Capacity: 220gm
 Resolution: 0.0001gm (0.1mg)
 Pan Size: 90mm Diameter
 Calibration: External
 Single touch key external calibration ensures the highest accuracy.
 18 Standard Units with all character marks
 Standard 1500V isolation USB port, ease to connect with PC.
 Backlit High Contrast display with 15mm digits.
2. Model: PC-SAB-224CL-INCAL with Density determination Kit
 Capacity: 220gm
 Resolution: 0.0001gm (0.1mg)
 Pan Size: 90mm Diameter
 Calibration: Internal
 18 Standard Units with all character marks
 Standard 1500V isolation USB port, ease to connect with PC.
 Backlit High Contrast display with 15mm digits.
3. Model: PC-SAB-223CL with Density determination kit
 Capacity: 220gm
 Resolution: 0.001gm (1mg)
 Pan Size: 110mm
 Calibration: External
 Single touch key external calibration ensures the highest accuracy.
 18 Standard Units with all character marks

9.  Standard 1500V isolation USB port, ease to connect with PC.
 Backlit High Contrast display with 15mm digits.

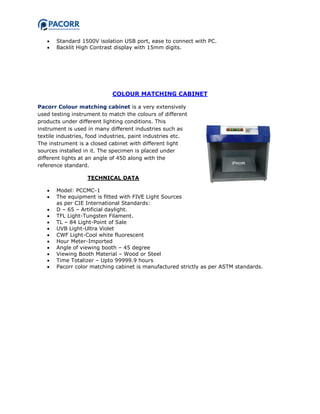

COLOUR MATCHING CABINET
Pacorr Colour matching cabinet is a very extensively
used testing instrument to match the colours of different
products under different lighting conditions. This
instrument is used in many different industries such as
textile industries, food industries, paint industries etc.
The instrument is a closed cabinet with different light
sources installed in it. The specimen is placed under
different lights at an angle of 450 along with the
reference standard.
TECHNICAL DATA
 Model: PCCMC-1
 The equipment is fitted with FIVE Light Sources
as per CIE International Standards:
 D – 65 – Artificial daylight.
 TFL Light-Tungsten Filament.
 TL – 84 Light-Point of Sale
 UVB Light-Ultra Violet
 CWF Light-Cool white fluorescent
 Hour Meter-Imported
 Angle of viewing booth – 45 degree
 Viewing Booth Material – Wood or Steel
 Time Totalizer – Upto 99999.9 hours
 Pacorr color matching cabinet is manufactured strictly as per ASTM standards.

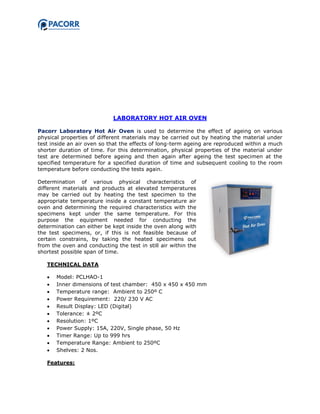

10. LABORATORY HOT AIR OVEN
Pacorr Laboratory Hot Air Oven is used to determine the effect of ageing on various
physical properties of different materials may be carried out by heating the material under
test inside an air oven so that the effects of long-term ageing are reproduced within a much
shorter duration of time. For this determination, physical properties of the material under
test are determined before ageing and then again after ageing the test specimen at the
specified temperature for a specified duration of time and subsequent cooling to the room
temperature before conducting the tests again.
Determination of various physical characteristics of
different materials and products at elevated temperatures
may be carried out by heating the test specimen to the
appropriate temperature inside a constant temperature air
oven and determining the required characteristics with the
specimens kept under the same temperature. For this
purpose the equipment needed for conducting the
determination can either be kept inside the oven along with
the test specimens, or, if this is not feasible because of
certain constrains, by taking the heated specimens out
from the oven and conducting the test in still air within the
shortest possible span of time.
TECHNICAL DATA
 Model: PCLHAO-1
 Inner dimensions of test chamber: 450 x 450 x 450 mm
 Temperature range: Ambient to 250º C
 Power Requirement: 220/ 230 V AC
 Result Display: LED (Digital)
 Tolerance: ± 2ºC
 Resolution: 1ºC
 Power Supply: 15A, 220V, Single phase, 50 Hz
 Timer Range: Up to 999 hrs
 Temperature Range: Ambient to 250ºC
 Shelves: 2 Nos.
Features:

11.  Double walled chamber; inside body: stainless steel
 Outer body – Mild Steel neatly powder Coated
 Insulation between the double walls is provided by imported mineral glass wool
 Microprocessor based Programmable Digital temperature controller cum indicator
 Highly accurate test results under uniform temperatures in the chamber
 Maximum Thermal Efficiency by insulation means.
 Digital Preset Timer
 Provision of Set Time and Process time on timer display
 Inbuilt Auto tuning function
 Bright LED display
 Inbuilt Auto tuning function
 Provision to set PV and SV value
 Equipped with rapid air circulation fan for uniform
and homogenous heating and maintaining
temperature inside the chamber
VACUUM LEAK TESTER- DELUXE
Pacorr Vacuum Leak Tester is used to determine the
leakage in packaging materials that are mostly used in
industries must be intact and leak proof. This is why the
manufacturers need to test the integrity and intactness of
the packaging materials they are manufacturing or using
for their products. The vacuum leak tester uses heavy
vacuum to detect any leakage or holes in the packaging materials and gives the accurate
test results about the integrity of the specimen. The instrument has a digital display that
gives the exact reading of the test parameters for better precision.
TECHNICAL DATA
 Model: PCVLT-1
 Vacuum Range: 150 – 600mm-Hg
 Vacuum Pressure Gauge: Analogue
 Display: Digital LED
 Desiccator: 12” (Diameter-300mm)
 Least Count: 1.0 mm Hg
 Keyboard: Soft Touch Keys
 Power: 220 V, Single Phase, 50 Hz
 Hold Time: Upto 999 Seconds
 Material: Mild Steel duly powder coated
 Power: 230 V AC, 50 Hz.
 Weight 14Kgs.
Accessories:
 Main Apparatus along with vacuum pump
 Polycarbonate desiccator along with connecting cable.
 User Manual

12. VACUUM LEAK TESTER- DIGITAL
Pacorr Vacuum Leak Tester is used to determine the leakage in packaging materials that
are mostly used in industries must be intact and leak proof. This is why the manufacturers
need to test the integrity and intactness of the packaging materials they are manufacturing
or using for their products. The vacuum leak tester uses heavy vacuum to detect any
leakage or holes in the packaging materials and gives the accurate test results about the
integrity of the specimen. The instrument has a digital display that gives the exact reading
of the test parameters for better precision.
TECHNICAL DETAILS:
 Model: PC1961
 Microprocessor based Fully Automatic Instrument
 Vacuum Range: 150 - 600 mm- Hg
 Desiccator: 12” (300mm Diameter)
 Display: Alphanumeric LCD with Backlit
 Keyboard: Soft Touch Membrane Keys
 USB Port: For Dot Matrix Printer with parallel interface
 Vacuum Pressure Gauge: Digital
 Vacuum and Hold time: Programmable
 Hold Time: Upto 999 Seconds
 Automatic Last result storage
 Construction of cabinet: Stainless Steel
 Power: 230V AC, 50 Hz
 Weight: 13 Kg (Approx.)
Accessories:
 Main apparatus along with vacuum pump.
 Polycarbonate desiccator along with connecting cable
 User manual
 Printer: Client Scope

13. PRECISION COLORIMETER
Colour is one of the most important aspects for many different industrial products such as
inks, foods, paints etc. The manufacturers need to know the exact
quality and composition of the colours of the products that they are
delivering to their customers. The colorimeter is an instrument that
is used in industries to determine the Colour quality and composition
of different colours of products. The instrument can provide very
precise testing results about the consistency as well as the quality of
colours of the products.
TECHNICAL DATA
 Model : PC110
 Viewing Geometry : 8/d
 Measuring Aperture : Φ4mm
 Detector : Silicon photoelectric diode
 Locating : Illuminating Locating/Cross Locating
 Measurement End Face : Large stable end-face and small concave-convex end-
face
 Color Space : CIEL*a*b*C*h* CIEL*a*b* CIEXYZ
 Color Difference Formula : △E*ab △L*a*b* △E*C*h*
 Light Source : D65
 Light Source Device : LED blue light excitation
 Errors Between Each Equipment : ≤0.80ΔE*ab
 Storage : 100pcs standards 20000pcs samples
 Repeatability : Standard deviation within ΔE*ab 0.08 Average of 30
measurements of standard white plate
 Weight : 450g
 Dimension : 205×67×80 mm
 Power source : Rechargeable lithium-ion battery 3.7V@3200mAh
 Lamp Life : 5 years, more than 1.6 million measurements
 Charging Time : 8 hours–100% electricity

14.  PC Software : CQCS3 Software
DIGITAL THICKNESS GAUGE
The digital thickness gauges are used in a variety of industries to determine the accurate
thickness of different surfaces and materials such as plastic sheets, plastic films, bottles,
metal sheets and so forth. The instrument is given with a digital display which displays the
thickness of the surface being measured.
TECHNICAL DATA
 Model: PCDTG
 Range: 0 - 10 mm
 Digital step: 0.01 mm
 Indicator No.: 543-400BS (ID-C)
 Type: Ceramic-tipped contact points
 Mass: 255 g
 Measuring force: ≤ 1.5 N
 Scale: Capacitance type ABSOLUTE linear encoder
 Max. response speed: Unlimited
 Power supply: 1 battery SR-44
 Battery life: approx. 7000 hours
 ZERO/ABS: Yes
 Digimatic data output: Yes
 ON/OFF: Yes
 DATA/HOLD: Yes
 Lock function: Yes
 PRESET: Yes
 Calculation function: Yes
 Counting direction switchable: Yes
 Accuracy: ±10 µm(excluding quantizing error)
 Inch-Metric: Metric

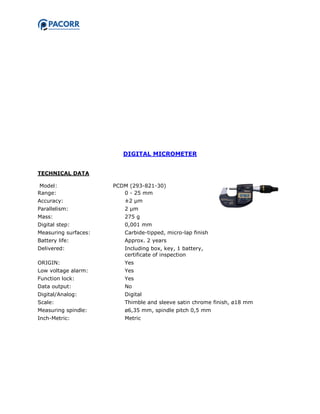

15. DIGITAL MICROMETER
TECHNICAL DATA
Model: PCDM (293-821-30)
Range: 0 - 25 mm
Accuracy: ±2 µm
Parallelism: 2 µm
Mass: 275 g
Digital step: 0,001 mm
Measuring surfaces: Carbide-tipped, micro-lap finish
Battery life: Approx. 2 years
Delivered: Including box, key, 1 battery,
certificate of inspection
ORIGIN: Yes
Low voltage alarm: Yes
Function lock: Yes
Data output: No
Digital/Analog: Digital
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle: ø6,35 mm, spindle pitch 0,5 mm
Inch-Metric: Metric
