Pacorr Testing Instruments Pvt. Ltd. manufactures a range of testing equipment including digital melt flow index testers, tensile strength testers, universal testing machines, humidity chambers, impact testers, hot water baths, and muffle furnaces, all designed to evaluate the properties of materials under various conditions. These instruments comply with international standards and are equipped with advanced technology such as digital displays, microprocessor-based controllers, and automatic safety features. The company aims to provide precise and reliable testing solutions across various industries, including plastics, textiles, and metals.

1. Pacorr Testing Instruments Pvt. Ltd
Plastic Testing Instruments

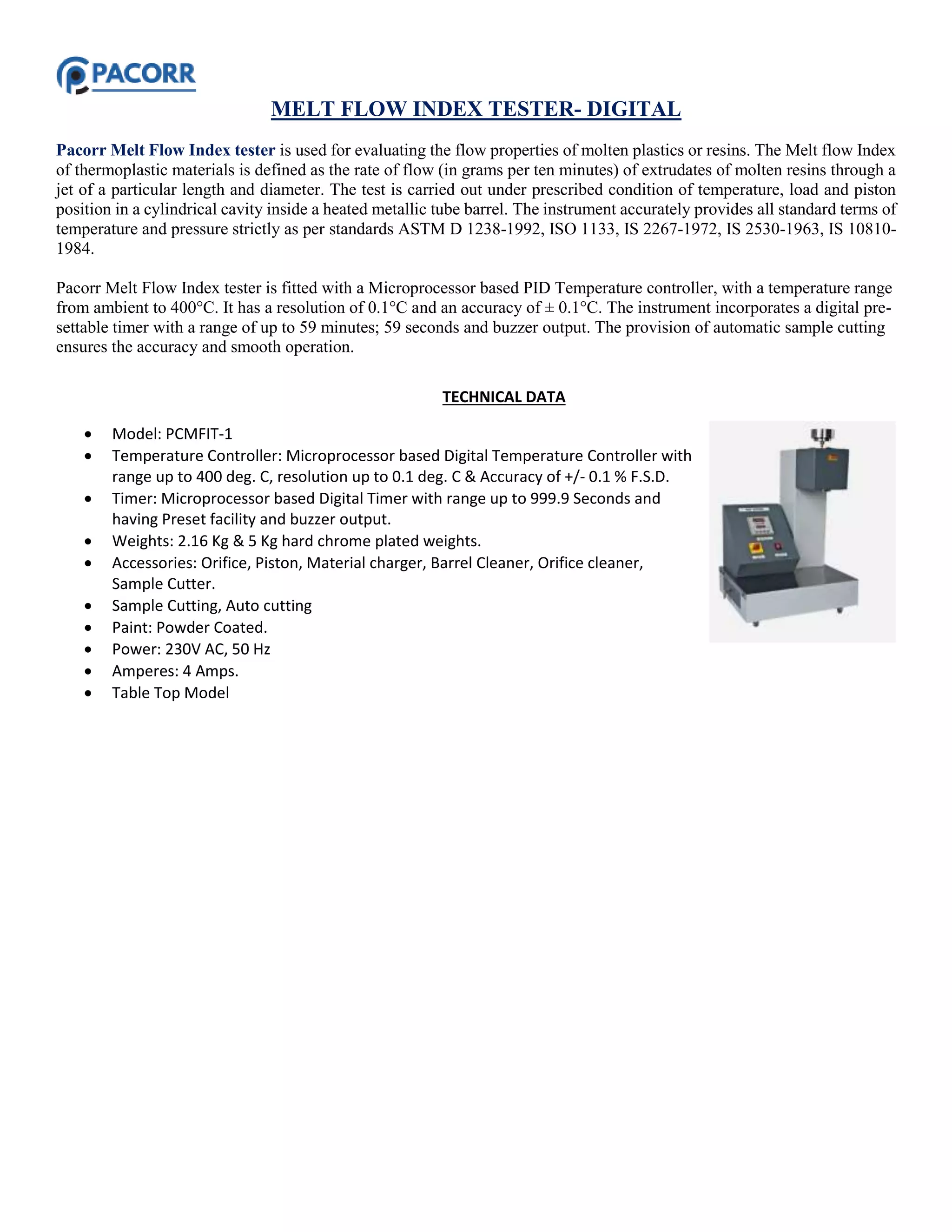

2. MELT FLOW INDEX TESTER- DIGITAL
Pacorr Melt Flow Index tester is used for evaluating the flow properties of molten plastics or resins. The Melt flow Index
of thermoplastic materials is defined as the rate of flow (in grams per ten minutes) of extrudates of molten resins through a
jet of a particular length and diameter. The test is carried out under prescribed condition of temperature, load and piston
position in a cylindrical cavity inside a heated metallic tube barrel. The instrument accurately provides all standard terms of
temperature and pressure strictly as per standards ASTM D 1238-1992, ISO 1133, IS 2267-1972, IS 2530-1963, IS 10810-
1984.
Pacorr Melt Flow Index tester is fitted with a Microprocessor based PID Temperature controller, with a temperature range
from ambient to 400°C. It has a resolution of 0.1°C and an accuracy of ± 0.1°C. The instrument incorporates a digital pre-
settable timer with a range of up to 59 minutes; 59 seconds and buzzer output. The provision of automatic sample cutting
ensures the accuracy and smooth operation.
TECHNICAL DATA
 Model: PCMFIT-1
 Temperature Controller: Microprocessor based Digital Temperature Controller with
range up to 400 deg. C, resolution up to 0.1 deg. C & Accuracy of +/- 0.1 % F.S.D.
 Timer: Microprocessor based Digital Timer with range up to 999.9 Seconds and
having Preset facility and buzzer output.
 Weights: 2.16 Kg & 5 Kg hard chrome plated weights.
 Accessories: Orifice, Piston, Material charger, Barrel Cleaner, Orifice cleaner,
Sample Cutter.
 Sample Cutting, Auto cutting
 Paint: Powder Coated.
 Power: 230V AC, 50 Hz
 Amperes: 4 Amps.
 Table Top Model

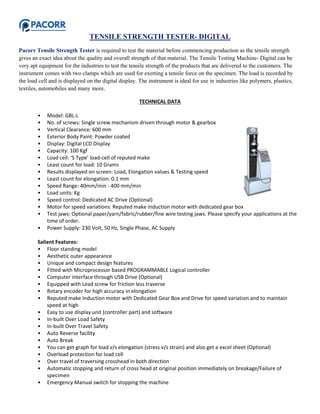

3. TENSILE STRENGTH TESTER- DIGITAL
Pacorr Tensile Strength Tester is required to test the material before commencing production as the tensile strength
gives an exact idea about the quality and overall strength of that material. The Tensile Testing Machine- Digital can be
very apt equipment for the industries to test the tensile strength of the products that are delivered to the customers. The
instrument comes with two clamps which are used for exerting a tensile force on the specimen. The load is recorded by
the load cell and is displayed on the digital display. The instrument is ideal for use in industries like polymers, plastics,
textiles, automobiles and many more.
TECHNICAL DATA
• Model: GBL-L
• No. of screws: Single screw mechanism driven through motor & gearbox
• Vertical Clearance: 600 mm
• Exterior Body Paint: Powder coated
• Display: Digital LCD Display
• Capacity: 100 Kgf
• Load cell: ‘S Type’ load-cell of reputed make
• Least count for load: 10 Grams
• Results displayed on screen: Load, Elongation values & Testing speed
• Least count for elongation: 0.1 mm
• Speed Range: 40mm/min - 400 mm/min
• Load units: Kg
• Speed control: Dedicated AC Drive (Optional)
• Motor for speed variations: Reputed make induction motor with dedicated gear box
• Test jaws: Optional paper/yarn/fabric/rubber/fine wire testing jaws. Please specify your applications at the
time of order.
• Power Supply: 230 Volt, 50 Hz, Single Phase, AC Supply
Salient Features:
• Floor standing model
• Aesthetic outer appearance
• Unique and compact design features
• Fitted with Microprocessor based PROGRAMMABLE Logical controller
• Computer interface through USB Drive (Optional)
• Equipped with Lead screw for friction less traverse
• Rotary encoder for high accuracy in elongation
• Reputed make Induction motor with Dedicated Gear Box and Drive for speed variation and to maintain
speed at high
• Easy to use display unit (controller part) and software
• In-built Over Load Safety
• In-built Over Travel Safety
• Auto Reverse facility
• Auto Break
• You can get graph for load v/s elongation (stress v/s strain) and also get a excel sheet (Optional)
• Overload protection for load cell
• Over travel of traversing crosshead in both direction
• Automatic stopping and return of cross head at original position immediately on breakage/Failure of
specimen
• Emergency Manual switch for stopping the machine

4. UNIVERSAL TESTING MACHINE- COMPUTERIZED
Pacorr Universal Testing Machine- Computerized is very helpful for the manufacturers ensuring the quality of the
products is of best level by testing the overall strength of the materials. The instrument comes with two clamps, one clamp
is movable. The specimen is locked between the two clamps and the movable clamps moves to exert a tensile force on the
specimen. The instrument gives highly accurate testing results for different materials. The instrument is available with
computer software that helps in automatic conduction of test procedure.
TECHNICAL DATA
 Model: PCTTMDC-1
 Capacities: 50 Kgf to 10000Kgf
 Grip to Grip Separation: 50mm – 700mm.
 Cross Head Speed: 50mm – 500mm / min.
 Cross Head Travel Length: 800mm without Grips.
 Load Sensor: Universal ‘S’ Type / Pancake-Type.
 Load Sensor Accuracy: ± 2% at Full Load (with master load).
 Display: Graphical with test data output through Inbuilt Software
 Over Load / Travel Safety facility: Auto stop through software
 Motor: 1-5 HP, RPM – 1440, with 3 phase AC drive.
Features:
 Advanced load sensor sensing through advanced electronics.
 Speed Control through Variable Frequency drive automation by Graphic user interface PC.
 Highly sensitive load sensor with linearity feature and repeatability
 Cross head travel length: 800 mm without grips
 Twin column rugged structure
 Safety limit switches for over travel safety
 Hardened lead screws/ball screws for frictionless movement
 Load cell calibrated by NPL approved proving ring/dynamometers
 High accurate micro-controller based system controls with integrated software
 User Friendly software with intuitive icons and robust architecture
 Easy Data Management. User programmable product identification, lot no., shape of specimen, company name,
Operator details etc.
 Export Test report in excel format
 Online test run status can be viewed graphically or in raw data form
 Secured working with key protection feature
 Ease of use features: Graph setup, test control wizard, formulae/result calculations, reports, live test panel.
 Graph setup: user defined graph scale/range with Graph Title
 Test Control Wizard to set test parameters like tension, compression, changeable units in Kgs/N/lbs or
cm/mm/inch.
 Automatic end test/return to home position through software interface after completion of test.
 Immediate analysis of results after test with complete accuracy & precision.
 Option to email test reports
 Single Test start with one click entry of the mouse.

5. HUMIDITY CHAMBER / CONDITIONING CHAMBER
Pacorr Humidity chamber is an environment chamber that is mainly used in industrial labs to create environmental
conditions to which the materials are subjected during their usage. This helps the manufacturers in estimating the lifetime
as well as the longevity of the materials when working in such environmental conditions. The chamber consists of glass
wool insulation that helps in prevention of any outer interaction of heat with the interiors of the chamber. Additionally, the
chamber offer rapid cooling and heating and hence can be kept at a constant temperature for a long time.
TECHNICAL DATA
 Model: PCHC-1
 Shelves: 2 no. SS Shelves
 Timer: 999 min (Changeable to Hrs.).
 Temperature range: Ambient to 60 degree Celcius
 Humidity Chamber: Ambient to 95%RH
 Temperature sensor: PT-100
 Accuracy: ± 2ºC
 Display: LED (Digital)
 Capacity: 150 Liters
 Inner Side: Stainless Steel
 Outside: – Mild Steel duly Powder coated
 Viewing: Viewing glass incorporated into visual examination of sample
 Standards: D1776M – 15, BS 950 Part 1 (D 65)
Features:
 Temperature controls through PT-100 sensor
 Alarm system with buzz sound at test’s end-process
 Highly accurate test results under uniform temperatures and humidity levels in the chamber
 Digital Control for Humidity and Temperature
 High Grade imported Glass Wool insulation
 Maximum Thermal Efficiency by insulation means.
 SSR-based heaters
 Digital Preset timer with LED Display
 Inbuilt Auto tuning function
 Water Level Indicator
 Equipped with rapid air circulation fan for uniform and homogenous heating , cooling, humidity, dehumidify
inside the chamber
 Inbuilt Calibration features with reference to master PID controller
 Setting to RTD PT-100 sensor through advanced PID controller
 Auto-stop feature to stop machine at set time
 Time totalizer to calculate the no. of Hours run by the instrument

6. IZOD/ CHARPY IMPACT TESTER
Pacorr Izod/ Charpy Impact Tester is the testing machine that is used for testing the impact resistance of the metal and
plastic products. This equipment works on the principle of oscillating pendulum. The pendulum hits the specimen with a
predefined force through a pendulum with a hemispherical nose. The force applied on the specimen gives the exact
reading of the force required to bring the specimen to failure. This instrument helps the producers in delivering the best
quality and best strength materials for customers.
TECHNICAL DATA
 Model: PCICIT-1
 Release angle of pendulum: 150 degree.
 Capacity: Up to 21.68 Joules.
 Range of four scales: 0-2.71 Joules; 0-5.42 Joules; 0-10.84 Joules and 0-21.68 Joules.
 Minimum resolution on scale: 0.02 Joule; 0.05 Joule; 0.1 Joule and 0.2 Joule
respectively.
 Display: LED (Digital)
 Pendulum Release Mechanism: Electromagnetic
 Paint: Powder coated
 Optional Accessory : Motorized Notch Cutter
 Electrical Requirement : Single Phase 220 V 50 Hz
 Standards: ASTM D256 – 10, ASTM D618 – 13, ASTM D883 – 12, ASTM D1204 – 14, ASTM D1248 – 12, ASTM
E691 – 14
 Features:
 Offers high capacity up to 21.68 Joules
 Four scales with different ranges are provided for more accurate and reproducible results.
 Equipment duly powder coated for corrosion resistance.
 Microprocessor based display for accurate test results
 Display for impact/absorbed energy and angle of test specimen
 Separate fixtures for Izod and Charpy test.
 Highly accurate test results under impact forces.
 Strong gripping fixtures for Izod/Charpy tests.
 Electromagnetic Pendulum release mechanism
 Bright LED display
 Inbuilt calibration facility

7. HOT WATER BATH- DIGITAL
Pacorr Hot Water Bath Digital (Rectangular – Double Walled, Stainless Steel) is a digital equipment, wherein both the
inside and outside are made of high-grade corrosion resistant Stainless steel. It is used to incubate samples in hot water at
high temperatures required in textile and microbiology industries. The Water Bath Digital comes with a motorized stirrer
for maintaining heating efficiency.
TECHNICAL DATA
 Model: PCWB-1
 Volume: 40 Ltrs.
 Display: LED (Digital)
 Accuracy: ± 2ºC
 Least Count/Resolution: 1ºC
 Power: 15A, 220V, Single phase, 50 Hz
 Motor Type: Stirrer Motor
 Motor Capacity: 1/5 HP
 Temperature Range: Up to 90ºC
Features:
 Temperature control through PT-100 sensor
 Highly accurate test results under uniform temperatures in the
chamber
 Advanced Digital Microprocessor based PID based temperature controller
 Provision of Set Value(SV) and Process Value(PV) on temperature display
 Inbuilt Auto tuning function
 Bright LED display
 Equipped with rapid heaters for uniform and homogenous heating and maintaining temperature inside the
chamber
 Integral water drain system
 Inbuilt Calibration features with reference to master PID controller
 Setting to RTD PT-100 sensor through advanced PID controller
 Stirrer motor for precise stirring of sample inside the tank and for uniformity of temperature
 Speed regulator for controlling the speed of stirrer
 The equipment is built on a rigid metallic base plate and finished in Autumn Gray & Blue combination Painting
and bright chrome/ zinc plating to give it a corrosion resistant finish.
 The instrument comes complete with instruction Manual; Calibration Certificate traceable to NABL approved
Labs.

8. LABORATORY HOT AIR OVEN
Pacorr Laboratory Hot Air Oven is used to determine various physical characteristics of different materials and products
at elevated temperatures may be carried out by heating the test specimen to the appropriate temperature inside a constant
temperature air oven and determining the required characteristics with the specimens kept under the same temperature. For
this purpose the equipment needed for conducting the determination can either be kept inside the oven along with the test
specimens, or, if this is not feasible because of certain constrains, by taking the heated specimens out from the oven and
conducting the test in still air within the shortest possible span of time.
Laboratory Hot Air Oven with digital temperature controller has a test chamber of triple walled construction. The inner
walls are made of stainless steel sheet and the outer walls of CRCA sheet duly epoxy powder coated. The chamber is fitted
with two/three adjustable perforated shelves for keeping the test specimen or the test equipment on.
The oven is heated electrically with the help of heaters placed on both sides of the chamber. An air-circulating fan is provided
for even temperature distribution. The temperature inside the test chamber is indicated and controlled with the help of a
digital temperature indicator cum controller.
TECHNICAL DATA
 Model: PCLHAO-1
 Inner dimensions of test chamber: 450 x 450 x 450 mm (18” x 18” x 18”)
 Temperature range: Ambient to 250º C
 Power Requirement: 220/ 230 V AC
 Result Display: LED (Digital)
 Tolerance: ± 2ºC
 Resolution: 1ºC
 Power Supply: 15A, 220V, Single phase, 50 Hz
 Timer Range: Up to 999 hrs.
 Temperature Range: Ambient to 250ºC
 Shelves: 2 Nos.
 Optional Size: 600 x 600 x 600mm (24” x 24” x 24”)
Features:
 Double walled chamber; inside body: stainless steel
 Outer body – Mild Steel powder Coated
 Insulation between the double walls is provided by imported mineral glass wool
 Microprocessor based Programmable Digital temperature controller cum indicator
 Special T/P action ensures that temperature does not overshoot requirement
 Temperature control through PT-100 sensor
 Highly accurate test results under uniform temperatures in the chamber
 Maximum Thermal Efficiency by insulation means.
 Digital Preset Timer
 Bright LED display
 Provision to set PV and SV value
 Equipped with rapid air circulation fan for uniform and homogenous heating and maintaining temperature inside
the chamber
 Vent for forced air changes and calibration facility
 Setting to RTD PT-100 sensor through advanced PID controller

9. ENVIRONMENTAL STRESS CRACKING RESISTANCE TESTER
Pacorr Environmental Stress Cracking Resistance Tester is a unique test cabinet designed to detect the change in the
physical characteristics of the plastic material and to ascertain the actual working life of test samples at environmental stress.
It is important resin property caused by tensile stresses.The instrument is accompanied by standard accessories such as
cutting die, glass tubes, digital temperature controller and foils. The aesthetic appeal is enhanced by the autumn gray and
blue combination finishing and bright chrome/zinc plating to ensure resistance to corrosion.
TECHNICAL DATA
 Model: PCESCRT-1
 Power : 220 V, 50 Hz, single
 Temperature Range (For Silicone Oil): From ambient to 250° C.
 Temperature Range (For Water): Ambient to 90ºC
 Least Count/Resolution: 0.1ºC
 Accuracy: ± 2ºC
 Display: LED (Digital)
 No of stations: Six.
 Material of Construction: Inner bath: Stainless Steel
 Outer body: Mild Steel duly powder coated
 Accessories: Cutting die, Nicking jig, Bending cum transfer tool and Aluminium foil – 1 no. Specimen holder, Test
tube, and Rubber cork – 6 nos. each.
 Paint: Powder coated.
Features:
 Temperature controlled through PID controller
 Advanced Digital Microprocessor based PID based temperature controller
 Provision of Set Value(SV) and Process Value(PV) on temperature display
 Inbuilt Auto tuning function
 Equipped with rapid heaters for uniform and homogenous heating and maintaining temperature inside the
chamber
 Integral water drain system
 Inbuilt Calibration features with reference to master PID controller
 Stirrer motor for precise stirring of sample inside the tank and uniformity of temperature
 A set of Test tubes along with fixture to hold samples inside the tank
 Standard: ASTM D1693-15

10. MUFFLE FURNACE
Pacorr muffle furnace is used to determine the ash content of a specimen. The percentage of ash in a material gives
important insights into the properties of the substance. This instrument is specially designed as per IS & ASTM Standards.
It finds wide application in various fields such as Medical research, agricultural, industrial, metal treatment, rubber & wool
industries, metal treatment, ash determination.
The percentage of ash is calculated as the index of added mineral matter or loading. A known weight of the specimen is
burnt, the ash is weighed, and the percentage is calculated.
TECHNICAL DATA
 Model: PCMF-1
 Inner Chamber Sizes (In Inches): 4x4x9 / 5x5x10 / 6x6x12 Inches
 Display: Digital (LED)
 Least Count/Resolution: 1ºC
 Sensor: J-type/K-type as per selection of range
 Power: 20A, 220V, Single phase, 50 Hz
 Timer Range: Up to 999 hrs.
 Temperature Range: Ranges available:
Ambient - 900ºC & Ambient - 1200ºC
Features:
 Highly accurate test results under uniform temperatures in the
chamber
 High Grade imported Glass Wool insulation
 Maximum Thermal Efficiency by insulation means.
 Advanced Digital Microprocessor based PID based temperature controller
 Auto tuning Advance PID controller
 SSR-based output controls

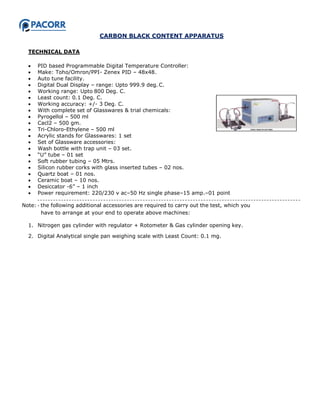

11. CARBON BLACK CONTENT APPARATUS
TECHNICAL DATA
 PID based Programmable Digital Temperature Controller:
 Make: Toho/Omron/PPI- Zenex PID – 48x48.
 Auto tune facility.
 Digital Dual Display – range: Upto 999.9 deg. C.
 Working range: Upto 800 Deg. C.
 Least count: 0.1 Deg. C.
 Working accuracy: +/- 3 Deg. C.
 With complete set of Glasswares & trial chemicals:
 Pyrogellol – 500 ml
 Cacl2 – 500 gm.
 Tri-Chloro-Ethylene – 500 ml
 Acrylic stands for Glasswares: 1 set
 Set of Glassware accessories:
 Wash bottle with trap unit – 03 set.
 “U” tube – 01 set
 Soft rubber tubing – 05 Mtrs.
 Silicon rubber corks with glass inserted tubes – 02 nos.
 Quartz boat – 01 nos.
 Ceramic boat – 10 nos.
 Desiccator -6” – 1 inch
 Power requirement: 220/230 v ac–50 Hz single phase–15 amp.–01 point
Note: ‐ the following additional accessories are required to carry out the test, which you
have to arrange at your end to operate above machines:
1. Nitrogen gas cylinder with regulator + Rotometer & Gas cylinder opening key.
2. Digital Analytical single pan weighing scale with Least Count: 0.1 mg.

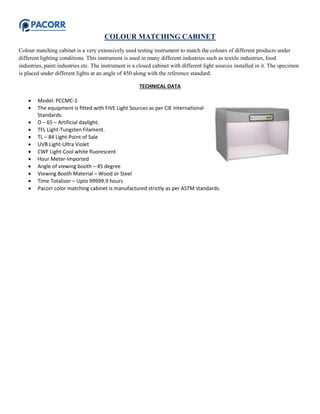

12. COLOUR MATCHING CABINET
Colour matching cabinet is a very extensively used testing instrument to match the colours of different products under
different lighting conditions. This instrument is used in many different industries such as textile industries, food
industries, paint industries etc. The instrument is a closed cabinet with different light sources installed in it. The specimen
is placed under different lights at an angle of 450 along with the reference standard.
TECHNICAL DATA
 Model: PCCMC-1
 The equipment is fitted with FIVE Light Sources as per CIE International
Standards:
 D – 65 – Artificial daylight.
 TFL Light-Tungsten Filament.
 TL – 84 Light-Point of Sale
 UVB Light-Ultra Violet
 CWF Light-Cool white fluorescent
 Hour Meter-Imported
 Angle of viewing booth – 45 degree
 Viewing Booth Material – Wood or Steel
 Time Totalizer – Upto 99999.9 hours
 Pacorr color matching cabinet is manufactured strictly as per ASTM standards.

13. PRECISION COLORIMETER
Colour is one of the most important aspects for many different industrial products such as inks, foods, paints etc. The
manufacturers need to know the exact quality and composition of the colours of the products that they are delivering to
their customers. The colorimeter is an instrument that is used in industries to determine the colour quality and composition
of different colours of products. The instrument can provide very precise testing results about the consistency as well as
the quality of colours of the products.
TECHNICAL DATA
 Model: NR110
 Illuminating/Viewing Geometry: 8/d
 Measuring Aperture: Φ4mm
 Detector: Silicon photoelectric diode
 Locating: Illuminating Locating/Cross Locating
 Measurement End Face: Large stable end-face and small concave-
convex end-face
 Color Space: CIEL*a*b*C*h* CIEL*a*b* CIEXYZ
 Color Difference Formula: △E*ab △L*a*b* △E*C*h*
 Light Source: D65
 Light Source Device: LED blue light excitation
 Errors Between Each Equipment: ≤0.80ΔE*ab
 Storage: 100pcs standards 20000pcs samples
 Repeatability: Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
 Language: English/Chinese
 Weight: 450g
 Dimension: 205×67×80 mm
 Power source: Rechargeable lithium-ion battery 3.7V@3200mAh
 Lamp Life: 5 years, more than 1.6 million measurements
 Charging Time: 8 hours–100% electricity
 PC Software: CQCS3 Software

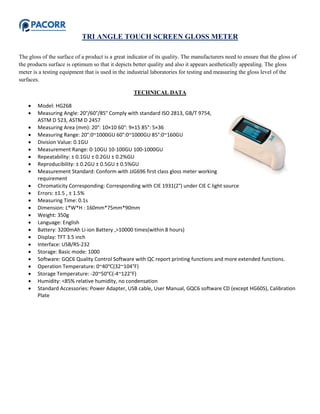

14. TRI ANGLE TOUCH SCREEN GLOSS METER
The gloss of the surface of a product is a great indicator of its quality. The manufacturers need to ensure that the gloss of
the products surface is optimum so that it depicts better quality and also it appears aesthetically appealing. The gloss
meter is a testing equipment that is used in the industrial laboratories for testing and measuring the gloss level of the
surfaces.
TECHNICAL DATA
 Model: HG268
 Measuring Angle: 20°/60°/85° Comply with standard ISO 2813, GB/T 9754,
ASTM D 523, ASTM D 2457
 Measuring Area (mm): 20°: 10×10 60°: 9×15 85°: 5×36
 Measuring Range: 20°:0~1000GU 60°:0~1000GU 85°:0~160GU
 Division Value: 0.1GU
 Measurement Range: 0-10GU 10-100GU 100-1000GU
 Repeatability: ± 0.1GU ± 0.2GU ± 0.2%GU
 Reproducibility: ± 0.2GU ± 0.5GU ± 0.5%GU
 Measurement Standard: Conform with JJG696 first class gloss meter working
requirement
 Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source
 Errors: ±1.5 , ± 1.5%
 Measuring Time: 0.1s
 Dimension: L*W*H : 160mm*75mm*90mm
 Weight: 350g
 Language: English
 Battery: 3200mAh Li-ion Battery ,>10000 times(within 8 hours)
 Display: TFT 3.5 inch
 Interface: USB/RS-232
 Storage: Basic mode: 1000
 Software: GQC6 Quality Control Software with QC report printing functions and more extended functions.
 Operation Temperature: 0~40℃(32~104°F)
 Storage Temperature: -20~50℃(-4~122°F)
 Humidity: <85% relative humidity, no condensation
 Standard Accessories: Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration
Plate

15. HARDNESS TESTER- SHORE A
The hardness tester is a testing instrument that is used in industries for testing the hardness of rubber products. The
hardness of rubber is very crucial factor that might impact its application greatly. The manufacturers need to ensure that
the hardness of the rubber products is according to the application so that the products could deliver the best efficiency.
The Hardness Tester- Shore A helps the manufacturers in testing the rubber hardness with great accuracy and hence
ensure great quality of products.
TECHNICAL DATA
 Measurement area: 0 ... 100 Shore A
 Resolution: 0.5
 Accuracy: ± 2
 Depth of indentation: 0 mm ... 2.5 mm / 0 in ... 0.01 in
 Pressure force: 1 kg / 2.2 lbs
 Indenter: 35°
 Dimensions: 80 mm x 60 mm x 25 mm / 3.14 in x 2.36 in x 0.4 in
 Power supply: 1 x 1.5V (SR44)
 Weight: Approx. 300 g / < 1 lb
HARDNESS TESTER- SHORE D
The Shore D hardness tester is an instrument that is used by rubber and polymer industries to test the hardness and quality
of the products. The Instrument offered by Paccor comes with a complete set of indenture along with a truncated conical
indent tip. The instrument is best for testing the hardness of hard rubber and elastomers. With this instrument, the
manufacturers can rest assured that the products they are offering is of great quality and durability.
TECHNICAL DATA
 Measurement range: 0 ... 100 Shore D
 Resolution: 0.5 Hardness - Grade
 Accuracy: ± 2 Hardness - Grade
 Pressure force: 5 kg / 11.02 lbs
 Indenter: 30°
 Dimensions: 85 mm x 60 mm x 25 mm / 3.3 in x 2.36 in x 0.4 in
 Power supply: 1 x 1.5V (SR44)
 Weight: 300 g / < 1 lb

16. PH METER- TABLE TOP
The pH meter is the testing instrument that is used for measurement of the pH level of industrial solutions
and liquids. The instrument is also given with a feature of temperature compensation which does the
calculation of the pH by taking the changes in the working temperature in consideration. The instrument
works on the standards prescribed by JIS and ASTM.
Product Details
 Box Size:  L30.8xW23.5xH12.4 cm
 pH Range:  -1.99 to 16.00 pH
 pH Resolution  0.01 pH
 pH Cal Points  Up to 5 points
 pH Buffer Sets  USA, NIST
 pH Accuracy  +/-0.002
 Weight  650 g
 Voltage  9 V DC adapter
 Memory Data  100 data sets
 Dimension  L17.5xW15.5xH6.9 cm
 Current  3.3 A (100/240 VAC, SMPS)
 Box Weight  1800 g
Specifications:
ORP
Range +-1999 mV
Rel. mV Range +-1999 mV
Resolution 0.1 mV (+-199.9 mV) / 1 mV (beyond)
Accuracy +-0.2 mV (+-199.9 mV) / +-2 mV (beyond)
Conductivity
Range .. S/cm to 200.0 mS/cm
Resolution 0.01 S; 0.1 S ; 1 S ; 0.01 mS ; 0.1 mS
Accuracy +-1 % full scale
Cal. Points
Automatic (4 points); maximum 1 per range; manual (5
points); maximum 1 per range
Cell Constant 0.1, 1.0, 10.0 (selectable)
TDS
Range .. to 100 ppt @ 0.5 TDS factor (to 200 ppt @ 1.0 TDS factor)
Resolution 0.01 ppm; 0.1 ppm ; 1 ppm ; 0.01 ppt ; 0.1 ppt
Accuracy +- 1 % full scale
Cal. Points Up to 5 points
TDS Factor 0.40 to 1.00 (adjustable)

17. Temperature
Range (Meter) 0.0 to 100.0 oC / 32.0 to 212.0 oF
Resolution 0.1 o C / 0.1 o F
Accuracy +- 0.5 o C / +- 0.9 o F
Coefficient (Per oC) 0.00 to 10.00 %
Normalization 15.0 to 30.0 oC (adjustable)
Compensation Type
& Range
Automatic with supplied cell or manual 0.0 to 100 oC / 32.0
to 212.0 oF, 0 to 80 oC / 32.0 to 176.0 oF with supplied cell
Calibration Offset in 0.1 o increments; offset range +- 5 oC / 9 oF

18. MOISTURE ANALYZER (MB90)
The Moisture Analyzer uses a halogen lamp to produce heat so that the moisture content is vaporized and then the
moisture content is analyzed by the sensors and the result is displayed on the digital LED display. The instrument is very
beneficial for the industries such as food industry, cement industry, pharmaceutical industries and so forth. The Instrument
is capable of giving highly precise test results again and again with great repeatability.
TECHNICAL DATA
 Maximum Capacity: 90gm
 Readability Moisture Content: 1mg/0.01%
 Pan Size: 90mm
 Heater Type: Halogen
 Communication: USB Device, RS-232
 Display: Full- Color 4.3in Touchscreen WQVGA
 Heating Profile: Standard, Fast
 In Use Cover: Included
 Moisture Range: 0% - 100%
 Net Weight: 11.53 lb (5.23Kg)
 Operating Range: 10 °C – 40 °C
 Power: 115V, 60 Hz
 Sample Size: 0.5gm – 90gm
 Shut off Criteria: Manual, Auto
 Temperature Range: 40 °C – 200 °C
 Dimensions: 7.09in x 13.98in x 8.31in (180mm x 355mm x 211mm)
 Unit of Measurement: Gram; %MC; %RG; %DC
 Working Environment: 50°F–104°F, 85%RH, non-condensing (10°C – 40°C, 85%RH, non-condensing)
