Plumbin' Pipelines
with Gulp.js

Sass CoffeeScript LESS
P o s t C S S H A M L J a d e
U g l i f y E S 6 R e a c t J S
B r o w s e r i f y A n g u l a r J S
E m b e r C S S M i n J S L i n t
ESHint ImageOptim Mocha
Jasmine TypeScript

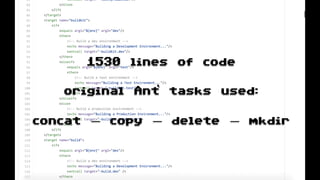

1530 lines of code

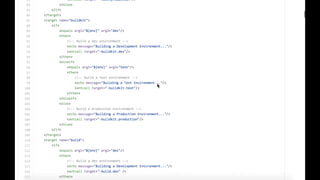

original Ant tasks used:
concat — copy — delete — mkdir

Let's talk a
short bit about
the JS build tool
revolution

I (occasionally) contribute
to Gulp

I'm writing a book on Gulp
http://bit.ly/gulp-tool-book

39% oﬀ with 39baumgar 
coupon code!

I don't know Java anymore
Java is to JavaScript what 
Alf is to Gandalf

Runtime environment
JavaScript

Package System for Node
Host of all things Gulp plugins

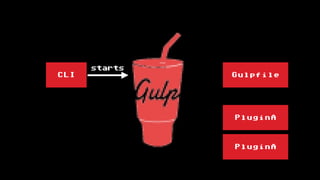

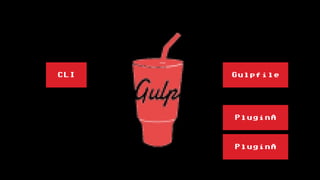

CLI Gulpfile
PluginA
PluginA
starts

CLI Gulpfile
PluginA
PluginA
loadsstarts

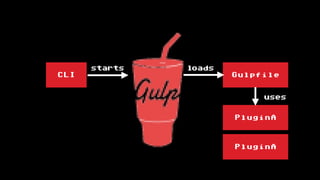

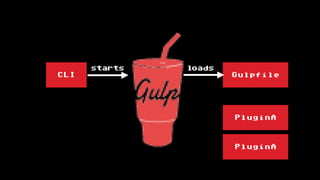

CLI Gulpfile
PluginA
PluginA
loadsstarts
uses

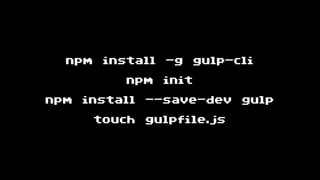

npm install -g gulp-cli
npm init
npm install --save-dev gulp
touch gulpfile.js

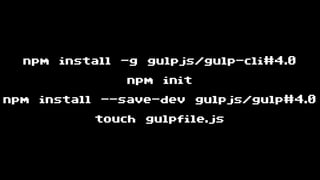

npm install -g gulpjs/gulp-cli#4.0
npm init
npm install --save-dev gulpjs/gulp#4.0
touch gulpfile.js

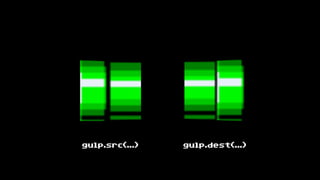

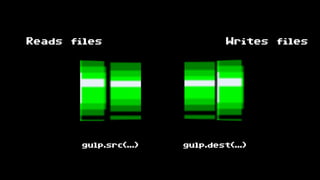

gulp.src(…) gulp.dest(…)
Reads files Writes files

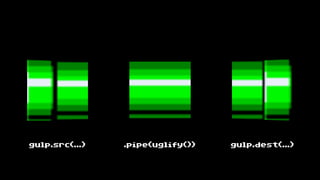

gulp.src(…) .pipe(uglify()) gulp.dest(…)

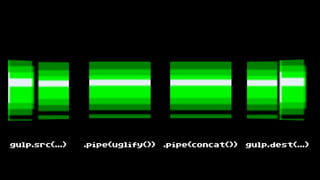

gulp.src(…) .pipe(uglify()) gulp.dest(…).pipe(concat())

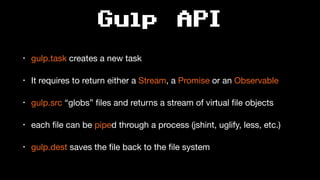

Gulp API
• gulp.task creates a new task

• It requires to return either a Stream, a Promise or an Observable

• gulp.src “globs” files and returns a stream of virtual file objects

• each file can be piped through a process (jshint, uglify, less, etc.)

• gulp.dest saves the file back to the file system

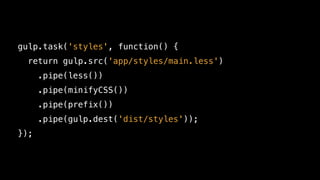

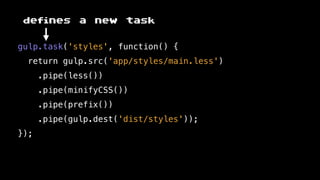

gulp.task('styles', function() {
return gulp.src('app/styles/main.less')
.pipe(less())
.pipe(minifyCSS())
.pipe(prefix())
.pipe(gulp.dest('dist/styles'));
});

.pipe(less())
.pipe(minifyCSS())
.pipe(prefix())
});
defines a new task

.pipe(less())
.pipe(minifyCSS())
.pipe(prefix())
});

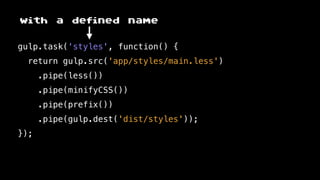

with a defined name

.pipe(less())
.pipe(minifyCSS())
.pipe(prefix())
});

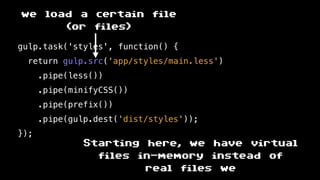

we load a certain file
(or files)
Starting here, we have virtual
files in-memory instead of
real files we

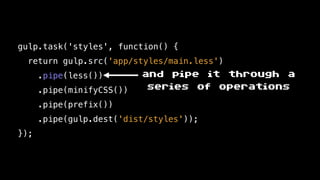

.pipe(less())
.pipe(minifyCSS())
.pipe(prefix())
});
and pipe it through a
series of operations

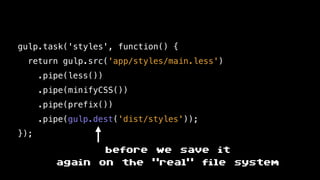

.pipe(less())
.pipe(minifyCSS())
.pipe(prefix())
});
before we save it
again on the "real" file system

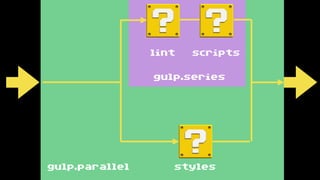

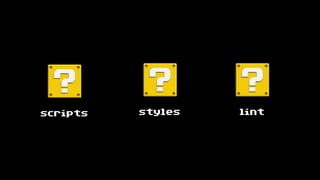

scripts
styles
lintgulp.parallel

scripts
styles
lint
gulp.parallel
gulp.series

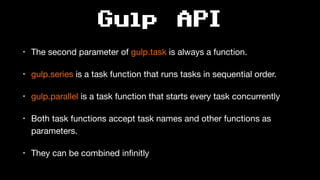

Gulp API
• The second parameter of gulp.task is always a function.

• gulp.series is a task function that runs tasks in sequential order.

• gulp.parallel is a task function that starts every task concurrently

• Both task functions accept task names and other functions as
parameters.

• They can be combined inﬁnitly

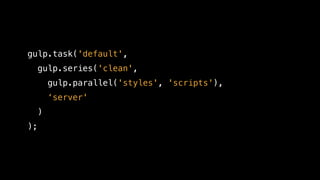

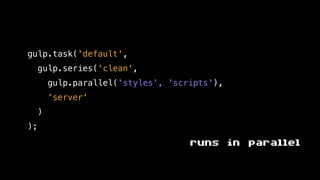

gulp.task('default',
gulp.series('clean',
gulp.parallel('styles', 'scripts'),
‘server'
)
);

‘server'
)
);
runs in series

‘server'
)
);
runs in parallel

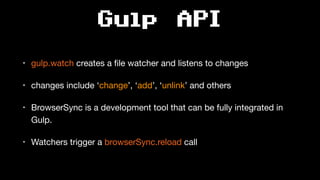

Gulp API

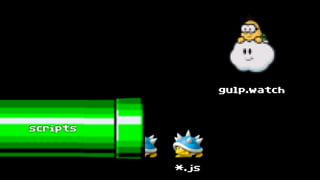

• gulp.watch creates a ﬁle watcher and listens to changes

• changes include ‘change’, ‘add’, ‘unlink’ and others

• BrowserSync is a development tool that can be fully integrated in
Gulp.

• Watchers trigger a browserSync.reload call

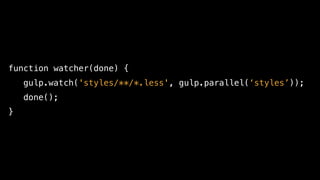

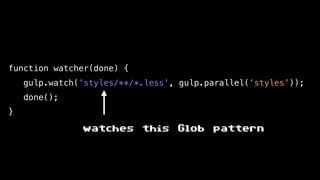

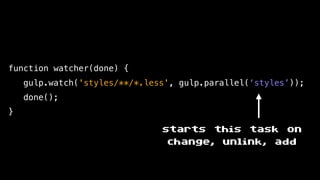

function watcher(done) {
gulp.watch('styles/**/*.less', gulp.parallel(‘styles’));
done();
}

done();
}
watches this Glob pattern

done();
}
starts this task on
change, unlink, add

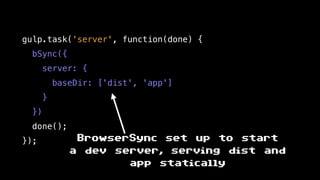

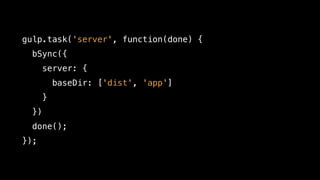

gulp.task('server', function(done) {
bSync({
server: {
baseDir: ['dist', 'app']
}
})
done();
});

gulp.task('server', function(done) {
bSync({
server: {
baseDir: ['dist', 'app']
}
})
done();
}); BrowserSync set up to start
a dev server, serving dist and
app statically

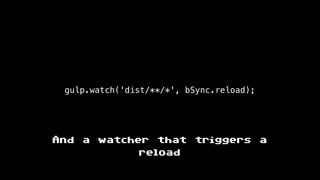

gulp.watch('dist/**/*', bSync.reload);
And a watcher that triggers a
reload

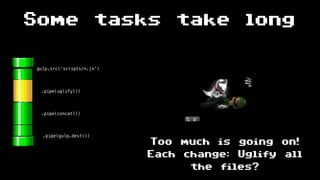

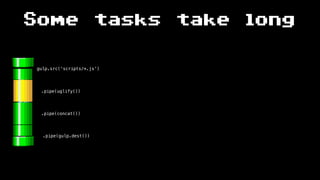

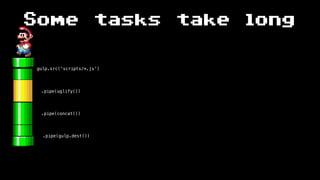

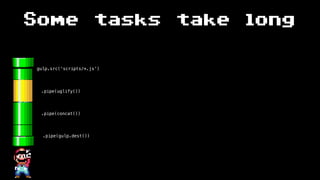

Some tasks take long
gulp.src(‘scripts/*.js’)
.pipe(uglify())
.pipe(gulp.dest())
.pipe(concat())

Some tasks take long
gulp.src(‘scripts/*.js’)
.pipe(uglify())
.pipe(gulp.dest())
.pipe(concat())
Too much is going on!
Each change: Uglify all
the files?

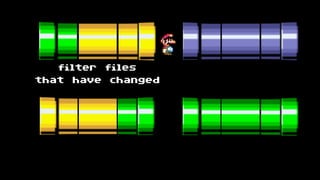

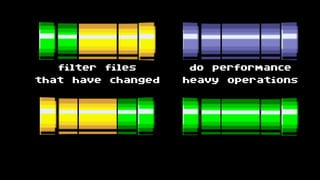

filter files
that have changed

filter files
that have changed
do performance
heavy operations

filter files
that have changed
do performance
heavy operations
remember the
old files

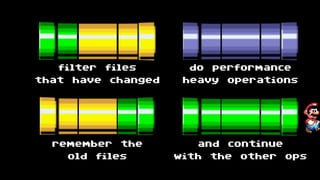

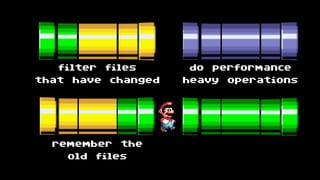

filter files
that have changed
do performance
heavy operations
remember the
old files
and continue
with the other ops

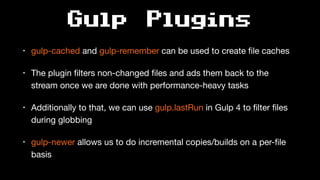

Gulp Plugins
• gulp-cached and gulp-remember can be used to create file caches

• The plugin filters non-changed files and ads them back to the
stream once we are done with performance-heavy tasks

• Additionally to that, we can use gulp.lastRun in Gulp 4 to filter files
during globbing

• gulp-newer allows us to do incremental copies/builds on a per-file
basis

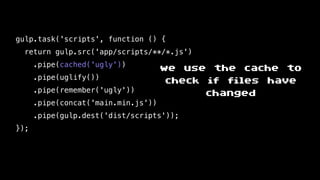

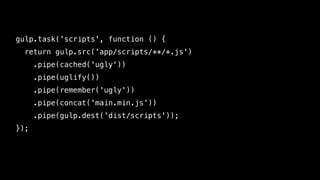

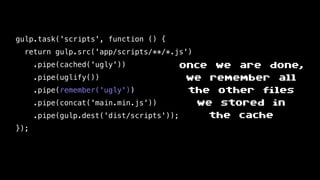

gulp.task('scripts', function () {
return gulp.src('app/scripts/**/*.js')
.pipe(cached('ugly'))
.pipe(uglify())
.pipe(remember('ugly'))
.pipe(concat('main.min.js'))
.pipe(gulp.dest('dist/scripts'));
});

.pipe(uglify())
});
we use the cache to
check if files have
changed

.pipe(uglify())
});
once we are done,
we remember all
the other files
we stored in
the cache

so similar … yet so
different?
Gulp
Streams
Browserify  
Streams

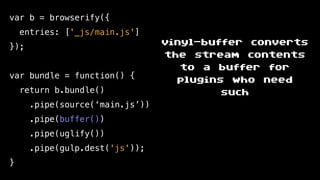

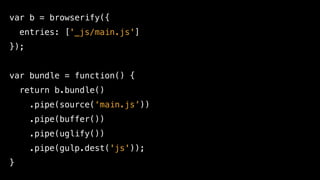

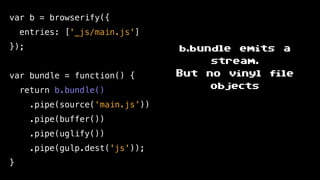

var b = browserify({
entries: ['_js/main.js']
});
var bundle = function() {
return b.bundle()
.pipe(source(‘main.js’))
.pipe(buffer())
.pipe(uglify())
.pipe(gulp.dest('js'));
}

});
return b.bundle()
.pipe(buffer())
.pipe(uglify())
}
b.bundle emits a
stream.
But no vinyl file
objects

});
return b.bundle()
.pipe(buffer())
.pipe(uglify())
}

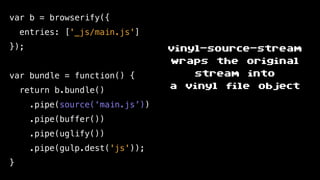

vinyl-source-stream
wraps the original
stream into
a vinyl file object

});
return b.bundle()
.pipe(buffer())
.pipe(uglify())
}
vinyl-buffer converts
the stream contents
to a buffer for
plugins who need
such

Stream arrays
and merge Streams

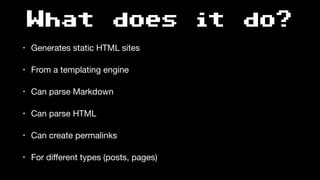

What does it do?
• Generates static HTML sites

• From a templating engine

• Can parse Markdown

• Can parse HTML

• Can create permalinks

• For diﬀerent types (posts, pages)

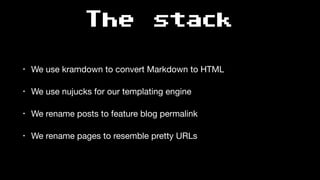

The stack
• We use kramdown to convert Markdown to HTML

• We use nujucks for our templating engine

• We rename posts to feature blog permalink

• We rename pages to resemble pretty URLs

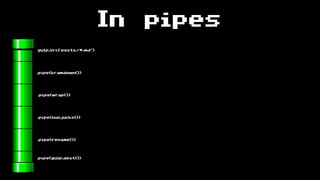

In pipes
gulp.src(‘posts/*.md')
.pipe(kramdown())
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())

In pipes
.pipe(kramdown())
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())
gulp.src(‘posts/*.html')
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())

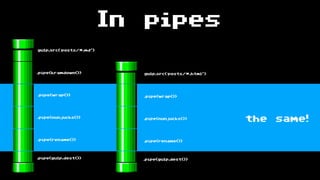

In pipes
.pipe(kramdown())
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())
gulp.src(‘posts/*.html')
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())
the same!

In pipes
gulp.src(‘pages/*.md')
.pipe(kramdown())
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())
gulp.src(‘pages/*.html')
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())

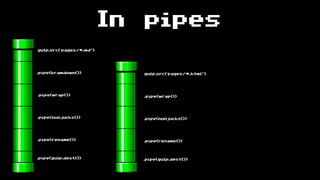

In pipes
gulp.src(‘pages/*.md')
.pipe(kramdown())
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())
gulp.src(‘pages/*.html')
.pipe(wrap())
.pipe(nunjucks())
.pipe(rename())
.pipe(gulp.dest())
the same!

What if we could
reuse parts of the
stream?

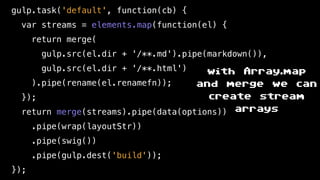

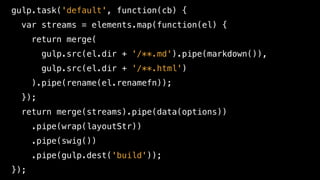

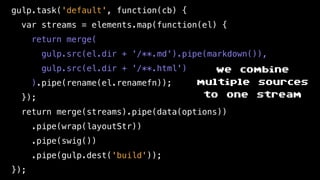

gulp.task('default', function(cb) {
var streams = elements.map(function(el) {
return merge(
gulp.src(el.dir + '/**.md').pipe(markdown()),
gulp.src(el.dir + '/**.html')
).pipe(rename(el.renamefn));
});
return merge(streams).pipe(data(options))
.pipe(wrap(layoutStr))
.pipe(swig())
.pipe(gulp.dest('build'));
});

return merge(
});
.pipe(swig())
});
we combine
multiple sources
to one stream

return merge(
});
.pipe(swig())
});
with Array.map
and merge we can
create stream
arrays

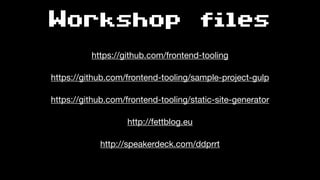

Workshop files
https://github.com/frontend-tooling

https://github.com/frontend-tooling/sample-project-gulp

https://github.com/frontend-tooling/static-site-generator

http://fettblog.eu

http://speakerdeck.com/ddprrt

Reading Material
http://bit.ly/gulp-tool-book

39% oﬀ with 39baumgar 
coupon code!
