1. design
tooling
systems⛏
"

2. @luka5c0m

3. @ddprrt

4. design systems

5. design systems engineering

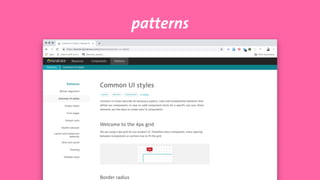

7. patterns

8. components

9. prototypes

10. and tools…

11. the sketchmine
a place to scrape diamonds

12. when did you last ship
a sketchfile into production?

13. Initial idea

14. UX + design
Initial idea

15. UX + design
Initial idea
Sketch lib

16. UX + design
Initial idea
Product
code
Sketch lib

17. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib

18. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib
Barista
Design System

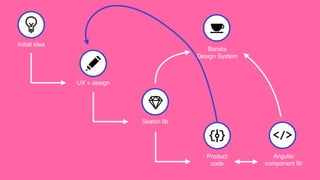

19. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib
Barista
Design System

20. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib
Barista
Design System

21. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib
Barista
Design System

22. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib
Barista
Design System

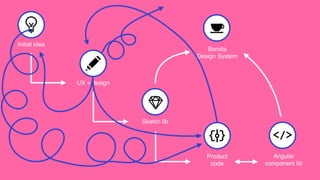

23. UX + design
Initial idea
Angular
component lib
Product
code
Sketch lib
Barista
Design System

25. Angular
component lib
Barista
Design System
Sketch lib
Product
code
UX + design

27. the sketchmine
a place to scrape diamonds

28. Generating designs
from code d#

29. Generating designs
from code d#
$➜ yarn global add @sketchmine/sketch-builder

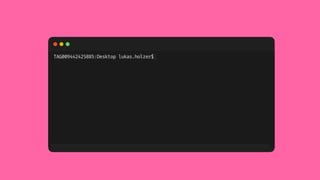

30. Generating designs
from code d#
$➜ skm-sketch-builder

33. So now we can draw
any web page

34. but what if we want to draw
our components library?

35. sketch-builder
generates a .sketch file from any website

36. sketch-builder
app-builder
generates a .sketch file from any website
generates the angular application that can be drawn

37. sketch-builder
code-analyser
app-builder
generates a .sketch file from any website
generates the angular application that can be drawn
generates an abstract syntax tree out of the component library

38. sketch-builder
code-analyser
app-builder
angular components
generates a .sketch file from any website
generates the angular application that can be drawn
generates an abstract syntax tree out of the component library

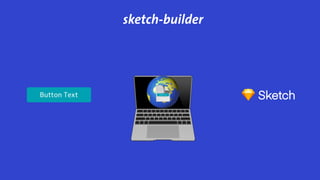

39. sketch-builder

40. %&'
sketch-builder

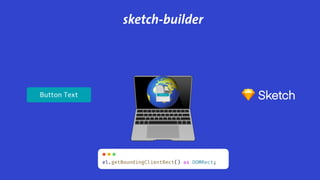

41. %&'
el.getBoundingClientRect() as DOMRect;
sketch-builder

42. %&'
const style = getComputedStyle(element);
sketch-builder

43. (⛏
%&'
background-color: #00A1B2
font-size: 16px
font-family: Bernina Sans
width: auto
height: 32px
text-align: center
const style = getComputedStyle(element);
sketch-builder

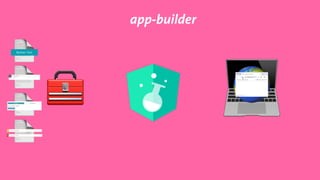

44. app-builder
) %&

45. app-builder
) %&'
'
'
'

46. app-builder
) %&'
'
'
'

47. app-builder
) %&''''

48. code-analyser export type ButtonVariant = 'primary' | 'secondary' | 'nested';
export type DtButtonThemePalette = 'main' | 'warning' | 'cta';
/**
* Dynatrace design button.
* @design-focusable
*/
@Component({
selector: `button[dt-button], button[dt-icon-button]`,
inputs: ['disabled', 'color'],
})
export class DtButton extends _DtButtonMixinBase
implements CanDisable, CanColor<DtButtonThemePalette> {
@Input()
get variant(): ButtonVariant { ... }
set variant(value: ButtonVariant) { ... }
private _variant: ButtonVariant;
@ContentChildren(DtIcon) _icons: QueryList<DtIcon>;
focus(): void { ... }
private _somePrivateMethod(): void { }
private _yetAnotherPrivateMethod( ...attributes: string[]): boolean { ... }
}

49. code-analyser export type ButtonVariant = 'primary' | 'secondary' | 'nested';
export type DtButtonThemePalette = 'main' | 'warning' | 'cta';
/**
* Dynatrace design button.
* @design-focusable
*/
@Component({
selector: `button[dt-button], button[dt-icon-button]`,
inputs: ['disabled', 'color'],
})
export class DtButton extends _DtButtonMixinBase
implements CanDisable, CanColor<DtButtonThemePalette> {
@Input()
get variant(): ButtonVariant { ... }
set variant(value: ButtonVariant) { ... }
private _variant: ButtonVariant;
@ContentChildren(DtIcon) _icons: QueryList<DtIcon>;
focus(): void { ... }
private _somePrivateMethod(): void { }
private _yetAnotherPrivateMethod( ...attributes: string[]): boolean { ... }
}
*

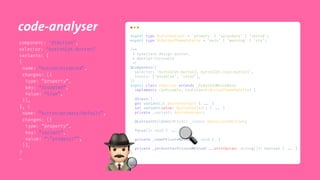

50. variants: [
{
name: “button/disabled”,
changes: [{
type: “property”,
key: “disabled”,
Value: “true”,
}],
}
code-analyser export type ButtonVariant = 'primary' | 'secondary' | 'nested';
export type DtButtonThemePalette = 'main' | 'warning' | 'cta';
/**
* Dynatrace design button.
* @design-focusable
*/
@Component({
selector: `button[dt-button], button[dt-icon-button]`,
inputs: ['disabled', 'color'],
})
export class DtButton extends _DtButtonMixinBase
implements CanDisable, CanColor<DtButtonThemePalette> {
@Input()
get variant(): ButtonVariant { ... }
set variant(value: ButtonVariant) { ... }
private _variant: ButtonVariant;
@ContentChildren(DtIcon) _icons: QueryList<DtIcon>;
focus(): void { ... }
private _somePrivateMethod(): void { }
private _yetAnotherPrivateMethod( ...attributes: string[]): boolean { ... }
}
+
}, {
name: “button/primary/default”,
changes: [{
type: “property”,
key: “variant”,
value: “”primary””,
}],
}
…
component: ‘DtButton’,
selector: ‘button[dt-button]’
*

51. %&)*
'
'

52. %&)* ''

56. a pure example ,

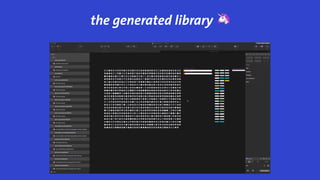

57. the generated library -

58. can I work with the library?

59. So which other tools are in
the mine?

60. So which other tools are in
the mine?

62. validating our
designs
.
Sketch Validation

63. validating our
designs
.
Sketch Validation

64. let’s / it ☝

65. %&)*'

66. %&)* ''
⛏

67. honorable mentions

71. Slide about usKatrin Freihofner
@Ka_TriN_F
devone.at

72. need that?

73. https://github.com/Dynatrace/sketchmine
@luka5c0m
npm @sketchmine
@ddprrt
