2. Who are we?
Michael Dougherty
@maackle
Senior Front-end Engineer
CrowdStreet, Inc.
Hannes Hapke
@hanneshapke
Software Engineer
Talentpair, Inc.

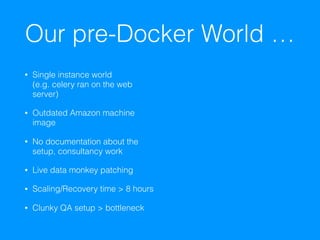

3. Our pre-Docker World …
• Single instance world
(e.g. celery ran on the web
server)
• Outdated Amazon machine
• No documentation about the
setup, consultancy work
• Live data monkey patching
• Scaling/Recovery time > 8 hours
• Clunky QA setup > bottleneck

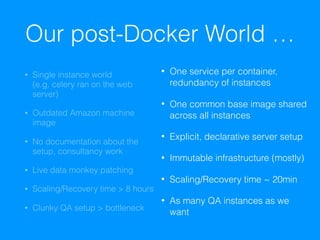

4. Our post-Docker World …
• Single instance world
(e.g. celery ran on the web
server)
• Outdated Amazon machine
• No documentation about the
setup, consultancy work
• Live data monkey patching
• Scaling/Recovery time > 8 hours
• Clunky QA setup > bottleneck
• One service per container,
redundancy of instances
• One common base image shared
across all instances
• Explicit, declarative server setup
• Immutable infrastructure (mostly)
• Scaling/Recovery time ~ 20min
• As many QA instances as we
want

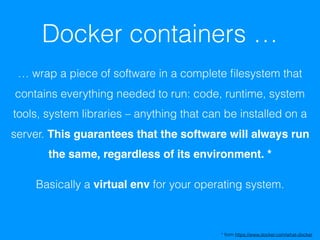

6. Docker containers …
… wrap a piece of software in a complete filesystem that
contains everything needed to run: code, runtime, system
tools, system libraries – anything that can be installed on a
server. This guarantees that the software will always run
the same, regardless of its environment. *
Basically a virtual env for your operating system.
* from https://www.docker.com/what-docker
10. • Create a Dockerfile
• Build the Docker image and push it to the docker registry
Plain Docker
FROM ubuntu:16.04
RUN apt-get update && apt-get upgrade -y
RUN pip install Django
COPY requirements.txt .
WORKDIR /dev
$ docker build -t your_project/your-whale .
$ docker images
$ docker tag {image_hash} your_project/your-whale:latest
$ docker push

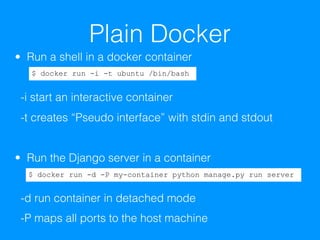

11. Plain Docker
• Run a shell in a docker container
-i start an interactive container
-t creates “Pseudo interface” with stdin and stdout
• Run the Django server in a container
-d run container in detached mode
-P maps all ports to the host machine
$ docker run -i -t ubuntu /bin/bash
$ docker run -d -P my-container python manage.py run server

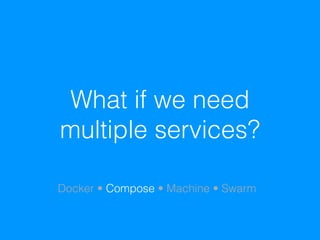

12. What if we need
multiple services?
Docker • Compose • Machine • Swarm

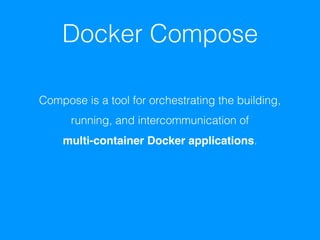

13. Docker Compose
Compose is a tool for orchestrating the building,
running, and intercommunication of
multi-container Docker applications.

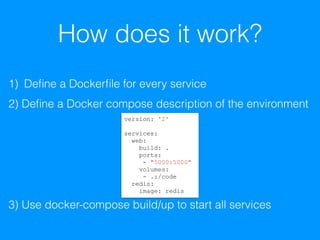

14. How does it work?
1) Define a Dockerfile for every service
2) Define a Docker compose description of the environment
3) Use docker-compose build/up to start all services
version: '2'
services:
web:
build: .
ports:
- "5000:5000"
volumes:
- .:/code
redis:
image: redis

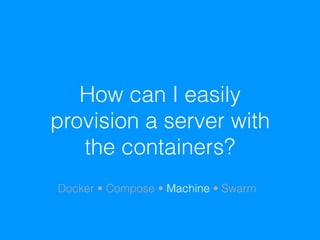

15. How can I easily
provision a server with
the containers?
Docker • Compose • Machine • Swarm

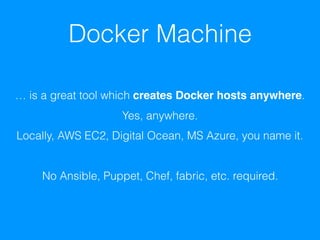

16. Docker Machine
… is a great tool which creates Docker hosts anywhere.
Yes, anywhere.
Locally, AWS EC2, Digital Ocean, MS Azure, you name it.
No Ansible, Puppet, Chef, fabric, etc. required.
17. What if I need multiple
instances with multiple
services?
Docker • Compose • Machine • Swarm
20. If you start from scratch …
• Docker documentation includes a great Django
setup
• Too much work? The Django Cookie Cutter
template includes a great Docker setup
Other projects:
• django-docker on github

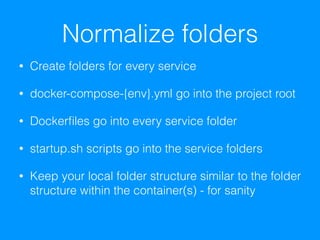

23. Normalize folders
• Create folders for every service
• docker-compose-{env}.yml go into the project root
• Dockerfiles go into every service folder
• startup.sh scripts go into the service folders
• Keep your local folder structure similar to the folder
structure within the container(s) - for sanity

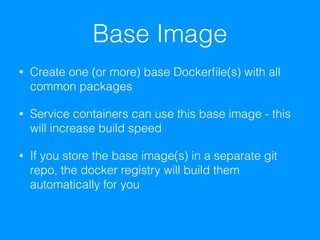

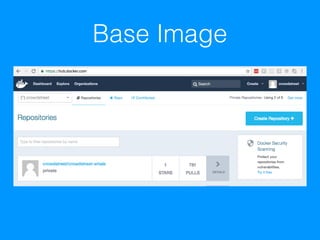

26. Base Image
• Create one (or more) base Dockerfile(s) with all
common packages
• Service containers can use this base image - this
will increase build speed
• If you store the base image(s) in a separate git
repo, the docker registry will build them
automatically for you

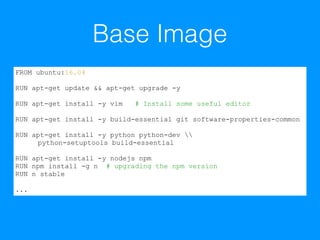

27. Base Image
FROM ubuntu:16.04
RUN apt-get update && apt-get upgrade -y
RUN apt-get install -y vim # Install some useful editor
RUN apt-get install -y build-essential git software-properties-common
RUN apt-get install -y python python-dev
python-setuptools build-essential
RUN apt-get install -y nodejs npm
RUN npm install -g n # upgrading the npm version
RUN n stable
...

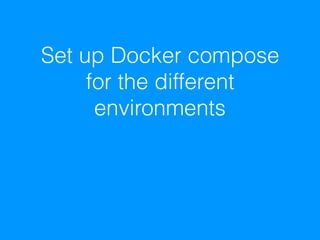

29. Set up Docker compose
for the different
environments
30. Docker Compose
• For every environment, local, QA, staging,
production, define a docker-compose-{env}.yml file
• The files describe the environment stack
• Each service within the docker-compose file can
have it’s own Dockerfile

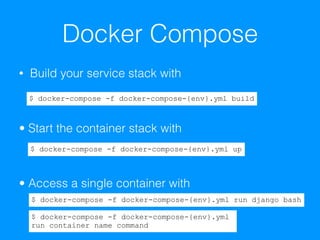

33. Docker Compose
• Build your service stack with
• Start the container stack with
• Access a single container with
$ docker-compose -f docker-compose-{env}.yml build
$ docker-compose -f docker-compose-{env}.yml up
$ docker-compose -f docker-compose-{env}.yml run django bash
$ docker-compose -f docker-compose-{env}.yml
run container name command

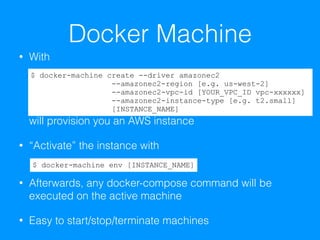

38. Docker Machine
• With
will provision you an AWS instance
• “Activate” the instance with
• Afterwards, any docker-compose command will be
executed on the active machine
• Easy to start/stop/terminate machines
$ docker-machine create --driver amazonec2
--amazonec2-region [e.g. us-west-2]
--amazonec2-vpc-id [YOUR_VPC_ID vpc-xxxxxx]
--amazonec2-instance-type [e.g. t2.small]
[INSTANCE_NAME]
$ docker-machine env [INSTANCE_NAME]

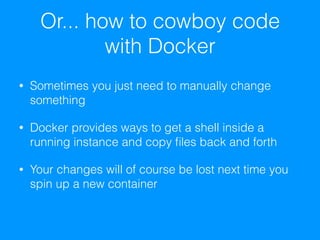

41. Or... how to cowboy code
with Docker
• Sometimes you just need to manually change
something
• Docker provides ways to get a shell inside a
running instance and copy files back and forth
• Your changes will of course be lost next time you
spin up a new container
42. The Disciplined Way:
The Cowboy Way:
$ docker-compose run django bash
$ docker exec -it {container_id} bash

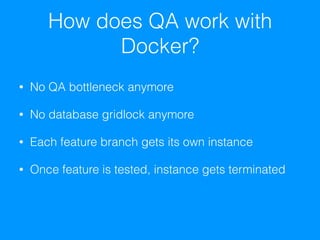

43. How does QA work with
Docker?
• No QA bottleneck anymore
• No database gridlock anymore
• Each feature branch gets its own instance
• Once feature is tested, instance gets terminated

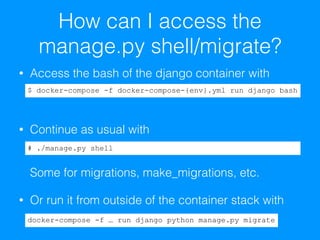

44. How can I access the
manage.py shell/migrate?
• Access the bash of the django container with
• Continue as usual with
Some for migrations, make_migrations, etc.
• Or run it from outside of the container stack with
$ docker-compose -f docker-compose-{env}.yml run django bash
# ./manage.py shell
docker-compose -f … run django python manage.py migrate

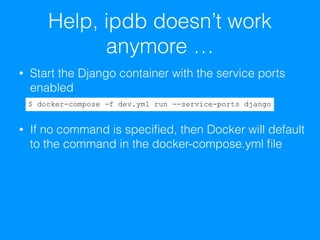

45. Help, ipdb doesn’t work
anymore …
• Start the Django container with the service ports
enabled
• If no command is specified, then Docker will default
to the command in the docker-compose.yml file
$ docker-compose -f dev.yml run --service-ports django

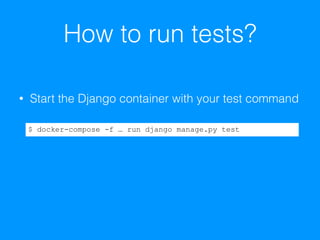

46. How to run tests?
• Start the Django container with your test command
$ docker-compose -f … run django manage.py test

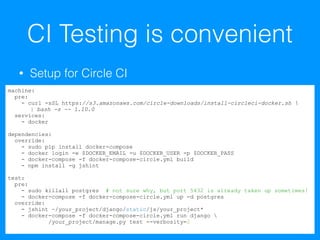

47. CI Testing is convenient
• Setup for Circle CI
machine:
pre:
- curl -sSL https://s3.amazonaws.com/circle-downloads/install-circleci-docker.sh
| bash -s -- 1.10.0
services:
- docker
dependencies:
override:
- sudo pip install docker-compose
- docker login -e $DOCKER_EMAIL -u $DOCKER_USER -p $DOCKER_PASS
- docker-compose -f docker-compose-circle.yml build
- npm install -g jshint
test:
pre:
- sudo killall postgres # not sure why, but port 5432 is already taken up sometimes!
- docker-compose -f docker-compose-circle.yml up -d postgres
override:
- jshint ~/your_project/django/static/js/your_project*
- docker-compose -f docker-compose-circle.yml run django
/your_project/manage.py test --verbosity=2

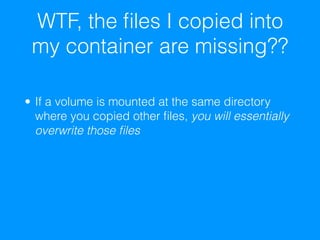

48. WTF, the files I copied into
my container are missing??
• If a volume is mounted at the same directory
where you copied other files, you will essentially
overwrite those files

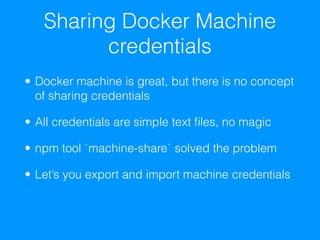

49. Sharing Docker Machine
credentials
• Docker machine is great, but there is no concept
of sharing credentials
• All credentials are simple text files, no magic
• npm tool `machine-share` solved the problem
• Let’s you export and import machine credentials

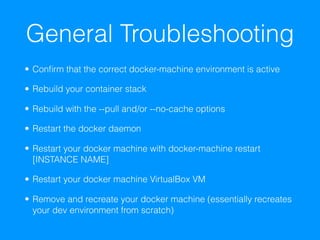

50. General Troubleshooting
• Confirm that the correct docker-machine environment is active
• Rebuild your container stack
• Rebuild with the --pull and/or --no-cache options
• Restart the docker daemon
• Restart your docker machine with docker-machine restart
[INSTANCE NAME]
• Restart your docker machine VirtualBox VM
• Remove and recreate your docker machine (essentially recreates
your dev environment from scratch)

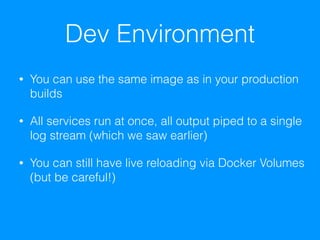

52. Dev Environment
• You can use the same image as in your production
builds

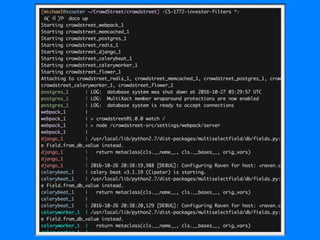

• All services run at once, all output piped to a single
log stream (which we saw earlier)
• You can still have live reloading via Docker Volumes
(but be careful!)

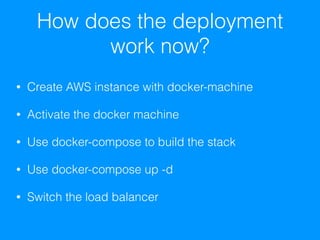

53. How does the deployment
work now?
• Create AWS instance with docker-machine
• Activate the docker machine
• Use docker-compose to build the stack
• Use docker-compose up -d
• Switch the load balancer

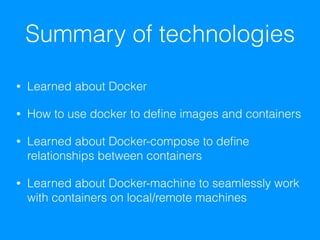

54. Summary of technologies
• Learned about Docker
• How to use docker to define images and containers
• Learned about Docker-compose to define
relationships between containers
• Learned about Docker-machine to seamlessly work
with containers on local/remote machines

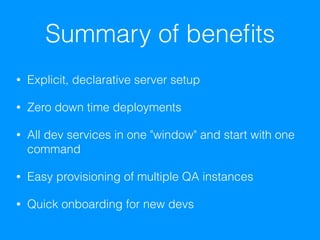

55. Summary of benefits
• Explicit, declarative server setup
• Zero down time deployments
• All dev services in one "window" and start with one
command
• Easy provisioning of multiple QA instances
• Quick onboarding for new devs
