1. More Advanced PL/SQL
Programming

2. Lesson B Objectives
After completing this lesson, you should be able
to:
• Create PL/SQL decision control structures
• Use SQL queries in PL/SQL programs
• Create loops in PL/SQL programs
• Create PL/SQL tables and tables of records
• Use cursors to retrieve database data into
PL/SQL programs
• Use the exception section to handle errors in
PL/SQL programs
2

3. IF/THEN
•
•
•
Decision control structures
– Alter order in which statements execute
– Based on values of certain variables
Syntax:
IF condition THEN
commands that execute if condition is TRUE;
END IF;
Condition
– Expression evaluates to TRUE or FALSE
– If TRUE commands execute
3

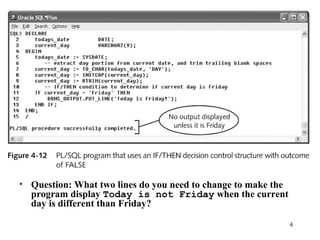

4. • Question: What two lines do you need to change to make the
program display Today is not Friday when the current
day is different than Friday?
4

5. • Syntax:
IF/THEN/ELSE
IF condition THEN
commands that execute if condition is TRUE;
ELSE
commands that execute if condition is FALSE;
END IF;
• Evaluates ELSE command if condition FALSE
Nested IF/THEN/ELSE
• Placing one or more IF/THEN/ELSE statements
within program statements that execute after IF or
ELSE command
• Important to properly indent program lines
5

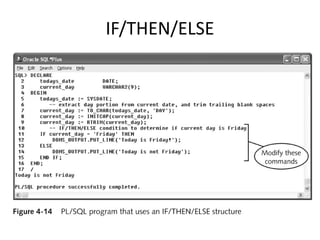

6. IF/THEN/ELSE

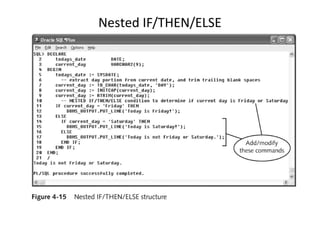

7. Nested IF/THEN/ELSE

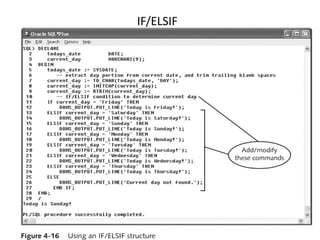

8. IF/ELSIF
8

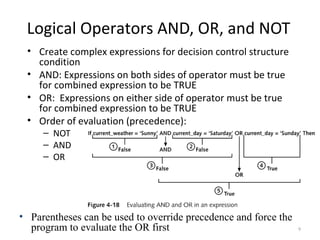

9. Logical Operators AND, OR, and NOT
• Create complex expressions for decision control structure
condition
• AND: Expressions on both sides of operator must be true
for combined expression to be TRUE
• OR: Expressions on either side of operator must be true
for combined expression to be TRUE
• Order of evaluation (precedence):
– NOT
– AND
– OR
• Parentheses can be used to override precedence and force the
program to evaluate the OR first
9

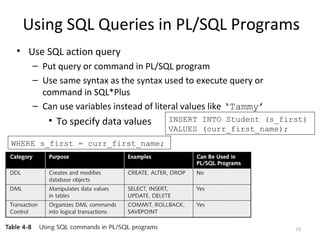

10. Using SQL Queries in PL/SQL Programs
• Use SQL action query
– Put query or command in PL/SQL program
– Use same syntax as the syntax used to execute query or
command in SQL*Plus
– Can use variables instead of literal values like ‘Tammy’
• To specify data values
INSERT INTO Student (s_first)
VALUES (curr_first_name);
WHERE s_first = curr_first_name;
10

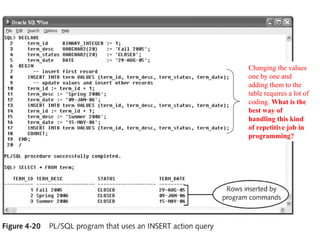

11. Changing the values
one by one and
adding them to the
table requires a lot of
coding. What is the
best way of
handling this kind
of repetitive job in
programming?

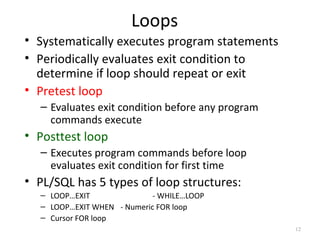

12. Loops
• Systematically executes program statements
• Periodically evaluates exit condition to
determine if loop should repeat or exit
• Pretest loop
– Evaluates exit condition before any program
commands execute
• Posttest loop
– Executes program commands before loop
evaluates exit condition for first time
• PL/SQL has 5 types of loop structures:
– LOOP…EXIT
- WHILE…LOOP
– LOOP…EXIT WHEN - Numeric FOR loop
– Cursor FOR loop
12

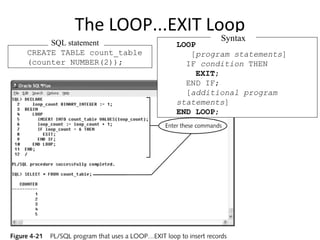

13. The LOOP...EXIT Loop
SQL statement
CREATE TABLE count_table
(counter NUMBER(2));
• Pretest or posttest
• Syntax:
Syntax
LOOP
[program statements]
IF condition THEN
EXIT;
END IF;
[additional program
statements]
END LOOP;

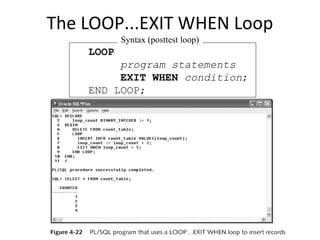

14. The LOOP...EXIT WHEN Loop
Syntax (posttest loop)
LOOP
program statements
EXIT WHEN condition;
END LOOP;

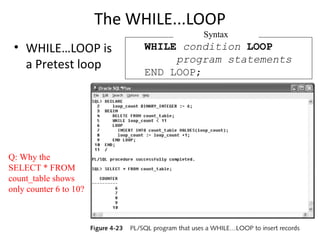

15. The WHILE...LOOP
Syntax
• WHILE…LOOP is
a Pretest loop
Q: Why the
SELECT * FROM
count_table shows
only counter 6 to 10?
WHILE condition LOOP
program statements
END LOOP;

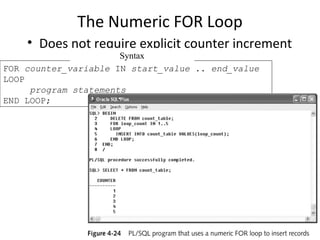

16. The Numeric FOR Loop
• Does not require explicit counter increment
Syntax
FOR counter_variable IN start_value .. end_value
LOOP
program statements
END LOOP;

17. Cursor
• A pointer to memory location on database
server
• Used to:
– Retrieve and manipulate database data in
PL/SQL programs
• Types:
– Implicit cursor
– Explicit cursor

18. Implicit Cursors
• Context area
– A memory location created by INSERT, UPDATE, DELETE, or
SELECT
– Contains information about query (# rows, etc.)
• Active set
– Set of data rows that query retrieves when a SELECT query
is issued
• Implicit cursor
– A pointer to the context area
– Called so, because you do not need to write code to
explicitly create the cursor or retrieve its values
– Used to assign output of SELECT query to PL/SQL program
variables when query will return only one record*
* Error occurs if query returns no records or more than one record

19. Implicit Cursors (continued)
• To retrieve data using implicit cursor in
PL/SQL, you add an INTO clause to the SELECT
query
• Syntax:
SELECT field1, field2, ...
INTO variable1, variable2, ...
FROM table1, table2, ...
WHERE join_conditions
AND search_condition_to_retrieve_1_record;
• Variables must be declared in Declaration
section
• Variables must have same data types as fields
• To avoid errors, %TYPE reference data type
should be used

20. Implicit Cursors (continued)

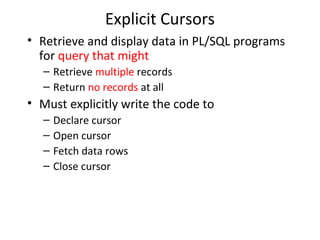

21. Explicit Cursors
• Retrieve and display data in PL/SQL programs
for query that might
– Retrieve multiple records
– Return no records at all
• Must explicitly write the code to
–
–
–
–
Declare cursor
Open cursor
Fetch data rows
Close cursor

22. Explicit Cursors (continued)
• Declare explicit cursor syntax:
– CURSOR cursor_name IS select_query;
• Open explicit cursor syntax:
– OPEN cursor_name;
• Fetch values using LOOP…EXIT WHEN loop:
LOOP
FETCH cursor_name INTO
variable_name(s);
EXIT WHEN cursor_name%NOTFOUND;
• Close cursor syntax:
– CLOSE cursor_name;
Note: When the cursor is declared, system doesn’t check syntax error in the
query. It creates the memory structure to store the active set. The PL/SQL
interpreter checks for error and interprets the query when opening the cursor

23. Q: At this point, what is the
value for current_bldg_code?

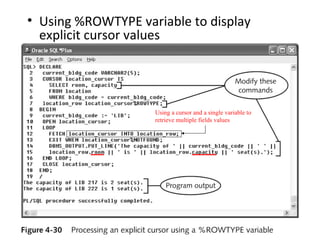

24. • Using %ROWTYPE variable to display
explicit cursor values
Using a cursor and a single variable to
retrieve multiple fields values

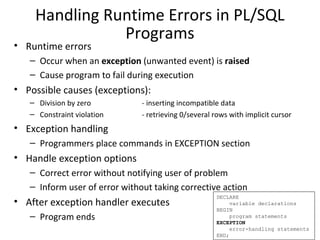

25. Handling Runtime Errors in PL/SQL
Programs
• Runtime errors
– Occur when an exception (unwanted event) is raised
– Cause program to fail during execution
• Possible causes (exceptions):
– Division by zero
– Constraint violation
- inserting incompatible data
- retrieving 0/several rows with implicit cursor
• Exception handling
– Programmers place commands in EXCEPTION section
• Handle exception options
– Correct error without notifying user of problem
– Inform user of error without taking corrective action
• After exception handler executes
– Program ends
DECLARE
variable declarations
BEGIN
program statements
EXCEPTION
error-handling statements
END;

26. •
Handling error procedure depends the type of exception:
– Predefined exception
– User-defined exception
- undefined exception

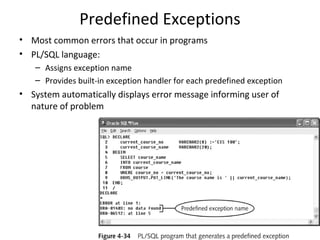

27. Predefined Exceptions
• Most common errors that occur in programs
• PL/SQL language:
– Assigns exception name
– Provides built-in exception handler for each predefined exception
• System automatically displays error message informing user of
nature of problem

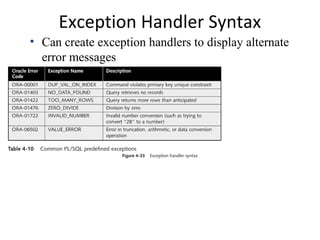

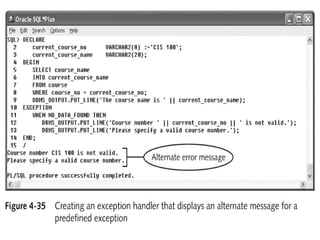

28. Exception Handler Syntax
• Can create exception handlers to display alternate
error messages

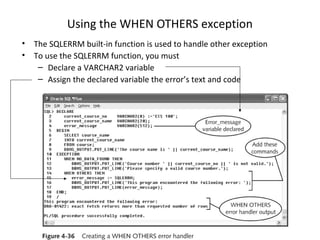

30. Using the WHEN OTHERS exception
•
•
The SQLERRM built-in function is used to handle other exception
To use the SQLERRM function, you must
– Declare a VARCHAR2 variable
– Assign the declared variable the error’s text and code

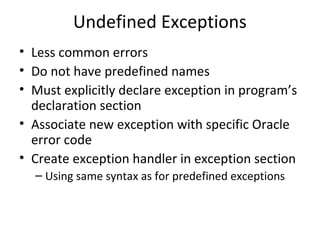

31. Undefined Exceptions
• Less common errors
• Do not have predefined names
• Must explicitly declare exception in program’s
declaration section
• Associate new exception with specific Oracle
error code
• Create exception handler in exception section
– Using same syntax as for predefined exceptions

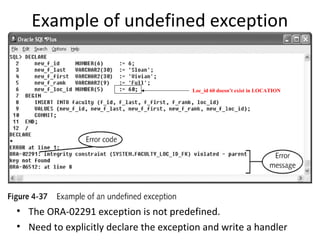

32. Example of undefined exception
Loc_id 60 doesn’t exist in LOCATION
• The ORA-02291 exception is not predefined.
• Need to explicitly declare the exception and write a handler

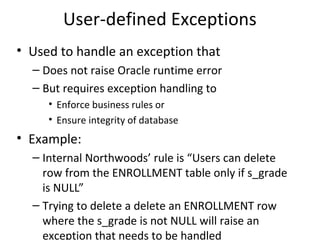

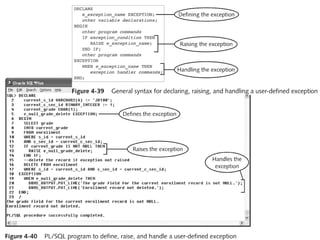

33. User-defined Exceptions
• Used to handle an exception that
– Does not raise Oracle runtime error
– But requires exception handling to
• Enforce business rules or
• Ensure integrity of database
• Example:
– Internal Northwoods’ rule is “Users can delete
row from the ENROLLMENT table only if s_grade
is NULL”
– Trying to delete a delete an ENROLLMENT row
where the s_grade is not NULL will raise an
exception that needs to be handled
