PiST/// Workshop
The 3-day workshop will have participants create an interactive sound installation controlled over the internet. Day 1 involves collecting sound-making devices from junk markets and circuit bending them. Day 2 is building control electronics with an Arduino and custom circuit boards. Day 3 has participants program a web interface and connect the devices to the internet. An evening performance will invite others to control the installation remotely over WiFi on their smartphones and laptops.
More Related Content
PiST/// Workshop

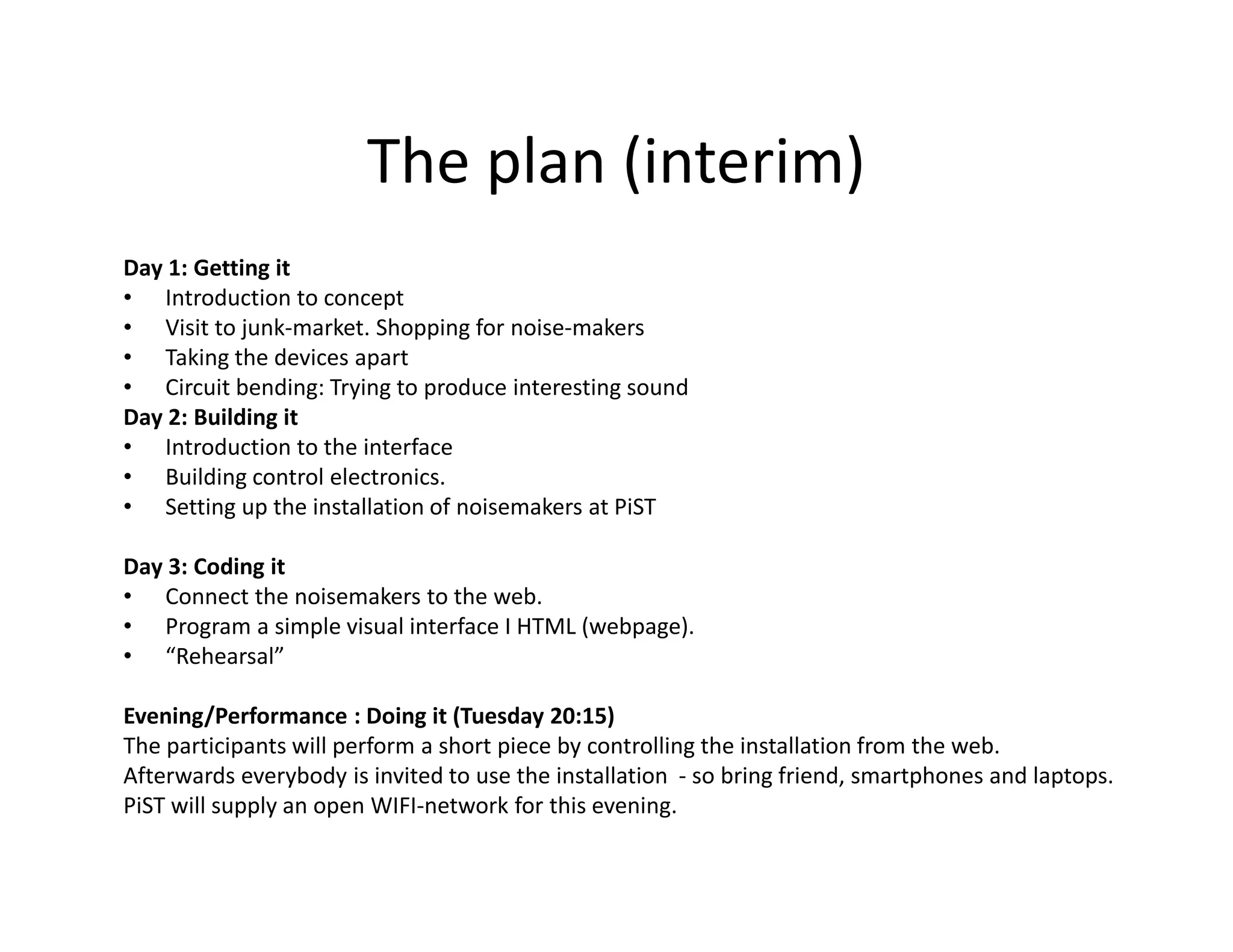

- 2. The plan (interim) Day1: Getting it • Introduction to concept • Visit to junk-market. Shopping for noise-makers • Taking the devices apart • Circuit bending: Trying to produce interesting sound Day 2: Building it • Introduction to the interface • Building control electronics. • Setting up the installation of noisemakers at PiST Day 3: Coding it • Connect the noisemakers to the web. • Program a simple visual interface I HTML (webpage). • “Rehearsal” Evening/Performance : Doing it (Tuesday 20:15) The participants will perform a short piece by controlling the installation from the web. Afterwards everybody is invited to use the installation - so bring friend, smartphones and laptops. PiST will supply an open WIFI-network for this evening.
- 3. Workshop – Notlecture

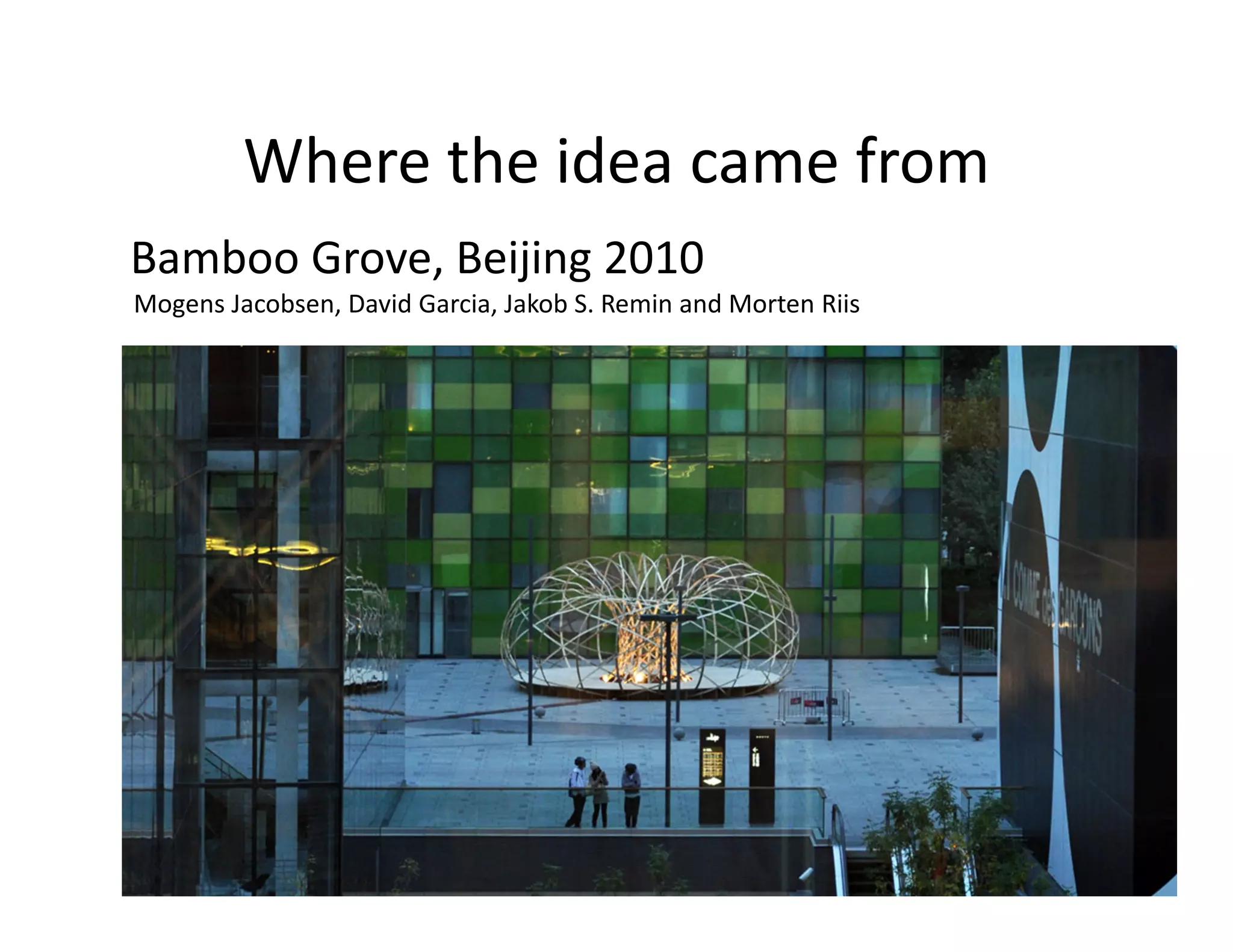

- 4. Where the ideacame from Bamboo Grove, Beijing 2010 Mogens Jacobsen, David Garcia, Jakob S. Remin and Morten Riis
- 5. Where the ideacame from

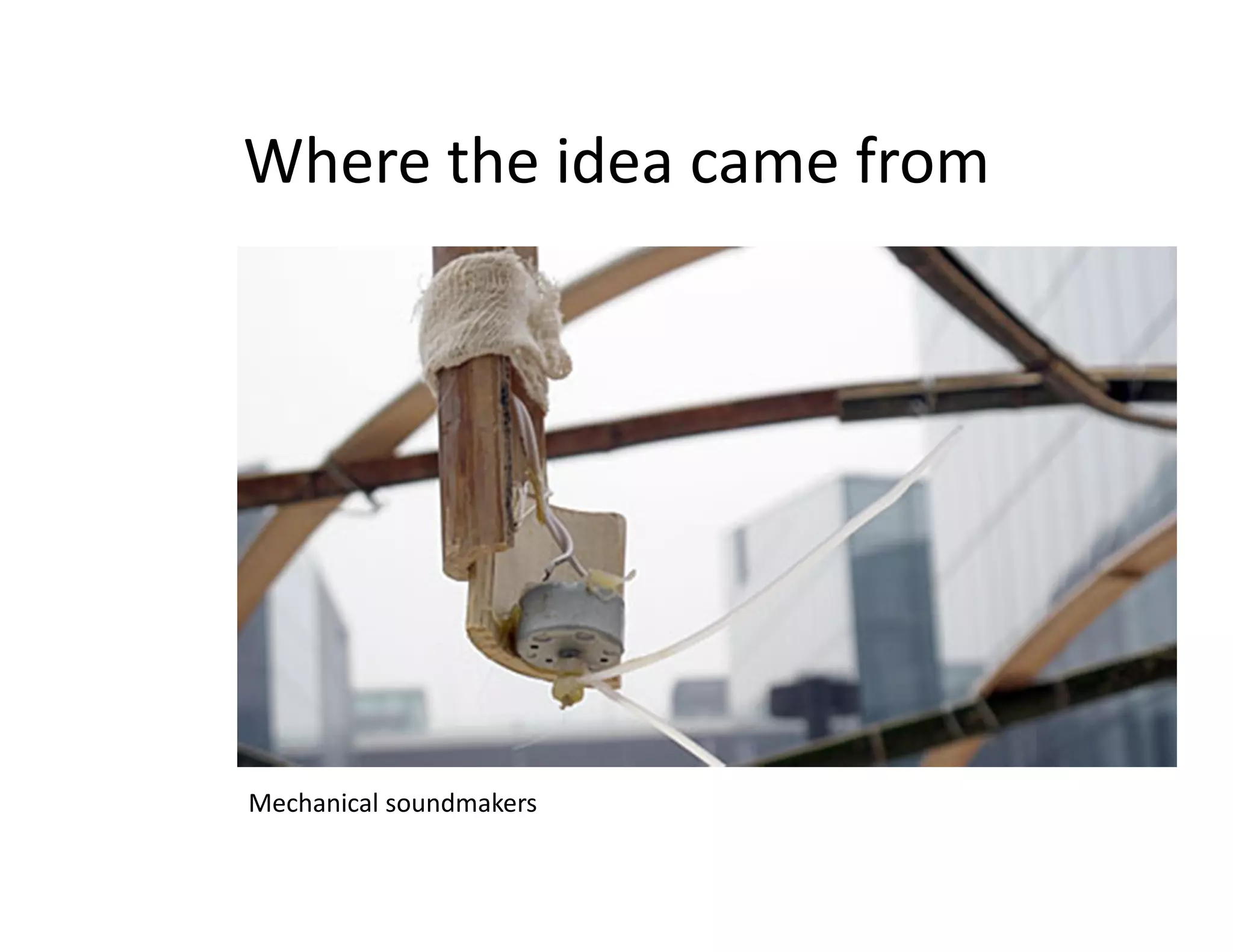

- 6. Where the ideacame from Mechanical soundmakers

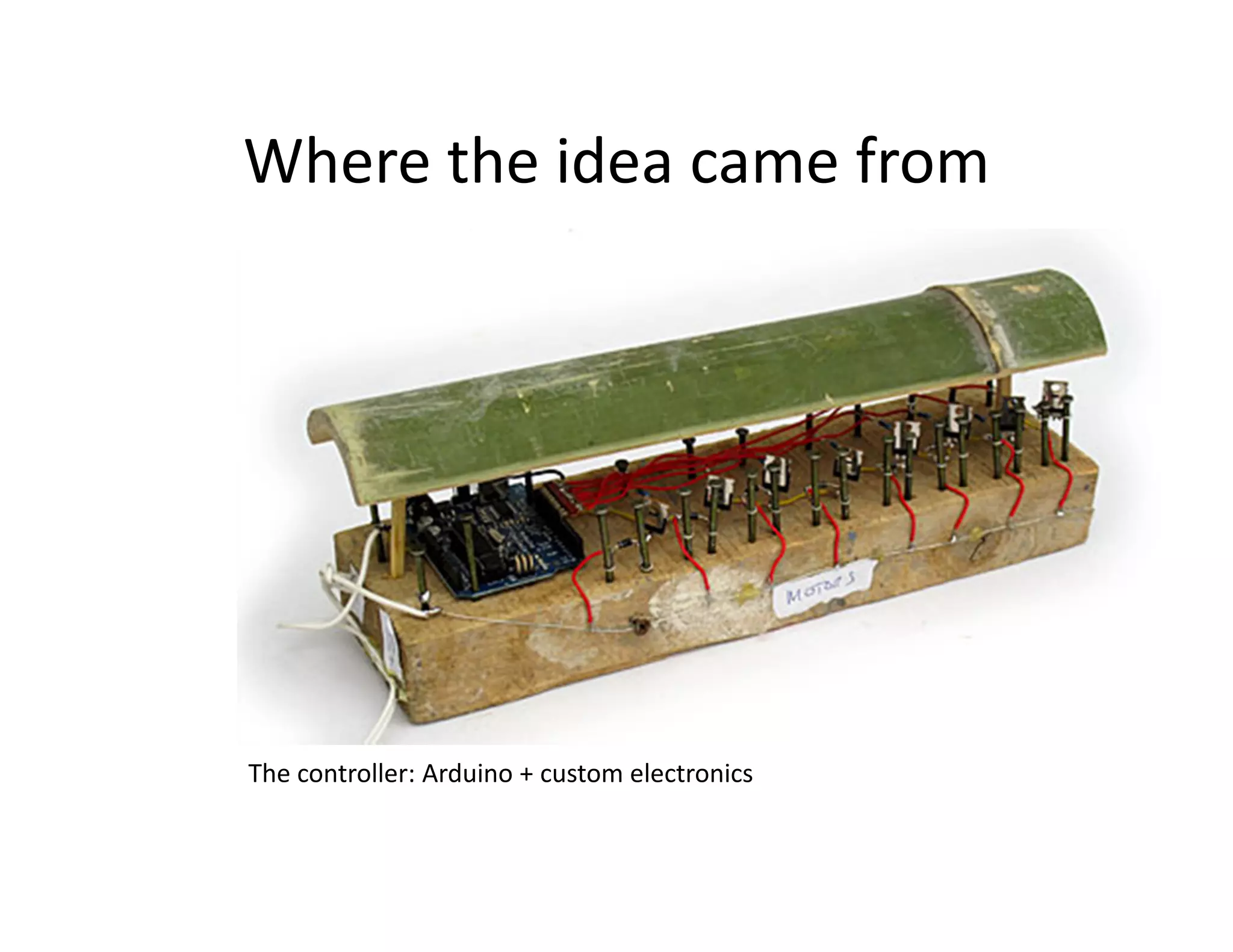

- 7. Where the ideacame from The controller: Arduino + custom electronics
- 8. Where the ideacame from Performance: Jakob S. Remin, Morten Riis, MJ

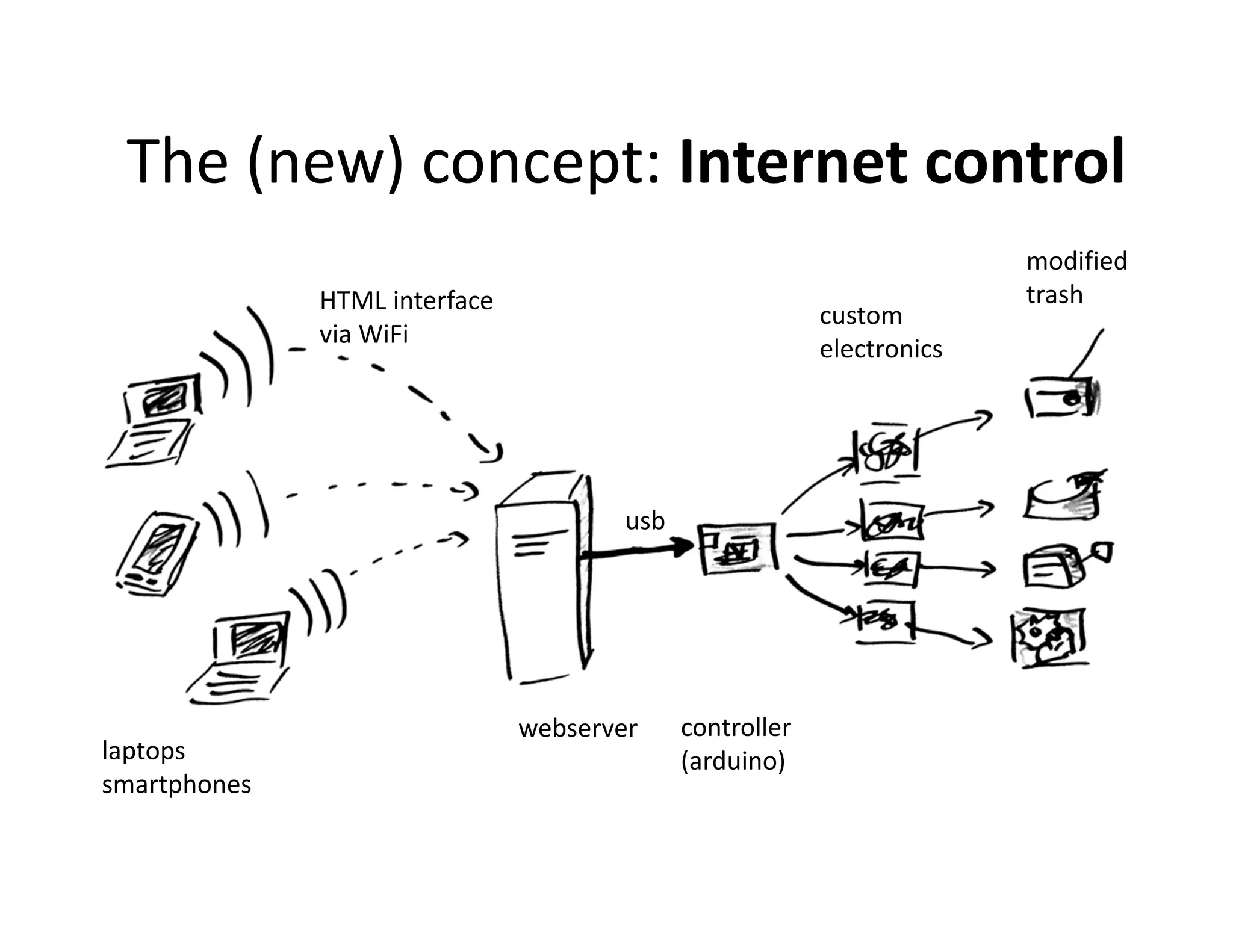

- 9. The (new) concept:Internet control modified HTML interface trash custom via WiFi electronics usb webserver controller laptops (arduino) smartphones

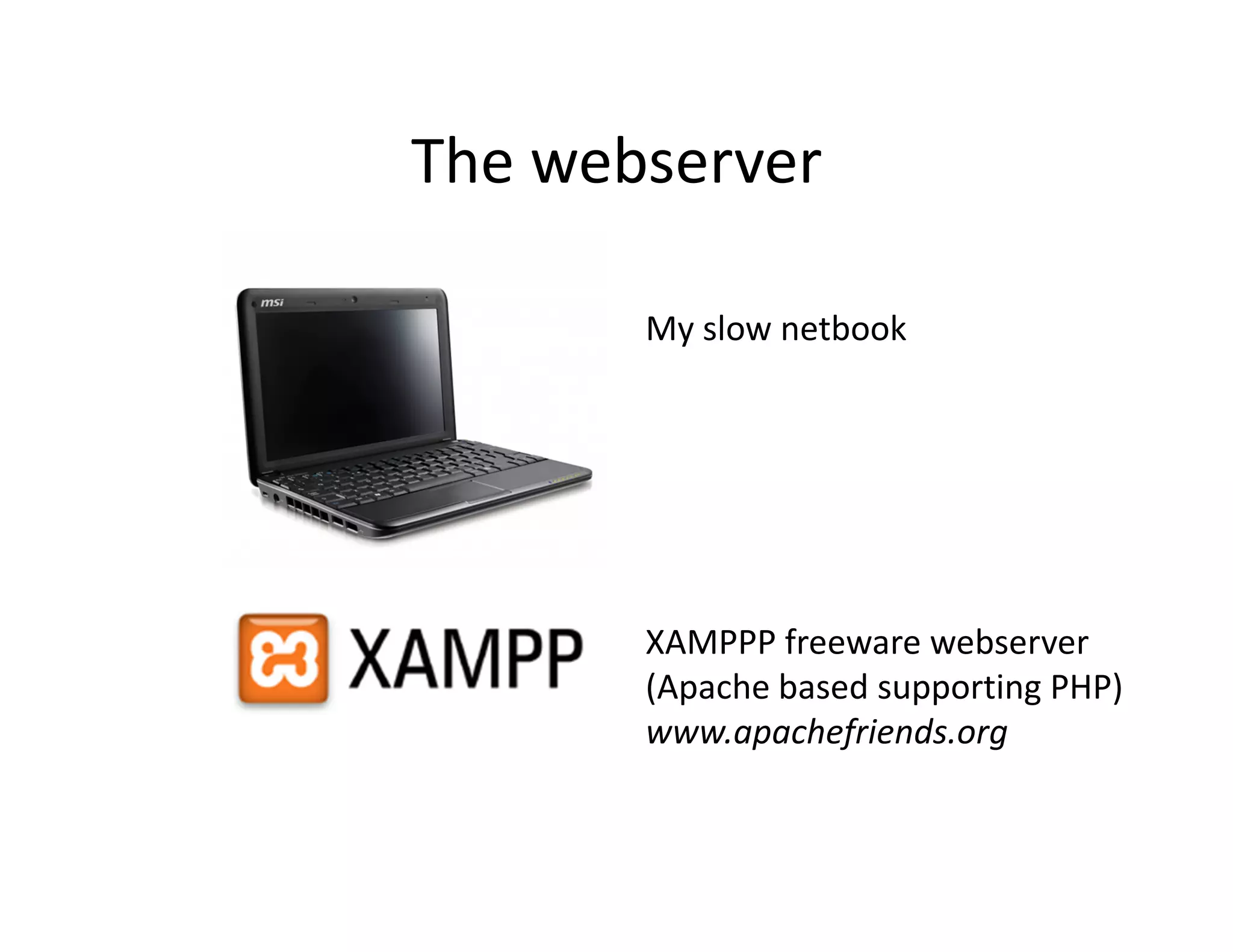

- 10. The webserver My slow netbook XAMPPP freeware webserver (Apache based supporting PHP) www.apachefriends.org

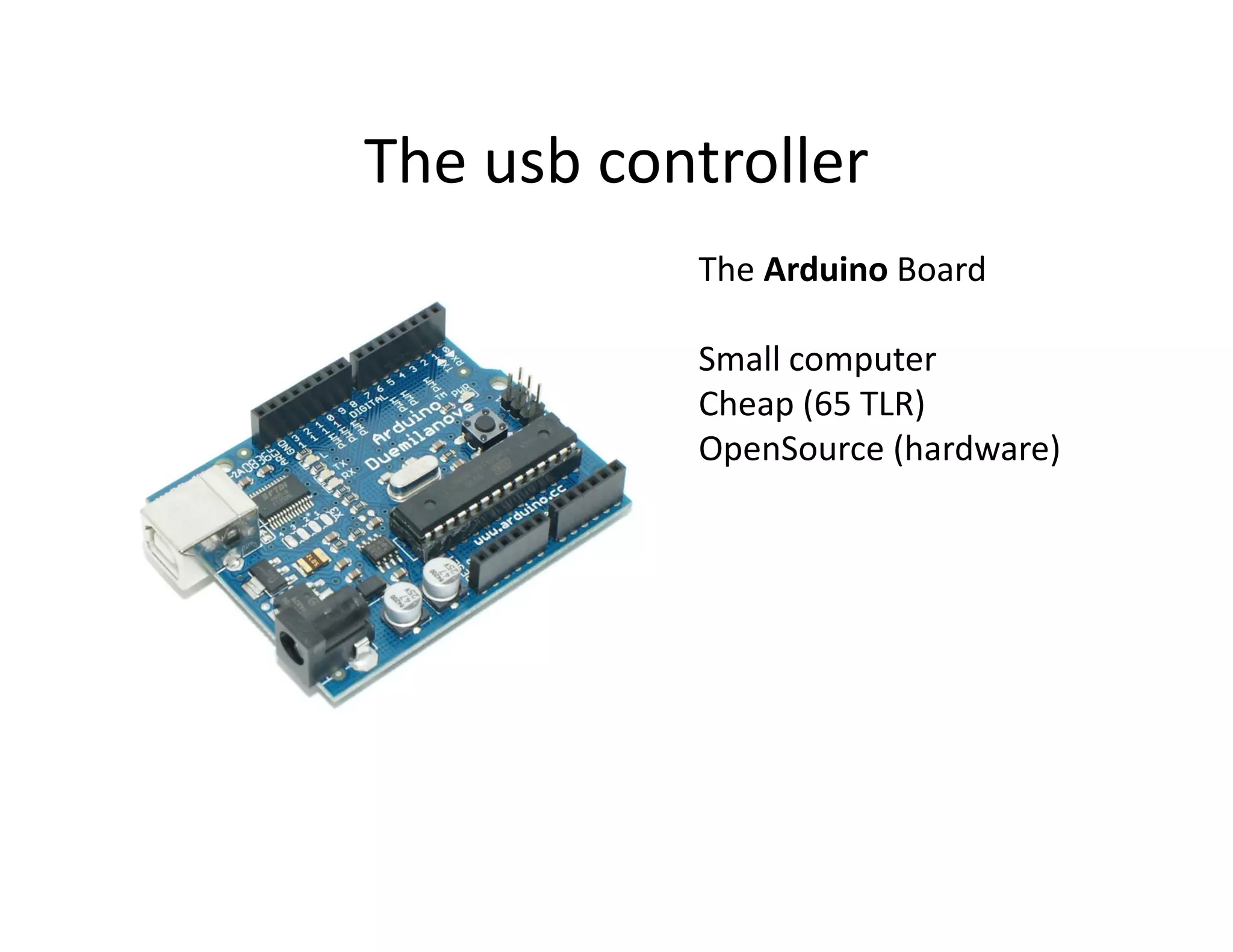

- 11. The usb controller The Arduino Board Small computer Cheap (65 TLR) OpenSource (hardware)

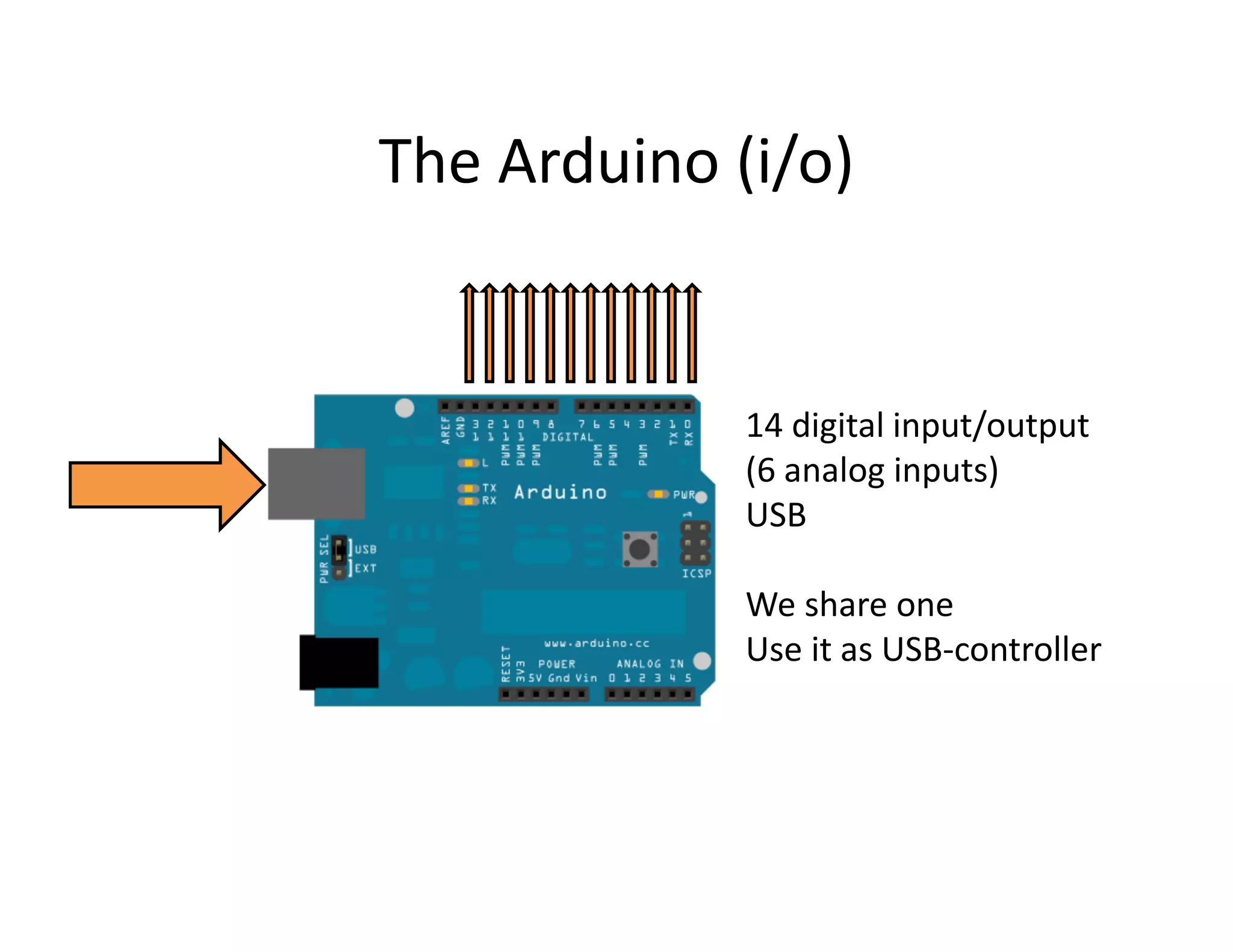

- 12. The Arduino (i/o) 14 digital input/output (6 analog inputs) USB We share one Use it as USB-controller

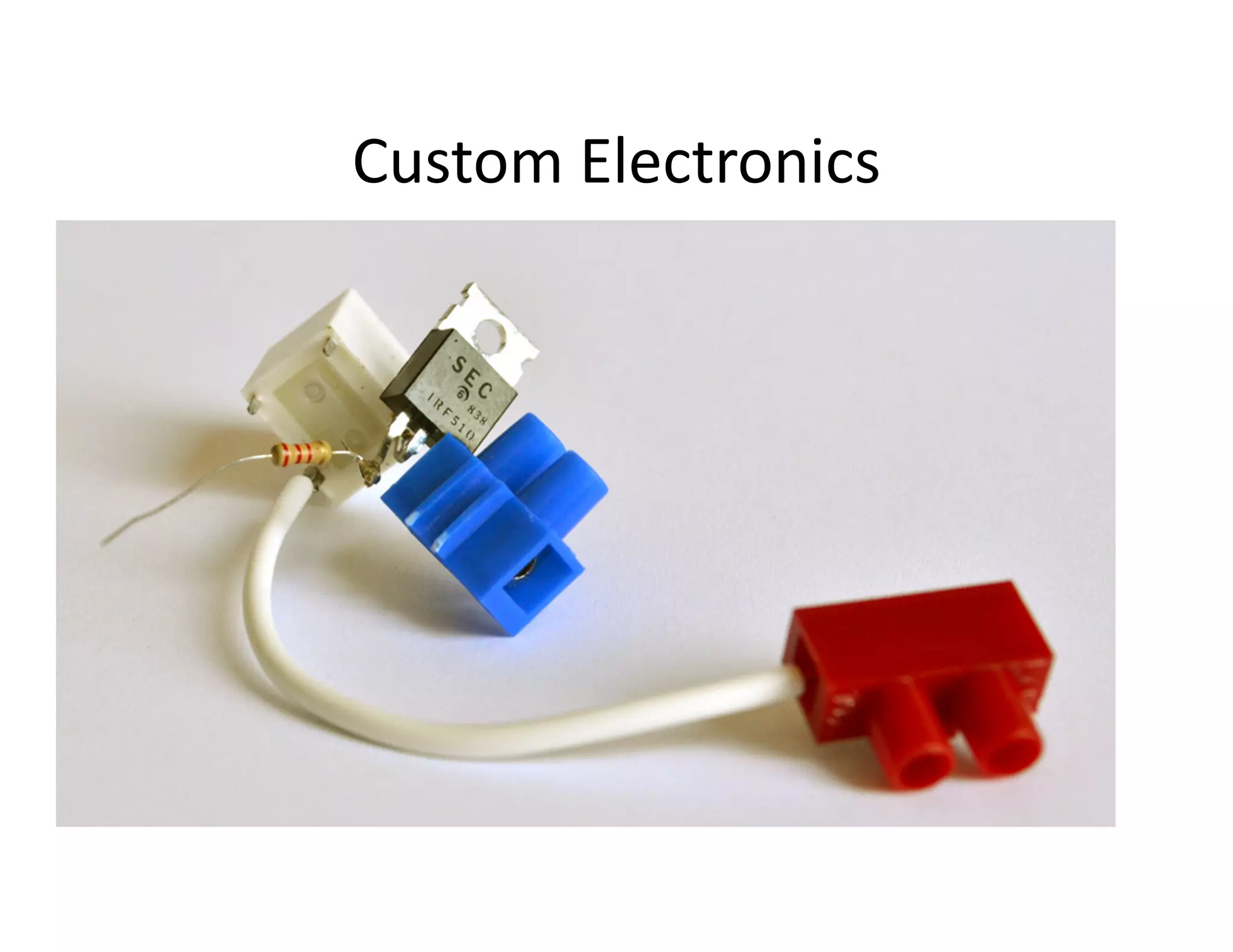

- 13.
- 14. ”Pinkie”: (almost) all-in-one alternative BURAK ARIKAN

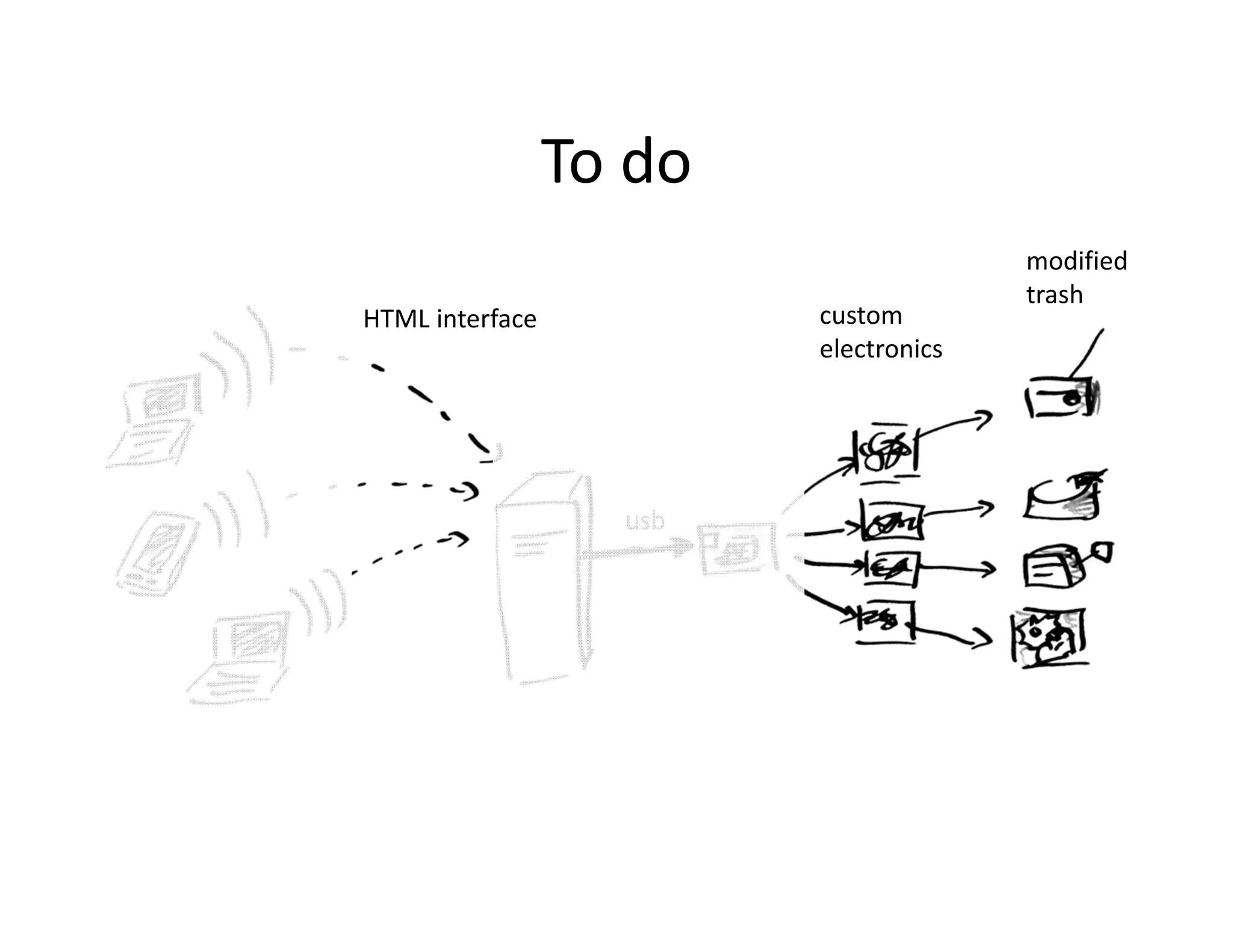

- 15. To do modified trash HTML interface custom electronics usb

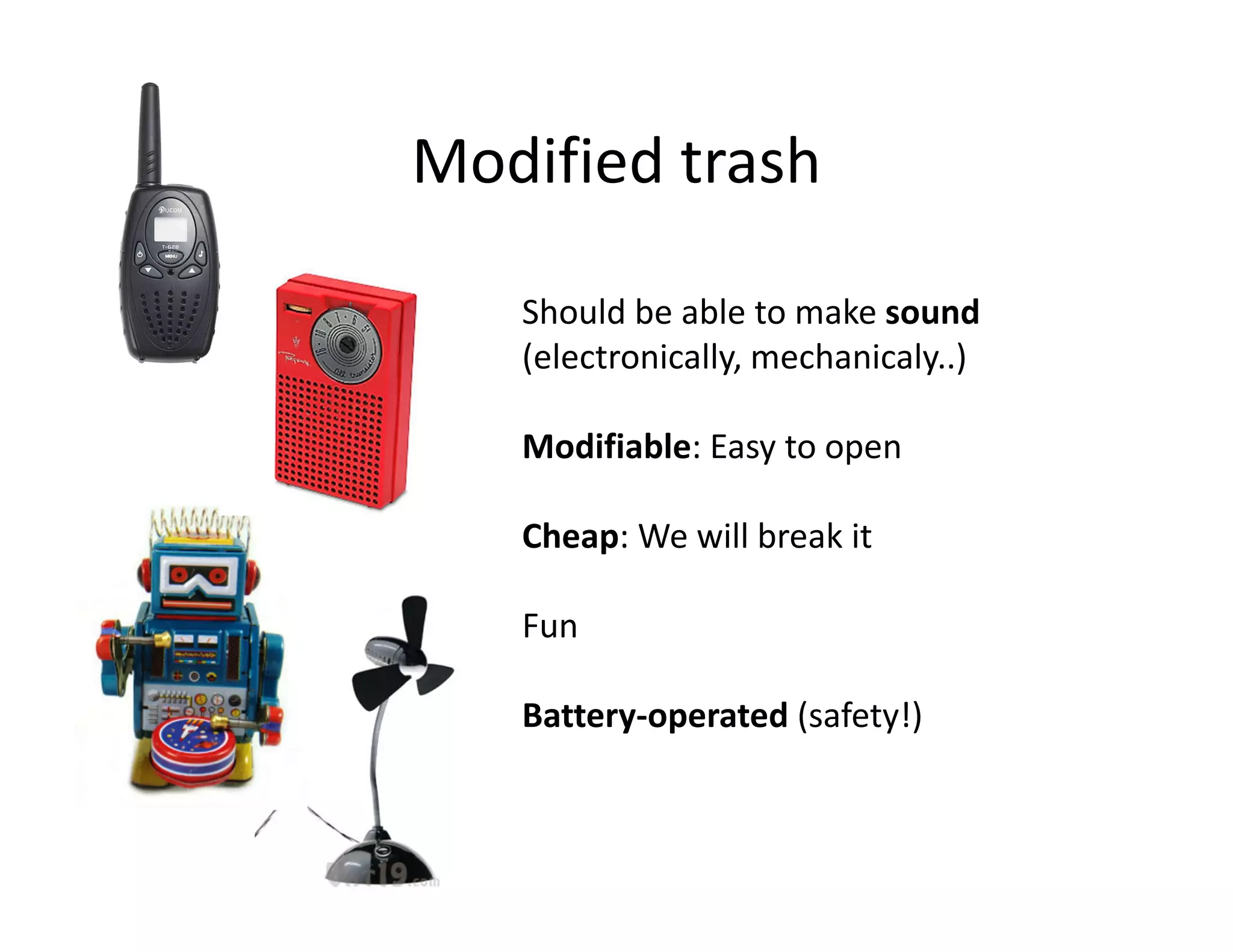

- 16. Modified trash Should be able to make sound (electronically, mechanicaly..) Modifiable: Easy to open Cheap: We will break it Fun Battery-operated (safety!)
- 17. Getting it: Let’s gohunting for good trash
- 18. Modify it! Open itand explore the audio possibilities Using 1 wire (on/off)

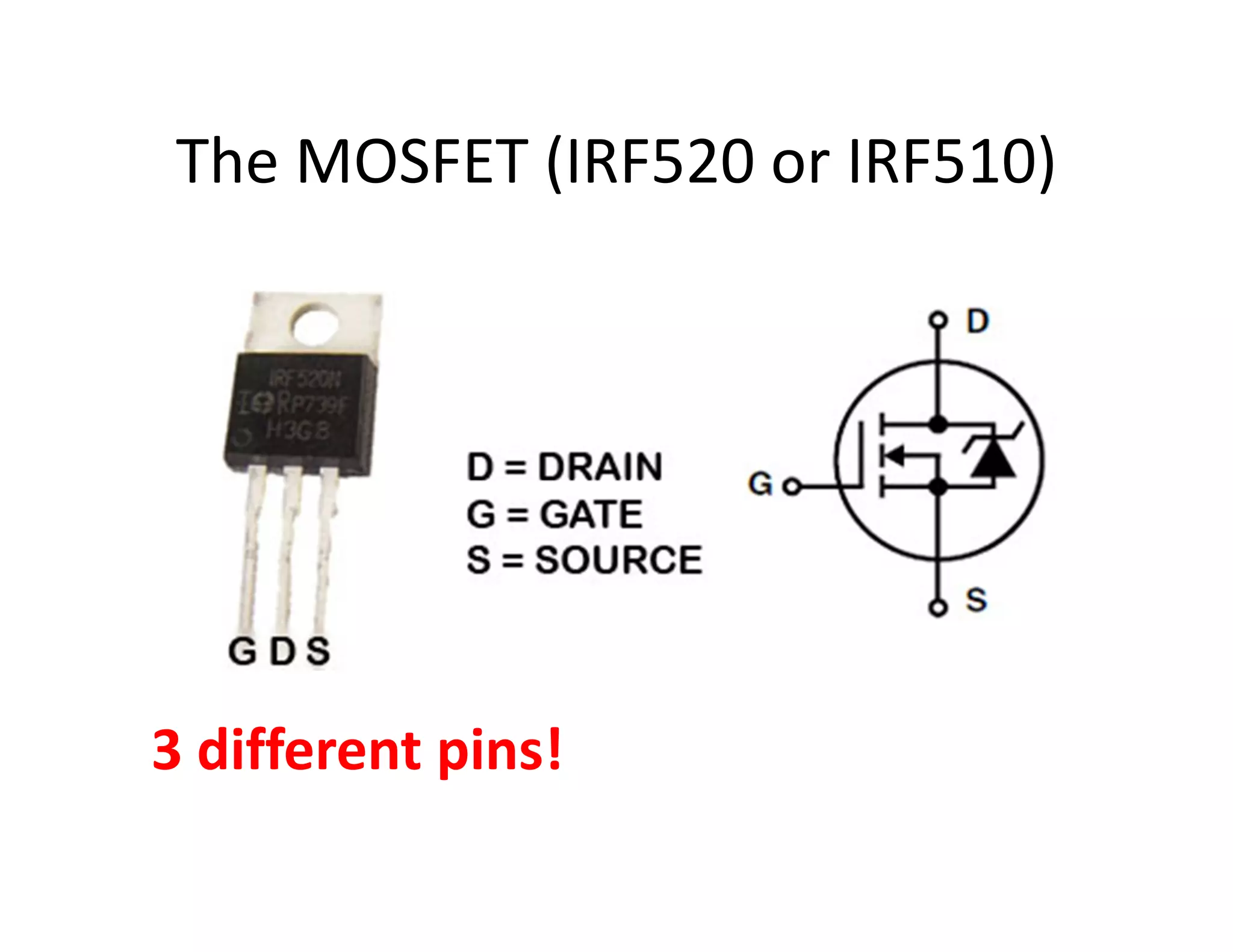

- 19. The MOSFET (IRF520or IRF510) 3 different pins!

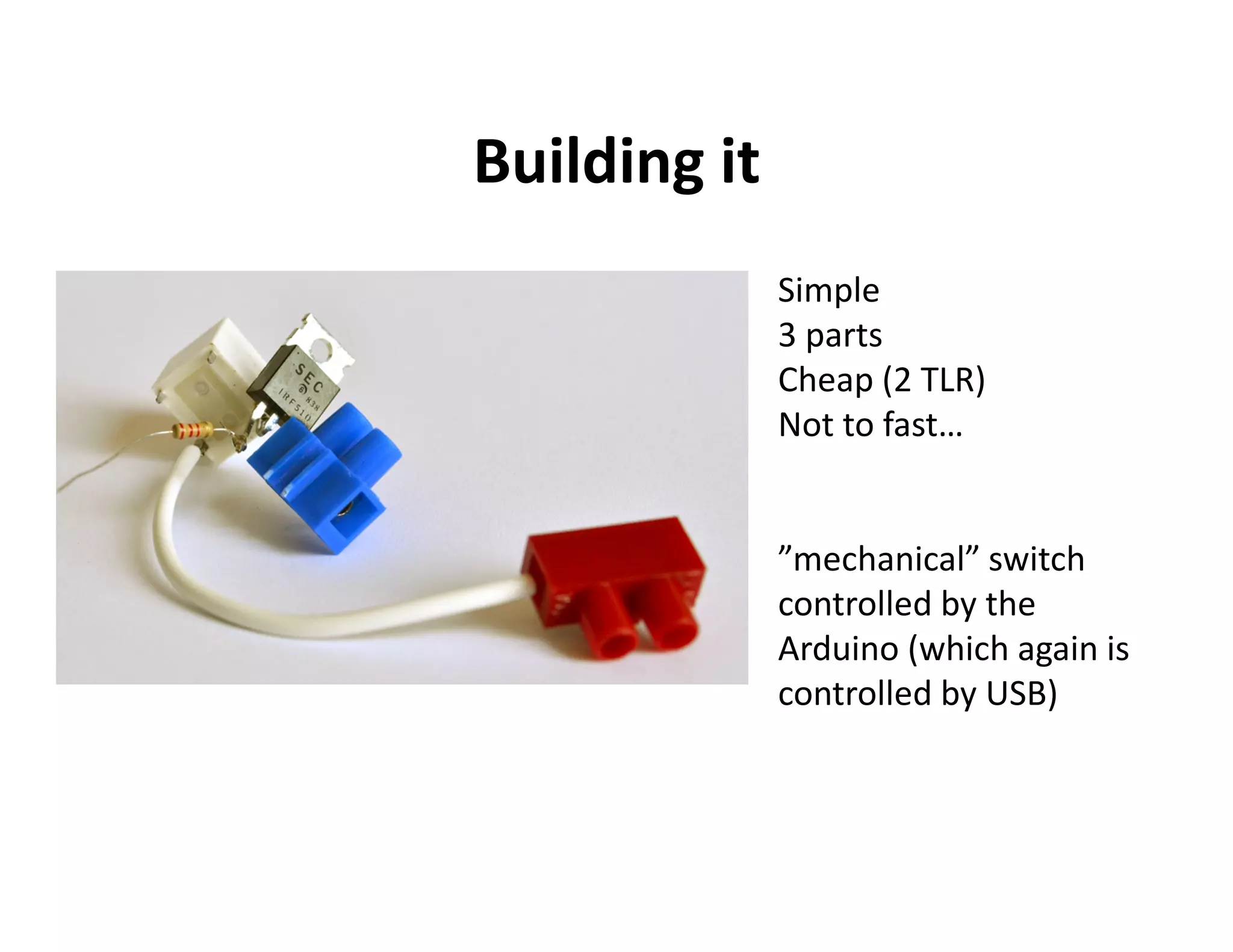

- 20. Building it Simple 3 parts Cheap (2 TLR) Not to fast… ”mechanical” switch controlled by the Arduino (which again is controlled by USB)

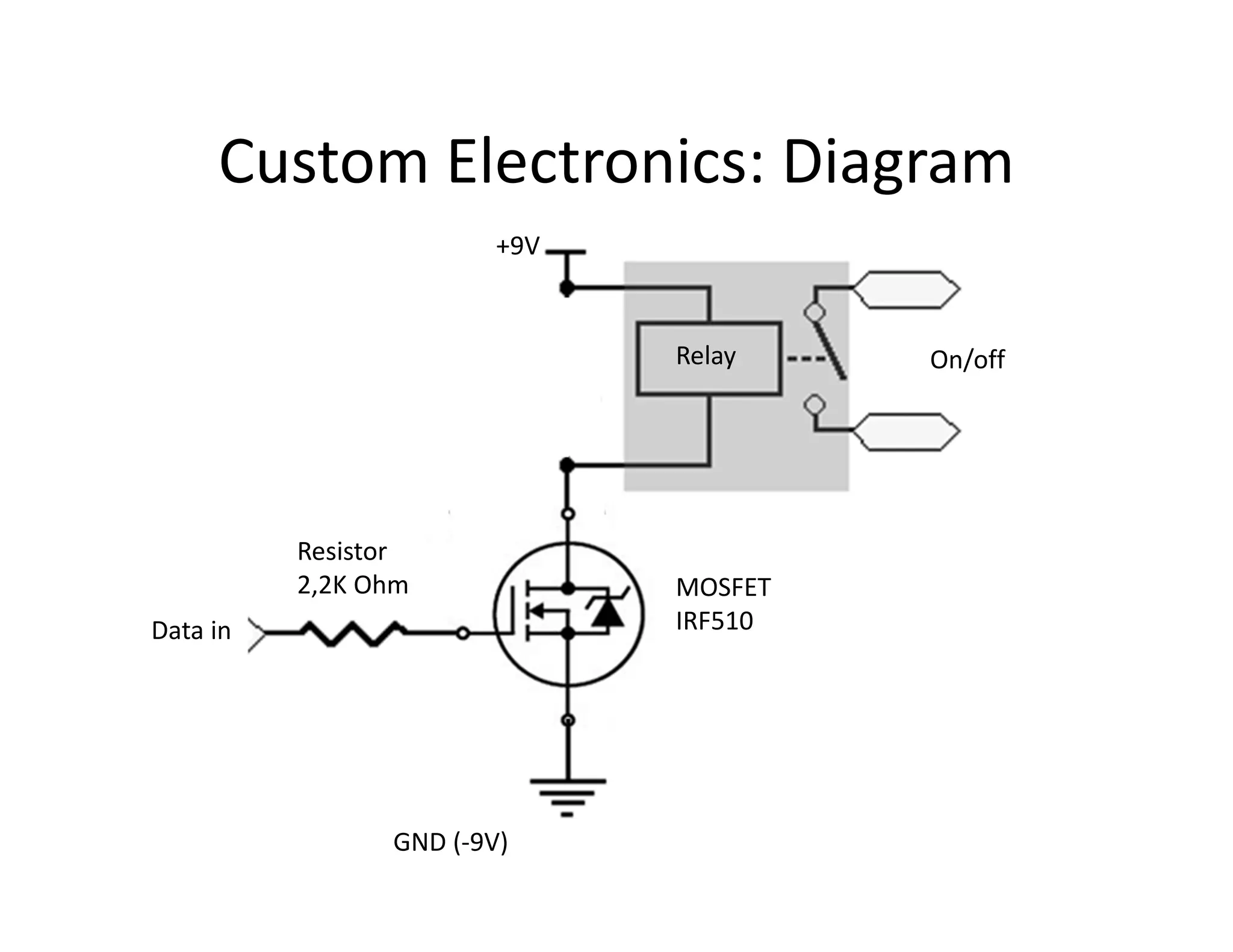

- 21. Custom Electronics: Diagram +9V Relay On/off Resistor 2,2K Ohm MOSFET Data in IRF510 GND (-9V)

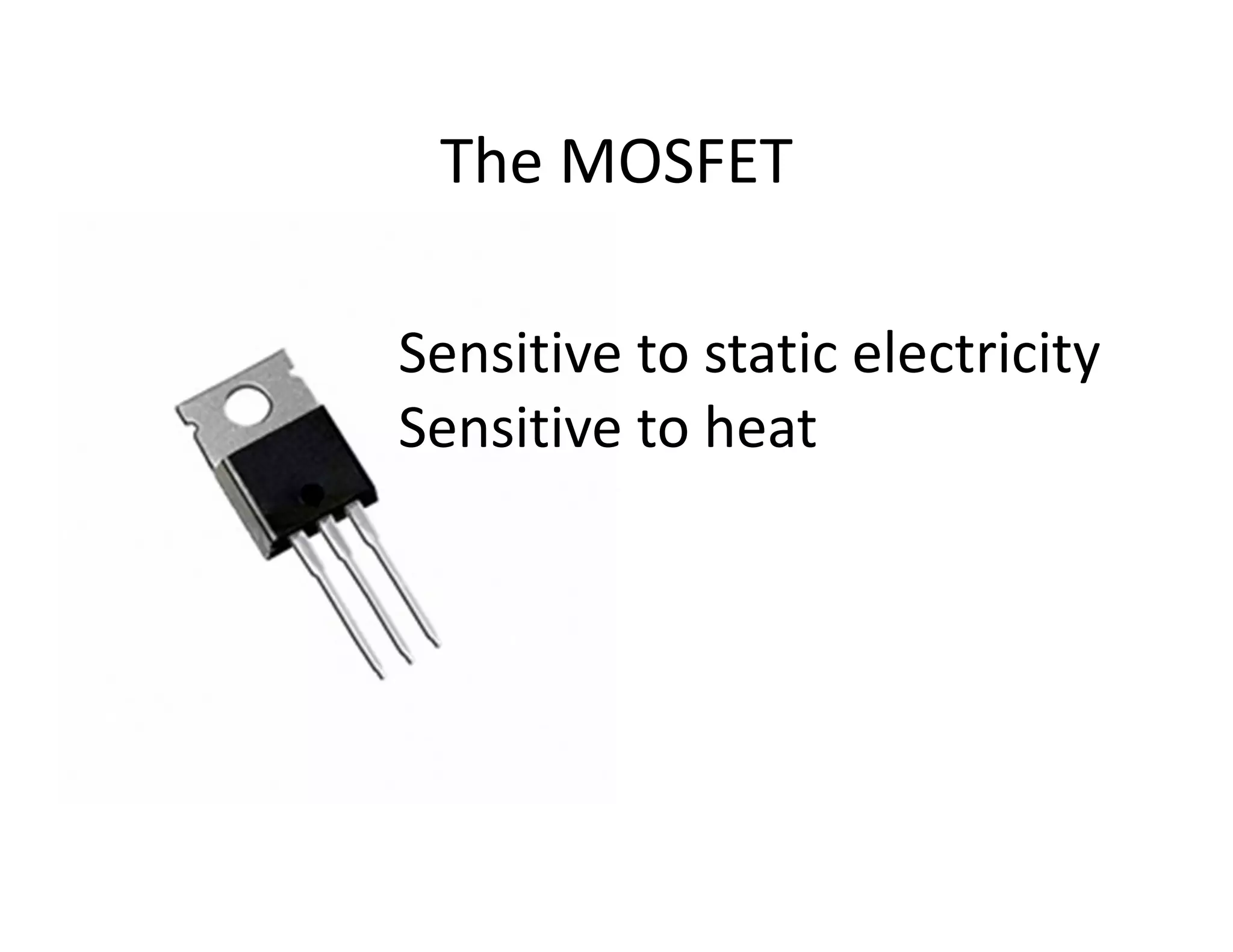

- 22. The MOSFET Sensitive tostatic electricity Sensitive to heat

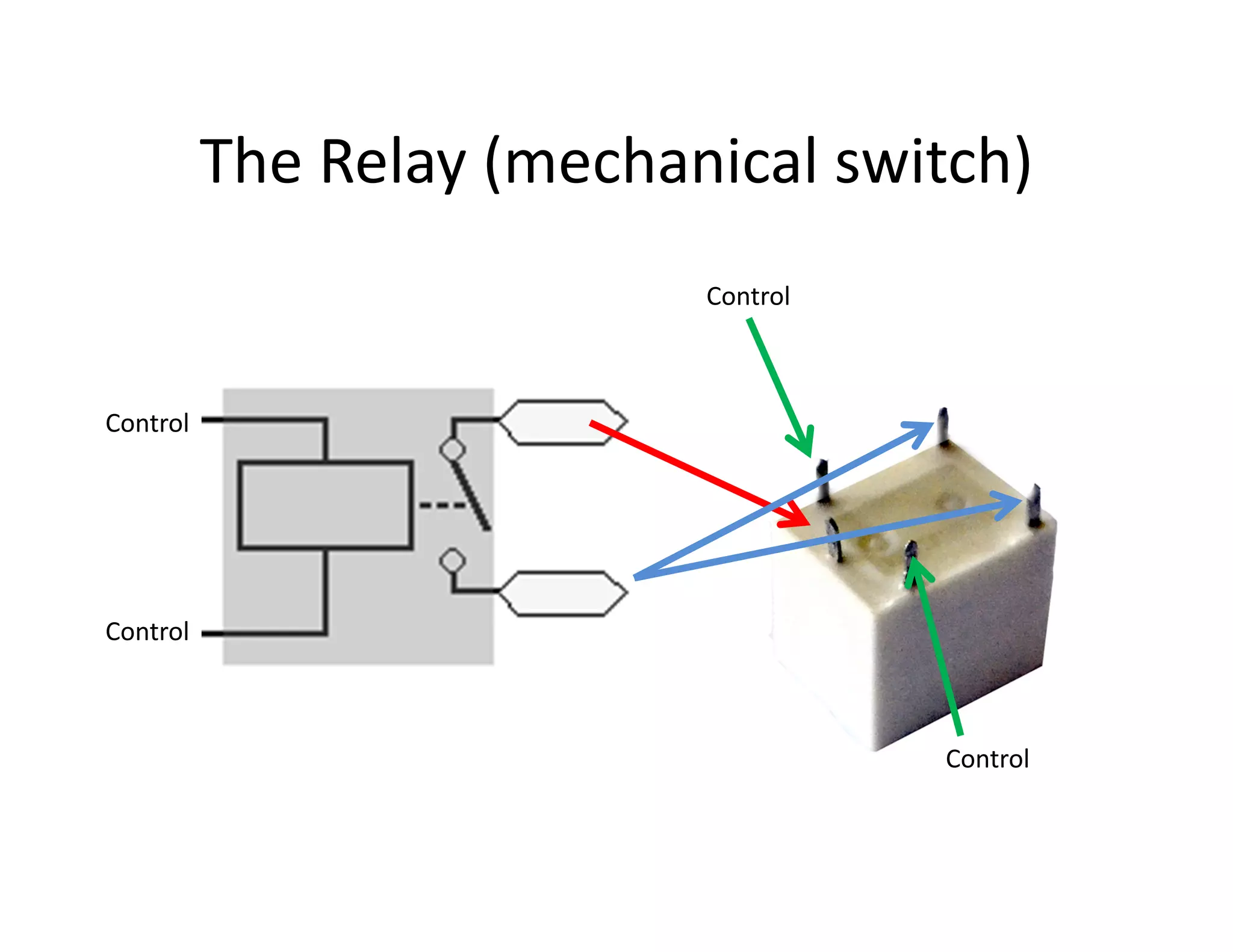

- 23. The Relay (mechanicalswitch) Control Control Control Control

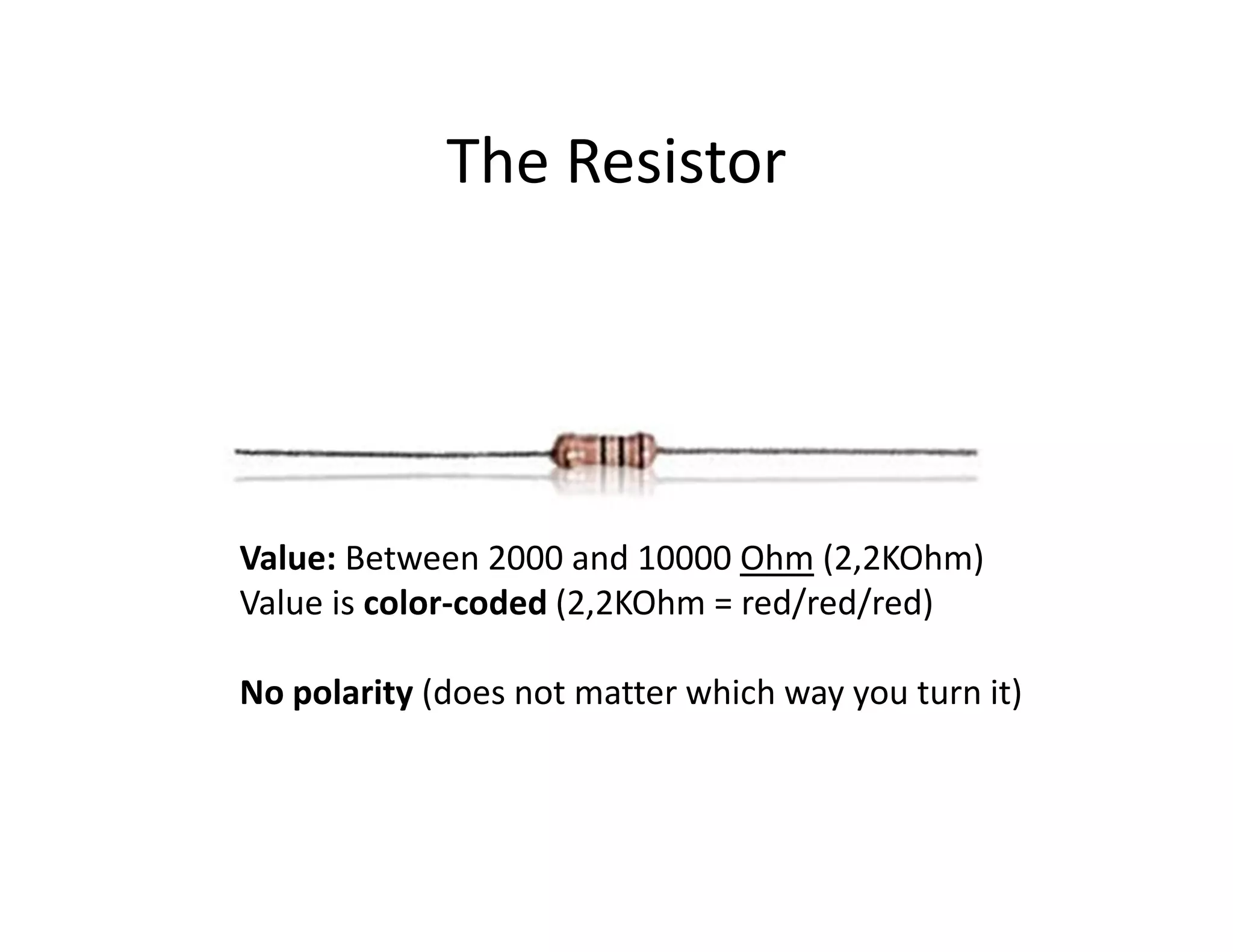

- 24. The Resistor Value: Between2000 and 10000 Ohm (2,2KOhm) Value is color-coded (2,2KOhm = red/red/red) No polarity (does not matter which way you turn it)

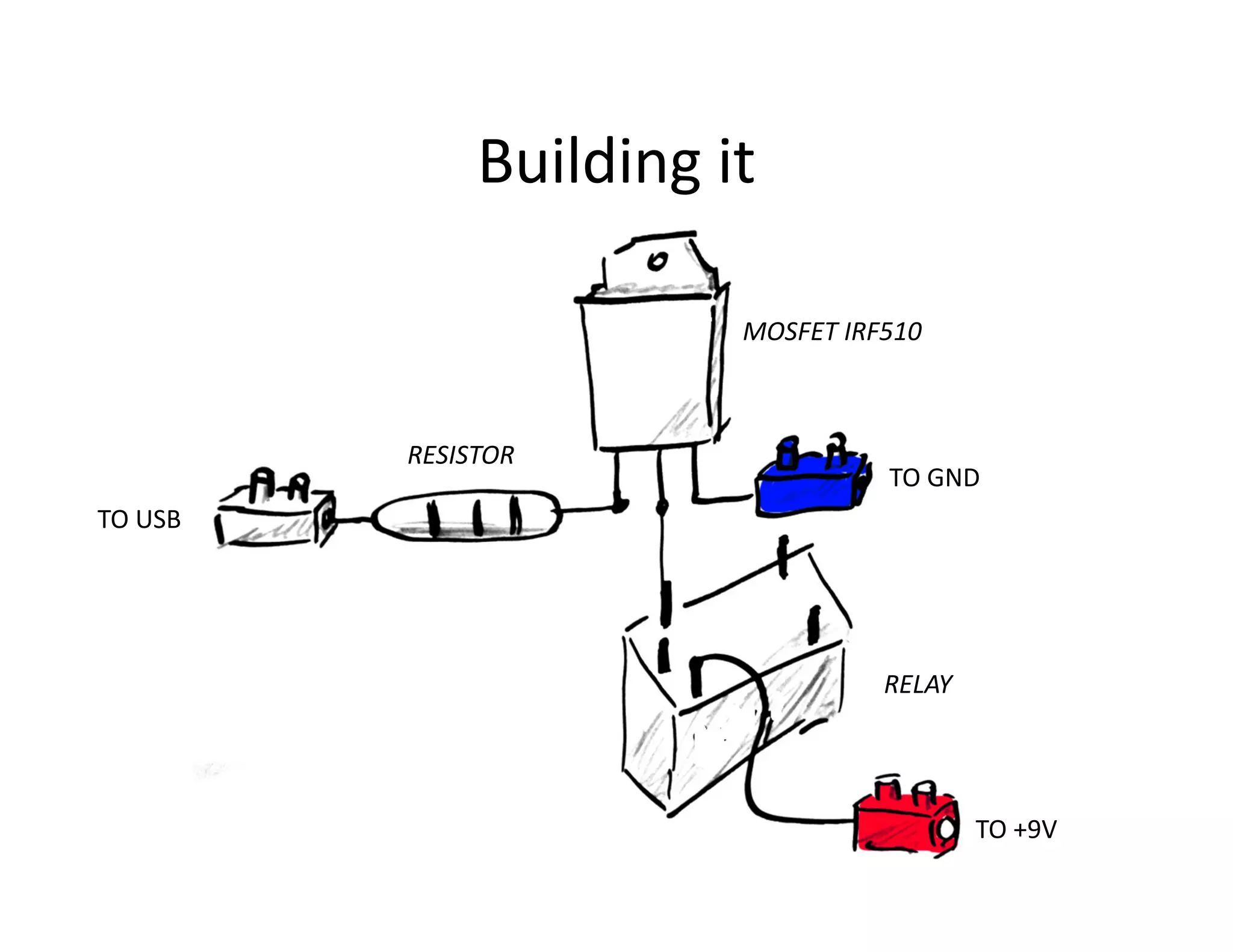

- 25. Building it MOSFET IRF510 RESISTOR TO GND TO USB RELAY TO +9V

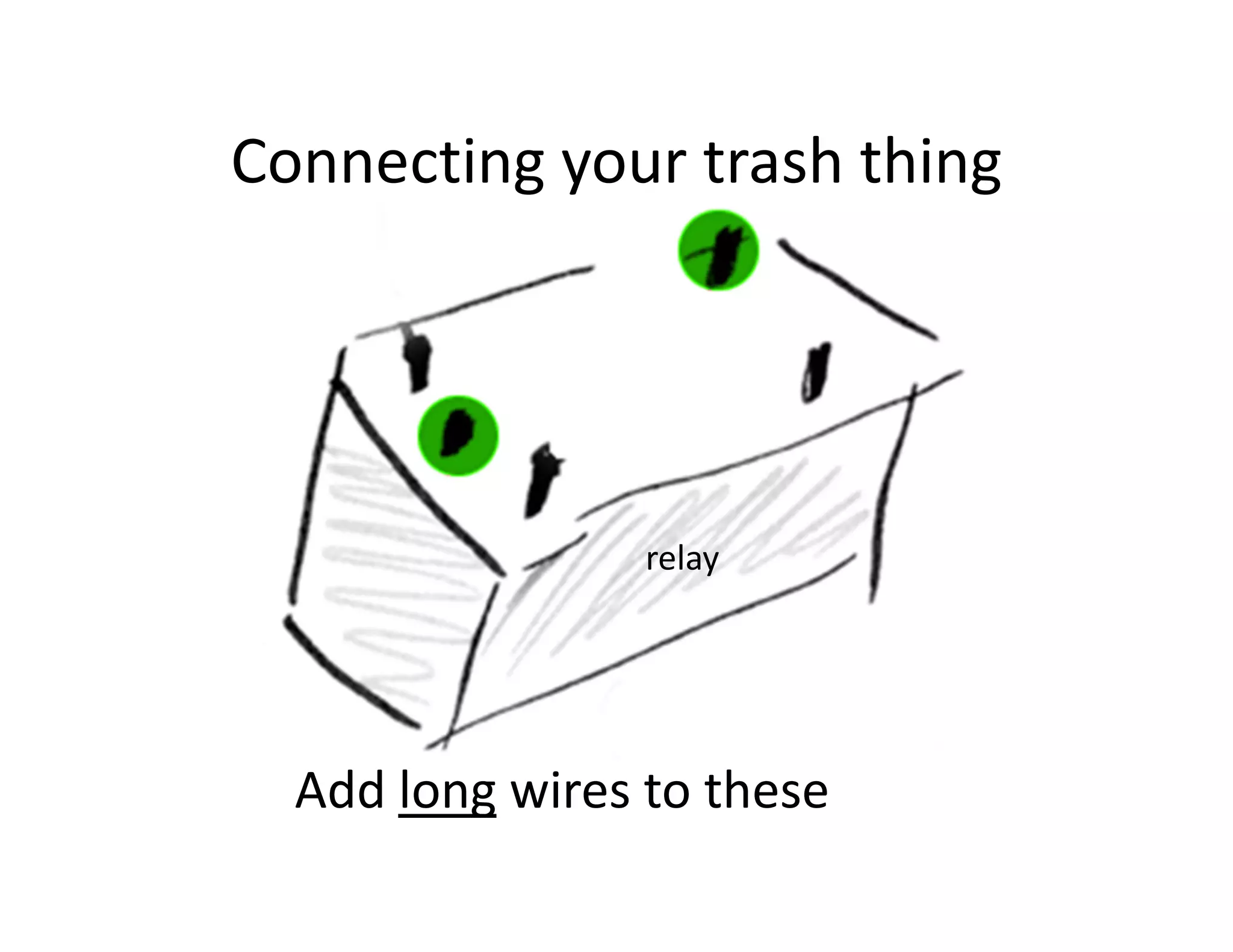

- 26. Connecting your trashthing relay Add long wires to these

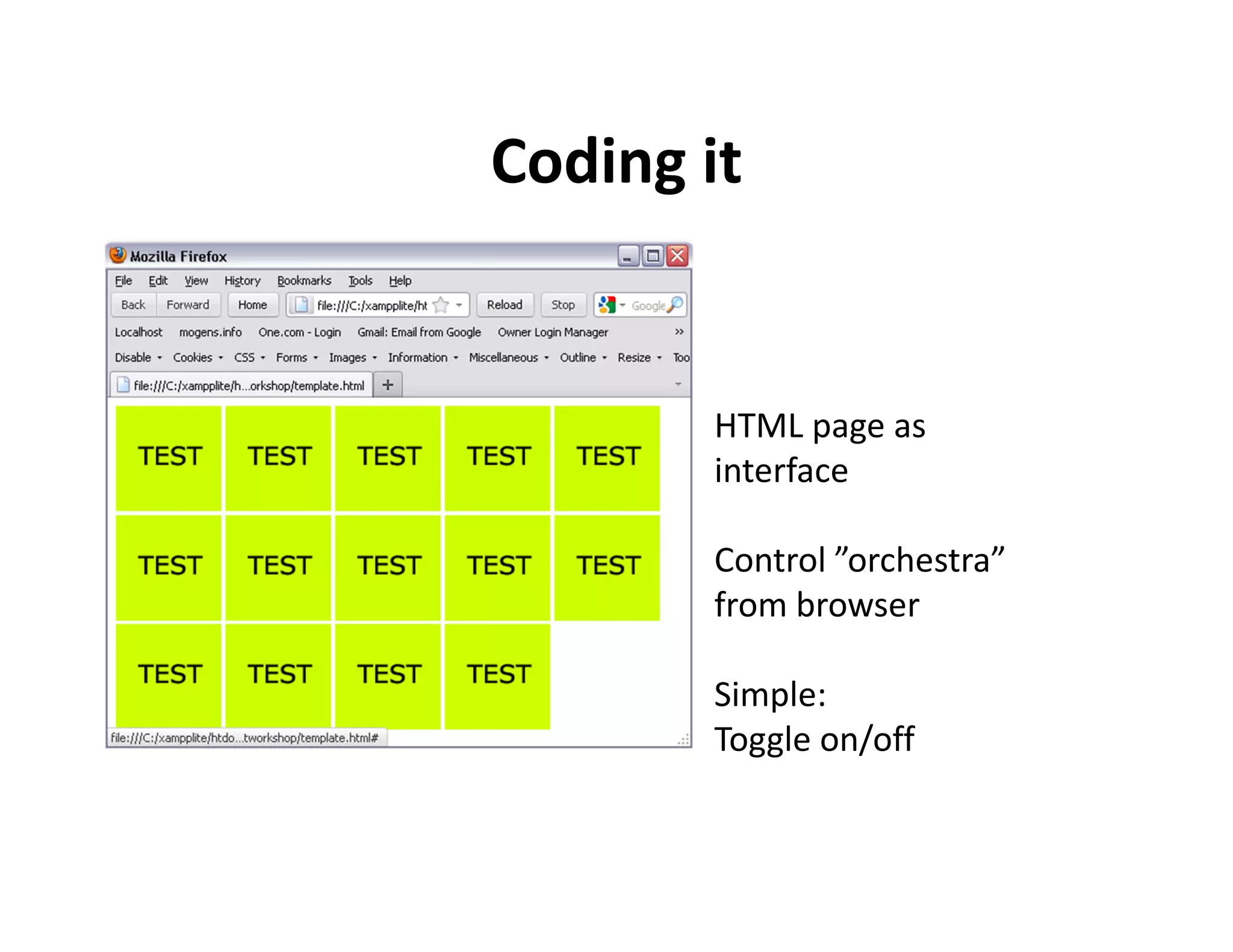

- 27. Coding it HTML page as interface Control ”orchestra” from browser Simple: Toggle on/off

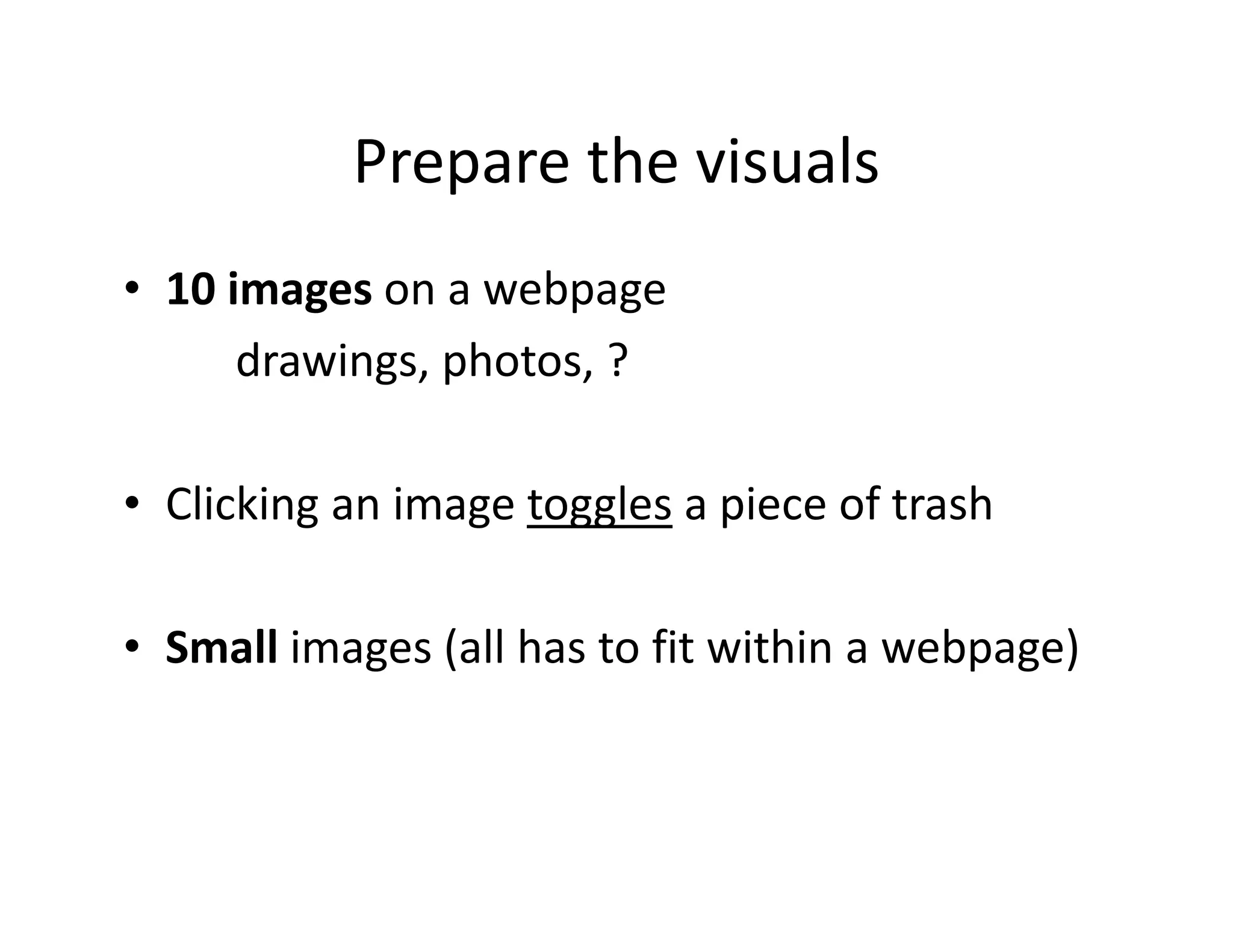

- 28. Prepare the visuals •10 images on a webpage drawings, photos, ? • Clicking an image toggles a piece of trash • Small images (all has to fit within a webpage)

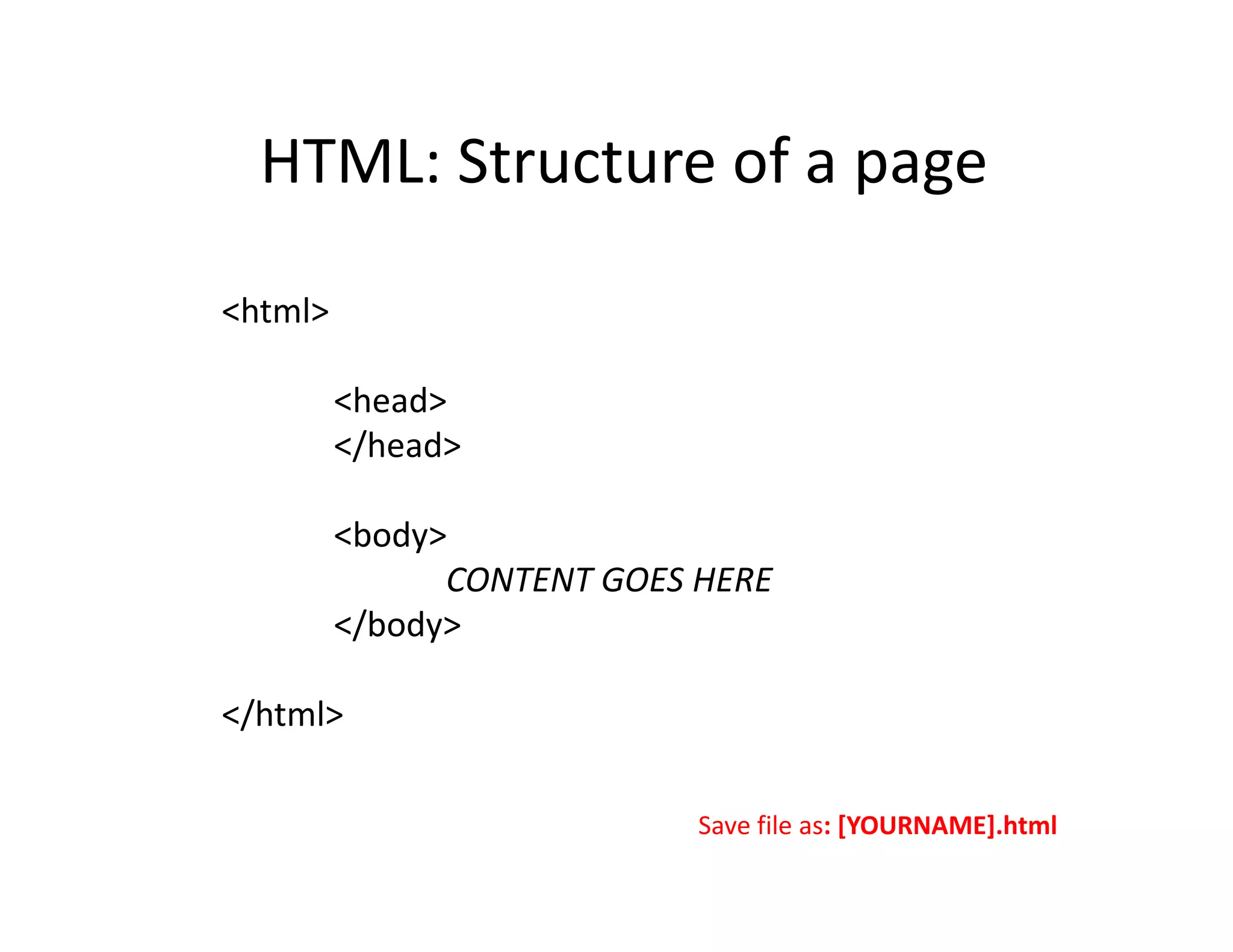

- 29. HTML: Structure ofa page <html> <head> </head> <body> CONTENT GOES HERE </body> </html> Save file as: [YOURNAME].html

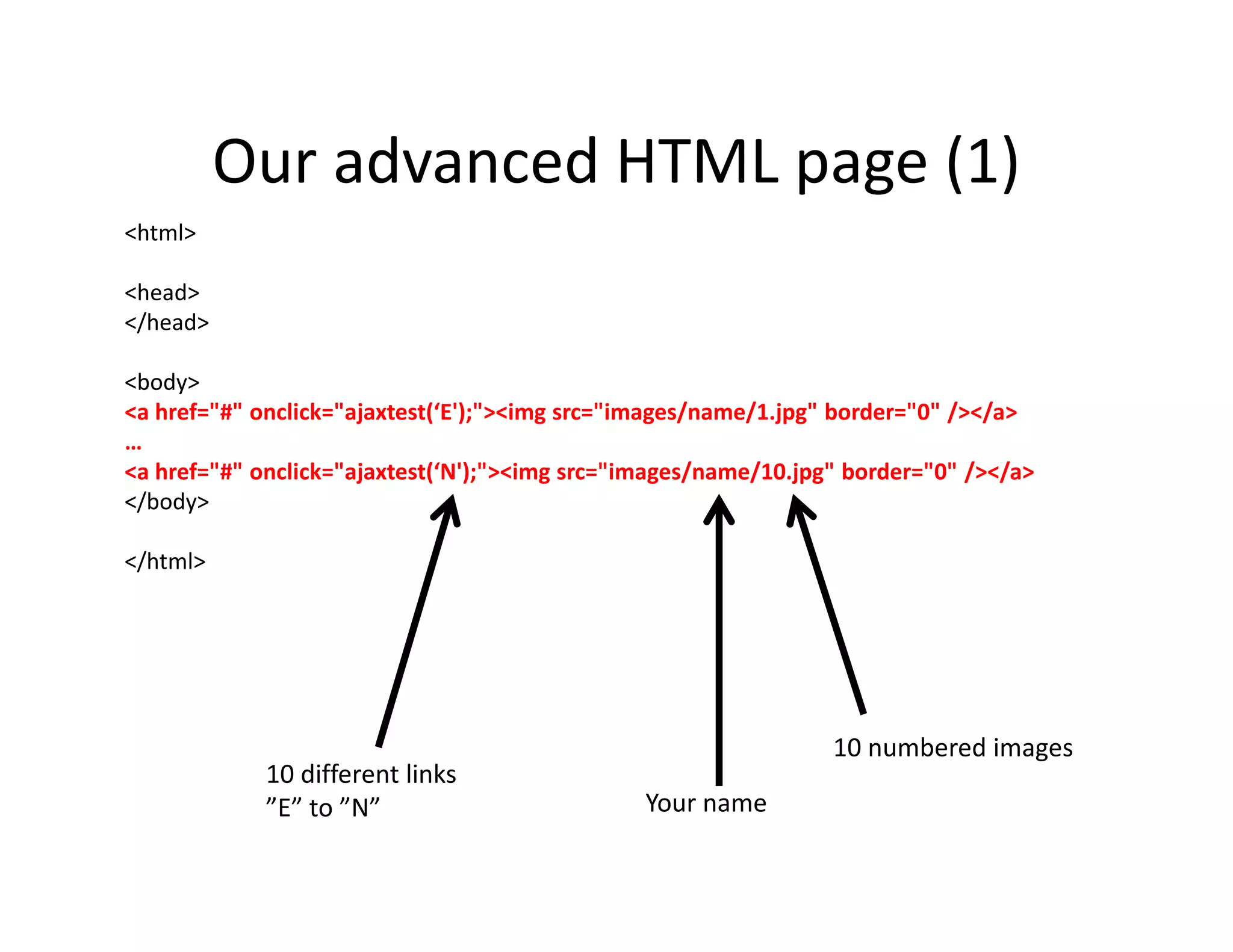

- 30. Our advanced HTMLpage (1) <html> <head> </head> <body> <a href="#" onclick="ajaxtest(‘E');"><img src="images/name/1.jpg" border="0" /></a> … <a href="#" onclick="ajaxtest(‘N');"><img src="images/name/10.jpg" border="0" /></a> </body> </html> 10 numbered images 10 different links ”E” to ”N” Your name

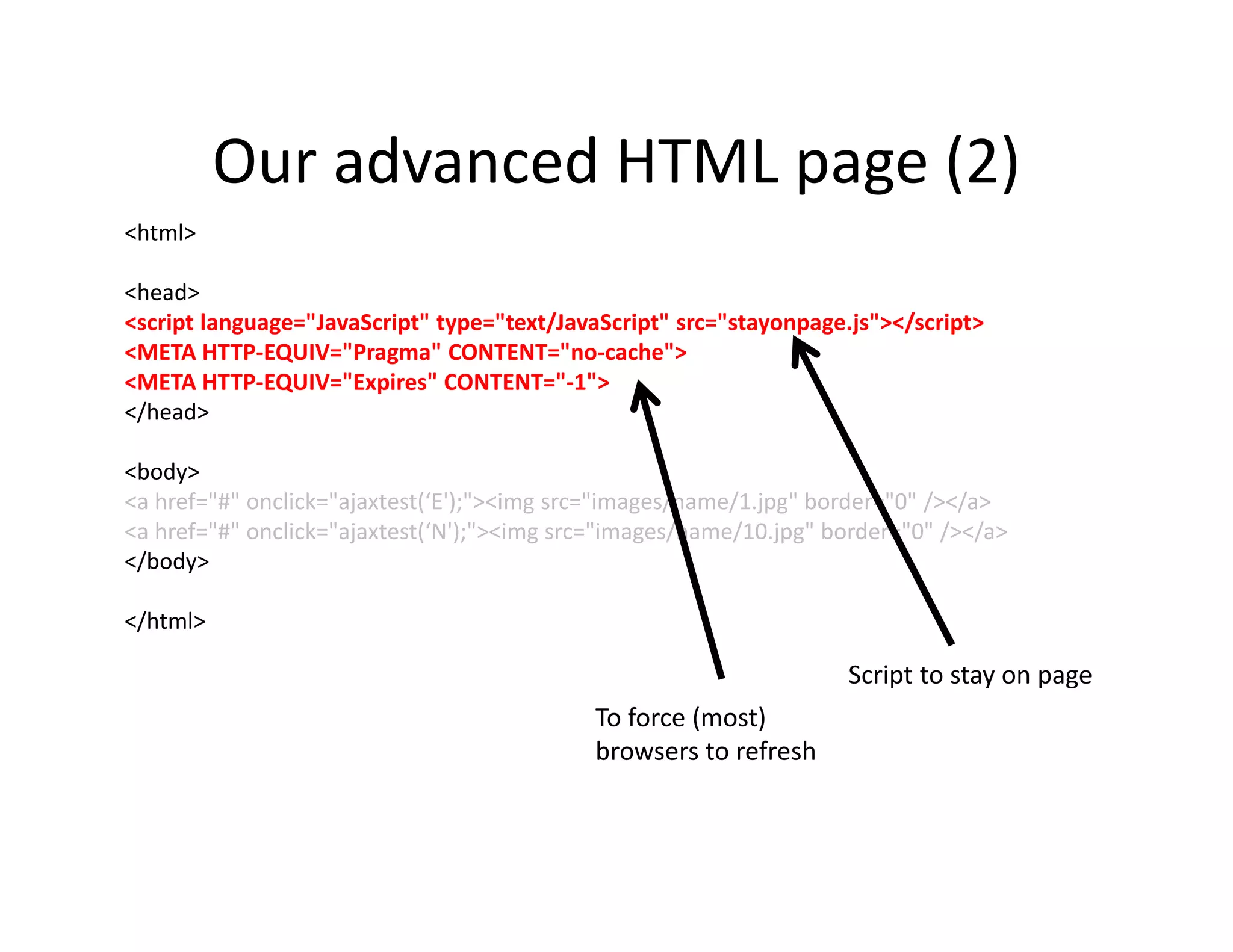

- 31. Our advanced HTMLpage (2) <html> <head> <script language="JavaScript" type="text/JavaScript" src="stayonpage.js"></script> <META HTTP-EQUIV="Pragma" CONTENT="no-cache"> <META HTTP-EQUIV="Expires" CONTENT="-1"> </head> <body> <a href="#" onclick="ajaxtest(‘E');"><img src="images/name/1.jpg" border="0" /></a> <a href="#" onclick="ajaxtest(‘N');"><img src="images/name/10.jpg" border="0" /></a> </body> </html> Script to stay on page To force (most) browsers to refresh
- 32. Cheating: Download template http://bit.ly/nIrU0V zero

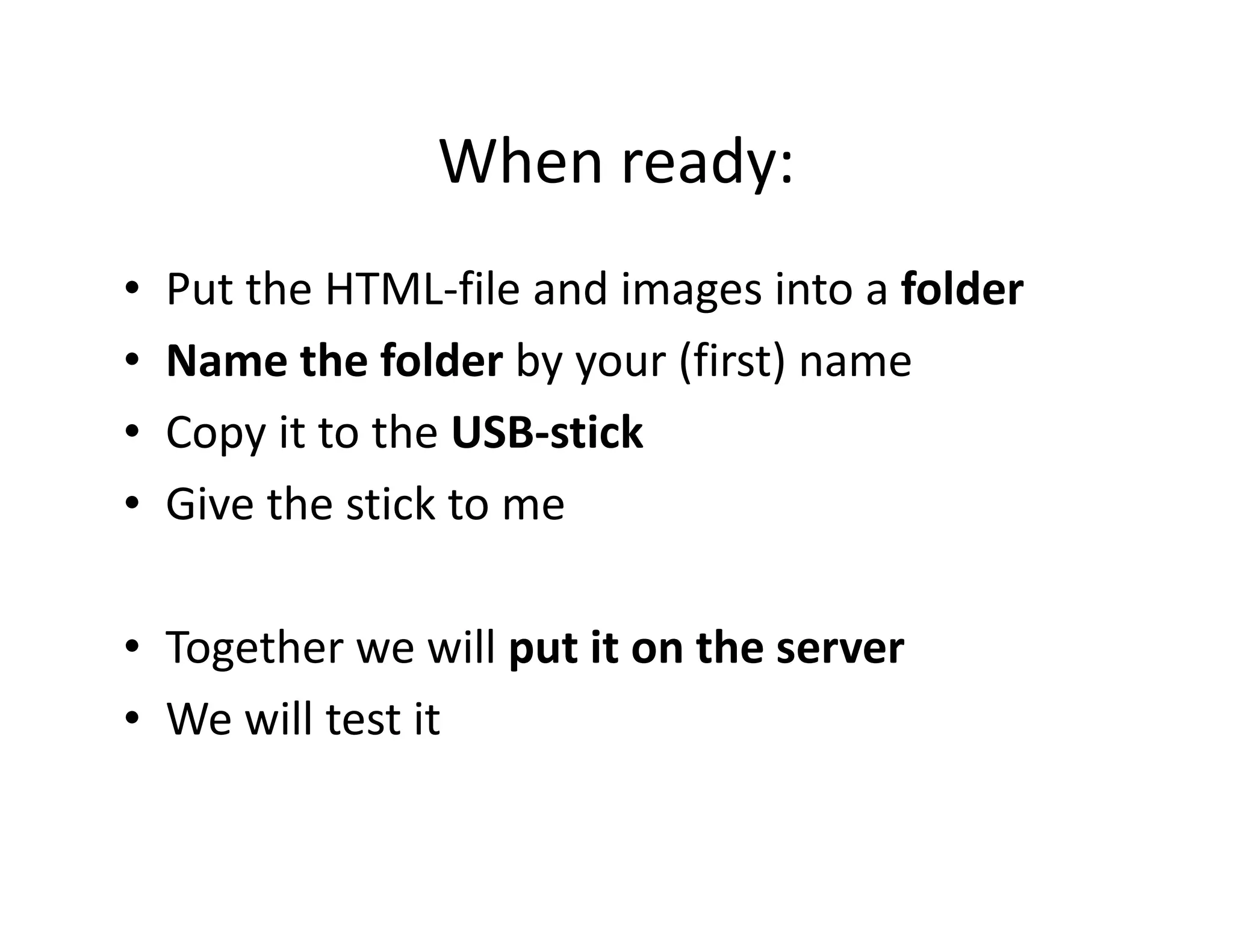

- 33. When ready: • Put the HTML-file and images into a folder • Name the folder by your (first) name • Copy it to the USB-stick • Give the stick to me • Together we will put it on the server • We will test it

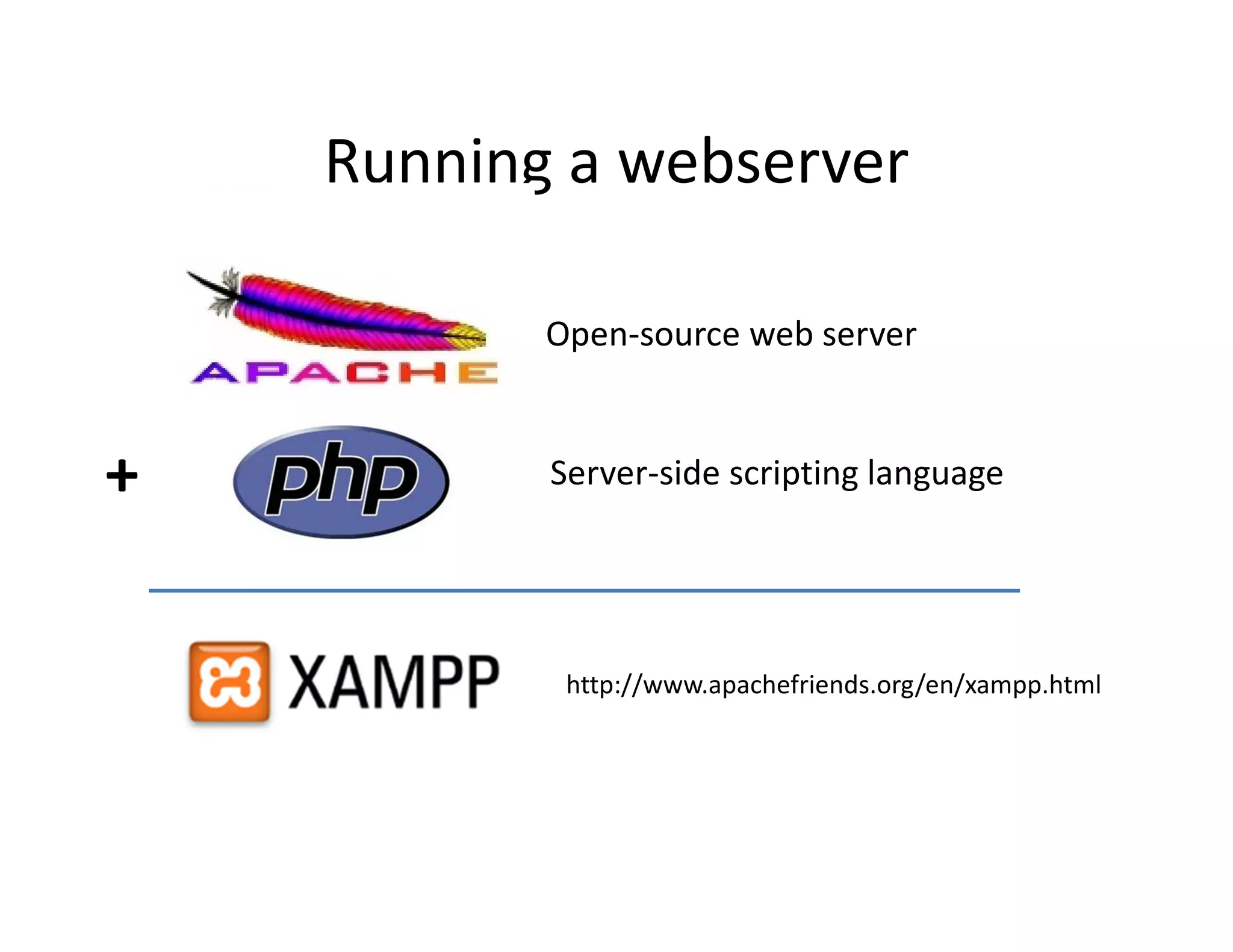

- 34. Running a webserver Open-source web server + Server-side scripting language http://www.apachefriends.org/en/xampp.html

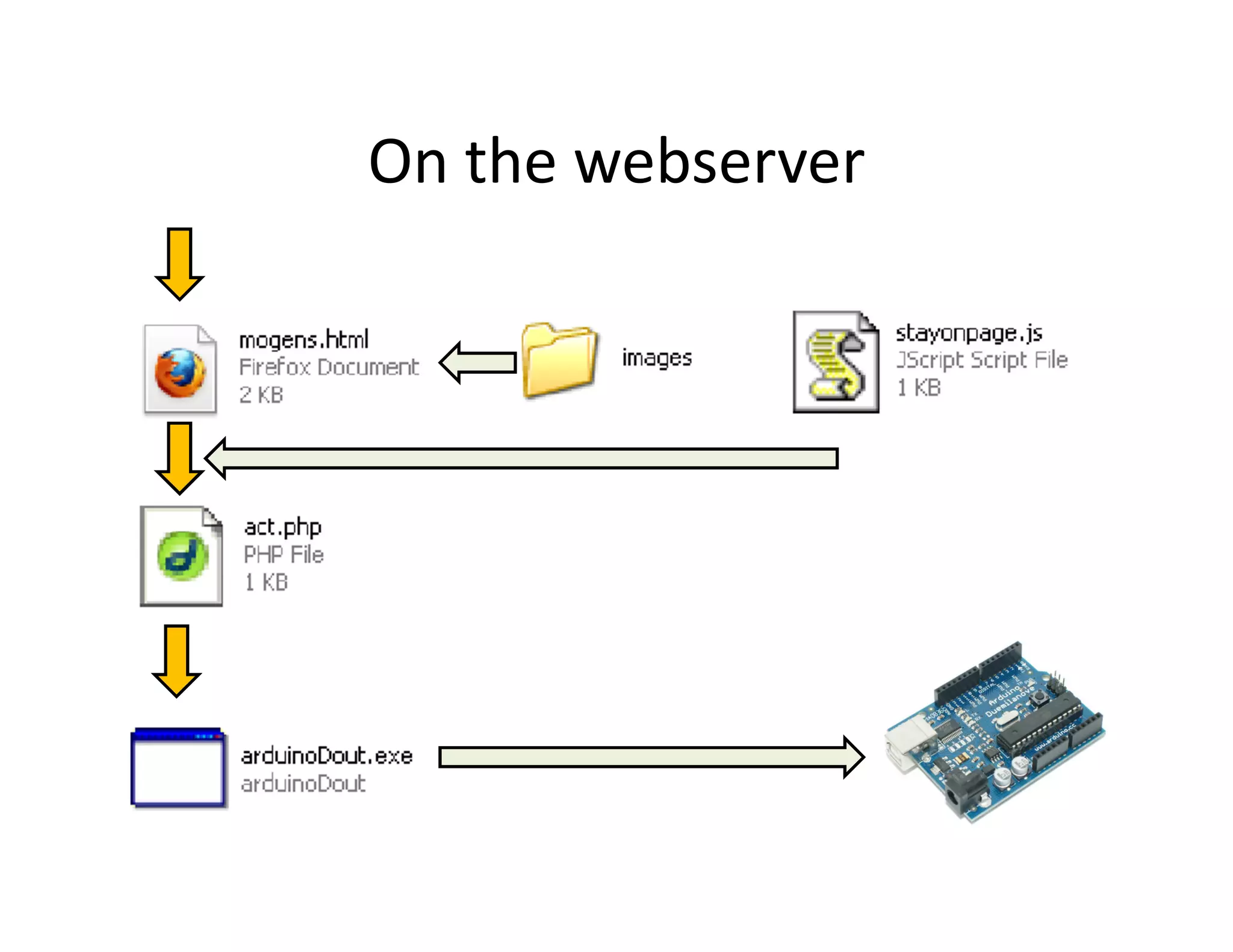

- 35.

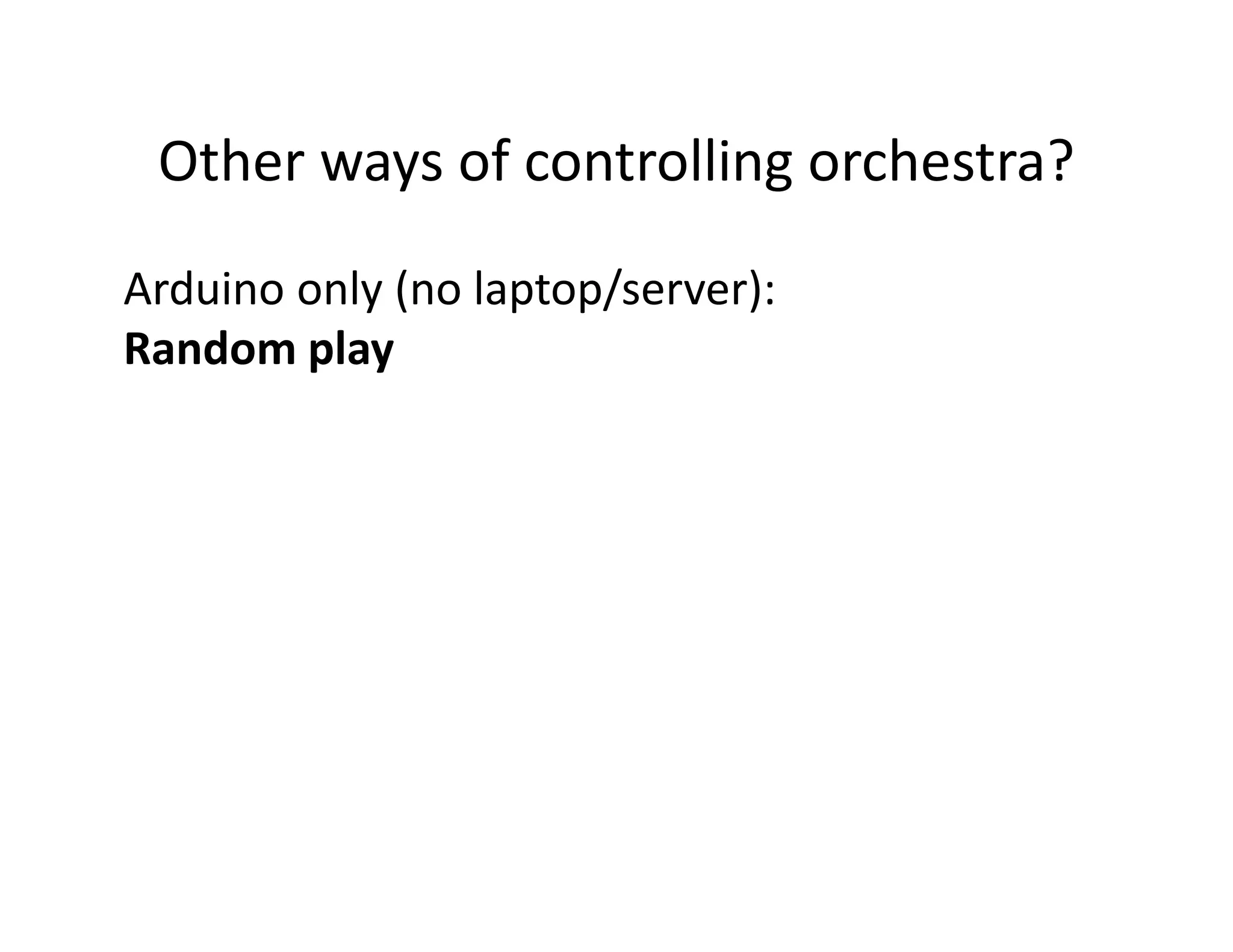

- 36. Other ways ofcontrolling orchestra? Arduino only (no laptop/server): Random play

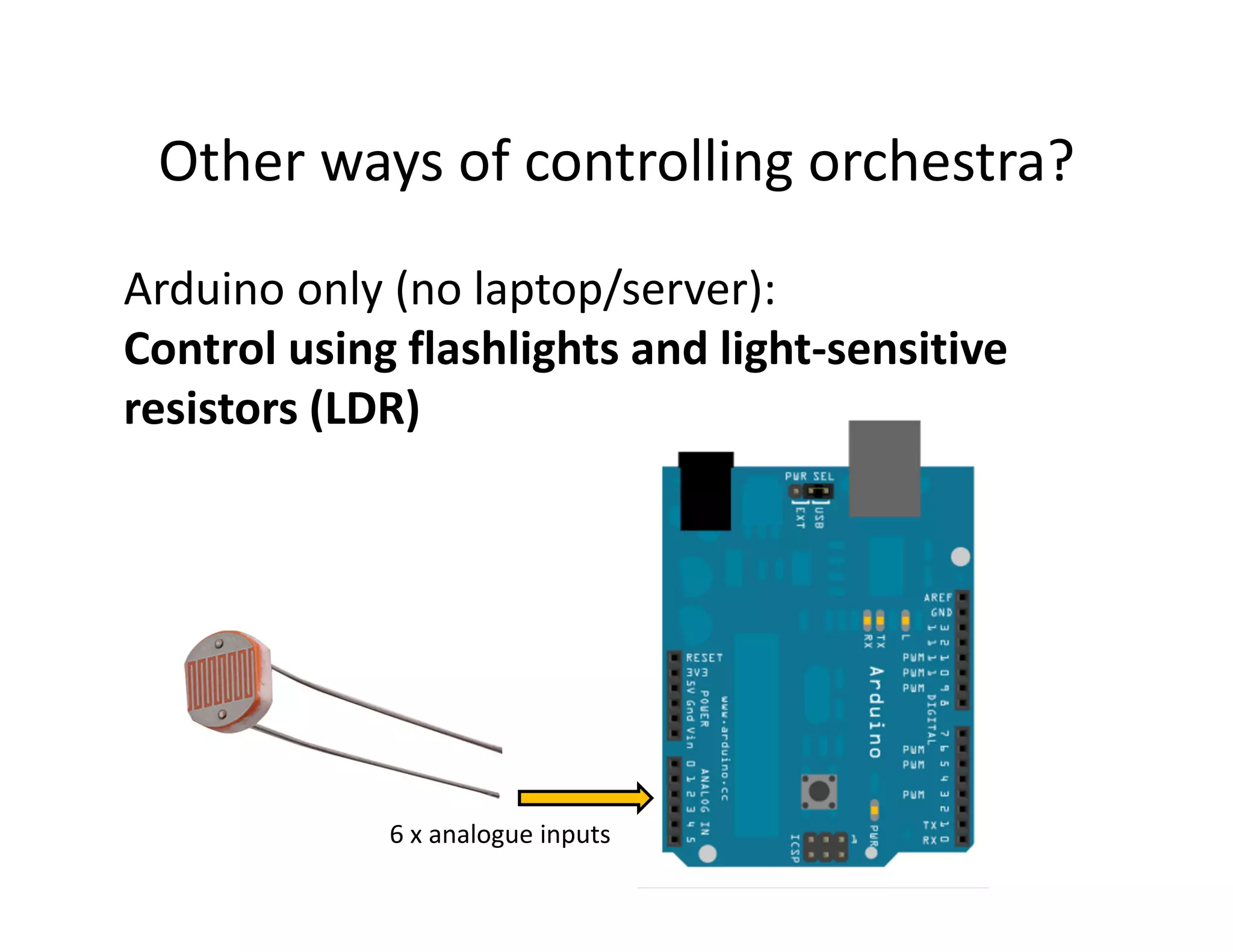

- 37. Other ways ofcontrolling orchestra? Arduino only (no laptop/server): Control using flashlights and light-sensitive resistors (LDR) 6 x analogue inputs

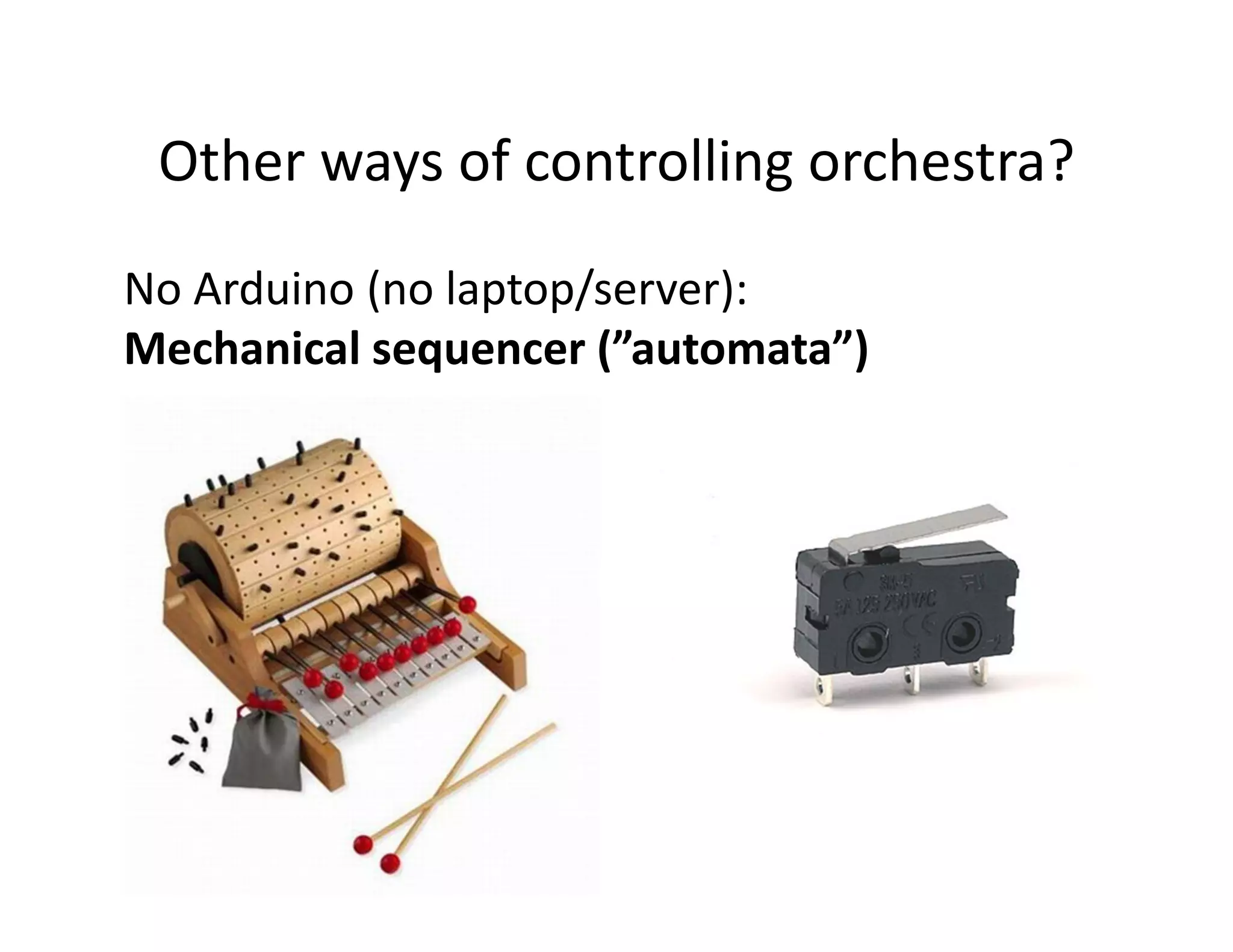

- 38. Other ways ofcontrolling orchestra? No Arduino (no laptop/server): Mechanical sequencer (”automata”)

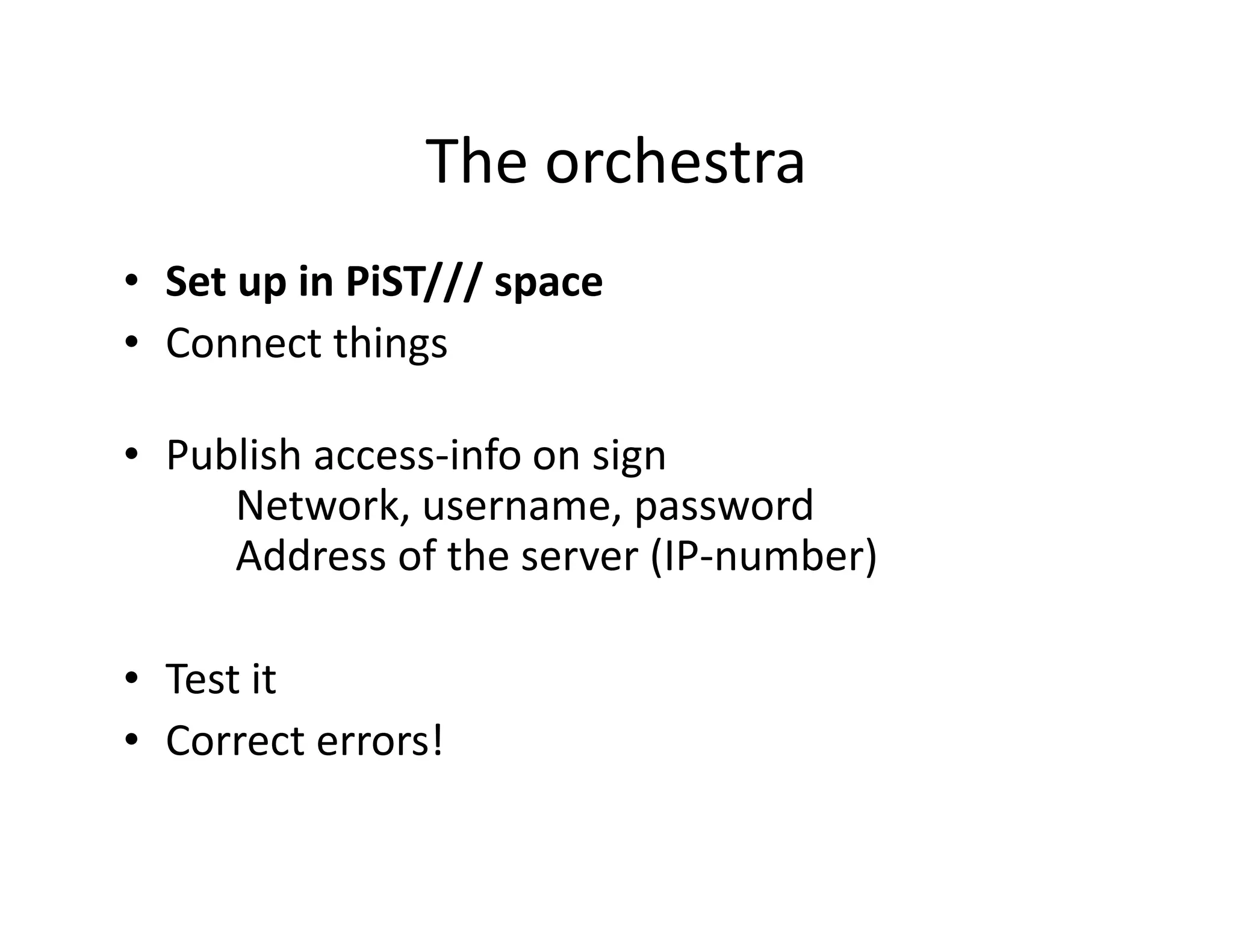

- 39. The orchestra • Setup in PiST/// space • Connect things • Publish access-info on sign Network, username, password Address of the server (IP-number) • Test it • Correct errors!

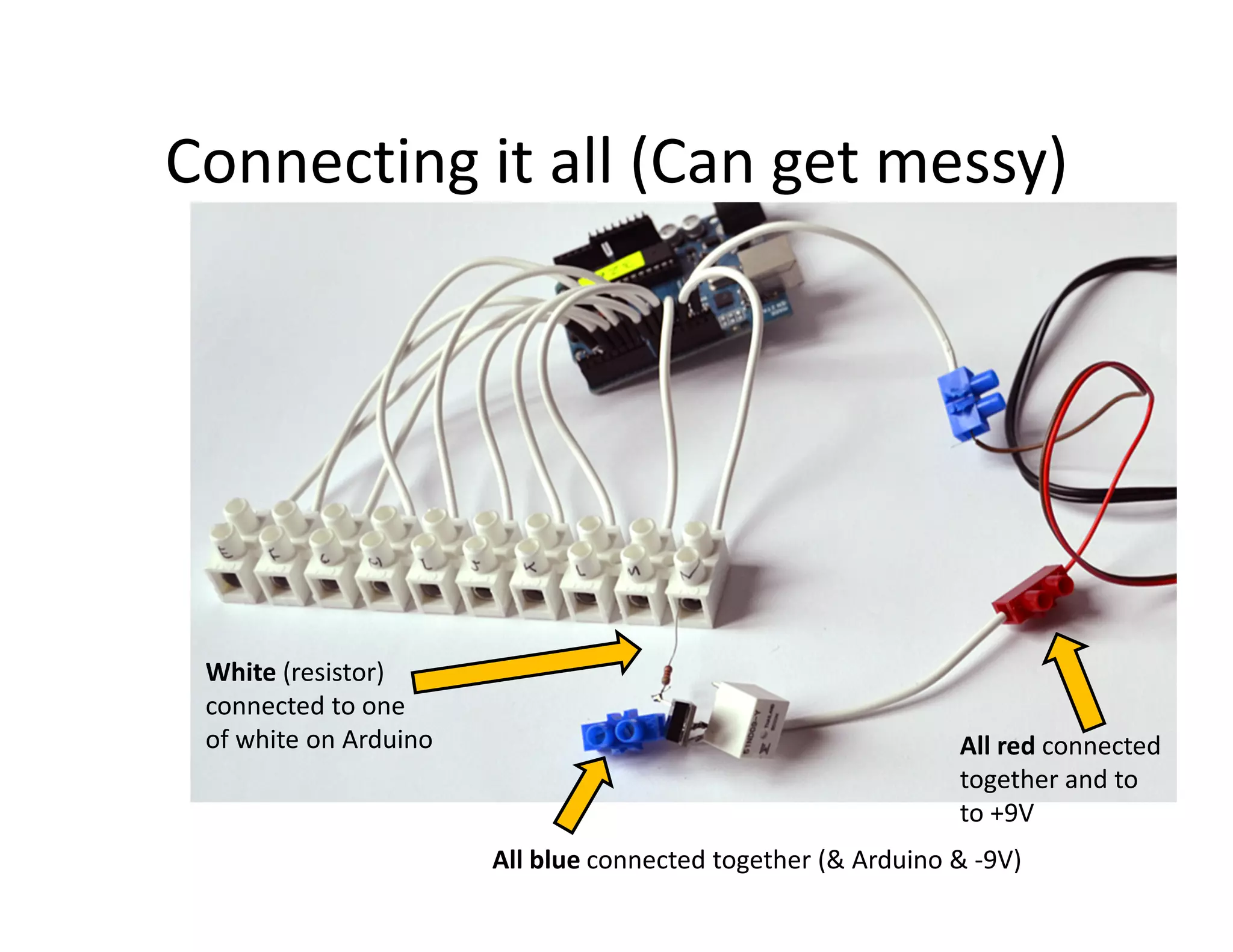

- 40. Connecting it all(Can get messy) White (resistor) connected to one of white on Arduino All red connected together and to to +9V All blue connected together (& Arduino & -9V)
- 41. Links • All material:http://bit.ly/o0TclL – (lower case ”o”, Zero, Tc, uppercase ”i” and L) • My email: jacobsen@artnode.org
