diamond
                                                 M E T A L S C R E E N S P V T. L T D
                                                 ...wHOLEsome Metals




                                            PERFORATED FACADES




The architecture
              of holes.


              The science of architecture fused with the art of perforation.

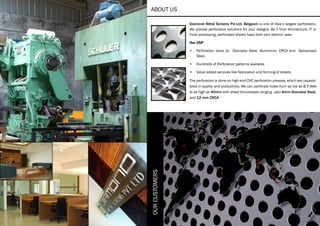

ABOUT US

                Diamond Metal Screens Pvt.Ltd, Belgaum is one of Asia’s largest perforators.
                We provide perforation solutions for your designs. Be it from Architecture, IT or
                Food processing, perforated sheets have their own distinct uses.

                Our USP

                •	 Perforation done on Stainless Steel, Aluminium, CRCA and Galvanised
                   Steel.

                •	 Hundreds of Perforation patterns available

                •	 Value added services like fabrication and forming of sheets

                The perforation is done on high end CNC perforation presses, which are unparal-
                leled in quality and productivity. We can perforate holes from as low as 0.7 mm
                to as high as 50mm with sheet thicknesses ranging upto 6mm Stainless Steel,
                and 12 mm CRCA.




OUR CUSTOMERS

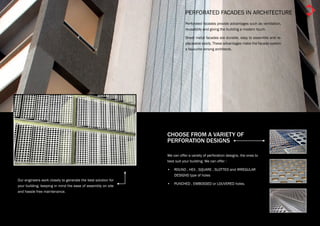

PERFORATED FACADES IN ARCHITECTURE
                                                                          Perforated facades provide advantages such as ventilation,
                                                                          reusability and giving the building a modern touch.

                                                                          Sheet metal facades are durable, easy to assemble and re-
                                                                          placeable easily. These advantages make the facade system
                                                                          a favourite among architects.




                                                               CHOOSE FROM A VARIETY OF
                                                               PERFORATION DESIGNS

                                                               We can offer a variety of perforation designs, the ones to
                                                               best suit your building. We can offer :

                                                               •	 ROUND , HEX , SQUARE , SLOTTED and IRREGULAR
                                                                  DESIGNS type of holes
Our engineers work closely to generate the best solution for
                                                               •	 PUNCHED , EMBOSSED or LOUVERED holes.
your building, keeping in mind the ease of assembly on site
and hassle free maintenance.

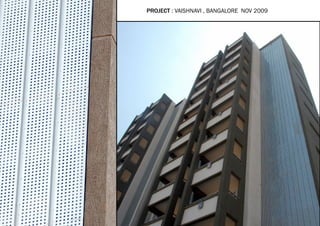

PROJECT : VAISHNAVI , BANGALORE NOV 2009
Features.
•	   3000 sq.mt of aluminium perforated panels

•	   12 storeys of metallic perforated facade

•	   Manufactured at DMSPL and transported in SKD condition to site




Design excellence.
The facade system has been designed carefully to
withstand wind loads and environmental forces.
The sturdy frame system plays an important role.




The frames are manufactured using Galvanised         Ease of assembly                                          The frames are assembled and fitted on to the building
steel, to prevent the material from rusting.         The facade frame system has been manufactured and         walls to form the whole facade.
                                                     designed in a fashion that allows ease of transport and
                                                     assembly on site.

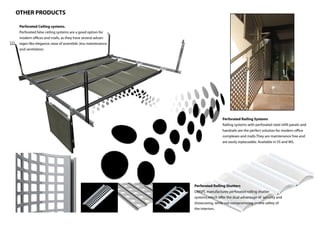

OTHER PRODUCTS

 Perforated Ceiling systems.
 Perforated false ceiling systems are a good option for
 modern offices and malls, as they have several advan-
 tages like elegance, ease of assemble ,less maintenance
 and ventilation.




                                                                            Perforated Railing Systems
                                                                            Railing systems with perforated steel infill panels and
                                                                            handrails are the perfect solution for modern office
                                                                            complexes and malls.They are maintenance free and
                                                                            are easily replaceable. Available in SS and MS.




                                                           Perforated Rolling Shutters
                                                           DMSPL manufactures perforated rolling shutter
                                                           systems,which offer the dual advantage of security and
                                                           showcasing, while not compromising on the safety of
                                                           the interiors.
PERFORATION PATTERNS AND DESIGNS
                                                                   DMSPL is capable of manufacturing perforated sheet metal products
                                                                   backed by experienced tool room engineers to design and develop
                                                                   the most intricate of perforation patterns for you.

                                                                   So go ahead, try us. Let your imagination run wild in desiging and
                                                                   choosing the best pattern for your architecture design.

Choose from a wide variety of perforation patterns and designs :

•	   ROUND

•	   HEXAGONAL

•	   SLOTTED

•	   RECTANGULAR

•	   SQUARE

•	   DECORATIVE
DIAMOND METAL SCREENS PVT.LTD
                Plot No.26, R.S No 336/1,
                      Majagaon,Udyambag
                      Belgaum - 590 008



              PH :    +91 831 2407775 / 78
                      +91 831 2441495 / 96
             FAX :    +91 831 2441524 / 2426222


          Email : diamondscreens@vsnl.com
                     info@diamondmetalcraft.com



www.diamondscreens.com        |   www.diamondmetalcraf t.com
