#PDR15 - Voice API
The document discusses Pebble's voice dictation API. It provides an overview of how the dictation works, including capturing audio with the microphone, encoding it with Speex, and sending it to a recognizer. It also covers the dictation API basics, UI flow, an example demo app, best practices, and development tools. The API allows apps to integrate voice input and transcription directly on the watch.
More Related Content
![[Wroclaw #3] Trusted Computing](https://cdn.slidesharecdn.com/ss_thumbnails/tpmpresentation-160711095258-thumbnail.jpg?width=640&height=640&fit=bounds)
#PDR15 - Voice API

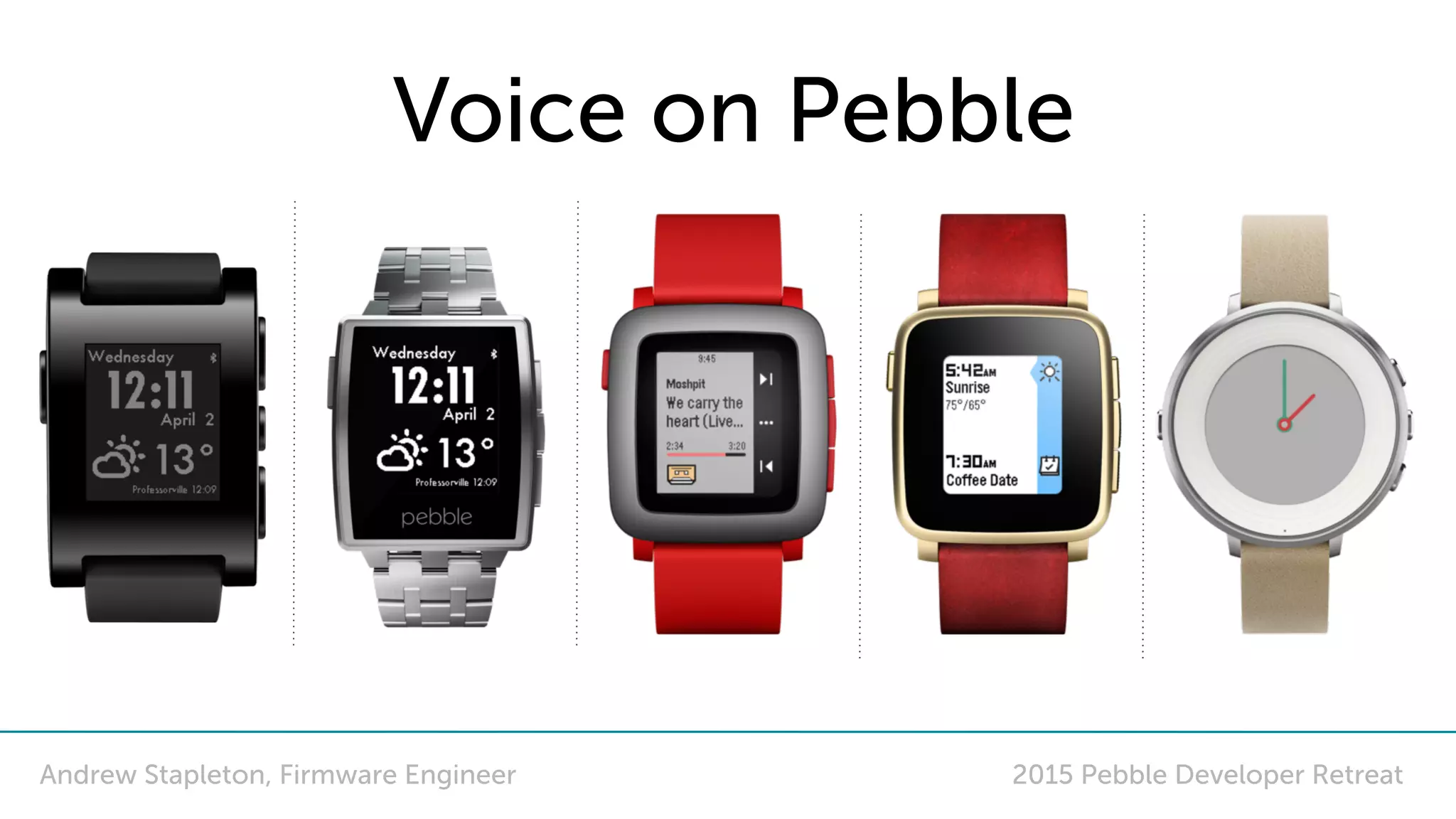

- 1. 2015 Pebble DeveloperRetreat Voice on Pebble Andrew Stapleton, Firmware Engineer

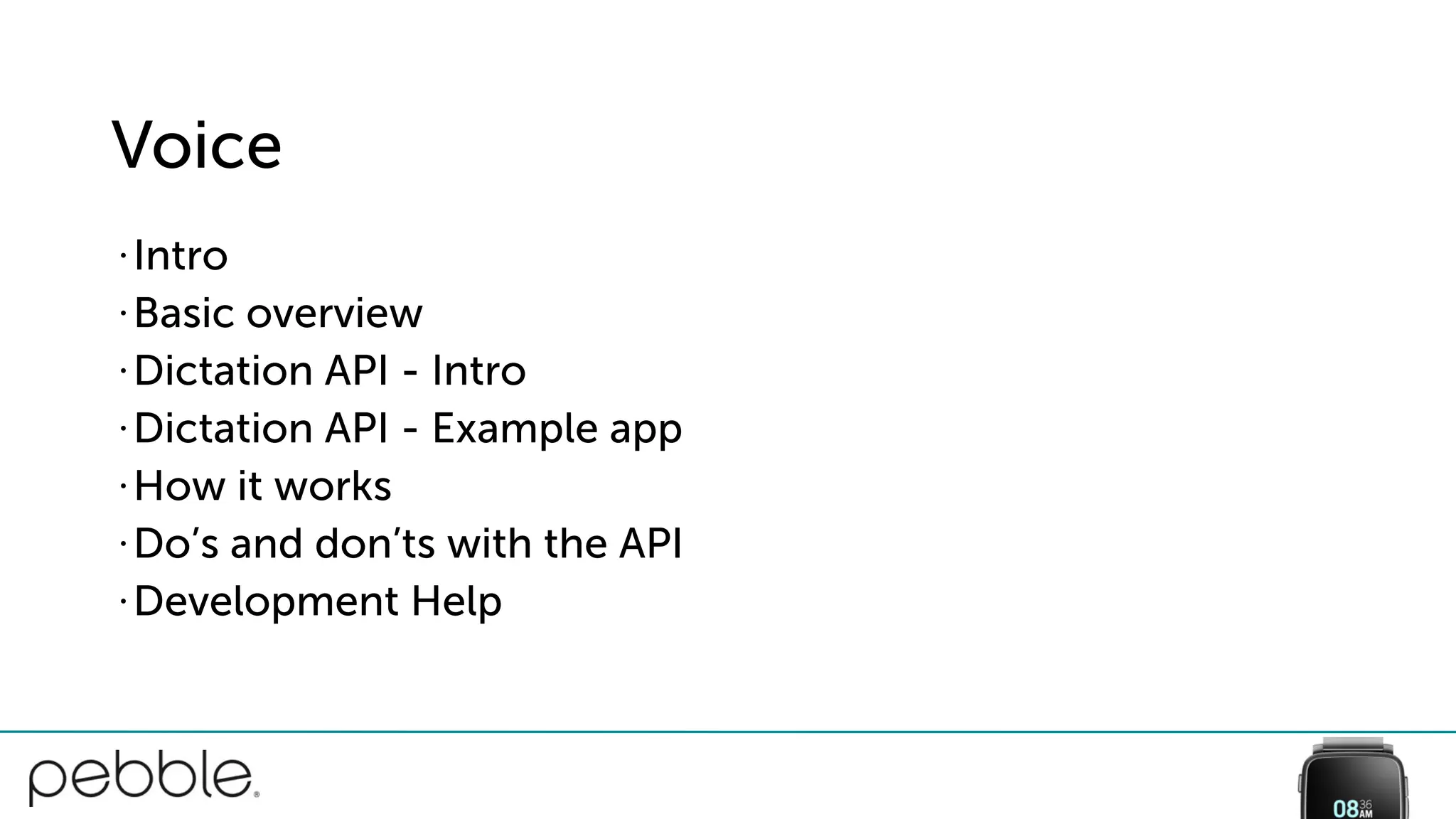

- 2. Voice • Intro • Basicoverview • Dictation API - Intro • Dictation API - Example app • How it works • Do’s and don’ts with the API • Development Help

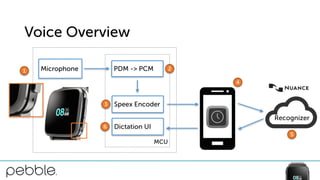

- 3. Voice Overview Microphone MCU PDM ->PCM Speex Encoder Dictation UI Recognizer 6 1 2 3 4 5
- 4. Examples • General textinput • Voice notes • Voice commands (tell your phone what to do) • Translation tool • Search/contextual query interface • Messaging • Twitter interface

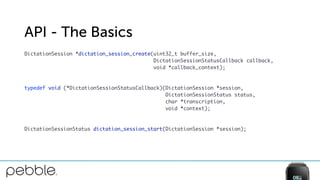

- 5. API - TheBasics DictationSession *dictation_session_create(uint32_t buffer_size, DictationSessionStatusCallback callback, void *callback_context); typedef void (*DictationSessionStatusCallback)(DictationSession *session, DictationSessionStatus status, char *transcription, void *context); DictationSessionStatus dictation_session_start(DictationSession *session);

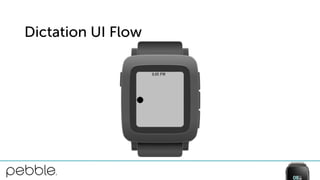

- 6.

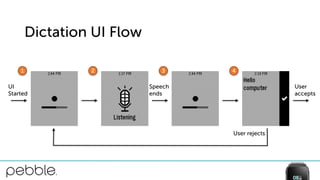

- 7. Dictation UI Flow UI Started Speech ends User accepts Userrejects 1 2 3 4
- 8.

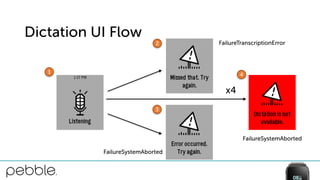

- 9. Dictation UI Flow 12 3 FailureConnectivityError FailureDisabled

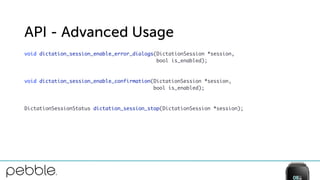

- 10. API - AdvancedUsage void dictation_session_enable_error_dialogs(DictationSession *session, bool is_enabled); void dictation_session_enable_confirmation(DictationSession *session, bool is_enabled); DictationSessionStatus dictation_session_stop(DictationSession *session);
- 11. Dictation UI Flow •No confirmation dialog UI Started Speech ends 1 2 3

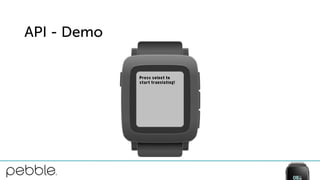

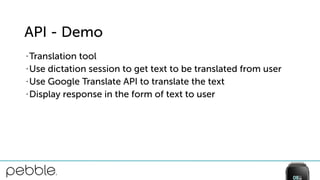

- 12. API - Demo •Translation tool • Use dictation session to get text to be translated from user • Use Google Translate API to translate the text • Display response in the form of text to user
- 13. #define BUFFER_SIZE (512) staticvoid init(void) { session = dictation_session_create(BUFFER_SIZE, handle_dictation_result, NULL); if (!session) { APP_LOG(APP_LOG_LEVEL_ERROR, "No phone connected, platform is not supported or " "phone app does not support dictation APIs!"); } // more initialization }
- 14. static void select_click_handler(ClickRecognizerRefrecognizer, void *context) { dictation_session_start(session); } static void handle_dictation_result(DictationSession *session, DictationSessionStatus status, char *transcription, void *context) { if (status == DictationSessionStatusSuccess) { if (dictation_result) { free(dictation_result); } const char *preamble = "ENG: "; size_t len = strlen(transcription); dictation_result = malloc(len + strlen(preamble) + 1); strcpy(dictation_result, preamble); strcat(dictation_result, transcription); text_layer_set_text(q_text_layer, dictation_result); } else { // handle errors } }
- 15.
- 16.

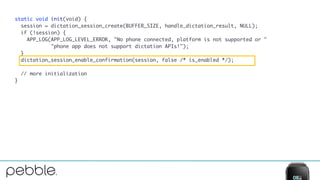

- 17. static void init(void){ session = dictation_session_create(BUFFER_SIZE, handle_dictation_result, NULL); if (!session) { APP_LOG(APP_LOG_LEVEL_ERROR, "No phone connected, platform is not supported or " "phone app does not support dictation APIs!"); } dictation_session_enable_confirmation(session, false /* is_enabled */); // more initialization }
- 18.

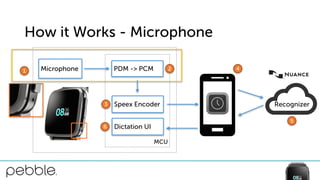

- 19. Recognizer How it Works- Microphone Microphone MCU PDM -> PCM Speex Encoder Dictation UI6 1 2 3 4 5

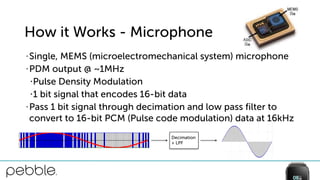

- 20. How it Works- Microphone • Single, MEMS (microelectromechanical system) microphone • PDM output @ ~1MHz •Pulse Density Modulation •1 bit signal that encodes 16-bit data • Pass 1 bit signal through decimation and low pass filter to convert to 16-bit PCM (Pulse code modulation) data at 16kHz Decimation + LPF

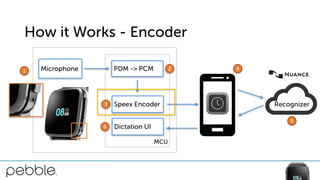

- 21. Recognizer How it Works- Encoder Microphone MCU PDM -> PCM Speex Encoder Dictation UI6 1 2 3 4 5
- 22. How it Works- Encoder • Why encode? •Bluetooth throughput limited • Why Speex? •Developed specifically for voice encoding •Outperforms most telephony codecs (compression ratio v quality) •Tunable quality •Recovers from dropped frames

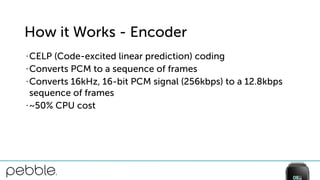

- 23. How it Works- Encoder • CELP (Code-excited linear prediction) coding • Converts PCM to a sequence of frames • Converts 16kHz, 16-bit PCM signal (256kbps) to a 12.8kbps sequence of frames • ~50% CPU cost

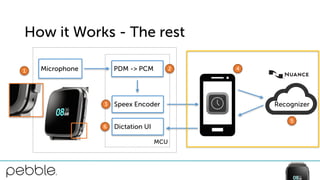

- 24. How it Works- The rest Microphone MCU PDM -> PCM Speex Encoder Dictation UI6 1 2 3 4 5 Recognizer
- 25. Do’s and Don’ts •Only create one session instance (~1.5kB RAM + buffer space) - it can be reused. • While session is in progress: •No heavy processing •No appmessage • Clean up the session to recover precious RAM • If you decide to disable error messages, provide some useful feedback for the user.

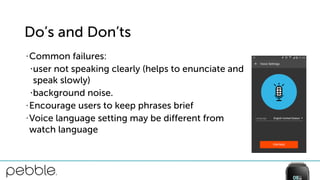

- 26. Do’s and Don’ts •Common failures: •user not speaking clearly (helps to enunciate and speak slowly) •background noise. • Encourage users to keep phrases brief • Voice language setting may be different from watch language

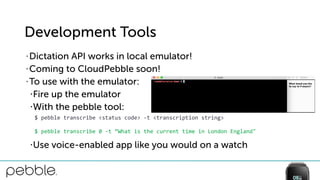

- 27. Development Tools • DictationAPI works in local emulator! • Coming to CloudPebble soon! • To use with the emulator: •Fire up the emulator •With the pebble tool: •Use voice-enabled app like you would on a watch $ pebble transcribe <status code> -‐t <transcription string> $ pebble transcribe 0 -‐t “What is the current time in London England"
- 28. More Info • APIDocumentation: http://developer.getpebble.com/docs/c/ preview/Foundation/Dictation/ • Guide: https://developer.getpebble.com/guides/pebble- apps/sensors/dictation/ • Example: https://github.com/pebble-hacks/voice-demo
- 29.
