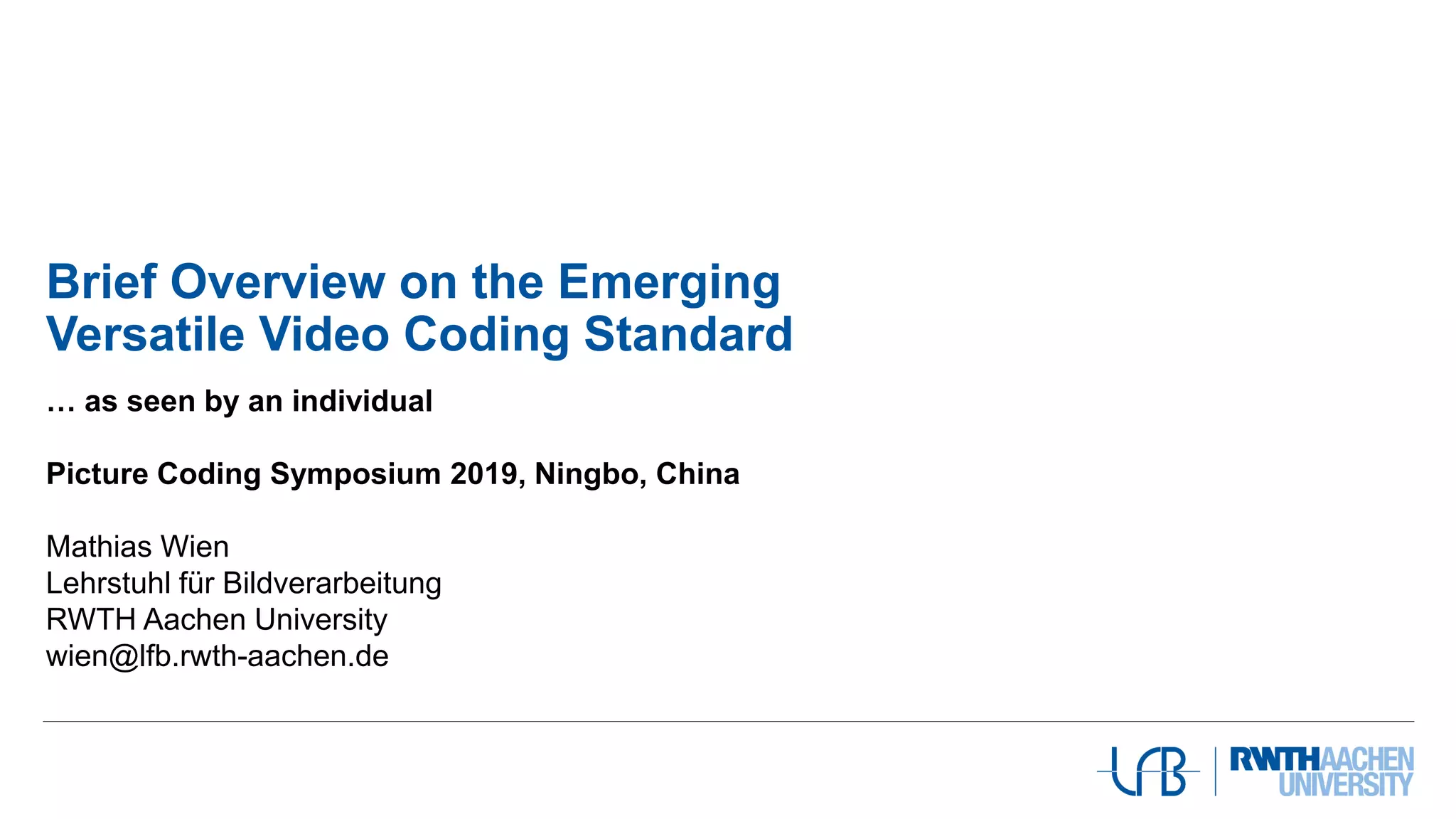

1. Brief Overview on the Emerging
Versatile Video Coding Standard
… as seen by an individual
Picture Coding Symposium 2019, Ningbo, China
Mathias Wien
Lehrstuhl für Bildverarbeitung
RWTH Aachen University
wien@lfb.rwth-aachen.de

2. Versatile Video Coding | Panel on Emerging Video Codecs | Picture Coding Symposium 2019 | Ningbo, China
15.11.2019 | Mathias Wien | Institute of Imaging and Computer Vision | RWTH Aachen University
2
• Joint Video Experts Team of ISO/IEC MPEG and ITU-T VCEG, est. in
Oct. 2015 as Joint Video Exploration Team, renamed Apr. 2018 at CfP eval.
• Joint Exploration Model: 7 iterations
 Investigating coding tools enhanced relative to HEVC test model HM
• Call for Evidence (CfE), issued Apr. 2017, evaluated in Jul. 2017
 Significant improvement for JEM and independent submissions
• Call for Proposls (CfP), issued Oct. 2017, evaluated in Apr. 2018
at10th JVET meeting
 Kick-off for VVC, definition of name, VVC draft 1 and test model 1 (VTM1)
Evolution towards VVC
Evolution of JVET docs and participants

3. Versatile Video Coding | Panel on Emerging Video Codecs | Picture Coding Symposium 2019 | Ningbo, China
15.11.2019 | Mathias Wien | Institute of Imaging and Computer Vision | RWTH Aachen University
3

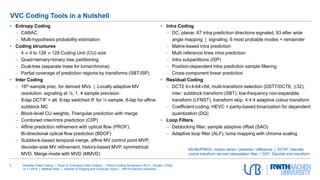

• Entropy Coding
 CABAC
 Multi-hypothesis probability estimation
• Coding structures
 4 × 4 to 128 × 128 Coding Unit (CU) size
 Quad+ternary+binary tree partitioning
 Dual-tree (separate trees for luma/chroma)
 Partial coverage of prediction regions by transforms (SBT,ISP)
• Inter Coding
 16th-sample prec. for derived MVs | Locally adaptive MV
resolution: signaling at ¼, 1, 4 sample precision
 8-tap DCTIF + alt. 6-tap switched IF for ½ sample, 6-tap for affine
subblock MC
 Block-level CU weights, Triangular prediction with merge
 Combined inter/intra prediction (CIIP)
 Affine prediction refinement with optical flow (PROF),
Bi-directional optical flow prediction (BDOF)
 Subblock-based temporal merge, affine MV control point MVP,
decoder-side MV refinement, history-based MVP, symmetrical
MVD, Merge mode with MVD (MMVD)
• Intra Coding
 DC, planar, 67 intra prediction directions signaled, 93 after wide
angle mapping | signaling: 6 most probable modes + remainder
 Matrix-based intra prediction
 Multi reference lines intra prediction
 Intra subpartitions (ISP)
 Position-dependent intra prediction sample filtering
 Cross-component linear prediction
• Residual Coding
 DCT2 4×4-64×64, multi-transform selection (DST7/DCT8, ≤32),
inter: subblock transform (SBT), low-frequency non-separable
transform (LFNST), transform skip, 4:4:4 adaptive colour transform
 Coefficient coding: HEVC + parity-based binarization for dependent
quantization (DQ)
• Loop Filters
 Deblocking filter, sample adaptive offset (SAO)
 Adaptive loop filter (ALF), luma mapping with chroma scaling
VVC Coding Tools in a Nutshell
MV/MVP/MVD: motion vector / predictor / difference | DCTIF: Discrete
cosine transform derived interpolation filter | DST: Discrete sine transform

4. Versatile Video Coding | Panel on Emerging Video Codecs | Picture Coding Symposium 2019 | Ningbo, China
15.11.2019 | Mathias Wien | Institute of Imaging and Computer Vision | RWTH Aachen University
4

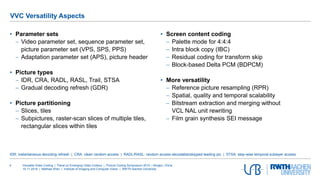

• Parameter sets
 Video parameter set, sequence parameter set,
picture parameter set (VPS, SPS, PPS)
 Adaptation parameter set (APS), picture header
• Picture types
 IDR, CRA, RADL, RASL, Trail, STSA
 Gradual decoding refresh (GDR)
• Picture partitioning
 Slices, tiles
 Subpictures, raster-scan slices of multiple tiles,
rectangular slices within tiles
• Screen content coding
 Palette mode for 4:4:4
 Intra block copy (IBC)
 Residual coding for transform skip
 Block-based Delta PCM (BDPCM)
• More versatility
 Reference picture resampling (RPR)
 Spatial, quality and temporal scalability
 Bitstream extraction and merging without
VCL NAL unit rewriting
 Film grain synthesis SEI message
VVC Versatility Aspects
IDR: instantaneous decoding refresh | CRA: clean random access | RADL/RASL: random access decodable/skipped leading pic. | STSA: step-wise temporal sublayer access

5. Versatile Video Coding | Panel on Emerging Video Codecs | Picture Coding Symposium 2019 | Ningbo, China
15.11.2019 | Mathias Wien | Institute of Imaging and Computer Vision | RWTH Aachen University
5

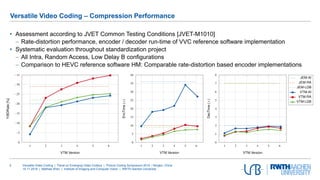

• Assessment according to JVET Common Testing Conditions [JVET-M1010]
 Rate-distortion performance, encoder / decoder run-time of VVC reference software implementation
• Systematic evaluation throughout standardization project
 All Intra, Random Access, Low Delay B configurations
 Comparison to HEVC reference software HM: Comparable rate-distortion based encoder implementations
Versatile Video Coding – Compression Performance

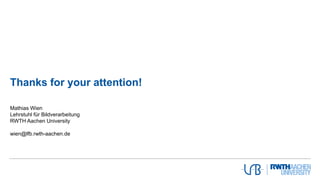

6. Thanks for your attention!
Mathias Wien
Lehrstuhl für Bildverarbeitung
RWTH Aachen University
