Uploaded byAnnibale Panichella
Parameterizing and Assembling IR-based Solutions for SE Tasks using Genetic Algorithms
This document proposes using genetic algorithms to parameterize and assemble information retrieval (IR)-based solutions for software engineering tasks. The goal is to find an optimal configuration of IR parameters like term extraction, stopword removal, weighting, and distance functions. The approach evaluates different IR configurations based on how well they cluster related documents, as measured by silhouette coefficient. Empirical tests on traceability recovery and duplicate bug detection tasks show this "GA-IR" approach finds configurations comparable to ideal ones and outperforming baselines. The clustering hypothesis - that better document clusters correlate with better IR performance - is also supported.
More Related Content
Similar to Parameterizing and Assembling IR-based Solutions for SE Tasks using Genetic Algorithms
Parameterizing and Assembling IR-based Solutions for SE Tasks using Genetic Algorithms
- 1. Parameterizing and Assembling IR-basedSolutions for SE Tasks using Genetic Algorithms Annibale Panichella, Bogdan Dit, Rocco Oliveto, Max Di Penta, Denys Poshyvanyk and Andrea De Lucia

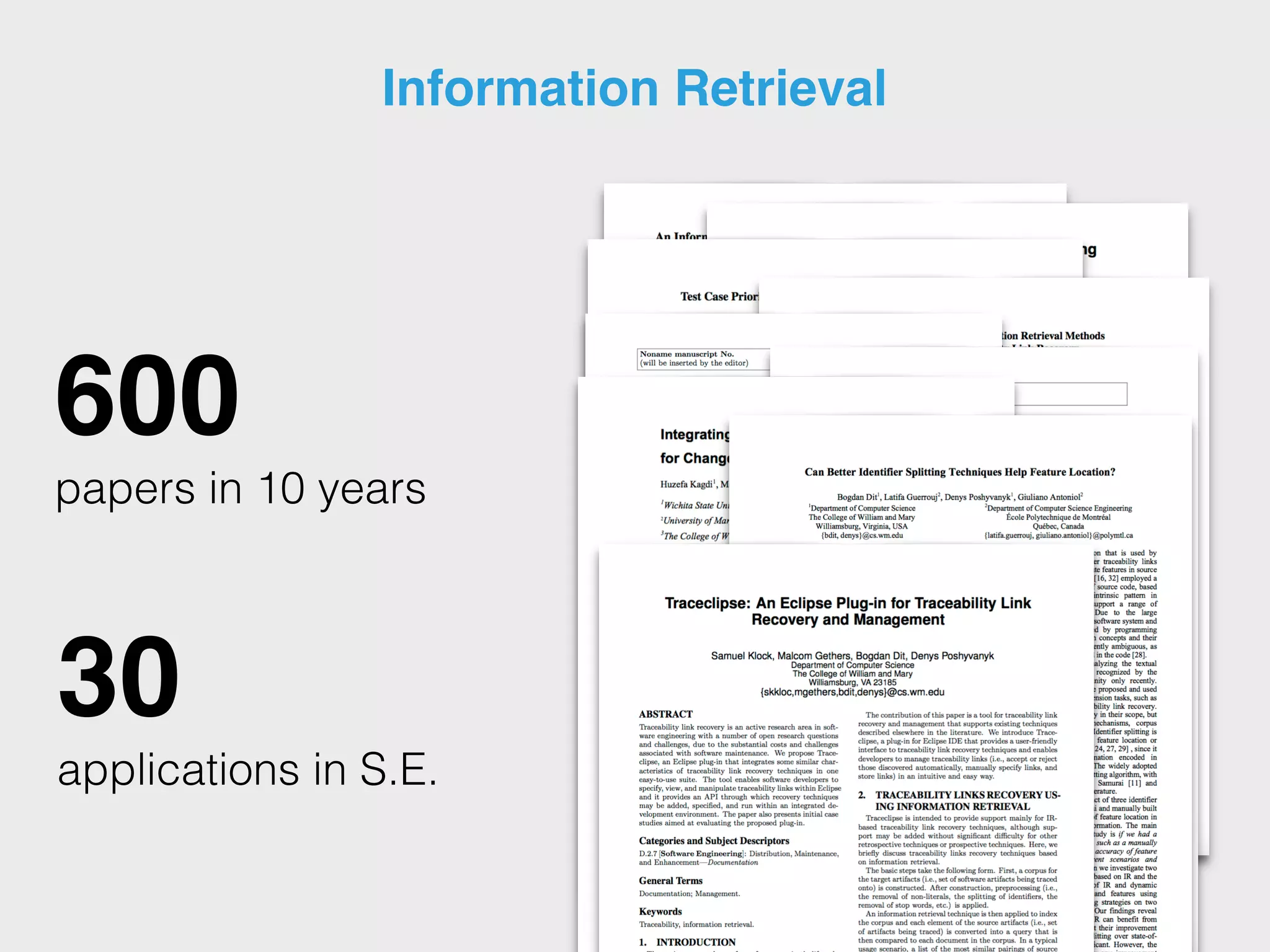

- 2. Information Retrieval 600 papers in10 years 30 applications in S.E.

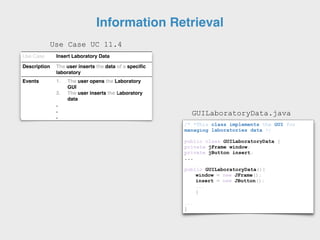

- 3. Use Case InsertLaboratory Data Description The user inserts the data of a specific laboratory Events 1. The user opens the Laboratory GUI 2. The user inserts the Laboratory data . . . /* *This class implements the GUI for managing laboratories data */ public class GUILaboratoryData { private jFrame window; private jButton insert; ... public GUILaboratoryData(){ window = new JFrame(); insert = new JButton(); ... } ... } GUILaboratoryData.java Information Retrieval Use Case UC 11.4

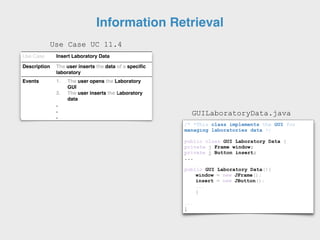

- 4. Use Case InsertLaboratory Data Description The user inserts the data of a specific laboratory Events 1. The user opens the Laboratory GUI 2. The user inserts the Laboratory data . . . /* *This class implements the GUI for managing laboratories data */ public class GUILaboratoryData { private jFrame window; private jButton insert; ... public GUILaboratoryData(){ window = new JFrame(); insert = new JButton(); ... } ... } GUILaboratoryData.java Use Case UC 11.4 Information Retrieval

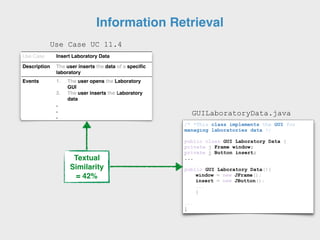

- 5. Use Case InsertLaboratory Data Description The user inserts the data of a specific laboratory Events 1. The user opens the Laboratory GUI 2. The user inserts the Laboratory data . . . /* *This class implements the GUI for managing laboratories data */ public class GUI Laboratory Data { private j Frame window; private j Button insert; ... public GUI Laboratory Data(){ window = new JFrame(); insert = new JButton(); ... } ... } GUILaboratoryData.java Information Retrieval Use Case UC 11.4
- 6. Use Case InsertLaboratory Data Description The user inserts the data of a specific laboratory Events 1. The user opens the Laboratory GUI 2. The user inserts the Laboratory data . . . /* *This class implements the GUI for managing laboratories data */ public class GUI Laboratory Data { private j Frame window; private j Button insert; ... public GUI Laboratory Data(){ window = new JFrame(); insert = new JButton(); ... } ... } GUILaboratoryData.java Information Retrieval Use Case UC 11.4 Textual Similarity = 42%

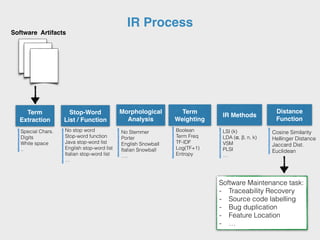

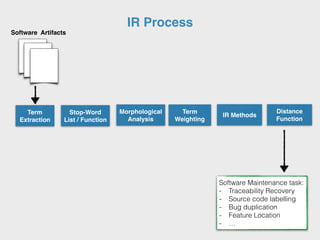

- 7. IR Process Term Extraction Stop-Word List /Function Morphological Analysis Term Weighting IR Methods Distance Function Software Maintenance task: - Traceability Recovery - Source code labelling - Bug duplication - Feature Location - … Software Artifacts
- 8. IR Process Special Chars. Digits Whitespace .. No stop word Stop-word function Java stop-word list English stop-word list Italian stop-word list … No Stemmer Porter English Snowball Italian Snowball …. Cosine Similarity Hellinger Distance Jaccard Dist. Euclidean LSI (k) LDA (ɑ, β, n, k) VSM PLSI … Boolean Term Freq TF-IDF Log(TF+1) Entropy Term Extraction Stop-Word List / Function Morphological Analysis Term Weighting IR Methods Distance Function Software Maintenance task: - Traceability Recovery - Source code labelling - Bug duplication - Feature Location - … Software Artifacts

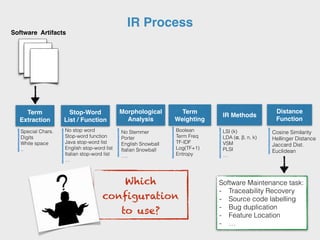

- 9. IR Process Special Chars. Digits Whitespace .. No stop word Stop-word function Java stop-word list English stop-word list Italian stop-word list … No Stemmer Porter English Snowball Italian Snowball …. Cosine Similarity Hellinger Distance Jaccard Dist. Euclidean LSI (k) LDA (ɑ, β, n, k) VSM PLSI … Boolean Term Freq TF-IDF Log(TF+1) Entropy Term Extraction Stop-Word List / Function Morphological Analysis Term Weighting IR Methods Distance Function Software Maintenance task: - Traceability Recovery - Source code labelling - Bug duplication - Feature Location - … Which configuration to use? Software Artifacts

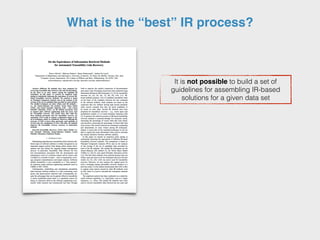

- 10. What is the“best” IR process? It is not possible to build a set of guidelines for assembling IR-based solutions for a given data set

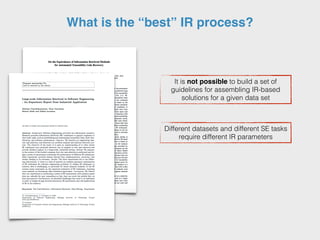

- 11. What is the“best” IR process? It is not possible to build a set of guidelines for assembling IR-based solutions for a given data set Different datasets and different SE tasks require different IR parameters

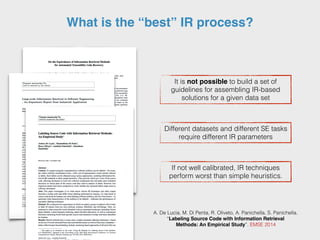

- 12. What is the“best” IR process? It is not possible to build a set of guidelines for assembling IR-based solutions for a given data set Different datasets and different SE tasks require different IR parameters If not well calibrated, IR techniques perform worst than simple heuristics. A. De Lucia, M. Di Penta, R. Oliveto, A. Panichella, S. Panichella. “Labeling Source Code with Information Retrieval Methods: An Empirical Study”. EMSE 2014
- 13. What is the“best” IR process? It is not possible to build a set of guidelines for assembling IR-based solutions for a given data set Different datasets and different SE tasks require different IR parameters If not well calibrated, IR techniques perform worst than simple heuristics. A. De Lucia, M. Di Penta, R. Oliveto, A. Panichella, S. Panichella. “Labeling Source Code with Information Retrieval Methods: An Empirical Study”. EMSE 2014 for the project and for the SE task
- 14. Strategy to findthe best configuration…
- 15. Strategy to findthe best configuration… It must be unsupervised..
- 16. Strategy to findthe best configuration… It must be unsupervised.. and general…

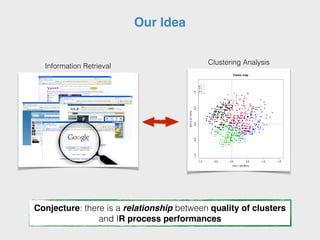

- 17. Our Idea Information Retrieval ClusteringAnalysis Conjecture: there is a relationship between quality of clusters and IR process performances

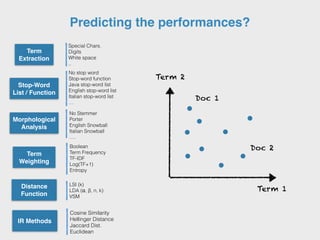

- 18. Predicting the performances? Term1 Term 2 Doc 1 Doc 2 Special Chars. Digits White space .. No stop word Stop-word function Java stop-word list English stop-word list Italian stop-word list … No Stemmer Porter English Snowball Italian Snowball …. Cosine Similarity Hellinger Distance Jaccard Dist. Euclidean LSI (k) LDA (ɑ, β, n, k) VSM Boolean Term Frequency TF-IDF Log(TF+1) Entropy Term Extraction Stop-Word List / Function Morphological Analysis Term Weighting IR Methods Distance Function

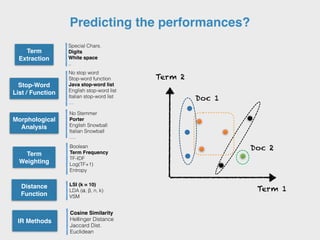

- 19. Predicting the performances? Term1 Term 2 Doc 1 Doc 2 Special Chars. Digits White space .. No stop word Stop-word function Java stop-word list English stop-word list Italian stop-word list … No Stemmer Porter English Snowball Italian Snowball …. Cosine Similarity Hellinger Distance Jaccard Dist. Euclidean LSI (k = 10) LDA (ɑ, β, n, k) VSM Boolean Term Frequency TF-IDF Log(TF+1) Entropy Term Extraction Stop-Word List / Function Morphological Analysis Term Weighting IR Methods Distance Function

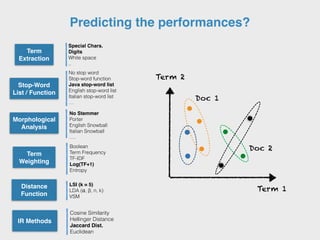

- 20. Predicting the performances? Term1 Term 2 Doc 1 Doc 2 Special Chars. Digits White space .. No stop word Stop-word function Java stop-word list English stop-word list Italian stop-word list … No Stemmer Porter English Snowball Italian Snowball …. Cosine Similarity Hellinger Distance Jaccard Dist. Euclidean LSI (k = 5) LDA (ɑ, β, n, k) VSM Boolean Term Frequency TF-IDF Log(TF+1) Entropy Term Extraction Stop-Word List / Function Morphological Analysis Term Weighting IR Methods Distance Function

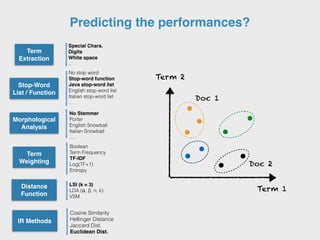

- 21. Predicting the performances? Term1 Term 2 Doc 1 Doc 2 Special Chars. Digits White space .. No stop word Stop-word function Java stop-word list English stop-word list Italian stop-word list … No Stemmer Porter English Snowball Italian Snowball …. Cosine Similarity Hellinger Distance Jaccard Dist. Euclidean Dist. LSI (k = 3) LDA (ɑ, β, n, k) VSM Boolean Term Frequency TF-IDF Log(TF+1) Entropy Term Extraction Stop-Word List / Function Morphological Analysis Term Weighting IR Methods Distance Function
- 22. Silhouette Coefficient Term 1 Term2 Doc 1 Doc 2 a a = Cluster Cohesion

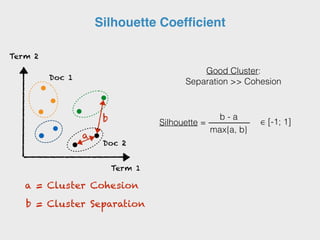

- 23. Silhouette Coefficient a =Cluster Cohesion Term 1 Term 2 Doc 1 Doc 2 b = Cluster Separation a b Good Cluster: Separation >> Cohesion b - a max{a, b} Silhouette = ∈ [-1; 1]

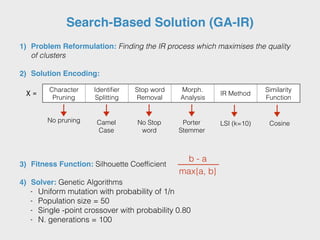

- 24. Search-Based Solution (GA-IR) 1)Problem Reformulation: Finding the IR process which maximises the quality of clusters 2) Solution Encoding: 3) Fitness Function: Silhouette Coefficient 4) Solver: Genetic Algorithms - Uniform mutation with probability of 1/n - Population size = 50 - Single -point crossover with probability 0.80 - N. generations = 100 X = b - a max{a, b} Character Pruning Identifier Splitting Stop word Removal Morph. Analysis IR Method Similarity Function No pruning Camel Case No Stop word Porter Stemmer LSI (k=10) Cosine

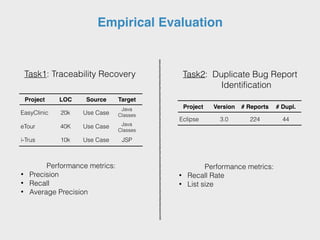

- 25. Empirical Evaluation Task1: TraceabilityRecovery Task2: Duplicate Bug Report Identification Project Version # Reports # Dupl. Eclipse 3.0 224 44 Project LOC Source Target EasyClinic 20k Use Case Java Classes eTour 40K Use Case Java Classes i-Trus 10k Use Case JSP Performance metrics: • Precision • Recall • Average Precision Performance metrics: • Recall Rate • List size

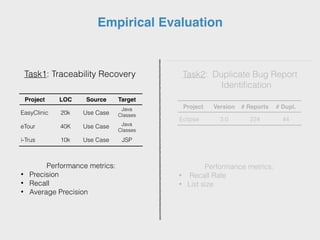

- 26. Performance metrics: • RecallRate • List size Empirical Evaluation Task1: Traceability Recovery Task2: Duplicate Bug Report Identification Project Version # Reports # Dupl. Eclipse 3.0 224 44 Project LOC Source Target EasyClinic 20k Use Case Java Classes eTour 40K Use Case Java Classes i-Trus 10k Use Case JSP Performance metrics: • Precision • Recall • Average Precision

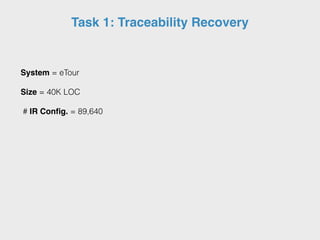

- 27. Task 1: TraceabilityRecovery System = eTour Size = 40K LOC # IR Config. = 89,640
- 28. Task 1: TraceabilityRecovery System = eTour Size = 40K LOC # IR Config. = 89,640 AveragePrecision Frequency High Results Variability
- 29. Task 1: TraceabilityRecovery System = eTour Size = 40K LOC # IR Config. = 89,640 AveragePrecision Frequency RQ1: How do the settings of IR-based techniques instantiated by GA-IR compare to an ideal configuration?

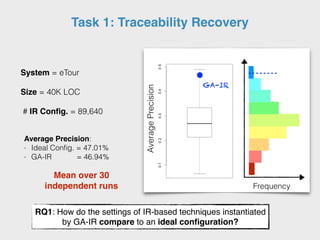

- 30. Task 1: TraceabilityRecovery System = eTour Size = 40K LOC # IR Config. = 89,640 AveragePrecision Frequency Average Precision: - Ideal Config. = 47.01% - GA-IR = 46.94% GA-IR RQ1: How do the settings of IR-based techniques instantiated by GA-IR compare to an ideal configuration? Mean over 30 independent runs
- 31. Task 1: TraceabilityRecovery System = eTour Size = 40K LOC # IR Config. = 89,640 AveragePrecision Frequency Average Precision: - Ideal Config. = 47.01% - GA-IR = 46.94% GA-IR RQ2: How do the IR techniques and configurations instantiated by GA-IR compare to those previously used in literature for the same tasks?

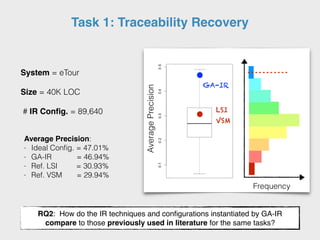

- 32. Task 1: TraceabilityRecovery System = eTour Size = 40K LOC # IR Config. = 89,640 AveragePrecision Frequency Average Precision: - Ideal Config. = 47.01% - GA-IR = 46.94% - Ref. LSI = 30.93% - Ref. VSM = 29.94% RQ2: How do the IR techniques and configurations instantiated by GA-IR compare to those previously used in literature for the same tasks? GA-IR LSI VSM
- 33. Ideal GA-IR Ref.LSI Ref. VSM Task 1: Traceability Recovery
- 34. Ideal GA-IR Ref.LSI Ref. VSM Task 1: Traceability Recovery GA-IR outperforms baseline (p-value < 0.05) GA-IR is statistically equivalent to the ideal configuration (p-value = 1.0)

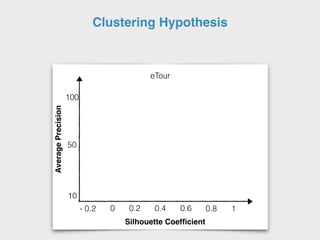

- 35. Clustering Hypothesis Silhouette Coefficient AveragePrecision 01 50 100 10 0.2- 0.2 0.4 0.6 0.8 eTour
- 36. Clustering Hypothesis AveragePrecision eTour 0 1 50 100 10 0.2-0.2 0.4 0.6 0.8 Silhouette Coefficient

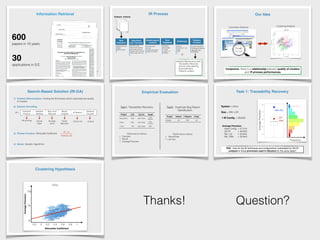

- 37.
