1. Tan Wen Nian
Supervisor: A/Prof Ouzreiah

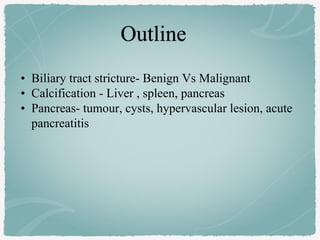

2. • Biliary tract stricture- Benign Vs Malignant
• Calcification - Liver , spleen, pancreas
• Pancreas- tumour, cysts, hypervascular lesion, acute
pancreatitis

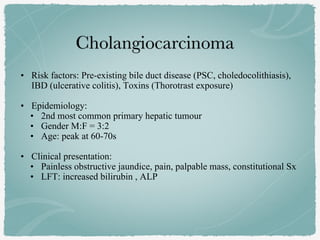

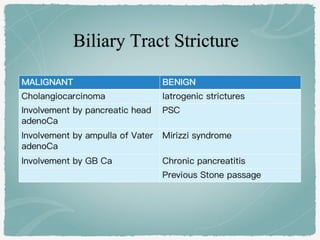

4. • Risk factors: Pre-existing bile duct disease (PSC, choledocolithiasis),
IBD (ulcerative colitis), Toxins (Thorotrast exposure)
• Epidemiology:
• 2nd most common primary hepatic tumour
• Gender M:F = 3:2
• Age: peak at 60-70s
• Clinical presentation:
• Painless obstructive jaundice, pain, palpable mass, constitutional Sx
• LFT: increased bilirubin , ALP

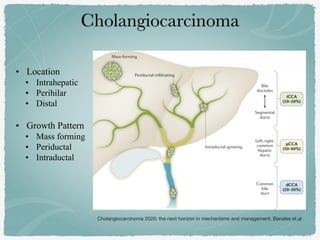

5. • Location
• Intrahepatic
• Perihilar
• Distal
• Growth Pattern
• Mass forming
• Periductal
• Intraductal
Cholangiocarcinoma 2020: the next horizon in mechanisms and management. Banales et.al

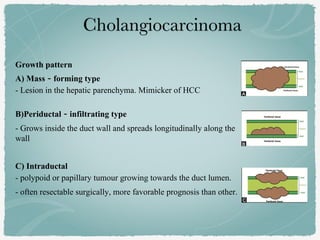

6. Growth pattern
A) Mass‐forming type
- Lesion in the hepatic parenchyma. Mimicker of HCC
B)Periductal‐infiltrating type
- Grows inside the duct wall and spreads longitudinally along the
wall
C) Intraductal
- polypoid or papillary tumour growing towards the duct lumen.
- often resectable surgically, more favorable prognosis than other.

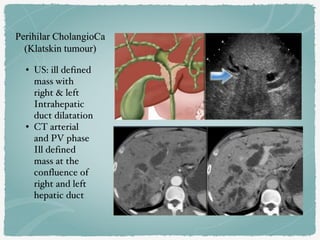

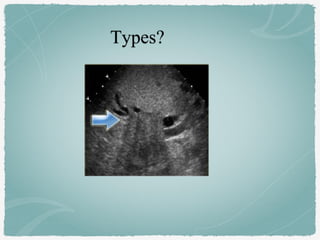

8. • US: ill defined
mass with
right & left
Intrahepatic
duct dilatation
• CT arterial
and PV phase
Ill defined
mass at the
confluence of
right and left
hepatic duct

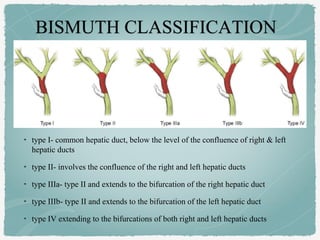

9. • type I- common hepatic duct, below the level of the confluence of right & left
hepatic ducts
• type II- involves the confluence of the right and left hepatic ducts
• type IIIa- type II and extends to the bifurcation of the right hepatic duct
• type IIIb- type II and extends to the bifurcation of the left hepatic duct
• type IV extending to the bifurcations of both right and left hepatic ducts

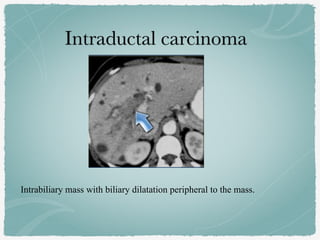

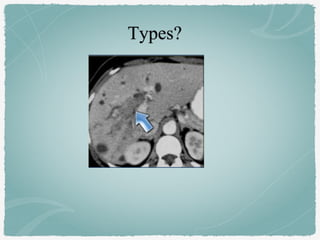

11. Intrabiliary mass with biliary dilatation peripheral to the mass.

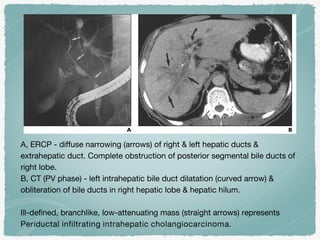

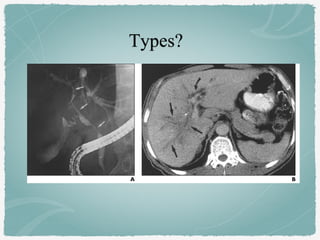

13. A, ERCP - diffuse narrowing (arrows) of right & left hepatic ducts &
extrahepatic duct. Complete obstruction of posterior segmental bile ducts of
right lobe.
B, CT (PV phase) - left intrahepatic bile duct dilatation (curved arrow) &
obliteration of bile ducts in right hepatic lobe & hepatic hilum.
Ill-defined, branchlike, low-attenuating mass (straight arrows) represents
Periductal infiltrating intrahepatic cholangiocarcinoma.

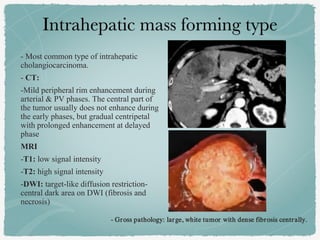

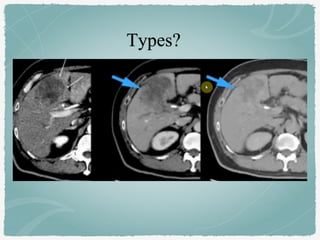

15. - Most common type of intrahepatic
cholangiocarcinoma.
- CT:
-Mild peripheral rim enhancement during
arterial & PV phases. The central part of
the tumor usually does not enhance during
the early phases, but gradual centripetal
with prolonged enhancement at delayed
phase
MRI
-T1: low signal intensity
-T2: high signal intensity
-DWI: target-like diffusion restriction-
central dark area on DWI (fibrosis and
necrosis)
- Gross pathology: large, white tumor with dense fibrosis centrally.

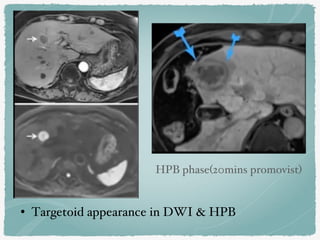

16. • Targetoid appearance in DWI & HPB
HPB phase(20mins promovist)

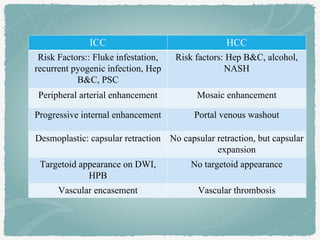

17. ICC HCC
Risk Factors:: Fluke infestation,
recurrent pyogenic infection, Hep
B&C, PSC
Risk factors: Hep B&C, alcohol,
NASH
Peripheral arterial enhancement Mosaic enhancement
Progressive internal enhancement Portal venous washout
Desmoplastic: capsular retraction No capsular retraction, but capsular
expansion
Targetoid appearance on DWI,
HPB
No targetoid appearance
Vascular encasement Vascular thrombosis

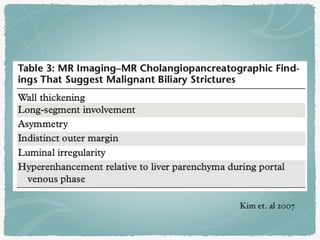

18. Kim et. al 2007

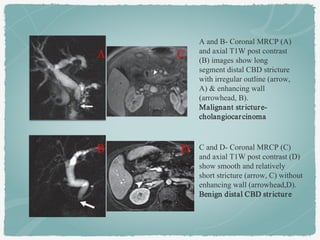

19. A and B- Coronal MRCP (A)
and axial T1W post contrast
(B) images show long
segment distal CBD stricture
with irregular outline (arrow,
A) & enhancing wall
(arrowhead, B).
Malignant stricture-
cholangiocarcinoma
C and D- Coronal MRCP (C)
and axial T1W post contrast (D)
show smooth and relatively
short stricture (arrow, C) without
enhancing wall (arrowhead,D).
Benign distal CBD stricture
A
B
C
D

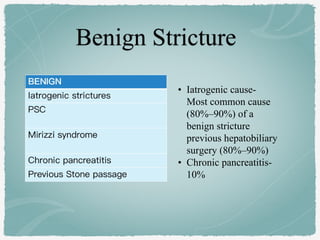

20. • Iatrogenic cause-
Most common cause
(80%–90%) of a
benign stricture
previous hepatobiliary
surgery (80%–90%)
• Chronic pancreatitis-
10%

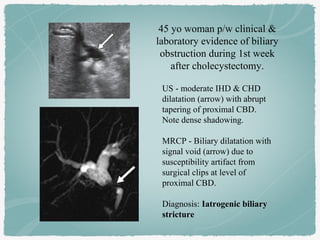

21. US - moderate IHD & CHD
dilatation (arrow) with abrupt
tapering of proximal CBD.
Note dense shadowing.
MRCP - Biliary dilatation with
signal void (arrow) due to
susceptibility artifact from
surgical clips at level of
proximal CBD.
Diagnosis: Iatrogenic biliary
stricture
45 yo woman p/w clinical &
laboratory evidence of biliary
obstruction during 1st week
after cholecystectomy.

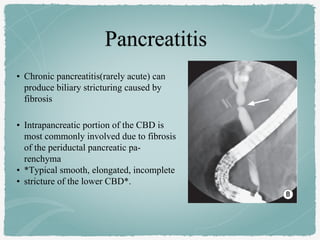

22. • Chronic pancreatitis(rarely acute) can
produce biliary stricturing caused by
fibrosis
• Intrapancreatic portion of the CBD is
most commonly involved due to fibrosis
of the periductal pancreatic pa-
renchyma
• *Typical smooth, elongated, incomplete
• stricture of the lower CBD*.

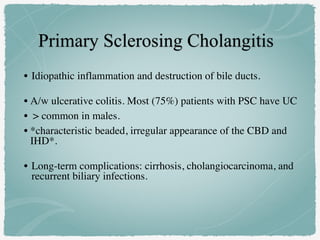

23. • Idiopathic inflammation and destruction of bile ducts.
• A/w ulcerative colitis. Most (75%) patients with PSC have UC
• > common in males.
• *characteristic beaded, irregular appearance of the CBD and
IHD*.
• Long-term complications: cirrhosis, cholangiocarcinoma, and
recurrent biliary infections.

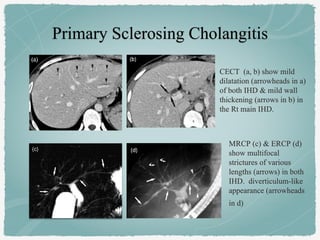

24. CECT (a, b) show mild
dilatation (arrowheads in a)
of both IHD & mild wall
thickening (arrows in b) in
the Rt main IHD.
MRCP (c) & ERCP (d)
show multifocal
strictures of various
lengths (arrows) in both
IHD. diverticulum-like
appearance (arrowheads
in d)

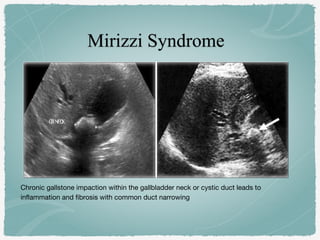

25. Chronic gallstone impaction within the gallbladder neck or cystic duct leads to
inflammation and fibrosis with common duct narrowing

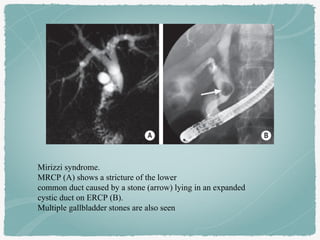

26. Mirizzi syndrome.
MRCP (A) shows a stricture of the lower
common duct caused by a stone (arrow) lying in an expanded
cystic duct on ERCP (B).
Multiple gallbladder stones are also seen

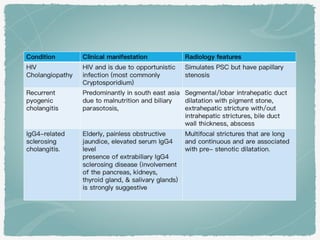

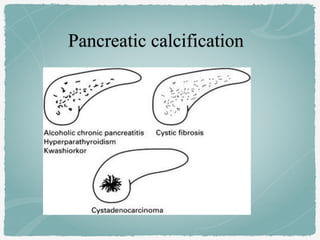

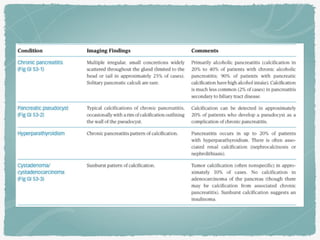

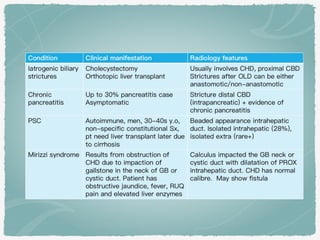

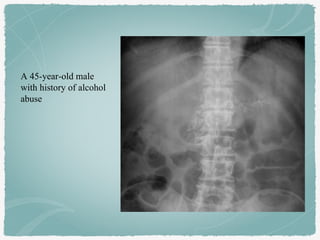

31. A 45-year-old male
with history of alcohol
abuse

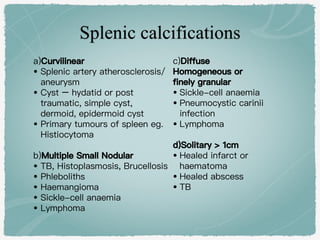

32. a)Curvilinear
• Splenic artery atherosclerosis/
aneurysm
• Cyst – hydatid or post
traumatic, simple cyst,
dermoid, epidermoid cyst
• Primary tumours of spleen eg.
Histiocytoma
b)Multiple Small Nodular
• TB, Histoplasmosis, Brucellosis
• Phleboliths
• Haemangioma
• Sickle-cell anaemia
• Lymphoma
c)Diffuse
Homogeneous or
finely granular
• Sickle-cell anaemia
• Pneumocystic carinii
infection
• Lymphoma
d)Solitary > 1cm
• Healed infarct or
haematoma
• Healed abscess
• TB

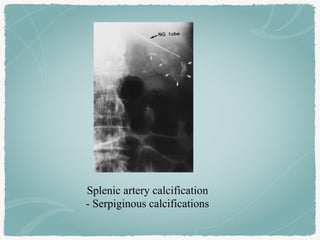

33. Splenic artery calcification
- Serpiginous calcifications

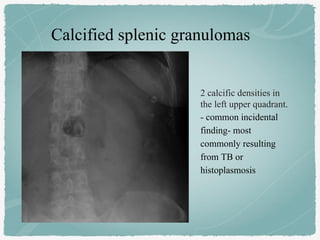

34. Calcified splenic granulomas
2 calcific densities in
the left upper quadrant.
- common incidental
finding- most
commonly resulting
from TB or
histoplasmosis

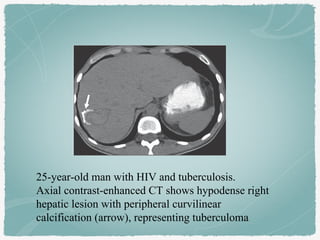

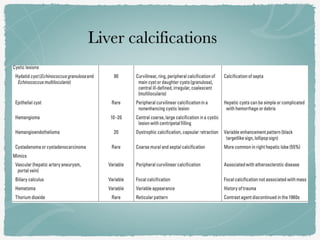

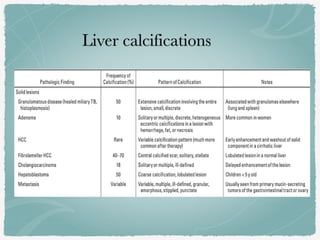

37. 25-year-old man with HIV and tuberculosis.
Axial contrast-enhanced CT shows hypodense right
hepatic lesion with peripheral curvilinear
calcification (arrow), representing tuberculoma

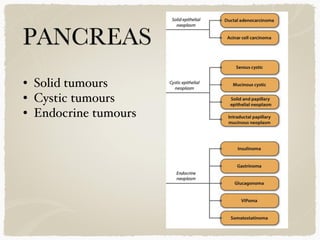

38. • Solid tumours
• Cystic tumours
• Endocrine tumours

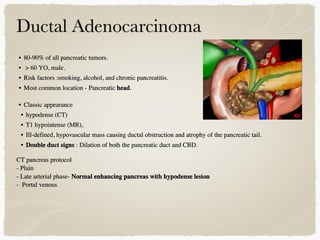

39. • 80-90% of all pancreatic tumors.
• > 60 YO, male.
• Risk factors :smoking, alcohol, and chronic pancreatitis.
• Most common location - Pancreatic head.
• Classic appearance
• hypodense (CT)
• T1 hypointense (MR),
• Ill-defined, hypovascular mass causing ductal obstruction and atrophy of the pancreatic tail.

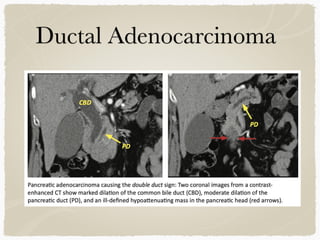

• Double duct signs : Dilation of both the pancreatic duct and CBD.
CT pancreas protocol
- Plain
- Late arterial phase- Normal enhancing pancreas with hypodense lesion
- Portal venous

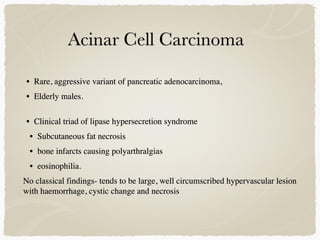

41. • Rare, aggressive variant of pancreatic adenocarcinoma,
• Elderly males.
• Clinical triad of lipase hypersecretion syndrome
• Subcutaneous fat necrosis
• bone infarcts causing polyarthralgias
• eosinophilia.
No classical findings- tends to be large, well circumscribed hypervascular lesion
with haemorrhage, cystic change and necrosis

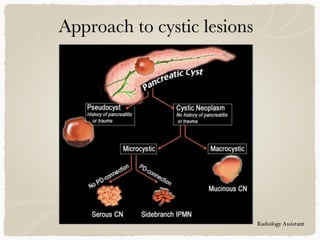

42. Radiology Assistant

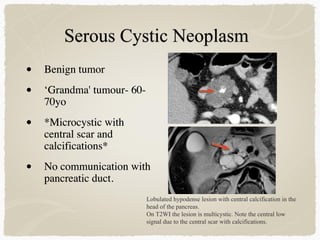

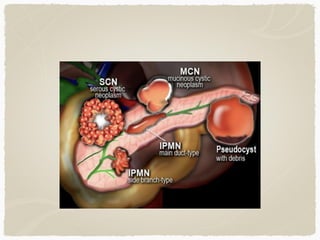

44. • Benign tumor
• ‘Grandma' tumour- 60-
70yo
• *Microcystic with
central scar and
calcifications*
• No communication with
pancreatic duct.
Lobulated hypodense lesion with central calcification in the
head of the pancreas.
On T2WI the lesion is multicystic. Note the central low
signal due to the central scar with calcifications.

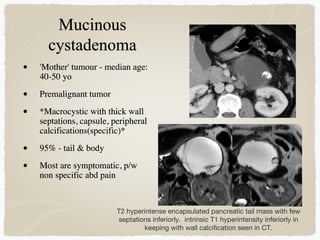

45. • 'Mother' tumour - median age:
40-50 yo
• Premalignant tumor
• *Macrocystic with thick wall
septations, capsule, peripheral
calcifications(specific)*
• 95% - tail & body
• Most are symptomatic, p/w
non specific abd pain
T2 hyperintense encapsulated pancreatic tail mass with few
septations inferiorly. intrinsic T1 hyperintensity inferiorly in
keeping with wall calcification seen in CT.

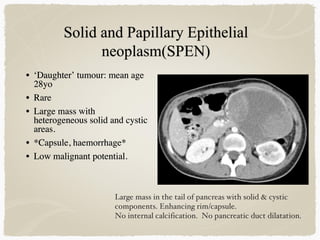

46. • ‘Daughter’ tumour: mean age
28yo
• Rare
• Large mass with
heterogeneous solid and cystic
areas.
• *Capsule, haemorrhage*
• Low malignant potential.
Large mass in the tail of pancreas with solid & cystic
components. Enhancing rim/capsule.
No internal calcification. No pancreatic duct dilatation.

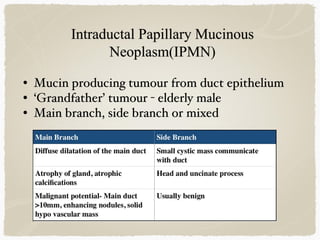

47. • Mucin producing tumour from duct epithelium
• ‘Grandfather’ tumour - elderly male
• Main branch, side branch or mixed

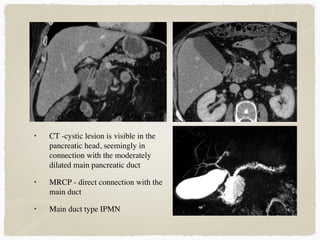

48. • CT -cystic lesion is visible in the
pancreatic head, seemingly in
connection with the moderately
dilated main pancreatic duct
• MRCP - direct connection with the
main duct
• Main duct type IPMN

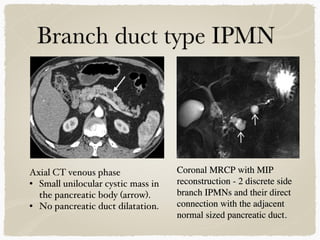

49. Coronal MRCP with MIP
reconstruction - 2 discrete side
branch IPMNs and their direct
connection with the adjacent
normal sized pancreatic duct.
Axial CT venous phase
• Small unilocular cystic mass in
the pancreatic body (arrow).
• No pancreatic duct dilatation.

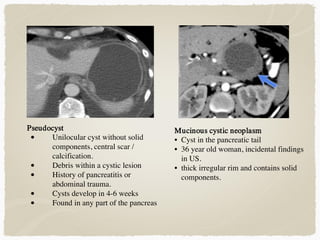

50. Mucinous cystic neoplasm
• Cyst in the pancreatic tail
• 36 year old woman, incidental findings
in US.
• thick irregular rim and contains solid
components.
Pseudocyst
• Unilocular cyst without solid
components, central scar /
calcification.
• Debris within a cystic lesion
• History of pancreatitis or
abdominal trauma.
• Cysts develop in 4-6 weeks
• Found in any part of the pancreas

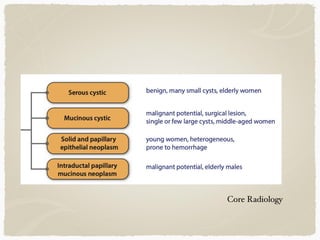

51. Core Radiology

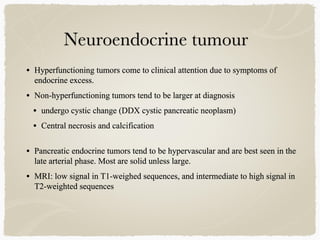

52. • Hyperfunctioning tumors come to clinical attention due to symptoms of
endocrine excess.
• Non-hyperfunctioning tumors tend to be larger at diagnosis
• undergo cystic change (DDX cystic pancreatic neoplasm)
• Central necrosis and calcification
• Pancreatic endocrine tumors tend to be hypervascular and are best seen in the
late arterial phase. Most are solid unless large.
• MRI: low signal in T1-weighed sequences, and intermediate to high signal in
T2-weighted sequences

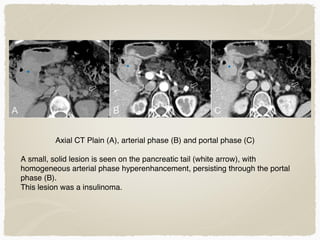

53. Axial CT Plain (A), arterial phase (B) and portal phase (C)
A small, solid lesion is seen on the pancreatic tail (white arrow), with
homogeneous arterial phase hyperenhancement, persisting through the portal
phase (B).
This lesion was a insulinoma.

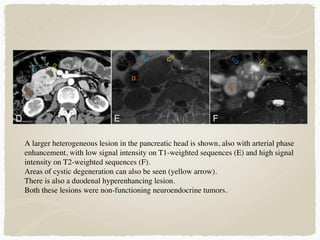

54. A larger heterogeneous lesion in the pancreatic head is shown, also with arterial phase
enhancement, with low signal intensity on T1-weighted sequences (E) and high signal
intensity on T2-weighted sequences (F).
Areas of cystic degeneration can also be seen (yellow arrow).
There is also a duodenal hyperenhancing lesion.
Both these lesions were non-functioning neuroendocrine tumors.

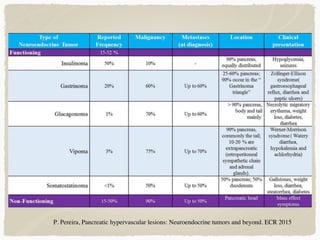

55. P. Pereira, Pancreatic hypervascular lesions: Neuroendocrine tumors and beyond. ECR 2015

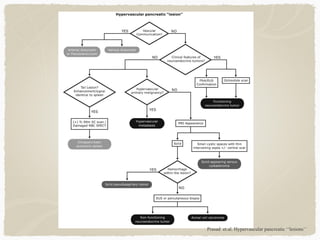

56. Prasad et.al. Hypervascular pancreatic ‘‘lesions’’

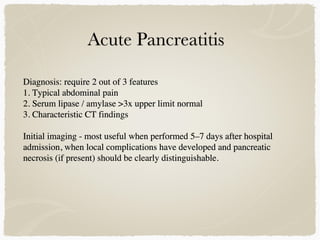

57. Diagnosis: require 2 out of 3 features
1. Typical abdominal pain
2. Serum lipase / amylase >3x upper limit normal
3. Characteristic CT findings
Initial imaging - most useful when performed 5–7 days after hospital
admission, when local complications have developed and pancreatic
necrosis (if present) should be clearly distinguishable.

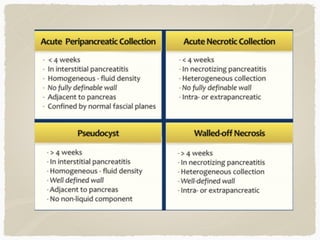

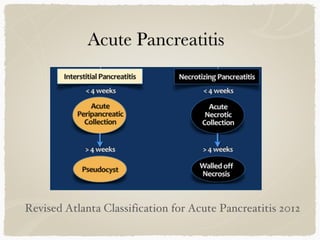

58. Revised Atlanta Classification for Acute Pancreatitis 2012

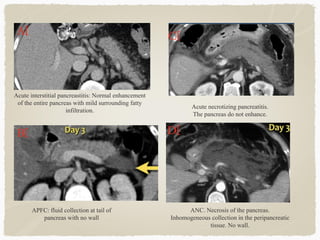

59. A)
B)
C)
D)
Acute interstitial pancreastitis: Normal enhancement
of the entire pancreas with mild surrounding fatty
infiltration.
ANC. Necrosis of the pancreas.
Inhomogeneous collection in the peripancreatic
tissue. No wall.
Acute necrotizing pancreatitis.
The pancreas do not enhance.
APFC: fluid collection at tail of
pancreas with no wall

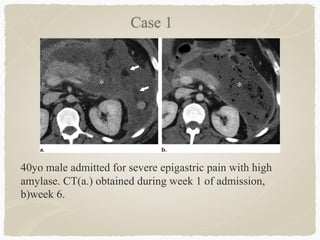

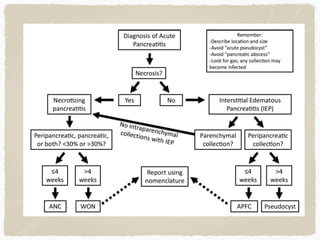

62. 40yo male admitted for severe epigastric pain with high
amylase. CT(a.) obtained during week 1 of admission,
b)week 6.

63. 45 years old women, presented with abdominal pain. No hx of pancreatitis or trauma.

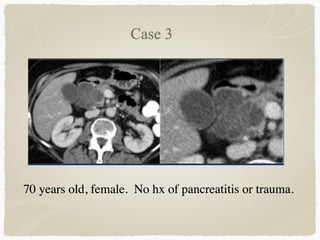

64. 70 years old, female. No hx of pancreatitis or trauma.

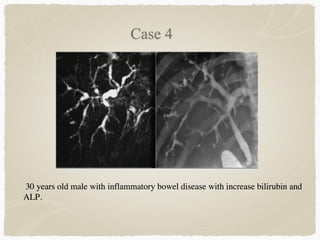

65. 30 years old male with inflammatory bowel disease with increase bilirubin and
ALP.

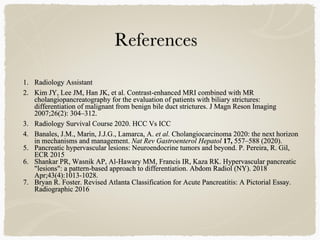

66. 1. Radiology Assistant
2. Kim JY, Lee JM, Han JK, et al. Contrast-enhanced MRI combined with MR
cholangiopancreatography for the evaluation of patients with biliary strictures:
differentiation of malignant from benign bile duct strictures. J Magn Reson Imaging
2007;26(2): 304–312.
3. Radiology Survival Course 2020. HCC Vs ICC
4. Banales, J.M., Marin, J.J.G., Lamarca, A. et al. Cholangiocarcinoma 2020: the next horizon
in mechanisms and management. Nat Rev Gastroenterol Hepatol 17, 557–588 (2020).
5. Pancreatic hypervascular lesions: Neuroendocrine tumors and beyond. P. Pereira, R. Gil,
ECR 2015
6. Shankar PR, Wasnik AP, Al-Hawary MM, Francis IR, Kaza RK. Hypervascular pancreatic
"lesions": a pattern-based approach to differentiation. Abdom Radiol (NY). 2018
Apr;43(4):1013-1028.
7. Bryan R. Foster. Revised Atlanta Classification for Acute Pancreatitis: A Pictorial Essay.
Radiographic 2016
