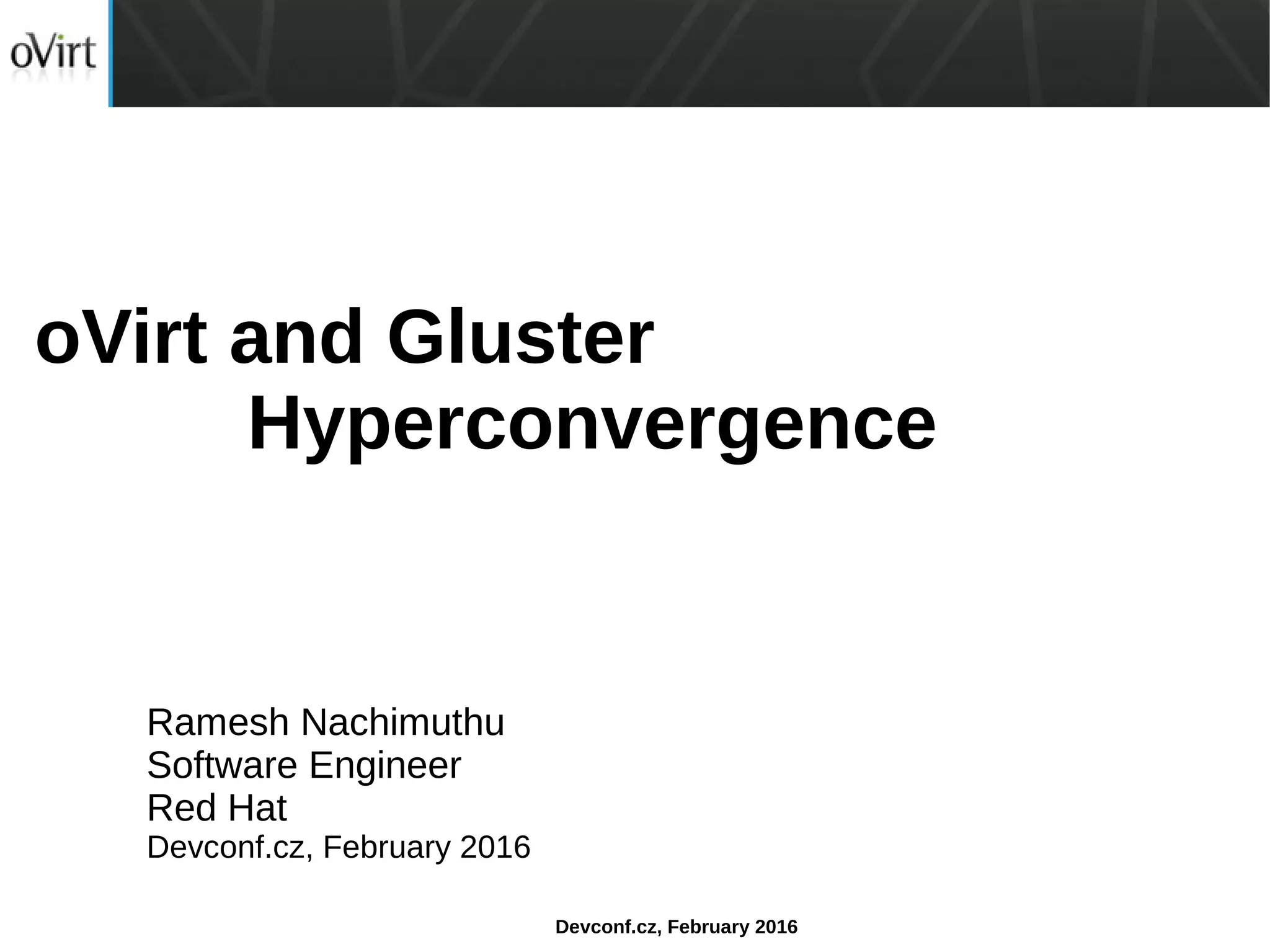

1. Devconf.cz, February 2016
oVirt and Gluster
Hyperconvergence
Ramesh Nachimuthu
Software Engineer
Red Hat
Devconf.cz, February 2016

2. Devconf.cz, February 2016

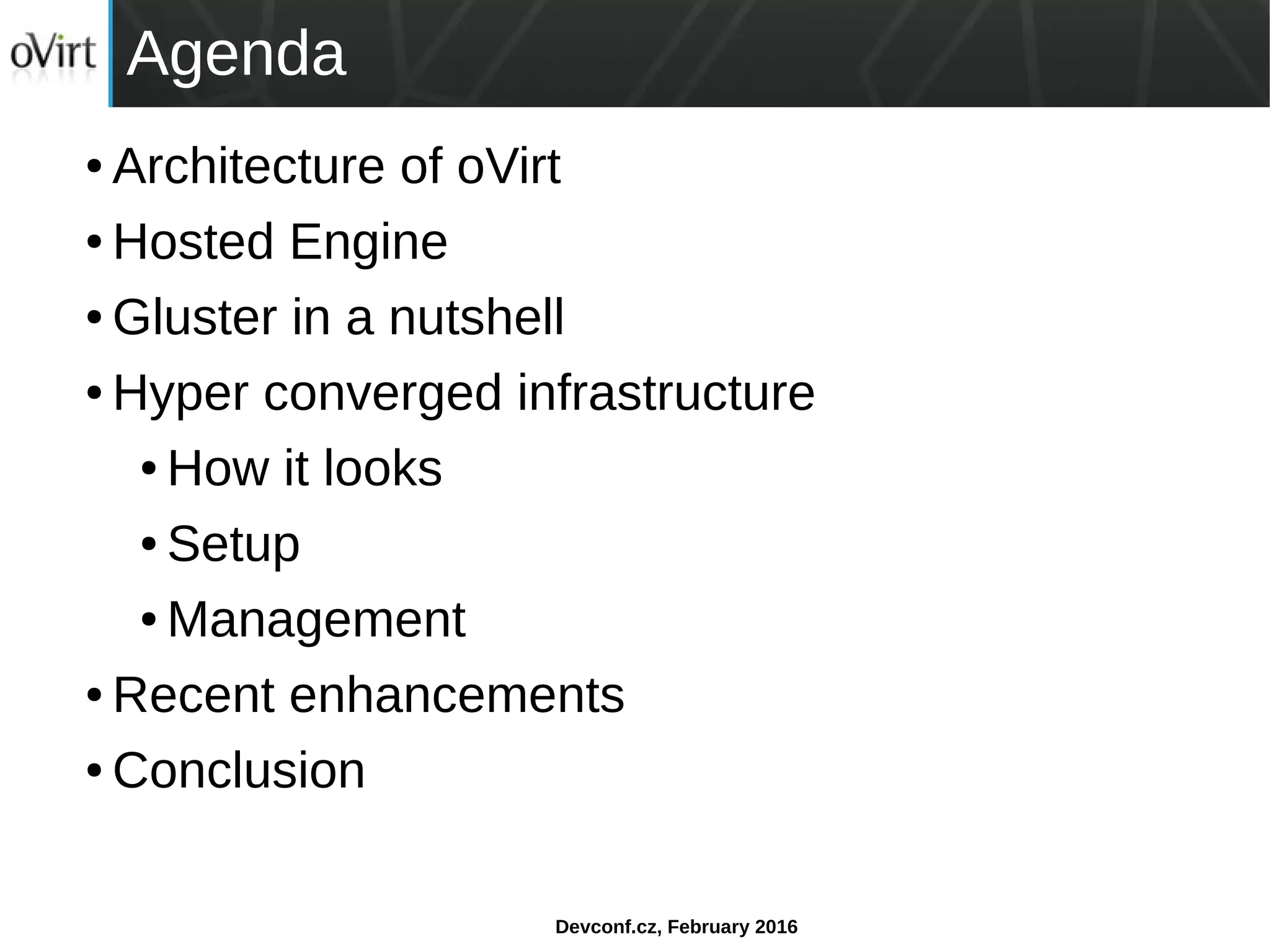

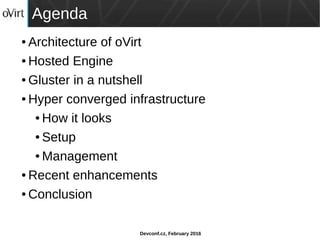

Agenda
● Architecture of oVirt
● Hosted Engine
● Gluster in a nutshell
● Hyper converged infrastructure
● How it looks
● Setup
● Management
● Recent enhancements
● Conclusion

3. Devconf.cz, February 2016

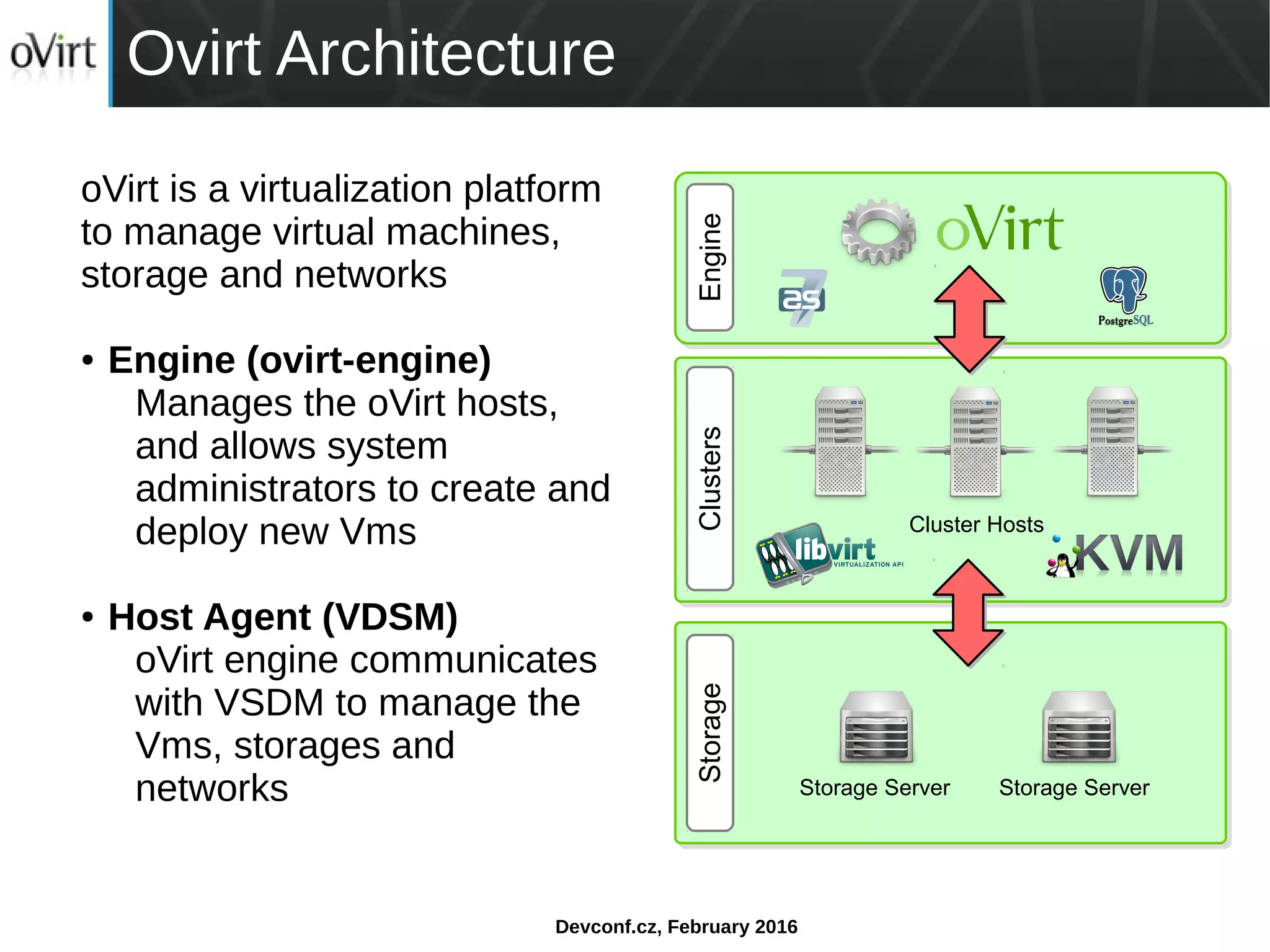

Ovirt Architecture
oVirt is a virtualization platform
to manage virtual machines,
storage and networks
● Engine (ovirt-engine)
Manages the oVirt hosts,
and allows system
administrators to create and
deploy new Vms
● Host Agent (VDSM)
oVirt engine communicates
with VSDM to manage the
Vms, storages and
networks
Clusters
Storage Server
StorageEngine
Storage Server
Cluster Hosts

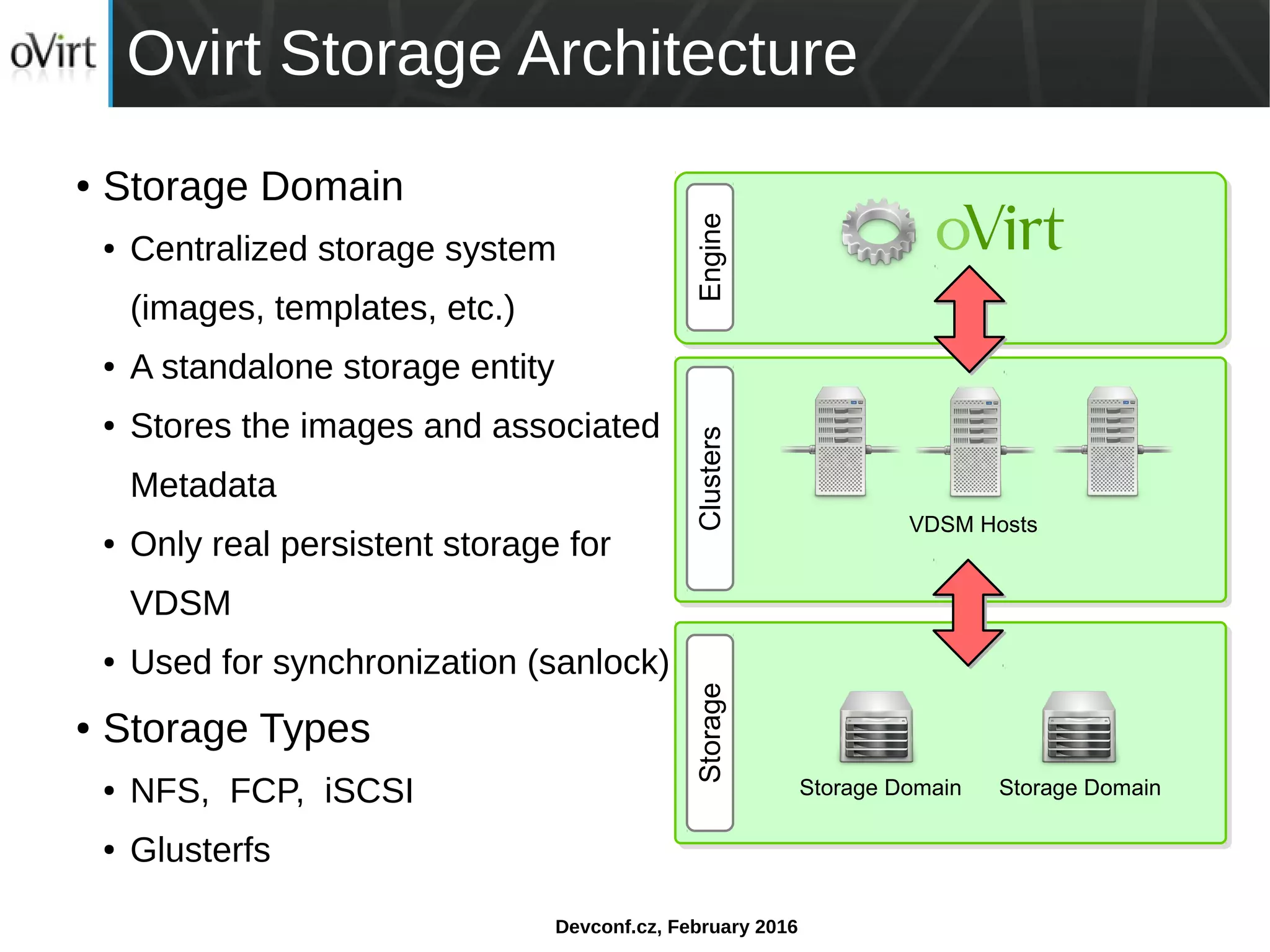

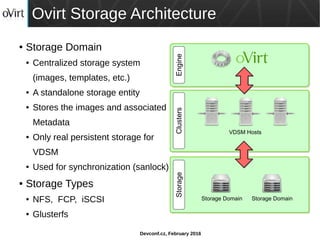

4. Devconf.cz, February 2016
Ovirt Storage Architecture
● Storage Domain
● Centralized storage system
(images, templates, etc.)
● A standalone storage entity
● Stores the images and associated
Metadata
● Only real persistent storage for
VDSM
● Used for synchronization (sanlock)
● Storage Types
● NFS, FCP, iSCSI
● Glusterfs
Clusters
Storage Domain
StorageEngine
Storage Domain
VDSM Hosts

5. Devconf.cz, February 2016

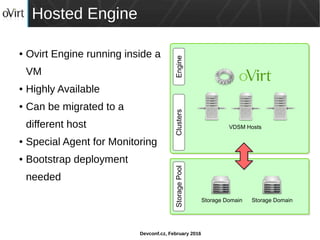

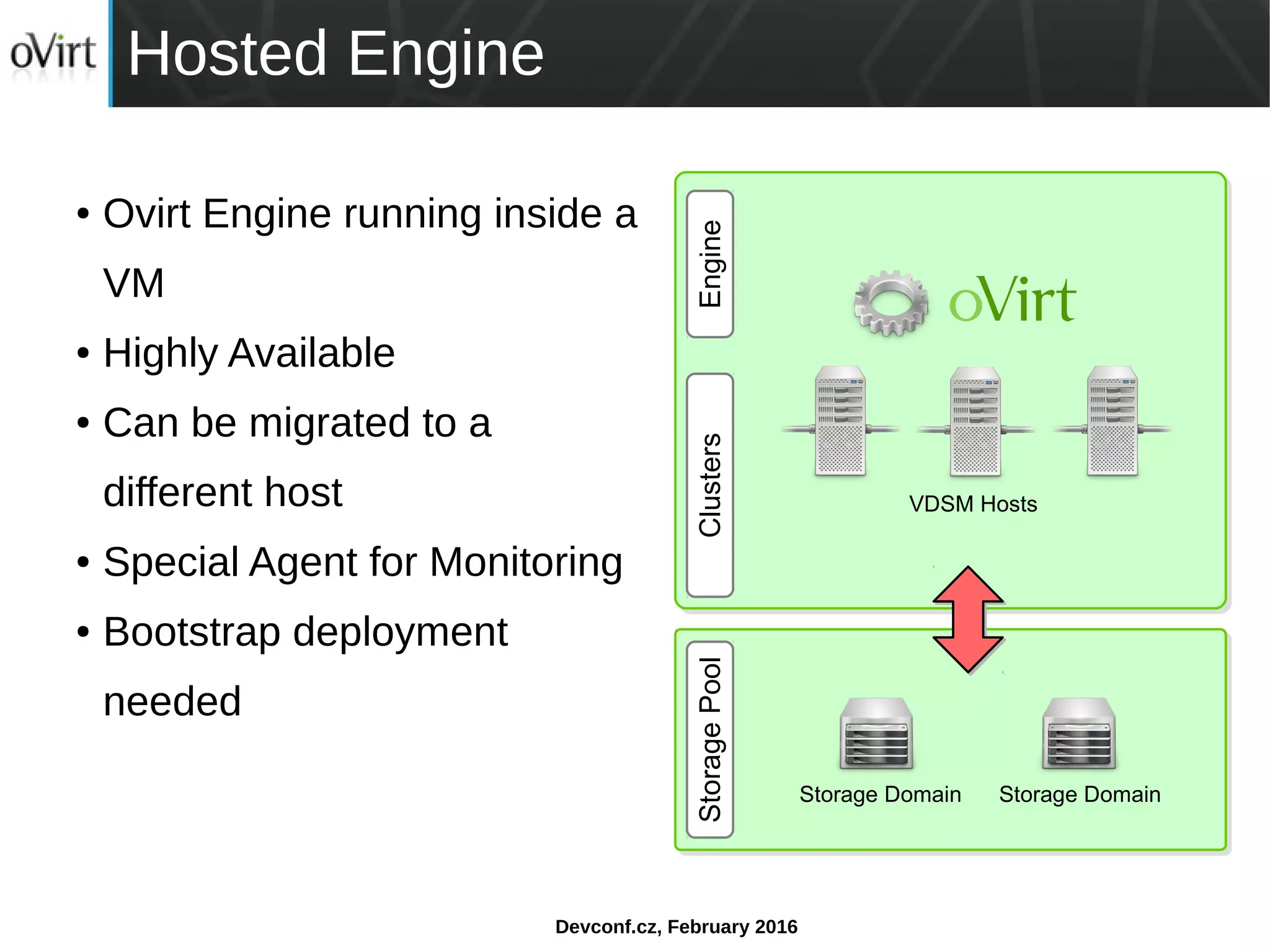

Hosted Engine
● Ovirt Engine running inside a
VM
● Highly Available
● Can be migrated to a
different host
● Special Agent for Monitoring
● Bootstrap deployment
needed Clusters
Storage Domain
StoragePoolEngine
Storage Domain
VDSM Hosts

6. Devconf.cz, February 2016

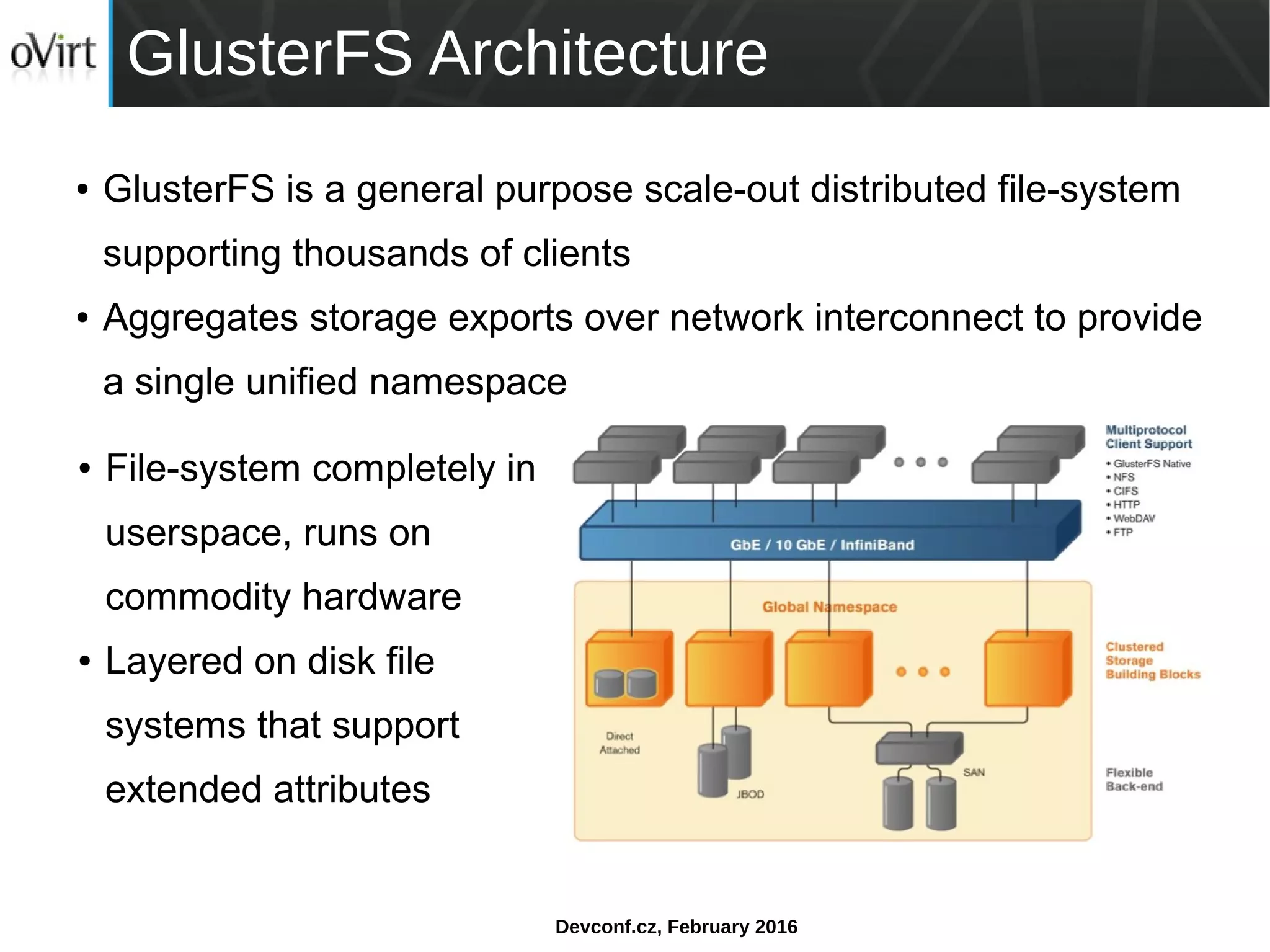

GlusterFS Architecture
● GlusterFS is a general purpose scale-out distributed file-system
supporting thousands of clients
● Aggregates storage exports over network interconnect to provide
a single unified namespace
● File-system completely in
userspace, runs on
commodity hardware
● Layered on disk file
systems that support
extended attributes

7. Devconf.cz, February 2016

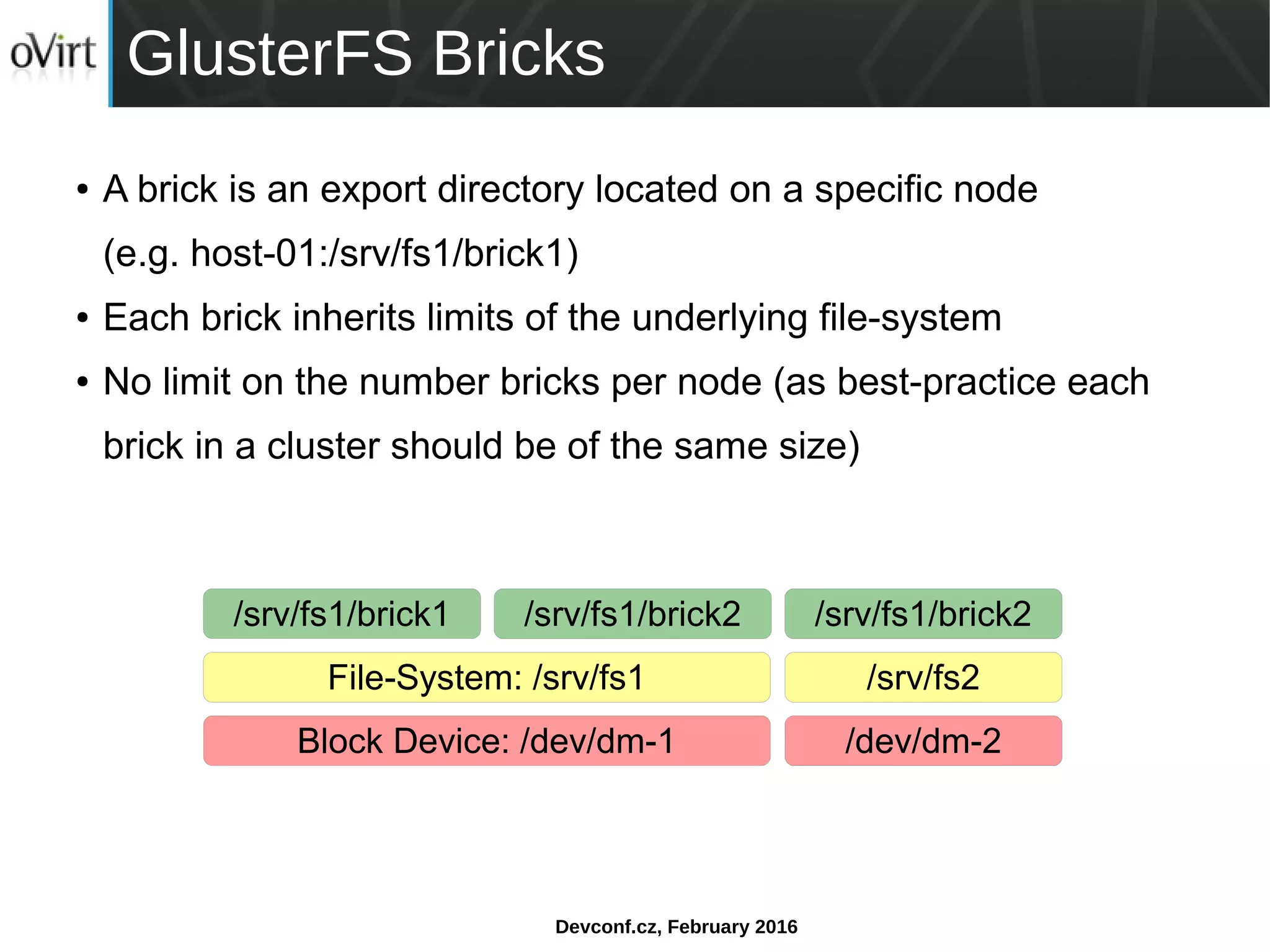

GlusterFS Bricks
● A brick is an export directory located on a specific node
(e.g. host-01:/srv/fs1/brick1)
● Each brick inherits limits of the underlying file-system
● No limit on the number bricks per node (as best-practice each
brick in a cluster should be of the same size)
/srv/fs1/brick1 /srv/fs1/brick2/srv/fs1/brick2
File-System: /srv/fs1 /srv/fs2
Block Device: /dev/dm-1 /dev/dm-2

8. Devconf.cz, February 2016

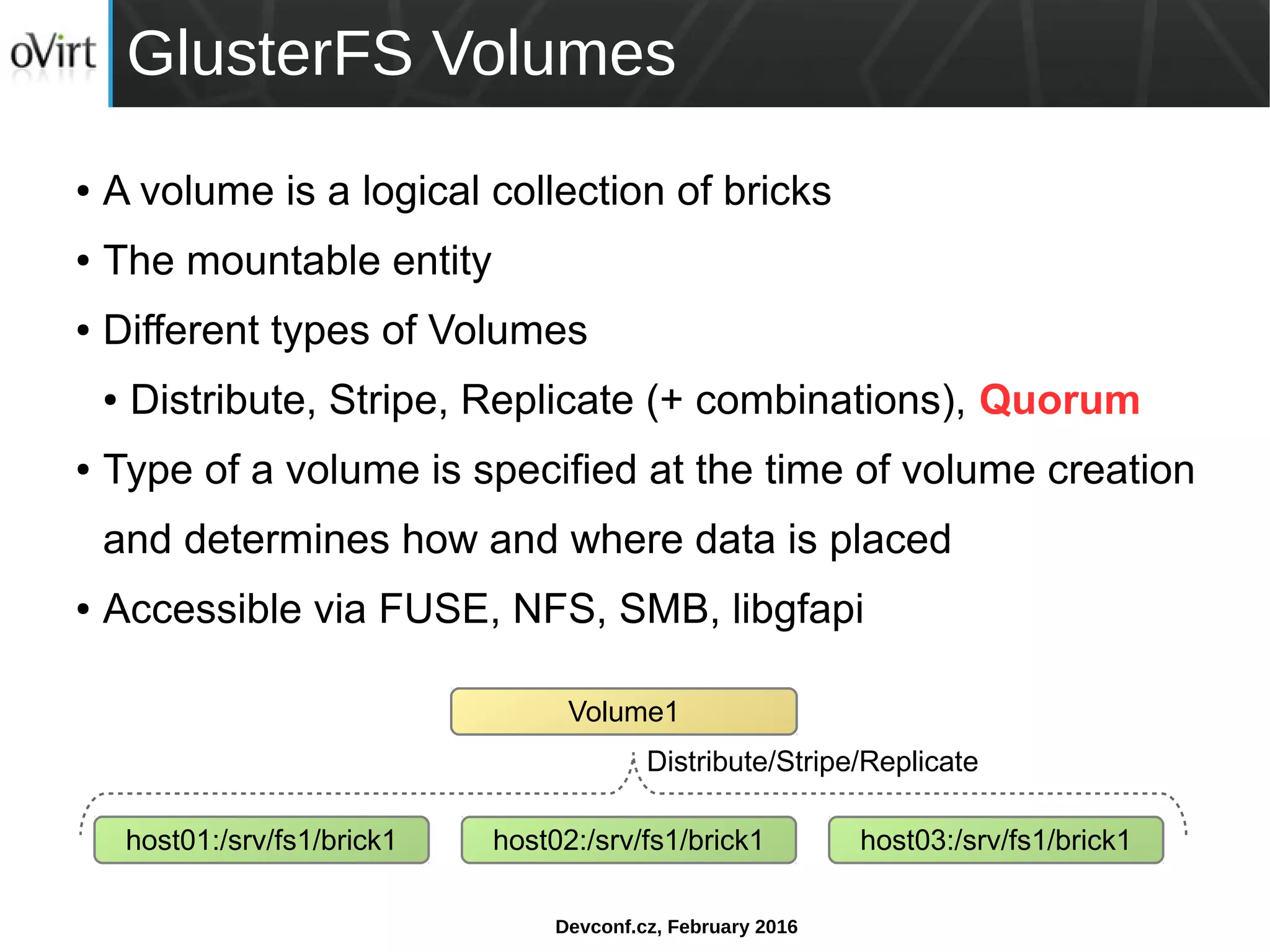

GlusterFS Volumes
● A volume is a logical collection of bricks
● The mountable entity
● Different types of Volumes
● Distribute, Stripe, Replicate (+ combinations), Quorum
● Type of a volume is specified at the time of volume creation
and determines how and where data is placed
● Accessible via FUSE, NFS, SMB, libgfapi
host01:/srv/fs1/brick1
Volume1
host02:/srv/fs1/brick1 host03:/srv/fs1/brick1
Distribute/Stripe/Replicate

9. Devconf.cz, February 2016

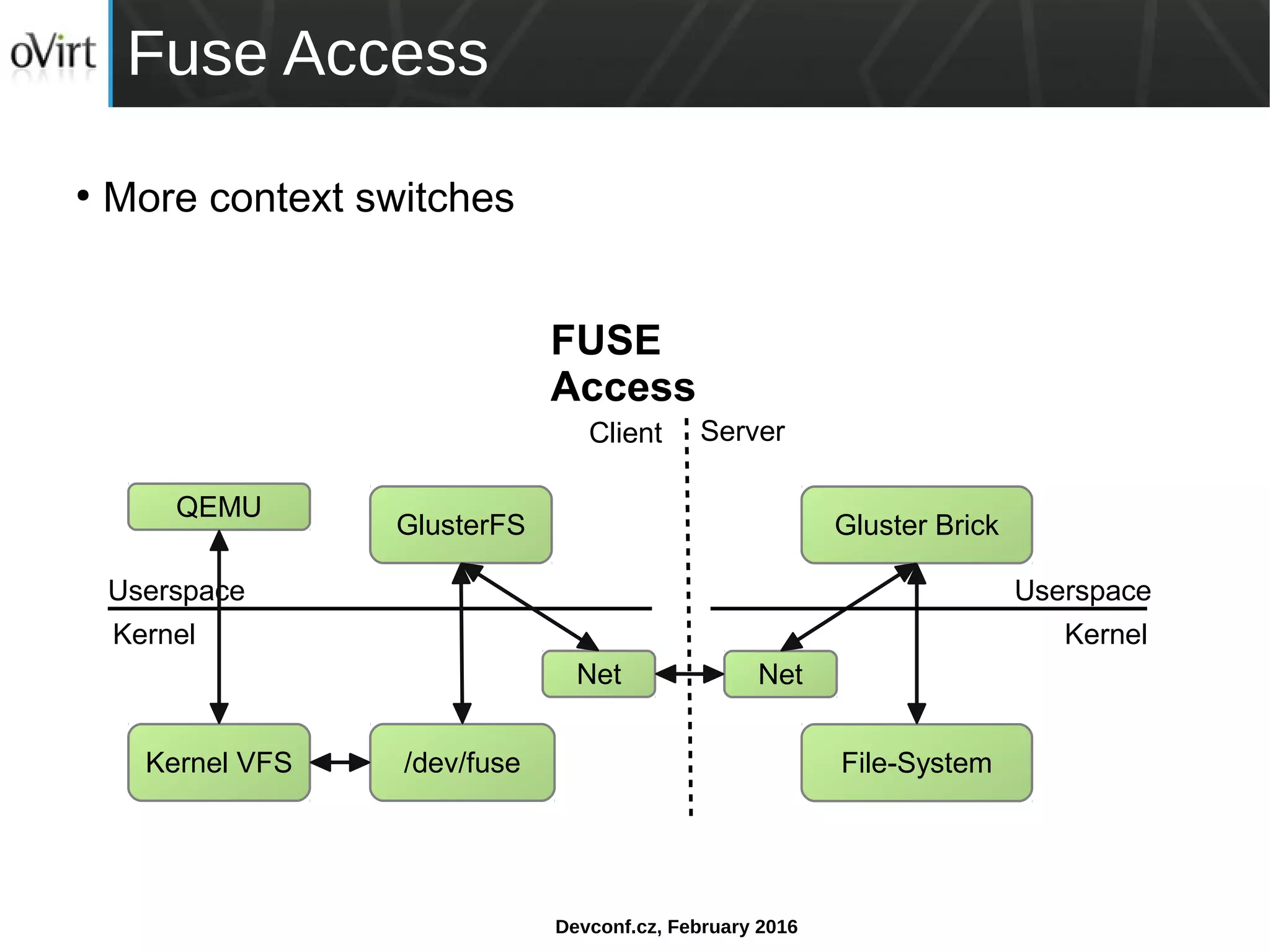

Fuse Access
QEMU
Kernel VFS /dev/fuse
Kernel
Userspace
GlusterFS
Net
File-System
Gluster Brick
Net
Kernel
Userspace
Client Server
FUSE
Access
●
More context switches

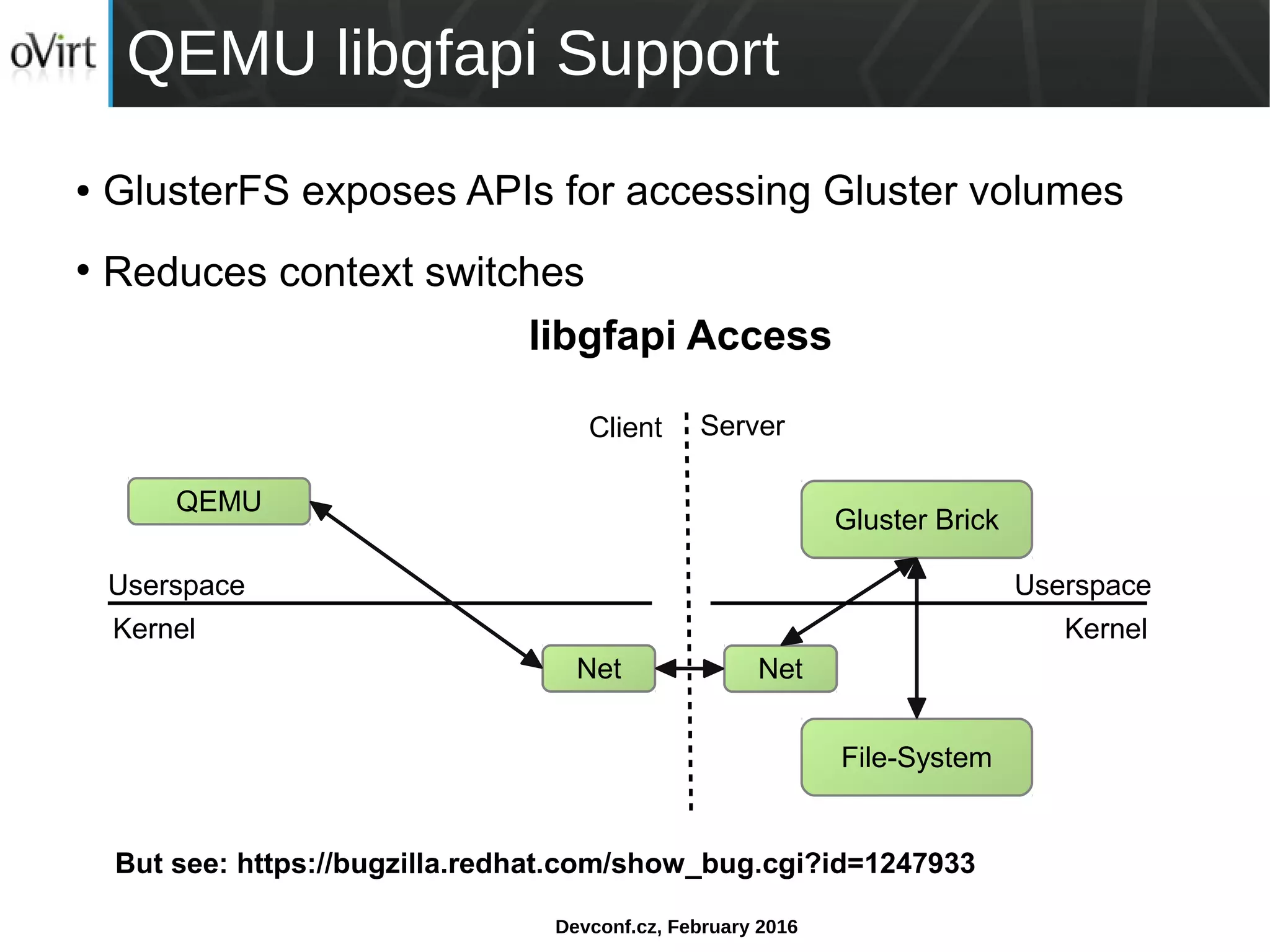

10. Devconf.cz, February 2016
QEMU libgfapi Support
● GlusterFS exposes APIs for accessing Gluster volumes
●
Reduces context switches
QEMU
Kernel
Userspace
Net
File-System
Gluster Brick
Net
Kernel
Userspace
Client Server
libgfapi Access
But see: https://bugzilla.redhat.com/show_bug.cgi?id=1247933

11. Devconf.cz, February 2016

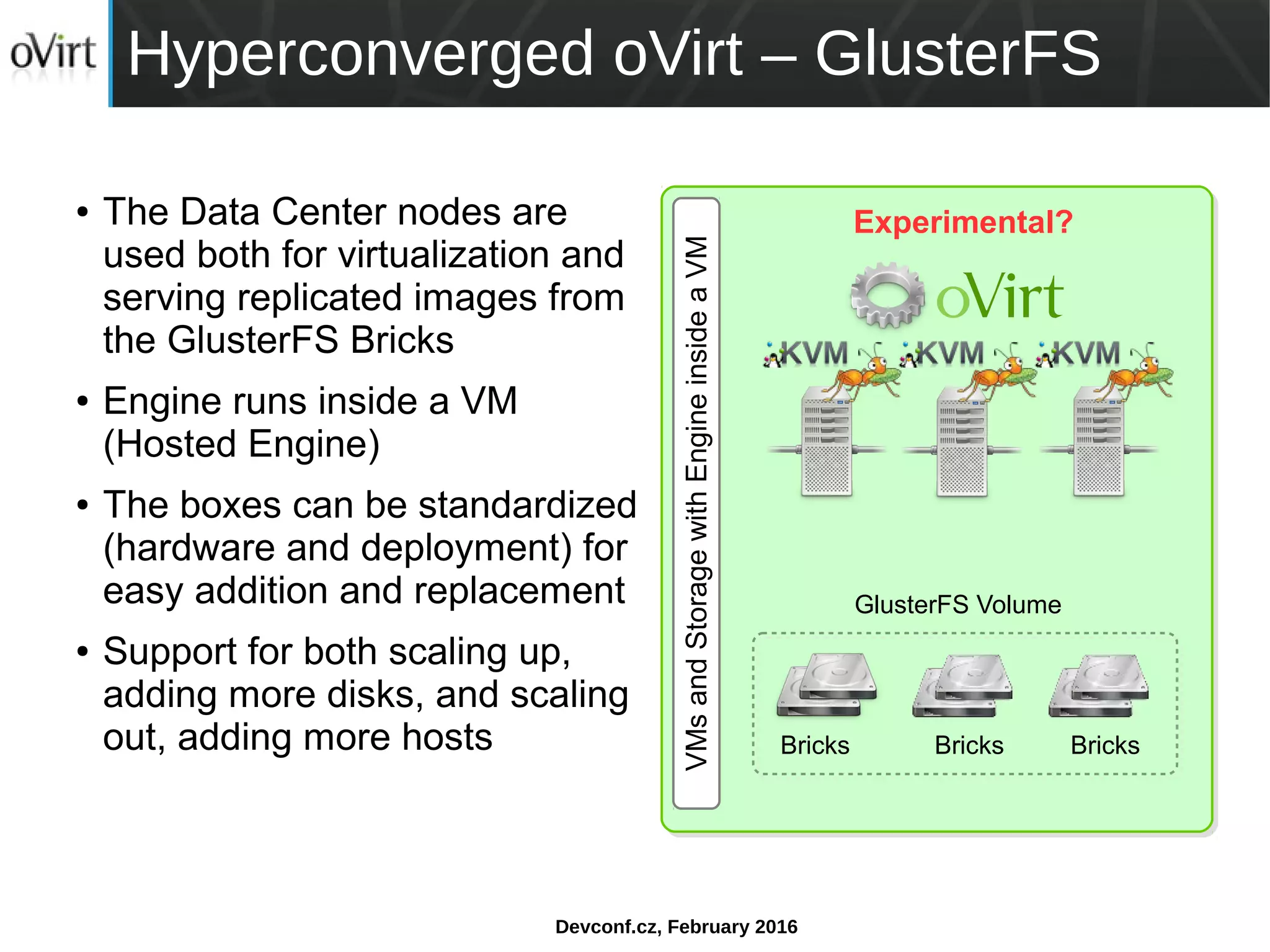

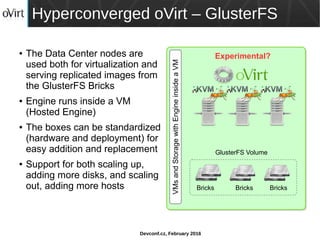

Hyperconverged oVirt – GlusterFS
● The Data Center nodes are
used both for virtualization and
serving replicated images from
the GlusterFS Bricks
● Engine runs inside a VM
(Hosted Engine)
● The boxes can be standardized
(hardware and deployment) for
easy addition and replacement
● Support for both scaling up,
adding more disks, and scaling
out, adding more hosts
VMsandStoragewithEngineinsideaVM
GlusterFS Volume
Bricks Bricks Bricks
Experimental?

12. Devconf.cz, February 2016

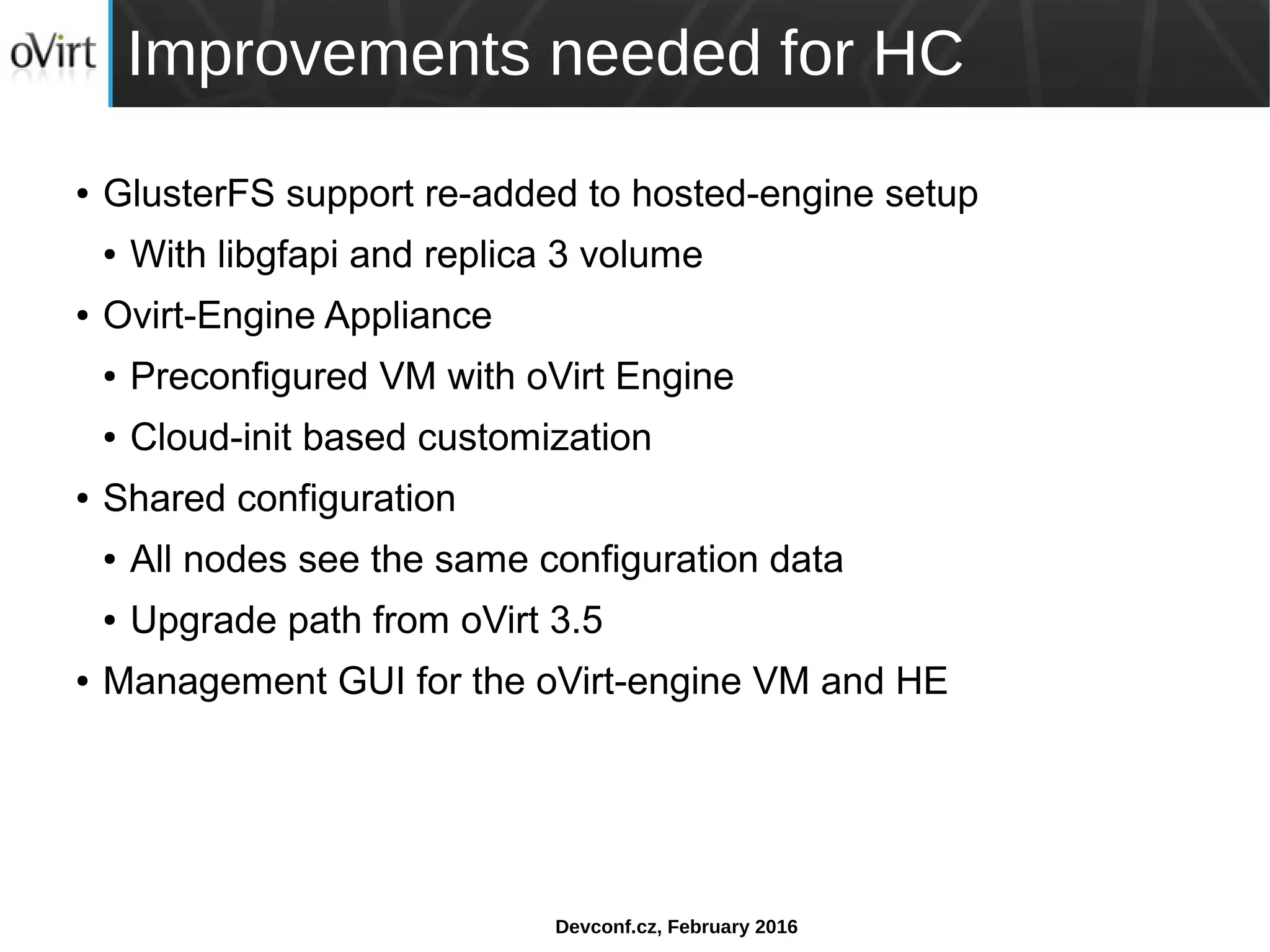

Improvements needed for HC
● GlusterFS support re-added to hosted-engine setup
● With libgfapi and replica 3 volume
● Ovirt-Engine Appliance
● Preconfigured VM with oVirt Engine
● Cloud-init based customization
● Shared configuration
● All nodes see the same configuration data
● Upgrade path from oVirt 3.5
● Management GUI for the oVirt-engine VM and HE

13. Devconf.cz, February 2016

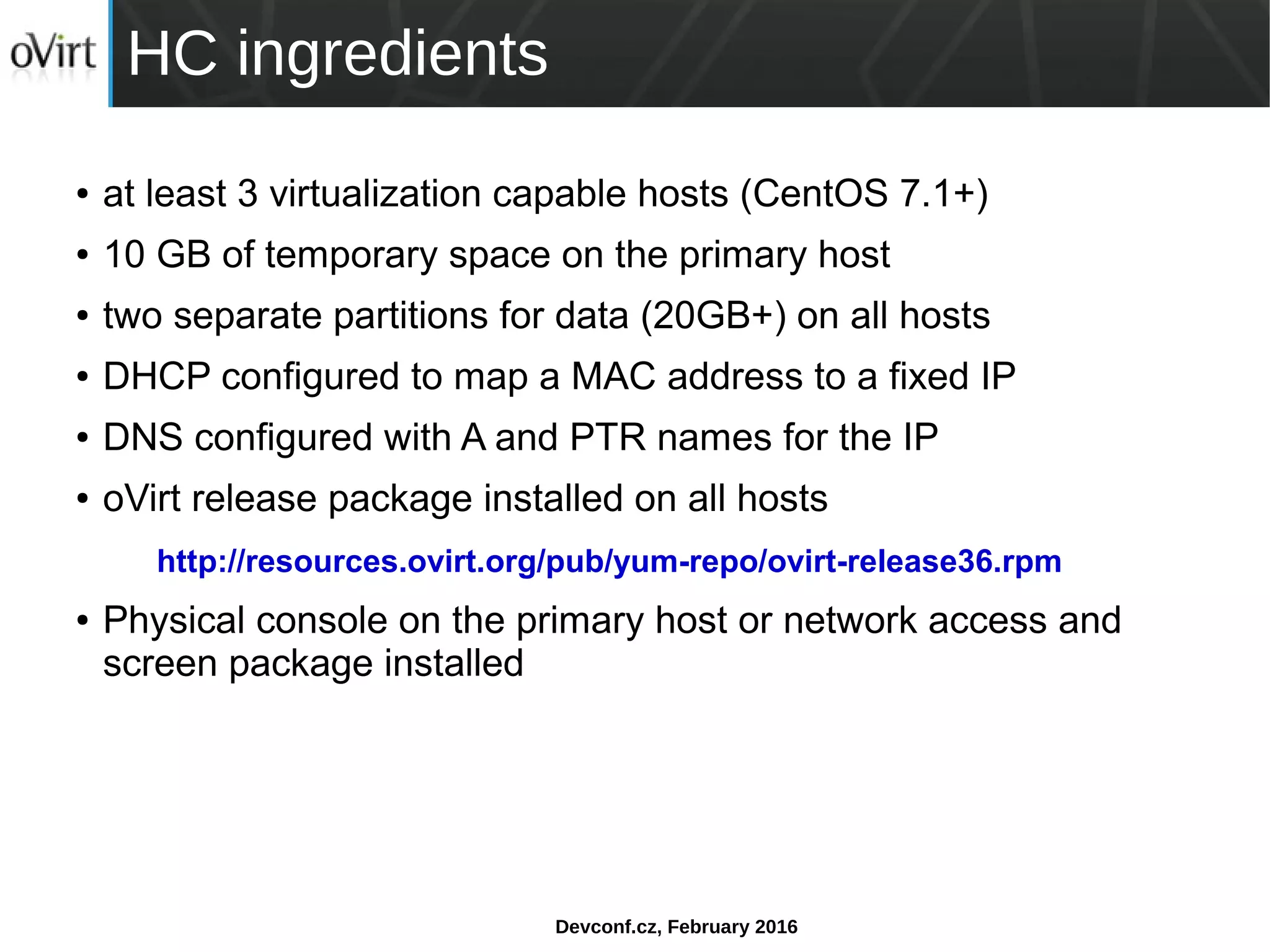

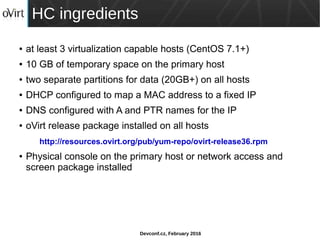

HC ingredients
● at least 3 virtualization capable hosts (CentOS 7.1+)
● 10 GB of temporary space on the primary host
● two separate partitions for data (20GB+) on all hosts
● DHCP configured to map a MAC address to a fixed IP
● DNS configured with A and PTR names for the IP
● oVirt release package installed on all hosts
http://resources.ovirt.org/pub/yum-repo/ovirt-release36.rpm
● Physical console on the primary host or network access and
screen package installed

14. Devconf.cz, February 2016

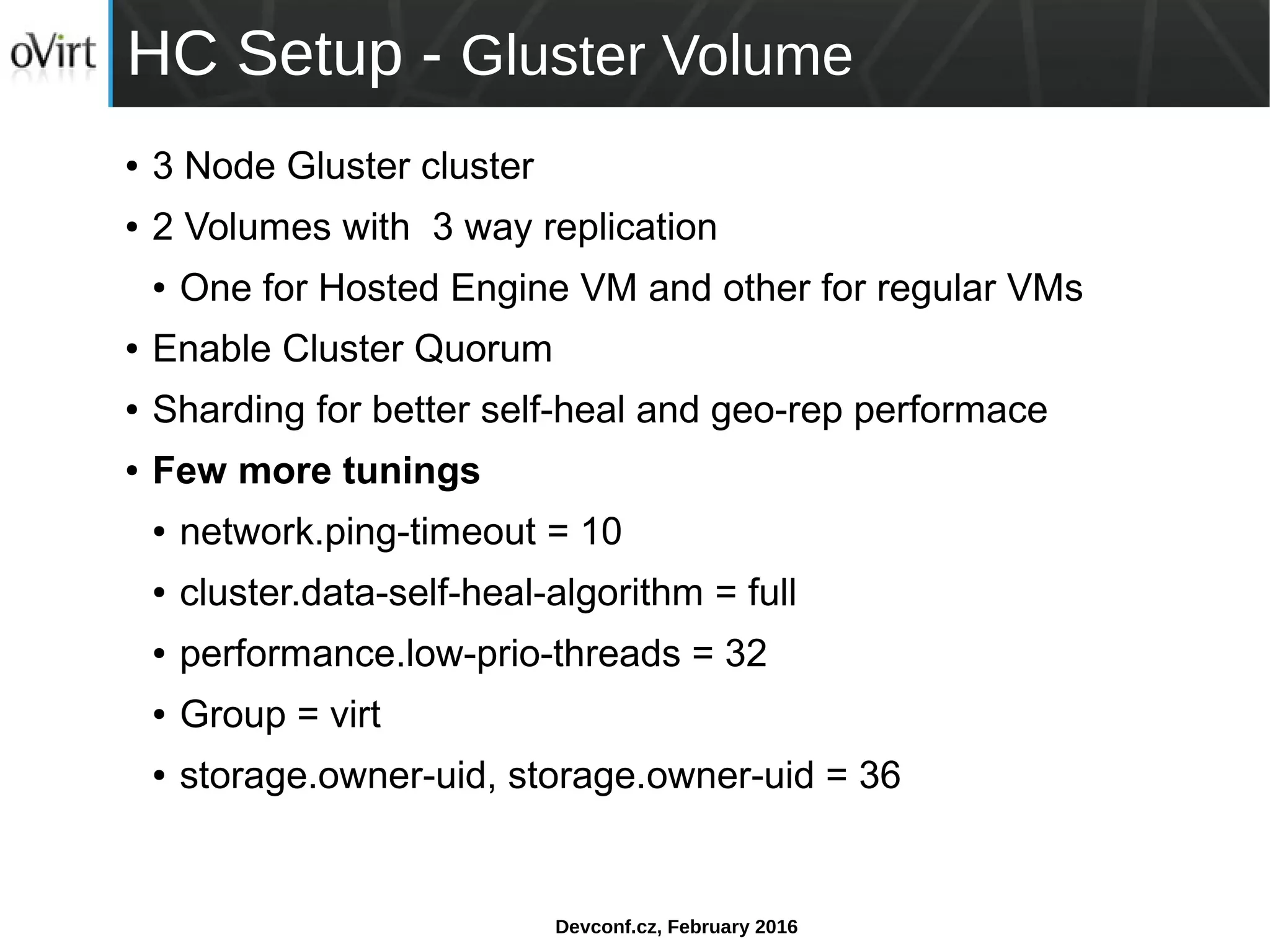

HC Setup - Gluster Volume
● 3 Node Gluster cluster
● 2 Volumes with 3 way replication
● One for Hosted Engine VM and other for regular VMs
● Enable Cluster Quorum
● Sharding for better self-heal and geo-rep performace
● Few more tunings
● network.ping-timeout = 10
● cluster.data-self-heal-algorithm = full
● performance.low-prio-threads = 32
● Group = virt
● storage.owner-uid, storage.owner-uid = 36

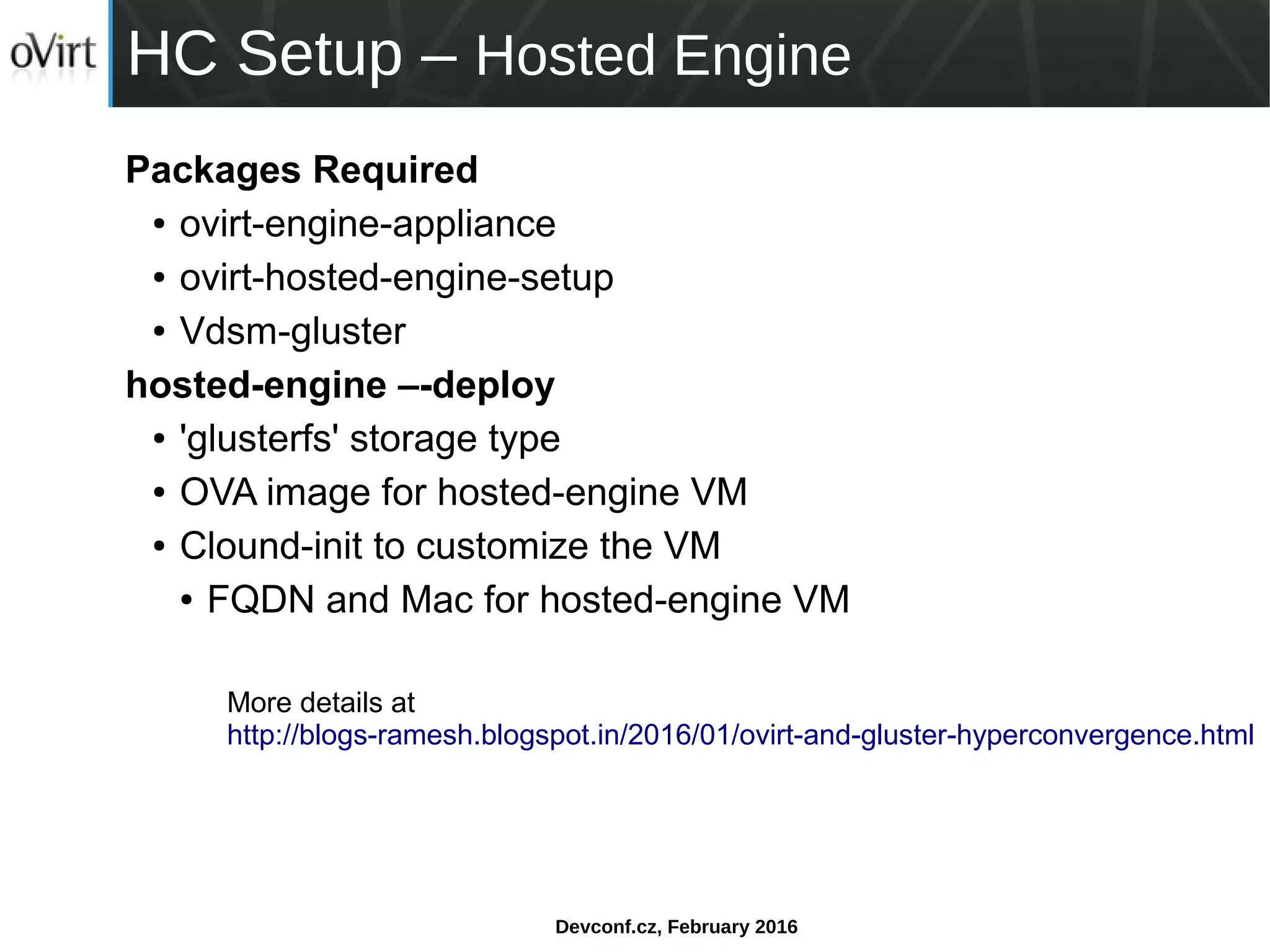

15. Devconf.cz, February 2016
HC Setup – Hosted Engine
Packages Required
● ovirt-engine-appliance
● ovirt-hosted-engine-setup
● Vdsm-gluster
hosted-engine –-deploy
● 'glusterfs' storage type
● OVA image for hosted-engine VM
● Clound-init to customize the VM
● FQDN and Mac for hosted-engine VM
More details at
http://blogs-ramesh.blogspot.in/2016/01/ovirt-and-gluster-hyperconvergence.html

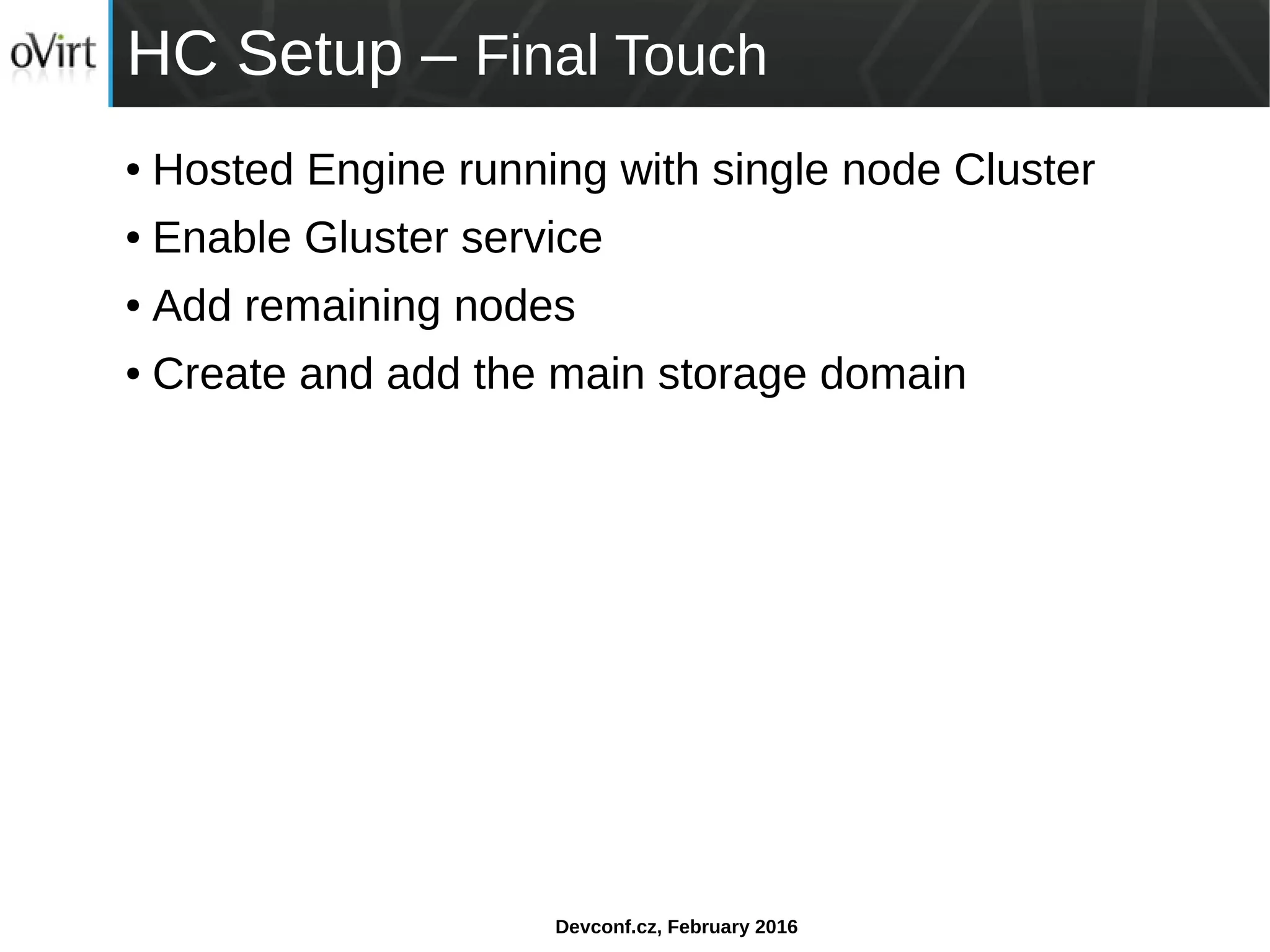

16. Devconf.cz, February 2016
HC Setup – Final Touch
● Hosted Engine running with single node Cluster
● Enable Gluster service
● Add remaining nodes
● Create and add the main storage domain

17. Devconf.cz, February 2016

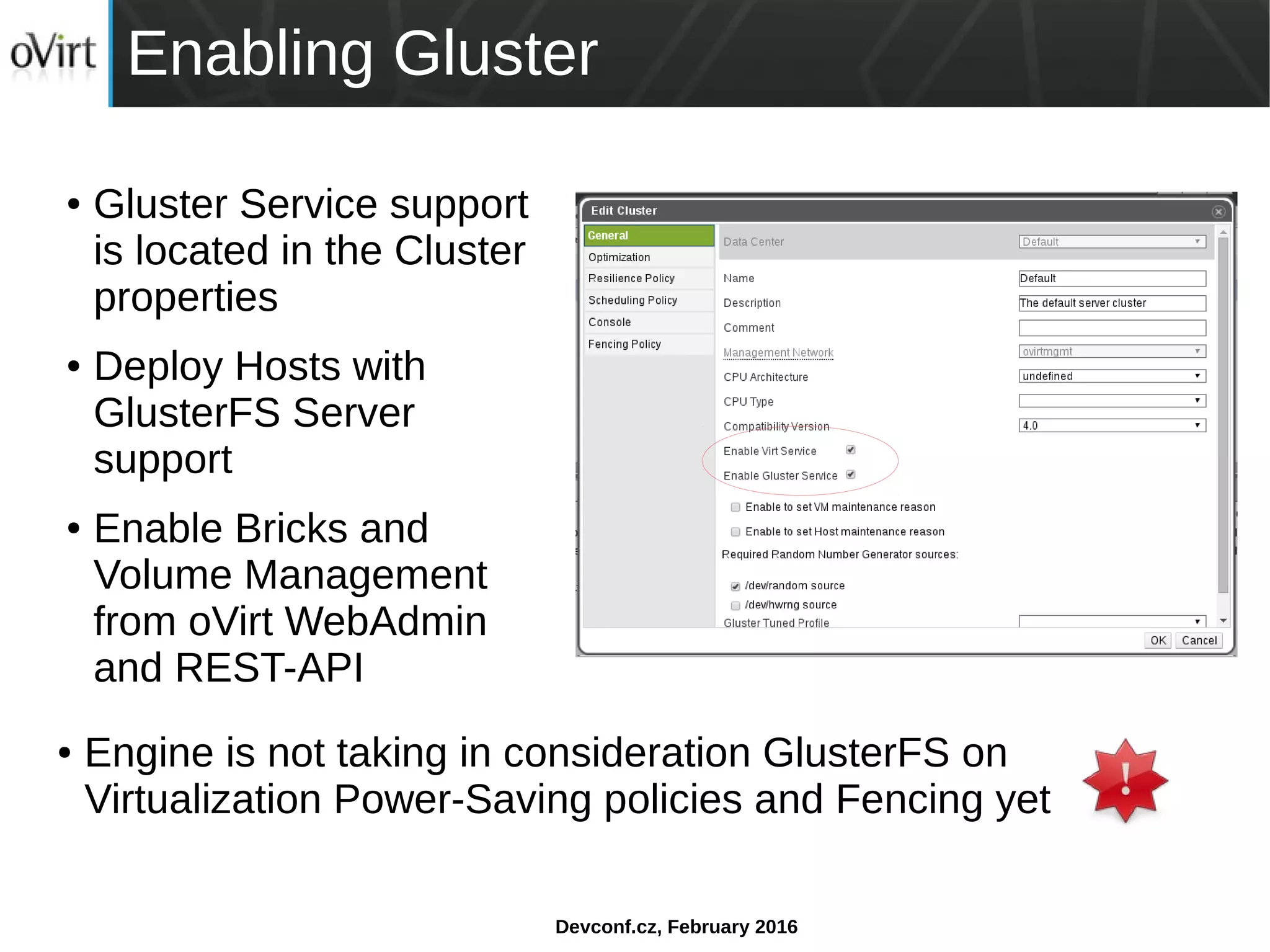

Enabling Gluster
● Gluster Service support
is located in the Cluster
properties
● Deploy Hosts with
GlusterFS Server
support
● Enable Bricks and
Volume Management
from oVirt WebAdmin
and REST-API
● Engine is not taking in consideration GlusterFS on
Virtualization Power-Saving policies and Fencing yet

18. Devconf.cz, February 2016

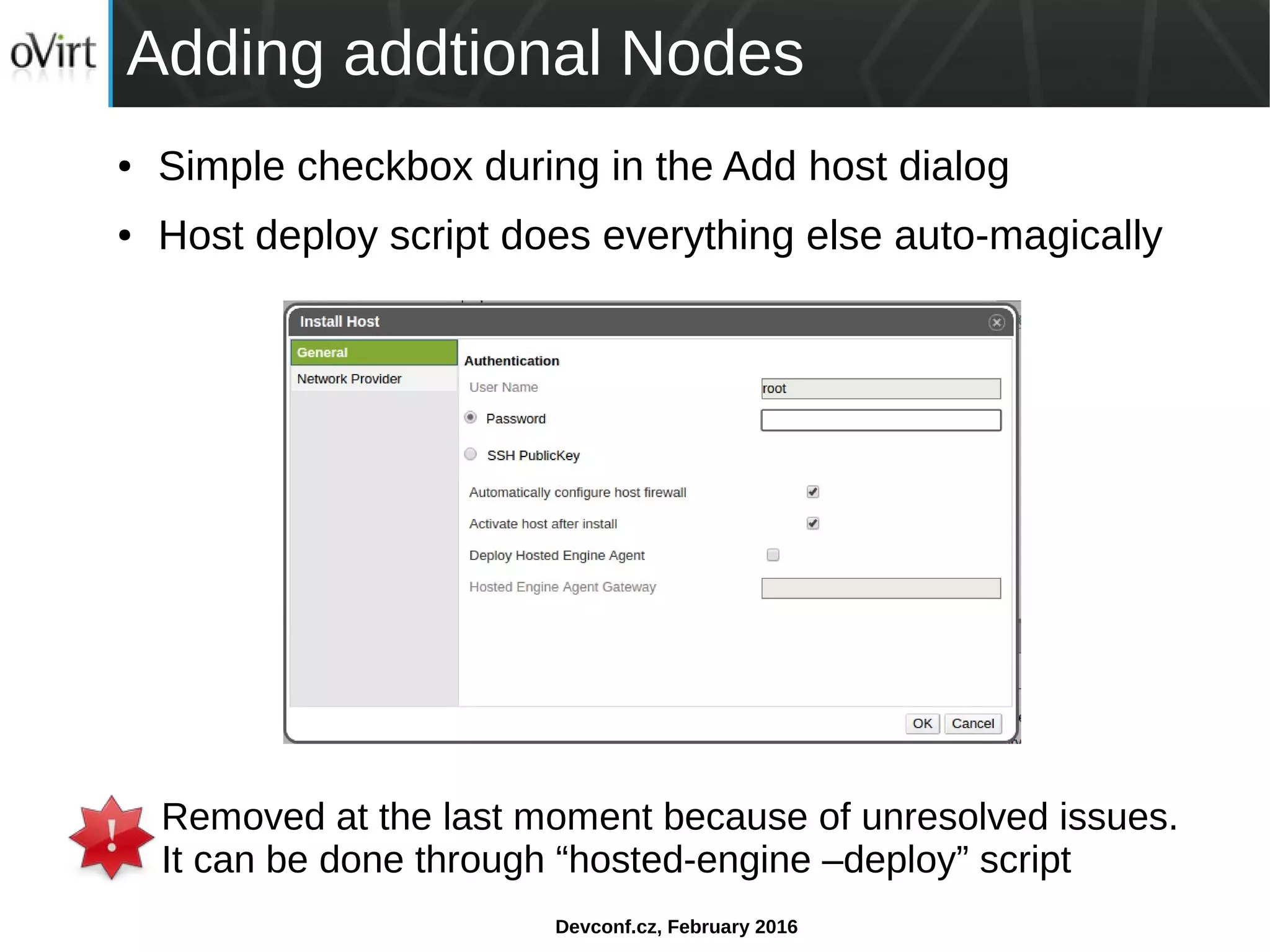

Adding addtional Nodes
● Simple checkbox during in the Add host dialog
● Host deploy script does everything else auto-magically
Removed at the last moment because of unresolved issues.
It can be done through “hosted-engine –deploy” script

19. Devconf.cz, February 2016

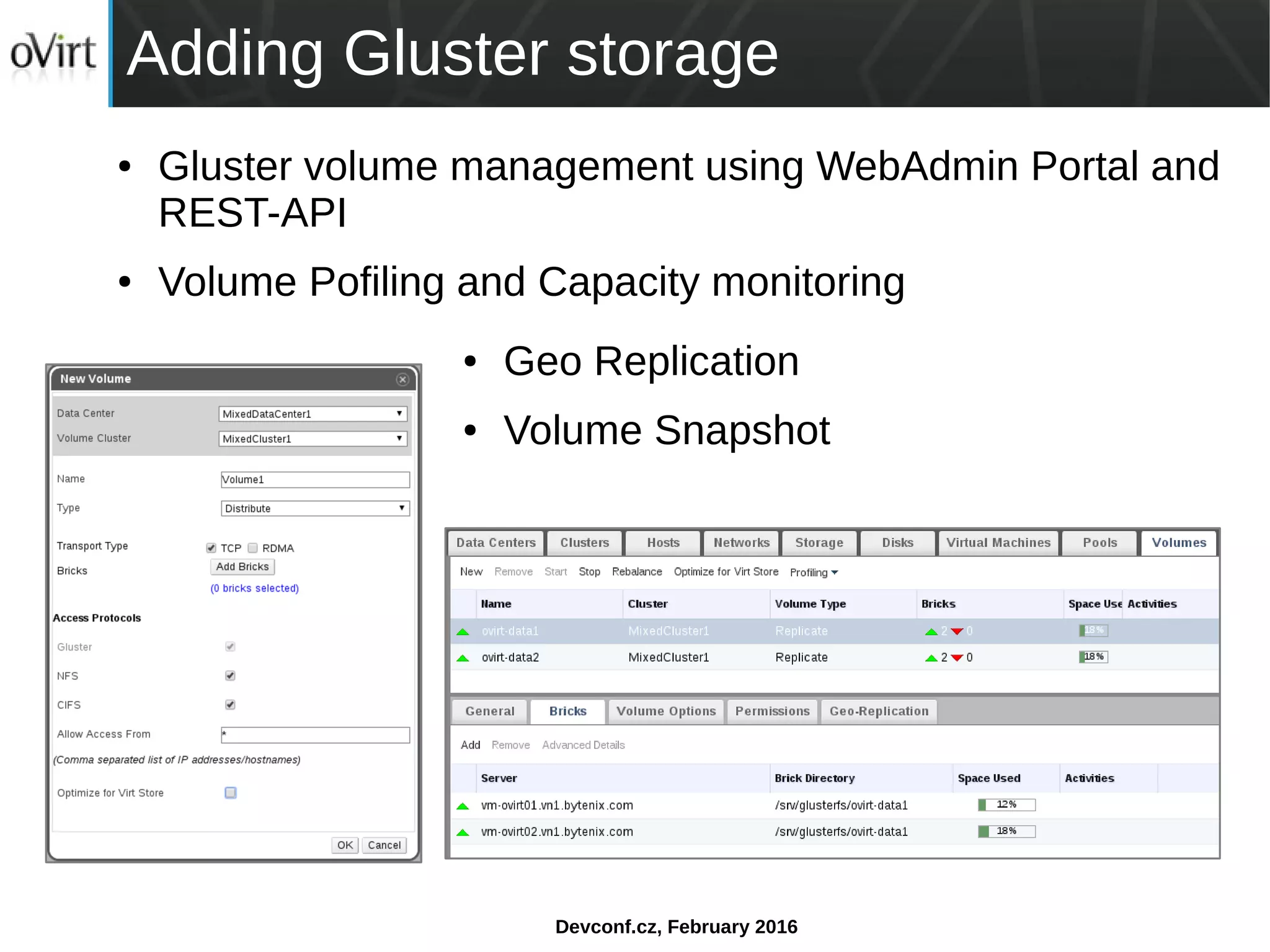

Adding Gluster storage
● Gluster volume management using WebAdmin Portal and
REST-API
● Volume Pofiling and Capacity monitoring
● Geo Replication
● Volume Snapshot

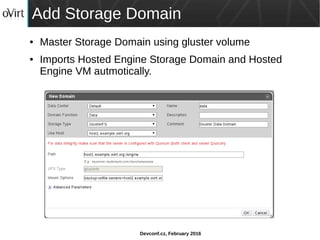

20. Devconf.cz, February 2016

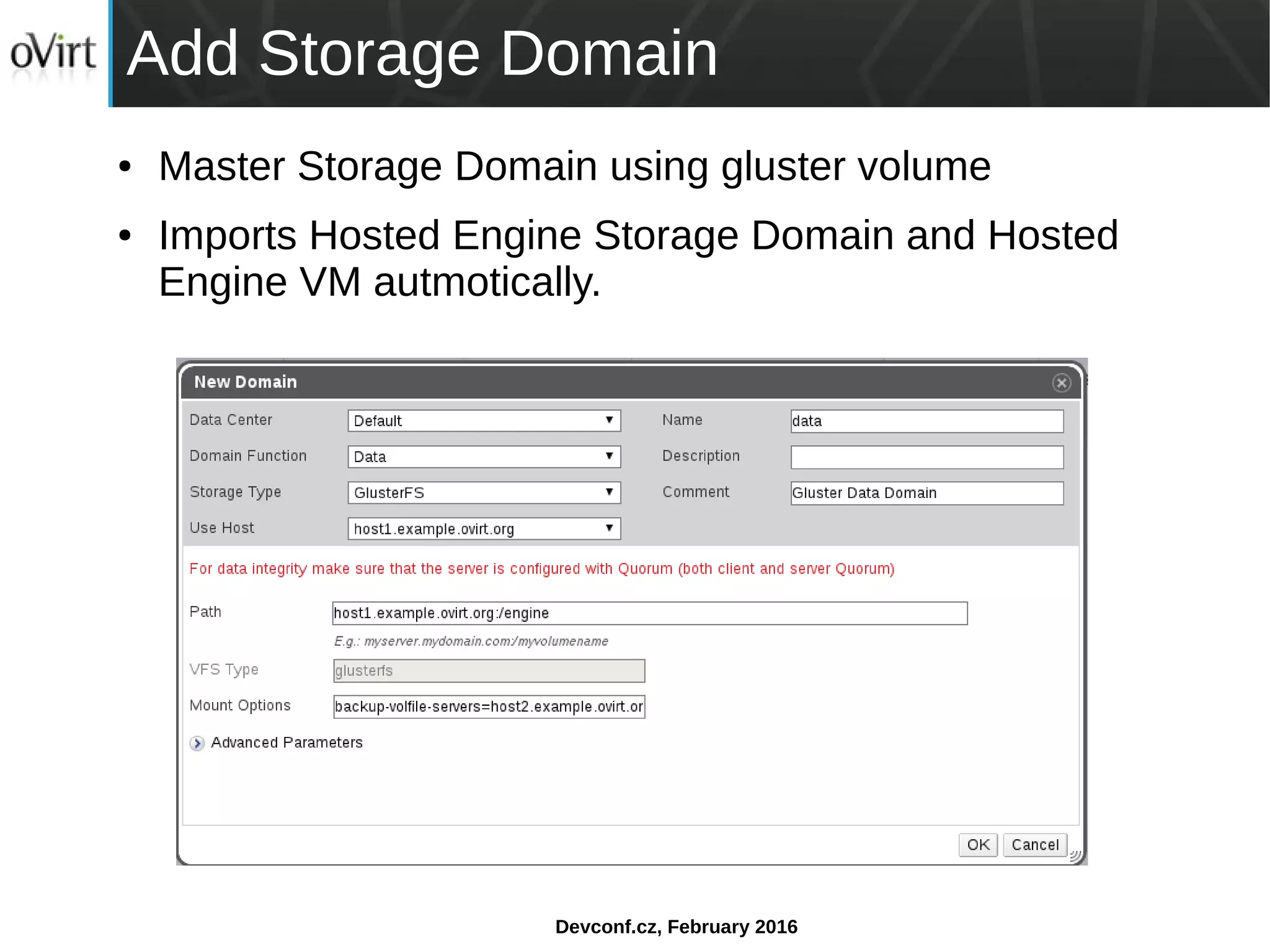

Add Storage Domain
● Master Storage Domain using gluster volume
● Imports Hosted Engine Storage Domain and Hosted
Engine VM autmotically.

21. Devconf.cz, February 2016

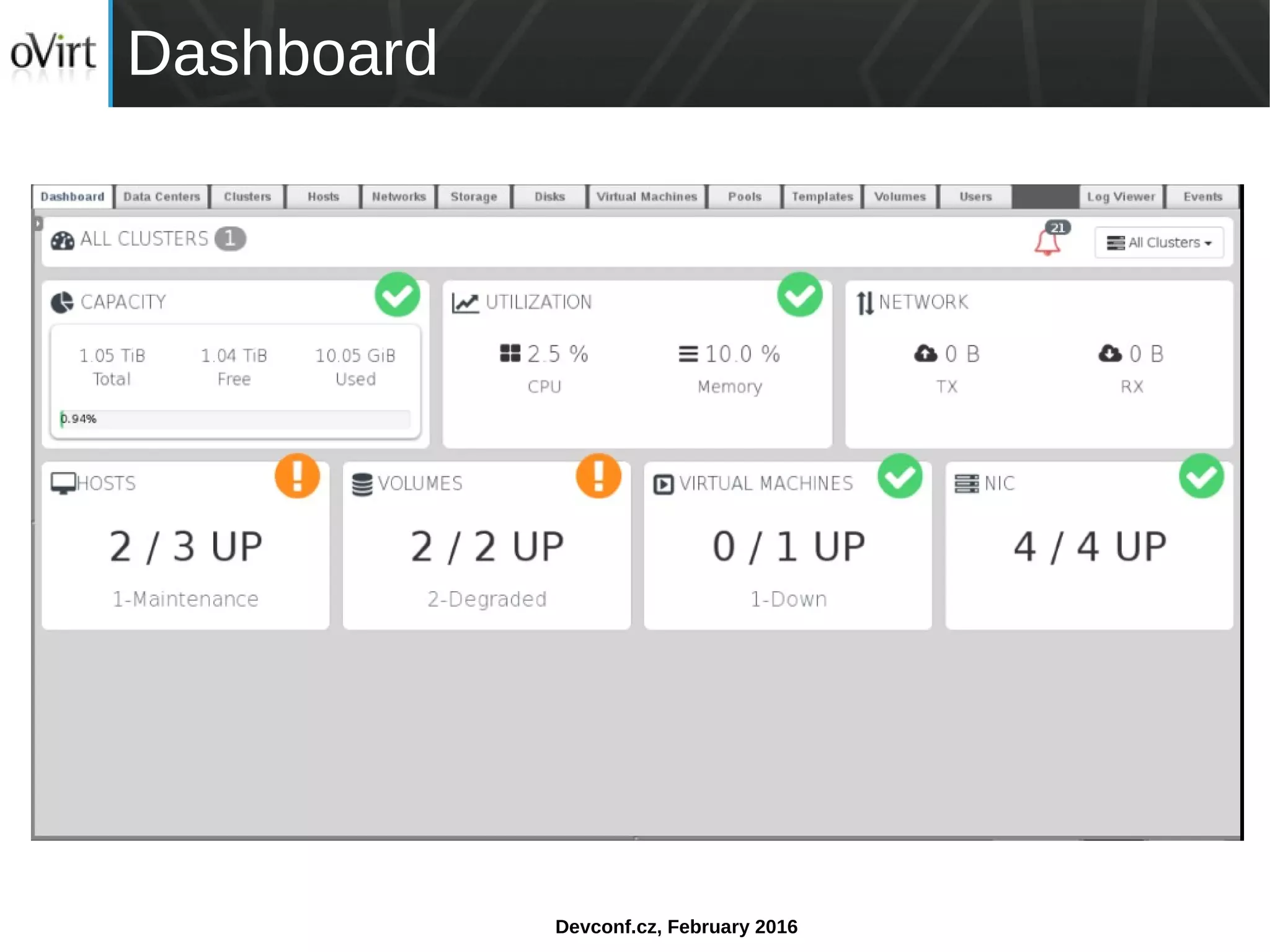

Dashboard

22. Devconf.cz, February 2016

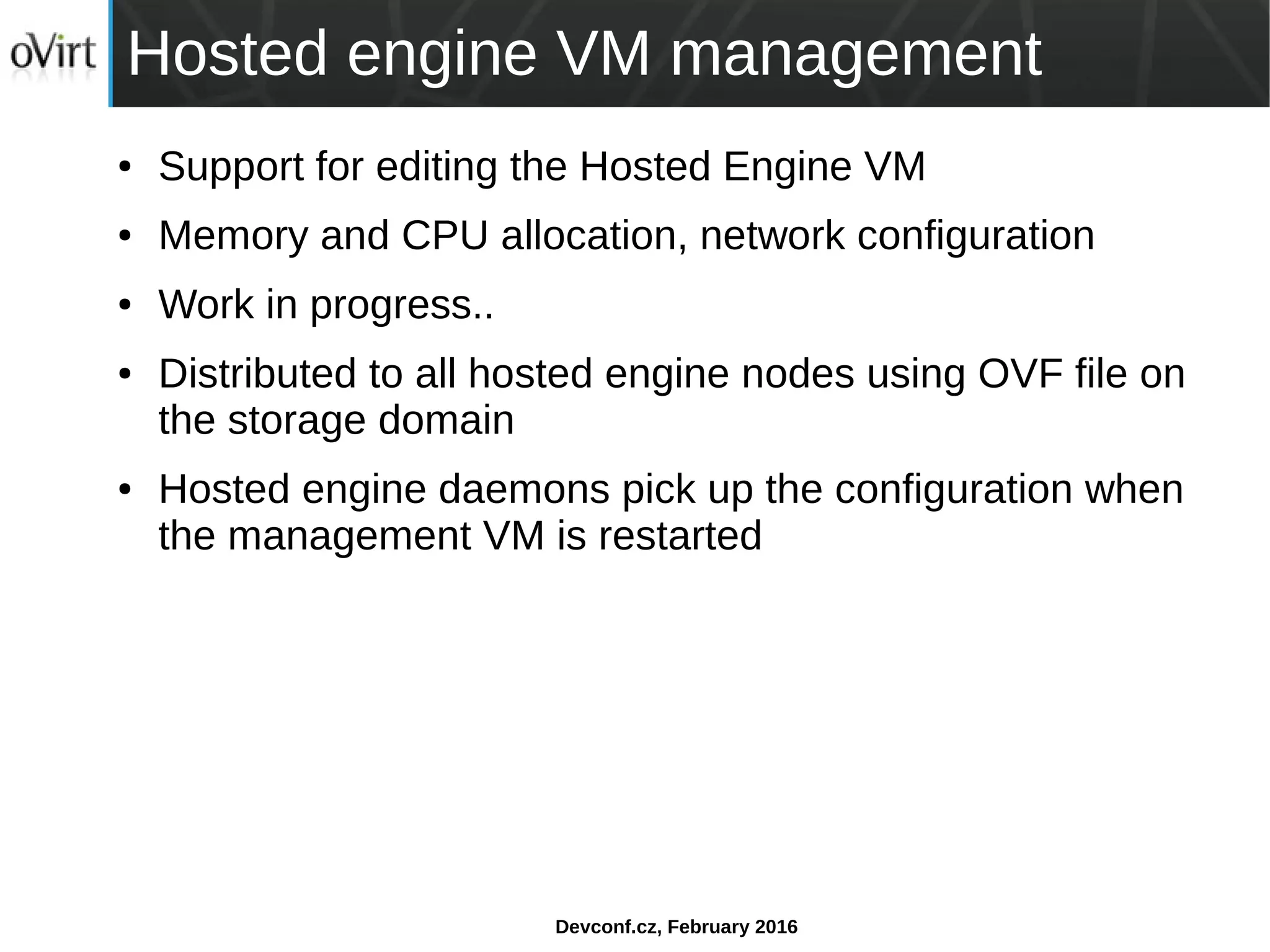

Hosted engine VM management
● Support for editing the Hosted Engine VM
● Memory and CPU allocation, network configuration
● Work in progress..
● Distributed to all hosted engine nodes using OVF file on
the storage domain
● Hosted engine daemons pick up the configuration when
the management VM is restarted

23. Devconf.cz, February 2016

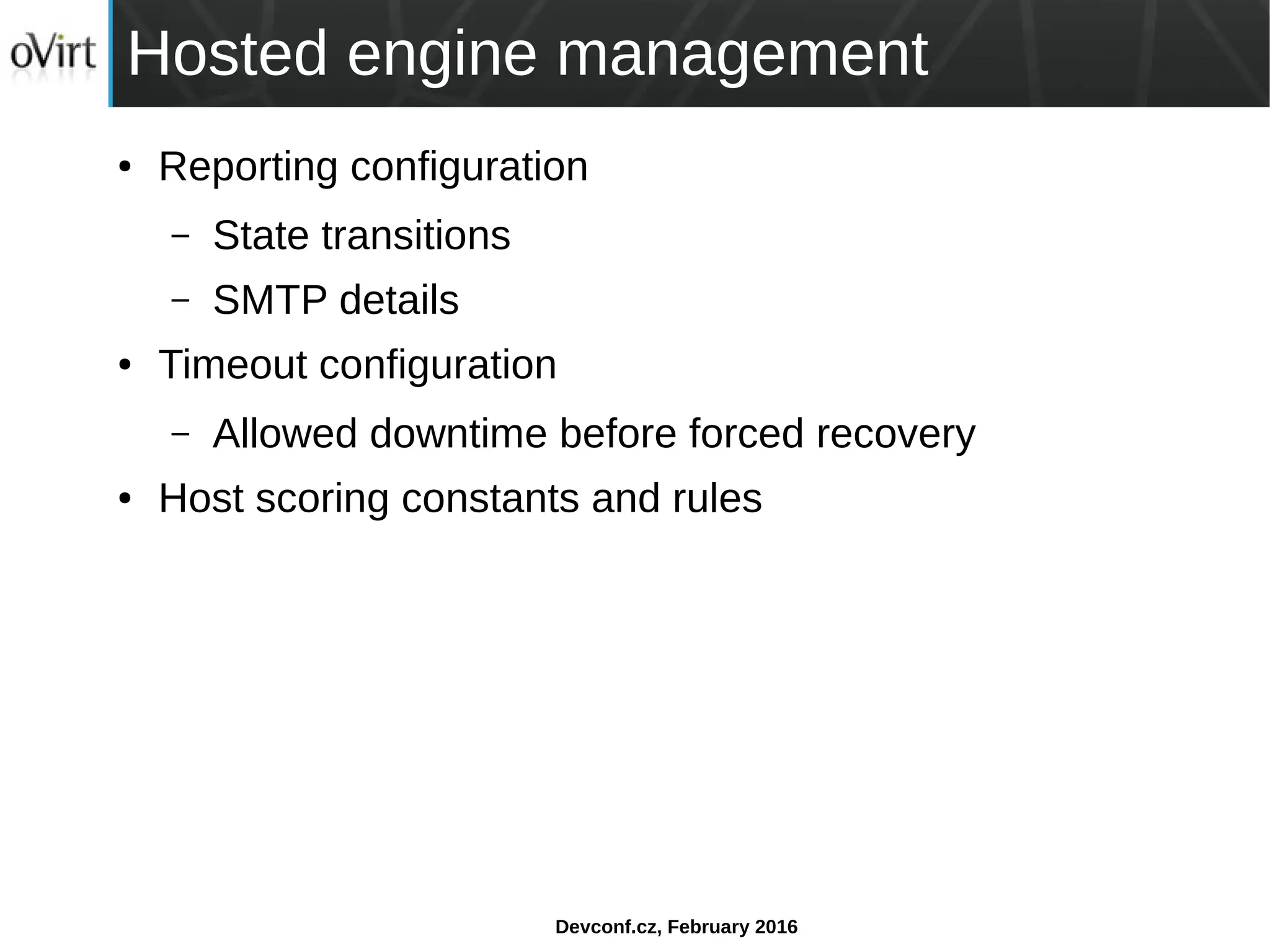

Hosted engine management
● Reporting configuration
– State transitions
– SMTP details
● Timeout configuration
– Allowed downtime before forced recovery
● Host scoring constants and rules

24. Devconf.cz, February 2016
Recent Enahacements
● Glusterfs Sharding
● Arbiter Volumes
● Replace Brick
● Backup vol file support in libvirt and QEMU-KVM
https://devconfcz2016.sched.org/event/5m1p/improvements-in-gluster-

25. Devconf.cz, February 2016

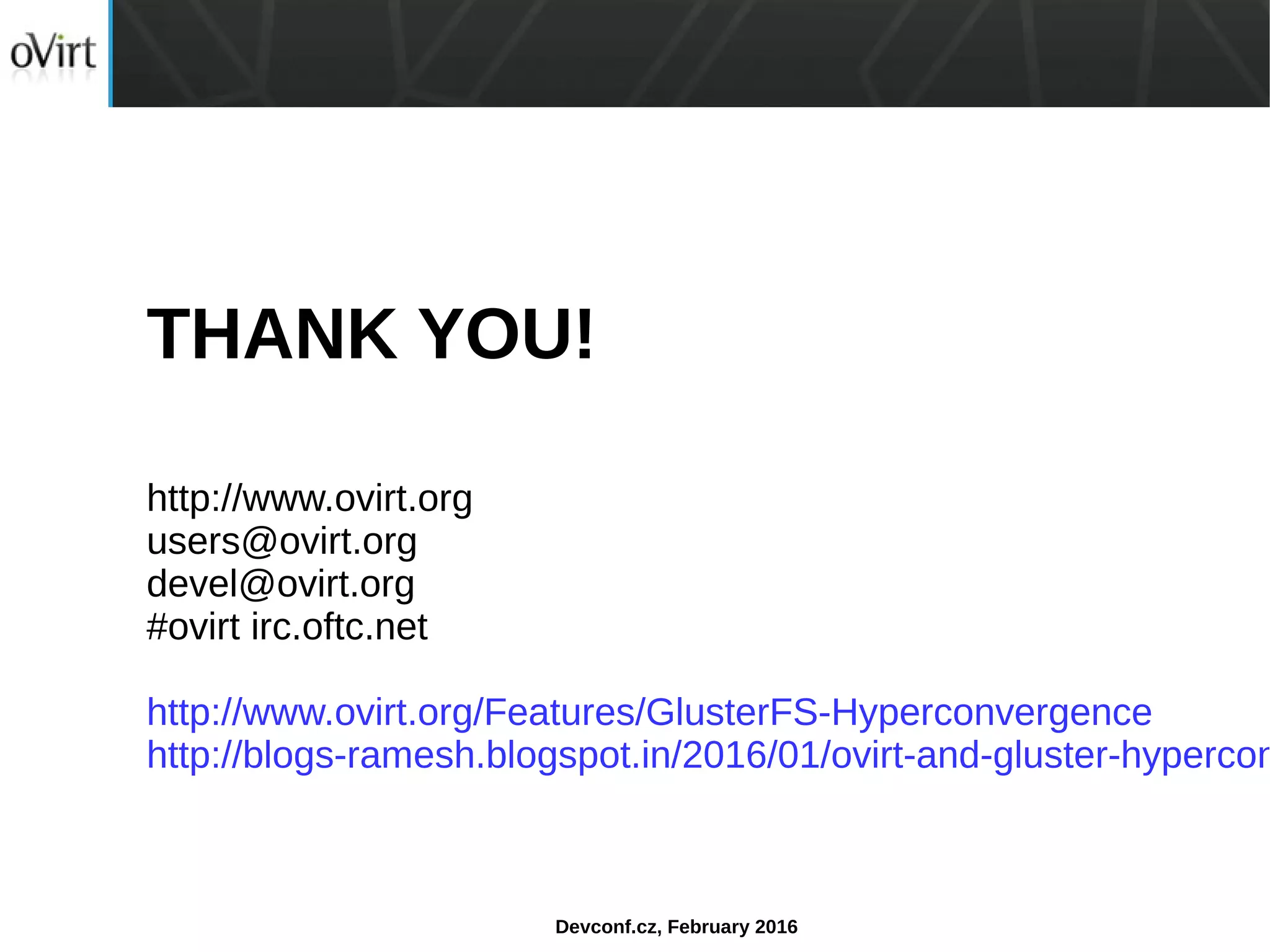

THANK YOU!
http://www.ovirt.org
users@ovirt.org
devel@ovirt.org
#ovirt irc.oftc.net
http://www.ovirt.org/Features/GlusterFS-Hyperconvergence
