Cascading is a Java API for building batch data applications on Hadoop. This document discusses executing Cascading programs on Apache Flink instead of Hadoop MapReduce. With Cascading on Flink, programs are translated to single Flink jobs instead of multiple MapReduce jobs. This improves performance by allowing pipelined execution without writing intermediate data to HDFS. For example, a TF-IDF program runs 3.5 hours faster on Flink than MapReduce. Cascading on Flink leverages Flink's efficient in-memory operators while requiring minimal code changes.

1. Cascading on Flink
Fabian Hueske
@fhueske

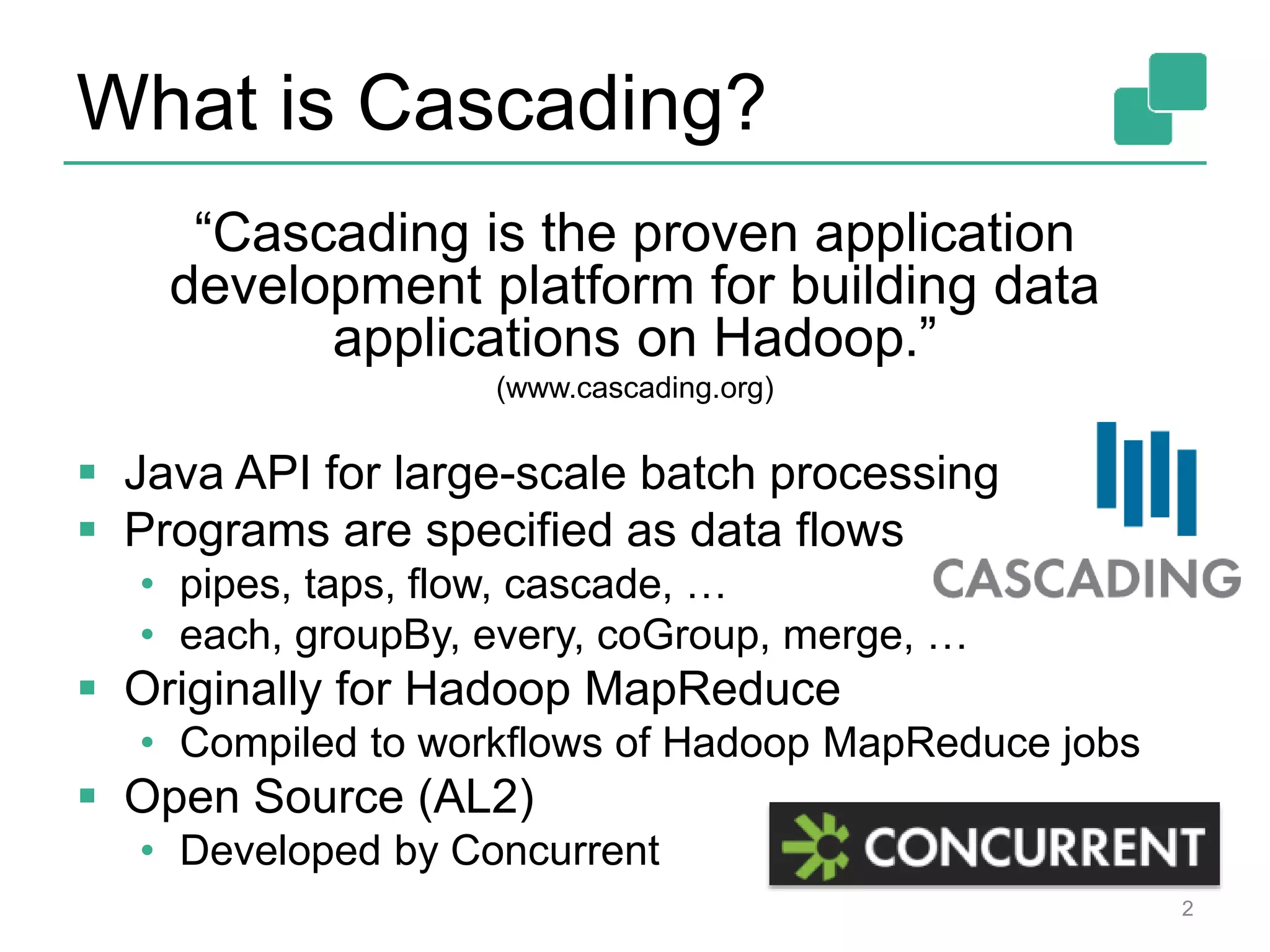

2. What is Cascading?
“Cascading is the proven application
development platform for building data
applications on Hadoop.”
(www.cascading.org)
 Java API for large-scale batch processing
 Programs are specified as data flows
• pipes, taps, flow, cascade, …
• each, groupBy, every, coGroup, merge, …
 Originally for Hadoop MapReduce
• Compiled to workflows of Hadoop MapReduce jobs
 Open Source (AL2)
• Developed by Concurrent
2

3. Why Cascading?
 Vastly simplified API compared to pure MR API
• Reuse of code, connecting flows, …
 Automatic translation to MR jobs
• Minimizes number of MR jobs
 Rock-solid execution due to Hadoop MapReduce
 More APIs have been put on top
• Scalding (Scala) by Twitter
• Cascalog (Datalog)
• Lingual (SQL)
• Fluent (fluent Java API)
 Runs in many production settings
• Twitter, Soundcloud, Etsy, Airbnb, …
3

4. Cascading Example
4
 Compute TF-IDF scores for a set of documents
• TF-IDF: Term-Frequency / Inverted-Document-Frequency
• Used for weighting the relevance of terms in search engines
 Building this against the MapReduce API is painful
Example taken from docs.cascading.org/impatient

5. Cascading 3.0
 Released in June 2015
 A new planner
• Execution backend can be changed
 Apache Tez executor
• Cascading programs are compiled to Tez jobs
• No identity mappers
• No writing to HDFS between jobs
5

6. Why Cascading on Flink?
 Flink’s unique batch processing runtime
• Pipelined data exchange
• Actively managed memory on- & off-heap
• Efficient in-memory & out-of-core operators
• Sorting and hashing on binary data
• No tuning for robust operation (OOME, GC)
 YARN integration
6

7. Cascading on Flink released
 Available on Github
• Apache License V2
 Depends on
• Cascading 3.1 WIP
• Flink 0.10-SNAPSHOT
• Will be fixed to next releases of Cascading and Flink
 Check Github for details:
http://github.com/dataartisans/cascading-flink
7

8. Executing Cascading on Flink
 Cascading programs are translated into Flink
programs
 Execution leverages all runtime features
• Memory-safe execution
• In-memory operators
• Pipelining
• Native serializers & binary comparators
(if program provides data types)
 Use Flink’s regular execution clients
8

9. Current limitations
 HashJoin only supported as InnerJoin
• HashJoin can be replaced by CoGroup
 Support will be added once Flink supports
hash-based outer joins
• This is work in progress
9

10. How to run Cascading on Flink
 No binaries available yet 
• Clone the repository
• And build it (mvn –DskipTests clean install)
 Add the cascading-flink Maven dependency to your
Cascading project
 Change just one line of code in your Cascading program
• Replace Hadoop2MR1FlowConnector by FlinkConnector
• Do not change any application logic (except replacing HashJoin
for non-InnerJoins)
 Execute Cascading program as regular Flink program
 Detailed instructions on Github
10

11. Example: TF-IDF
 Taken from “Cascading for the impatient”
• 2 CoGroup, 7 GroupBy, 1 HashJoin
11http://docs.cascading.org/impatient

12. TF-IDF on MapReduce
 Cascading on MapReduce translates the
TF-IDF program to 9 MapReduce jobs
 Each job
• Reads data from HDFS
• Applies a Map function
• Shuffles the data over the network
• Sorts the data
• Applies a Reduce function
• Writes the data to HDFS
12

13. TF-IDF on Flink
 Cascading on Flink translates the TF-
IDF job into one Flink job
13

14. TF-IDF on Flink
 Shuffle is pipelined
 Intermediate results are not
written to or read from HDFS
14

15. TF-IDF: MR vs. Flink
 8 worker node
• 8 CPUs, 30GB RAM, 2 local SSDs
 Hadoop 2.7.1 (YARN, HDFS, MapReduce)
 Flink 0.10-SNAPSHOT
 80GB data (intermediate data larger)
15
Cascading on Flink -> 3:24h
Cascading on MapReduce -> 8:33h

16. Conclusion
 Executing Cascading jobs on Apache Flink
• Improves runtime
• Reduces parameter tuning and avoids failures
• Virtually no code changes
 Apache Flink’s runtime is very versatile
• Apache Hadoop MR
• Apache Storm
• Google Dataflow
• Apache Samoa (incubating)
• + Flink’s own APIs and libraries…
16
