1. Application-Oriented Bandwidth
and Latency Aware Routing with
OpenFlow Network
PONGSAKORN U-CHUPALA, KOHEI ICHIKAWA, HAJIMU IIDA,
NAWAWIT KESSARAPHONG, PUTCHONG UTHAYOPAS,
SUSUMU DATE, HIROTAKE ABE, HIROAKI YAMANAKA AND
EIJI KAWAI
EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 112/22/2014

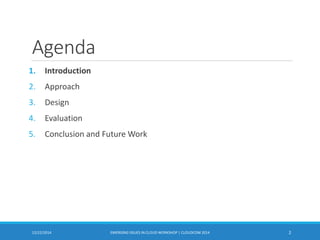

2. Agenda
1. Introduction
2. Approach
3. Design
4. Evaluation
5. Conclusion and Future Work
EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 212/22/2014

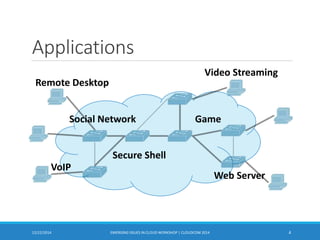

3. Applications
EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 4
Remote Desktop
Web Server
VoIP
Video Streaming
GameSocial Network
Secure Shell
12/22/2014

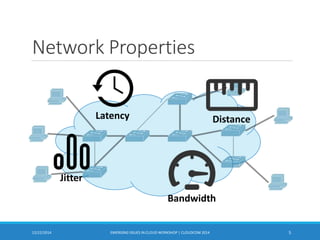

4. Network Properties
EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 512/22/2014
Latency
Bandwidth
Distance
Jitter

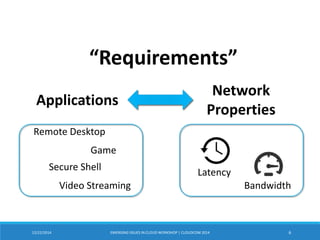

5. 12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 6
“Requirements”
Remote Desktop
Game
Applications
Network
Properties
Latency
Secure Shell
BandwidthVideo Streaming

6. Objective
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 7
Align applications’ diverse requirements with
different properties of each path in the network
and route accordingly to improve application
performance and network utilization

7. Agenda
1. Introduction
2. Approach
3. Design
4. Evaluation
5. Conclusion and Future Work
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 9

8. Categorizing Network Application
BANDWIDTH-ORIENTED
File Transfer
Computation of Big Data
Video/Audio Streaming
LATENCY-ORIENTED
VoIP
Game
Remote Desktop
Secure Shell
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 11

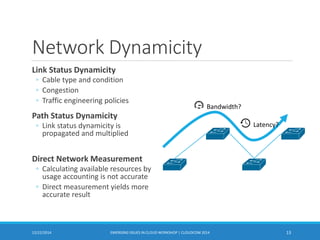

9. Network Dynamicity
Link Status Dynamicity
◦ Cable type and condition
◦ Congestion
◦ Traffic engineering policies
Path Status Dynamicity
◦ Link status dynamicity is
propagated and multiplied
Direct Network Measurement
◦ Calculating available resources by
usage accounting is not accurate
◦ Direct measurement yields more
accurate result
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 13
Bandwidth?
Latency?

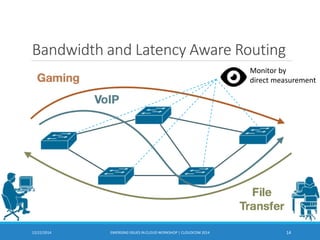

10. Bandwidth and Latency Aware Routing
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 14
Monitor by
direct measurement

11. Agenda
1. Introduction
2. Approach
3. Design
4. Evaluation
5. Conclusion and Future Work
EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 1512/22/2014

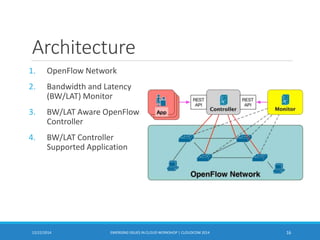

12. Architecture
1. OpenFlow Network
2. Bandwidth and Latency
(BW/LAT) Monitor
3. BW/LAT Aware OpenFlow
Controller
4. BW/LAT Controller
Supported Application
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 16

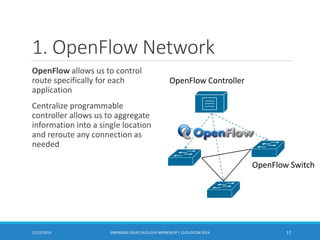

13. 1. OpenFlow Network
OpenFlow allows us to control
route specifically for each
application
Centralize programmable
controller allows us to aggregate
information into a single location
and reroute any connection as
needed
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 17
OpenFlow Switch
OpenFlow Controller

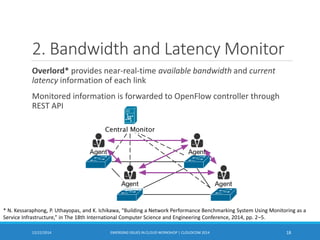

14. 2. Bandwidth and Latency Monitor
Overlord* provides near-real-time available bandwidth and current
latency information of each link
Monitored information is forwarded to OpenFlow controller through
REST API
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 18
* N. Kessaraphong, P. Uthayopas, and K. Ichikawa, “Building a Network Performance Benchmarking System Using Monitoring as a
Service Infrastructure,” in The 18th International Computer Science and Engineering Conference, 2014, pp. 2–5.

15. 3. BW/LAT Supported Application
Each application register its preference to BW/LAT controller through
REST API
Preference information includes
◦ Flow Identifier: source IP:port, destination IP:port
◦ Preference: MIN_HOP, MAX_BW, MIN_LAT
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 19
Flow Identifier
(src_ip, src_port, dst_ip, dst_port)
Preference
(MIN_HOP / MAX_BW / MIN_LAT)
(10.0.0.1, 1234, 10.0.0.2, 80) MIN_HOP
(10.0.0.1, *, 10.0.0.2, 80) MAX_BW
(10.0.0.2, 80, 10.0.0.1, *) MAX_BW
(10.0.0.1, *, 10.0.0.2, *) MIN_LAT
(*, *, *, *) MIN_HOP

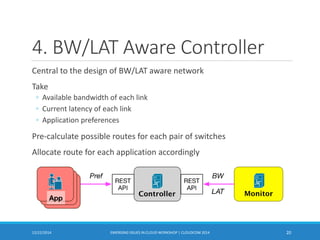

16. 4. BW/LAT Aware Controller
Central to the design of BW/LAT aware network
Take
◦ Available bandwidth of each link
◦ Current latency of each link
◦ Application preferences
Pre-calculate possible routes for each pair of switches
Allocate route for each application accordingly
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 20

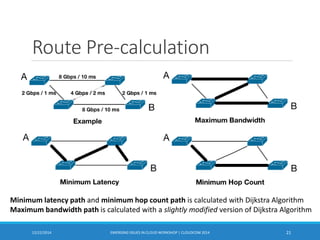

17. Route Pre-calculation
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 21
Minimum latency path and minimum hop count path is calculated with Dijkstra Algorithm
Maximum bandwidth path is calculated with a slightly modified version of Dijkstra Algorithm

18. Route Selection
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 25
BW/LAT
Controller
Flow Preference Table
(src, *, dst, *) | BW
BW
LAT
HOP

19. Agenda
1. Introduction
2. Approach
3. Design
4. Evaluation
5. Conclusion and Future Work
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 26

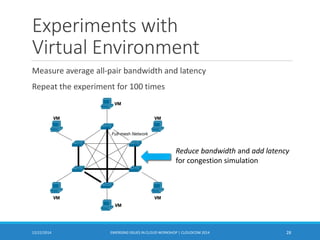

20. Experiments with
Virtual Environment
Measure average all-pair bandwidth and latency
Repeat the experiment for 100 times
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 28
Reduce bandwidth and add latency
for congestion simulation

21. Average All-pair Bandwidth
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 30
118.0616333
85.7680214
95.48433667 93.0250646
0
20
40
60
80
100
120
140
All links at 100 Mbps 5 links are selected at random and got
limited to 40 Mbps (repeated for 100
iterations)
Bandwidth(Mbps)
Traditional Routing Bandwidth and Latency Aware Routing

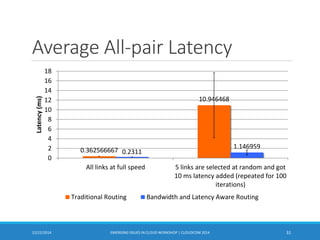

22. Average All-pair Latency
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 31
0.362566667
10.946468
0.2311
1.146959
0
2
4
6
8
10
12
14
16
18
All links at full speed 5 links are selected at random and got
10 ms latency added (repeated for 100
iterations)
Latency(ms)
Traditional Routing Bandwidth and Latency Aware Routing

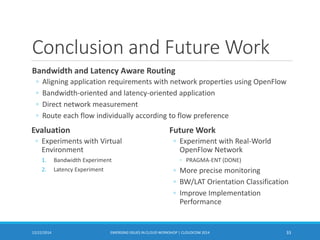

23. Conclusion and Future Work
Bandwidth and Latency Aware Routing
◦ Aligning application requirements with network properties using OpenFlow
◦ Bandwidth-oriented and latency-oriented application
◦ Direct network measurement
◦ Route each flow individually according to flow preference
12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 33
Evaluation
◦ Experiments with Virtual
Environment
1. Bandwidth Experiment
2. Latency Experiment
Future Work
◦ Experiment with Real-World
OpenFlow Network
◦ PRAGMA-ENT (DONE)
◦ More precise monitoring
◦ BW/LAT Orientation Classification
◦ Improve Implementation
Performance

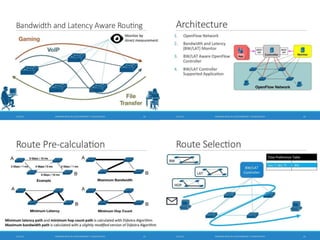

24. 12/22/2014 EMERGING ISSUES IN CLOUD WORKSHOP | CLOUDCOM 2014 34
