1. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Affiliated G.G.S.IP.U, Delhi
BCA
ICIT
(20107)
RITIKA KAPOOR
ASSISTANT PROFESSOR

2. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75

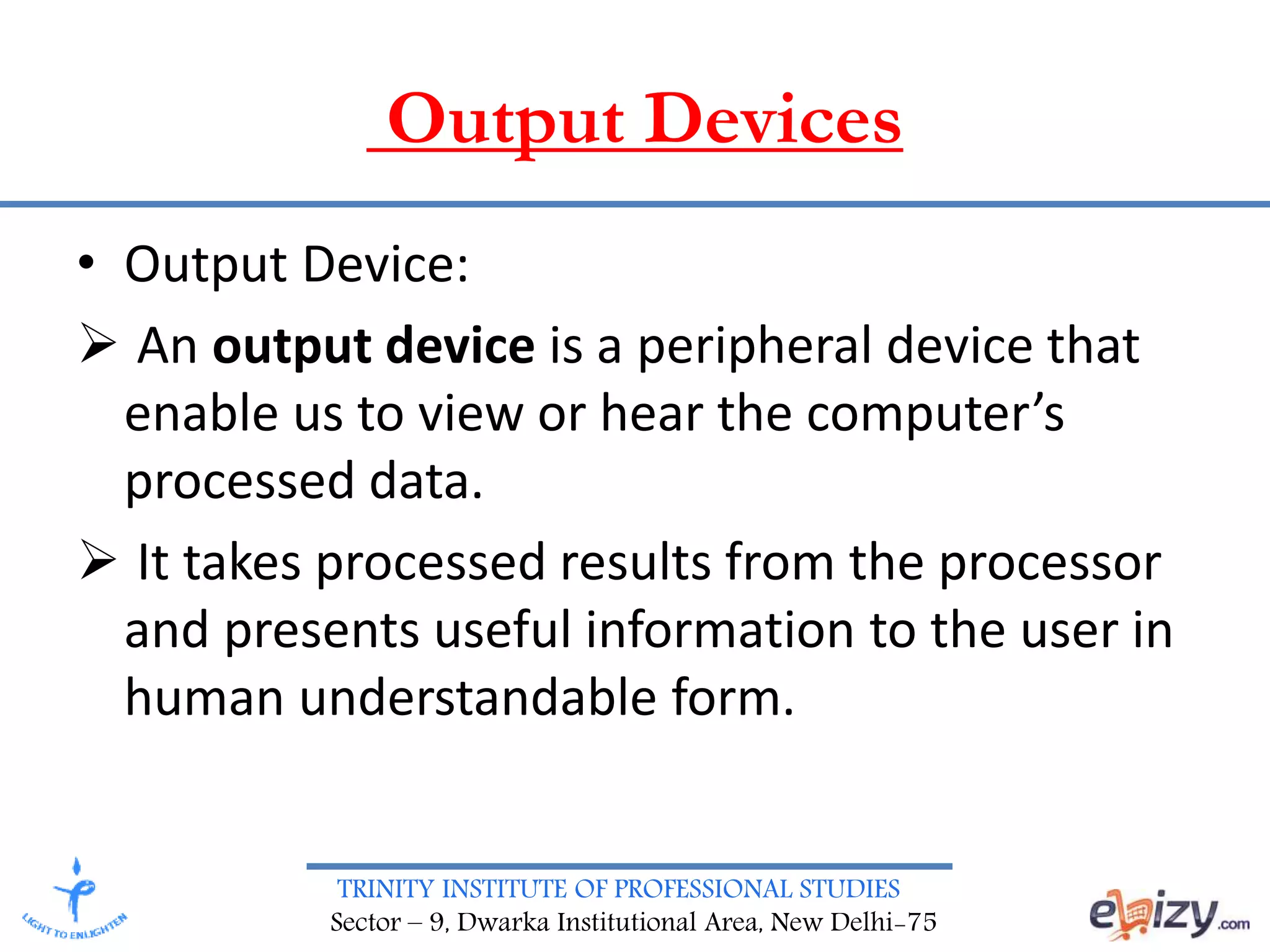

Output Devices
• Output Device:
 An output device is a peripheral device that
enable us to view or hear the computer’s
processed data.
 It takes processed results from the processor
and presents useful information to the user in
human understandable form.

3. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Output Devices
• Types of Output Devices:
 Monitors
 Printers
 Plotter
 Audio Output : Sound card and speakers

4. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Output Devices
• Monitors
A monitor is a peripheral device which displays
computer output on a screen.
• Screen output is referred to as soft copy.
• Types of monitors:
– Cathode-ray tube (CRT)
– Liquid Crystal Display (LCD or flat-panel)

5. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Cathode-ray tube (CRT)
• Resemble televisions
• Use picture tube technology
• Less expensive than a LCD monitor
• Take up more desk space and use more energy
than LCD monitors

6. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Liquid Crystal Display (LCD)
• Cells sandwiched between two transparent layers form images
• Used for notebook computers, PDAs, cellular phones, and personal
computers
• More expensive than a CRT monitor
• Take up less desk space and use less energy than CRT monitors
• Types of LCD monitors:
– Passive-matrix LCD
– Active-matrix LCD
– Gas plasma display
– Field emission display

7. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Output devices
• Printers
A printer is a peripheral device that produces
a physical copy or hard copy of the computer’s
output.
Types of Printers:
• Impact Printers
• Non – Impact Printers

8. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Types of Printers
• Impact Printers
• There is some physical contact with the paper
to produce the image ie physically striking the
paper
• Types of Impact Printers:
– Line printers
– Dot matrix printers

9. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Impact Printers
• Line printers
– Used by mainframes for
jobs that need a large volume of printing
– Limited characters available
– Print an entire line at a time
– Cheap to run
– Not high quality

10. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Impact Printers
• Dot Matrix Printer
• Have a print head made up of columns of pins
– The pins form characters and images as patterns
of dots produced when the pins strike the paper
– Reasonable quality text and graphics
– Inexpensive to buy and run
– Noisy

11. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Types of Printers
• Inkjet printer, also called a bubble-jet, makes
characters by inserting dots of ink onto paper
• Letter-quality printouts
• Cost of printer is inexpensive but ink is costly

12. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Non-Impact Printers
Types of Non - Impact Printers:
• Laser Printers
• Ink - jet printers

13. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Non – Impact Printers
• Laser printer works like a copier
• Quality determined by dots per inch (dpi)
produced
• Color printers available
• Expensive initial costs but cheaper to operate
per page

14. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Non – Impact Printers
• Ink-jet Printers
– Dots of ink are sprayed onto the paper to form the
– Reasonably high quality
– Available in colour or B/W
– Speed measured in pages per minute
– Reasonably priced
– Expensive to run

15. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Output Devices
• Plotter
• A plotter is a printer that uses a pen that
moves over a large revolving sheet of paper.
• It is used in engineering, drafting, map
making, and seismology.

16. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Output Devices
• Audio Output: Sound Cards and Speakers
• Audio output is the ability of the computer to
output sound.
• Two components are needed:
– Sound card – Plays contents of digitized
recordings
– Speakers – Attach to sound card

17. TRINITY INSTITUTE OF PROFESSIONAL STUDIES
Sector – 9, Dwarka Institutional Area, New Delhi-75
Thank You
