Output devices convey processed data to users. Display devices like LCD and plasma monitors visually output text, graphics, and video. Printers produce hard copies on paper through inkjet, laser, or other methods. Audio output devices like speakers and headphones allow users to hear processed sound files. A variety of other specialized output hardware exists as well, such as data projectors, interactive whiteboards, and fax machines.

1. Output Devices

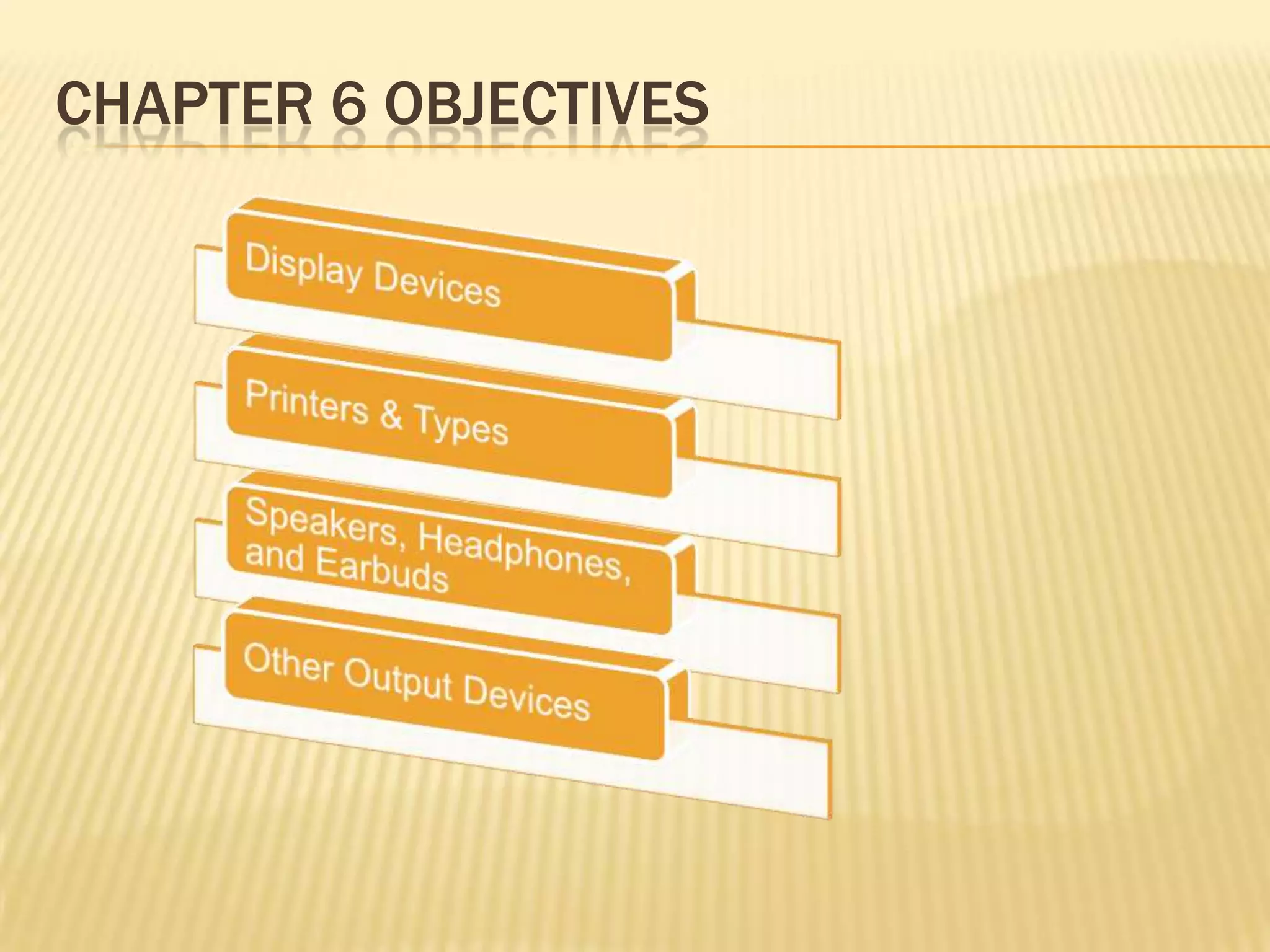

2. Chapter 6 Objectives

3. What is Output?What isoutput?Data that has been processed into a useful form

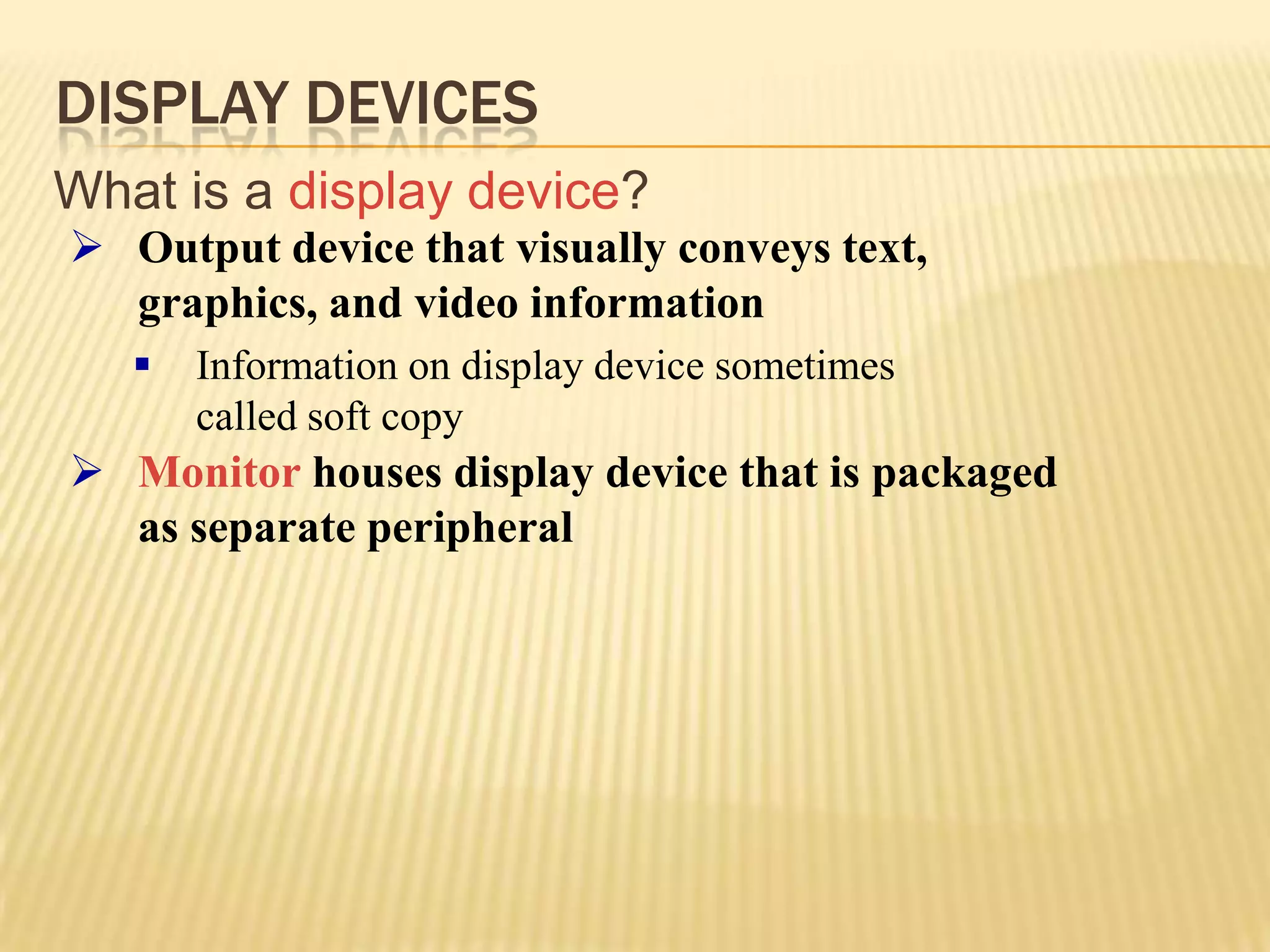

4. Output device is any hardware component that can convey information to one or more peopleDisplay DevicesWhat is adisplay device?Output device that visually conveys text, graphics, and video information

5. Information on display device sometimes called soft copy

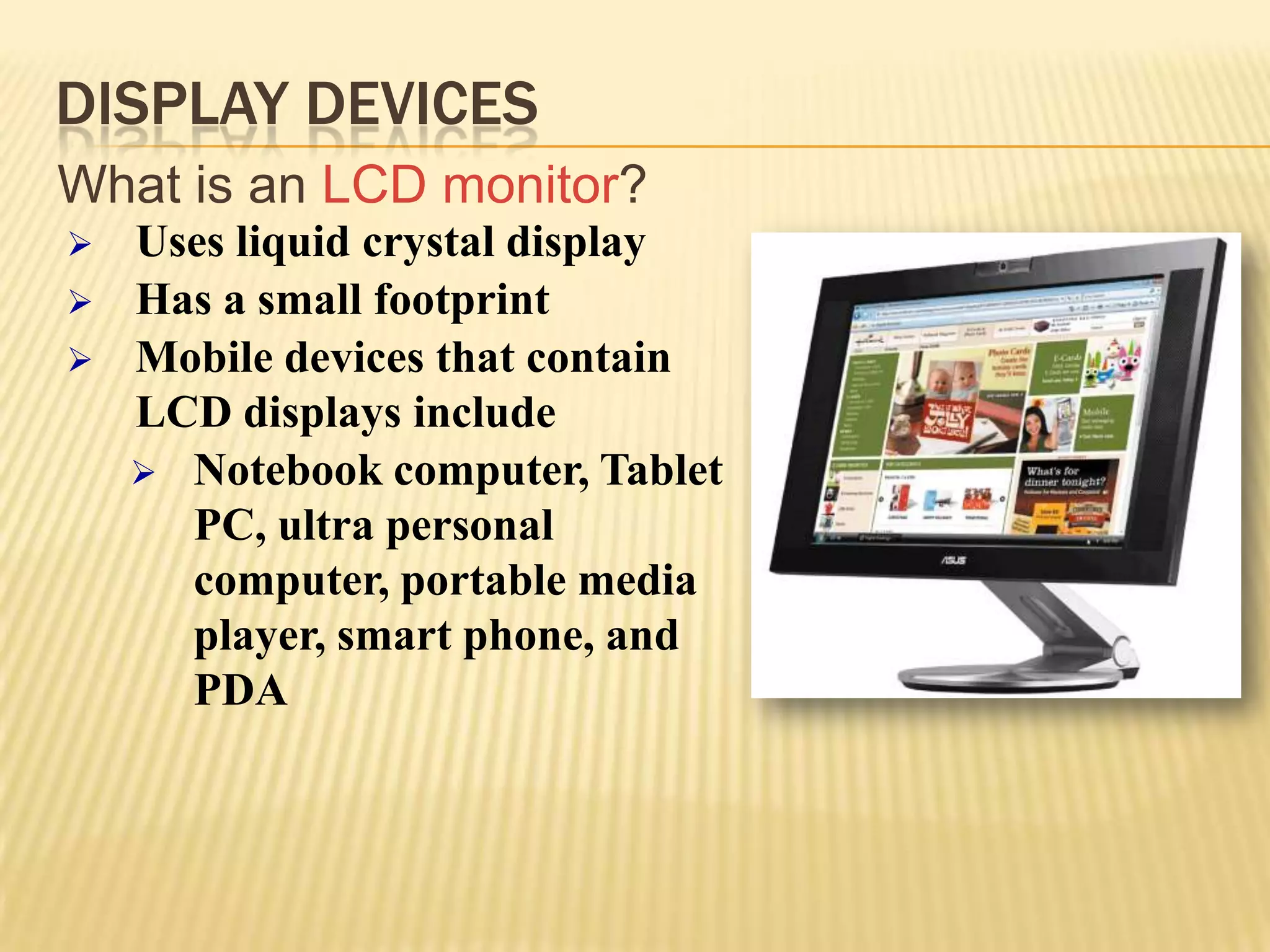

6. Monitorhouses display device that is packaged as separate peripheralDisplay DevicesWhat is an LCD monitor?Uses liquid crystal display

7. Has a small footprint

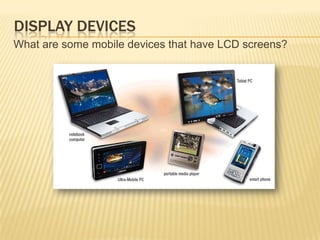

8. Mobile devices that contain LCD displays include

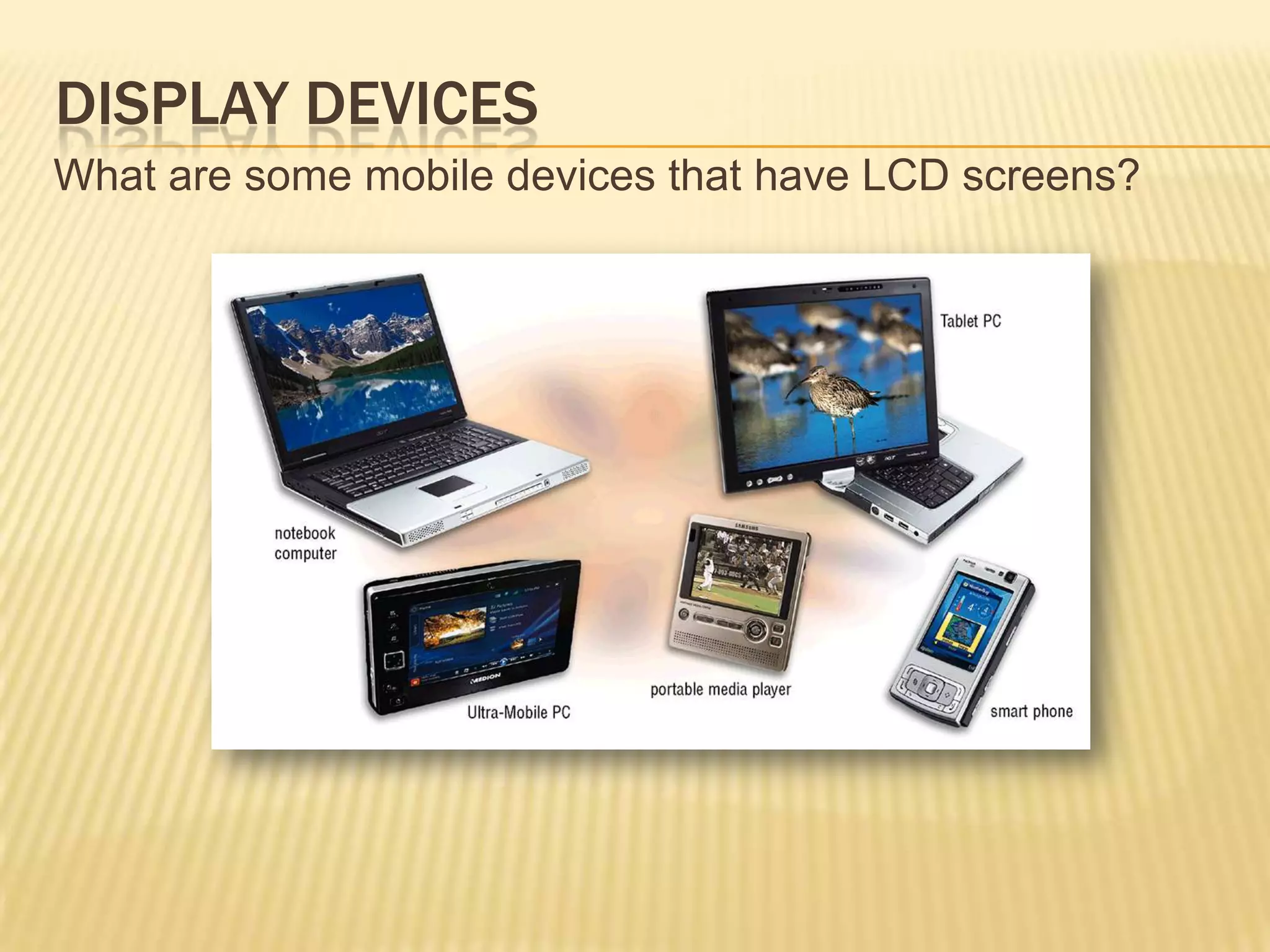

9. Notebook computer, Tablet PC, ultra personal computer, portable media player, smart phone, and PDADisplay DevicesWhat are some mobile devices that have LCD screens?

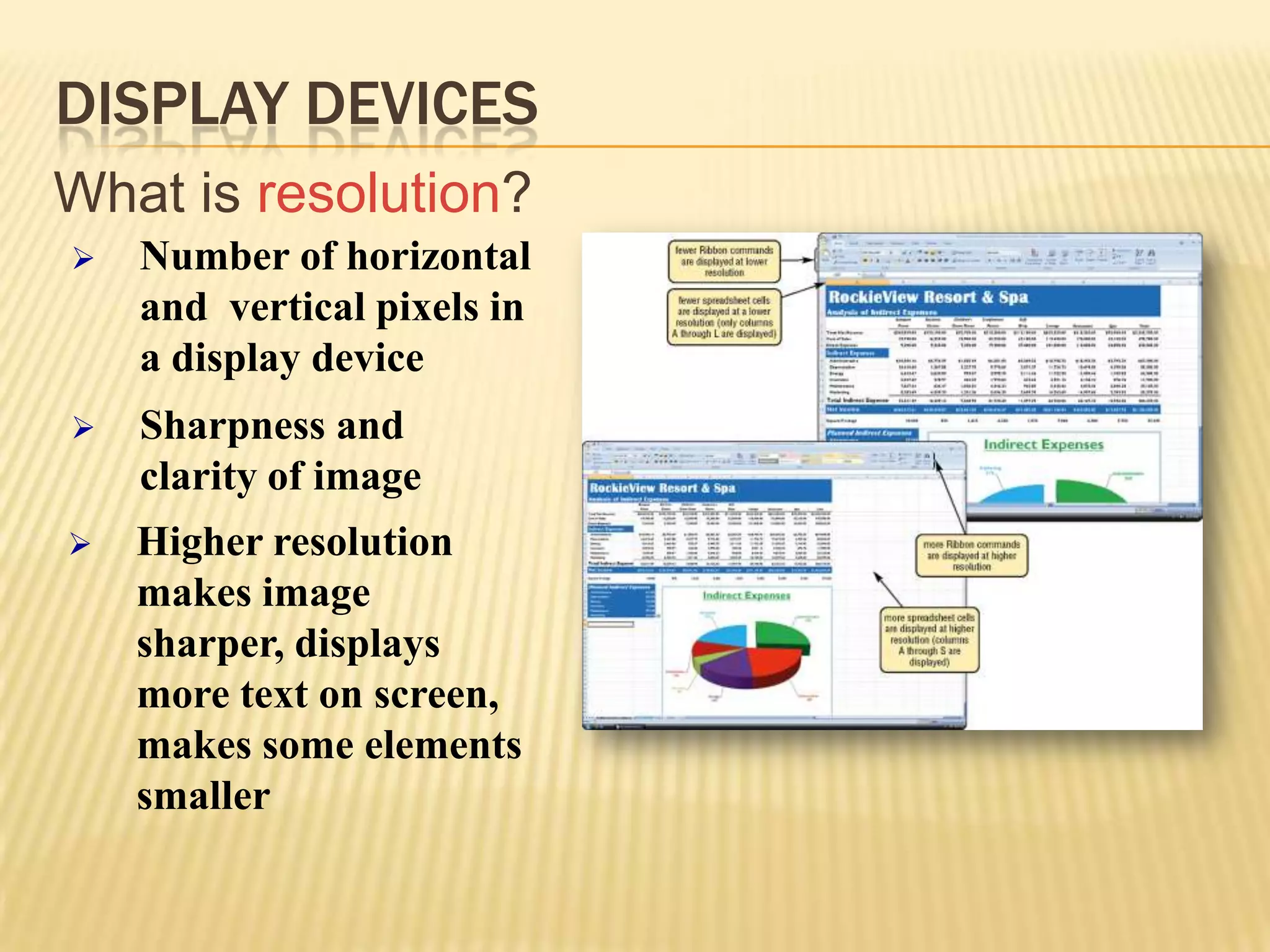

10. Display DevicesWhat isresolution?Number of horizontal and vertical pixels in a display device

11. Sharpness and clarity of image

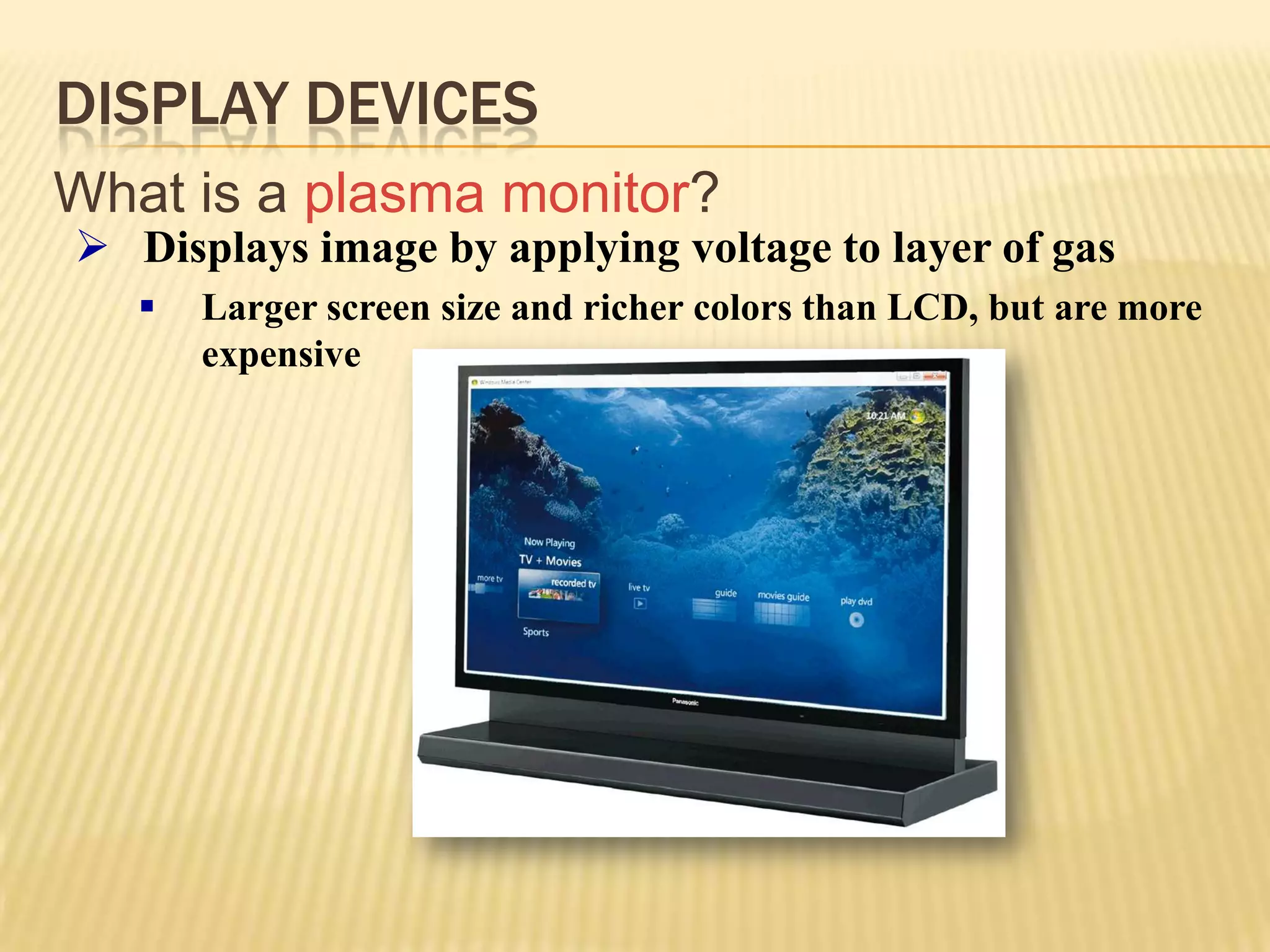

12. Higher resolution makes image sharper, displays more text on screen, makes some elements smallerDisplay DevicesWhat is aplasma monitor?Displays image by applying voltage to layer of gas

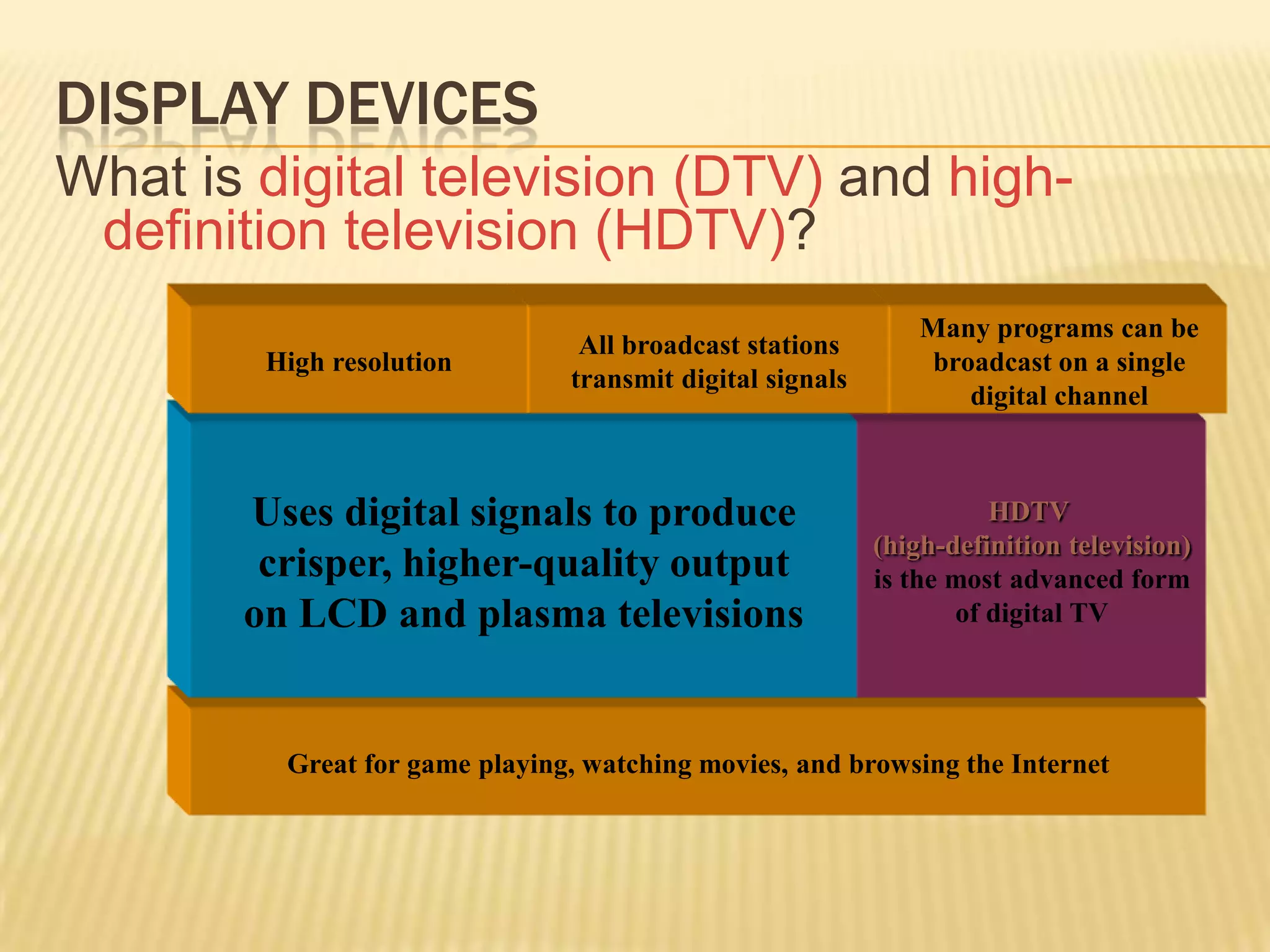

13. Larger screen size and richer colors than LCD, but are more expensiveDisplay DevicesWhat isdigital television (DTV) andhigh-definition television (HDTV)?Many programs can bebroadcast on a singledigital channelAll broadcast stationstransmit digital signalsHigh resolutionHDTV (high-definition television)is the most advanced formof digital TVUses digital signals to producecrisper, higher-quality outputon LCD and plasma televisionsGreat for game playing, watching movies, and browsing the Internet

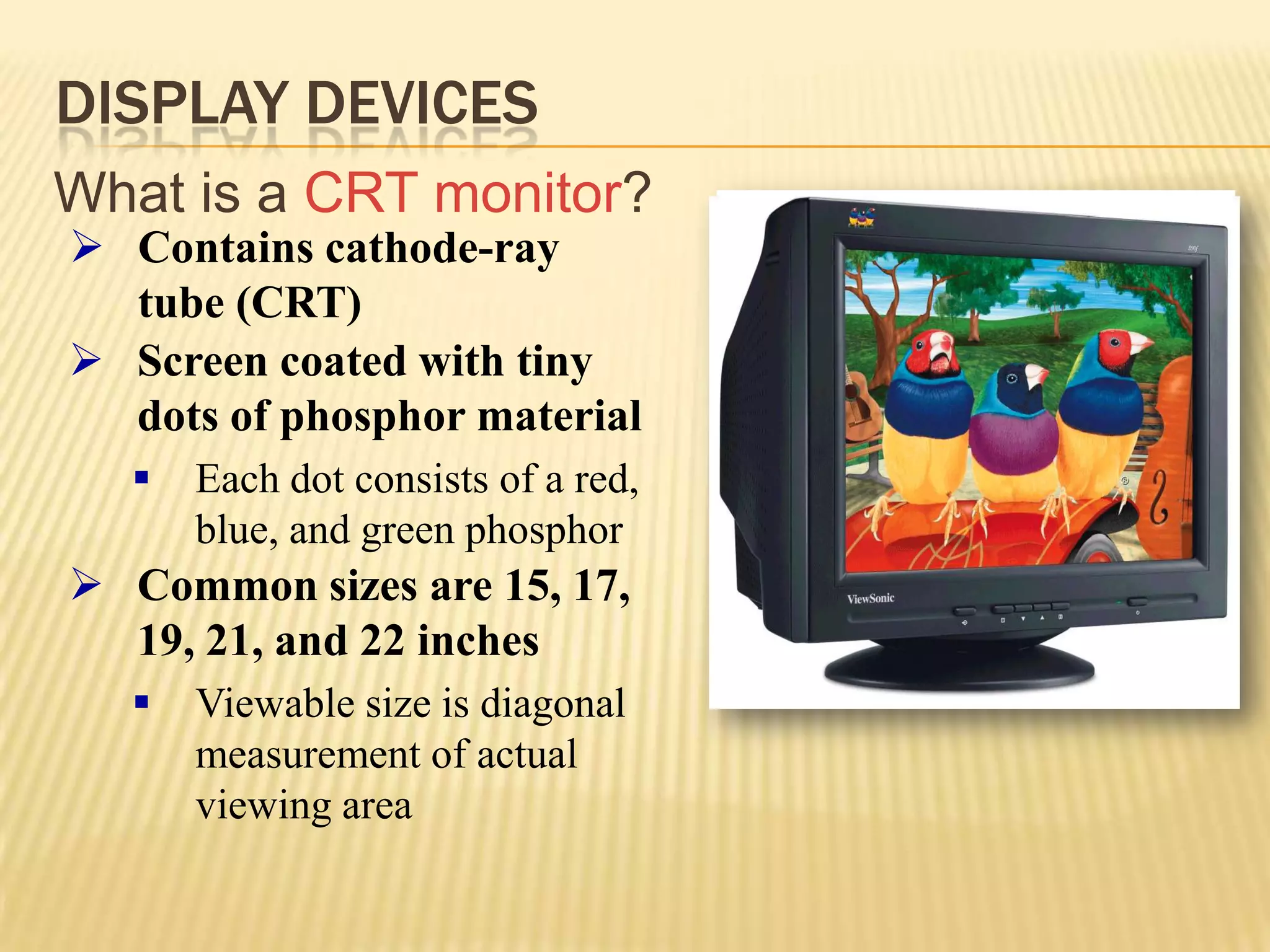

14. Display DevicesWhat is aCRT monitor?Containscathode-ray tube (CRT)

15. Screen coated with tiny dots of phosphor material

16. Each dot consists of a red, blue, and green phosphor

17. Common sizes are 15, 17, 19, 21, and 22 inches

18. Viewable size is diagonal measurement of actual viewing areaPrintersWhat is aprinter?Output device that produces text and graphics on a physical medium

19. Result ishard copy, orprintout

20. Two orientations:portraitandlandscapeportraitlandscape

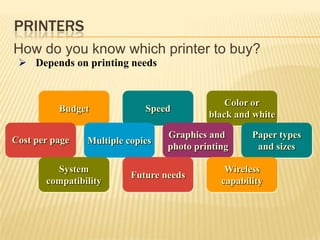

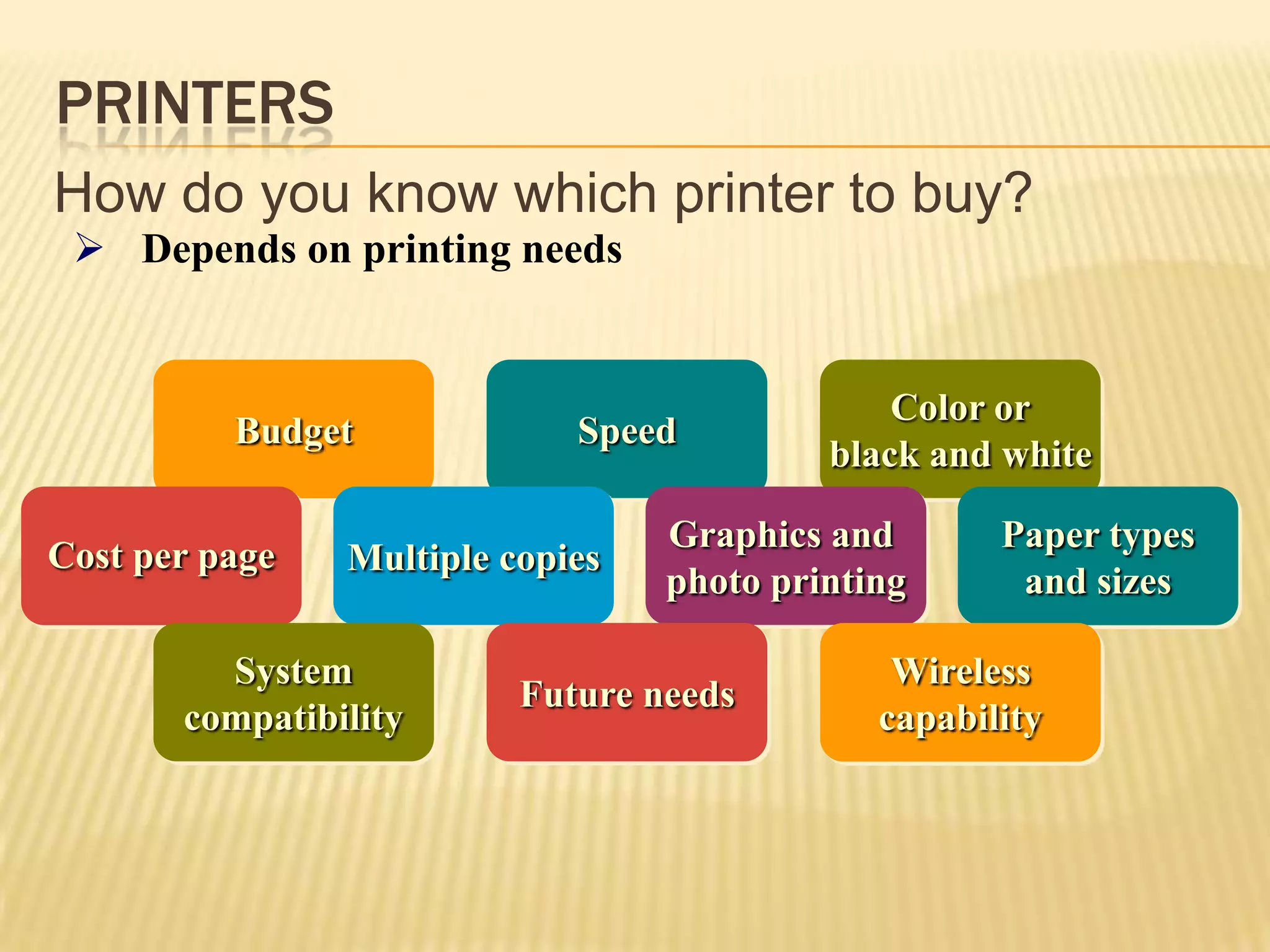

21. PrintersHow do you know which printer to buy?Depends on printing needsSpeedBudgetColor orblack and whiteCost per pagePaper typesand sizesGraphics and photo printingMultiple copiesSystemcompatibilityWirelesscapabilityFuture needs

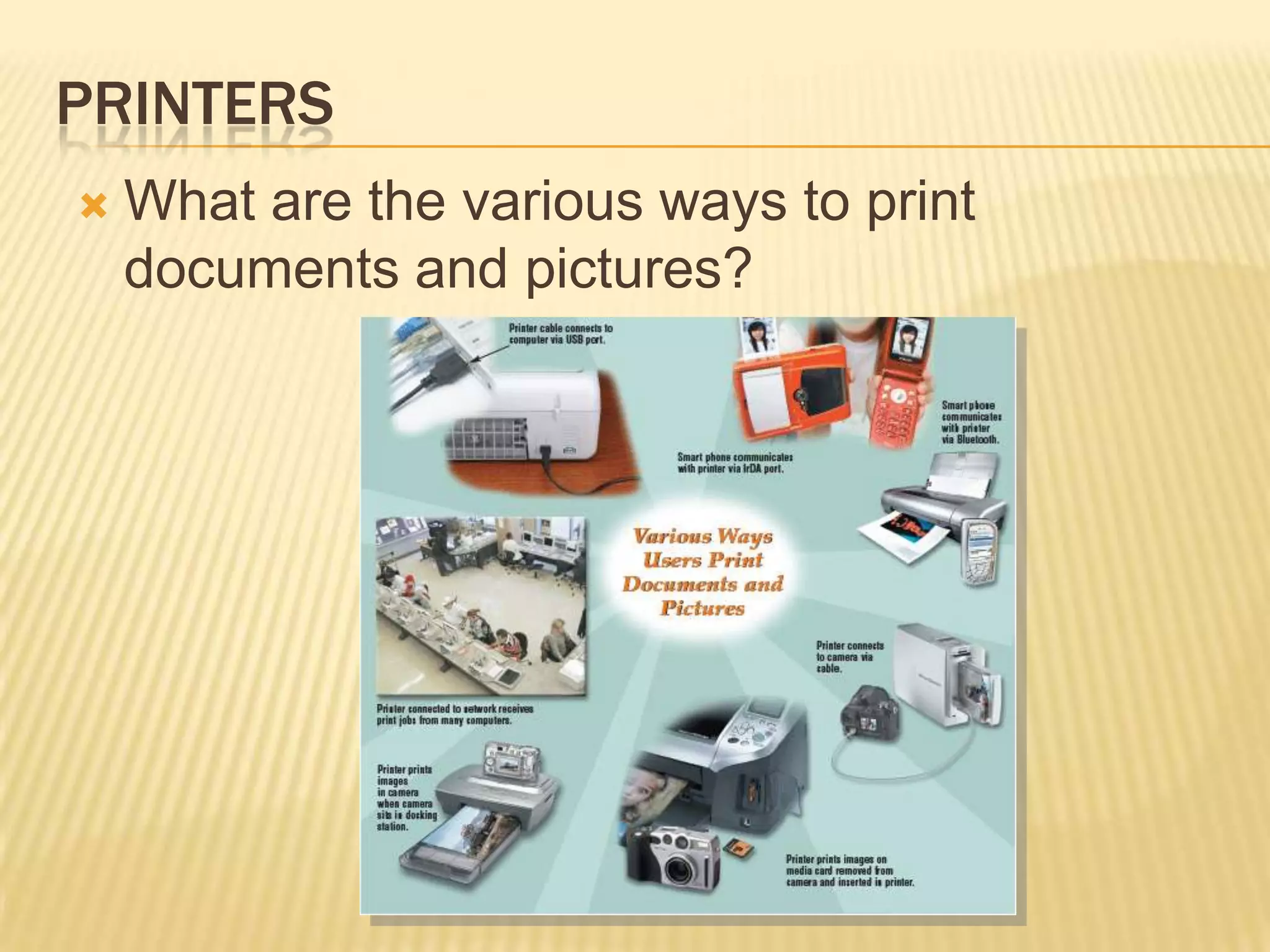

22. PrintersWhat are the various ways to print documents and pictures?

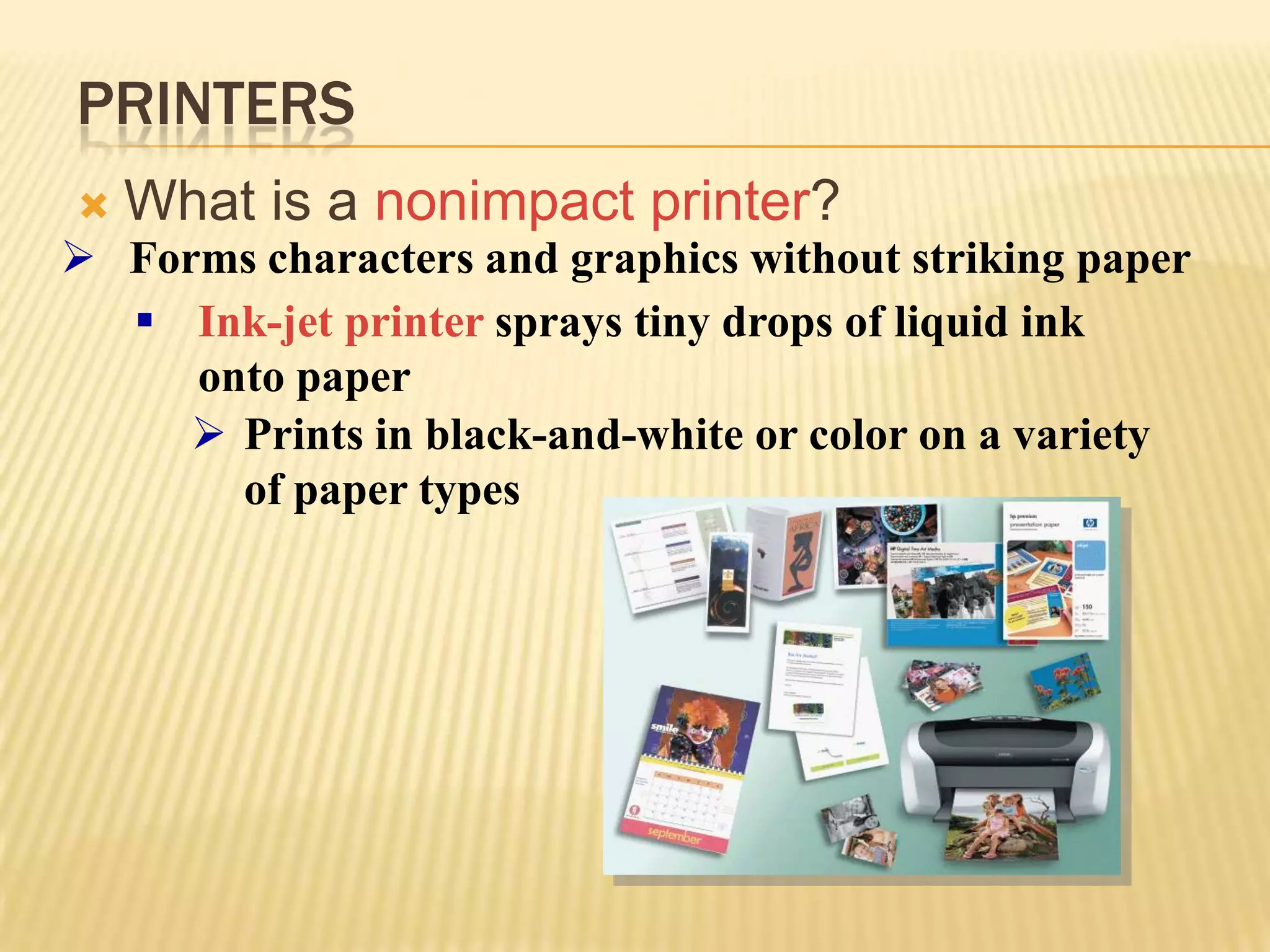

23. PrintersWhat is anonimpact printer?Forms characters and graphics without striking paper

24. Ink-jet printersprays tiny drops of liquid ink onto paper

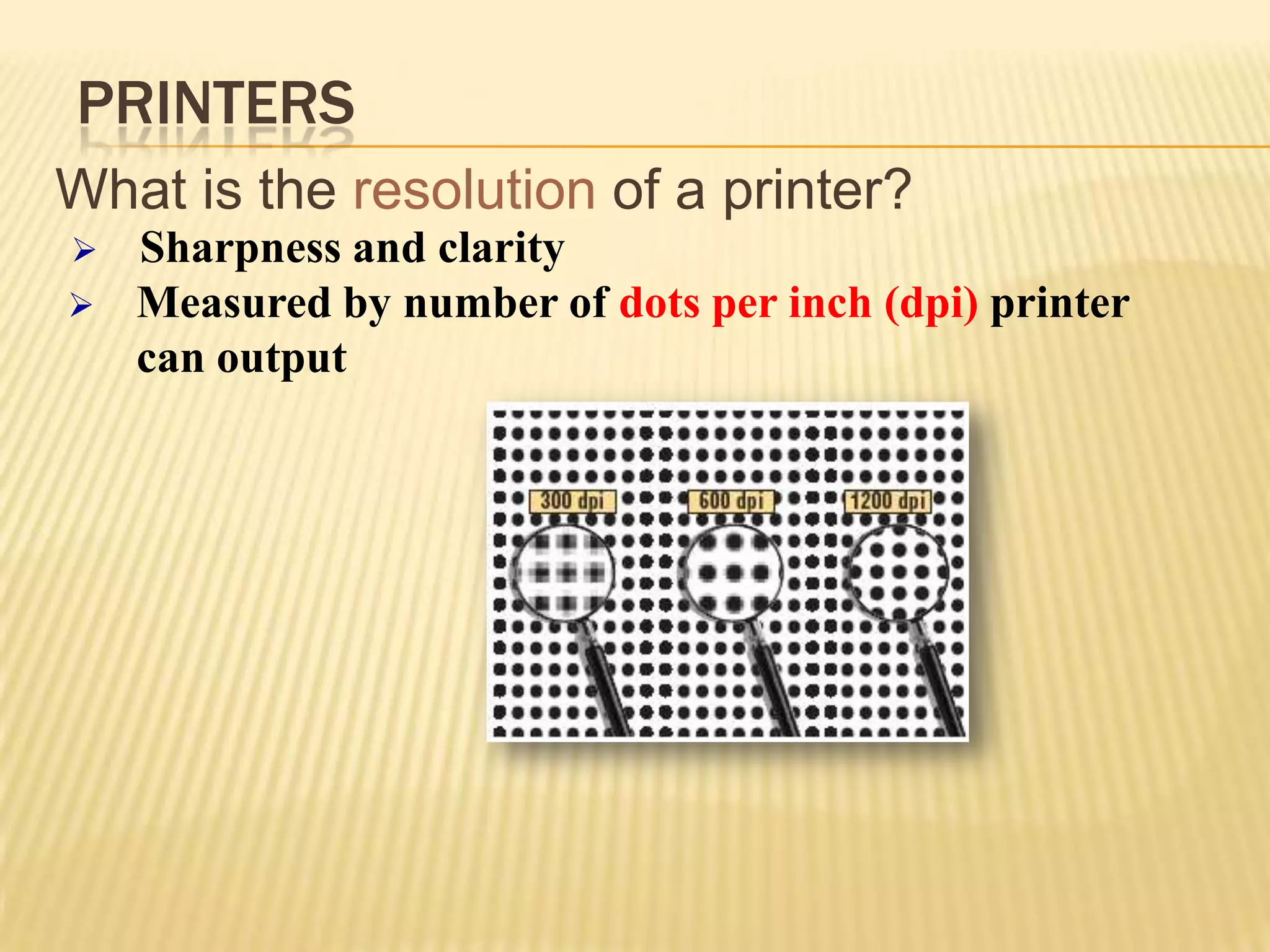

25. Prints in black-and-white or color on a variety of paper typesPrintersWhat is theresolutionof a printer?Sharpness and clarity

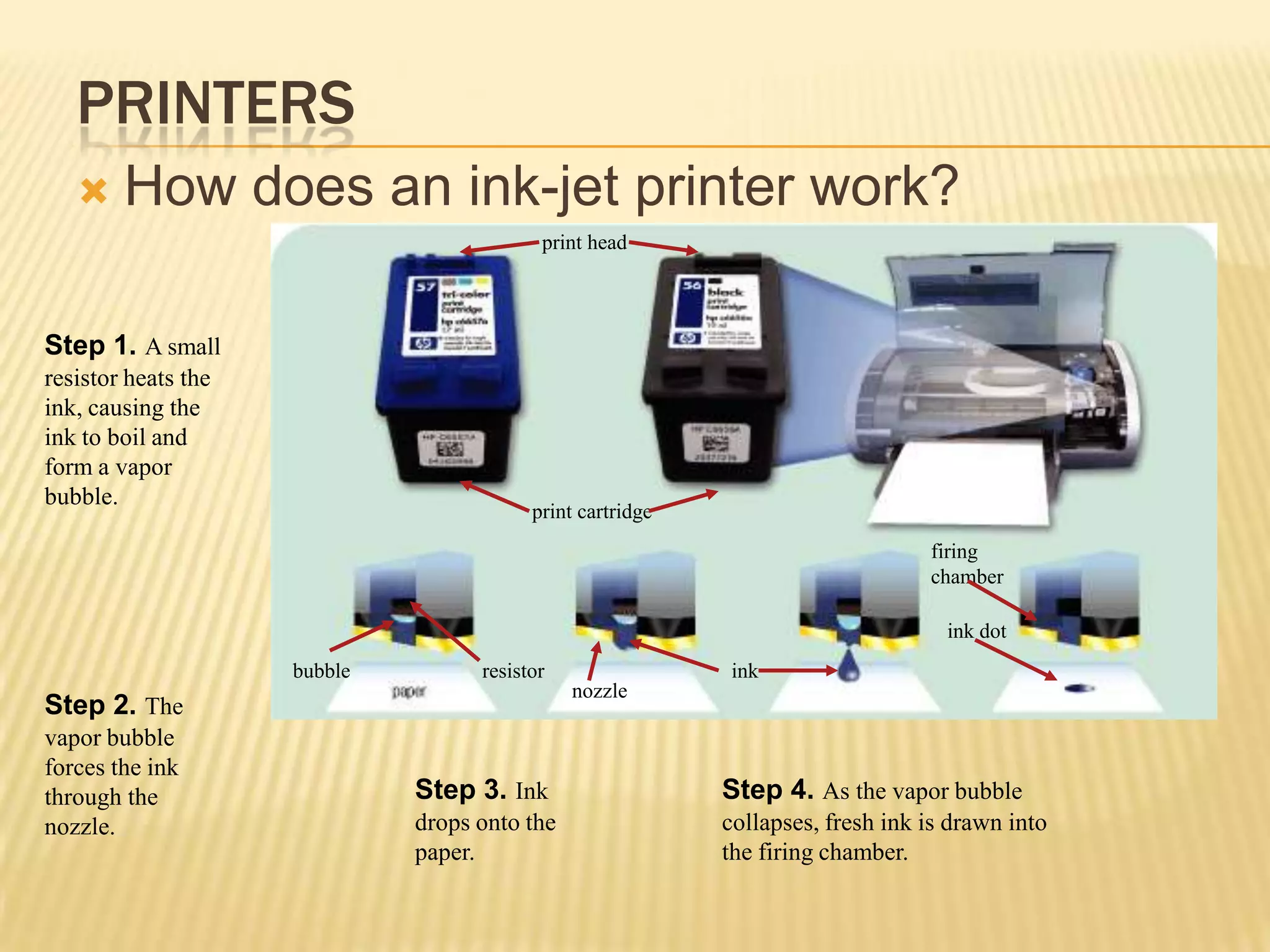

26. Measured by number ofdots per inch (dpi)printercan outputprint headprint cartridgefiring chamberink dotbubbleresistorinknozzlePrintersHow does an ink-jet printer work?Step 1.A small resistor heats the ink, causing the ink to boil and form a vapor bubble.Step 2.The vapor bubble forces the ink through the nozzle.Step 3.Ink drops onto the paper.Step 4.As the vapor bubble collapses, fresh ink is drawn into the firing chamber.

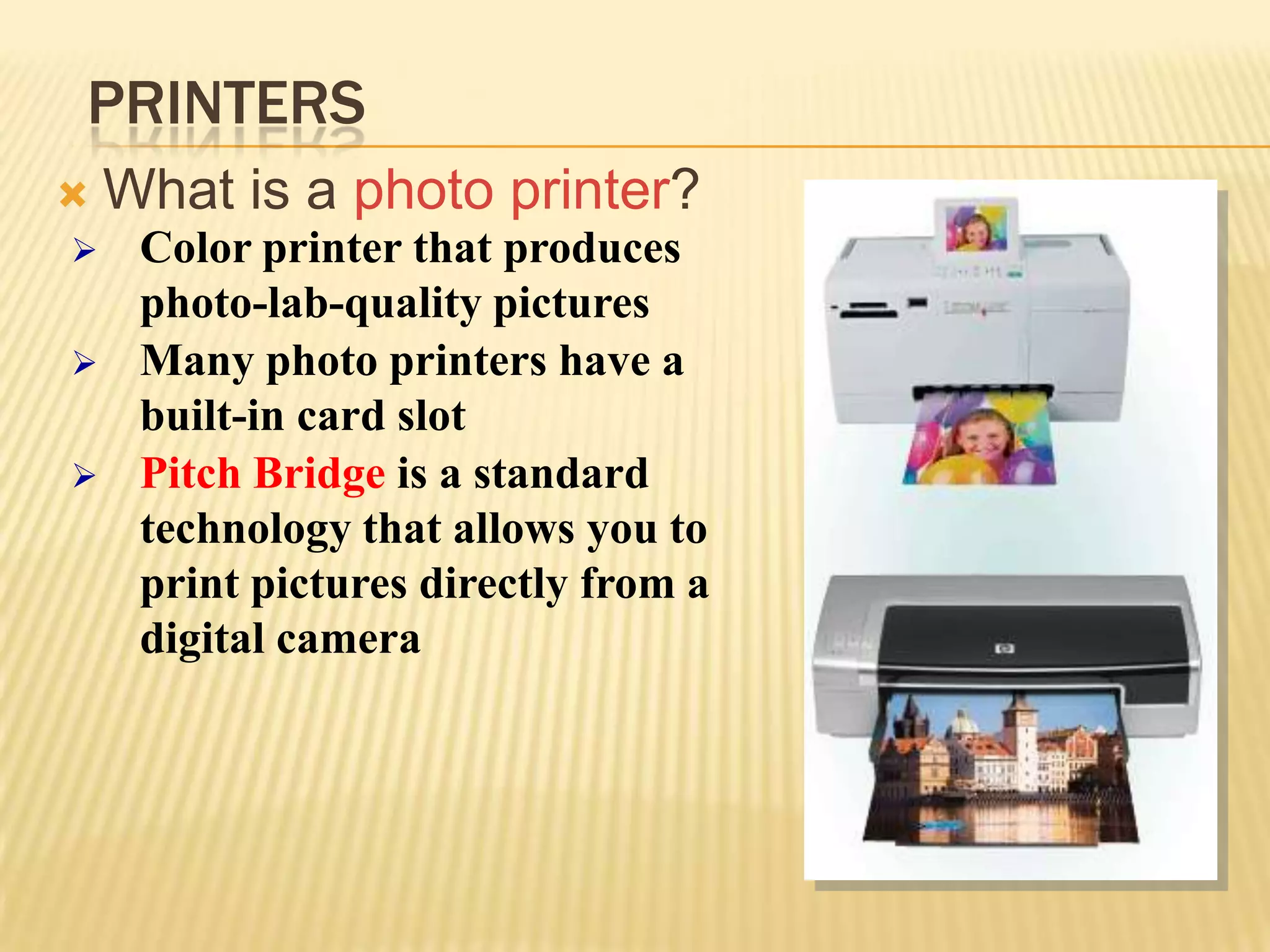

27. PrintersWhat is aphoto printer?Color printer that produces photo-lab-quality pictures

28. Many photo printers have a built-in card slot

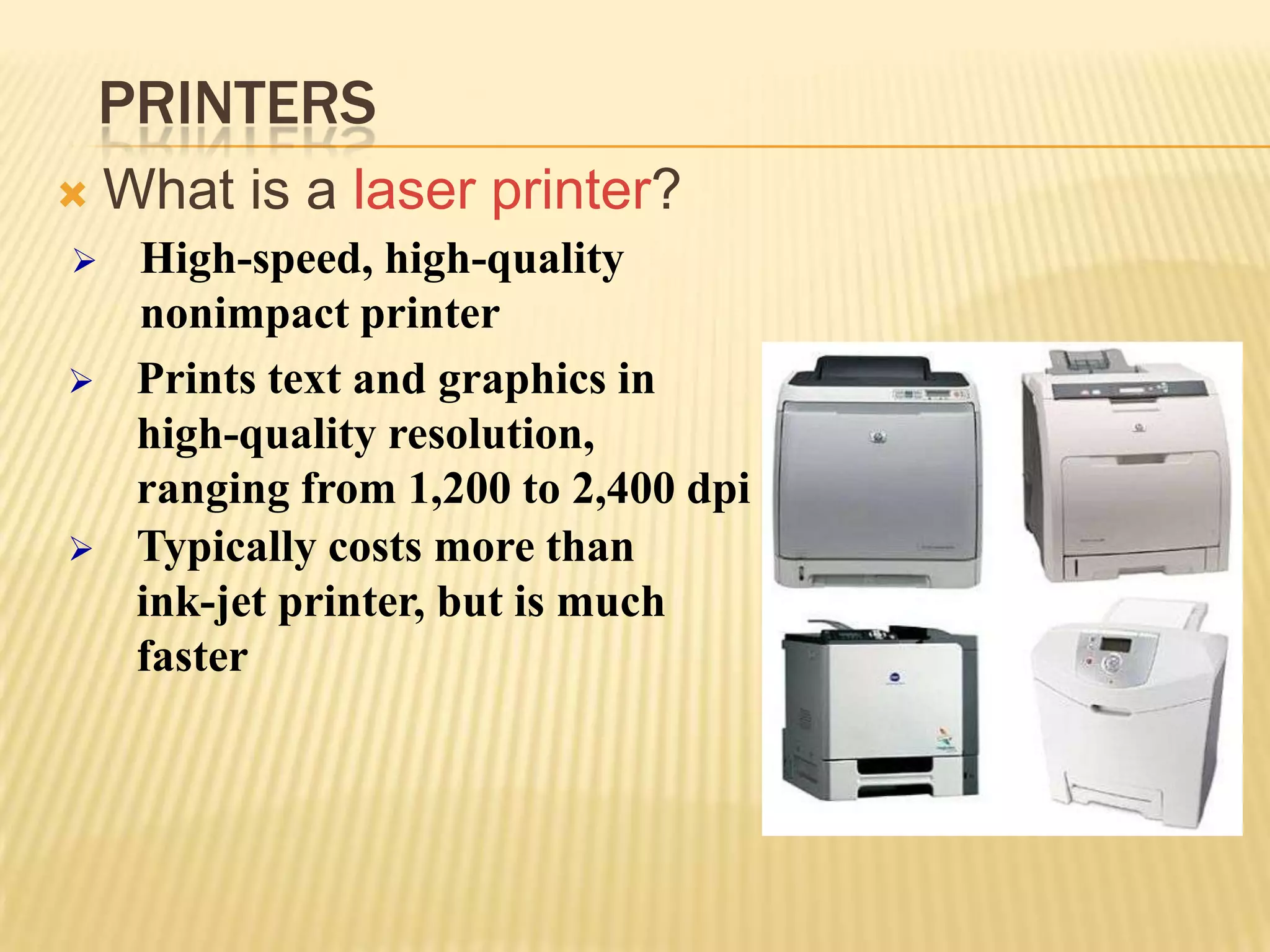

29. Pitch Bridge is a standard technology that allows you to print pictures directly from a digital cameraPrintersWhat is alaser printer?High-speed, high-quality nonimpact printer

30. Prints text and graphics in high-quality resolution, ranging from 1,200 to 2,400 dpi

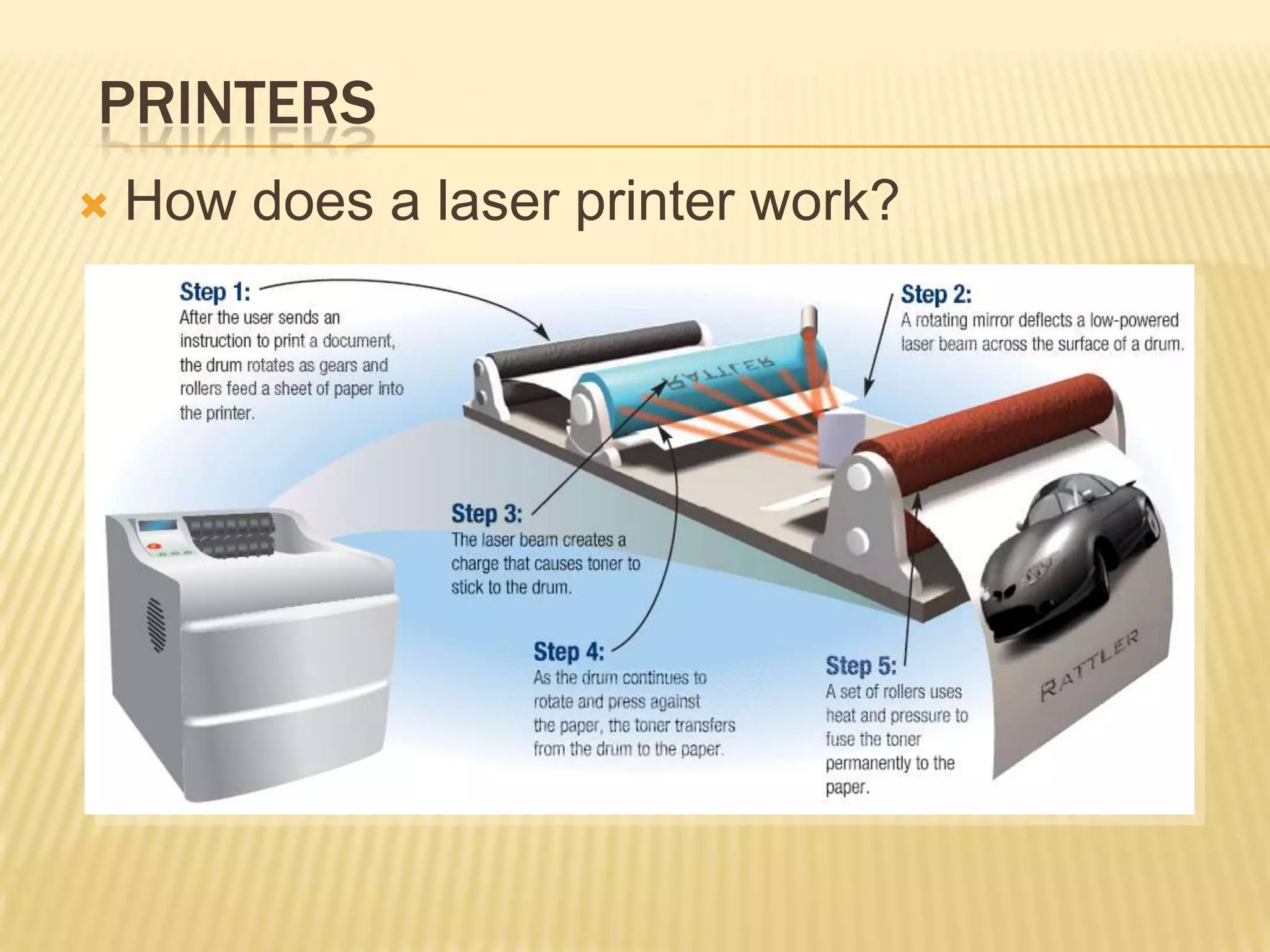

31. Typically costs more than ink-jet printer, but is much fasterPrintersHow does a laser printer work?

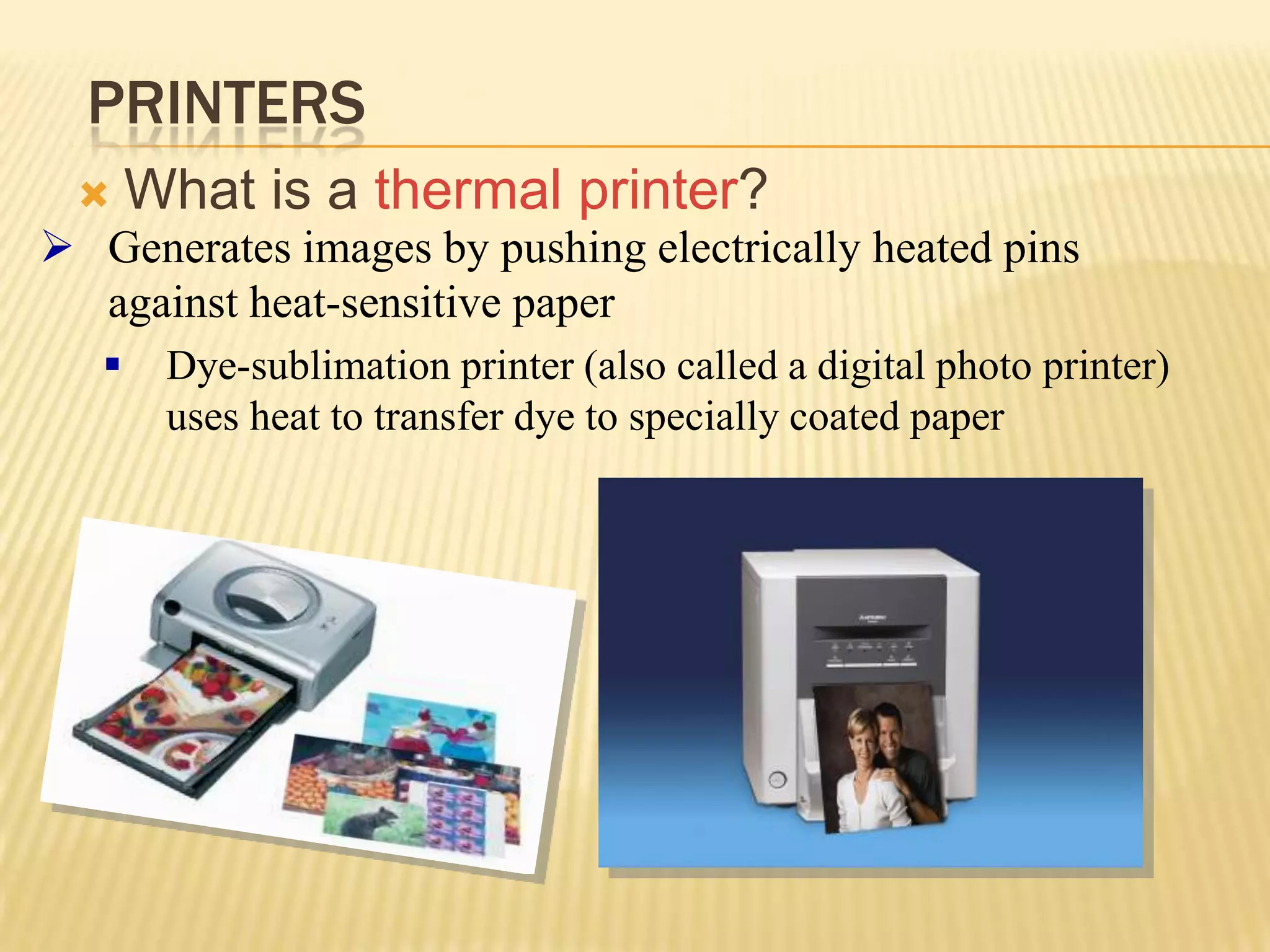

32. PrintersWhat is athermal printer?Generates images by pushing electrically heated pins against heat-sensitive paper

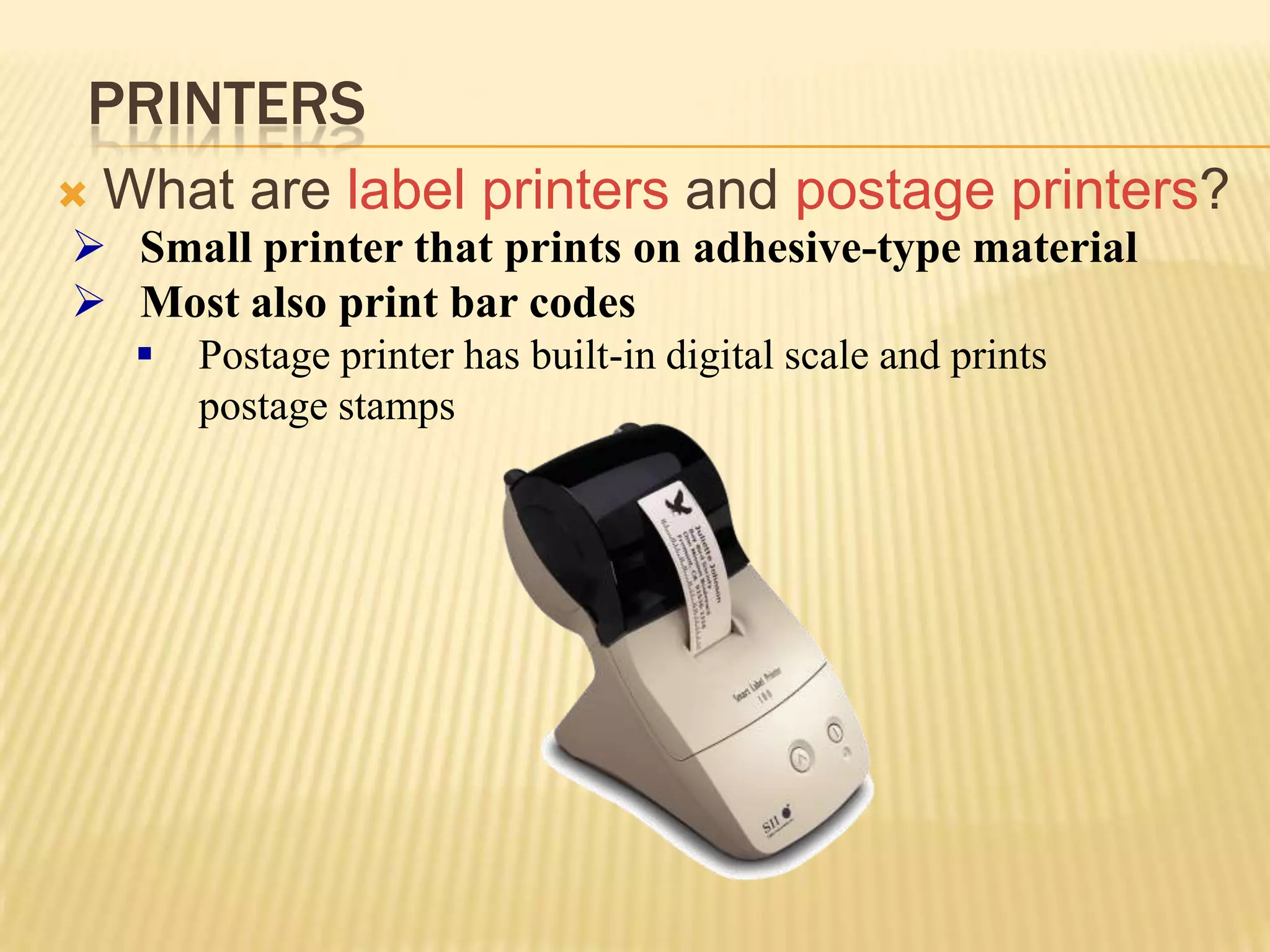

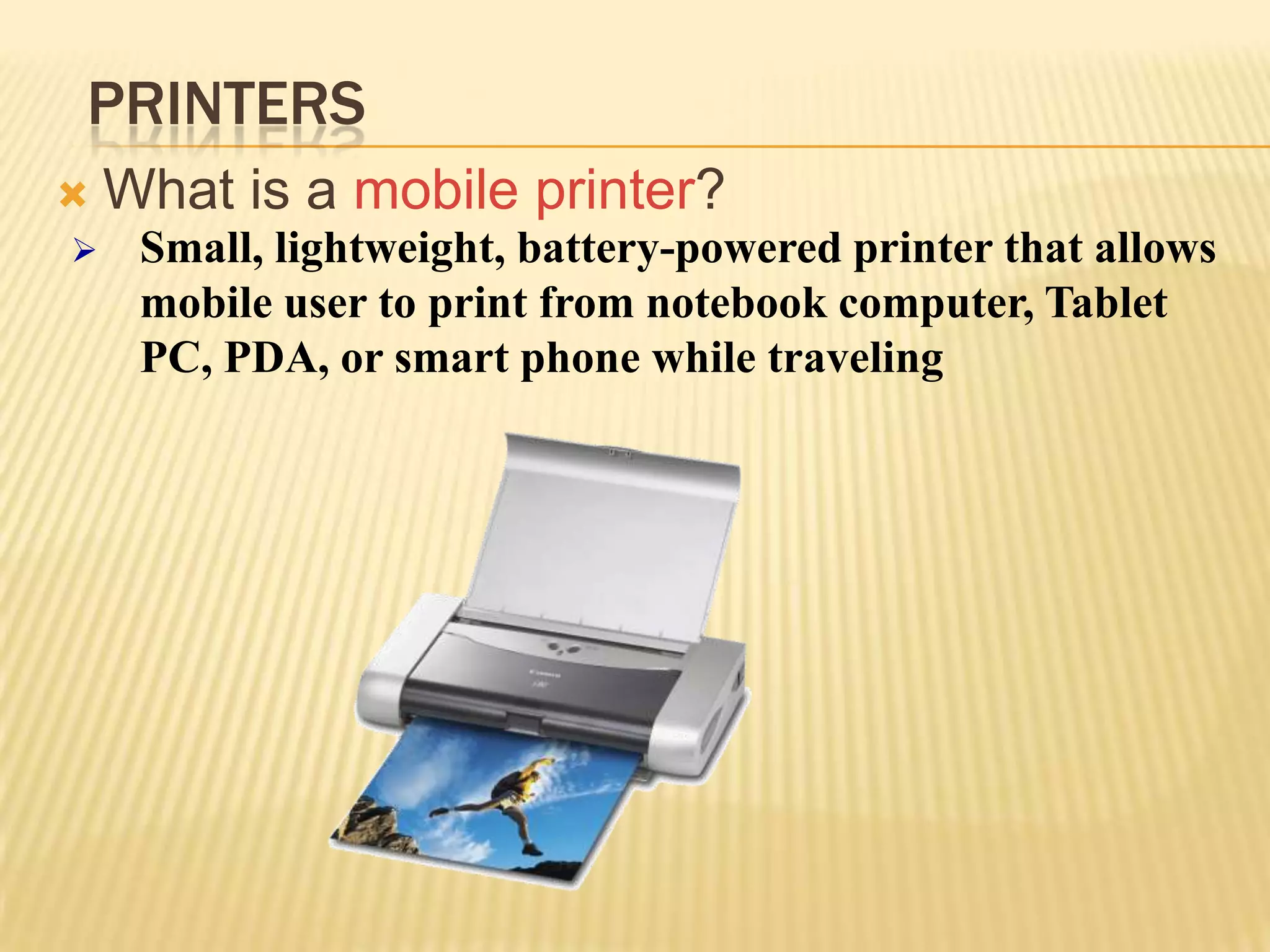

33. Dye-sublimation printer (also called a digital photo printer) uses heat to transfer dye to specially coated paperPrintersWhat is amobile printer?Small, lightweight, battery-powered printer that allows mobile user to print from notebook computer, Tablet PC, PDA, or smart phone while travelingPrintersWhat are label printers and postage printers?Small printer that prints on adhesive-type material

34. Most also print bar codes

35. Postage printer has built-in digital scale and printspostage stampsPrintersWhat is aplotter?Sophisticated printer used to produce high-quality drawings

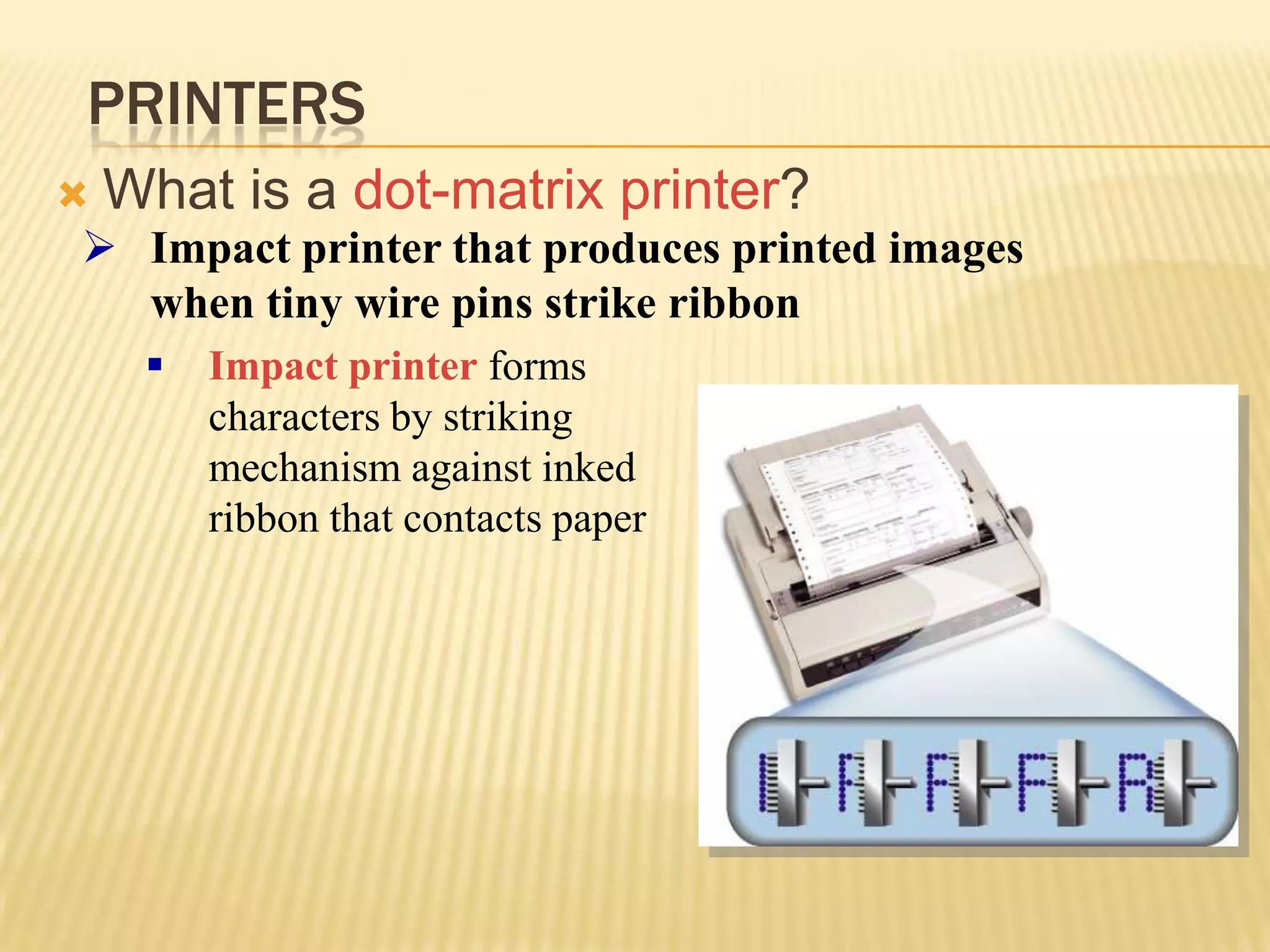

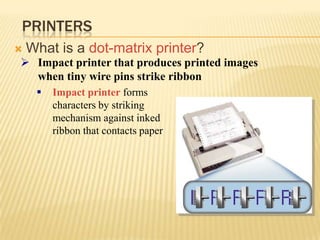

36. Large-format printercreates photo-realistic-qualitycolor printsPrintersWhat is adot-matrix printer?Impact printer that produces printed images when tiny wire pins strike ribbon

37. Impact printer forms characters by striking mechanism against inked ribbon that contacts paperPrintersWhat is aline printer?High-speed impact printer that prints entire lineat a time

38. Speed measured in lines per minute (lpm)

39. Band printer prints fullyformed characters using a hammer mechanism

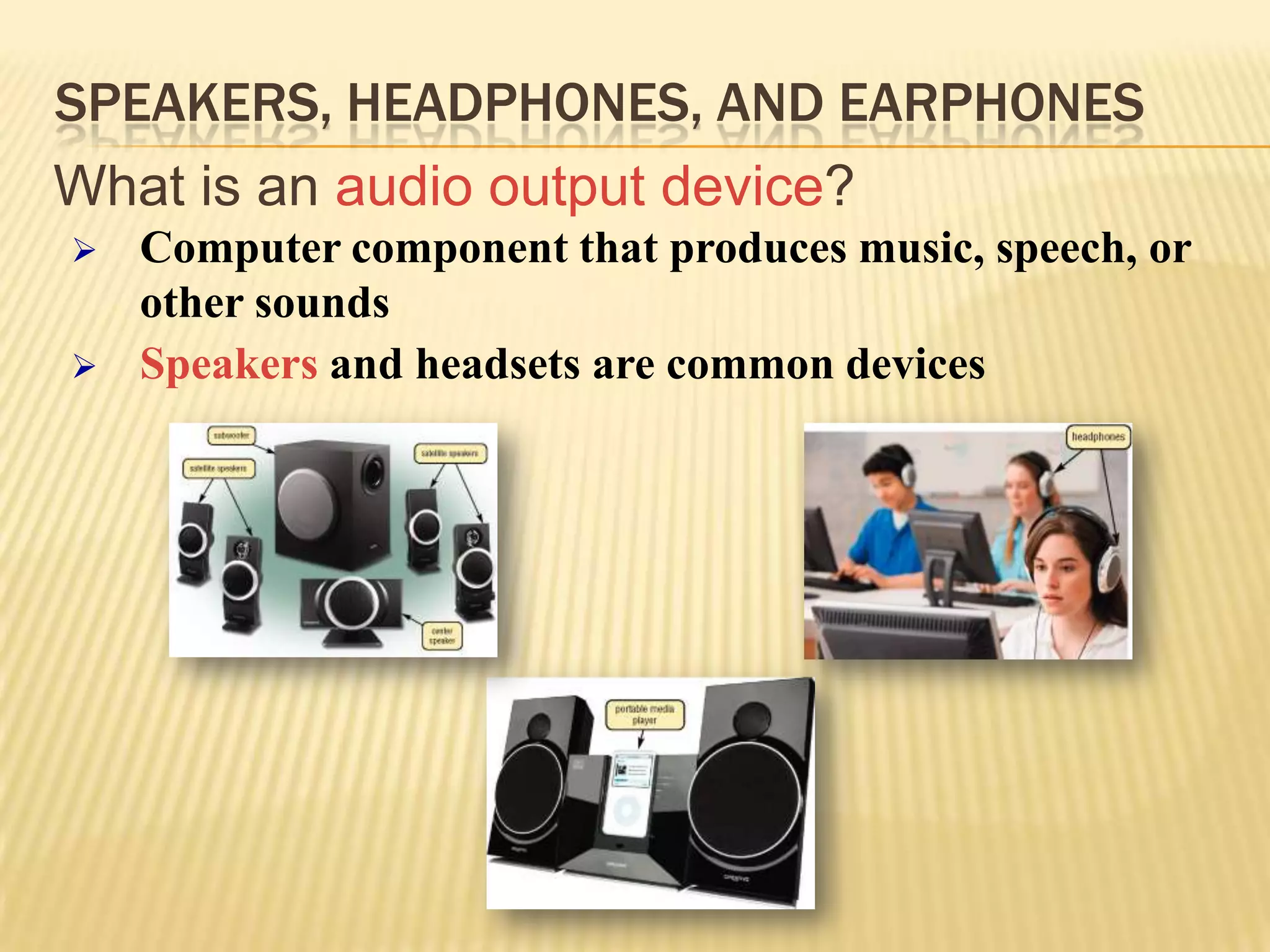

40. Shuttle-matrix printer is high-speed printer that works like dot-matrix printerSpeakers, Headphones, and EarphonesWhat is anaudio output device?Computer component that produces music, speech, or other sounds

41. Speakers and headsets are common devicesOther Output DevicesWhat is afacsimile (fax) machine?Device that transmits and receives documents over telephone lines

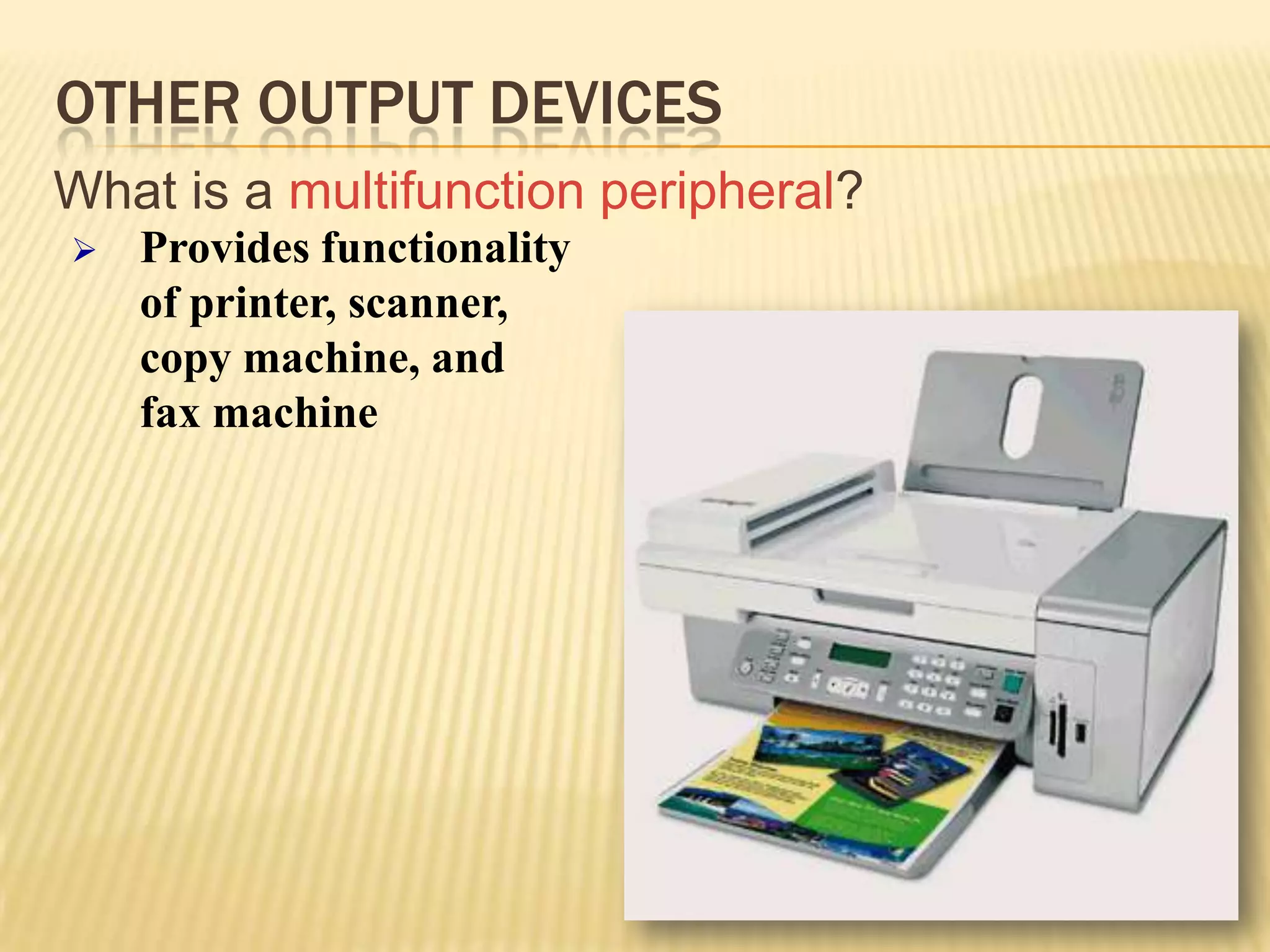

42. Converts an original document into a digitized image

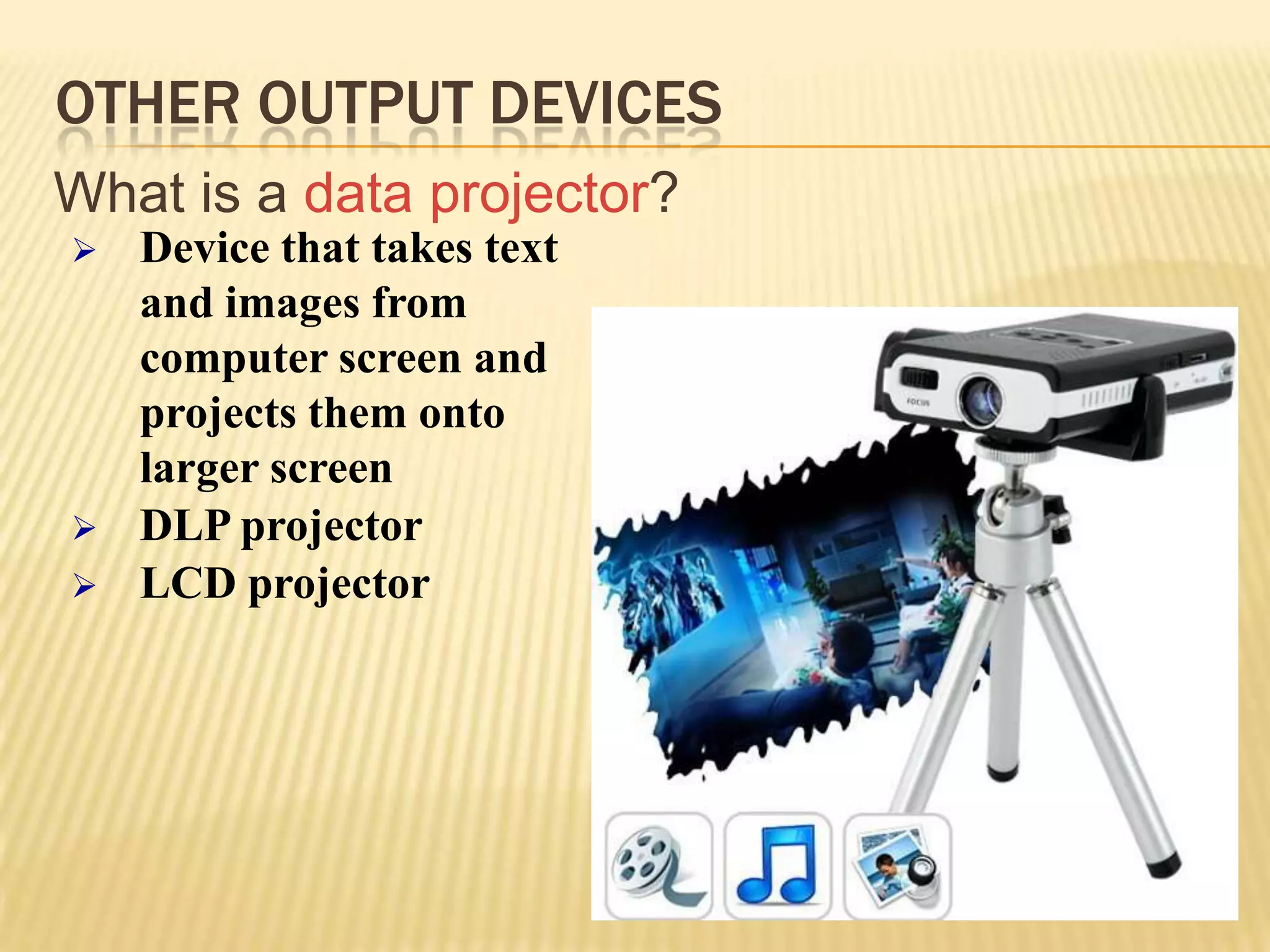

43. Many computers include fax capabilityOther Output DevicesWhat is amultifunction peripheral?Provides functionality of printer, scanner, copy machine, and fax machineOther Output DevicesWhat is adata projector?Device that takes text and images from computer screen and projects them onto larger screen

44. DLP projector

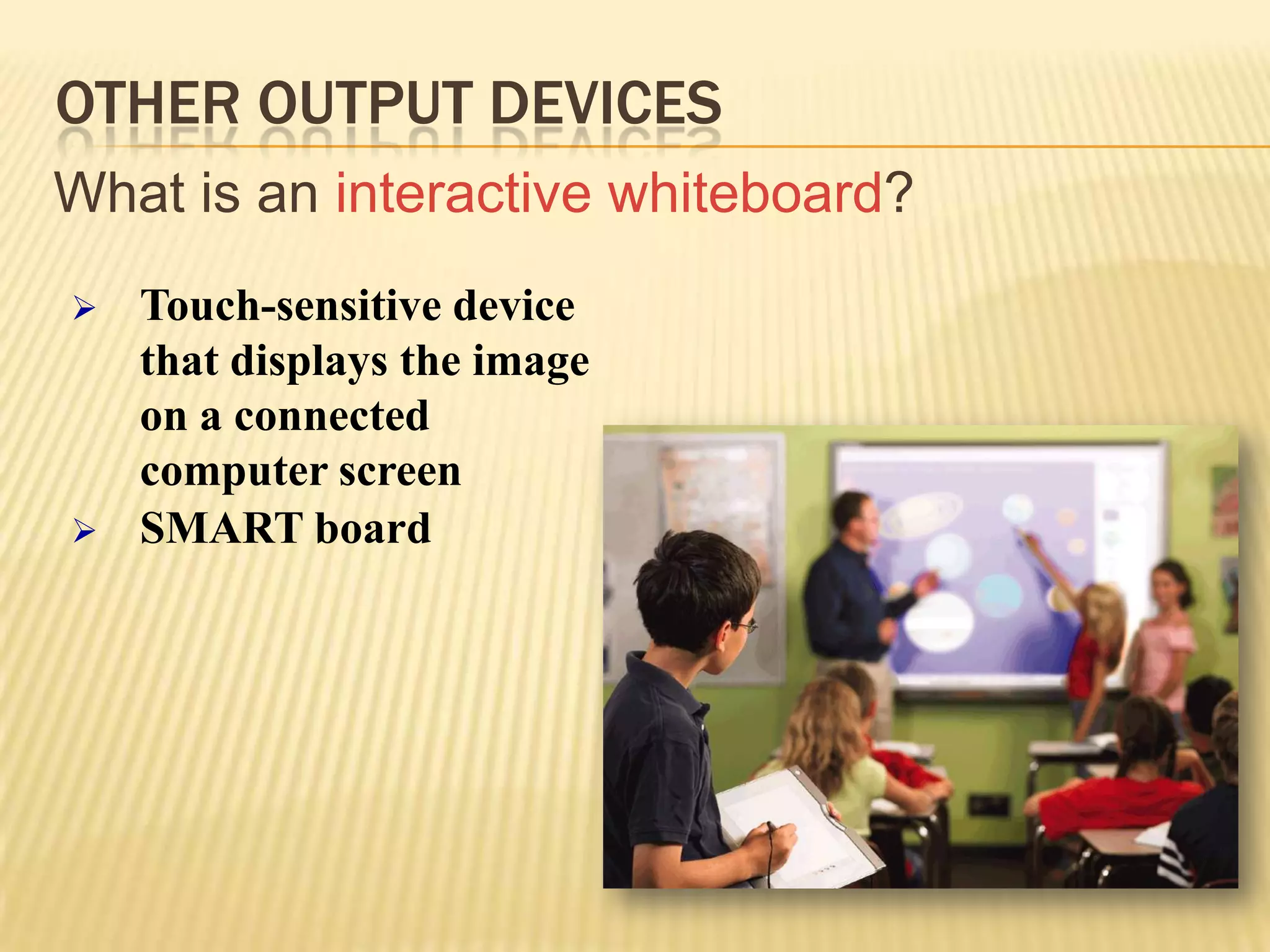

45. LCD projectorOther Output DevicesWhat is aninteractive whiteboard?Touch-sensitive device that displays the image on a connected computer screen

46. SMART boardSummary of OutputDisplay devicesMultifunction peripheralsPrintersData projectorsSpeakers, headphones, and earphonesInteractive whiteboardsFax machines and fax modemsForce feedback joysticks, wheels, and gamepads Chapter 6 Complete
