1. OroPlatform and OroCRM from a developer's perspective
OroPlatform and OroCRM
from
a developer's perspective
Yevhen Shyshkin
yshyshkin@orocrm.com
https://github.com/yshyshkin

2. OroPlatform and OroCRM from a developer's perspective
Backend structure

3. OroPlatform and OroCRM from a developer's perspective

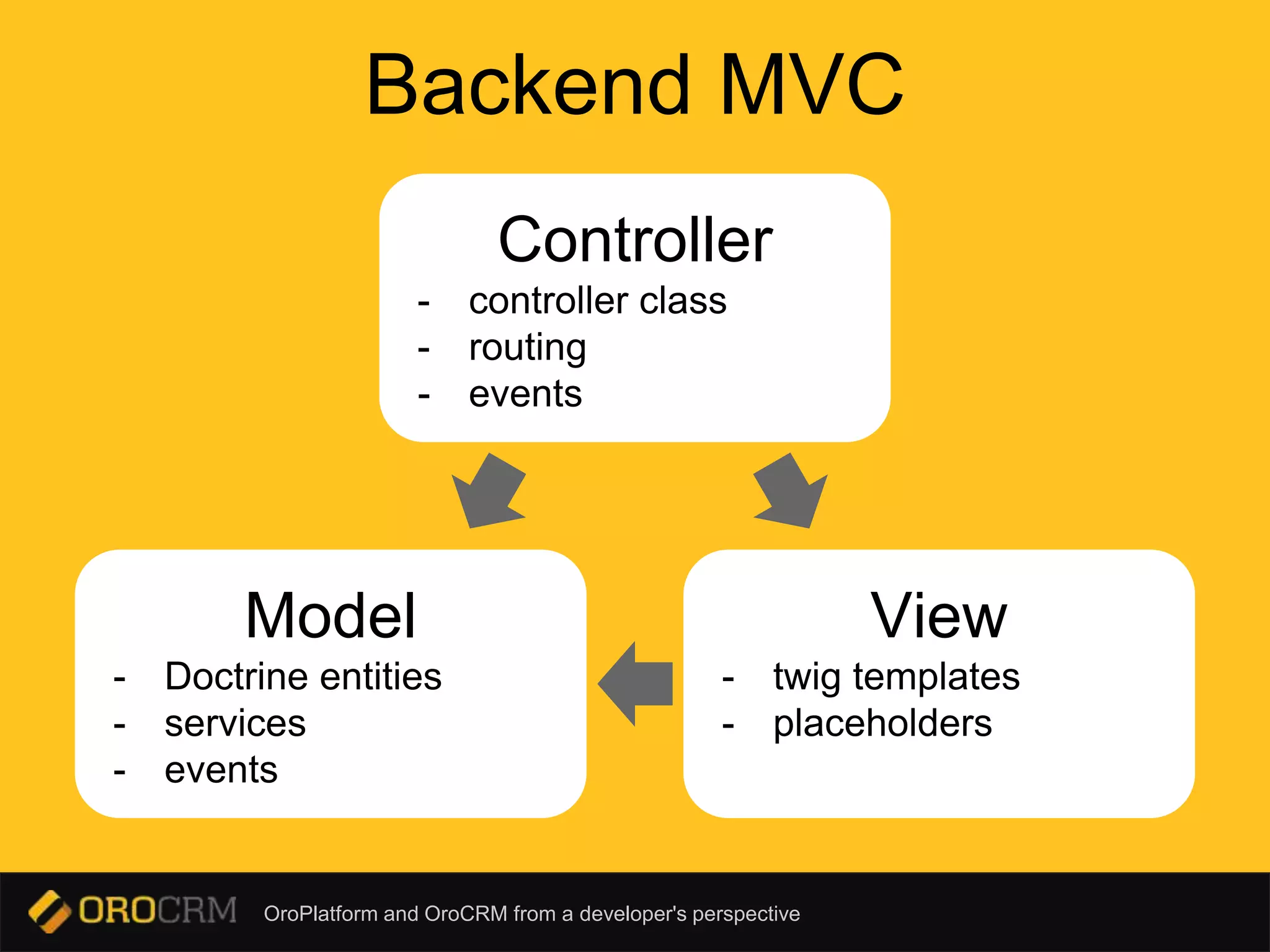

Backend MVC
Controller
- controller class
- routing
- events
Model
- Doctrine entities
- services
- events
View
- twig templates
- placeholders

4. OroPlatform and OroCRM from a developer's perspective
Frontend structure

5. OroPlatform and OroCRM from a developer's perspective

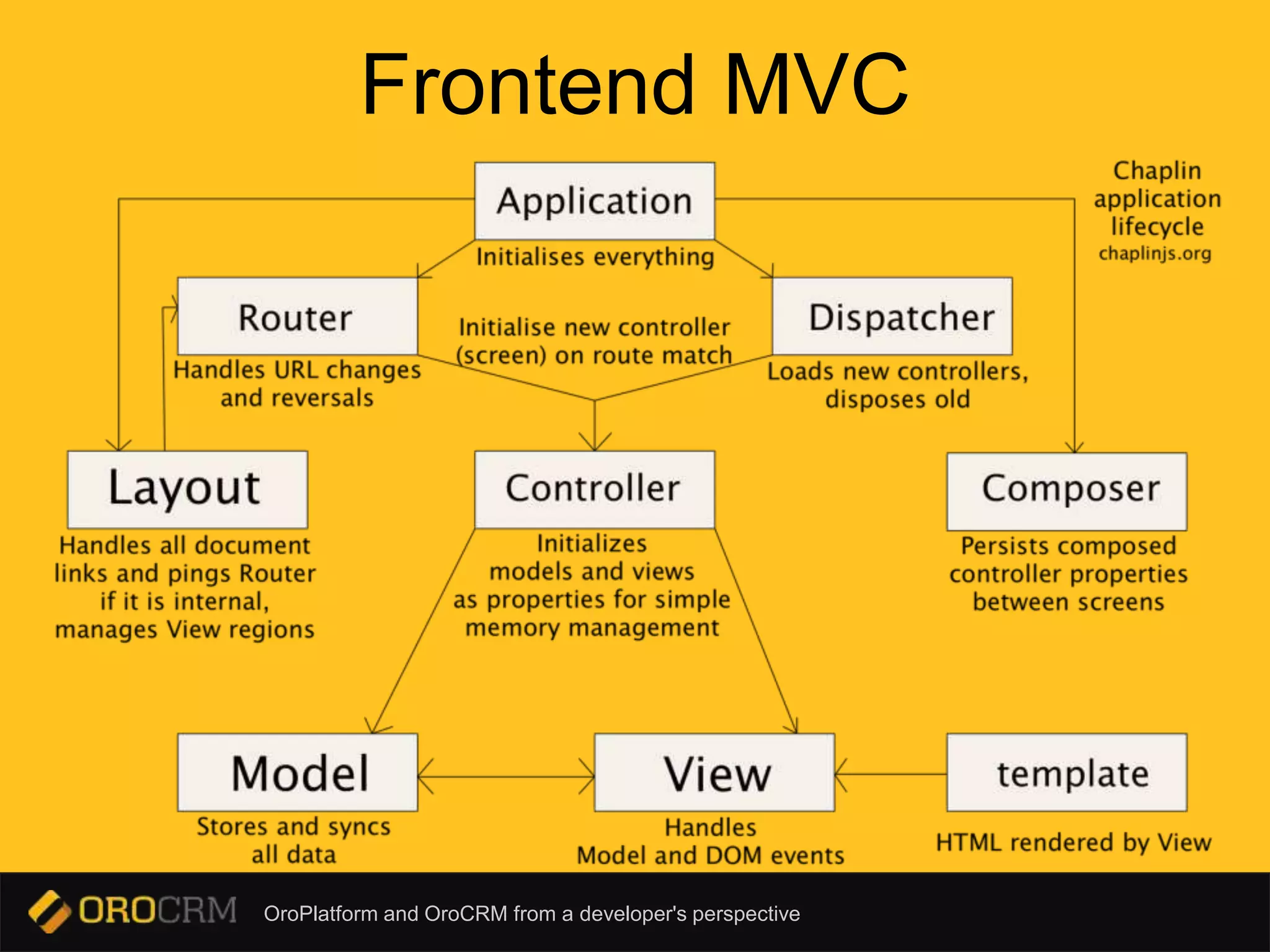

Frontend MVC

6. OroPlatform and OroCRM from a developer's perspective

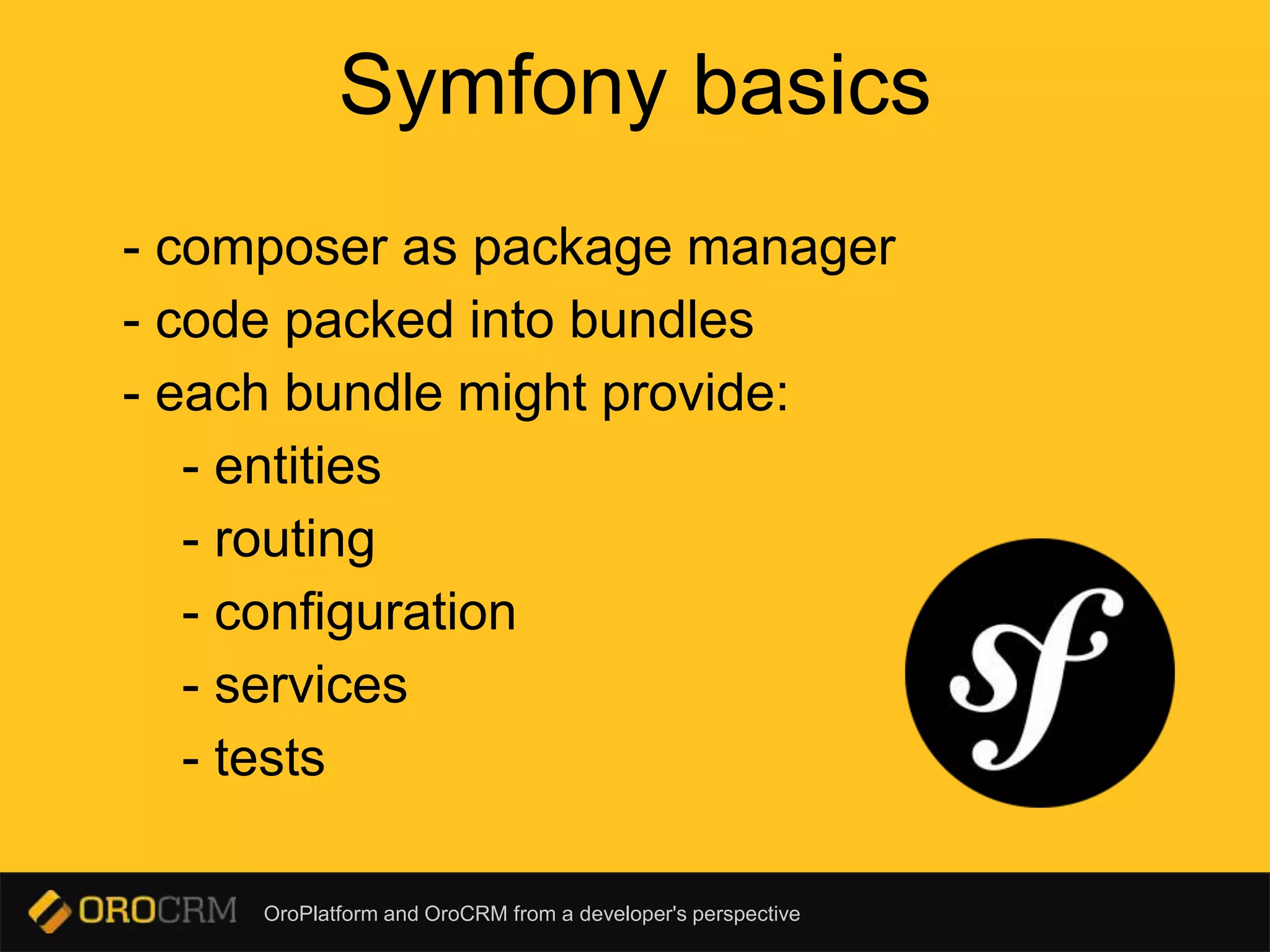

Symfony basics
- composer as package manager
- code packed into bundles
- each bundle might provide:
- entities
- routing
- configuration
- services
- tests

7. OroPlatform and OroCRM from a developer's perspective
Dependency Injection
parameters:
oro_datagrid.datagrid.manager.class:
OroBundleDataGridBundleDatagridManager
services:
oro_datagrid.datagrid.manager:
class: %oro_datagrid.datagrid.manager.class%
arguments:
- @oro_datagrid.configuration.provider.chain
- @oro_datagrid.datagrid.builder
- @oro_datagrid.datagrid.request_parameters_factory
- @oro_datagrid.datagrid.name_strategy

8. OroPlatform and OroCRM from a developer's perspective

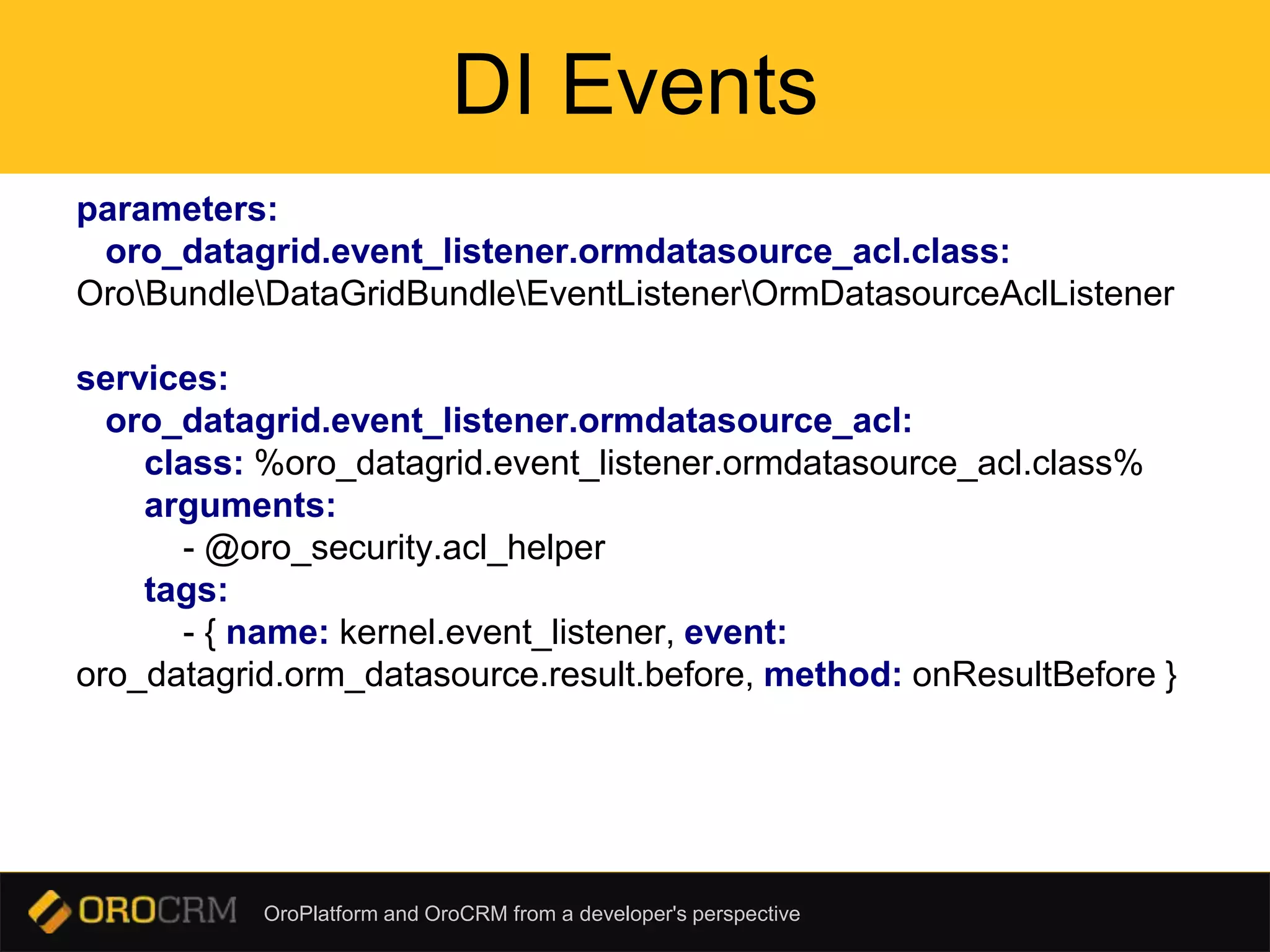

DI Events
parameters:
oro_datagrid.event_listener.ormdatasource_acl.class:
OroBundleDataGridBundleEventListenerOrmDatasourceAclListener
services:
oro_datagrid.event_listener.ormdatasource_acl:
class: %oro_datagrid.event_listener.ormdatasource_acl.class%
arguments:
- @oro_security.acl_helper
tags:
- { name: kernel.event_listener, event:
oro_datagrid.orm_datasource.result.before, method: onResultBefore }

9. OroPlatform and OroCRM from a developer's perspective

10. OroPlatform and OroCRM from a developer's perspective

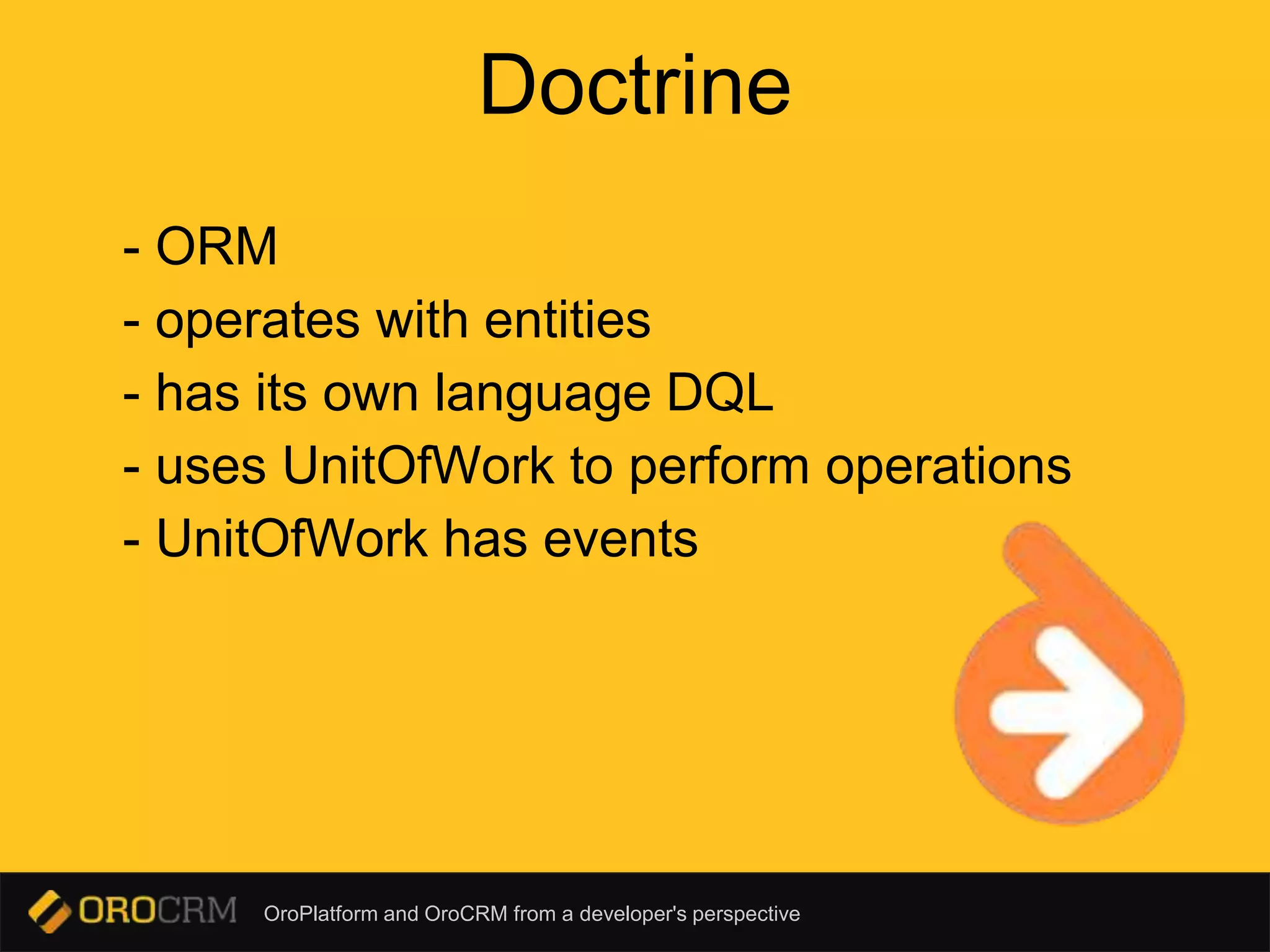

Doctrine
- ORM
- operates with entities
- has its own language DQL
- uses UnitOfWork to perform operations
- UnitOfWork has events

11. OroPlatform and OroCRM from a developer's perspective

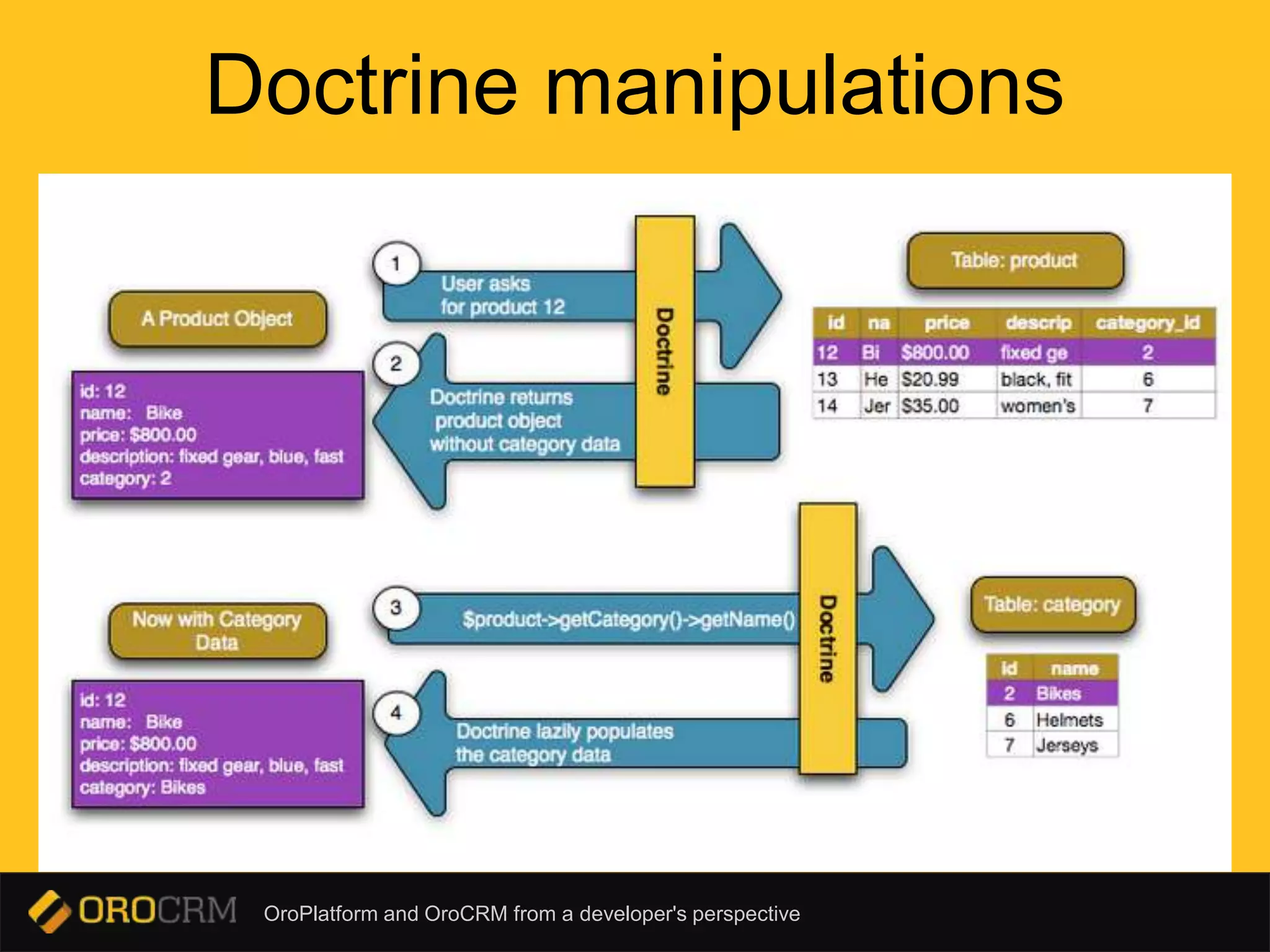

Doctrine manipulations

12. OroPlatform and OroCRM from a developer's perspective

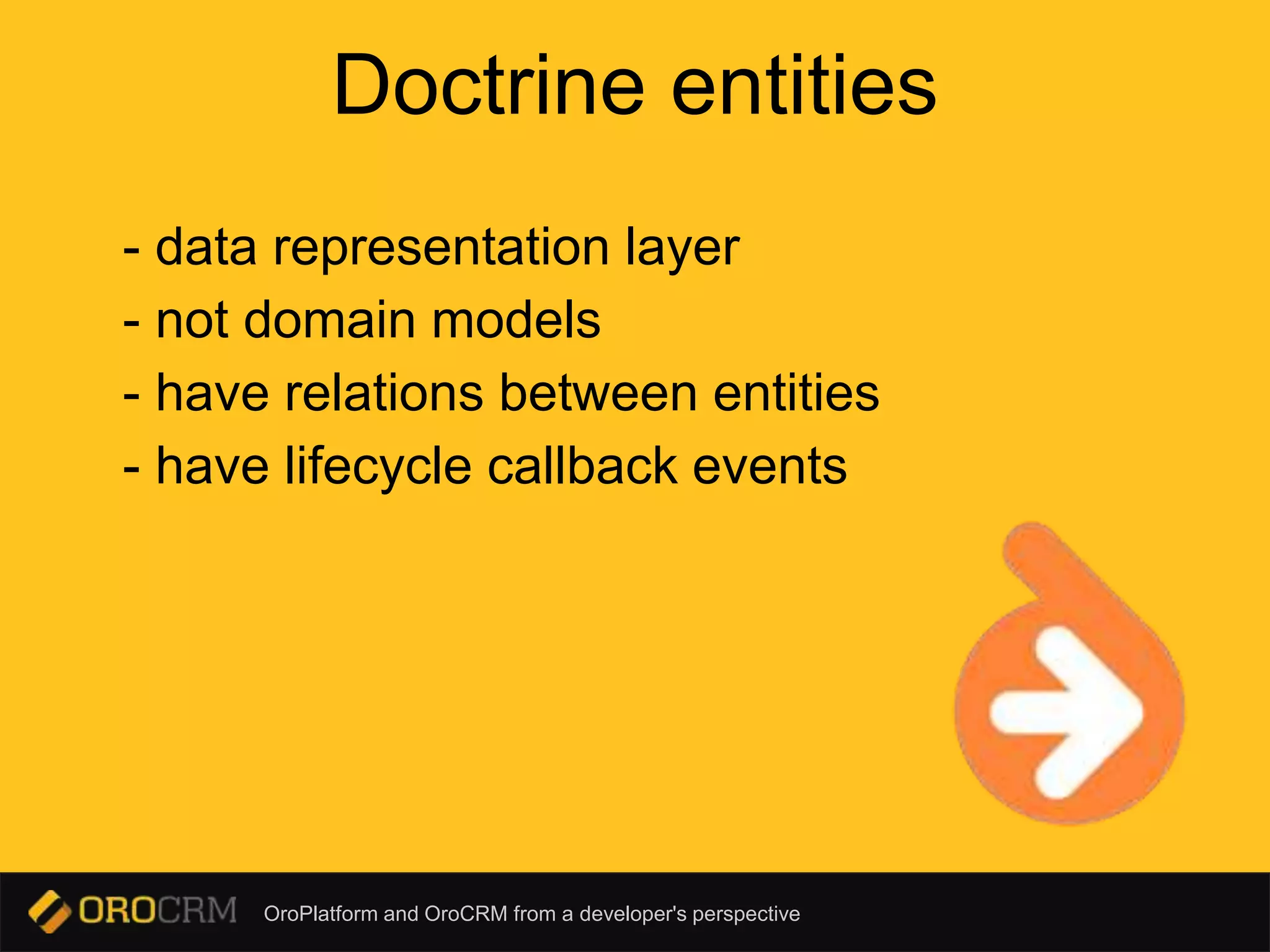

Doctrine entities
- data representation layer
- not domain models
- have relations between entities
- have lifecycle callback events

13. OroPlatform and OroCRM from a developer's perspective

14. OroPlatform and OroCRM from a developer's perspective

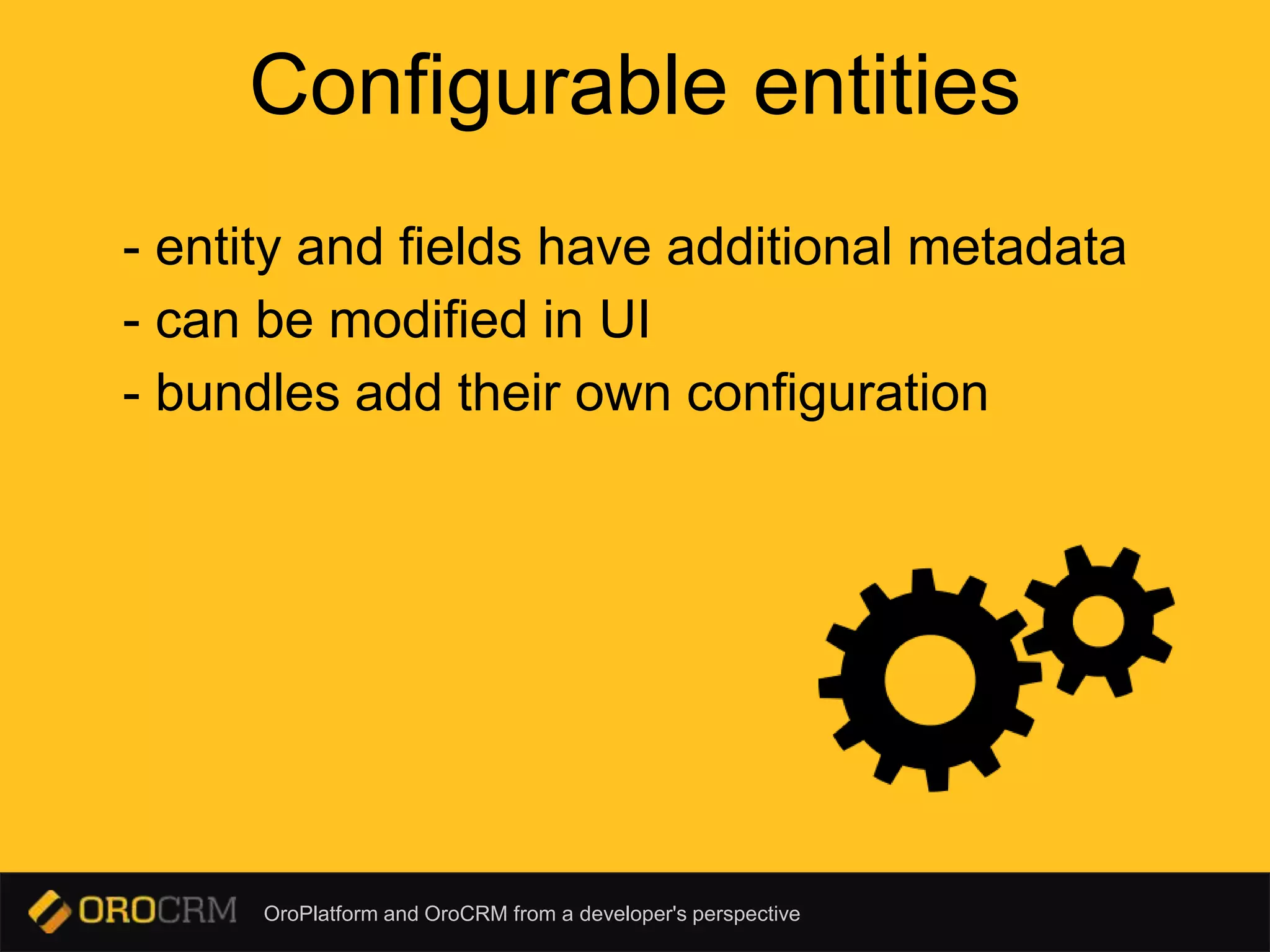

Configurable entities
- entity and fields have additional metadata
- can be modified in UI
- bundles add their own configuration

15. OroPlatform and OroCRM from a developer's perspective

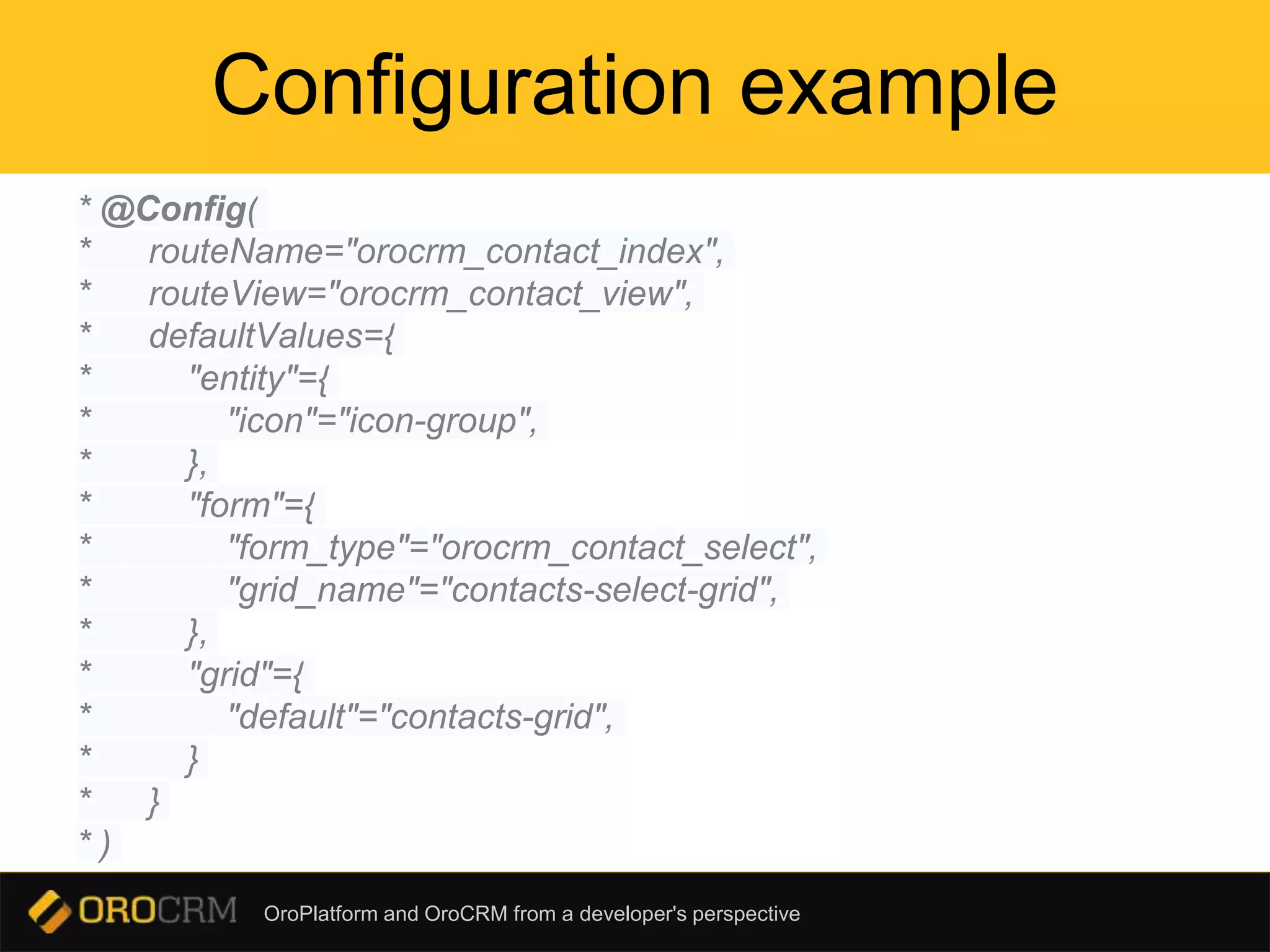

Configuration example
* @Config(
* routeName="orocrm_contact_index",
* routeView="orocrm_contact_view",
* defaultValues={
* "entity"={
* "icon"="icon-group",
* },
* "form"={
* "form_type"="orocrm_contact_select",
* "grid_name"="contacts-select-grid",
* },
* "grid"={
* "default"="contacts-grid",
* }
* }
* )

16. OroPlatform and OroCRM from a developer's perspective

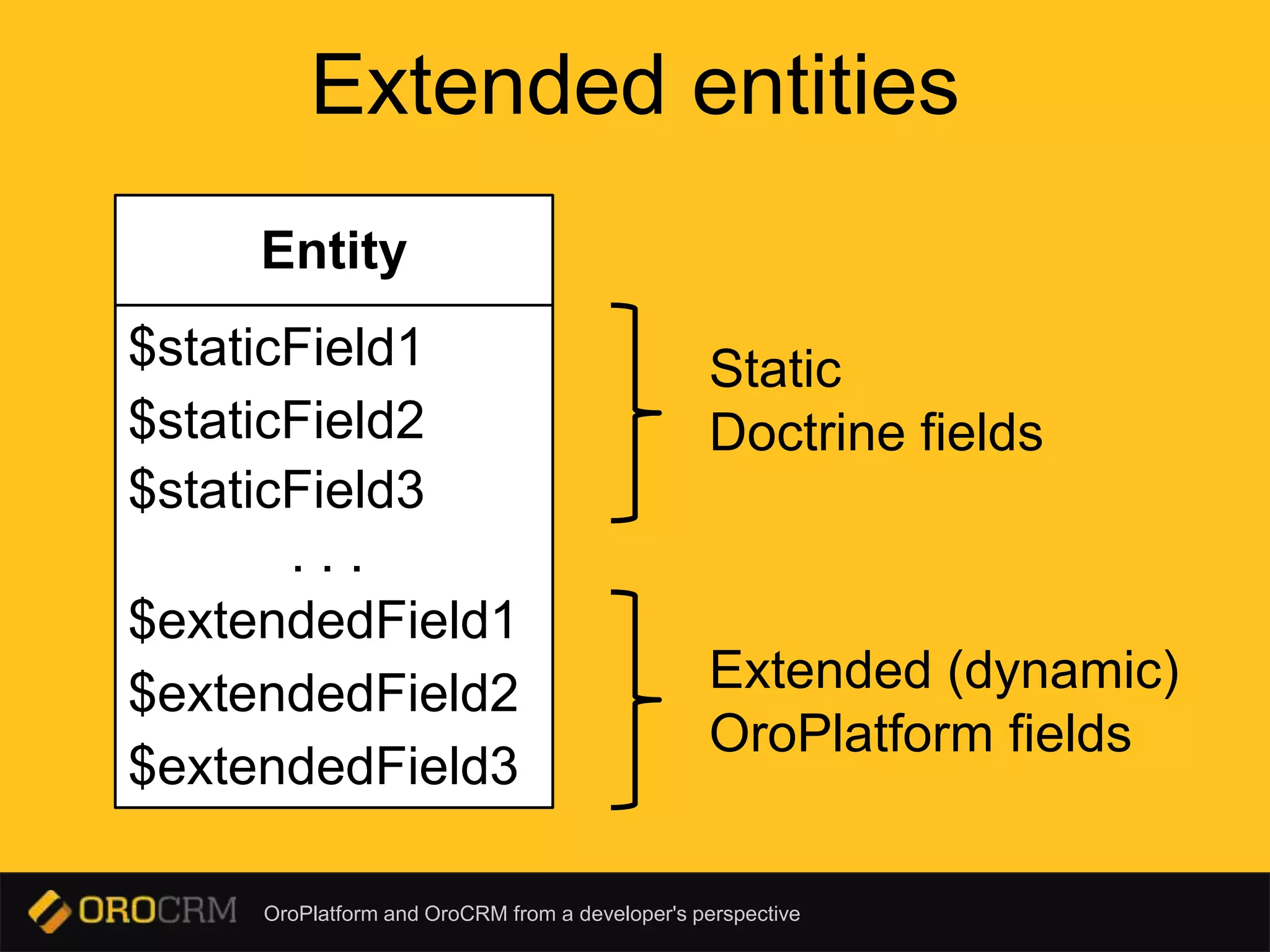

Extended entities
$staticField1
$staticField2
$staticField3
. . .
$extendedField1
$extendedField2
$extendedField3
Entity
Static
Doctrine fields
Extended (dynamic)
OroPlatform fields

17. OroPlatform and OroCRM from a developer's perspective

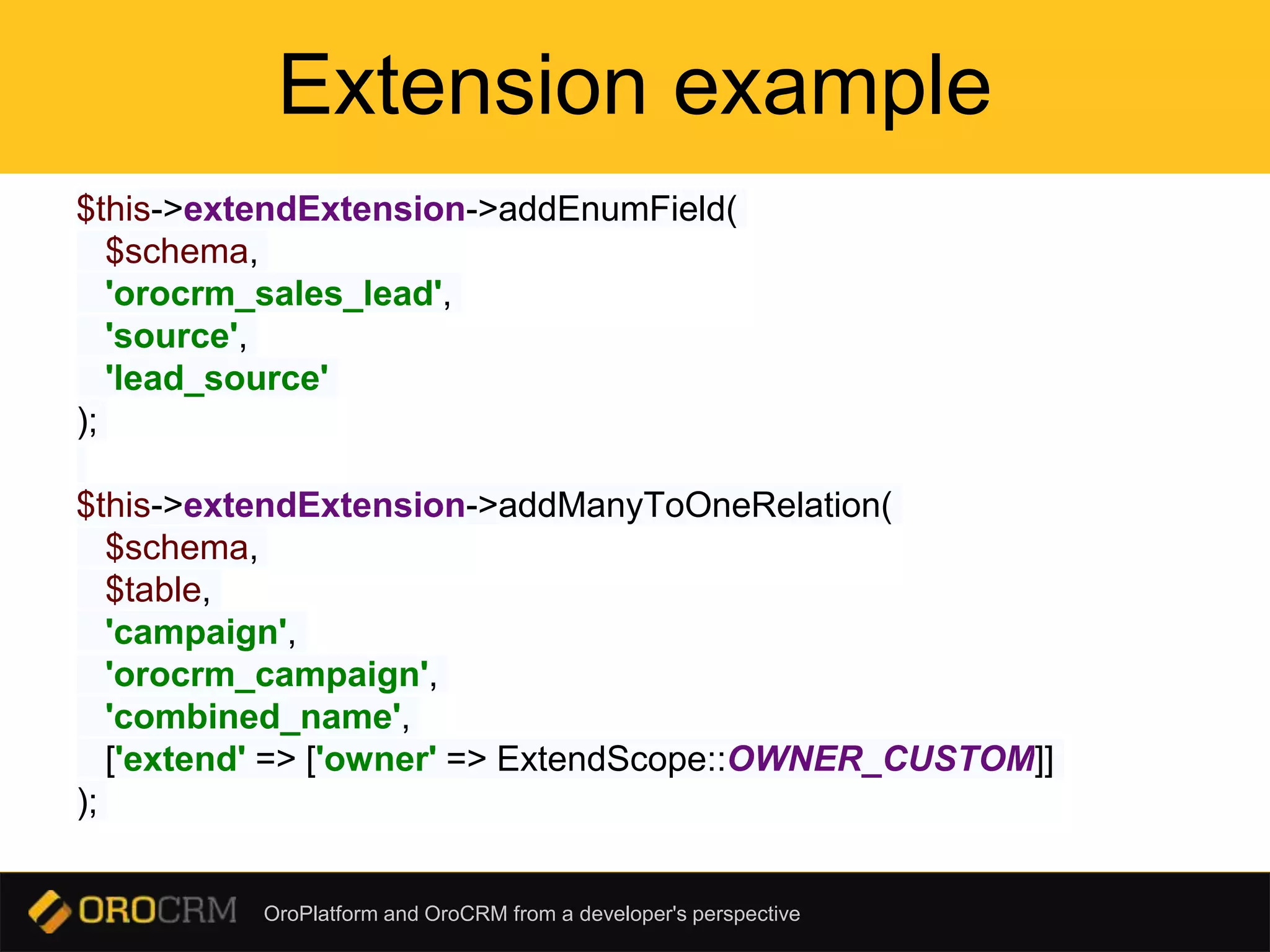

Extension example
$this->extendExtension->addEnumField(
$schema,
'orocrm_sales_lead',
'source',
'lead_source'
);
$this->extendExtension->addManyToOneRelation(
$schema,
$table,
'campaign',
'orocrm_campaign',
'combined_name',
['extend' => ['owner' => ExtendScope::OWNER_CUSTOM]]
);

18. OroPlatform and OroCRM from a developer's perspective

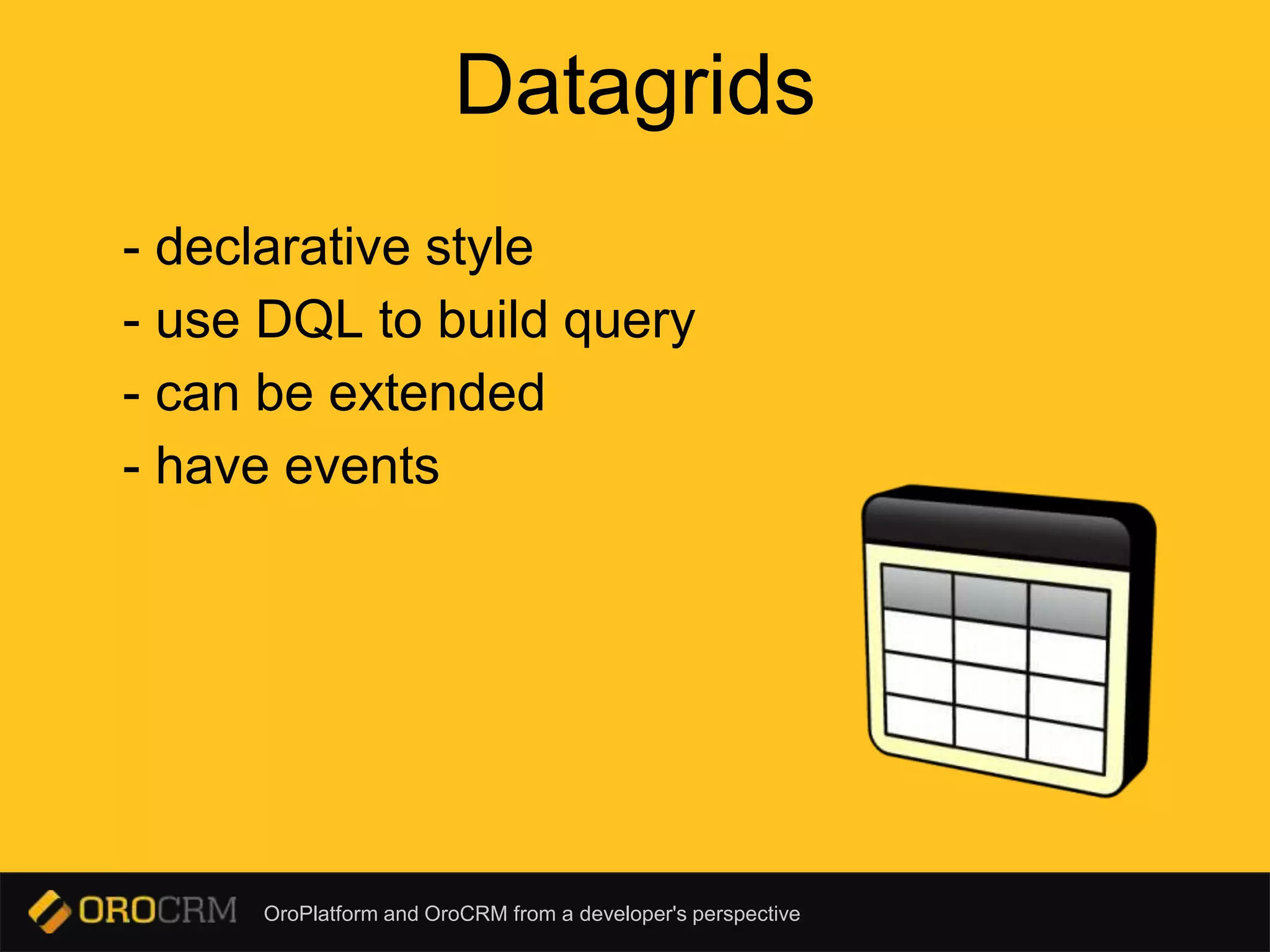

Datagrids
- declarative style
- use DQL to build query
- can be extended
- have events

19. OroPlatform and OroCRM from a developer's perspective

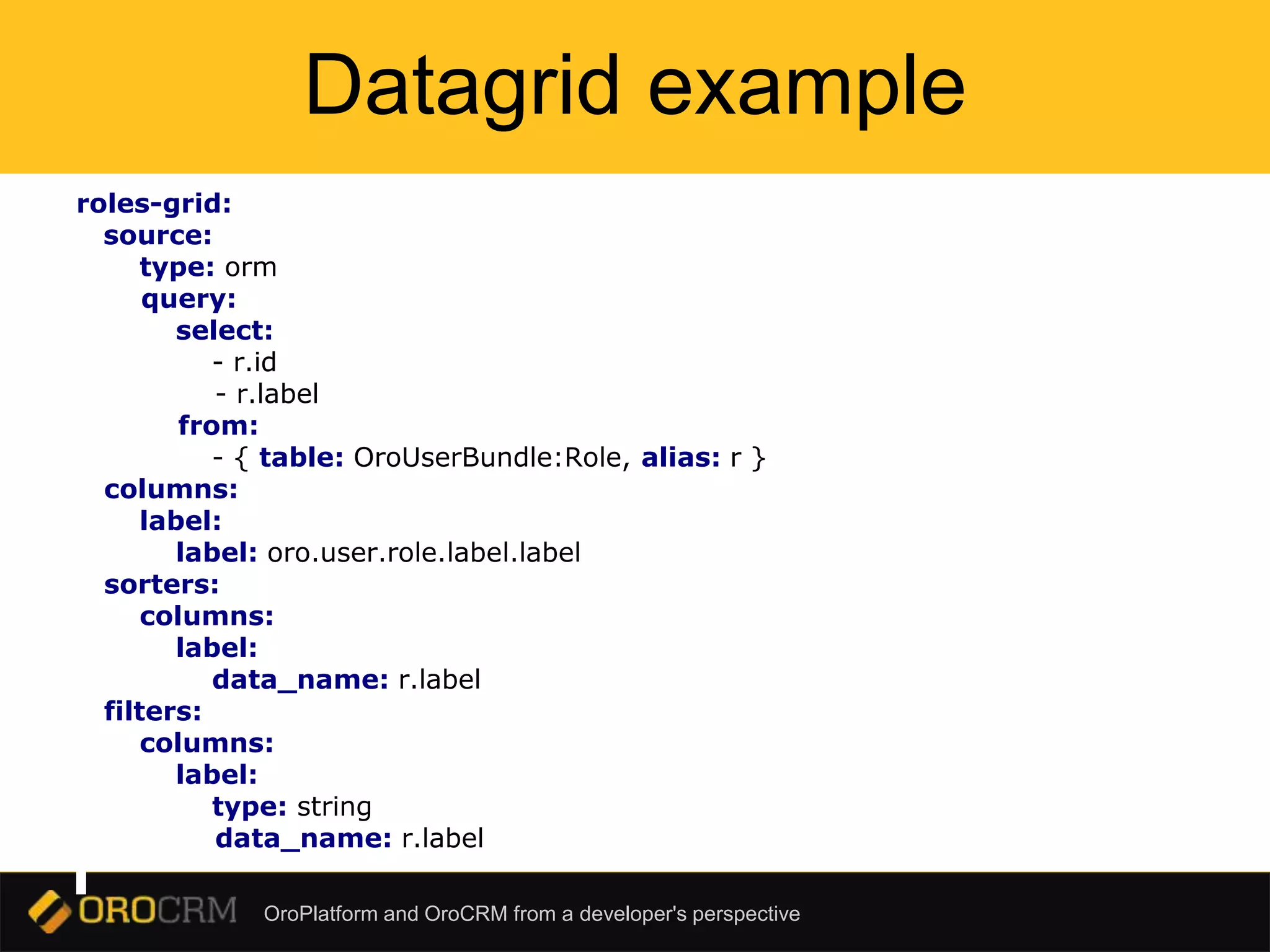

Datagrid example
roles-grid:
source:
type: orm
query:
select:
- r.id
- r.label
from:
- { table: OroUserBundle:Role, alias: r }
columns:
label:
label: oro.user.role.label.label
sorters:
columns:
label:
data_name: r.label
filters:
columns:
label:
type: string
data_name: r.label

20. OroPlatform and OroCRM from a developer's perspective

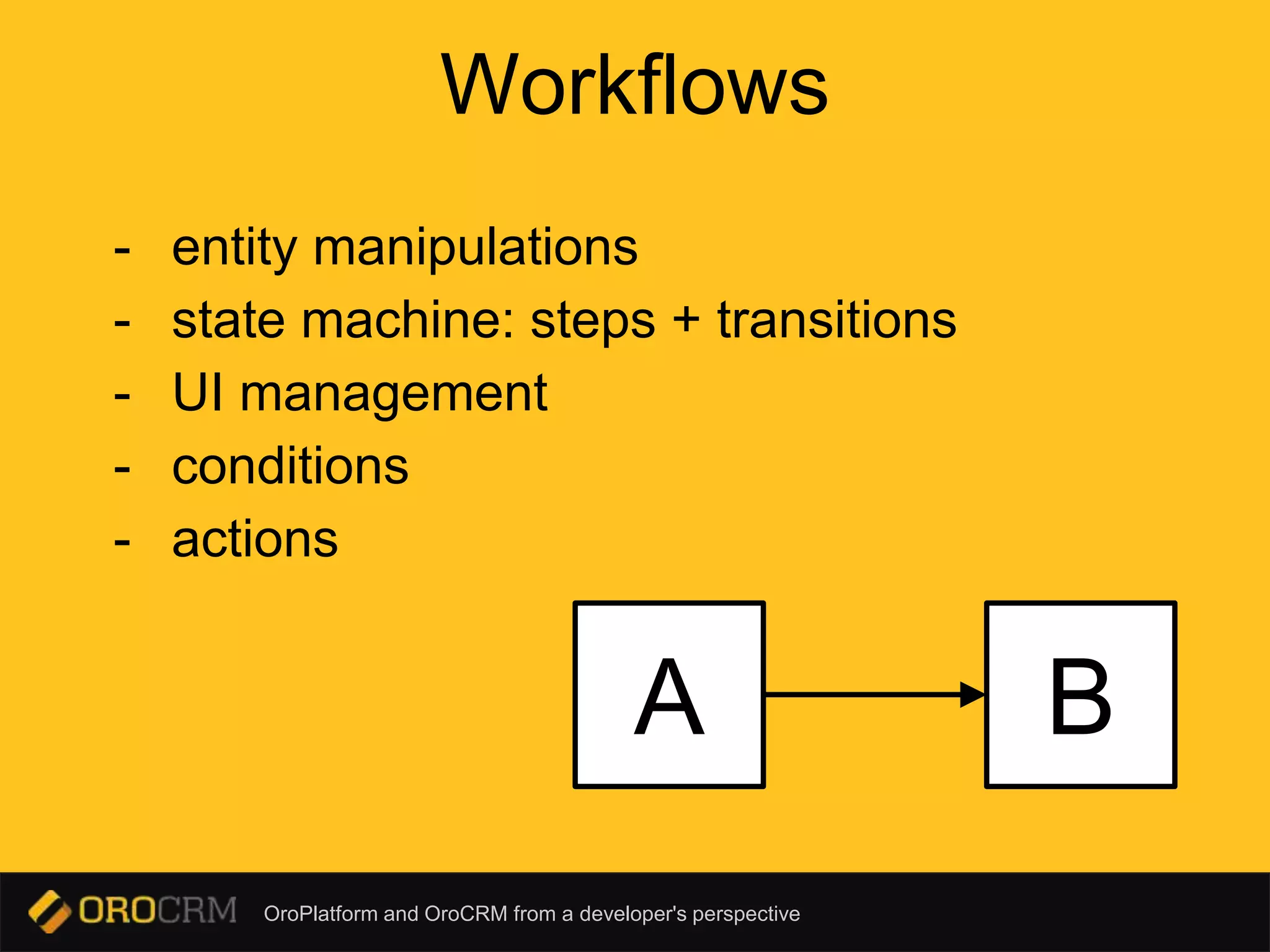

Workflows
BA
- entity manipulations
- state machine: steps + transitions
- UI management
- conditions
- actions

21. OroPlatform and OroCRM from a developer's perspective

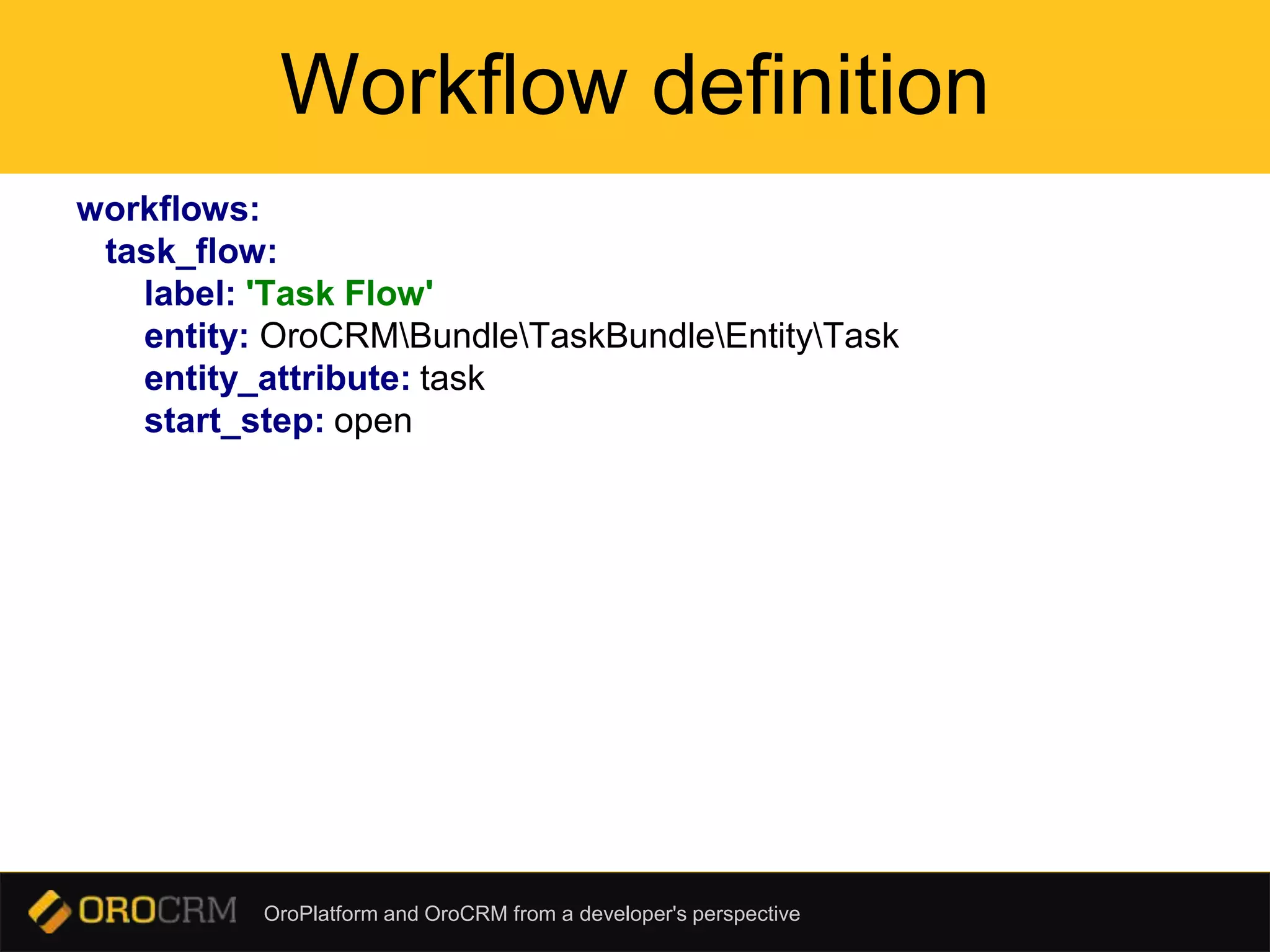

Workflow definition
workflows:
task_flow:
label: 'Task Flow'
entity: OroCRMBundleTaskBundleEntityTask
entity_attribute: task
start_step: open

22. OroPlatform and OroCRM from a developer's perspective

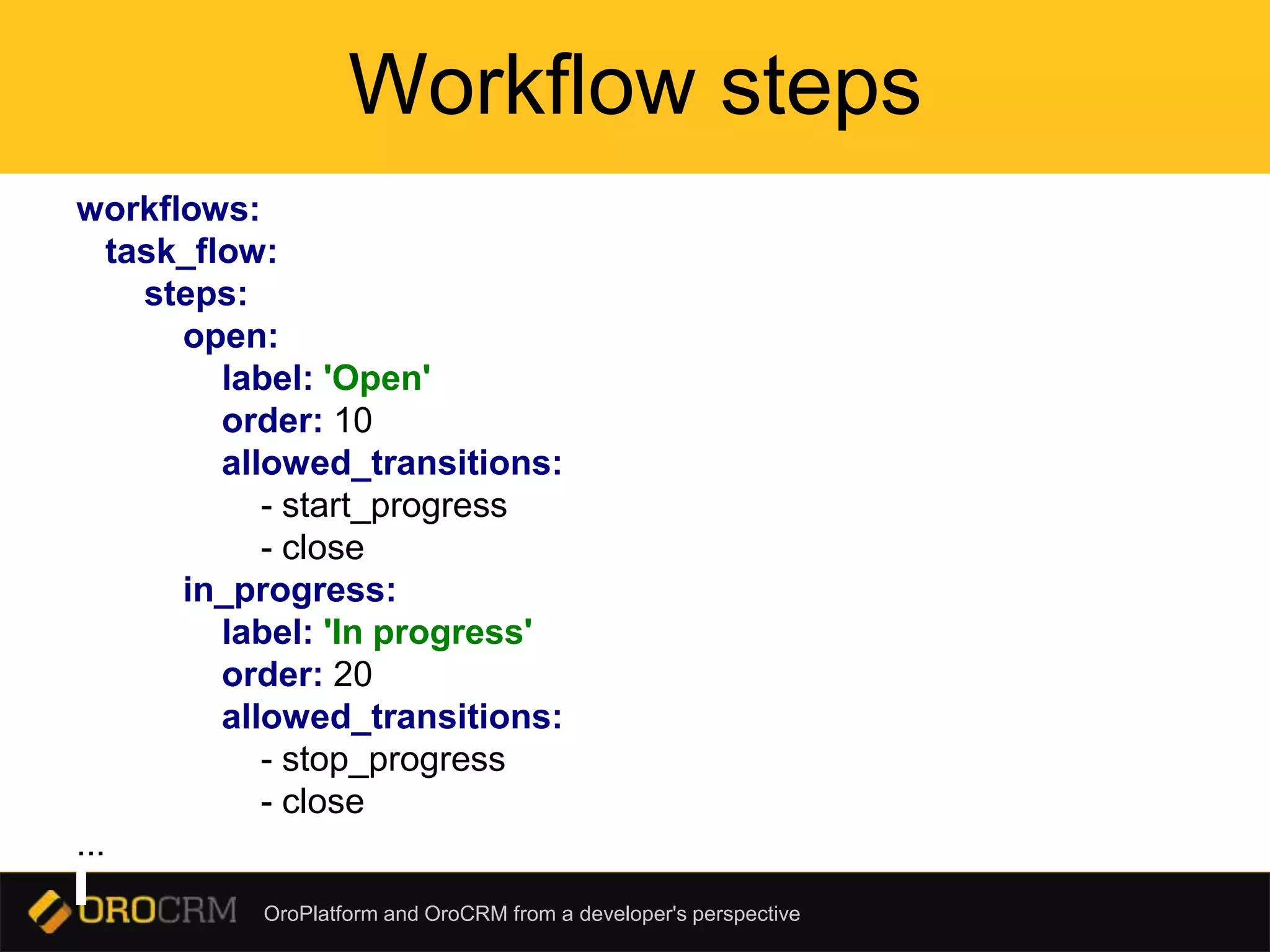

Workflow steps
workflows:
task_flow:
steps:
open:
label: 'Open'
order: 10
allowed_transitions:
- start_progress
- close
in_progress:
label: 'In progress'
order: 20
allowed_transitions:
- stop_progress
- close
...

23. OroPlatform and OroCRM from a developer's perspective

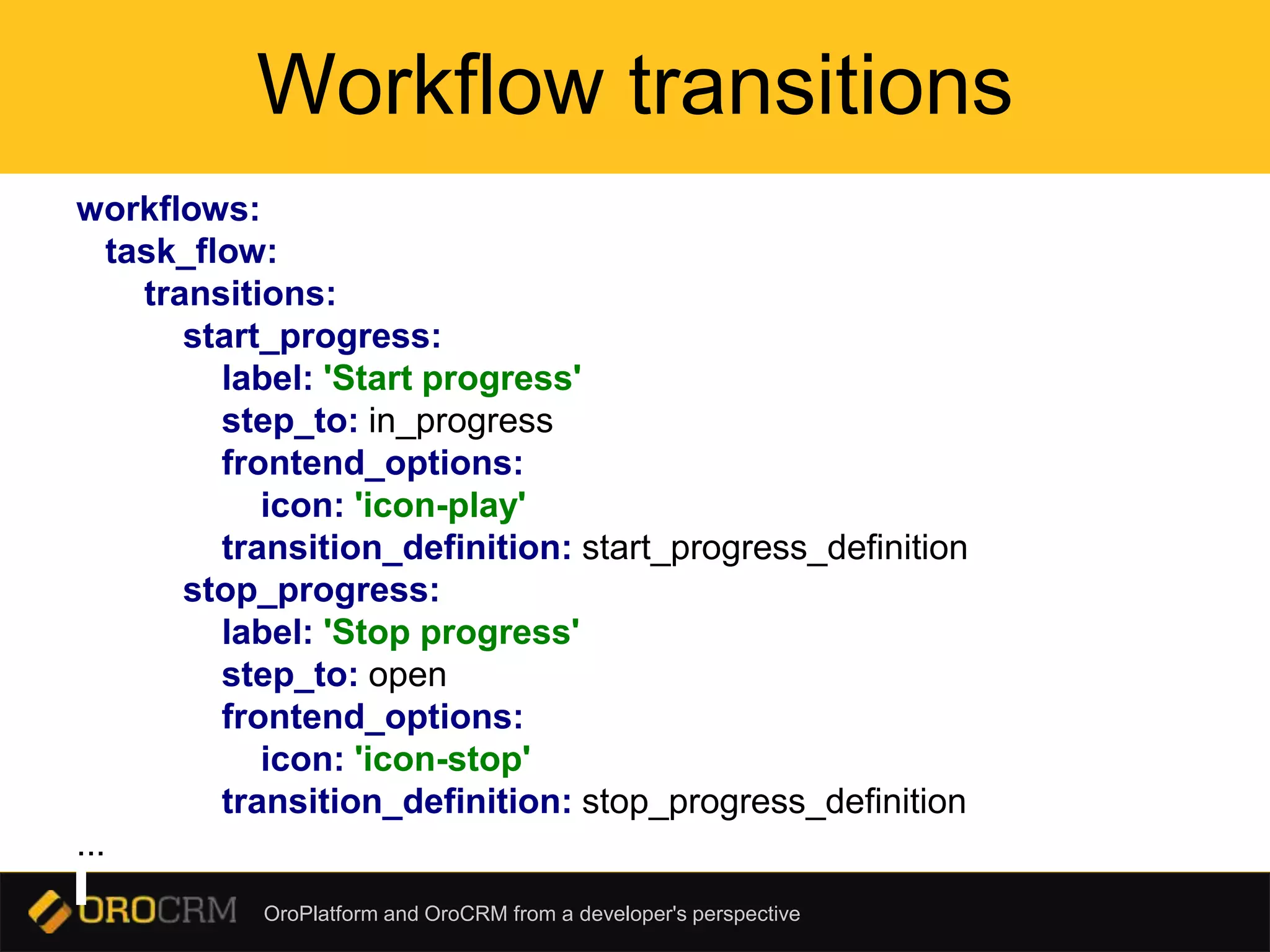

Workflow transitions
workflows:
task_flow:
transitions:
start_progress:
label: 'Start progress'
step_to: in_progress
frontend_options:
icon: 'icon-play'
transition_definition: start_progress_definition
stop_progress:
label: 'Stop progress'
step_to: open
frontend_options:
icon: 'icon-stop'
transition_definition: stop_progress_definition
...

24. OroPlatform and OroCRM from a developer's perspective

25. OroPlatform and OroCRM from a developer's perspective

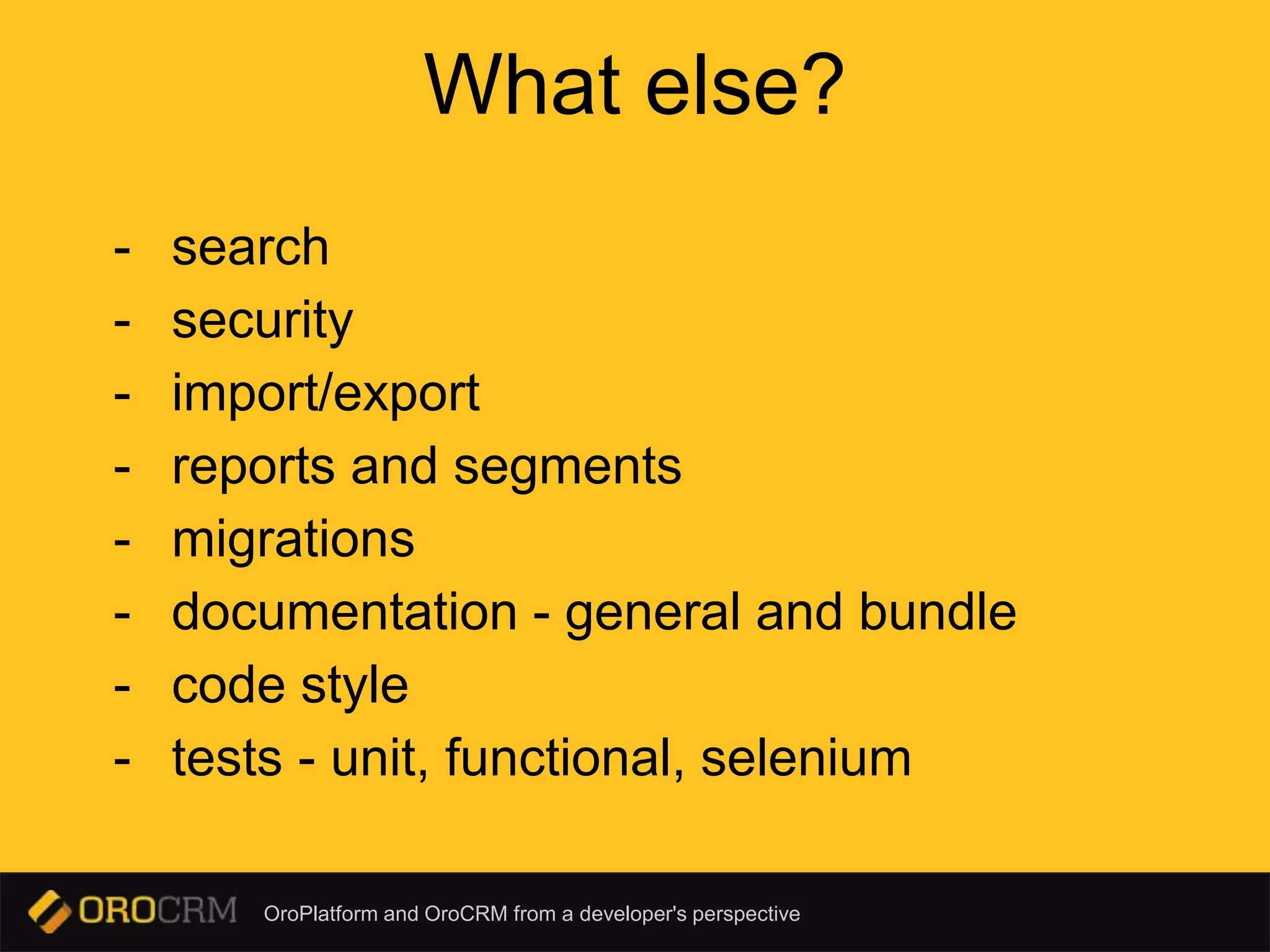

What else?
- search
- security
- import/export
- reports and segments
- migrations
- documentation - general and bundle
- code style
- tests - unit, functional, selenium

26. OroPlatform and OroCRM from a developer's perspective

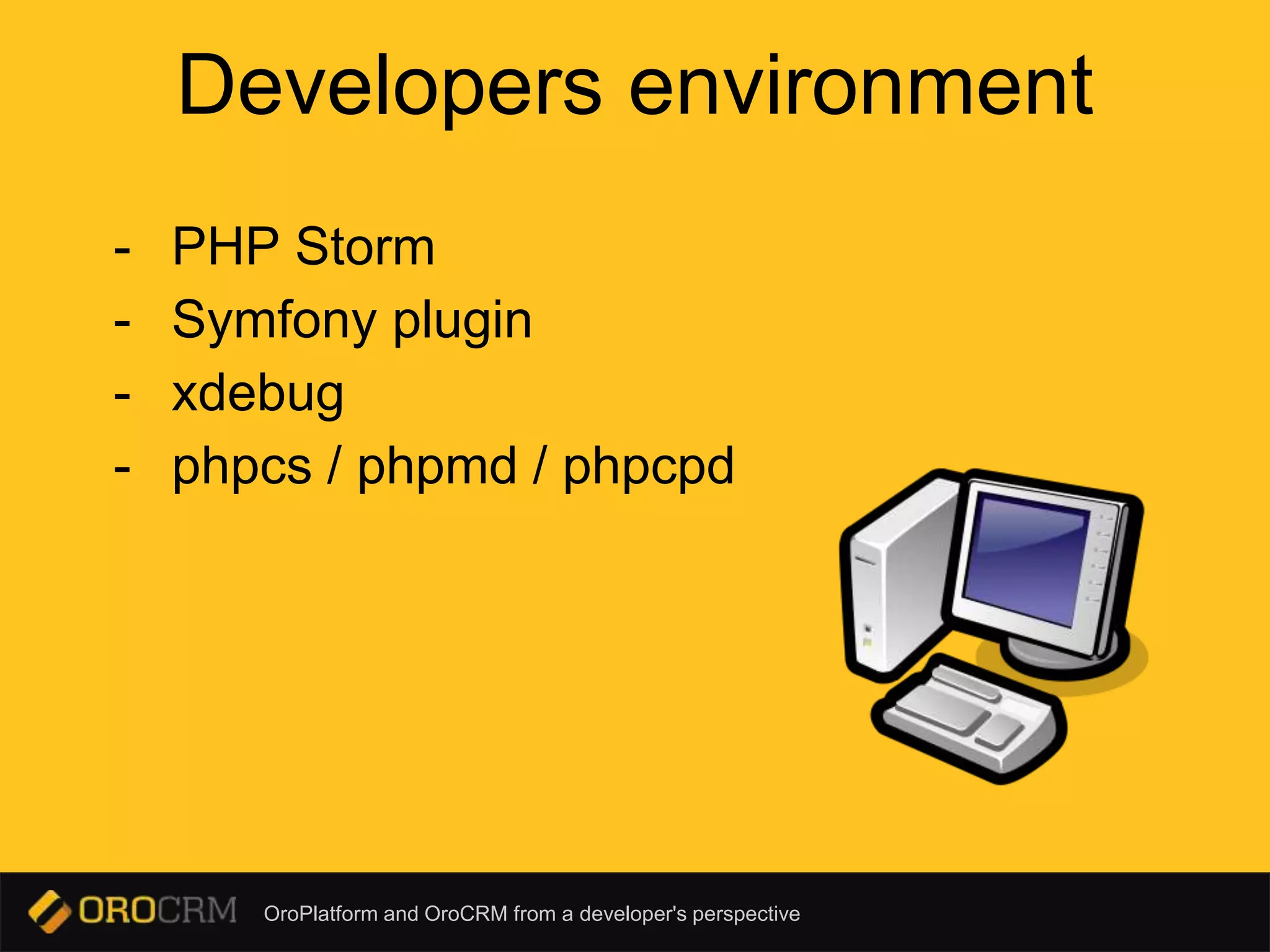

Developers environment
- PHP Storm
- Symfony plugin
- xdebug
- phpcs / phpmd / phpcpd

27. OroPlatform and OroCRM from a developer's perspective
Q & A
