Documenting from the Trenches

Documenting from the Trenches

Xavier Noria
@fxn
RuPy 2011

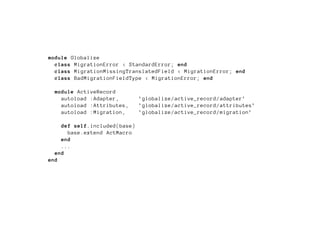

module Globalize
class MigrationError < StandardError; end
class MigrationMissingTranslatedField < MigrationError; end
class BadMigrationFieldType < MigrationError; end

module ActiveRecord
autoload :Adapter , ’globalize/active_record/adapter’
autoload :Attributes , ’globalize/active_record/attributes’
autoload :Migration , ’globalize/active_record/migration’

def self.included(base)
base.extend ActMacro
end
...
end
end

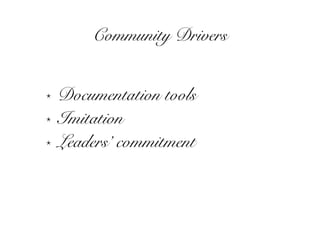

Community Drivers

⋆ Documentation tools
⋆ Imitation
⋆ Leaders’ commitment

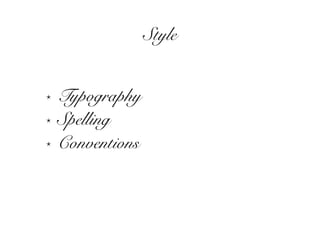

Style

⋆ Typography
⋆ Spelling
⋆ Conventions

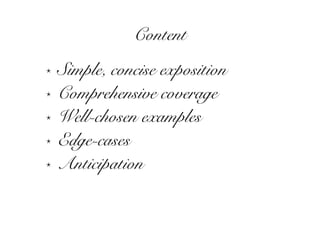

Content
⋆ Simple, concise exposition
⋆ Comprehensive coverage
⋆ Well-chosen examples
⋆ Edge-cases
⋆ Anticipation

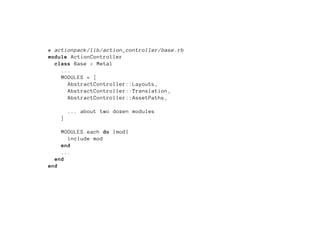

# actionpack/lib/action_controller/base.rb
module ActionController
class Base < Metal
...
MODULES = [
AbstractController::Layouts ,
AbstractController::Translation ,
AbstractController::AssetPaths ,

... about two dozen modules
]

MODULES.each do |mod|
include mod
end
...
end
end

# activerecord/lib/active_record/validations.rb
module ActiveRecord
module Validations
extend ActiveSupport::Concern
include ActiveModel::Validations

module ClassMethods
def create!(attributes = nil, &block)
if attributes.is_a?(Array)
attributes.collect { |attr| create!(attr , &block) }
else
object = new(attributes)
yield(object) if block_given?
object.save!
object
end
end
end
...
end
end

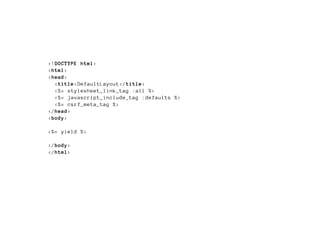

<!DOCTYPE html>
<html>
<head>
<title>DefaultLayout</title>
<%= stylesheet_link_tag :all %>
<%= javascript_include_tag :defaults %>
<%= csrf_meta_tag %>
</head>
<body>

<%= yield %>

</body>
</html>

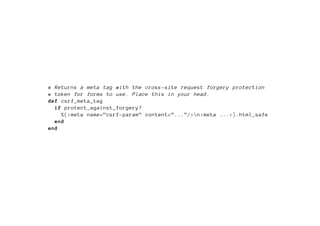

# Returns a meta tag with the cross -site request forgery protection
# token for forms to use. Place this in your head.
def csrf_meta_tag
if protect_against_forgery?
%(<meta name=”csrf -param” content=”...”/>n<meta ...>).html_safe
end
end

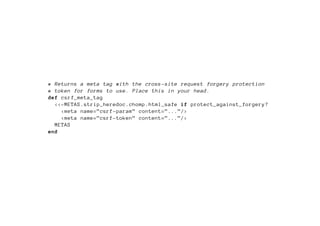

# Returns a meta tag with the cross -site request forgery protection
# token for forms to use. Place this in your head.
def csrf_meta_tag
<<-METAS.strip_heredoc.chomp.html_safe if protect_against_forgery?
<meta name=”csrf -param” content=”...”/>
<meta name=”csrf -token” content=”...”/>
METAS
end

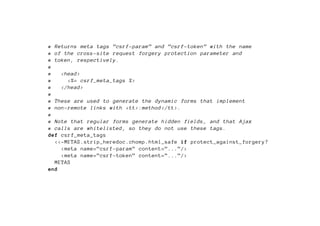

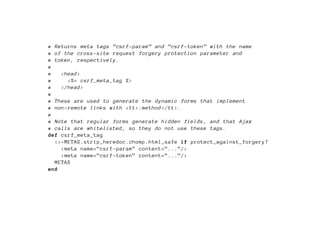

# Returns meta tags ”csrf -param” and ”csrf -token” with the name
# of the cross -site request forgery protection parameter and
# token , respectively.
#
# <head >
# <%= csrf_meta_tag %>
# </head >
#
# These are used to generate the dynamic forms that implement
# non-remote links with <tt>:method </tt>.
#
# Note that regular forms generate hidden fields , and that Ajax
# calls are whitelisted , so they do not use these tags.
def csrf_meta_tag
METAS
end

#
# <head >
# <%= csrf_meta_tags %>
# </head >
#
#
def csrf_meta_tags
METAS
end

#
# <head >
# <%= csrf_meta_tags %>
# </head >
#
#
def csrf_meta_tags
METAS
end

# For backwards compatibility.
alias csrf_meta_tag csrf_meta_tags

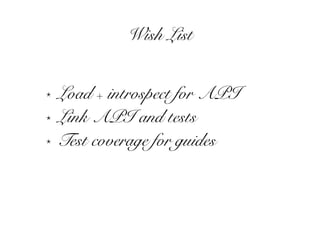

Wish List

⋆ Load + introspect for API
⋆ Link API and tests
⋆ Test coverage for guides
