2. Developer Training

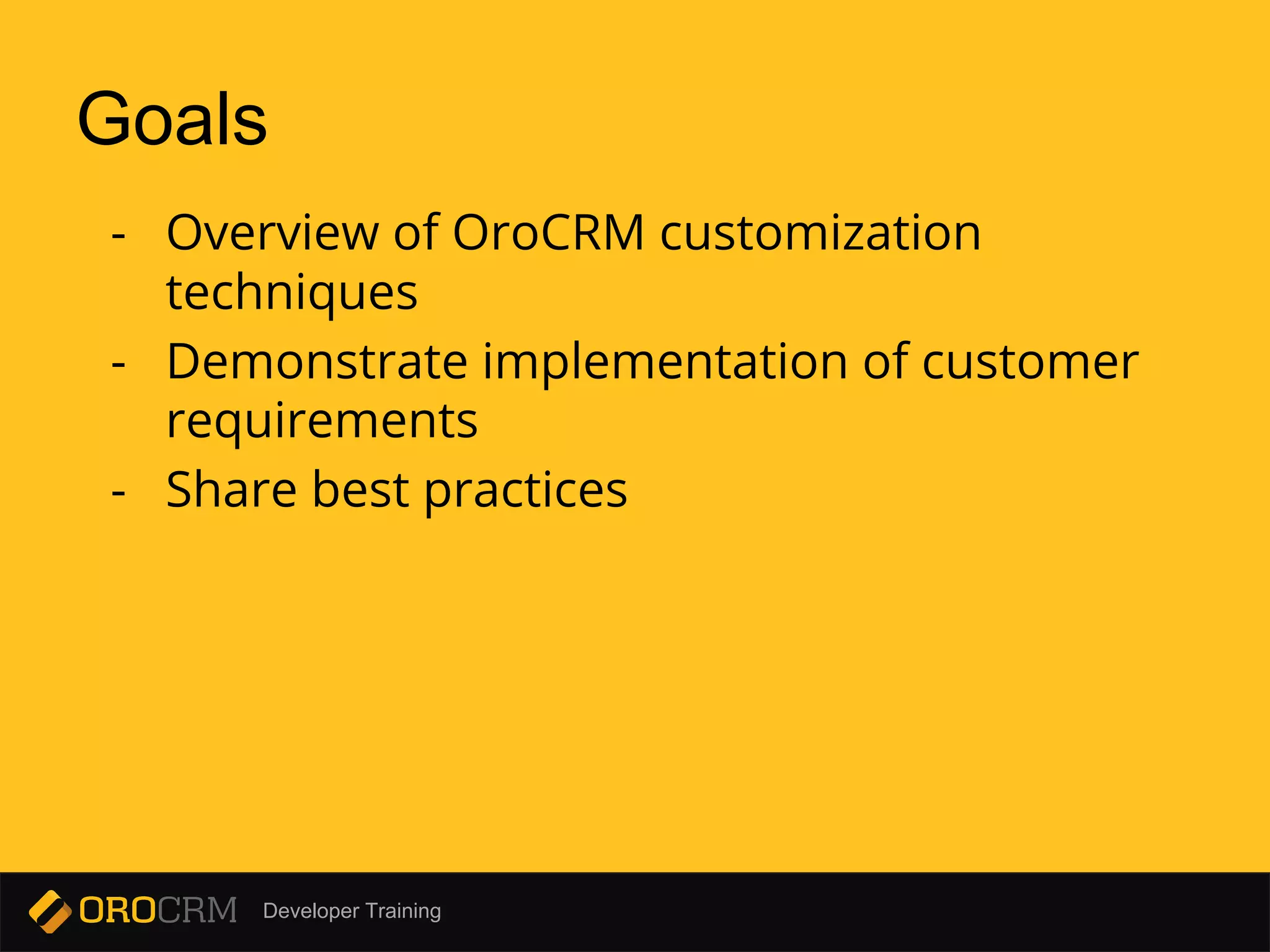

Goals
- Overview of OroCRM customization
techniques
- Demonstrate implementation of customer
requirements
- Share best practices
3. Developer Training

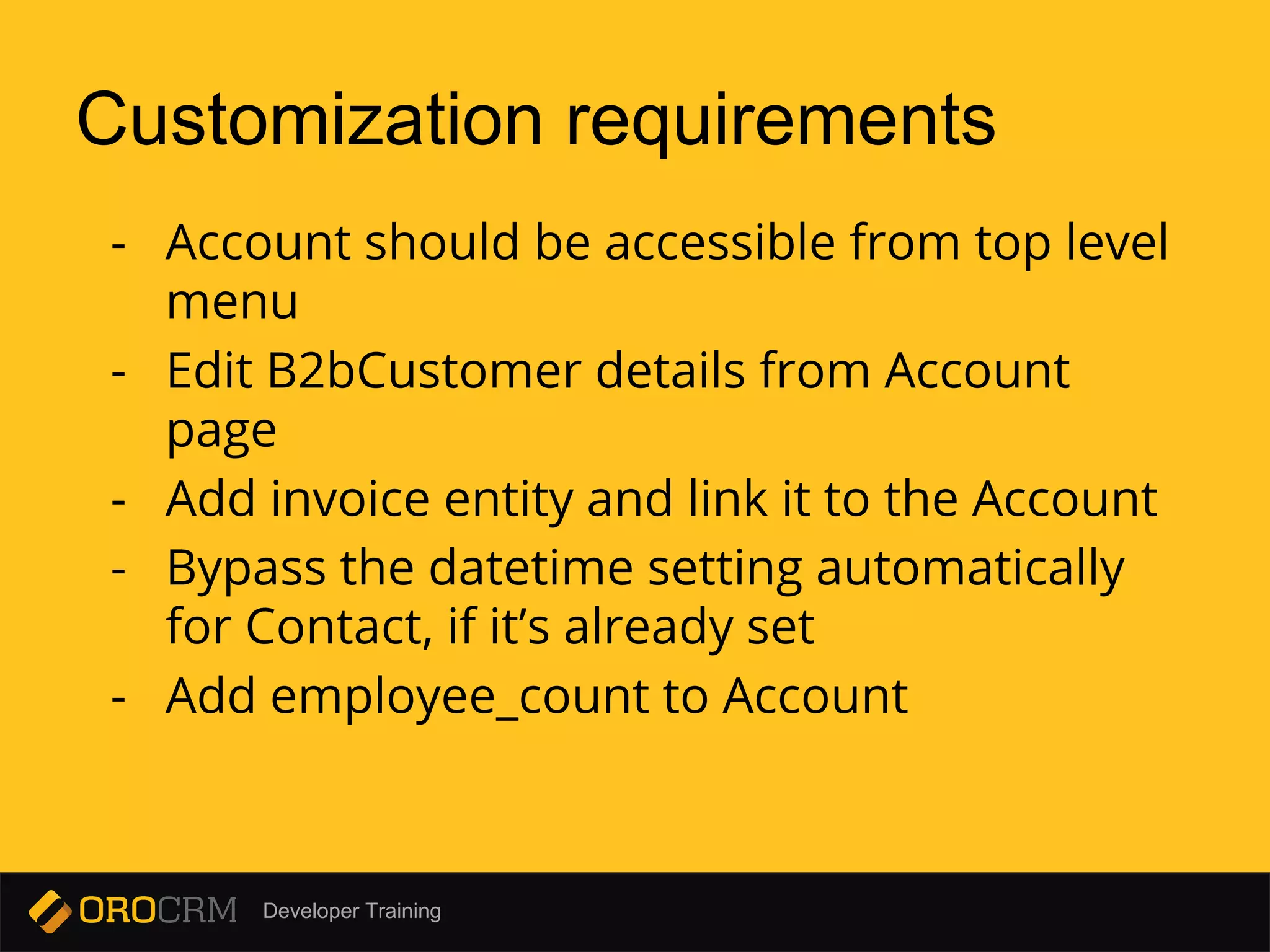

Customization requirements
- Account should be accessible from top level
menu
- Edit B2bCustomer details from Account
page
- Add invoice entity and link it to the Account
- Bypass the datetime setting automatically
for Contact, if it’s already set
- Add employee_count to Account

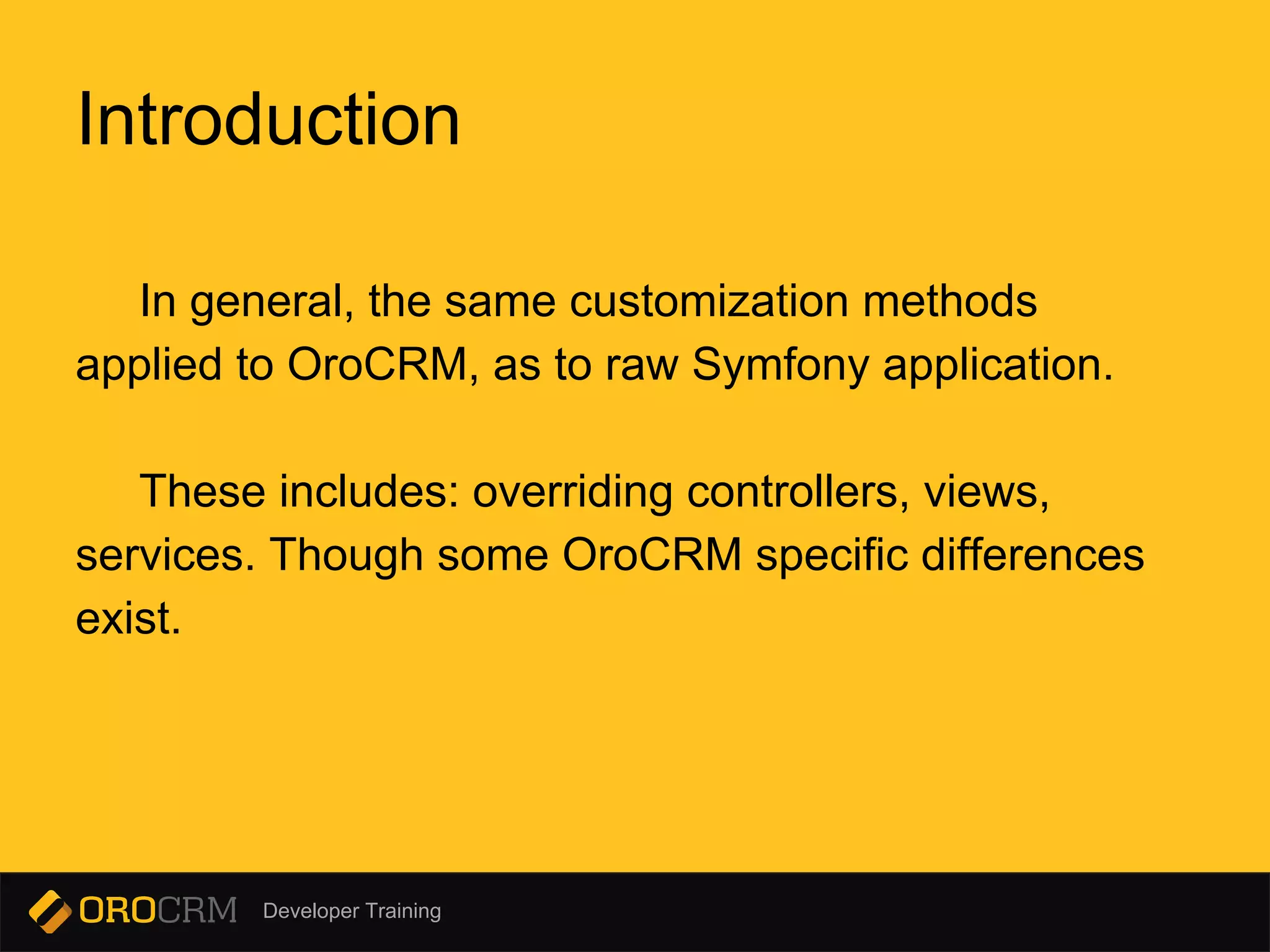

4. Developer Training
Introduction
In general, the same customization methods
applied to OroCRM, as to raw Symfony application.
These includes: overriding controllers, views,
services. Though some OroCRM specific differences
exist.
5. Developer Training

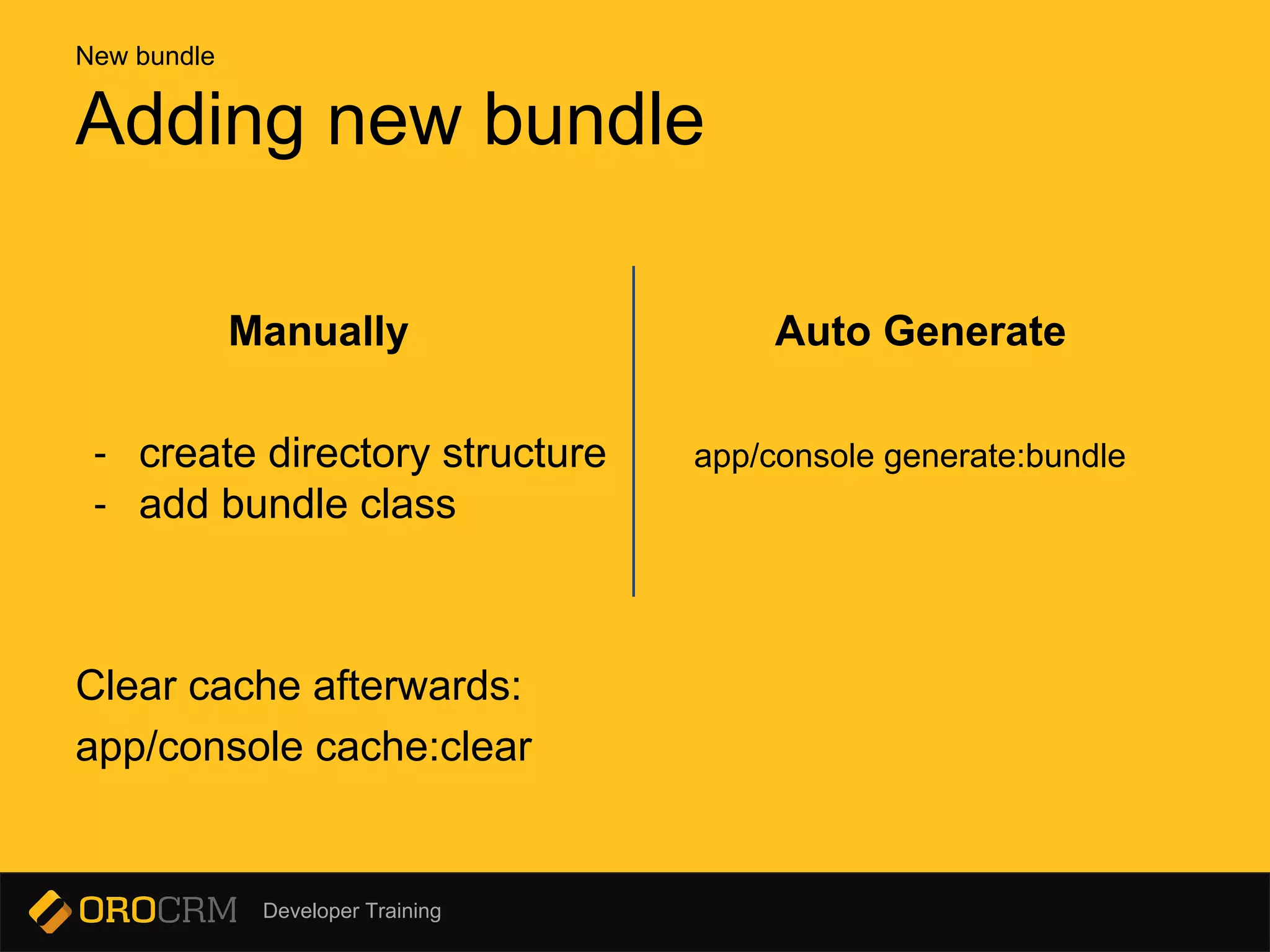

Manually Auto Generate
- create directory structure app/console generate:bundle
- add bundle class
Clear cache afterwards:
app/console cache:clear
Adding new bundle
New bundle
6. Developer Training

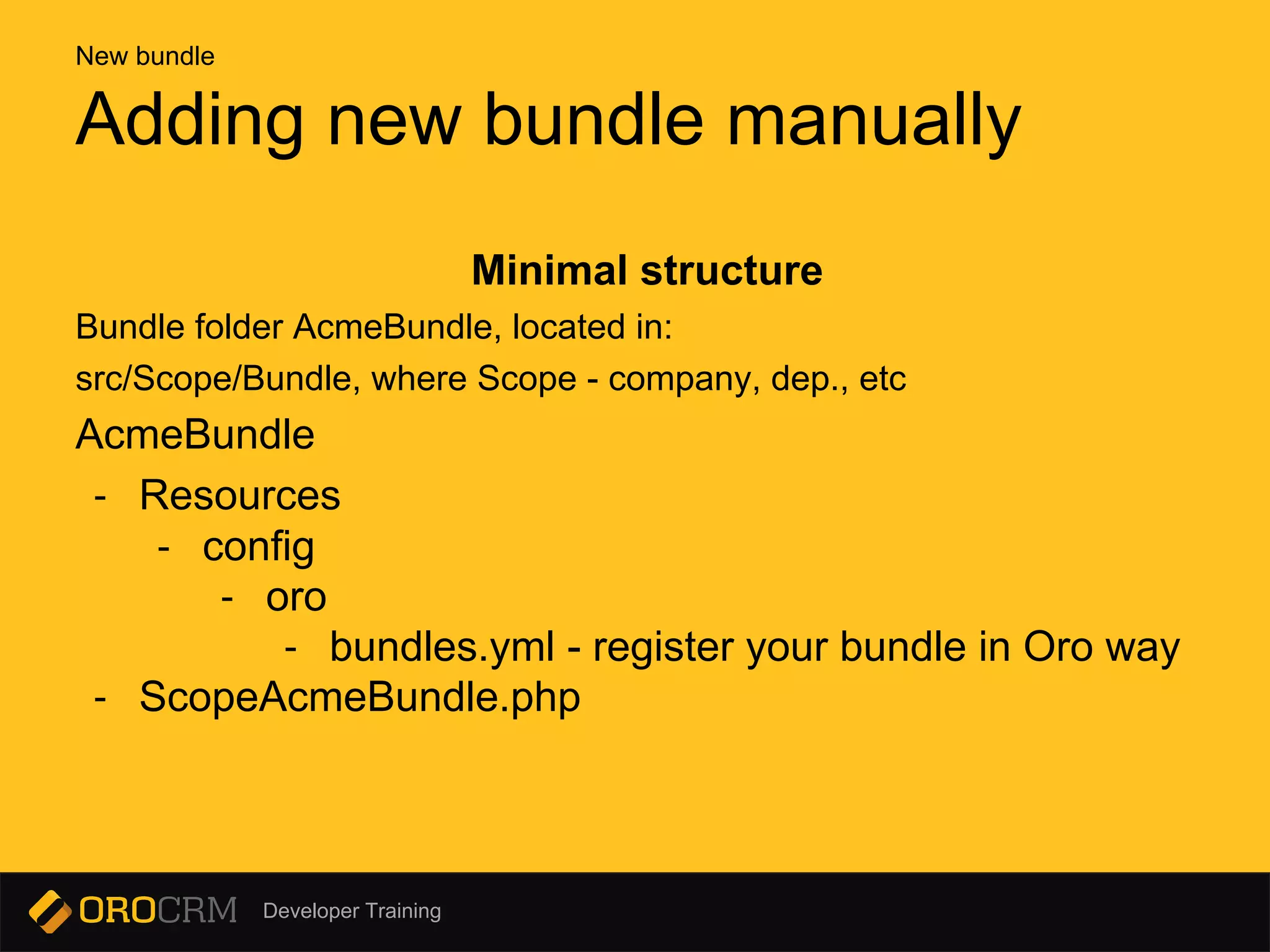

Minimal structure
Bundle folder AcmeBundle, located in:
src/Scope/Bundle, where Scope - company, dep., etc
AcmeBundle
- Resources
- config
- oro
- bundles.yml - register your bundle in Oro way
- ScopeAcmeBundle.php
Adding new bundle manually
New bundle

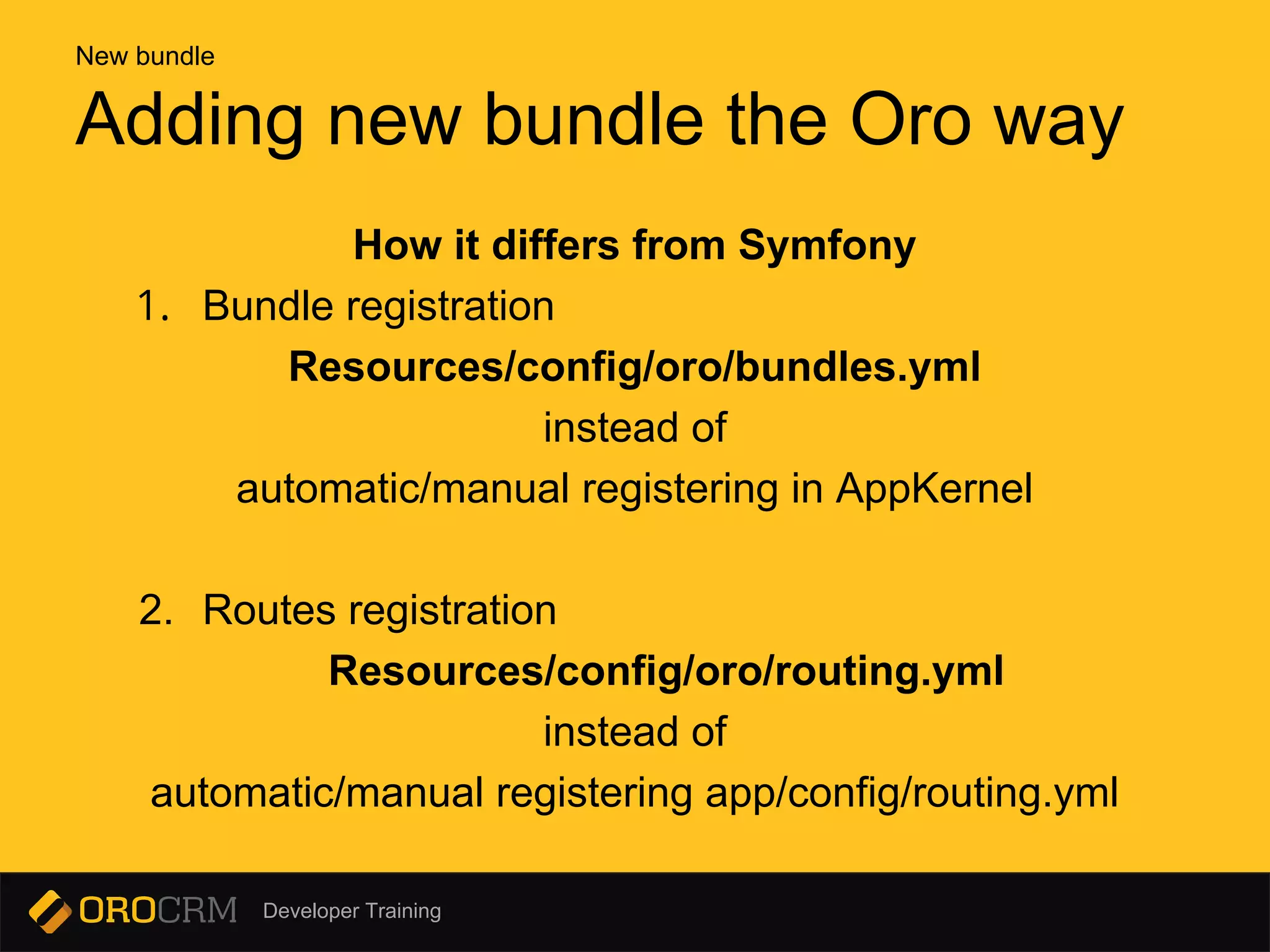

8. Developer Training
How it differs from Symfony
1. Bundle registration
Resources/config/oro/bundles.yml
instead of
automatic/manual registering in AppKernel
2. Routes registration
Resources/config/oro/routing.yml
instead of
automatic/manual registering app/config/routing.yml
Adding new bundle the Oro way
New bundle
9. Developer Training

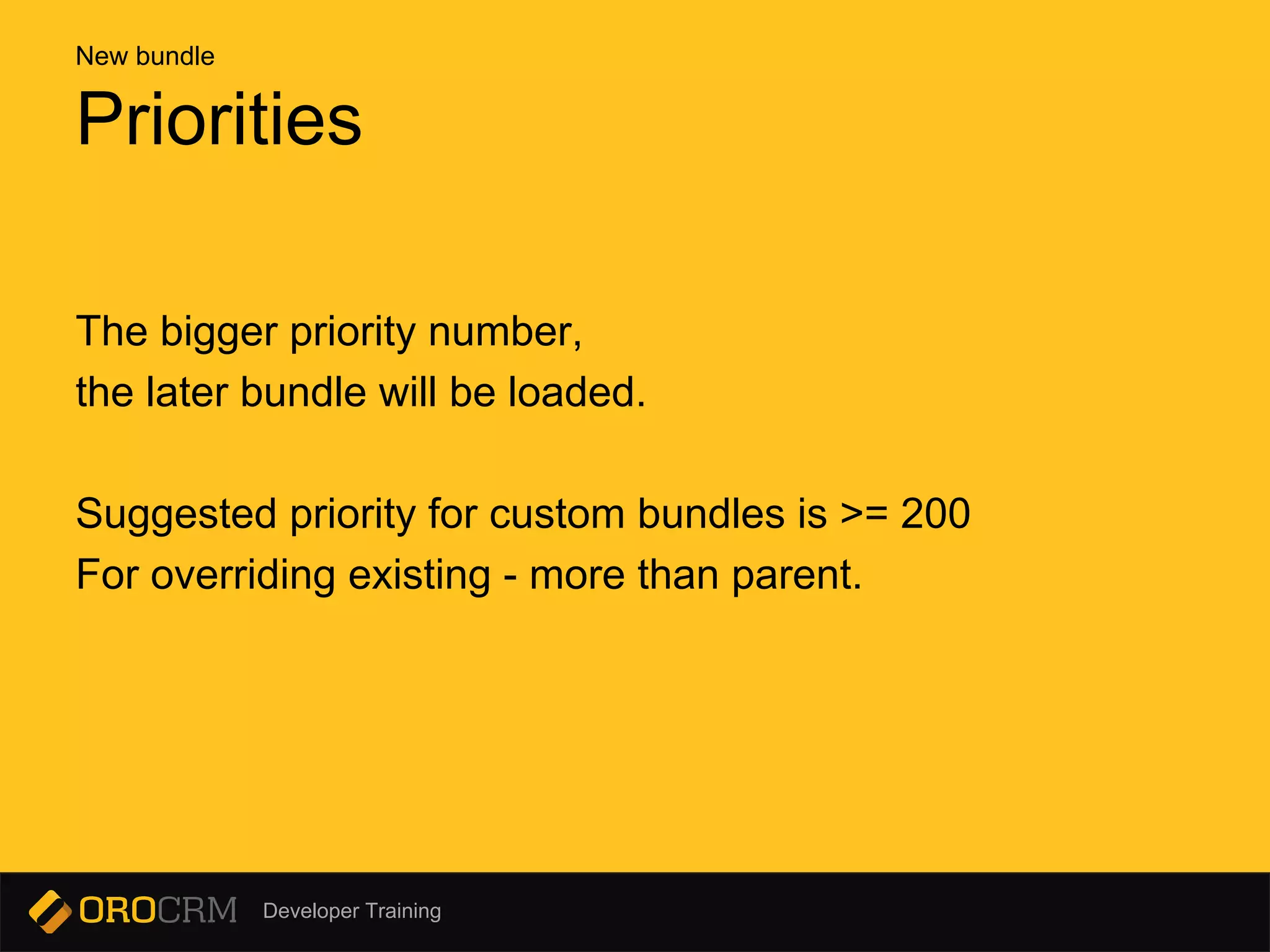

The bigger priority number,
the later bundle will be loaded.
Suggested priority for custom bundles is >= 200
For overriding existing - more than parent.
Priorities
New bundle

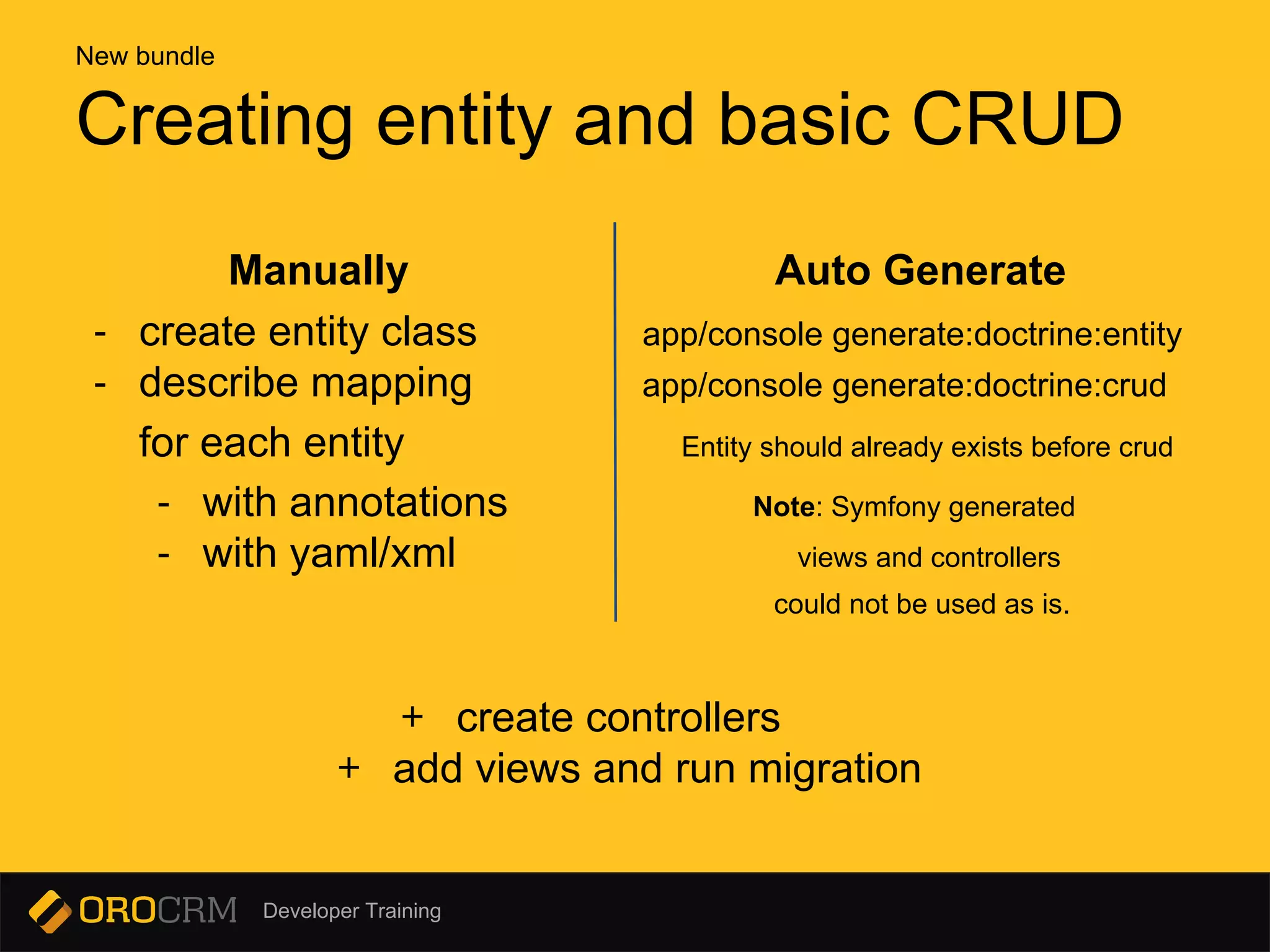

10. Developer Training
Manually Auto Generate
- create entity class app/console generate:doctrine:entity
- describe mapping app/console generate:doctrine:crud
for each entity Entity should already exists before crud
- with annotations Note: Symfony generated
- with yaml/xml views and controllers
could not be used as is.
+ create controllers
+ add views and run migration
Creating entity and basic CRUD
New bundle

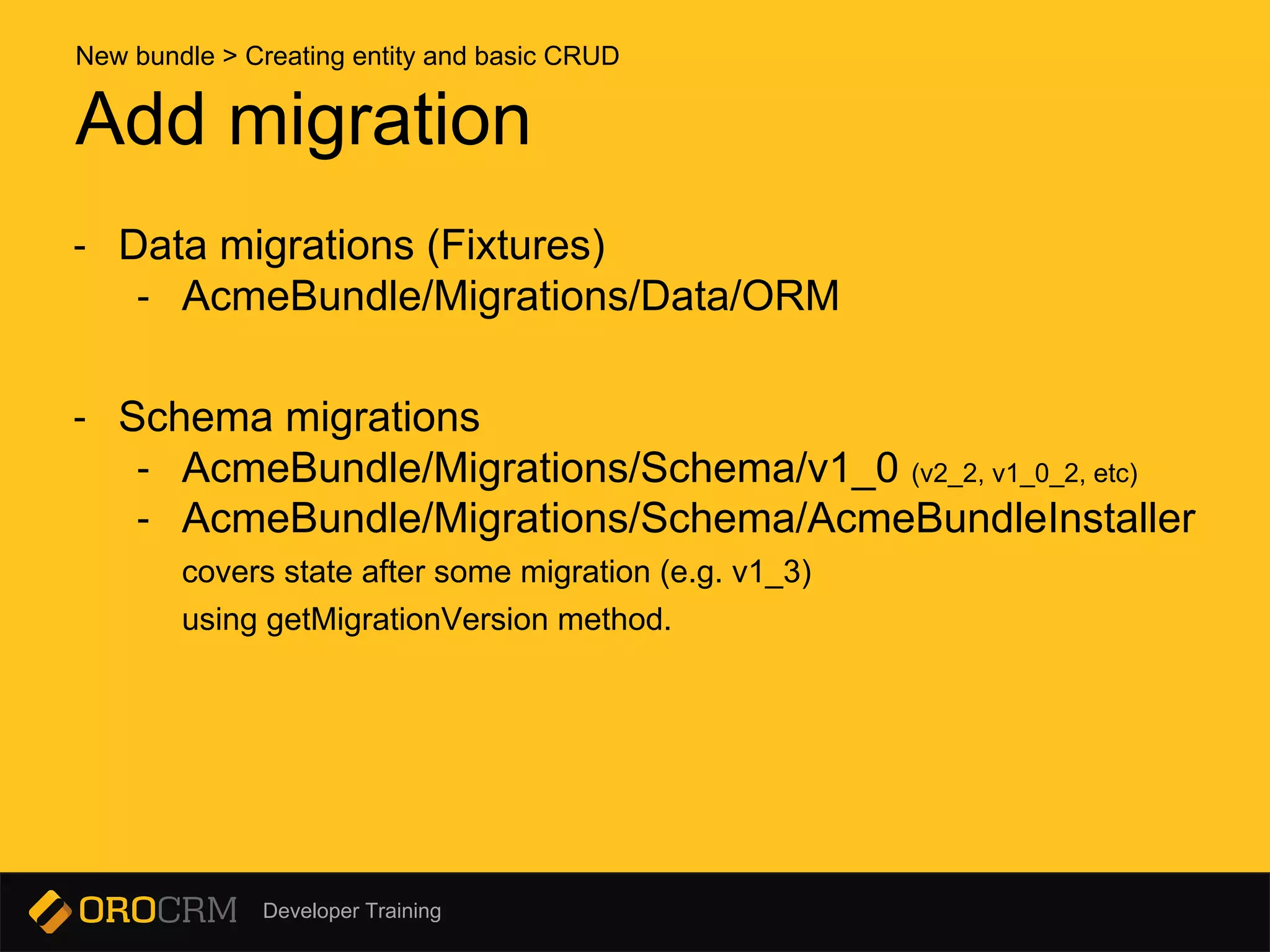

11. Developer Training
- Data migrations (Fixtures)
- AcmeBundle/Migrations/Data/ORM
- Schema migrations
- AcmeBundle/Migrations/Schema/v1_0 (v2_2, v1_0_2, etc)
- AcmeBundle/Migrations/Schema/AcmeBundleInstaller
covers state after some migration (e.g. v1_3)
using getMigrationVersion method.
Add migration
New bundle > Creating entity and basic CRUD
12. Developer Training

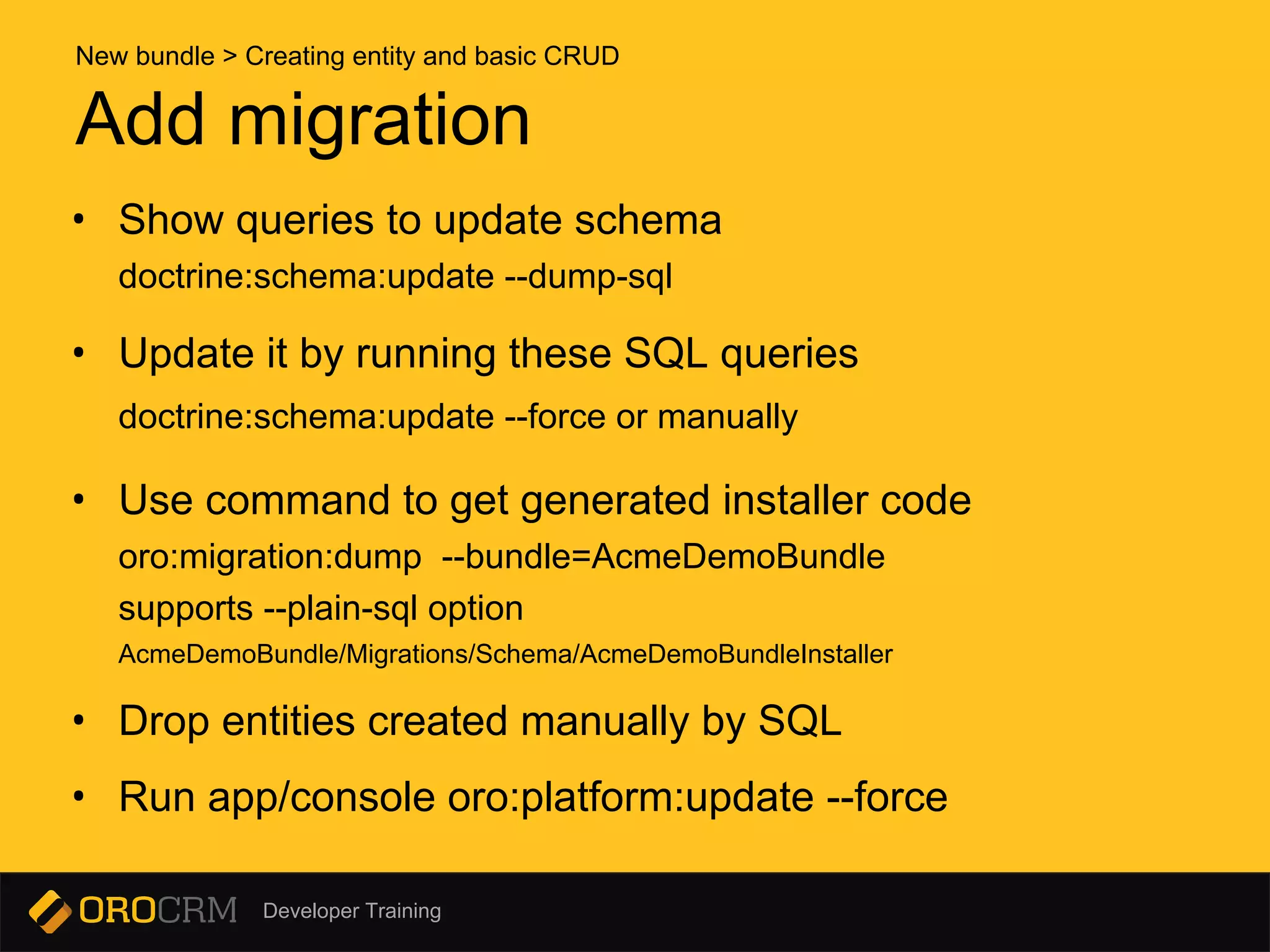

• Show queries to update schema
doctrine:schema:update --dump-sql
• Update it by running these SQL queries
doctrine:schema:update --force or manually
• Use command to get generated installer code
oro:migration:dump --bundle=AcmeDemoBundle
supports --plain-sql option
AcmeDemoBundle/Migrations/Schema/AcmeDemoBundleInstaller
• Drop entities created manually by SQL
• Run app/console oro:platform:update --force
Add migration
New bundle > Creating entity and basic CRUD
13. Developer Training

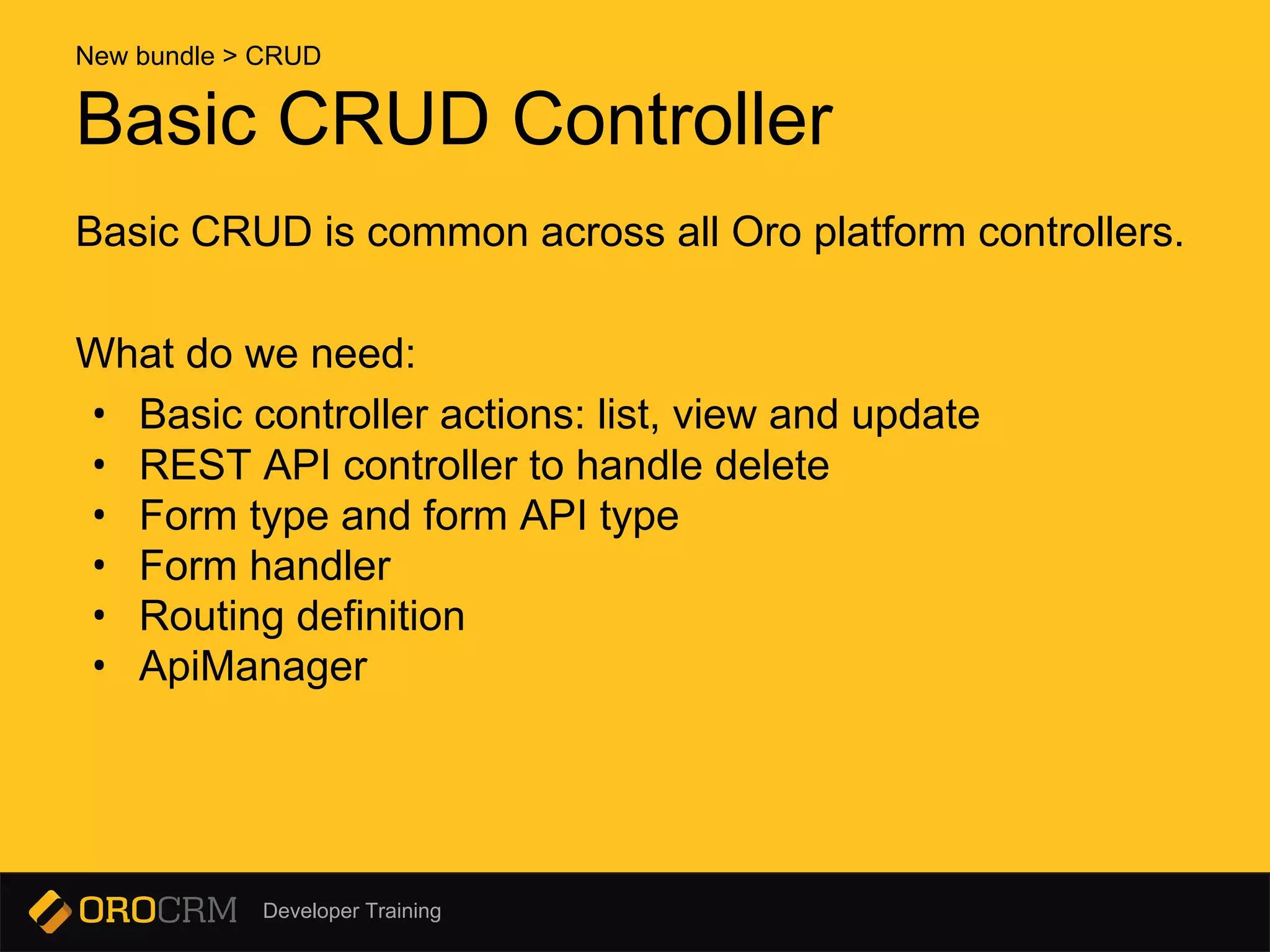

Basic CRUD Controller
Basic CRUD is common across all Oro platform controllers.
What do we need:
• Basic controller actions: list, view and update
• REST API controller to handle delete
• Form type and form API type
• Form handler
• Routing definition
• ApiManager
New bundle > CRUD

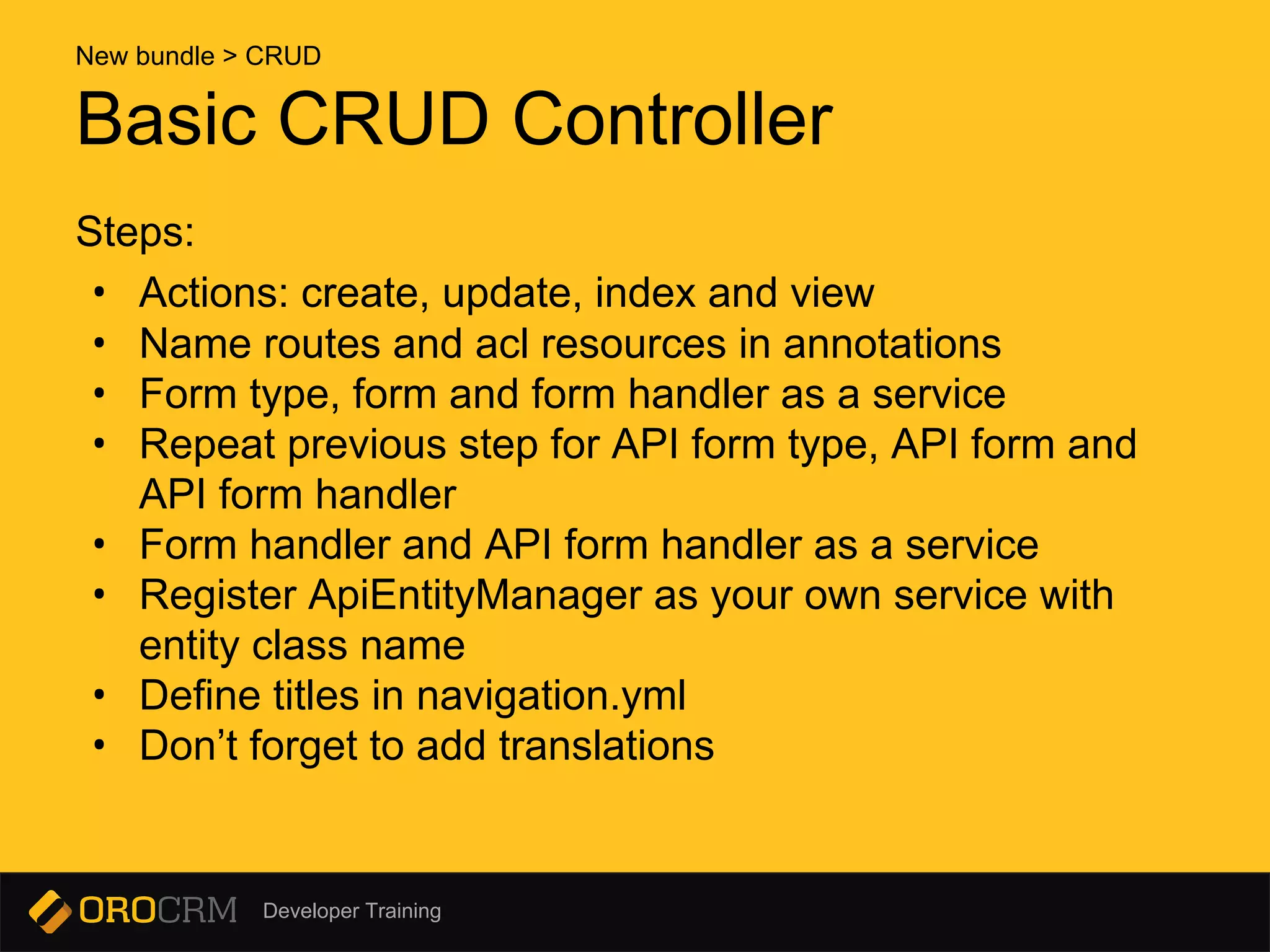

14. Developer Training
Basic CRUD Controller
Steps:
• Actions: create, update, index and view
• Name routes and acl resources in annotations
• Form type, form and form handler as a service
• Repeat previous step for API form type, API form and
API form handler
• Form handler and API form handler as a service
• Register ApiEntityManager as your own service with
entity class name
• Define titles in navigation.yml
• Don’t forget to add translations
New bundle > CRUD
16. Developer Training

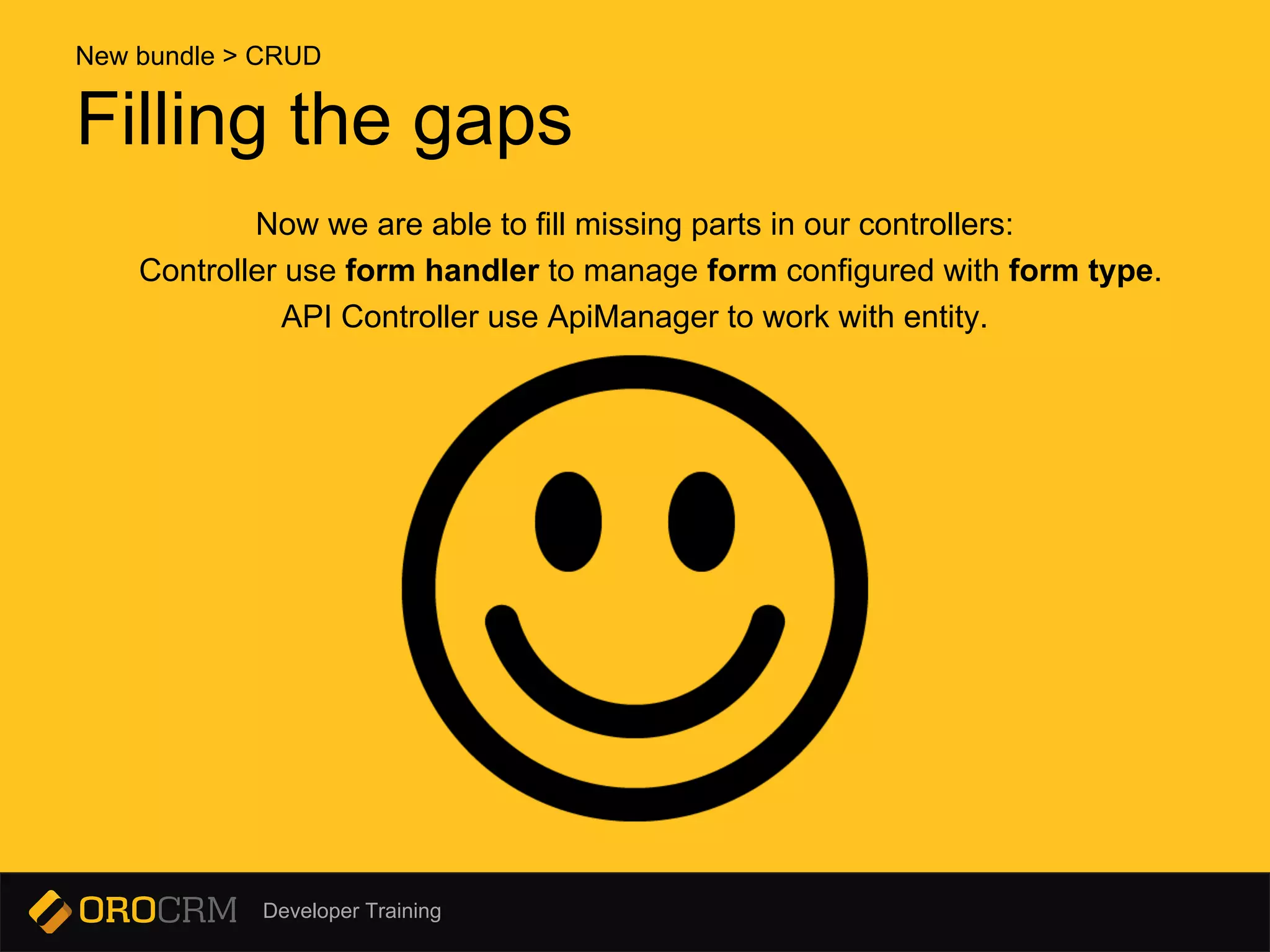

Filling the gaps
Now we are able to fill missing parts in our controllers:
Controller use form handler to manage form configured with form type.
API Controller use ApiManager to work with entity.
New bundle > CRUD
17. Developer Training

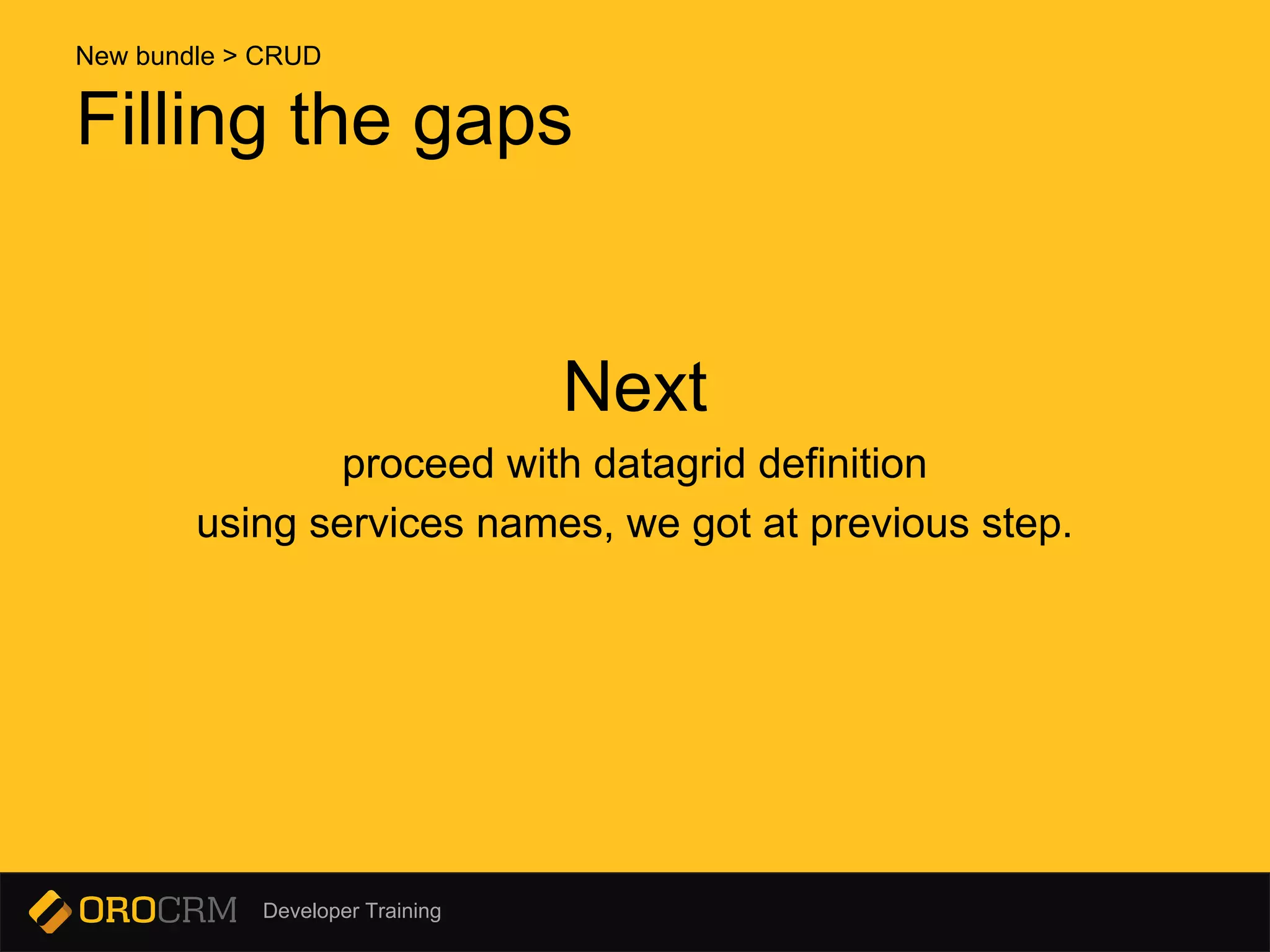

Filling the gaps
Next
proceed with datagrid definition
using services names, we got at previous step.
New bundle > CRUD

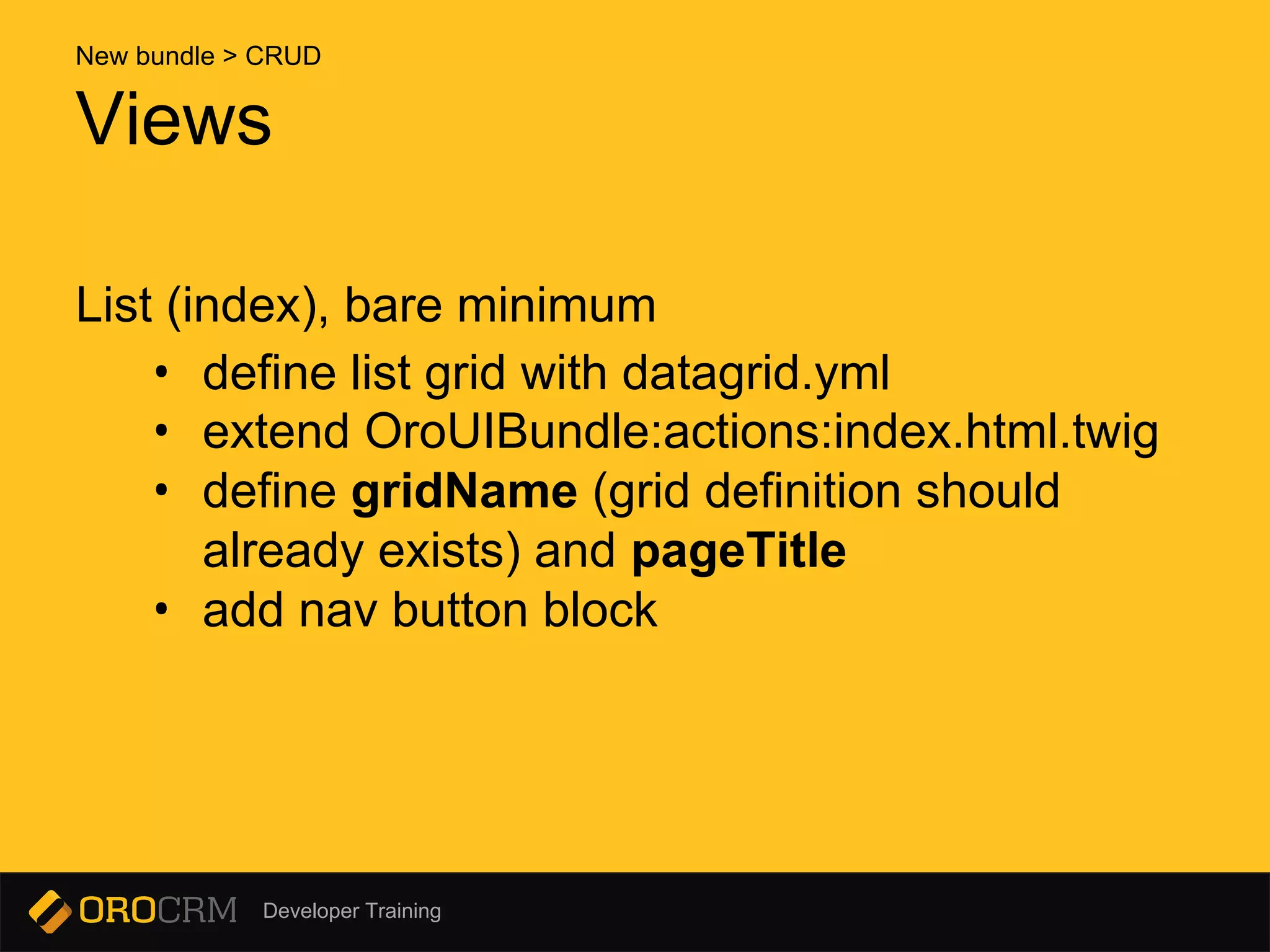

18. Developer Training
List (index), bare minimum
• define list grid with datagrid.yml
• extend OroUIBundle:actions:index.html.twig
• define gridName (grid definition should
already exists) and pageTitle
• add nav button block
Views
New bundle > CRUD
19. Developer Training

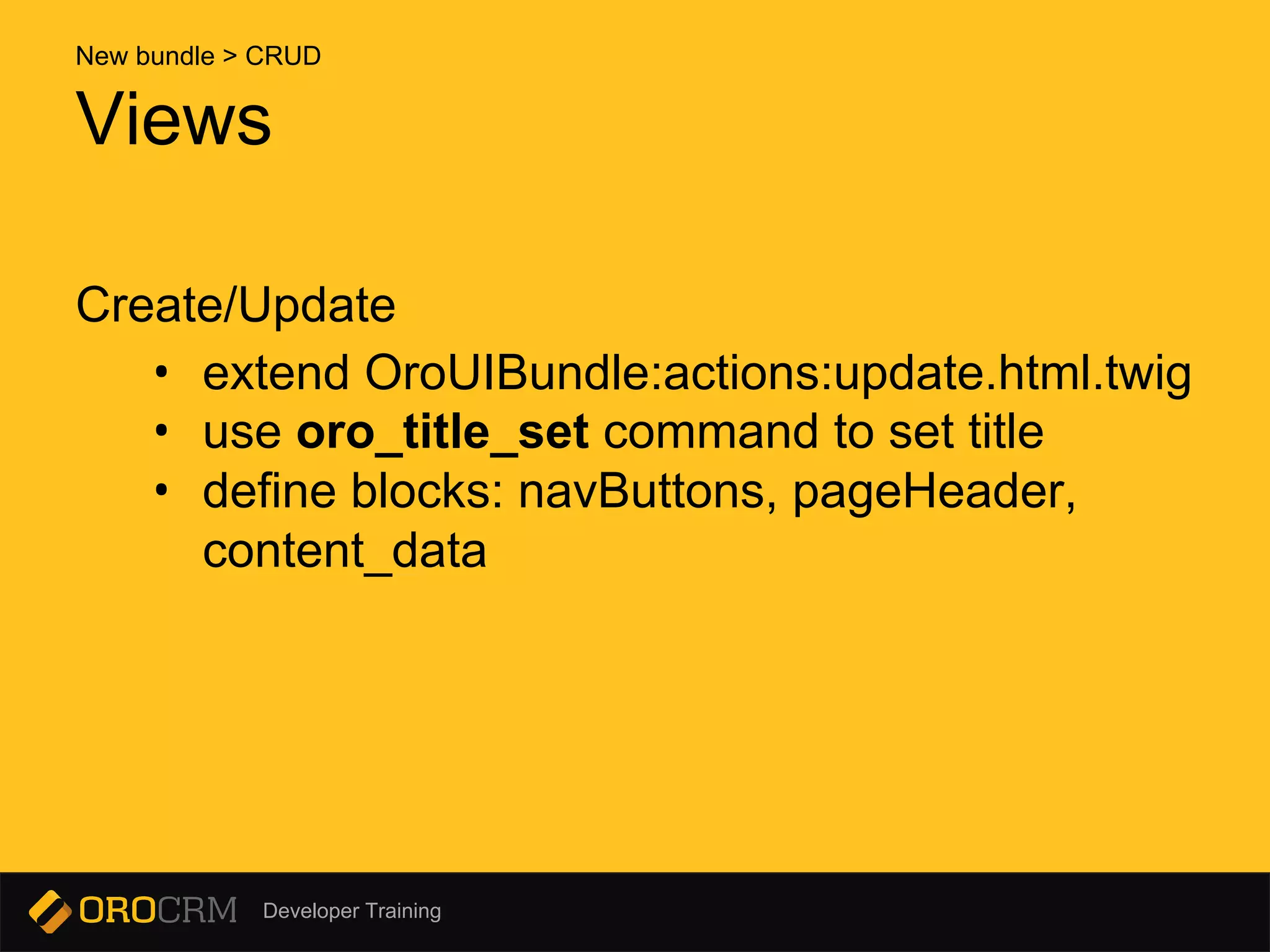

Create/Update
• extend OroUIBundle:actions:update.html.twig
• use oro_title_set command to set title
• define blocks: navButtons, pageHeader,
content_data
Views
New bundle > CRUD
20. Developer Training

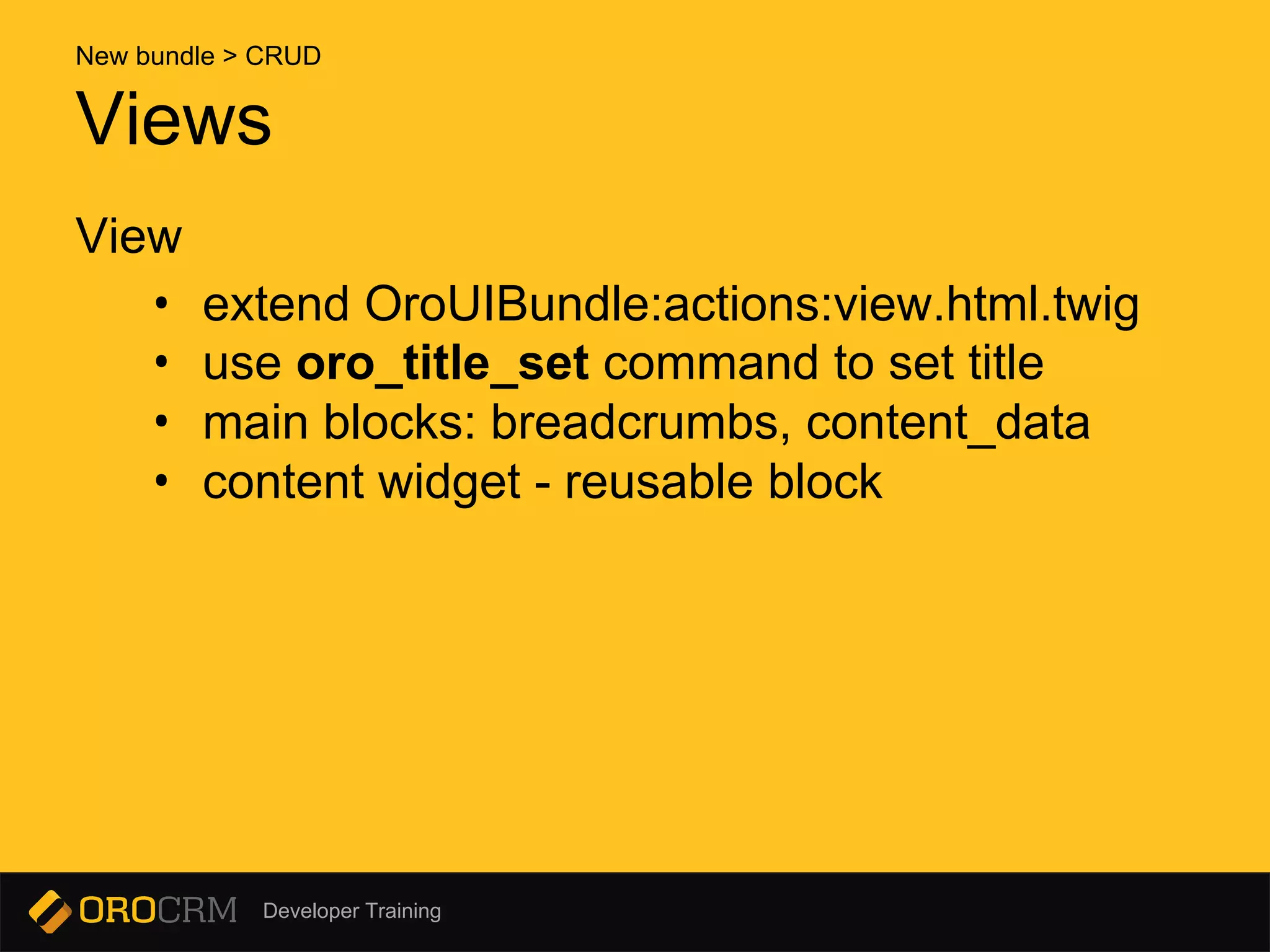

View
• extend OroUIBundle:actions:view.html.twig
• use oro_title_set command to set title
• main blocks: breadcrumbs, content_data
• content widget - reusable block
Views
New bundle > CRUD
21. Developer Training

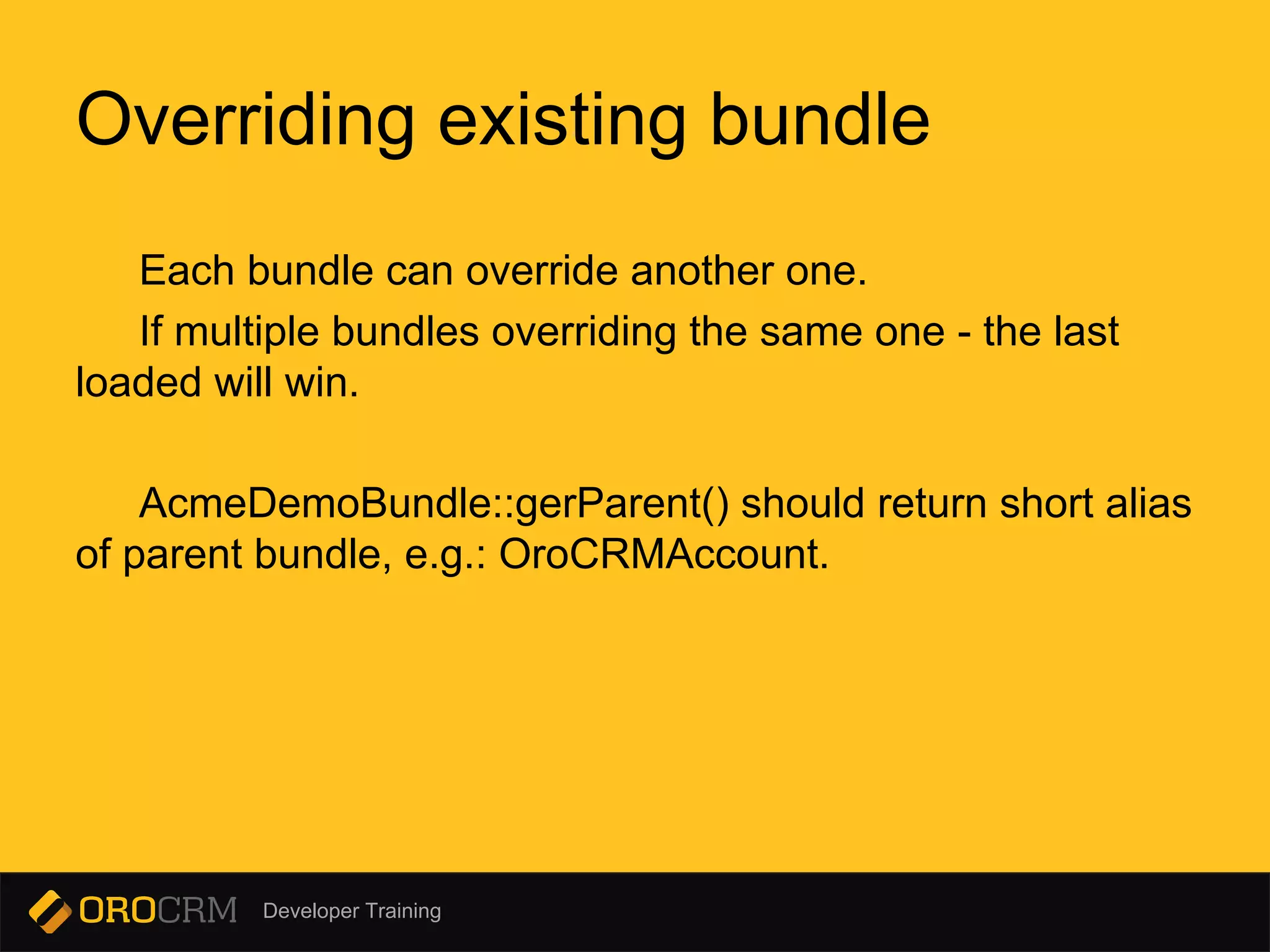

Each bundle can override another one.
If multiple bundles overriding the same one - the last
loaded will win.
AcmeDemoBundle::gerParent() should return short alias
of parent bundle, e.g.: OroCRMAccount.
Overriding existing bundle

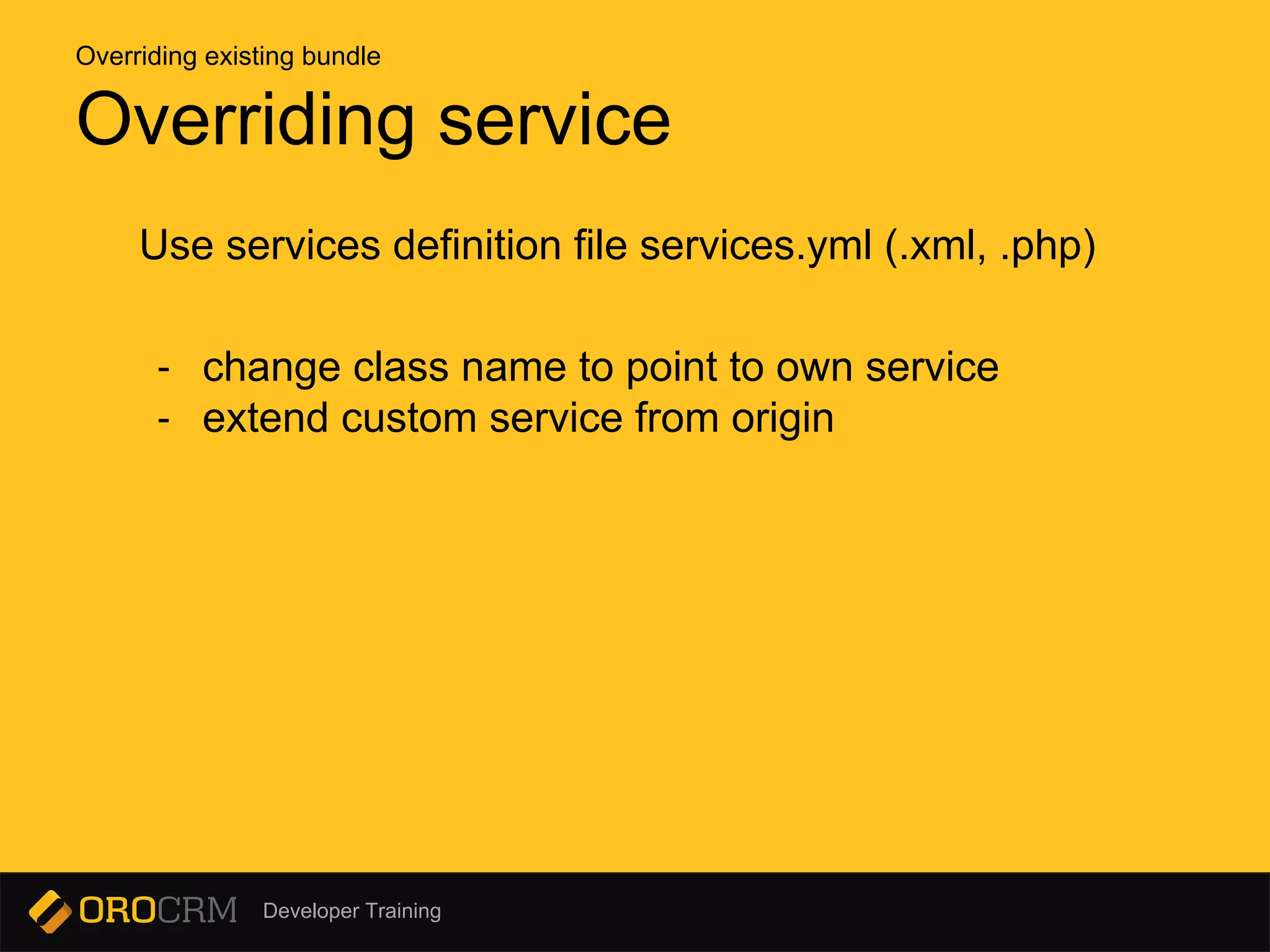

22. Developer Training
Use services definition file services.yml (.xml, .php)
- change class name to point to own service
- extend custom service from origin
Overriding service
Overriding existing bundle

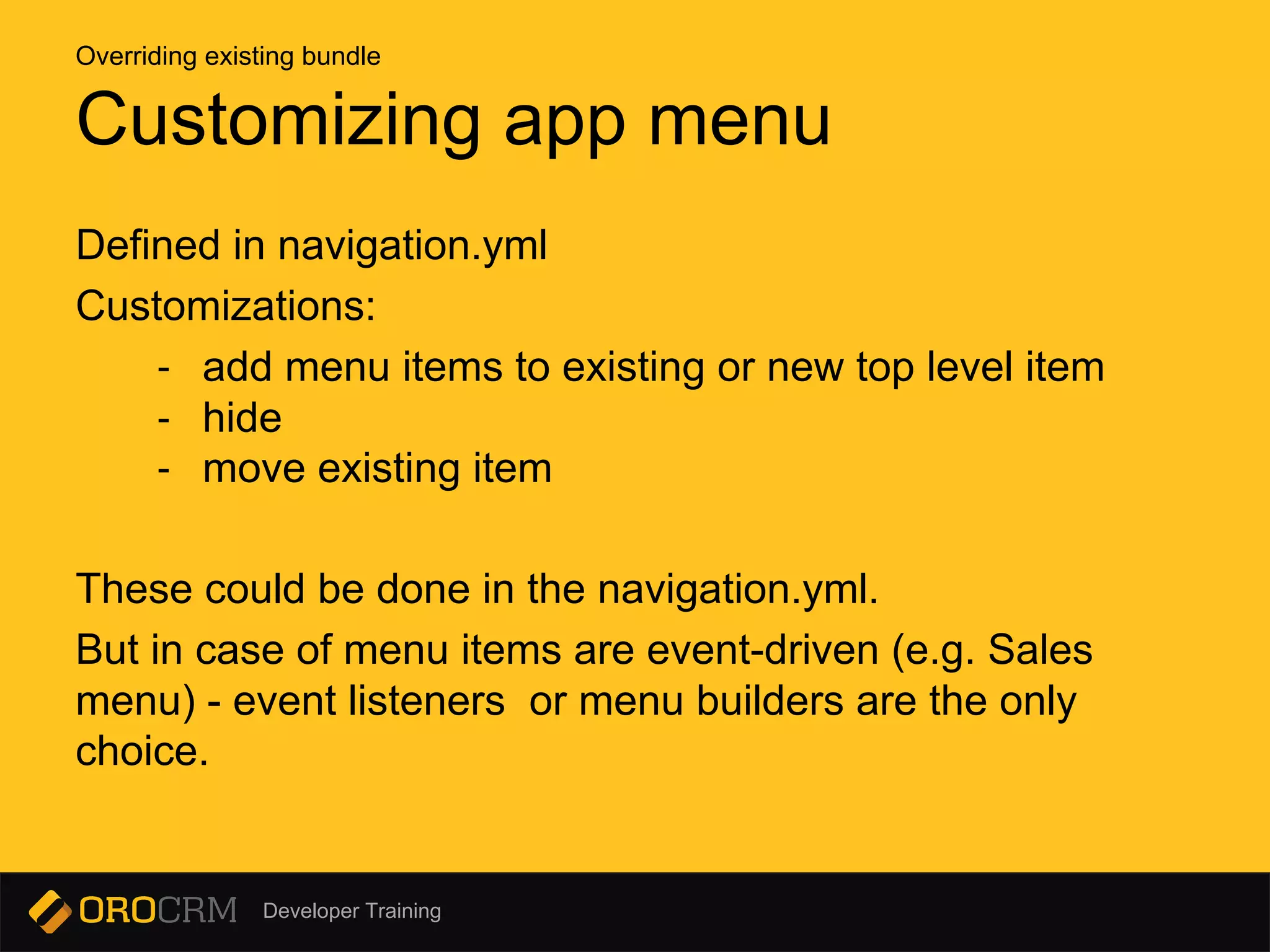

23. Developer Training
Defined in navigation.yml
Customizations:
- add menu items to existing or new top level item
- hide
- move existing item
These could be done in the navigation.yml.
But in case of menu items are event-driven (e.g. Sales
menu) - event listeners or menu builders are the only
choice.
Customizing app menu
Overriding existing bundle
25. Developer Training
Two types of entities:
- regular entity
- Doctrine DBAL Schema to describe changes
- change entity manually
- extended entity
- Doctrine DBAL Schema
- ‘extend’ configuration
- automatically generated code
Migrations are used to add or change fields in existing
entities.
Add fields to existing entities
Overriding existing bundle

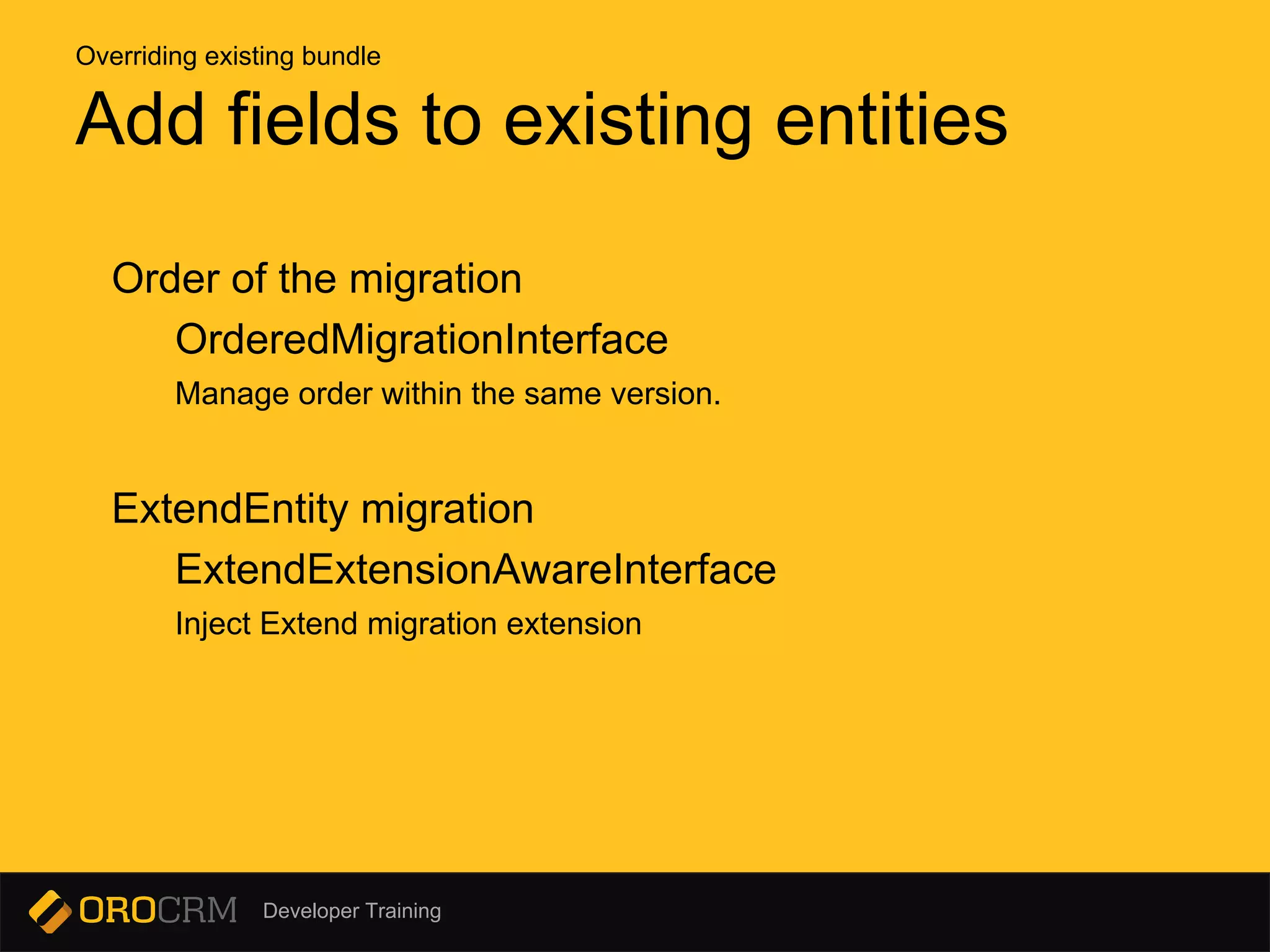

26. Developer Training
Order of the migration
OrderedMigrationInterface
Manage order within the same version.
ExtendEntity migration
ExtendExtensionAwareInterface
Inject Extend migration extension
Add fields to existing entities
Overriding existing bundle

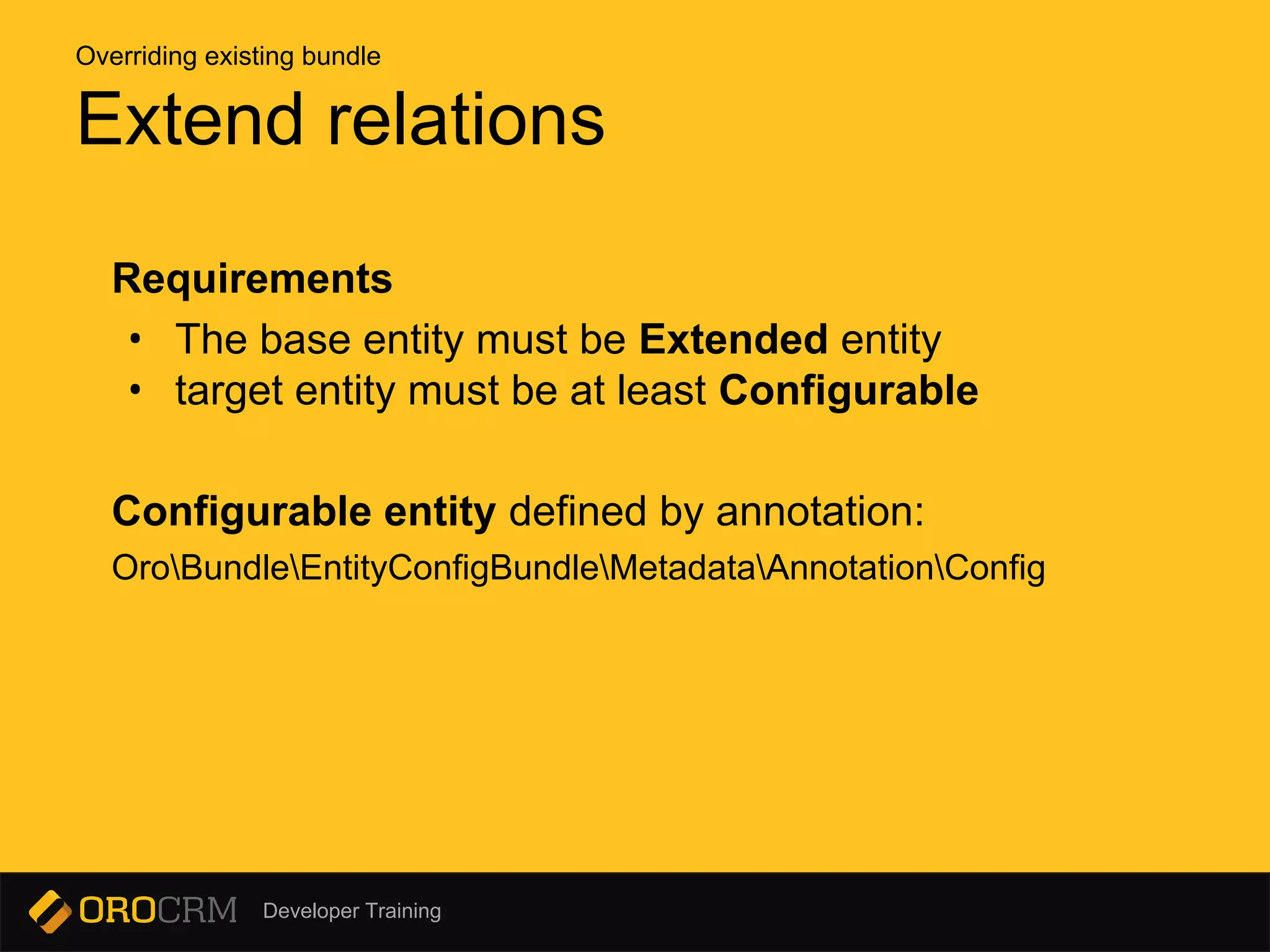

27. Developer Training
Requirements
• The base entity must be Extended entity
• target entity must be at least Configurable
Configurable entity defined by annotation:
OroBundleEntityConfigBundleMetadataAnnotationConfig
Extend relations
Overriding existing bundle
28. Developer Training
Forms override:
- using Symfony form inheritance (Form::getParent)
- form service class name override + class extend
- form extension
Overriding forms and validation
Overriding existing bundle
29. Developer Training
Overriding forms and validation
How to change validation rules?
- Define own validation group
- Form type guesser
Possible only if form item defined in builder without type
Overriding existing bundle

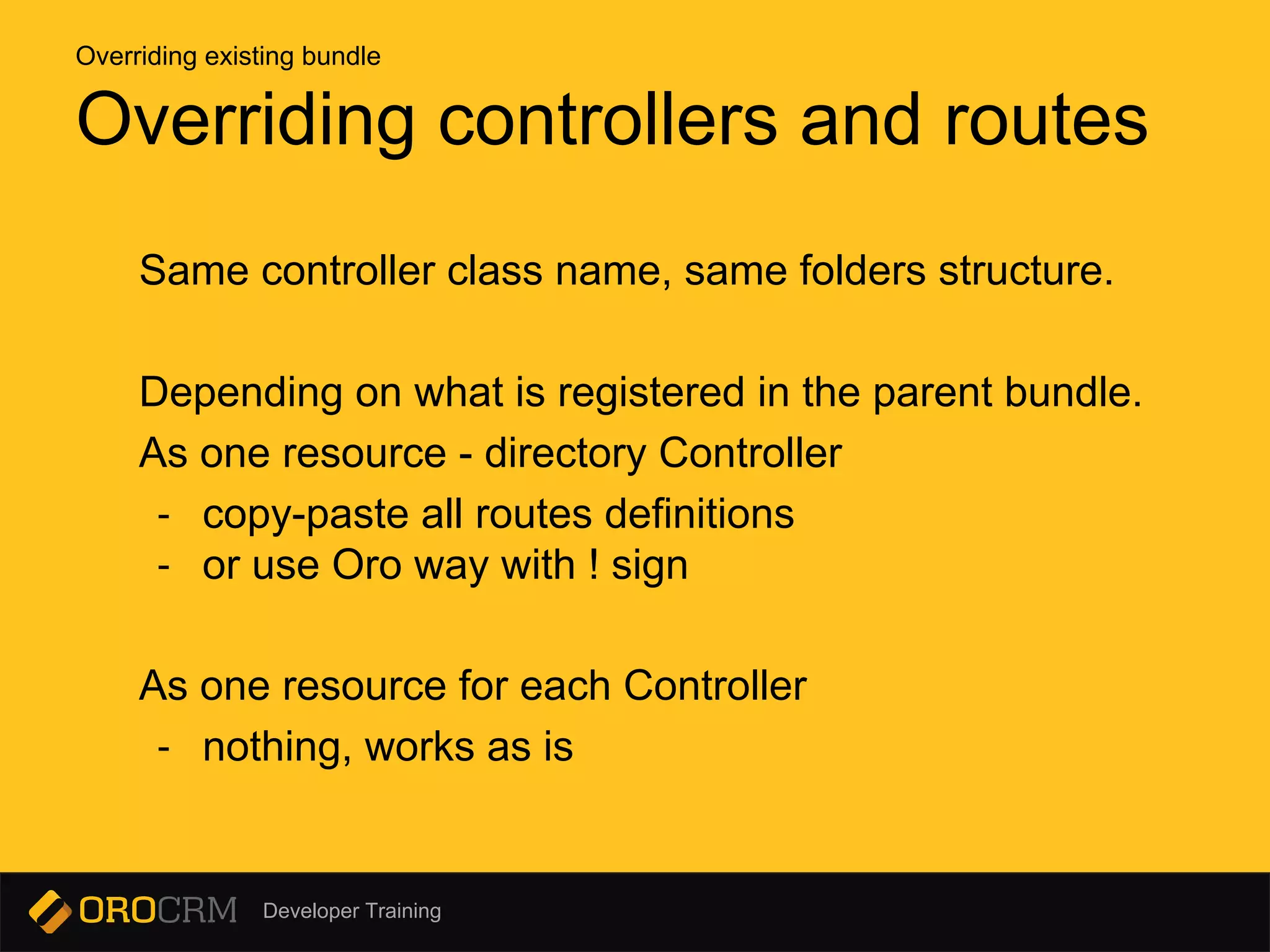

30. Developer Training
Same controller class name, same folders structure.
Depending on what is registered in the parent bundle.
As one resource - directory Controller
- copy-paste all routes definitions
- or use Oro way with ! sign
As one resource for each Controller
- nothing, works as is
Overriding controllers and routes
Overriding existing bundle
31. Developer Training

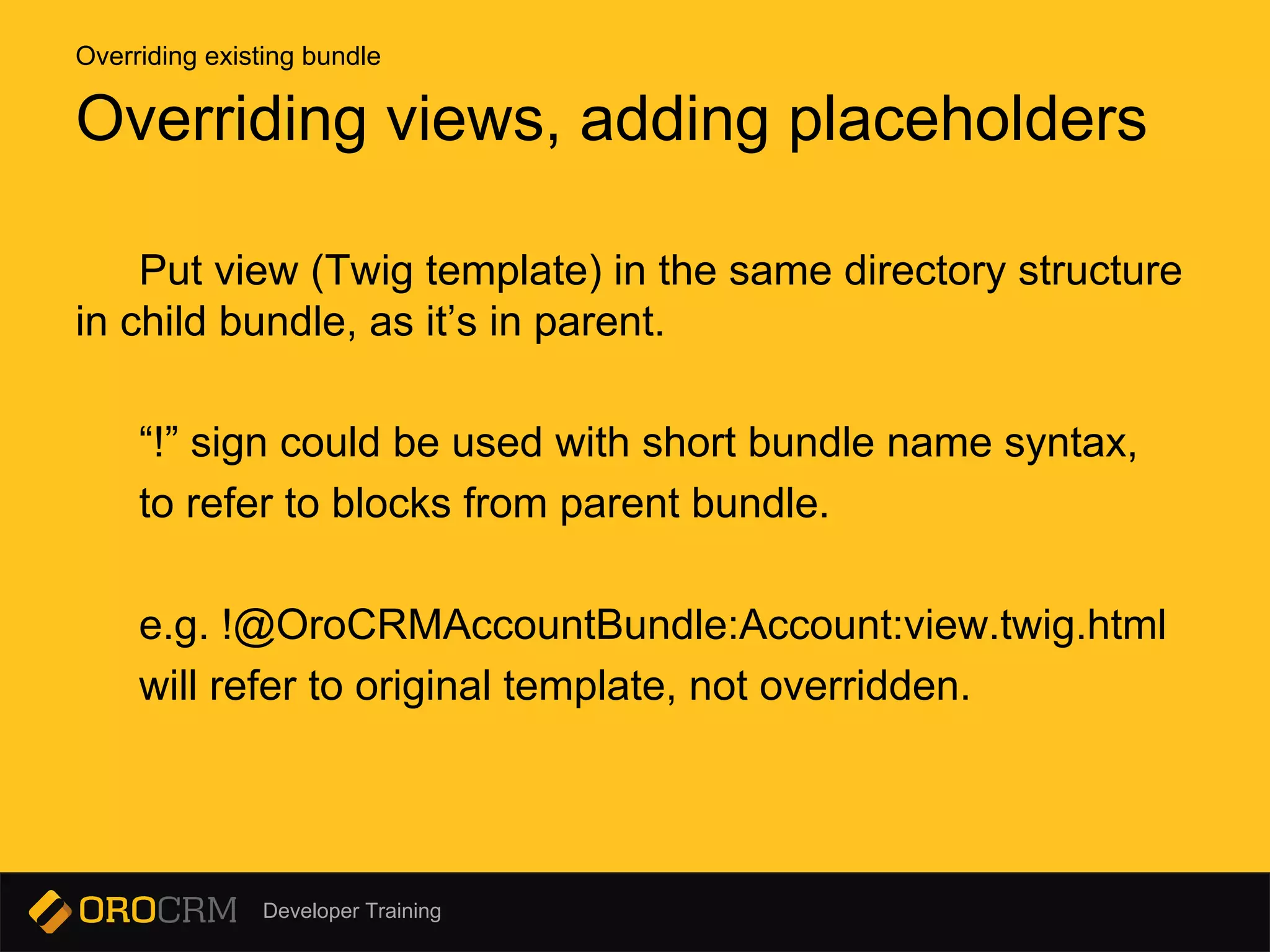

Put view (Twig template) in the same directory structure
in child bundle, as it’s in parent.
“!” sign could be used with short bundle name syntax,
to refer to blocks from parent bundle.
e.g. !@OroCRMAccountBundle:Account:view.twig.html
will refer to original template, not overridden.
Overriding views, adding placeholders
Overriding existing bundle
32. Developer Training

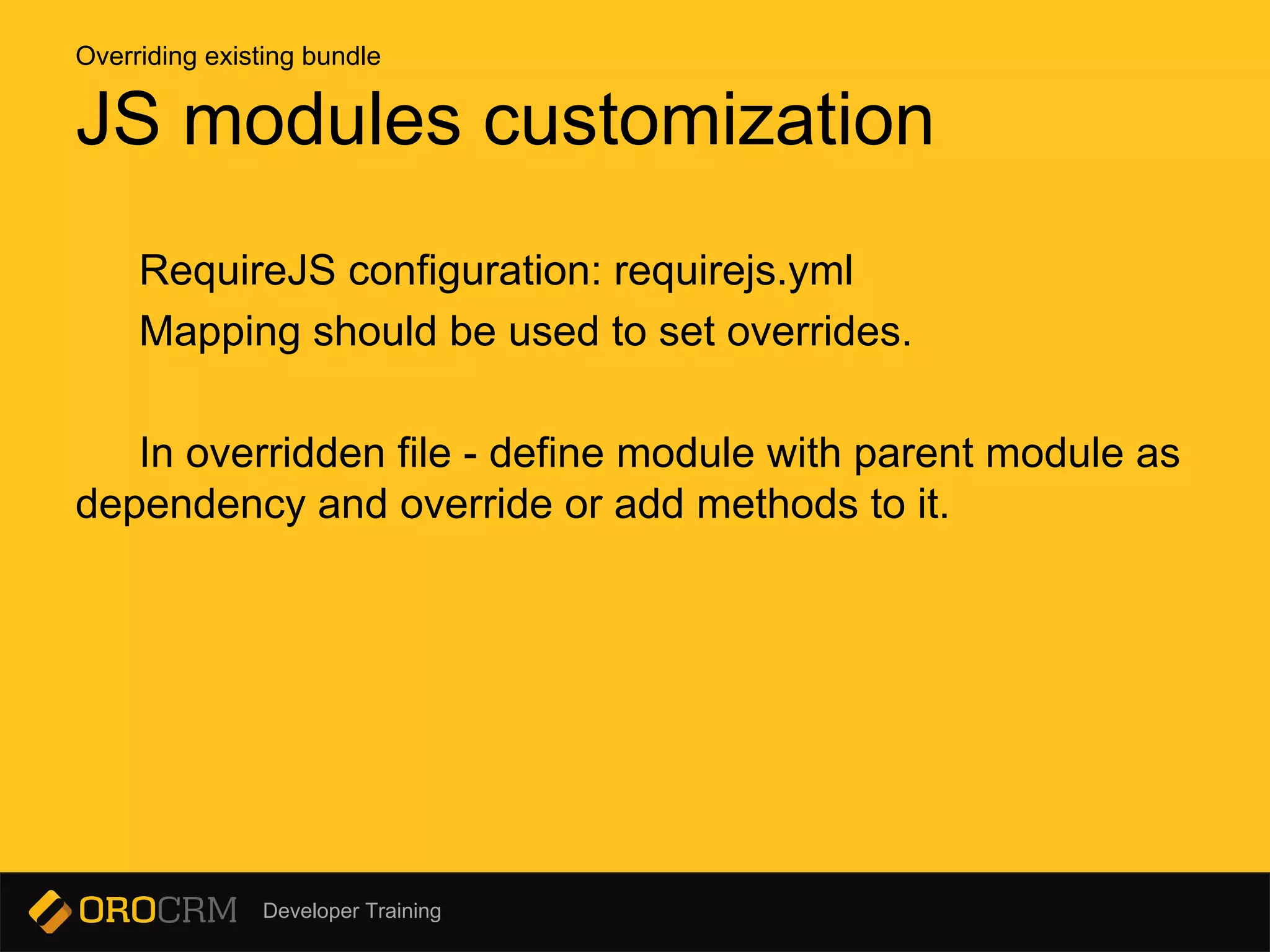

RequireJS configuration: requirejs.yml
Mapping should be used to set overrides.
In overridden file - define module with parent module as
dependency and override or add methods to it.
JS modules customization
Overriding existing bundle

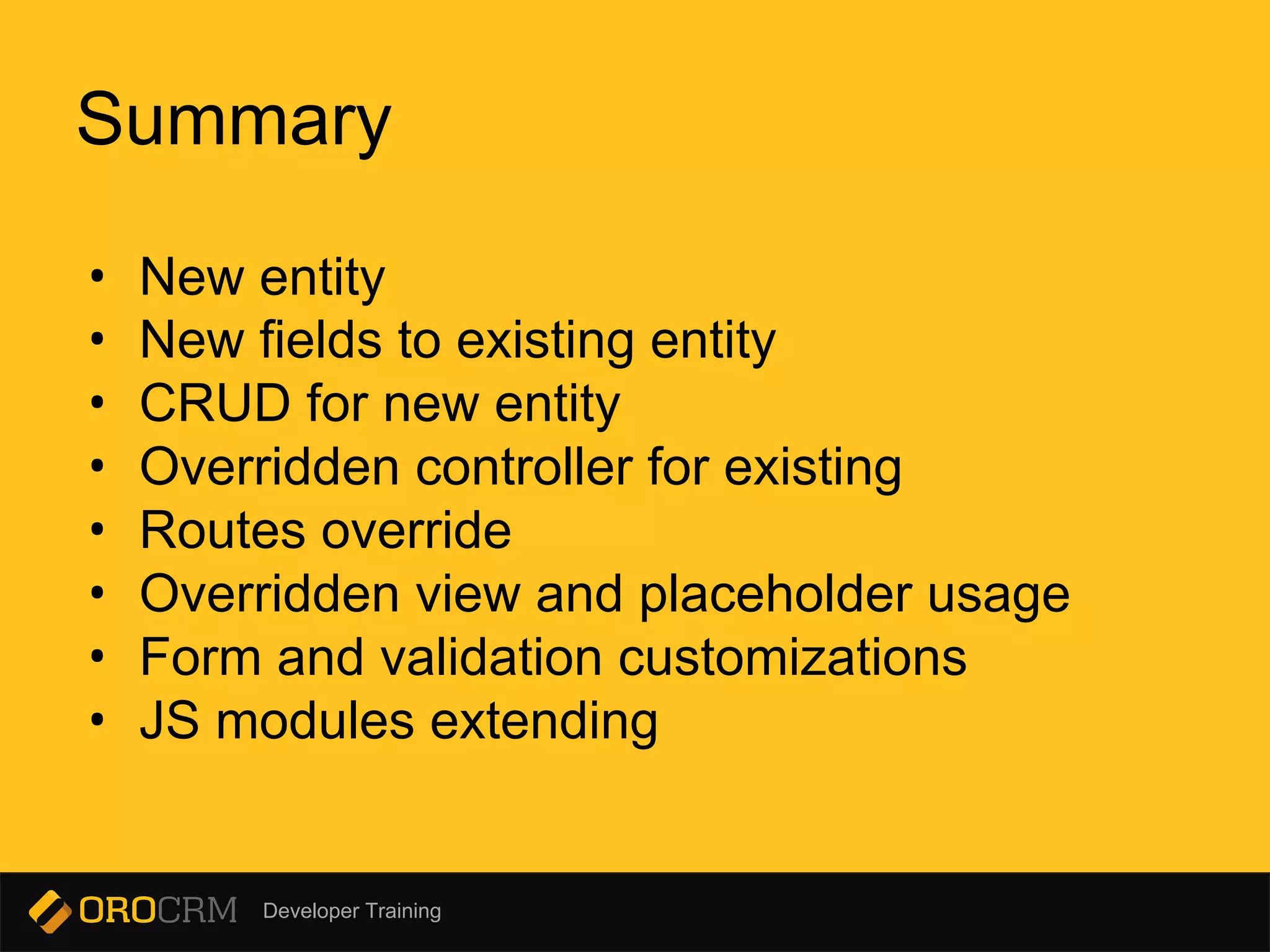

33. Developer Training
• New entity
• New fields to existing entity
• CRUD for new entity
• Overridden controller for existing
• Routes override
• Overridden view and placeholder usage
• Form and validation customizations
• JS modules extending
Summary
