Hybrid storage tiering moves different types of data to the most cost-effective storage tier, whether on-premises or in the cloud. Using Oracle's hybrid storage tiering: - Hot and warm data remains on-premises, while cold and archive data moves to lower-cost storage in Oracle Cloud. - The Oracle Storage Cloud Software Appliance provides a bridge between on-premises and cloud storage, allowing for easy data movement with POSIX compliance. - This hybrid approach lowers overall storage costs by paying only for cloud storage as data is used, versus maintaining all storage on-premises.

1. Oracle Cloud – Hybrid Storage Tiering
Johan Louwers – Johan.Louwers@capgemini.com

2. 2Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Compute
General Purpose
High Performance
Dedicated
Engineered Systems
Network
Software VPN
Hardware VPN
Direct Connect
Networking Bonding
Storage
Object
Block
Archive
High Performance
File
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”
 Oracle IaaS Cloud

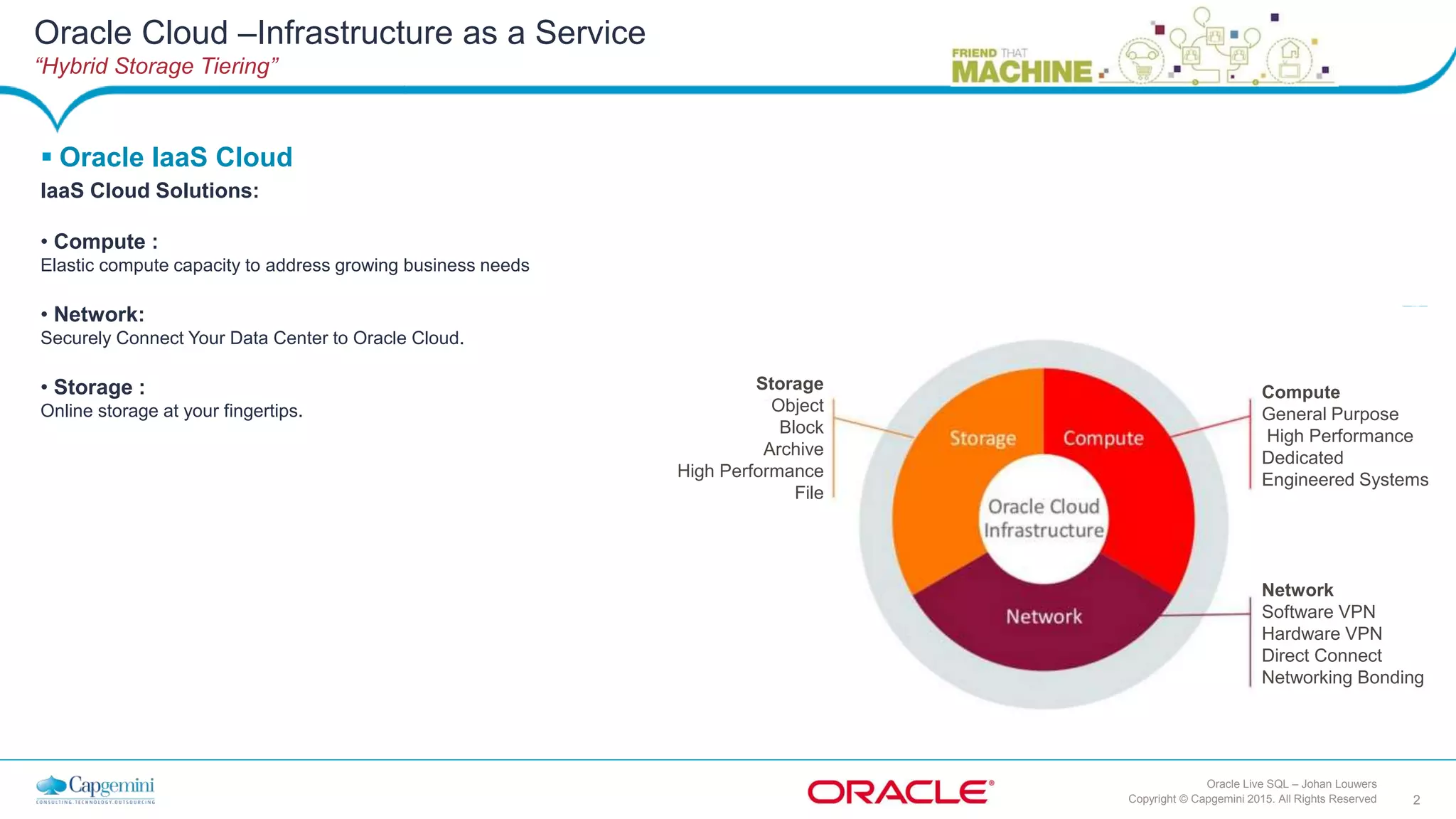

IaaS Cloud Solutions:
• Compute :
Elastic compute capacity to address growing business needs
• Network:
Securely Connect Your Data Center to Oracle Cloud.
• Storage :
Online storage at your fingertips.

3. 3Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Compute
General Purpose
High Performance
Dedicated
Engineered Systems
Network
Software VPN
Hardware VPN
Direct Connect
Networking Bonding
Storage
Object
Block
Archive
High Performance
File
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”
 Oracle Storage Cloud

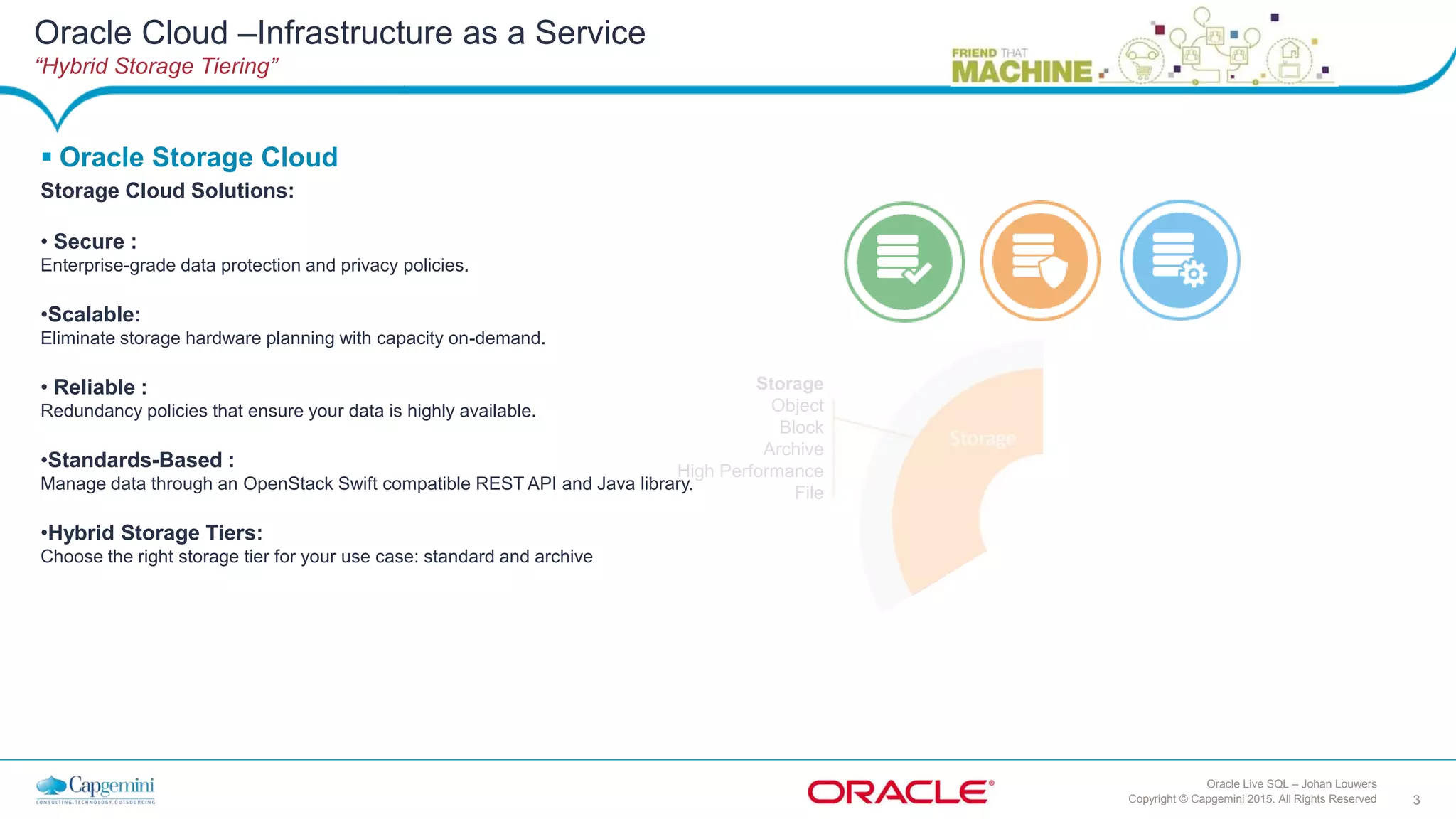

Storage Cloud Solutions:
• Secure :
Enterprise-grade data protection and privacy policies.
•Scalable:
Eliminate storage hardware planning with capacity on-demand.
• Reliable :
Redundancy policies that ensure your data is highly available.
•Standards-Based :
Manage data through an OpenStack Swift compatible REST API and Java library.
•Hybrid Storage Tiers:
Choose the right storage tier for your use case: standard and archive

4. 4Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers

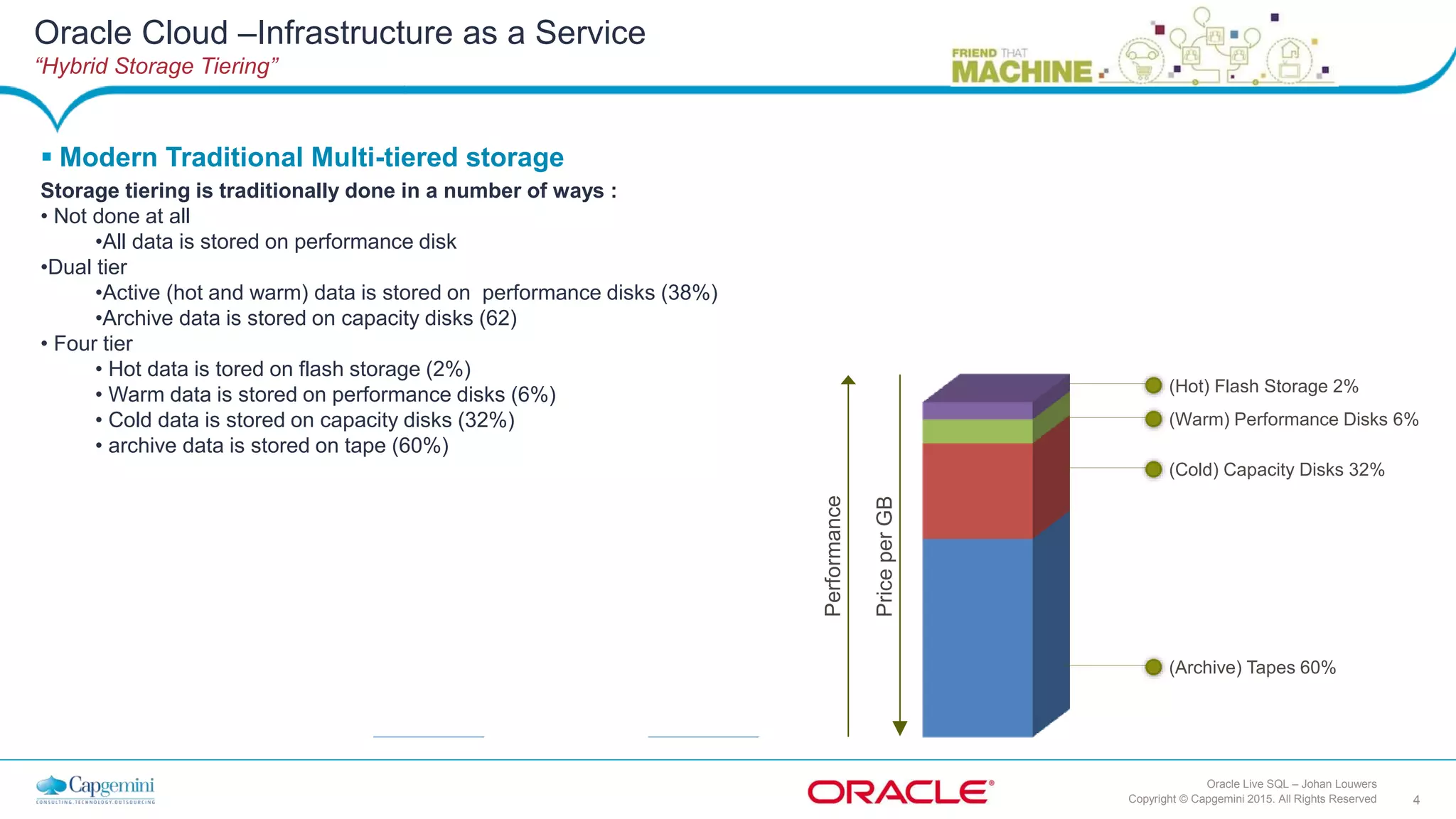

 Modern Traditional Multi-tiered storage
Storage tiering is traditionally done in a number of ways :
• Not done at all
•All data is stored on performance disk
•Dual tier
•Active (hot and warm) data is stored on performance disks (38%)
•Archive data is stored on capacity disks (62)
• Four tier
• Hot data is tored on flash storage (2%)
• Warm data is stored on performance disks (6%)
• Cold data is stored on capacity disks (32%)
• archive data is stored on tape (60%)
(Hot) Flash Storage 2%
(Warm) Performance Disks 6%
(Cold) Capacity Disks 32%
PriceperGB
Performance
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”
(Archive) Tapes 60%

5. 5Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
(Hot) Flash Storage 2%
(Warm) Performance Disks 6%
(Cold) Capacity Disks 32%

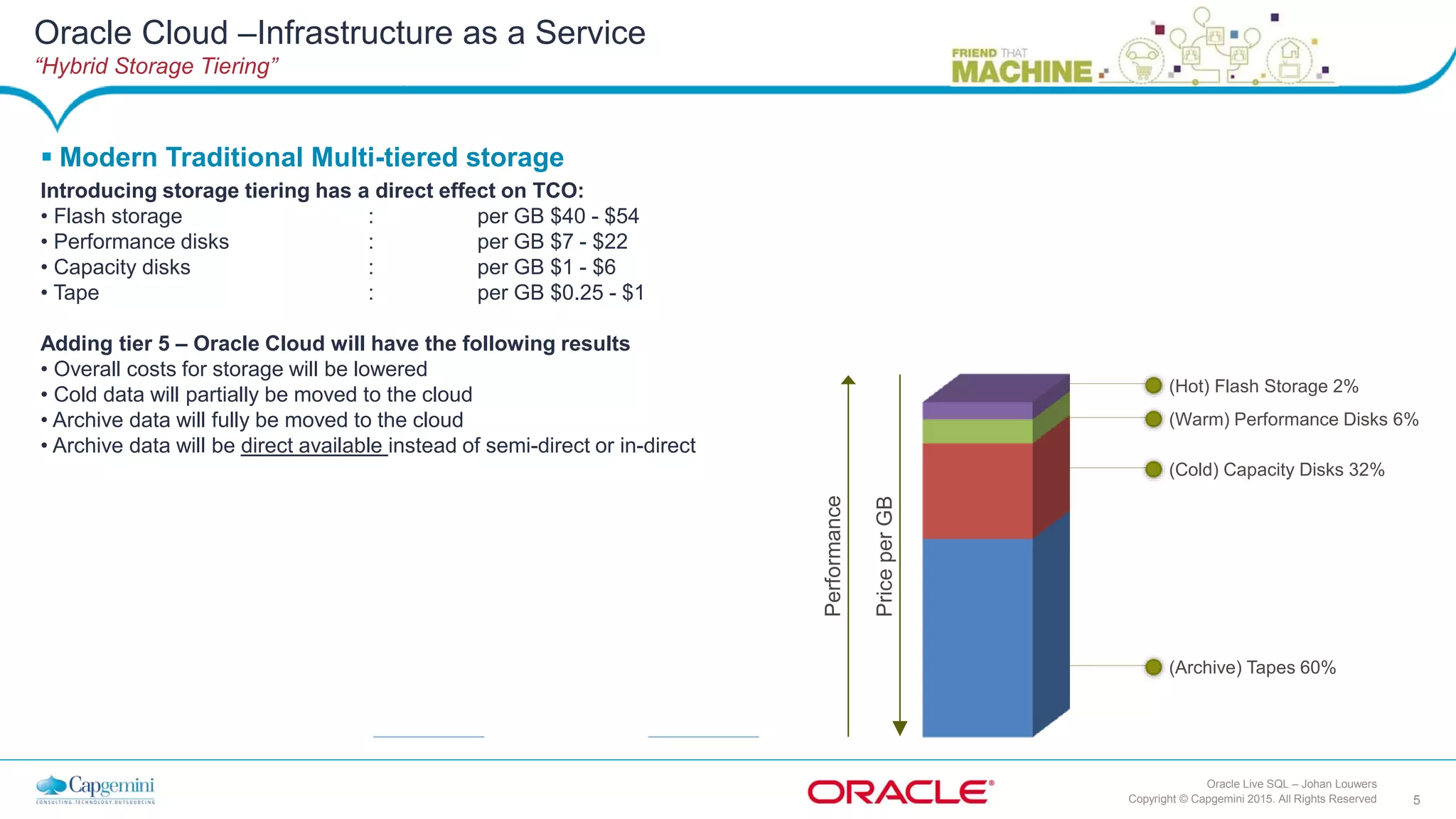

 Modern Traditional Multi-tiered storage
Introducing storage tiering has a direct effect on TCO:
• Flash storage : per GB $40 - $54
• Performance disks : per GB $7 - $22
• Capacity disks : per GB $1 - $6
• Tape : per GB $0.25 - $1
Adding tier 5 – Oracle Cloud will have the following results
• Overall costs for storage will be lowered
• Cold data will partially be moved to the cloud
• Archive data will fully be moved to the cloud
• Archive data will be direct available instead of semi-direct or in-direct
PriceperGB
Performance
(Archive) Tapes 60%
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

6. 6Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
(Hot) Flash Storage 2%
(Warm) Performance Disks 6%
(Cold) Capacity Disks 32% 16%
Cloud 76%
 Modern Traditional Multi-tiered storage

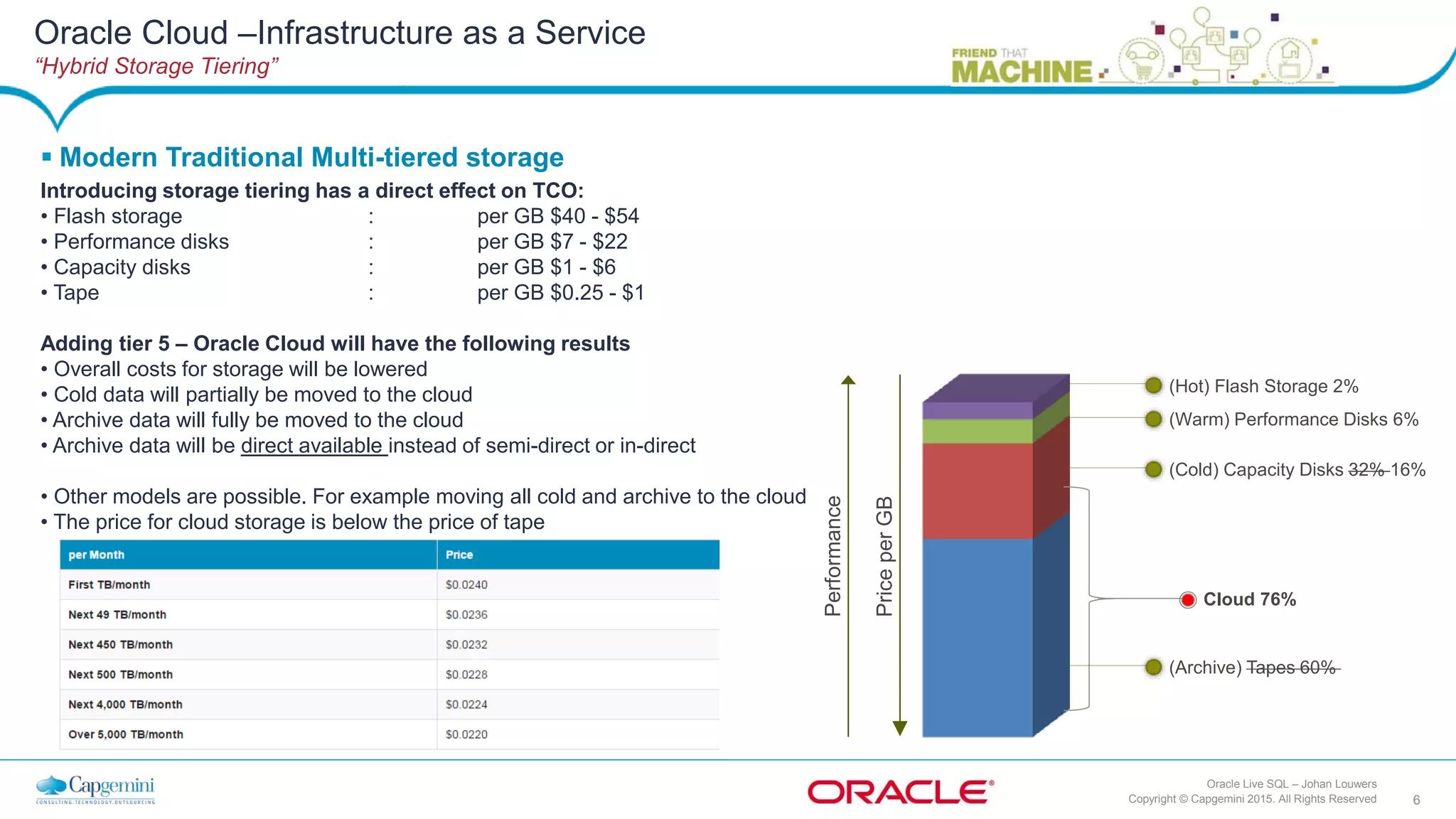

Introducing storage tiering has a direct effect on TCO:
• Flash storage : per GB $40 - $54
• Performance disks : per GB $7 - $22
• Capacity disks : per GB $1 - $6
• Tape : per GB $0.25 - $1
Adding tier 5 – Oracle Cloud will have the following results
• Overall costs for storage will be lowered
• Cold data will partially be moved to the cloud
• Archive data will fully be moved to the cloud
• Archive data will be direct available instead of semi-direct or in-direct
• Other models are possible. For example moving all cold and archive to the cloud
• The price for cloud storage is below the price of tape
PriceperGB
Performance
(Archive) Tapes 60%
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

7. 7Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3 Tier-4
ARCHIVE
Tape
Enterprise Applications
 Traditional Storage tiering

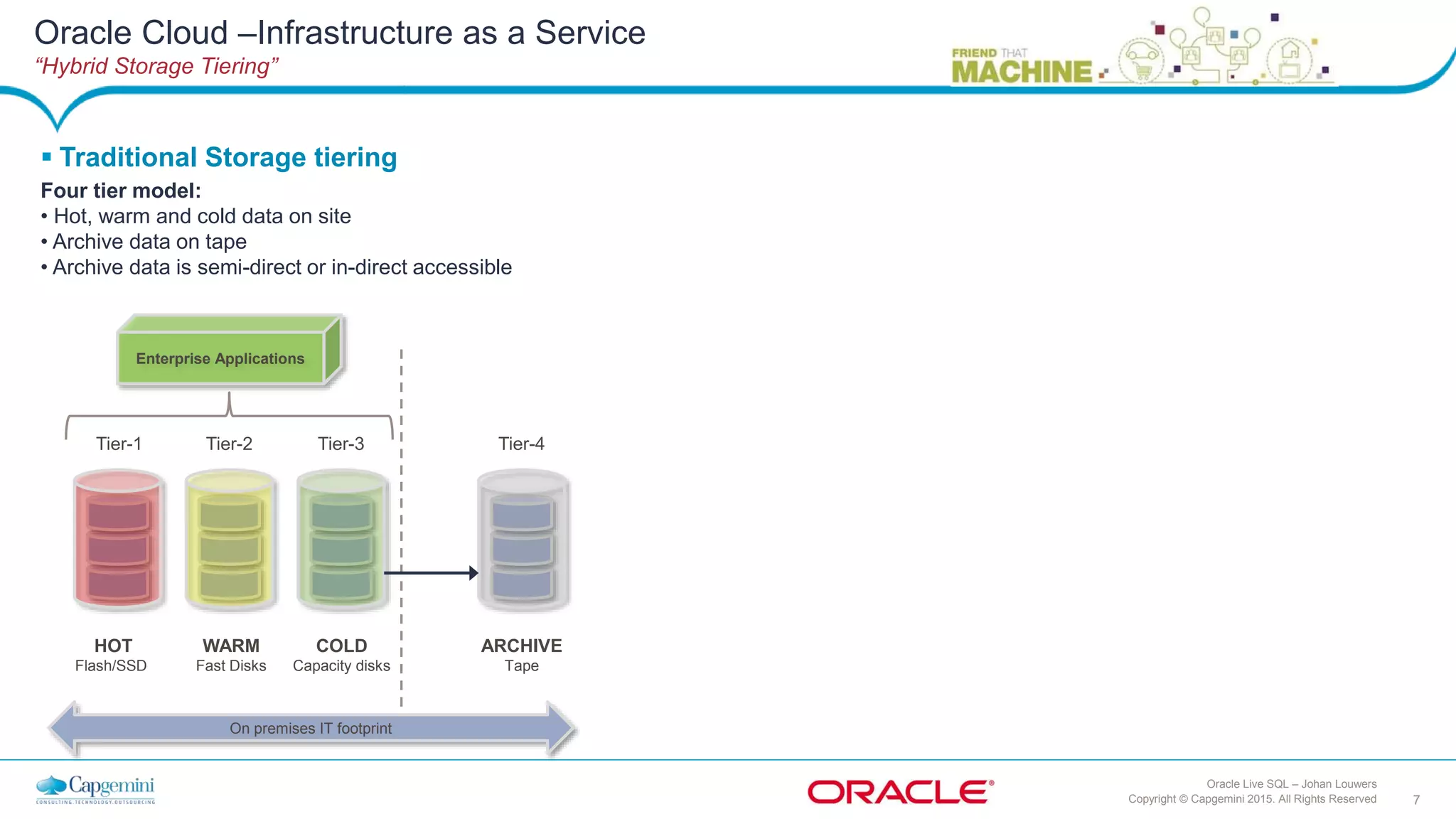

Four tier model:
• Hot, warm and cold data on site
• Archive data on tape
• Archive data is semi-direct or in-direct accessible
On premises IT footprint
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

8. 8Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Oracle Storage Cloud
On premises IT footprint Oracle Cloud

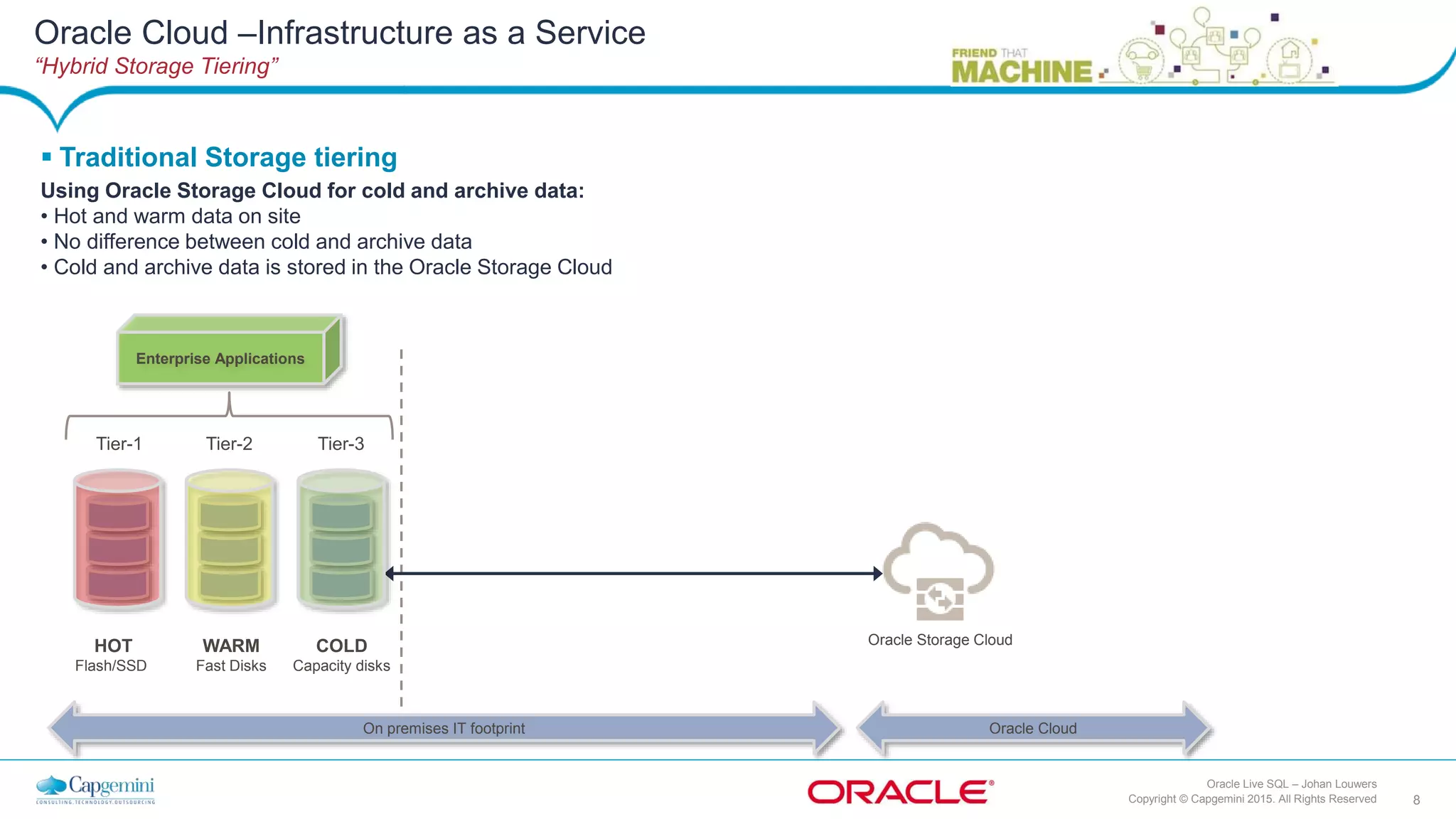

 Traditional Storage tiering
Using Oracle Storage Cloud for cold and archive data:
• Hot and warm data on site
• No difference between cold and archive data
• Cold and archive data is stored in the Oracle Storage Cloud
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

9. 9Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Oracle Storage Cloud
Software ApplianceTier-4
NFSv4
Oracle Storage Cloud
Data Data
HTTP
On premises IT footprint Oracle Cloud

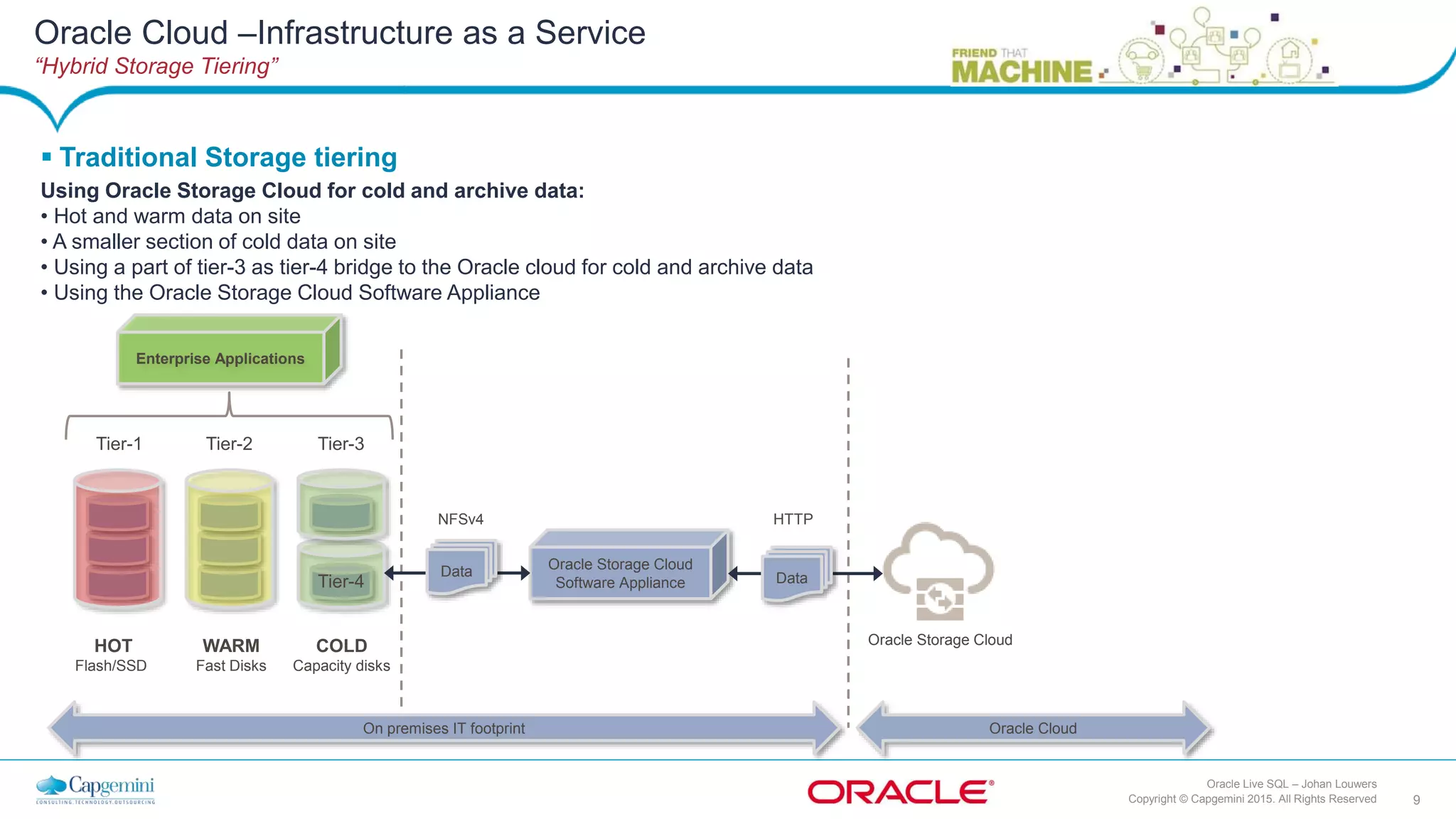

 Traditional Storage tiering
Using Oracle Storage Cloud for cold and archive data:
• Hot and warm data on site
• A smaller section of cold data on site
• Using a part of tier-3 as tier-4 bridge to the Oracle cloud for cold and archive data
• Using the Oracle Storage Cloud Software Appliance
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

10. 10Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Oracle Storage Cloud
Software Appliance
Disk
Cache
FileSystem
(local)
NFSv4
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Oracle Storage Cloud
Data Data
HTTP
On premises IT footprint Oracle Cloud
 Traditional Storage tiering

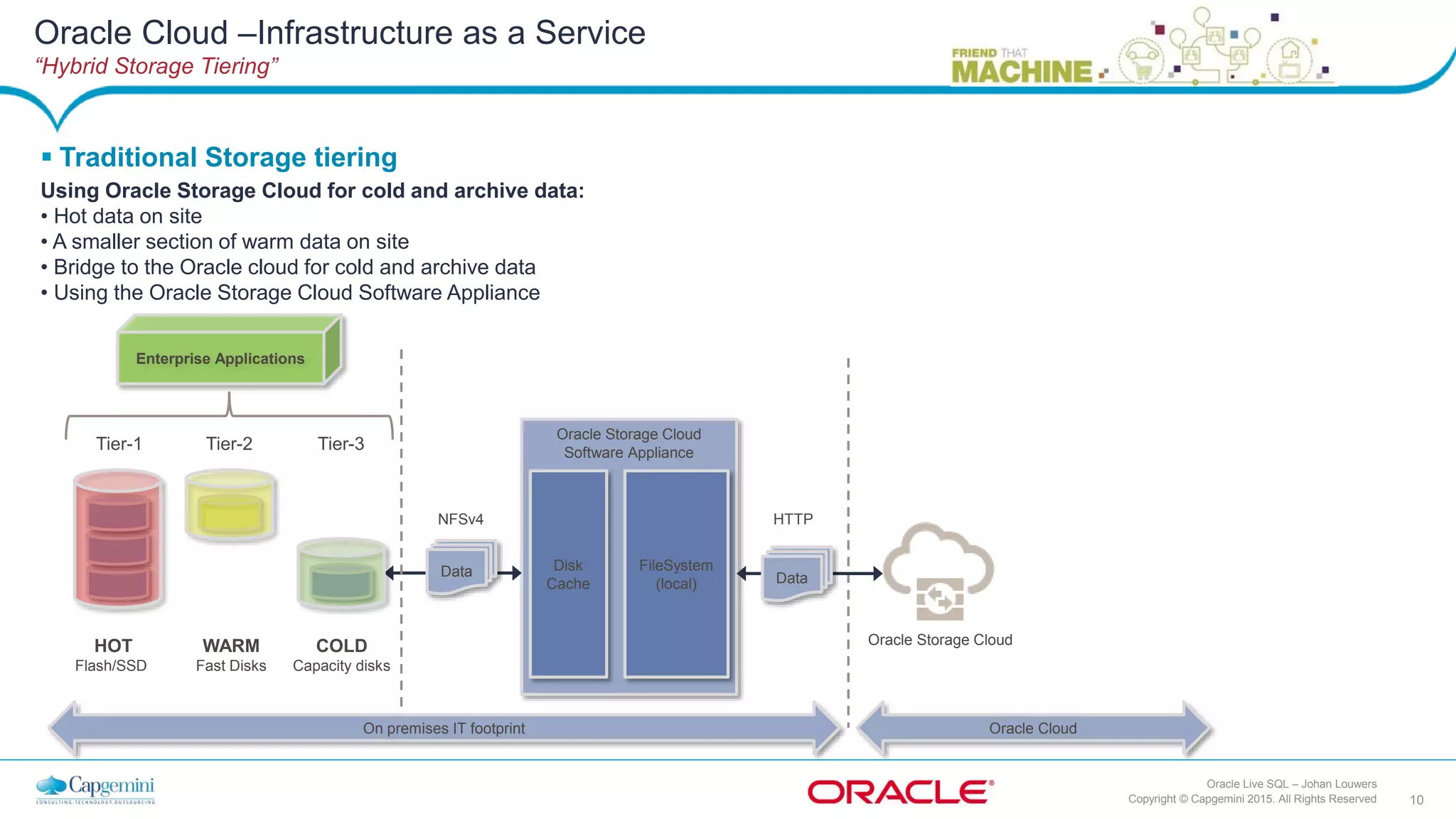

Using Oracle Storage Cloud for cold and archive data:
• Hot data on site
• A smaller section of warm data on site
• Bridge to the Oracle cloud for cold and archive data
• Using the Oracle Storage Cloud Software Appliance
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

11. 11Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Oracle Storage Cloud
Software Appliance
Disk
Cache
FileSystem
(local)
NFSv4
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Data
On premises IT footprint Oracle Cloud
Oracle Storage Cloud Service
REST API Account 1
REST API Account 2
REST API Account n
Data
HTTP

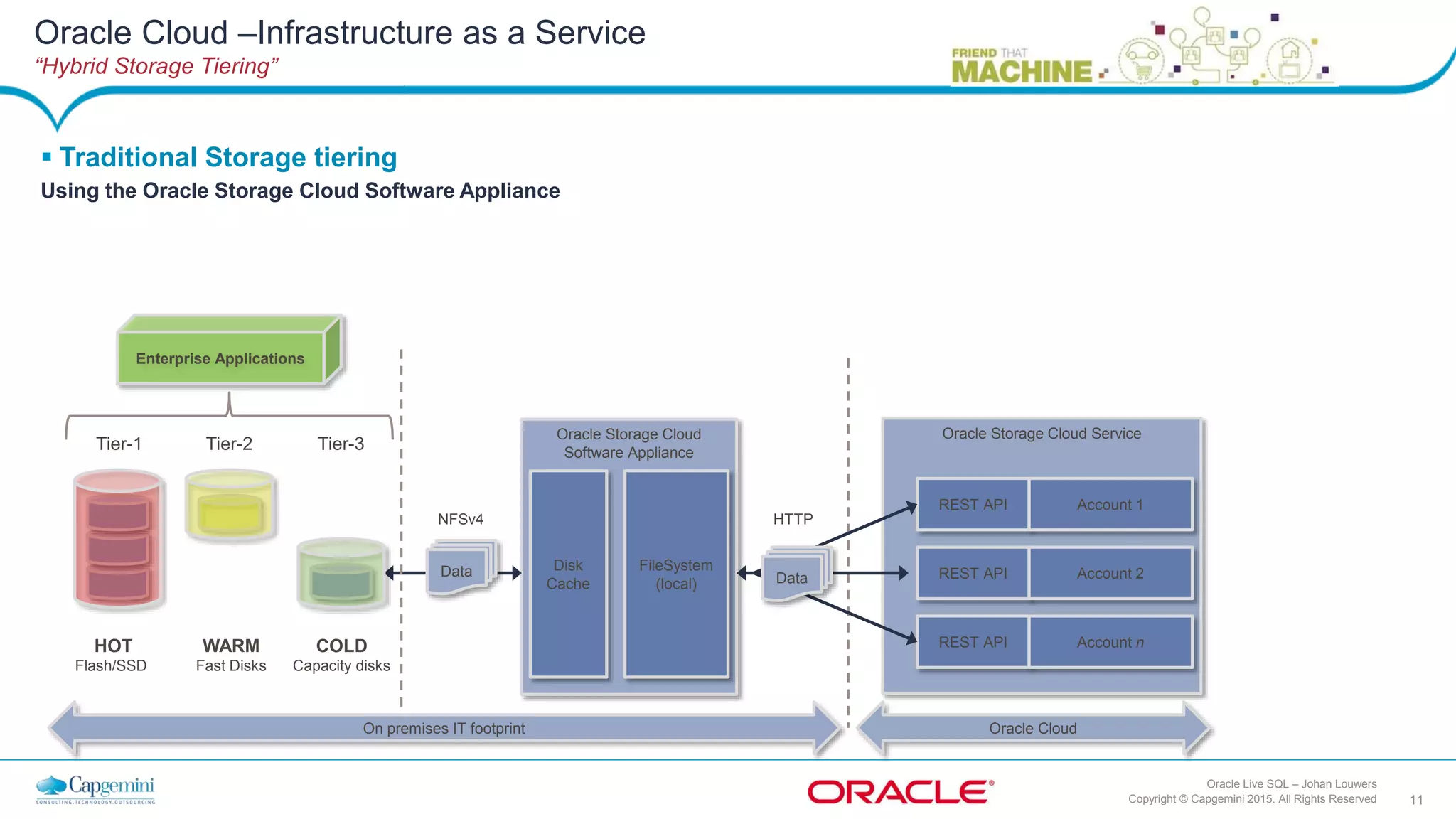

 Traditional Storage tiering
Using the Oracle Storage Cloud Software Appliance
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

12. 12Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Oracle Storage Cloud
Software Appliance
Disk
Cache
FileSystem
(local)
NFSv4
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Data
On premises IT footprint Oracle Cloud
Oracle Storage Cloud Service
REST API Account 1
REST API Account 2
REST API Account n
Data
HTTP

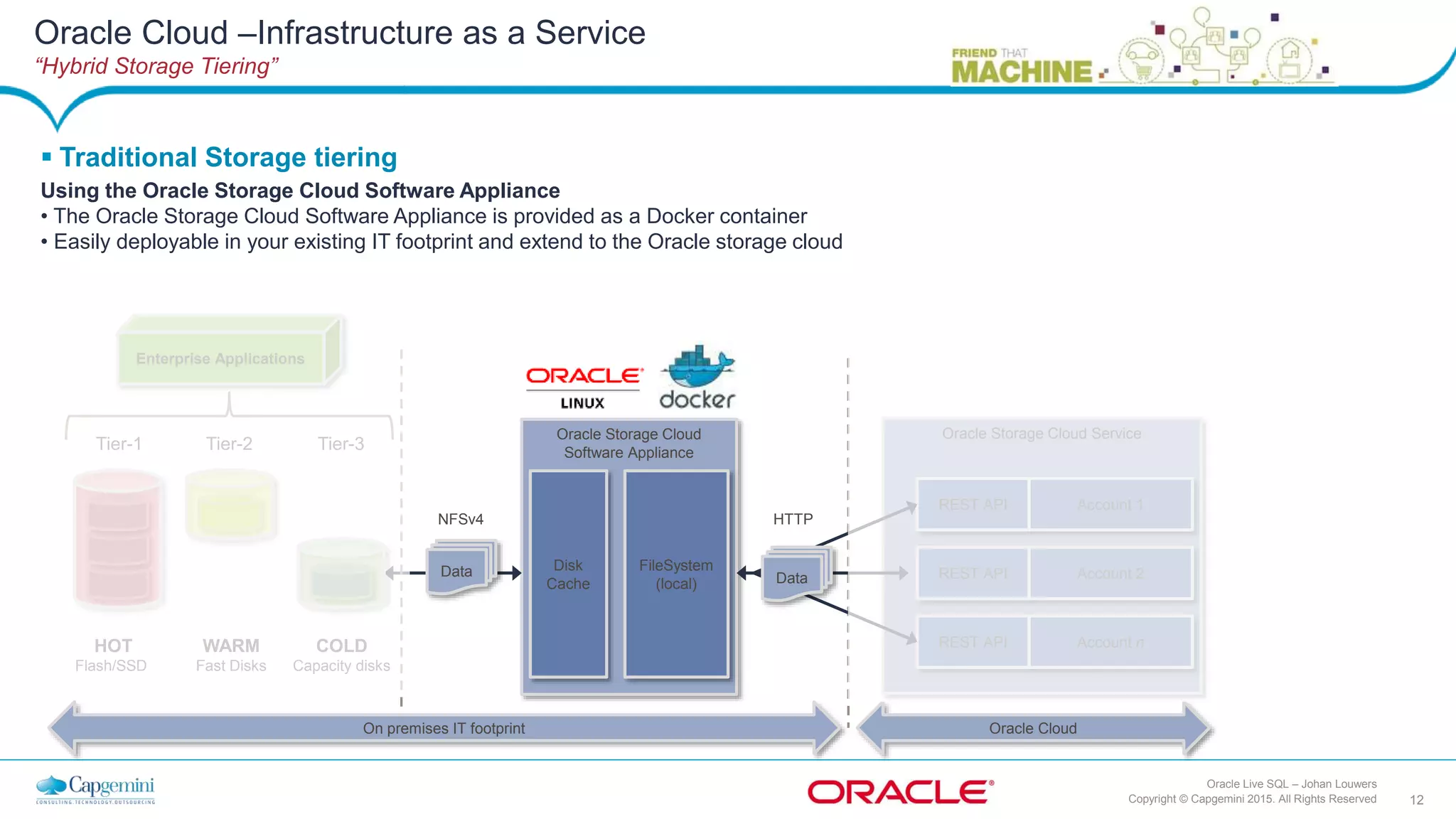

 Traditional Storage tiering
Using the Oracle Storage Cloud Software Appliance
• The Oracle Storage Cloud Software Appliance is provided as a Docker container
• Easily deployable in your existing IT footprint and extend to the Oracle storage cloud
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”

13. 13Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Oracle Storage Cloud
Software Appliance
Disk
Cache
FileSystem
(local)
NFSv4
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Data
On premises IT footprint Oracle Cloud
Oracle Storage Cloud Service
REST API Account 1
REST API Account 2
REST API Account n
Data
HTTP
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”
 Traditional Storage tiering

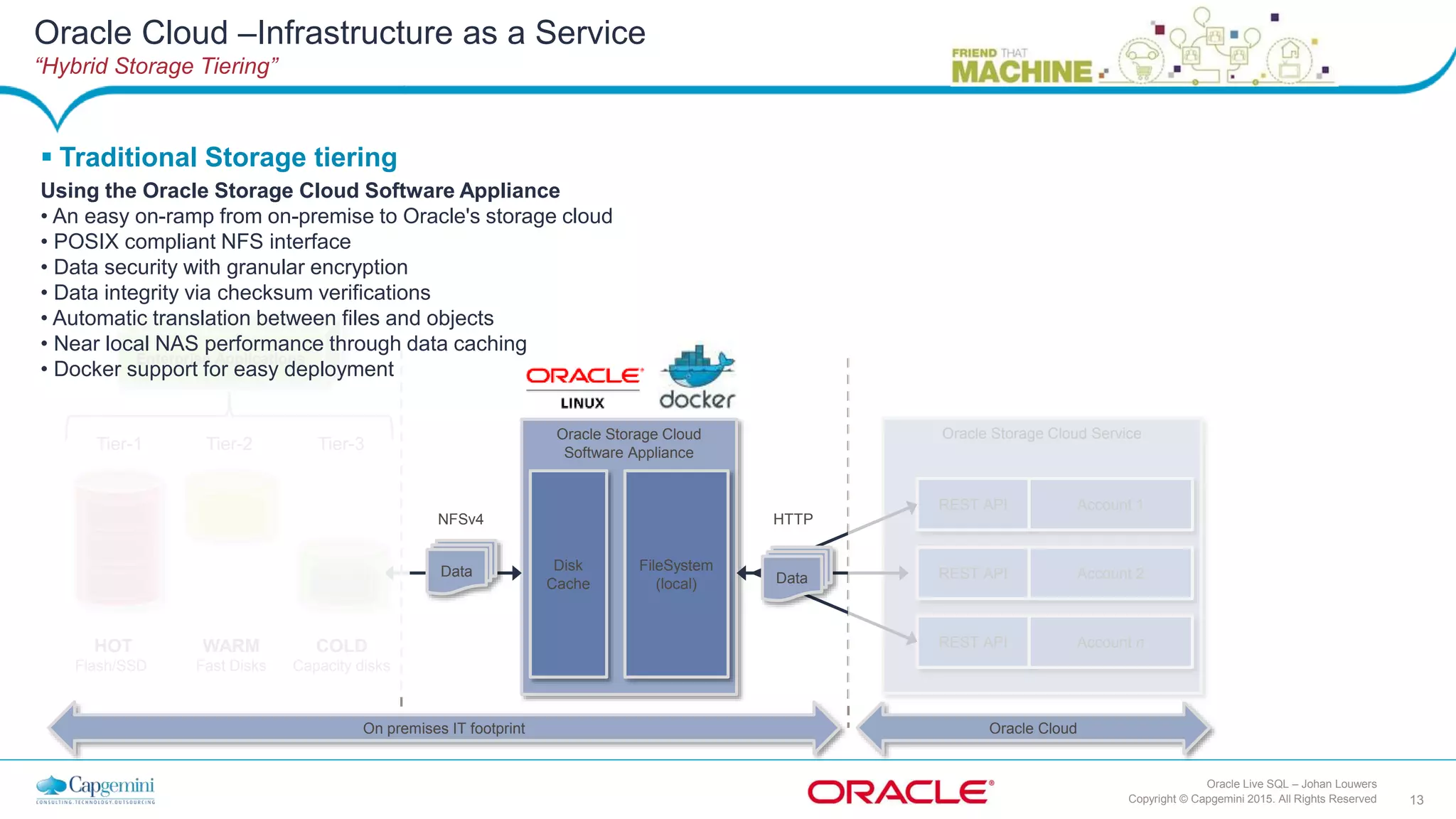

Using the Oracle Storage Cloud Software Appliance
• An easy on-ramp from on-premise to Oracle's storage cloud
• POSIX compliant NFS interface
• Data security with granular encryption
• Data integrity via checksum verifications
• Automatic translation between files and objects
• Near local NAS performance through data caching
• Docker support for easy deployment

14. 14Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Oracle Storage Cloud
Software Appliance
Disk
Cache
FileSystem
(local)
NFSv4
HOT
Flash/SSD
WARM
Fast Disks
COLD
Capacity disks
Tier-1 Tier-2 Tier-3
Enterprise Applications
Data
On premises IT footprint Oracle Cloud
Oracle Storage Cloud Service
REST API Account 1
REST API Account 2
REST API Account n
Data
HTTP
 Traditional Storage tiering

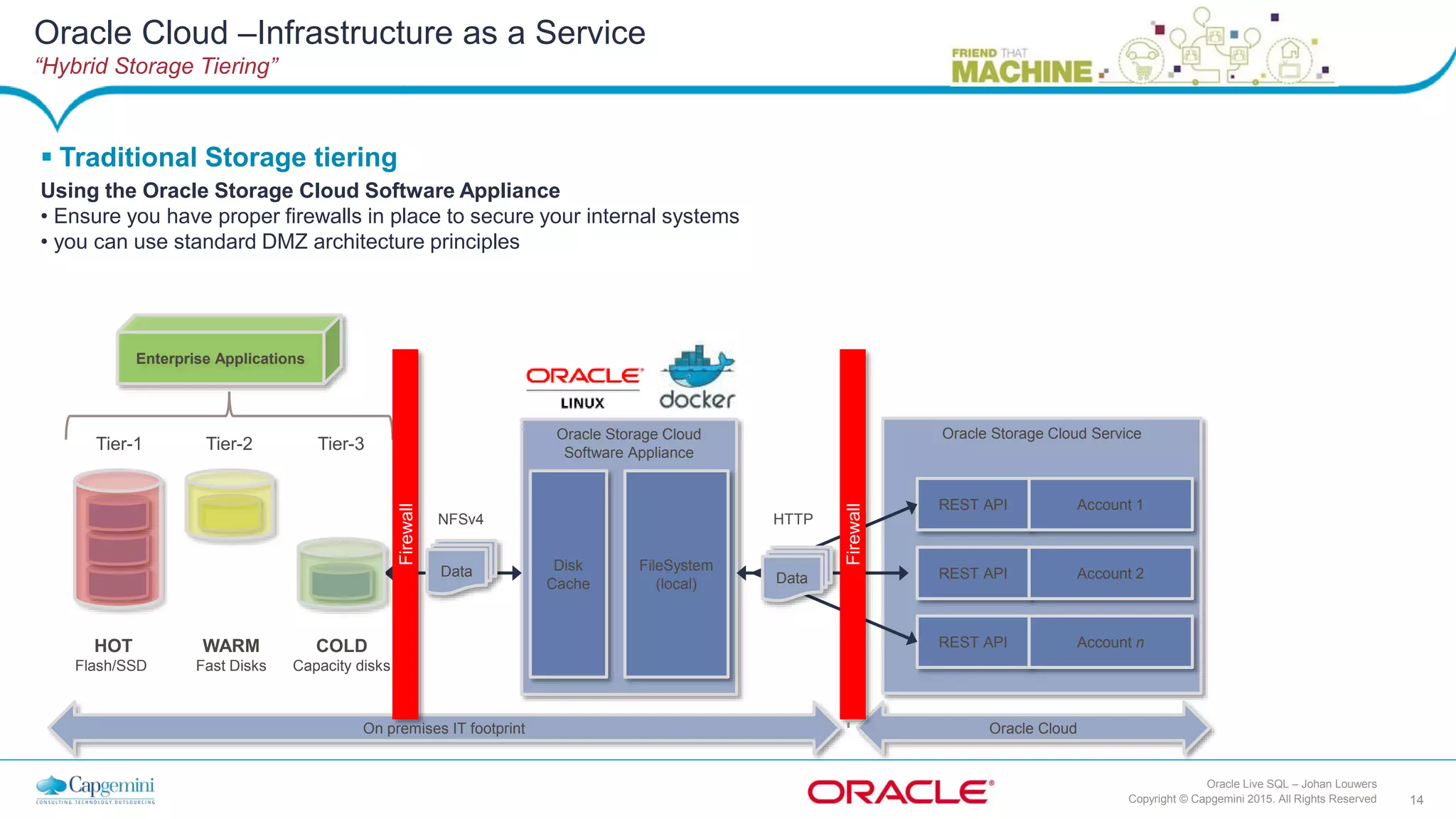

Using the Oracle Storage Cloud Software Appliance
• Ensure you have proper firewalls in place to secure your internal systems
• you can use standard DMZ architecture principles
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”
Firewall
Firewall

15. 15Copyright © Capgemini 2015. All Rights Reserved
Oracle Live SQL – Johan Louwers
Oracle Cloud –Infrastructure as a Service
“Hybrid Storage Tiering”
 In conclusion
Building the next generation of storage tiering solutions
• Extend to the cloud
• Make all storage realtime available and no longer on tape
• Lower the overall costs for storing data
• Pay per use for storage in the cloud
• Easy and quick implementation thanks to Docker containers
