This document discusses how to resolve the ORA-14098 "index mismatch" error that can occur when performing an ALTER TABLE EXCHANGE PARTITION operation. The error is caused when the indexes on the partitioned table do not match the indexes on the non-partitioned table. It provides steps to use tracing to identify the mismatched indexes, compare the indexes on both tables, and ways to work around the issue such as disabling or dropping indexes.

1. 解决 ORA-14098 分区交换
索引不匹配错误
by Maclean.liu
liu.maclean@gmail.com
www.oracledatabase12g.com
o
w
n
e
r
=
'
&
O
W
N
E
R
1
'

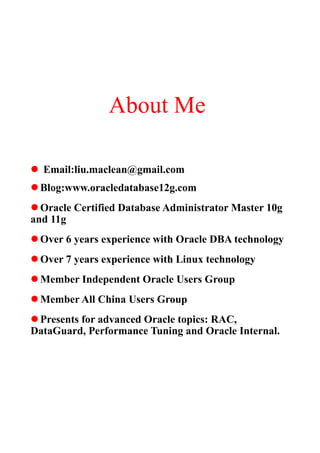

2. About Me
l Email:liu.maclean@gmail.com
l Blog:www.oracledatabase12g.com
l Oracle Certified Database Administrator Master 10g
and 11g
l Over 6 years experience with Oracle DBA technology
l Over 7 years experience with Linux technology
l Member Independent Oracle Users Group
l Member All China Users Group
l Presents for advanced Oracle topics: RAC,
DataGuard, Performance Tuning and Oracle Internal.

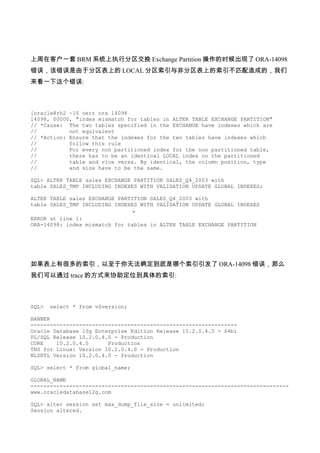

3. 上周在客户一套 BRM 系统上执行分区交换 Exchange Partition 操作的时候出现了 ORA-14098
错误，该错误是由于分区表上的 LOCAL 分区索引与非分区表上的索引不匹配造成的，我们
来看一下这个错误:
[oracle@rh2 ~]$ oerr ora 14098
14098, 00000, "index mismatch for tables in ALTER TABLE EXCHANGE PARTITION"
// *Cause: The two tables specified in the EXCHANGE have indexes which are
// not equivalent
// *Action: Ensure that the indexes for the two tables have indexes which
// follow this rule
// For every non partitioned index for the non partitioned table,
// there has to be an identical LOCAL index on the partitioned
// table and vice versa. By identical, the column position, type
// and size have to be the same.
SQL> ALTER TABLE sales EXCHANGE PARTITION SALES_Q4_2003 with
table SALES_TMP INCLUDING INDEXES WITH VALIDATION UPDATE GLOBAL INDEXES;
ALTER TABLE sales EXCHANGE PARTITION SALES_Q4_2003 with
table SALES_TMP INCLUDING INDEXES WITH VALIDATION UPDATE GLOBAL INDEXES
*
ERROR at line 1:
ORA-14098: index mismatch for tables in ALTER TABLE EXCHANGE PARTITION
如果表上有很多的索引，以至于你无法确定到底是哪个索引引发了 ORA-14098 错误，那么
我们可以通过 trace 的方式来协助定位到具体的索引:
SQL> select * from v$version;
BANNER
----------------------------------------------------------------
Oracle Database 10g Enterprise Edition Release 10.2.0.4.0 - 64bi
PL/SQL Release 10.2.0.4.0 - Production
CORE 10.2.0.4.0 Production
TNS for Linux: Version 10.2.0.4.0 - Production
NLSRTL Version 10.2.0.4.0 - Production
SQL> select * from global_name;
GLOBAL_NAME
--------------------------------------------------------------------------------
www.oracledatabase12g.com
SQL> alter session set max_dump_file_size = unlimited;
Session altered.

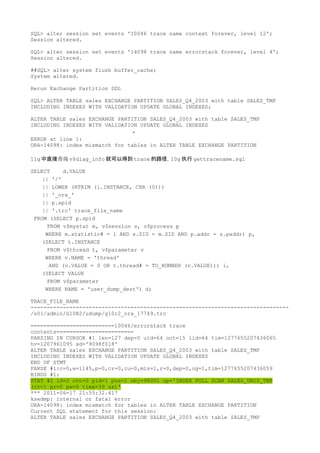

4. SQL> alter session set events '10046 trace name context forever, level 12';
Session altered.
SQL> alter session set events '14098 trace name errorstack forever, level 4';
Session altered.
##SQL> alter system flush buffer_cache;
System altered.
Rerun Exchange Partition DDL
SQL> ALTER TABLE sales EXCHANGE PARTITION SALES_Q4_2003 with table SALES_TMP
INCLUDING INDEXES WITH VALIDATION UPDATE GLOBAL INDEXES;
ALTER TABLE sales EXCHANGE PARTITION SALES_Q4_2003 with table SALES_TMP
INCLUDING INDEXES WITH VALIDATION UPDATE GLOBAL INDEXES
*
ERROR at line 1:
ORA-14098: index mismatch for tables in ALTER TABLE EXCHANGE PARTITION
11g 中直接查询 v$diag_info 就可以得到 trace 的路径，10g 执行 gettracename.sql
SELECT d.VALUE
|| '/'
|| LOWER (RTRIM (i.INSTANCE, CHR (0)))
|| '_ora_'
|| p.spid
|| '.trc' trace_file_name
FROM (SELECT p.spid
FROM v$mystat m, v$session s, v$process p
WHERE m.statistic# = 1 AND s.SID = m.SID AND p.addr = s.paddr) p,
(SELECT t.INSTANCE
FROM v$thread t, v$parameter v
WHERE v.NAME = 'thread'
AND (v.VALUE = 0 OR t.thread# = TO_NUMBER (v.VALUE))) i,
(SELECT VALUE
FROM v$parameter
WHERE NAME = 'user_dump_dest') d;
TRACE_FILE_NAME
--------------------------------------------------------------------------------
/s01/admin/G10R2/udump/g10r2_ora_17749.trc
==========================10046/errorstack trace
contents========================
PARSING IN CURSOR #1 len=127 dep=0 uid=64 oct=15 lid=64 tim=1277655207436065
hv=1207961095 ad='9098f018'
ALTER TABLE sales EXCHANGE PARTITION SALES_Q4_2003 with table SALES_TMP
INCLUDING INDEXES WITH VALIDATION UPDATE GLOBAL INDEXES
END OF STMT
PARSE #1:c=0,e=1145,p=0,cr=0,cu=0,mis=1,r=0,dep=0,og=1,tim=1277655207436059
BINDS #1:
STAT #2 id=2 cnt=0 pid=1 pos=1 obj=98001 op='INDEX FULL SCAN SALES_UNID_TMP
(cr=1 pr=0 pw=0 time=39 us)'
*** 2011-06-17 21:55:32.417
ksedmp: internal or fatal error
ORA-14098: index mismatch for tables in ALTER TABLE EXCHANGE PARTITION
Current SQL statement for this session:
ALTER TABLE sales EXCHANGE PARTITION SALES_Q4_2003 with table SALES_TMP

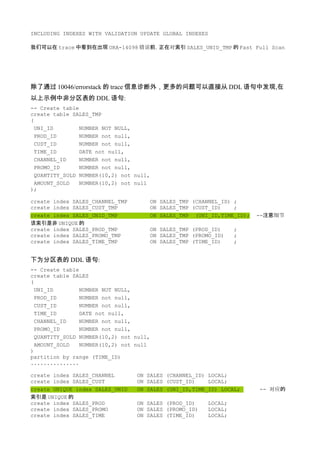

5. INCLUDING INDEXES WITH VALIDATION UPDATE GLOBAL INDEXES
我们可以在 trace 中看到在出现 ORA-14098 错误前，正在对索引 SALES_UNID_TMP 的 Fast Full Scan
除了通过 10046/errorstack 的 trace 信息诊断外，更多的问题可以直接从 DDL 语句中发现,在
以上示例中非分区表的 DDL 语句:
-- Create table
create table SALES_TMP
(
UNI_ID NUMBER NOT NULL,
PROD_ID NUMBER not null,
CUST_ID NUMBER not null,
TIME_ID DATE not null,
CHANNEL_ID NUMBER not null,
PROMO_ID NUMBER not null,
QUANTITY_SOLD NUMBER(10,2) not null,
AMOUNT_SOLD NUMBER(10,2) not null
);
create index SALES_CHANNEL_TMP ON SALES_TMP (CHANNEL_ID) ;
create index SALES_CUST_TMP ON SALES_TMP (CUST_ID) ;
create index SALES_UNID_TMP ON SALES_TMP (UNI_ID,TIME_ID); --注意细节
该索引是非 UNIQUE 的
create index SALES_PROD_TMP ON SALES_TMP (PROD_ID) ;
create index SALES_PROMO_TMP ON SALES_TMP (PROMO_ID) ;
create index SALES_TIME_TMP ON SALES_TMP (TIME_ID) ;
下为分区表的 DDL 语句:
-- Create table
create table SALES
(
UNI_ID NUMBER NOT NULL,
PROD_ID NUMBER not null,
CUST_ID NUMBER not null,
TIME_ID DATE not null,
CHANNEL_ID NUMBER not null,
PROMO_ID NUMBER not null,
QUANTITY_SOLD NUMBER(10,2) not null,
AMOUNT_SOLD NUMBER(10,2) not null
)
partition by range (TIME_ID)
...............
create index SALES_CHANNEL ON SALES (CHANNEL_ID) LOCAL;
create index SALES_CUST ON SALES (CUST_ID) LOCAL;
create UNIQUE index SALES_UNID ON SALES (UNI_ID,TIME_ID) LOCAL; -- 对应的
索引是 UNIQUE 的
create index SALES_PROD ON SALES (PROD_ID) LOCAL;
create index SALES_PROMO ON SALES (PROMO_ID) LOCAL;
create index SALES_TIME ON SALES (TIME_ID) LOCAL;

6. 解决 ORA-14098 错误的要点是要找出引发错误的原因。当我们交换分区的时候，我们要确
保所有交换表上的索引和分区表上的本地索引匹配。这意味 着如果在分区表上有 N 个
LOCAL INDEXES，那么在交换表上就应当有 N 个等价的索引。这里的等价要求存在映射关
系的 2 个索引，在列的位置、类型、大小及 UNIQUE/NON- UNIQUE 都要一致。
可以利用如下 SQL 语句来找出分区表和交换表上索引的差异:
set linesize 160 pagesize 1400
col TABLE_NAME for a30
col INDEX_NAME for a30
col COLUMN_NAME for a30
col COLUMN_POSITION for 99
col COLUMN_LENGTH for 99
col CHAR_LENGTH for 99
col DESCEND for a4
Select TABLE_NAME,INDEX_NAME, COLUMN_NAME,COLUMN_POSITION, COLUMN_LENGTH,
CHAR_LENGTH, DESCEND
FROM SYS.DBA_IND_COLUMNS DICN
WHERE INDEX_OWNER = '&own'
and DICN.TABLE_NAME in ('&TABNAME1','&TABNAME2')
ORDER BY INDEX_NAME, COLUMN_POSITION
/
select TABLE_NAME, INDEX_NAME, INDEX_TYPE, UNIQUENESS, PARTITIONED
from dba_indexes
where owner='&OWNER'
and TABLE_NAME in ('&TABNAME1', '&TABNAME2')
order by index_name
/

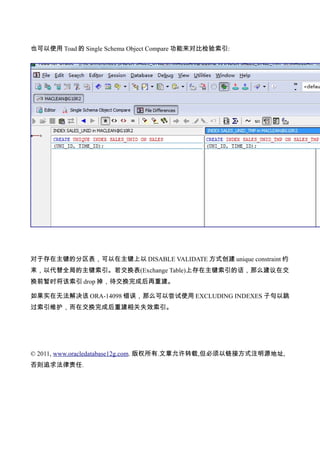

7. 也可以使用 Toad 的 Single Schema Object Compare 功能来对比检验索引:
对于存在主键的分区表，可以在主键上以 DISABLE VALIDATE 方式创建 unique constraint 约
束，以代替全局的主键索引。若交换表(Exchange Table)上存在主键索引的话，那么建议在交
换前暂时将该索引 drop 掉，待交换完成后再重建。
如果实在无法解决该 ORA-14098 错误，那么可以尝试使用 EXCLUDING INDEXES 子句以跳
过索引维护，而在交换完成后重建相关失效索引。
© 2011, www.oracledatabase12g.com. 版权所有.文章允许转载,但必须以链接方式注明源地址,
否则追求法律责任.
