1. Storage for VDI
Or why storage vendors love VDI

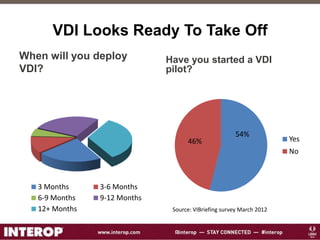

2. VDI Looks Ready To Take Off
When will you deploy
VDI?
3 Months 3-6 Months
6-9 Months 9-12 Months
12+ Months
Have you started a VDI
pilot?
54%
46% Yes
No
Source: VIBriefing survey March 2012

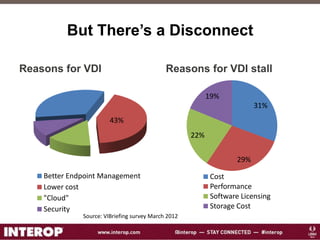

3. But There’s a Disconnect
Reasons for VDI
43%
Better Endpoint Management
Lower cost
"Cloud"
Security
Reasons for VDI stall
31%
29%
22%
19%
Cost
Performance
Software Licensing
Storage Cost
Source: VIBriefing survey March 2012

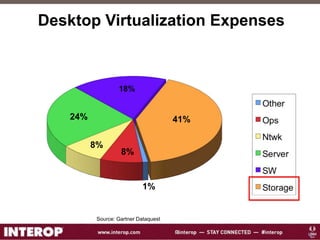

4. Desktop Virtualization Expenses
4
Source: Gartner Dataquest
41%24%
8%
8%
1%

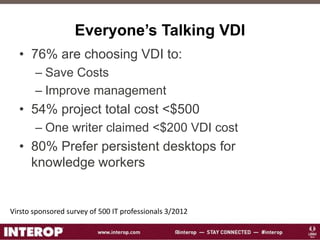

5. Everyone’s Talking VDI
• 76% are choosing VDI to:
– Save Costs
– Improve management
• 54% project total cost <$500
– One writer claimed <$200 VDI cost
• 80% Prefer persistent desktops for
knowledge workers
Virsto sponsored survey of 500 IT professionals 3/2012

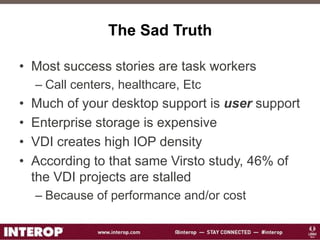

6. The Sad Truth
• Most success stories are task workers
– Call centers, healthcare, Etc
• Much of your desktop support is user support
• Enterprise storage is expensive
• VDI creates high IOP density
• According to that same Virsto study, 46% of
the VDI projects are stalled
– Because of performance and/or cost

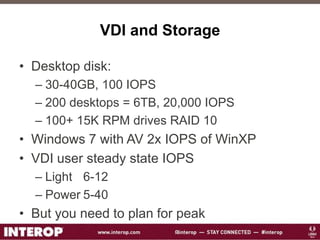

7. VDI and Storage
• Desktop disk:
– 30-40GB, 100 IOPS
– 200 desktops = 6TB, 20,000 IOPS
– 100+ 15K RPM drives RAID 10
• Windows 7 with AV 2x IOPS of WinXP
• VDI user steady state IOPS
– Light 6-12
– Power 5-40
• But you need to plan for peak

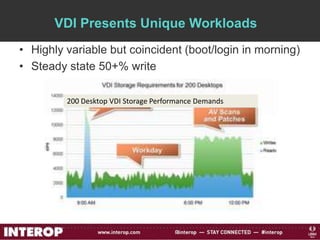

8. VDI Presents Unique Workloads
• Highly variable but coincident (boot/login in morning)
• Steady state 50+% write
200 Desktop VDI Storage Performance Demands

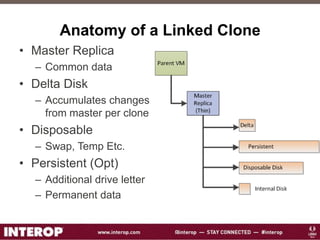

9. Anatomy of a Linked Clone
• Master Replica
– Common data
• Delta Disk
– Accumulates changes
from master per clone
• Disposable
– Swap, Temp Etc.
• Persistent (Opt)
– Additional drive letter
– Permanent data

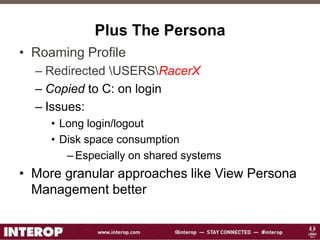

10. Plus The Persona
• Roaming Profile
– Redirected USERSRacerX
– Copied to C: on login
– Issues:
• Long login/logout
• Disk space consumption
– Especially on shared systems
• More granular approaches like View Persona
Management better

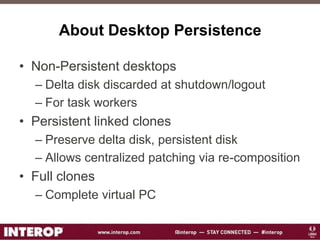

11. About Desktop Persistence
• Non-Persistent desktops
– Delta disk discarded at shutdown/logout
– For task workers
• Persistent linked clones
– Preserve delta disk, persistent disk
– Allows centralized patching via re-composition
• Full clones
– Complete virtual PC

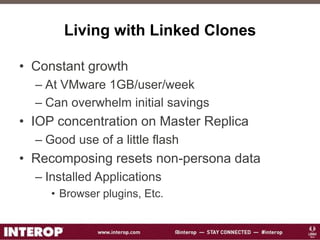

12. Living with Linked Clones
• Constant growth
– At VMware 1GB/user/week
– Can overwhelm initial savings
• IOP concentration on Master Replica
– Good use of a little flash
• Recomposing resets non-persona data
– Installed Applications
• Browser plugins, Etc.

13. Basic VDI Recommendations
• Use linked clones or deduped full clones
• Put master image on flash (many reads)
– More IOPS to Delta during steady state though
• Separate differencing data
– User profiles
– Swaps
• Try to avoid IOPS to spinning disk
– Use RAM or flash
• $/IOP not $/GB

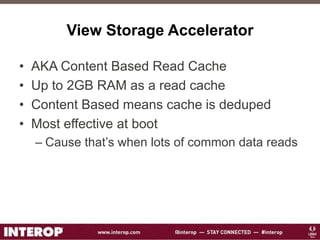

14. View Storage Accelerator
• AKA Content Based Read Cache
• Up to 2GB RAM as a read cache
• Content Based means cache is deduped
• Most effective at boot
– Cause that’s when lots of common data reads

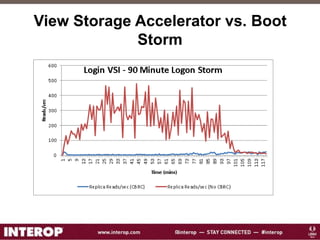

15. View Storage Accelerator vs. Boot
Storm

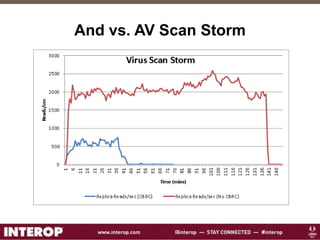

16. And vs. AV Scan Storm

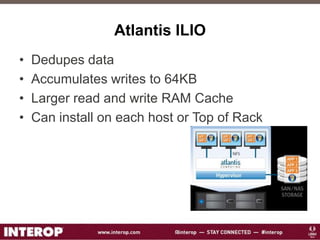

17. Atlantis ILIO
• Dedupes data
• Accumulates writes to 64KB
• Larger read and write RAM Cache
• Can install on each host or Top of Rack

18. The Good News
• VDI Images are just desktops
– HA may be less important than performance
– I would use a single controller Flash system
• All the storage startups are validating VDI
solutions
• Local storage could be an answer
– Especially for non-persistent clones
– Consider local SSD, SSD caching RAID
controller

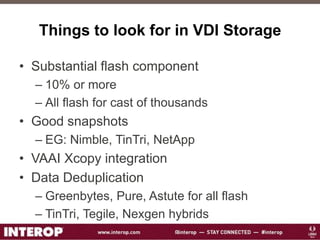

19. Things to look for in VDI Storage
• Substantial flash component
– 10% or more
– All flash for cast of thousands
• Good snapshots
– EG: Nimble, TinTri, NetApp
• VAAI Xcopy integration
• Data Deduplication
– Greenbytes, Pure, Astute for all flash
– TinTri, Tegile, Nexgen hybrids

20. Server Flash Caching Advantages
• Take advantage of lower latency
– Especially w/PCIe flash card/SSD
• Data written to back end array
– So not captive in failure scenario
• Works with any array
– Or DAS for that matter
• Allows focused use of flash
– Put your dollars just where needed
– Match SSD performance to application
• Politics: Server team not storage team solution

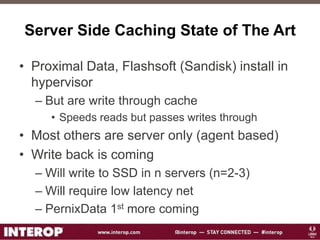

21. Server Side Caching State of The Art
• Proximal Data, Flashsoft (Sandisk) install in
hypervisor
– But are write through cache
• Speeds reads but passes writes through
• Most others are server only (agent based)
• Write back is coming
– Will write to SSD in n servers (n=2-3)
– Will require low latency net
– PernixData 1st more coming

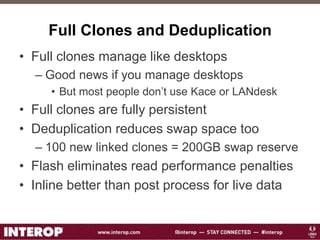

22. Full Clones and Deduplication
• Full clones manage like desktops
– Good news if you manage desktops
• But most people don’t use Kace or LANdesk
• Full clones are fully persistent
• Deduplication reduces swap space too
– 100 new linked clones = 200GB swap reserve
• Flash eliminates read performance penalties
• Inline better than post process for live data

23. The Don’ts
• Don’t use RAID-5 spinning disks for VDI
– VDI workloads have lots of small writes
– RAID-5 amplifies 3-6:1
• Expect an all disk solution to serve >50 users
– Conventional wisdom = dedicated storage
• Expect $100/user costs
• Limit your options to established
vendors/products

24. Questions and Contact
• Contact info:
– Hmarks@deepstorage.net
– @DeepStoragenet on Twitter
