1. Helping the Internet to scale since 1998
Paweł Kuśmierski, Senior Engineer, Lead
System Operations, Akamai Krakow

2. ©2013 AKAMAI | FASTER FORWARD
TM

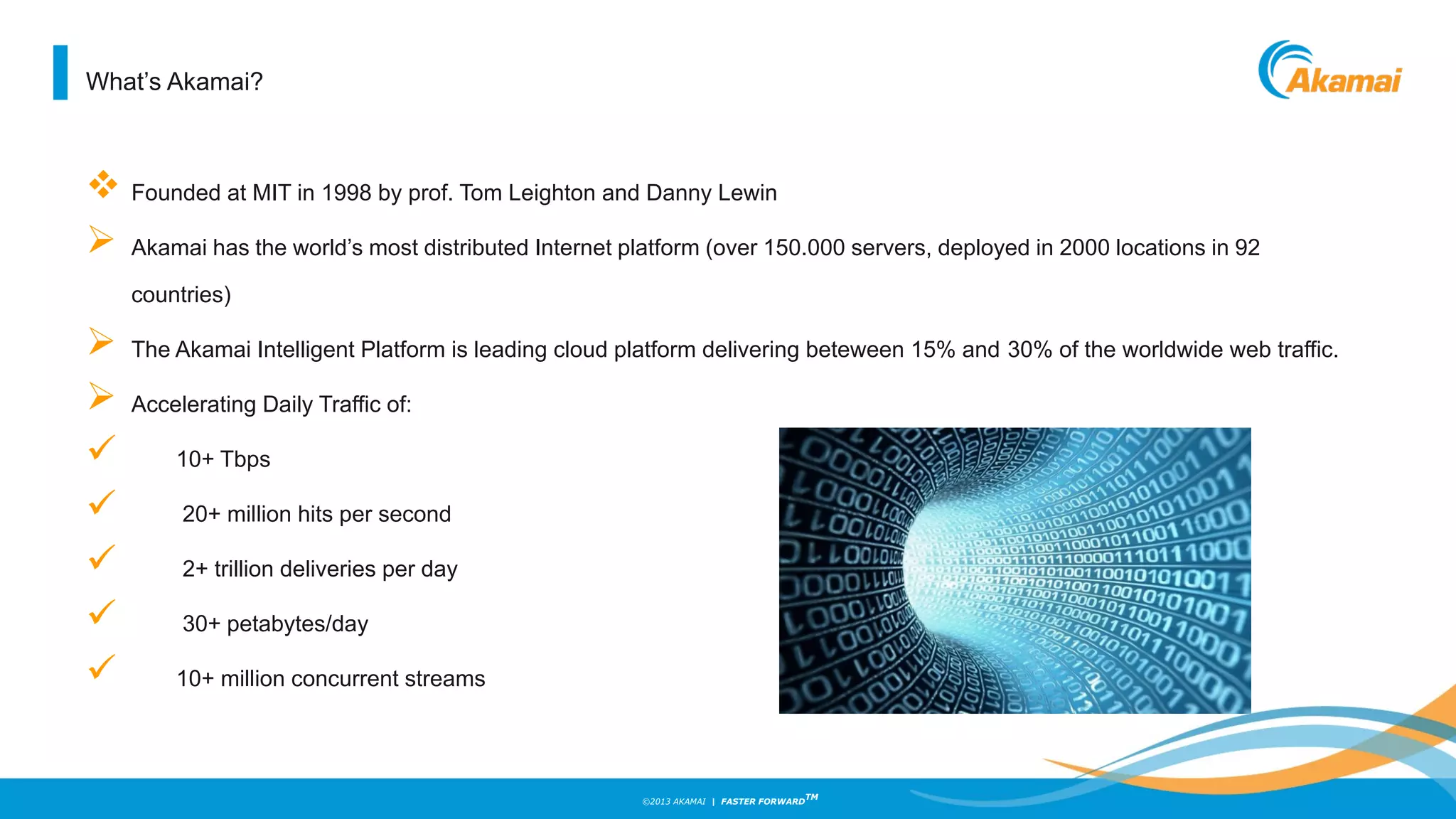

What’s Akamai?
 Founded at MIT in 1998 by prof. Tom Leighton and Danny Lewin
 Akamai has the world’s most distributed Internet platform (over 150.000 servers, deployed in 2000 locations in 92
countries)
 The Akamai Intelligent Platform is leading cloud platform delivering beteween 15% and 30% of the worldwide web traffic.
 Accelerating Daily Traffic of:
 10+ Tbps
 20+ million hits per second
 2+ trillion deliveries per day
 30+ petabytes/day
 10+ million concurrent streams

3. ©2013 AKAMAI | FASTER FORWARD
TM

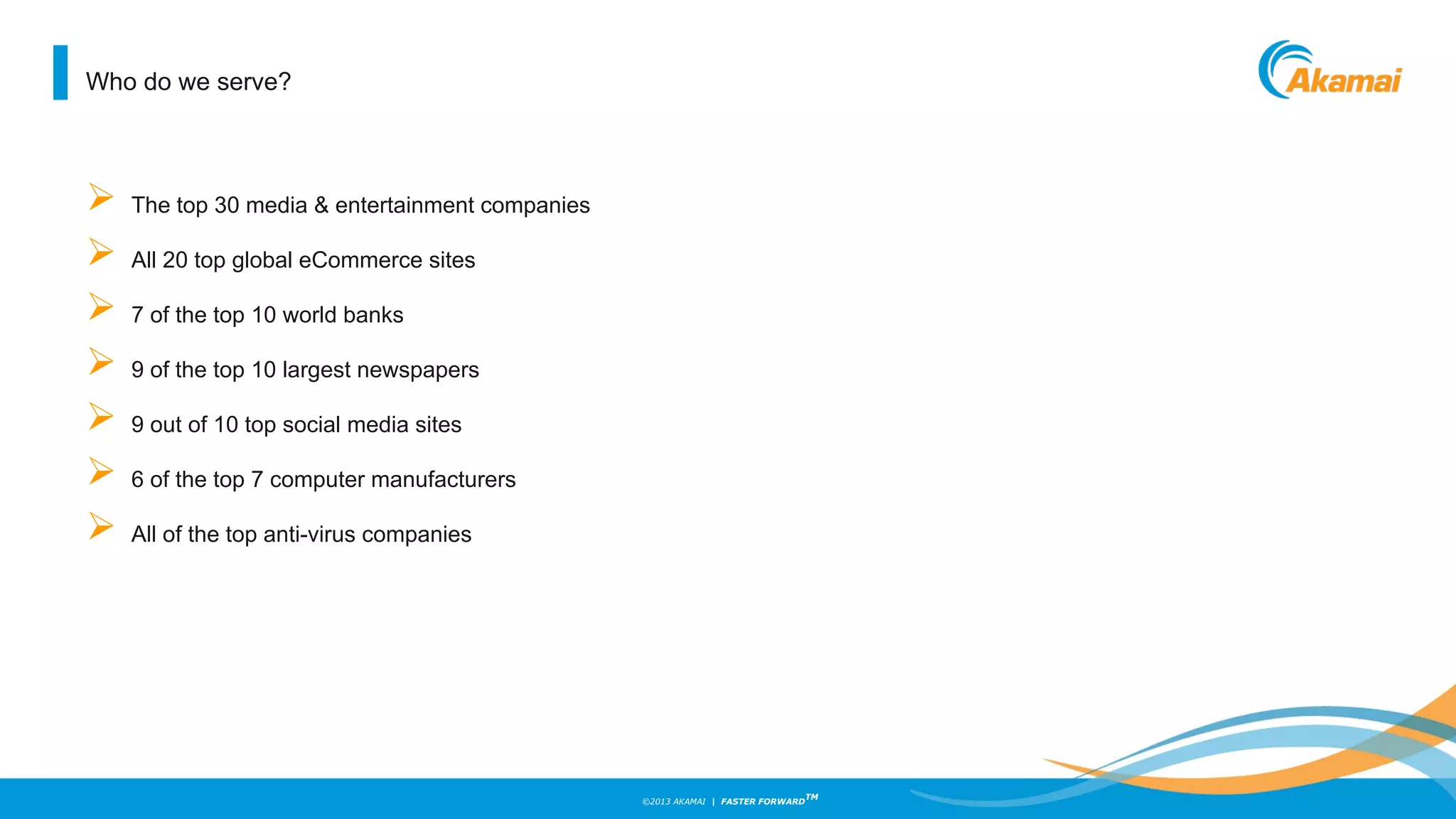

Who do we serve?
 The top 30 media & entertainment companies
 All 20 top global eCommerce sites
 7 of the top 10 world banks
 9 of the top 10 largest newspapers
 9 out of 10 top social media sites
 6 of the top 7 computer manufacturers
 All of the top anti-virus companies

4. ©2013 AKAMAI | FASTER FORWARD
TM

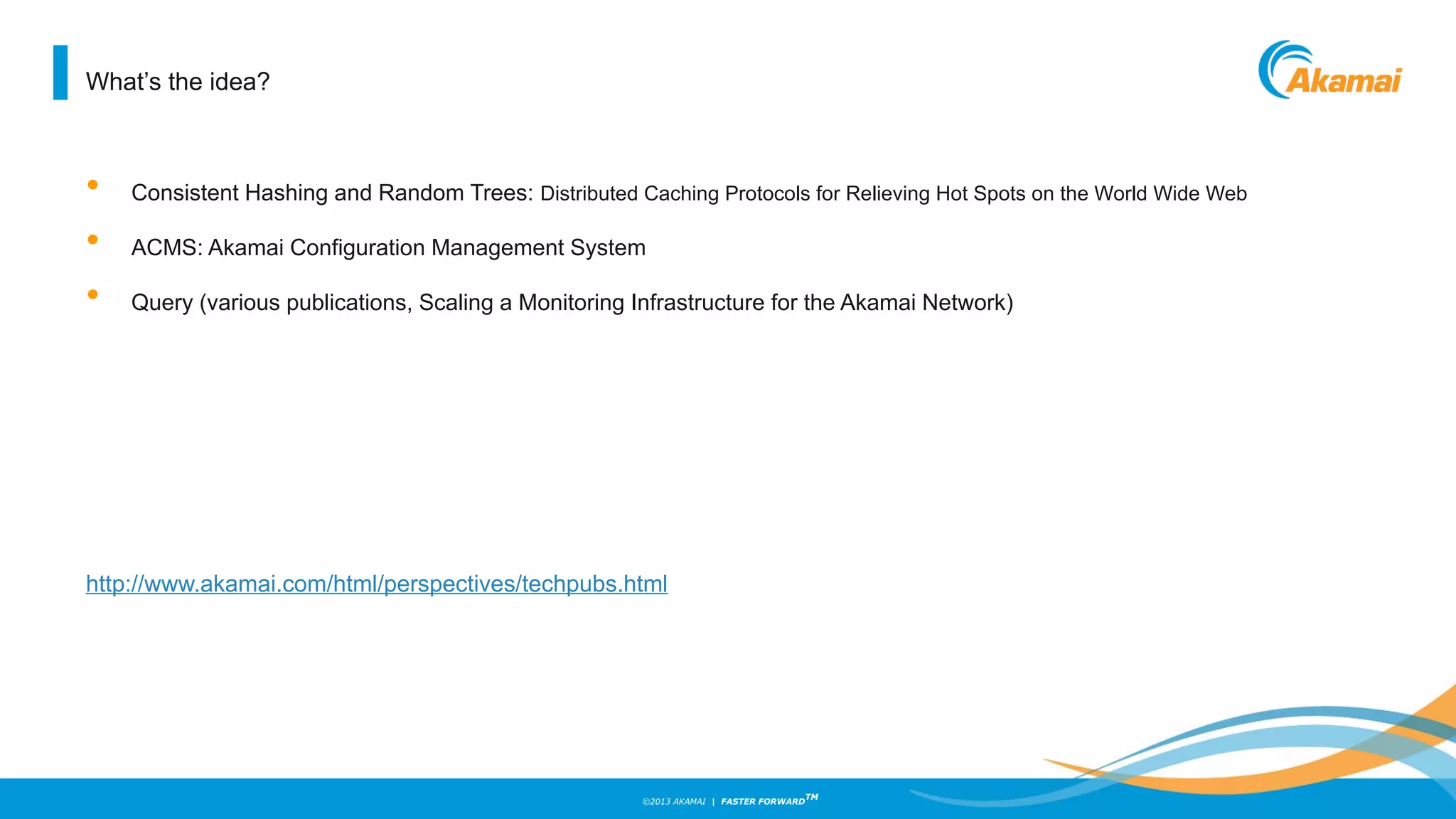

What’s the idea?
• Consistent Hashing and Random Trees: Distributed Caching Protocols for Relieving Hot Spots on the World Wide Web
• ACMS: Akamai Configuration Management System
• Query (various publications, Scaling a Monitoring Infrastructure for the Akamai Network)
http://www.akamai.com/html/perspectives/techpubs.html

5. ©2013 AKAMAI | FASTER FORWARD
TM

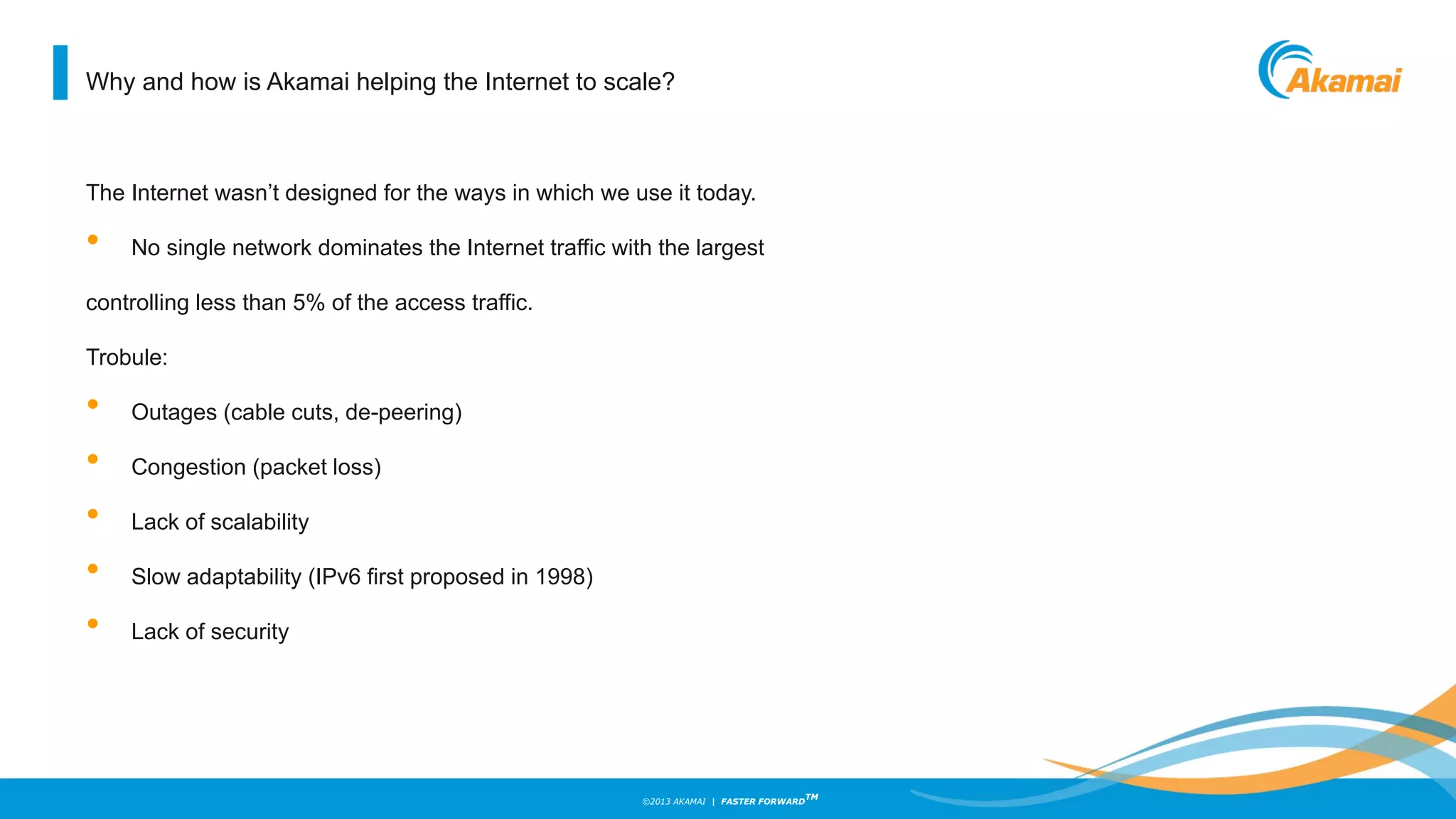

Why and how is Akamai helping the Internet to scale?
The Internet wasn’t designed for the ways in which we use it today.
• No single network dominates the Internet traffic with the largest
controlling less than 5% of the access traffic.
Trobule:
• Outages (cable cuts, de-peering)
• Congestion (packet loss)
• Lack of scalability
• Slow adaptability (IPv6 first proposed in 1998)
• Lack of security

6. ©2013 AKAMAI | FASTER FORWARD
TM

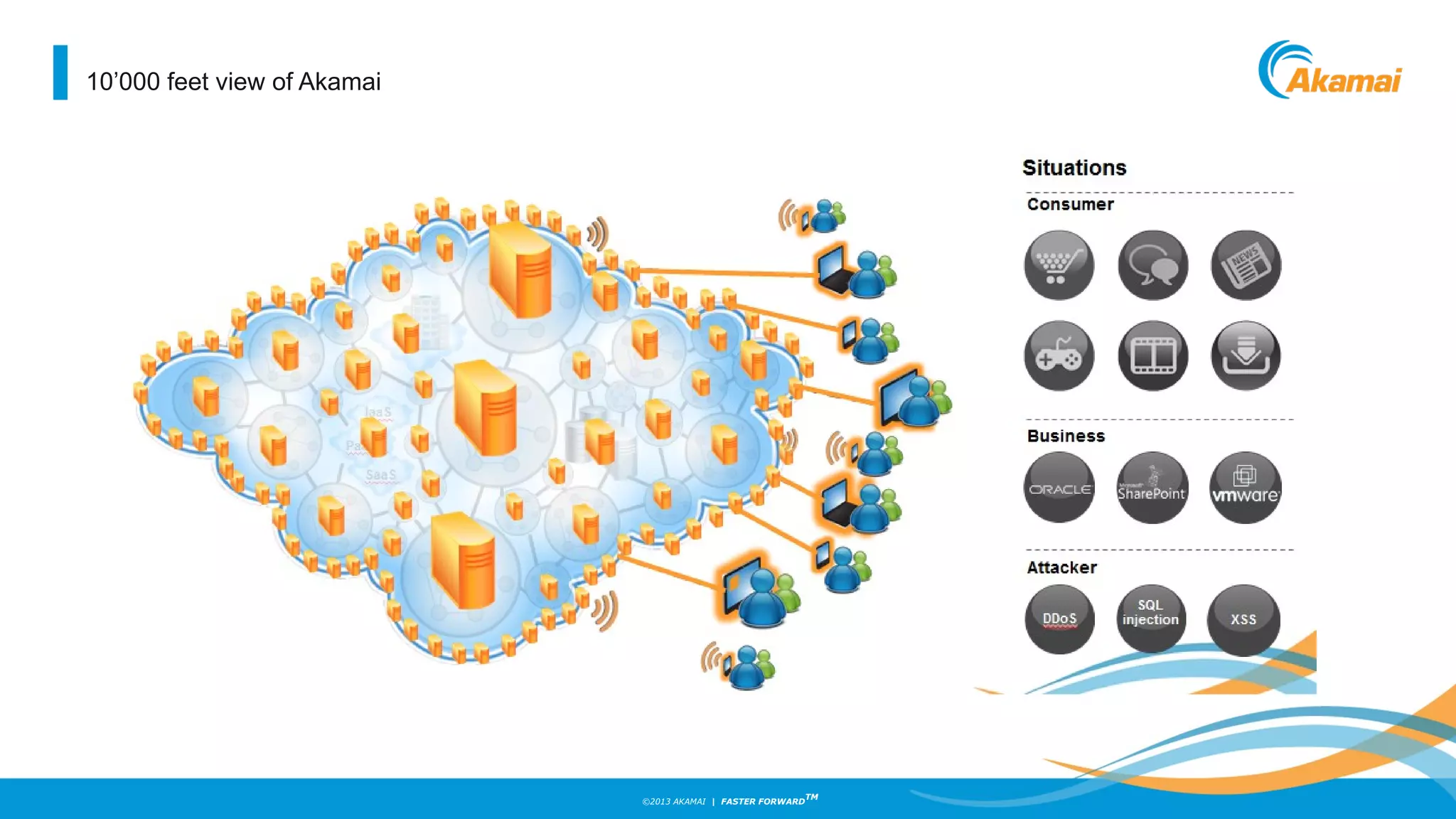

10’000 feet view of Akamai

7. ©2013 AKAMAI | FASTER FORWARD
TM

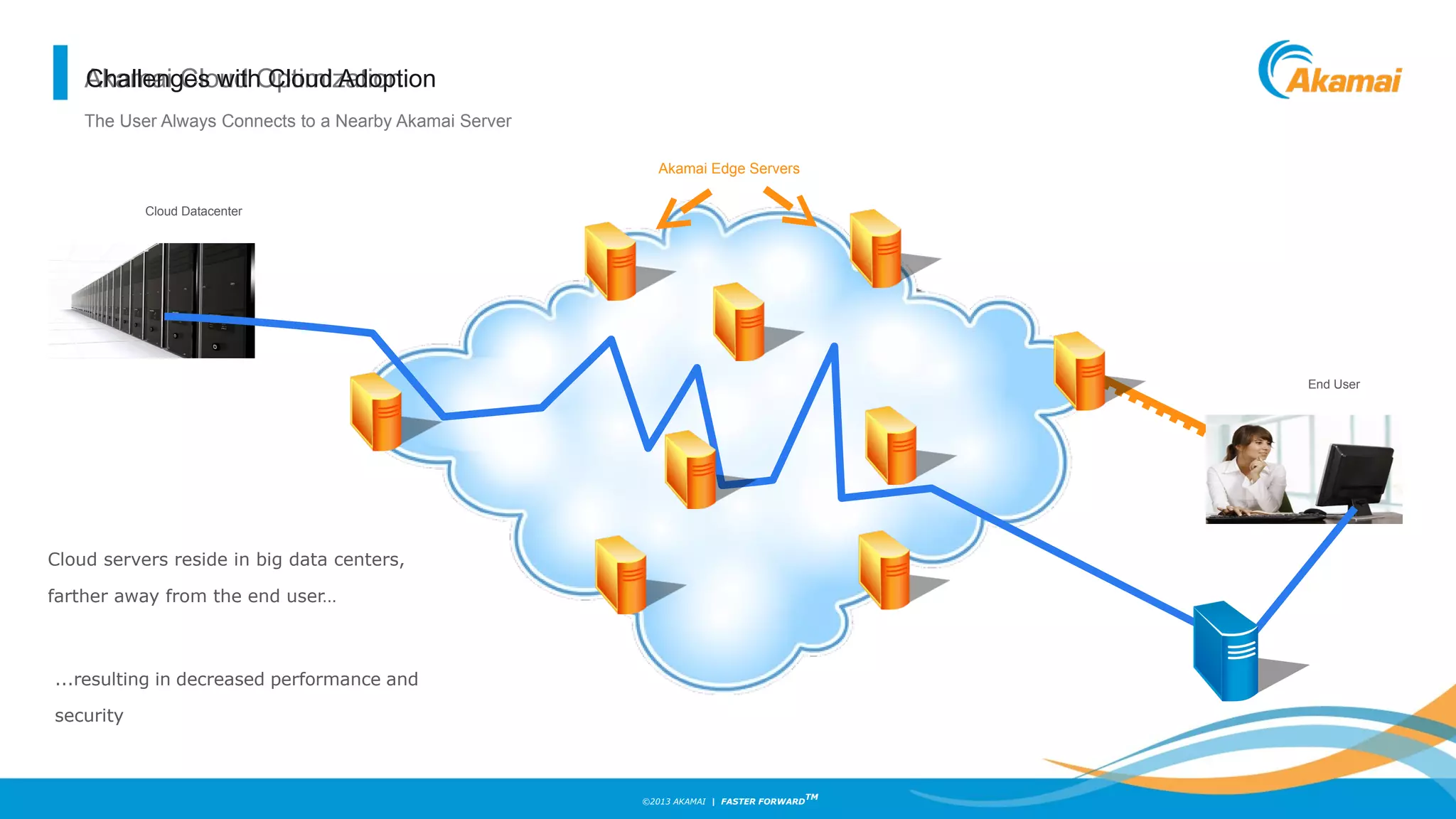

Akamai Cloud Optimization
The User Always Connects to a Nearby Akamai Server
Challenges with Cloud Adoption
Cloud servers reside in big data centers,
farther away from the end user…
...resulting in decreased performance and
security
End User
Cloud Datacenter
Akamai Edge Servers

8. ©2013 AKAMAI | FASTER FORWARD
TM

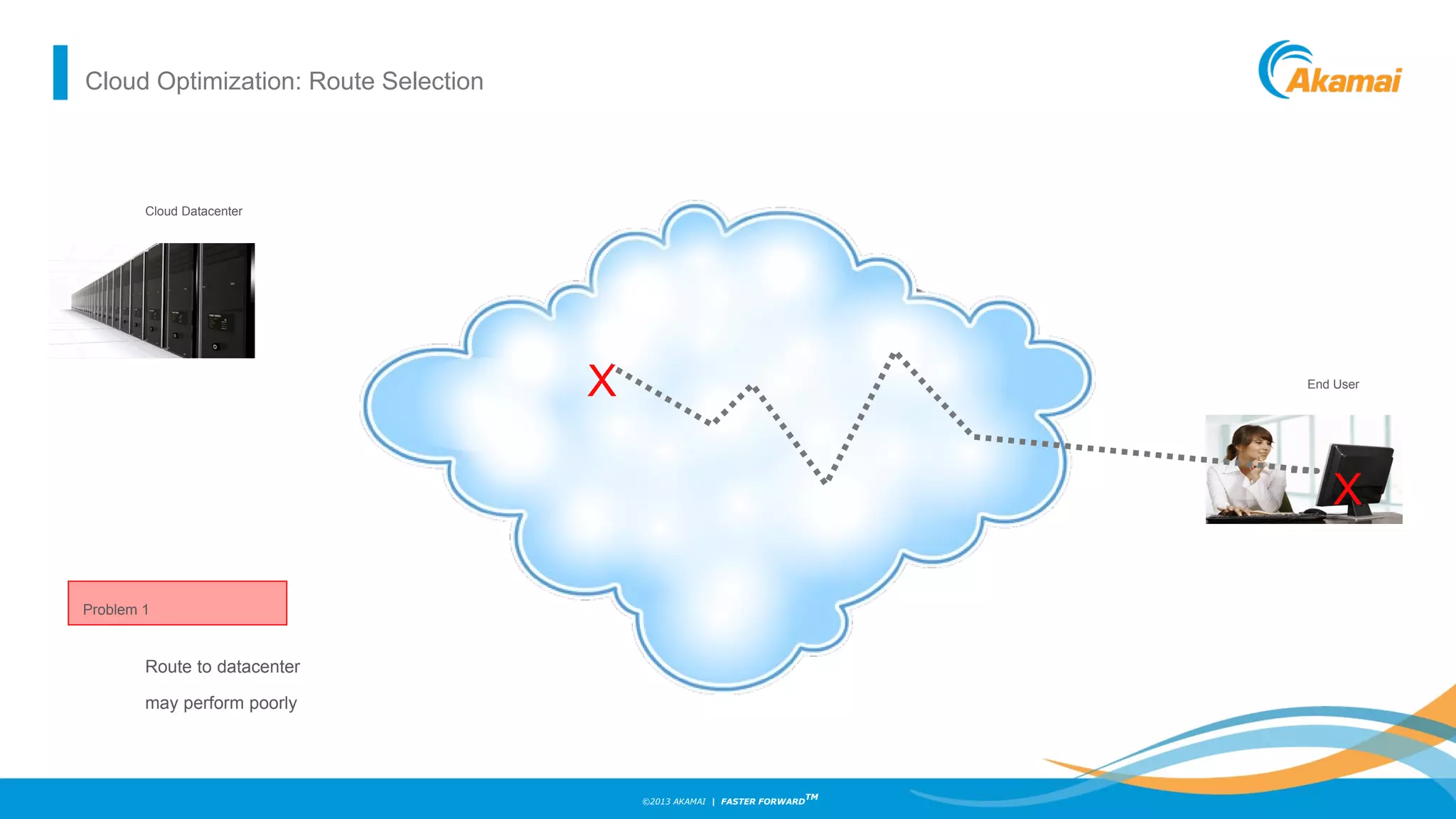

End User
Problem 1
Route to datacenter
may perform poorly
Cloud Datacenter
X
X
Cloud Optimization: Route Selection

9. ©2013 AKAMAI | FASTER FORWARD
TM

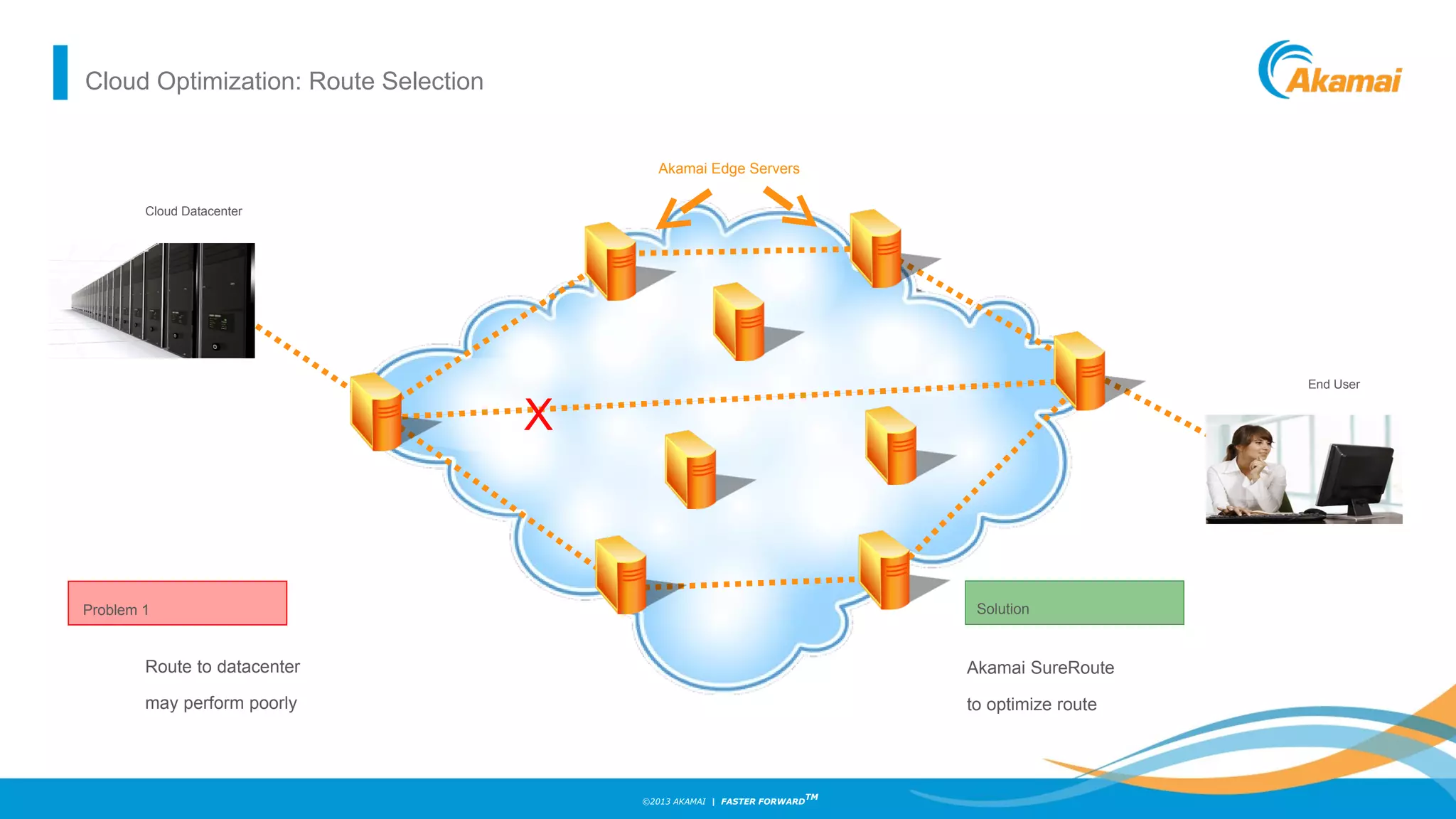

End User
Solution
Akamai SureRoute
to optimize route
Problem 1
Route to datacenter
may perform poorly
Akamai Edge Servers
X
Cloud Datacenter
Cloud Optimization: Route Selection

10. ©2013 AKAMAI | FASTER FORWARD
TM
PacketLoss
50%
40%
30%
20%
10%
0%
Jan
25
Jan
27
Jan
29
Jan
31
Feb
02
Feb
04
Feb
06
Feb
08
Feb
10
Feb
12
Feb
14
Feb
16
Feb
18
Generic Internet
Akamai

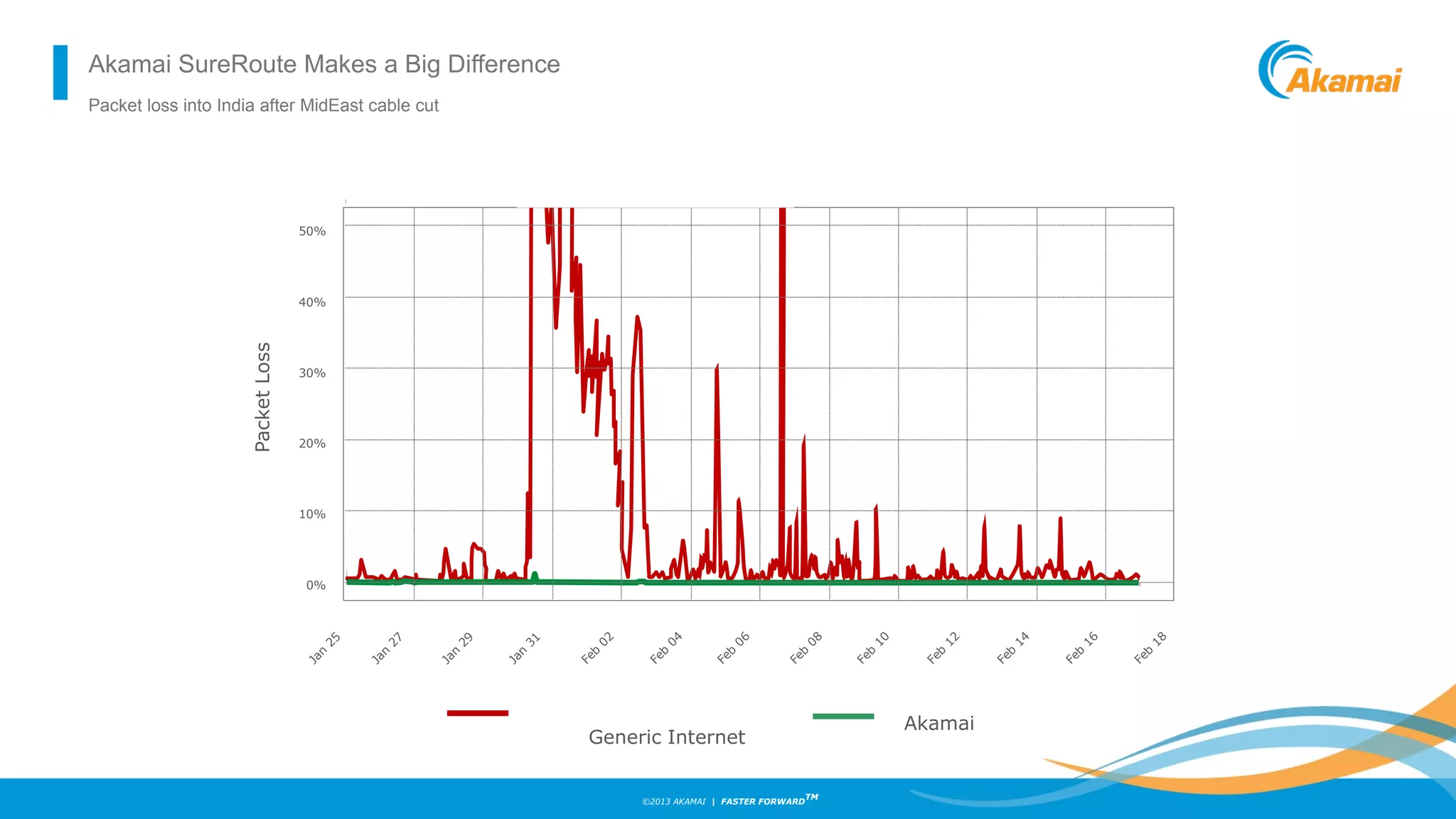

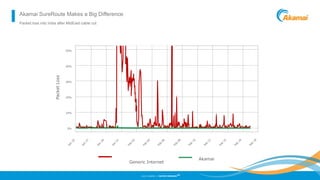

Akamai SureRoute Makes a Big Difference
Packet loss into India after MidEast cable cut

11. ©2013 AKAMAI | FASTER FORWARD
TM

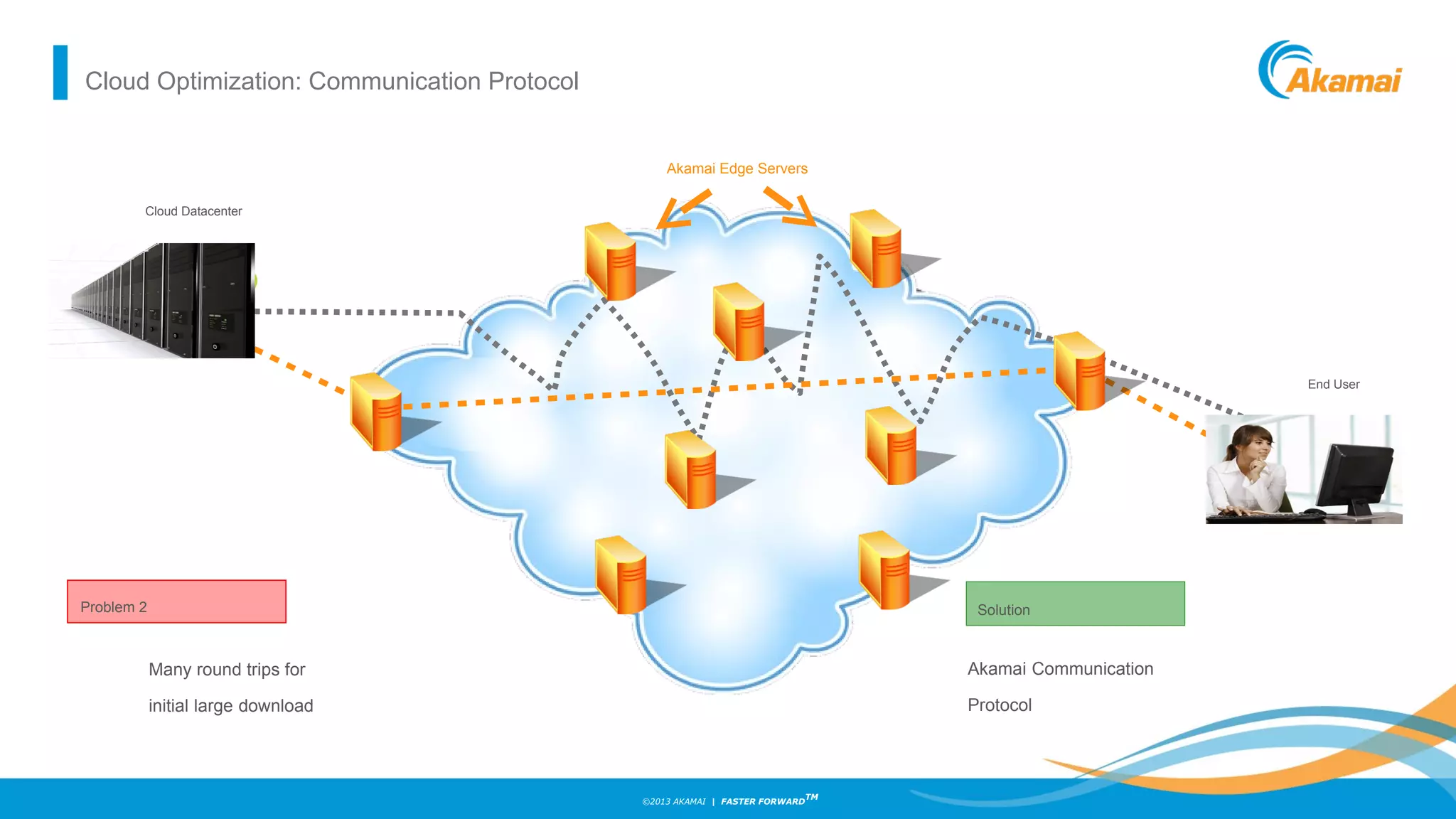

End User
Solution
Akamai Communication
Protocol
Problem 2
Many round trips for
initial large download
Cloud Datacenter
Akamai Edge Servers
Cloud Optimization: Communication Protocol

12. ©2013 AKAMAI | FASTER FORWARD
TM

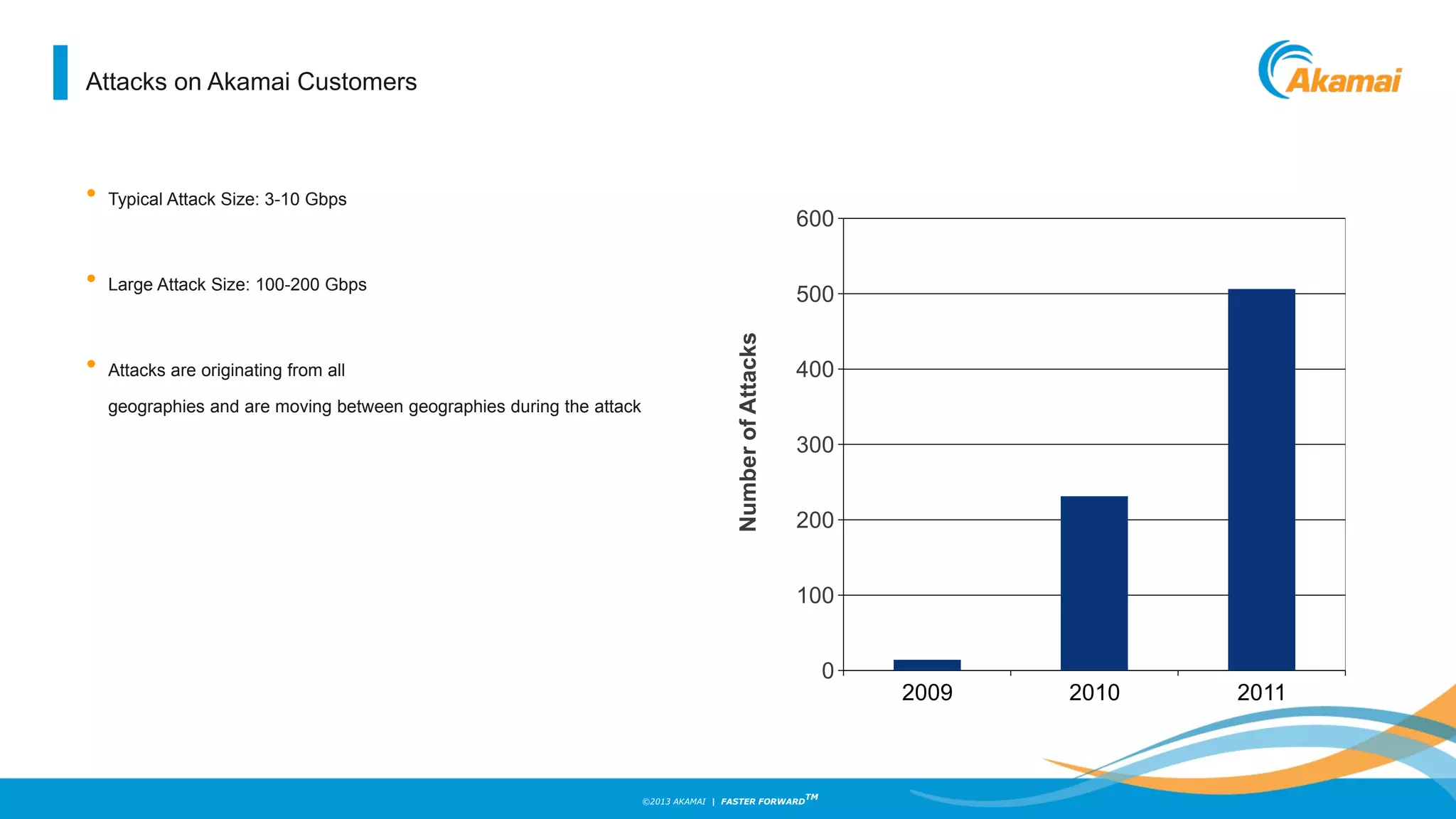

Attacks on Akamai Customers
• Typical Attack Size: 3-10 Gbps
• Large Attack Size: 100-200 Gbps
• Attacks are originating from all
geographies and are moving between geographies during the attack
2009 2010 2011
0
100
200
300
400
500
600
NumberofAttacks

13. ©2013 AKAMAI | FASTER FORWARD
TM

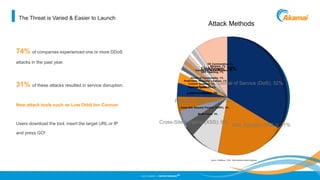

Denial of Service (DoS); 32%
SQL Injection (SQLi); 21%
Cross-Site Scripting (XSS); 9%
Brute Force; 4%
Cross-Site Request Forgery (CSRF); 4%
Process Automation; 4%
Known Vulnerability; 4%
Misconfiguration; 3%
Stolen Credentials; 1%
Banking Trojan; 1%
Predictable Resource Location; 1%
Content Spoofing; 1%
Abuse of Functionality; 1%
DNS Hijacking; 1%
Malware; 1%
Insufficient Authentication; 1%
OS Commanding; 1%
Unknown; 10%

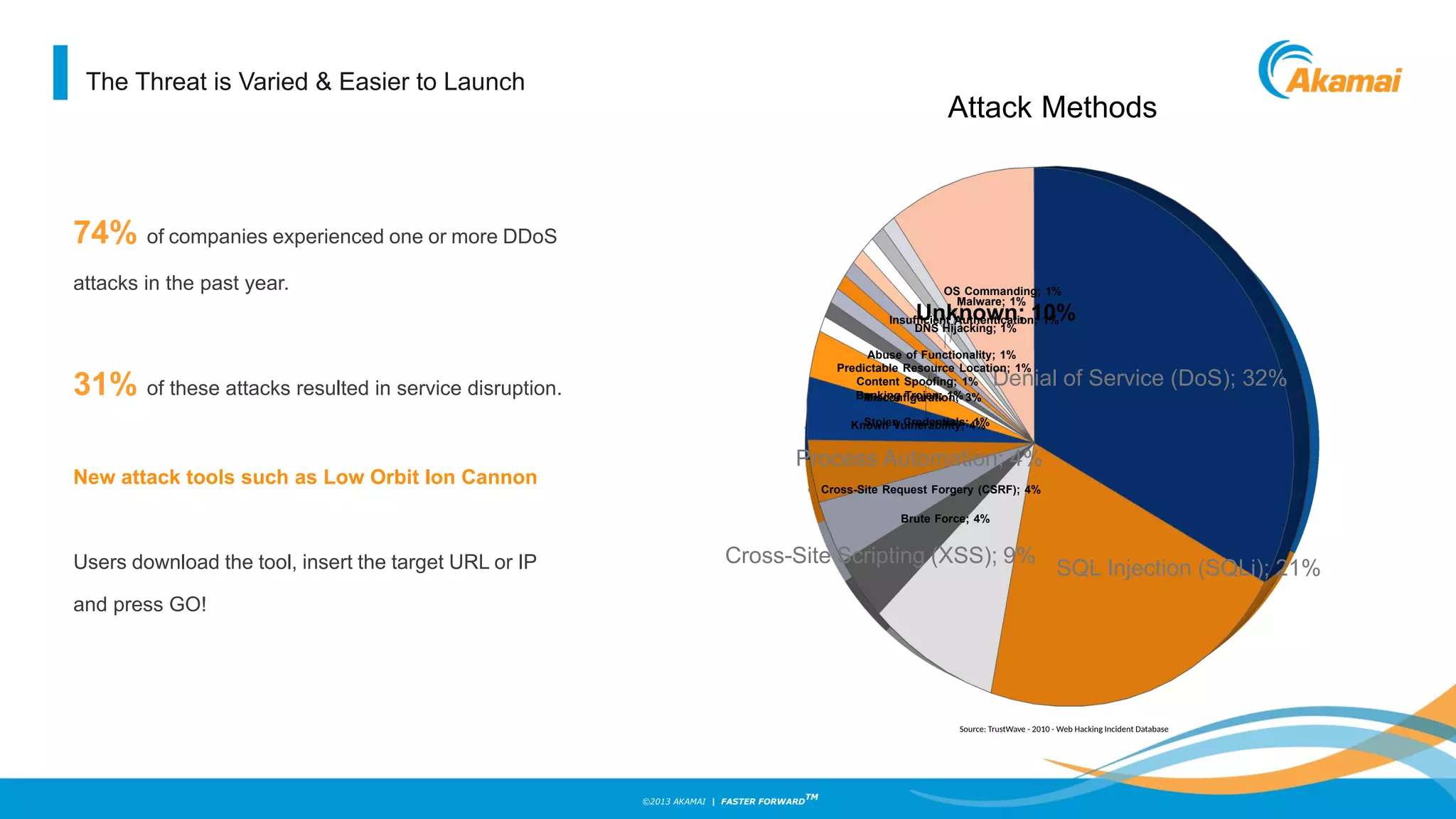

Attack Methods
Source: TrustWave - 2010 - Web Hacking Incident Database
The Threat is Varied & Easier to Launch
74% of companies experienced one or more DDoS
attacks in the past year.
31% of these attacks resulted in service disruption.
New attack tools such as Low Orbit Ion Cannon
Users download the tool, insert the target URL or IP
and press GO!

14. ©2013 AKAMAI | FASTER FORWARD
TM

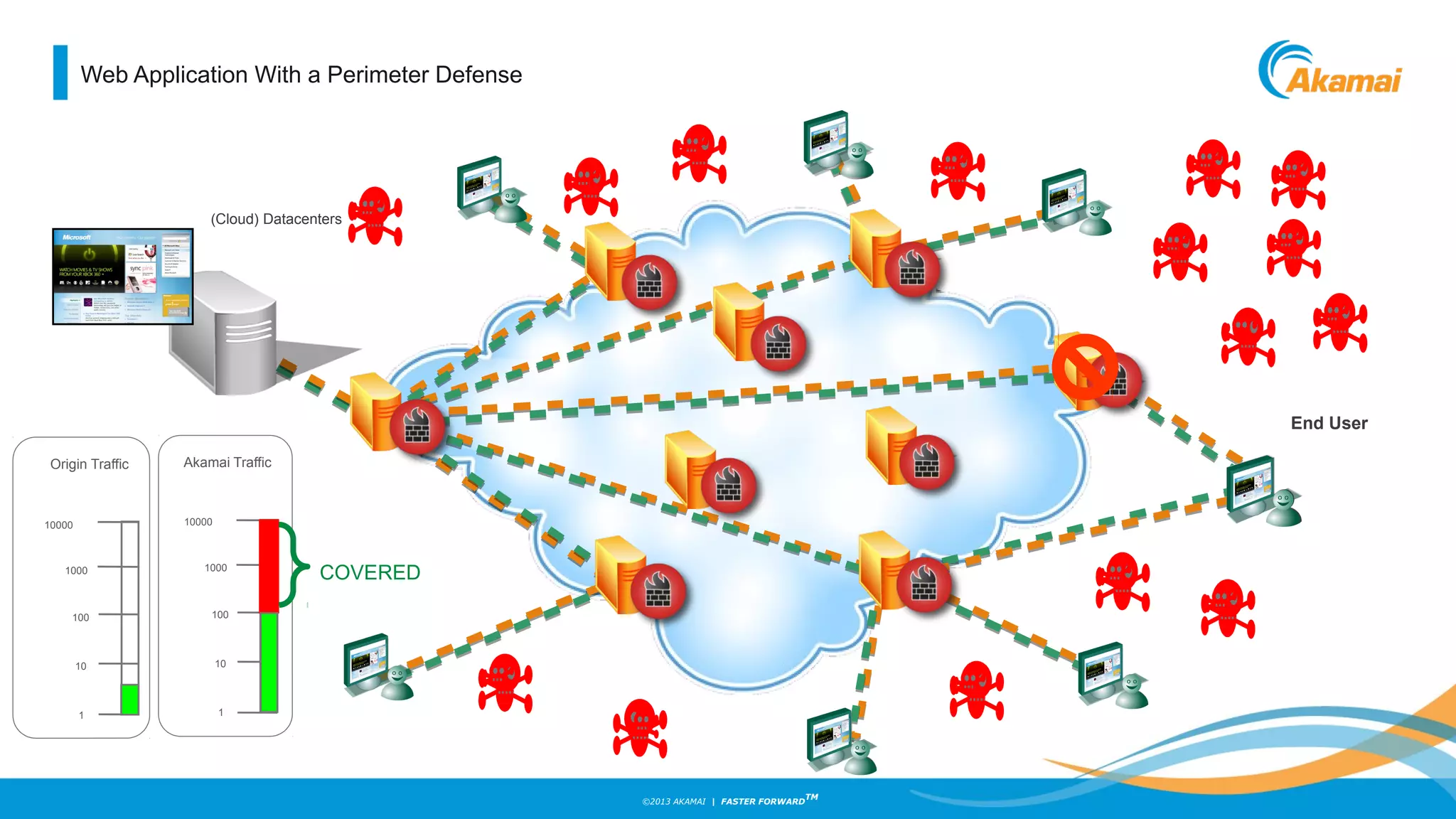

(Cloud) Datacenters
End User
1
10
100
10000
Origin Traffic
1000
Akamai Traffic
10
100
10000
1000
Web Application With a Perimeter Defense
COVERED
1

15. ©2013 AKAMAI | FASTER FORWARD
TM

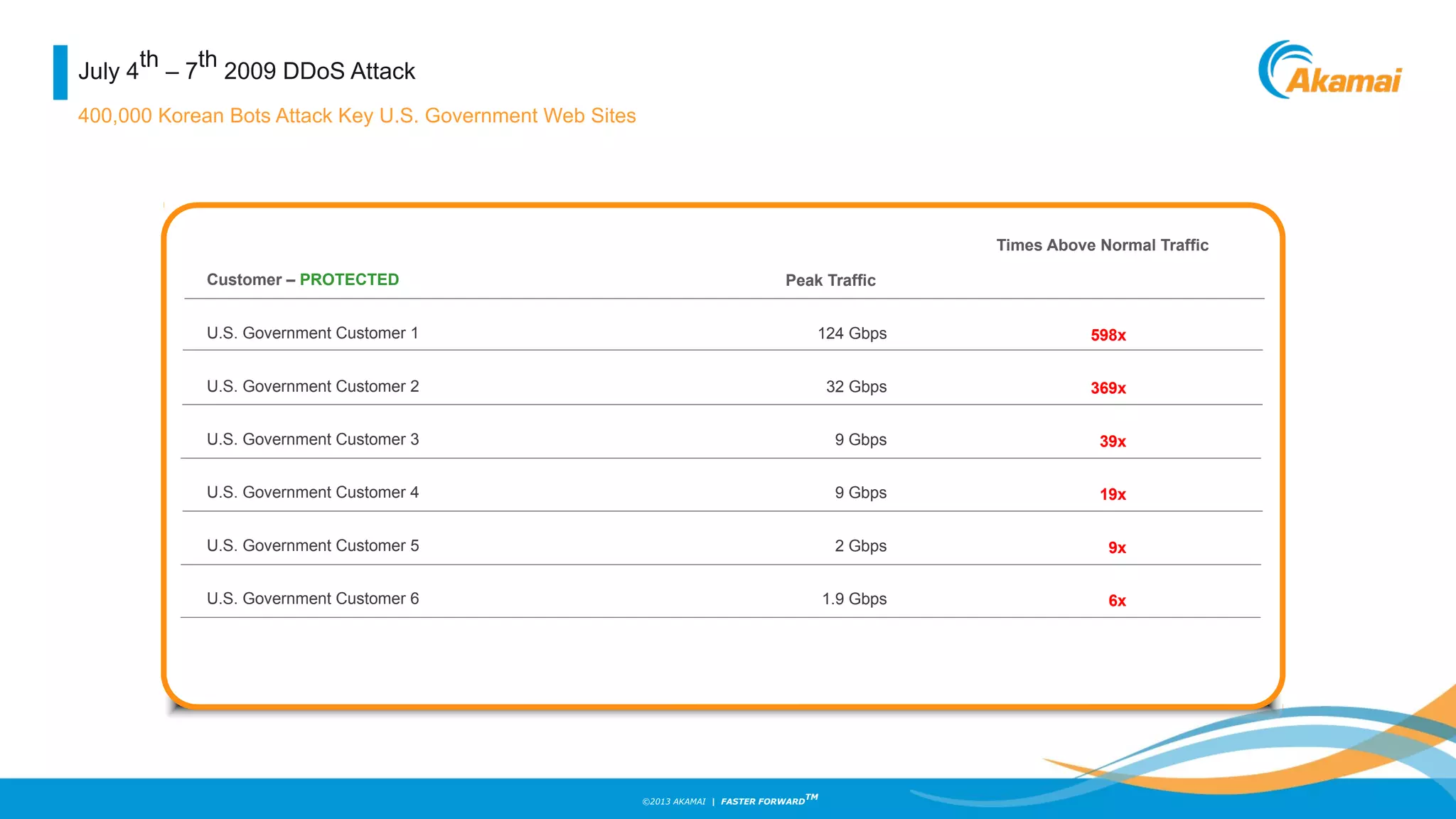

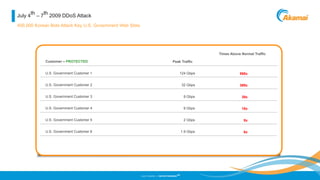

Customer – PROTECTED
U.S. Government Customer 1
U.S. Government Customer 2
U.S. Government Customer 3
U.S. Government Customer 4
U.S. Government Customer 5
U.S. Government Customer 6
Peak Traffic
Times Above Normal Traffic
July 4
th
– 7
th
2009 DDoS Attack
400,000 Korean Bots Attack Key U.S. Government Web Sites
598x
369x
39x
19x
9x
6x
124 Gbps
32 Gbps
9 Gbps
9 Gbps
2 Gbps
1.9 Gbps

16. ©2013 AKAMAI | FASTER FORWARD
TM

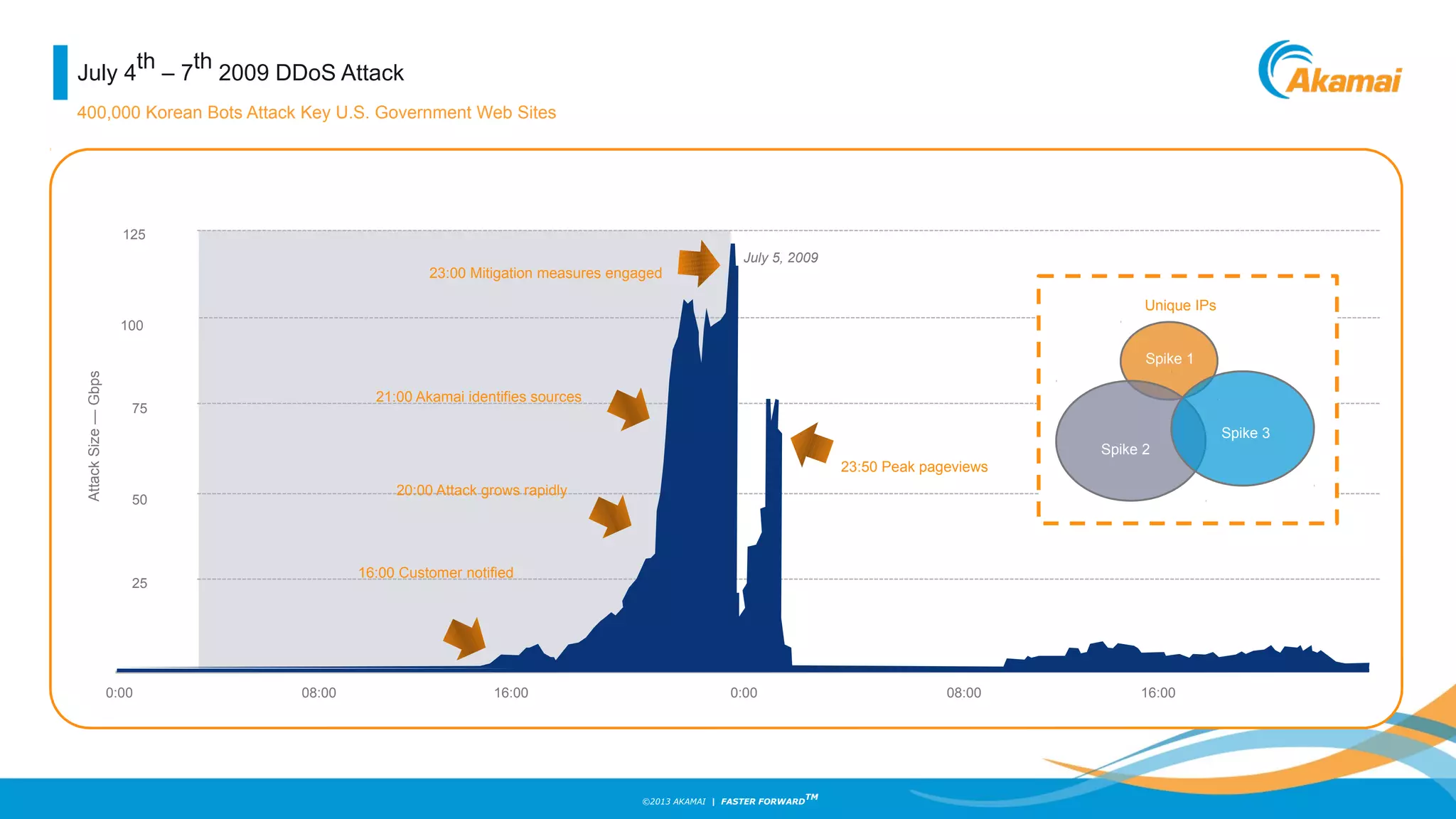

08:00 16:00 0:00 08:000:00 16:00
25
50
75
100
125
AttackSize—Gbps
July 5, 2009
16:00 Customer notified
20:00 Attack grows rapidly
23:00 Mitigation measures engaged
Spike 1
Spike 2
Spike 3
Unique IPs
21:00 Akamai identifies sources
23:50 Peak pageviews
July 4
th
– 7
th
2009 DDoS Attack
400,000 Korean Bots Attack Key U.S. Government Web Sites

17. ©2013 AKAMAI | FASTER FORWARD
TM
Under the hood

18. ©2013 AKAMAI | FASTER FORWARD
TM

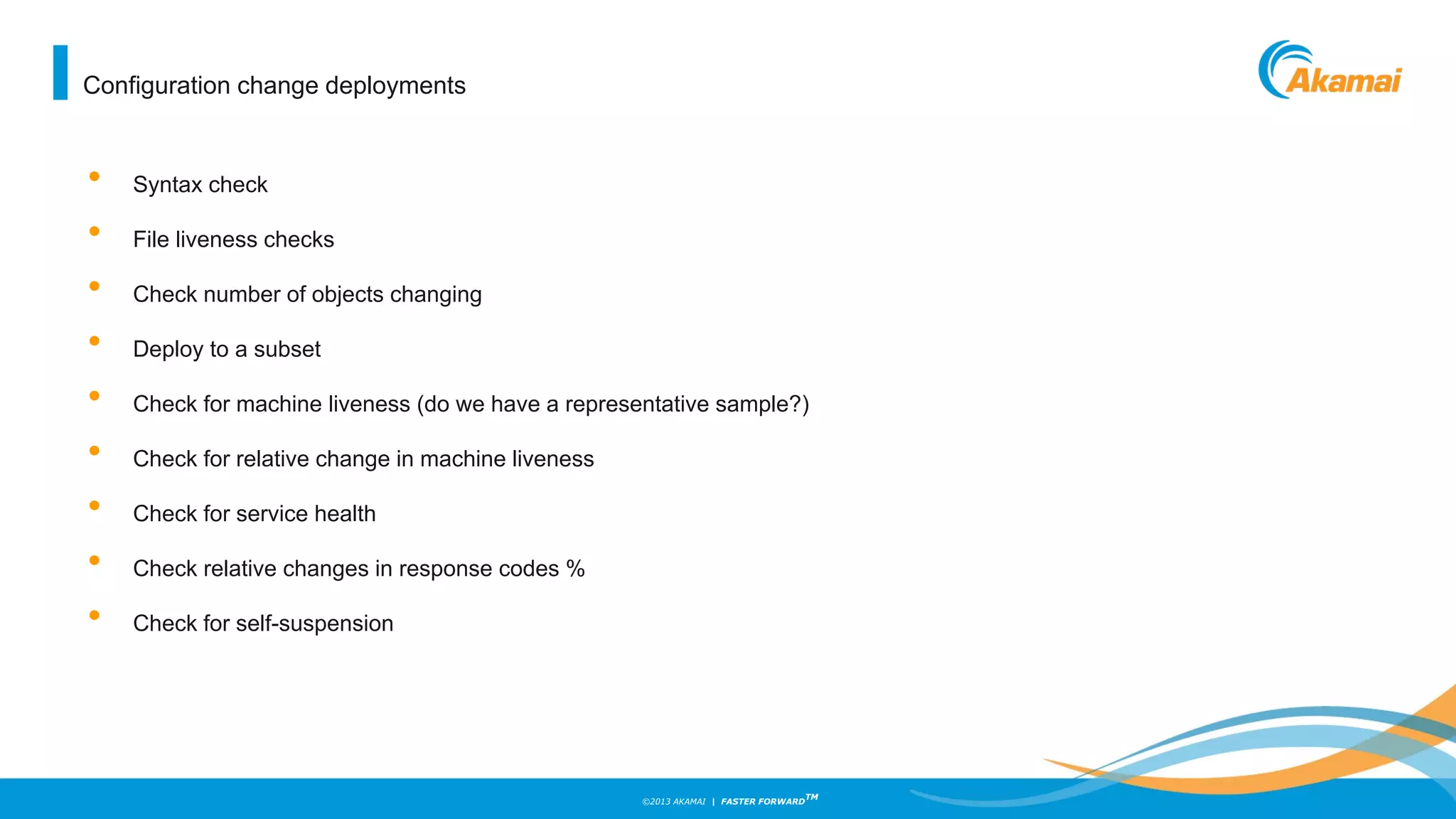

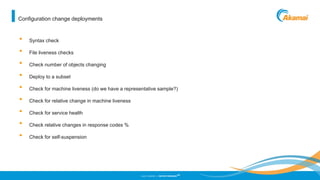

• Syntax check
• File liveness checks
• Check number of objects changing
• Deploy to a subset
• Check for machine liveness (do we have a representative sample?)
• Check for relative change in machine liveness
• Check for service health
• Check relative changes in response codes %
• Check for self-suspension
Configuration change deployments

19. ©2013 AKAMAI | FASTER FORWARD
TM

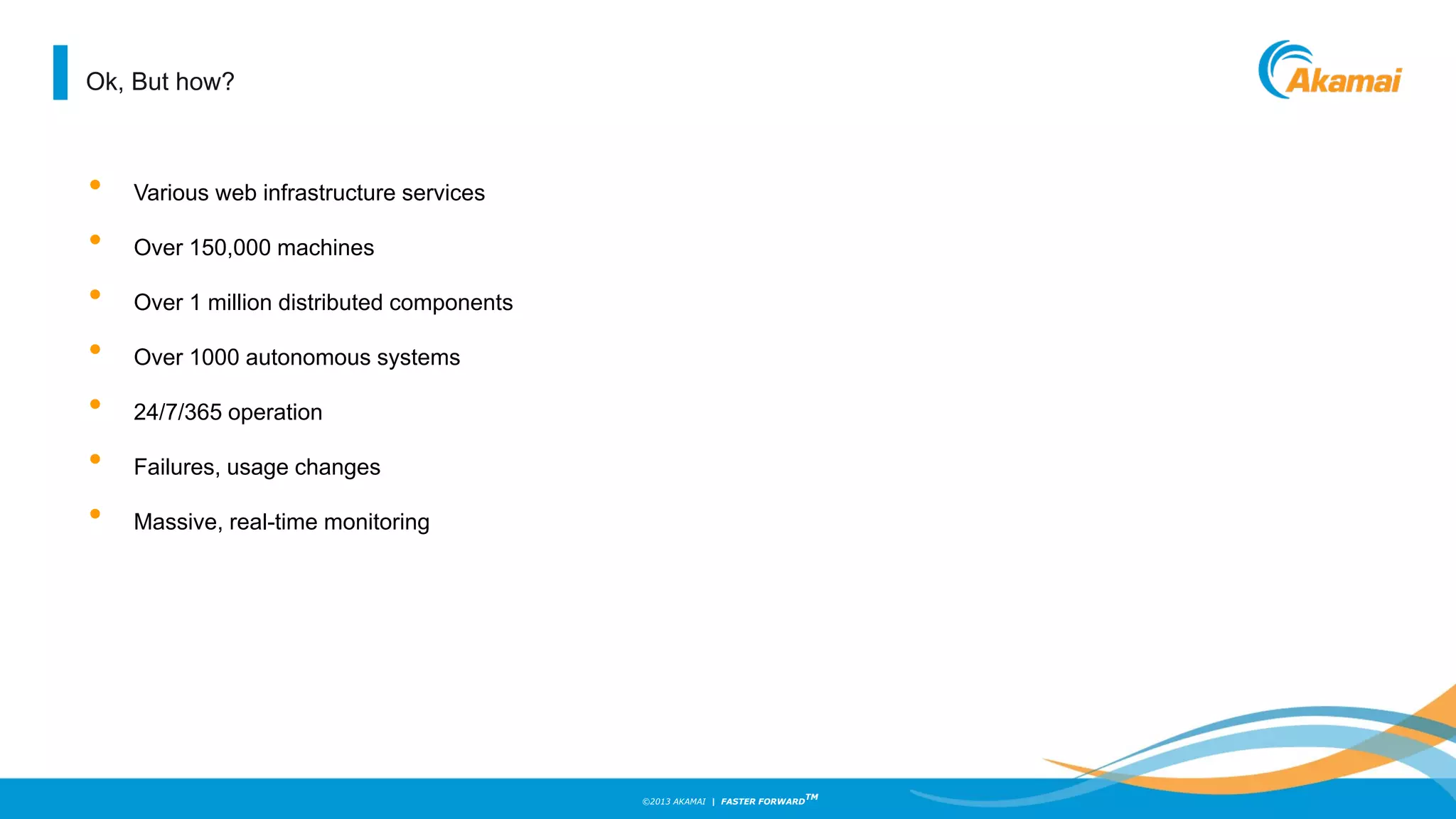

Ok, But how?
• Various web infrastructure services
• Over 150,000 machines
• Over 1 million distributed components
• Over 1000 autonomous systems
• 24/7/365 operation
• Failures, usage changes
• Massive, real-time monitoring

20. ©2013 AKAMAI | FASTER FORWARD
TM

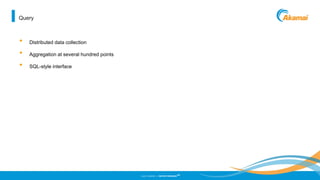

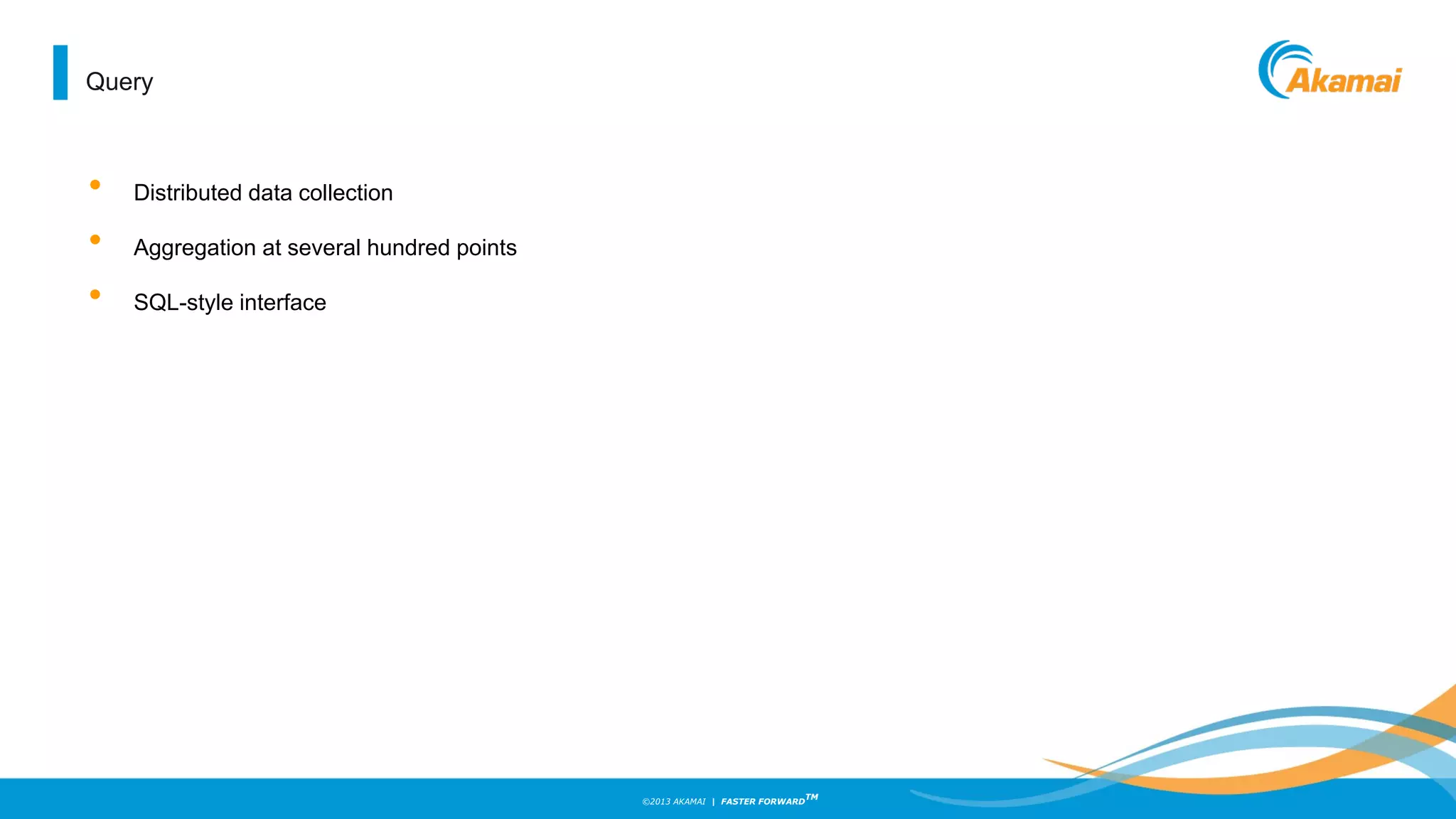

Query
• Distributed data collection
• Aggregation at several hundred points
• SQL-style interface

21. ©2013 AKAMAI | FASTER FORWARD
TM

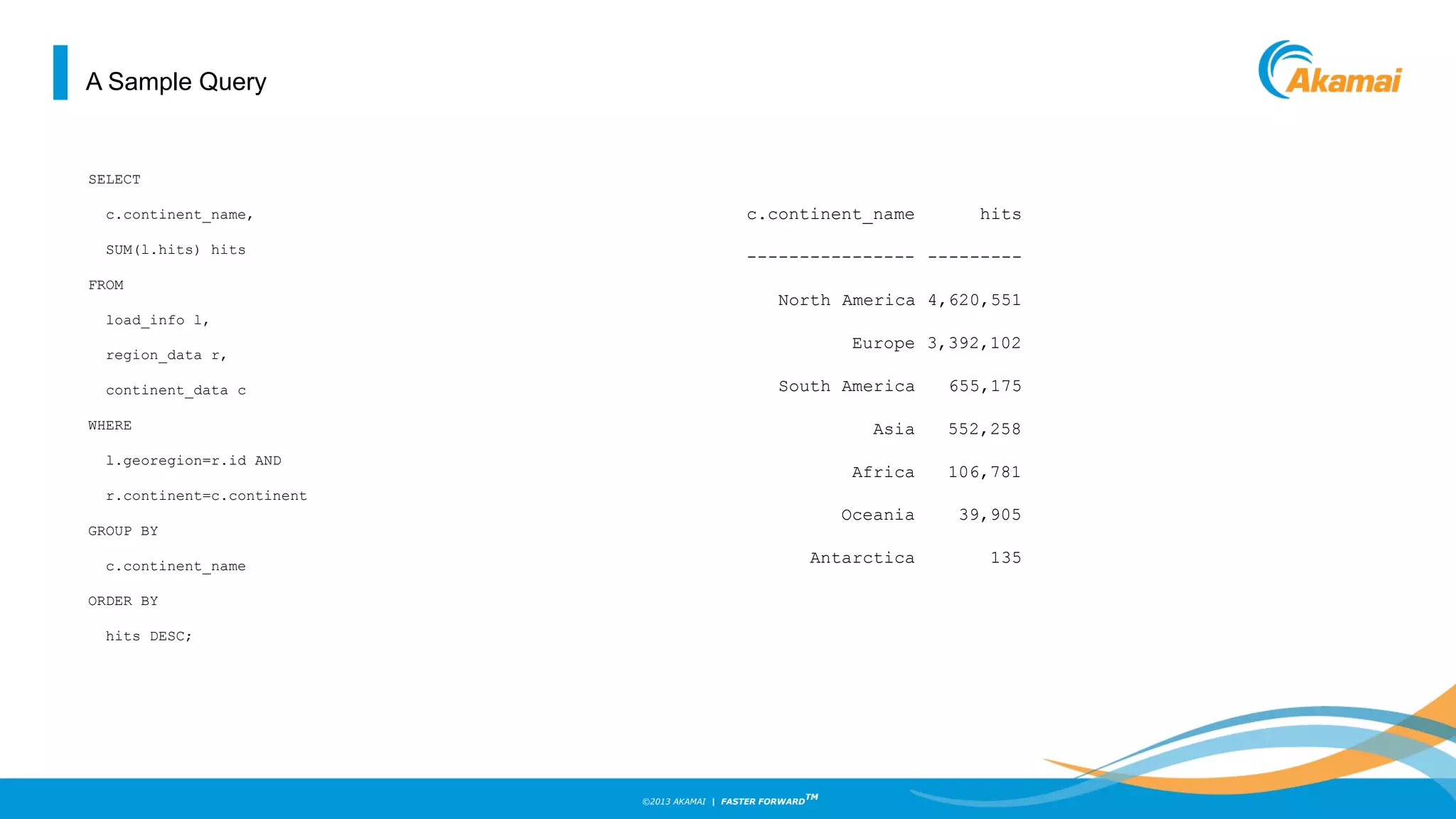

A Sample Query
SELECT
c.continent_name,
SUM(l.hits) hits
FROM
load_info l,
region_data r,
continent_data c
WHERE
l.georegion=r.id AND
r.continent=c.continent
GROUP BY
c.continent_name
ORDER BY
hits DESC;
c.continent_name hits
---------------- ---------
North America 4,620,551
Europe 3,392,102
South America 655,175
Asia 552,258
Africa 106,781
Oceania 39,905
Antarctica 135

22. ©2013 AKAMAI | FASTER FORWARD
TM

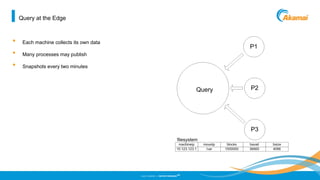

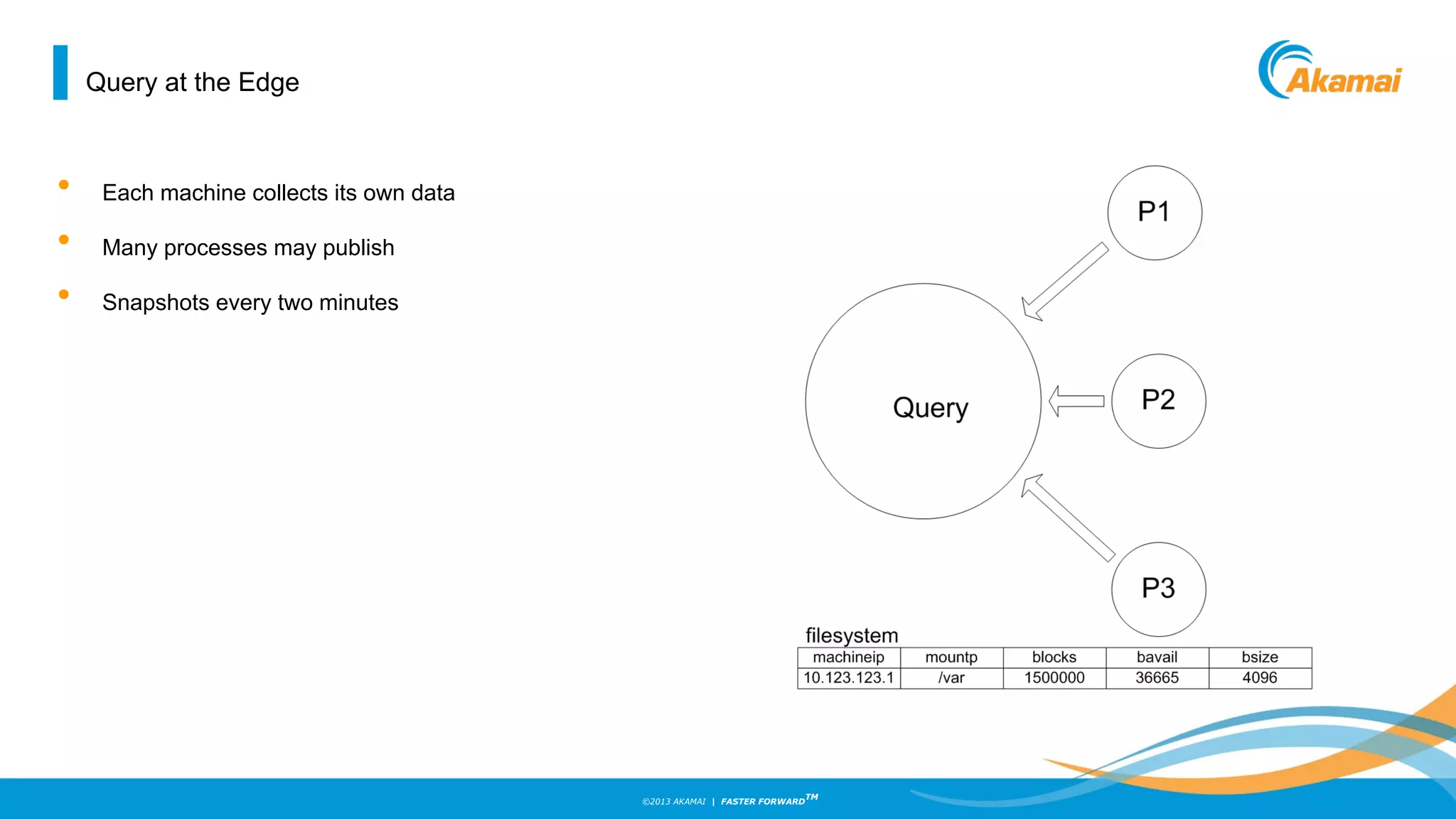

Query at the Edge
• Each machine collects its own data
• Many processes may publish
• Snapshots every two minutes

23. ©2013 AKAMAI | FASTER FORWARD
TM

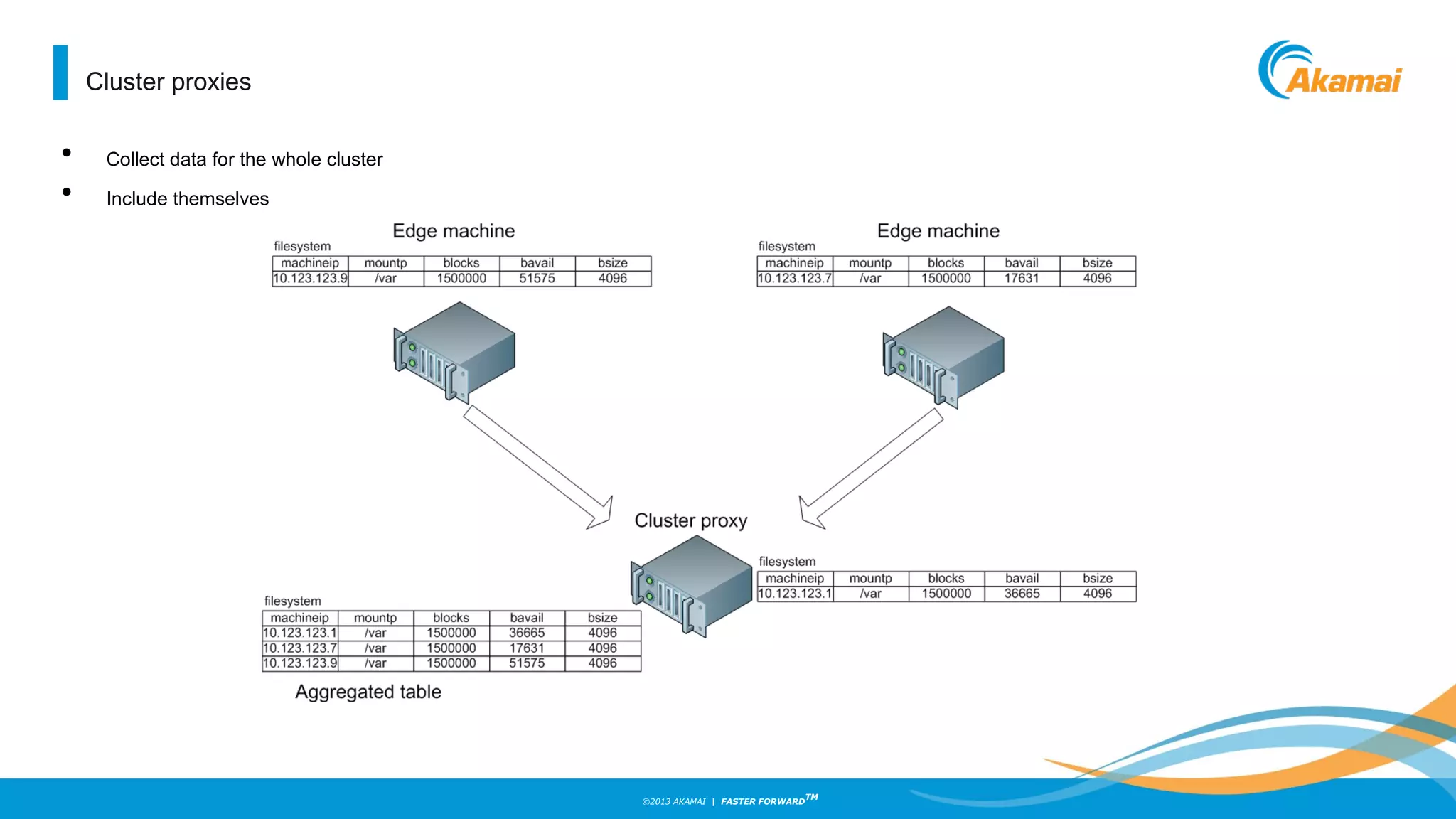

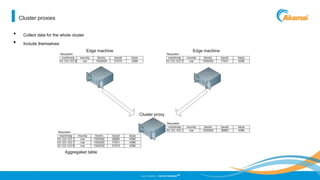

Cluster proxies
• Collect data for the whole cluster
• Include themselves

24. ©2013 AKAMAI | FASTER FORWARD
TM

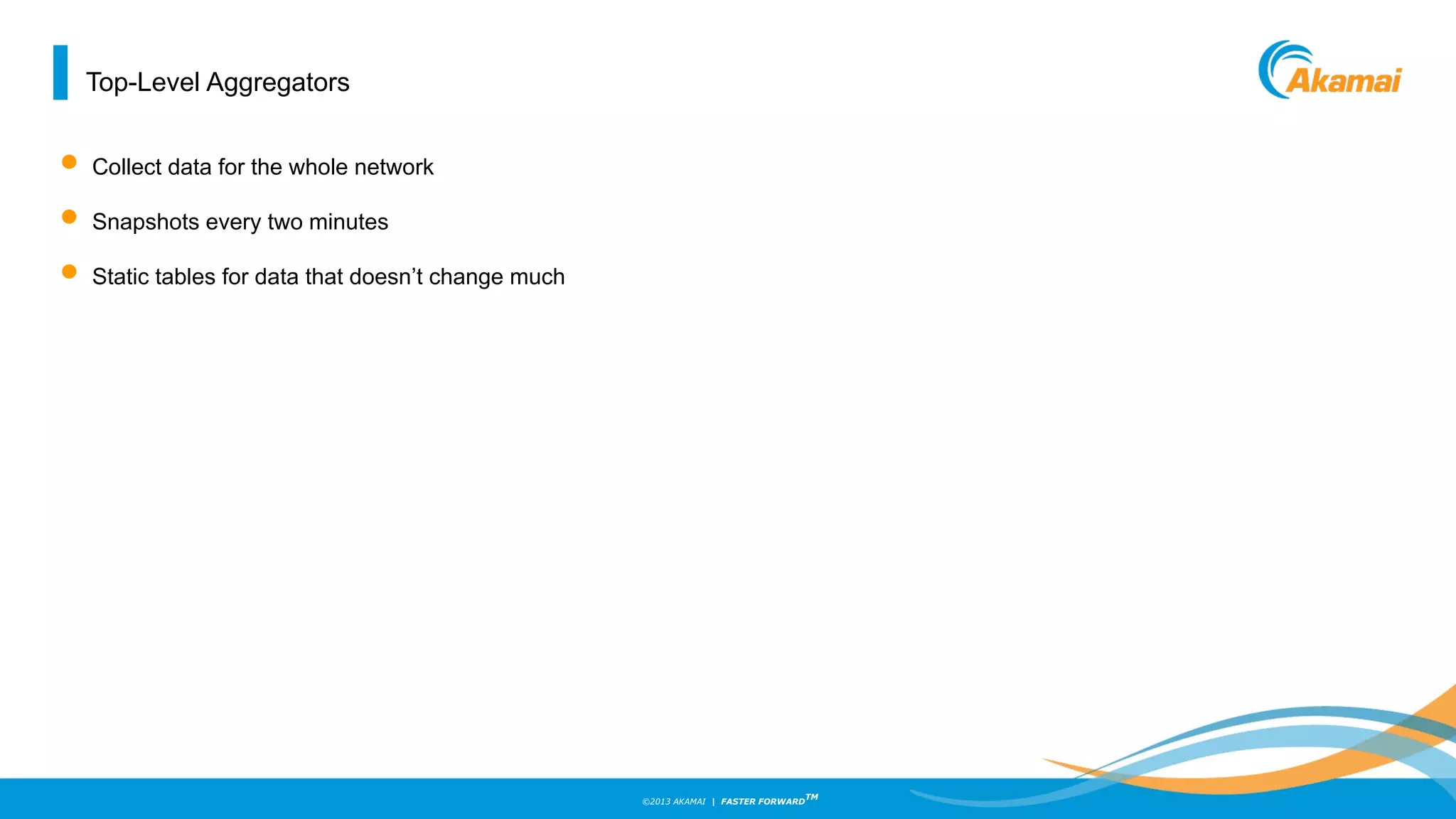

Top-Level Aggregators
• Collect data for the whole network
• Snapshots every two minutes
• Static tables for data that doesn’t change much

25. ©2013 AKAMAI | FASTER FORWARD
TM

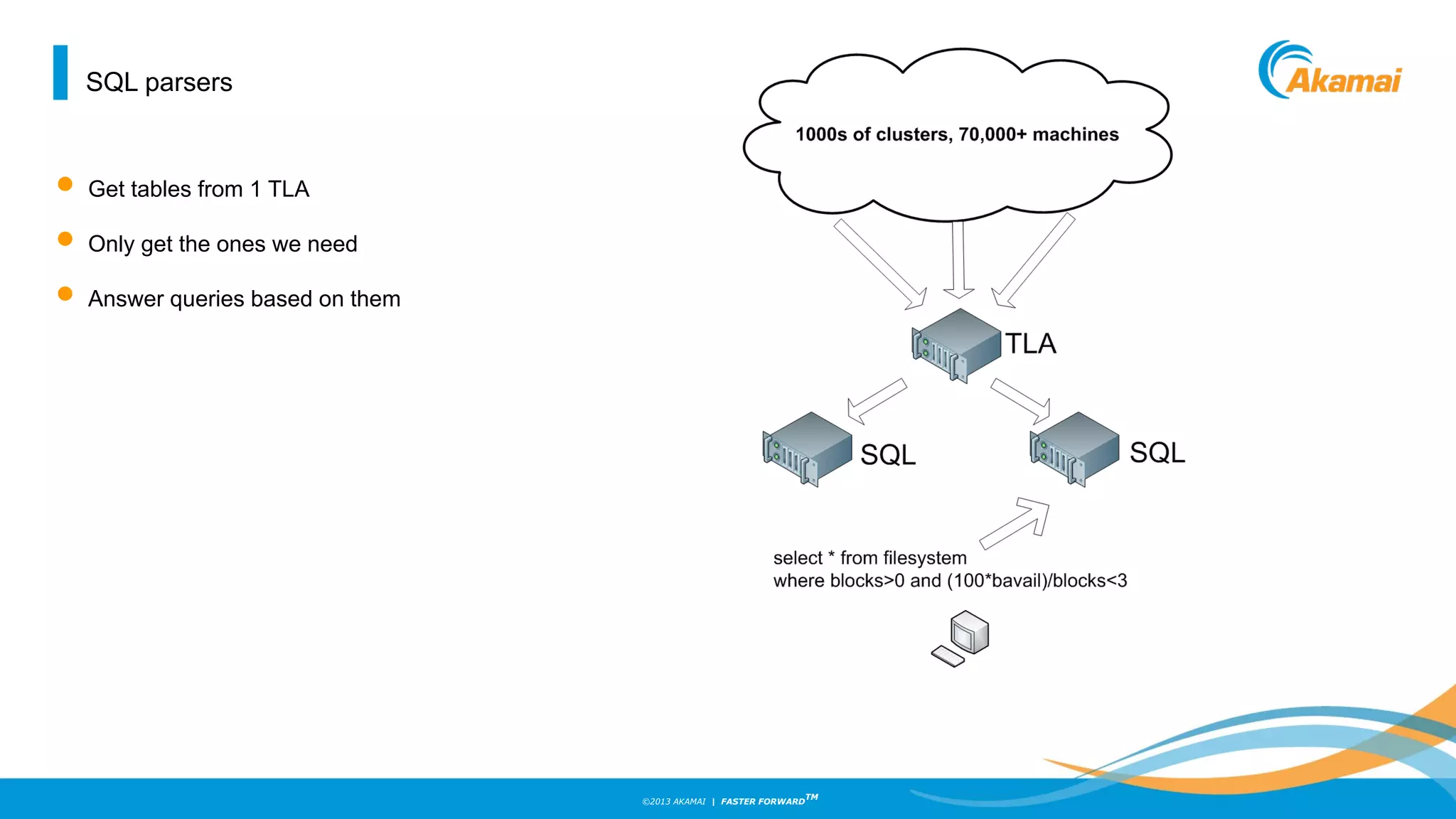

SQL parsers
• Get tables from 1 TLA
• Only get the ones we need
• Answer queries based on them

26. ©2013 AKAMAI | FASTER FORWARD
TM

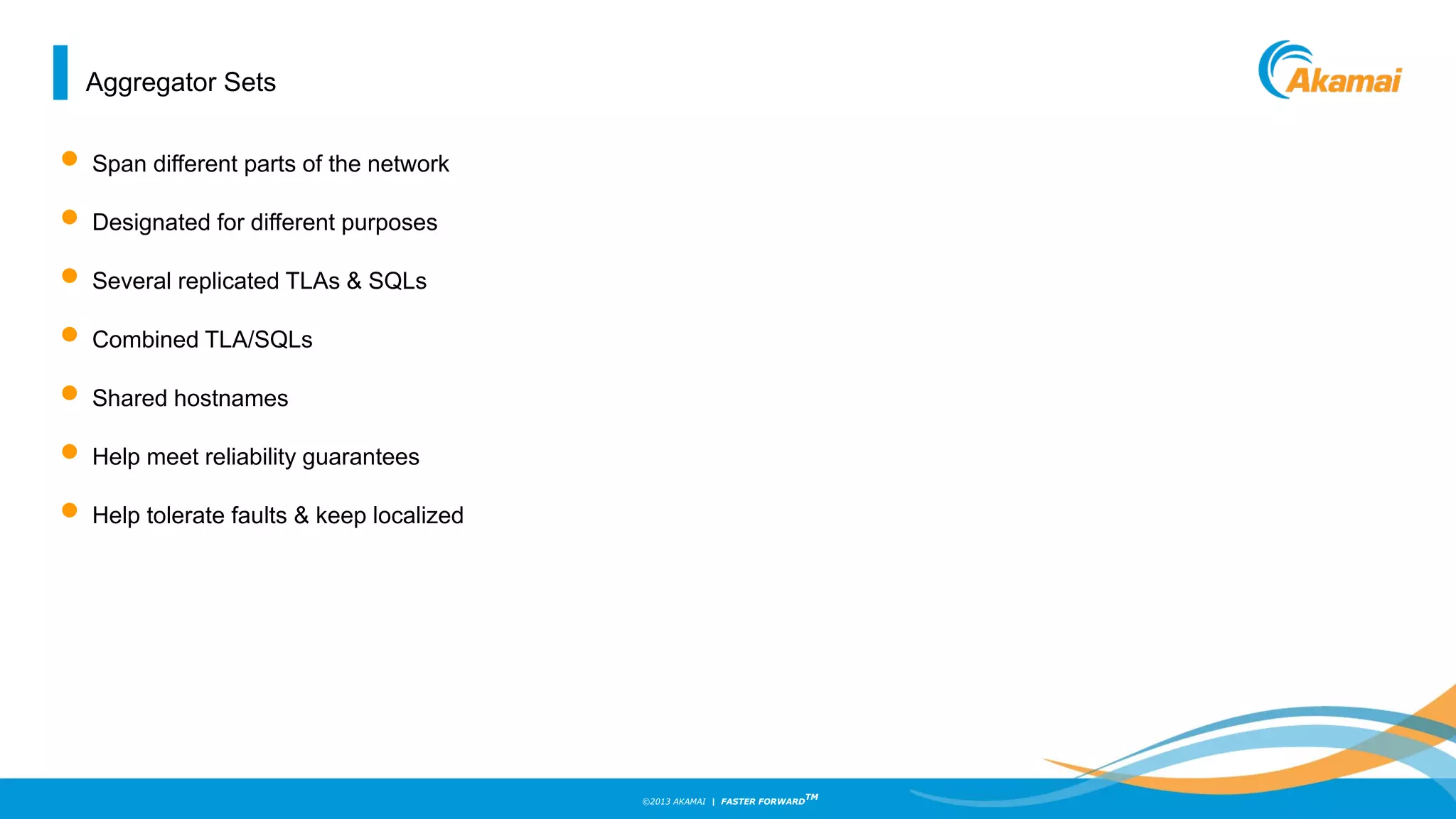

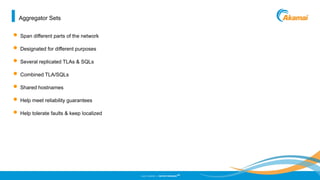

Aggregator Sets
• Span different parts of the network
• Designated for different purposes
• Several replicated TLAs & SQLs
• Combined TLA/SQLs
• Shared hostnames
• Help meet reliability guarantees
• Help tolerate faults & keep localized

27. ©2013 AKAMAI | FASTER FORWARD
TM

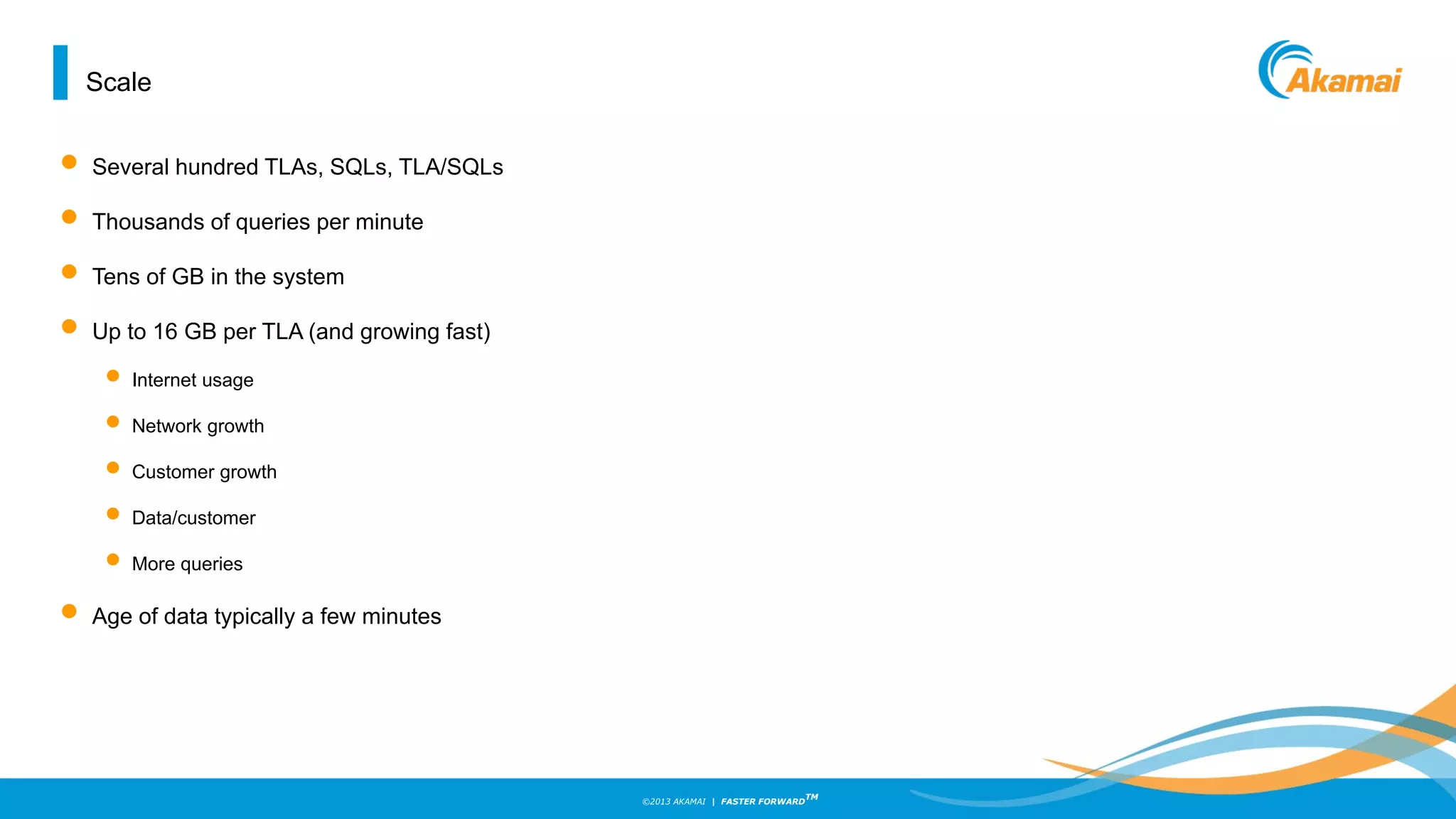

Scale
• Several hundred TLAs, SQLs, TLA/SQLs
• Thousands of queries per minute
• Tens of GB in the system
• Up to 16 GB per TLA (and growing fast)
• Internet usage
• Network growth
• Customer growth
• Data/customer
• More queries
• Age of data typically a few minutes

28. ©2013 AKAMAI | FASTER FORWARD
TM
Result:
2-100X
compression
Result:
2-100X
compression
Result:
2-100X
compression

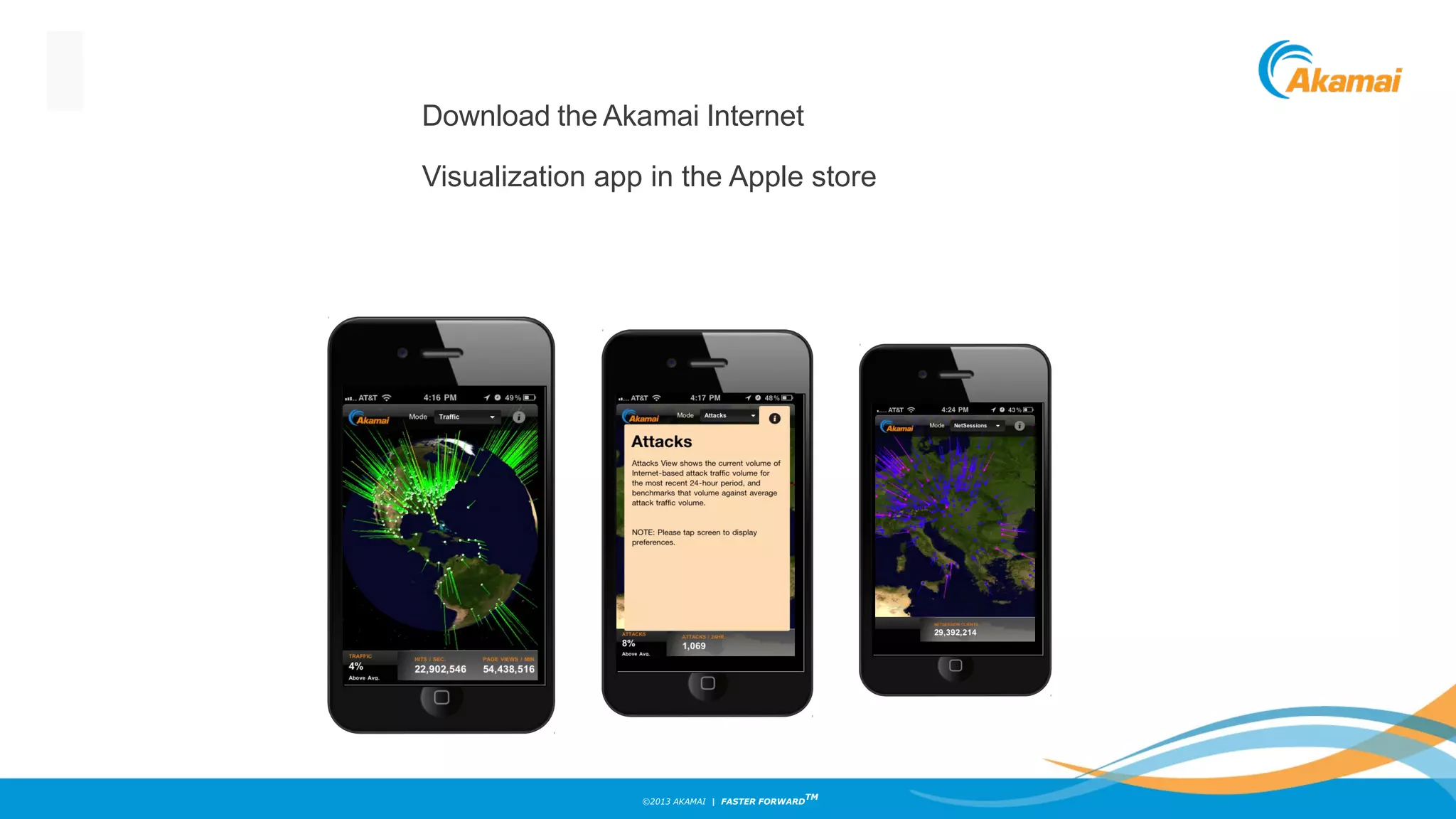

Download the Akamai Internet
Visualization app in the Apple store

29. ©2013 AKAMAI | FASTER FORWARD
TM

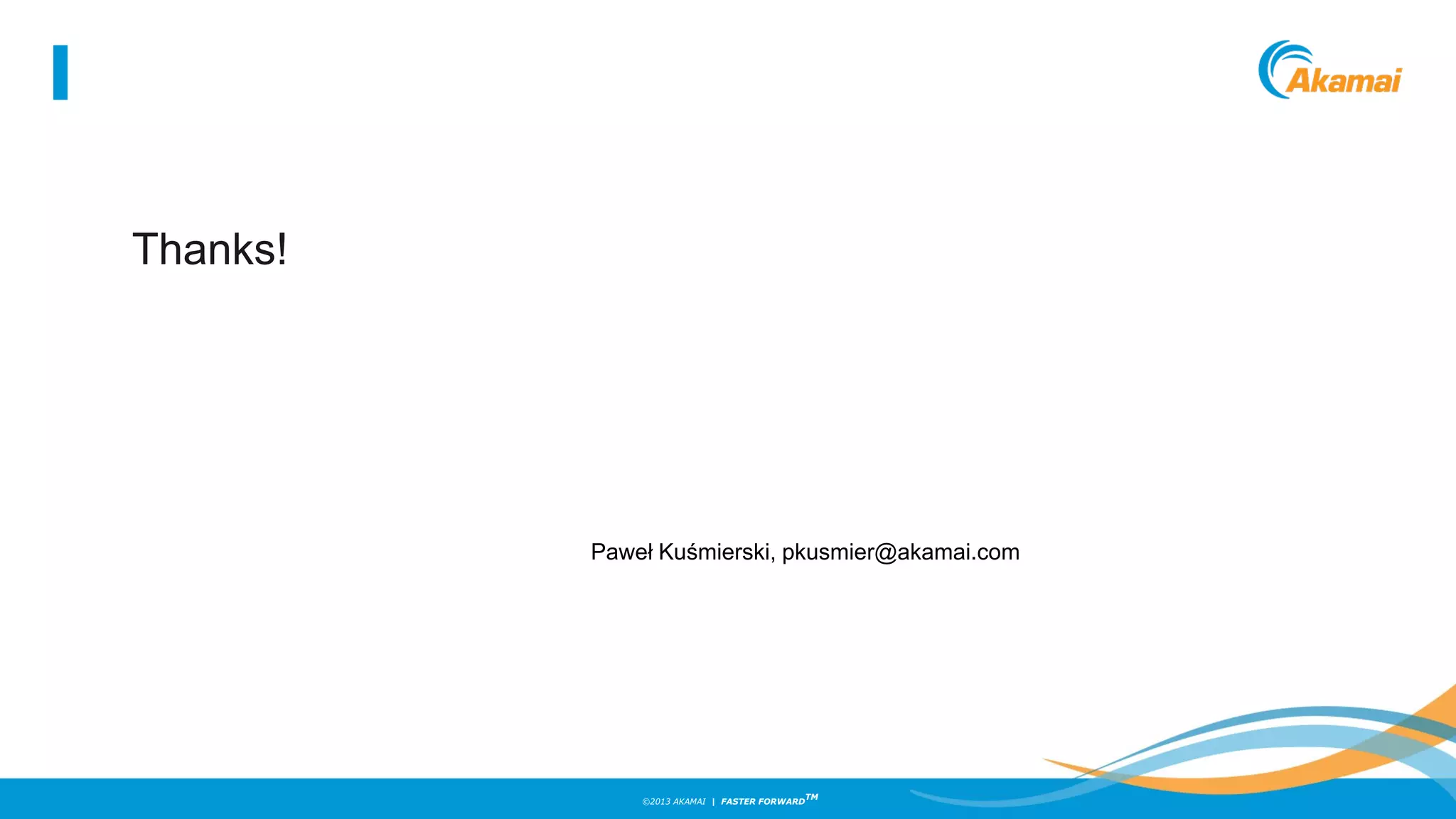

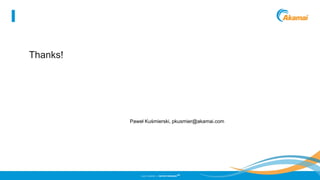

Thanks!
Paweł Kuśmierski, pkusmier@akamai.com
