The document provides an overview of Object-Oriented Programming (OOP) concepts in Java, focusing on abstraction, method overloading and overriding, and the use of abstract classes and interfaces. It includes several examples illustrating how to define and implement abstract classes and interfaces, highlighting their significance in achieving full abstraction and multiple inheritance in Java. The document also outlines rules for using abstract classes and the relationship between classes and interfaces.

1. Core Java Training
OOPs with Java & Exception Handling

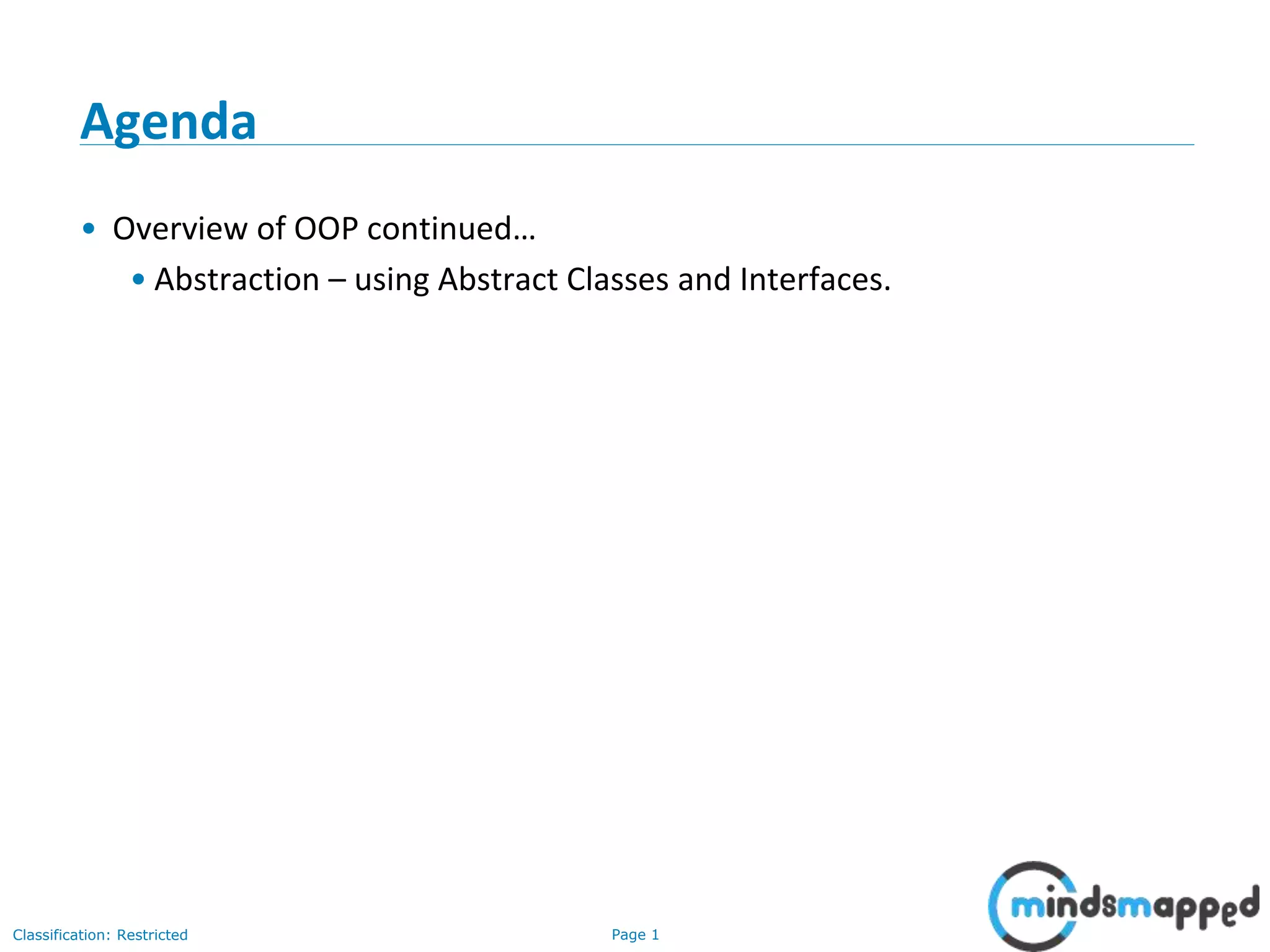

2. Page 1Classification: Restricted
Agenda
• Overview of OOP continued…
• Abstraction – using Abstract Classes and Interfaces.

3. Java & JEE Training
Review of OOPs concepts (Last class)

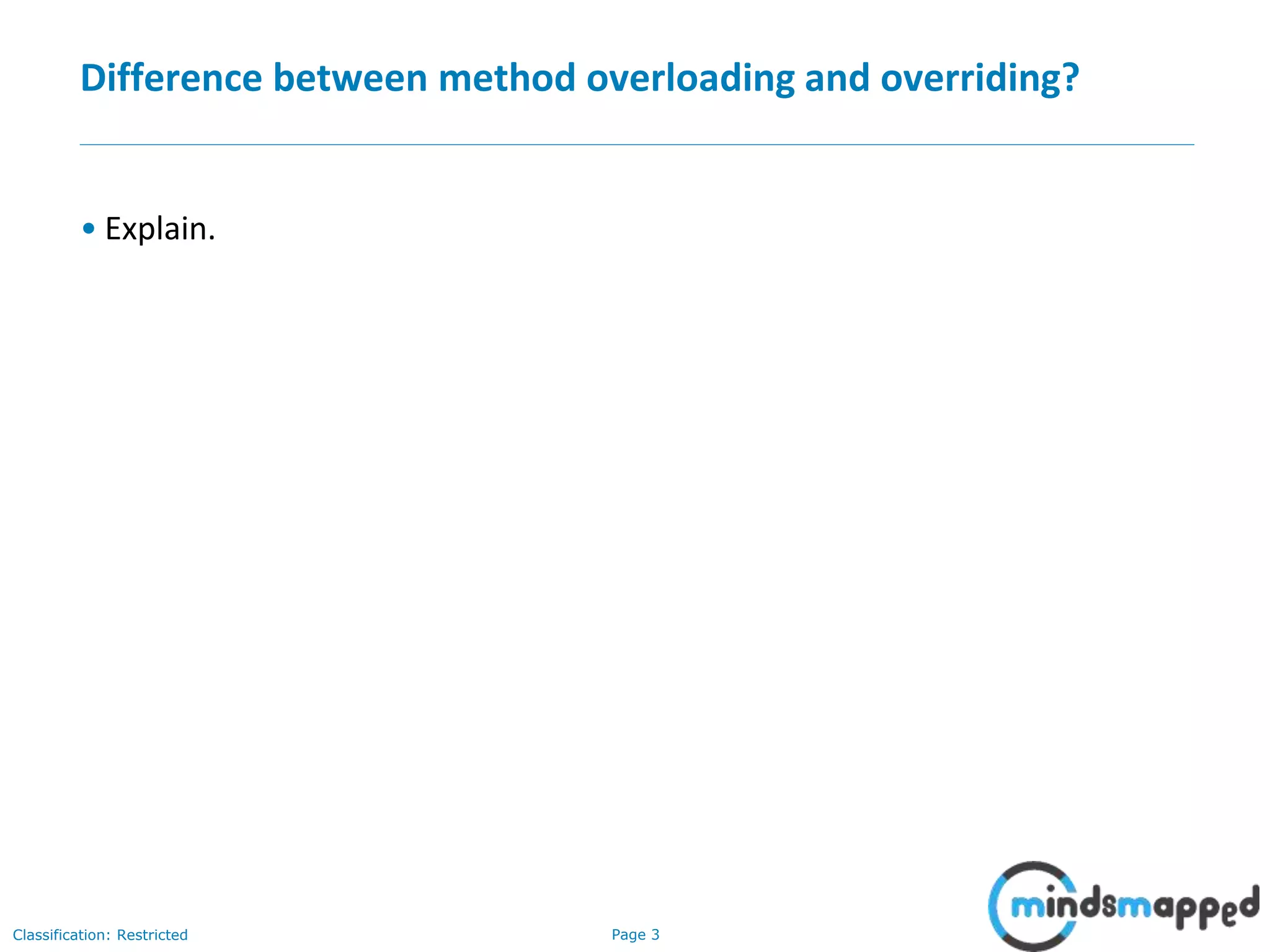

4. Page 3Classification: Restricted
Difference between method overloading and overriding?
• Explain.

5. Page 4Classification: Restricted

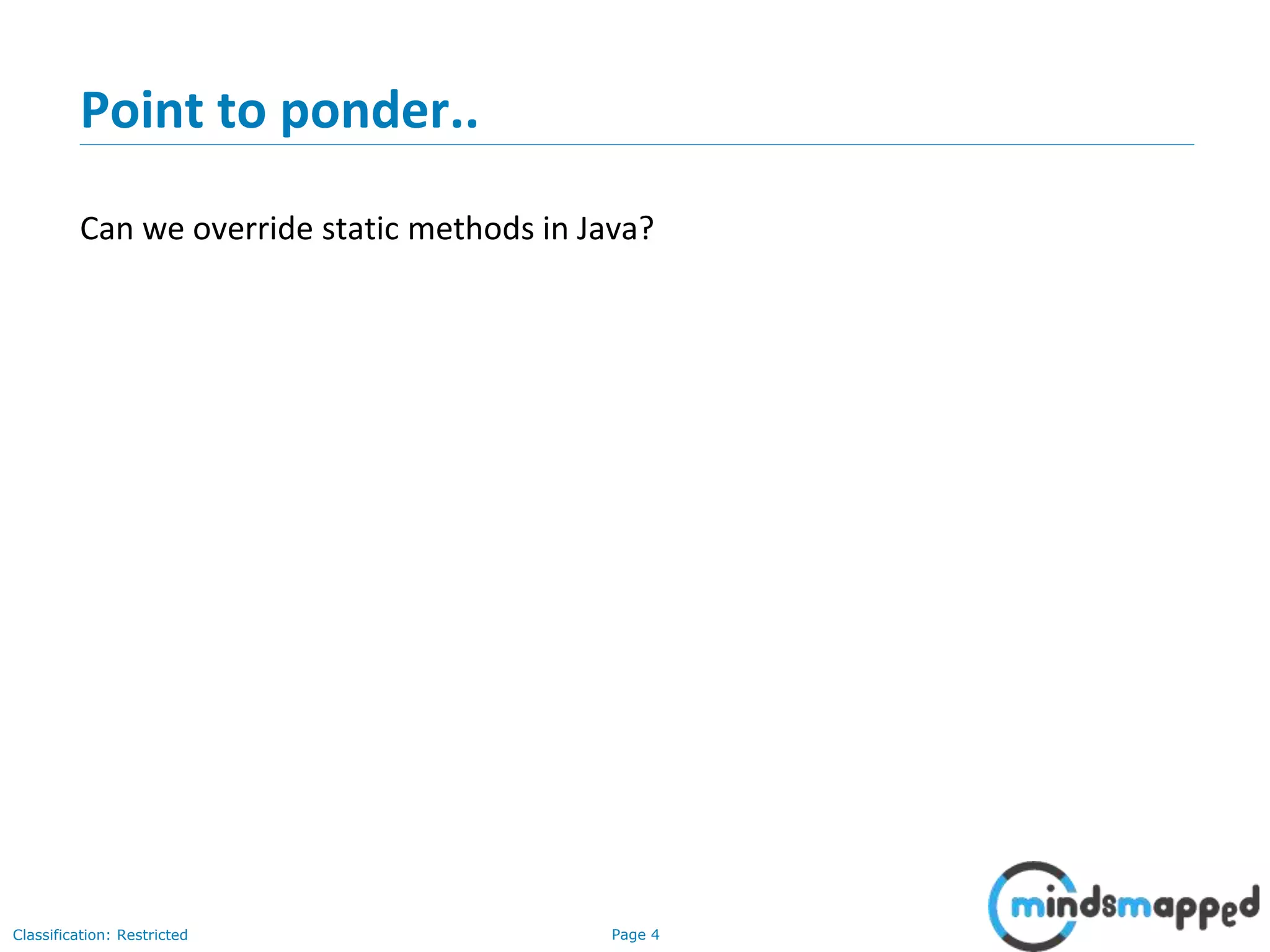

Point to ponder..
Can we override static methods in Java?

6. Page 5Classification: Restricted

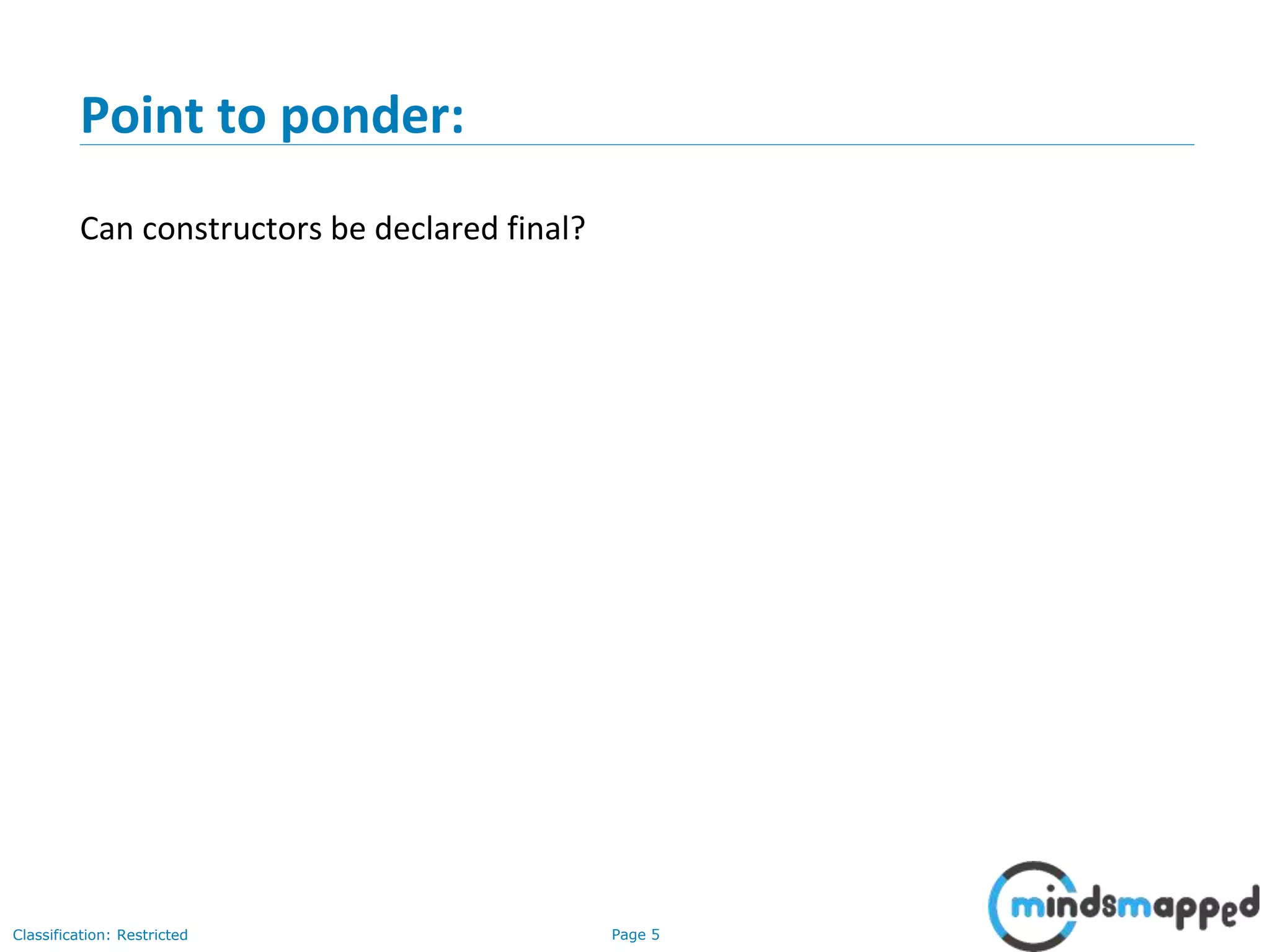

Point to ponder:
Can constructors be declared final?

7. Page 6Classification: Restricted

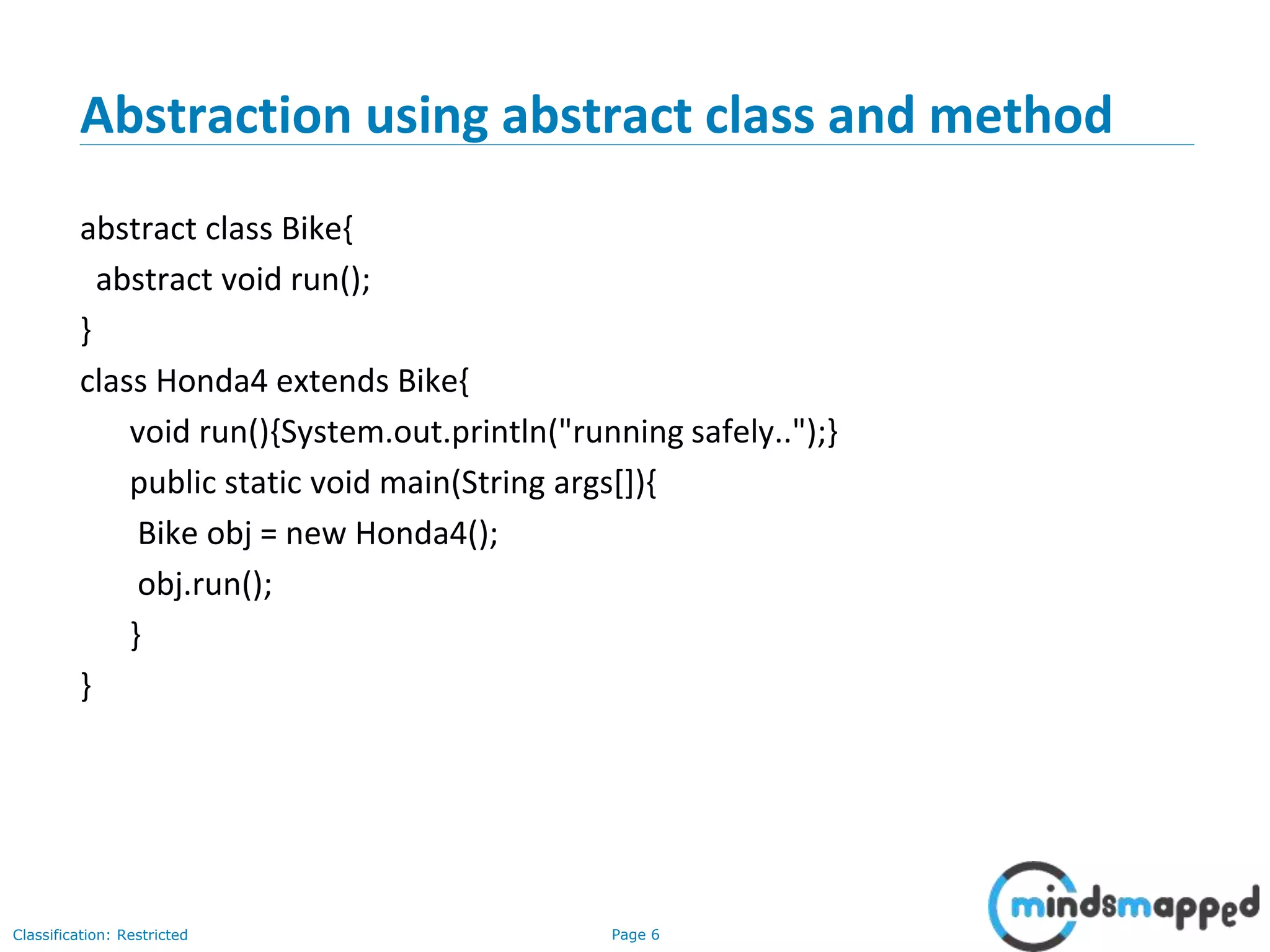

Abstraction using abstract class and method
abstract class Bike{
abstract void run();
}
class Honda4 extends Bike{
void run(){System.out.println("running safely..");}
public static void main(String args[]){
Bike obj = new Honda4();
obj.run();
}
}

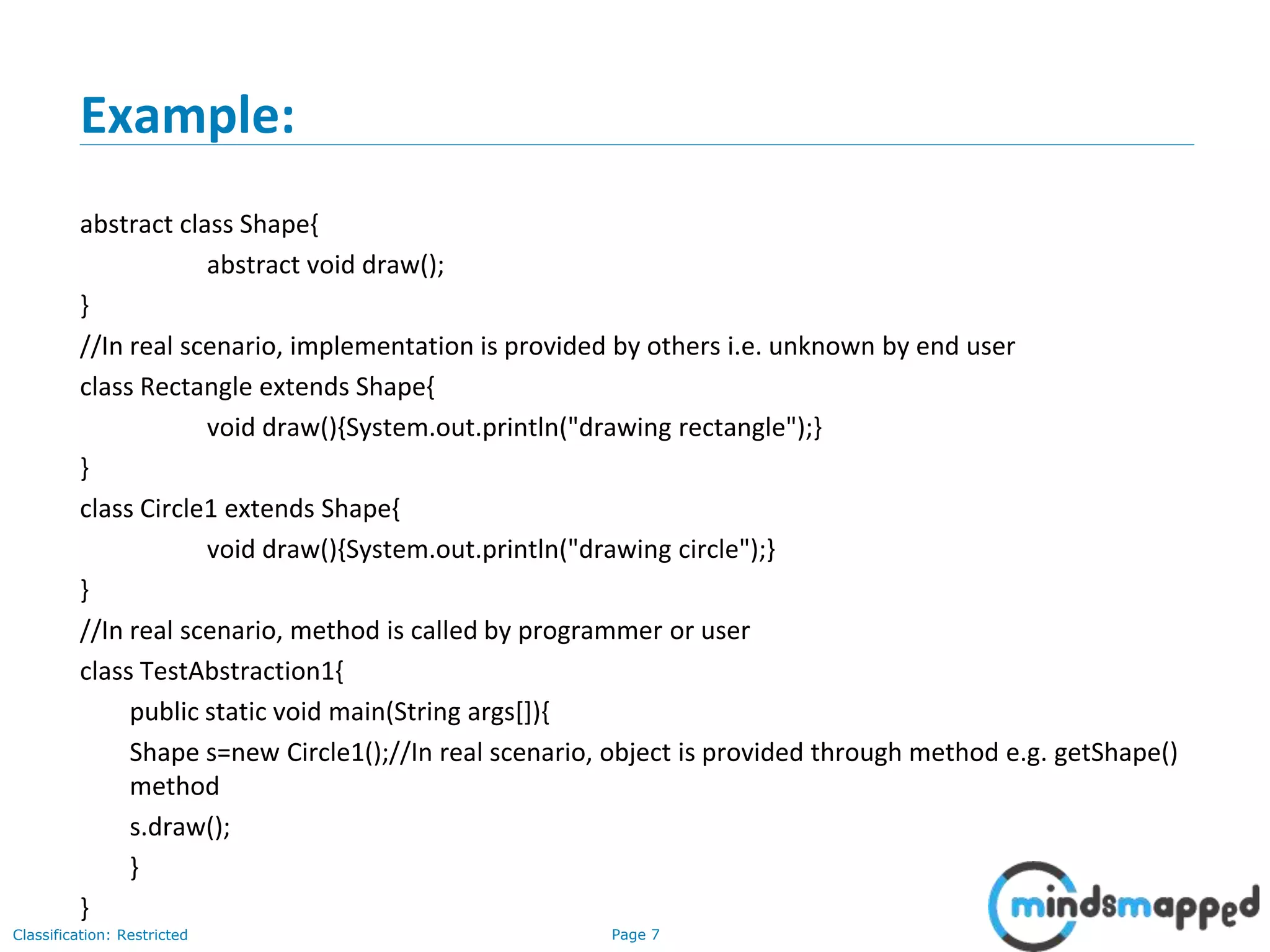

8. Page 7Classification: Restricted
Example:
abstract class Shape{
abstract void draw();
}
//In real scenario, implementation is provided by others i.e. unknown by end user
class Rectangle extends Shape{
void draw(){System.out.println("drawing rectangle");}
}
class Circle1 extends Shape{
void draw(){System.out.println("drawing circle");}
}
//In real scenario, method is called by programmer or user
class TestAbstraction1{
public static void main(String args[]){
Shape s=new Circle1();//In real scenario, object is provided through method e.g. getShape()
method
s.draw();
}
}

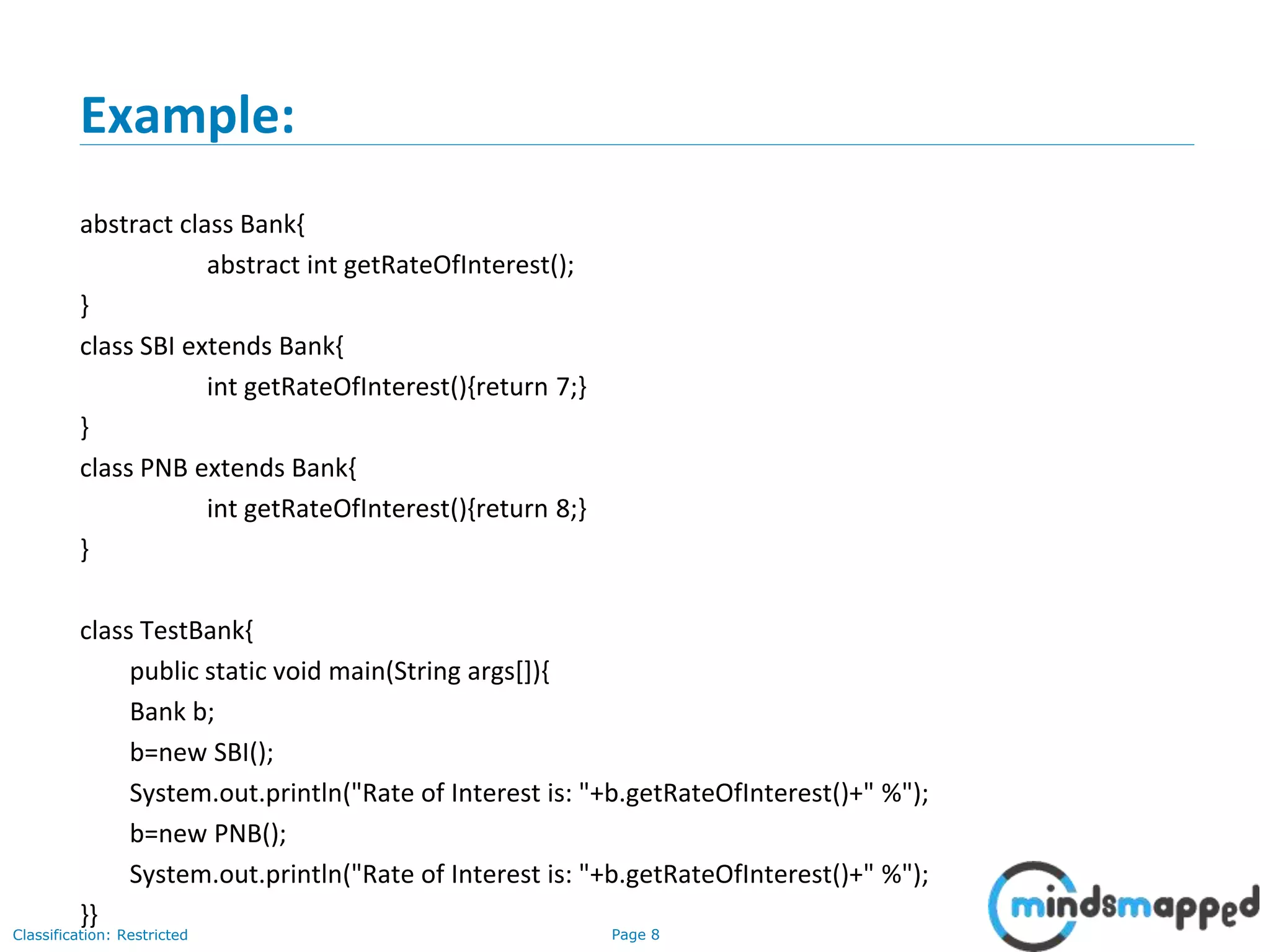

9. Page 8Classification: Restricted
Example:
abstract class Bank{
abstract int getRateOfInterest();
}
class SBI extends Bank{
int getRateOfInterest(){return 7;}
}
class PNB extends Bank{
int getRateOfInterest(){return 8;}
}
class TestBank{
public static void main(String args[]){
Bank b;
b=new SBI();
System.out.println("Rate of Interest is: "+b.getRateOfInterest()+" %");
b=new PNB();
System.out.println("Rate of Interest is: "+b.getRateOfInterest()+" %");
}}

10. Page 9Classification: Restricted

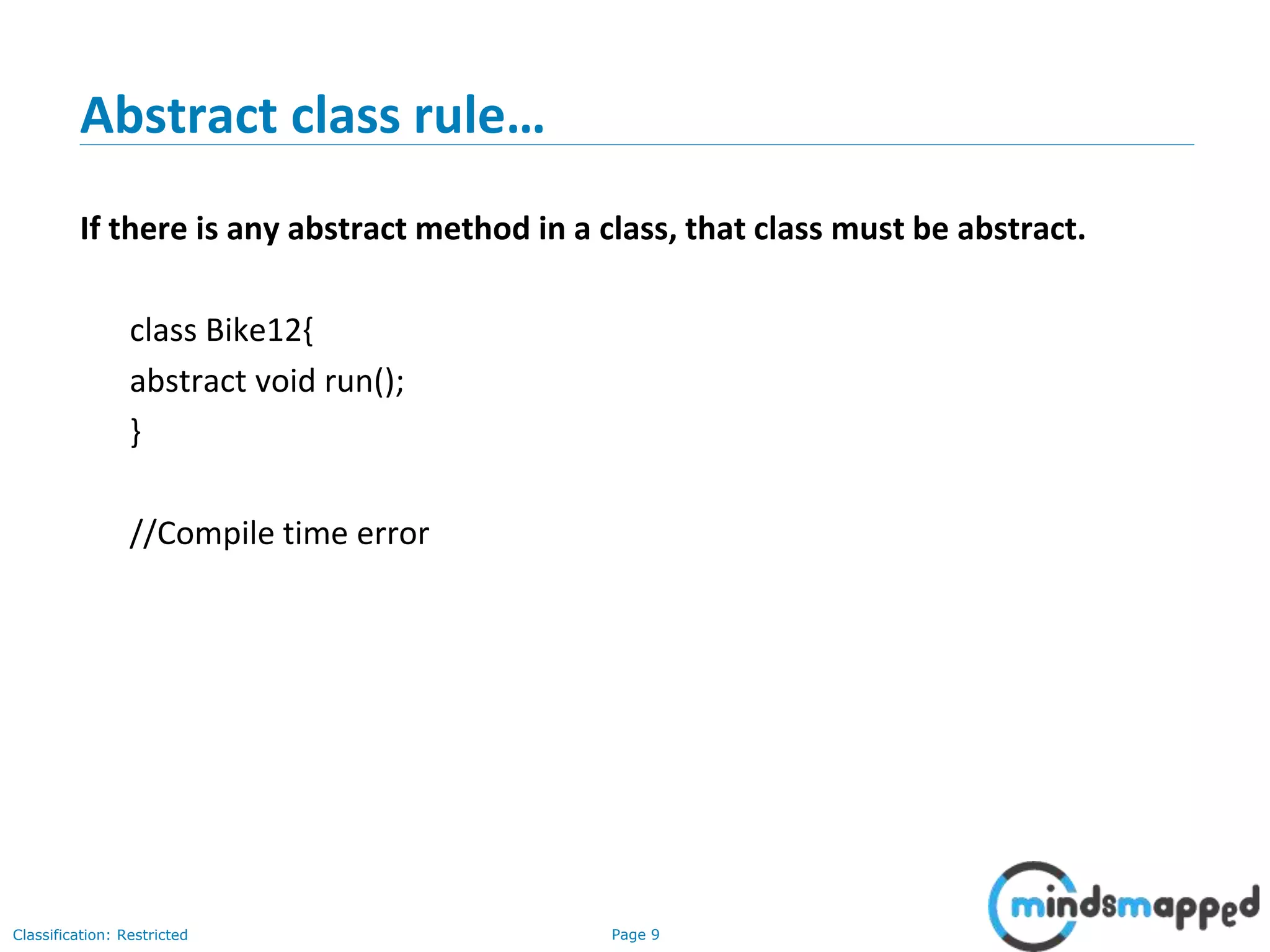

Abstract class rule…
If there is any abstract method in a class, that class must be abstract.
class Bike12{
abstract void run();
}
//Compile time error

11. Page 10Classification: Restricted

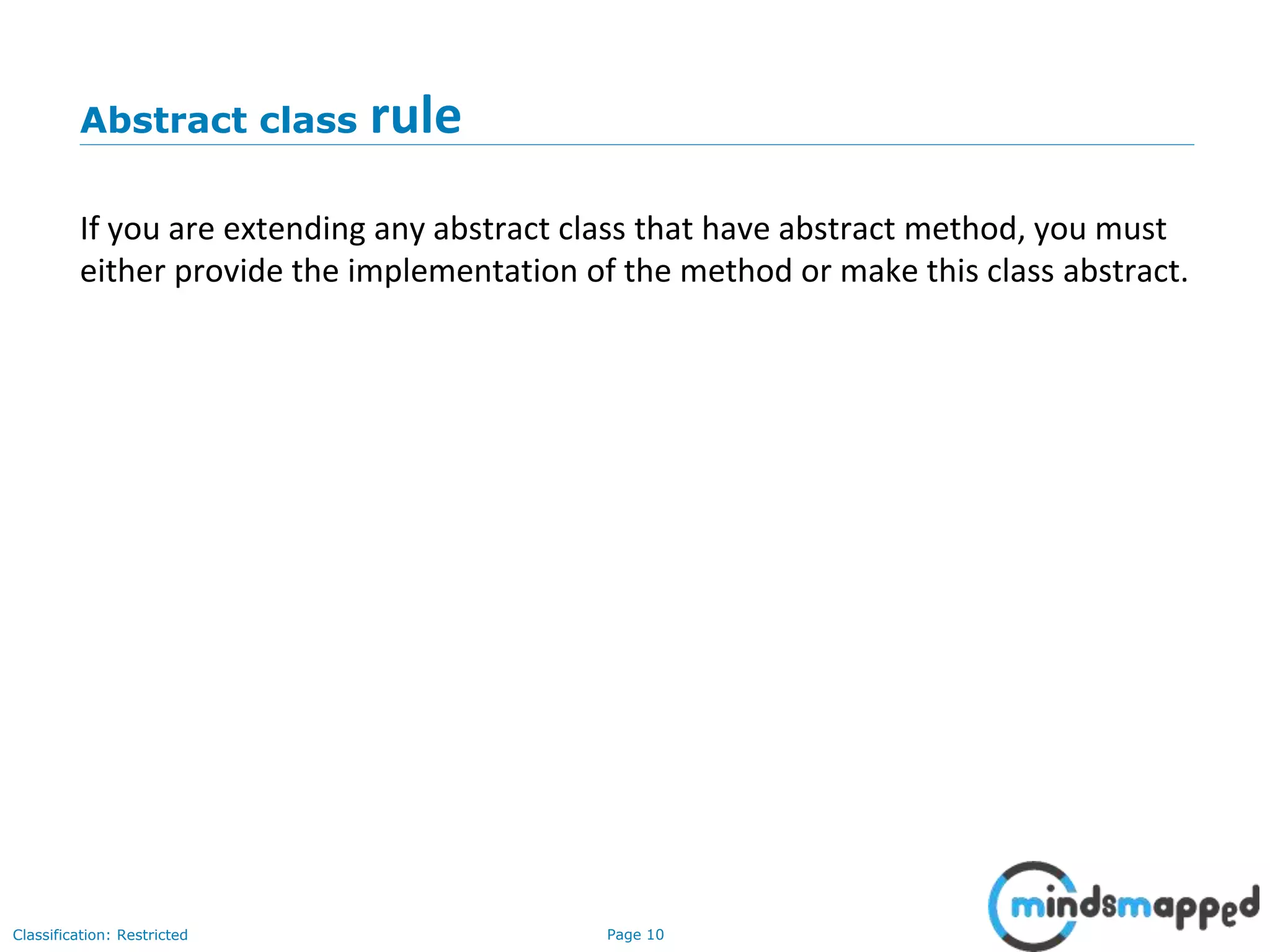

Abstract class rule
If you are extending any abstract class that have abstract method, you must
either provide the implementation of the method or make this class abstract.

12. Page 11Classification: Restricted

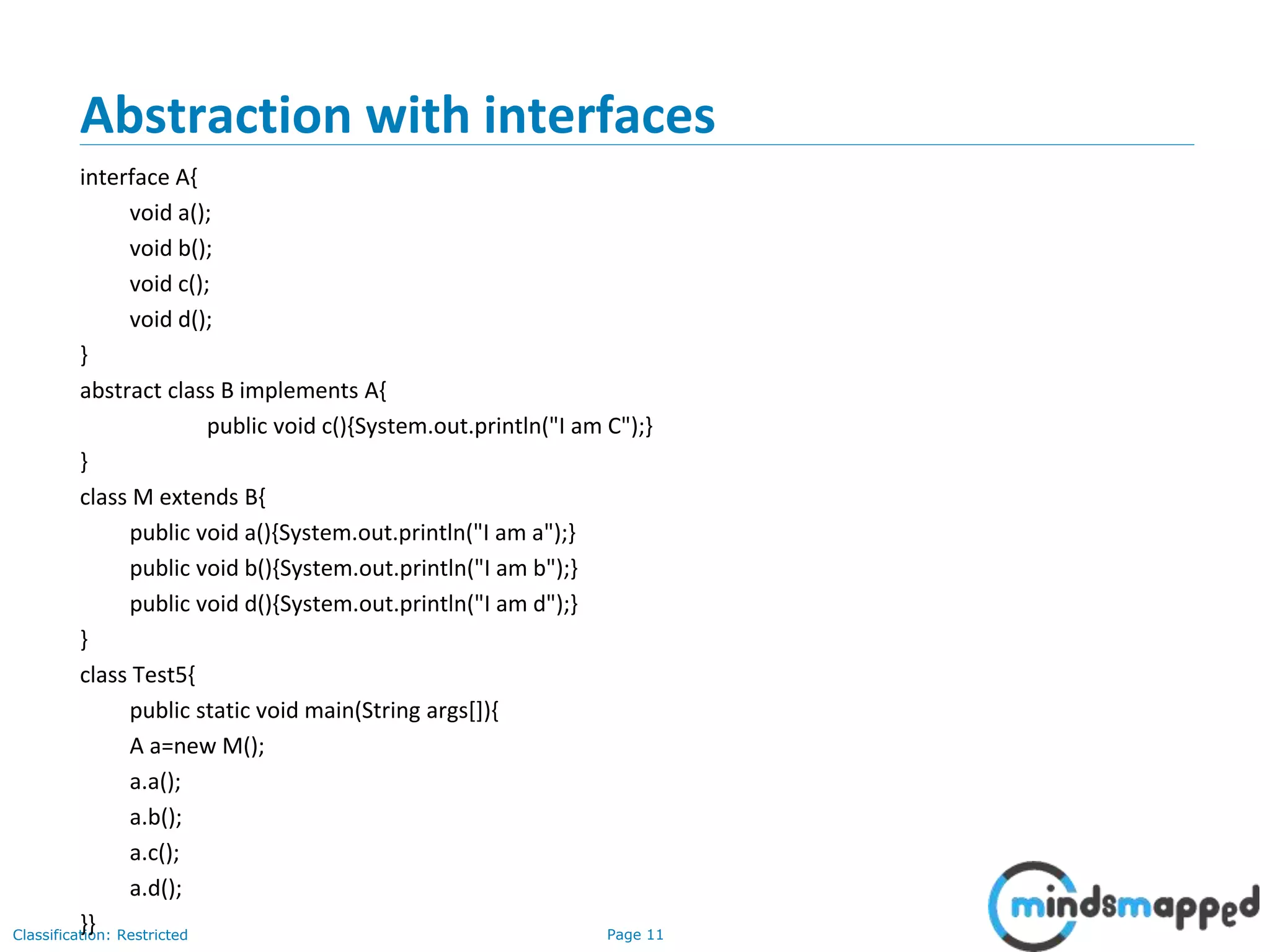

Abstraction with interfaces
interface A{
void a();
void b();
void c();
void d();
}
abstract class B implements A{
public void c(){System.out.println("I am C");}
}
class M extends B{
public void a(){System.out.println("I am a");}
public void b(){System.out.println("I am b");}
public void d(){System.out.println("I am d");}
}
class Test5{
public static void main(String args[]){
A a=new M();
a.a();
a.b();
a.c();
a.d();
}}

13. Page 12Classification: Restricted

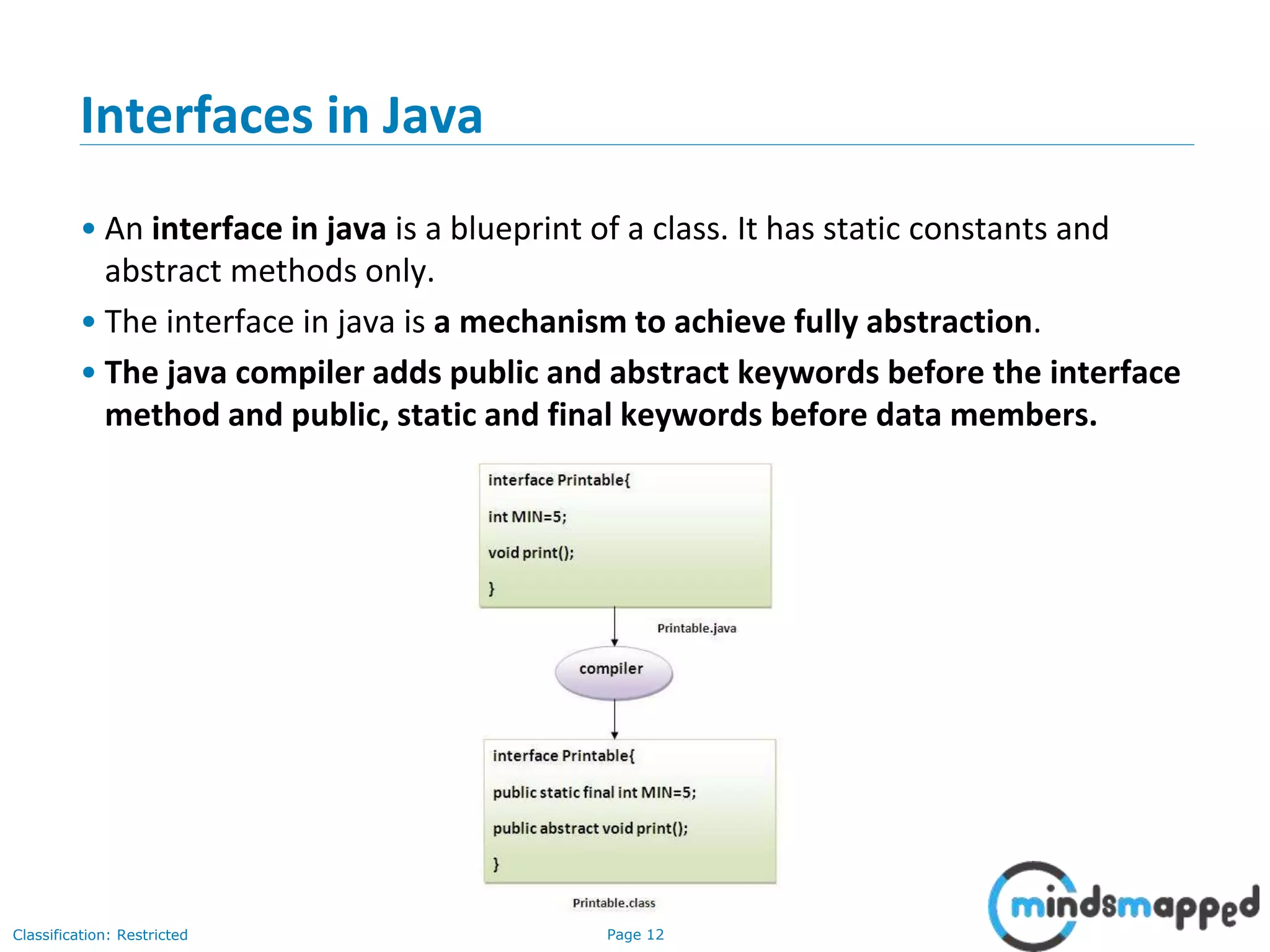

Interfaces in Java
• An interface in java is a blueprint of a class. It has static constants and
abstract methods only.
• The interface in java is a mechanism to achieve fully abstraction.
• The java compiler adds public and abstract keywords before the interface
method and public, static and final keywords before data members.

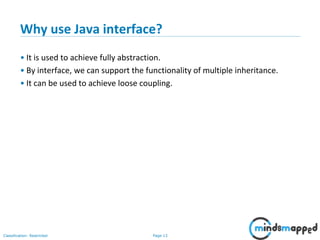

14. Page 13Classification: Restricted

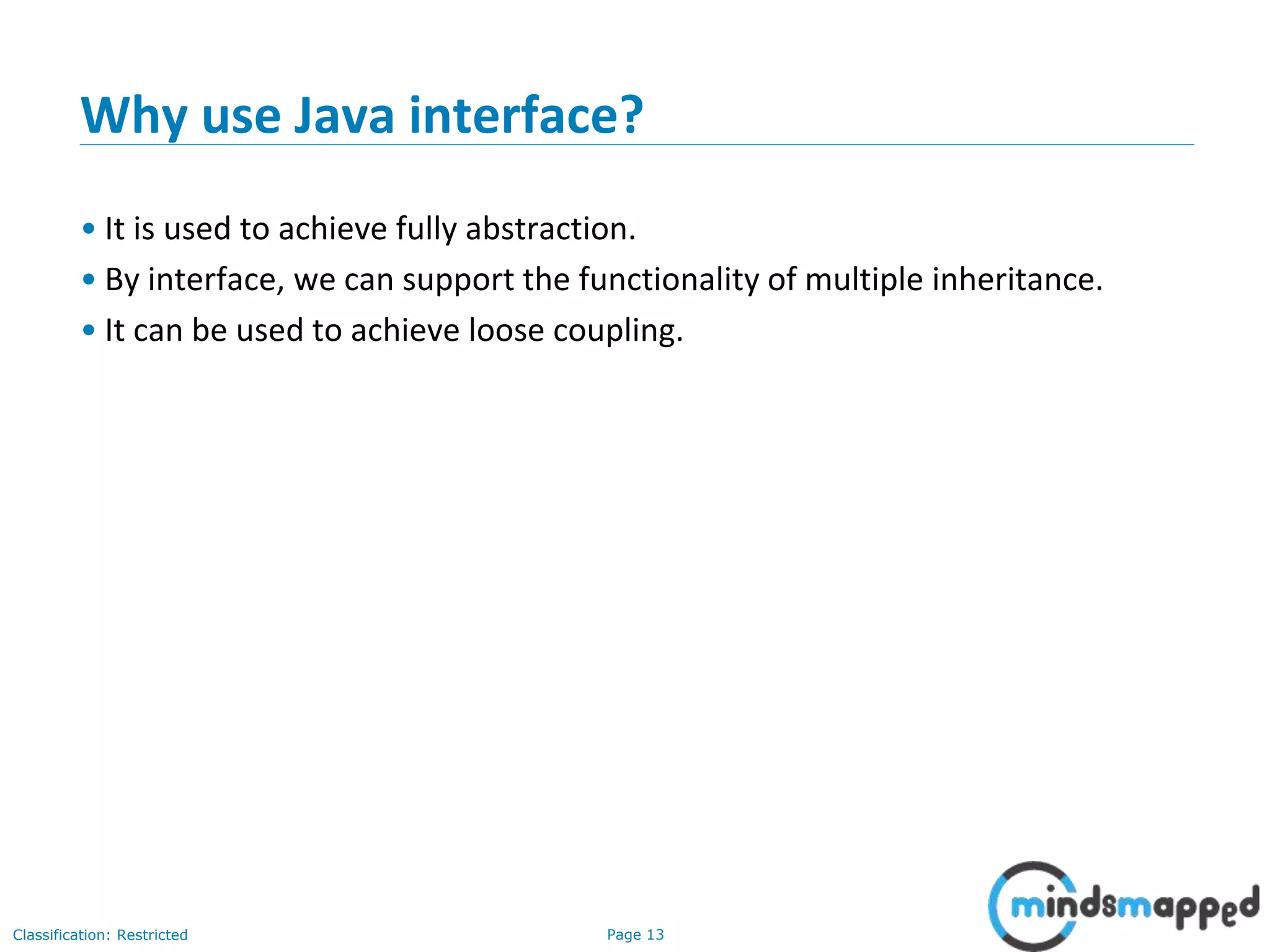

Why use Java interface?
• It is used to achieve fully abstraction.
• By interface, we can support the functionality of multiple inheritance.
• It can be used to achieve loose coupling.

15. Page 14Classification: Restricted

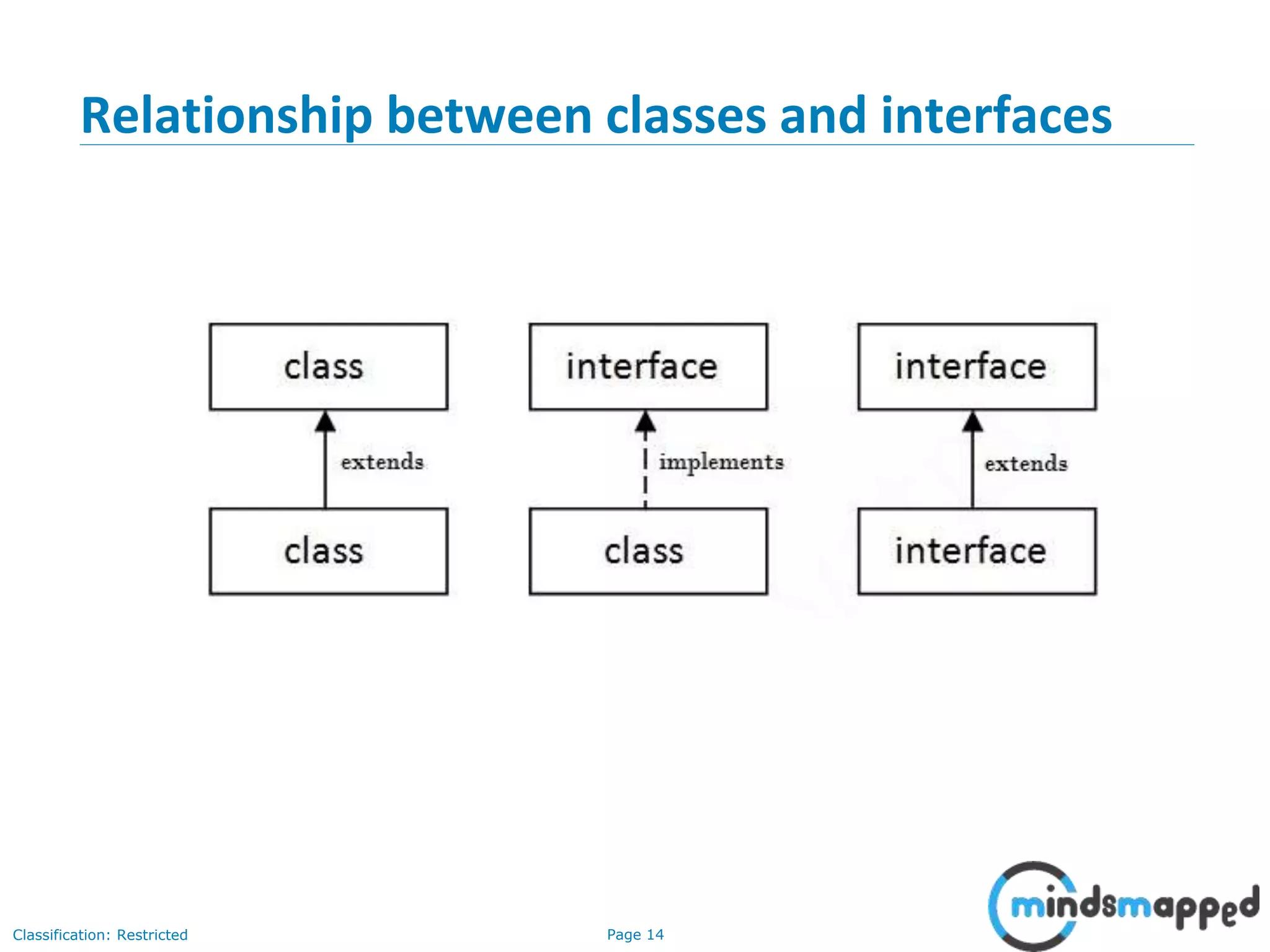

Relationship between classes and interfaces

16. Page 15Classification: Restricted

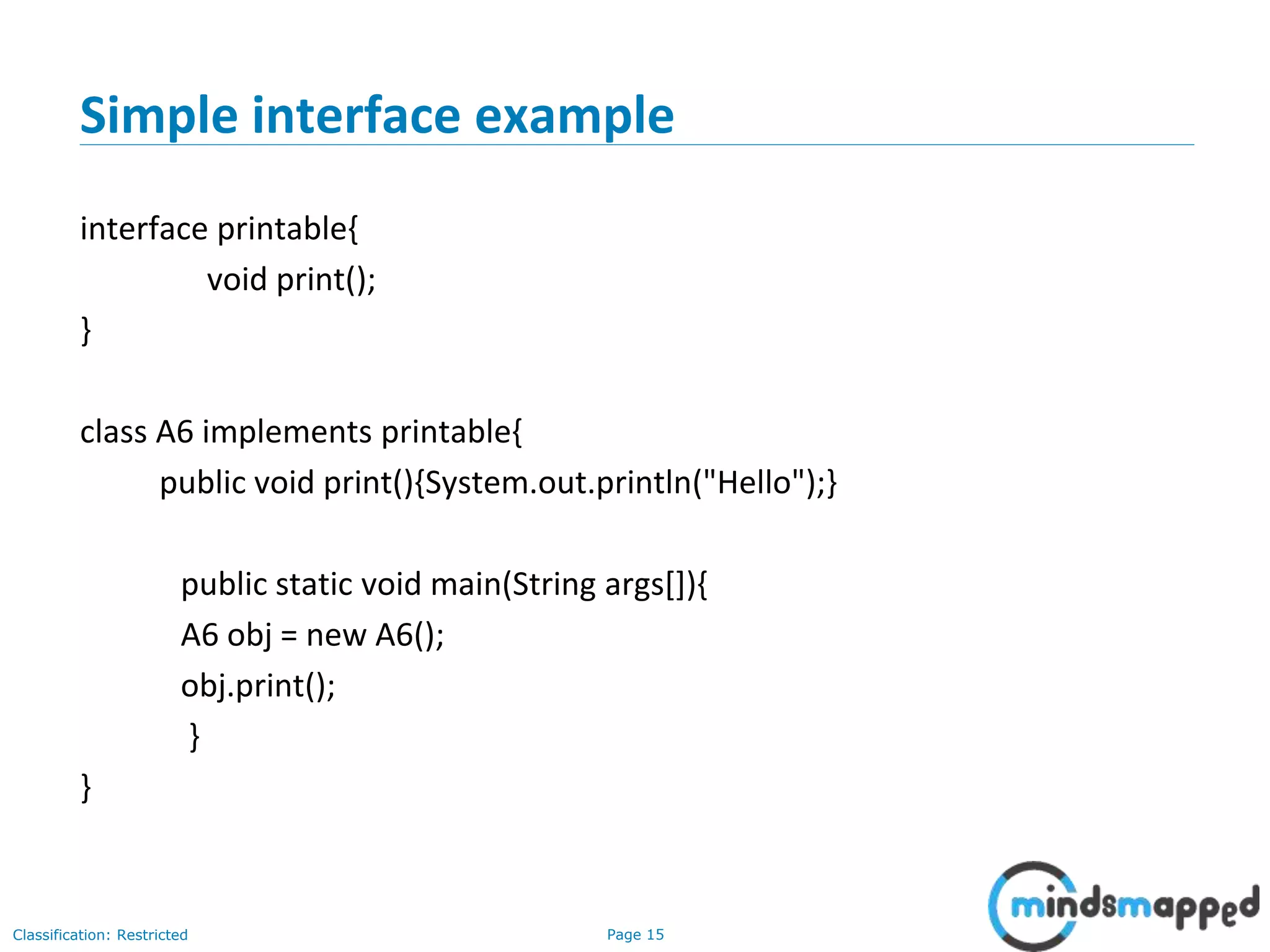

Simple interface example
interface printable{
void print();
}
class A6 implements printable{
public void print(){System.out.println("Hello");}
public static void main(String args[]){
A6 obj = new A6();
obj.print();
}
}

17. Page 16Classification: Restricted

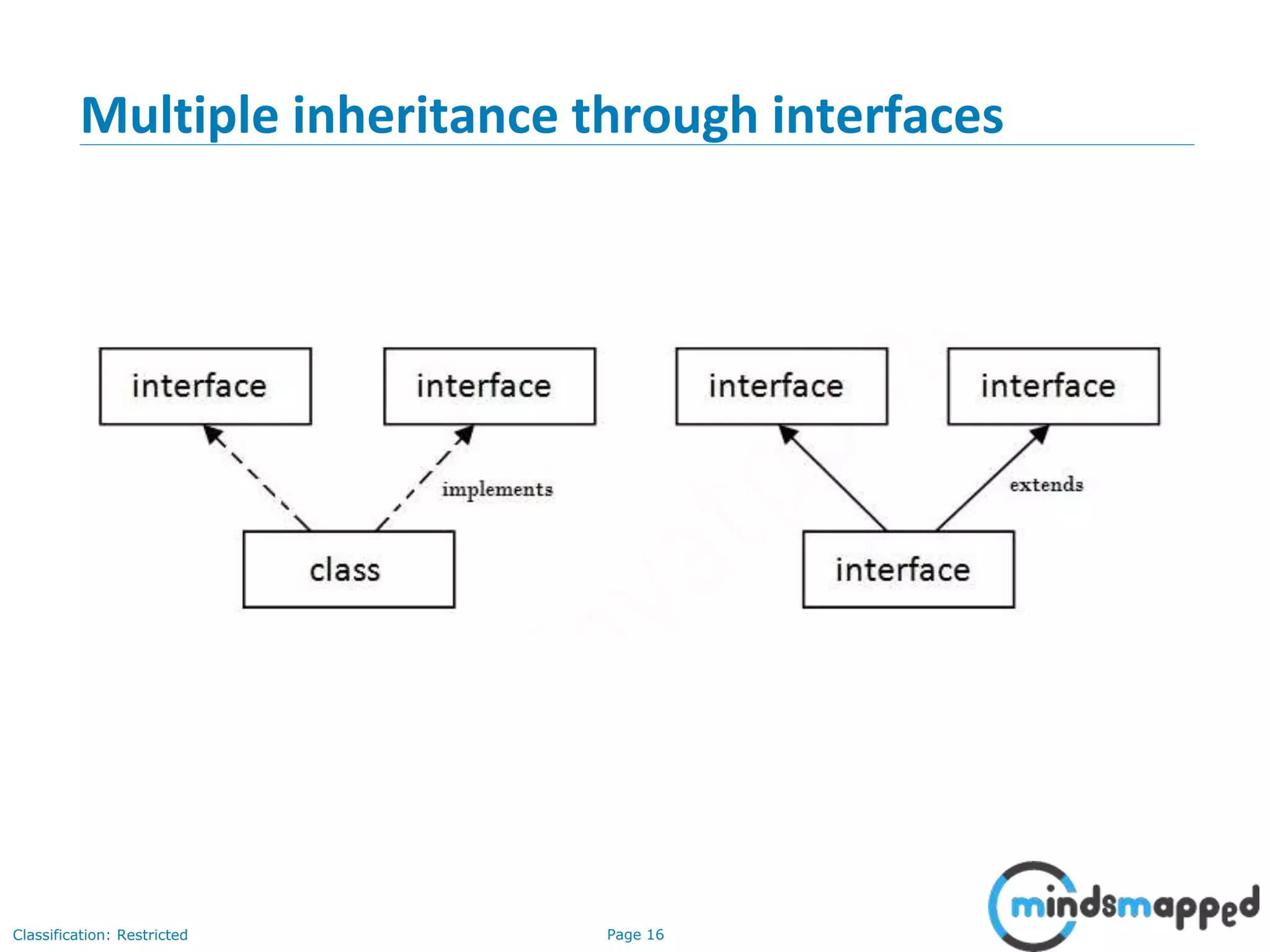

Multiple inheritance through interfaces

18. Page 17Classification: Restricted

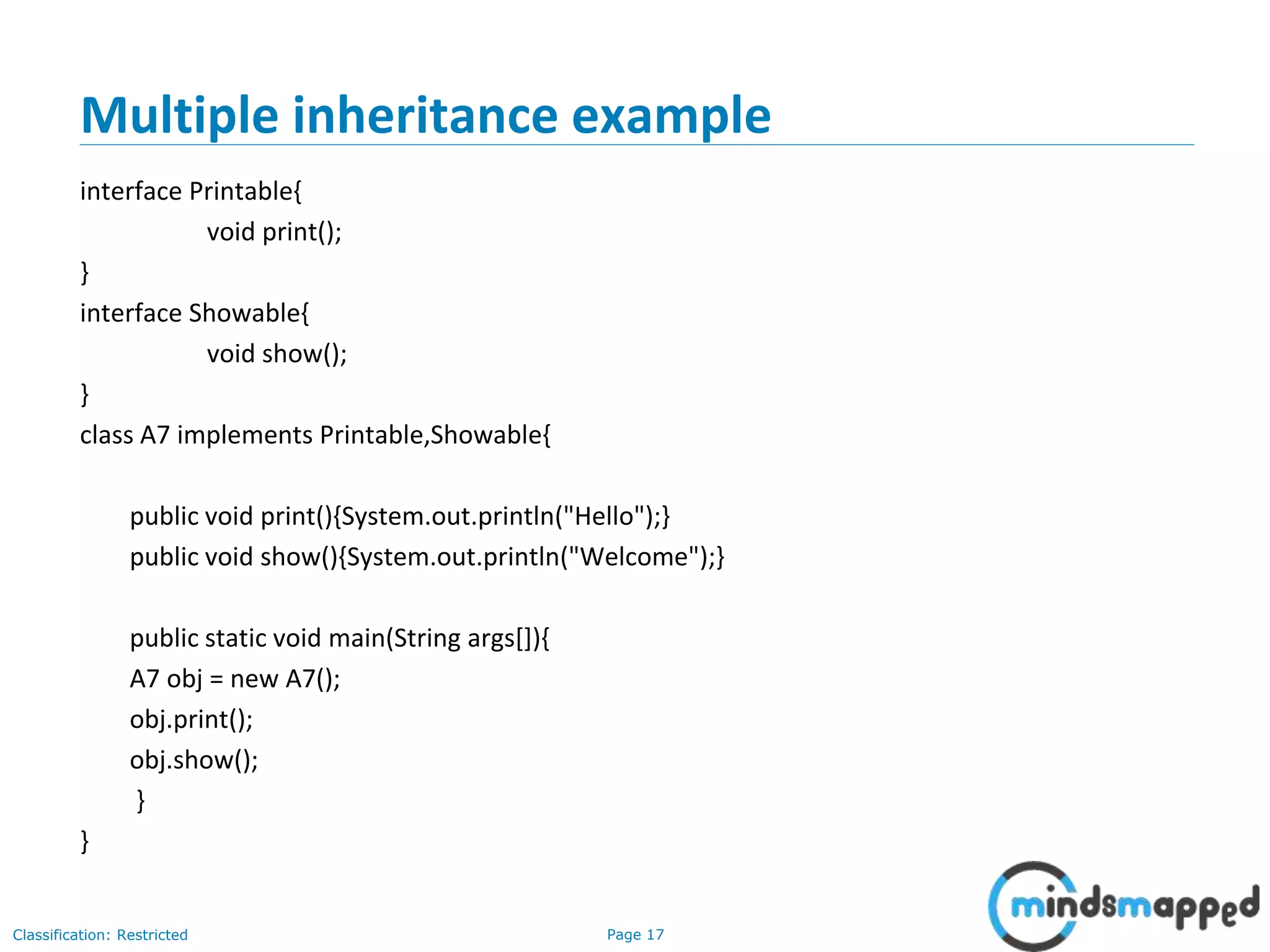

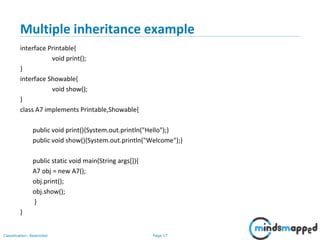

Multiple inheritance example
interface Printable{
void print();
}
interface Showable{
void show();
}
class A7 implements Printable,Showable{
public void print(){System.out.println("Hello");}
public void show(){System.out.println("Welcome");}
public static void main(String args[]){
A7 obj = new A7();
obj.print();
obj.show();
}
}

19. Page 18Classification: Restricted

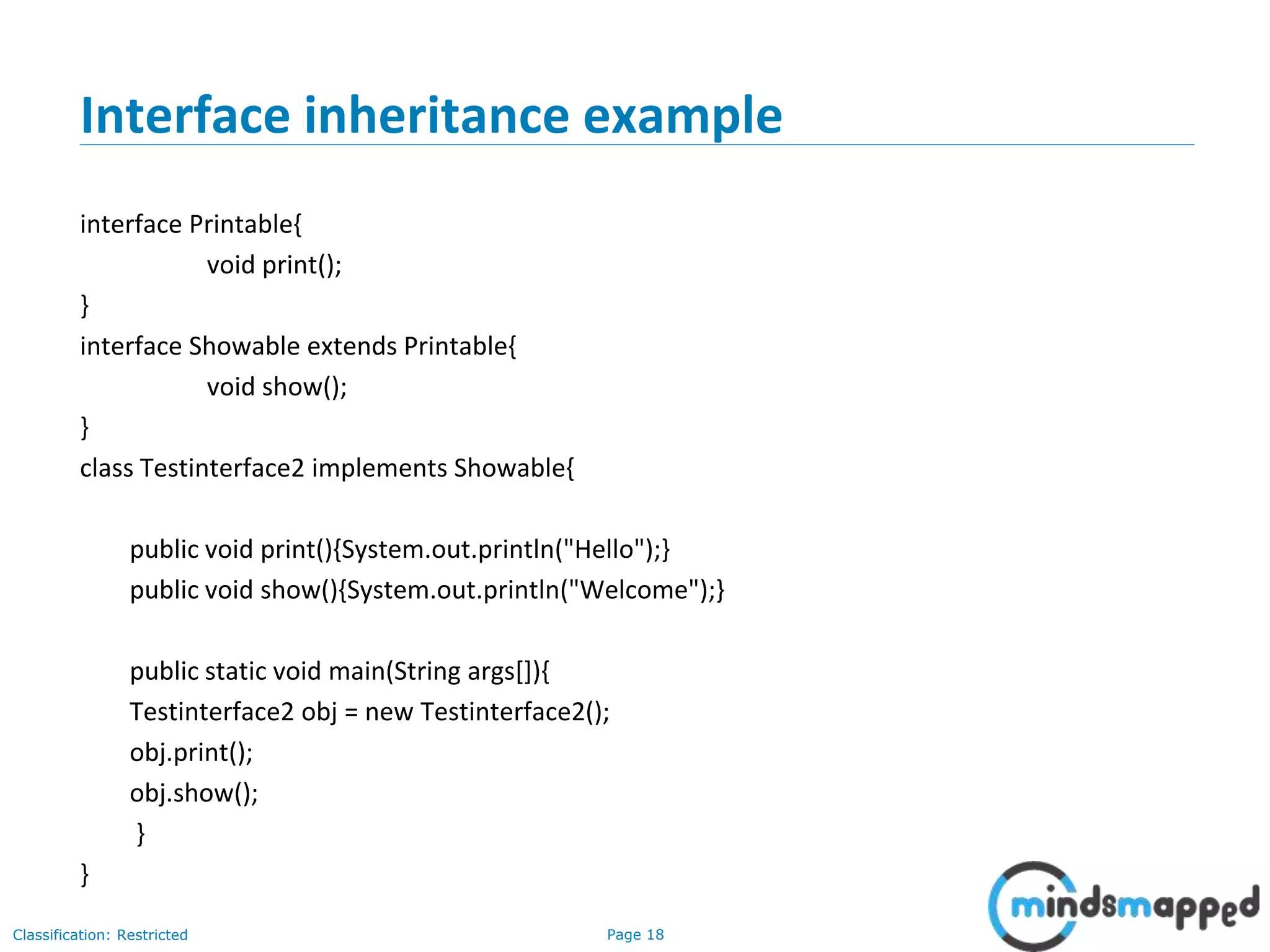

Interface inheritance example
interface Printable{
void print();
}
interface Showable extends Printable{
void show();
}
class Testinterface2 implements Showable{
public void print(){System.out.println("Hello");}
public void show(){System.out.println("Welcome");}
public static void main(String args[]){
Testinterface2 obj = new Testinterface2();
obj.print();
obj.show();
}
}

20. Page 19Classification: Restricted

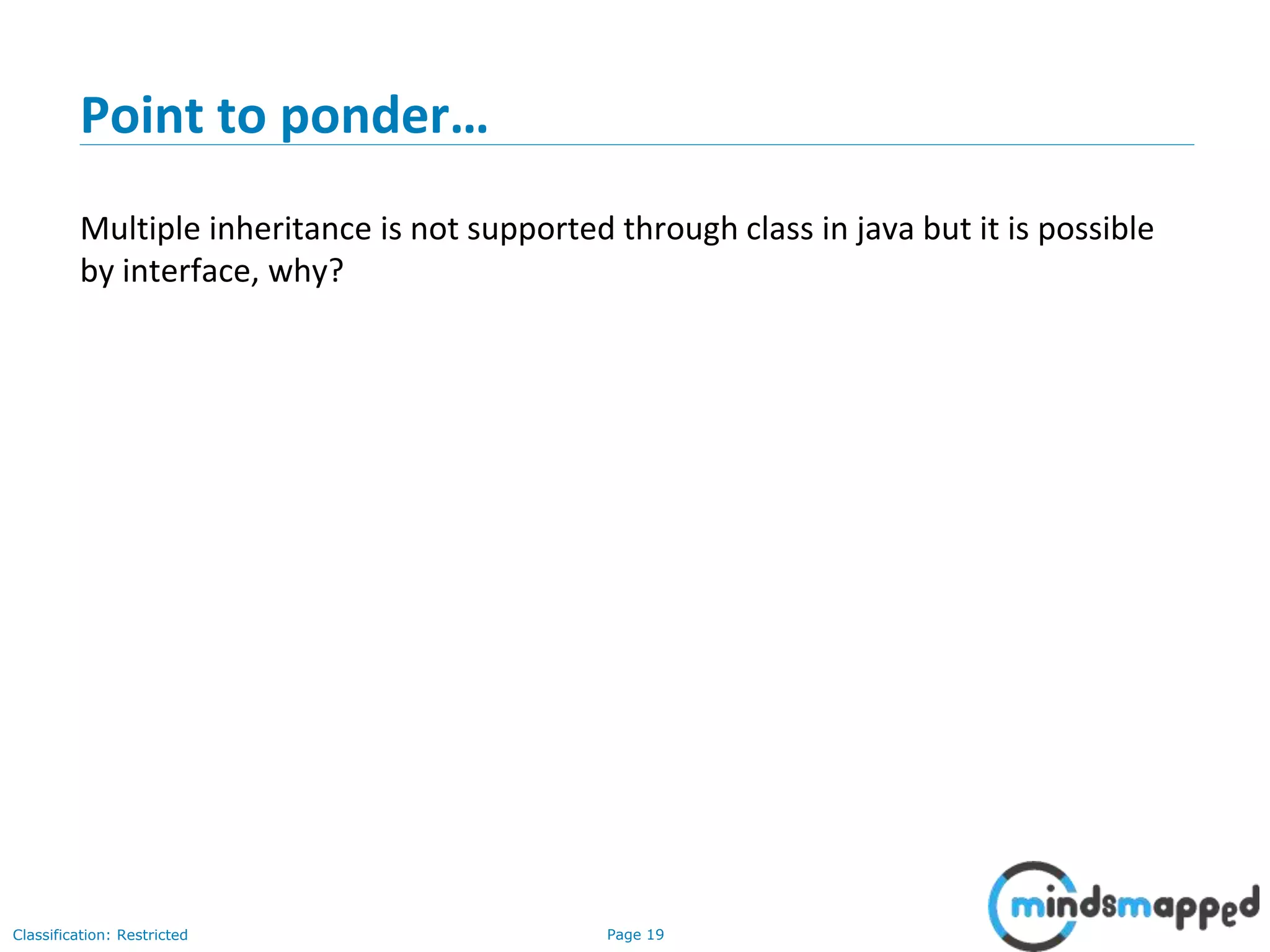

Point to ponder…
Multiple inheritance is not supported through class in java but it is possible
by interface, why?

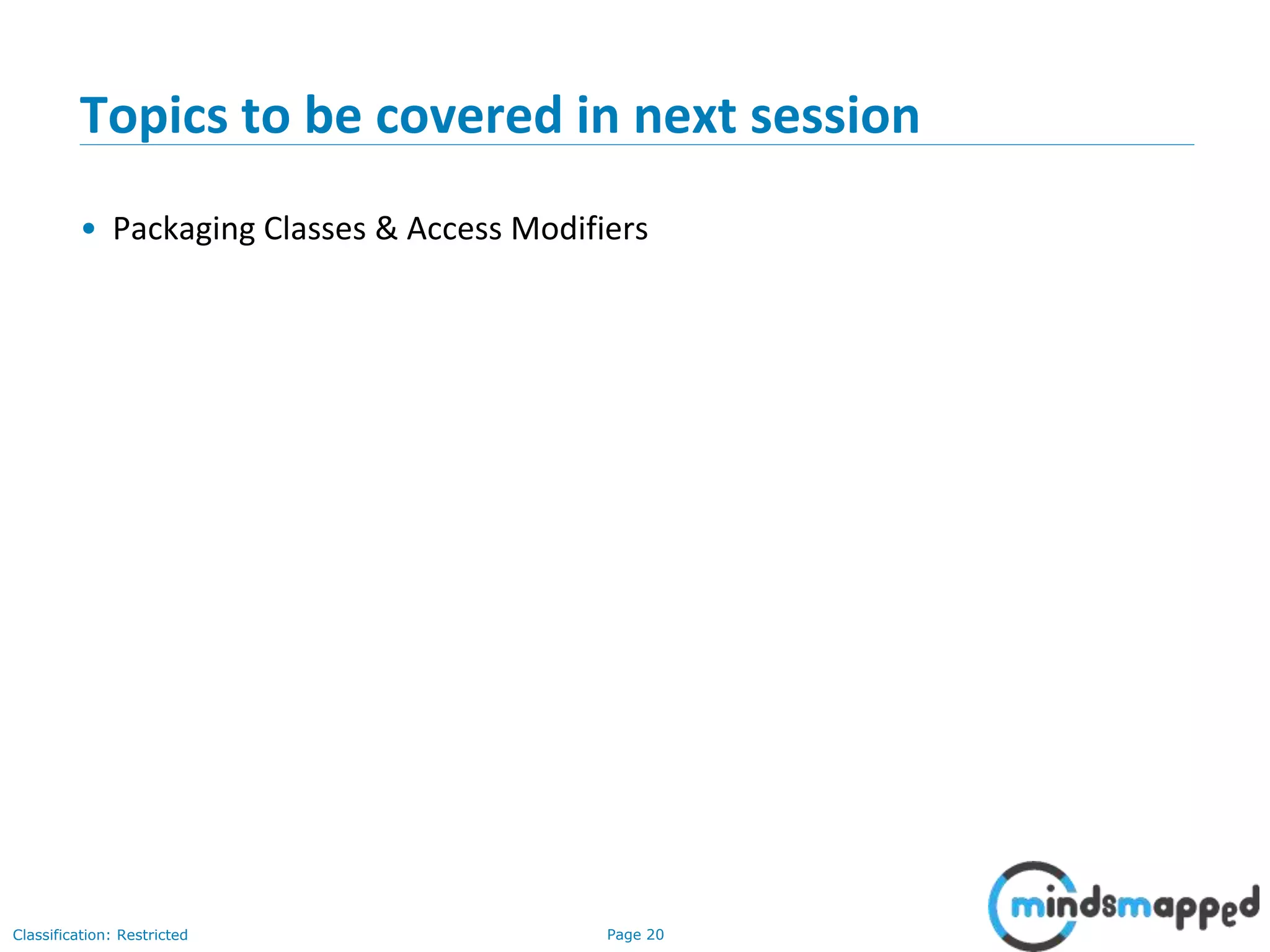

21. Page 20Classification: Restricted

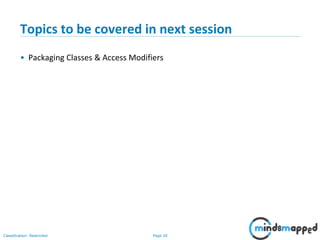

Topics to be covered in next session
• Packaging Classes & Access Modifiers

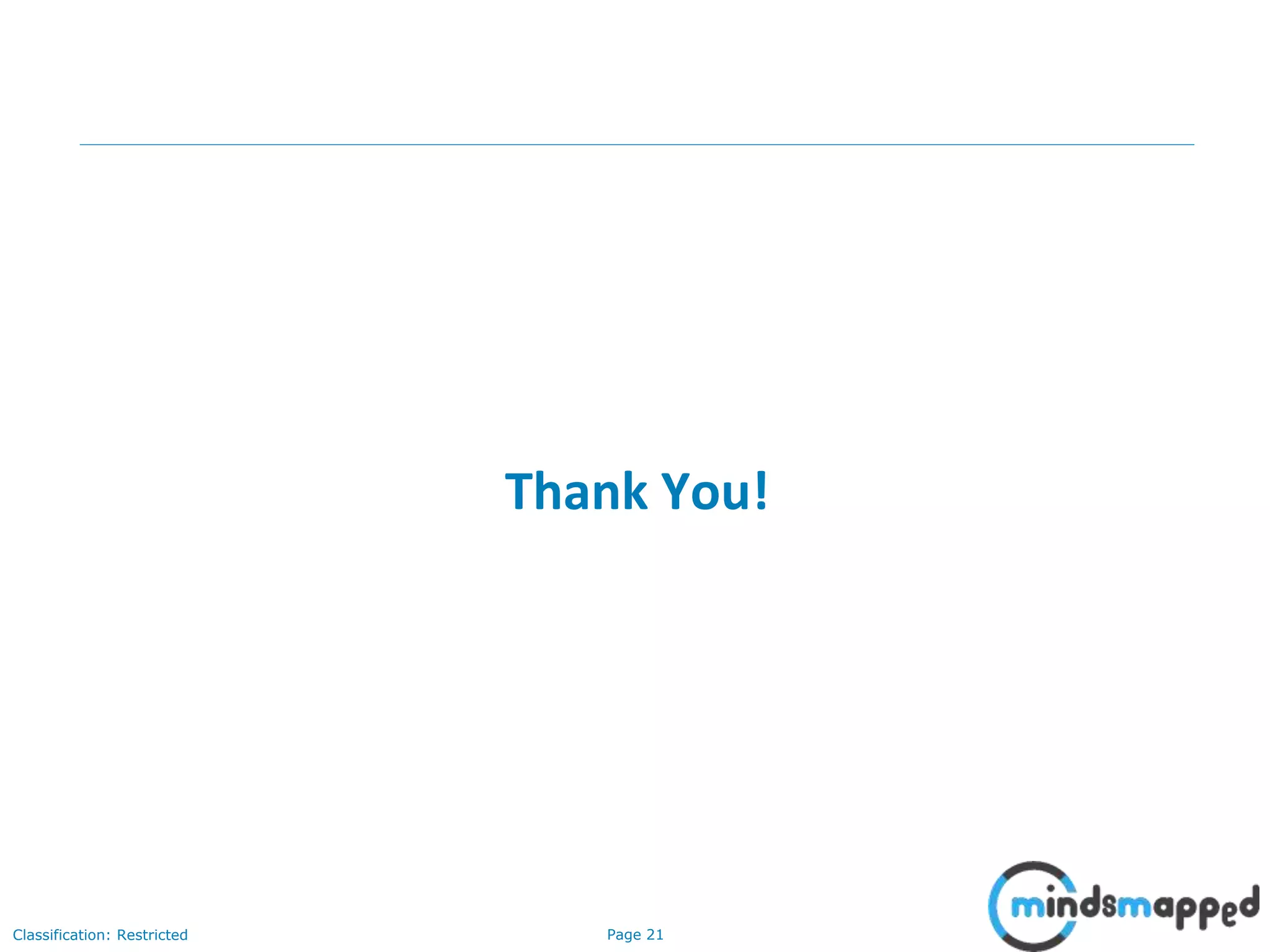

22. Page 21Classification: Restricted
Thank You!
