In this Java Hibernate Training session, you will learn Introducing Struts Framework. Topics covered in this session are: • Introduction to Struts Framework • Features • Evolution • Struts Demo • Declarative validation • Architecture • Validators • Interceptors For more information, visit this link: https://www.mindsmapped.com/courses/software-development/learn-hibernate-fundamentals-from-scratch/

1. Java Hibernate Training
Integrating Struts with Hibernate

2. Page 1Classification: Restricted
Agenda
• Struts 2
• Struts Action Class
• Validation
• Control Tags
• Data Tags

3. Page 2Classification: Restricted

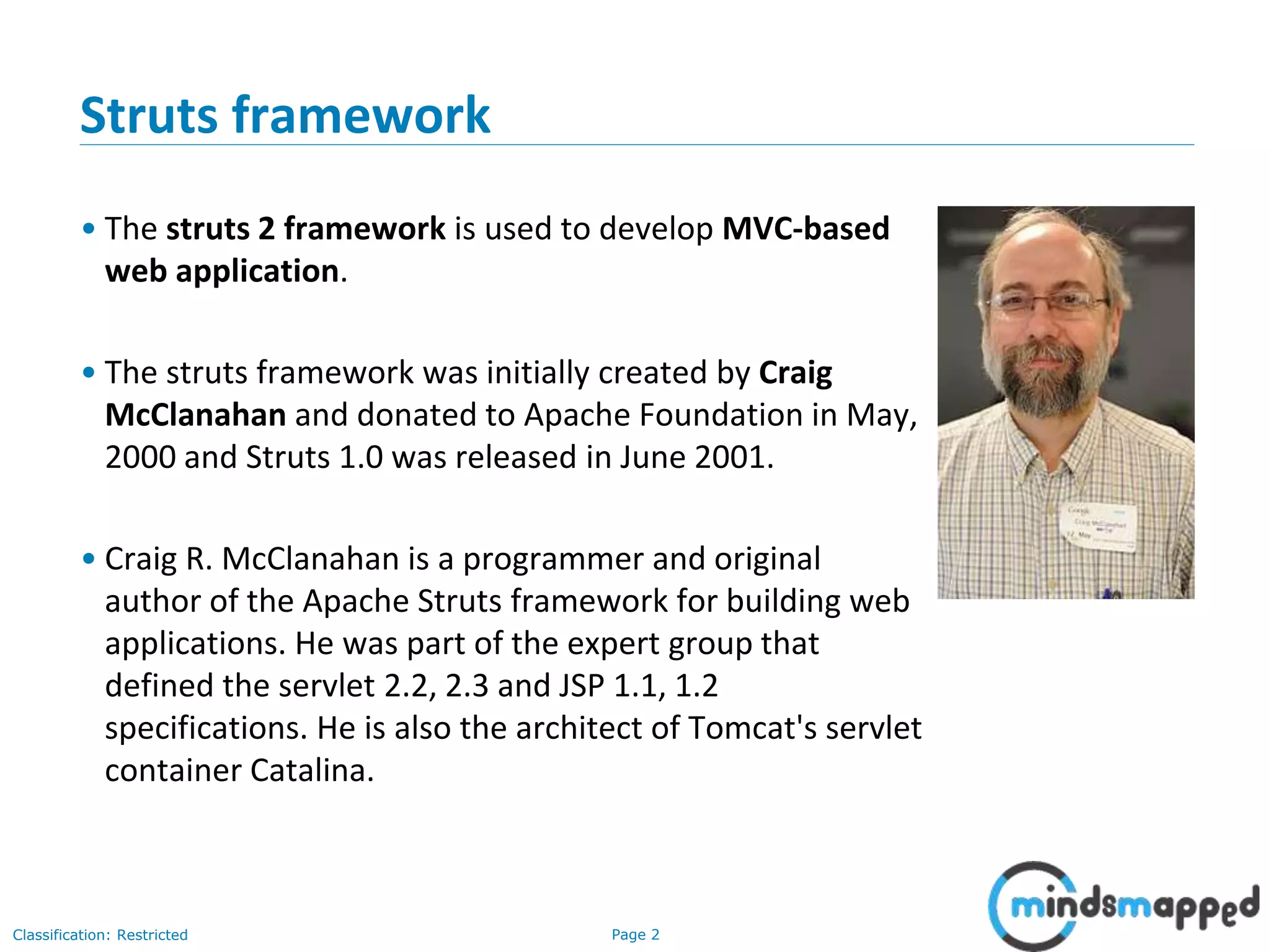

Struts framework
• The struts 2 framework is used to develop MVC-based
web application.
• The struts framework was initially created by Craig
McClanahan and donated to Apache Foundation in May,
2000 and Struts 1.0 was released in June 2001.
• Craig R. McClanahan is a programmer and original
author of the Apache Struts framework for building web
applications. He was part of the expert group that
defined the servlet 2.2, 2.3 and JSP 1.1, 1.2
specifications. He is also the architect of Tomcat's servlet
container Catalina.

4. Page 3Classification: Restricted

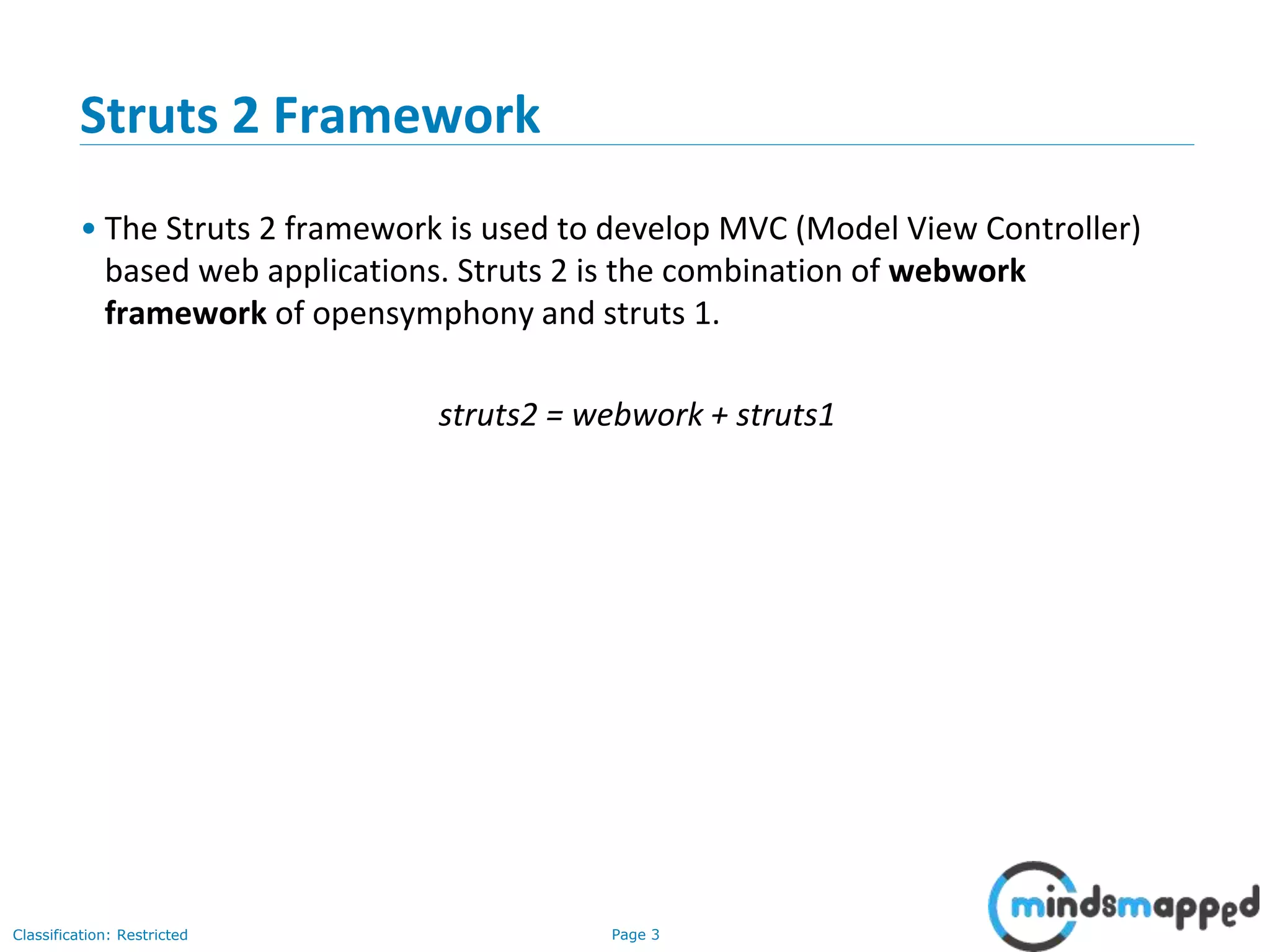

Struts 2 Framework
• The Struts 2 framework is used to develop MVC (Model View Controller)
based web applications. Struts 2 is the combination of webwork
framework of opensymphony and struts 1.
struts2 = webwork + struts1

5. Page 4Classification: Restricted
Struts 2 Features
• Configurable MVC components
• POJO based actions
• AJAX support
• Integration support – with Hibernate, Spring etc
• Various Result Types – JSP, Freemarker, Velocity etc
• Various Tag support
• Theme and Template support

6. Page 5Classification: Restricted
Web Application Architecture - Evolution
• Model 1 Architecture
pag
e 5
• Navigation control is decentralized
• Time Consuming
• Hard to extend

7. Page 6Classification: Restricted

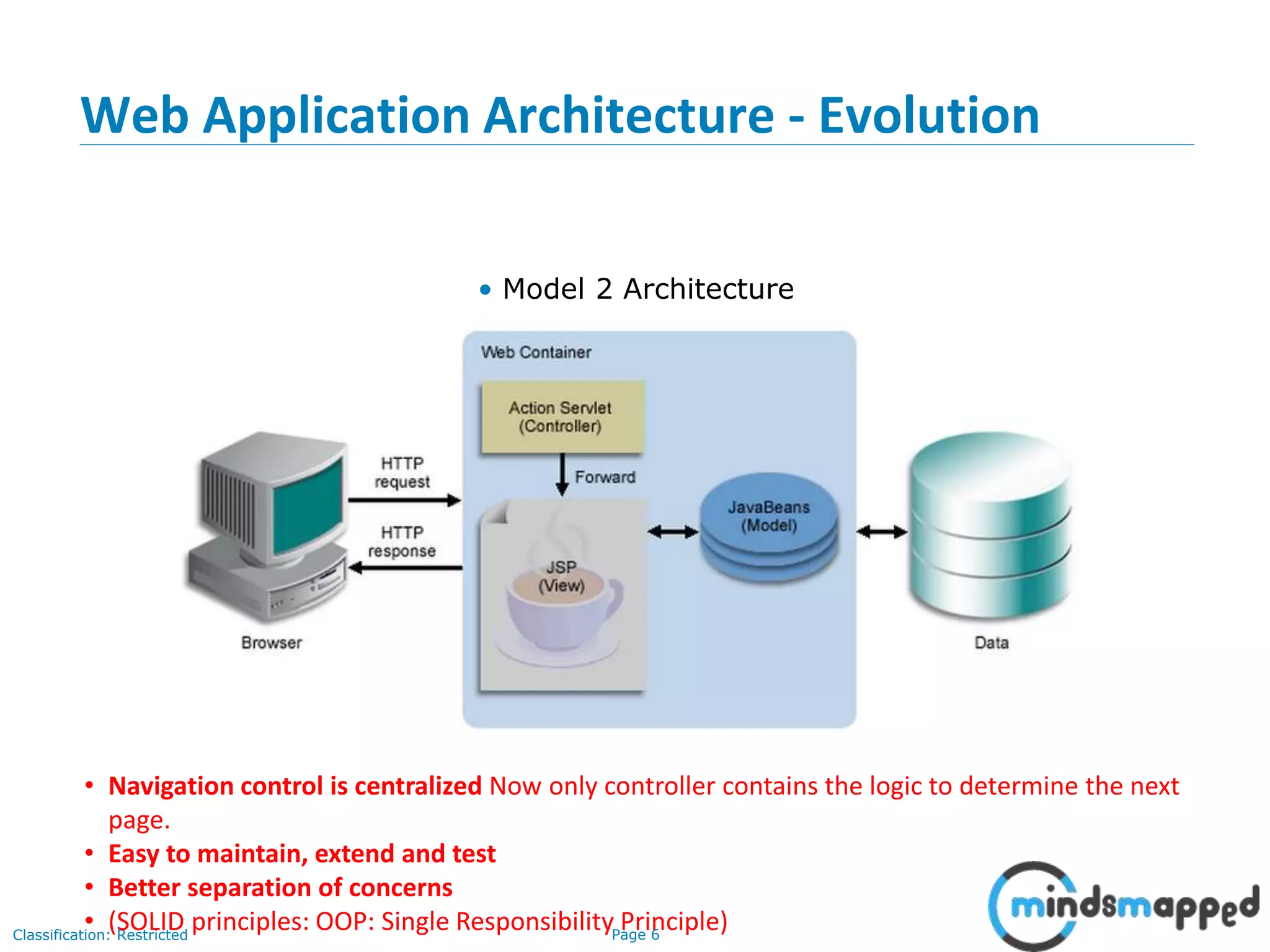

Web Application Architecture - Evolution
• Model 2 Architecture
pag
e 6
• Navigation control is centralized Now only controller contains the logic to determine the next
page.
• Easy to maintain, extend and test
• Better separation of concerns
• (SOLID principles: OOP: Single Responsibility Principle)

8. Page 7Classification: Restricted

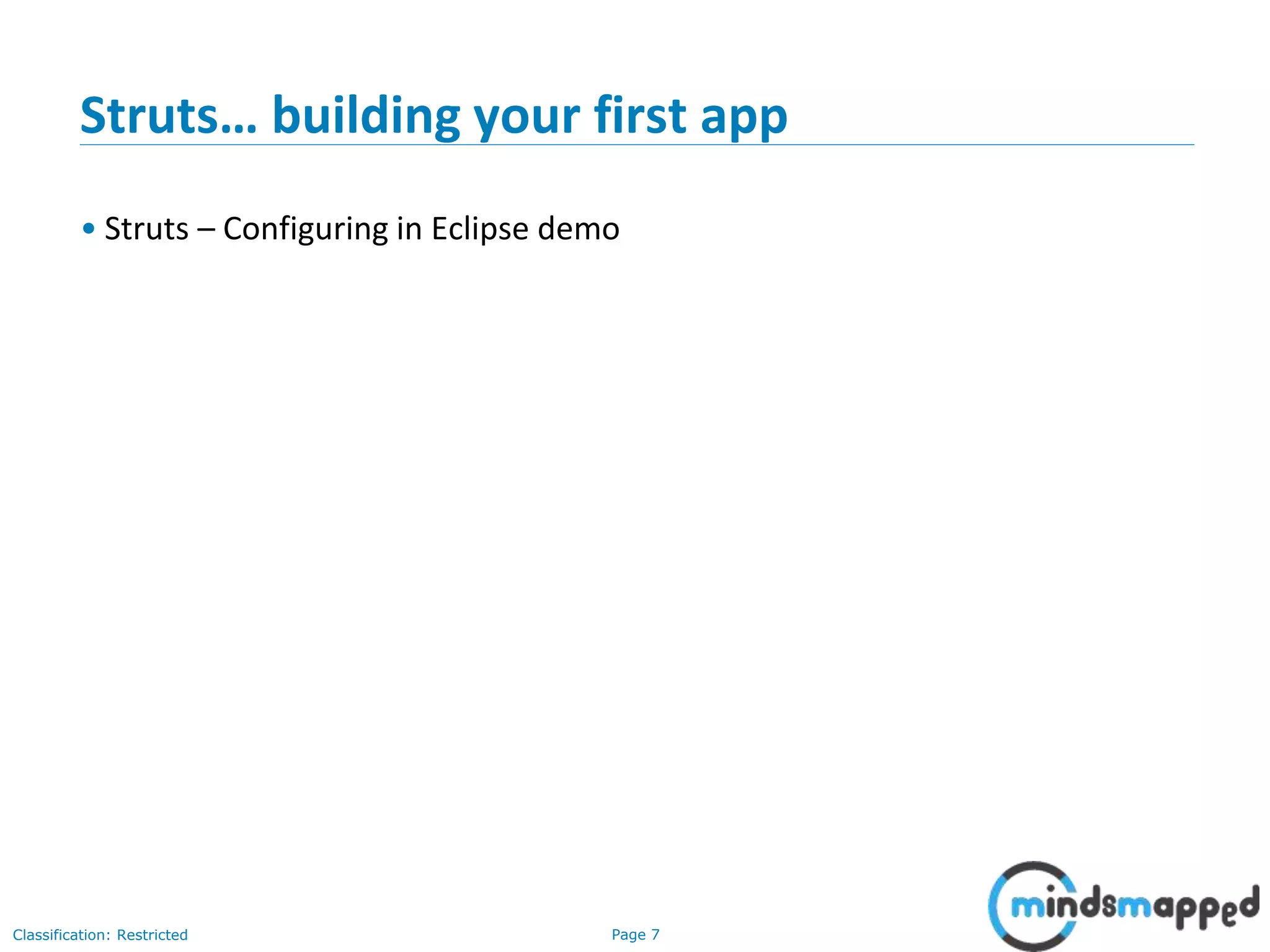

Struts… building your first app
• Struts – Configuring in Eclipse demo

9. Page 8Classification: Restricted

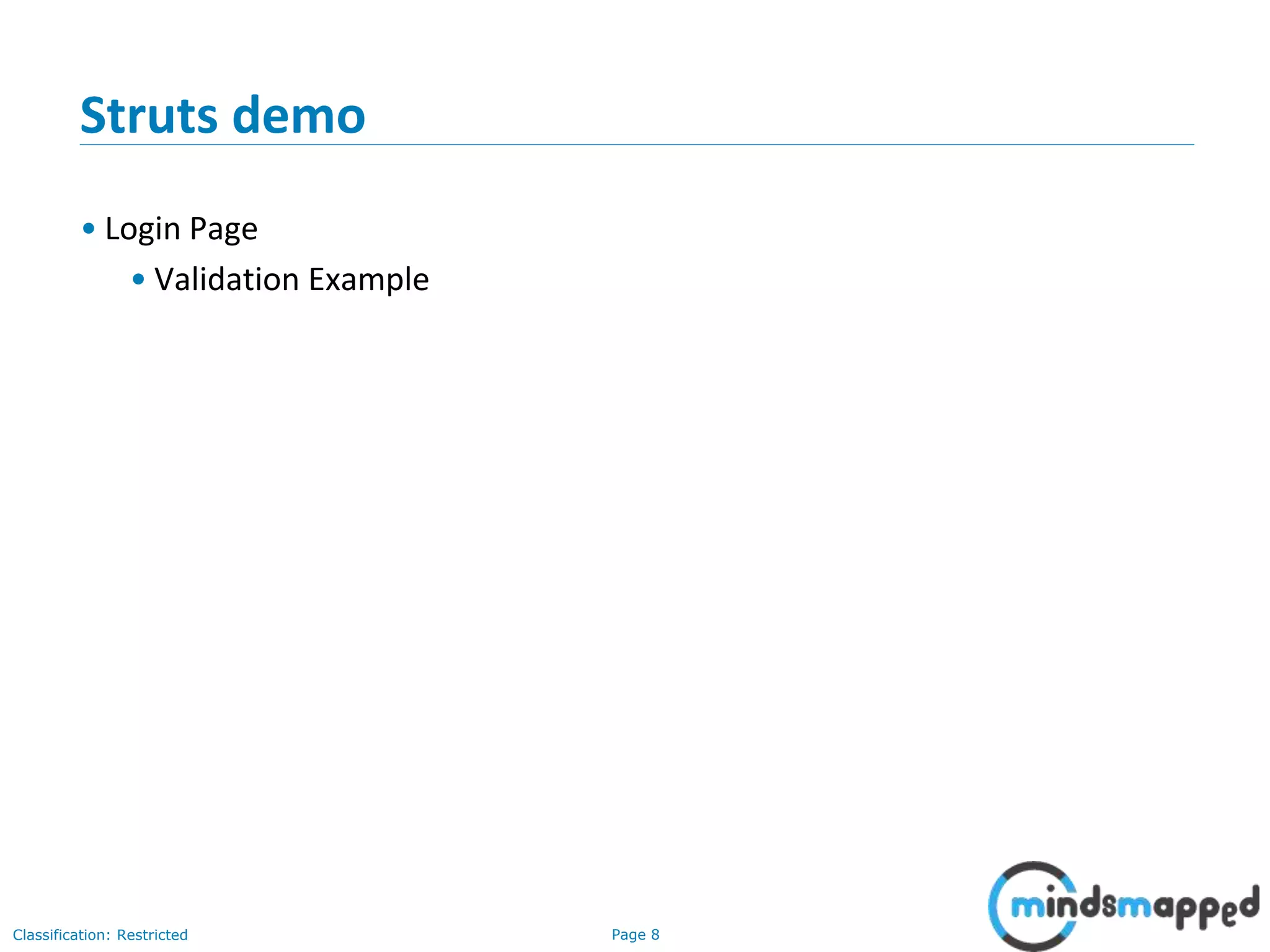

Struts demo
• Login Page
• Validation Example

10. Page 9Classification: Restricted

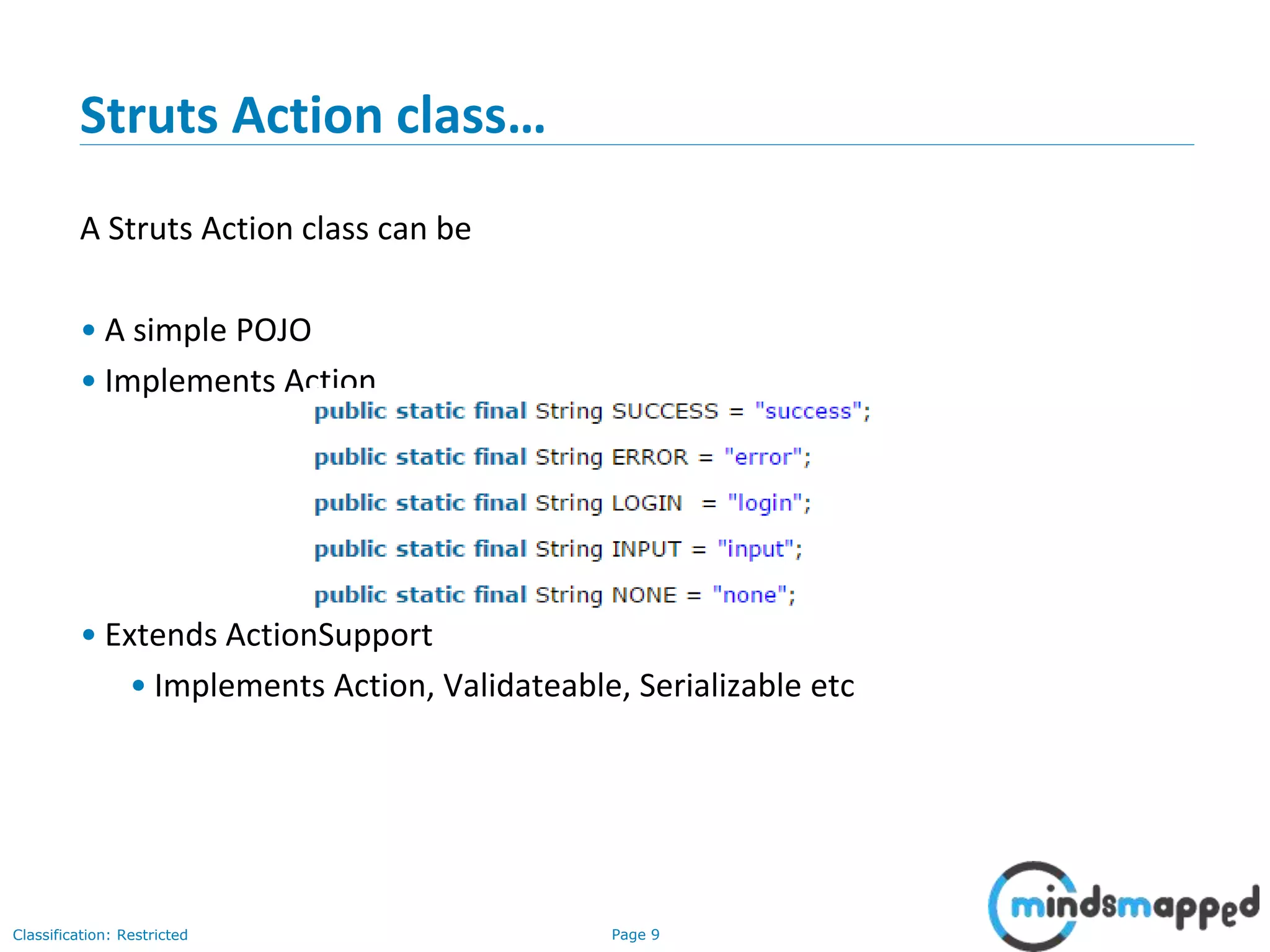

Struts Action class…
A Struts Action class can be
• A simple POJO
• Implements Action
• Extends ActionSupport
• Implements Action, Validateable, Serializable etc

11. Page 10Classification: Restricted

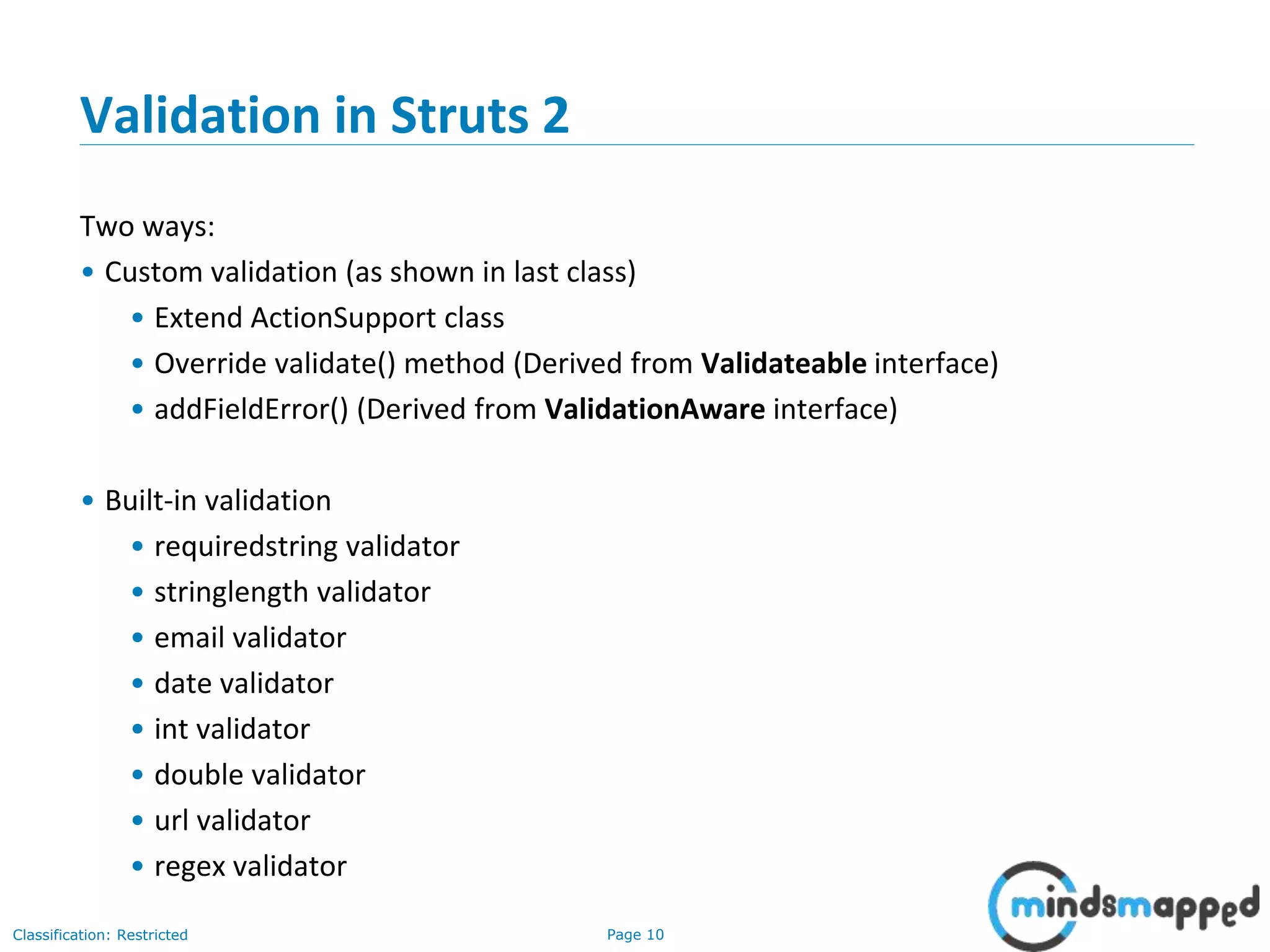

Validation in Struts 2
Two ways:
• Custom validation (as shown in last class)
• Extend ActionSupport class
• Override validate() method (Derived from Validateable interface)
• addFieldError() (Derived from ValidationAware interface)
• Built-in validation
• requiredstring validator
• stringlength validator
• email validator
• date validator
• int validator
• double validator
• url validator
• regex validator

12. Page 11Classification: Restricted

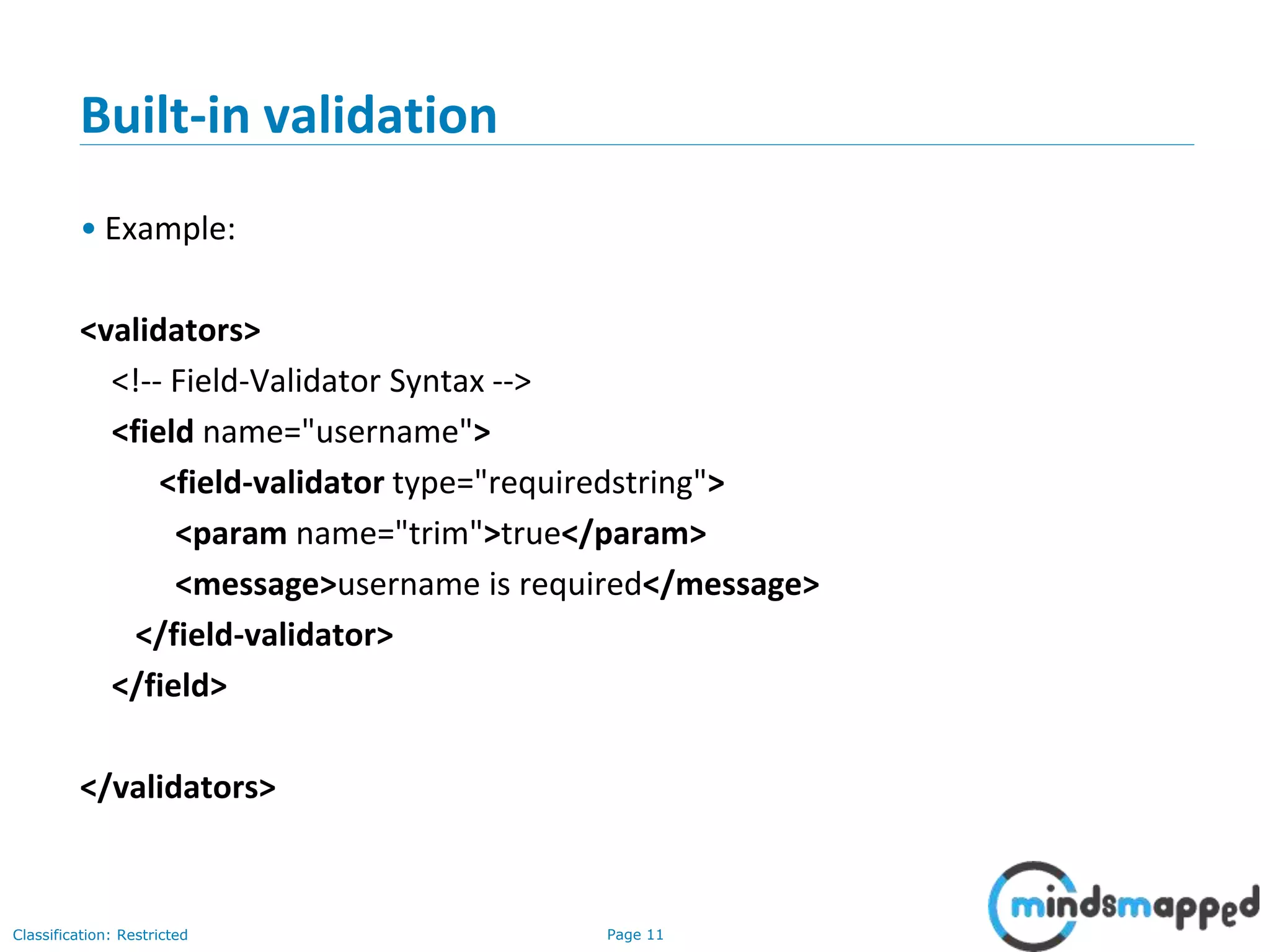

Built-in validation
• Example:
<validators>
<!-- Field-Validator Syntax -->
<field name="username">
<field-validator type="requiredstring">
<param name="trim">true</param>
<message>username is required</message>
</field-validator>
</field>
</validators>

13. Page 12Classification: Restricted

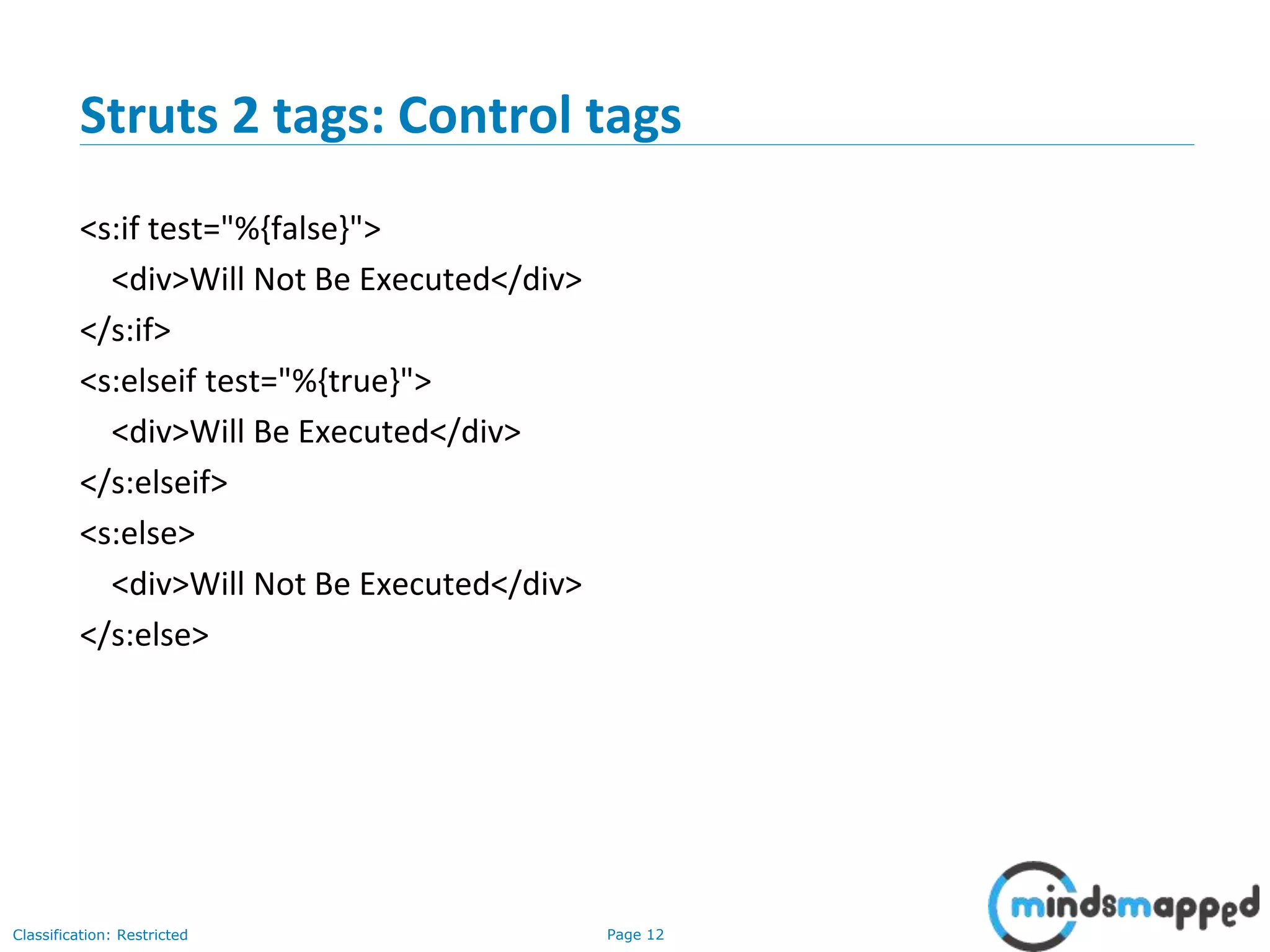

Struts 2 tags: Control tags
<s:if test="%{false}">
<div>Will Not Be Executed</div>
</s:if>
<s:elseif test="%{true}">
<div>Will Be Executed</div>
</s:elseif>
<s:else>
<div>Will Not Be Executed</div>
</s:else>

14. Page 13Classification: Restricted

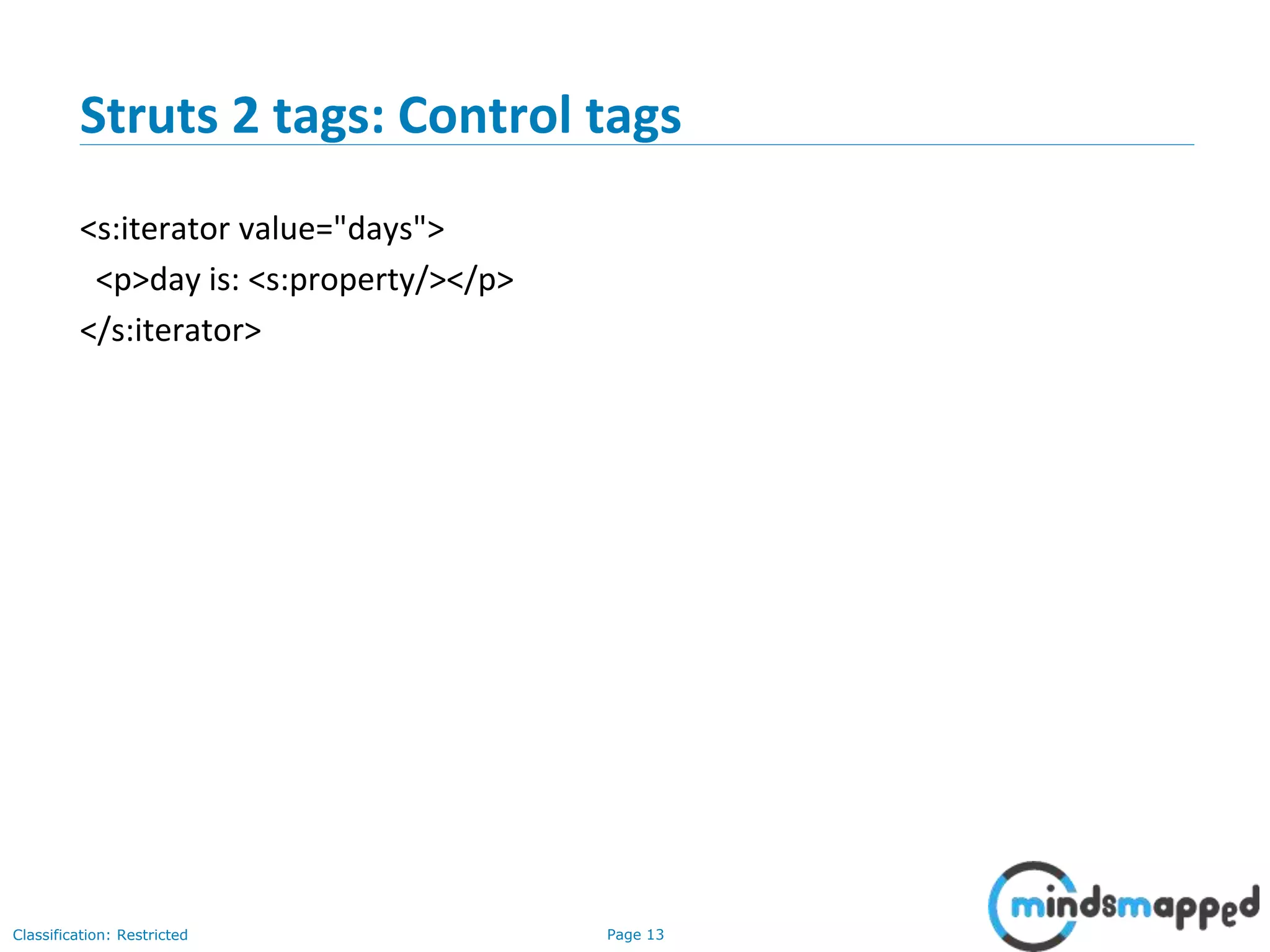

Struts 2 tags: Control tags
<s:iterator value="days">
<p>day is: <s:property/></p>
</s:iterator>

15. Page 14Classification: Restricted

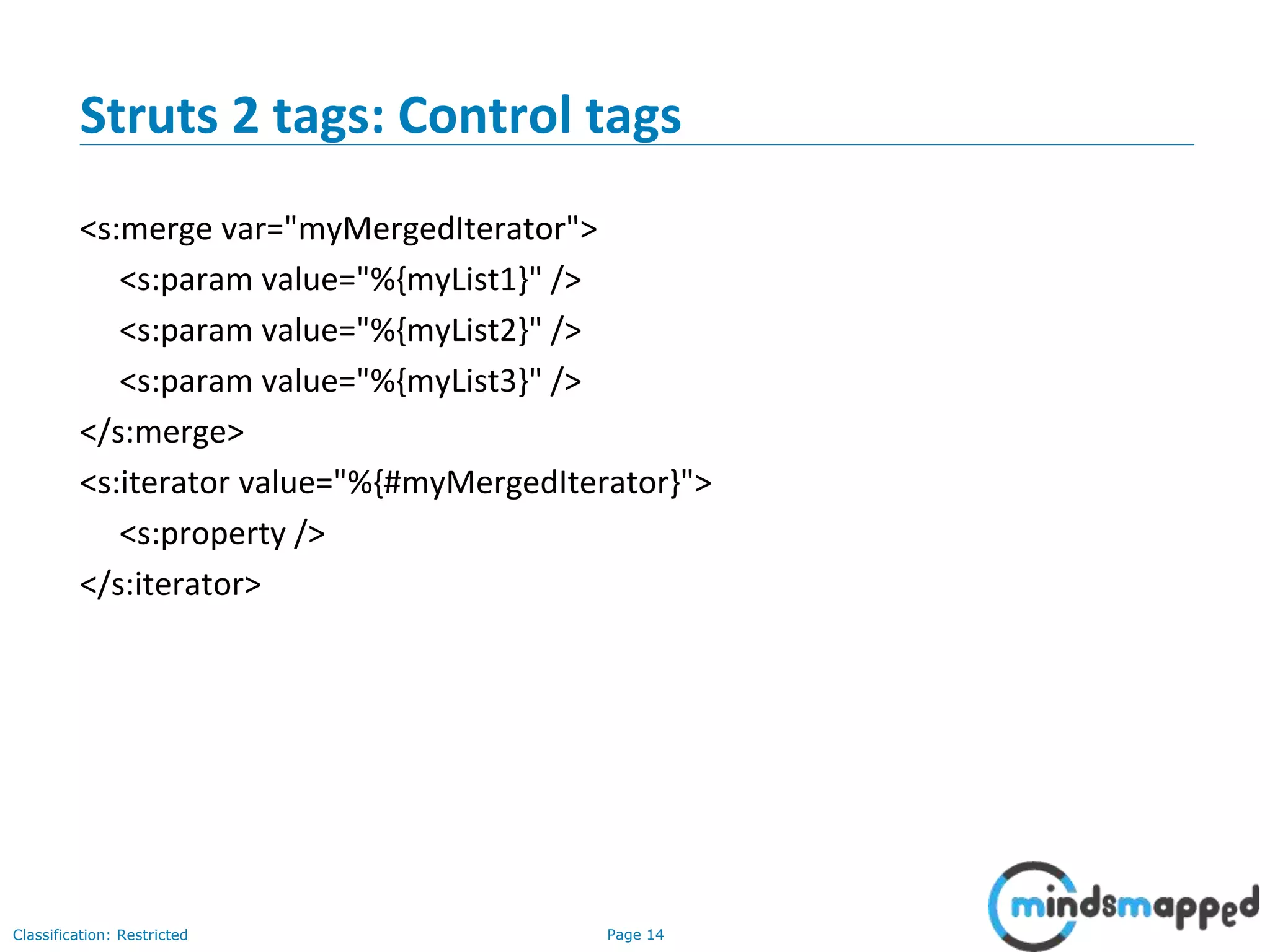

Struts 2 tags: Control tags
<s:merge var="myMergedIterator">
<s:param value="%{myList1}" />
<s:param value="%{myList2}" />
<s:param value="%{myList3}" />
</s:merge>
<s:iterator value="%{#myMergedIterator}">
<s:property />
</s:iterator>

16. Page 15Classification: Restricted
Struts 2 tags: Control tags
<s:append var="myAppendIterator">
<s:param value="%{myList1}" />
<s:param value="%{myList2}" />
<s:param value="%{myList3}" />
</s:append>
<s:iterator value="%{#myAppendIterator}">
<s:property />
</s:iterator>

17. Page 16Classification: Restricted

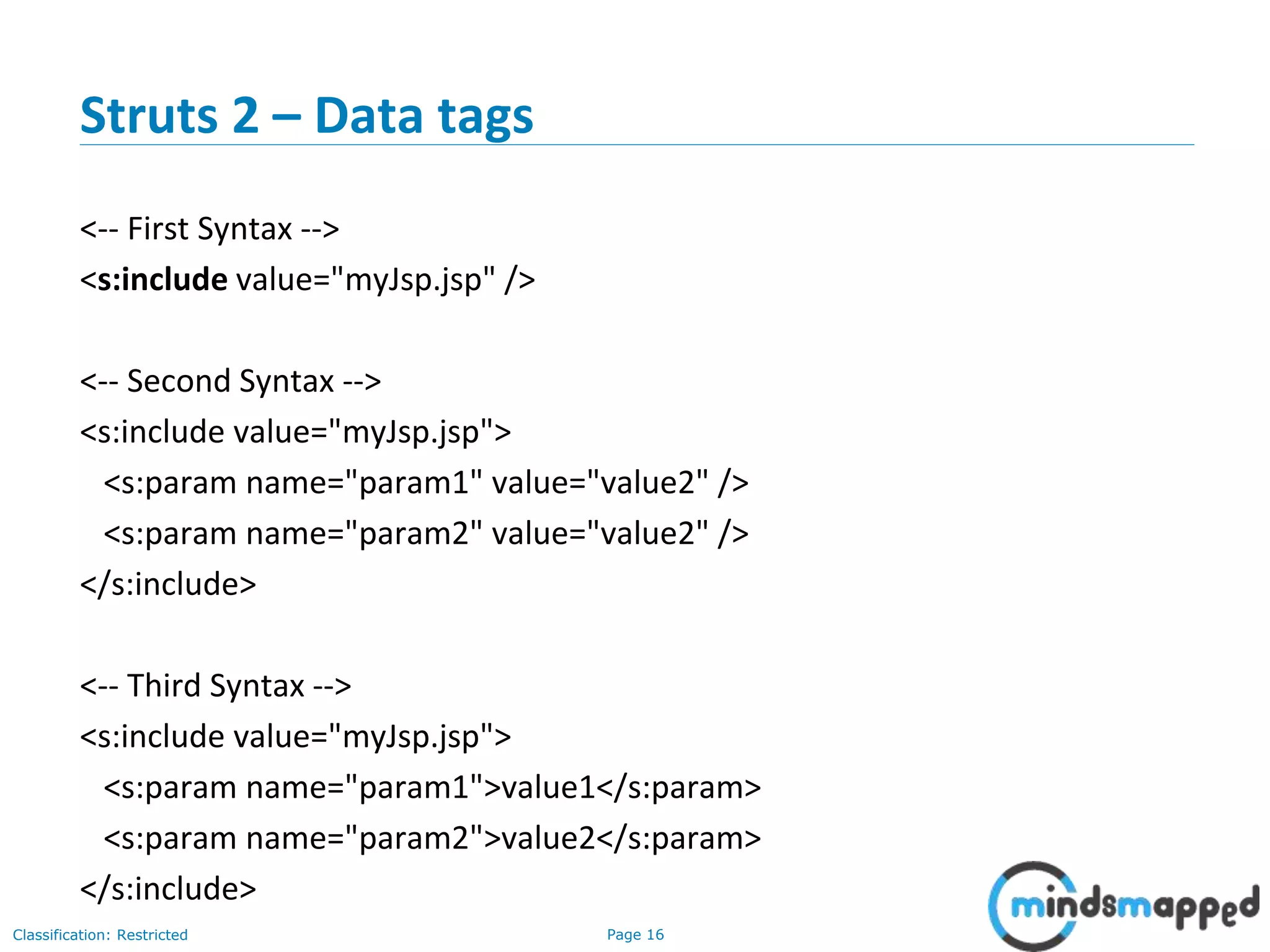

Struts 2 – Data tags
<-- First Syntax -->
<s:include value="myJsp.jsp" />
<-- Second Syntax -->
<s:include value="myJsp.jsp">
<s:param name="param1" value="value2" />
<s:param name="param2" value="value2" />
</s:include>
<-- Third Syntax -->
<s:include value="myJsp.jsp">
<s:param name="param1">value1</s:param>
<s:param name="param2">value2</s:param>
</s:include>

18. Page 17Classification: Restricted

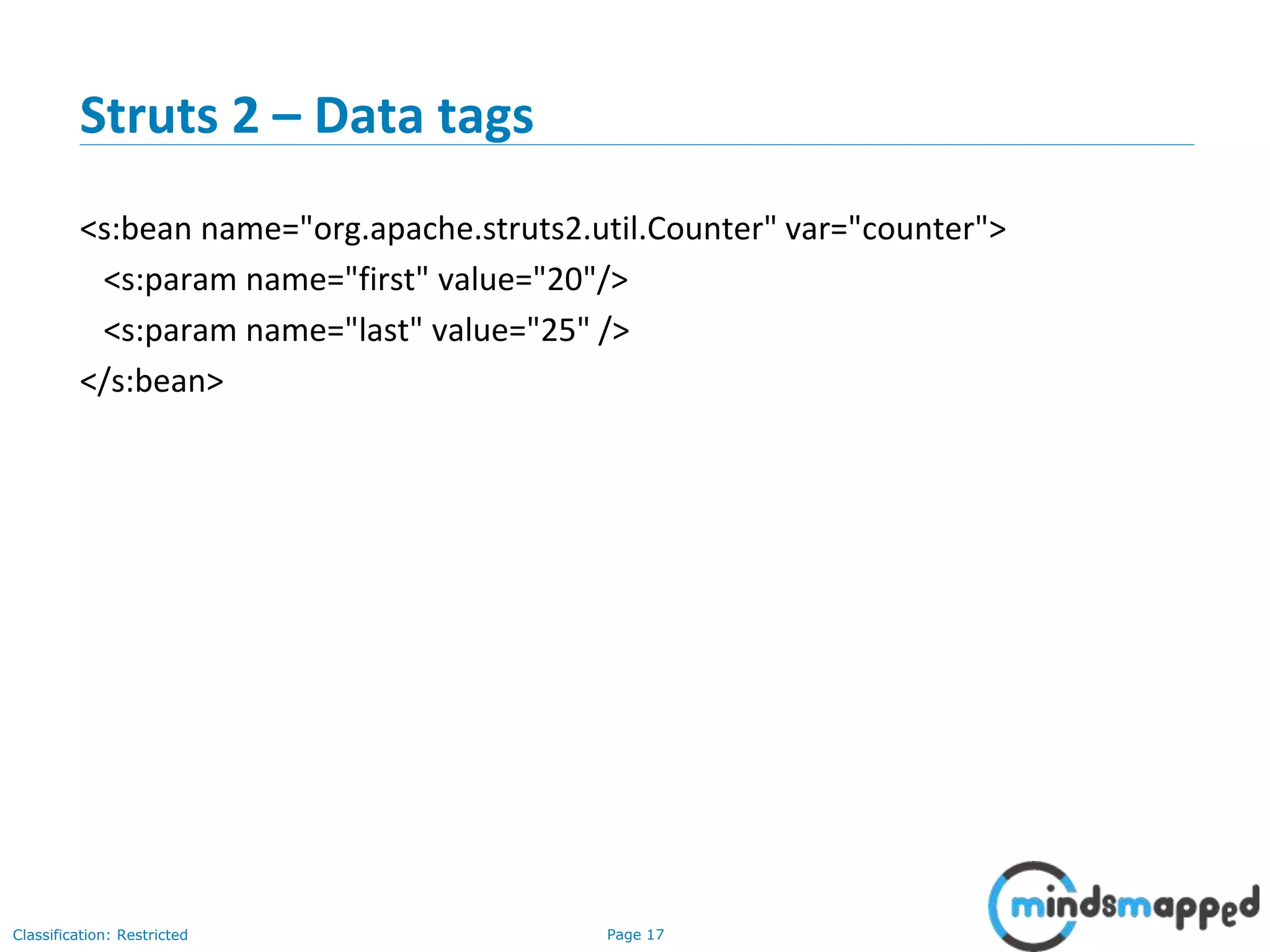

Struts 2 – Data tags
<s:bean name="org.apache.struts2.util.Counter" var="counter">
<s:param name="first" value="20"/>
<s:param name="last" value="25" />
</s:bean>

19. Page 18Classification: Restricted

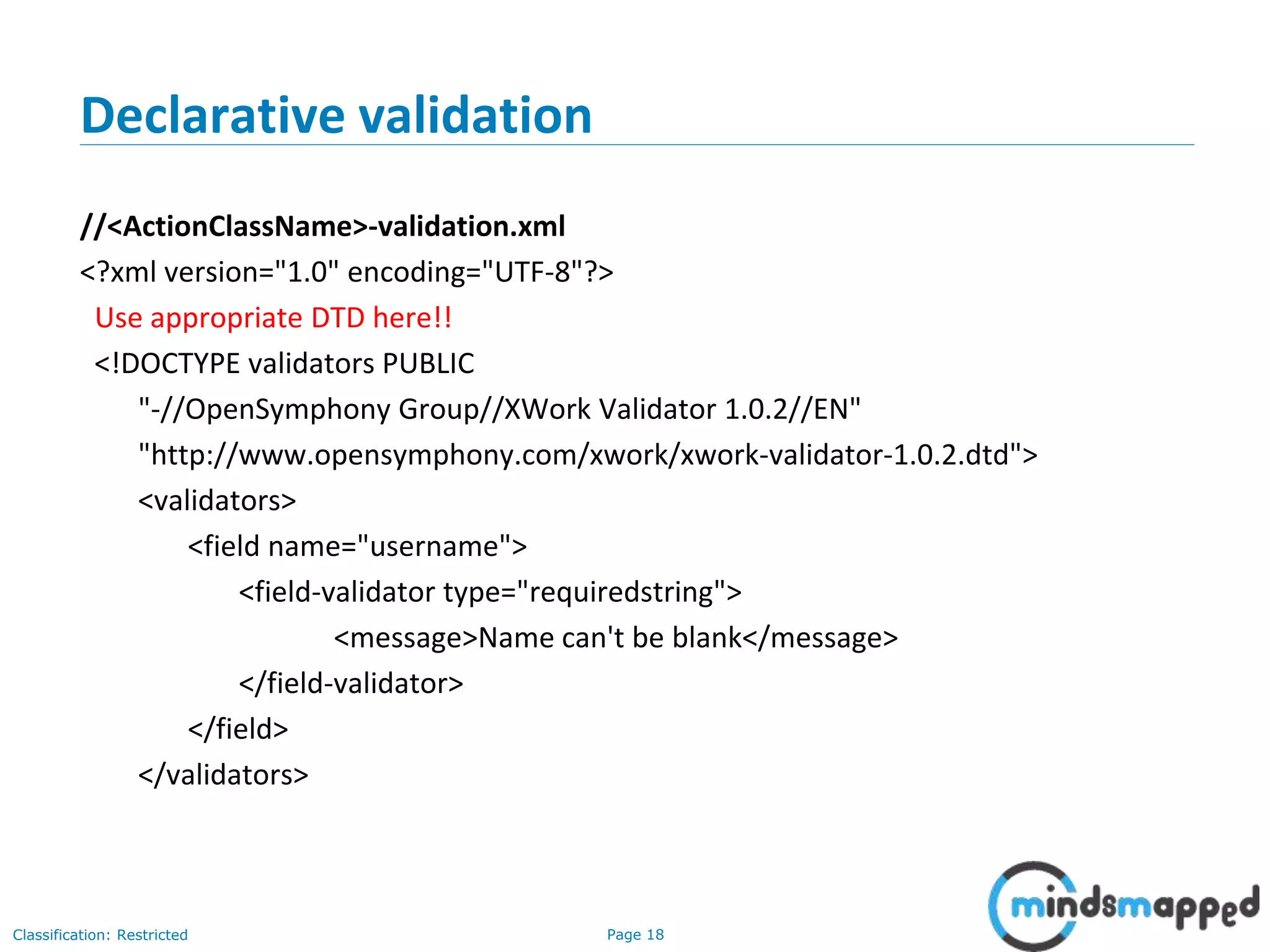

Declarative validation
//<ActionClassName>-validation.xml
<?xml version="1.0" encoding="UTF-8"?>
Use appropriate DTD here!!
<!DOCTYPE validators PUBLIC
"-//OpenSymphony Group//XWork Validator 1.0.2//EN"
"http://www.opensymphony.com/xwork/xwork-validator-1.0.2.dtd">
<validators>
<field name="username">
<field-validator type="requiredstring">
<message>Name can't be blank</message>
</field-validator>
</field>
</validators>

20. Page 19Classification: Restricted

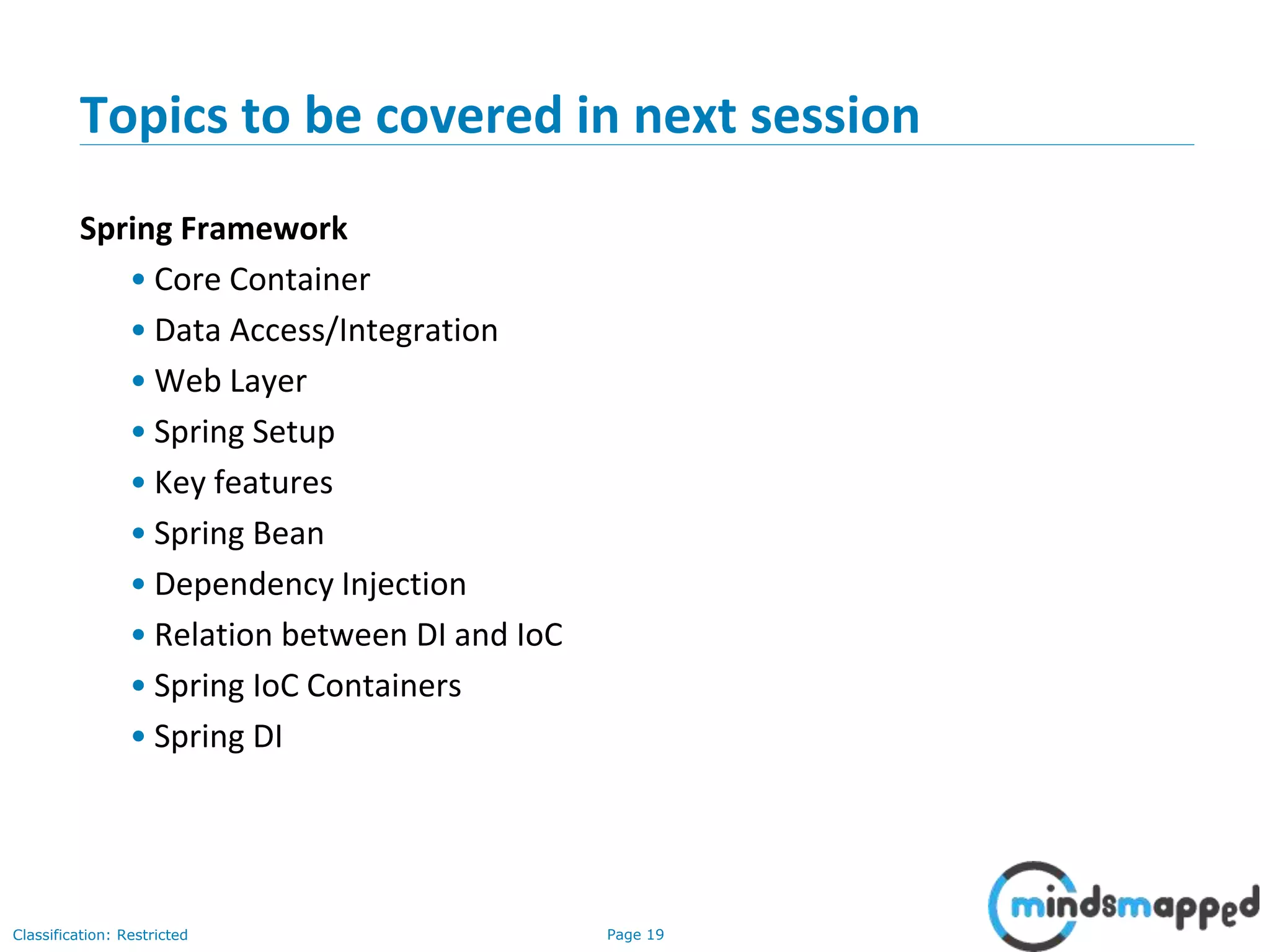

Topics to be covered in next session
Spring Framework
• Core Container
• Data Access/Integration
• Web Layer
• Spring Setup
• Key features
• Spring Bean
• Dependency Injection
• Relation between DI and IoC
• Spring IoC Containers
• Spring DI

21. Page 20Classification: Restricted
Thank you!
