1. Introduction to OOPs(In java)
Presented By : Govind Singh
Roll No: 1441910036

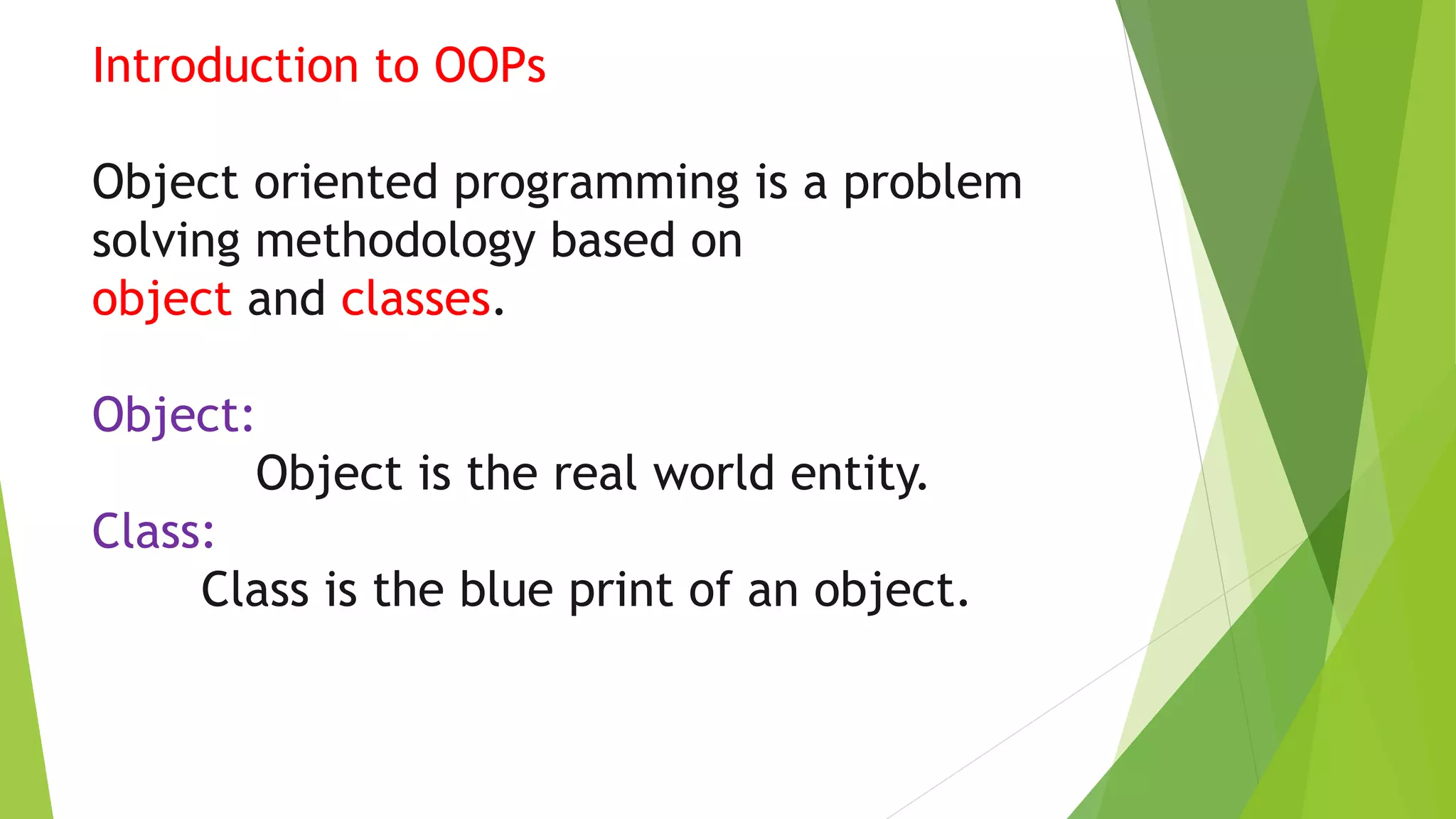

2. Introduction to OOPs
Object oriented programming is a problem
solving methodology based on
object and classes.
Object:
Object is the real world entity.
Class:
Class is the blue print of an object.

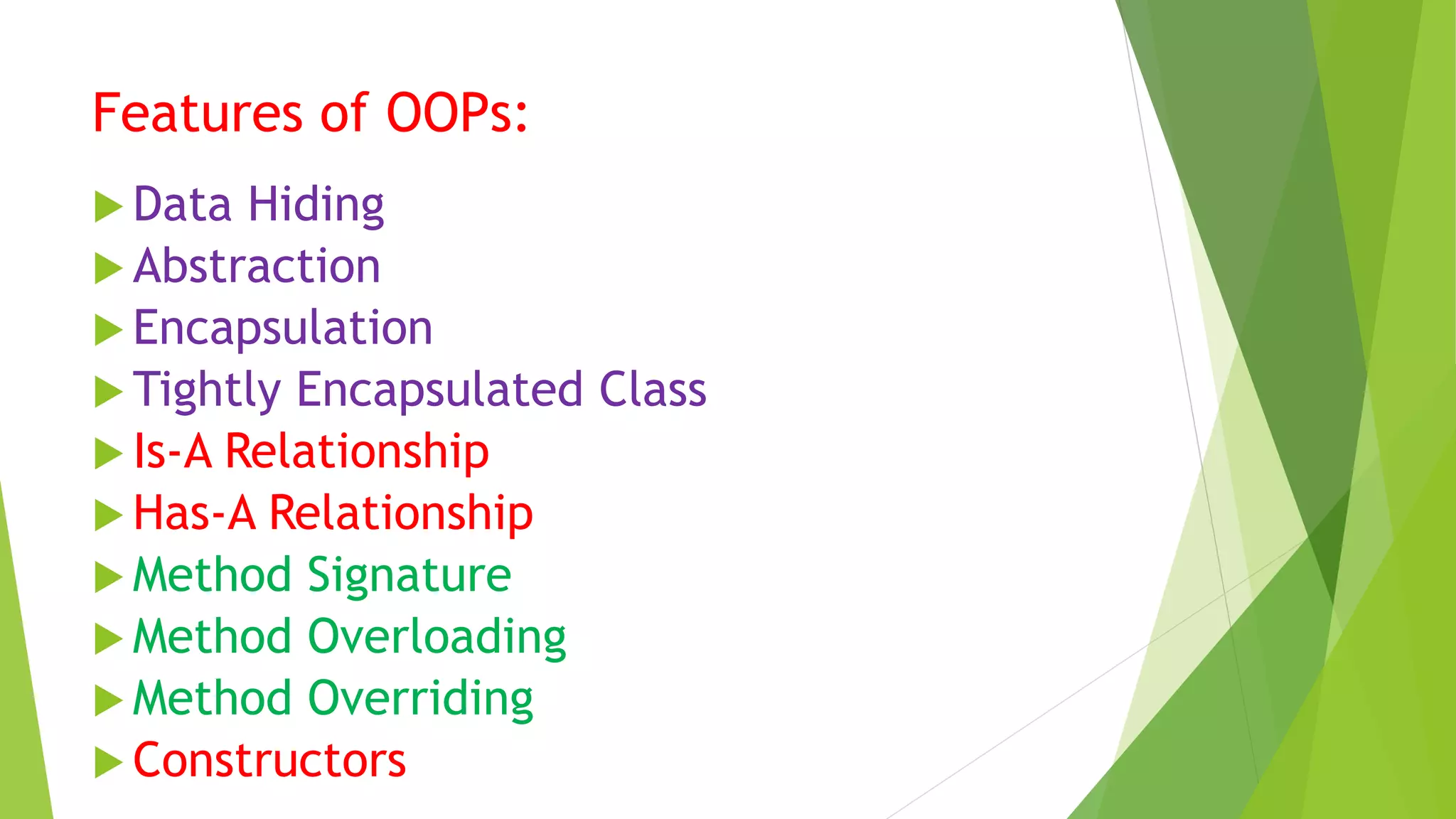

3. Features of OOPs:
 Data Hiding
 Abstraction
 Encapsulation
 Tightly Encapsulated Class
 Is-A Relationship
 Has-A Relationship
 Method Signature
 Method Overloading
 Method Overriding
 Constructors

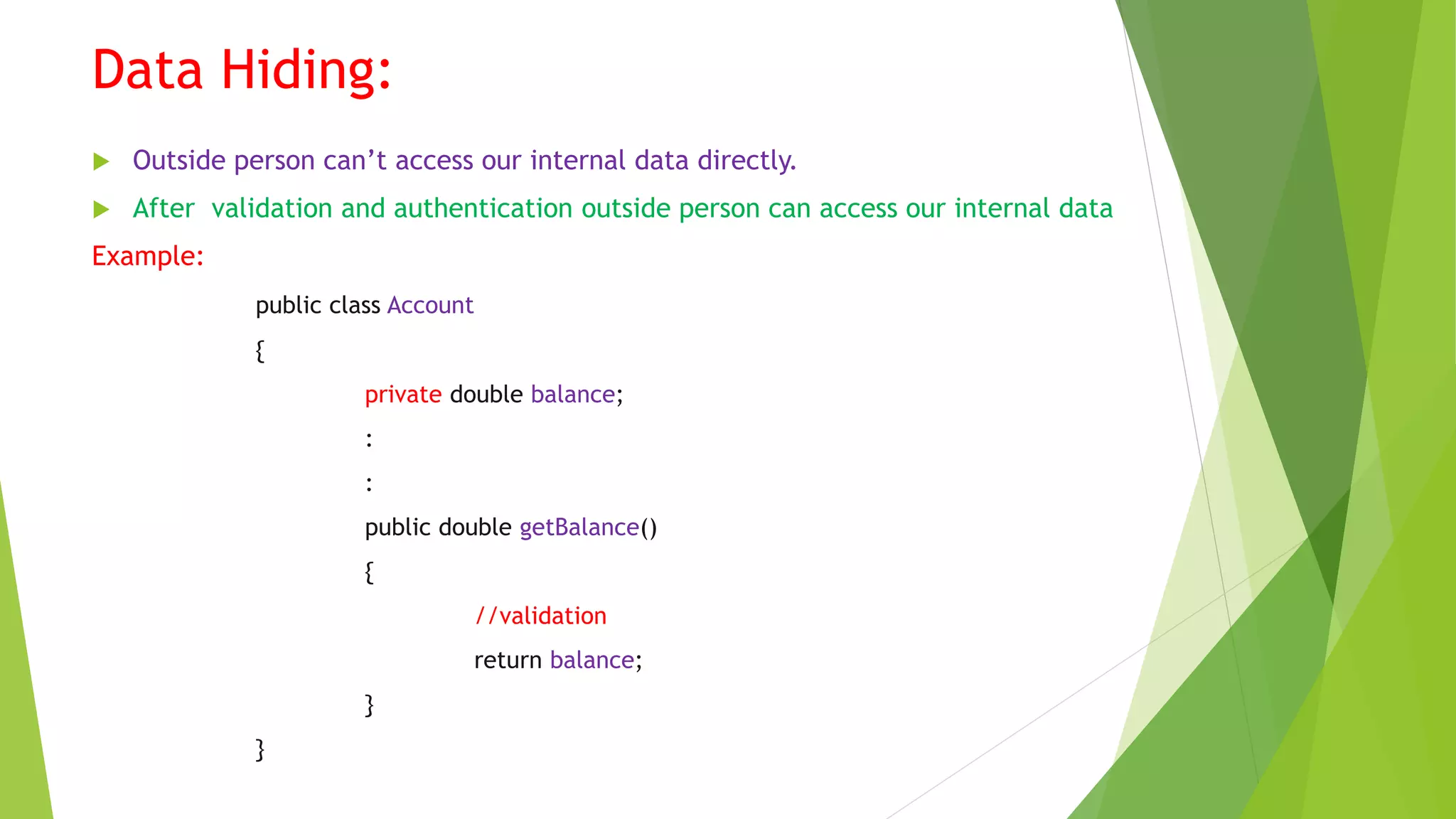

4. Data Hiding:
 Outside person can’t access our internal data directly.
 After validation and authentication outside person can access our internal data
Example:
public class Account
{
private double balance;
:
:
public double getBalance()
{
//validation
return balance;
}
}

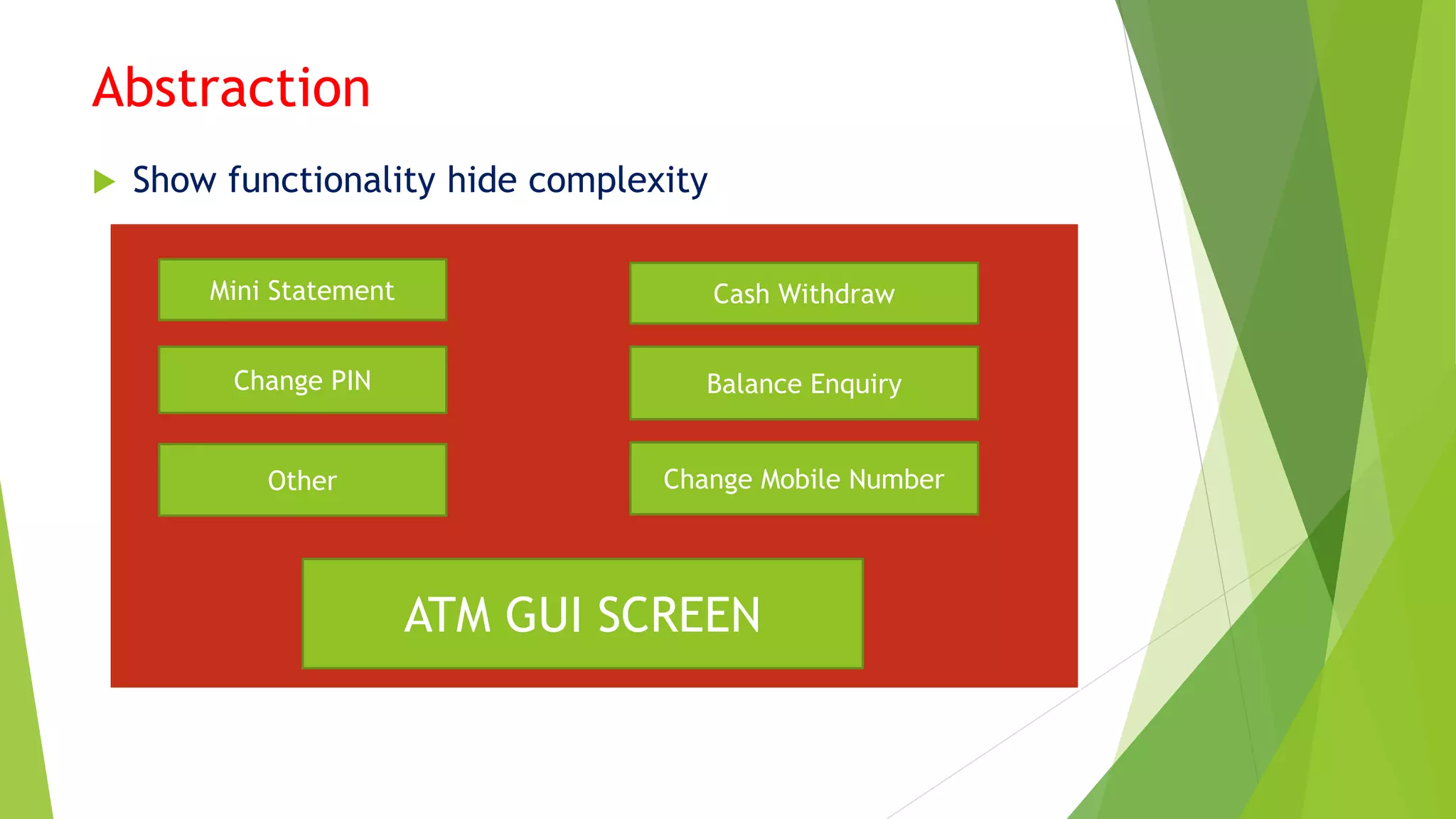

5. Abstraction
 Show functionality hide complexity
Mini Statement Cash Withdraw
Change PIN Balance Enquiry
Change Mobile NumberOther
ATM GUI SCREEN

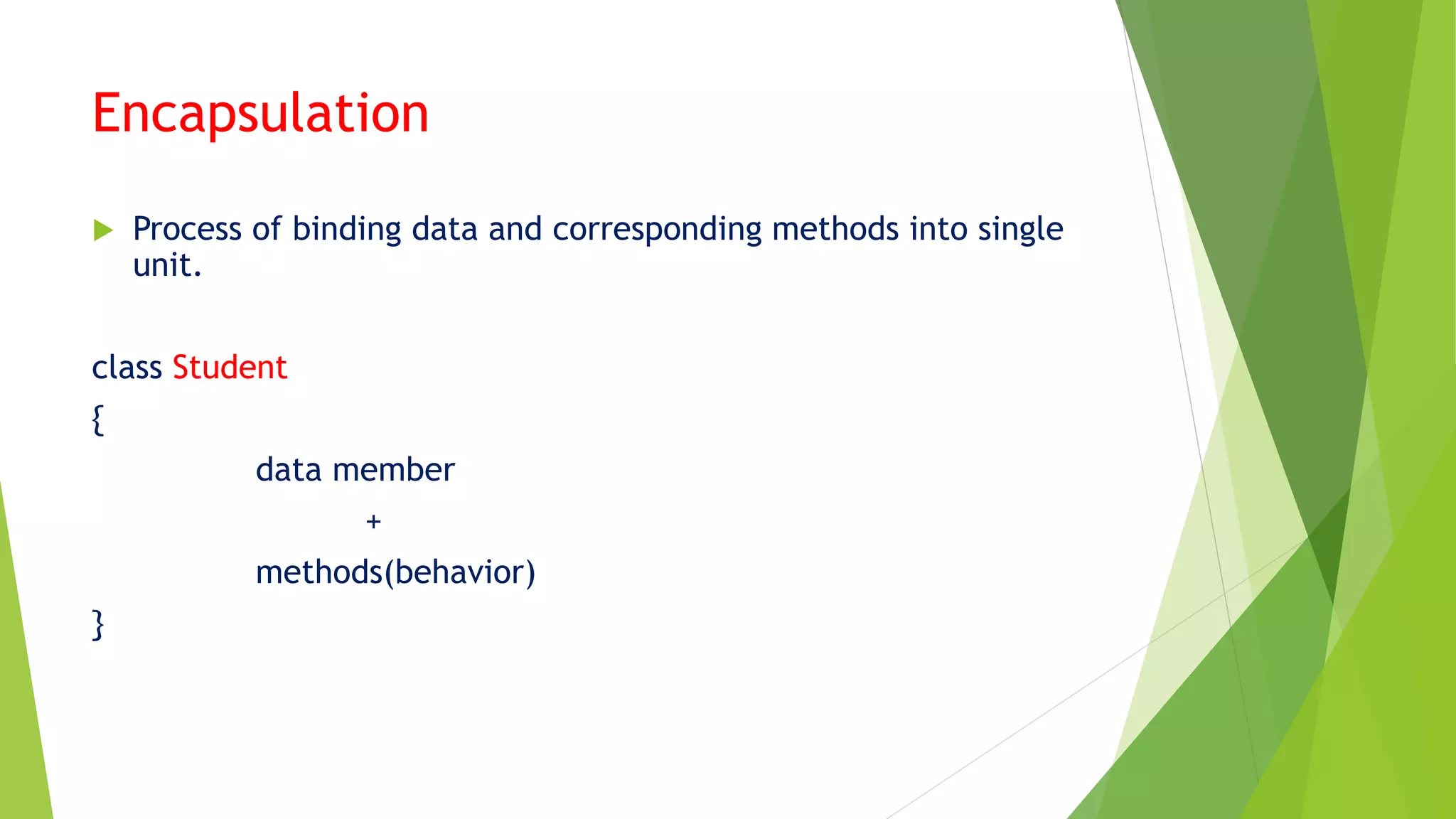

6. Encapsulation
 Process of binding data and corresponding methods into single
unit.
class Student
{
data member
+
methods(behavior)
}

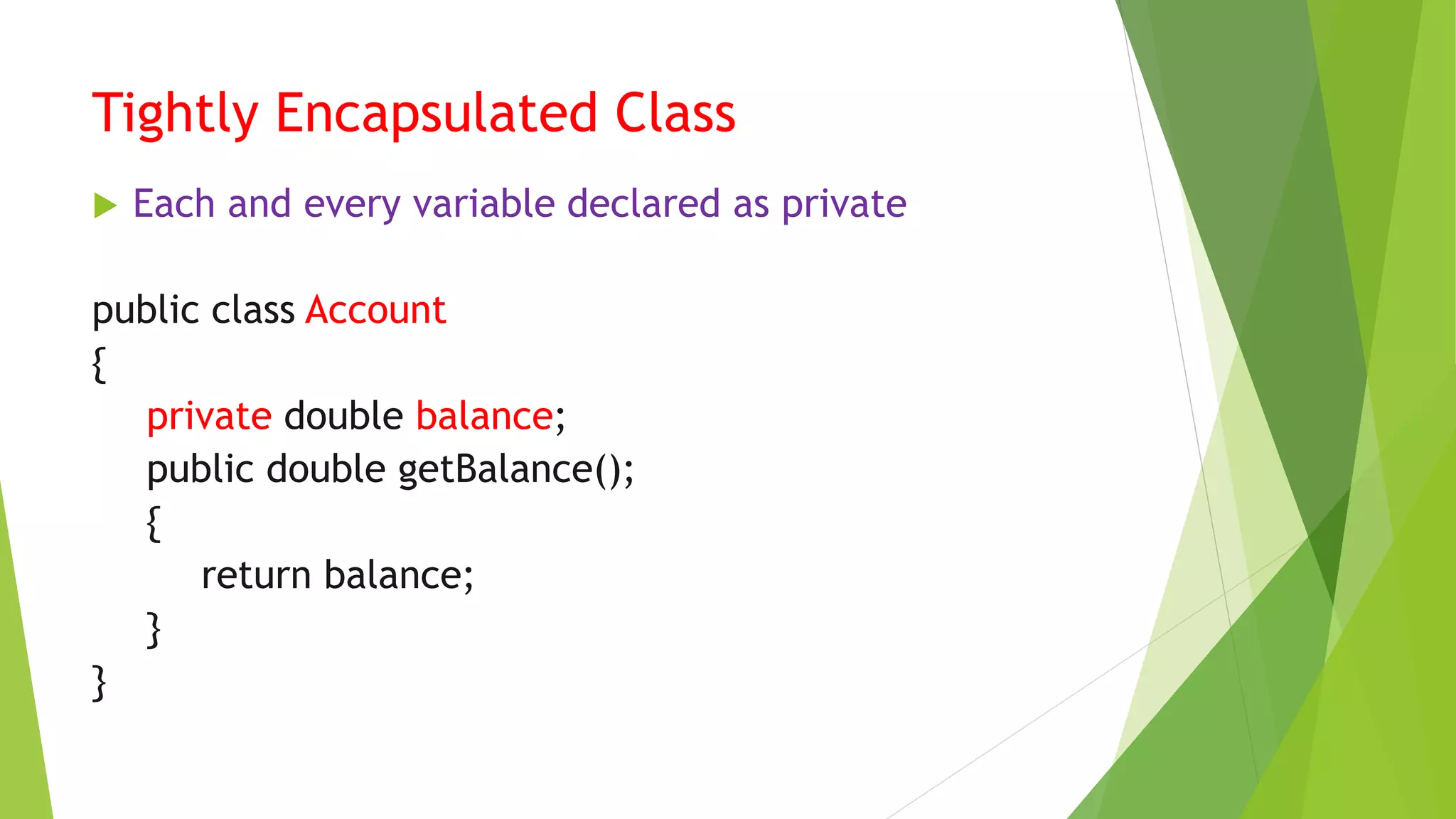

7. Tightly Encapsulated Class
 Each and every variable declared as private
public class Account
{
private double balance;
public double getBalance();
{
return balance;
}
}

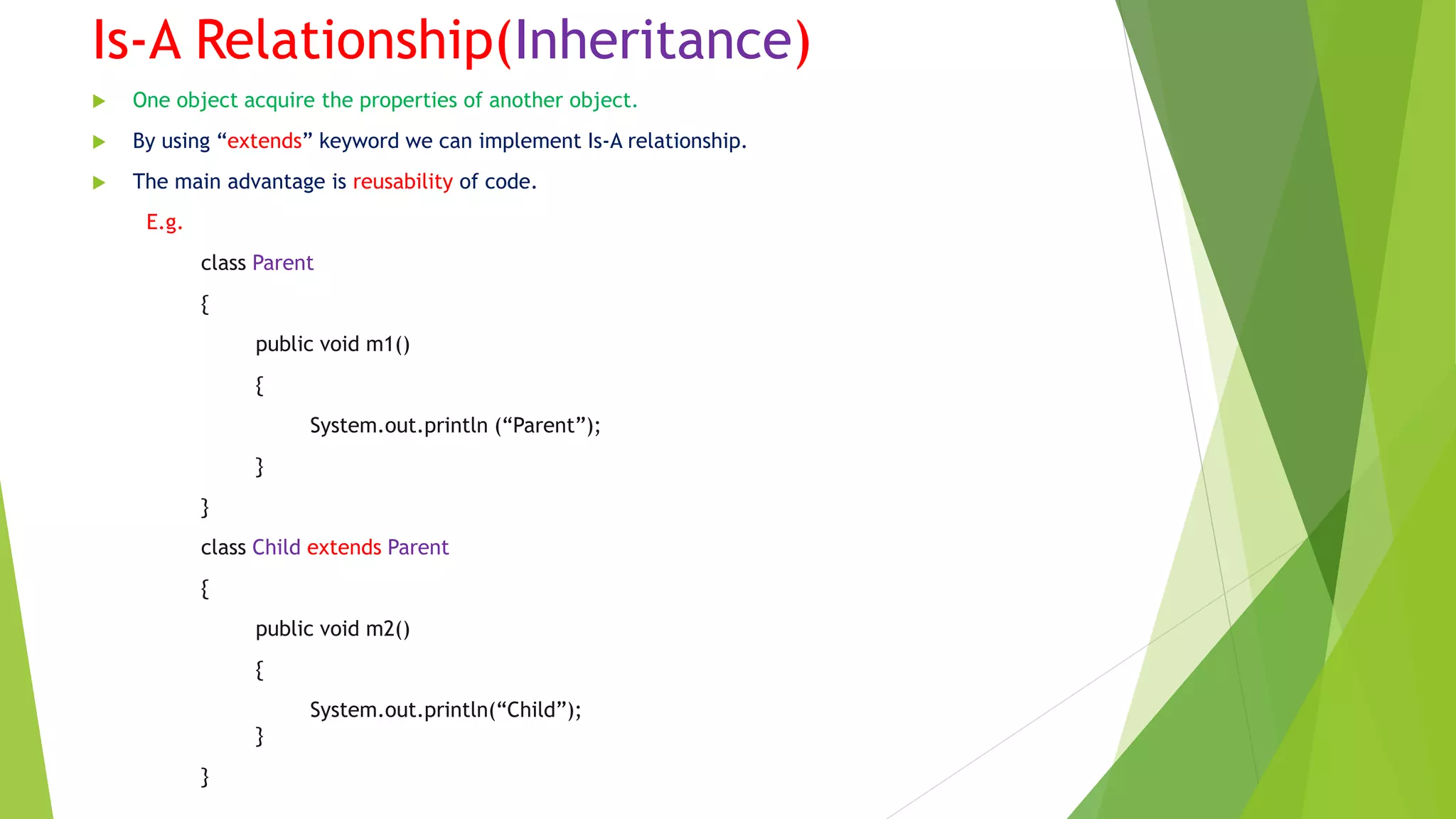

8. Is-A Relationship(Inheritance)
 One object acquire the properties of another object.
 By using “extends” keyword we can implement Is-A relationship.
 The main advantage is reusability of code.
E.g.
class Parent
{
public void m1()
{
System.out.println (“Parent”);
}
}
class Child extends Parent
{
public void m2()
{
System.out.println(“Child”);
}
}

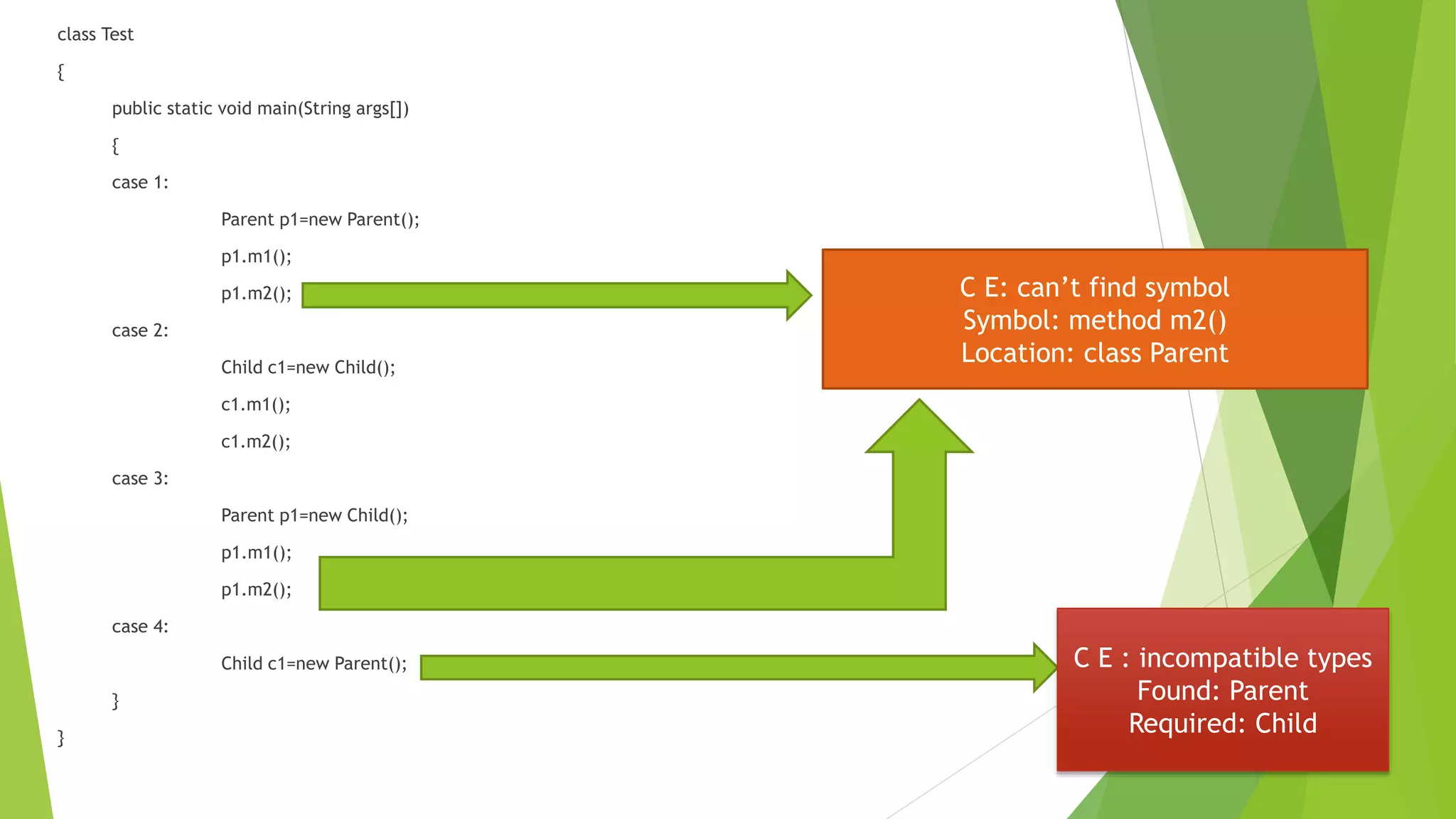

9. class Test
{
public static void main(String args[])
{
case 1:
Parent p1=new Parent();
p1.m1();
p1.m2();
case 2:
Child c1=new Child();
c1.m1();
c1.m2();
case 3:
Parent p1=new Child();
p1.m1();
p1.m2();
case 4:
Child c1=new Parent();
}
}
C E: can’t find symbol
Symbol: method m2()
Location: class Parent
C E : incompatible types
Found: Parent
Required: Child

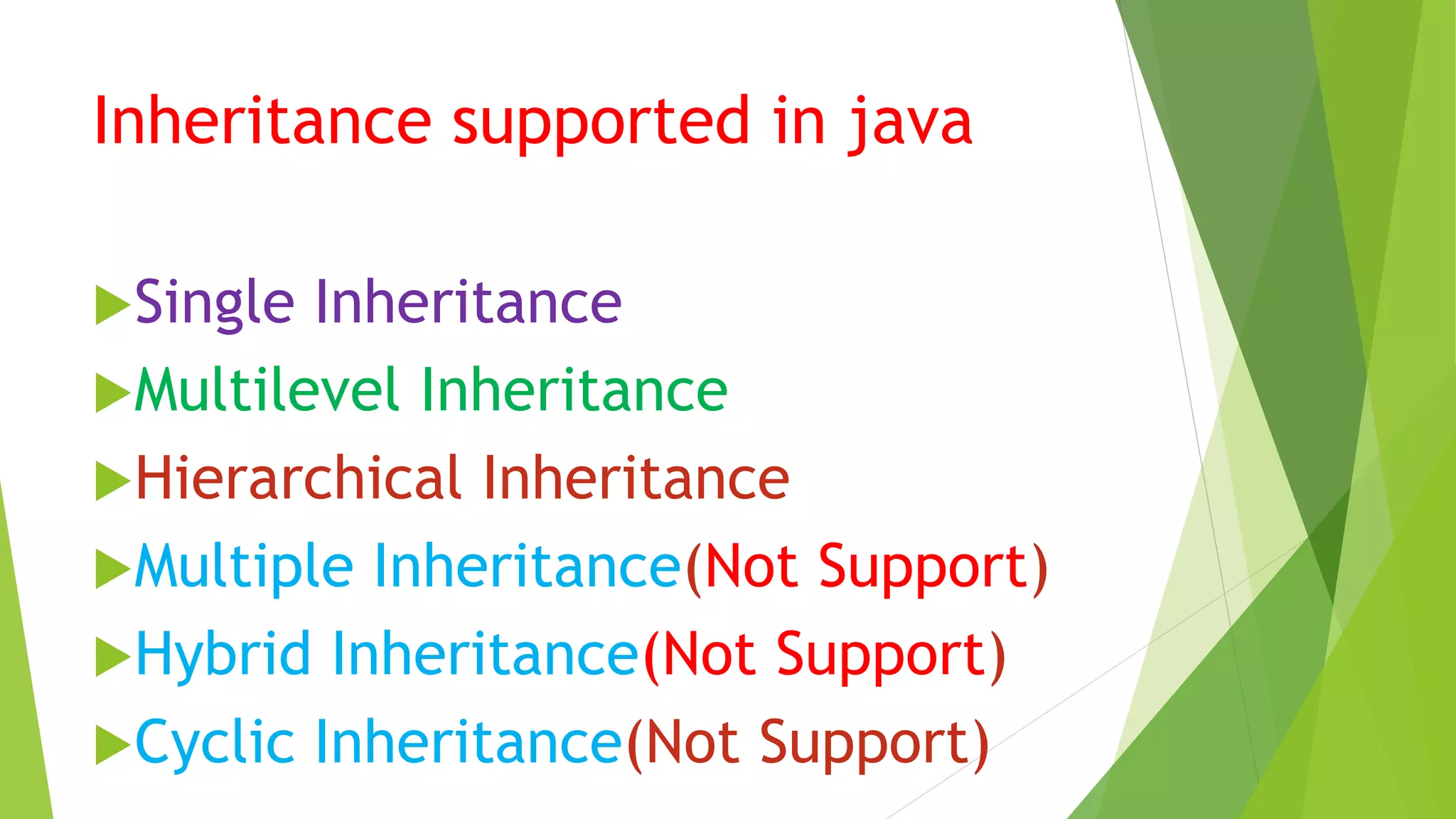

10. Inheritance supported in java
Single Inheritance
Multilevel Inheritance
Hierarchical Inheritance
Multiple Inheritance(Not Support)
Hybrid Inheritance(Not Support)
Cyclic Inheritance(Not Support)

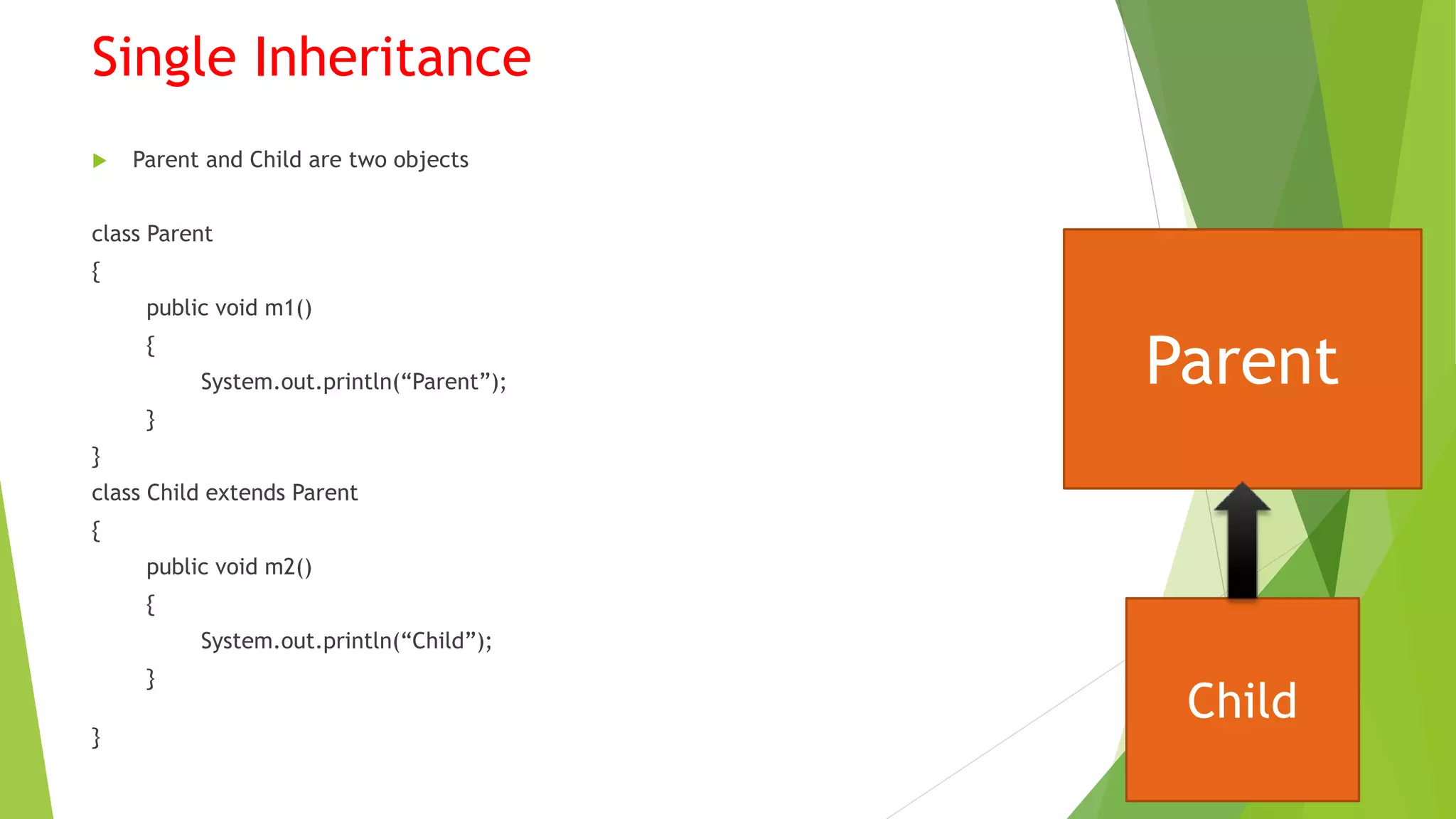

11. Single Inheritance
 Parent and Child are two objects
class Parent
{
public void m1()
{
System.out.println(“Parent”);
}
}
class Child extends Parent
{
public void m2()
{
System.out.println(“Child”);
}
}
Parent
Child

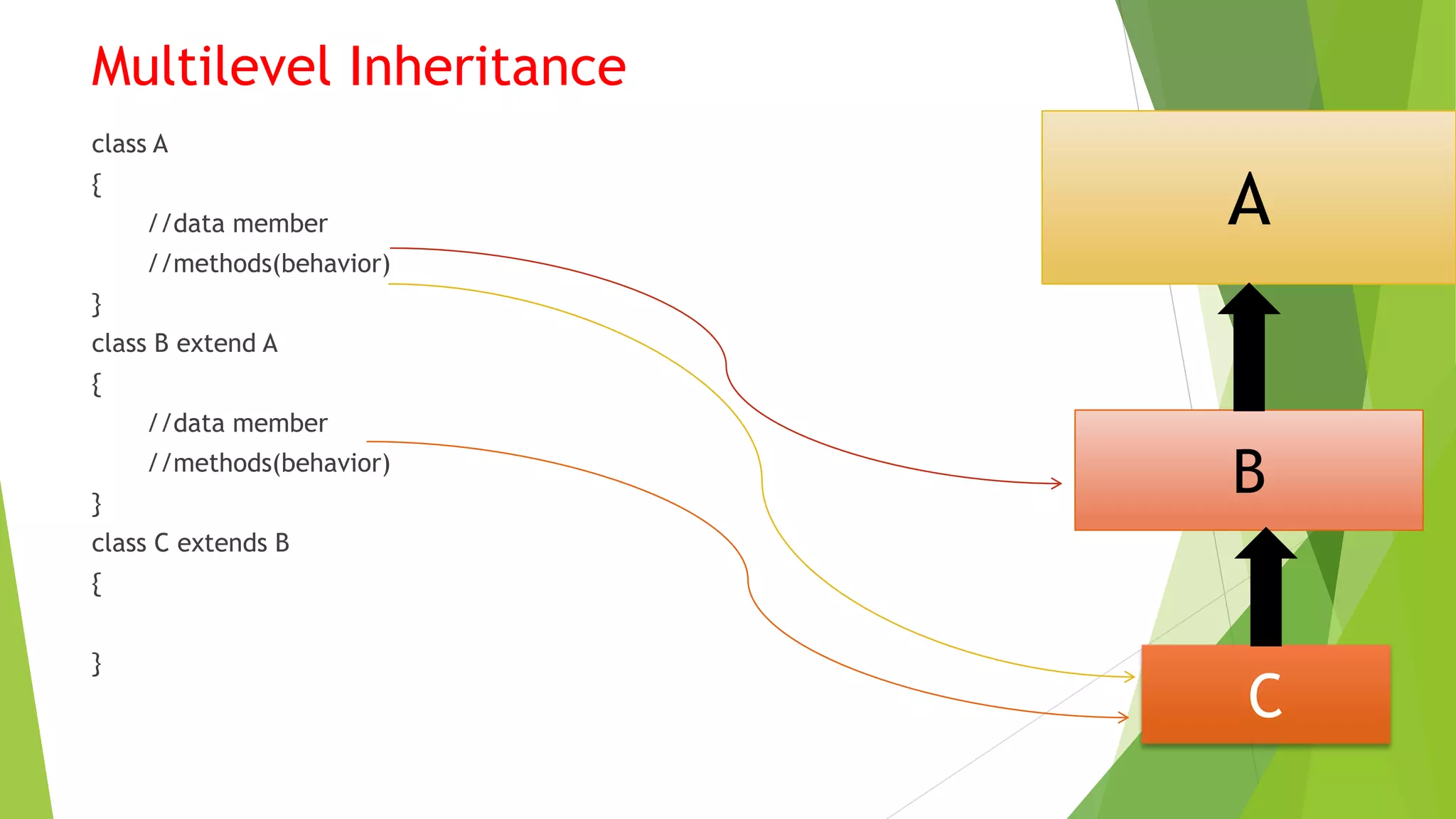

12. Multilevel Inheritance
class A
{
//data member
//methods(behavior)
}
class B extend A
{
//data member
//methods(behavior)
}
class C extends B
{
}
A
C
B

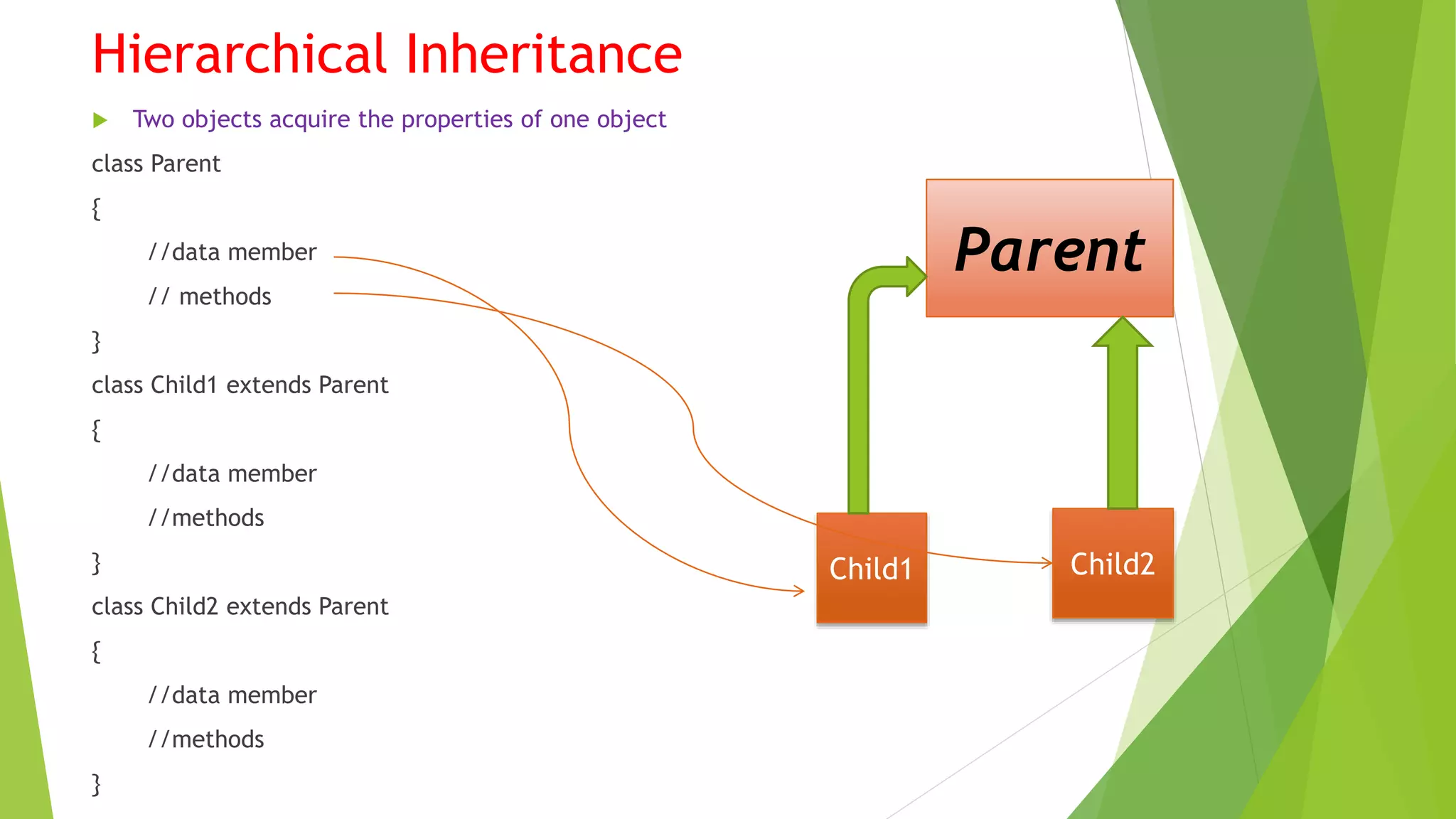

13. Hierarchical Inheritance
 Two objects acquire the properties of one object
class Parent
{
//data member
// methods
}
class Child1 extends Parent
{
//data member
//methods
}
class Child2 extends Parent
{
//data member
//methods
}
Parent
Child1 Child2

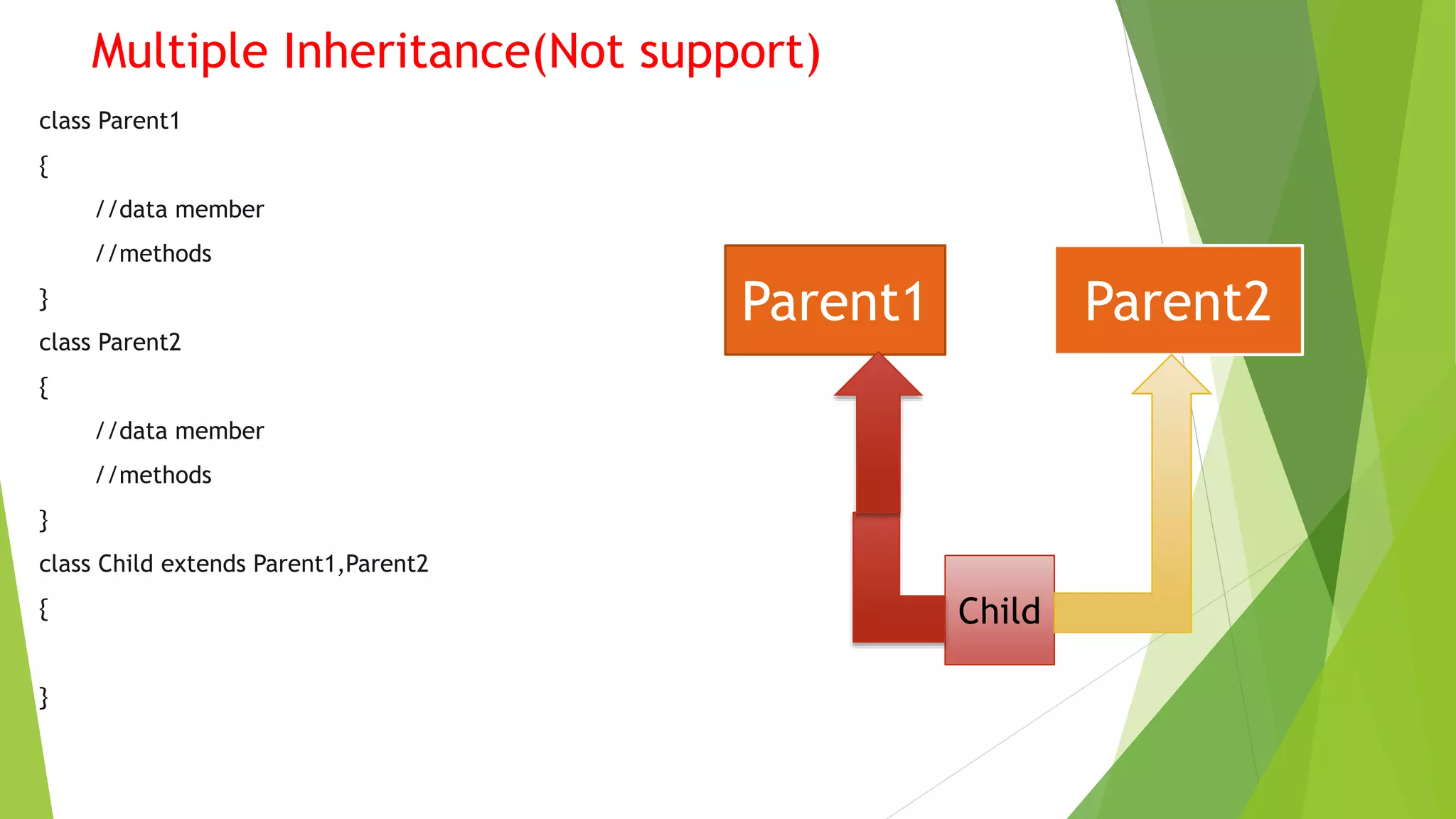

14. Multiple Inheritance(Not support)
class Parent1
{
//data member
//methods
}
class Parent2
{
//data member
//methods
}
class Child extends Parent1,Parent2
{
}
Parent1 Parent2
Child

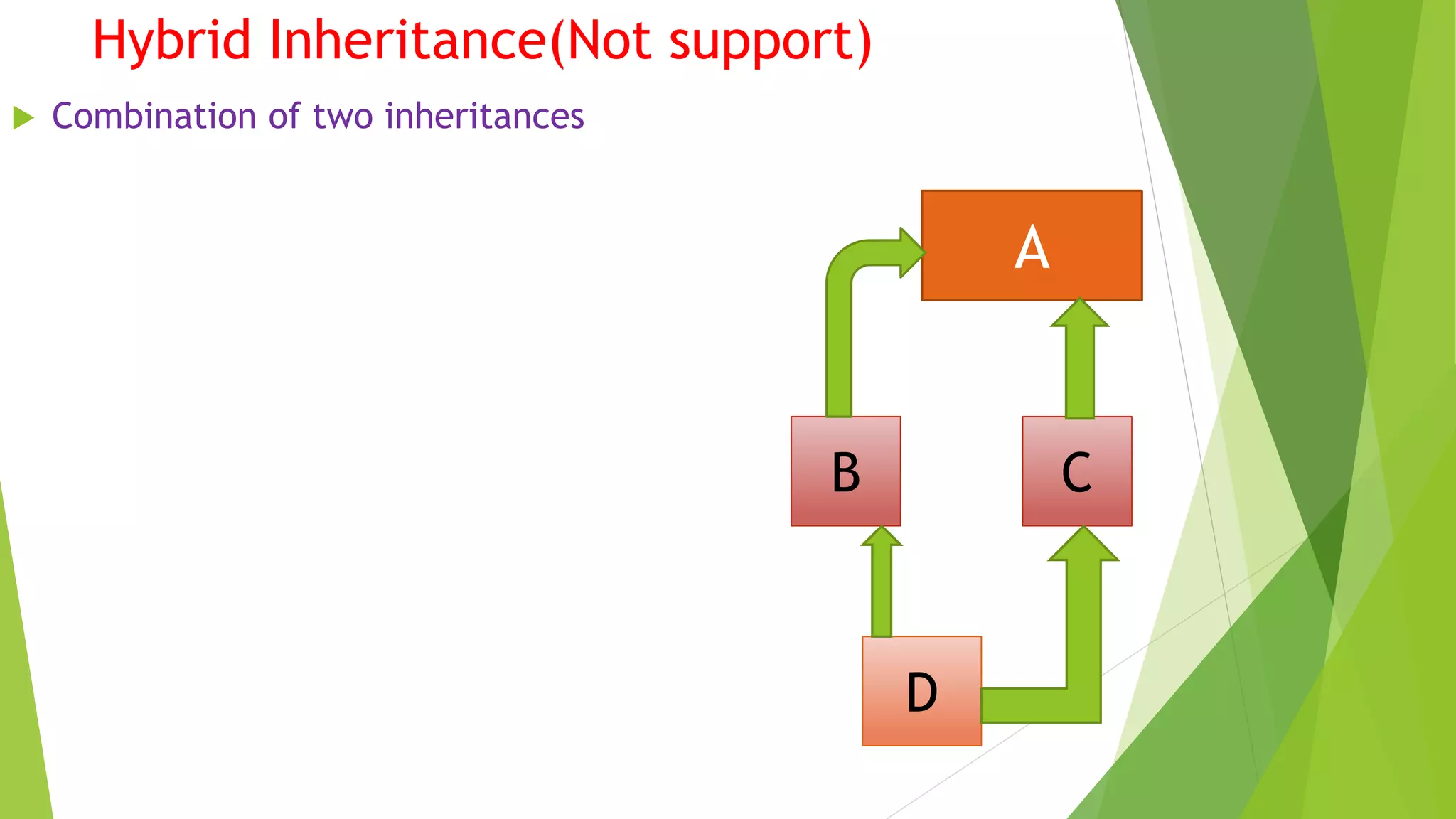

15. Hybrid Inheritance(Not support)
 Combination of two inheritances
A
B C
D

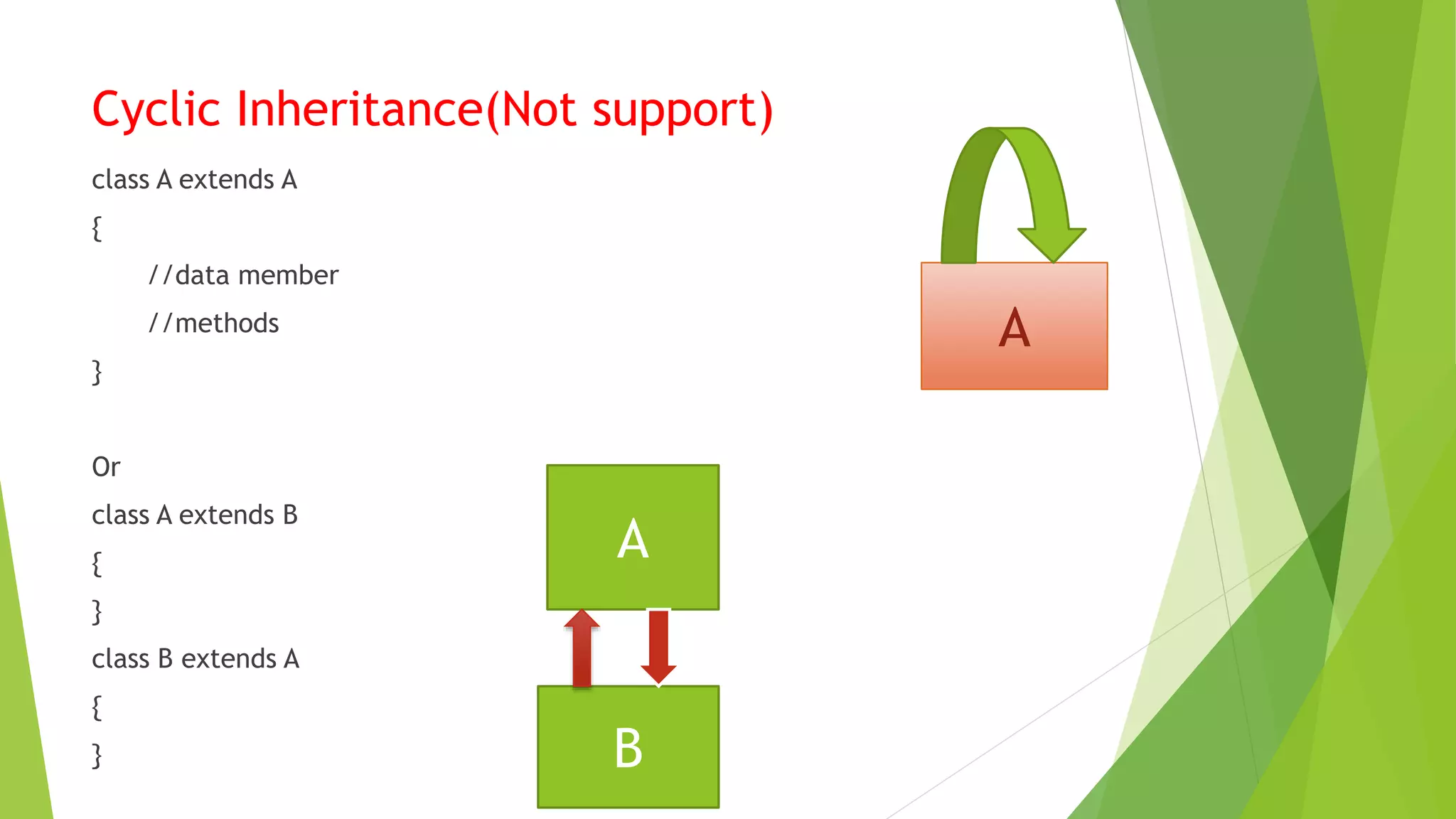

16. Cyclic Inheritance(Not support)
class A extends A
{
//data member
//methods
}
Or
class A extends B
{
}
class B extends A
{
}
A
A
B

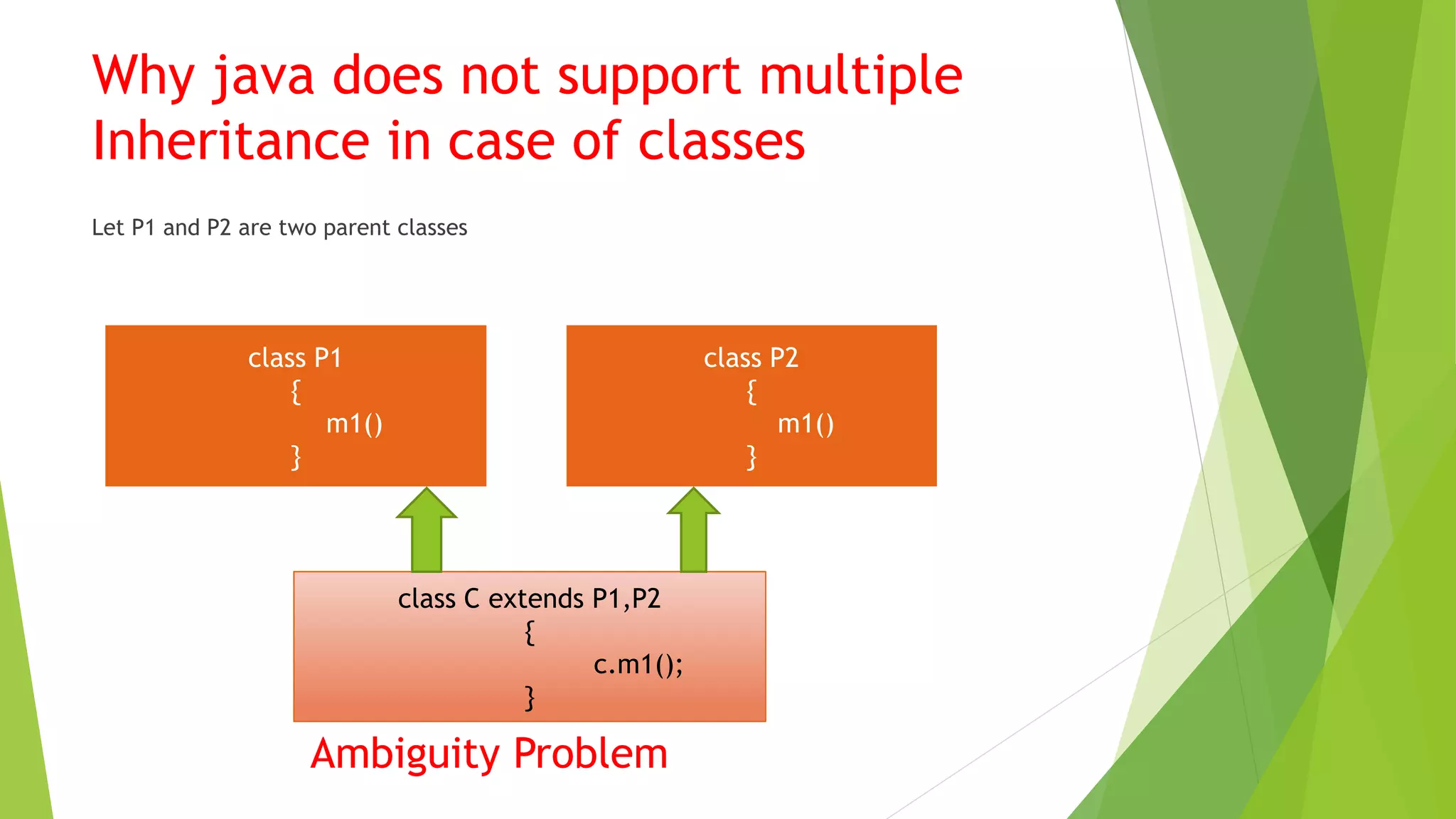

17. Why java does not support multiple
Inheritance in case of classes
Let P1 and P2 are two parent classes
Ambiguity Problem
class P1
{
m1()
}
class P2
{
m1()
}
class C extends P1,P2
{
c.m1();
}

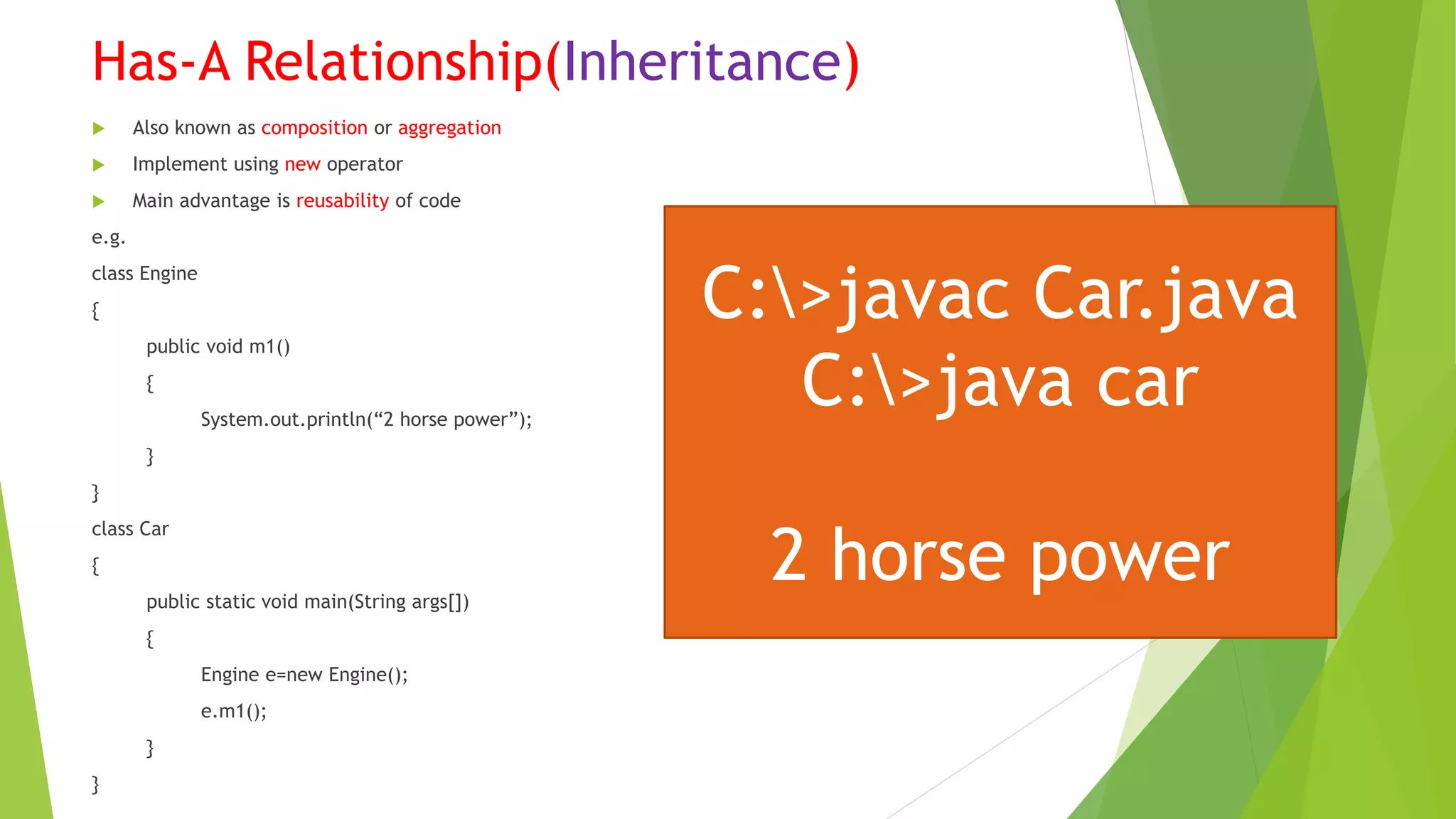

18. Has-A Relationship(Inheritance)
 Also known as composition or aggregation
 Implement using new operator
 Main advantage is reusability of code
e.g.
class Engine
{
public void m1()
{
System.out.println(“2 horse power”);
}
}
class Car
{
public static void main(String args[])
{
Engine e=new Engine();
e.m1();
}
}
C:>javac Car.java
C:>java car
2 horse power

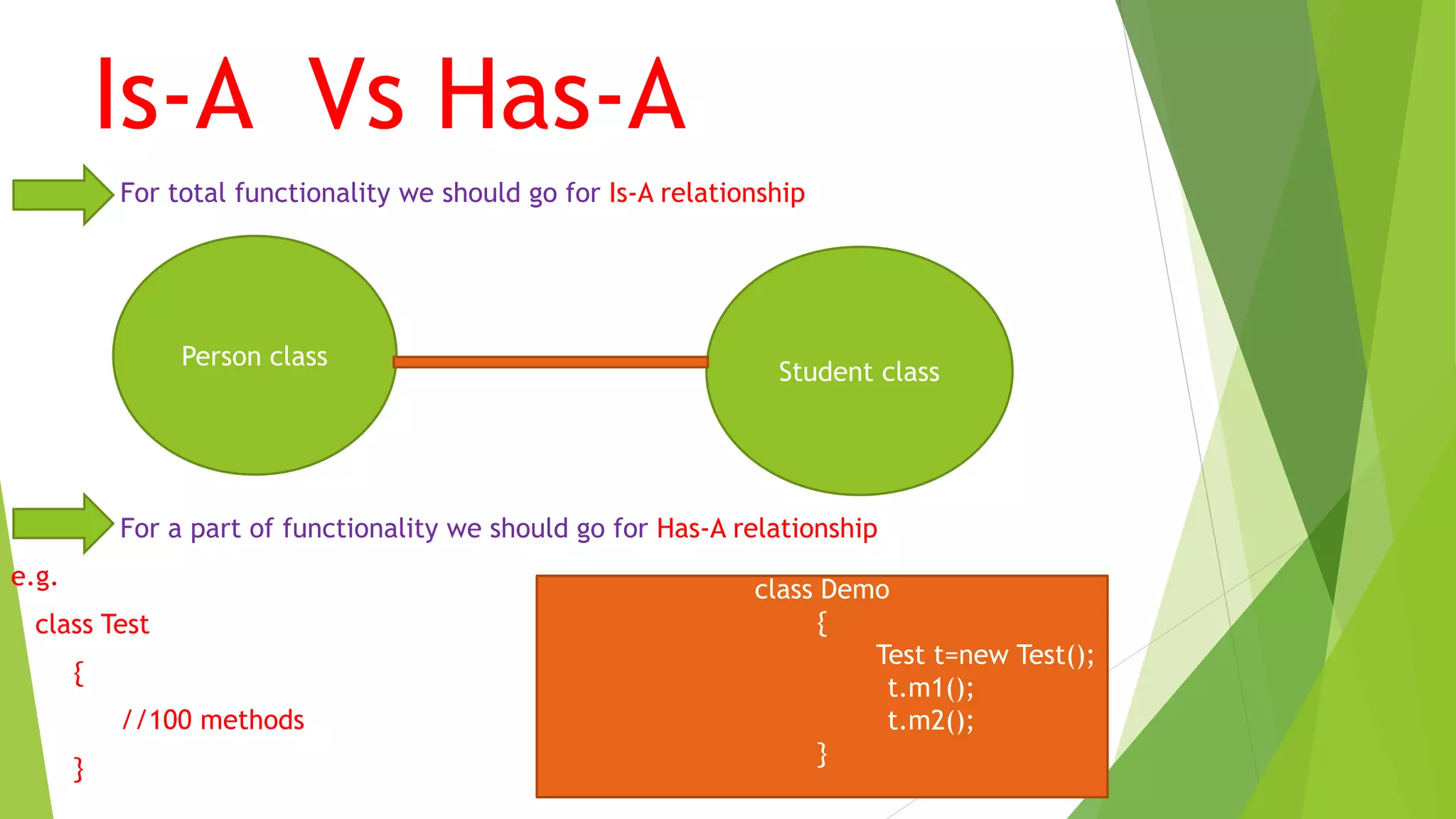

19. Is-A Vs Has-A
For total functionality we should go for Is-A relationship
For a part of functionality we should go for Has-A relationship
e.g.
class Test
{
//100 methods
}
Person class
Student class
class Demo
{
Test t=new Test();
t.m1();
t.m2();
}

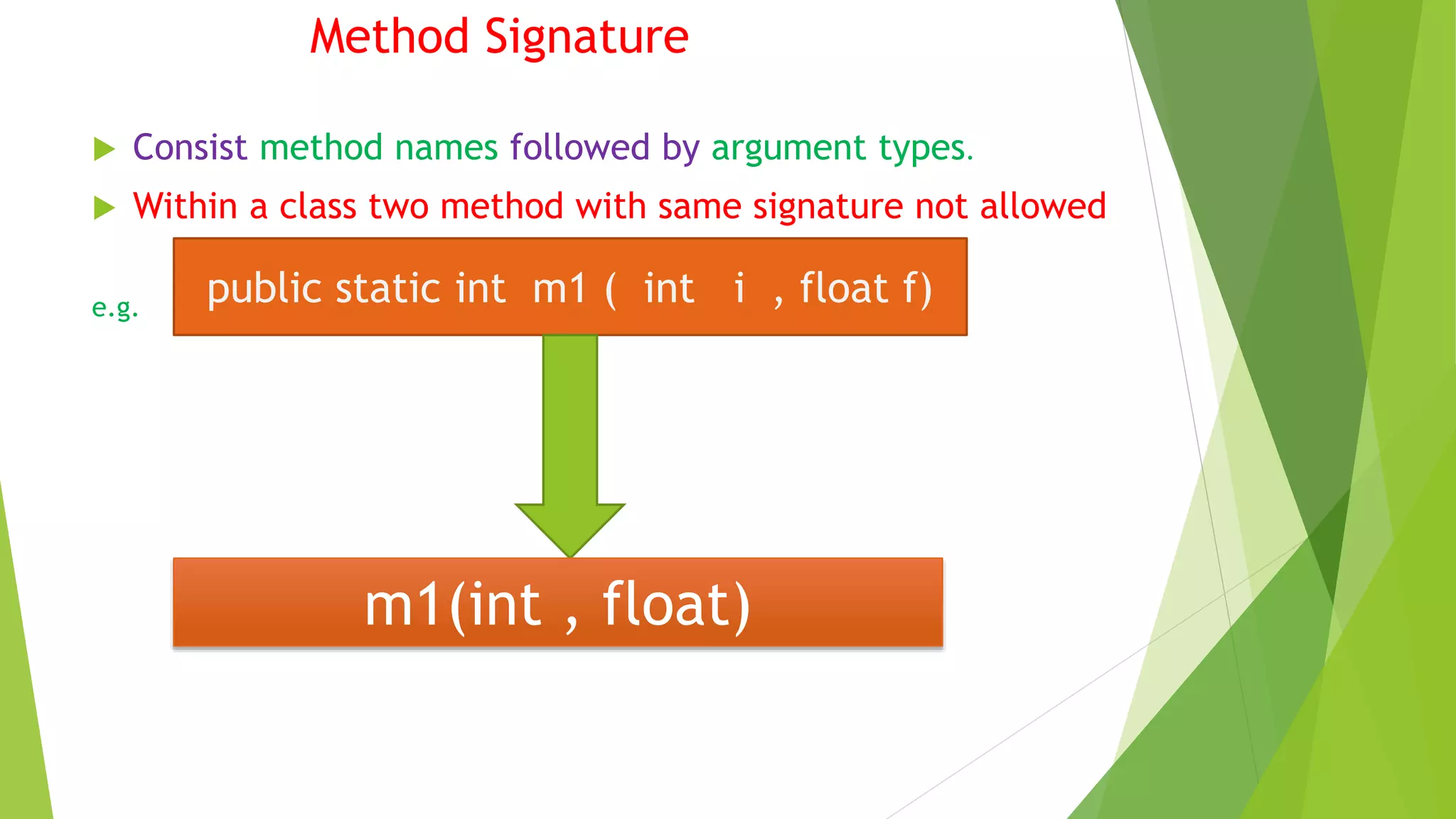

20. Method Signature
 Consist method names followed by argument types.
 Within a class two method with same signature not allowed
e.g.
public static int m1 ( int i , float f)
m1(int , float)

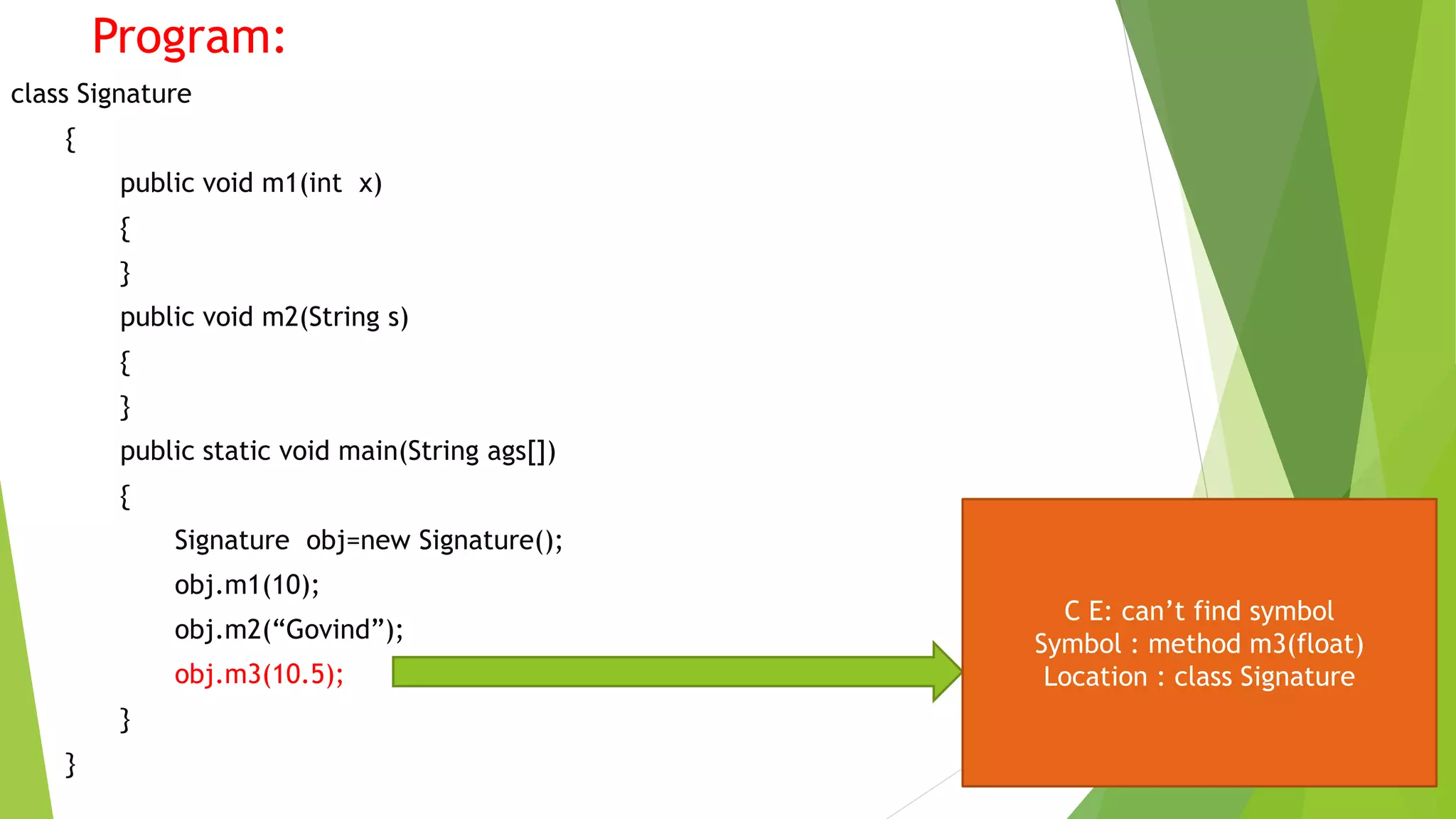

21. Program:
class Signature
{
public void m1(int x)
{
}
public void m2(String s)
{
}
public static void main(String ags[])
{
Signature obj=new Signature();
obj.m1(10);
obj.m2(“Govind”);
obj.m3(10.5);
}
}
C E: can’t find symbol
Symbol : method m3(float)
Location : class Signature

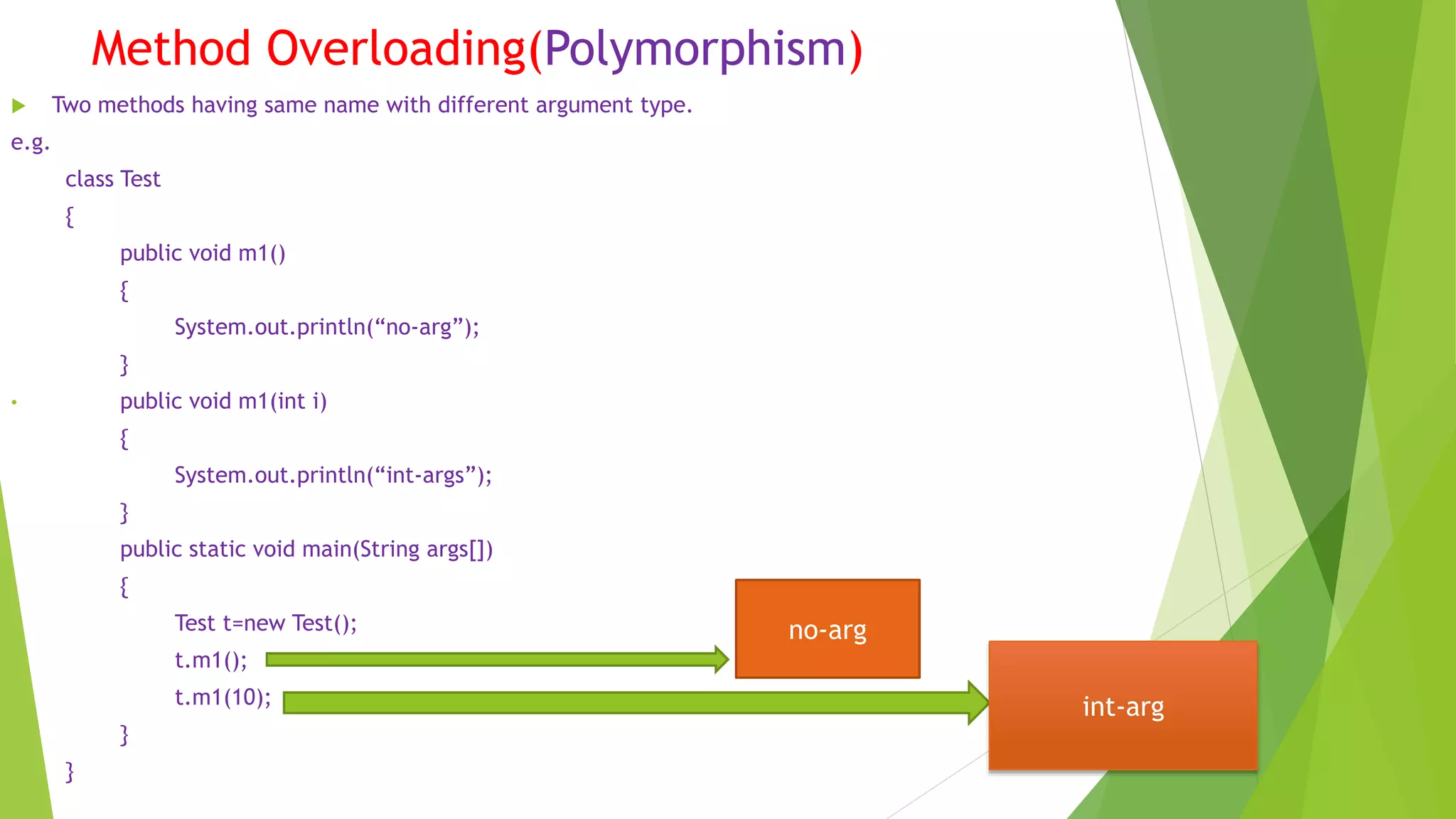

22. Method Overloading(Polymorphism)
 Two methods having same name with different argument type.
e.g.
class Test
{
public void m1()
{
System.out.println(“no-arg”);
}
• public void m1(int i)
{
System.out.println(“int-args”);
}
public static void main(String args[])
{
Test t=new Test();
t.m1();
t.m1(10);
}
}
no-arg
int-arg

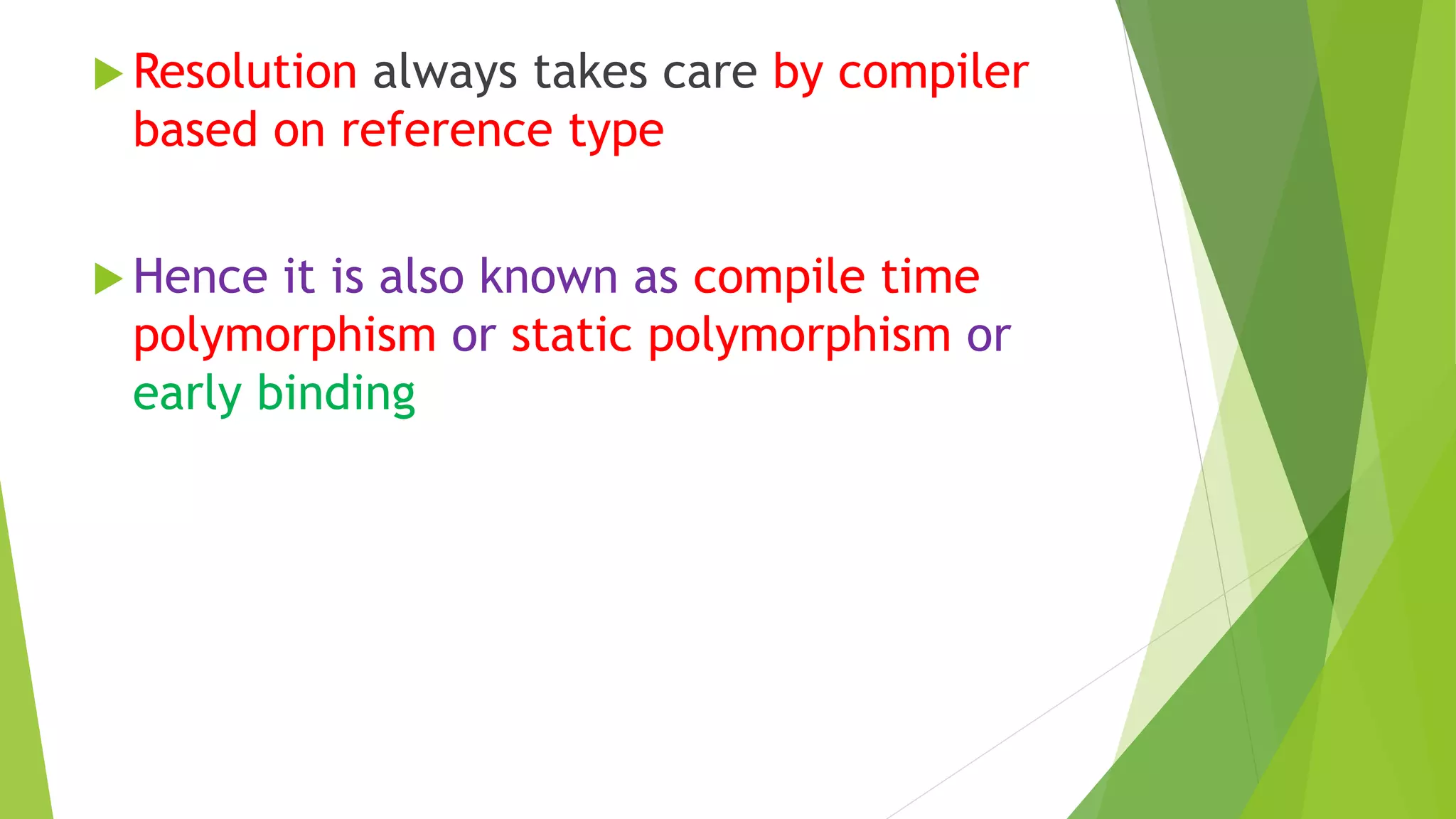

23.  Resolution always takes care by compiler
based on reference type
 Hence it is also known as compile time
polymorphism or static polymorphism or
early binding

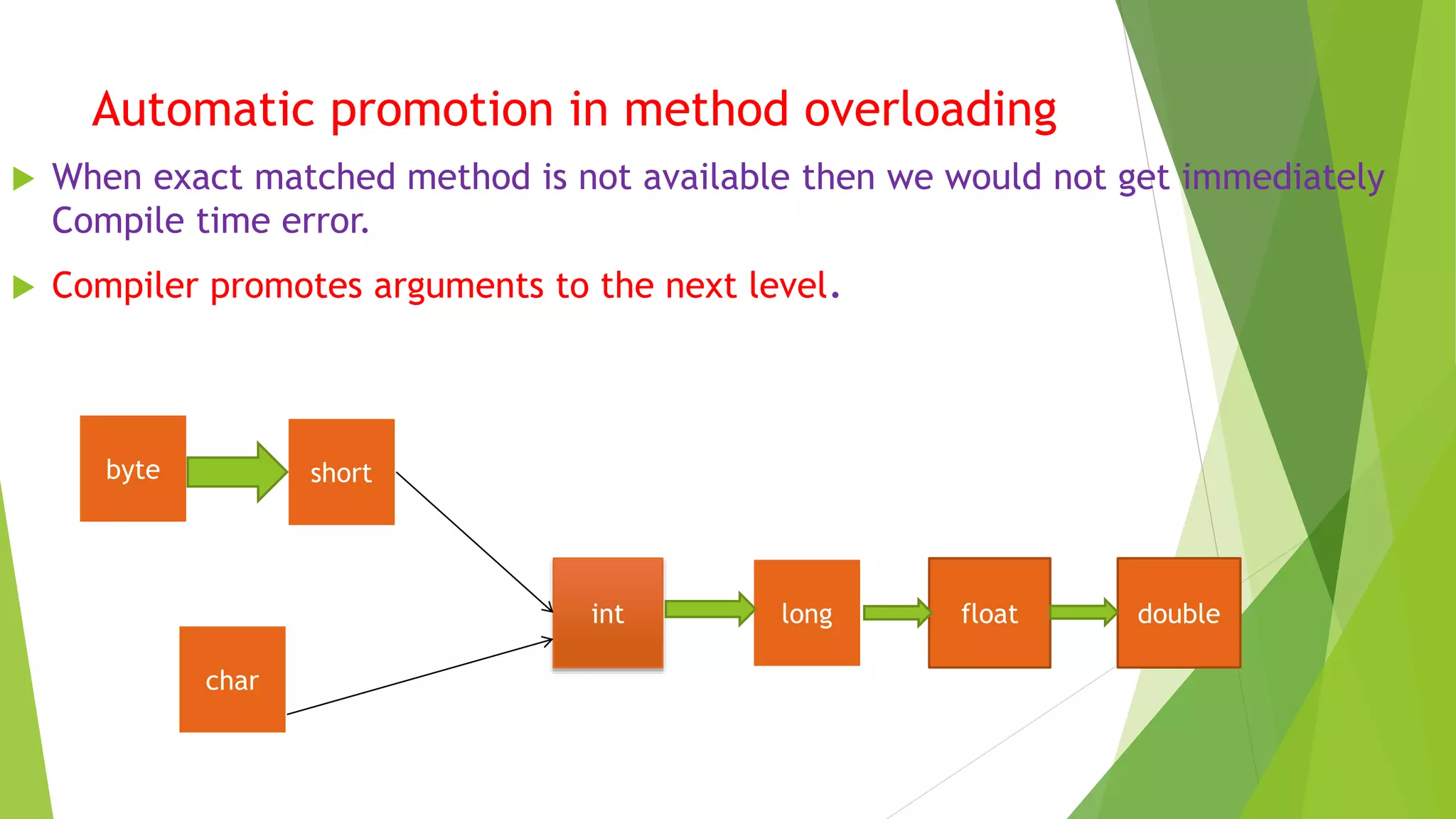

24. Automatic promotion in method overloading
 When exact matched method is not available then we would not get immediately
Compile time error.
 Compiler promotes arguments to the next level.
byte short
long floatint
char
double

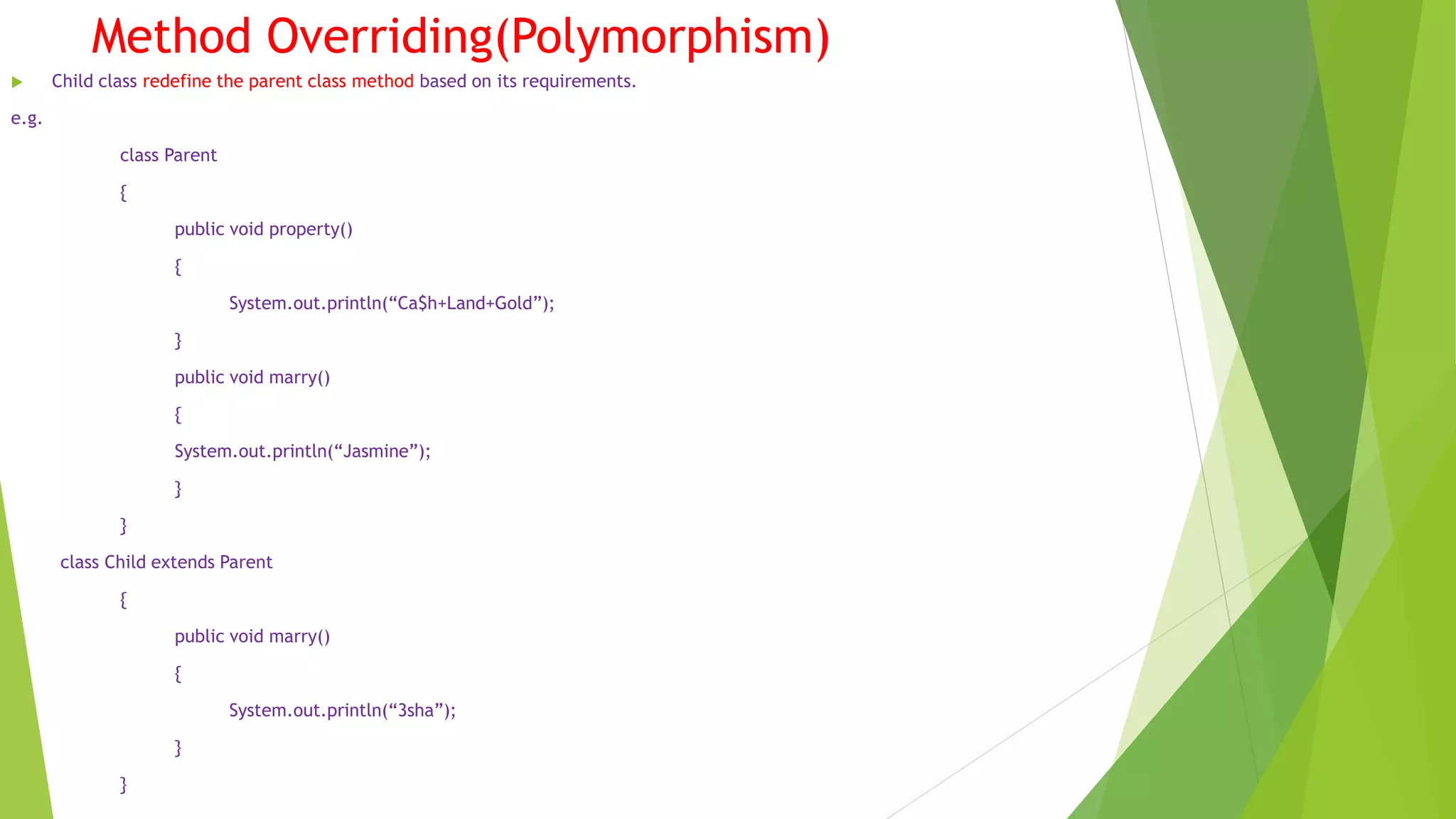

25. Method Overriding(Polymorphism)
 Child class redefine the parent class method based on its requirements.
e.g.
class Parent
{
public void property()
{
System.out.println(“Ca$h+Land+Gold”);
}
public void marry()
{
System.out.println(“Jasmine”);
}
}
class Child extends Parent
{
public void marry()
{
System.out.println(“3sha”);
}
}

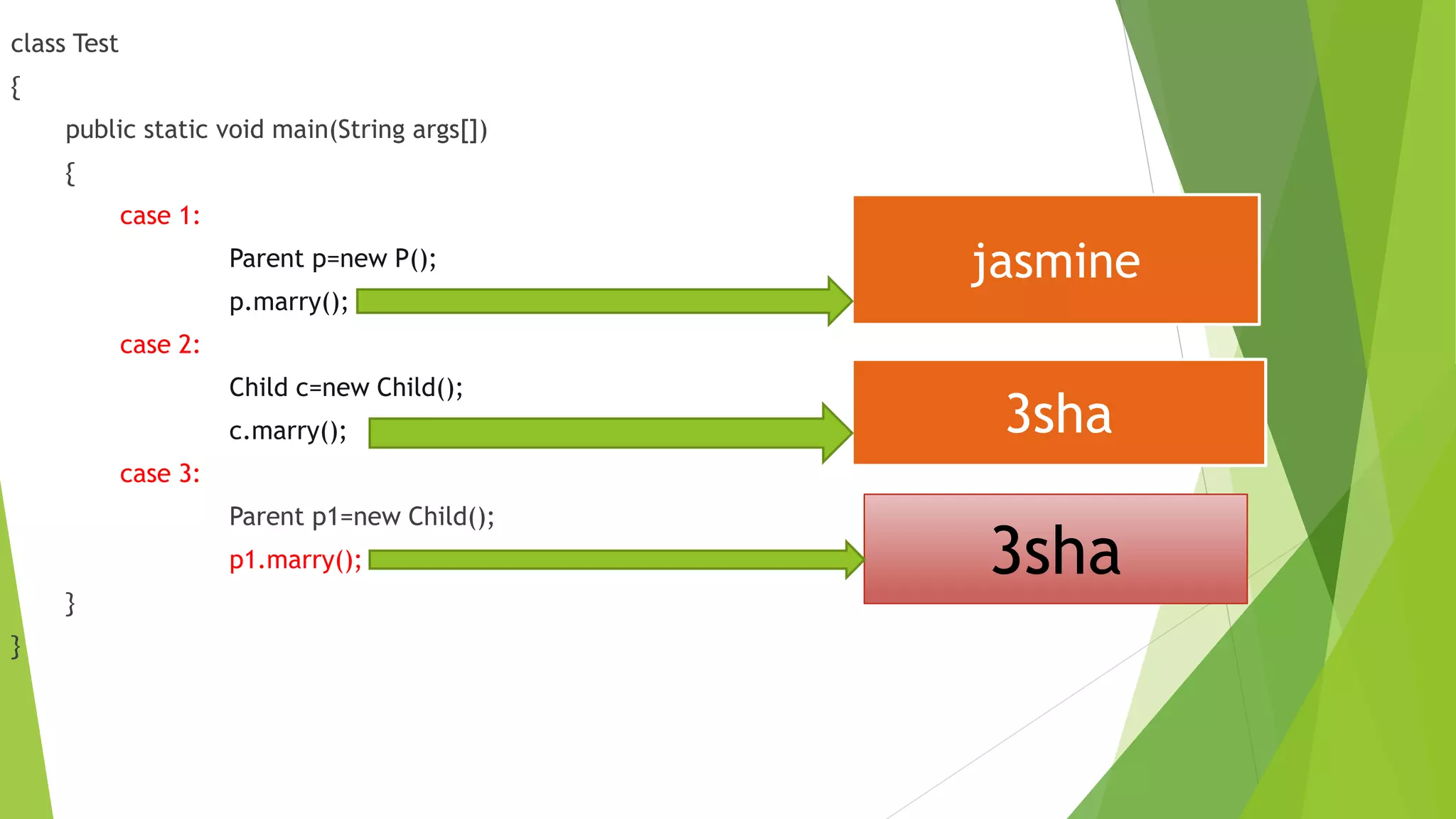

26. class Test
{
public static void main(String args[])
{
case 1:
Parent p=new P();
p.marry();
case 2:
Child c=new Child();
c.marry();
case 3:
Parent p1=new Child();
p1.marry();
}
}
jasmine
3sha
3sha

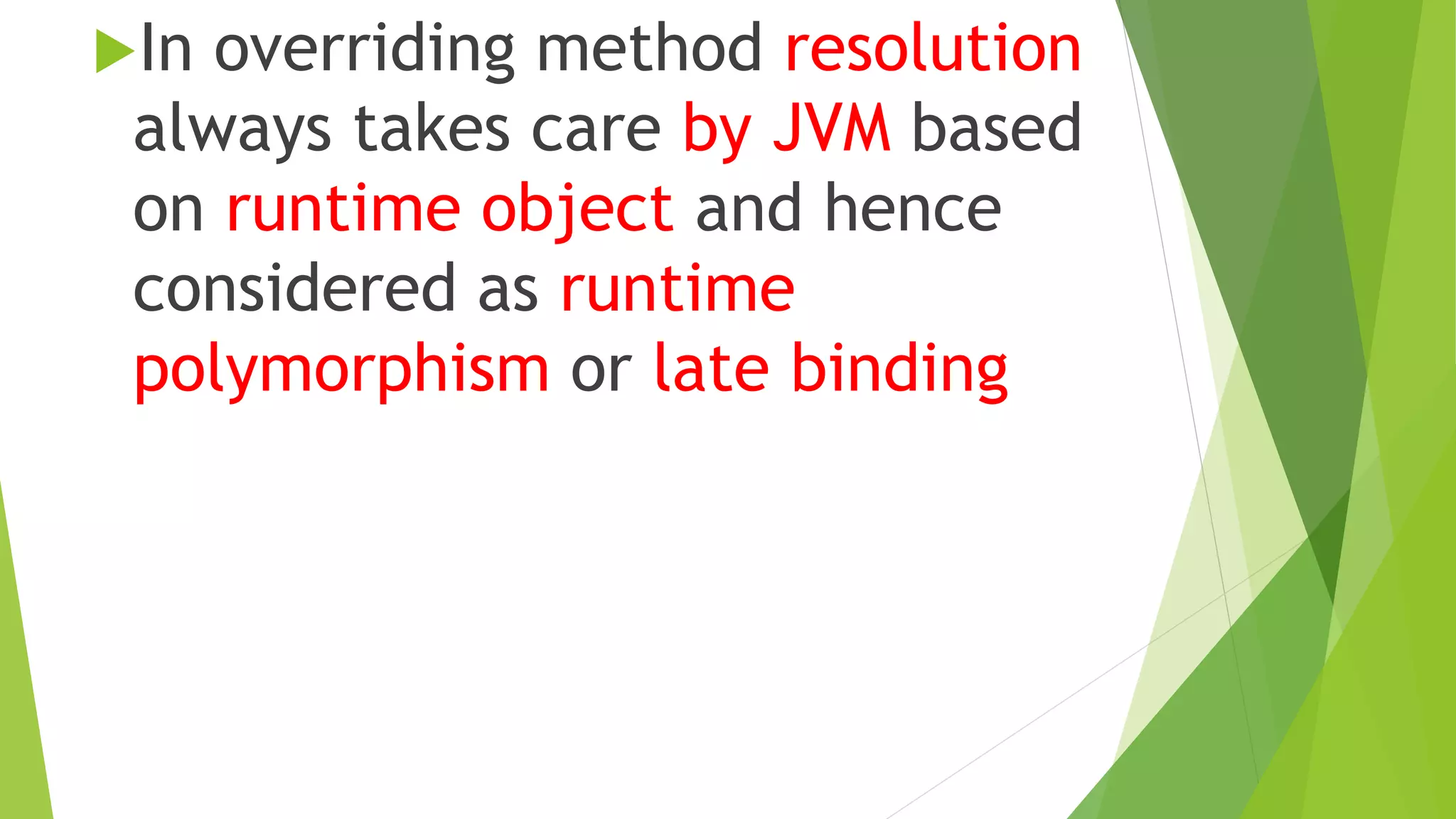

27. In overriding method resolution
always takes care by JVM based
on runtime object and hence
considered as runtime
polymorphism or late binding

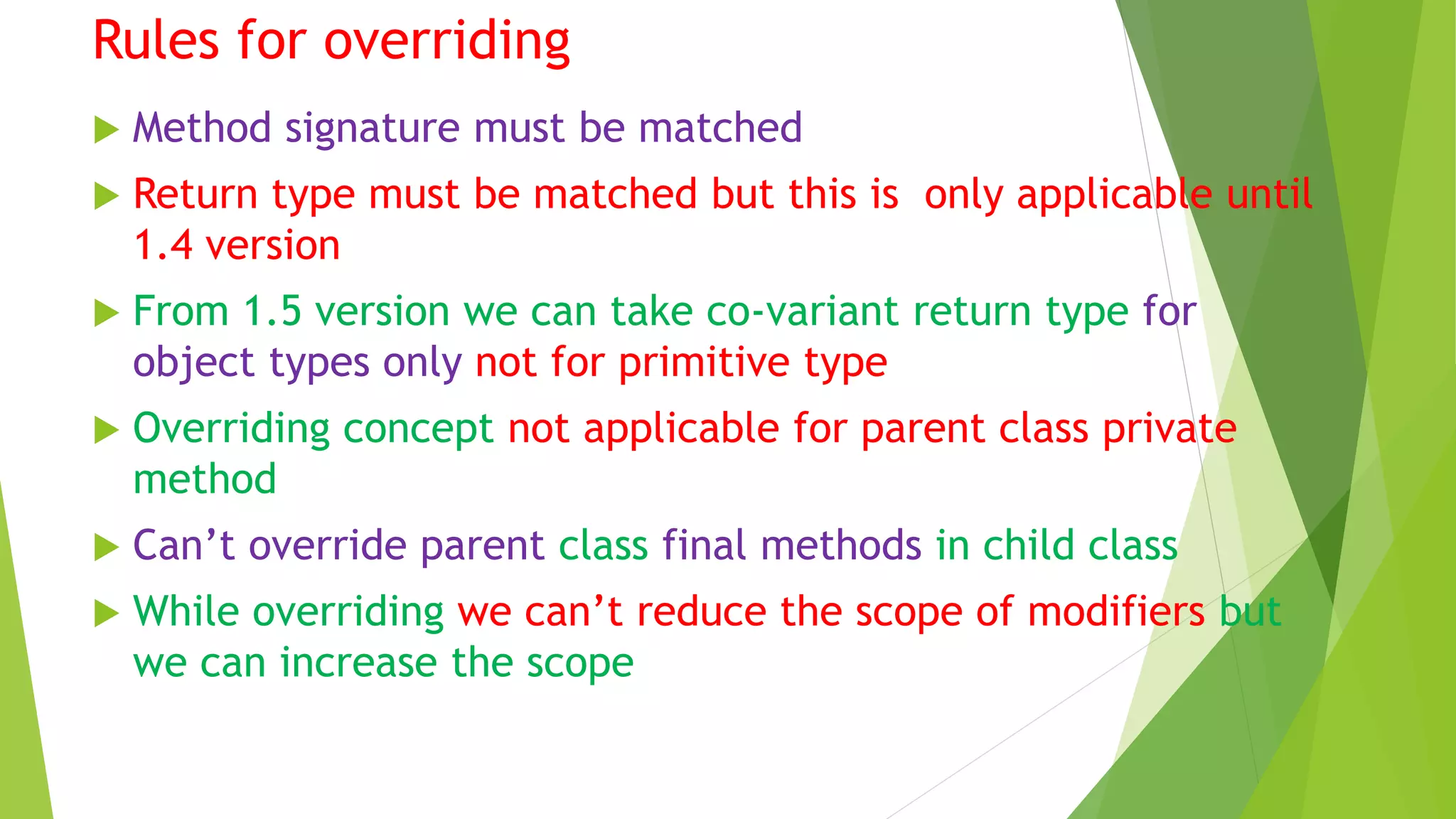

28. Rules for overriding
 Method signature must be matched
 Return type must be matched but this is only applicable until
1.4 version
 From 1.5 version we can take co-variant return type for
object types only not for primitive type
 Overriding concept not applicable for parent class private
method
 Can’t override parent class final methods in child class
 While overriding we can’t reduce the scope of modifiers but
we can increase the scope

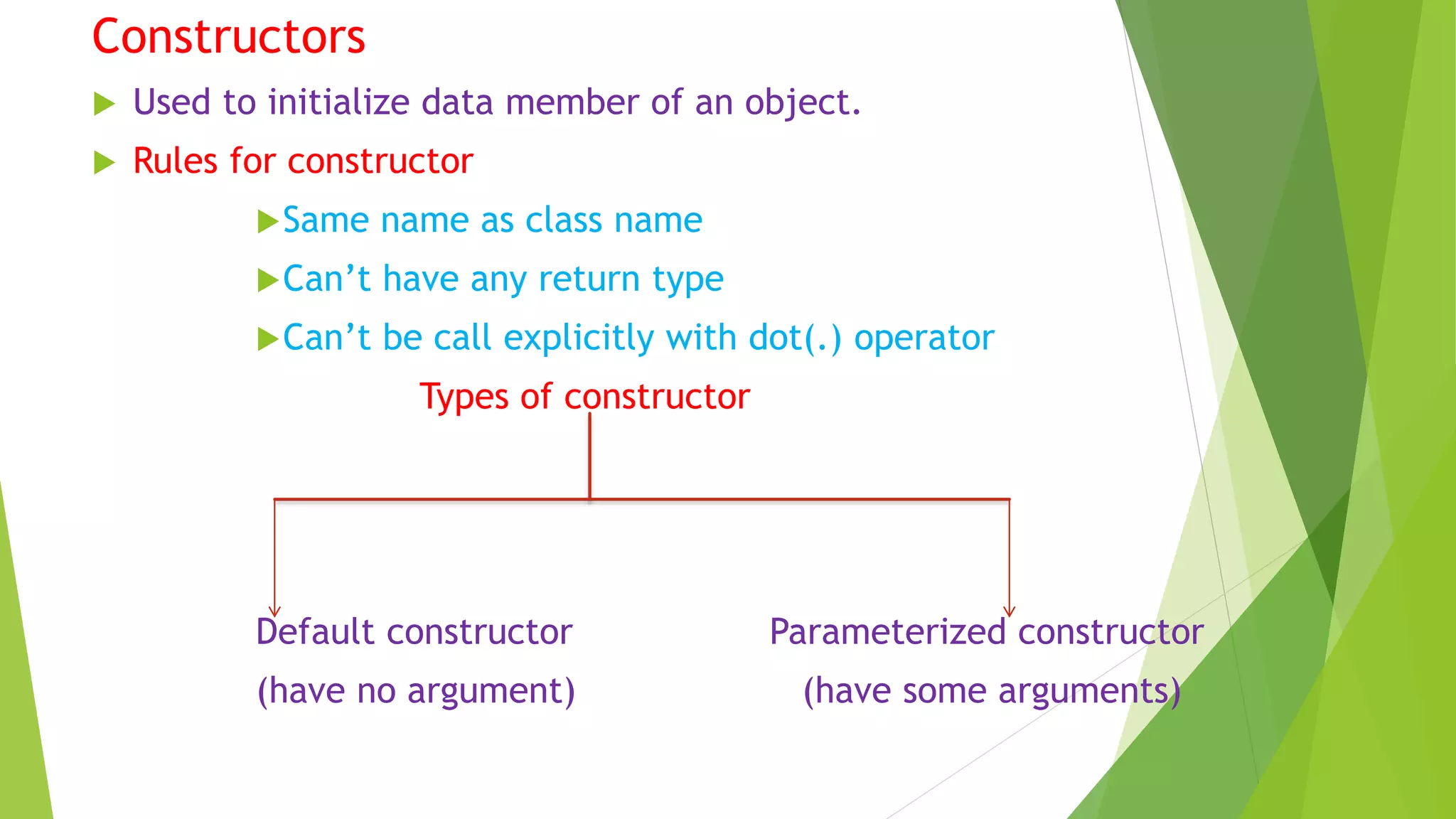

29. Constructors
 Used to initialize data member of an object.
 Rules for constructor
Same name as class name
Can’t have any return type
Can’t be call explicitly with dot(.) operator
Types of constructor
Default constructor Parameterized constructor
(have no argument) (have some arguments)

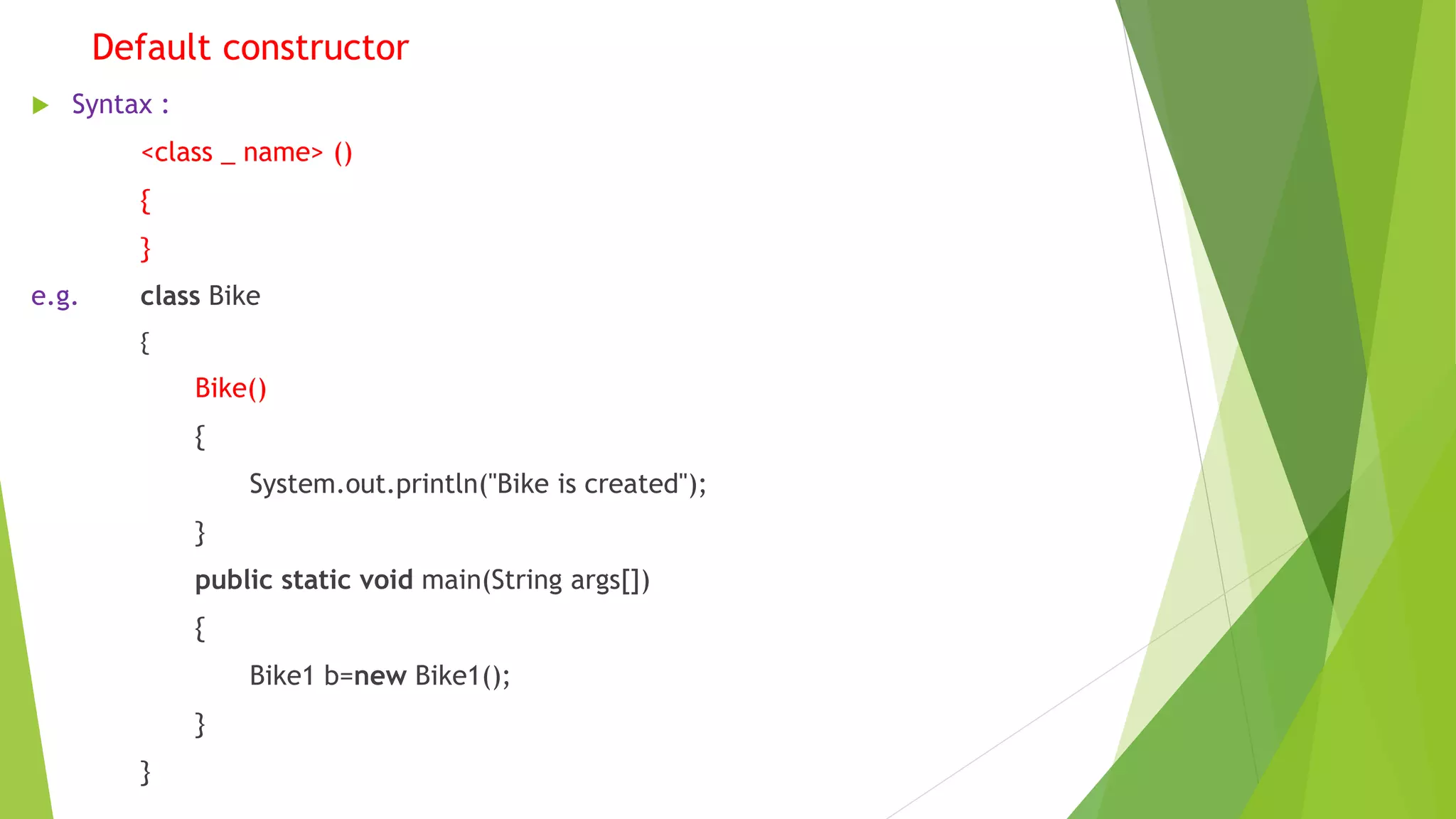

30. Default constructor
 Syntax :
<class _ name> ()
{
}
e.g. class Bike
{
Bike()
{
System.out.println("Bike is created");
}
public static void main(String args[])
{
Bike1 b=new Bike1();
}
}

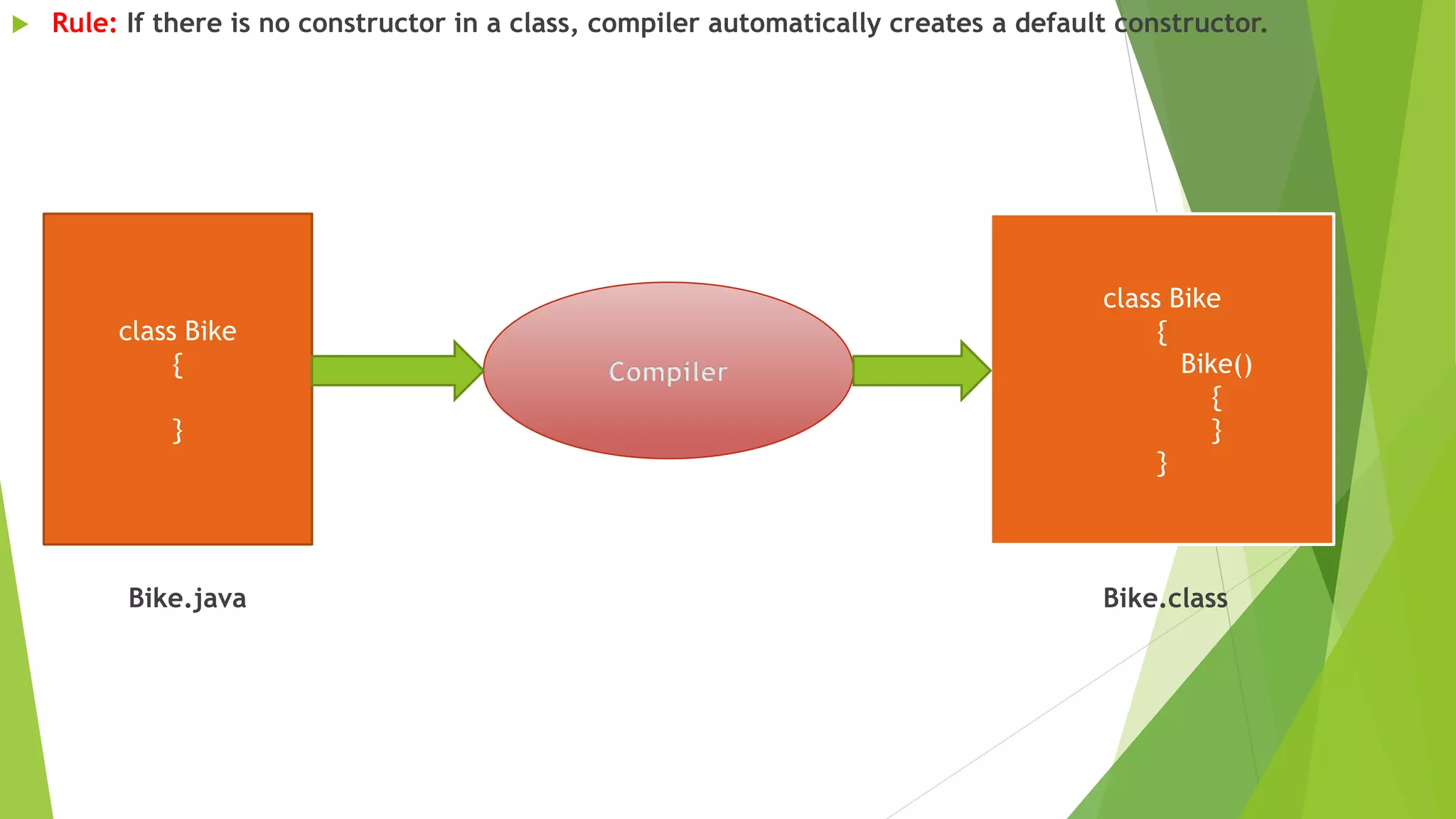

31.  Rule: If there is no constructor in a class, compiler automatically creates a default constructor.
Bike.java Bike.class
class Bike
{
}
Compiler
class Bike
{
Bike()
{
}
}

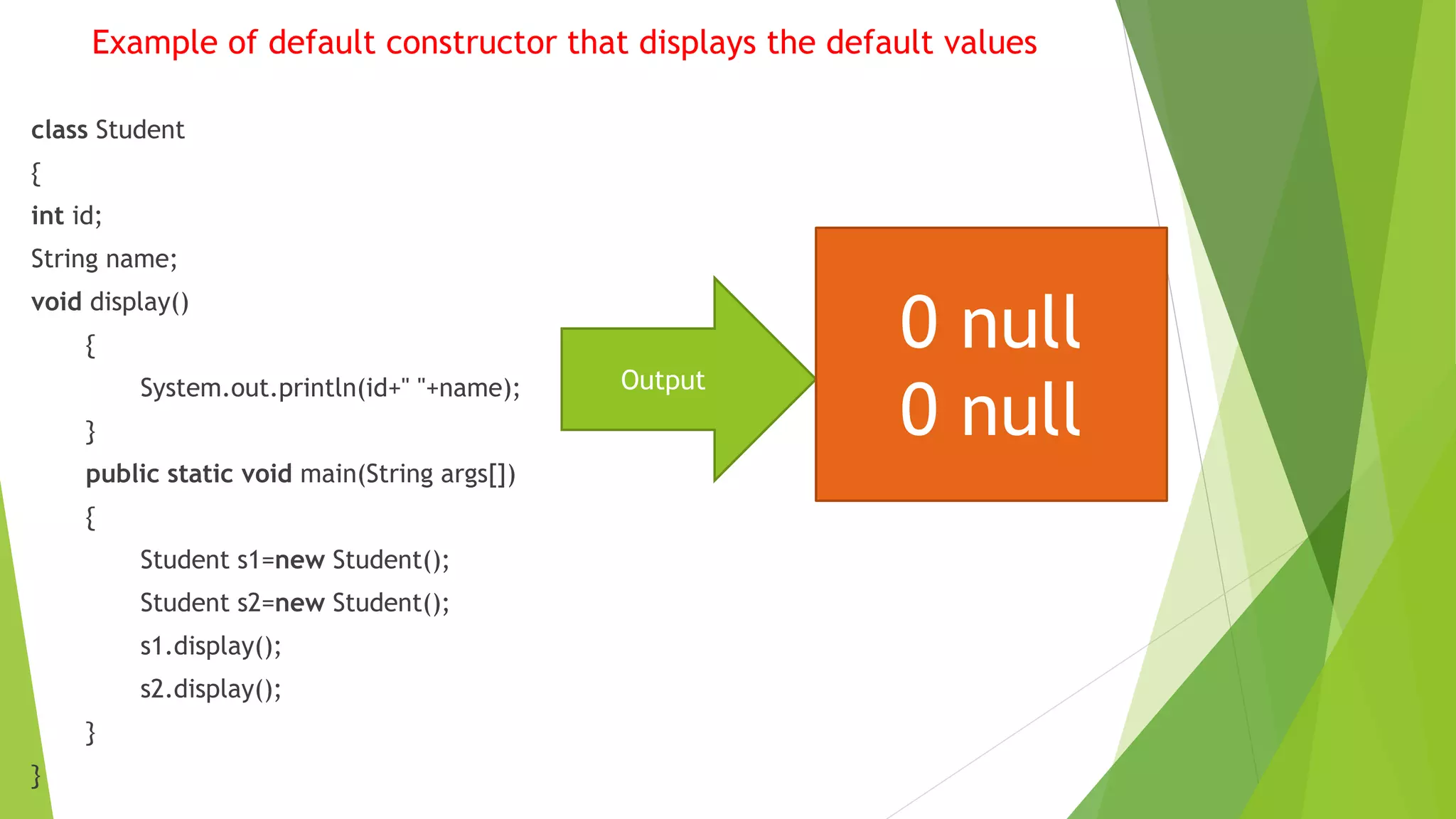

32. Example of default constructor that displays the default values
class Student
{
int id;
String name;
void display()
{
System.out.println(id+" "+name);
}
public static void main(String args[])
{
Student s1=new Student();
Student s2=new Student();
s1.display();
s2.display();
}
}
Output
0 null
0 null

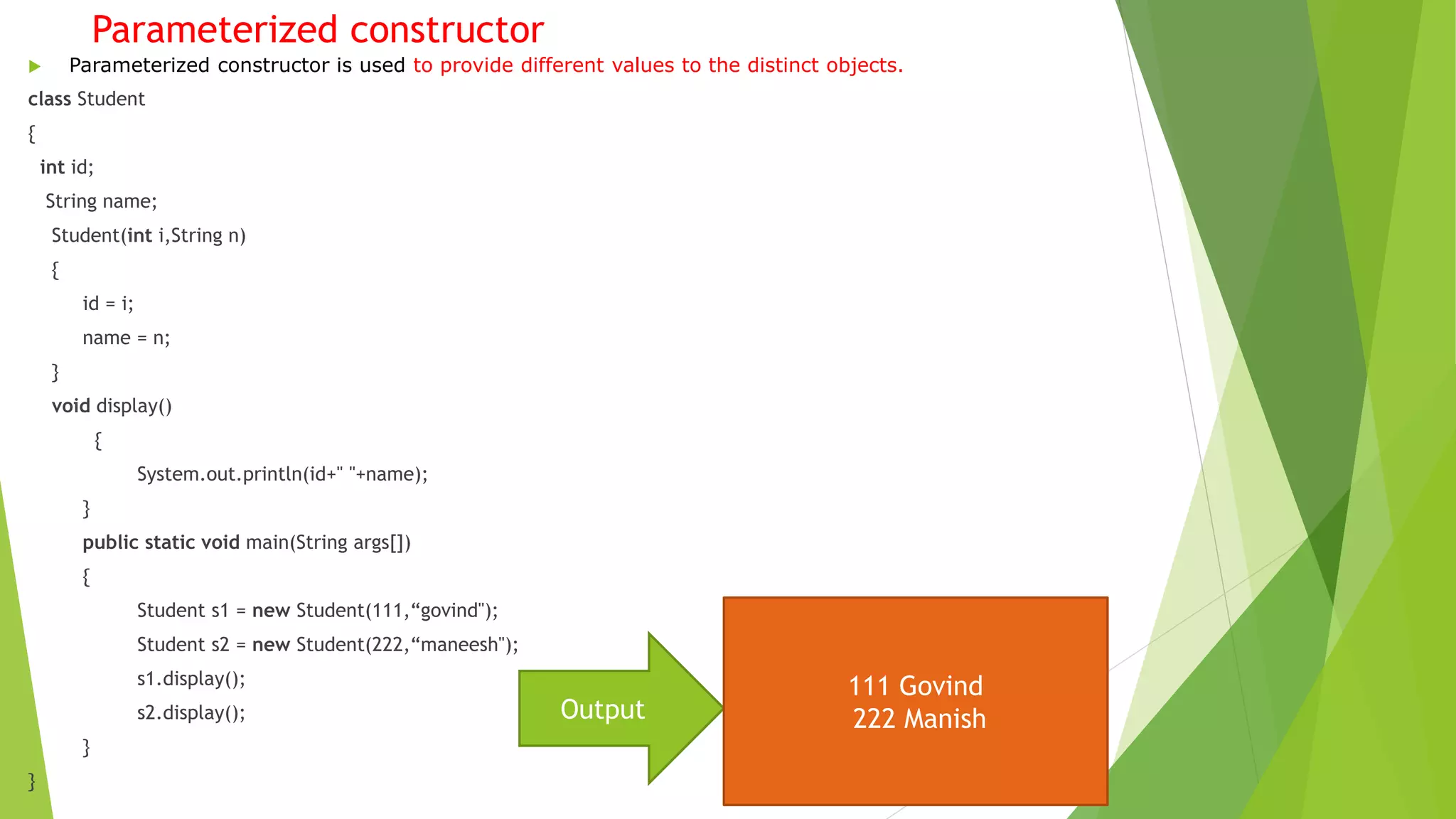

33. Parameterized constructor
 Parameterized constructor is used to provide different values to the distinct objects.
class Student
{
int id;
String name;
Student(int i,String n)
{
id = i;
name = n;
}
void display()
{
System.out.println(id+" "+name);
}
public static void main(String args[])
{
Student s1 = new Student(111,“govind");
Student s2 = new Student(222,“maneesh");
s1.display();
s2.display();
}
}
Output
111 Govind
222 Manish
