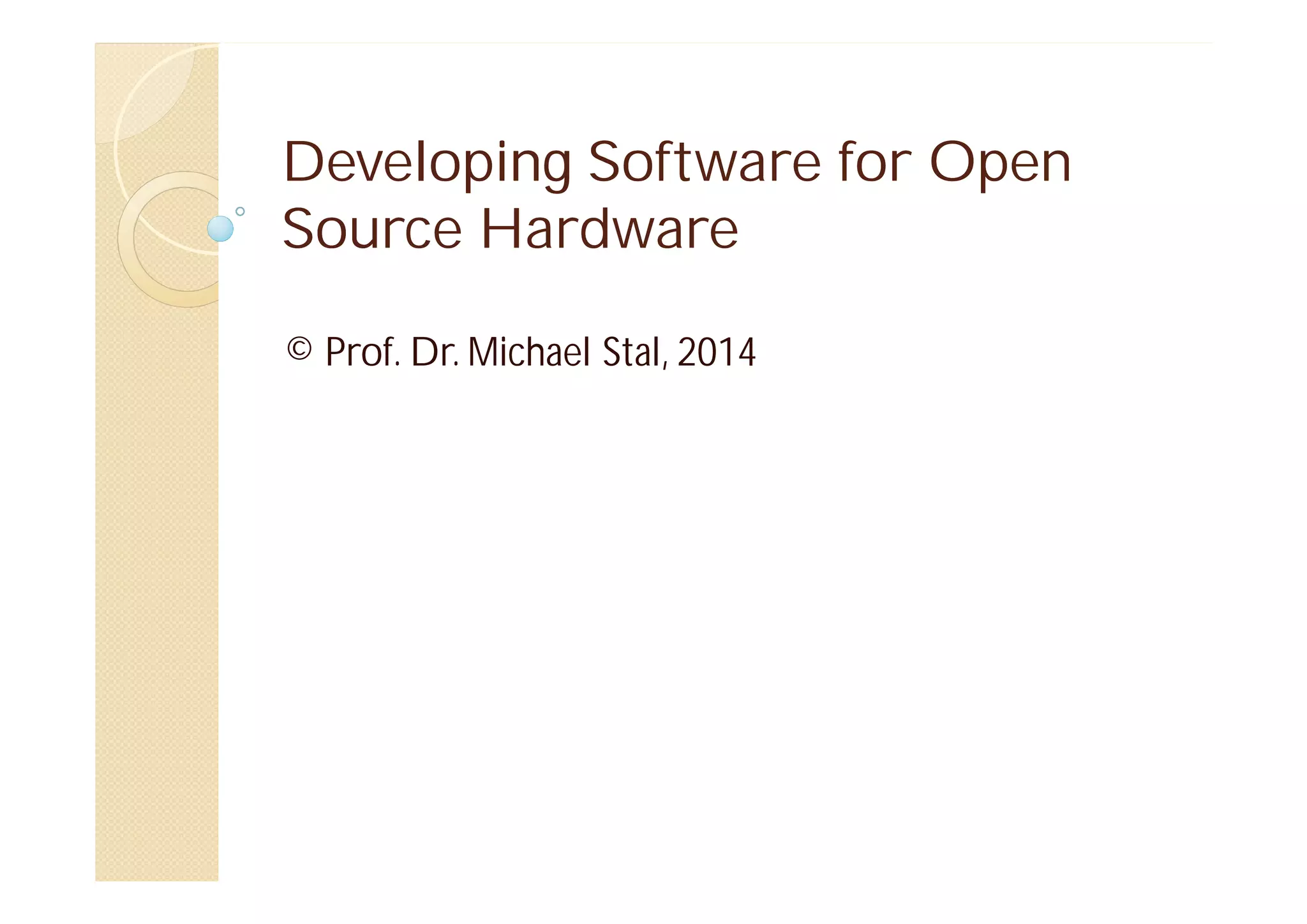

Developing Software for Open
Source Hardware
© Prof. Dr. Michael Stal, 2014

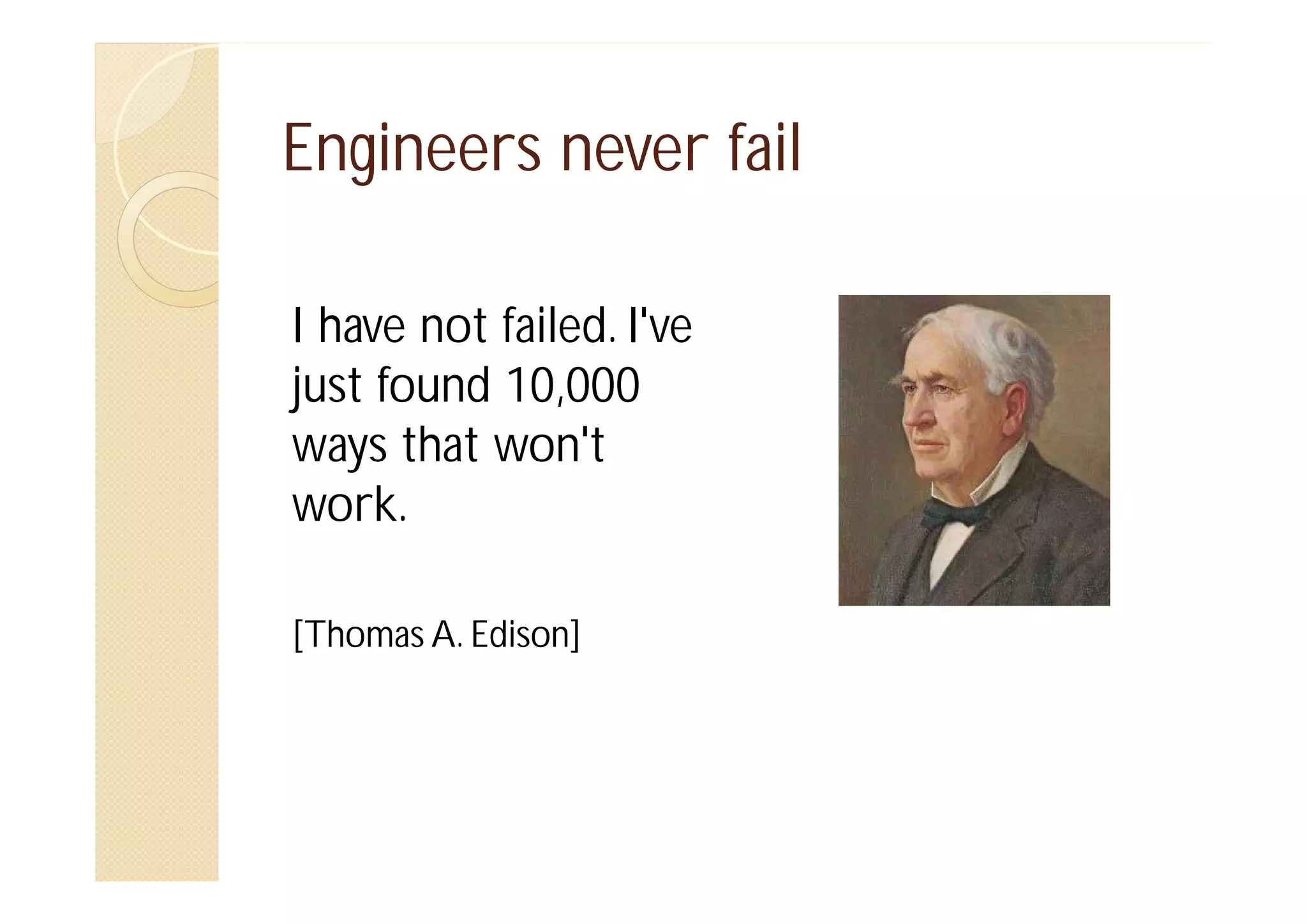

Engineers never fail
I have not failed. I've
just found 10,000
ways that won't
work.
[Thomas A. Edison]

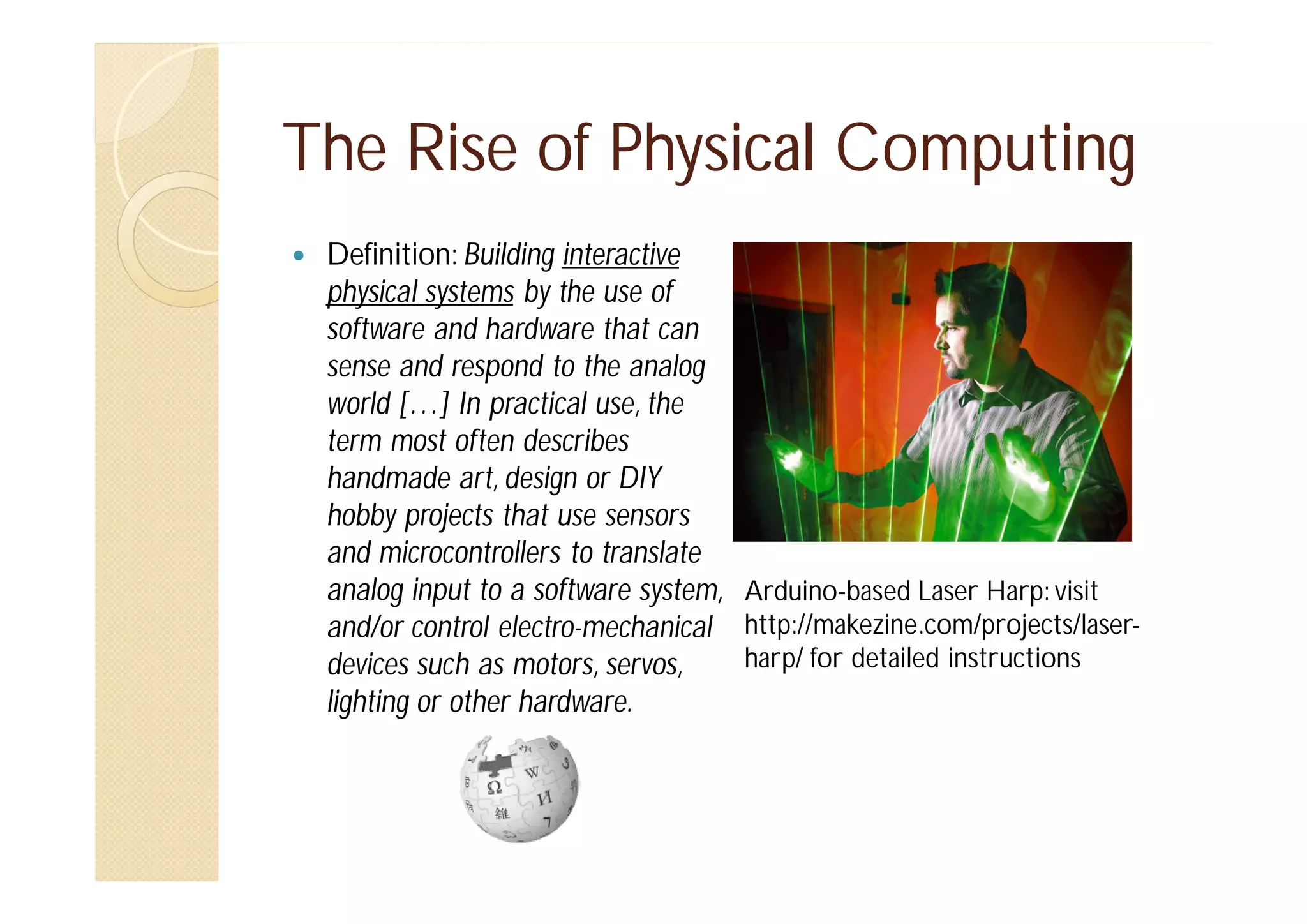

The Rise of Physical Computing
Definition: Building interactive
physical systems by the use of
software and hardware that can
sense and respond to the analog
world […] In practical use, the
term most often describes
handmade art, design or DIY
hobby projects that use sensors
and microcontrollers to translate
analog input to a software system, Arduino-based Laser Harp: visit
and/or control electro-mechanical http://makezine.com/projects/laserharp/ for detailed instructions
devices such as motors, servos,
lighting or other hardware.

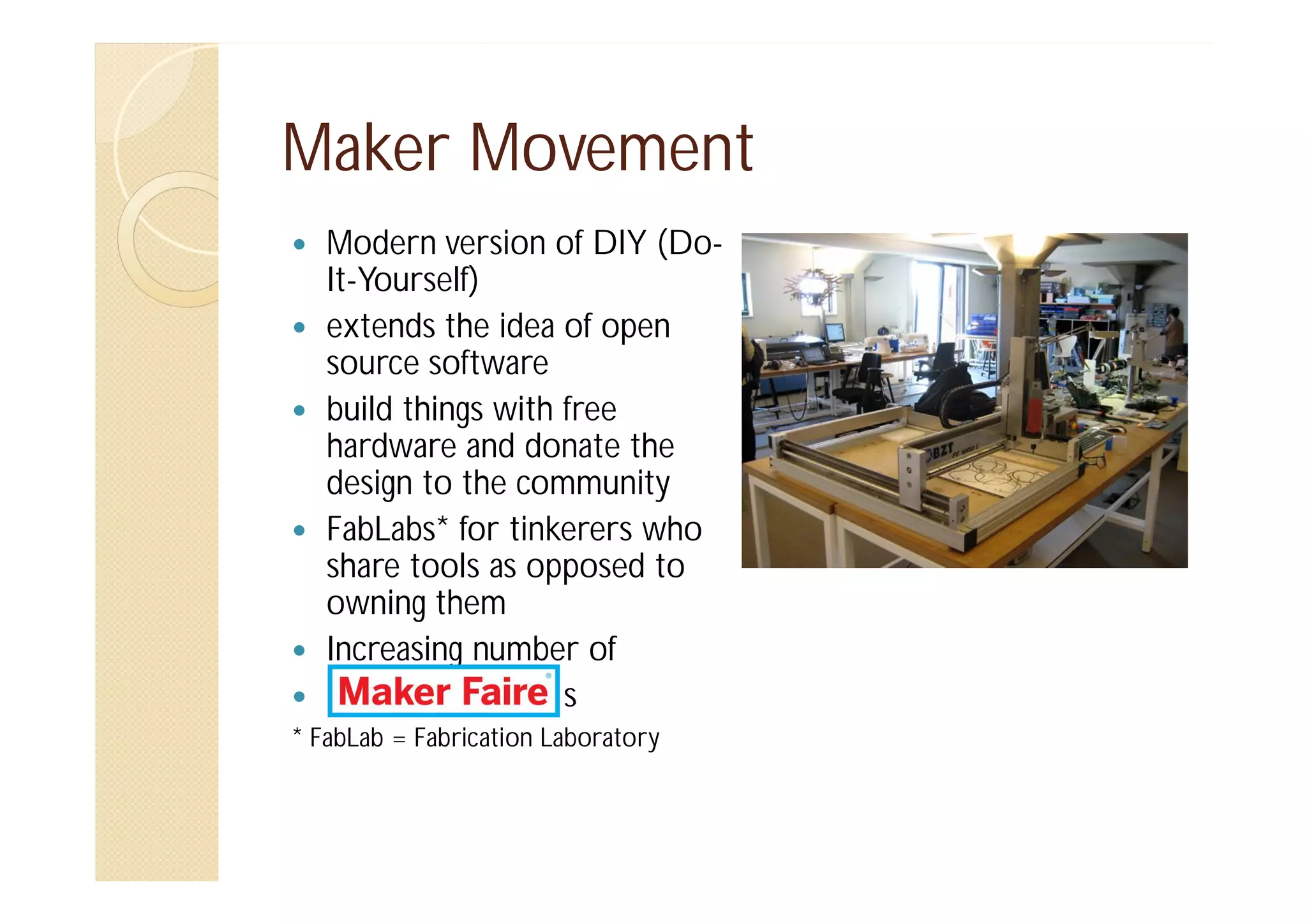

Maker Movement
Modern version of DIY (DoIt-Yourself)
extends the idea of open
source software
build things with free
hardware and donate the
design to the community
FabLabs* for tinkerers who
share tools as opposed to
owning them
Increasing number of
s
* FabLab = Fabrication Laboratory

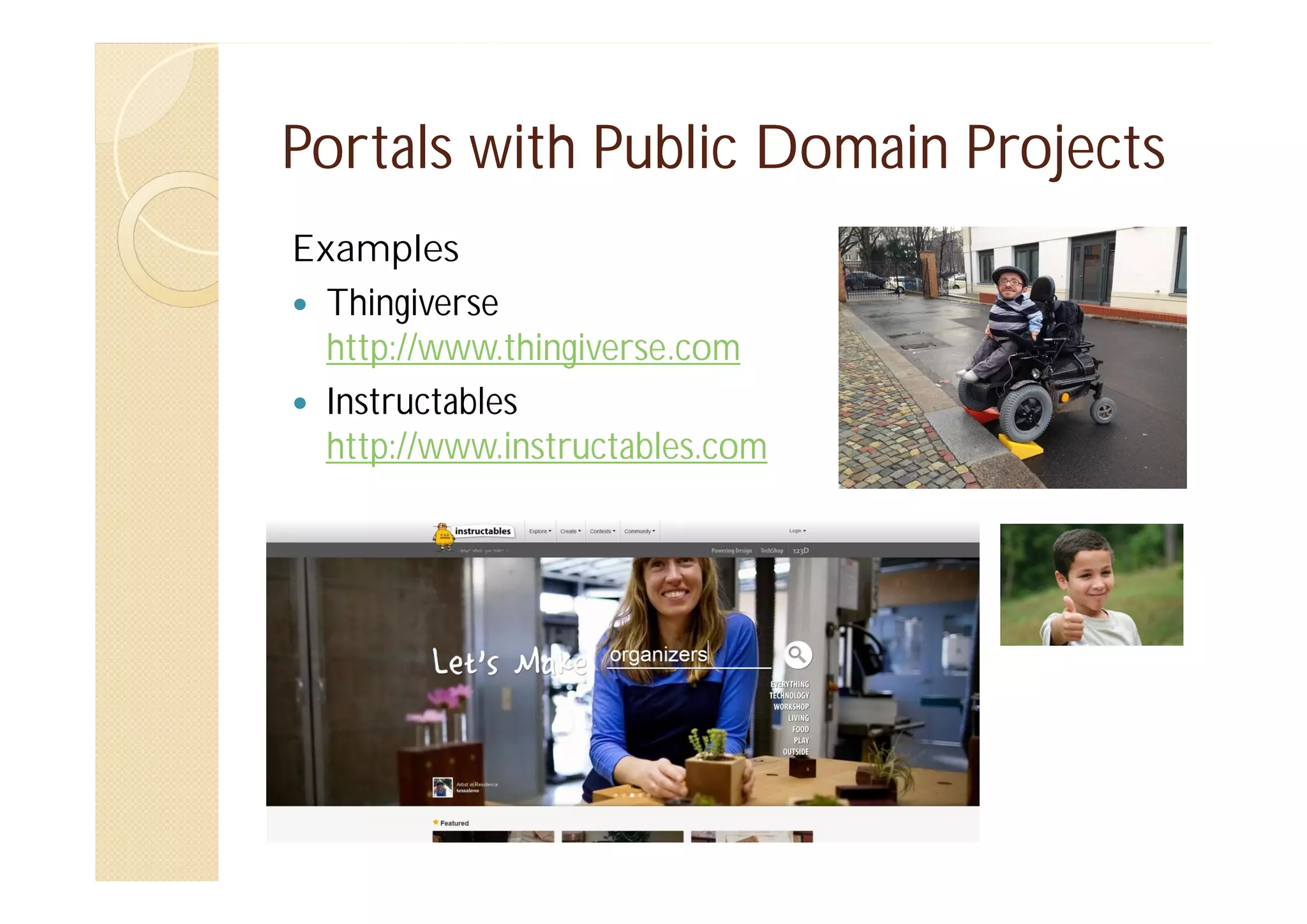

Portals with Public Domain Projects
Examples
Thingiverse
http://www.thingiverse.com
Instructables
http://www.instructables.com

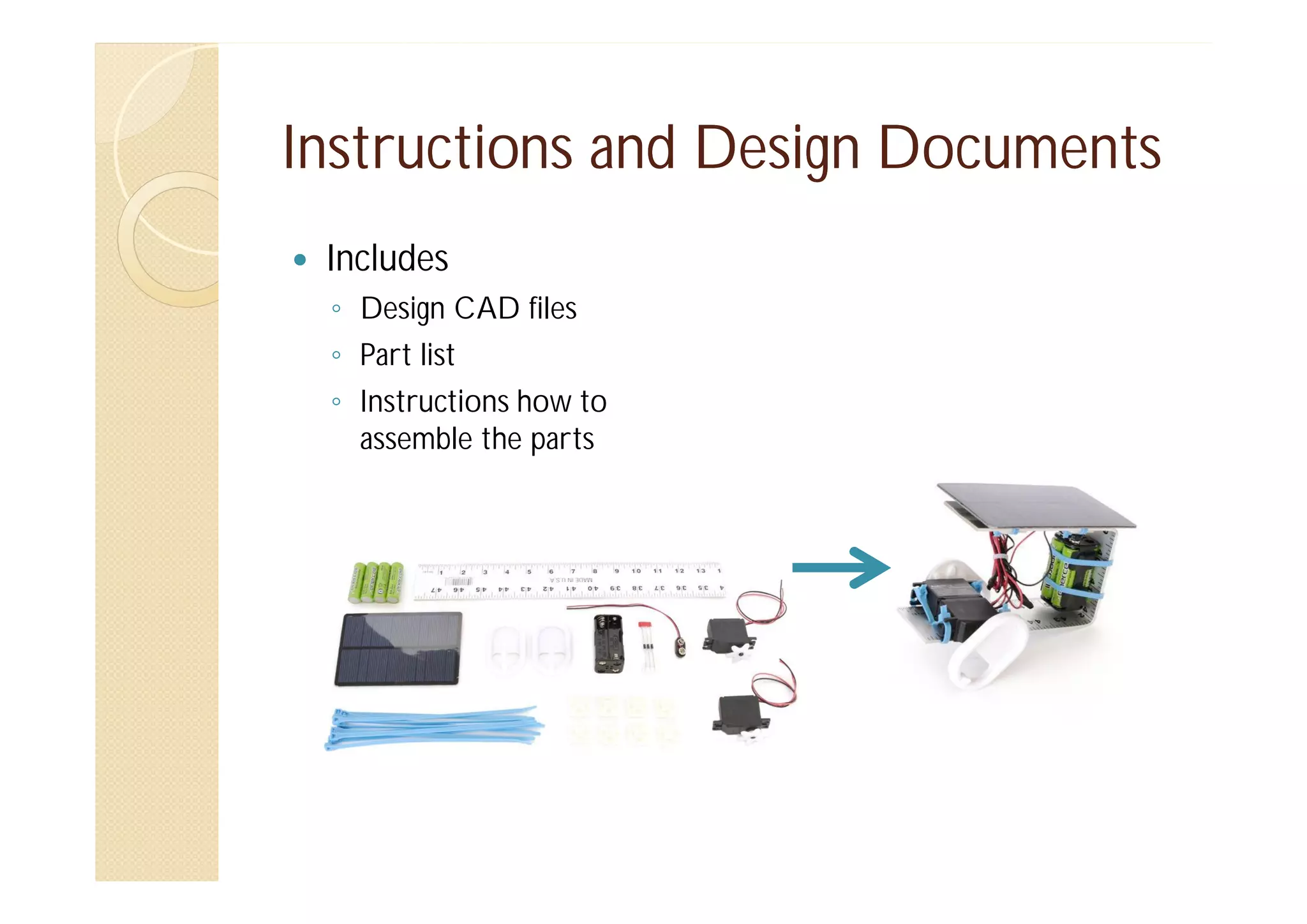

Instructions and Design Documents
Includes
Design CAD files
Part list
Instructions how to
assemble the parts

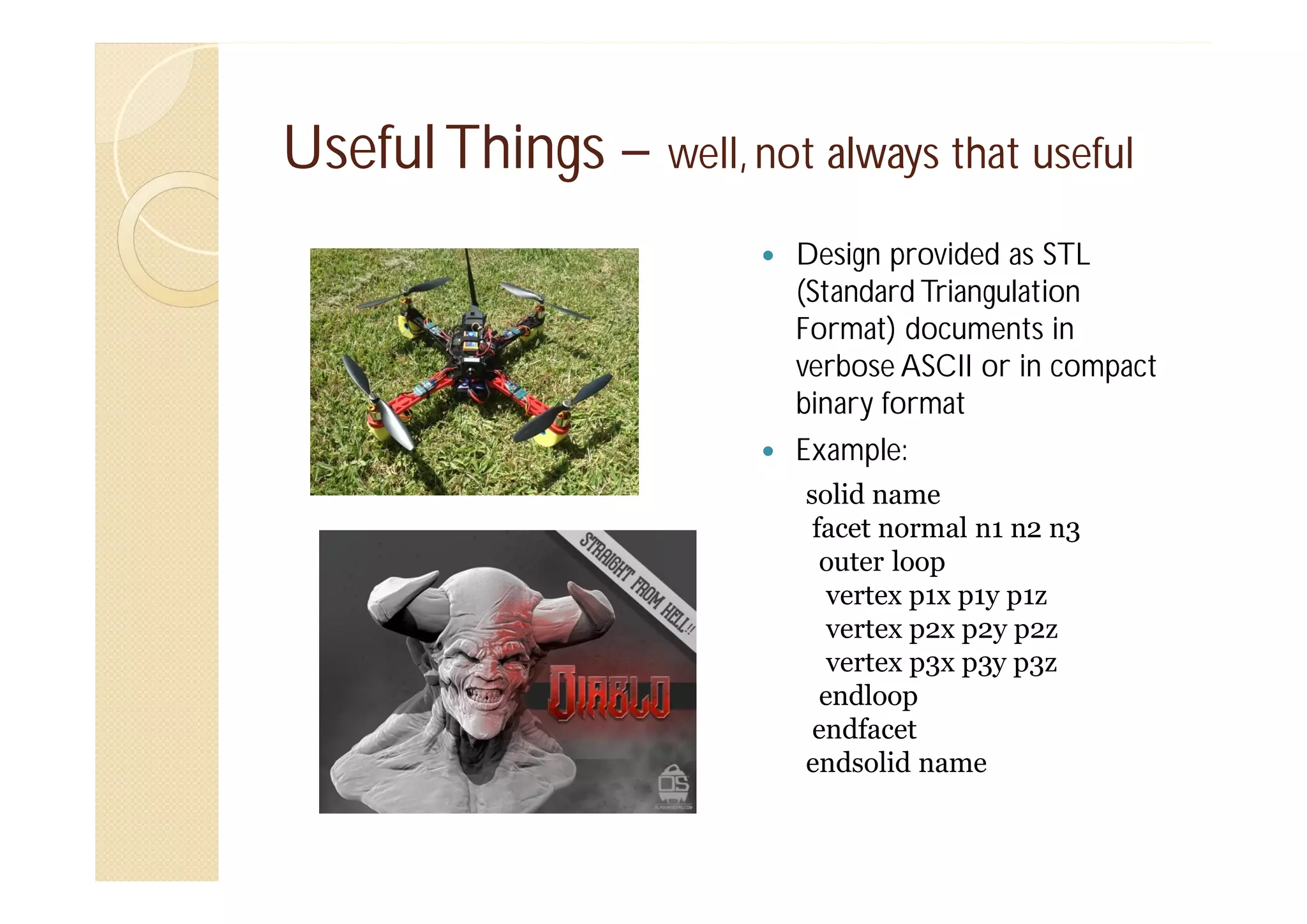

Useful Things – well, not always that useful
Design provided as STL
(Standard Triangulation
Format) documents in
verbose ASCII or in compact
binary format
Example:
solid name
facet normal n1 n2 n3
outer loop
vertex p1x p1y p1z
vertex p2x p2y p2z
vertex p3x p3y p3z
endloop
endfacet
endsolid name

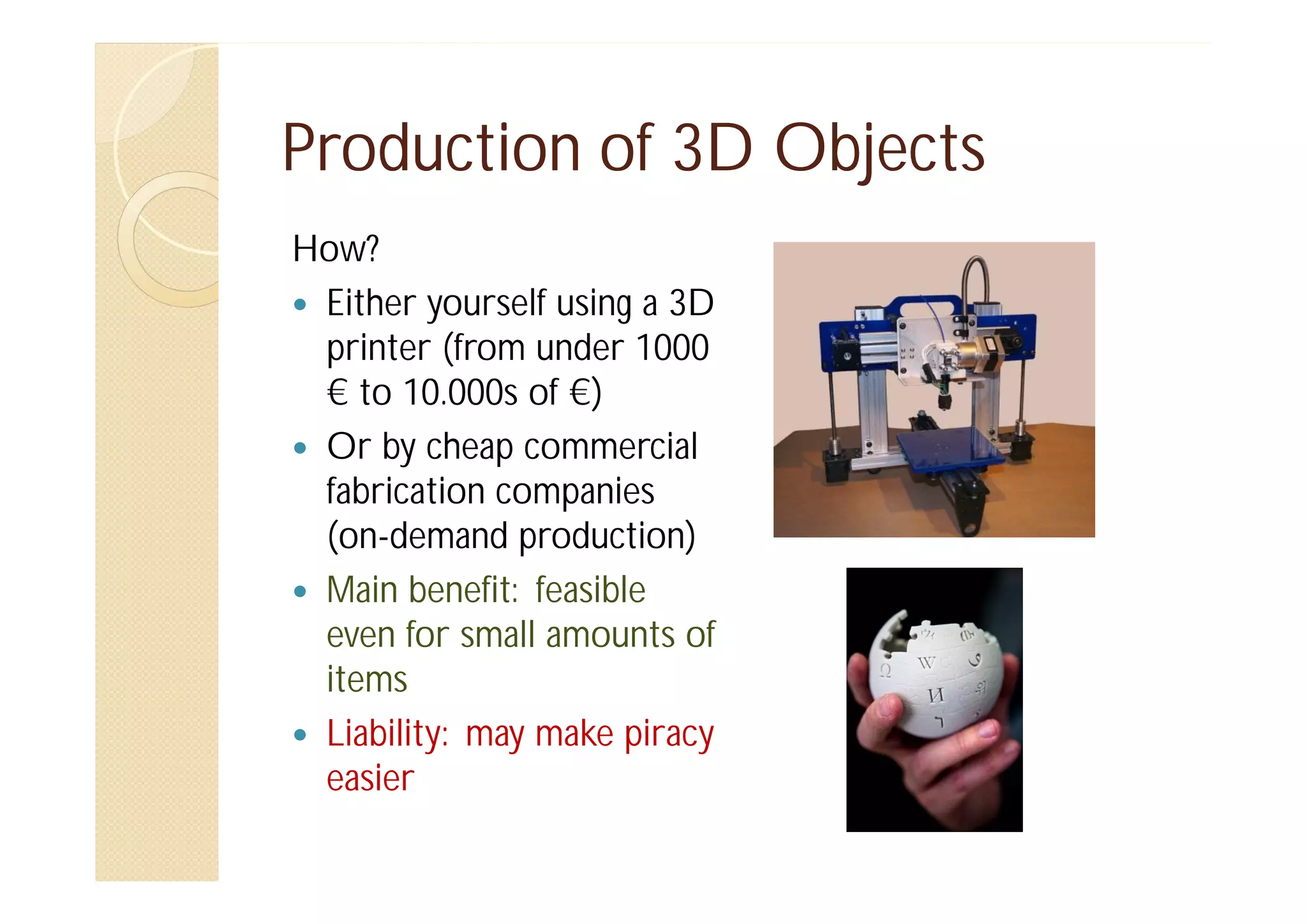

Production of 3D Objects
How?
Either yourself using a 3D
printer (from under 1000
€ to 10.000s of €)
Or by cheap commercial
fabrication companies
(on-demand production)
Main benefit: feasible
even for small amounts of
items
Liability: may make piracy
easier

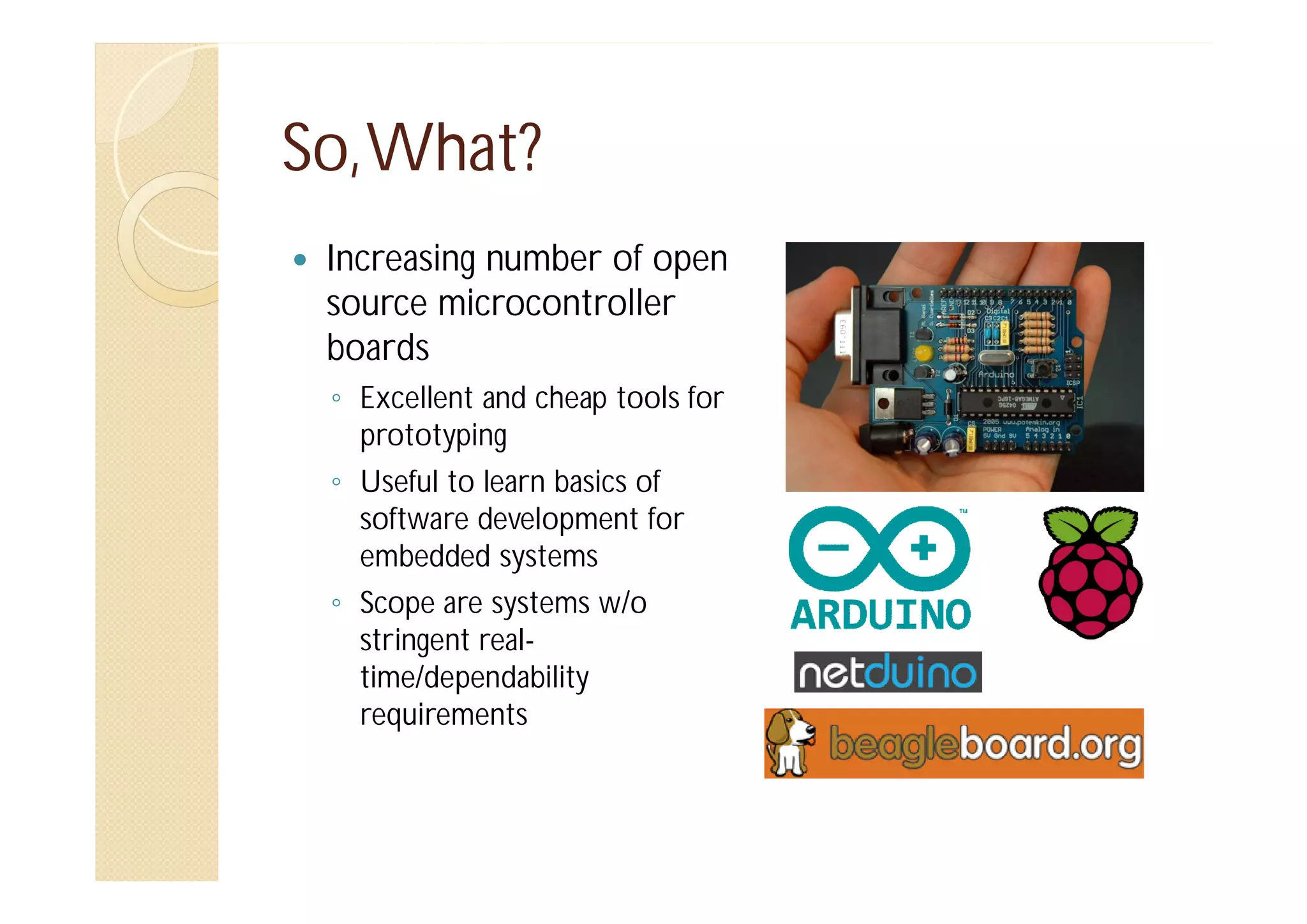

So, What?
Increasing number of open
source microcontroller
boards
Excellent and cheap tools for
prototyping
Useful to learn basics of
software development for
embedded systems
Scope are systems w/o
stringent realtime/dependability
requirements

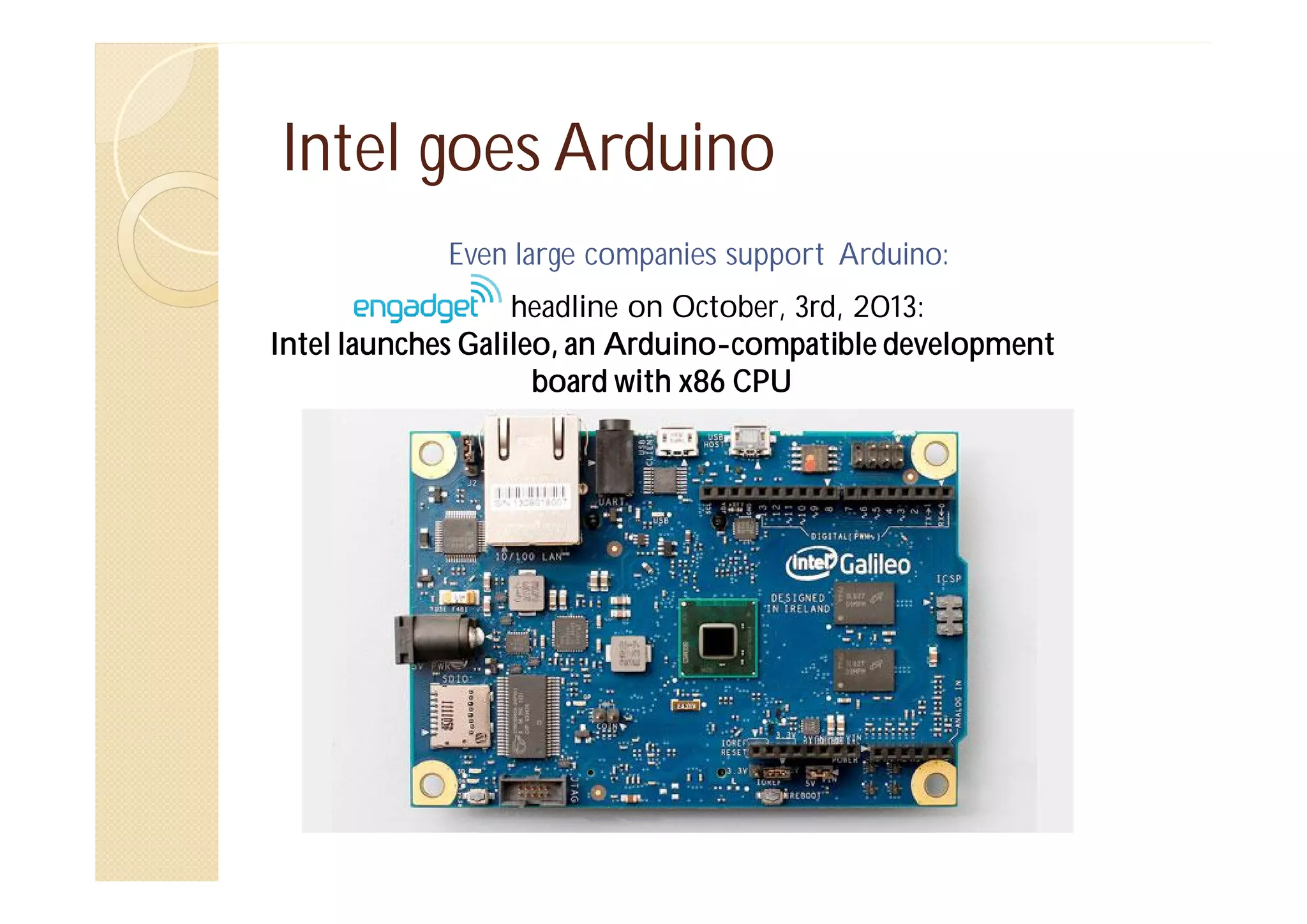

Intel goes Arduino
Even large companies support Arduino:
headline on October, 3rd, 2013:
Intel launches Galileo, an Arduino-compatible development
board with x86 CPU

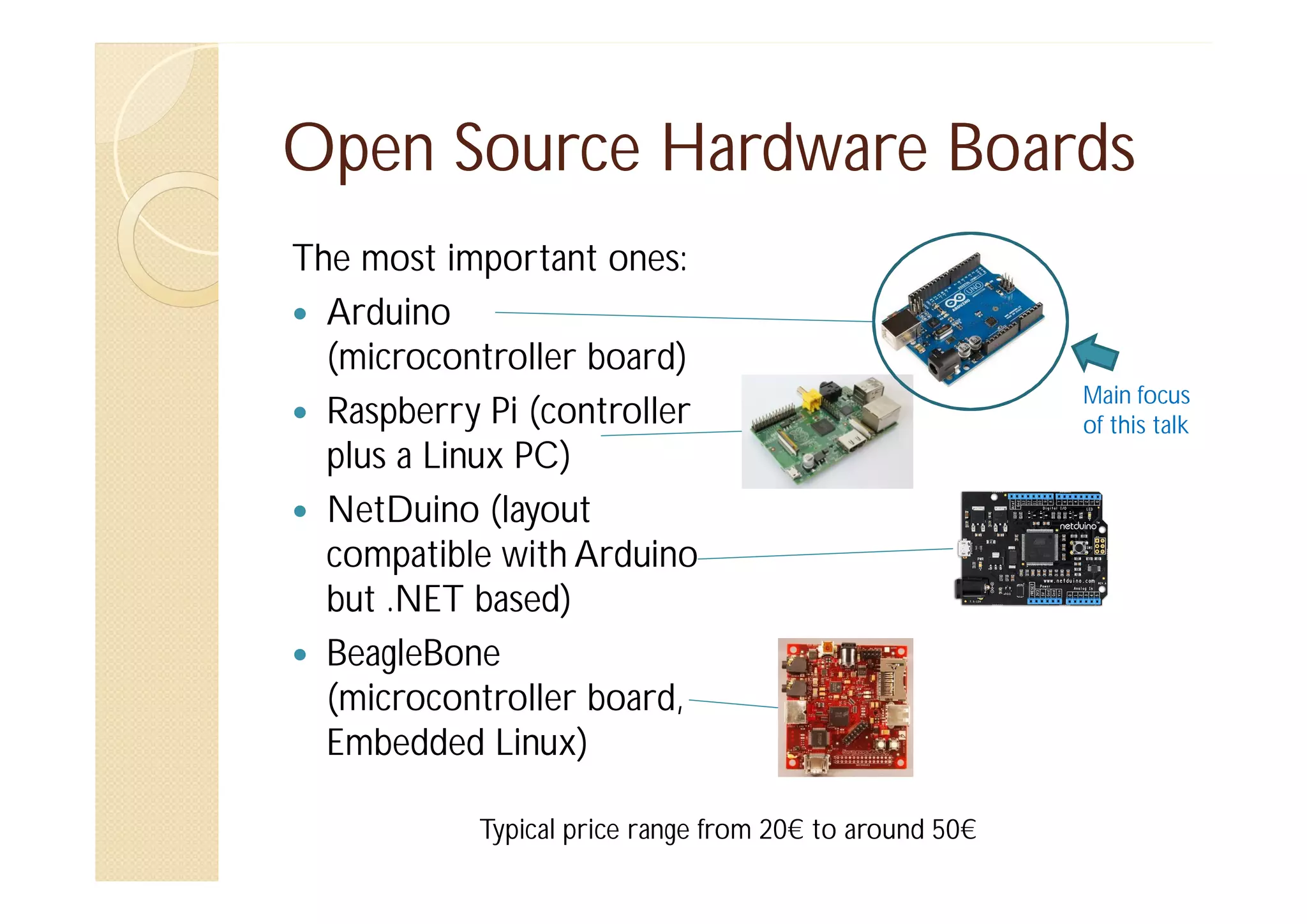

Open Source Hardware Boards
The most important ones:
Arduino
(microcontroller board)

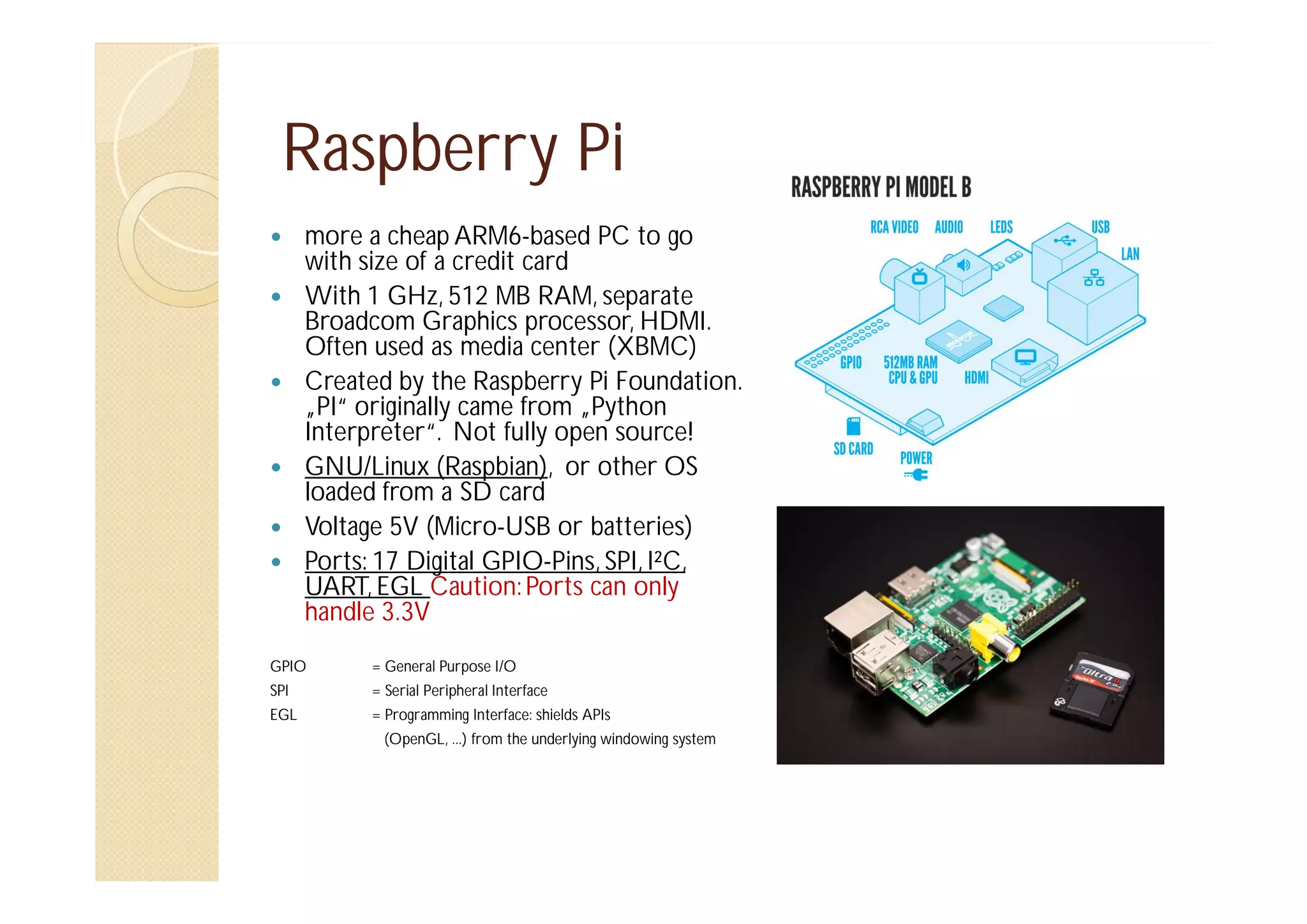

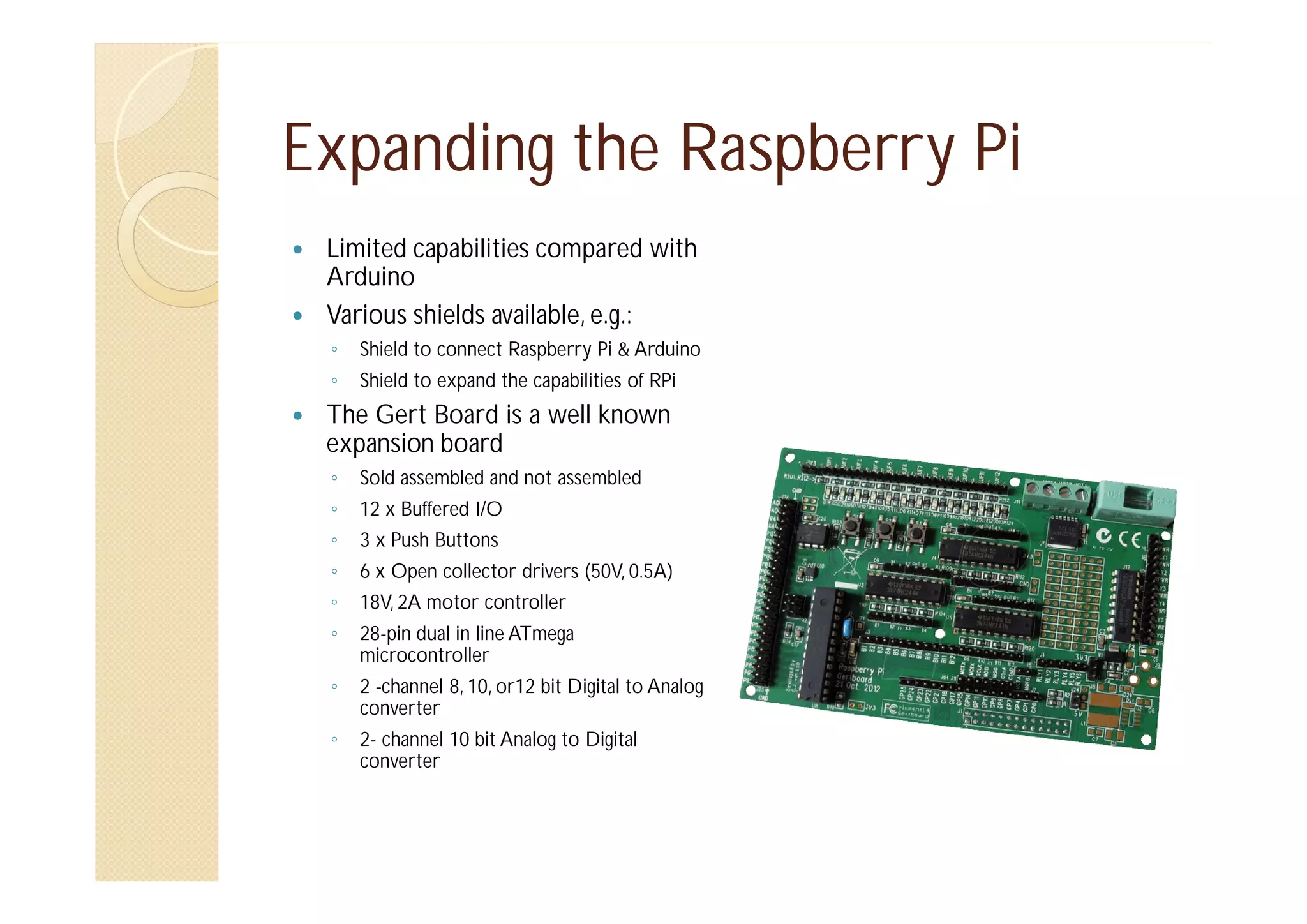

Raspberry Pi (controller
plus a Linux PC)

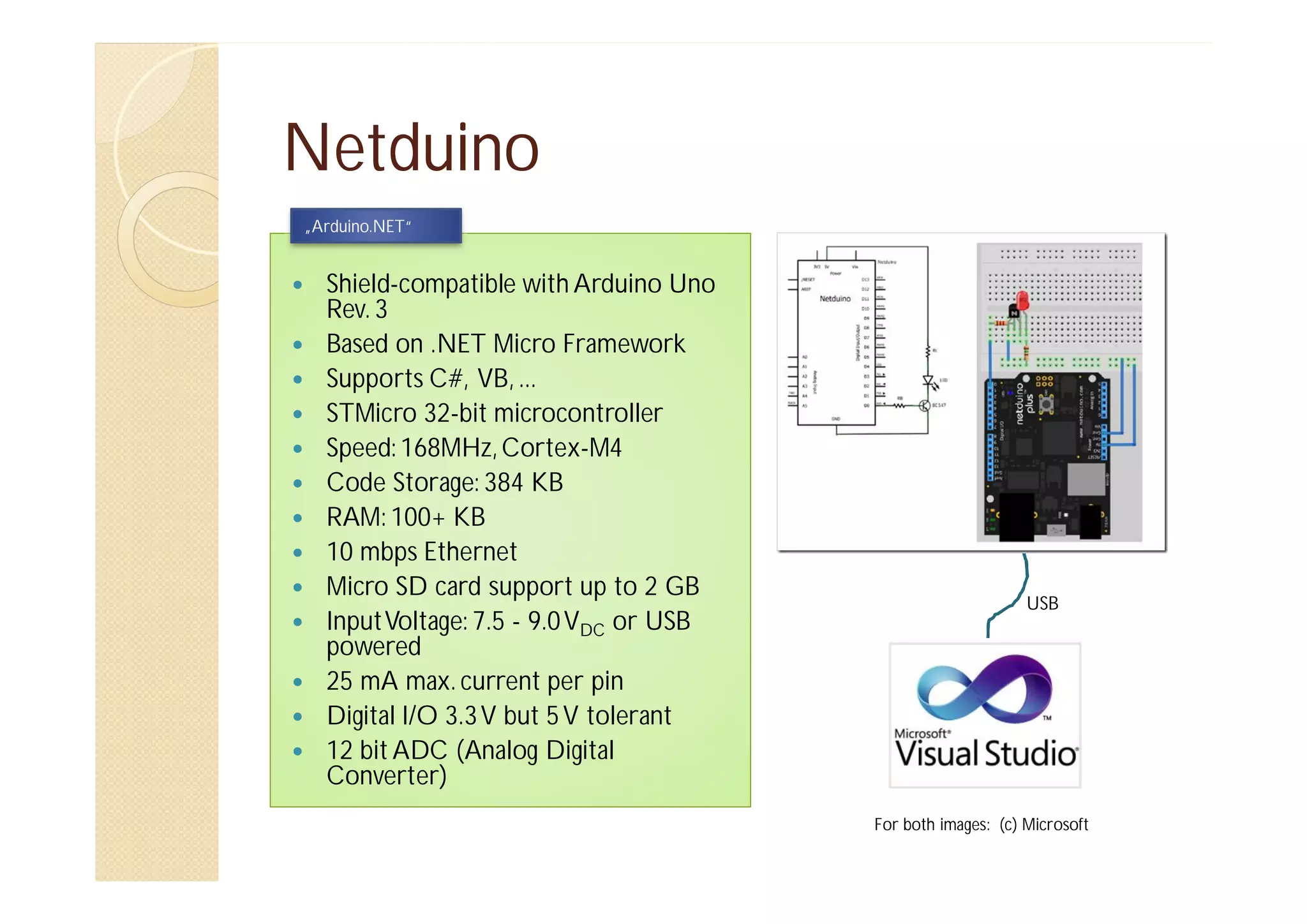

NetDuino (layout
compatible with Arduino
but .NET based)

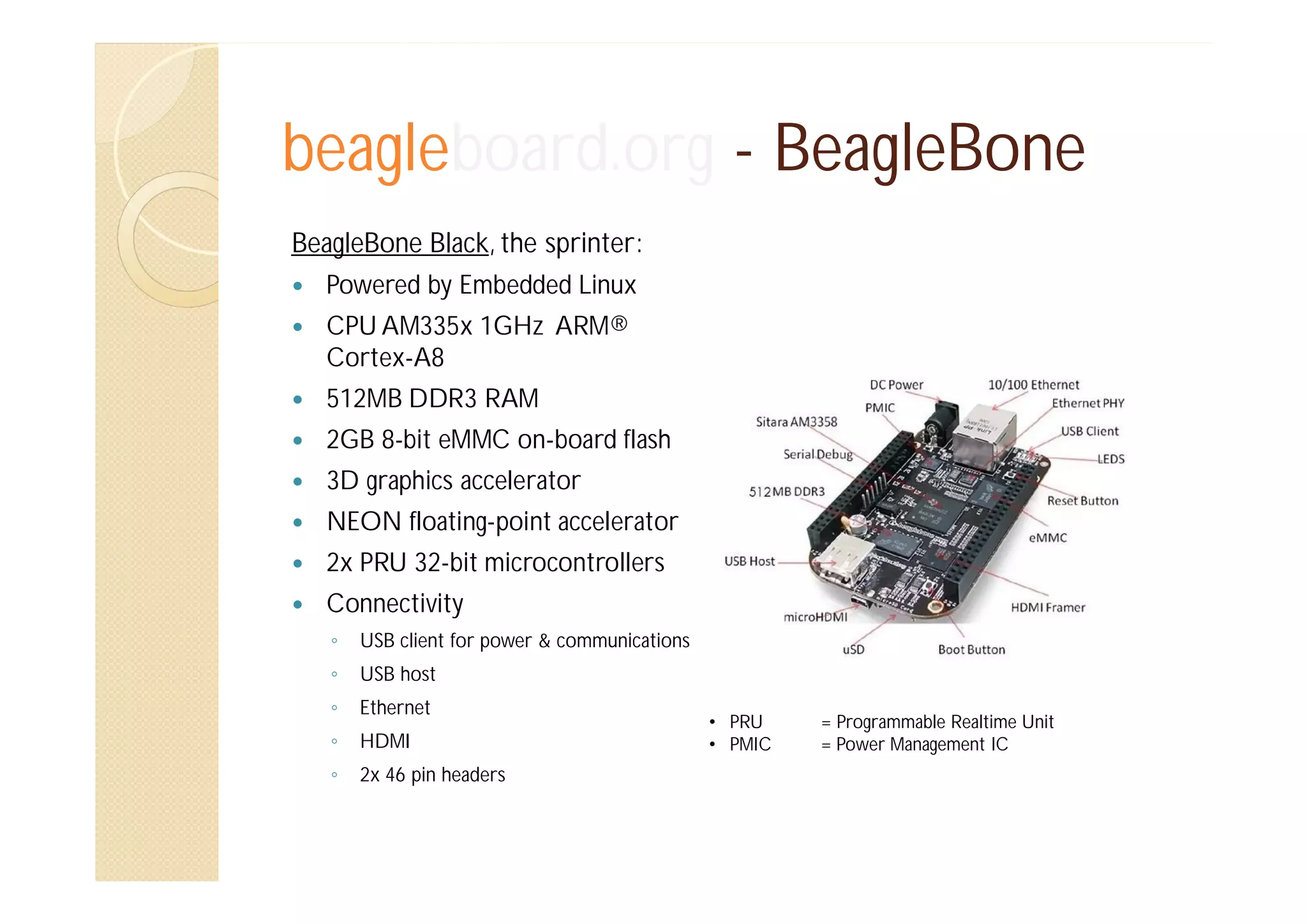

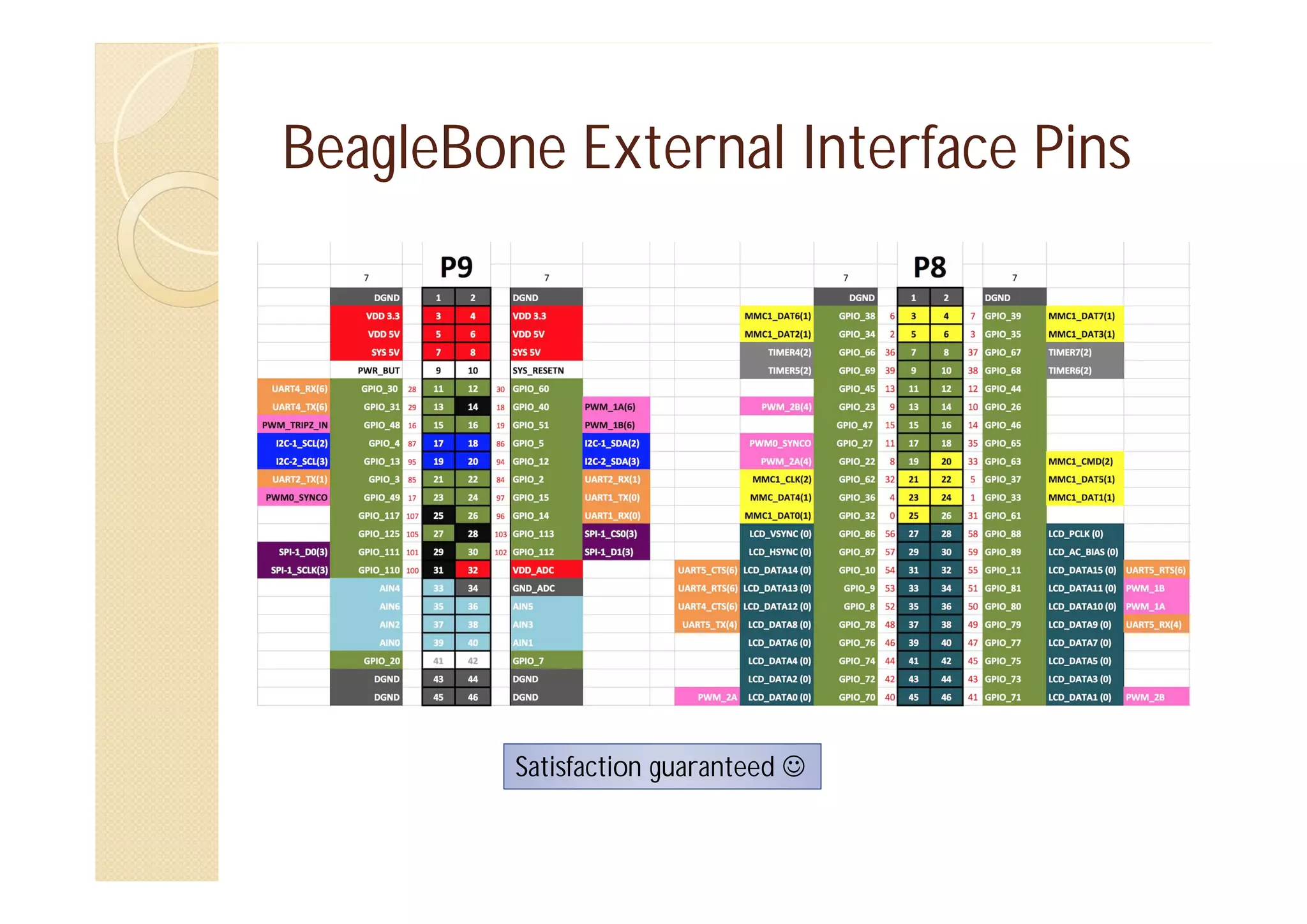

BeagleBone
(microcontroller board,
Embedded Linux)
Typical price range from 20€ to around 50€

Main focus
of this talk

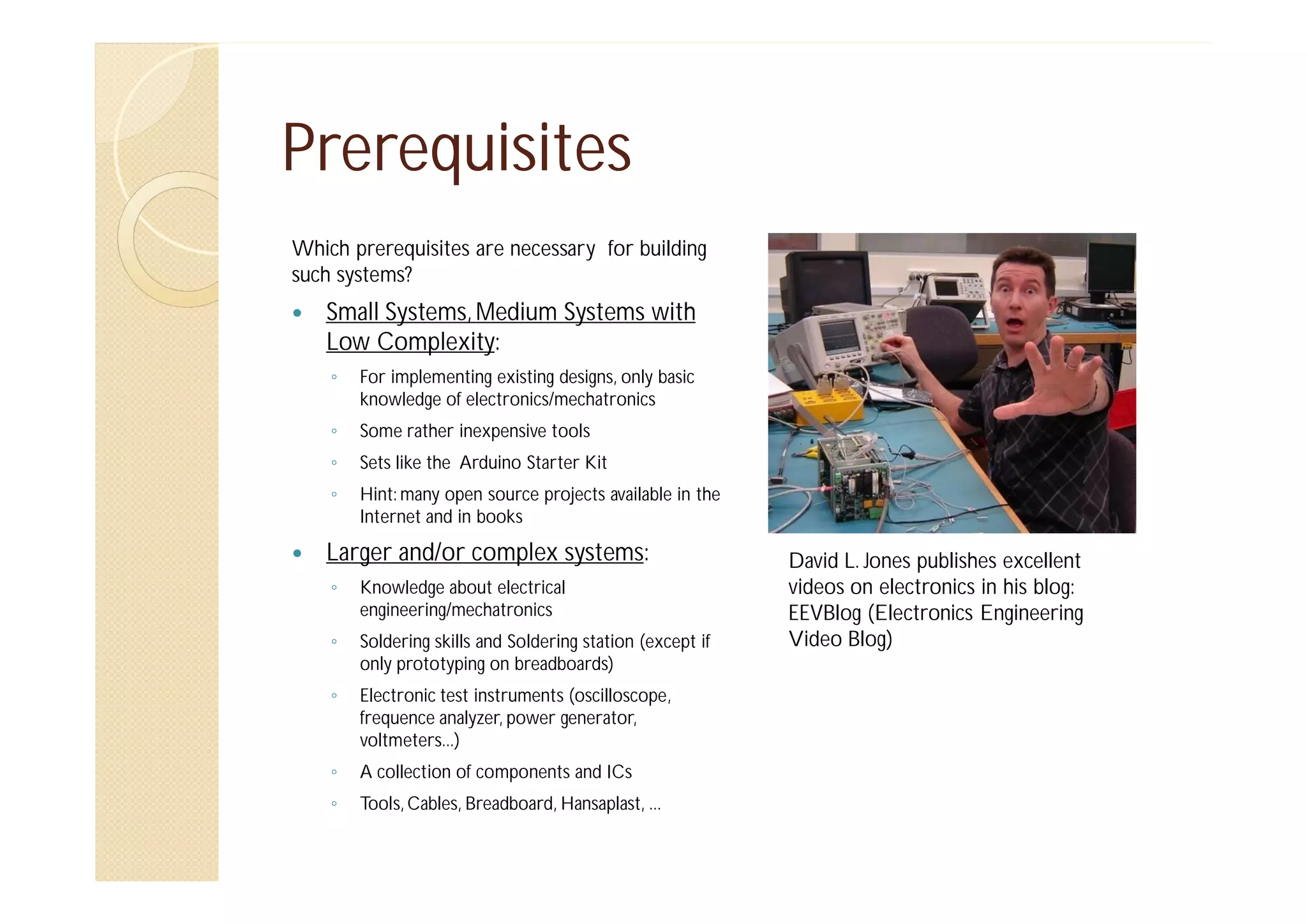

Prerequisites
Which prerequisites are necessary for building
such systems?

Small Systems, Medium Systems with
Low Complexity:
For implementing existing designs, only basic
knowledge of electronics/mechatronics
Some rather inexpensive tools
Sets like the Arduino Starter Kit
Hint: many open source projects available in the
Internet and in books

Larger and/or complex systems:
Knowledge about electrical
engineering/mechatronics
Soldering skills and Soldering station (except if
only prototyping on breadboards)
Electronic test instruments (oscilloscope,
frequence analyzer, power generator,
voltmeters...)
A collection of components and ICs
Tools, Cables, Breadboard, Hansaplast, ...

David L. Jones publishes excellent
videos on electronics in his blog:
EEVBlog (Electronics Engineering
Video Blog)
Arduino & Friends

HAL (powered by Arduino)

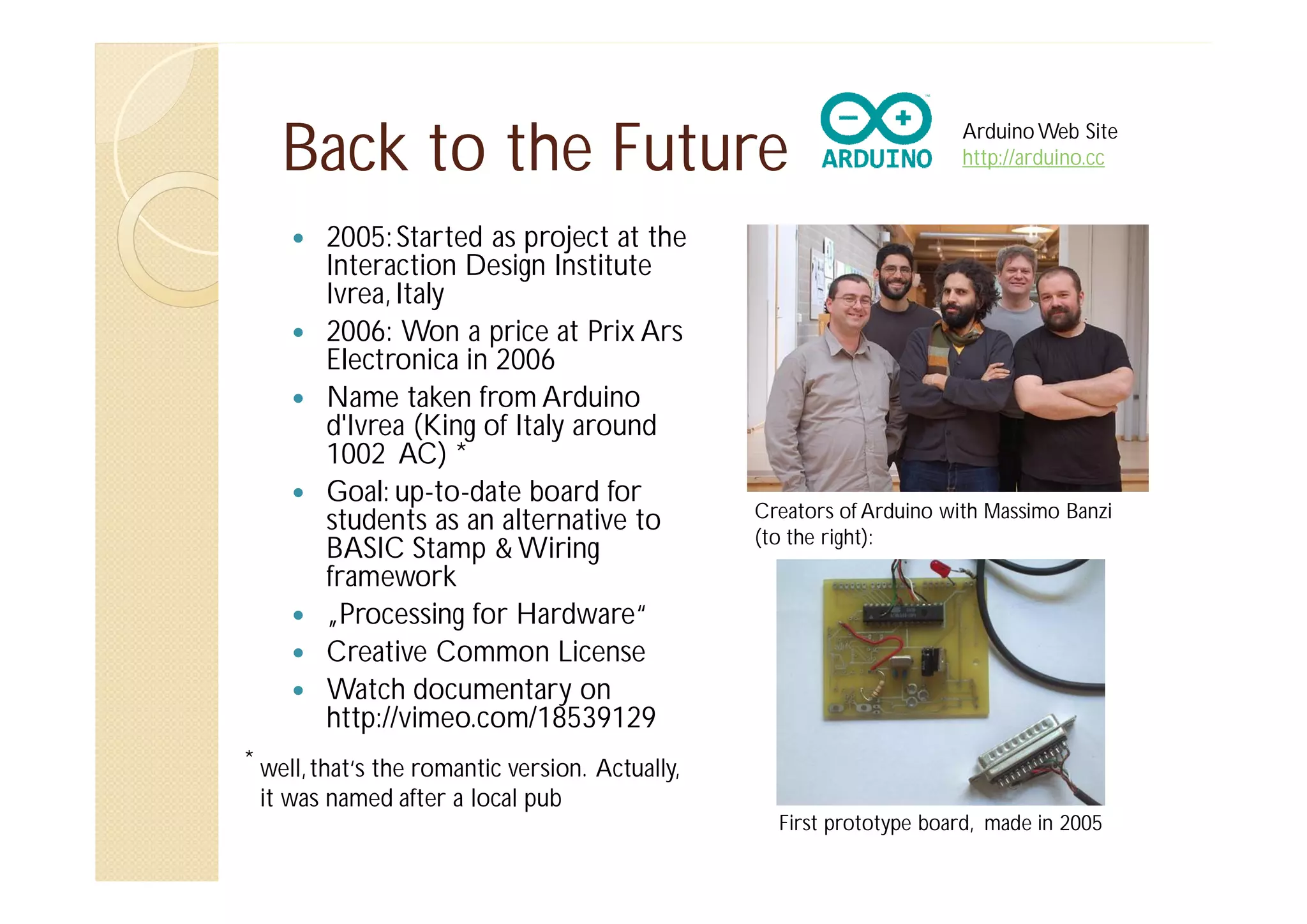

Back to the Future
2005: Started as project at the
Interaction Design Institute
Ivrea, Italy
2006: Won a price at Prix Ars
Electronica in 2006
Name taken from Arduino
d'Ivrea (King of Italy around
1002 AC) *
Goal: up-to-date board for
students as an alternative to
BASIC Stamp & Wiring
framework
„Processing for Hardware“
Creative Common License
Watch documentary on
http://vimeo.com/18539129
* well, that‘s the romantic version. Actually,
it was named after a local pub

Arduino Web Site
http://arduino.cc

Creators of Arduino with Massimo Banzi
(to the right):

First prototype board, made in 2005

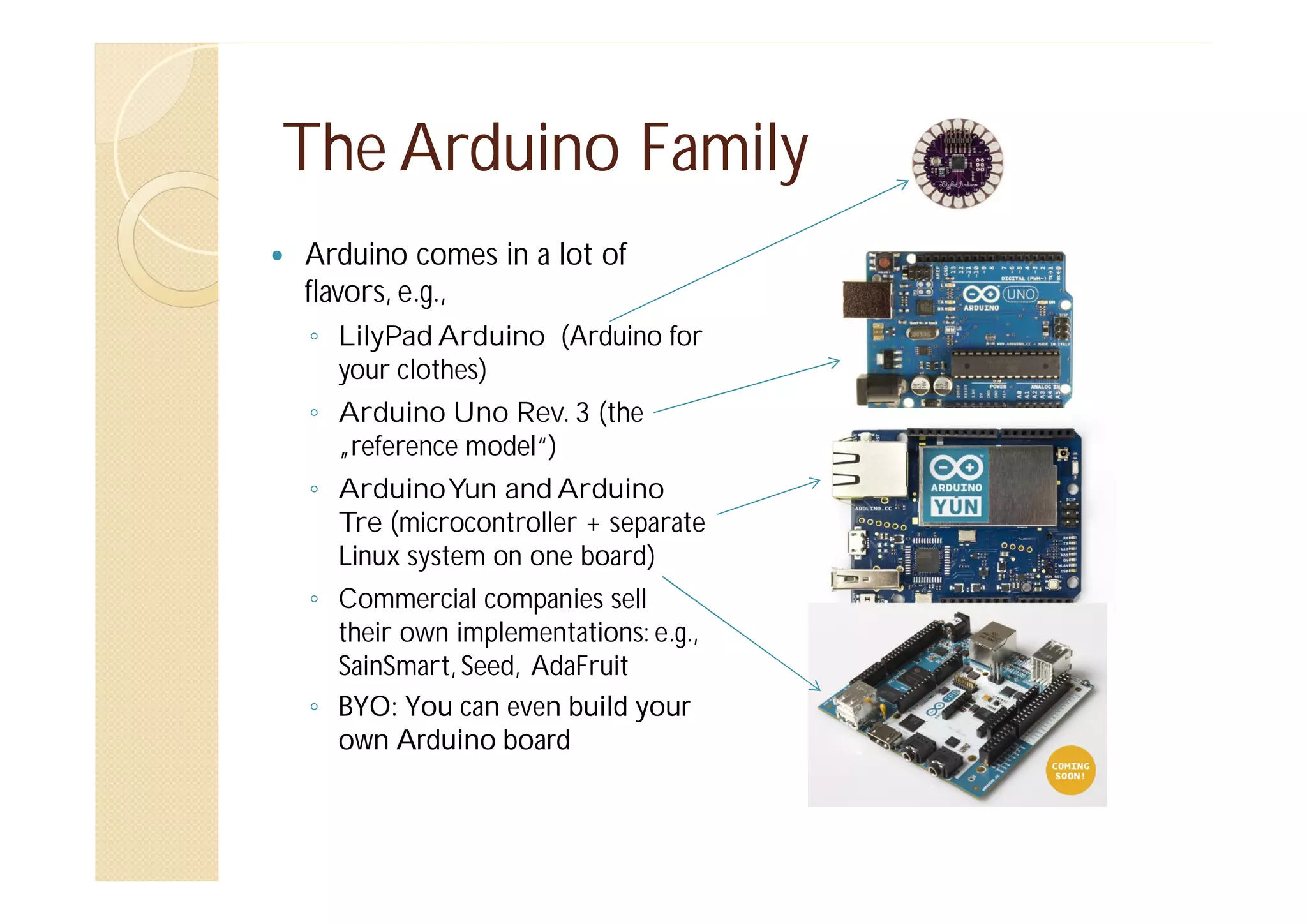

The Arduino Family
Arduino comes in a lot of
flavors, e.g.,
LilyPad Arduino (Arduino for
your clothes)
Arduino Uno Rev. 3 (the
„reference model“)
Arduino Yun and Arduino
Tre (microcontroller + separate
Linux system on one board)
Commercial companies sell
their own implementations: e.g.,
SainSmart, Seed, AdaFruit
BYO: You can even build your
own Arduino board

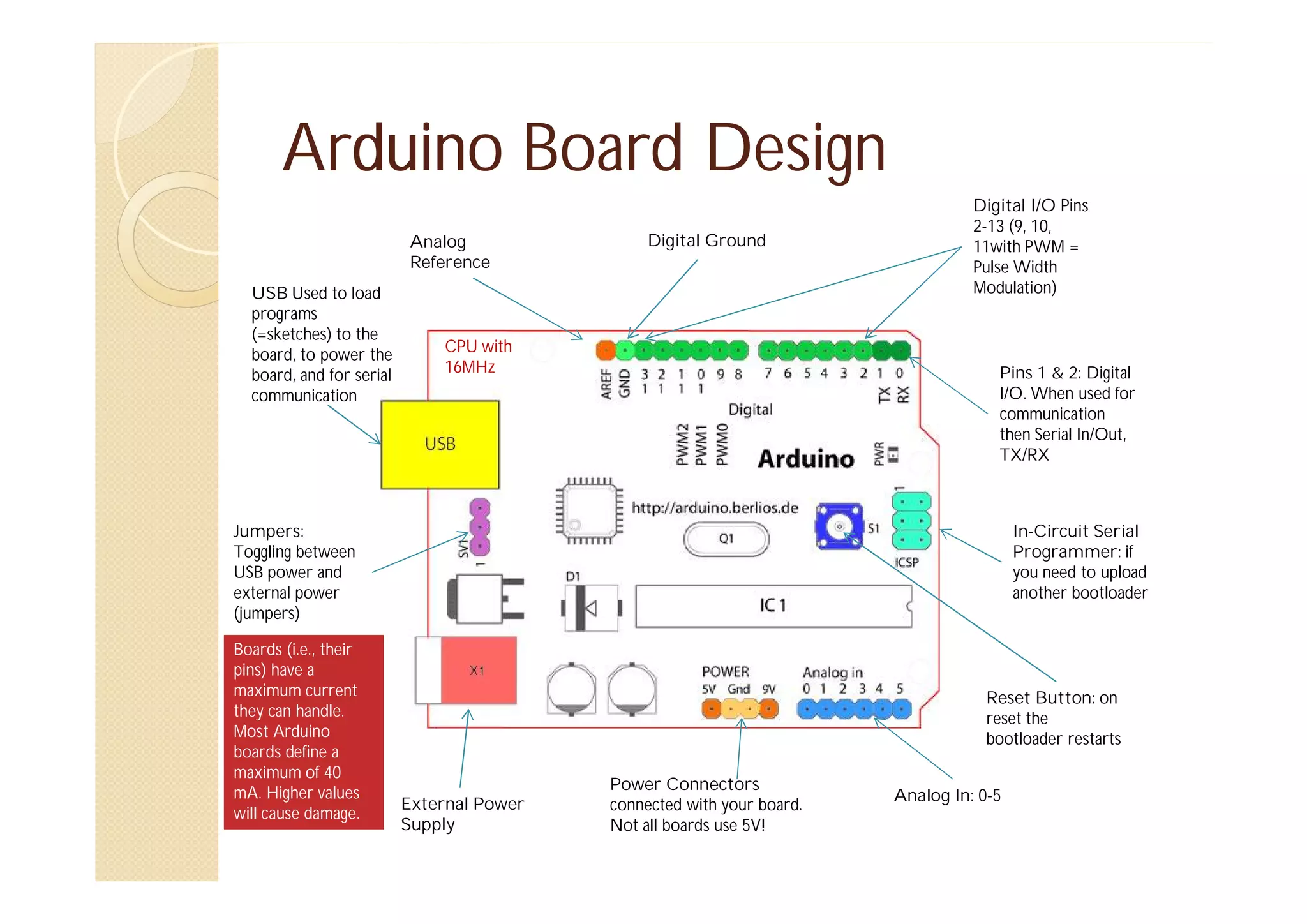

Arduino Board Design
Analog
Reference
USB Used to load
programs
(=sketches) to the
board, to power the
board, and for serial
communication

Digital Ground

CPU with
16MHz

Digital I/O Pins
2-13 (9, 10,
11with PWM =
Pulse Width
Modulation)

Pins 1 & 2: Digital
I/O. When used for
communication
then Serial In/Out,
TX/RX

Jumpers:
Toggling between
USB power and
external power
(jumpers)
Boards (i.e., their
pins) have a
maximum current
they can handle.
Most Arduino
boards define a
maximum of 40
mA. Higher values
will cause damage.

In-Circuit Serial
Programmer: if
you need to upload
another bootloader

Reset Button: on
reset the
bootloader restarts

External Power
Supply

Power Connectors
connected with your board.
Not all boards use 5V!

Analog In: 0-5

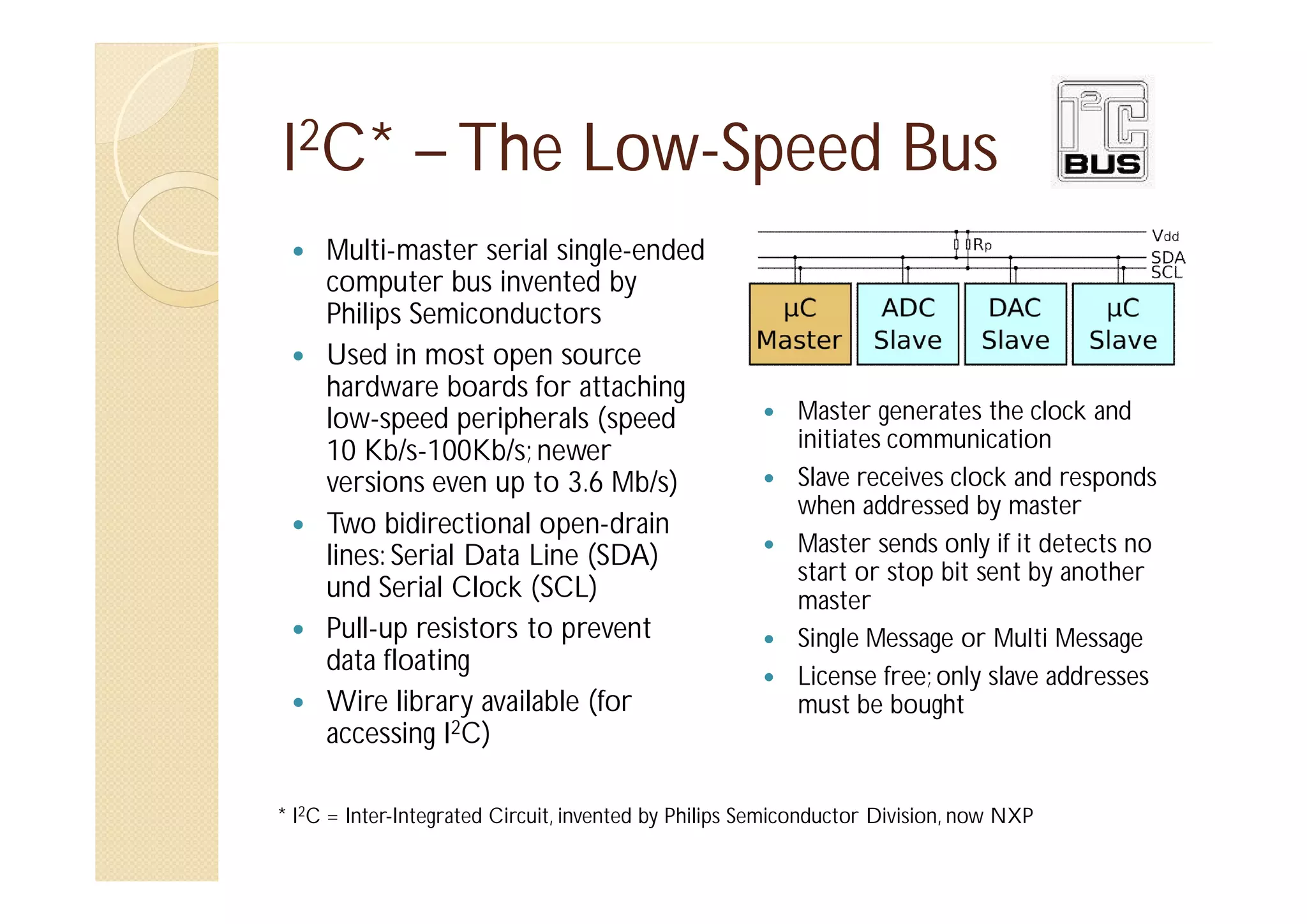

I2C* – The Low-Speed Bus
LowMulti-master serial single-ended
computer bus invented by
Philips Semiconductors
Used in most open source
hardware boards for attaching
low-speed peripherals (speed
10 Kb/s-100Kb/s; newer
versions even up to 3.6 Mb/s)
Two bidirectional open-drain
lines: Serial Data Line (SDA)
und Serial Clock (SCL)
Pull-up resistors to prevent
data floating
Wire library available (for
accessing I2C)

Master generates the clock and
initiates communication
Slave receives clock and responds
when addressed by master
Master sends only if it detects no
start or stop bit sent by another
master
Single Message or Multi Message
License free; only slave addresses
must be bought

* I2C = Inter-Integrated Circuit, invented by Philips Semiconductor Division, now NXP

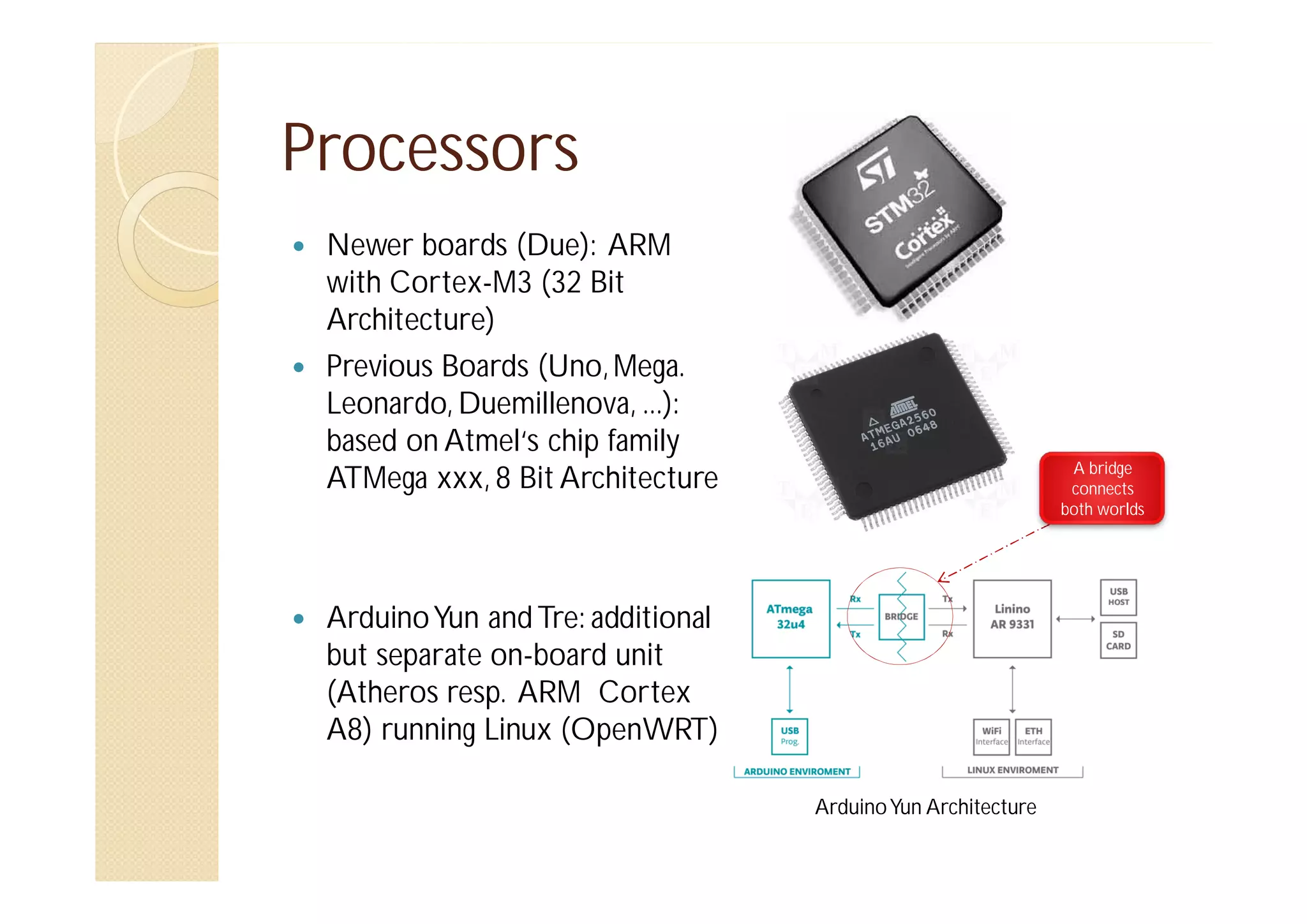

Processors
Newer boards (Due): ARM
with Cortex-M3 (32 Bit
Architecture)
Previous Boards (Uno, Mega.
Leonardo, Duemillenova, ...):
based on Atmel‘s chip family
ATMega xxx, 8 Bit Architecture

A bridge
connects
both worlds

Arduino Yun and Tre: additional
but separate on-board unit
(Atheros resp. ARM Cortex
A8) running Linux (OpenWRT)
Arduino Yun Architecture

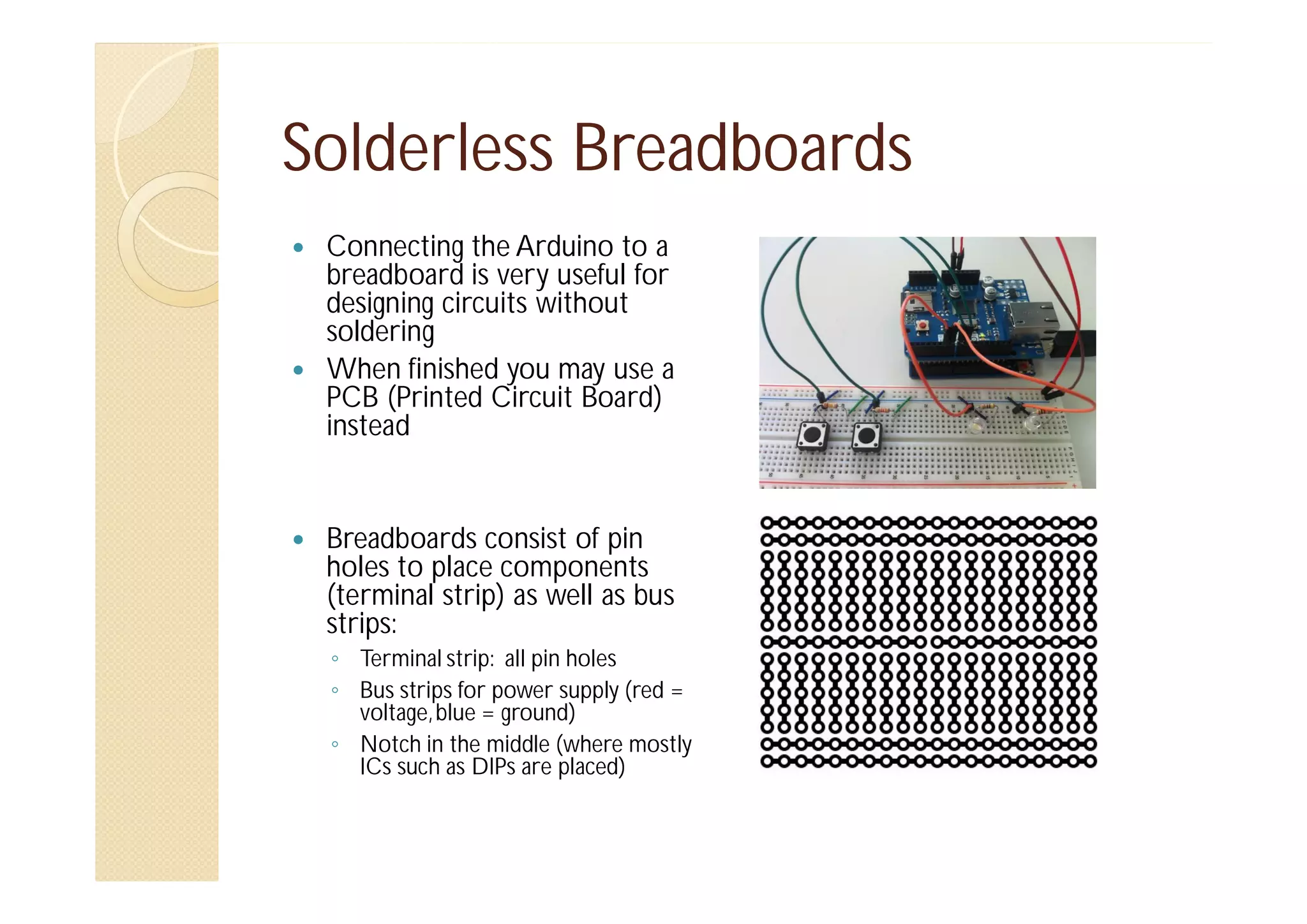

Solderless Breadboards
Connecting the Arduino to a
breadboard is very useful for
designing circuits without
soldering
When finished you may use a
PCB (Printed Circuit Board)
instead

Breadboards consist of pin
holes to place components
(terminal strip) as well as bus
strips:
Terminal strip: all pin holes
Bus strips for power supply (red =
voltage, blue = ground)
Notch in the middle (where mostly
ICs such as DIPs are placed)

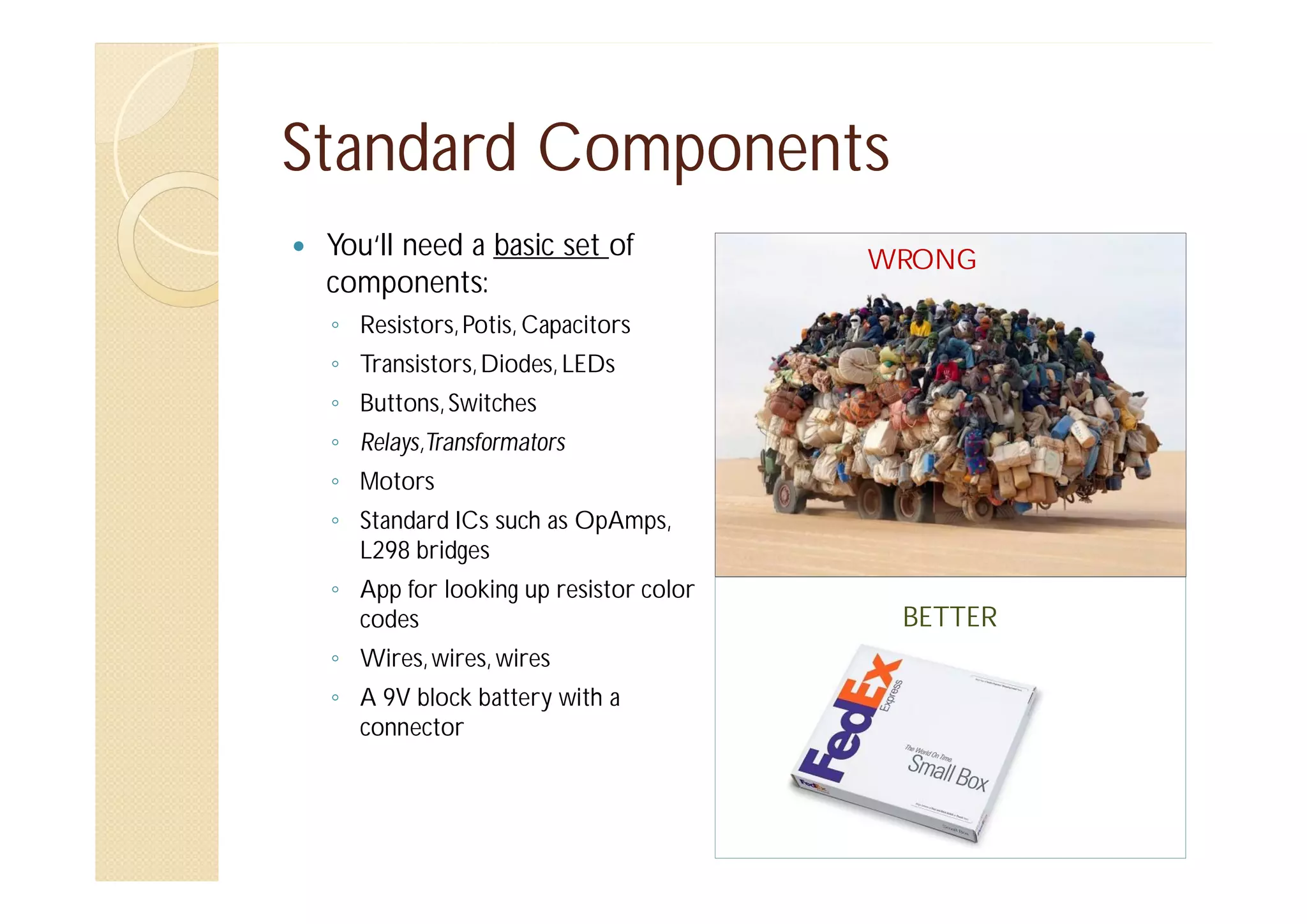

Standard Components
You‘ll need a basic set of
components:

WRONG

Resistors, Potis, Capacitors
Transistors, Diodes, LEDs
Buttons, Switches
Relays,Transformators
Motors
Standard ICs such as OpAmps,
L298 bridges
App for looking up resistor color
codes
Wires, wires, wires
A 9V block battery with a
connector

BETTER

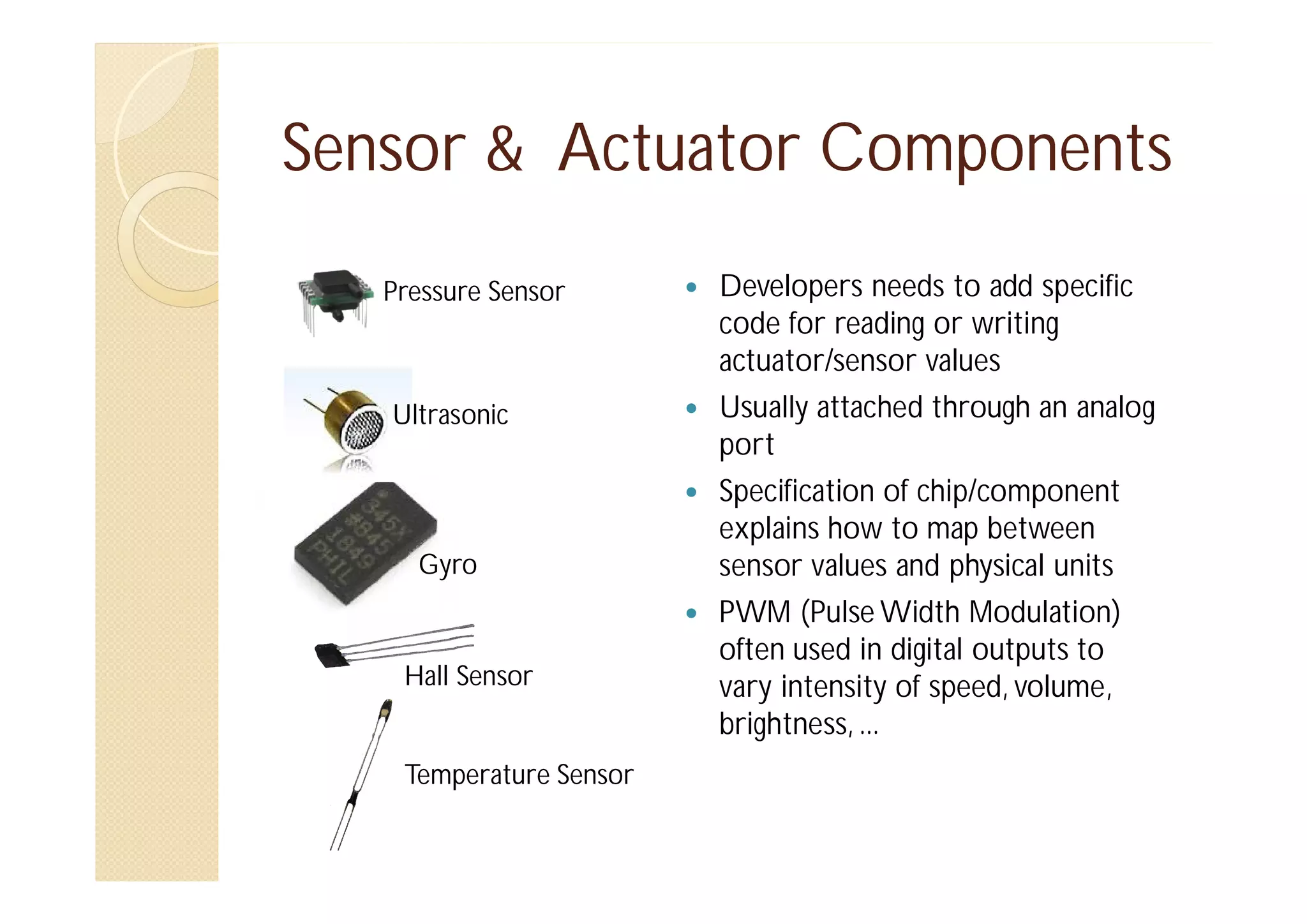

Sensor & Actuator Components
Pressure Sensor

Ultrasonic

Gyro

Hall Sensor
Temperature Sensor

Developers needs to add specific
code for reading or writing
actuator/sensor values
Usually attached through an analog
port
Specification of chip/component
explains how to map between
sensor values and physical units
PWM (Pulse Width Modulation)
often used in digital outputs to
vary intensity of speed, volume,
brightness, ...

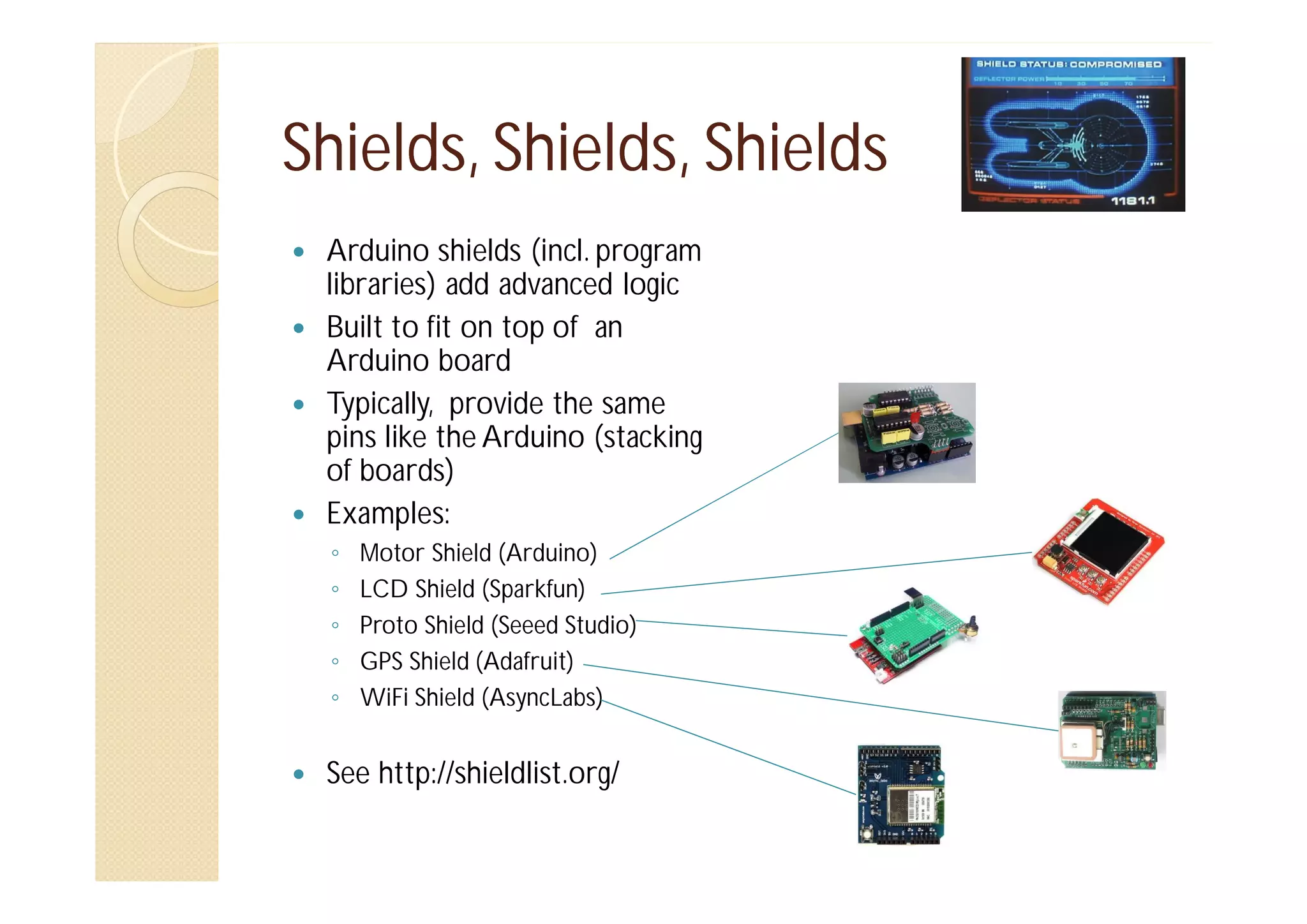

Shields, Shields, Shields
Arduino shields (incl. program
libraries) add advanced logic
Built to fit on top of an
Arduino board
Typically, provide the same
pins like the Arduino (stacking
of boards)
Examples:
Motor Shield (Arduino)
LCD Shield (Sparkfun)
Proto Shield (Seeed Studio)
GPS Shield (Adafruit)
WiFi Shield (AsyncLabs)

See http://shieldlist.org/

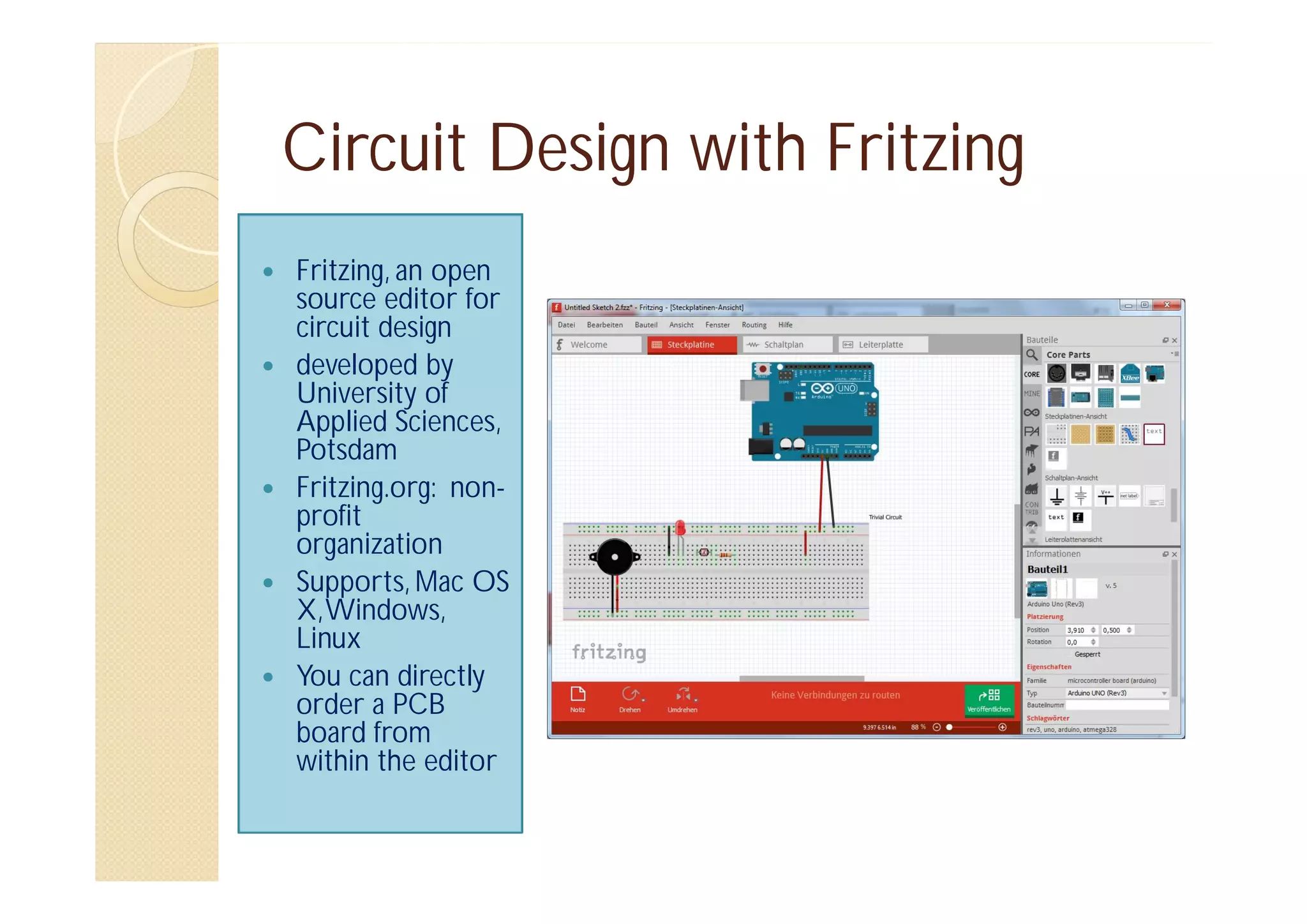

Circuit Design with Fritzing
Fritzing, an open
source editor for
circuit design
developed by
University of
Applied Sciences,
Potsdam
Fritzing.org: nonprofit
organization
Supports, Mac OS
X, Windows,
Linux
You can directly
order a PCB
board from
within the editor

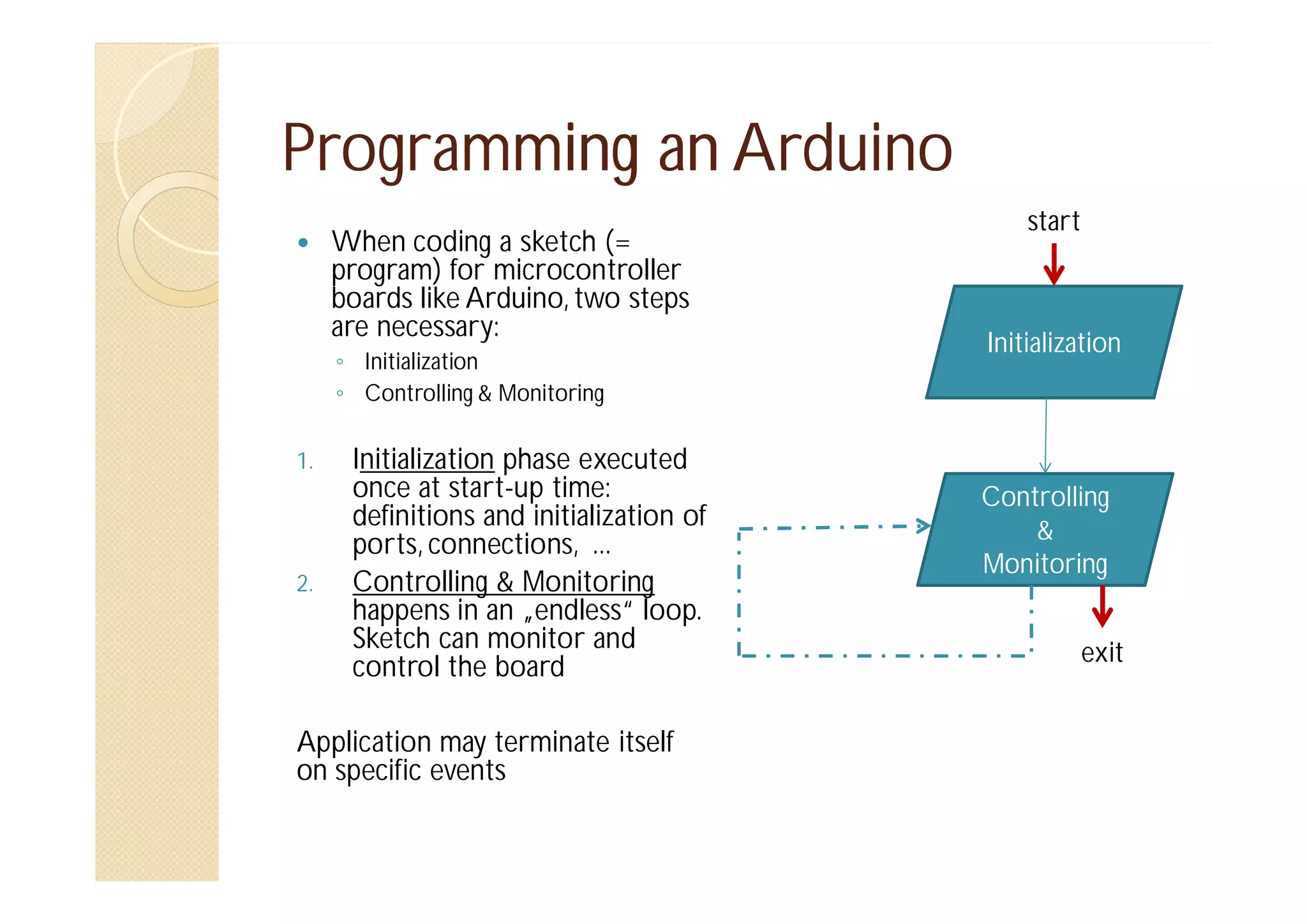

Programming an Arduino
When coding a sketch (=
program) for microcontroller
boards like Arduino, two steps
are necessary:
Initialization
Controlling & Monitoring
1.

2.

Initialization phase executed
once at start-up time:
definitions and initialization of
ports, connections, ...
Controlling & Monitoring
happens in an „endless“ loop.
Sketch can monitor and
control the board

Application may terminate itself
on specific events

start

Initialization

Controlling
&
Monitoring
exit

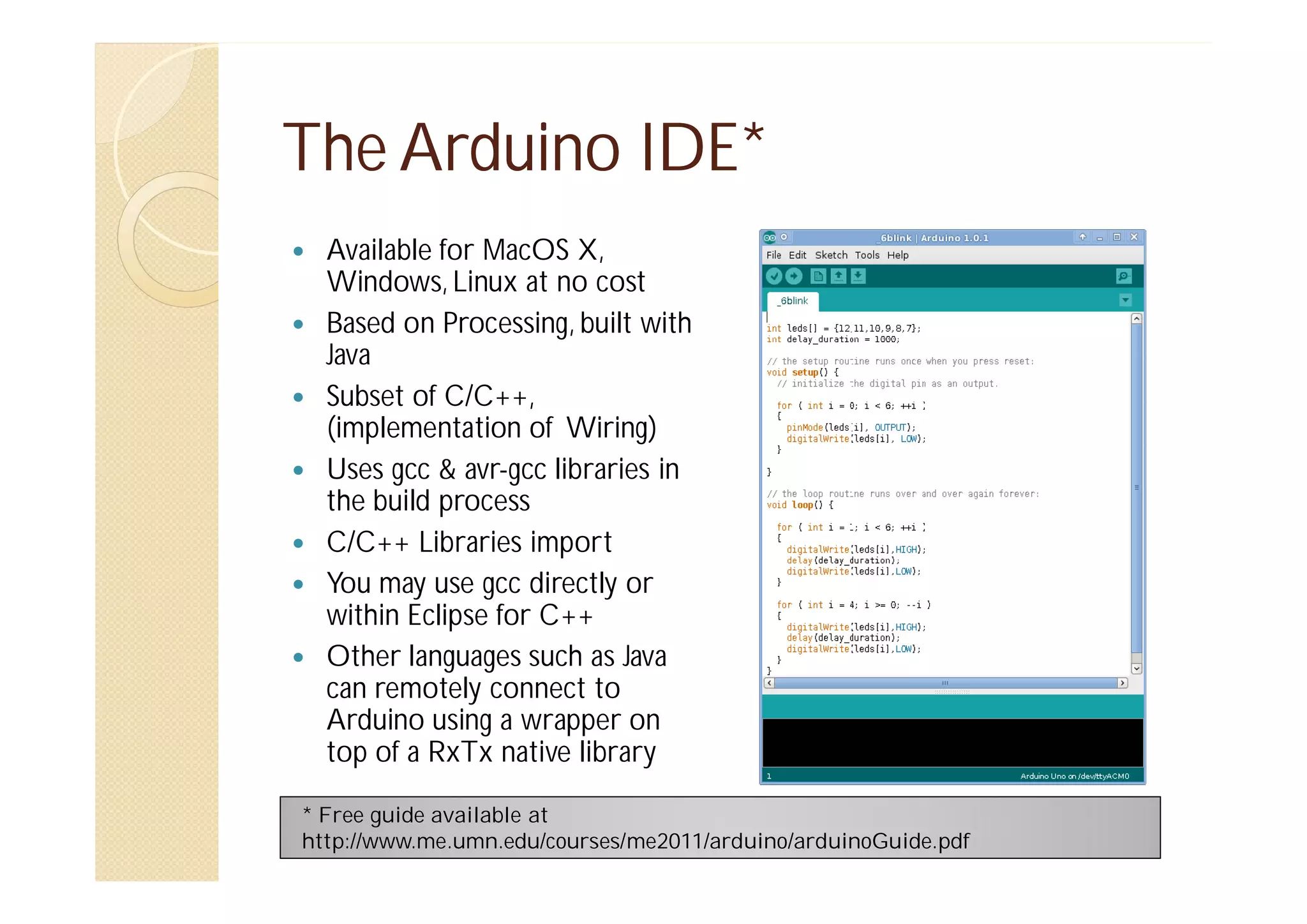

The Arduino IDE*
Available for MacOS X,
Windows, Linux at no cost
Based on Processing, built with
Java
Subset of C/C++,
(implementation of Wiring)
Uses gcc & avr-gcc libraries in
the build process
C/C++ Libraries import
You may use gcc directly or
within Eclipse for C++
Other languages such as Java
can remotely connect to
Arduino using a wrapper on
top of a RxTx native library
* Free guide available at
http://www.me.umn.edu/courses/me2011/arduino/arduinoGuide.pdf

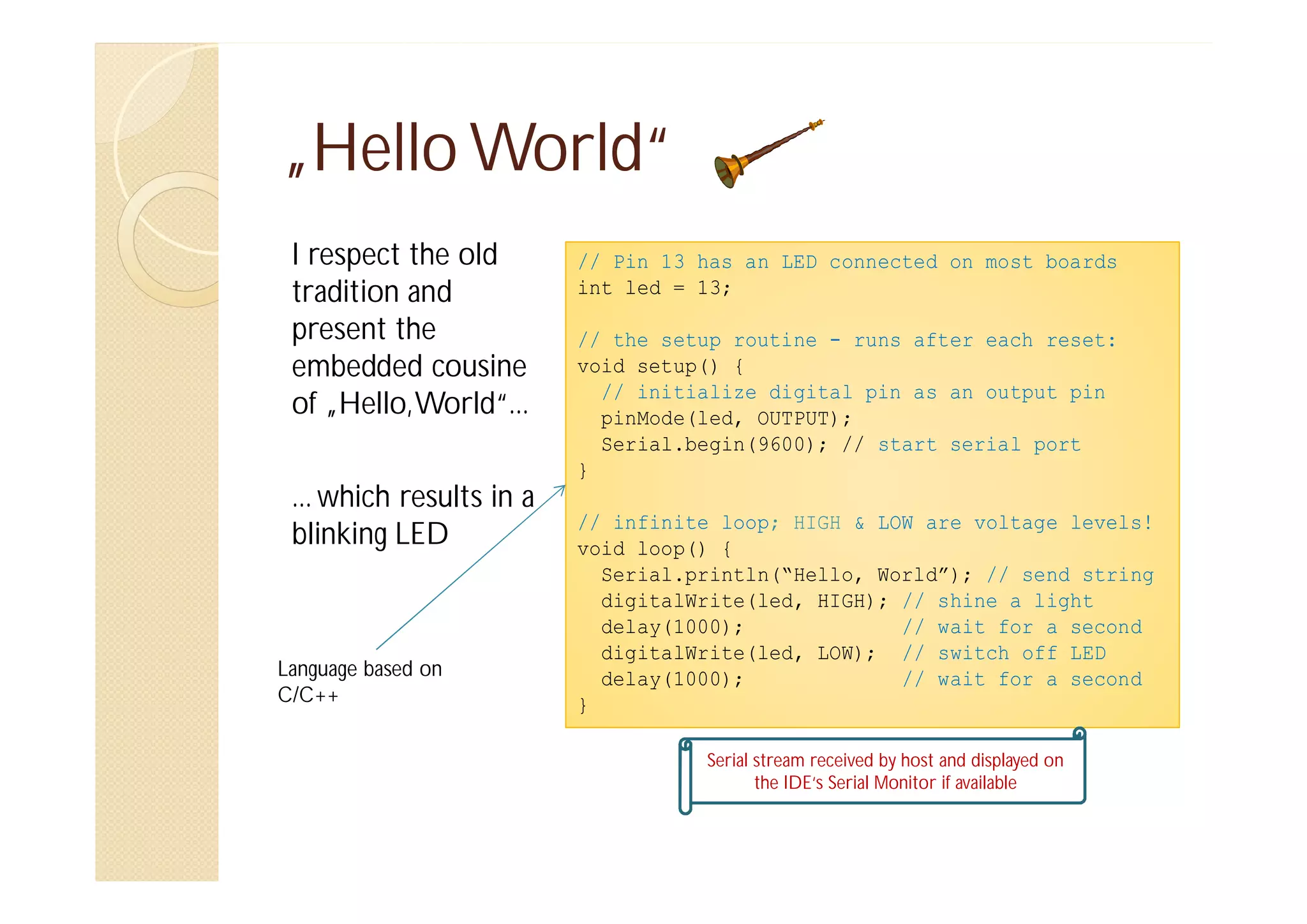

„Hello World“
I respect the old
tradition and
present the
embedded cousine
of „Hello, World“...
... which results in a
blinking LED

Language based on
C/C++

// Pin 13 has an LED connected on most boards
int led = 13;
// the setup routine - runs after each reset:
void setup() {
// initialize digital pin as an output pin
pinMode(led, OUTPUT);
Serial.begin(9600); // start serial port
}
// infinite loop; HIGH & LOW are voltage levels!
void loop() {
Serial.println(“Hello, World”); // send string
digitalWrite(led, HIGH); // shine a light
delay(1000);
// wait for a second
digitalWrite(led, LOW); // switch off LED
delay(1000);
// wait for a second
}
Serial stream received by host and displayed on
the IDE‘s Serial Monitor if available

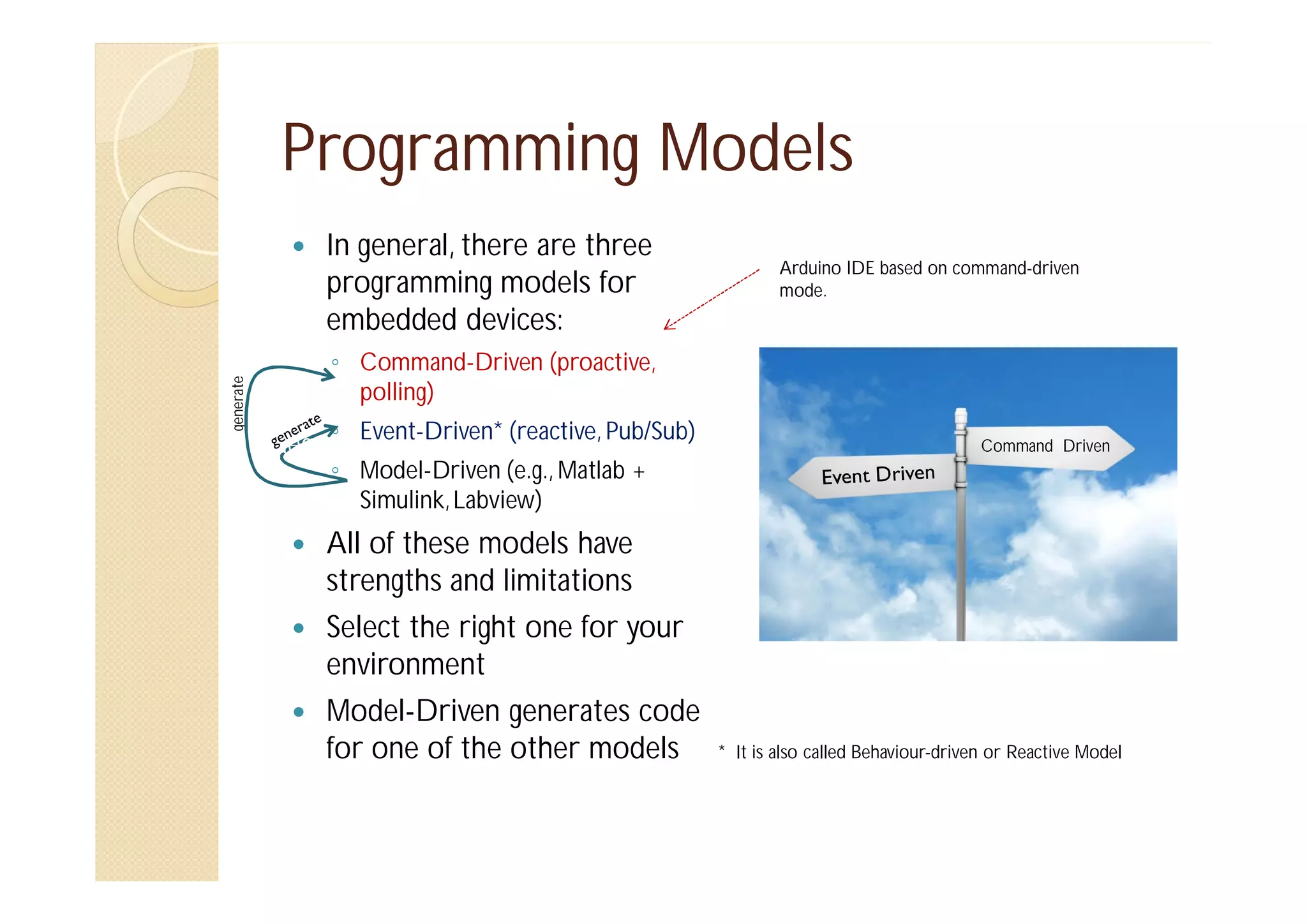

Programming Models

generate

In general, there are three
programming models for
embedded devices:

Arduino IDE based on command-driven
mode.

Command-Driven (proactive,
polling)

+ü´ßw
saeqq Event-Driven* (reactive, Pub/Sub)
Model-Driven (e.g., Matlab +
Simulink, Labview)

Command Driven

All of these models have
strengths and limitations
Select the right one for your
environment
Model-Driven generates code
for one of the other models

* It is also called Behaviour-driven or Reactive Model

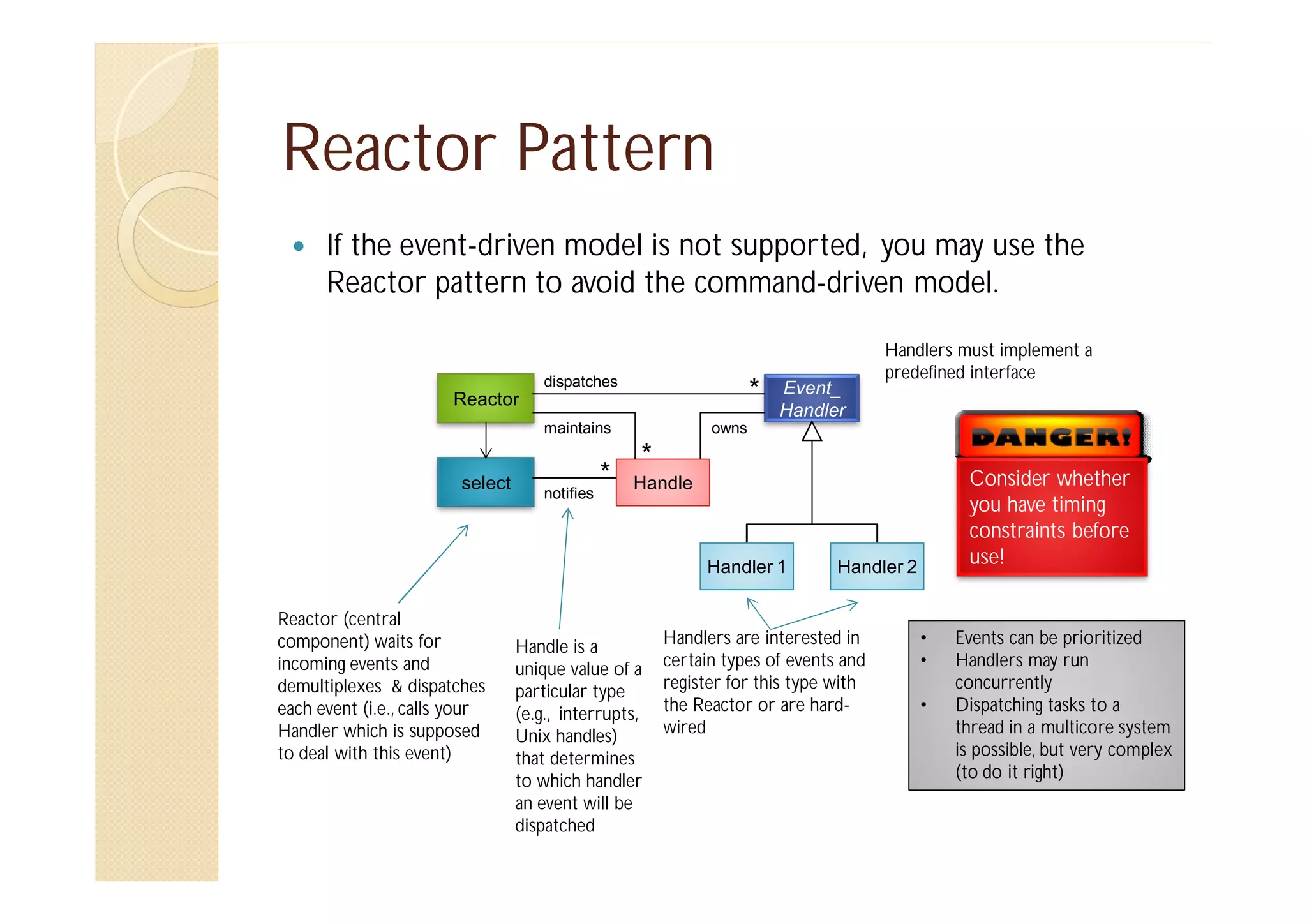

Reactor Pattern
If the event-driven model is not supported, you may use the
Reactor pattern to avoid the command-driven model.
dispatches

*

Reactor
owns

maintains

select

notifies

*

Event_
Handler

*

Consider whether
you have timing
constraints before
use!

Handle

Handler 1
Reactor (central
component) waits for
incoming events and
demultiplexes & dispatches
each event (i.e., calls your
Handler which is supposed
to deal with this event)

Handlers must implement a
predefined interface

Handle is a
unique value of a
particular type
(e.g., interrupts,
Unix handles)
that determines
to which handler
an event will be
dispatched

Handler 2

Handlers are interested in
certain types of events and
register for this type with
the Reactor or are hardwired

•
•
•

Events can be prioritized
Handlers may run
concurrently
Dispatching tasks to a
thread in a multicore system
is possible, but very complex
(to do it right)

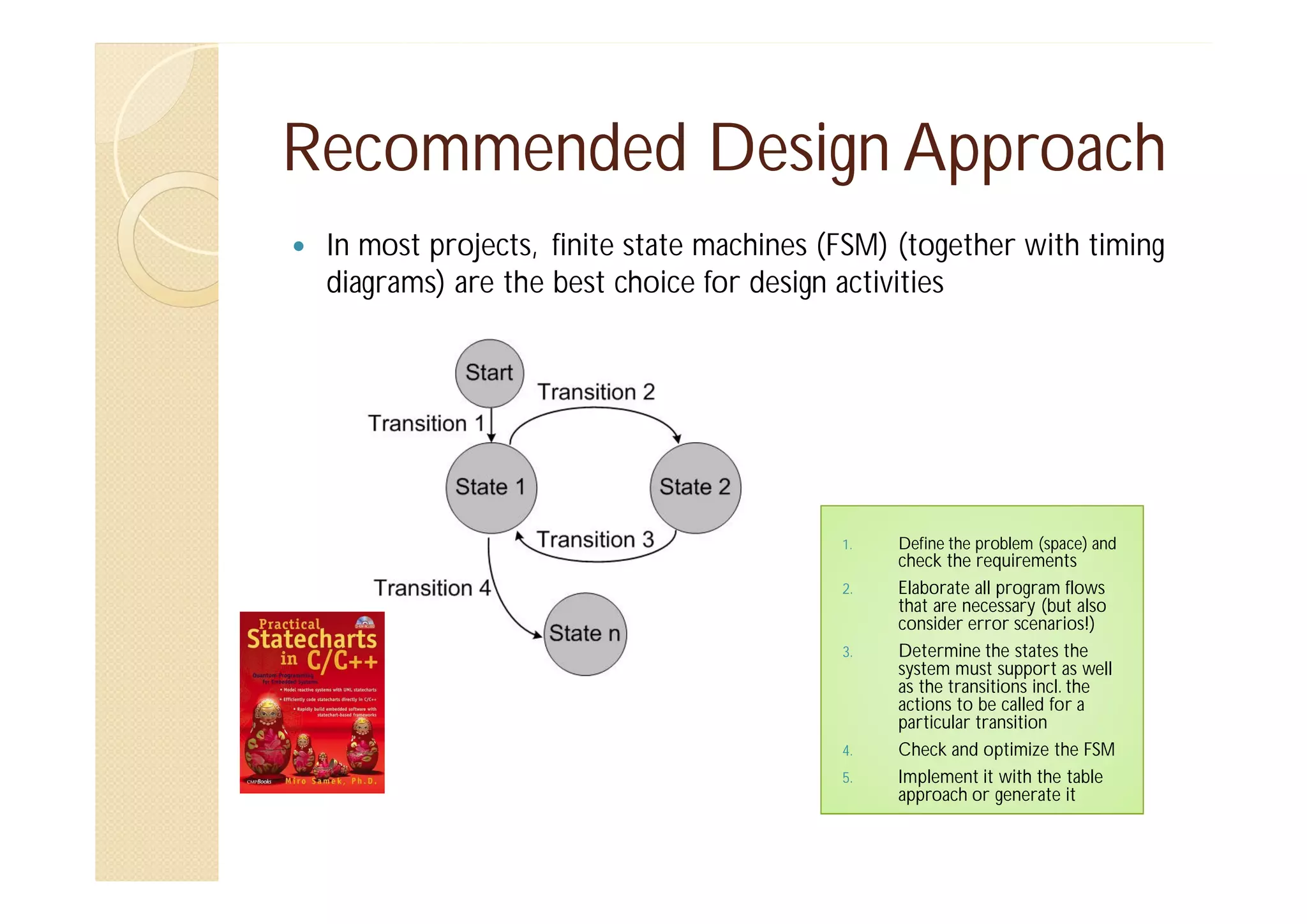

Recommended Design Approach
In most projects, finite state machines (FSM) (together with timing
diagrams) are the best choice for design activities

1.

2.

3.

4.
5.

Define the problem (space) and

check the requirements
Elaborate all program flows
that are necessary (but also
consider error scenarios!)
Determine the states the
system must support as well
as the transitions incl. the
actions to be called for a
particular transition
Check and optimize the FSM
Implement it with the table
approach or generate it

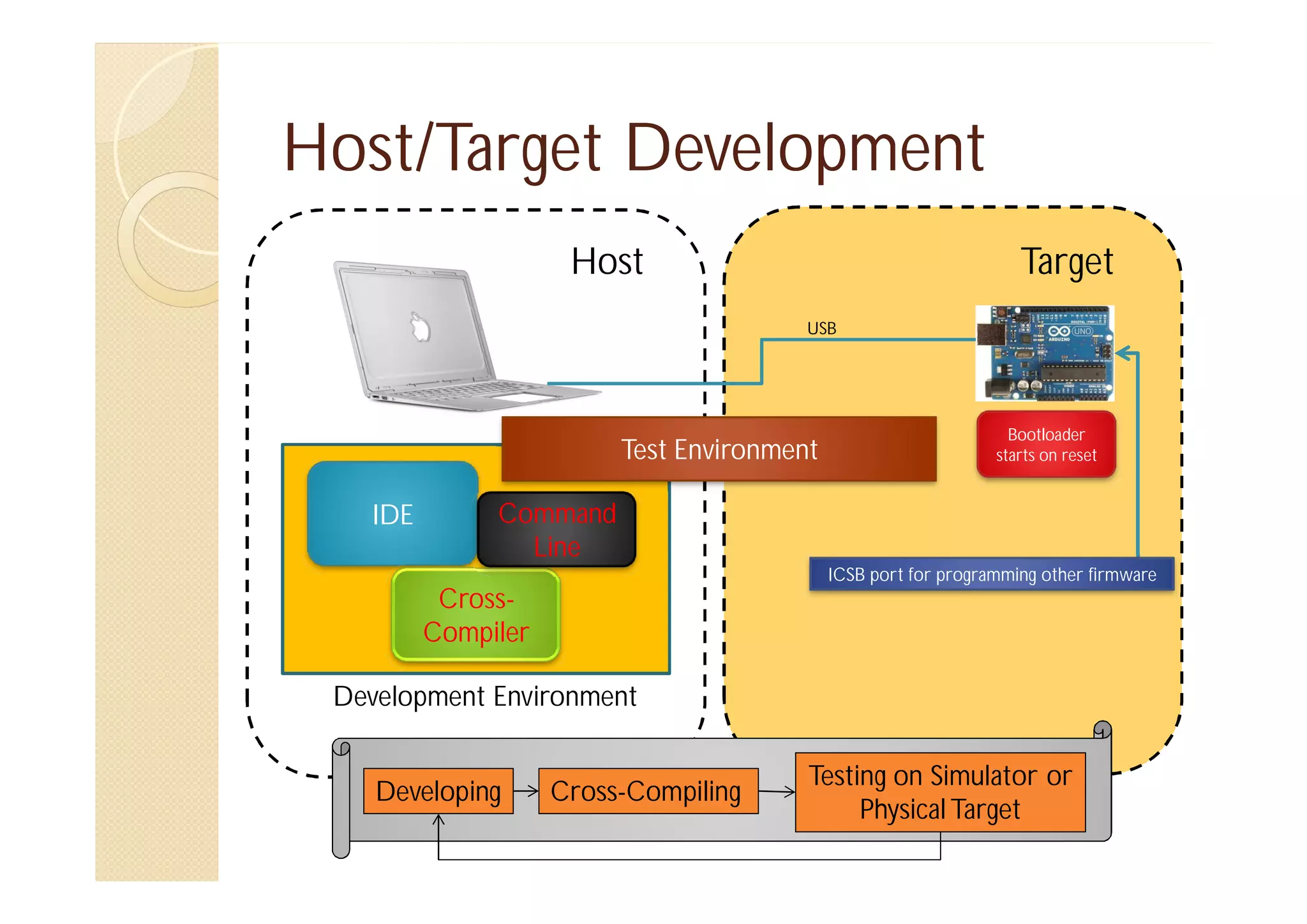

Host/Target Development
Host

Target
USB

Test Environment
IDE

Bootloader
starts on reset

Command
Line
ICSB port for programming other firmware

CrossCompiler
Development Environment
Developing

Cross-Compiling

Testing on Simulator or
Physical Target

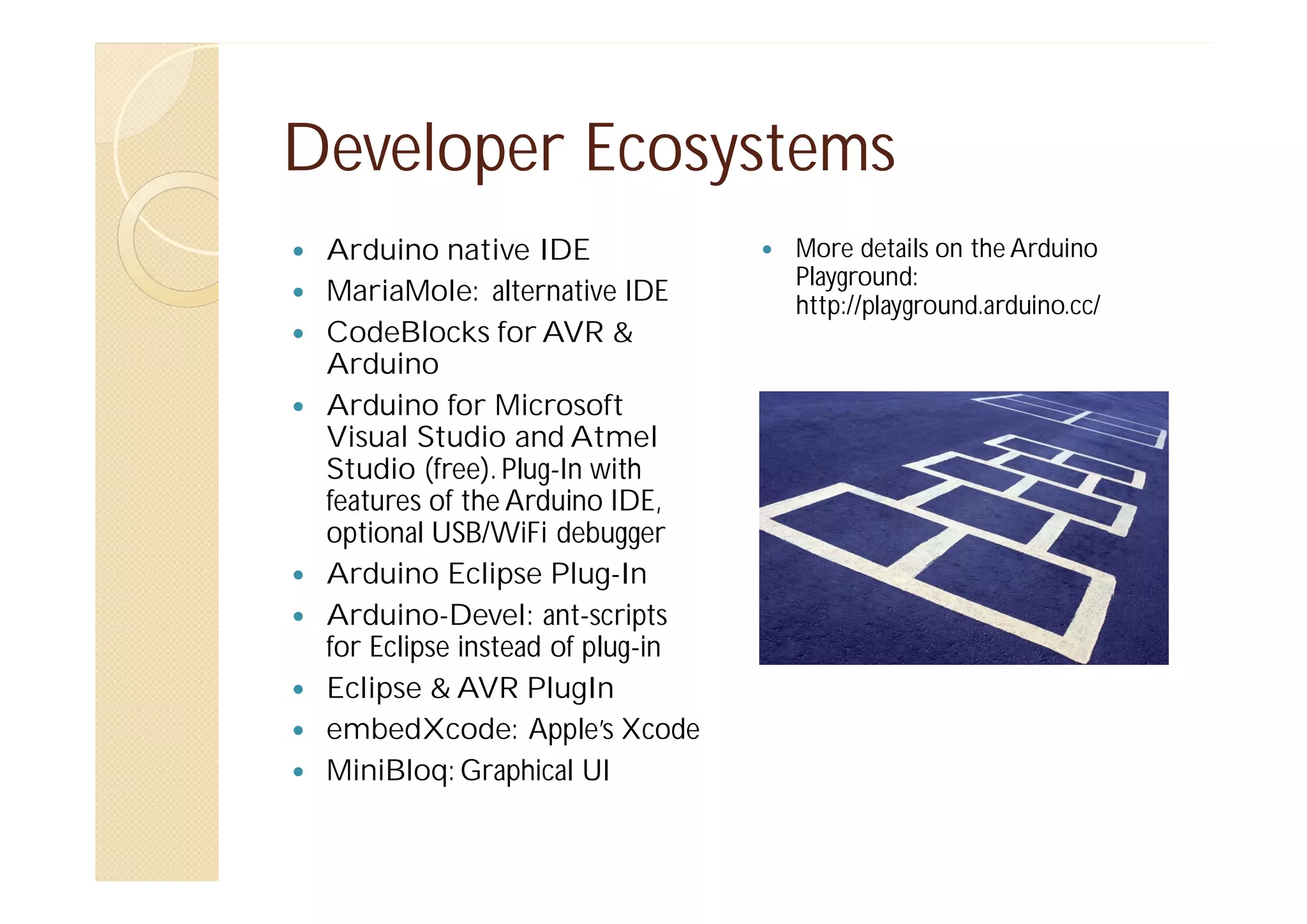

Developer Ecosystems
Arduino native IDE
MariaMole: alternative IDE
CodeBlocks for AVR &
Arduino
Arduino for Microsoft
Visual Studio and Atmel
Studio (free). Plug-In with
features of the Arduino IDE,
optional USB/WiFi debugger
Arduino Eclipse Plug-In
Arduino-Devel: ant-scripts
for Eclipse instead of plug-in
Eclipse & AVR PlugIn
embedXcode: Apple’s Xcode
MiniBloq: Graphical UI

More details on the Arduino
Playground:
http://playground.arduino.cc/

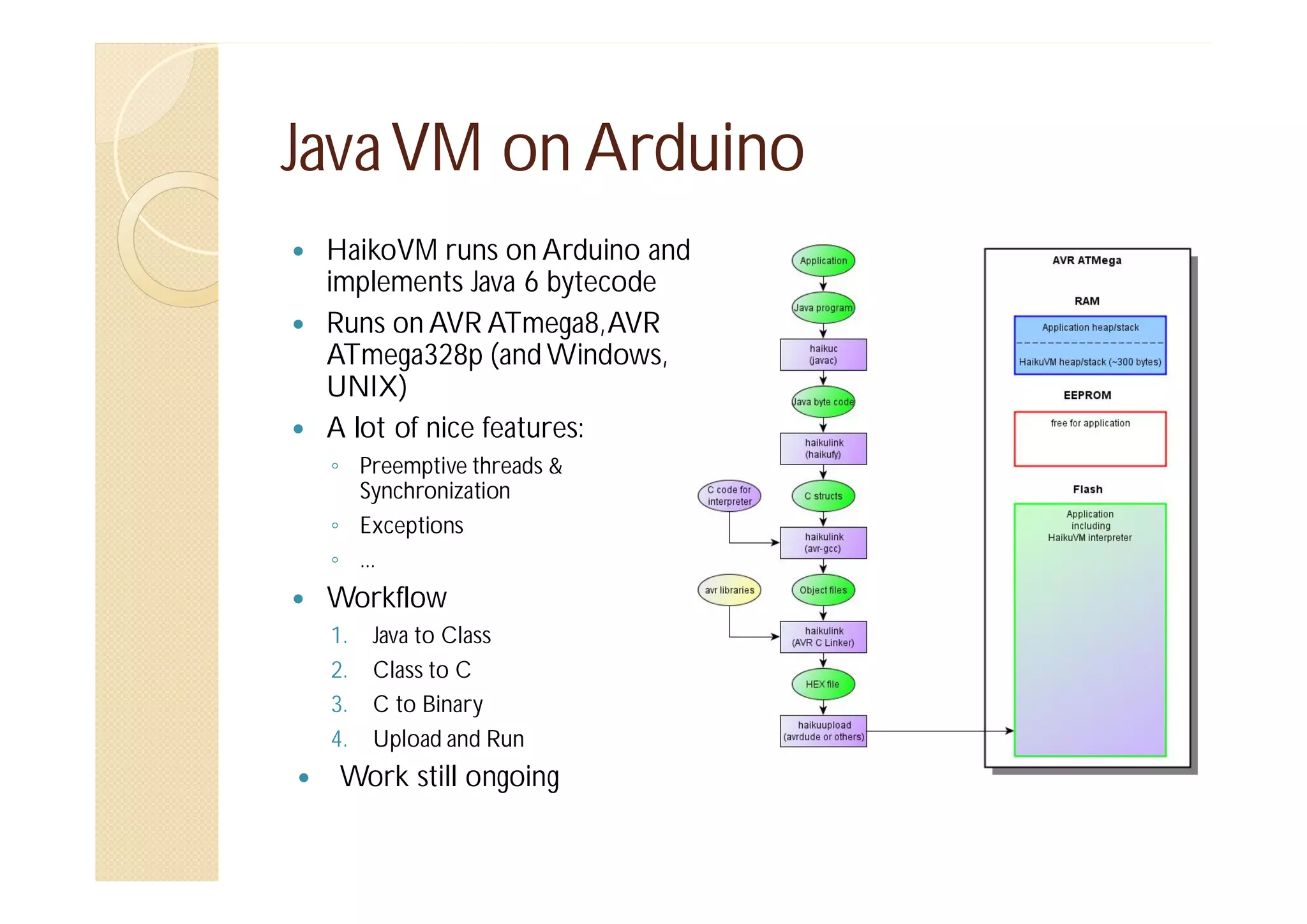

Java VM on Arduino
HaikoVM runs on Arduino and
implements Java 6 bytecode
Runs on AVR ATmega8, AVR
ATmega328p (and Windows,
UNIX)
A lot of nice features:
Preemptive threads &
Synchronization
Exceptions
...

Workflow
1.
2.
3.
4.

Java to Class
Class to C
C to Binary
Upload and Run

Work still ongoing

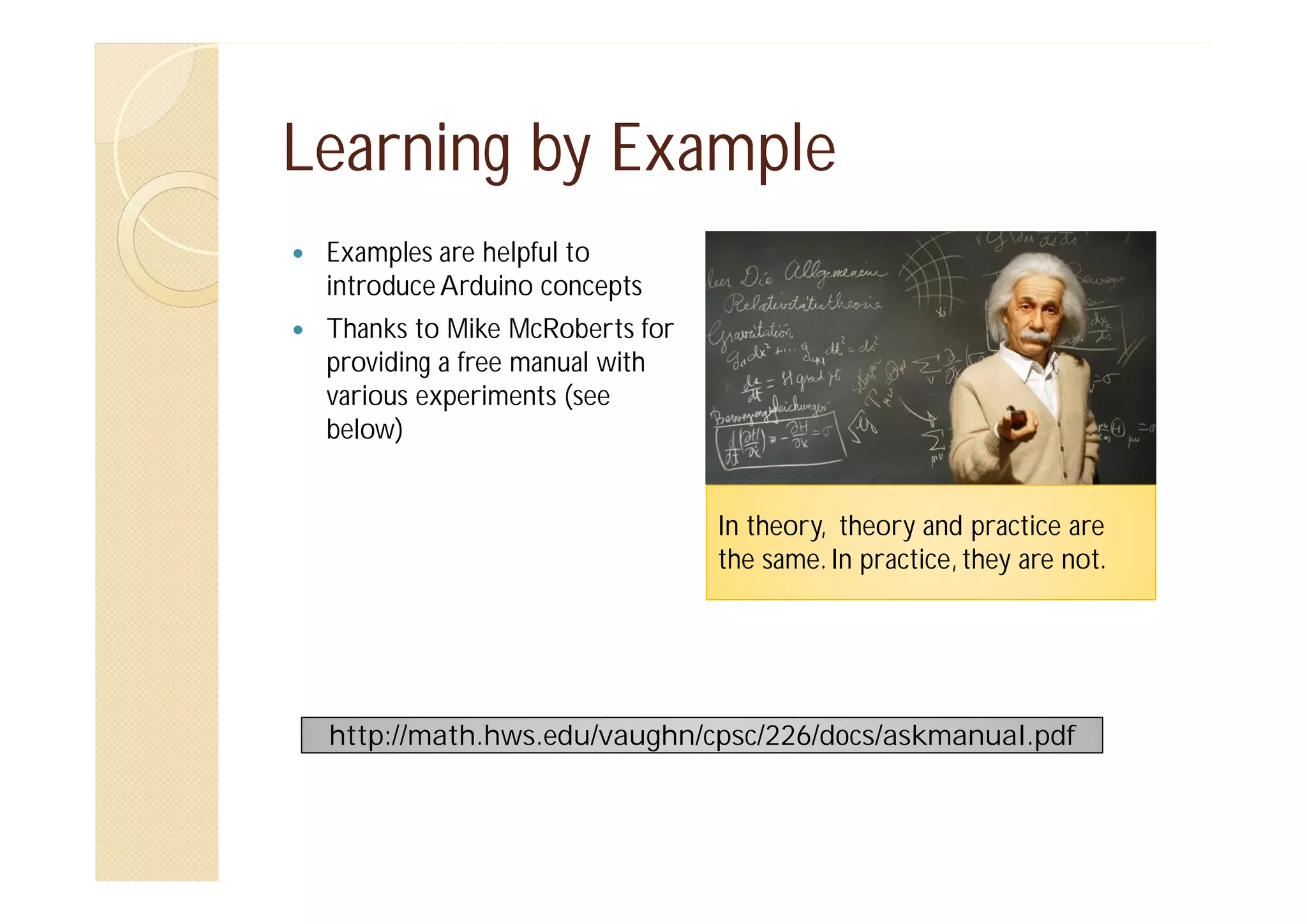

Learning by Example
Examples are helpful to
introduce Arduino concepts
Thanks to Mike McRoberts for
providing a free manual with
various experiments (see
below)
In theory, theory and practice are
the same. In practice, they are not.

http://math.hws.edu/vaughn/cpsc/226/docs/askmanual.pdf

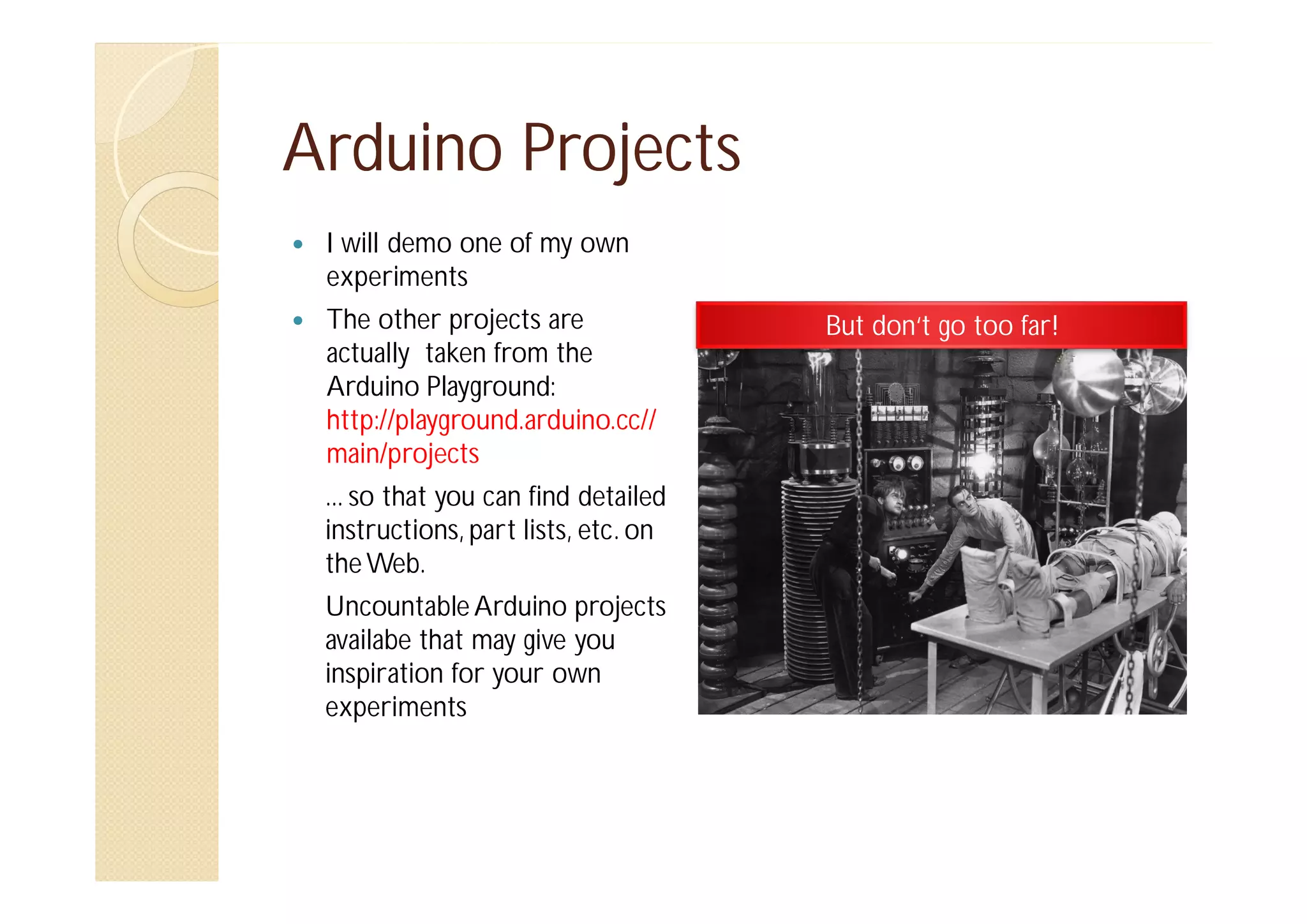

Arduino Projects
I will demo one of my own
experiments
The other projects are
actually taken from the
Arduino Playground:
http://playground.arduino.cc//
main/projects
... so that you can find detailed
instructions, part lists, etc. on
the Web.
Uncountable Arduino projects
availabe that may give you
inspiration for your own
experiments

But don‘t go too far!

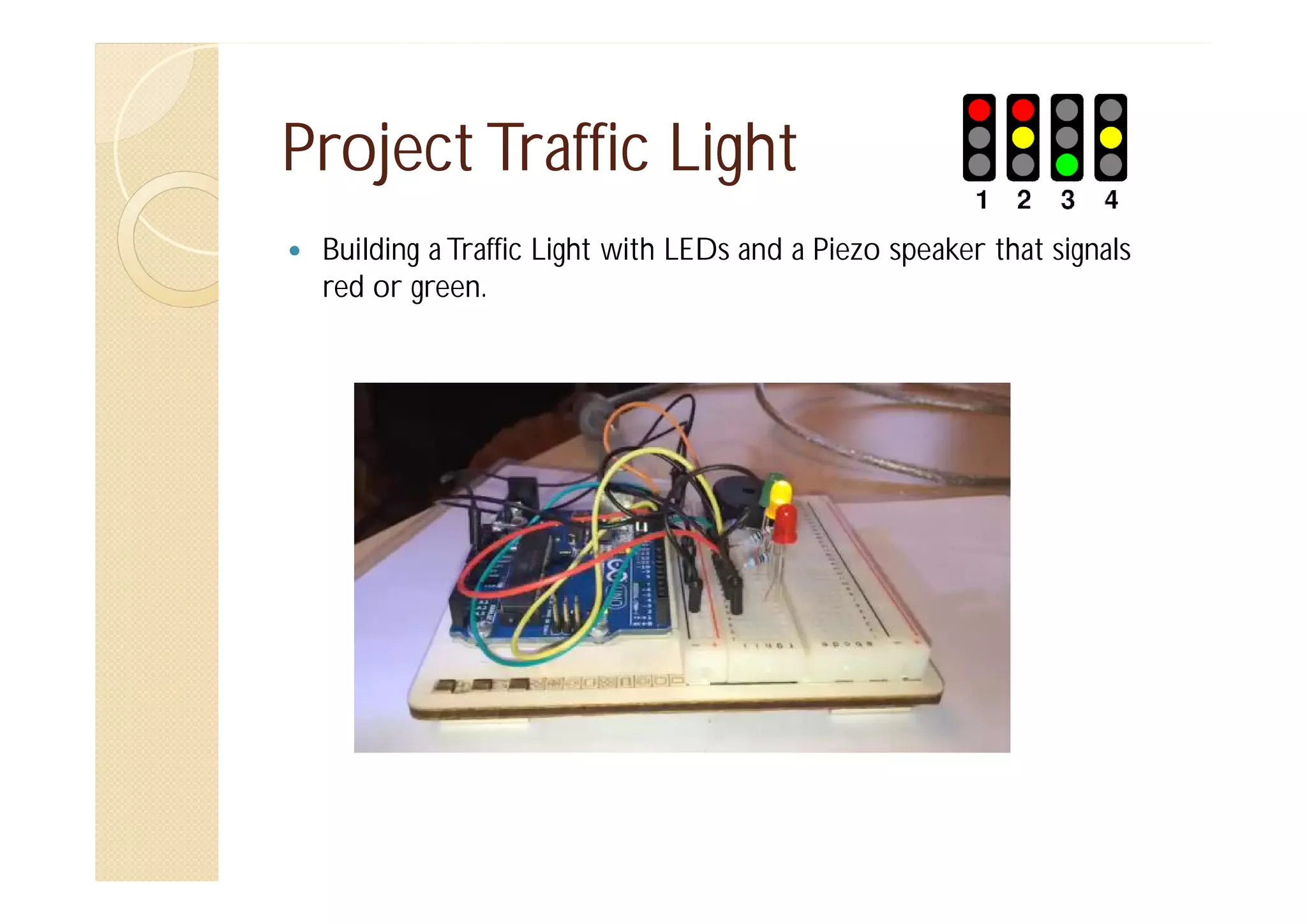

Project Traffic Light
Building a Traffic Light with LEDs and a Piezo speaker that signals
red or green.

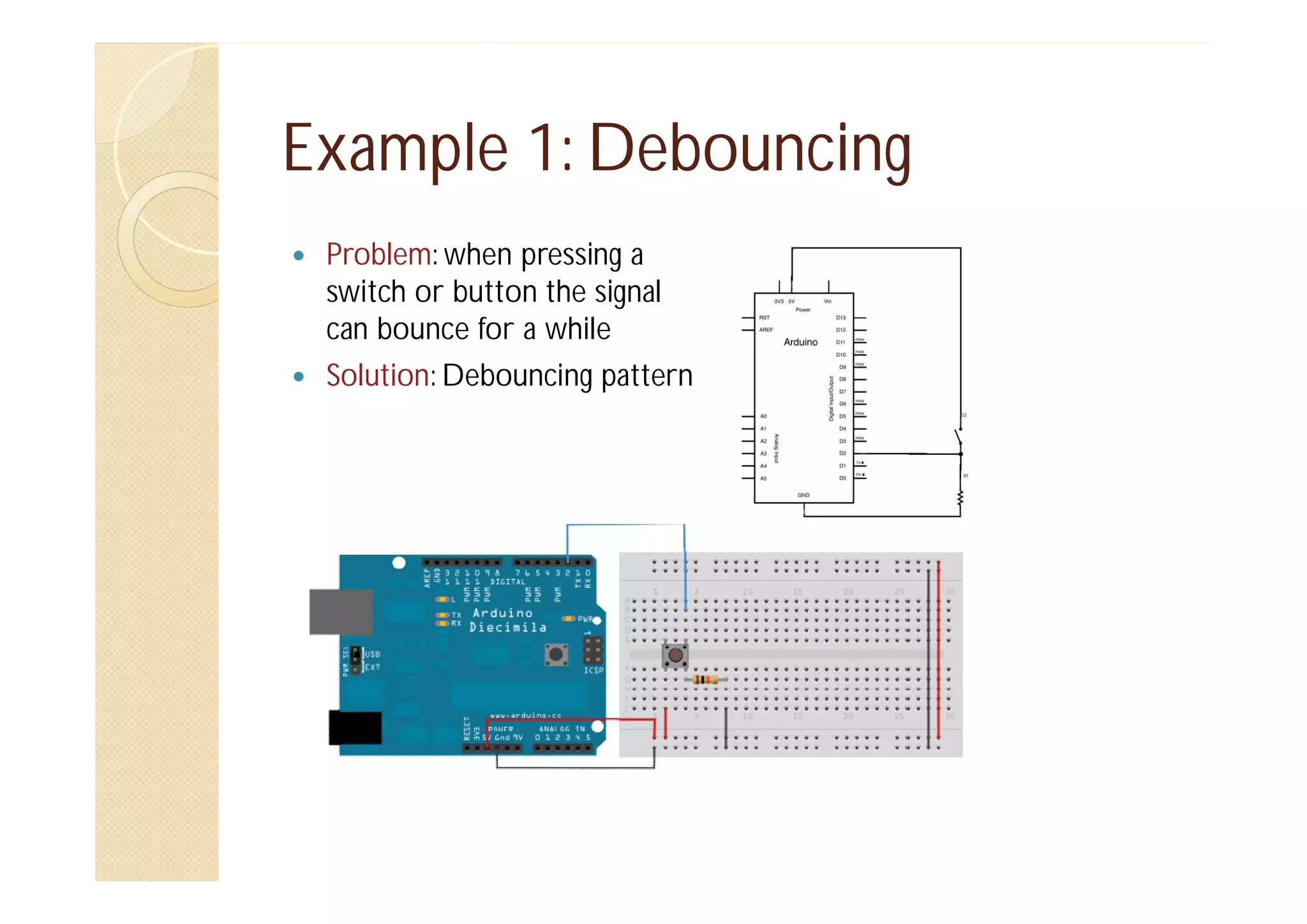

Example 1: Debouncing
Problem: when pressing a
switch or button the signal
can bounce for a while
Solution: Debouncing pattern

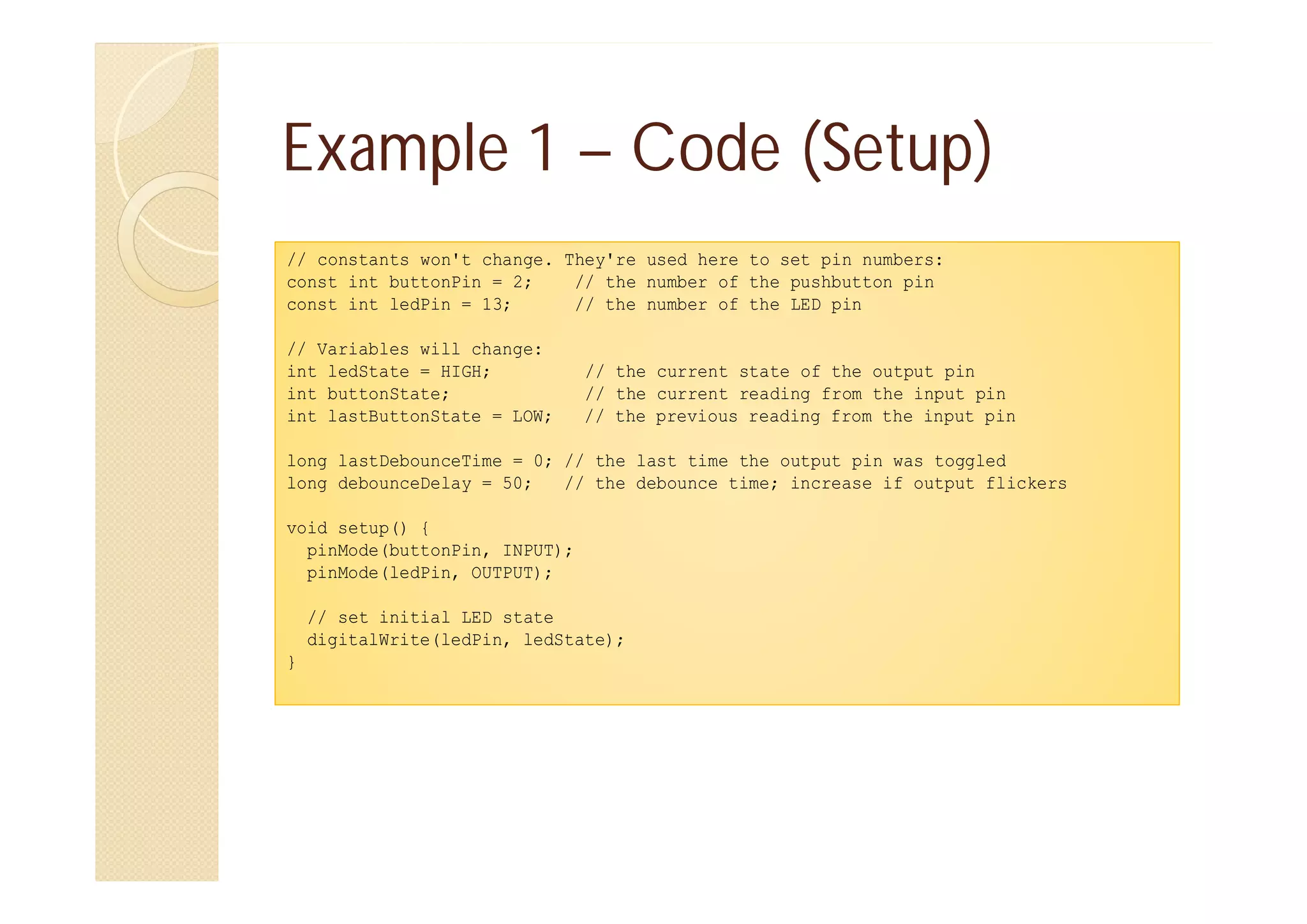

Example 1 – Code (Setup)
// constants won't change. They're used here to set pin numbers:
const int buttonPin = 2;
// the number of the pushbutton pin
const int ledPin = 13;
// the number of the LED pin
// Variables will change:
int ledState = HIGH;
int buttonState;
int lastButtonState = LOW;

// the current state of the output pin
// the current reading from the input pin
// the previous reading from the input pin

long lastDebounceTime = 0; // the last time the output pin was toggled
long debounceDelay = 50;
// the debounce time; increase if output flickers
void setup() {
pinMode(buttonPin, INPUT);
pinMode(ledPin, OUTPUT);
// set initial LED state
digitalWrite(ledPin, ledState);
}

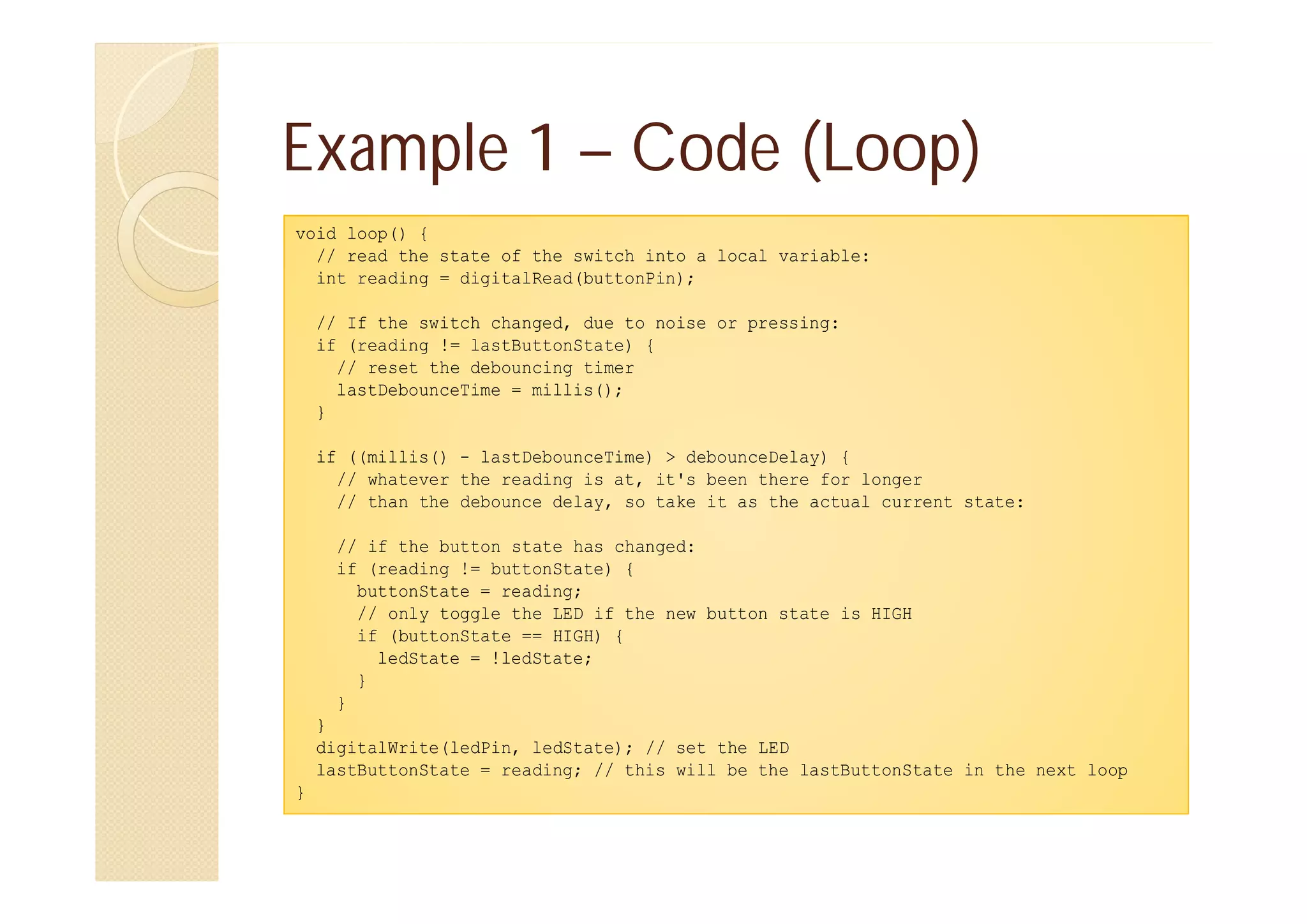

Example 1 – Code (Loop)
void loop() {
// read the state of the switch into a local variable:
int reading = digitalRead(buttonPin);
// If the switch changed, due to noise or pressing:
if (reading != lastButtonState) {
// reset the debouncing timer
lastDebounceTime = millis();
}
if ((millis() - lastDebounceTime) > debounceDelay) {
// whatever the reading is at, it's been there for longer
// than the debounce delay, so take it as the actual current state:
// if the button state has changed:
if (reading != buttonState) {
buttonState = reading;
// only toggle the LED if the new button state is HIGH
if (buttonState == HIGH) {
ledState = !ledState;
}
}
}
digitalWrite(ledPin, ledState); // set the LED
lastButtonState = reading; // this will be the lastButtonState in the next loop
}

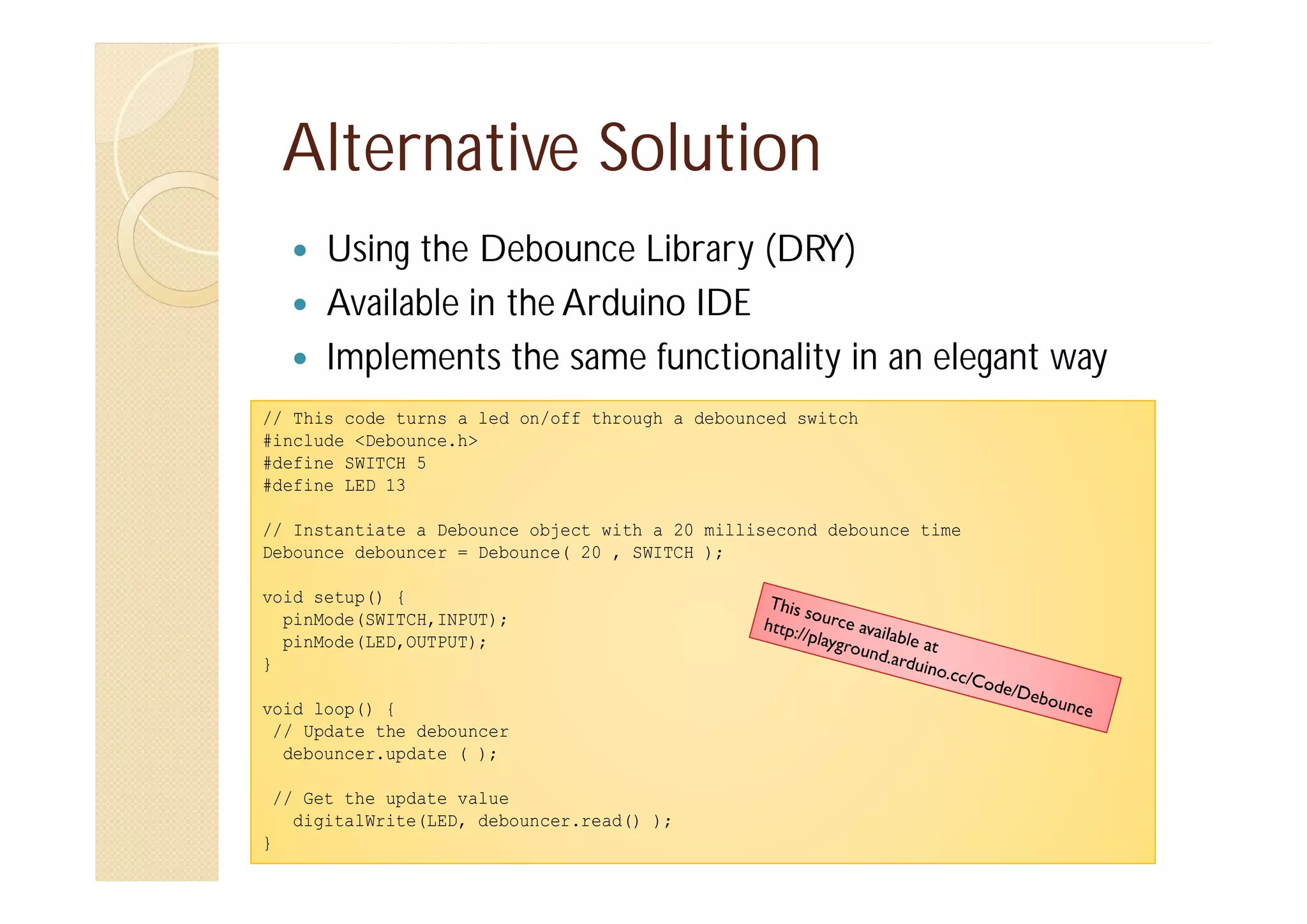

Alternative Solution
Using the Debounce Library (DRY)
Available in the Arduino IDE
Implements the same functionality in an elegant way
// This code turns a led on/off through a debounced switch
#include <Debounce.h>
#define SWITCH 5
#define LED 13
// Instantiate a Debounce object with a 20 millisecond debounce time
Debounce debouncer = Debounce( 20 , SWITCH );
void setup() {
pinMode(SWITCH,INPUT);
pinMode(LED,OUTPUT);
}
void loop() {
// Update the debouncer
debouncer.update ( );
// Get the update value
digitalWrite(LED, debouncer.read() );
}

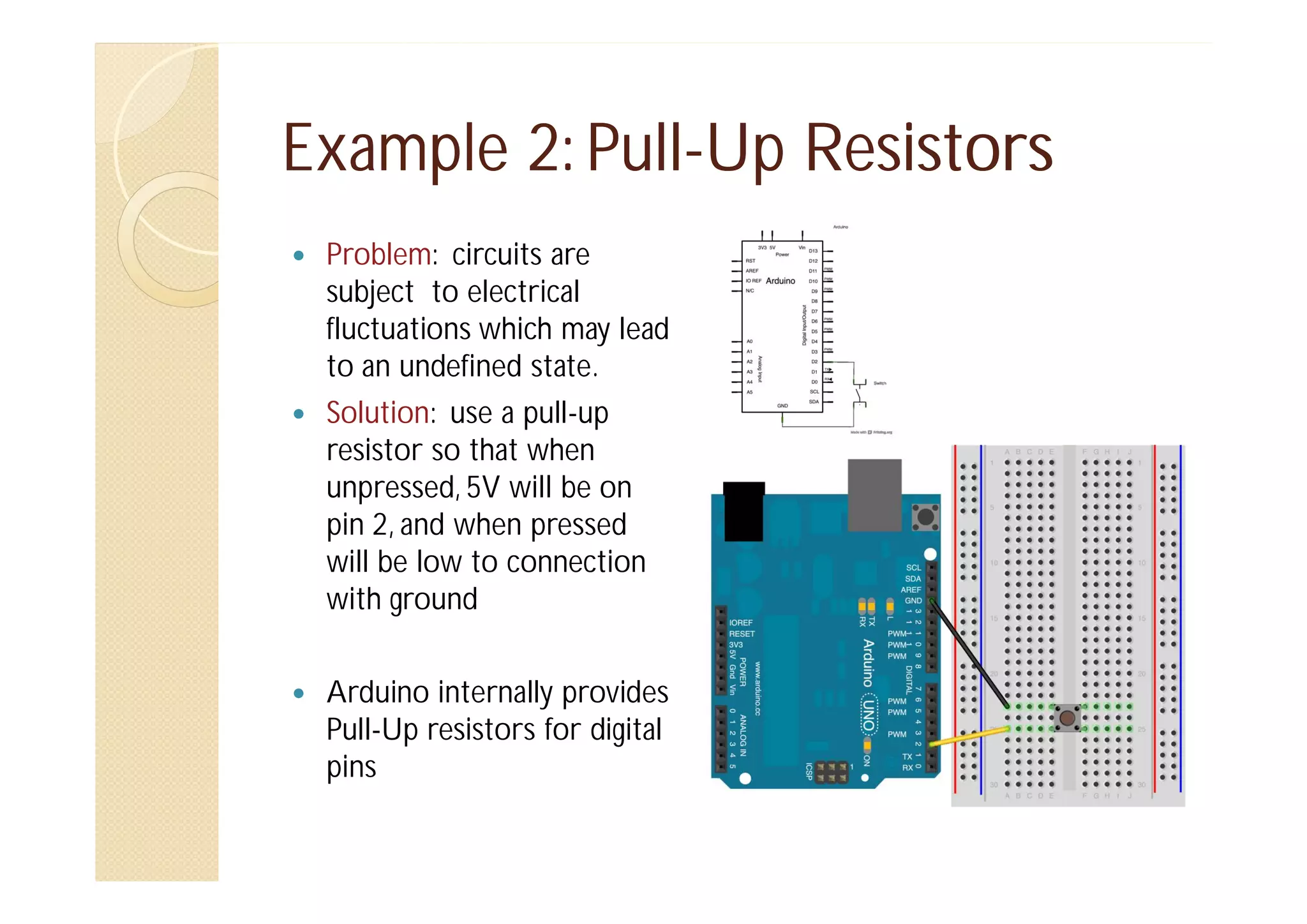

Example 2: Pull-Up Resistors
PullProblem: circuits are
subject to electrical
fluctuations which may lead
to an undefined state.
Solution: use a pull-up
resistor so that when
unpressed, 5V will be on
pin 2, and when pressed
will be low to connection
with ground
Arduino internally provides
Pull-Up resistors for digital
pins

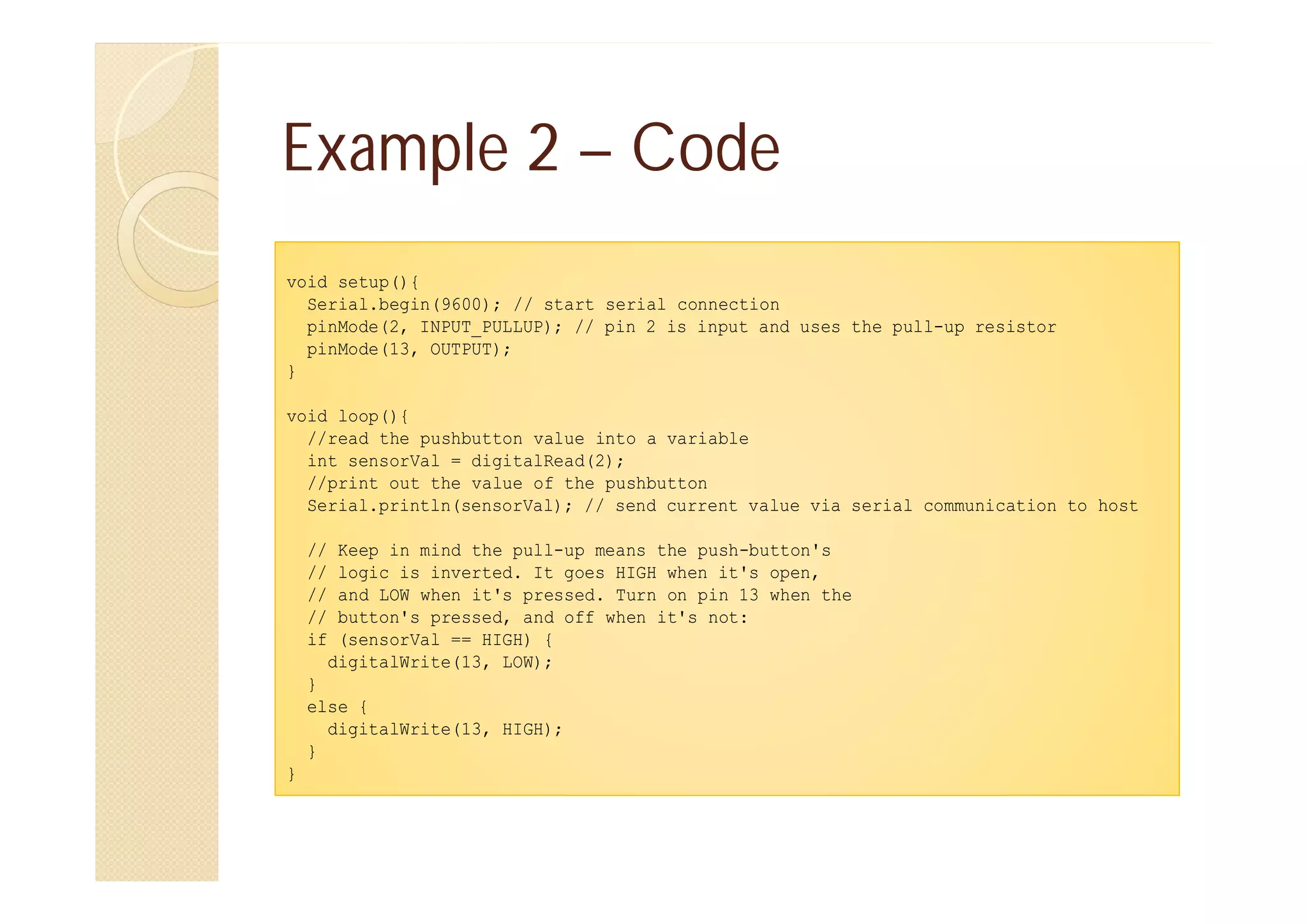

Example 2 – Code
void setup(){
Serial.begin(9600); // start serial connection
pinMode(2, INPUT_PULLUP); // pin 2 is input and uses the pull-up resistor
pinMode(13, OUTPUT);
}
void loop(){
//read the pushbutton value into a variable
int sensorVal = digitalRead(2);
//print out the value of the pushbutton
Serial.println(sensorVal); // send current value via serial communication to host
//
//
//
//
if

Keep in mind the pull-up means the push-button's
logic is inverted. It goes HIGH when it's open,
and LOW when it's pressed. Turn on pin 13 when the
button's pressed, and off when it's not:
(sensorVal == HIGH) {
digitalWrite(13, LOW);

}
else {
digitalWrite(13, HIGH);
}
}

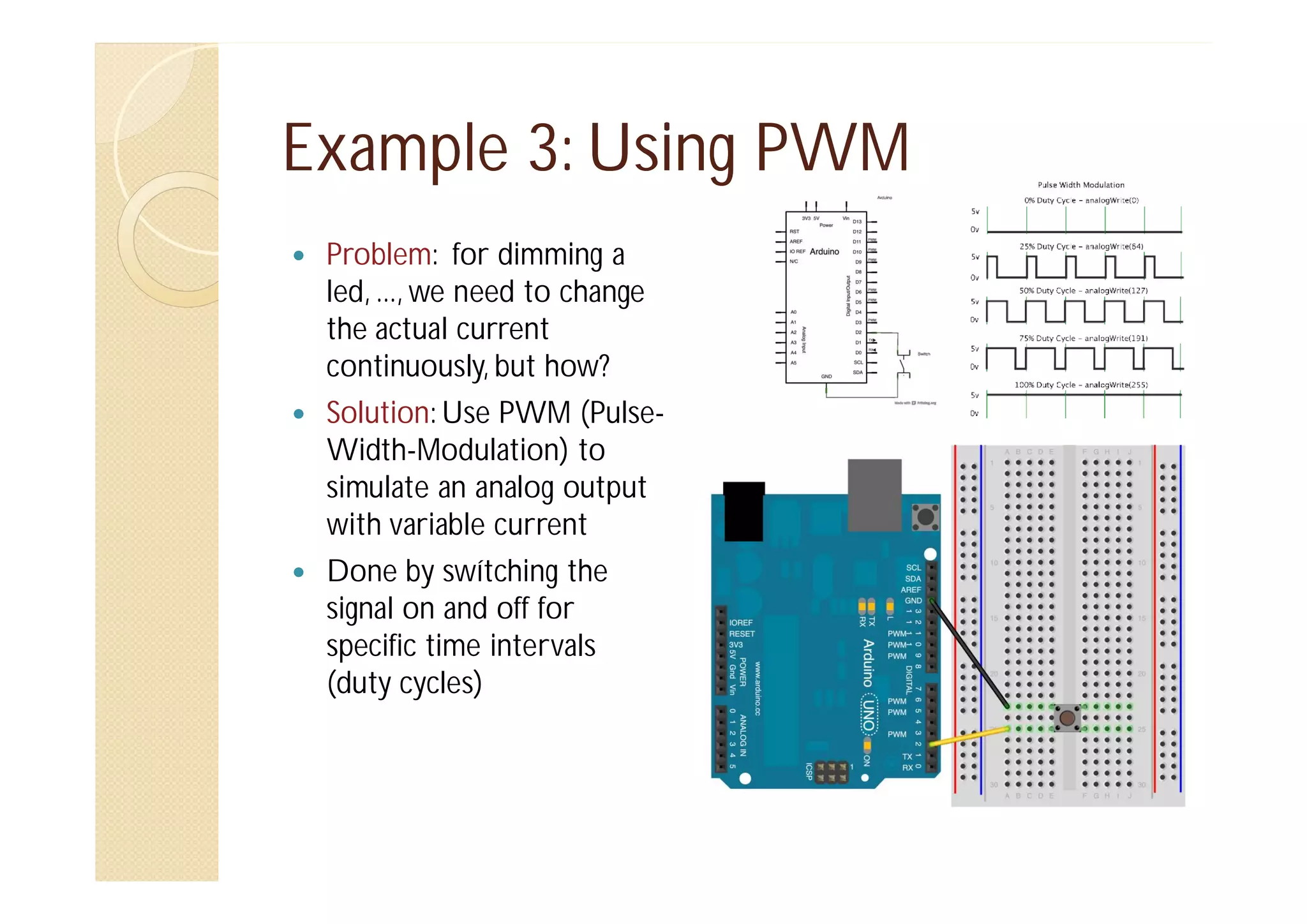

Example 3: Using PWM
Problem: for dimming a
led, ..., we need to change
the actual current
continuously, but how?
Solution: Use PWM (PulseWidth-Modulation) to
simulate an analog output
with variable current
Done by swítching the
signal on and off for
specific time intervals
(duty cycles)

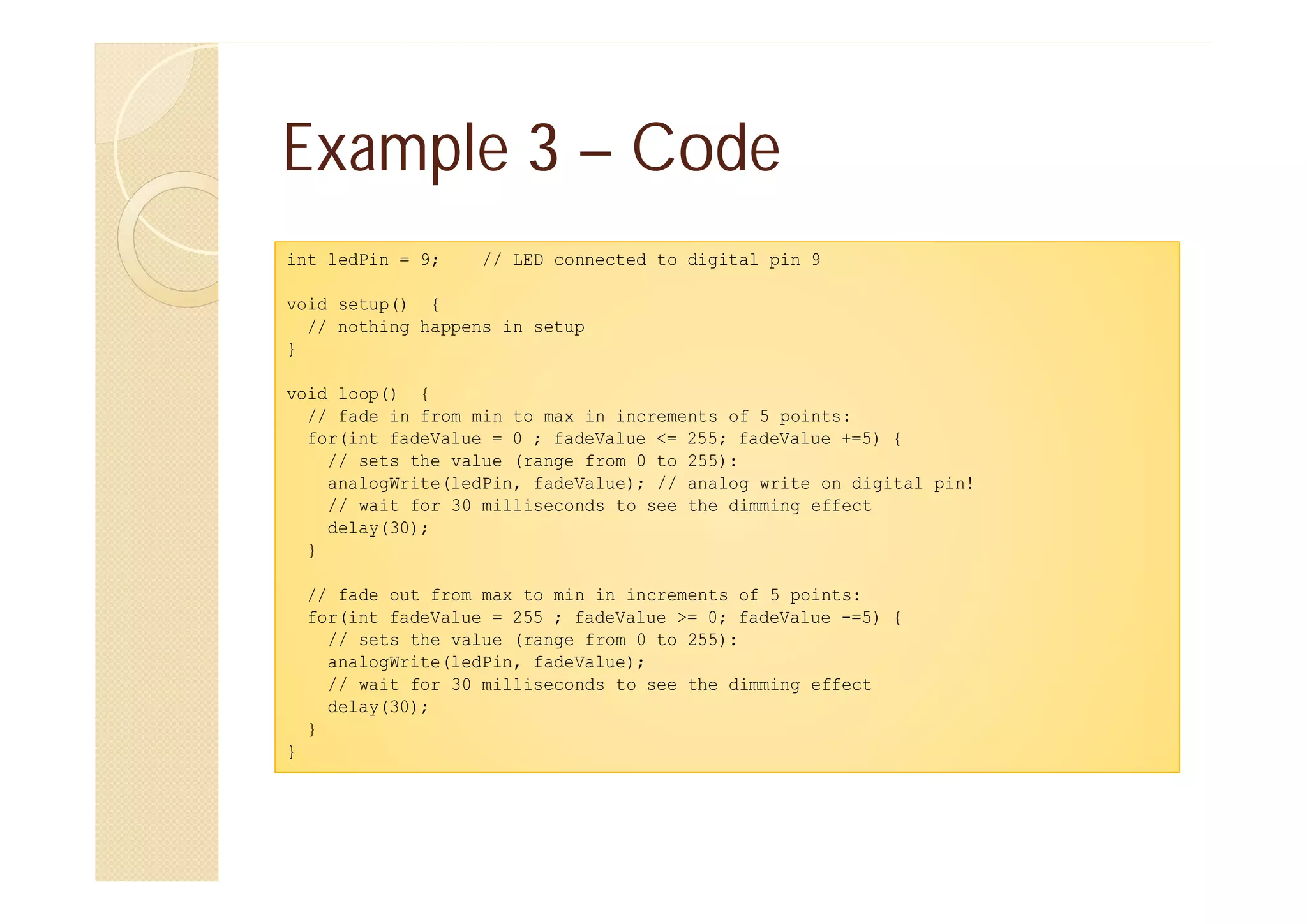

Example 3 – Code
int ledPin = 9;

// LED connected to digital pin 9

void setup() {
// nothing happens in setup
}
void loop() {
// fade in from min to max in increments of 5 points:
for(int fadeValue = 0 ; fadeValue <= 255; fadeValue +=5) {
// sets the value (range from 0 to 255):
analogWrite(ledPin, fadeValue); // analog write on digital pin!
// wait for 30 milliseconds to see the dimming effect
delay(30);
}
// fade out from max to min in increments of 5 points:
for(int fadeValue = 255 ; fadeValue >= 0; fadeValue -=5) {
// sets the value (range from 0 to 255):
analogWrite(ledPin, fadeValue);
// wait for 30 milliseconds to see the dimming effect
delay(30);
}
}

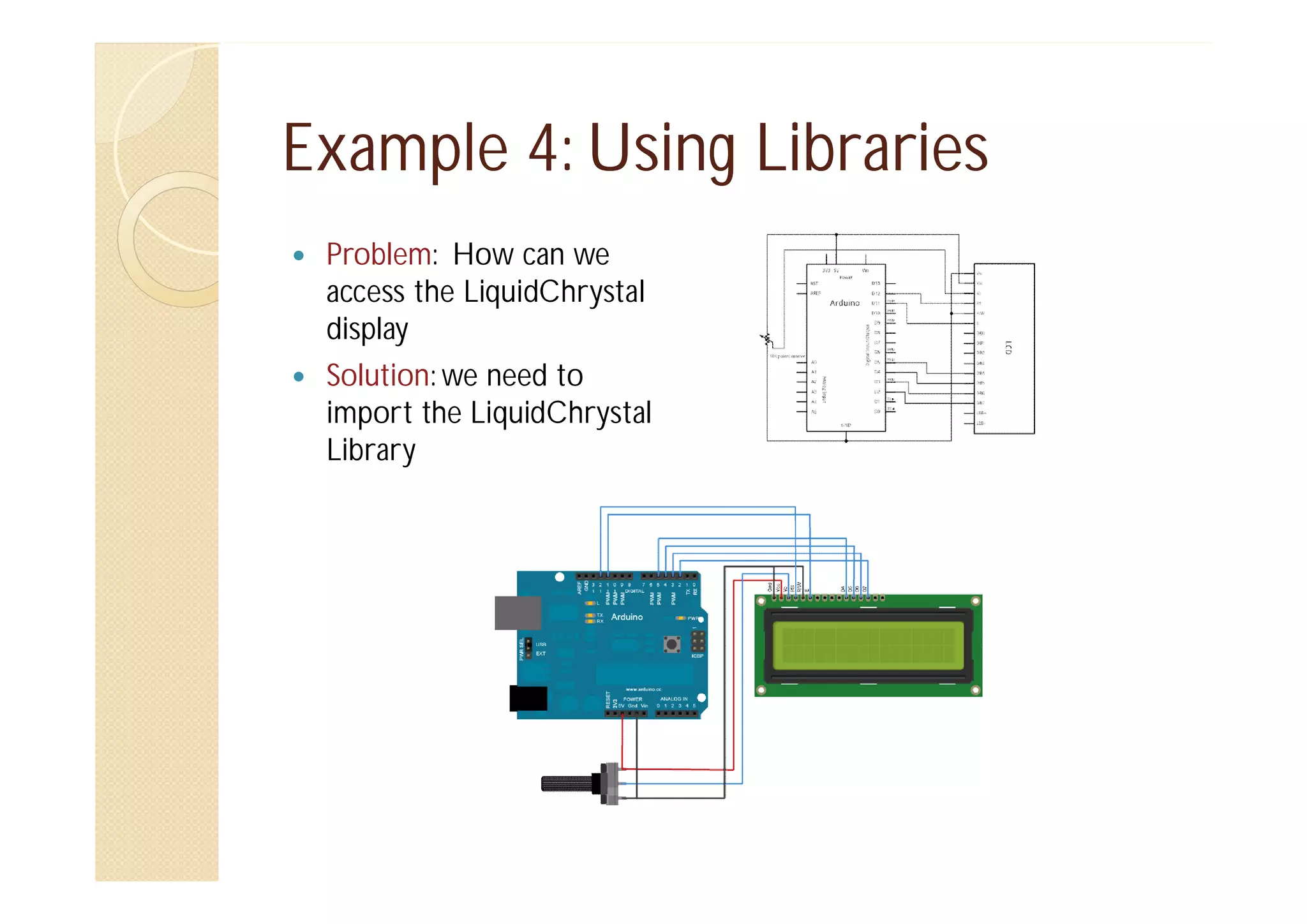

Example 4: Using Libraries
Problem: How can we
access the LiquidChrystal
display
Solution: we need to
import the LiquidChrystal
Library

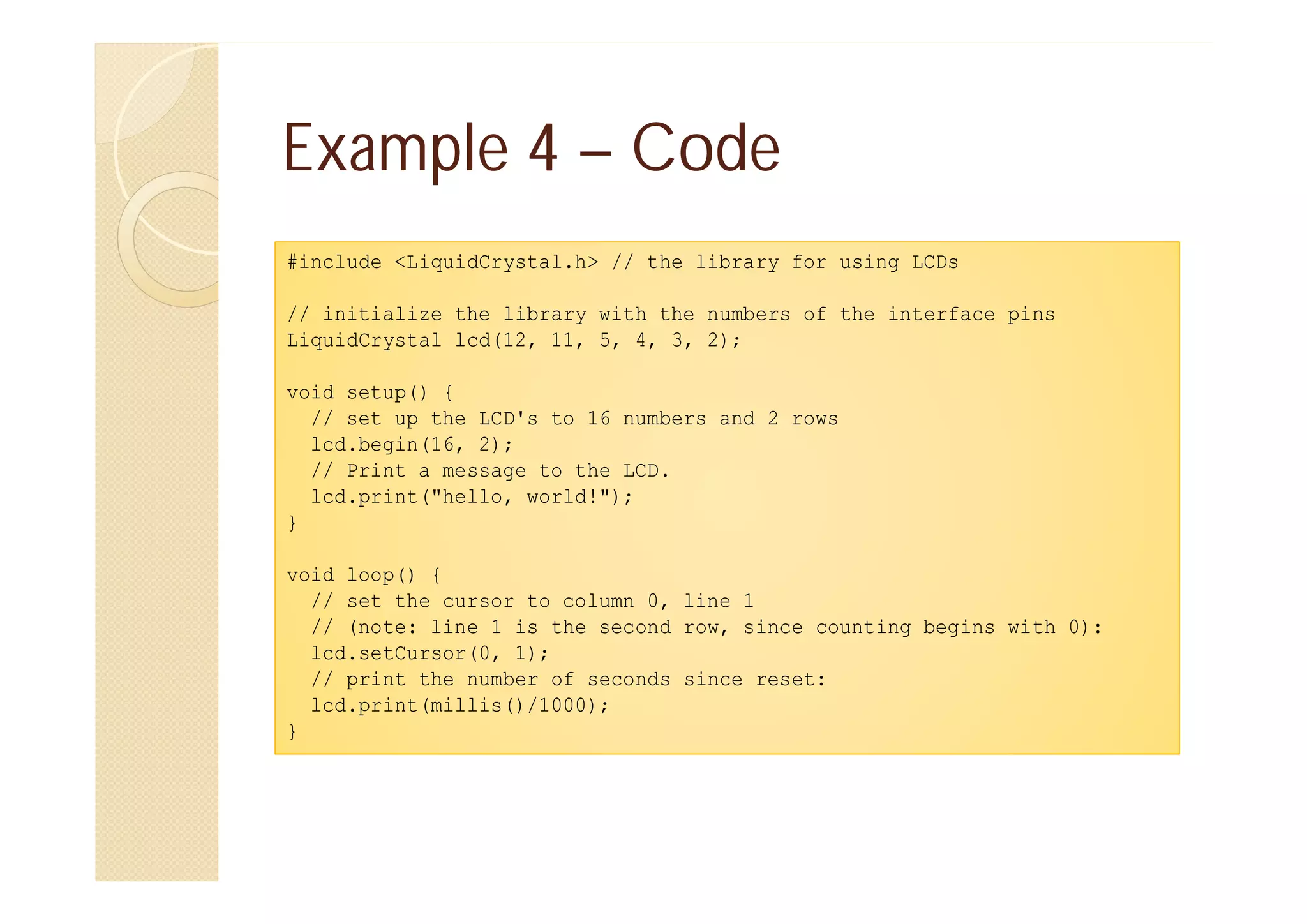

Example 4 – Code
#include <LiquidCrystal.h> // the library for using LCDs
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
void setup() {
// set up the LCD's to 16 numbers and 2 rows
lcd.begin(16, 2);
// Print a message to the LCD.
lcd.print("hello, world!");
}
void loop() {
// set the cursor to column 0, line 1
// (note: line 1 is the second row, since counting begins with 0):
lcd.setCursor(0, 1);
// print the number of seconds since reset:
lcd.print(millis()/1000);
}

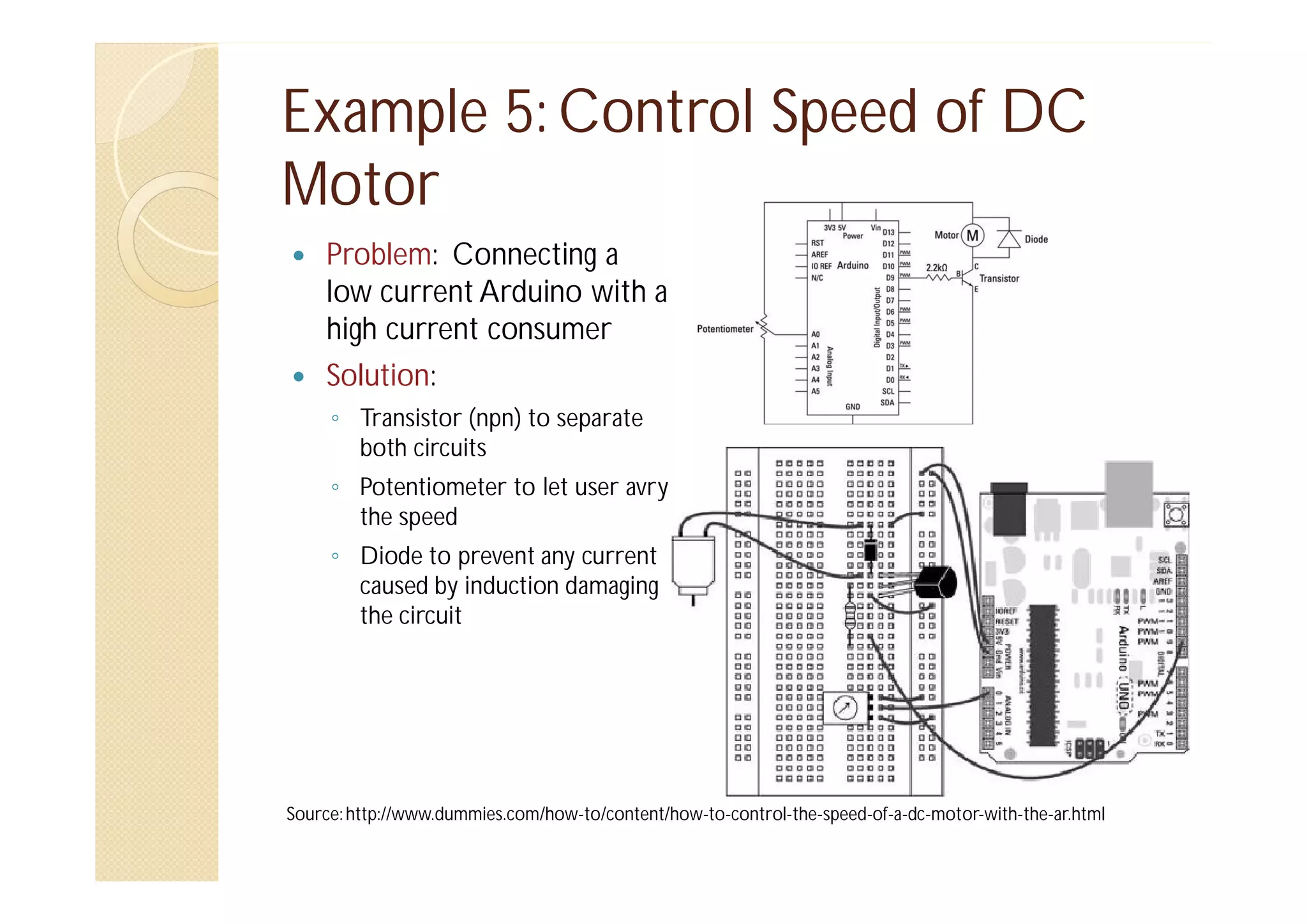

Example 5: Control Speed of DC
Motor
Problem: Connecting a
low current Arduino with a
high current consumer
Solution:
Transistor (npn) to separate
both circuits
Potentiometer to let user avry
the speed
Diode to prevent any current
caused by induction damaging
the circuit

Source: http://www.dummies.com/how-to/content/how-to-control-the-speed-of-a-dc-motor-with-the-ar.html

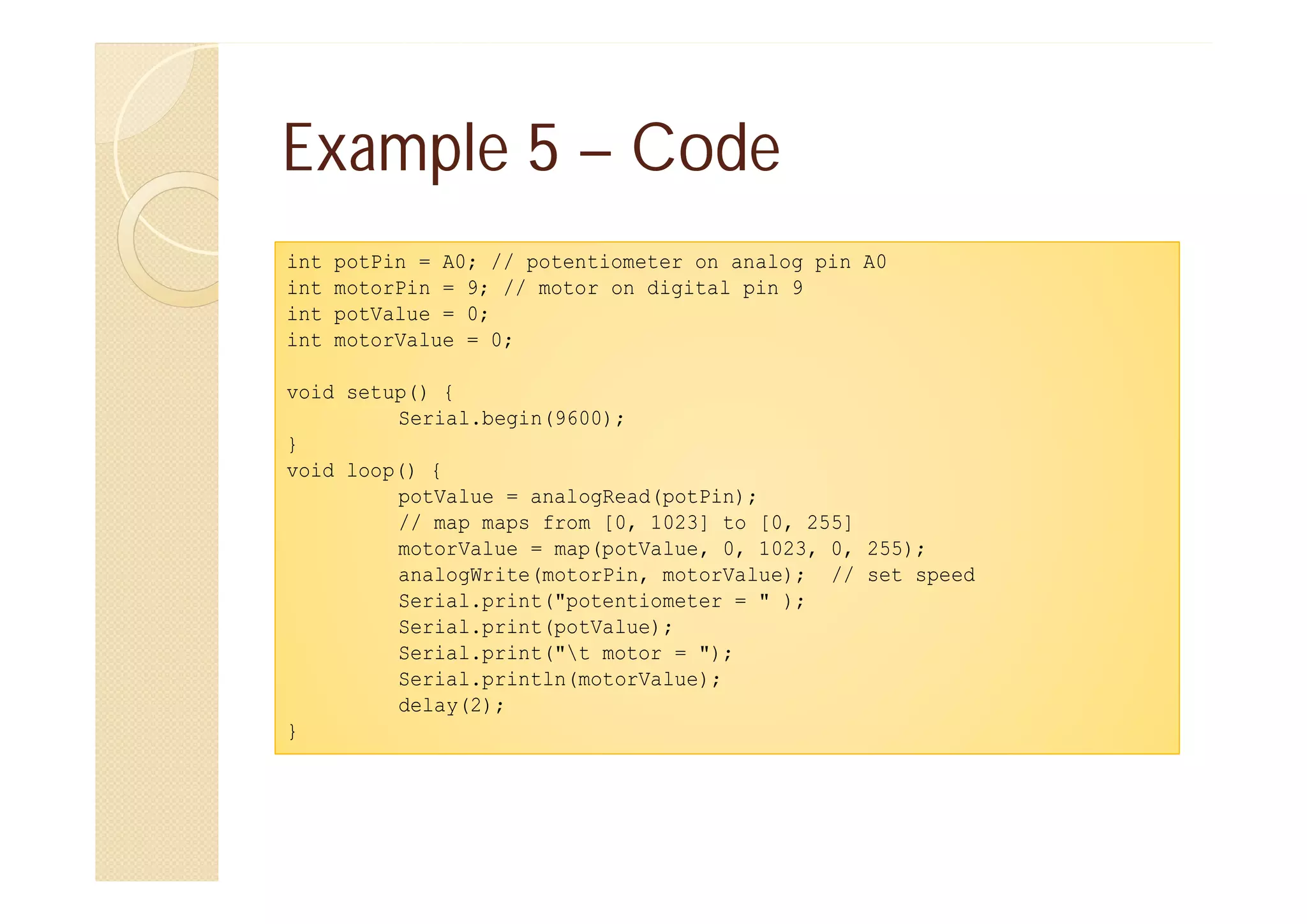

Example 5 – Code
int
int
int
int

potPin = A0; // potentiometer on analog pin A0
motorPin = 9; // motor on digital pin 9
potValue = 0;
motorValue = 0;

void setup() {
Serial.begin(9600);
}
void loop() {
potValue = analogRead(potPin);
// map maps from [0, 1023] to [0, 255]
motorValue = map(potValue, 0, 1023, 0, 255);
analogWrite(motorPin, motorValue); // set speed
Serial.print("potentiometer = " );
Serial.print(potValue);
Serial.print("t motor = ");
Serial.println(motorValue);
delay(2);
}

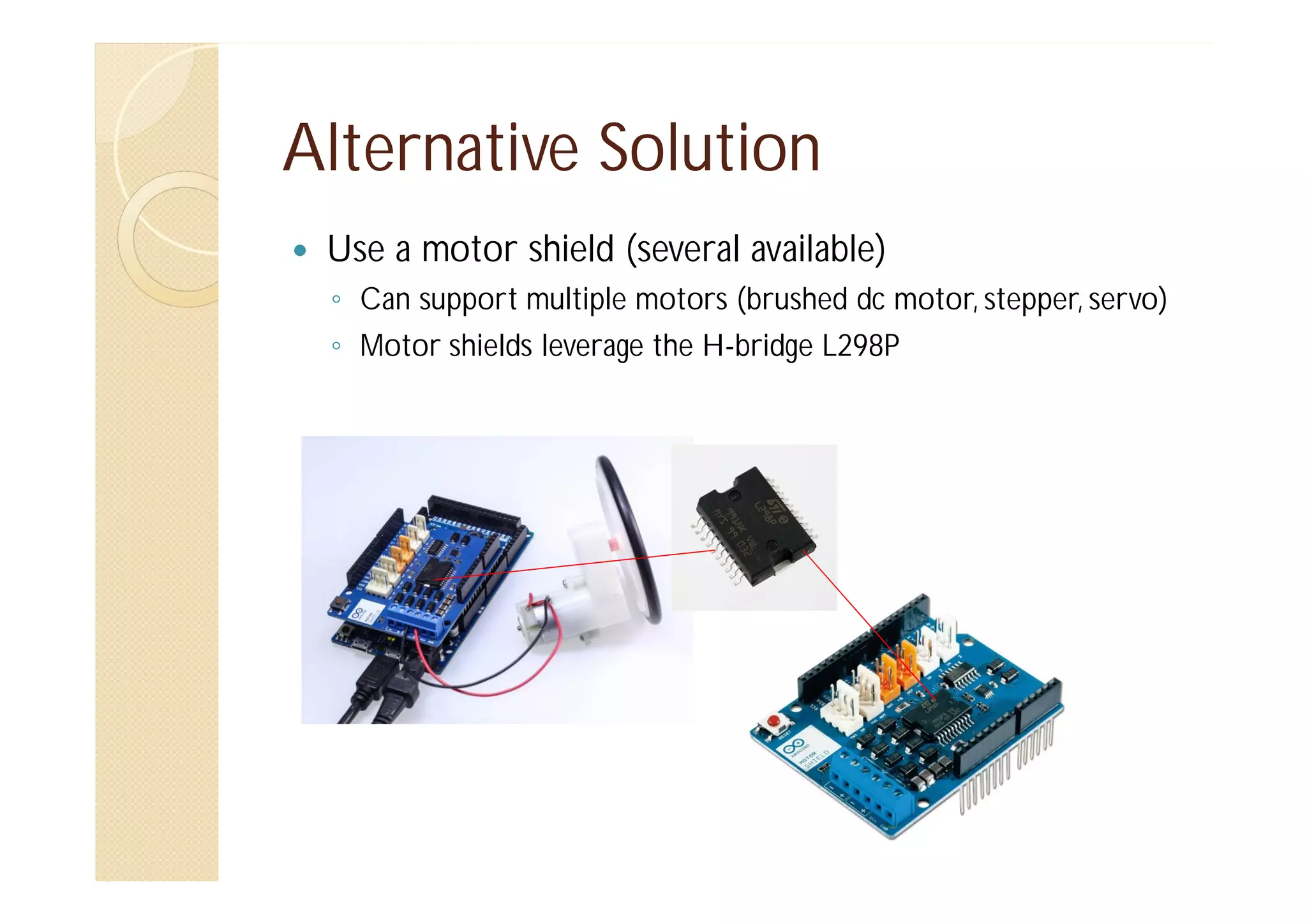

Alternative Solution
Use a motor shield (several available)
Can support multiple motors (brushed dc motor, stepper, servo)
Motor shields leverage the H-bridge L298P

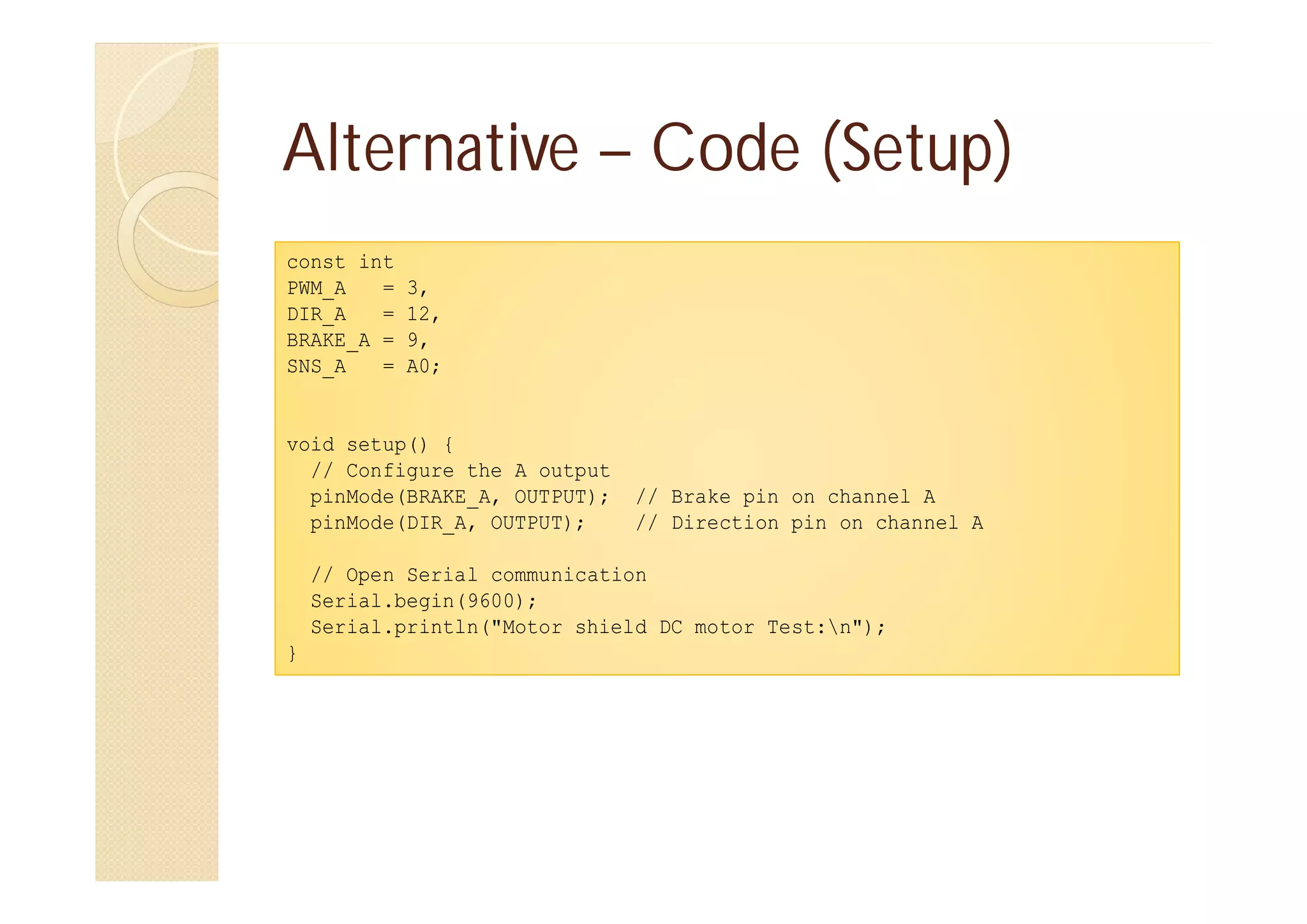

Alternative – Code (Setup)
const int
PWM_A
=
DIR_A
=
BRAKE_A =
SNS_A
=

3,
12,
9,
A0;

void setup() {
// Configure the A output
pinMode(BRAKE_A, OUTPUT);
pinMode(DIR_A, OUTPUT);

// Brake pin on channel A
// Direction pin on channel A

// Open Serial communication
Serial.begin(9600);
Serial.println("Motor shield DC motor Test:n");
}

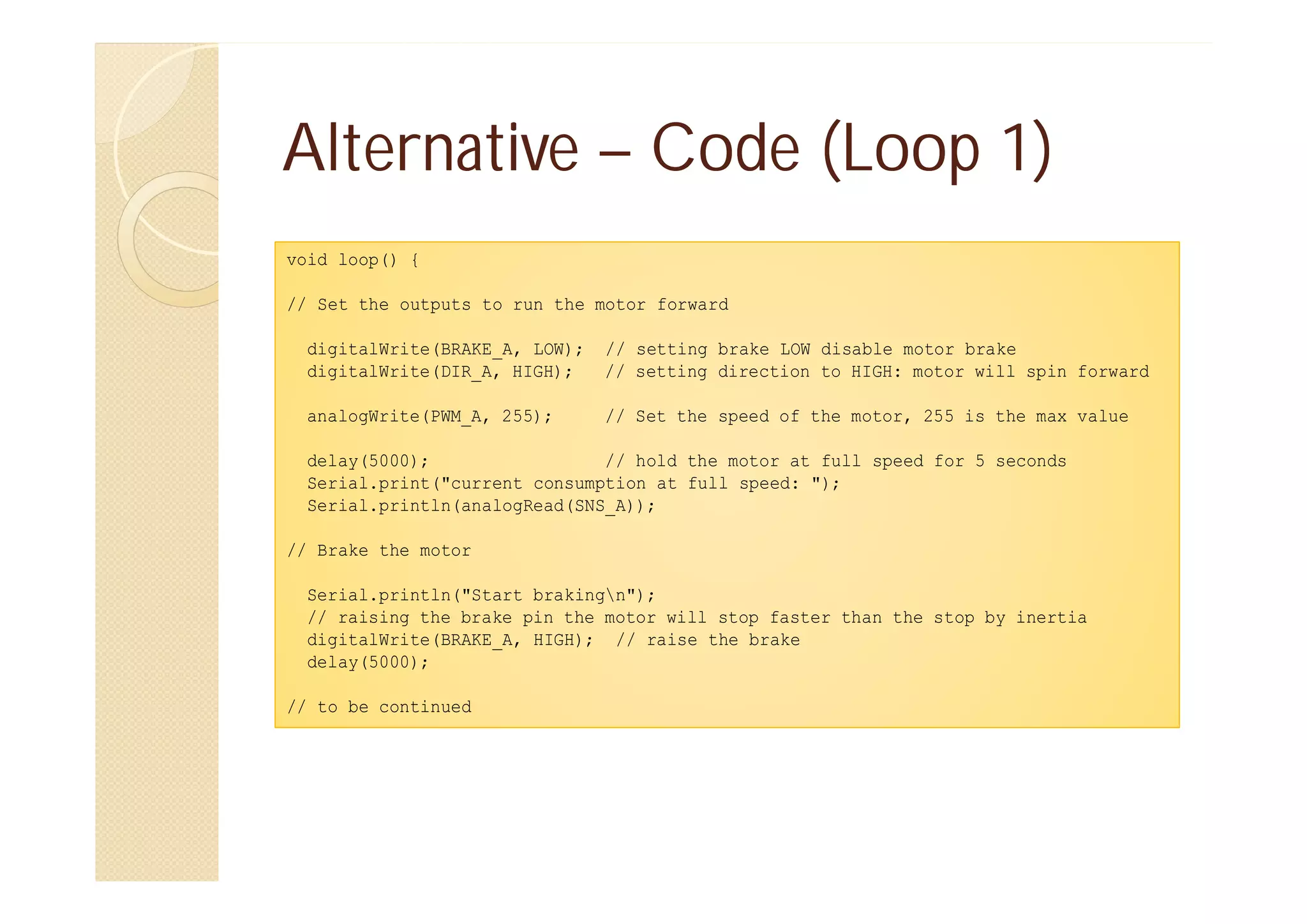

Alternative – Code (Loop 1)
void loop() {
// Set the outputs to run the motor forward
digitalWrite(BRAKE_A, LOW);
digitalWrite(DIR_A, HIGH);

// setting brake LOW disable motor brake
// setting direction to HIGH: motor will spin forward

analogWrite(PWM_A, 255);

// Set the speed of the motor, 255 is the max value

delay(5000);
// hold the motor at full speed for 5 seconds
Serial.print("current consumption at full speed: ");
Serial.println(analogRead(SNS_A));
// Brake the motor
Serial.println("Start brakingn");
// raising the brake pin the motor will stop faster than the stop by inertia
digitalWrite(BRAKE_A, HIGH); // raise the brake
delay(5000);
// to be continued

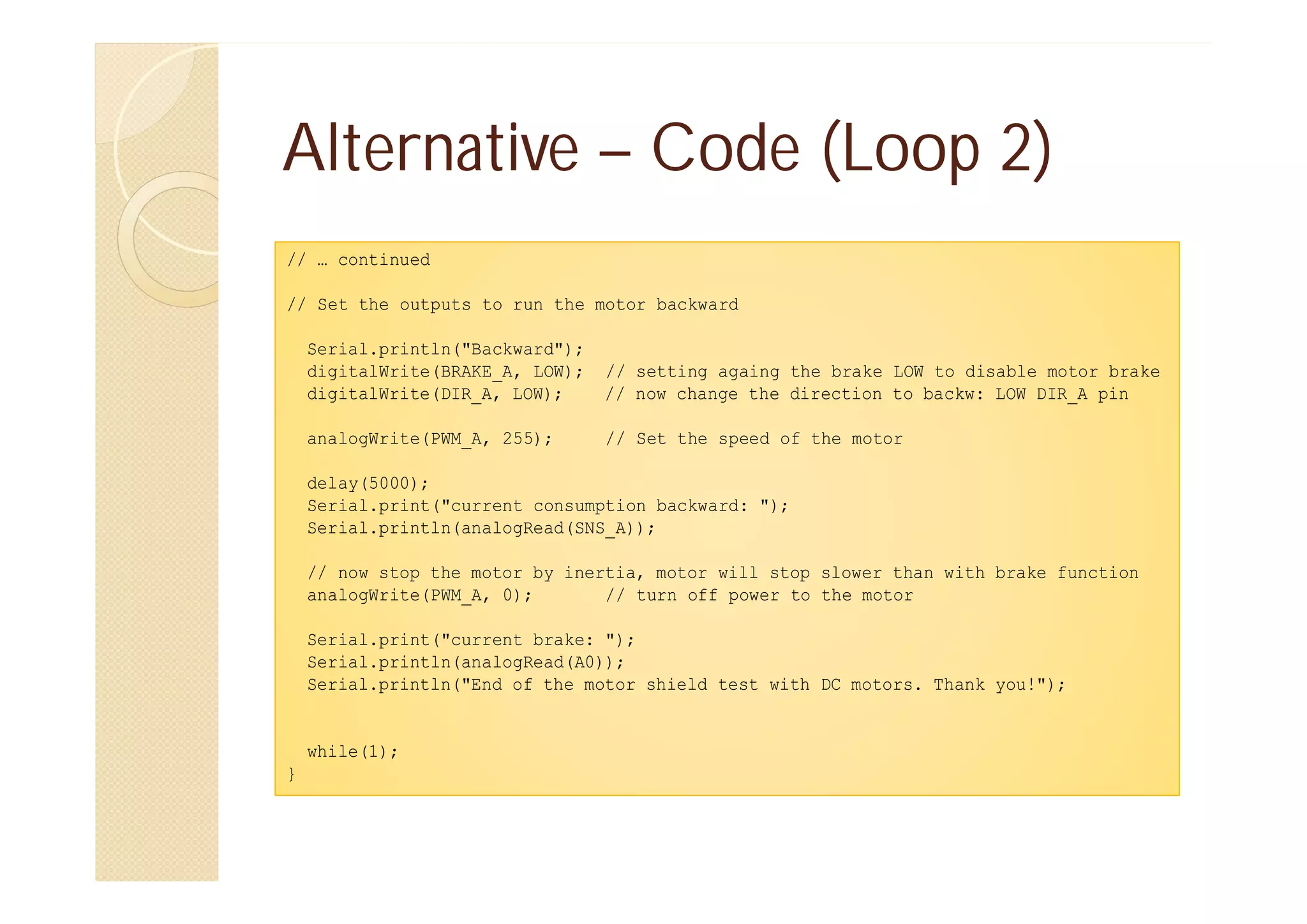

Alternative – Code (Loop 2)
// … continued
// Set the outputs to run the motor backward
Serial.println("Backward");
digitalWrite(BRAKE_A, LOW);
digitalWrite(DIR_A, LOW);

// setting againg the brake LOW to disable motor brake
// now change the direction to backw: LOW DIR_A pin

analogWrite(PWM_A, 255);

// Set the speed of the motor

delay(5000);
Serial.print("current consumption backward: ");
Serial.println(analogRead(SNS_A));
// now stop the motor by inertia, motor will stop slower than with brake function
analogWrite(PWM_A, 0);
// turn off power to the motor
Serial.print("current brake: ");
Serial.println(analogRead(A0));
Serial.println("End of the motor shield test with DC motors. Thank you!");
while(1);
}

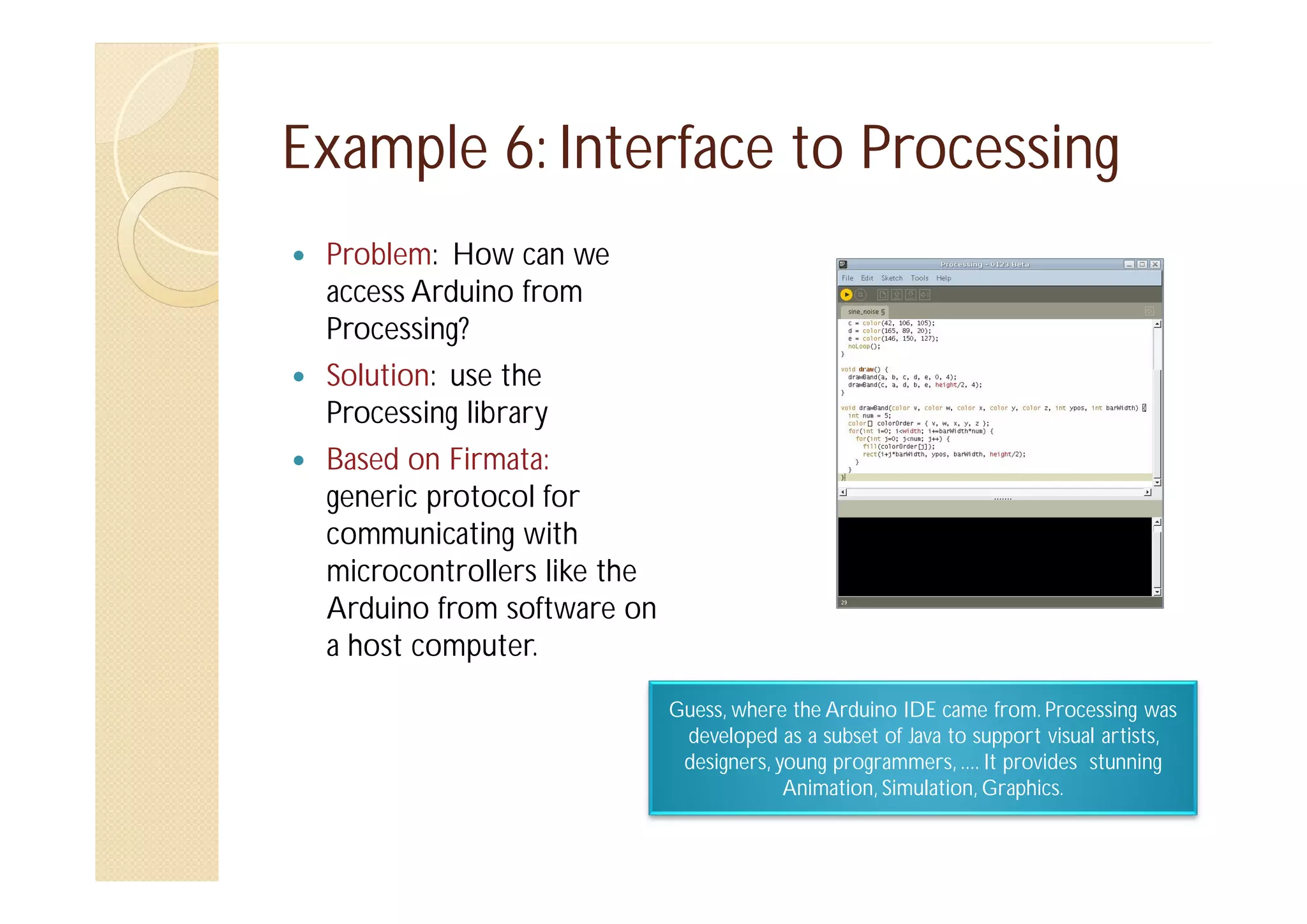

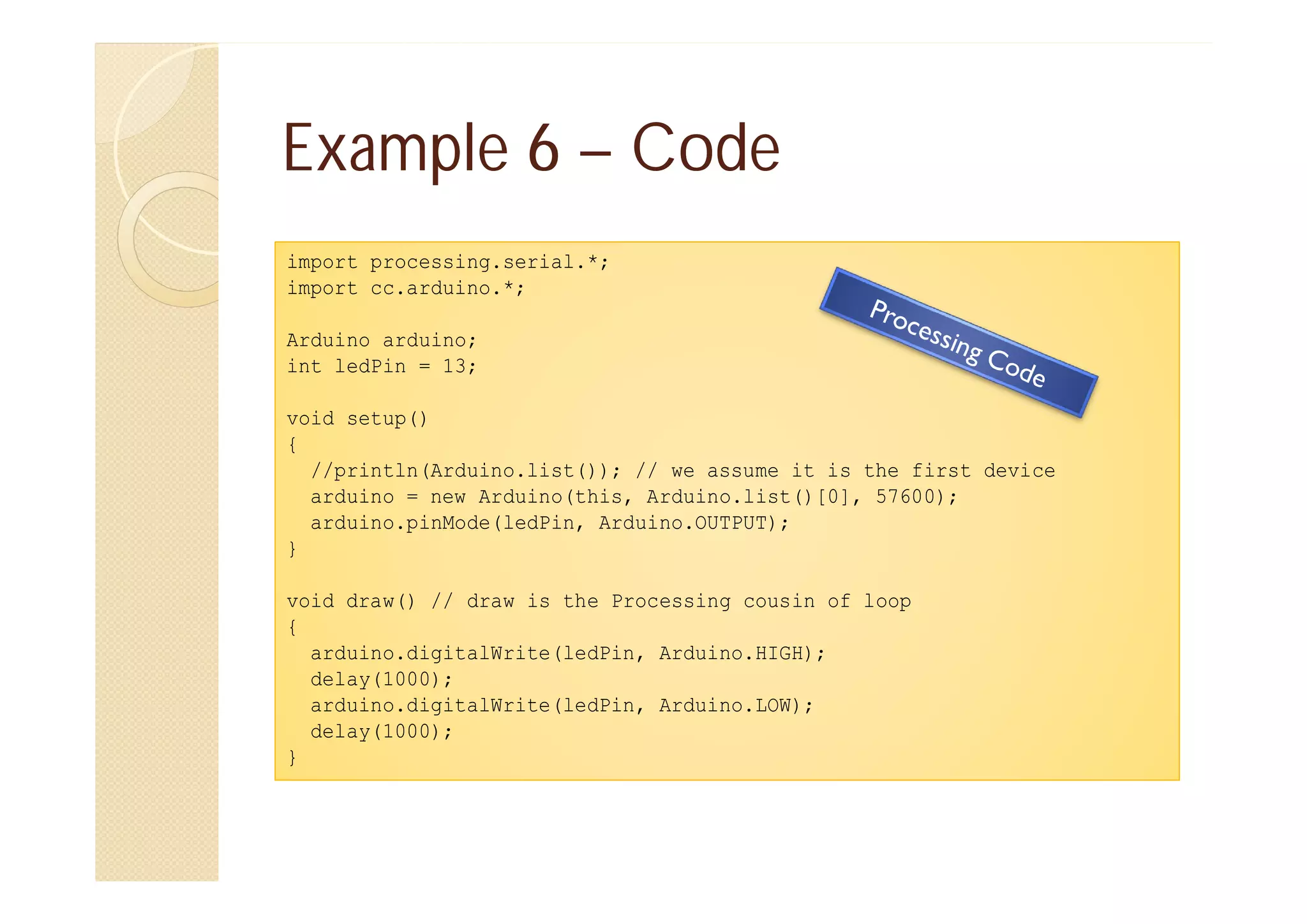

Example 6: Interface to Processing
Problem: How can we
access Arduino from
Processing?
Solution: use the
Processing library
Based on Firmata:
generic protocol for
communicating with
microcontrollers like the
Arduino from software on
a host computer.
Guess, where the Arduino IDE came from. Processing was
developed as a subset of Java to support visual artists,
designers, young programmers, .... It provides stunning
Animation, Simulation, Graphics.
Example 6 – Code
import processing.serial.*;
import cc.arduino.*;
Arduino arduino;
int ledPin = 13;
void setup()
{
//println(Arduino.list()); // we assume it is the first device
arduino = new Arduino(this, Arduino.list()[0], 57600);
arduino.pinMode(ledPin, Arduino.OUTPUT);
}
void draw() // draw is the Processing cousin of loop
{
arduino.digitalWrite(ledPin, Arduino.HIGH);
delay(1000);
arduino.digitalWrite(ledPin, Arduino.LOW);
delay(1000);
}

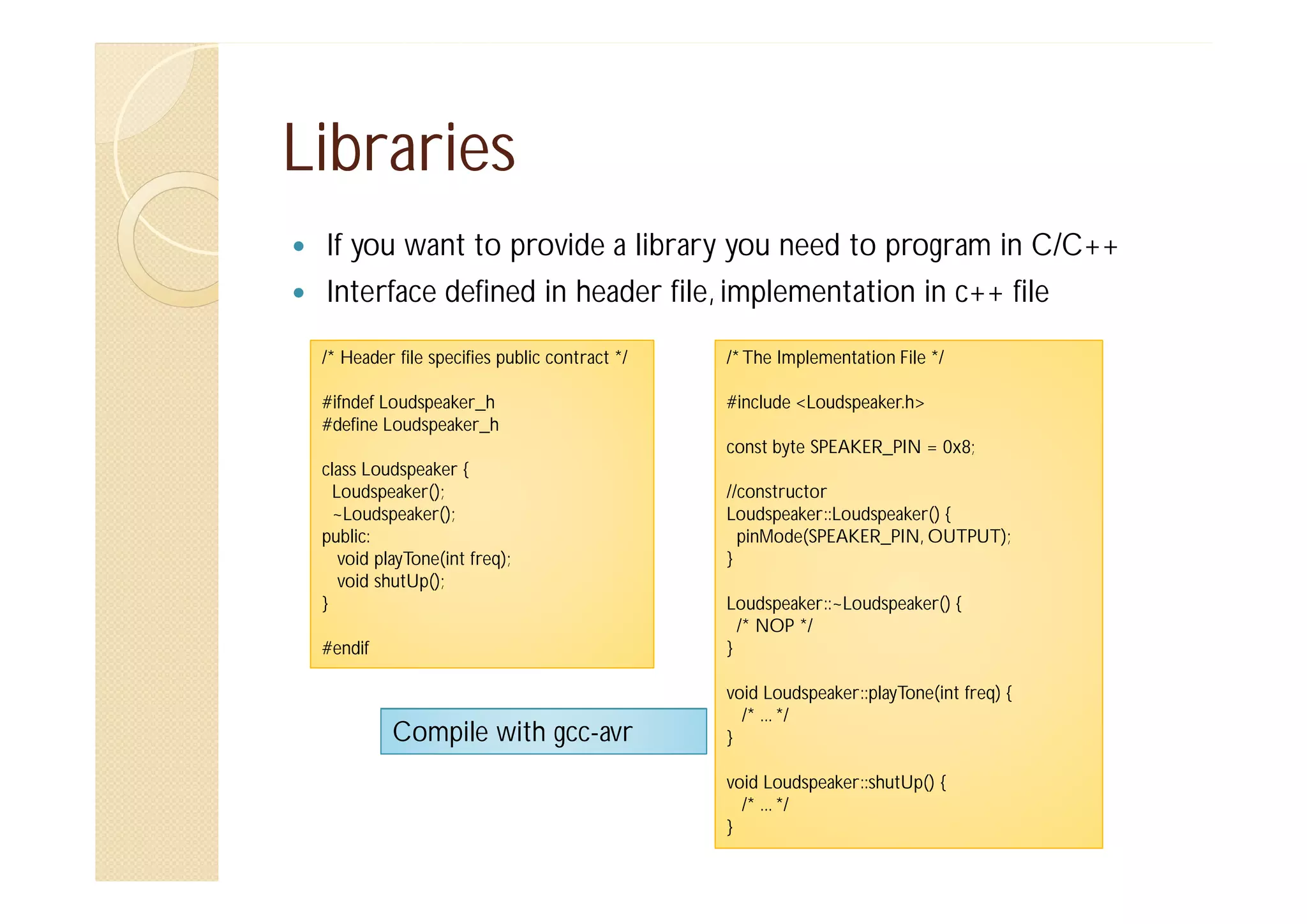

Libraries
If you want to provide a library you need to program in C/C++
Interface defined in header file, implementation in c++ file
/* Header file specifies public contract */

/* The Implementation File */

#ifndef Loudspeaker_h
#define Loudspeaker_h

#include <Loudspeaker.h>
const byte SPEAKER_PIN = 0x8;

class Loudspeaker {
Loudspeaker();
~Loudspeaker();
public:
void playTone(int freq);
void shutUp();
}
#endif

Compile with gcc-avr

//constructor
Loudspeaker::Loudspeaker() {
pinMode(SPEAKER_PIN, OUTPUT);
}
Loudspeaker::~Loudspeaker() {
/* NOP */
}
void Loudspeaker::playTone(int freq) {
/* ... */
}
void Loudspeaker::shutUp() {
/* ... */
}

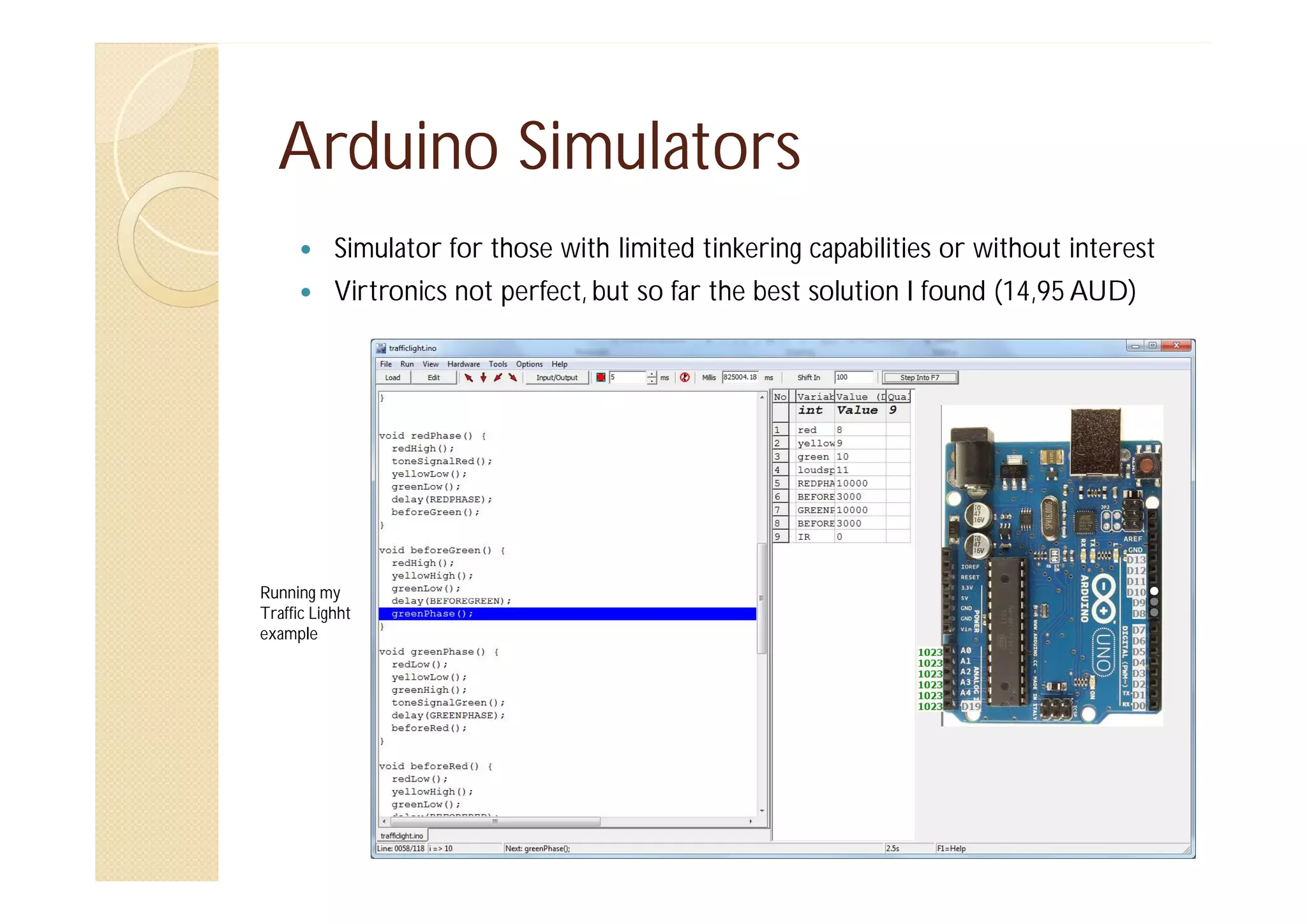

Arduino Simulators
Simulator for those with limited tinkering capabilities or without interest
Virtronics not perfect, but so far the best solution I found (14,95 AUD)

Running my
Traffic Lighht
example
Netduino
„Arduino.NET“

Shield-compatible with Arduino Uno
Rev. 3
Based on .NET Micro Framework
Supports C#, VB, ...
STMicro 32-bit microcontroller
Speed: 168MHz, Cortex-M4
Code Storage: 384 KB
RAM: 100+ KB
10 mbps Ethernet
Micro SD card support up to 2 GB
Input Voltage: 7.5 - 9.0 VDC or USB
powered
25 mA max. current per pin
Digital I/O 3.3 V but 5 V tolerant
12 bit ADC (Analog Digital
Converter)

USB

For both images: (c) Microsoft

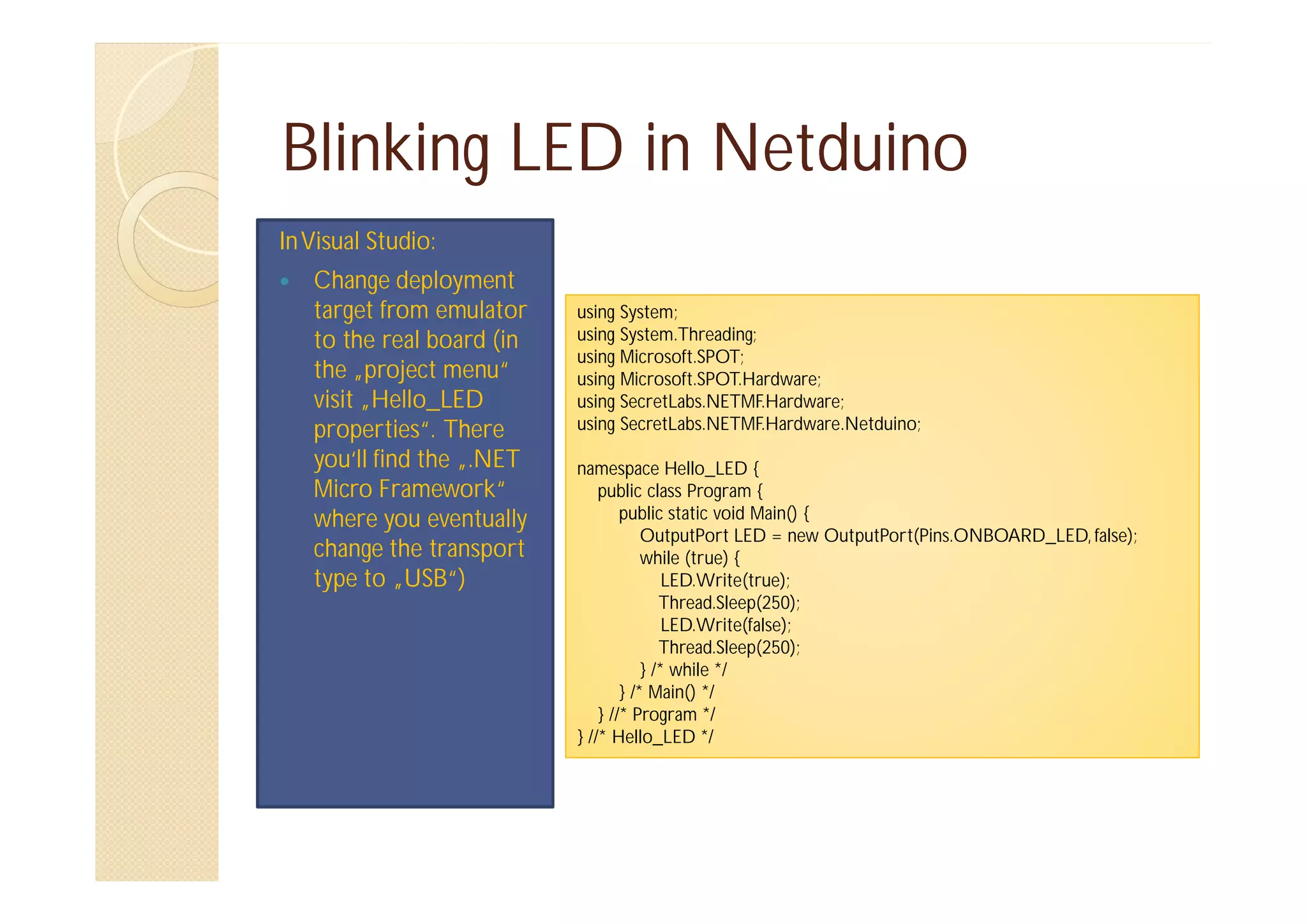

Blinking LED in Netduino
In Visual Studio:
Change deployment
target from emulator
to the real board (in
the „project menu“
visit „Hello_LED
properties“. There
you‘ll find the „.NET
Micro Framework“
where you eventually
change the transport
type to „USB“)

using System;
using System.Threading;
using Microsoft.SPOT;
using Microsoft.SPOT.Hardware;
using SecretLabs.NETMF.Hardware;
using SecretLabs.NETMF.Hardware.Netduino;
namespace Hello_LED {
public class Program {
public static void Main() {
OutputPort LED = new OutputPort(Pins.ONBOARD_LED, false);
while (true) {
LED.Write(true);
Thread.Sleep(250);
LED.Write(false);
Thread.Sleep(250);
} /* while */
} /* Main() */
} //* Program */
} //* Hello_LED */

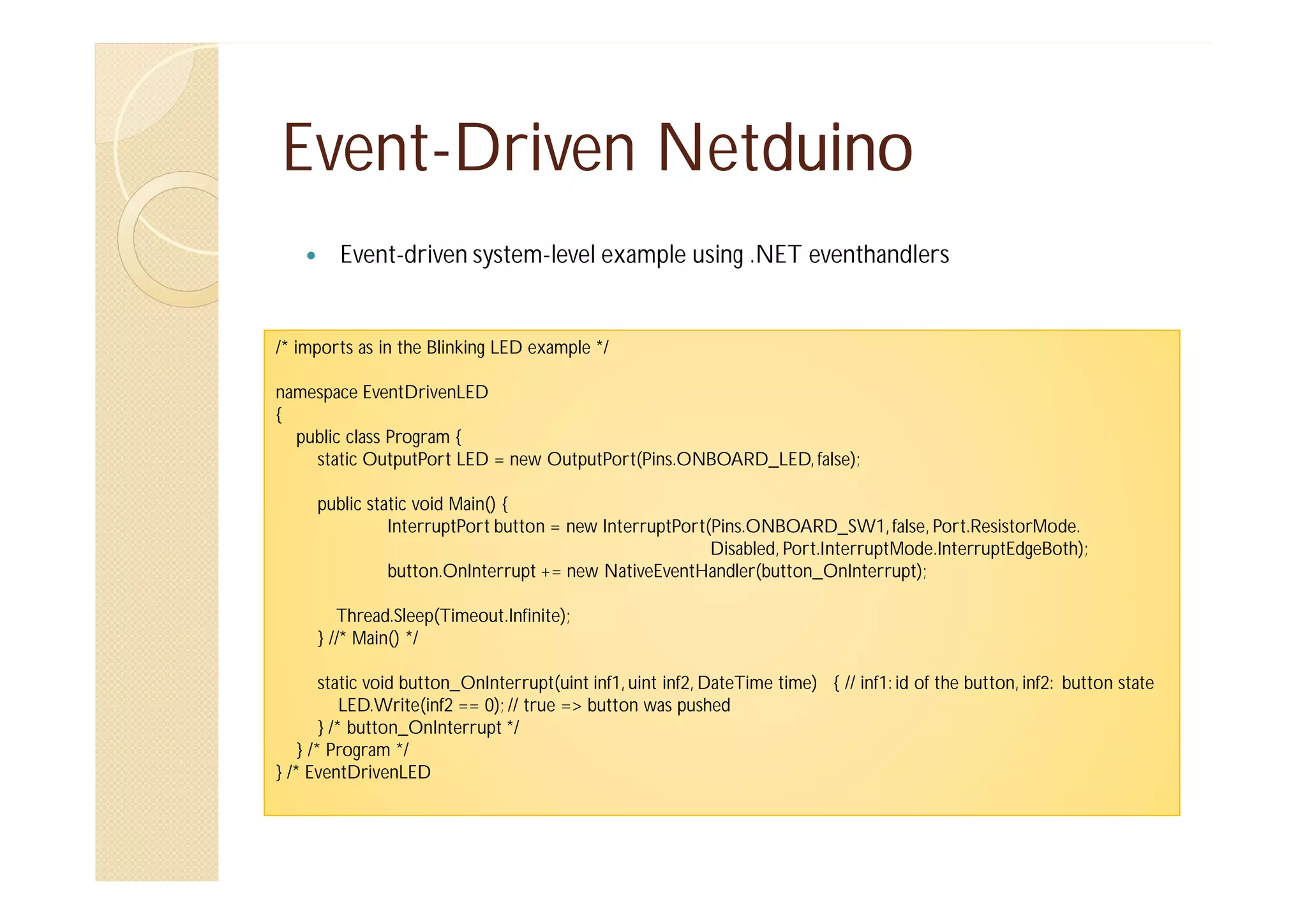

EventEvent-Driven Netduino
Event-driven system-level example using .NET eventhandlers

/* imports as in the Blinking LED example */
namespace EventDrivenLED
{
public class Program {
static OutputPort LED = new OutputPort(Pins.ONBOARD_LED, false);
public static void Main() {
InterruptPort button = new InterruptPort(Pins.ONBOARD_SW1, false, Port.ResistorMode.
Disabled, Port.InterruptMode.InterruptEdgeBoth);
button.OnInterrupt += new NativeEventHandler(button_OnInterrupt);
Thread.Sleep(Timeout.Infinite);
} //* Main() */
static void button_OnInterrupt(uint inf1, uint inf2, DateTime time) { // inf1: id of the button, inf2: button state
LED.Write(inf2 == 0); // true => button was pushed
} /* button_OnInterrupt */
} /* Program */
} /* EventDrivenLED
Raspberry Pi
more a cheap ARM6-based PC to go
with size of a credit card
With 1 GHz, 512 MB RAM, separate
Broadcom Graphics processor, HDMI.
Often used as media center (XBMC)
Created by the Raspberry Pi Foundation.
„PI“ originally came from „Python
Interpreter“. Not fully open source!
GNU/Linux (Raspbian), or other OS
loaded from a SD card
Voltage 5V (Micro-USB or batteries)
Ports: 17 Digital GPIO-Pins, SPI, I²C,
UART, EGL Caution: Ports can only
handle 3.3V
GPIO

= General Purpose I/O

SPI

= Serial Peripheral Interface

EGL

= Programming Interface: shields APIs
(OpenGL, ...) from the underlying windowing system

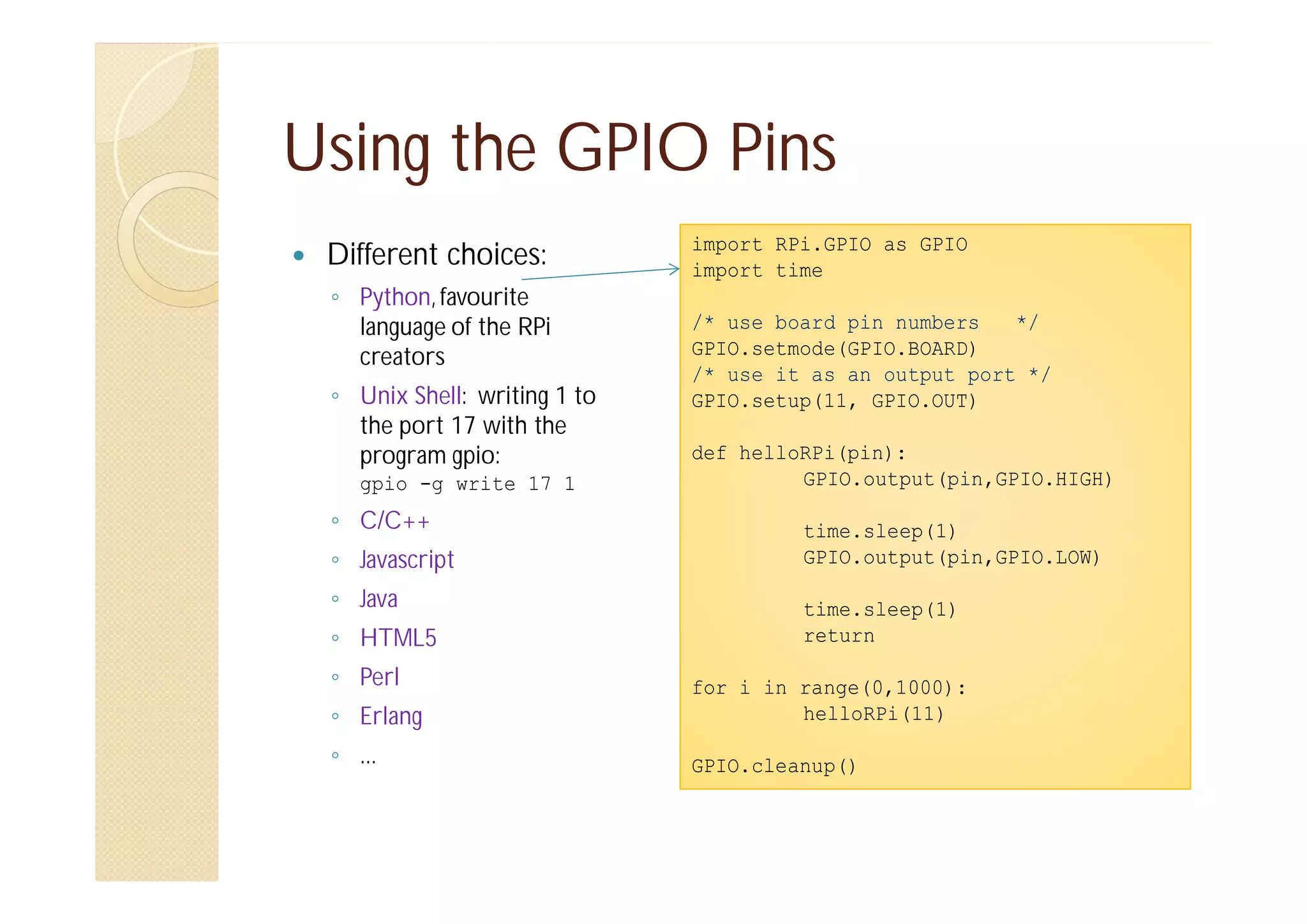

Using the GPIO Pins
Different choices:
Python, favourite
language of the RPi
creators
Unix Shell: writing 1 to
the port 17 with the
program gpio:
gpio -g write 17 1

C/C++
Javascript
Java
HTML5
Perl

import RPi.GPIO as GPIO
import time
/* use board pin numbers
*/
GPIO.setmode(GPIO.BOARD)
/* use it as an output port */
GPIO.setup(11, GPIO.OUT)
def helloRPi(pin):
GPIO.output(pin,GPIO.HIGH)
time.sleep(1)
GPIO.output(pin,GPIO.LOW)
time.sleep(1)
return

Erlang

for i in range(0,1000):
helloRPi(11)

...

GPIO.cleanup()
Expanding the Raspberry Pi
Limited capabilities compared with
Arduino
Various shields available, e.g.:
Shield to connect Raspberry Pi & Arduino
Shield to expand the capabilities of RPi

The Gert Board is a well known
expansion board
Sold assembled and not assembled
12 x Buffered I/O
3 x Push Buttons
6 x Open collector drivers (50V, 0.5A)
18V, 2A motor controller
28-pin dual in line ATmega
microcontroller
2 -channel 8, 10, or12 bit Digital to Analog
converter
2- channel 10 bit Analog to Digital
converter
beagleboard.org
beagleboard.org - BeagleBone
BeagleBone Black, the sprinter:
Powered by Embedded Linux
CPU AM335x 1GHz ARM®
Cortex-A8
512MB DDR3 RAM
2GB 8-bit eMMC on-board flash
3D graphics accelerator
NEON floating-point accelerator
2x PRU 32-bit microcontrollers
Connectivity
USB client for power & communications
USB host
Ethernet
HDMI
2x 46 pin headers

• PRU
• PMIC

= Programmable Realtime Unit
= Power Management IC
BeagleBone External Interface Pins

Satisfaction guaranteed

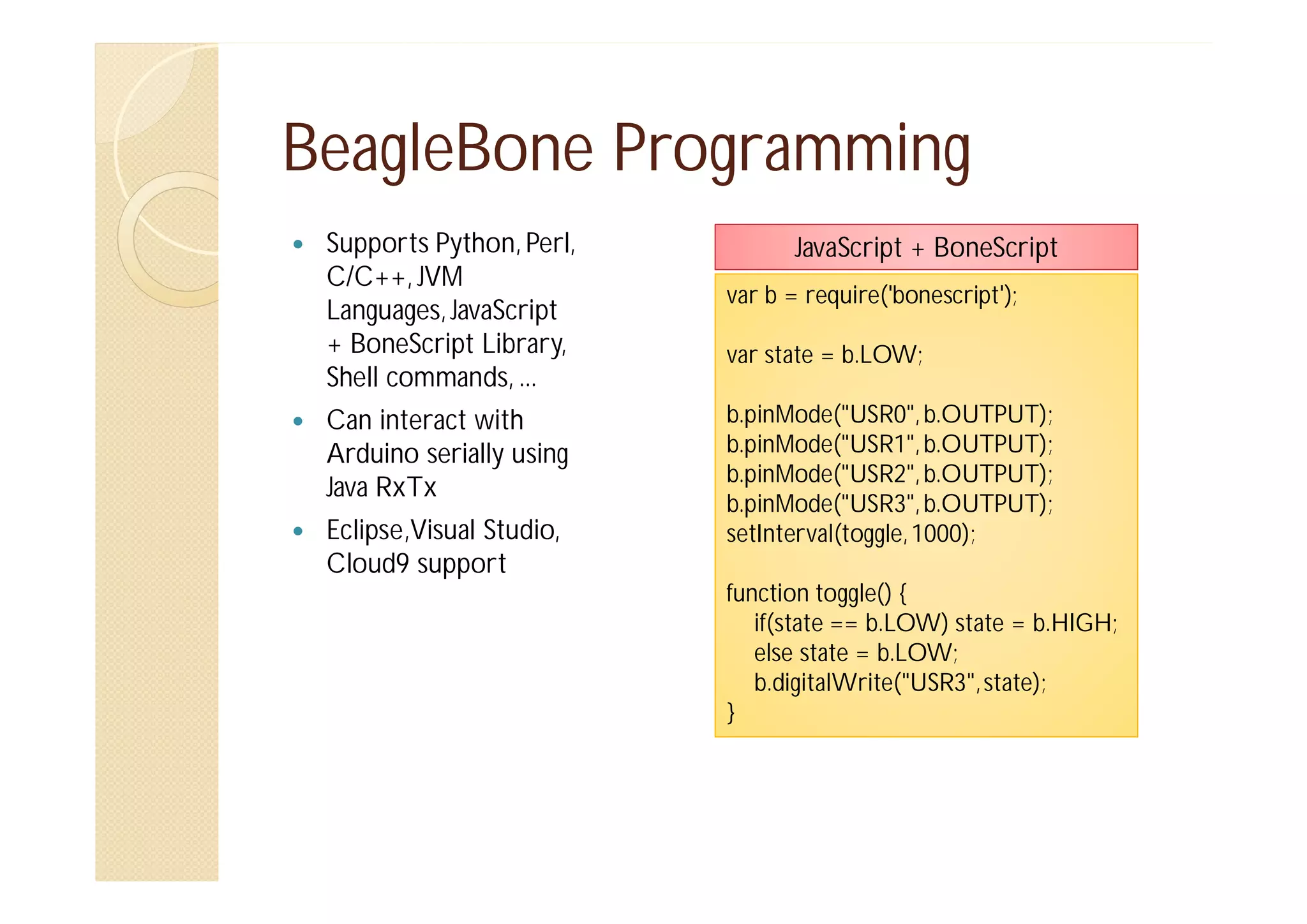

BeagleBone Programming
Supports Python, Perl,
C/C++, JVM
Languages, JavaScript
+ BoneScript Library,
Shell commands, ...
Can interact with
Arduino serially using
Java RxTx
Eclipse,Visual Studio,
Cloud9 support

JavaScript + BoneScript
var b = require('bonescript');
var state = b.LOW;
b.pinMode("USR0", b.OUTPUT);
b.pinMode("USR1", b.OUTPUT);
b.pinMode("USR2", b.OUTPUT);
b.pinMode("USR3", b.OUTPUT);
setInterval(toggle, 1000);
function toggle() {
if(state == b.LOW) state = b.HIGH;
else state = b.LOW;
b.digitalWrite("USR3", state);
}

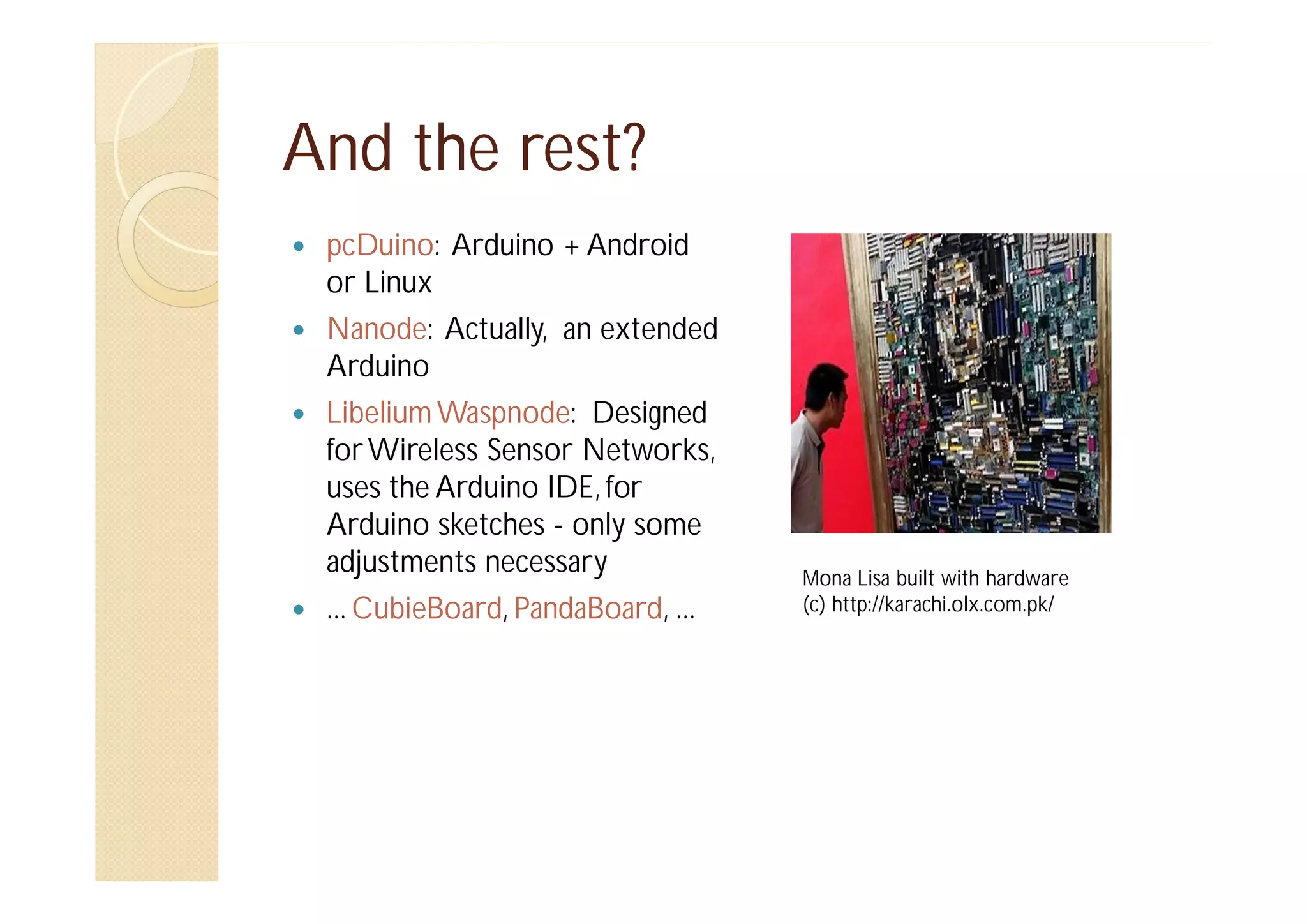

And the rest?
pcDuino: Arduino + Android
or Linux
Nanode: Actually, an extended
Arduino
Libelium Waspnode: Designed
for Wireless Sensor Networks,
uses the Arduino IDE, for
Arduino sketches - only some
adjustments necessary
... CubieBoard, PandaBoard, ...

Mona Lisa built with hardware
(c) http://karachi.olx.com.pk/

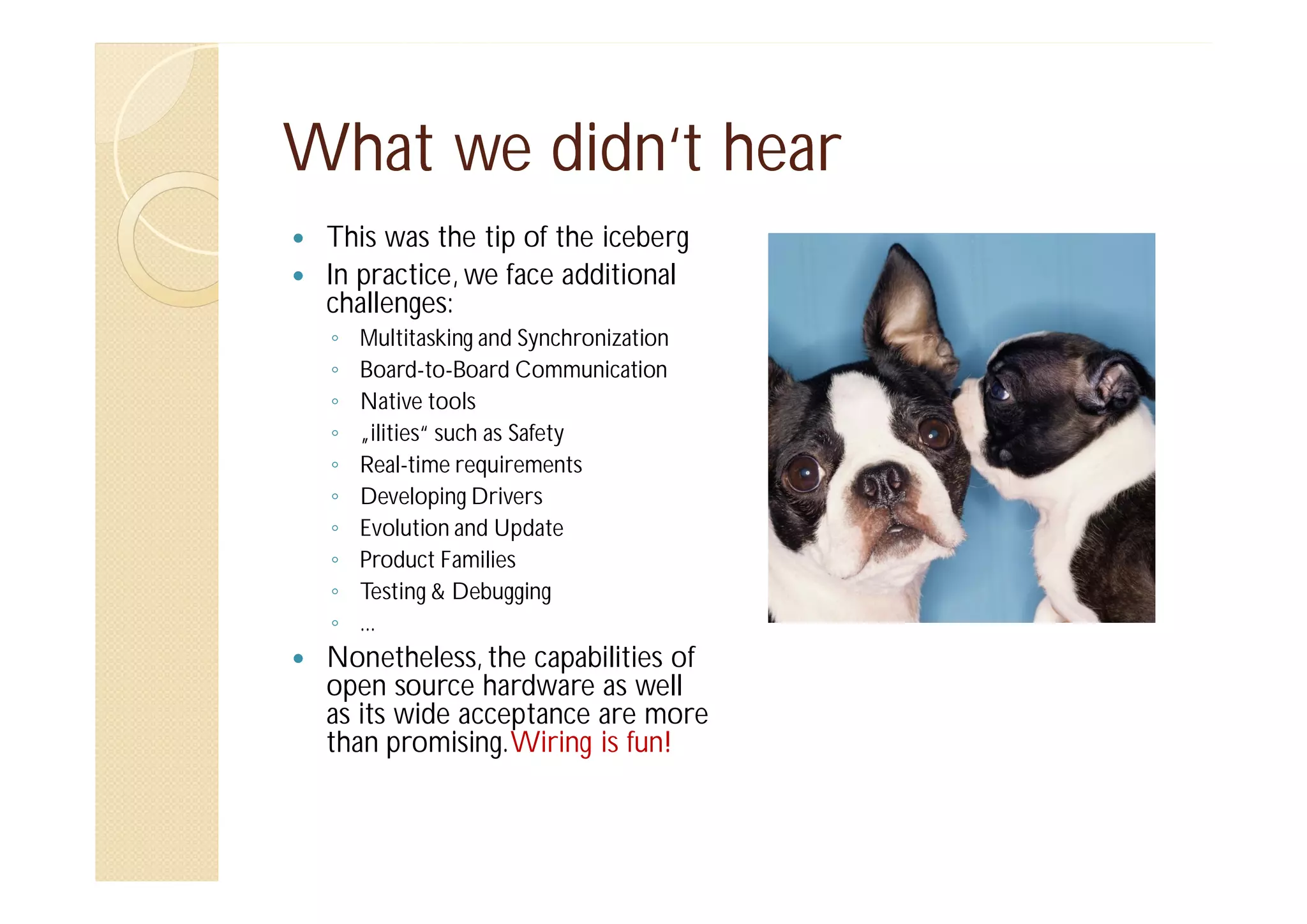

What we didn‘t hear
This was the tip of the iceberg
In practice, we face additional
challenges:
Multitasking and Synchronization
Board-to-Board Communication
Native tools
„ilities“ such as Safety
Real-time requirements
Developing Drivers
Evolution and Update
Product Families
Testing & Debugging
...

Nonetheless, the capabilities of
open source hardware as well
as its wide acceptance are more
than promising. Wiring is fun!

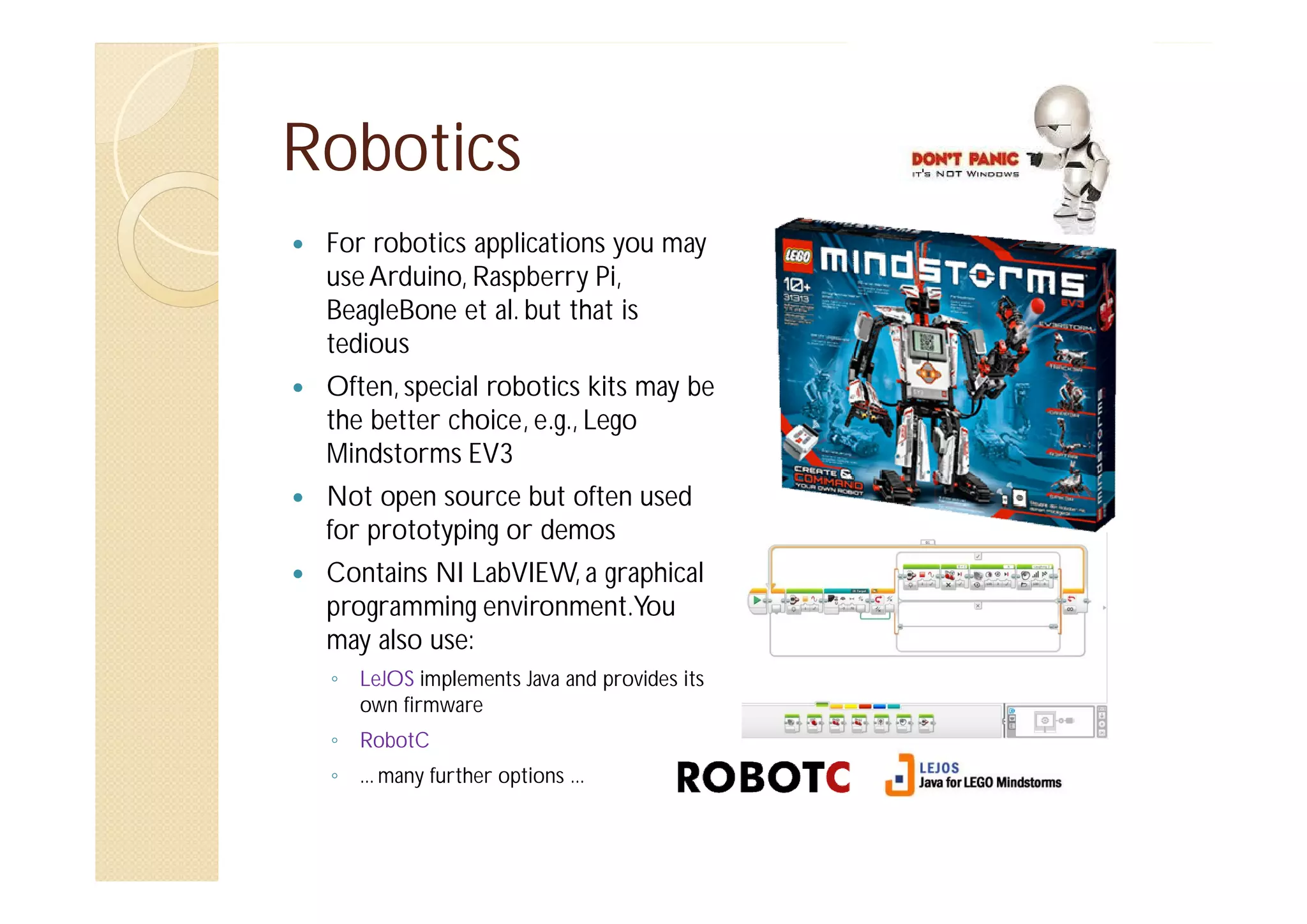

Robotics
For robotics applications you may
use Arduino, Raspberry Pi,
BeagleBone et al. but that is
tedious
Often, special robotics kits may be
the better choice, e.g., Lego
Mindstorms EV3
Not open source but often used
for prototyping or demos
Contains NI LabVIEW, a graphical
programming environment.You
may also use:
LeJOS implements Java and provides its
own firmware
RobotC
... many further options ...

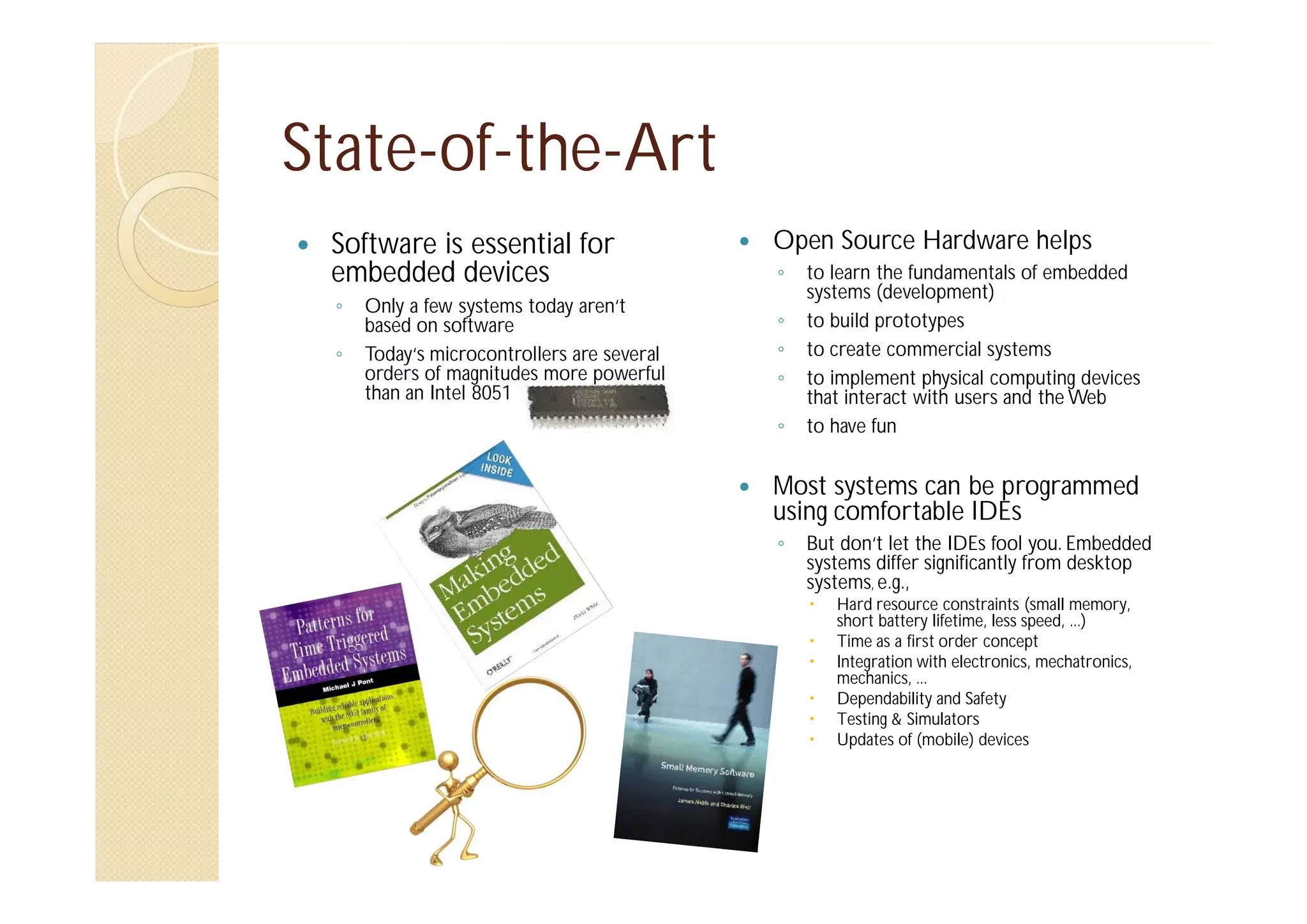

State-of-theState-of-the-Art
Software is essential for
embedded devices
Only a few systems today aren‘t
based on software
Today‘s microcontrollers are several
orders of magnitudes more powerful
than an Intel 8051

Open Source Hardware helps
to learn the fundamentals of embedded
systems (development)
to build prototypes
to create commercial systems
to implement physical computing devices
that interact with users and the Web
to have fun

Most systems can be programmed
using comfortable IDEs
But don‘t let the IDEs fool you. Embedded
systems differ significantly from desktop
systems, e.g.,
Hard resource constraints (small memory,
short battery lifetime, less speed, ...)
Time as a first order concept
Integration with electronics, mechatronics,
mechanics, ...
Dependability and Safety
Testing & Simulators
Updates of (mobile) devices

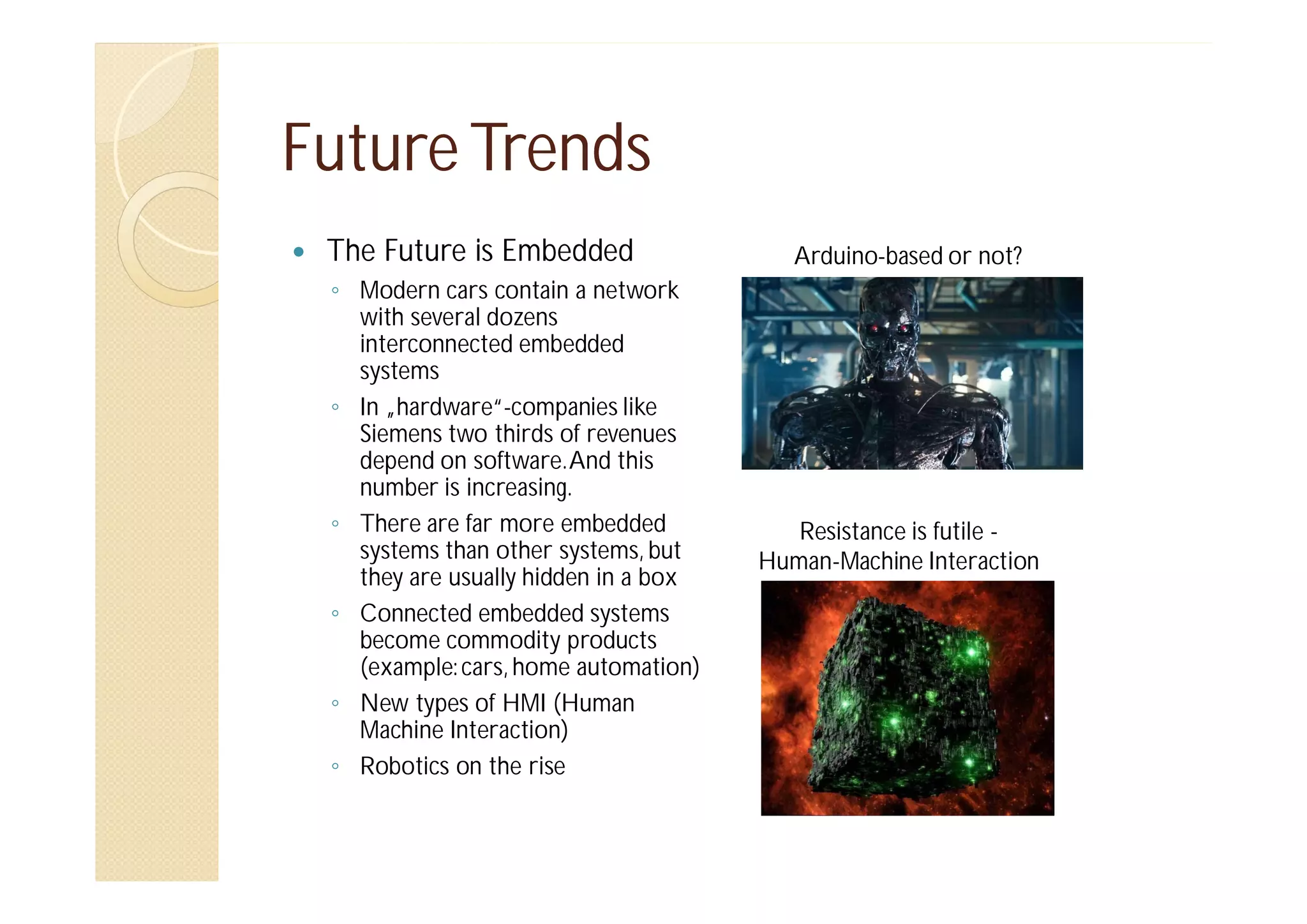

Future Trends
The Future is Embedded
Modern cars contain a network
with several dozens
interconnected embedded
systems
In „hardware“-companies like
Siemens two thirds of revenues
depend on software. And this
number is increasing.
There are far more embedded
systems than other systems, but
they are usually hidden in a box
Connected embedded systems
become commodity products
(example: cars, home automation)
New types of HMI (Human
Machine Interaction)
Robotics on the rise

Arduino-based or not?

Resistance is futile Human-Machine Interaction

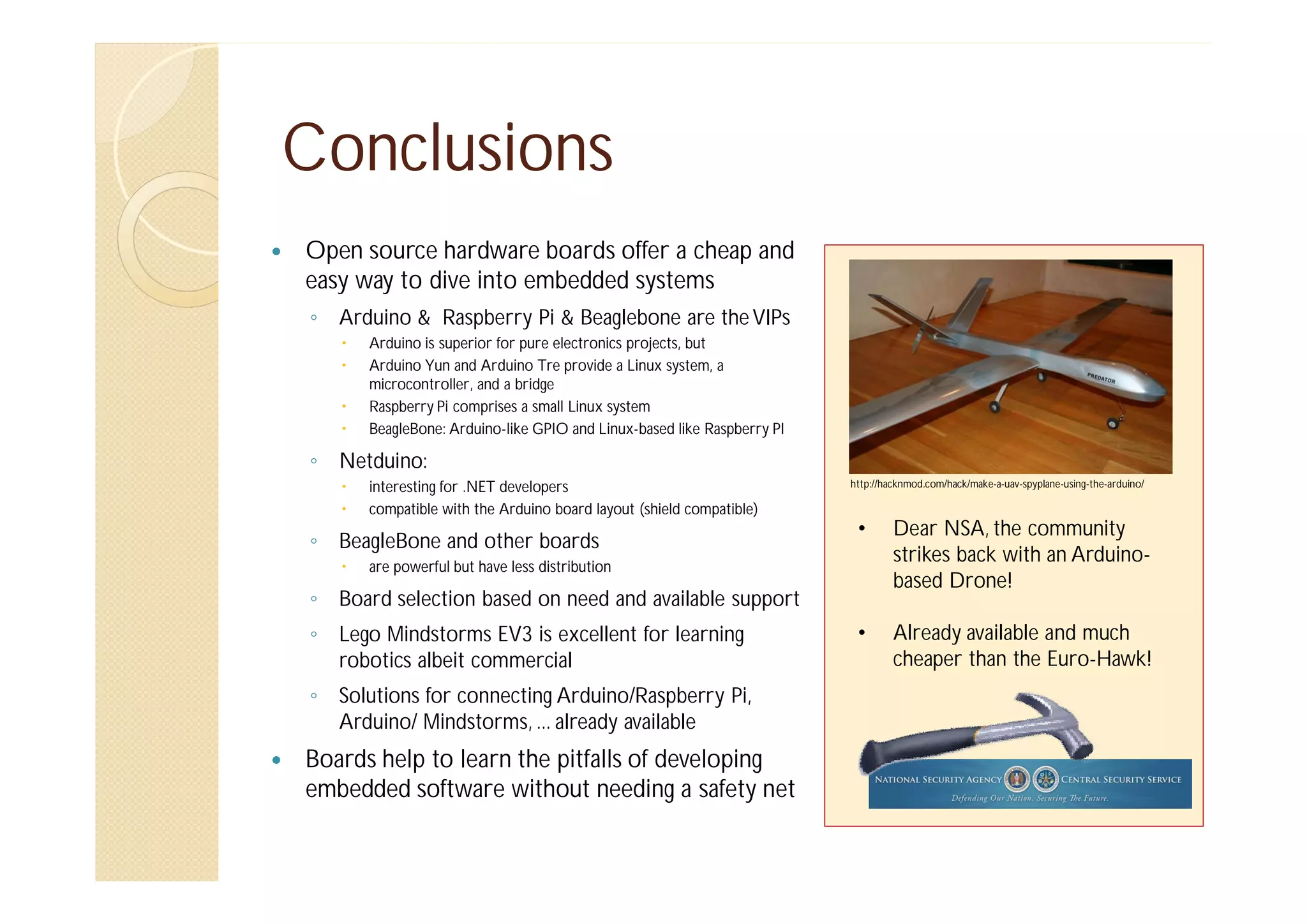

Conclusions
Open source hardware boards offer a cheap and
easy way to dive into embedded systems
Arduino & Raspberry Pi & Beaglebone are the VIPs
Arduino is superior for pure electronics projects, but
Arduino Yun and Arduino Tre provide a Linux system, a
microcontroller, and a bridge
Raspberry Pi comprises a small Linux system
BeagleBone: Arduino-like GPIO and Linux-based like Raspberry PI

Netduino:
interesting for .NET developers
compatible with the Arduino board layout (shield compatible)

BeagleBone and other boards

http://hacknmod.com/hack/make-a-uav-spyplane-using-the-arduino/

•

Dear NSA, the community
strikes back with an Arduinobased Drone!

•

Already available and much
cheaper than the Euro-Hawk!

are powerful but have less distribution

Board selection based on need and available support
Lego Mindstorms EV3 is excellent for learning
robotics albeit commercial
Solutions for connecting Arduino/Raspberry Pi,
Arduino/ Mindstorms, ... already available

Boards help to learn the pitfalls of developing
embedded software without needing a safety net
Some folks won‘t ever give
away their Arduino board
Others would shamelessly
steal it
It is like a precious ring
So, keep an eye on your ring
micro controller board
Last Words:The Pain of Engineering
The major difference
between a thing that
might go wrong and a
thing that cannot
possibly go wrong is that
when a thing that cannot
possibly go wrong goes
wrong, it usually turns
out to be impossible to
get at and repair.
[Douglas Adams]

More Related Content

What's hot

Ardunio
ArdunioArdunio
Ardunio
DILEEP KUMAR

Arduino
ArduinoArduino
Arduino
Geet Patel

Introduction to arduino ppt main
Introduction to  arduino ppt mainIntroduction to  arduino ppt main
Introduction to arduino ppt main
eddy royappa

Arduino
ArduinoArduino
Arduino
Jerin John

Advanced view of projects raspberry pi list raspberry pi projects
Advanced view of projects raspberry pi list   raspberry pi projectsAdvanced view of projects raspberry pi list   raspberry pi projects
Advanced view of projects raspberry pi list raspberry pi projects
WiseNaeem

Introduction to Arduino Hardware and Programming
Introduction to Arduino Hardware and ProgrammingIntroduction to Arduino Hardware and Programming
Introduction to Arduino Hardware and Programming
Emmanuel Obot

Arduino course
Arduino courseArduino course
Arduino course
Ahmed Shelbaya

Arduino
ArduinoArduino
Arduino
VigneshABME

arduino
 arduino arduino
arduino
jhcid

Arduino seminar report
Arduino seminar reportArduino seminar report
Arduino seminar report
Zaka Jutt

The IoT Academy IoT training Arduino Part 1 basics
The IoT Academy IoT training Arduino Part 1 basicsThe IoT Academy IoT training Arduino Part 1 basics
The IoT Academy IoT training Arduino Part 1 basics
The IOT Academy

Introduction to arduino
Introduction to arduinoIntroduction to arduino
Introduction to arduino
Mahmoud Salheen

Introduction to arduino
Introduction to arduinoIntroduction to arduino
Introduction to arduino
Ahmed Sakr

Arduino presentation by_warishusain
Arduino presentation by_warishusainArduino presentation by_warishusain
Arduino presentation by_warishusain
student

Arduino Workshop
Arduino WorkshopArduino Workshop
Arduino Workshop
atuline

Introduction to arduino!
Introduction to arduino!Introduction to arduino!
Introduction to arduino!
Makers of India

ARDUIO BASIC TUTORIAL
ARDUIO BASIC TUTORIALARDUIO BASIC TUTORIAL
ARDUIO BASIC TUTORIAL
Vijay Kumar

Arduino for beginners- Introduction to Arduino (presentation) - codewithgauri
Arduino for beginners- Introduction to Arduino (presentation) - codewithgauriArduino for beginners- Introduction to Arduino (presentation) - codewithgauri
Arduino for beginners- Introduction to Arduino (presentation) - codewithgauri
Gaurav Pandey

Arduino Workshop Day 1 - Basic Arduino
Arduino Workshop Day 1 - Basic ArduinoArduino Workshop Day 1 - Basic Arduino
Arduino Workshop Day 1 - Basic Arduino
Vishnu

Introduction To Arduino
Introduction To ArduinoIntroduction To Arduino
Introduction To Arduino
unsheffield


What's hot (20)

Ardunio
ArdunioArdunio
Ardunio

Arduino
ArduinoArduino
Arduino

Introduction to arduino ppt main
Introduction to  arduino ppt mainIntroduction to  arduino ppt main
Introduction to arduino ppt main

Arduino
ArduinoArduino
Arduino

Advanced view of projects raspberry pi list raspberry pi projects
Advanced view of projects raspberry pi list   raspberry pi projectsAdvanced view of projects raspberry pi list   raspberry pi projects
Advanced view of projects raspberry pi list raspberry pi projects

Introduction to Arduino Hardware and Programming
Introduction to Arduino Hardware and ProgrammingIntroduction to Arduino Hardware and Programming
Introduction to Arduino Hardware and Programming

Arduino course
Arduino courseArduino course
Arduino course

Arduino
ArduinoArduino
Arduino

arduino
 arduino arduino
arduino

Arduino seminar report
Arduino seminar reportArduino seminar report
Arduino seminar report

The IoT Academy IoT training Arduino Part 1 basics
The IoT Academy IoT training Arduino Part 1 basicsThe IoT Academy IoT training Arduino Part 1 basics
The IoT Academy IoT training Arduino Part 1 basics

Introduction to arduino
Introduction to arduinoIntroduction to arduino
Introduction to arduino

Introduction to arduino
Introduction to arduinoIntroduction to arduino
Introduction to arduino

Arduino presentation by_warishusain
Arduino presentation by_warishusainArduino presentation by_warishusain
Arduino presentation by_warishusain

Arduino Workshop
Arduino WorkshopArduino Workshop
Arduino Workshop

Introduction to arduino!
Introduction to arduino!Introduction to arduino!
Introduction to arduino!

ARDUIO BASIC TUTORIAL
ARDUIO BASIC TUTORIALARDUIO BASIC TUTORIAL
ARDUIO BASIC TUTORIAL

Arduino for beginners- Introduction to Arduino (presentation) - codewithgauri
Arduino for beginners- Introduction to Arduino (presentation) - codewithgauriArduino for beginners- Introduction to Arduino (presentation) - codewithgauri
Arduino for beginners- Introduction to Arduino (presentation) - codewithgauri

Arduino Workshop Day 1 - Basic Arduino
Arduino Workshop Day 1 - Basic ArduinoArduino Workshop Day 1 - Basic Arduino
Arduino Workshop Day 1 - Basic Arduino

Introduction To Arduino
Introduction To ArduinoIntroduction To Arduino
Introduction To Arduino


Similar to Oop 2014 embedded systems with open source hardware v2

Report on arduino
Report on arduinoReport on arduino
Report on arduino
Ravi Phadtare

Intro arduino
Intro arduinoIntro arduino
Intro arduino
MaLcom MooNwalker

What is Arduino ?
What is Arduino ?What is Arduino ?
What is Arduino ?
Niket Chandrawanshi

Indroduction arduino
Indroduction arduinoIndroduction arduino
Indroduction arduino
ThingerbitsElectroni

Indroduction the arduino
Indroduction the arduinoIndroduction the arduino
Indroduction the arduino
Hasarinda Manjula

Getting Started With Arduino_Tutorial
Getting Started With Arduino_TutorialGetting Started With Arduino_Tutorial
Getting Started With Arduino_Tutorial
NYCCTfab

WORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCH
WORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCHWORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCH
WORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCH
ijdpsjournal

Digital home automation with arduino bluetooth
Digital home automation with arduino bluetoothDigital home automation with arduino bluetooth
Digital home automation with arduino bluetooth
Shishupal03012015

Introduction of Arduino Uno
Introduction of Arduino UnoIntroduction of Arduino Uno
Introduction of Arduino Uno
Md. Nahidul Islam

What is arduino
What is arduinoWhat is arduino
What is arduino
vivek kumar

Introduction to arduino
Introduction to arduinoIntroduction to arduino
Introduction to arduino
Jawaher Abdulwahab Fadhil

Introduction to Arduino
Introduction to ArduinoIntroduction to Arduino
Introduction to Arduino
Damien Magoni

Arduino Development For Beginners
Arduino Development For BeginnersArduino Development For Beginners
Arduino Development For Beginners
FTS seminar

Interoperability in Internet of Things (IOT)
Interoperability in Internet of Things (IOT)Interoperability in Internet of Things (IOT)
Interoperability in Internet of Things (IOT)
manditalaskar123

Arduino: Arduino starter kit
Arduino: Arduino starter kitArduino: Arduino starter kit
Arduino: Arduino starter kit
SANTIAGO PABLO ALBERTO

Lecture 7
Lecture 7Lecture 7
Lecture 7
vishal choudhary

Arduino
ArduinoArduino
Introduction to Arduino.pptx
Introduction to Arduino.pptxIntroduction to Arduino.pptx
Introduction to Arduino.pptx
Akshat Bijronia

Basics of open source embedded development board (
Basics of open source embedded development board (Basics of open source embedded development board (
Basics of open source embedded development board (
Dhruwank Vankawala

Basics of open source embedded development board (
Basics of open source embedded development board (Basics of open source embedded development board (
Basics of open source embedded development board (
Dhruwank Vankawala


Similar to Oop 2014 embedded systems with open source hardware v2 (20)

Report on arduino
Report on arduinoReport on arduino
Report on arduino

Intro arduino
Intro arduinoIntro arduino
Intro arduino

What is Arduino ?
What is Arduino ?What is Arduino ?
What is Arduino ?

Indroduction arduino
Indroduction arduinoIndroduction arduino
Indroduction arduino

Indroduction the arduino
Indroduction the arduinoIndroduction the arduino
Indroduction the arduino

Getting Started With Arduino_Tutorial
Getting Started With Arduino_TutorialGetting Started With Arduino_Tutorial
Getting Started With Arduino_Tutorial

WORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCH
WORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCHWORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCH
WORKING PRINCIPLE OF ARDUINO AND USING IT AS A TOOL FOR STUDY AND RESEARCH

Digital home automation with arduino bluetooth
Digital home automation with arduino bluetoothDigital home automation with arduino bluetooth
Digital home automation with arduino bluetooth

Introduction of Arduino Uno
Introduction of Arduino UnoIntroduction of Arduino Uno
Introduction of Arduino Uno

What is arduino
What is arduinoWhat is arduino
What is arduino

Introduction to arduino
Introduction to arduinoIntroduction to arduino
Introduction to arduino

Introduction to Arduino
Introduction to ArduinoIntroduction to Arduino
Introduction to Arduino

Arduino Development For Beginners
Arduino Development For BeginnersArduino Development For Beginners
Arduino Development For Beginners

Interoperability in Internet of Things (IOT)
Interoperability in Internet of Things (IOT)Interoperability in Internet of Things (IOT)
Interoperability in Internet of Things (IOT)

Arduino: Arduino starter kit
Arduino: Arduino starter kitArduino: Arduino starter kit
Arduino: Arduino starter kit

Lecture 7
Lecture 7Lecture 7
Lecture 7

Arduino
ArduinoArduino
Arduino

Introduction to Arduino.pptx
Introduction to Arduino.pptxIntroduction to Arduino.pptx
Introduction to Arduino.pptx

Basics of open source embedded development board (
Basics of open source embedded development board (Basics of open source embedded development board (
Basics of open source embedded development board (

Basics of open source embedded development board (
Basics of open source embedded development board (Basics of open source embedded development board (
Basics of open source embedded development board (


More from Michael Stal

Oop2018 tutorial-stal-mo2-io t-arduino-en
Oop2018 tutorial-stal-mo2-io t-arduino-enOop2018 tutorial-stal-mo2-io t-arduino-en
Oop2018 tutorial-stal-mo2-io t-arduino-en
Michael Stal

Oop 2014 sw architekt v3
Oop 2014 sw architekt v3Oop 2014 sw architekt v3
Oop 2014 sw architekt v3
Michael Stal

Qcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharpQcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharp
Michael Stal

Qcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharpQcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharp
Michael Stal

Qcon2011 functions rockpresentation_scala
Qcon2011 functions rockpresentation_scalaQcon2011 functions rockpresentation_scala
Qcon2011 functions rockpresentation_scala
Michael Stal

Oop2011 actor presentation_stal
Oop2011 actor presentation_stalOop2011 actor presentation_stal
Oop2011 actor presentation_stal
Michael Stal

Accu2010 archrefactoring
Accu2010 archrefactoringAccu2010 archrefactoring
Accu2010 archrefactoring
Michael Stal

Oop2010 Scala Presentation Stal
Oop2010 Scala Presentation StalOop2010 Scala Presentation Stal
Oop2010 Scala Presentation Stal
Michael Stal


More from Michael Stal (8)

Oop2018 tutorial-stal-mo2-io t-arduino-en
Oop2018 tutorial-stal-mo2-io t-arduino-enOop2018 tutorial-stal-mo2-io t-arduino-en
Oop2018 tutorial-stal-mo2-io t-arduino-en

Oop 2014 sw architekt v3
Oop 2014 sw architekt v3Oop 2014 sw architekt v3
Oop 2014 sw architekt v3

Qcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharpQcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharp

Qcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharpQcon2011 functions rockpresentation_f_sharp
Qcon2011 functions rockpresentation_f_sharp

Qcon2011 functions rockpresentation_scala
Qcon2011 functions rockpresentation_scalaQcon2011 functions rockpresentation_scala
Qcon2011 functions rockpresentation_scala

Oop2011 actor presentation_stal
Oop2011 actor presentation_stalOop2011 actor presentation_stal
Oop2011 actor presentation_stal

Accu2010 archrefactoring
Accu2010 archrefactoringAccu2010 archrefactoring
Accu2010 archrefactoring

Oop2010 Scala Presentation Stal
Oop2010 Scala Presentation StalOop2010 Scala Presentation Stal
Oop2010 Scala Presentation Stal


Oop 2014 embedded systems with open source hardware v2

  • 1. Developing Software for Open Source Hardware © Prof. Dr. Michael Stal, 2014
  • 2. Engineers never fail I have not failed. I've just found 10,000 ways that won't work. [Thomas A. Edison]
  • 3. The Rise of Physical Computing Definition: Building interactive physical systems by the use of software and hardware that can sense and respond to the analog world […] In practical use, the term most often describes handmade art, design or DIY hobby projects that use sensors and microcontrollers to translate analog input to a software system, Arduino-based Laser Harp: visit and/or control electro-mechanical http://makezine.com/projects/laserharp/ for detailed instructions devices such as motors, servos, lighting or other hardware.
  • 4. Maker Movement Modern version of DIY (DoIt-Yourself) extends the idea of open source software build things with free hardware and donate the design to the community FabLabs* for tinkerers who share tools as opposed to owning them Increasing number of s * FabLab = Fabrication Laboratory
  • 5. Portals with Public Domain Projects Examples Thingiverse http://www.thingiverse.com Instructables http://www.instructables.com
  • 6. Instructions and Design Documents Includes Design CAD files Part list Instructions how to assemble the parts
  • 7. Useful Things – well, not always that useful Design provided as STL (Standard Triangulation Format) documents in verbose ASCII or in compact binary format Example: solid name facet normal n1 n2 n3 outer loop vertex p1x p1y p1z vertex p2x p2y p2z vertex p3x p3y p3z endloop endfacet endsolid name
  • 8. Production of 3D Objects How? Either yourself using a 3D printer (from under 1000 € to 10.000s of €) Or by cheap commercial fabrication companies (on-demand production) Main benefit: feasible even for small amounts of items Liability: may make piracy easier
  • 9. So, What? Increasing number of open source microcontroller boards Excellent and cheap tools for prototyping Useful to learn basics of software development for embedded systems Scope are systems w/o stringent realtime/dependability requirements
  • 10. Intel goes Arduino Even large companies support Arduino: headline on October, 3rd, 2013: Intel launches Galileo, an Arduino-compatible development board with x86 CPU
  • 11. Open Source Hardware Boards The most important ones: Arduino (microcontroller board) Raspberry Pi (controller plus a Linux PC) NetDuino (layout compatible with Arduino but .NET based) BeagleBone (microcontroller board, Embedded Linux) Typical price range from 20€ to around 50€ Main focus of this talk
  • 12. Prerequisites Which prerequisites are necessary for building such systems? Small Systems, Medium Systems with Low Complexity: For implementing existing designs, only basic knowledge of electronics/mechatronics Some rather inexpensive tools Sets like the Arduino Starter Kit Hint: many open source projects available in the Internet and in books Larger and/or complex systems: Knowledge about electrical engineering/mechatronics Soldering skills and Soldering station (except if only prototyping on breadboards) Electronic test instruments (oscilloscope, frequence analyzer, power generator, voltmeters...) A collection of components and ICs Tools, Cables, Breadboard, Hansaplast, ... David L. Jones publishes excellent videos on electronics in his blog: EEVBlog (Electronics Engineering Video Blog)
  • 13. Arduino & Friends HAL (powered by Arduino)
  • 14. Back to the Future 2005: Started as project at the Interaction Design Institute Ivrea, Italy 2006: Won a price at Prix Ars Electronica in 2006 Name taken from Arduino d'Ivrea (King of Italy around 1002 AC) * Goal: up-to-date board for students as an alternative to BASIC Stamp & Wiring framework „Processing for Hardware“ Creative Common License Watch documentary on http://vimeo.com/18539129 * well, that‘s the romantic version. Actually, it was named after a local pub Arduino Web Site http://arduino.cc Creators of Arduino with Massimo Banzi (to the right): First prototype board, made in 2005
  • 15. The Arduino Family Arduino comes in a lot of flavors, e.g., LilyPad Arduino (Arduino for your clothes) Arduino Uno Rev. 3 (the „reference model“) Arduino Yun and Arduino Tre (microcontroller + separate Linux system on one board) Commercial companies sell their own implementations: e.g., SainSmart, Seed, AdaFruit BYO: You can even build your own Arduino board
  • 16. Arduino Board Design Analog Reference USB Used to load programs (=sketches) to the board, to power the board, and for serial communication Digital Ground CPU with 16MHz Digital I/O Pins 2-13 (9, 10, 11with PWM = Pulse Width Modulation) Pins 1 & 2: Digital I/O. When used for communication then Serial In/Out, TX/RX Jumpers: Toggling between USB power and external power (jumpers) Boards (i.e., their pins) have a maximum current they can handle. Most Arduino boards define a maximum of 40 mA. Higher values will cause damage. In-Circuit Serial Programmer: if you need to upload another bootloader Reset Button: on reset the bootloader restarts External Power Supply Power Connectors connected with your board. Not all boards use 5V! Analog In: 0-5
  • 17. I2C* – The Low-Speed Bus LowMulti-master serial single-ended computer bus invented by Philips Semiconductors Used in most open source hardware boards for attaching low-speed peripherals (speed 10 Kb/s-100Kb/s; newer versions even up to 3.6 Mb/s) Two bidirectional open-drain lines: Serial Data Line (SDA) und Serial Clock (SCL) Pull-up resistors to prevent data floating Wire library available (for accessing I2C) Master generates the clock and initiates communication Slave receives clock and responds when addressed by master Master sends only if it detects no start or stop bit sent by another master Single Message or Multi Message License free; only slave addresses must be bought * I2C = Inter-Integrated Circuit, invented by Philips Semiconductor Division, now NXP
  • 18. Processors Newer boards (Due): ARM with Cortex-M3 (32 Bit Architecture) Previous Boards (Uno, Mega. Leonardo, Duemillenova, ...): based on Atmel‘s chip family ATMega xxx, 8 Bit Architecture A bridge connects both worlds Arduino Yun and Tre: additional but separate on-board unit (Atheros resp. ARM Cortex A8) running Linux (OpenWRT) Arduino Yun Architecture
  • 19. Solderless Breadboards Connecting the Arduino to a breadboard is very useful for designing circuits without soldering When finished you may use a PCB (Printed Circuit Board) instead Breadboards consist of pin holes to place components (terminal strip) as well as bus strips: Terminal strip: all pin holes Bus strips for power supply (red = voltage, blue = ground) Notch in the middle (where mostly ICs such as DIPs are placed)
  • 20. Standard Components You‘ll need a basic set of components: WRONG Resistors, Potis, Capacitors Transistors, Diodes, LEDs Buttons, Switches Relays,Transformators Motors Standard ICs such as OpAmps, L298 bridges App for looking up resistor color codes Wires, wires, wires A 9V block battery with a connector BETTER
  • 21. Sensor & Actuator Components Pressure Sensor Ultrasonic Gyro Hall Sensor Temperature Sensor Developers needs to add specific code for reading or writing actuator/sensor values Usually attached through an analog port Specification of chip/component explains how to map between sensor values and physical units PWM (Pulse Width Modulation) often used in digital outputs to vary intensity of speed, volume, brightness, ...
  • 22. Shields, Shields, Shields Arduino shields (incl. program libraries) add advanced logic Built to fit on top of an Arduino board Typically, provide the same pins like the Arduino (stacking of boards) Examples: Motor Shield (Arduino) LCD Shield (Sparkfun) Proto Shield (Seeed Studio) GPS Shield (Adafruit) WiFi Shield (AsyncLabs) See http://shieldlist.org/
  • 23. Circuit Design with Fritzing Fritzing, an open source editor for circuit design developed by University of Applied Sciences, Potsdam Fritzing.org: nonprofit organization Supports, Mac OS X, Windows, Linux You can directly order a PCB board from within the editor
  • 24. Programming an Arduino When coding a sketch (= program) for microcontroller boards like Arduino, two steps are necessary: Initialization Controlling & Monitoring 1. 2. Initialization phase executed once at start-up time: definitions and initialization of ports, connections, ... Controlling & Monitoring happens in an „endless“ loop. Sketch can monitor and control the board Application may terminate itself on specific events start Initialization Controlling & Monitoring exit
  • 25. The Arduino IDE* Available for MacOS X, Windows, Linux at no cost Based on Processing, built with Java Subset of C/C++, (implementation of Wiring) Uses gcc & avr-gcc libraries in the build process C/C++ Libraries import You may use gcc directly or within Eclipse for C++ Other languages such as Java can remotely connect to Arduino using a wrapper on top of a RxTx native library * Free guide available at http://www.me.umn.edu/courses/me2011/arduino/arduinoGuide.pdf
  • 26. „Hello World“ I respect the old tradition and present the embedded cousine of „Hello, World“... ... which results in a blinking LED Language based on C/C++ // Pin 13 has an LED connected on most boards int led = 13; // the setup routine - runs after each reset: void setup() { // initialize digital pin as an output pin pinMode(led, OUTPUT); Serial.begin(9600); // start serial port } // infinite loop; HIGH & LOW are voltage levels! void loop() { Serial.println(“Hello, World”); // send string digitalWrite(led, HIGH); // shine a light delay(1000); // wait for a second digitalWrite(led, LOW); // switch off LED delay(1000); // wait for a second } Serial stream received by host and displayed on the IDE‘s Serial Monitor if available
  • 27. Programming Models generate In general, there are three programming models for embedded devices: Arduino IDE based on command-driven mode. Command-Driven (proactive, polling) +ü´ßw saeqq Event-Driven* (reactive, Pub/Sub) Model-Driven (e.g., Matlab + Simulink, Labview) Command Driven All of these models have strengths and limitations Select the right one for your environment Model-Driven generates code for one of the other models * It is also called Behaviour-driven or Reactive Model
  • 28. Reactor Pattern If the event-driven model is not supported, you may use the Reactor pattern to avoid the command-driven model. dispatches * Reactor owns maintains select notifies * Event_ Handler * Consider whether you have timing constraints before use! Handle Handler 1 Reactor (central component) waits for incoming events and demultiplexes & dispatches each event (i.e., calls your Handler which is supposed to deal with this event) Handlers must implement a predefined interface Handle is a unique value of a particular type (e.g., interrupts, Unix handles) that determines to which handler an event will be dispatched Handler 2 Handlers are interested in certain types of events and register for this type with the Reactor or are hardwired • • • Events can be prioritized Handlers may run concurrently Dispatching tasks to a thread in a multicore system is possible, but very complex (to do it right)
  • 29. Recommended Design Approach In most projects, finite state machines (FSM) (together with timing diagrams) are the best choice for design activities 1. 2. 3. 4. 5. Define the problem (space) and check the requirements Elaborate all program flows that are necessary (but also consider error scenarios!) Determine the states the system must support as well as the transitions incl. the actions to be called for a particular transition Check and optimize the FSM Implement it with the table approach or generate it
  • 30. Host/Target Development Host Target USB Test Environment IDE Bootloader starts on reset Command Line ICSB port for programming other firmware CrossCompiler Development Environment Developing Cross-Compiling Testing on Simulator or Physical Target
  • 31. Developer Ecosystems Arduino native IDE MariaMole: alternative IDE CodeBlocks for AVR & Arduino Arduino for Microsoft Visual Studio and Atmel Studio (free). Plug-In with features of the Arduino IDE, optional USB/WiFi debugger Arduino Eclipse Plug-In Arduino-Devel: ant-scripts for Eclipse instead of plug-in Eclipse & AVR PlugIn embedXcode: Apple’s Xcode MiniBloq: Graphical UI More details on the Arduino Playground: http://playground.arduino.cc/
  • 32. Java VM on Arduino HaikoVM runs on Arduino and implements Java 6 bytecode Runs on AVR ATmega8, AVR ATmega328p (and Windows, UNIX) A lot of nice features: Preemptive threads & Synchronization Exceptions ... Workflow 1. 2. 3. 4. Java to Class Class to C C to Binary Upload and Run Work still ongoing
  • 33. Learning by Example Examples are helpful to introduce Arduino concepts Thanks to Mike McRoberts for providing a free manual with various experiments (see below) In theory, theory and practice are the same. In practice, they are not. http://math.hws.edu/vaughn/cpsc/226/docs/askmanual.pdf
  • 34. Arduino Projects I will demo one of my own experiments The other projects are actually taken from the Arduino Playground: http://playground.arduino.cc// main/projects ... so that you can find detailed instructions, part lists, etc. on the Web. Uncountable Arduino projects availabe that may give you inspiration for your own experiments But don‘t go too far!
  • 35. Project Traffic Light Building a Traffic Light with LEDs and a Piezo speaker that signals red or green.
  • 36. Example 1: Debouncing Problem: when pressing a switch or button the signal can bounce for a while Solution: Debouncing pattern
  • 37. Example 1 – Code (Setup) // constants won't change. They're used here to set pin numbers: const int buttonPin = 2; // the number of the pushbutton pin const int ledPin = 13; // the number of the LED pin // Variables will change: int ledState = HIGH; int buttonState; int lastButtonState = LOW; // the current state of the output pin // the current reading from the input pin // the previous reading from the input pin long lastDebounceTime = 0; // the last time the output pin was toggled long debounceDelay = 50; // the debounce time; increase if output flickers void setup() { pinMode(buttonPin, INPUT); pinMode(ledPin, OUTPUT); // set initial LED state digitalWrite(ledPin, ledState); }
  • 38. Example 1 – Code (Loop) void loop() { // read the state of the switch into a local variable: int reading = digitalRead(buttonPin); // If the switch changed, due to noise or pressing: if (reading != lastButtonState) { // reset the debouncing timer lastDebounceTime = millis(); } if ((millis() - lastDebounceTime) > debounceDelay) { // whatever the reading is at, it's been there for longer // than the debounce delay, so take it as the actual current state: // if the button state has changed: if (reading != buttonState) { buttonState = reading; // only toggle the LED if the new button state is HIGH if (buttonState == HIGH) { ledState = !ledState; } } } digitalWrite(ledPin, ledState); // set the LED lastButtonState = reading; // this will be the lastButtonState in the next loop }
  • 39. Alternative Solution Using the Debounce Library (DRY) Available in the Arduino IDE Implements the same functionality in an elegant way // This code turns a led on/off through a debounced switch #include <Debounce.h> #define SWITCH 5 #define LED 13 // Instantiate a Debounce object with a 20 millisecond debounce time Debounce debouncer = Debounce( 20 , SWITCH ); void setup() { pinMode(SWITCH,INPUT); pinMode(LED,OUTPUT); } void loop() { // Update the debouncer debouncer.update ( ); // Get the update value digitalWrite(LED, debouncer.read() ); }
  • 40. Example 2: Pull-Up Resistors PullProblem: circuits are subject to electrical fluctuations which may lead to an undefined state. Solution: use a pull-up resistor so that when unpressed, 5V will be on pin 2, and when pressed will be low to connection with ground Arduino internally provides Pull-Up resistors for digital pins
  • 41. Example 2 – Code void setup(){ Serial.begin(9600); // start serial connection pinMode(2, INPUT_PULLUP); // pin 2 is input and uses the pull-up resistor pinMode(13, OUTPUT); } void loop(){ //read the pushbutton value into a variable int sensorVal = digitalRead(2); //print out the value of the pushbutton Serial.println(sensorVal); // send current value via serial communication to host // // // // if Keep in mind the pull-up means the push-button's logic is inverted. It goes HIGH when it's open, and LOW when it's pressed. Turn on pin 13 when the button's pressed, and off when it's not: (sensorVal == HIGH) { digitalWrite(13, LOW); } else { digitalWrite(13, HIGH); } }
  • 42. Example 3: Using PWM Problem: for dimming a led, ..., we need to change the actual current continuously, but how? Solution: Use PWM (PulseWidth-Modulation) to simulate an analog output with variable current Done by swítching the signal on and off for specific time intervals (duty cycles)
  • 43. Example 3 – Code int ledPin = 9; // LED connected to digital pin 9 void setup() { // nothing happens in setup } void loop() { // fade in from min to max in increments of 5 points: for(int fadeValue = 0 ; fadeValue <= 255; fadeValue +=5) { // sets the value (range from 0 to 255): analogWrite(ledPin, fadeValue); // analog write on digital pin! // wait for 30 milliseconds to see the dimming effect delay(30); } // fade out from max to min in increments of 5 points: for(int fadeValue = 255 ; fadeValue >= 0; fadeValue -=5) { // sets the value (range from 0 to 255): analogWrite(ledPin, fadeValue); // wait for 30 milliseconds to see the dimming effect delay(30); } }
  • 44. Example 4: Using Libraries Problem: How can we access the LiquidChrystal display Solution: we need to import the LiquidChrystal Library
  • 45. Example 4 – Code #include <LiquidCrystal.h> // the library for using LCDs // initialize the library with the numbers of the interface pins LiquidCrystal lcd(12, 11, 5, 4, 3, 2); void setup() { // set up the LCD's to 16 numbers and 2 rows lcd.begin(16, 2); // Print a message to the LCD. lcd.print("hello, world!"); } void loop() { // set the cursor to column 0, line 1 // (note: line 1 is the second row, since counting begins with 0): lcd.setCursor(0, 1); // print the number of seconds since reset: lcd.print(millis()/1000); }
  • 46. Example 5: Control Speed of DC Motor Problem: Connecting a low current Arduino with a high current consumer Solution: Transistor (npn) to separate both circuits Potentiometer to let user avry the speed Diode to prevent any current caused by induction damaging the circuit Source: http://www.dummies.com/how-to/content/how-to-control-the-speed-of-a-dc-motor-with-the-ar.html
  • 47. Example 5 – Code int int int int potPin = A0; // potentiometer on analog pin A0 motorPin = 9; // motor on digital pin 9 potValue = 0; motorValue = 0; void setup() { Serial.begin(9600); } void loop() { potValue = analogRead(potPin); // map maps from [0, 1023] to [0, 255] motorValue = map(potValue, 0, 1023, 0, 255); analogWrite(motorPin, motorValue); // set speed Serial.print("potentiometer = " ); Serial.print(potValue); Serial.print("t motor = "); Serial.println(motorValue); delay(2); }
  • 48. Alternative Solution Use a motor shield (several available) Can support multiple motors (brushed dc motor, stepper, servo) Motor shields leverage the H-bridge L298P
  • 49. Alternative – Code (Setup) const int PWM_A = DIR_A = BRAKE_A = SNS_A = 3, 12, 9, A0; void setup() { // Configure the A output pinMode(BRAKE_A, OUTPUT); pinMode(DIR_A, OUTPUT); // Brake pin on channel A // Direction pin on channel A // Open Serial communication Serial.begin(9600); Serial.println("Motor shield DC motor Test:n"); }
  • 50. Alternative – Code (Loop 1) void loop() { // Set the outputs to run the motor forward digitalWrite(BRAKE_A, LOW); digitalWrite(DIR_A, HIGH); // setting brake LOW disable motor brake // setting direction to HIGH: motor will spin forward analogWrite(PWM_A, 255); // Set the speed of the motor, 255 is the max value delay(5000); // hold the motor at full speed for 5 seconds Serial.print("current consumption at full speed: "); Serial.println(analogRead(SNS_A)); // Brake the motor Serial.println("Start brakingn"); // raising the brake pin the motor will stop faster than the stop by inertia digitalWrite(BRAKE_A, HIGH); // raise the brake delay(5000); // to be continued
  • 51. Alternative – Code (Loop 2) // … continued // Set the outputs to run the motor backward Serial.println("Backward"); digitalWrite(BRAKE_A, LOW); digitalWrite(DIR_A, LOW); // setting againg the brake LOW to disable motor brake // now change the direction to backw: LOW DIR_A pin analogWrite(PWM_A, 255); // Set the speed of the motor delay(5000); Serial.print("current consumption backward: "); Serial.println(analogRead(SNS_A)); // now stop the motor by inertia, motor will stop slower than with brake function analogWrite(PWM_A, 0); // turn off power to the motor Serial.print("current brake: "); Serial.println(analogRead(A0)); Serial.println("End of the motor shield test with DC motors. Thank you!"); while(1); }
  • 52. Example 6: Interface to Processing Problem: How can we access Arduino from Processing? Solution: use the Processing library Based on Firmata: generic protocol for communicating with microcontrollers like the Arduino from software on a host computer. Guess, where the Arduino IDE came from. Processing was developed as a subset of Java to support visual artists, designers, young programmers, .... It provides stunning Animation, Simulation, Graphics.
  • 53. Example 6 – Code import processing.serial.*; import cc.arduino.*; Arduino arduino; int ledPin = 13; void setup() { //println(Arduino.list()); // we assume it is the first device arduino = new Arduino(this, Arduino.list()[0], 57600); arduino.pinMode(ledPin, Arduino.OUTPUT); } void draw() // draw is the Processing cousin of loop { arduino.digitalWrite(ledPin, Arduino.HIGH); delay(1000); arduino.digitalWrite(ledPin, Arduino.LOW); delay(1000); }
  • 54. Libraries If you want to provide a library you need to program in C/C++ Interface defined in header file, implementation in c++ file /* Header file specifies public contract */ /* The Implementation File */ #ifndef Loudspeaker_h #define Loudspeaker_h #include <Loudspeaker.h> const byte SPEAKER_PIN = 0x8; class Loudspeaker { Loudspeaker(); ~Loudspeaker(); public: void playTone(int freq); void shutUp(); } #endif Compile with gcc-avr //constructor Loudspeaker::Loudspeaker() { pinMode(SPEAKER_PIN, OUTPUT); } Loudspeaker::~Loudspeaker() { /* NOP */ } void Loudspeaker::playTone(int freq) { /* ... */ } void Loudspeaker::shutUp() { /* ... */ }
  • 55. Arduino Simulators Simulator for those with limited tinkering capabilities or without interest Virtronics not perfect, but so far the best solution I found (14,95 AUD) Running my Traffic Lighht example
  • 56. Netduino „Arduino.NET“ Shield-compatible with Arduino Uno Rev. 3 Based on .NET Micro Framework Supports C#, VB, ... STMicro 32-bit microcontroller Speed: 168MHz, Cortex-M4 Code Storage: 384 KB RAM: 100+ KB 10 mbps Ethernet Micro SD card support up to 2 GB Input Voltage: 7.5 - 9.0 VDC or USB powered 25 mA max. current per pin Digital I/O 3.3 V but 5 V tolerant 12 bit ADC (Analog Digital Converter) USB For both images: (c) Microsoft
  • 57. Blinking LED in Netduino In Visual Studio: Change deployment target from emulator to the real board (in the „project menu“ visit „Hello_LED properties“. There you‘ll find the „.NET Micro Framework“ where you eventually change the transport type to „USB“) using System; using System.Threading; using Microsoft.SPOT; using Microsoft.SPOT.Hardware; using SecretLabs.NETMF.Hardware; using SecretLabs.NETMF.Hardware.Netduino; namespace Hello_LED { public class Program { public static void Main() { OutputPort LED = new OutputPort(Pins.ONBOARD_LED, false); while (true) { LED.Write(true); Thread.Sleep(250); LED.Write(false); Thread.Sleep(250); } /* while */ } /* Main() */ } //* Program */ } //* Hello_LED */
  • 58. EventEvent-Driven Netduino Event-driven system-level example using .NET eventhandlers /* imports as in the Blinking LED example */ namespace EventDrivenLED { public class Program { static OutputPort LED = new OutputPort(Pins.ONBOARD_LED, false); public static void Main() { InterruptPort button = new InterruptPort(Pins.ONBOARD_SW1, false, Port.ResistorMode. Disabled, Port.InterruptMode.InterruptEdgeBoth); button.OnInterrupt += new NativeEventHandler(button_OnInterrupt); Thread.Sleep(Timeout.Infinite); } //* Main() */ static void button_OnInterrupt(uint inf1, uint inf2, DateTime time) { // inf1: id of the button, inf2: button state LED.Write(inf2 == 0); // true => button was pushed } /* button_OnInterrupt */ } /* Program */ } /* EventDrivenLED
  • 59. Raspberry Pi more a cheap ARM6-based PC to go with size of a credit card With 1 GHz, 512 MB RAM, separate Broadcom Graphics processor, HDMI. Often used as media center (XBMC) Created by the Raspberry Pi Foundation. „PI“ originally came from „Python Interpreter“. Not fully open source! GNU/Linux (Raspbian), or other OS loaded from a SD card Voltage 5V (Micro-USB or batteries) Ports: 17 Digital GPIO-Pins, SPI, I²C, UART, EGL Caution: Ports can only handle 3.3V GPIO = General Purpose I/O SPI = Serial Peripheral Interface EGL = Programming Interface: shields APIs (OpenGL, ...) from the underlying windowing system
  • 60. Using the GPIO Pins Different choices: Python, favourite language of the RPi creators Unix Shell: writing 1 to the port 17 with the program gpio: gpio -g write 17 1 C/C++ Javascript Java HTML5 Perl import RPi.GPIO as GPIO import time /* use board pin numbers */ GPIO.setmode(GPIO.BOARD) /* use it as an output port */ GPIO.setup(11, GPIO.OUT) def helloRPi(pin): GPIO.output(pin,GPIO.HIGH) time.sleep(1) GPIO.output(pin,GPIO.LOW) time.sleep(1) return Erlang for i in range(0,1000): helloRPi(11) ... GPIO.cleanup()
  • 61. Expanding the Raspberry Pi Limited capabilities compared with Arduino Various shields available, e.g.: Shield to connect Raspberry Pi & Arduino Shield to expand the capabilities of RPi The Gert Board is a well known expansion board Sold assembled and not assembled 12 x Buffered I/O 3 x Push Buttons 6 x Open collector drivers (50V, 0.5A) 18V, 2A motor controller 28-pin dual in line ATmega microcontroller 2 -channel 8, 10, or12 bit Digital to Analog converter 2- channel 10 bit Analog to Digital converter
  • 62. beagleboard.org beagleboard.org - BeagleBone BeagleBone Black, the sprinter: Powered by Embedded Linux CPU AM335x 1GHz ARM® Cortex-A8 512MB DDR3 RAM 2GB 8-bit eMMC on-board flash 3D graphics accelerator NEON floating-point accelerator 2x PRU 32-bit microcontrollers Connectivity USB client for power & communications USB host Ethernet HDMI 2x 46 pin headers • PRU • PMIC = Programmable Realtime Unit = Power Management IC
  • 63. BeagleBone External Interface Pins Satisfaction guaranteed
  • 64. BeagleBone Programming Supports Python, Perl, C/C++, JVM Languages, JavaScript + BoneScript Library, Shell commands, ... Can interact with Arduino serially using Java RxTx Eclipse,Visual Studio, Cloud9 support JavaScript + BoneScript var b = require('bonescript'); var state = b.LOW; b.pinMode("USR0", b.OUTPUT); b.pinMode("USR1", b.OUTPUT); b.pinMode("USR2", b.OUTPUT); b.pinMode("USR3", b.OUTPUT); setInterval(toggle, 1000); function toggle() { if(state == b.LOW) state = b.HIGH; else state = b.LOW; b.digitalWrite("USR3", state); }
  • 65. And the rest? pcDuino: Arduino + Android or Linux Nanode: Actually, an extended Arduino Libelium Waspnode: Designed for Wireless Sensor Networks, uses the Arduino IDE, for Arduino sketches - only some adjustments necessary ... CubieBoard, PandaBoard, ... Mona Lisa built with hardware (c) http://karachi.olx.com.pk/
  • 66. What we didn‘t hear This was the tip of the iceberg In practice, we face additional challenges: Multitasking and Synchronization Board-to-Board Communication Native tools „ilities“ such as Safety Real-time requirements Developing Drivers Evolution and Update Product Families Testing & Debugging ... Nonetheless, the capabilities of open source hardware as well as its wide acceptance are more than promising. Wiring is fun!
  • 67. Robotics For robotics applications you may use Arduino, Raspberry Pi, BeagleBone et al. but that is tedious Often, special robotics kits may be the better choice, e.g., Lego Mindstorms EV3 Not open source but often used for prototyping or demos Contains NI LabVIEW, a graphical programming environment.You may also use: LeJOS implements Java and provides its own firmware RobotC ... many further options ...
  • 68. State-of-theState-of-the-Art Software is essential for embedded devices Only a few systems today aren‘t based on software Today‘s microcontrollers are several orders of magnitudes more powerful than an Intel 8051 Open Source Hardware helps to learn the fundamentals of embedded systems (development) to build prototypes to create commercial systems to implement physical computing devices that interact with users and the Web to have fun Most systems can be programmed using comfortable IDEs But don‘t let the IDEs fool you. Embedded systems differ significantly from desktop systems, e.g., Hard resource constraints (small memory, short battery lifetime, less speed, ...) Time as a first order concept Integration with electronics, mechatronics, mechanics, ... Dependability and Safety Testing & Simulators Updates of (mobile) devices
  • 69. Future Trends The Future is Embedded Modern cars contain a network with several dozens interconnected embedded systems In „hardware“-companies like Siemens two thirds of revenues depend on software. And this number is increasing. There are far more embedded systems than other systems, but they are usually hidden in a box Connected embedded systems become commodity products (example: cars, home automation) New types of HMI (Human Machine Interaction) Robotics on the rise Arduino-based or not? Resistance is futile Human-Machine Interaction
  • 70. Conclusions Open source hardware boards offer a cheap and easy way to dive into embedded systems Arduino & Raspberry Pi & Beaglebone are the VIPs Arduino is superior for pure electronics projects, but Arduino Yun and Arduino Tre provide a Linux system, a microcontroller, and a bridge Raspberry Pi comprises a small Linux system BeagleBone: Arduino-like GPIO and Linux-based like Raspberry PI Netduino: interesting for .NET developers compatible with the Arduino board layout (shield compatible) BeagleBone and other boards http://hacknmod.com/hack/make-a-uav-spyplane-using-the-arduino/ • Dear NSA, the community strikes back with an Arduinobased Drone! • Already available and much cheaper than the Euro-Hawk! are powerful but have less distribution Board selection based on need and available support Lego Mindstorms EV3 is excellent for learning robotics albeit commercial Solutions for connecting Arduino/Raspberry Pi, Arduino/ Mindstorms, ... already available Boards help to learn the pitfalls of developing embedded software without needing a safety net
  • 71. Some folks won‘t ever give away their Arduino board Others would shamelessly steal it It is like a precious ring So, keep an eye on your ring micro controller board
  • 72. Last Words:The Pain of Engineering The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong, it usually turns out to be impossible to get at and repair. [Douglas Adams]
