Online Upgrade Using Logical Replication

•

0 likes•68 views

Always upgrade! There are hundreds of fixes between each PostgreSQL release, and an important number of them are security fixes! Logical replication allows making major upgrades with minimal downtime and feasible cons.

Technology

Online upgrade using
logical replication
Florin Irion
8 December 2020
#postgresbuild2020

Whoami?
ﬂorin.irion@enterprisedb.com
@irionr

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.3

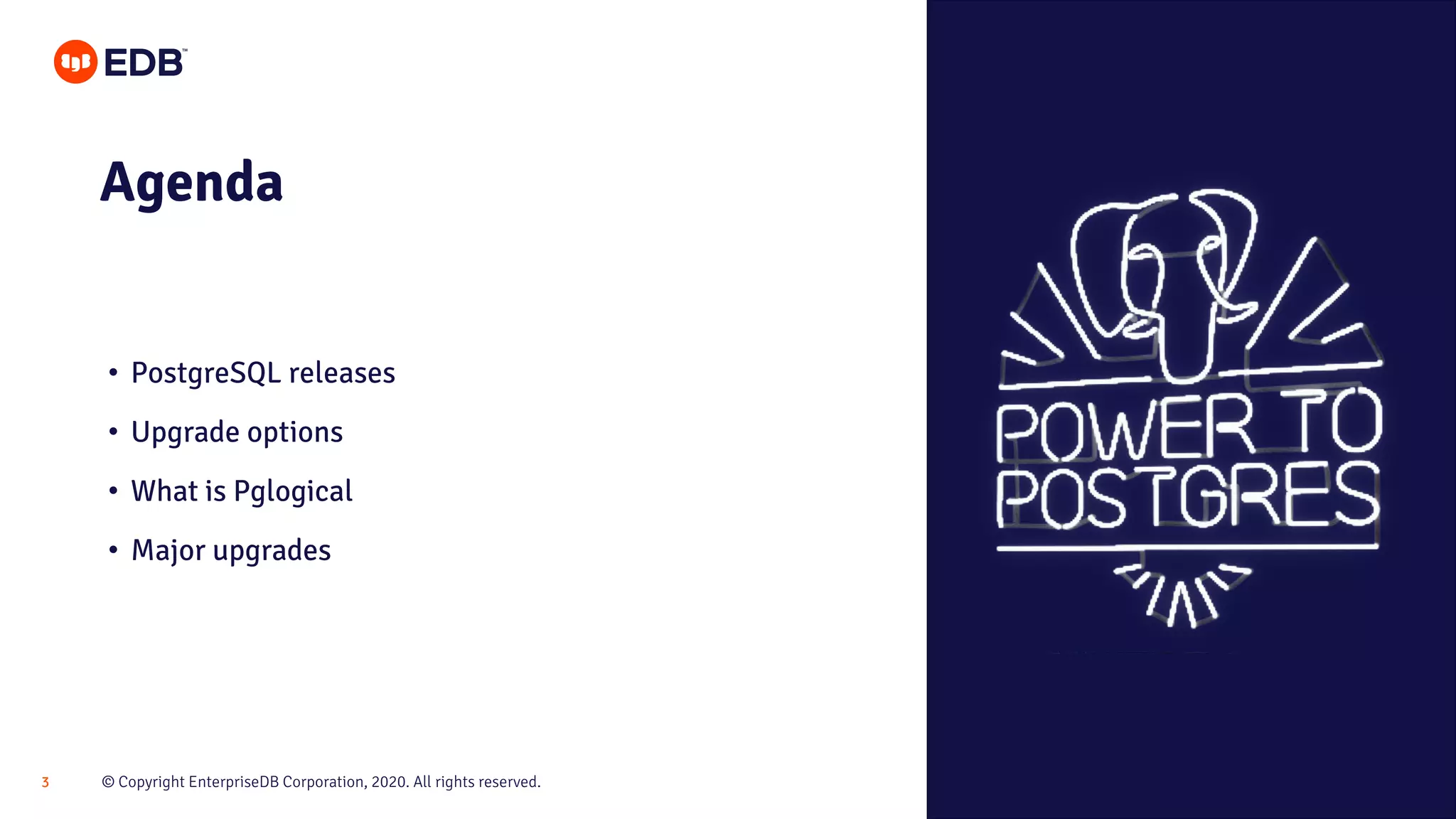

Agenda
• PostgreSQL releases
• Upgrade options
• What is Pglogical
• Major upgrades

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.4

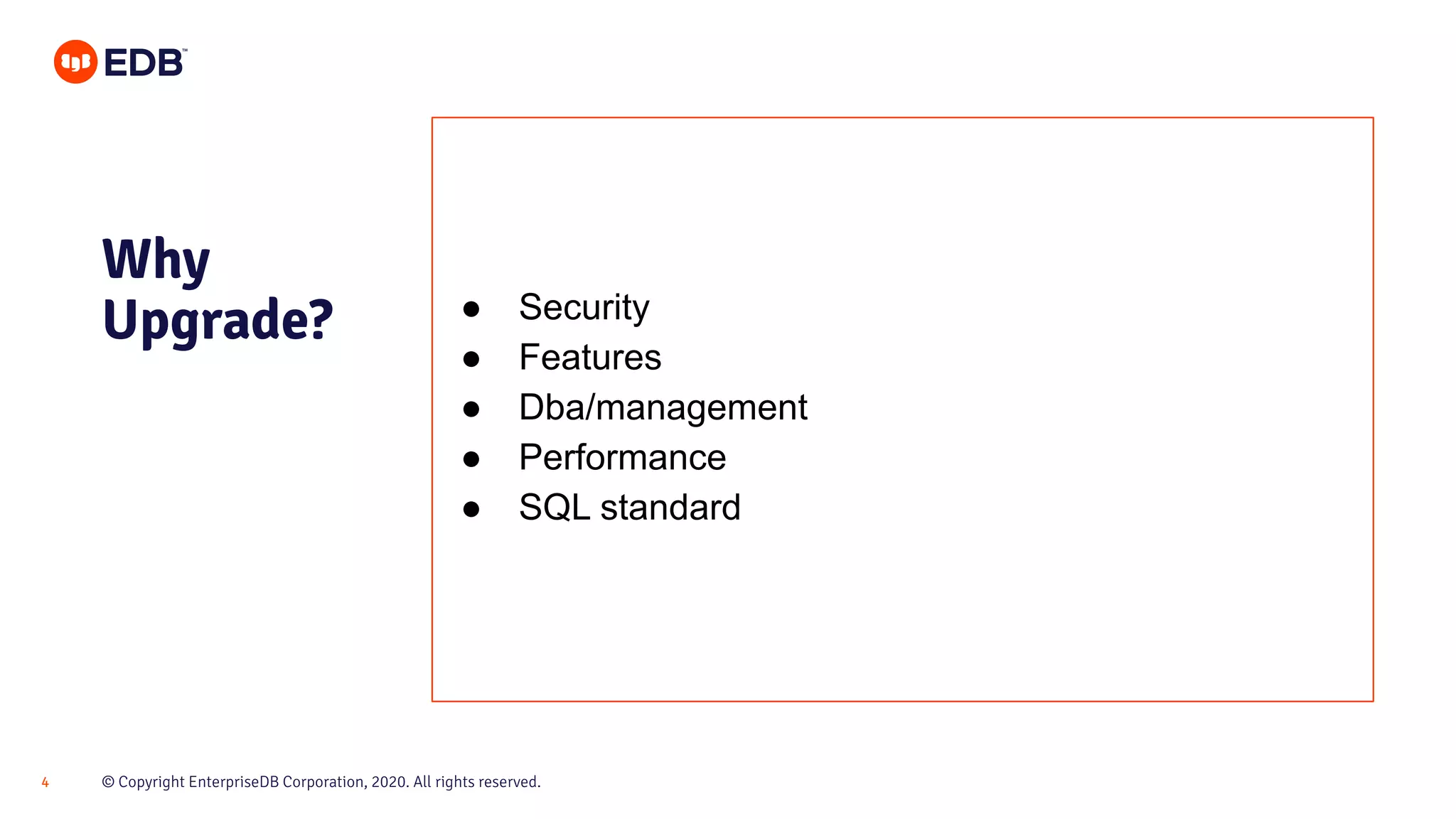

Why
Upgrade? ● Security
● Features
● Dba/management
● Performance
● SQL standard

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.5

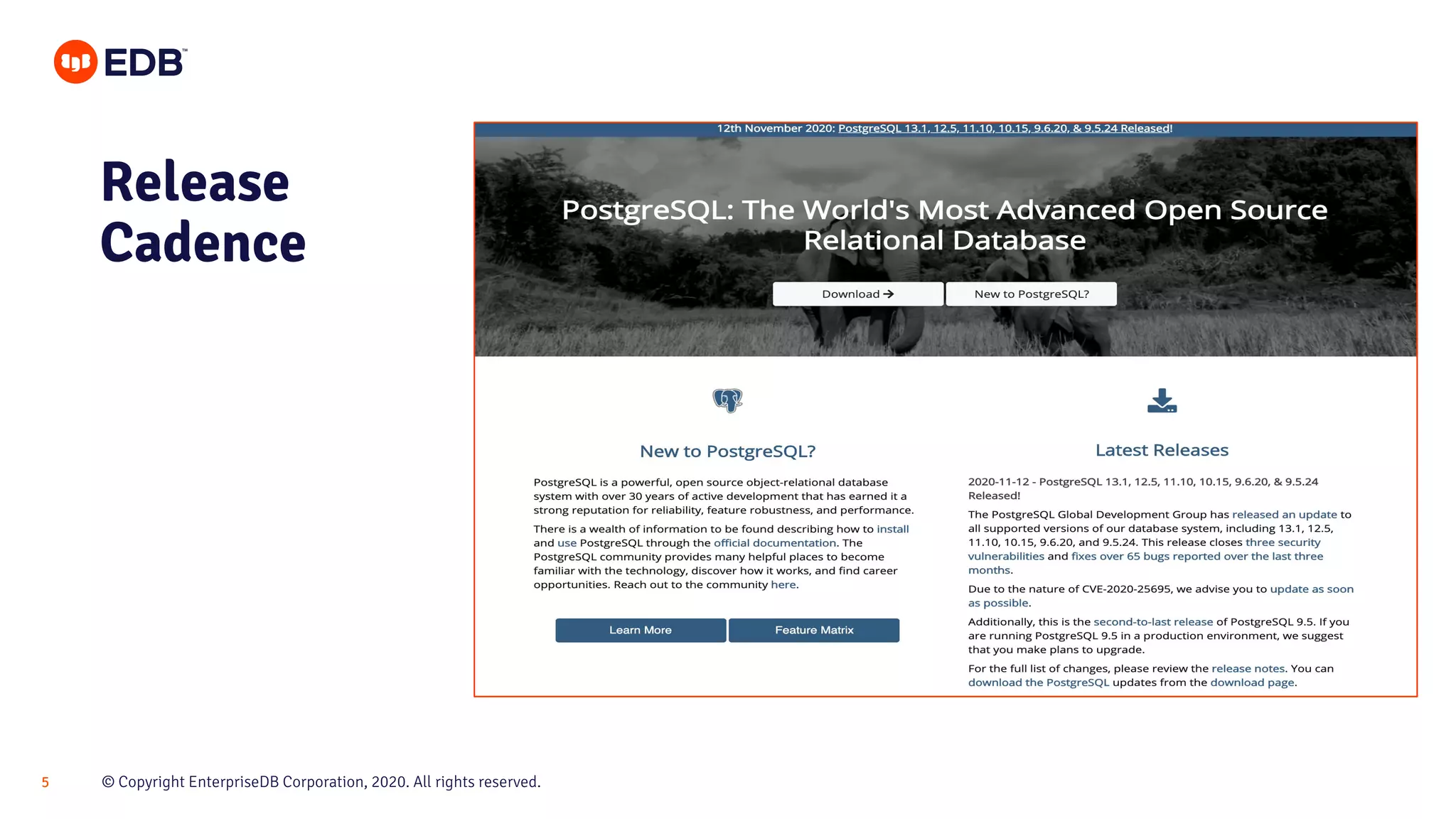

Release
Cadence

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.6

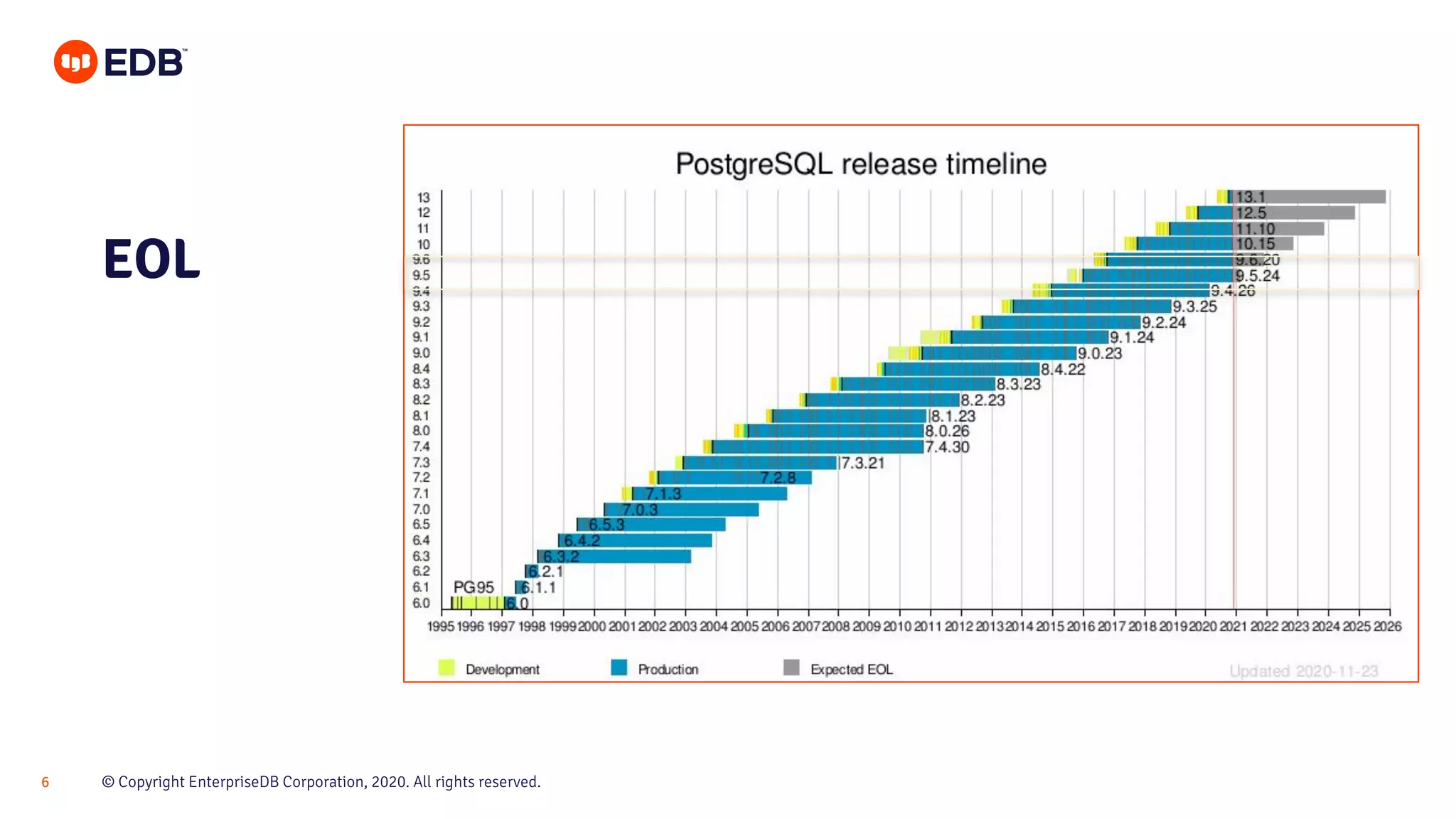

EOL

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.7

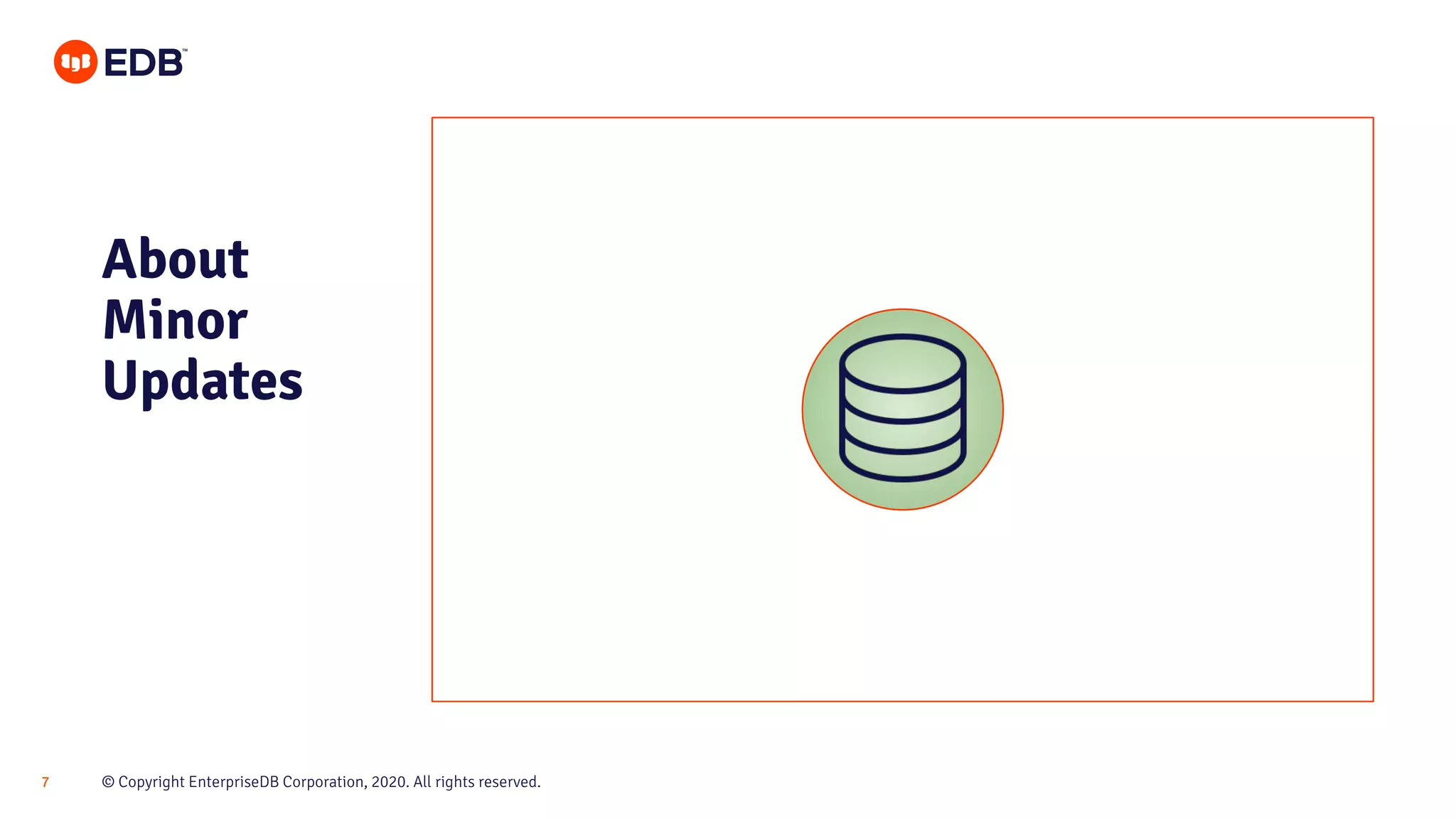

About
Minor
Updates

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.8

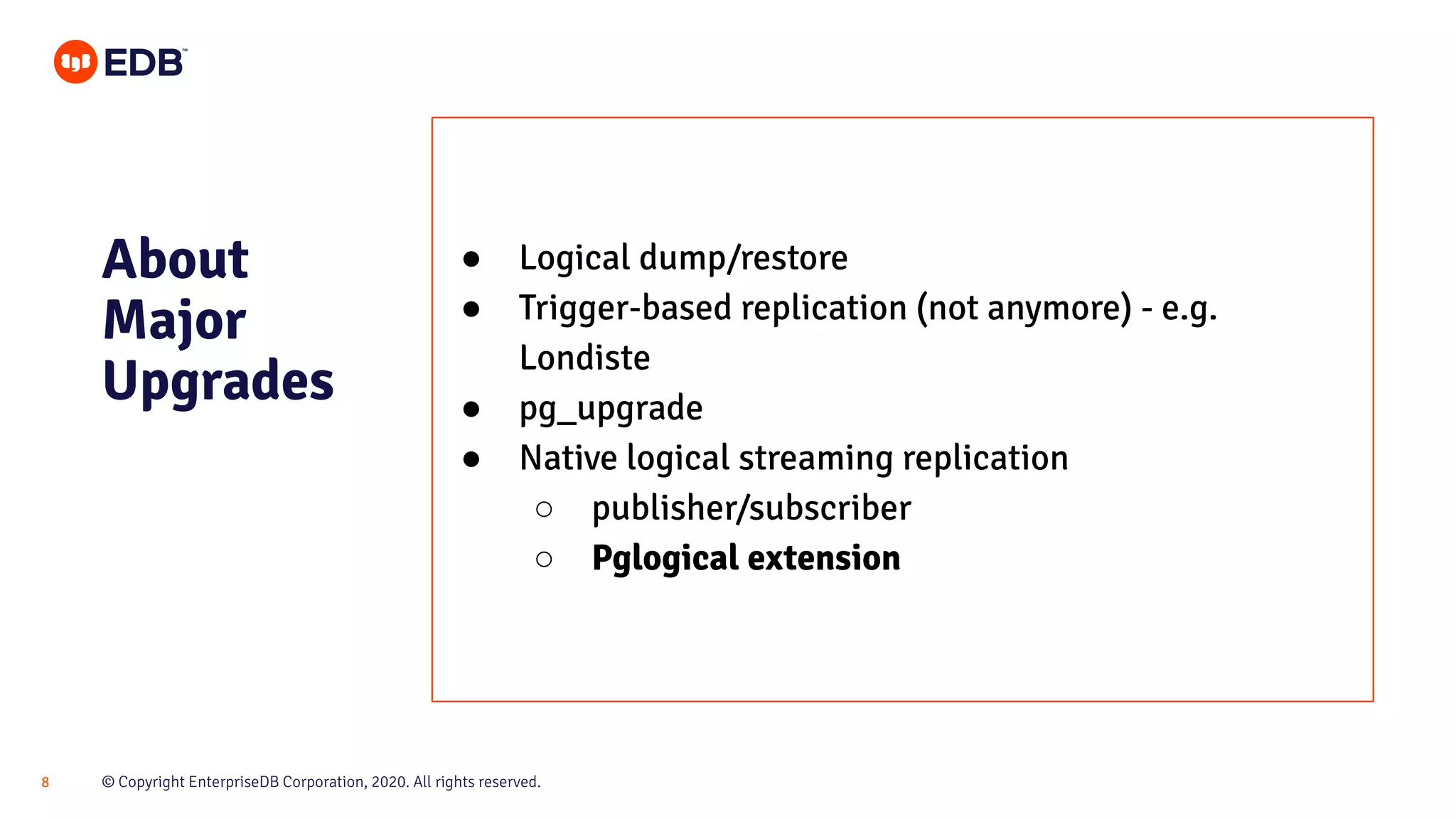

About
Major
Upgrades
● Logical dump/restore
● Trigger-based replication (not anymore) - e.g.
Londiste
● pg_upgrade
● Native logical streaming replication
○ publisher/subscriber
○ Pglogical extension

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.9
About
Major
Upgrades
● Logical dump/restore
● Trigger-based replication (not anymore) - e.g.
Londiste
● pg_upgrade
● Native logical streaming replication
○ publisher/subscriber
○ Pglogical extension

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.10

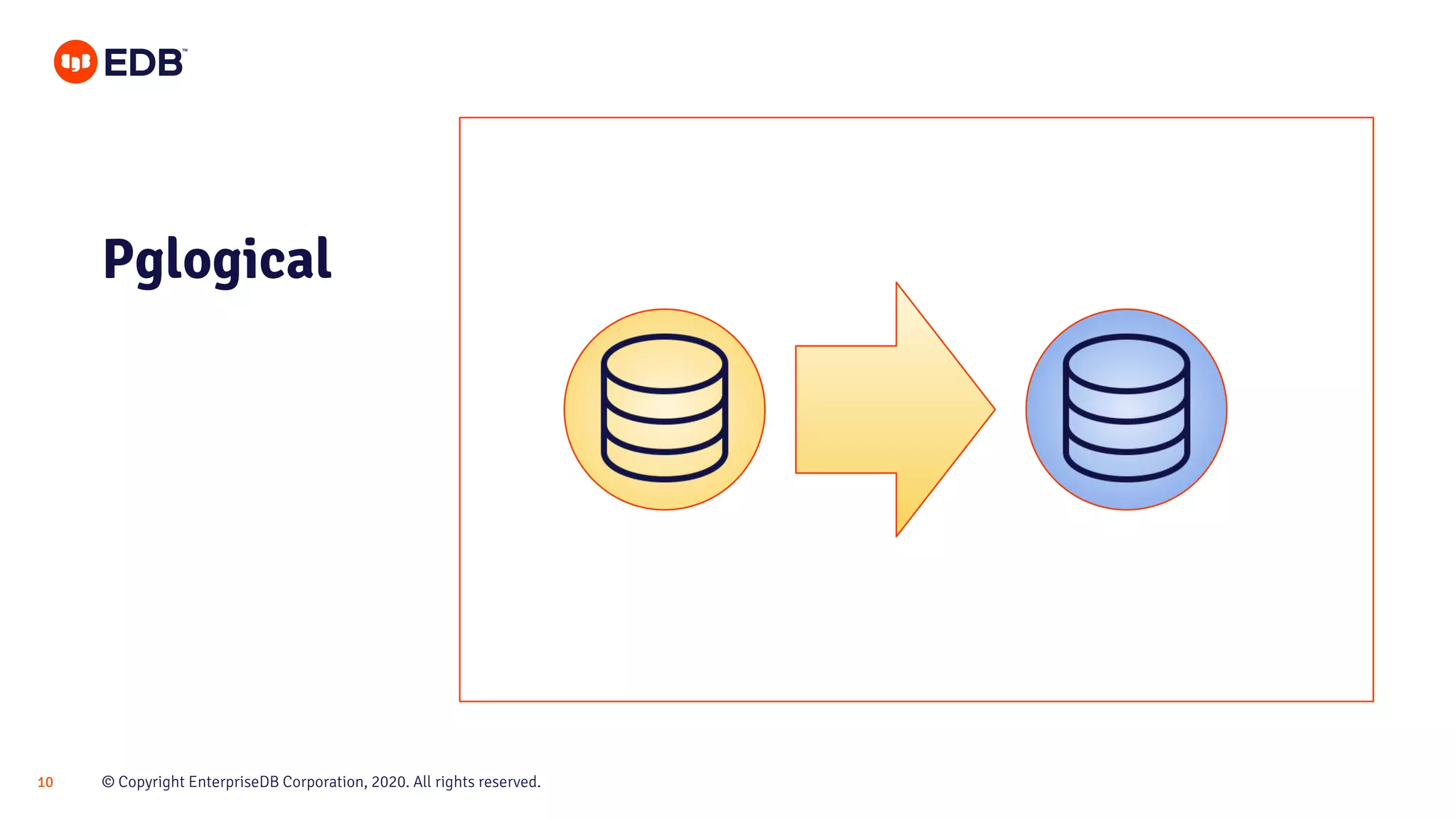

Pglogical

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.11
Pglogical
vs
Logical
Replication

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.12

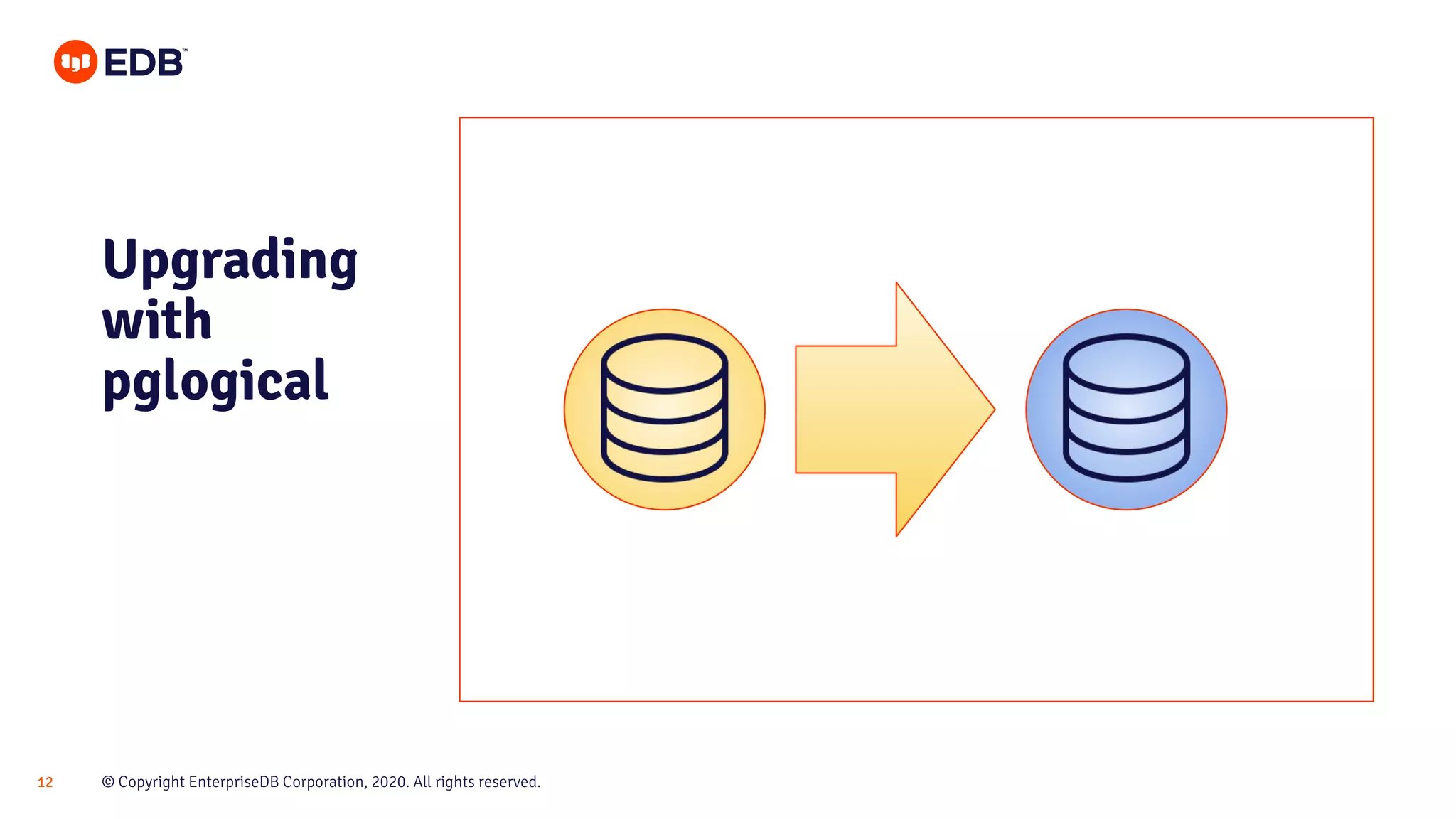

Upgrading
with
pglogical

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.13

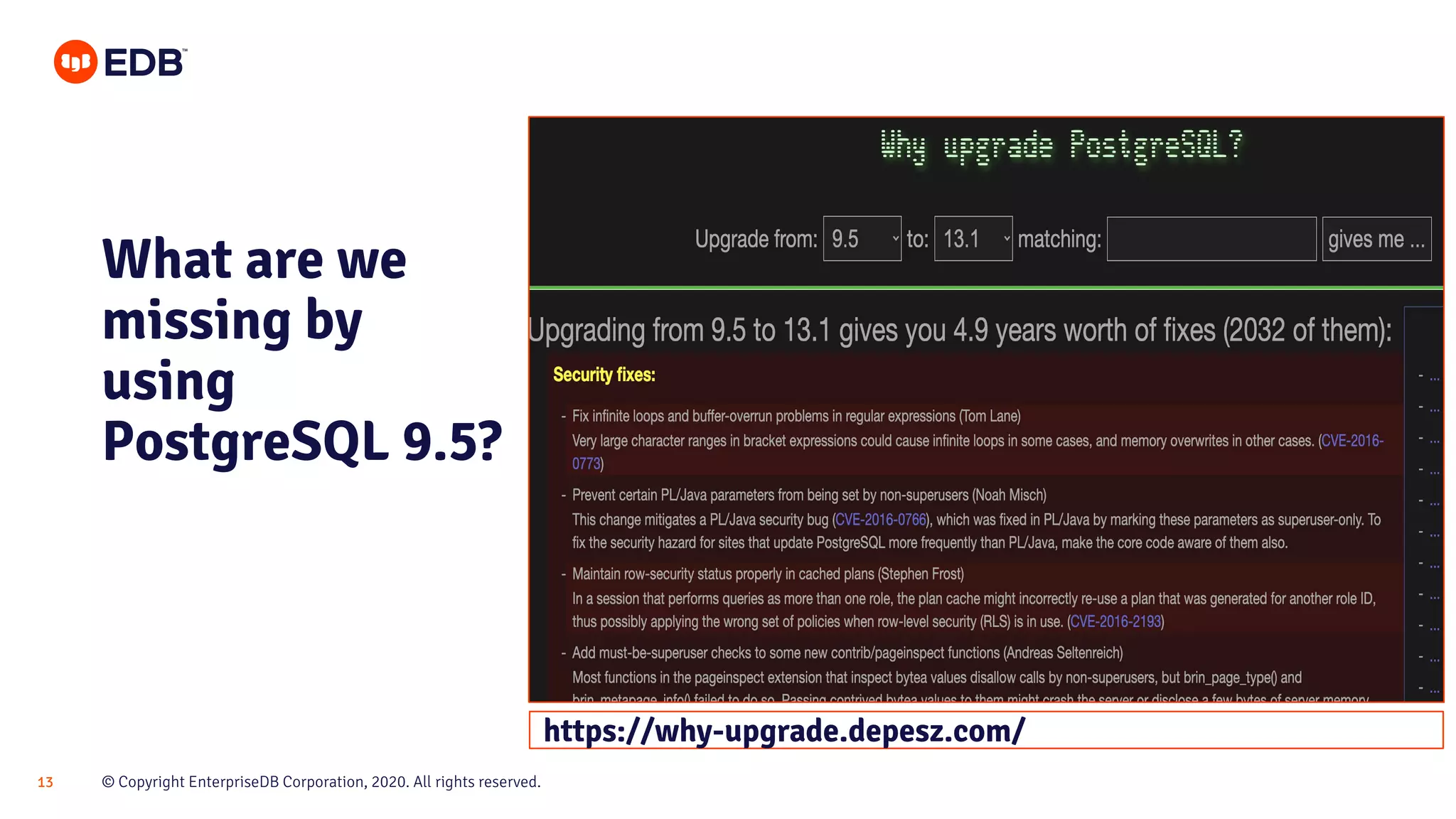

What are we
missing by
using
PostgreSQL 9.5?
https://why-upgrade.depesz.com/

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.14

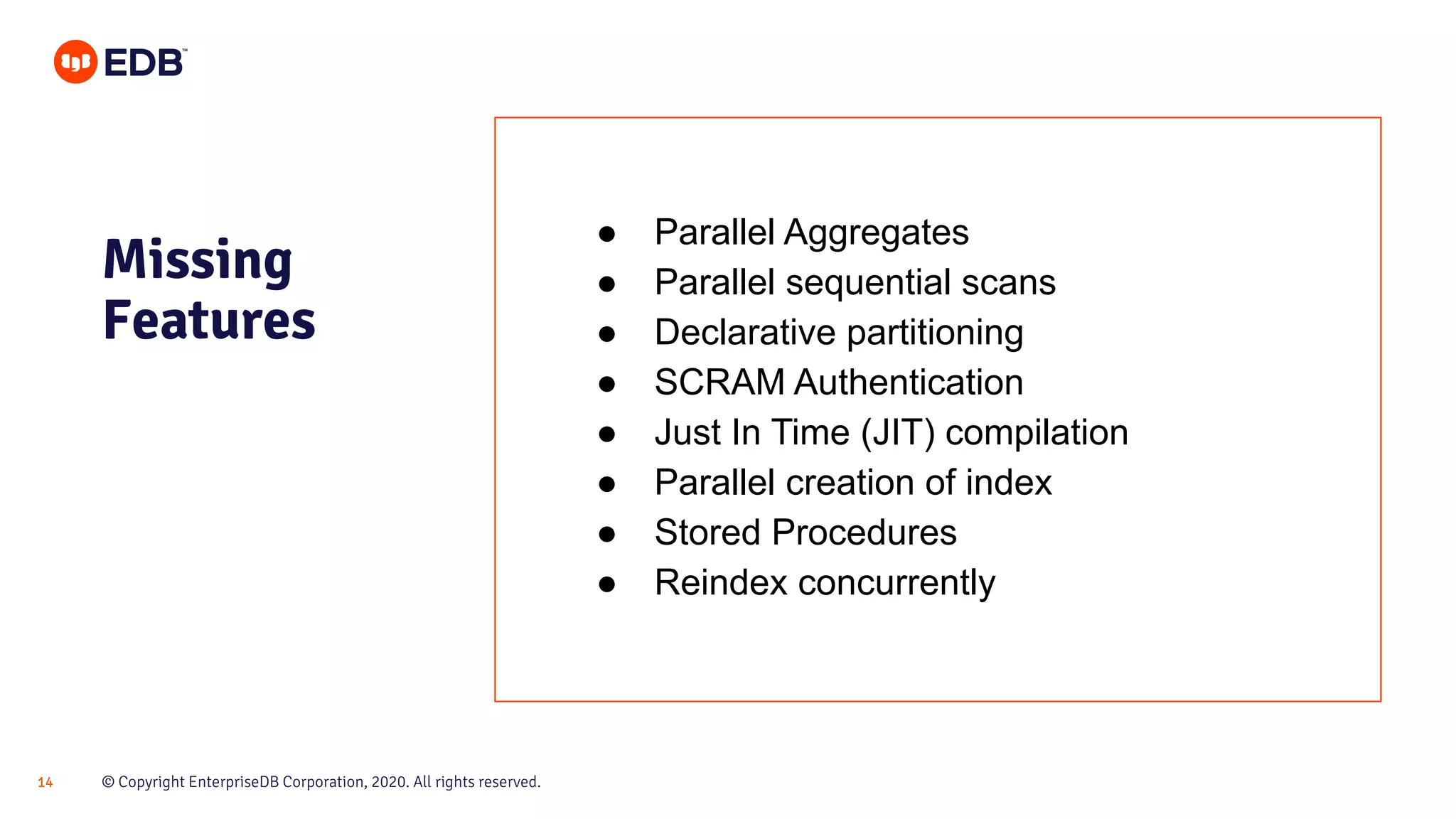

Missing
Features
● Parallel Aggregates
● Parallel sequential scans
● Declarative partitioning
● SCRAM Authentication
● Just In Time (JIT) compilation
● Parallel creation of index
● Stored Procedures
● Reindex concurrently

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.15

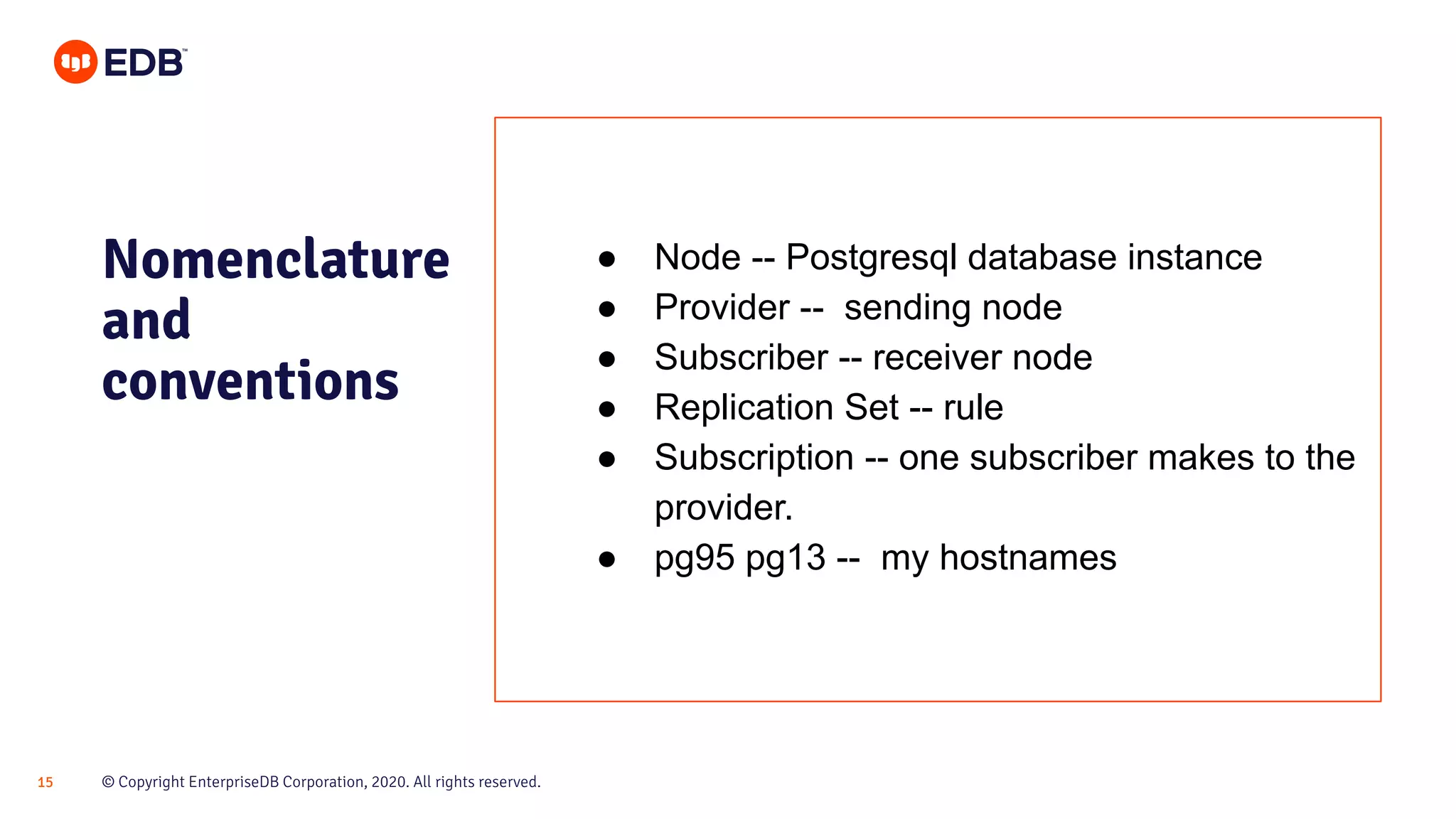

Nomenclature
and
conventions
● Node -- Postgresql database instance
● Provider -- sending node
● Subscriber -- receiver node
● Replication Set -- rule
● Subscription -- one subscriber makes to the
provider.
● pg95 pg13 -- my hostnames

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.16

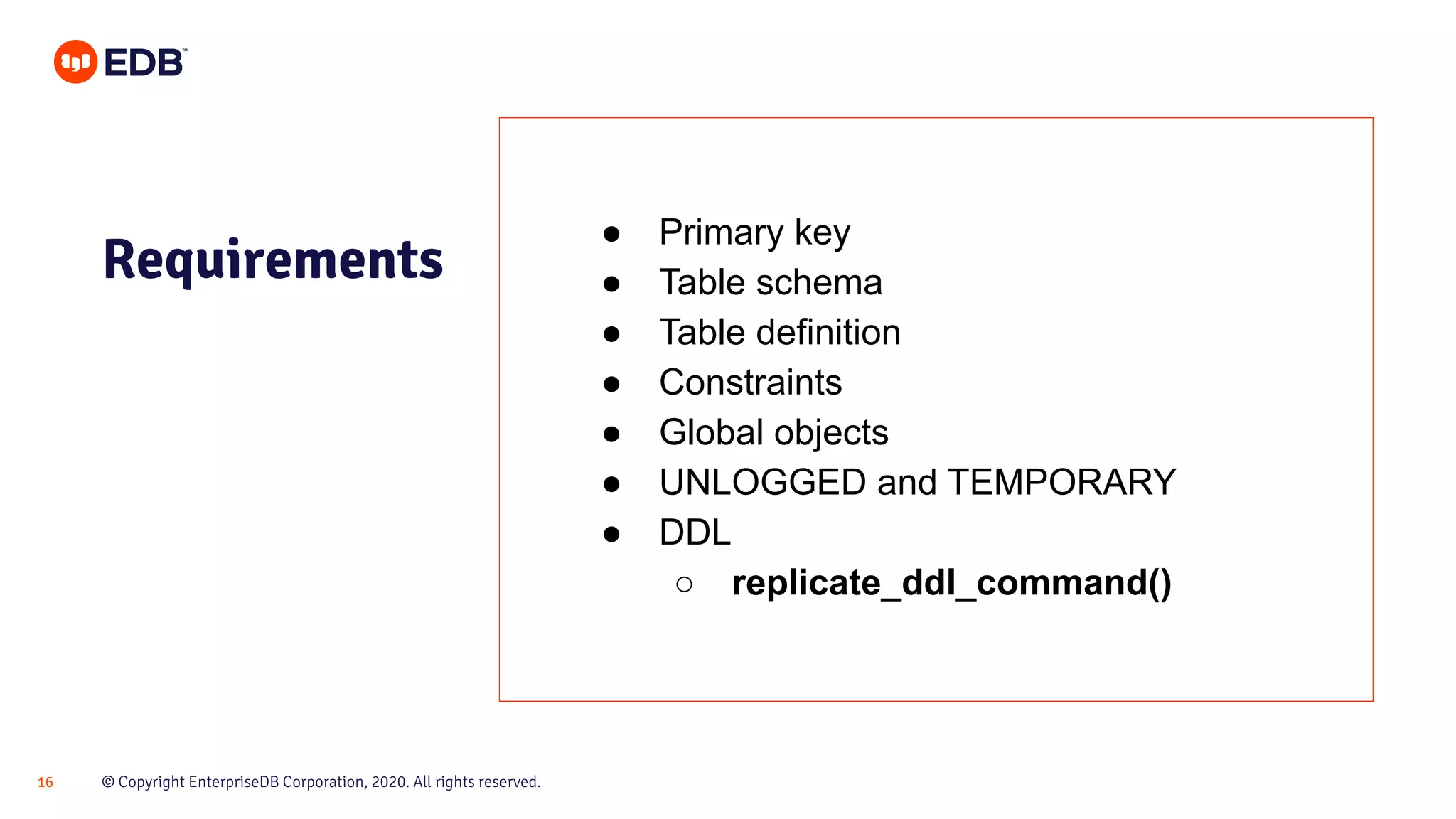

Requirements
● Primary key
● Table schema
● Table definition
● Constraints
● Global objects
● UNLOGGED and TEMPORARY
● DDL
○ replicate_ddl_command()

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.17

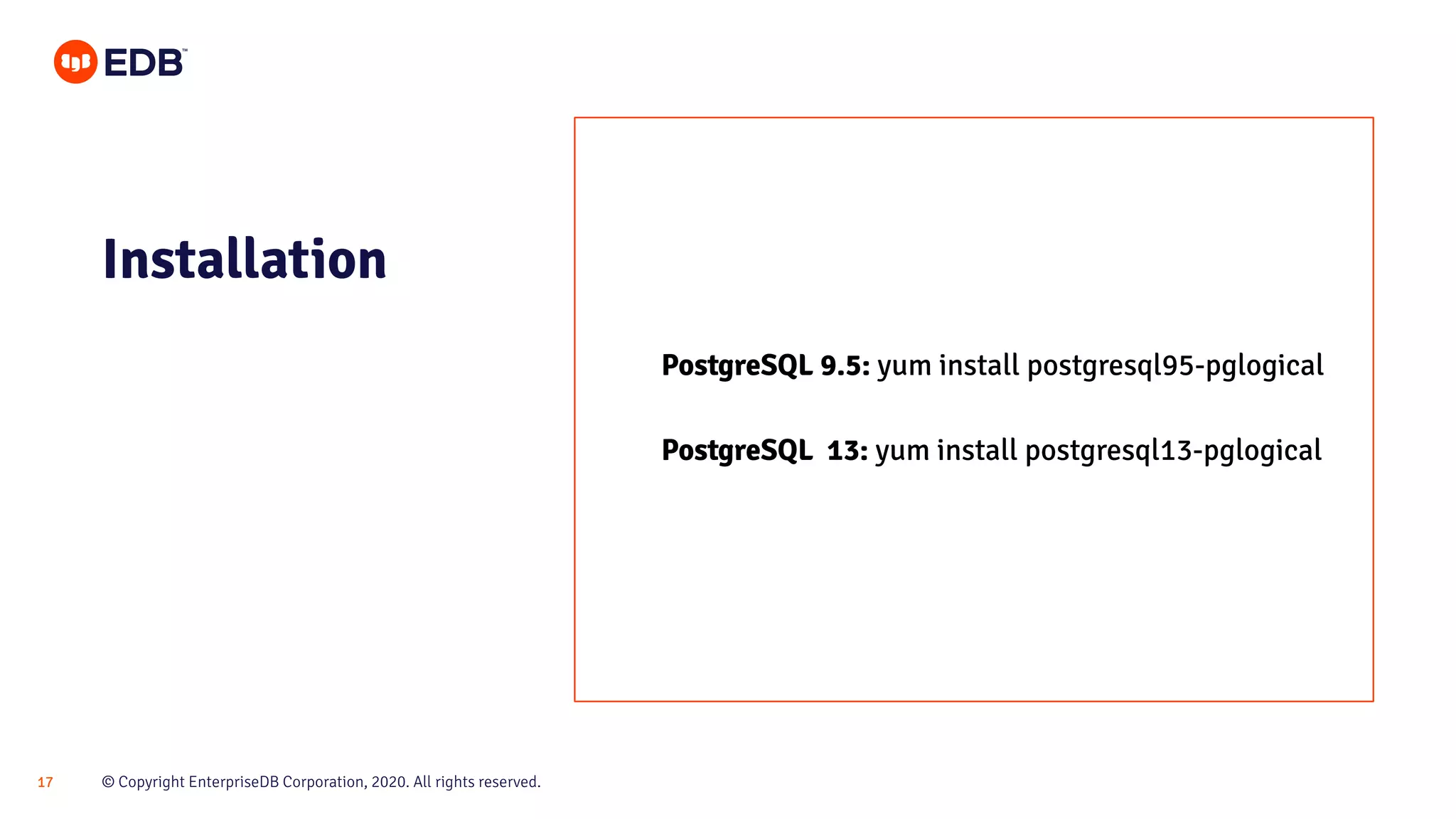

Installation
PostgreSQL 9.5: yum install postgresql95-pglogical
PostgreSQL 13: yum install postgresql13-pglogical

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.18

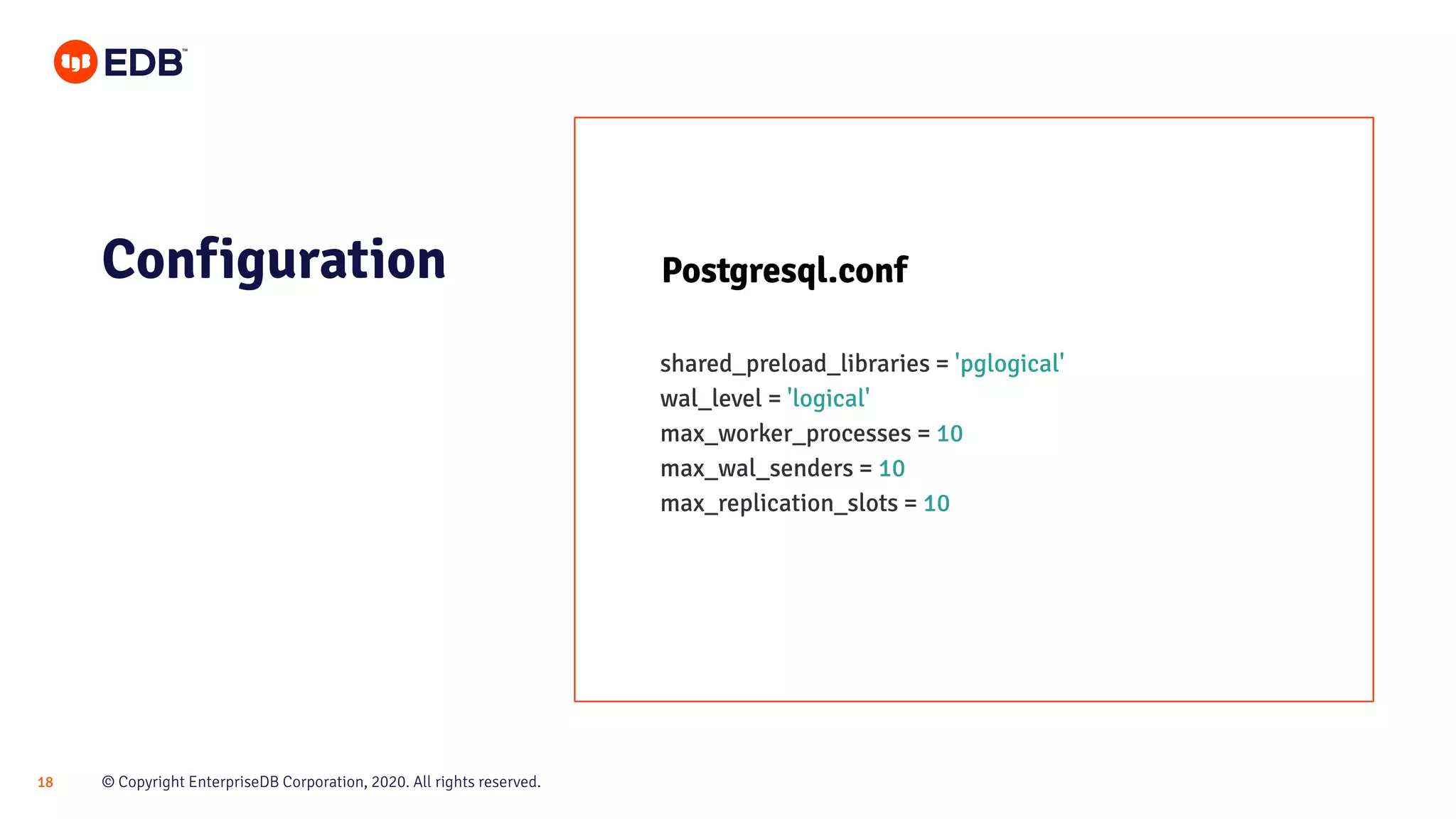

Configuration Postgresql.conf
shared_preload_libraries = 'pglogical'
wal_level = 'logical'
max_worker_processes = 10
max_wal_senders = 10
max_replication_slots = 10

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.19

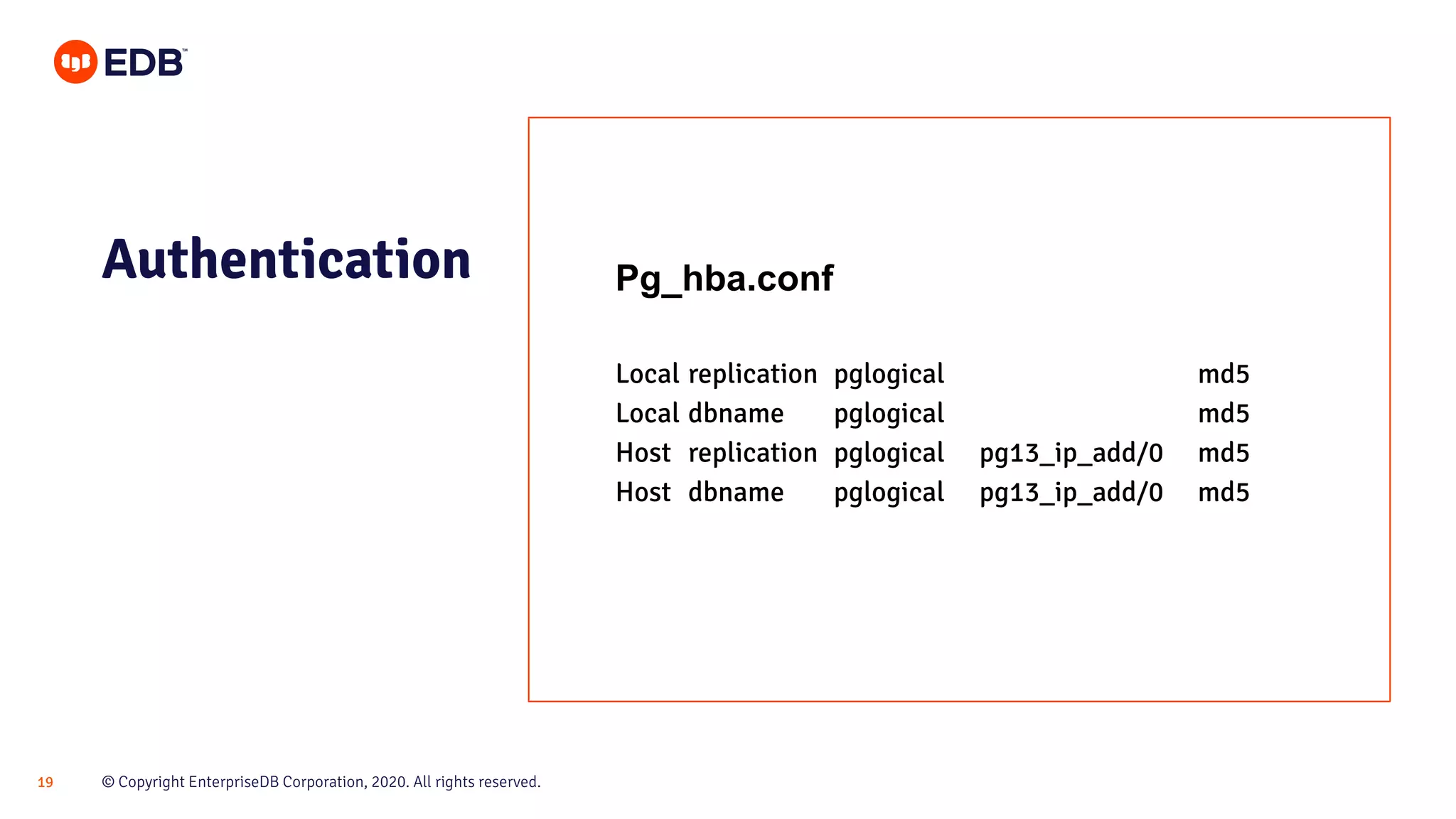

Pg_hba.conf
Local replication pglogical md5
Local dbname pglogical md5
Host replication pglogical pg13_ip_add/0 md5
Host dbname pglogical pg13_ip_add/0 md5
Authentication

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.20
Create
extension
and nodes
CREATE EXTENSION pglogical;
SELECT pglogical.create_node (
node_name: = 'provider1',
dsn: = 'host = pg95 port = 5432 dbname = db'
);
CREATE EXTENSION pglogical;
SELECT pglogical.create_node (
node_name: = 'subscriber1',
dsn: = 'host = pg13 port = 5432 dbname = db'
);

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.21

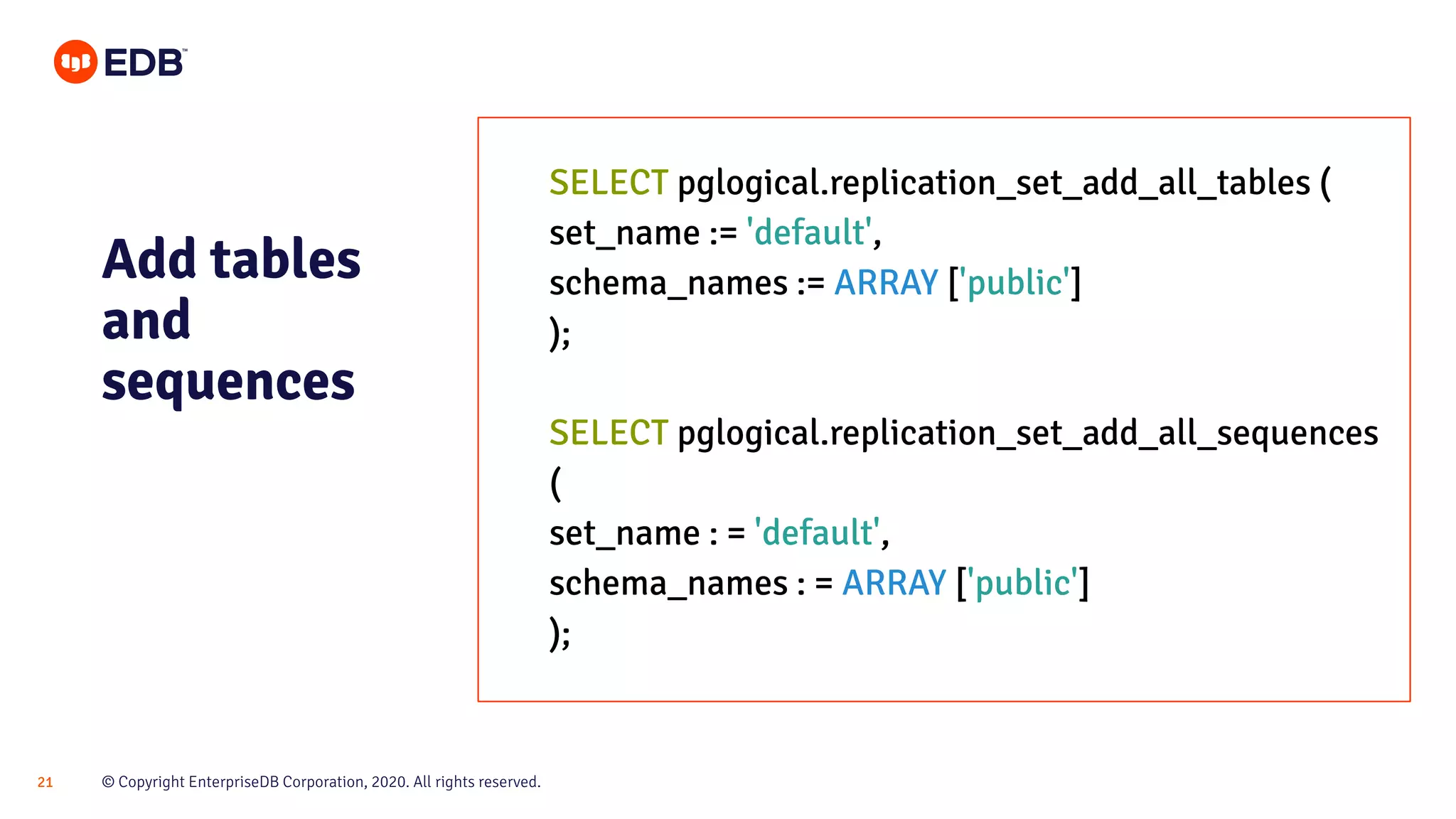

Add tables
and
sequences
SELECT pglogical.replication_set_add_all_tables (
set_name := 'default',
schema_names := ARRAY ['public']
);
SELECT pglogical.replication_set_add_all_sequences
(
set_name : = 'default',
schema_names : = ARRAY ['public']
);

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.22

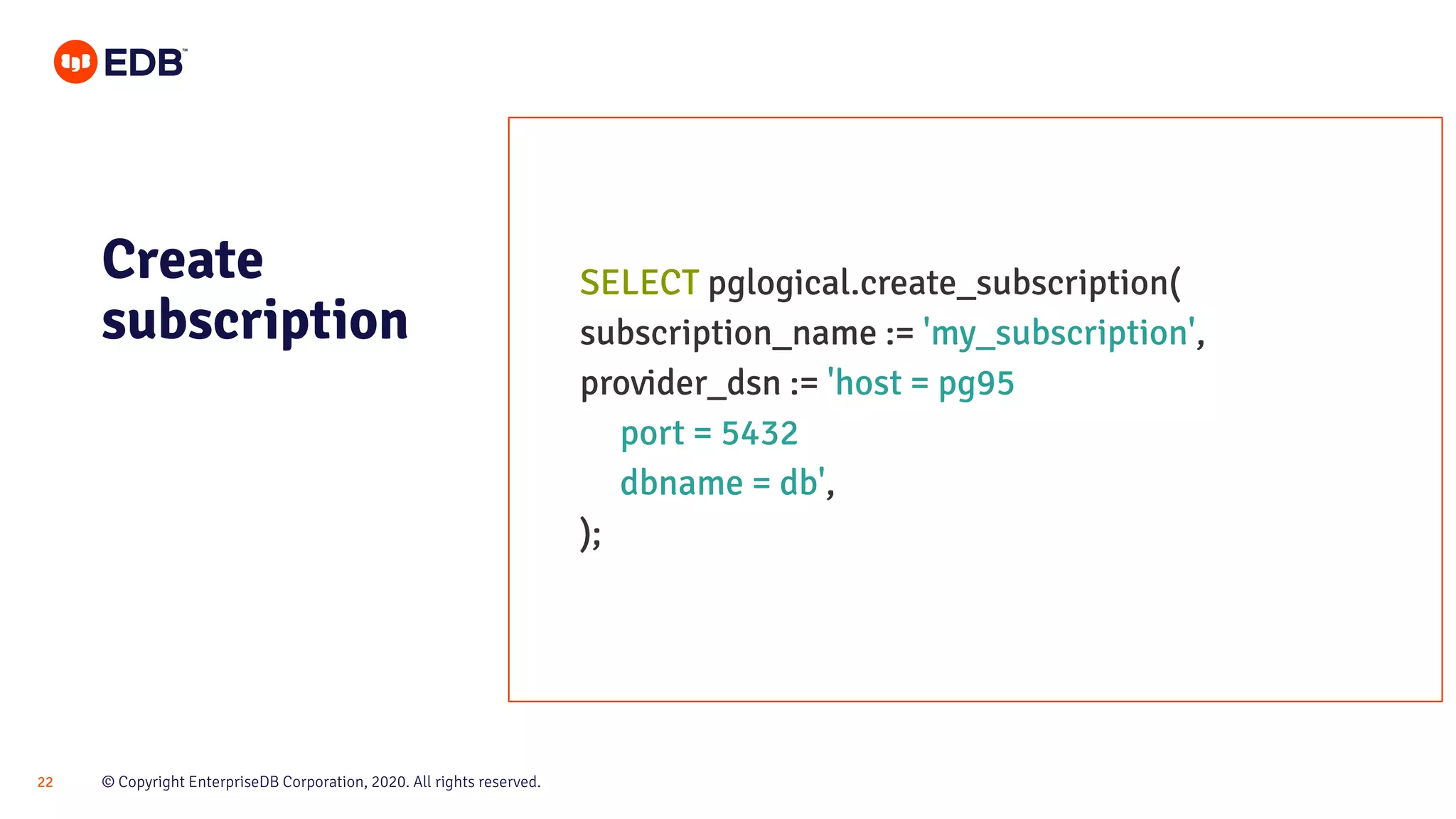

Create
subscription
SELECT pglogical.create_subscription(
subscription_name := 'my_subscription',
provider_dsn := 'host = pg95
port = 5432
dbname = db',
);

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.23

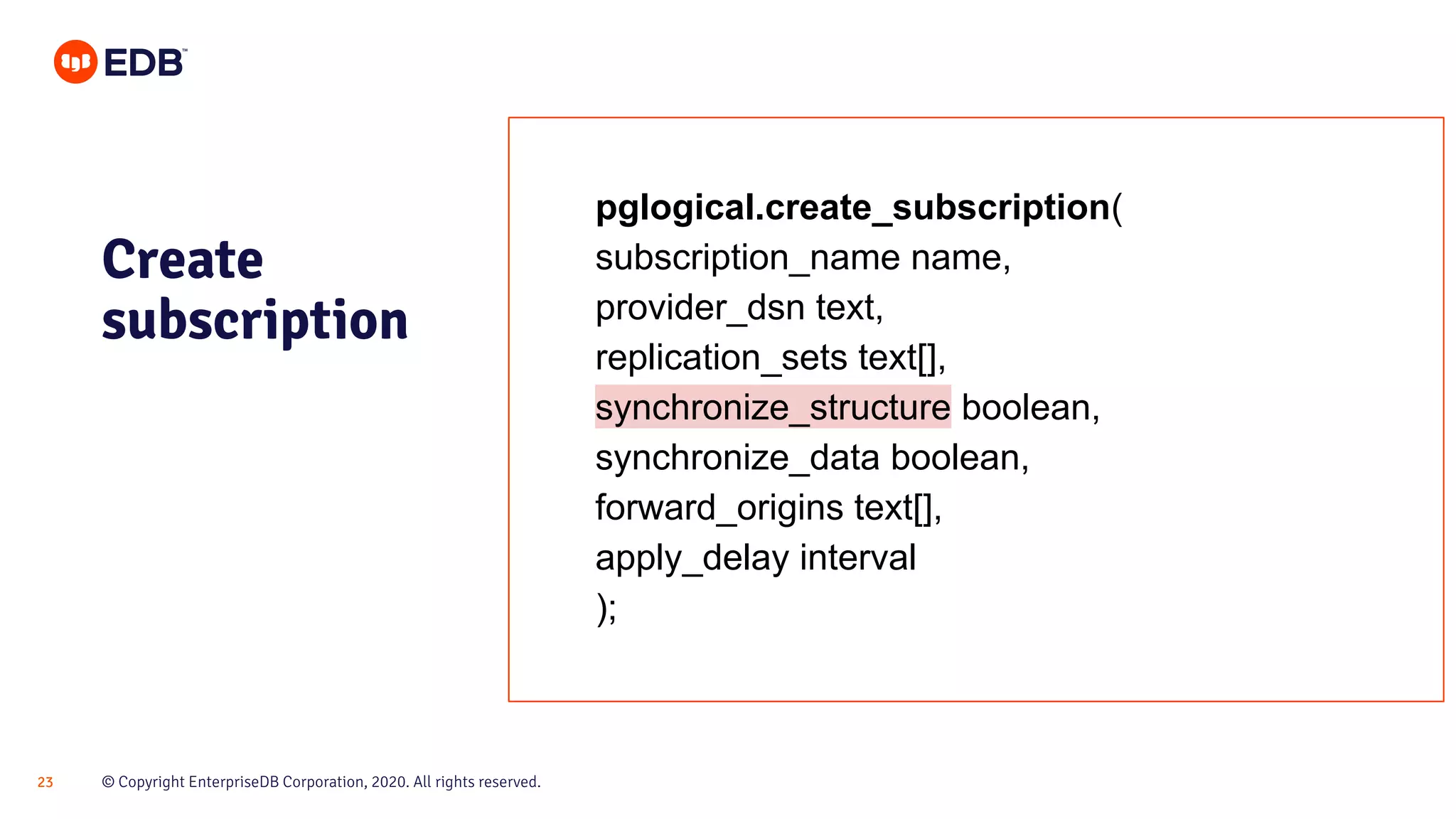

pglogical.create_subscription(
subscription_name name,
provider_dsn text,
replication_sets text[],
synchronize_structure boolean,
synchronize_data boolean,
forward_origins text[],
apply_delay interval
);
Create
subscription

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.24

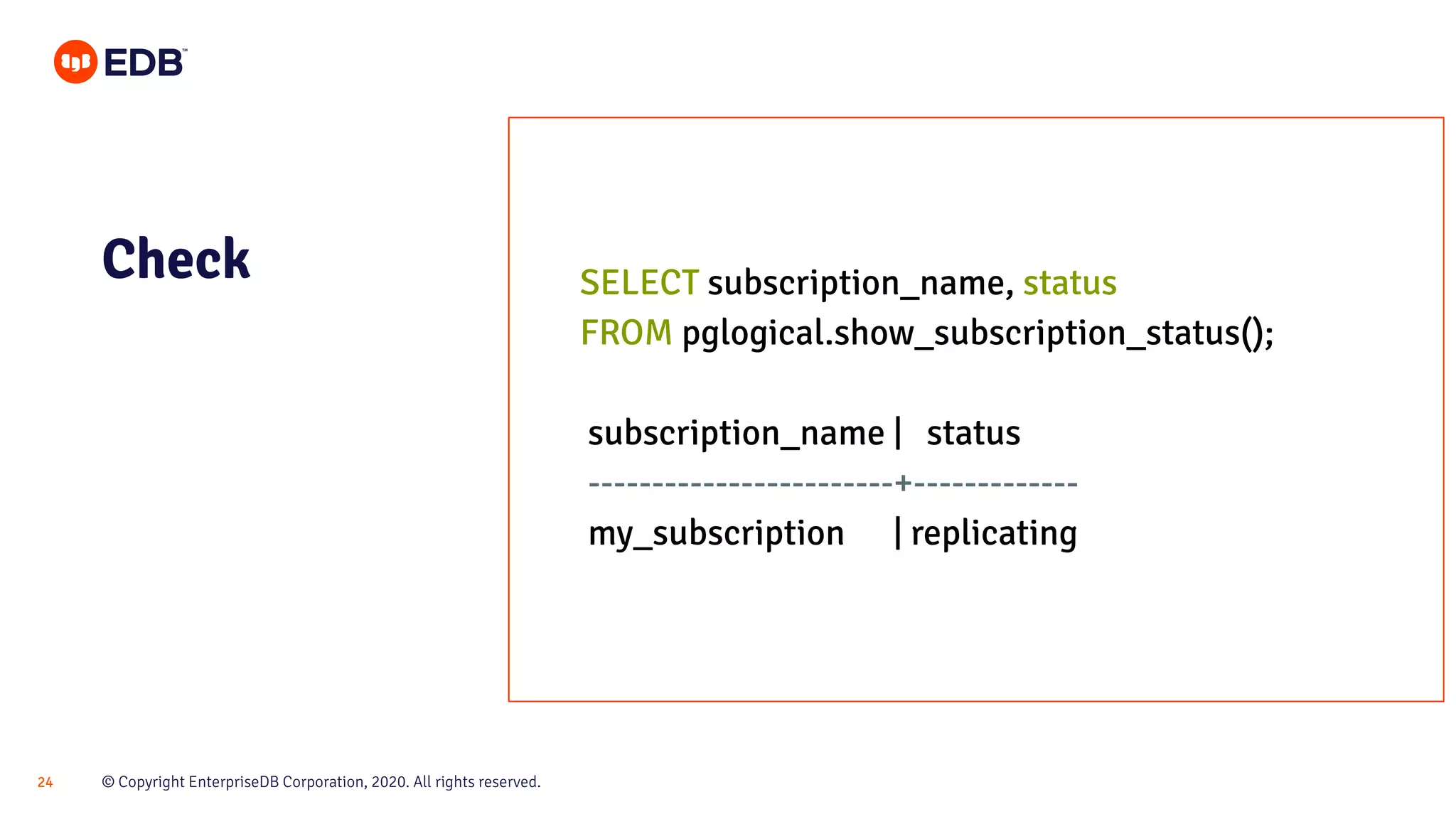

Check SELECT subscription_name, status
FROM pglogical.show_subscription_status();
subscription_name | status
------------------------+-------------
my_subscription | replicating

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.25

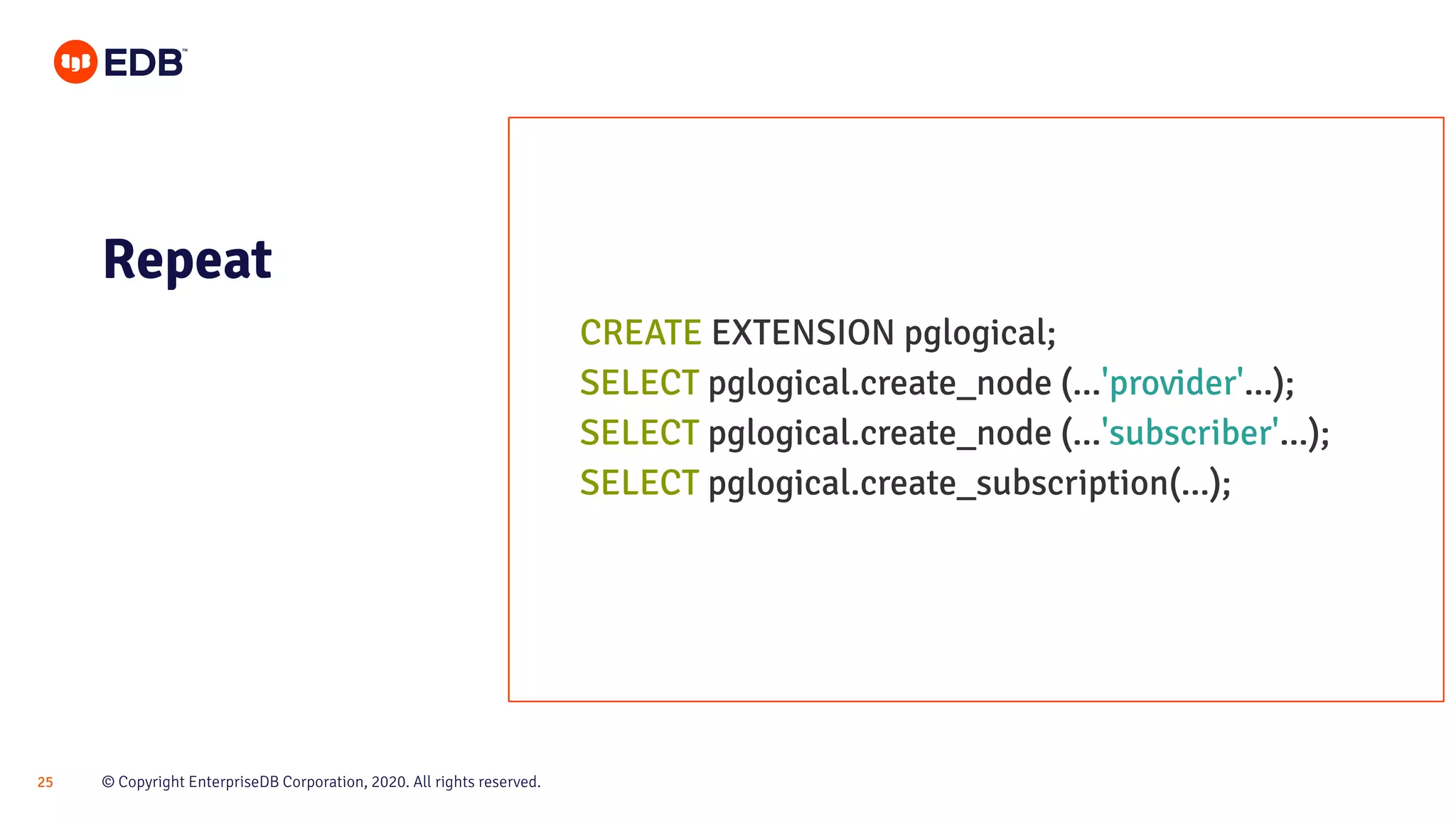

Repeat
CREATE EXTENSION pglogical;
SELECT pglogical.create_node (...'provider'...);
SELECT pglogical.create_node (...'subscriber'...);
SELECT pglogical.create_subscription(...);

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.26
Testing and
application
testing

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.27

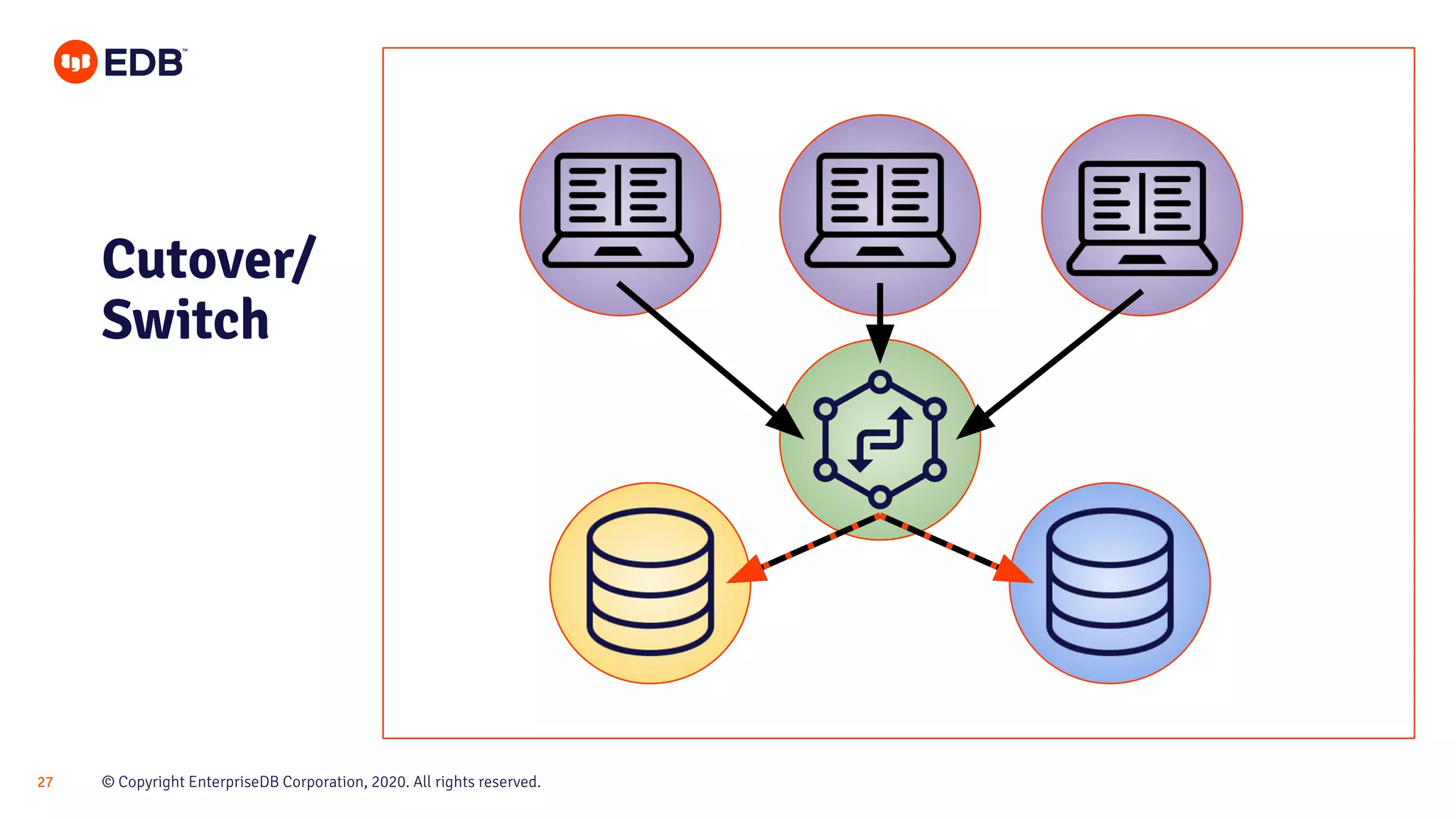

Cutover/
Switch

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.28
Post-switch

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.29

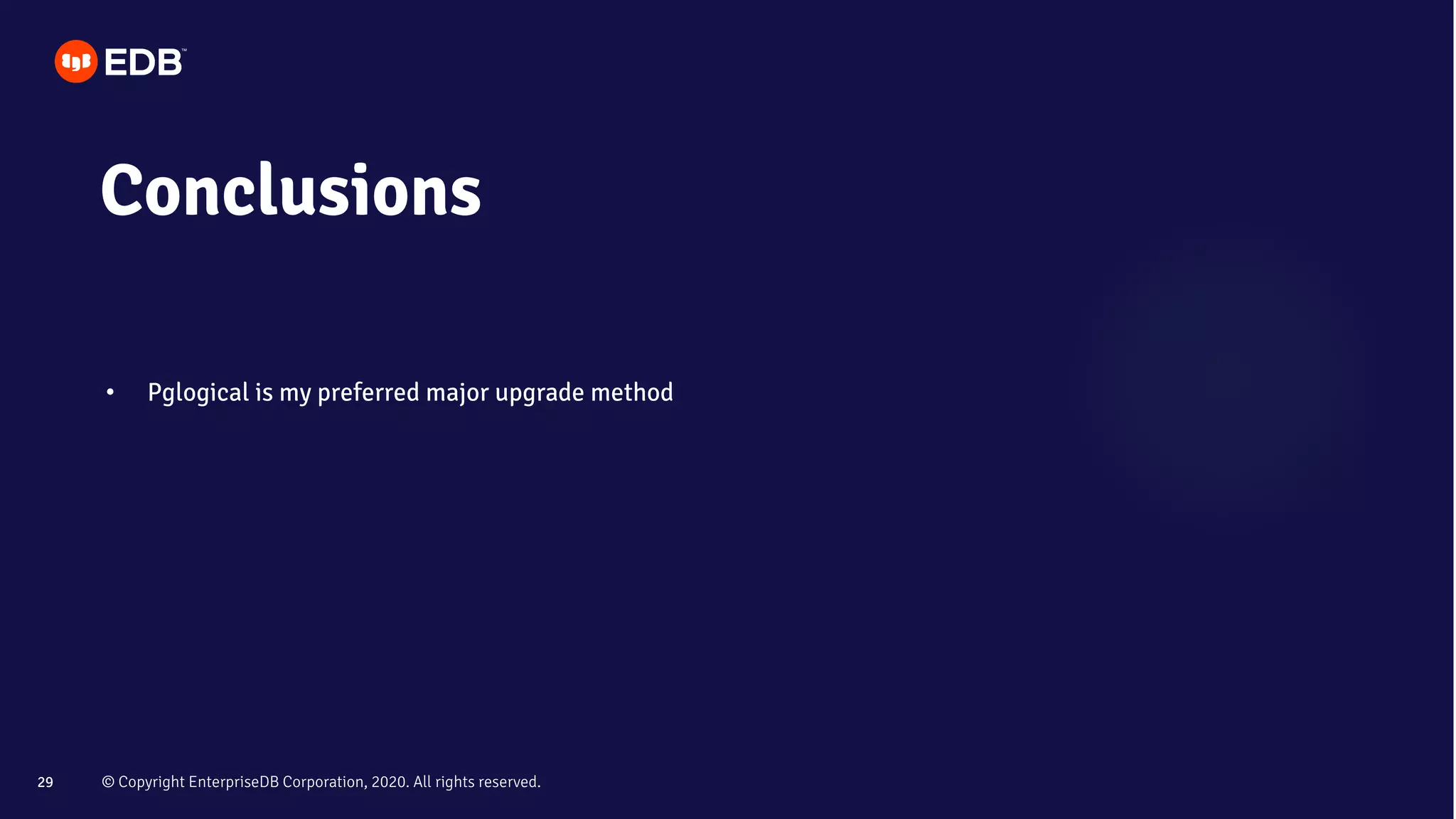

Conclusions
• Pglogical is my preferred major upgrade method

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.30

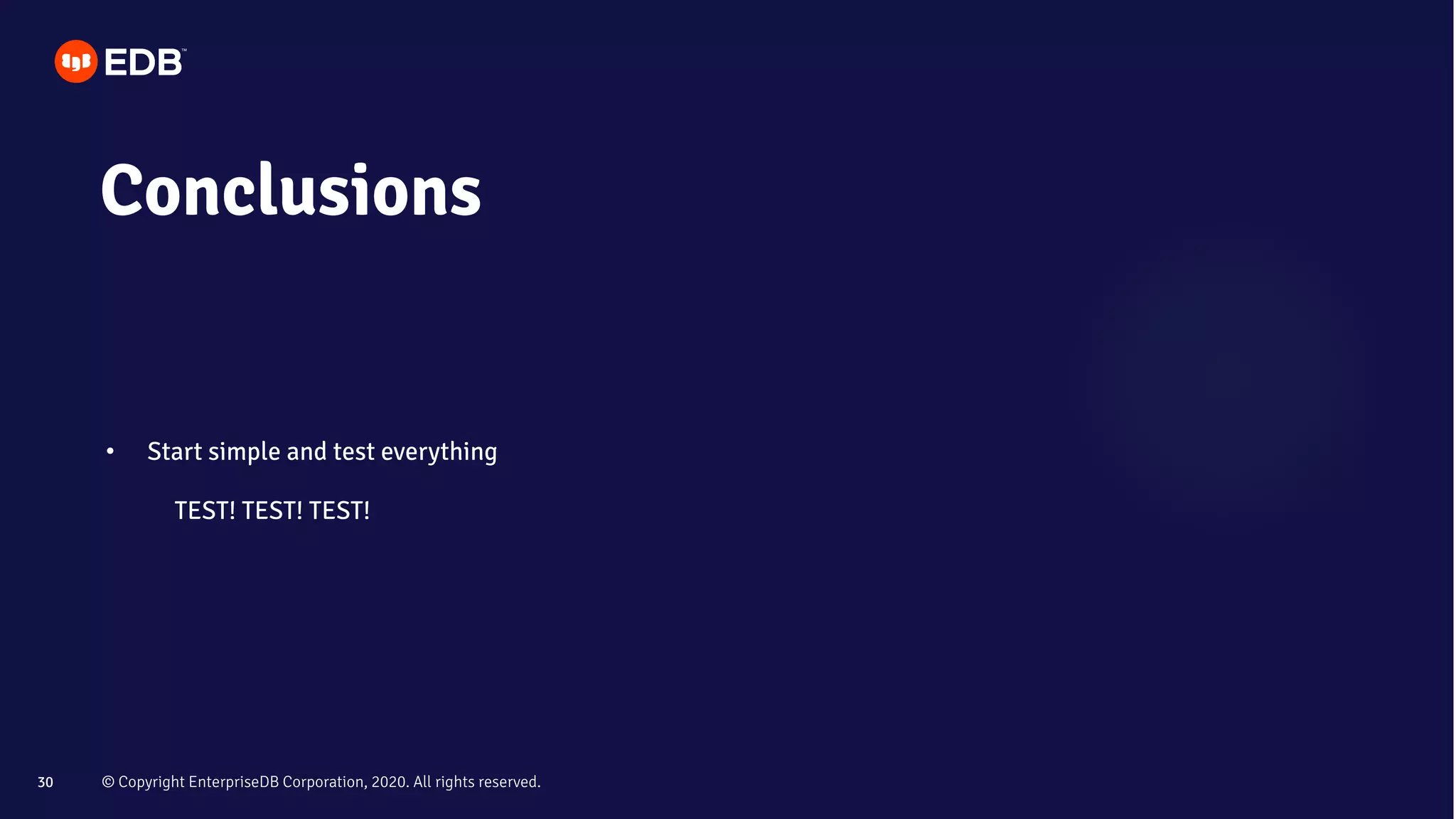

Conclusions
• Start simple and test everything
TEST! TEST! TEST!

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.31

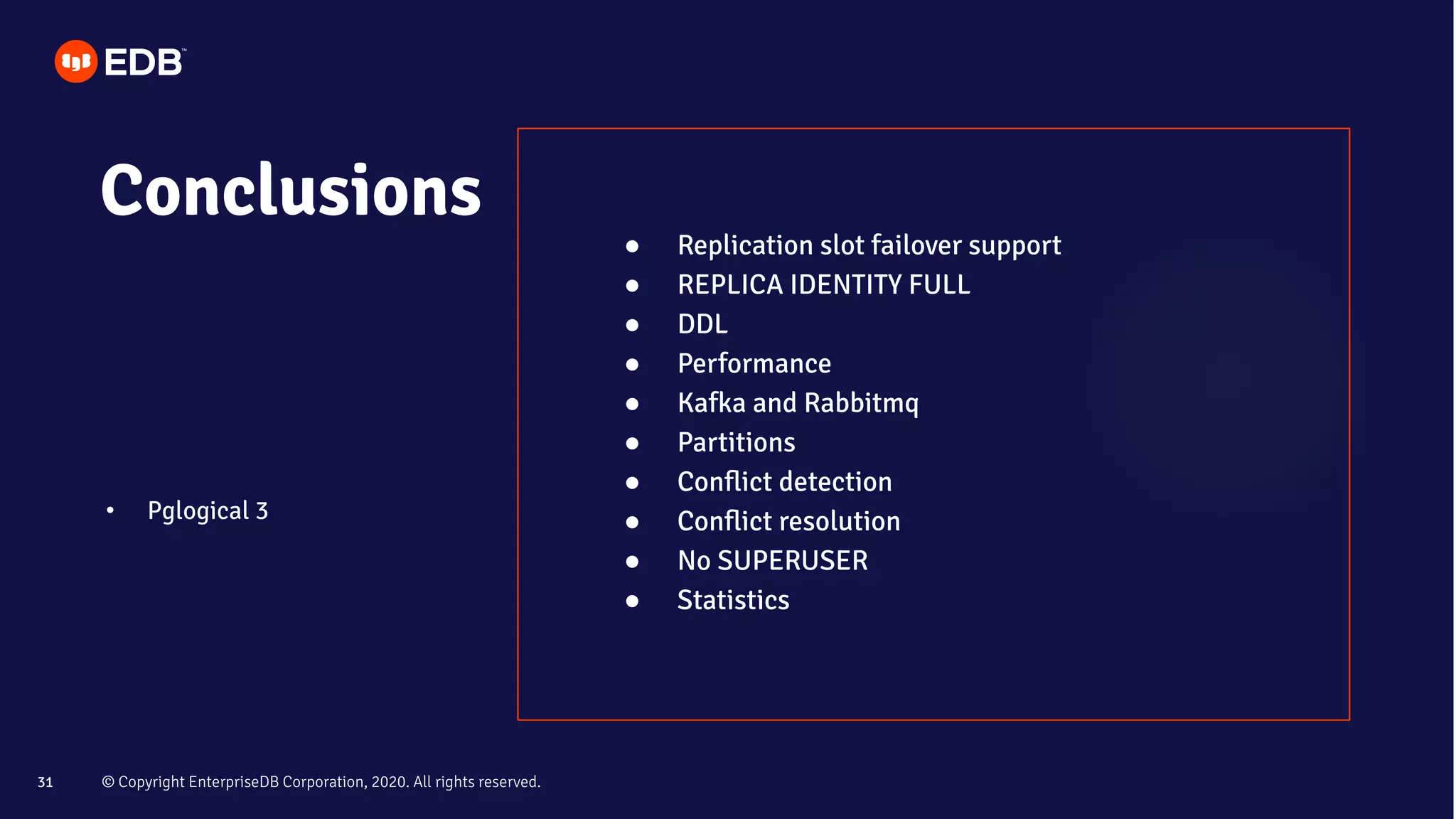

Conclusions
• Pglogical 3
● Replication slot failover support
● REPLICA IDENTITY FULL
● DDL
● Performance
● Kafka and Rabbitmq
● Partitions
● Conﬂict detection
● Conﬂict resolution
● No SUPERUSER
● Statistics

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.32

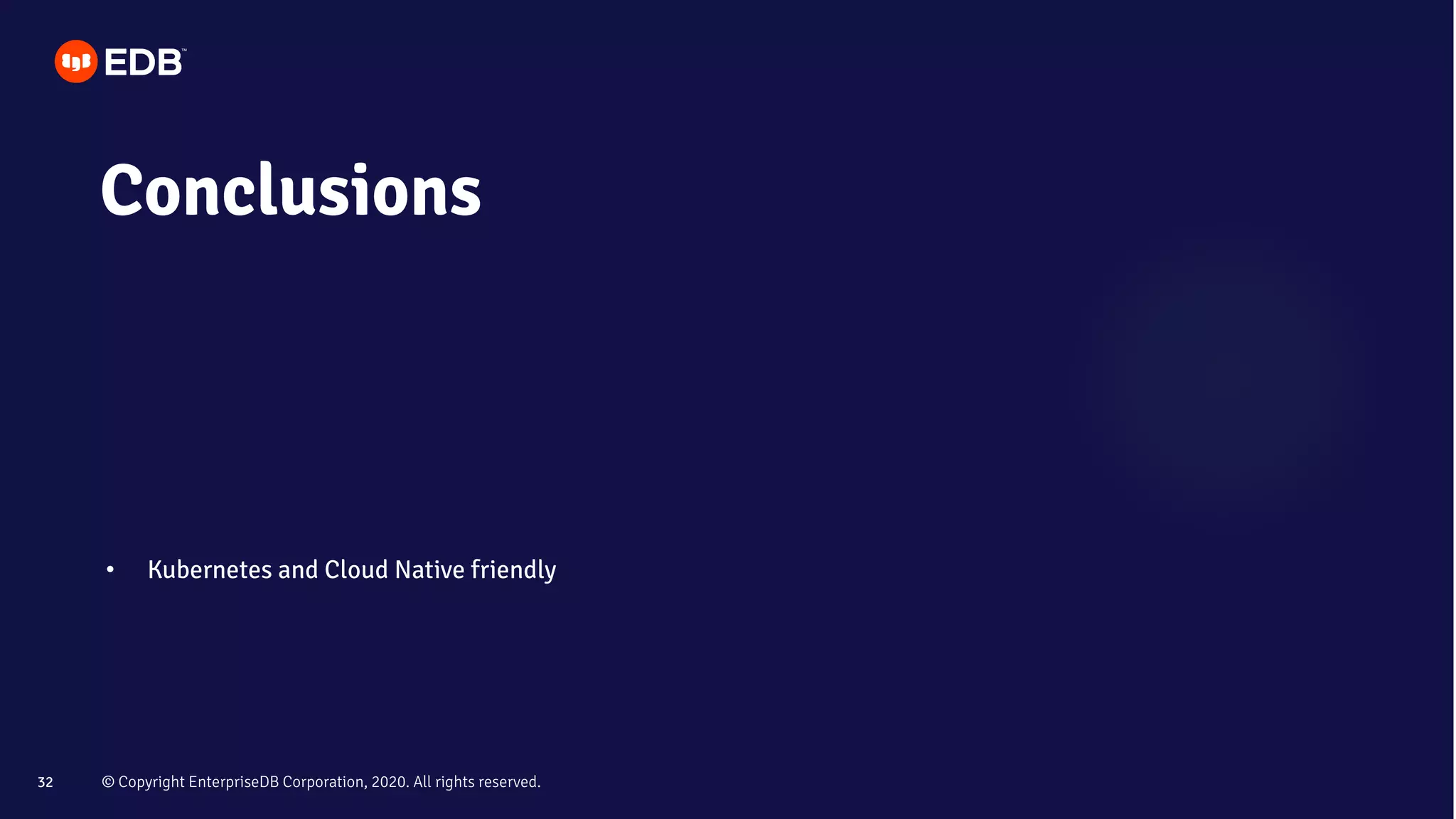

Conclusions
• Kubernetes and Cloud Native friendly

Thank you!
Questions?
@irionr
www.enterprisedb.com/contact
